Kuba Cupisz &
Tobias Alexander Franke
Progressive Lightmapper: An introduction to lightmapping
in Unity
Unity Technologies
Progressive Lightmapper:
An introduction to
lightmapping in Unity
Who are we?
Kuba
Cupisz
Tobias Alexander
Franke

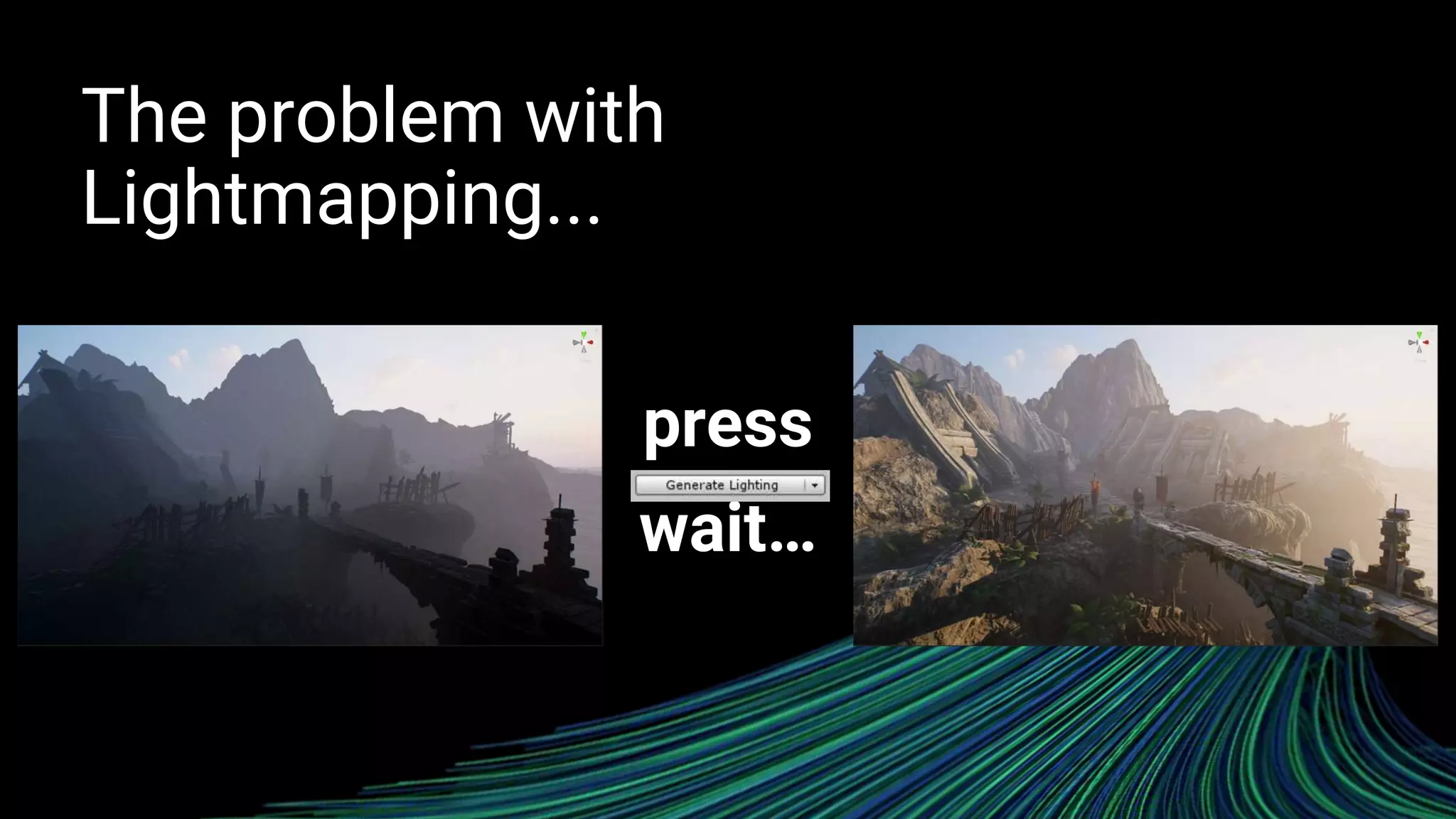

The problem with
Lightmapping...
press
wait…
Milliseconds

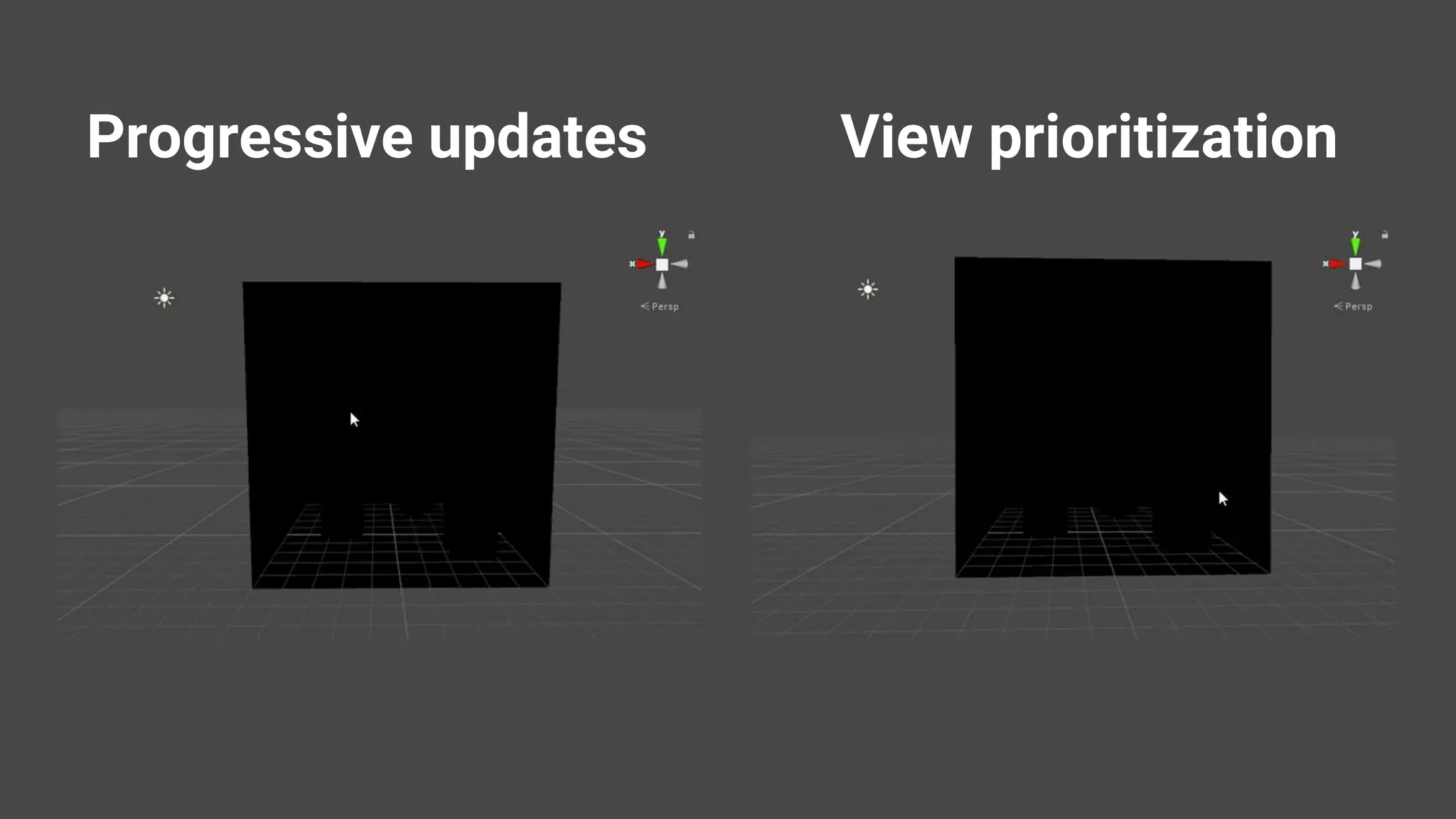

Progressive updates View prioritization

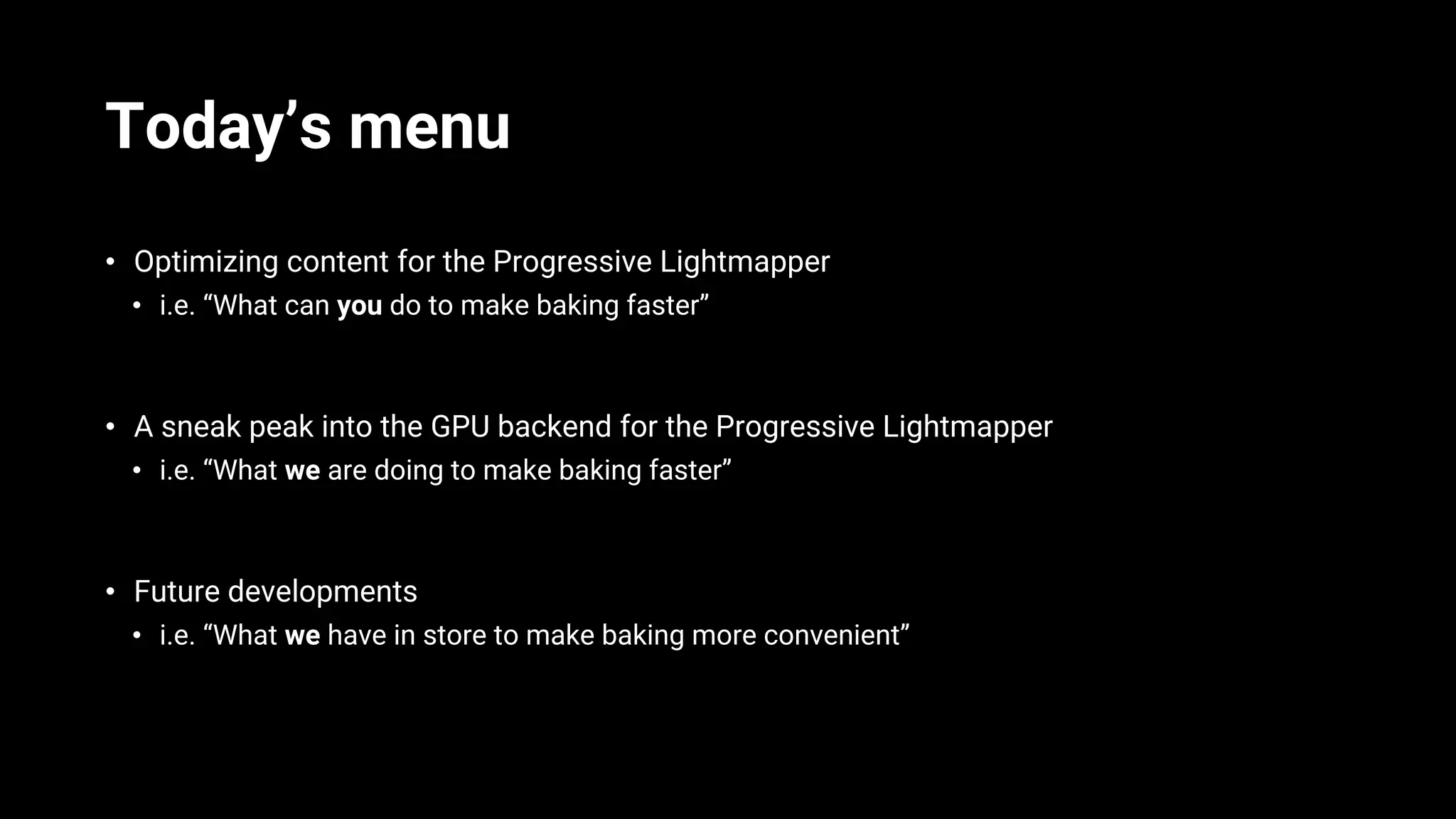

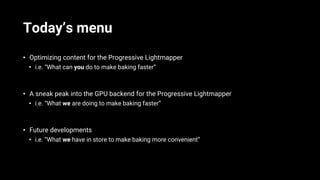

Today’s menu
• Optimizing content for the Progressive Lightmapper
• i.e. “What can you do to make baking faster”
• A sneak peak into the GPU backend for the Progressive Lightmapper
• i.e. “What we are doing to make baking faster”
• Future developments
• i.e. “What we have in store to make baking more convenient”
Part 1: Optimizing
baking in the
Progressive
Lightmapper
Global
Illumination:
Gambling with
photons until
you think you
have won

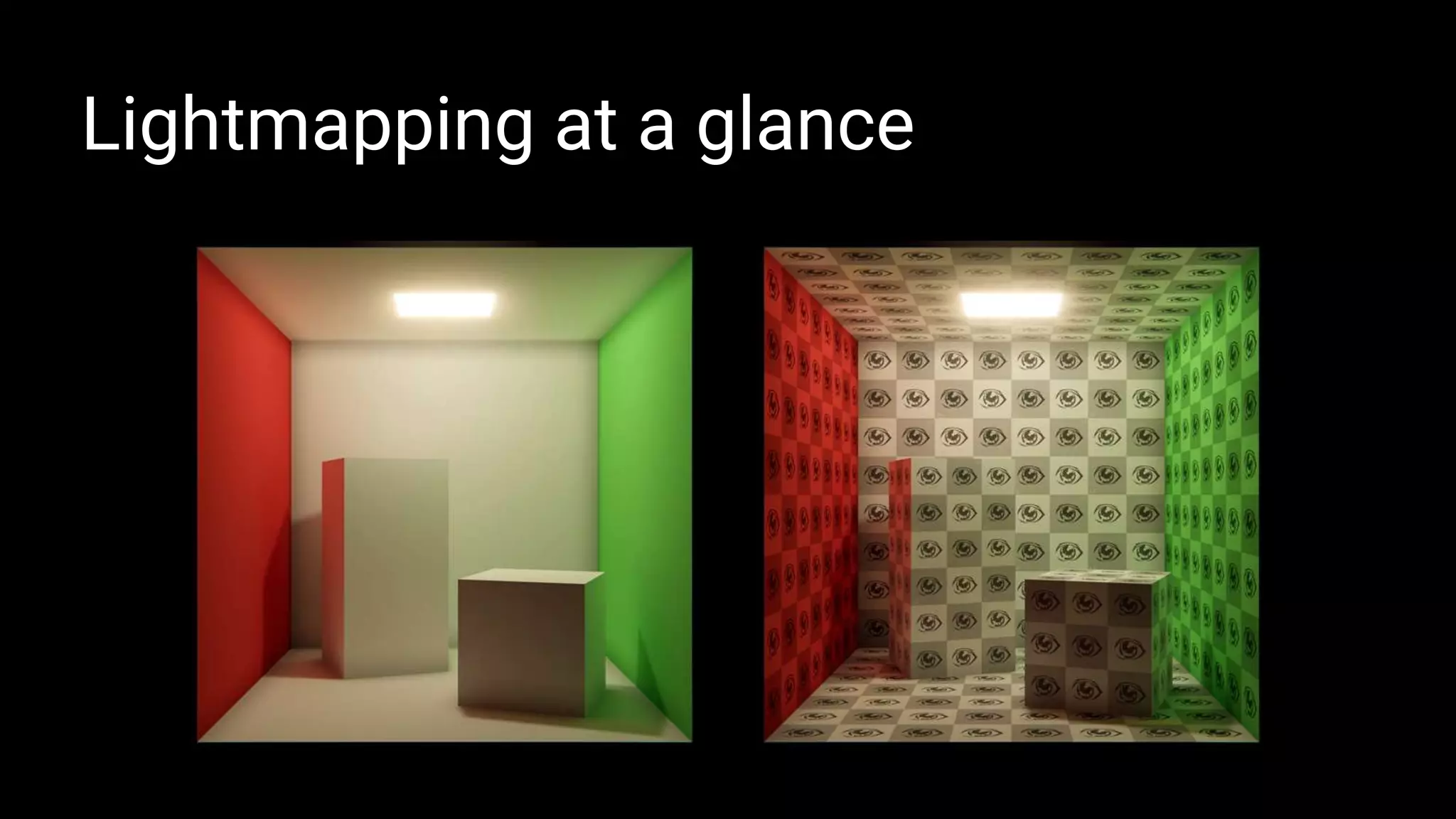

Lightmapping at a glance

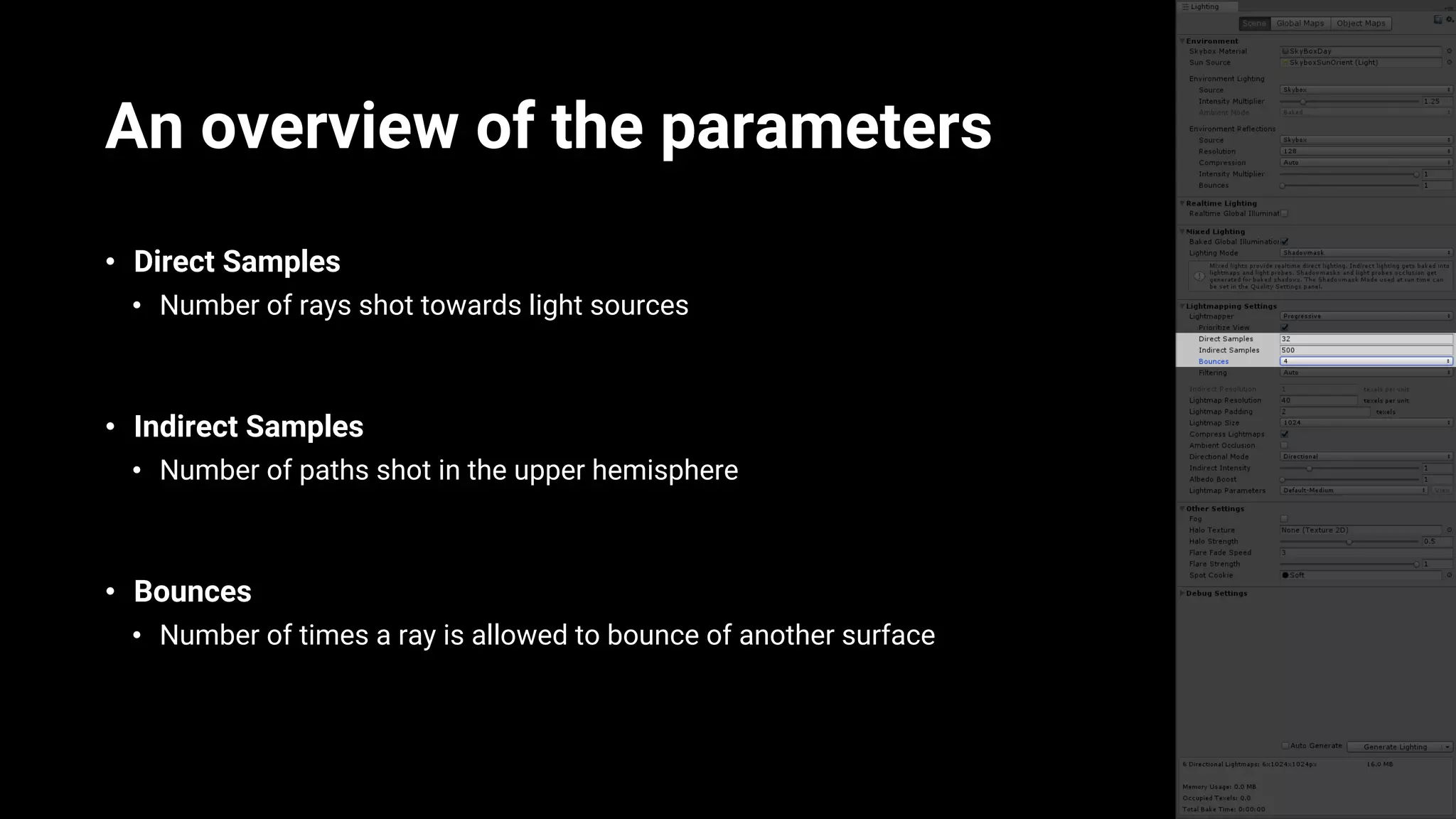

An overview of the parameters
• Direct Samples
• Number of rays shot towards light sources
• Indirect Samples
• Number of paths shot in the upper hemisphere
• Bounces
• Number of times a ray is allowed to bounce of another surface

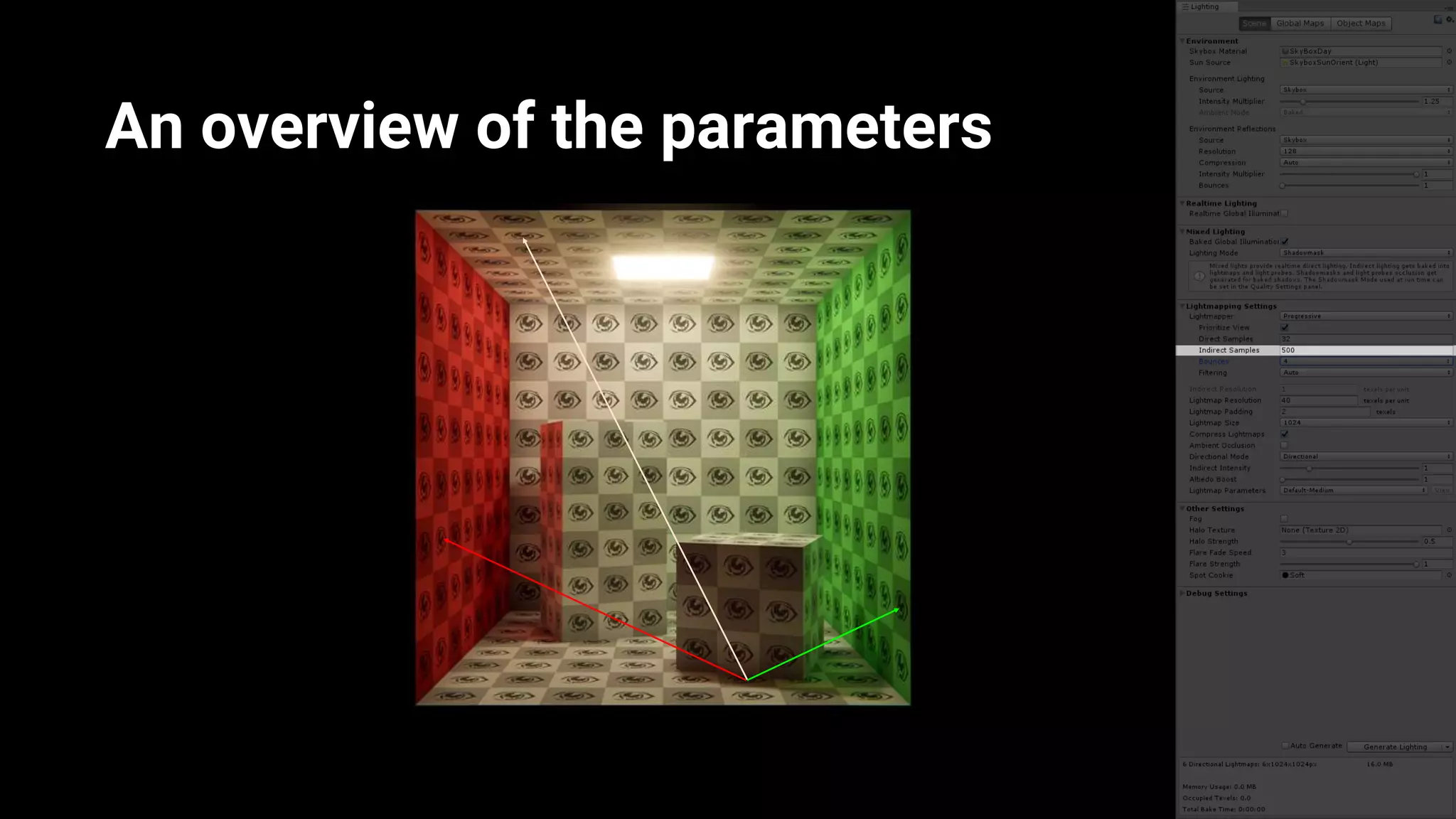

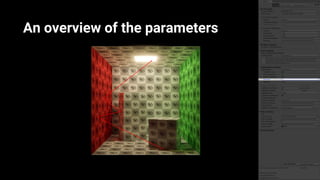

An overview of the parameters
An overview of the parameters
An overview of the parameters

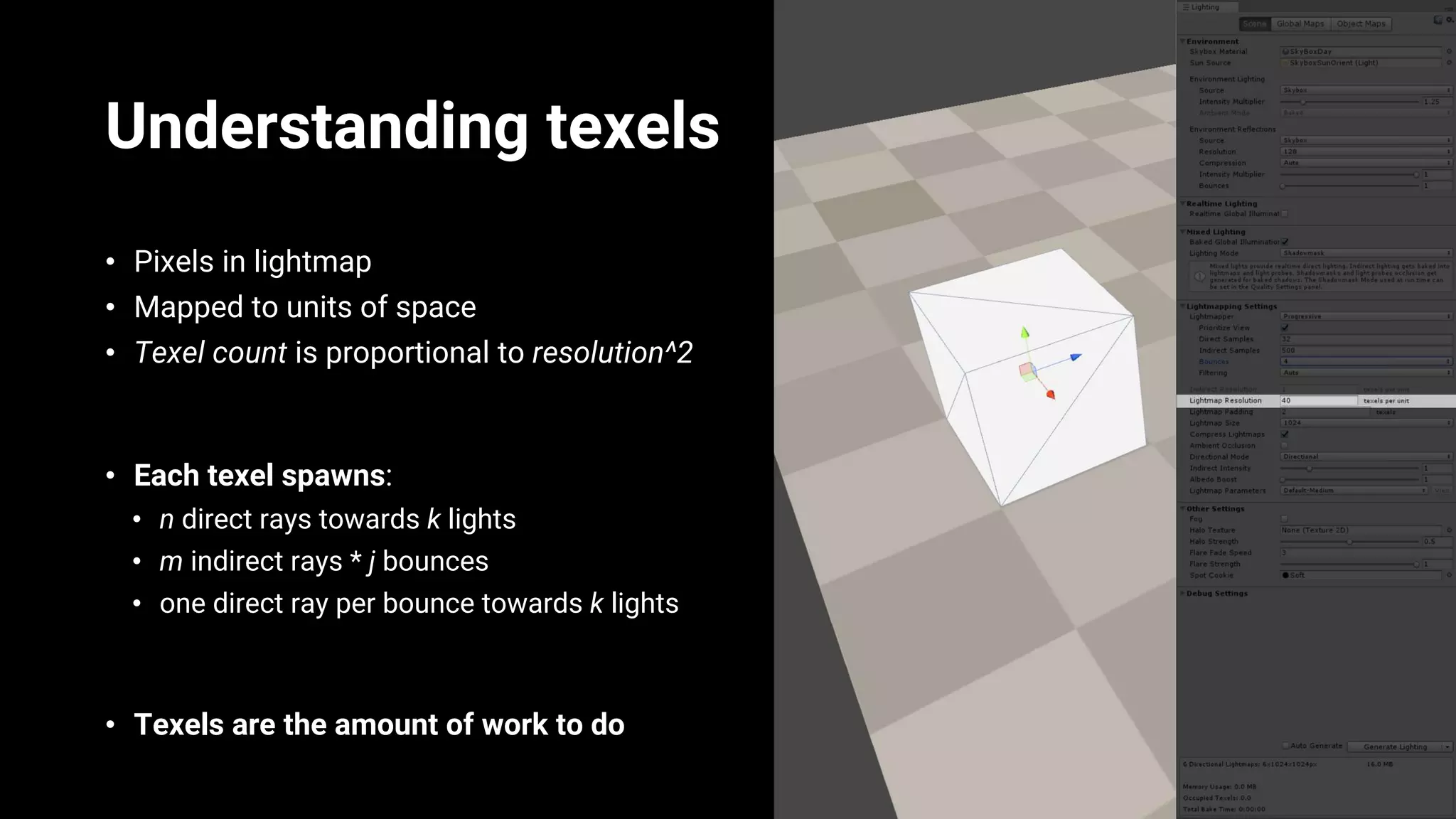

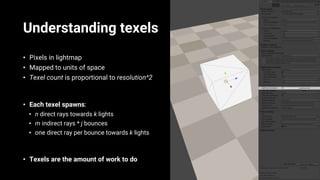

Understanding texels
• Pixels in lightmap
• Mapped to units of space
• Texel count is proportional to resolution^2
• Each texel spawns:
• n direct rays towards k lights
• m indirect rays * j bounces
• one direct ray per bounce towards k lights
• Texels are the amount of work to do
• Texels are the amount of work to

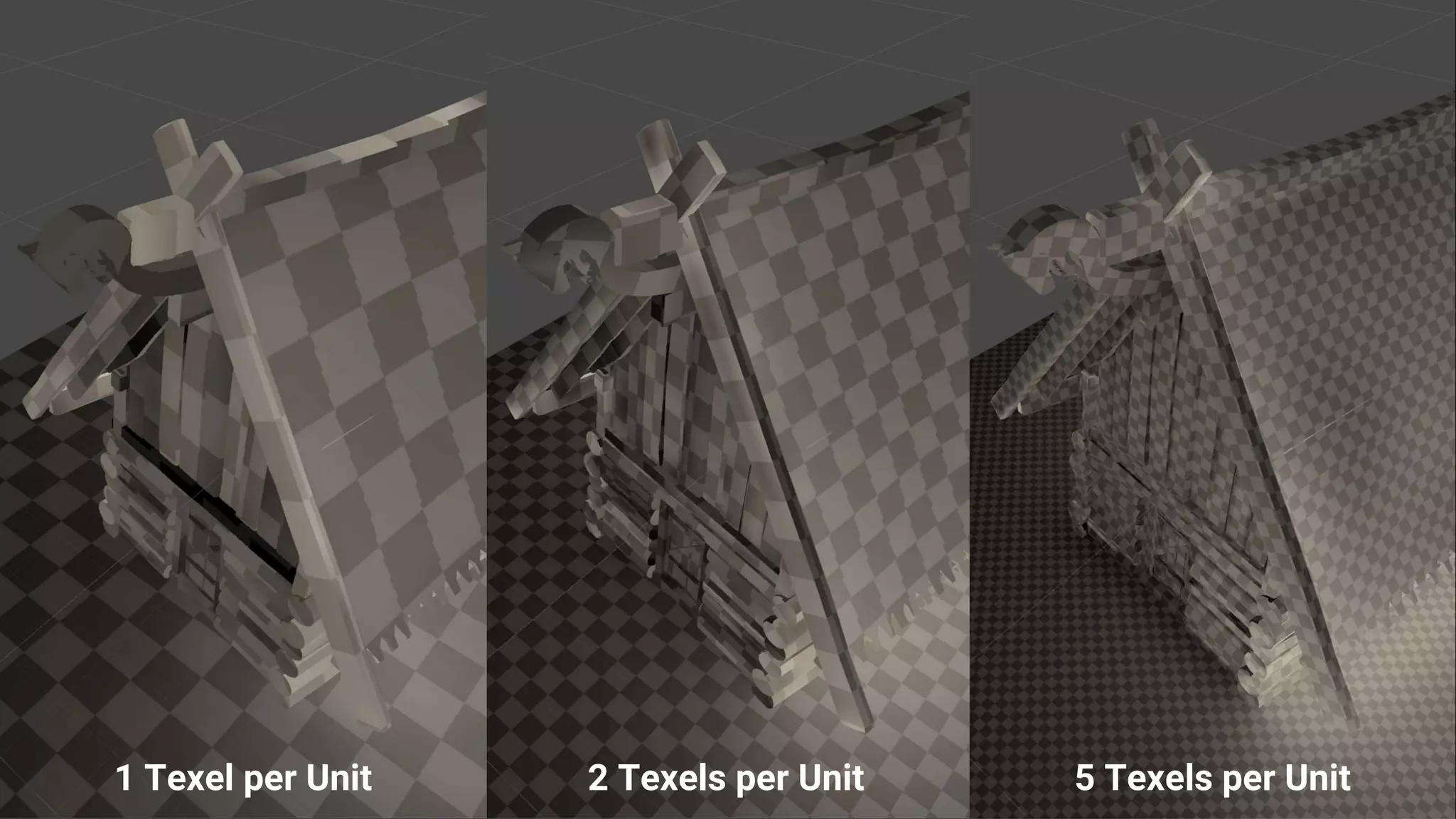

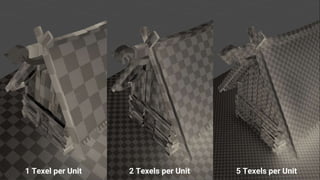

1 Texel per Unit 2 Texels per Unit 5 Texels per Unit
You don’t need to bake texels if you
don’t put them into the lightmap!

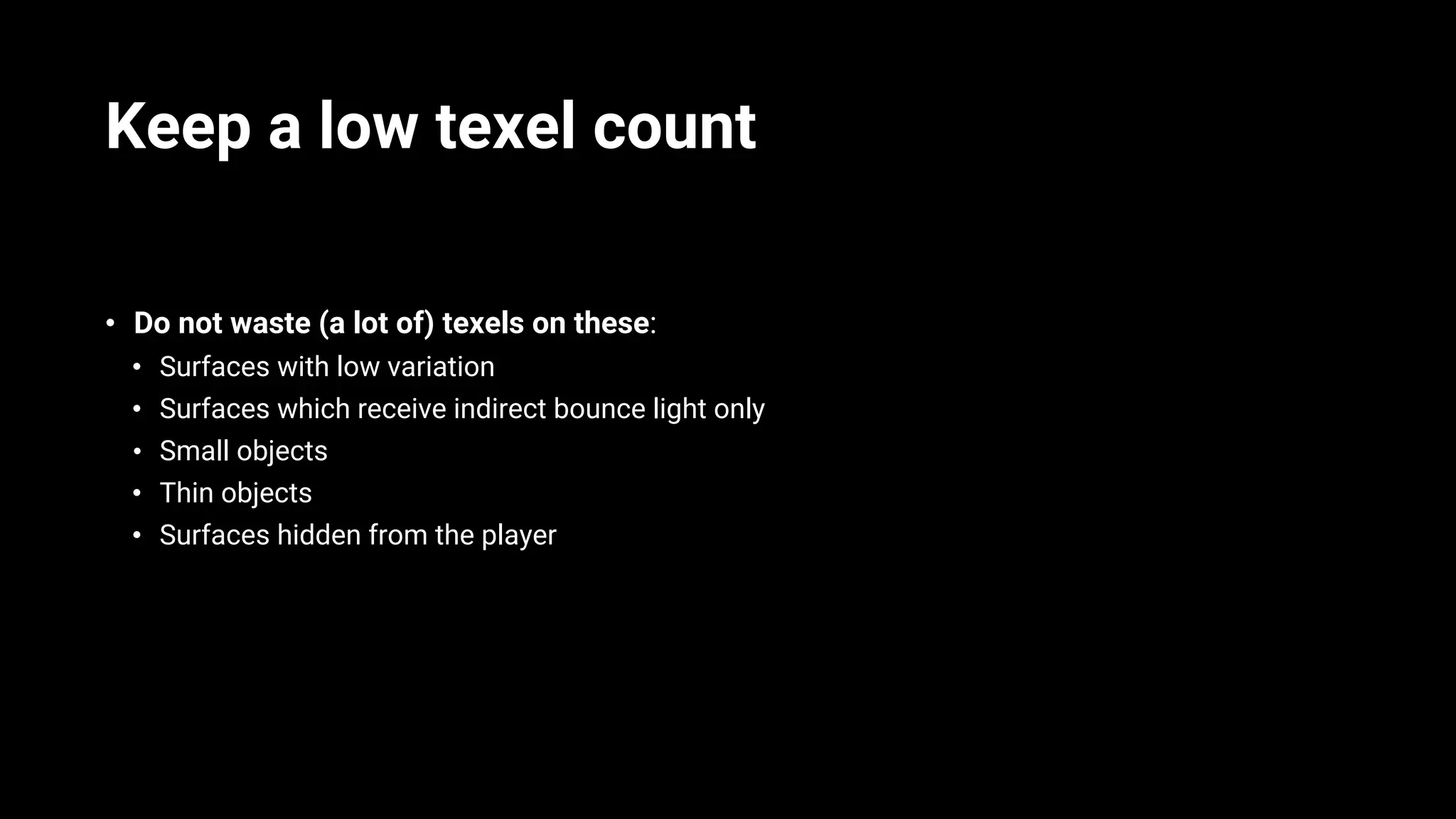

Keep a low texel count
• Do not waste (a lot of) texels on these:
• Surfaces with low variation
• Surfaces which receive indirect bounce light only
• Small objects
• Thin objects
• Surfaces hidden from the player

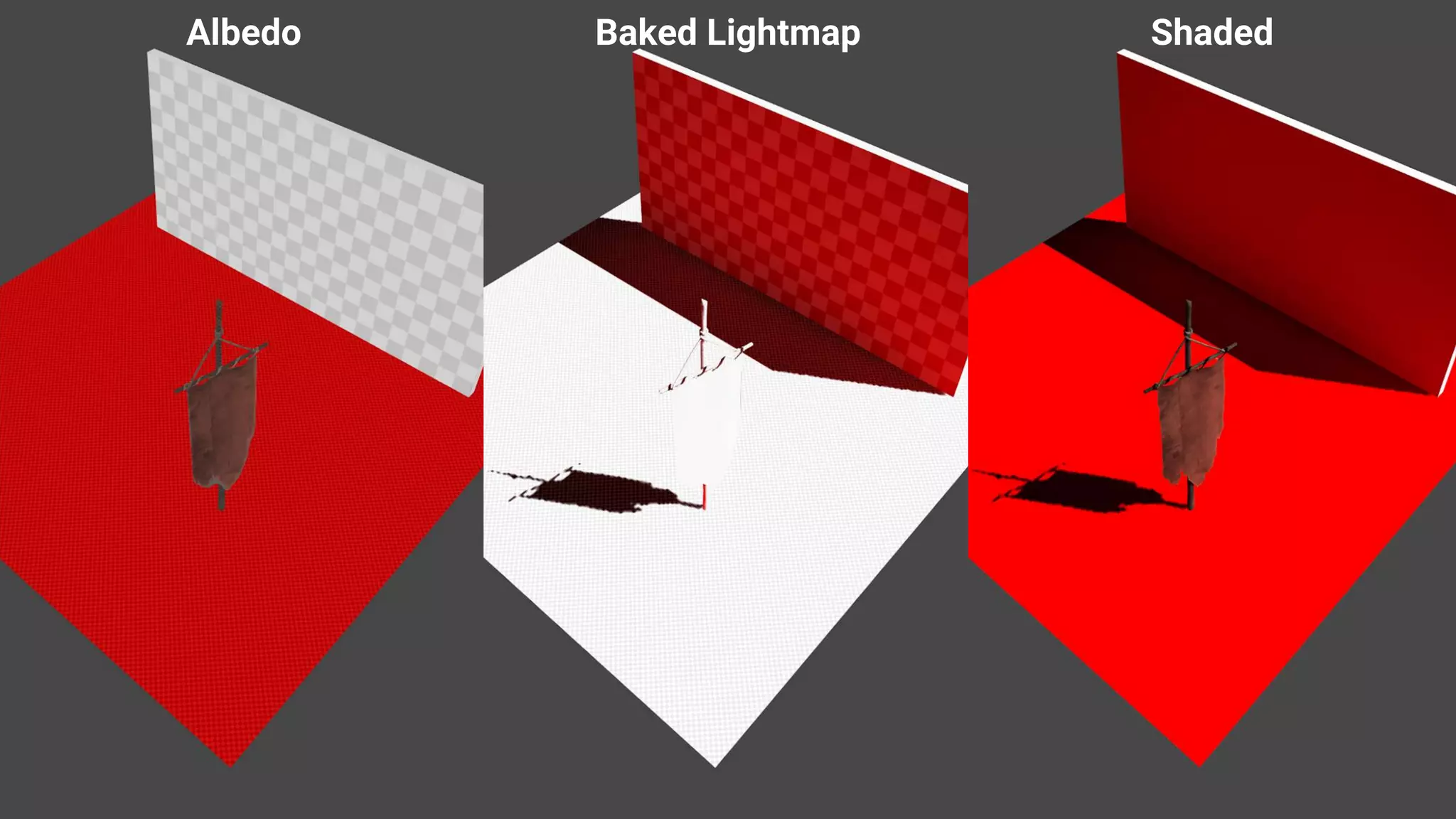

Albedo Baked Lightmap Shaded

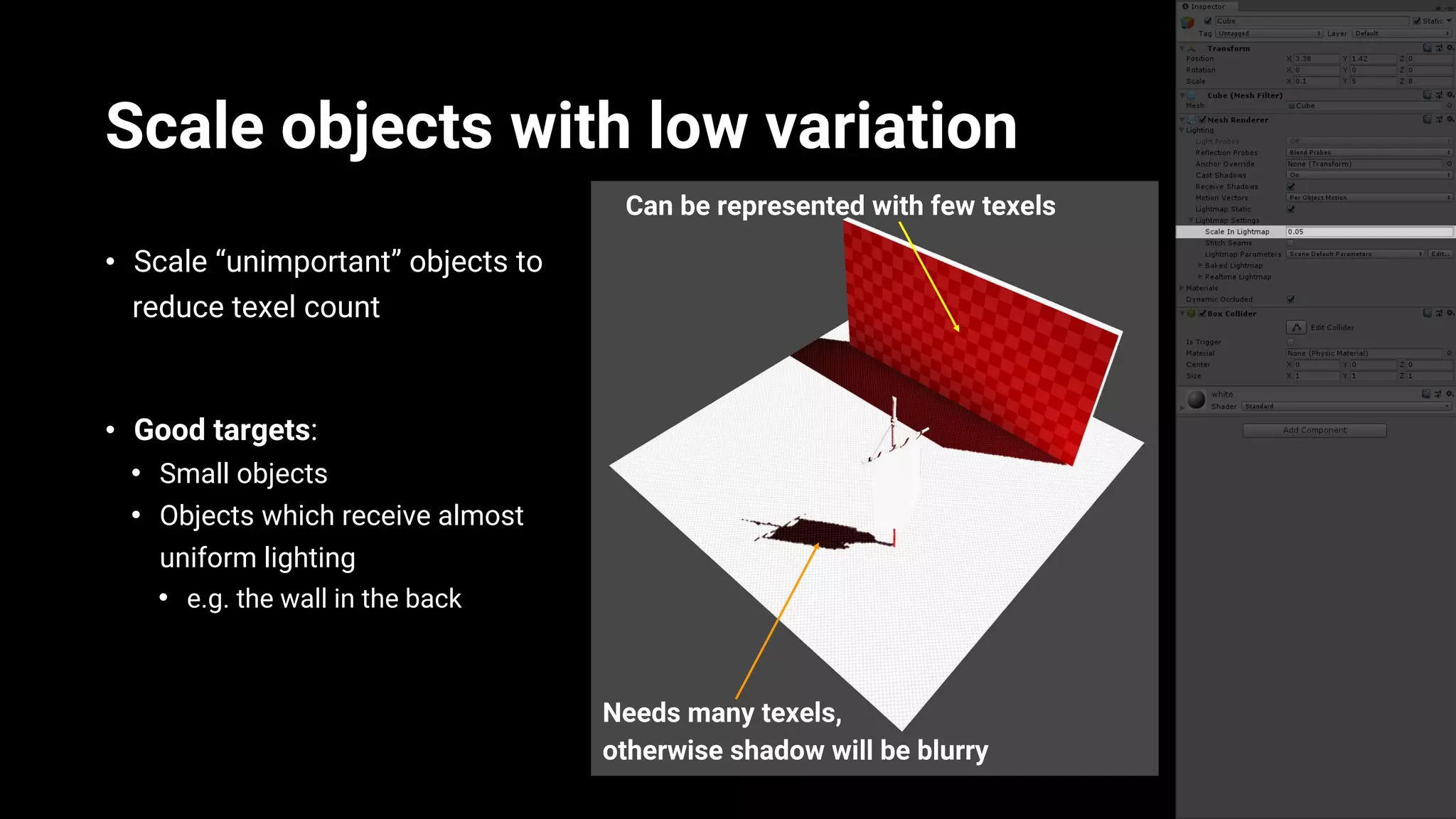

Scale objects with low variation
• Scale “unimportant” objects to
reduce texel count
• Good targets:
• Small objects
• Objects which receive almost
uniform lighting
• e.g. the wall in the back
Can be represented with few texels
Needs many texels,
otherwise shadow will be blurry

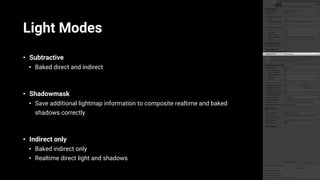

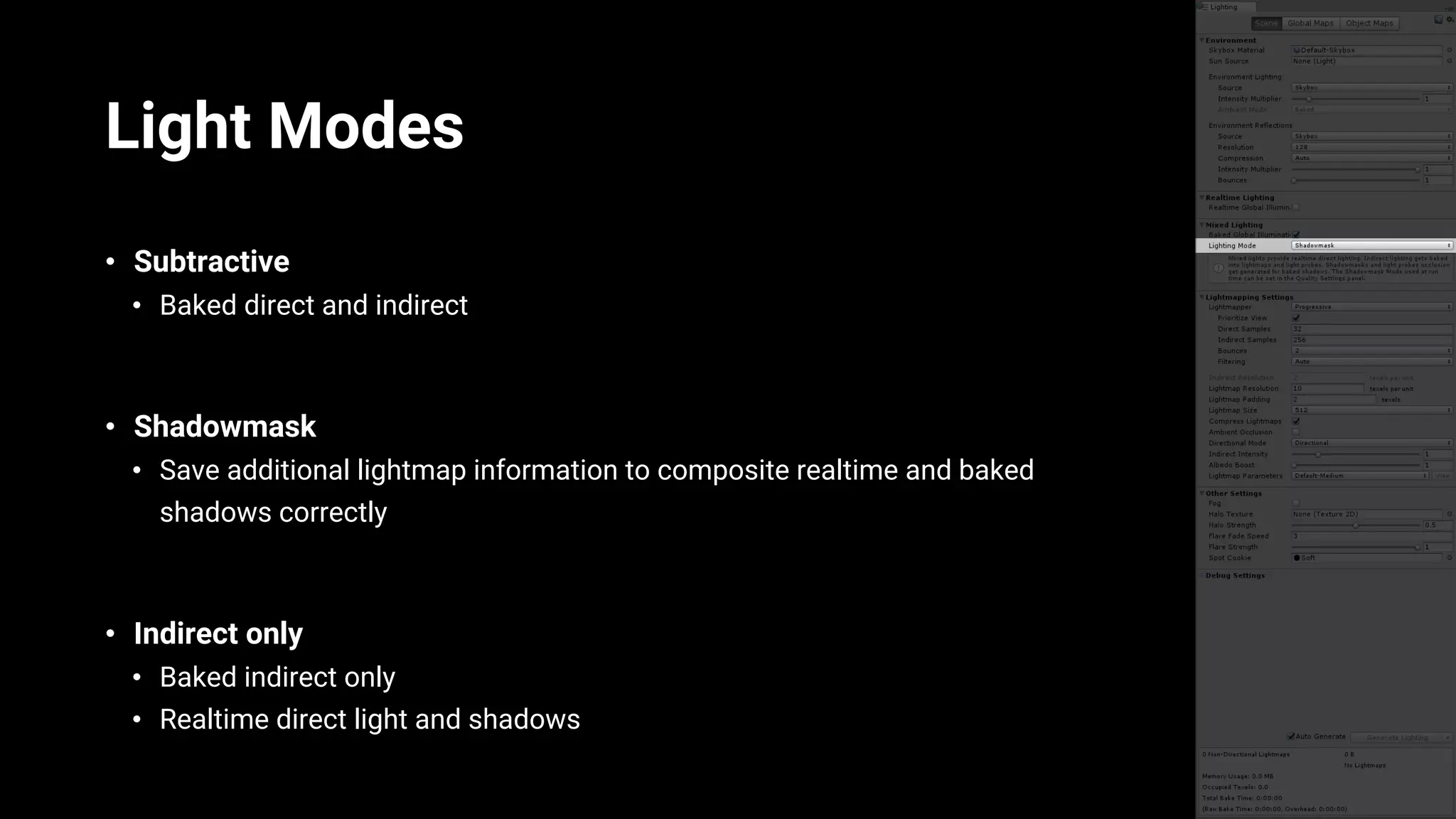

Light Modes
• Subtractive
• Baked direct and indirect
• Shadowmask
• Save additional lightmap information to composite realtime and baked
shadows correctly
• Indirect only
• Baked indirect only
• Realtime direct light and shadows
Shadowmask/Subtractive Baked Indirect

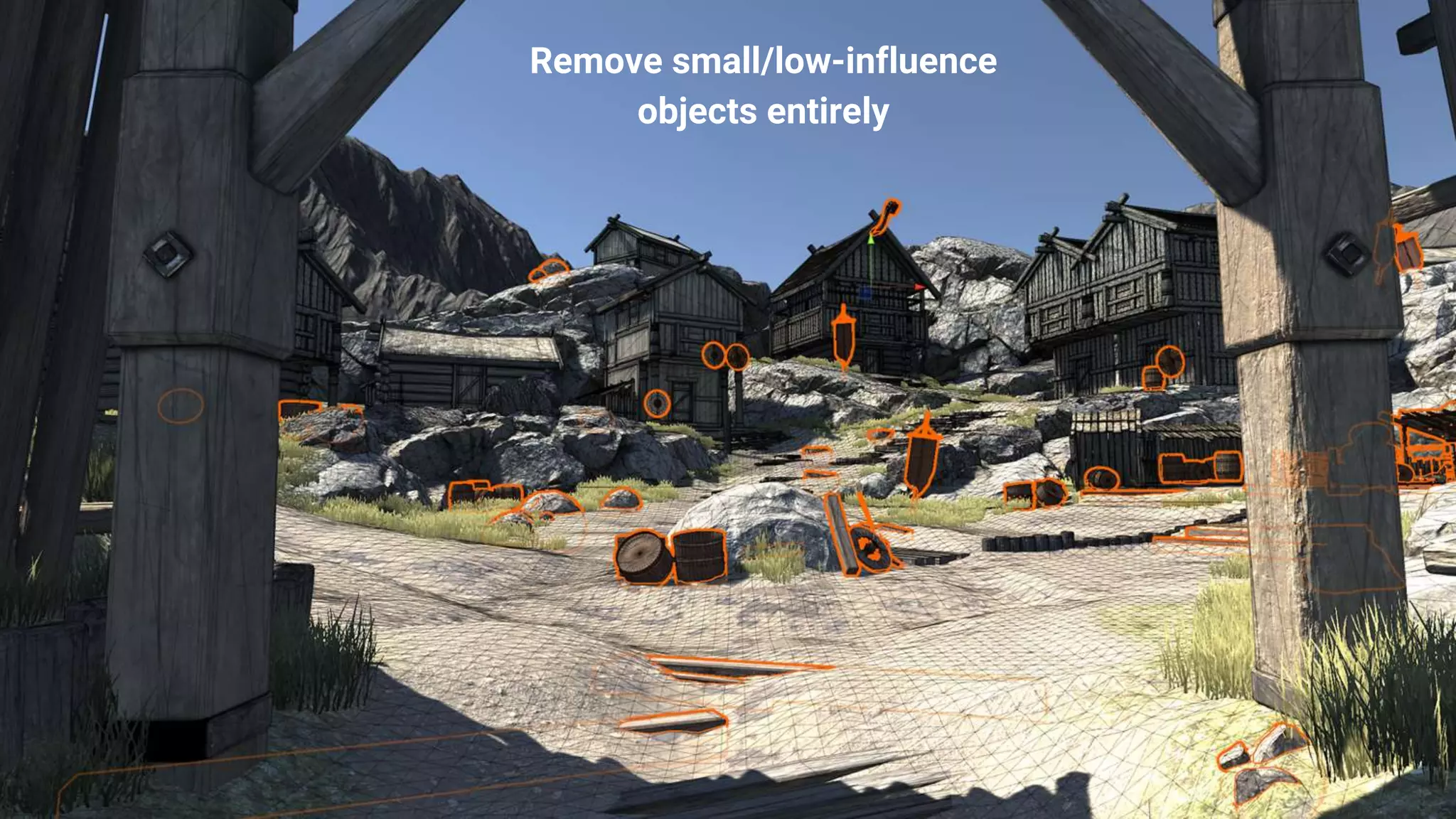

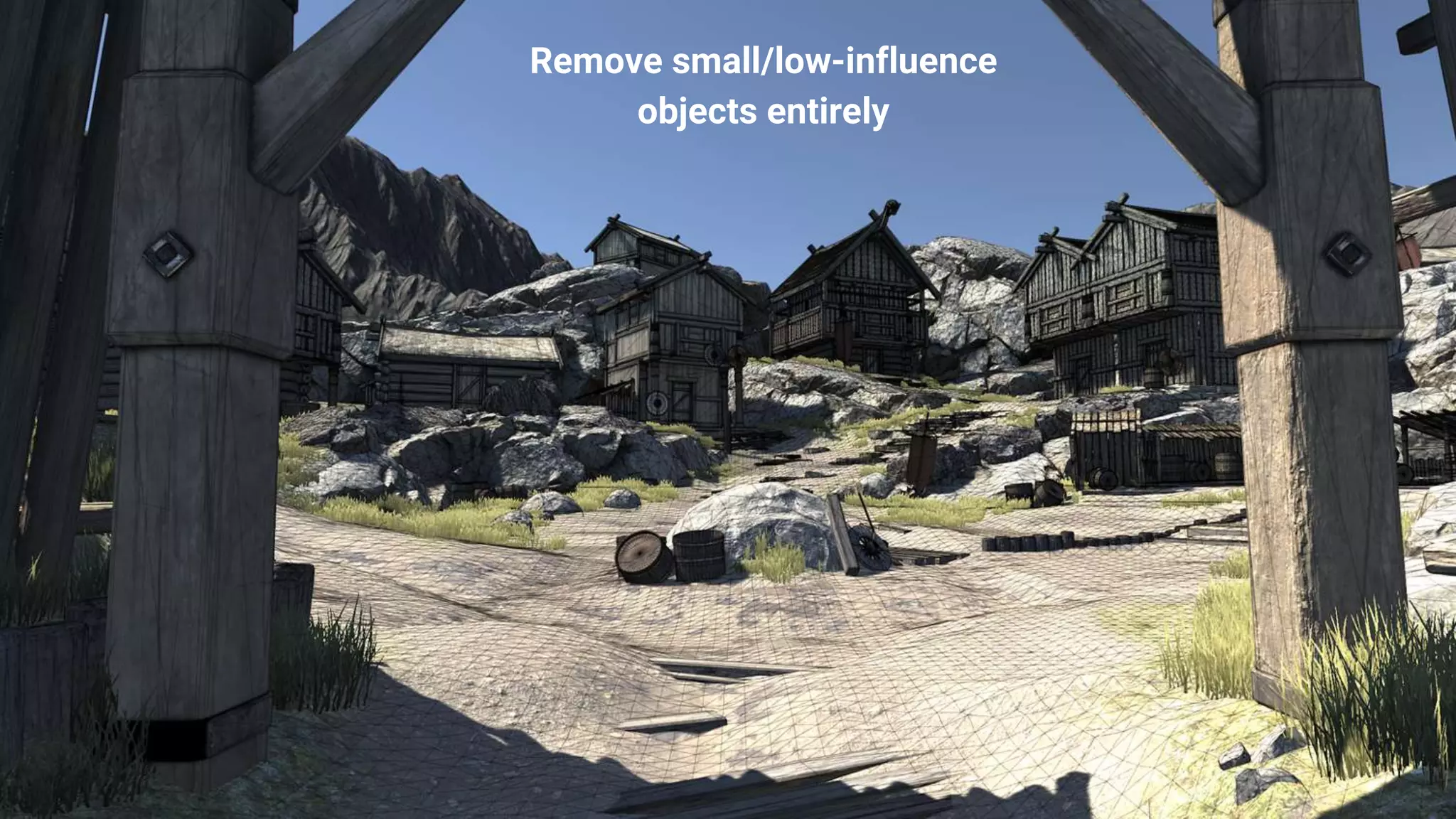

Remove small/low-influence
objects entirely
Remove small/low-influence
objects entirely

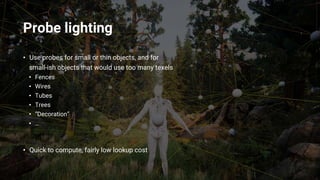

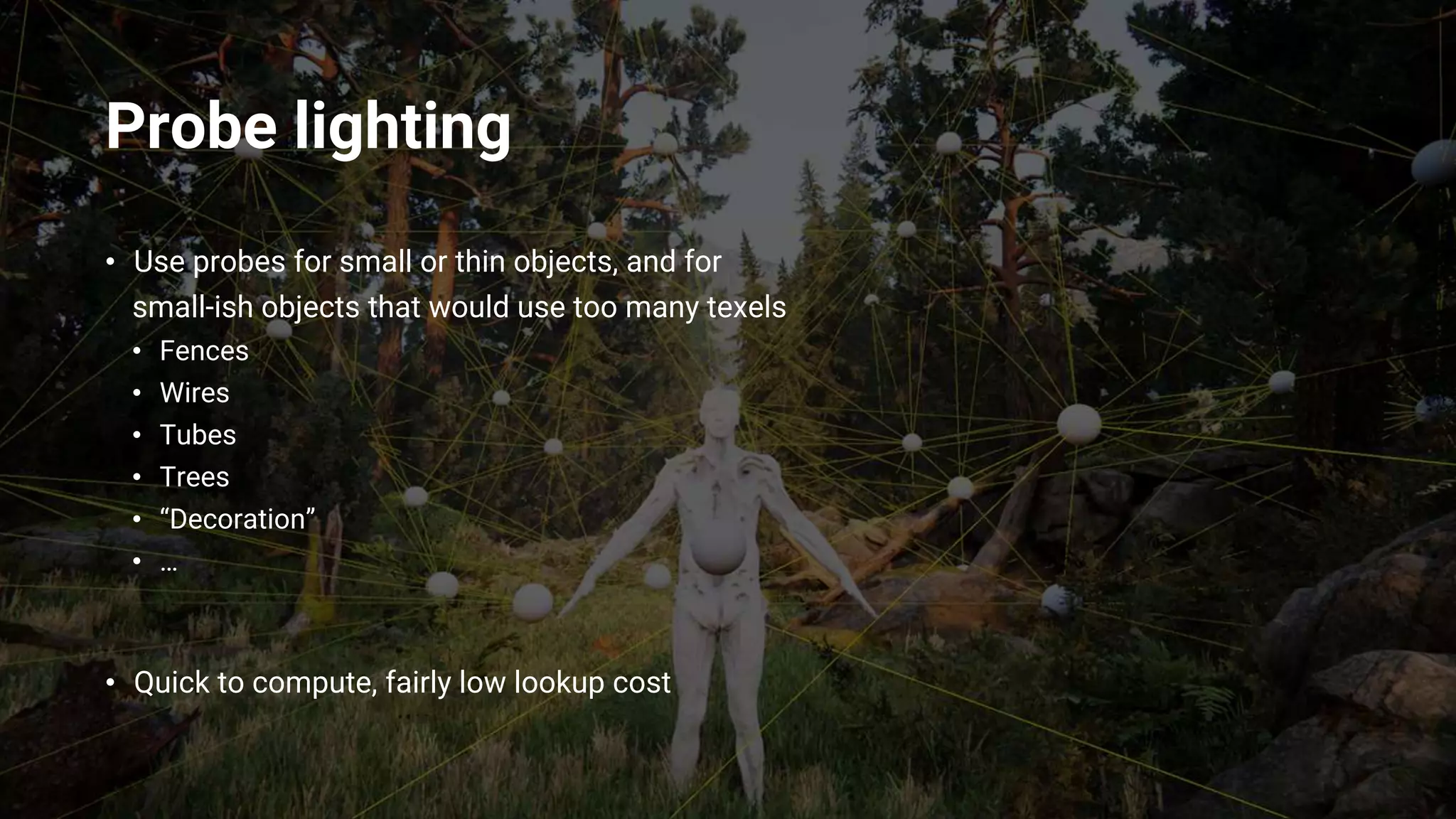

Probe lighting
• Use probes for small or thin objects, and for
small-ish objects that would use too many texels
• Fences
• Wires
• Tubes
• Trees
• “Decoration”
• …
• Quick to compute, fairly low lookup cost

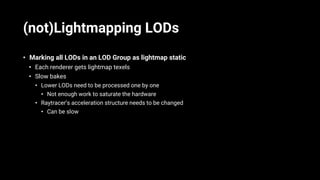

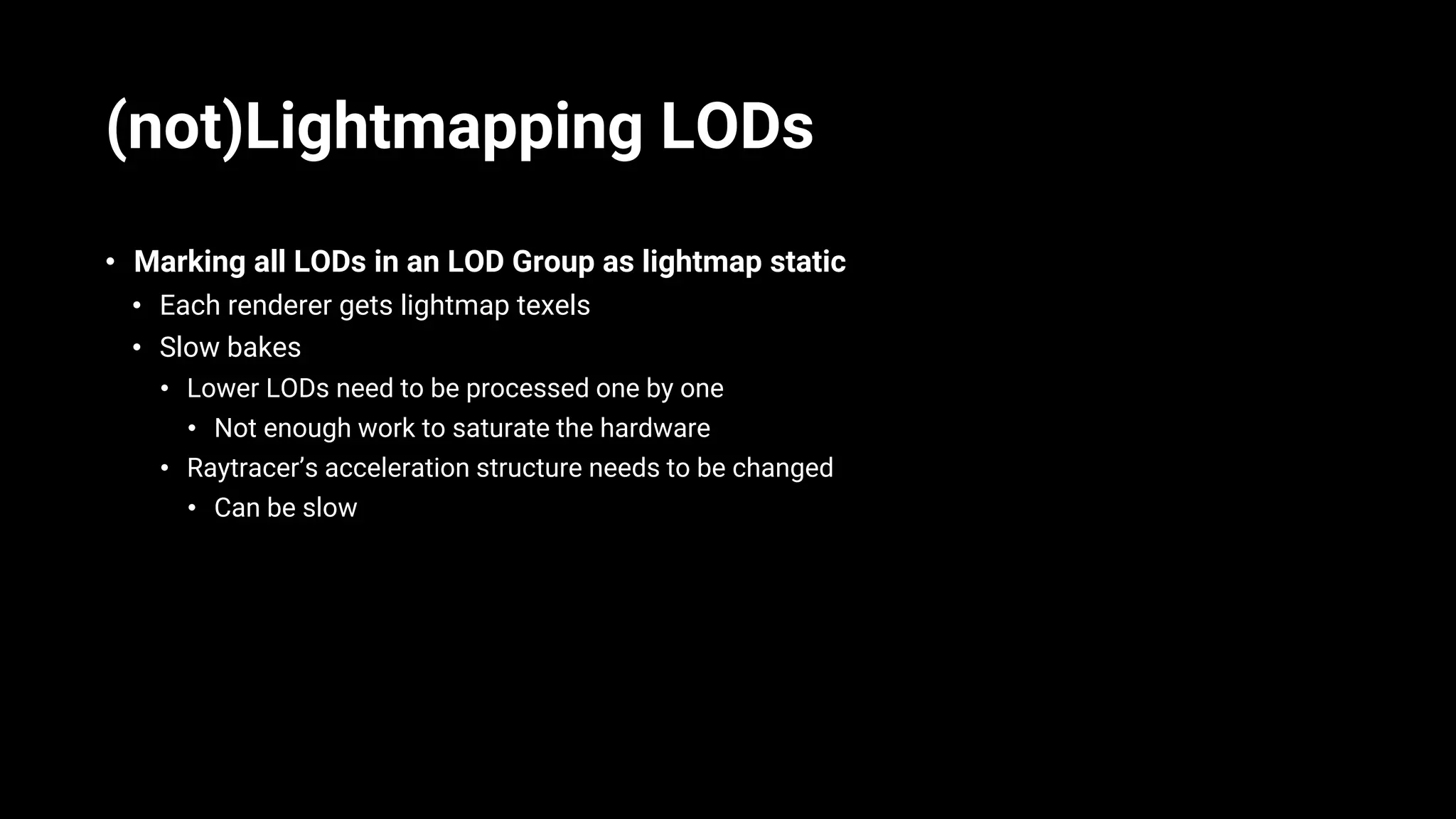

(not)Lightmapping LODs
• Marking all LODs in an LOD Group as lightmap static
• Each renderer gets lightmap texels
• Slow bakes
• Lower LODs need to be processed one by one
• Not enough work to saturate the hardware
• Raytracer’s acceleration structure needs to be changed
• Can be slow

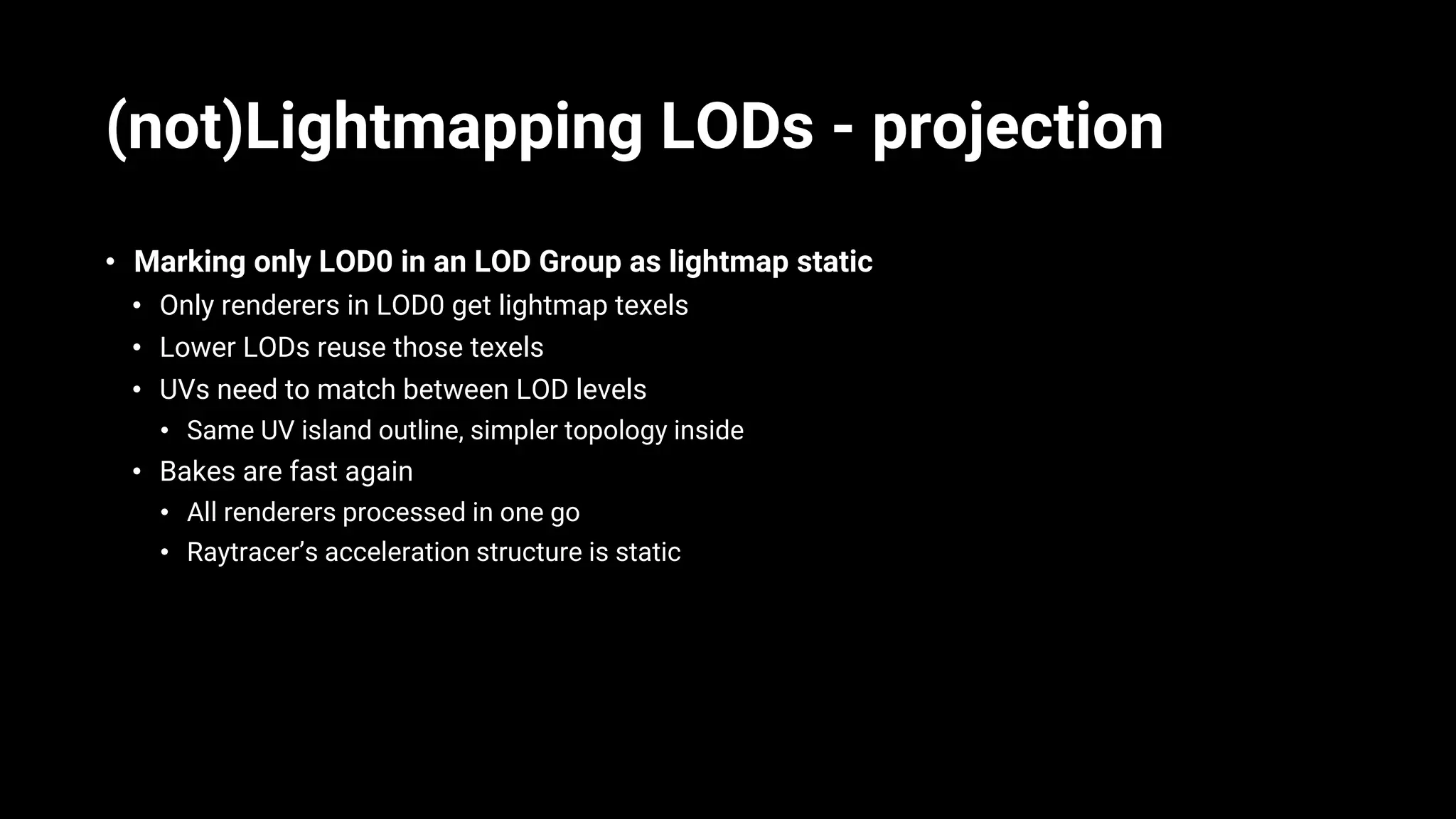

(not)Lightmapping LODs - projection
• Marking only LOD0 in an LOD Group as lightmap static
• Only renderers in LOD0 get lightmap texels
• Lower LODs reuse those texels
• UVs need to match between LOD levels
• Same UV island outline, simpler topology inside
• Bakes are fast again
• All renderers processed in one go
• Raytracer’s acceleration structure is static

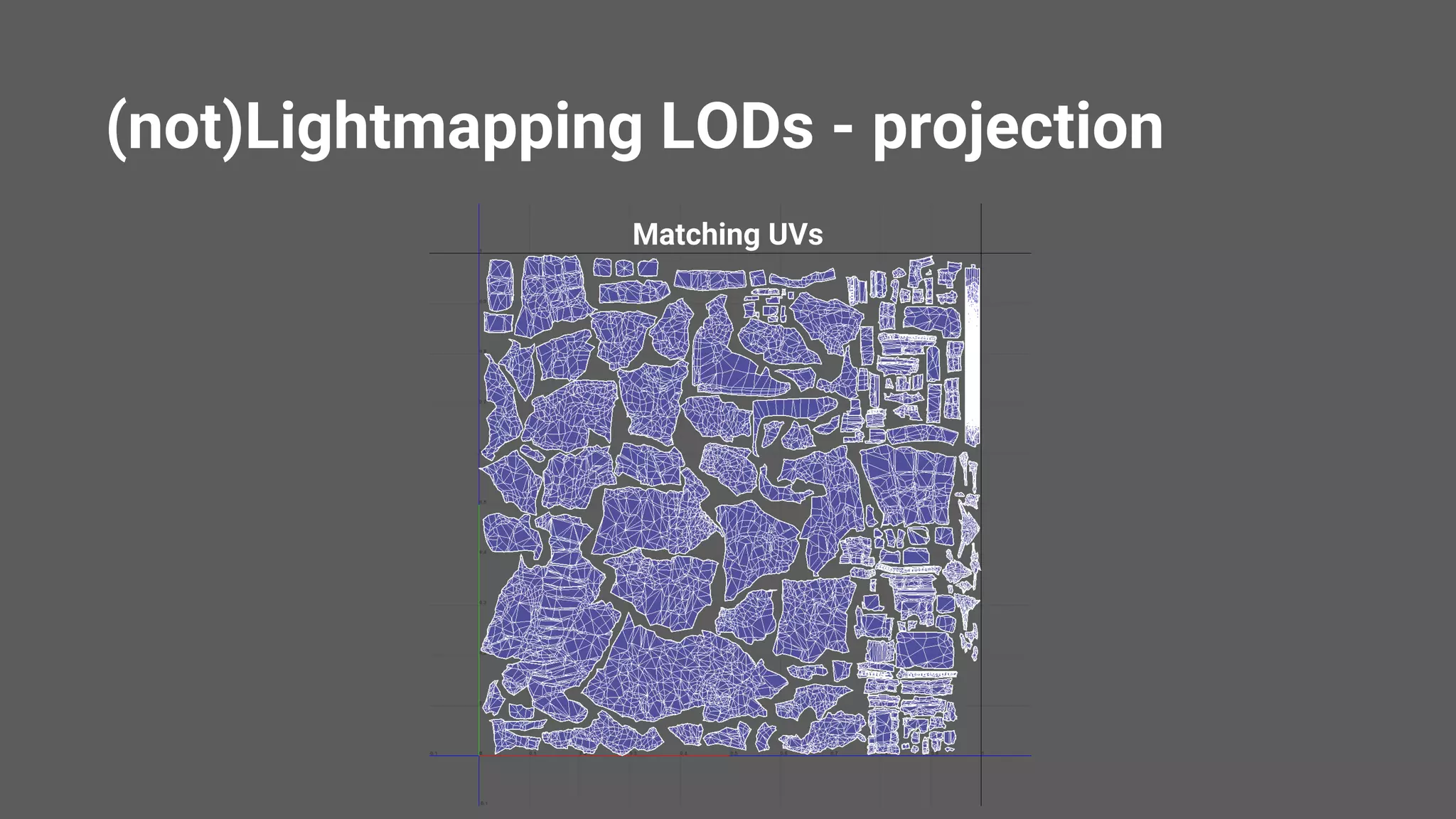

(not)Lightmapping LODs - projection
Matching UVs

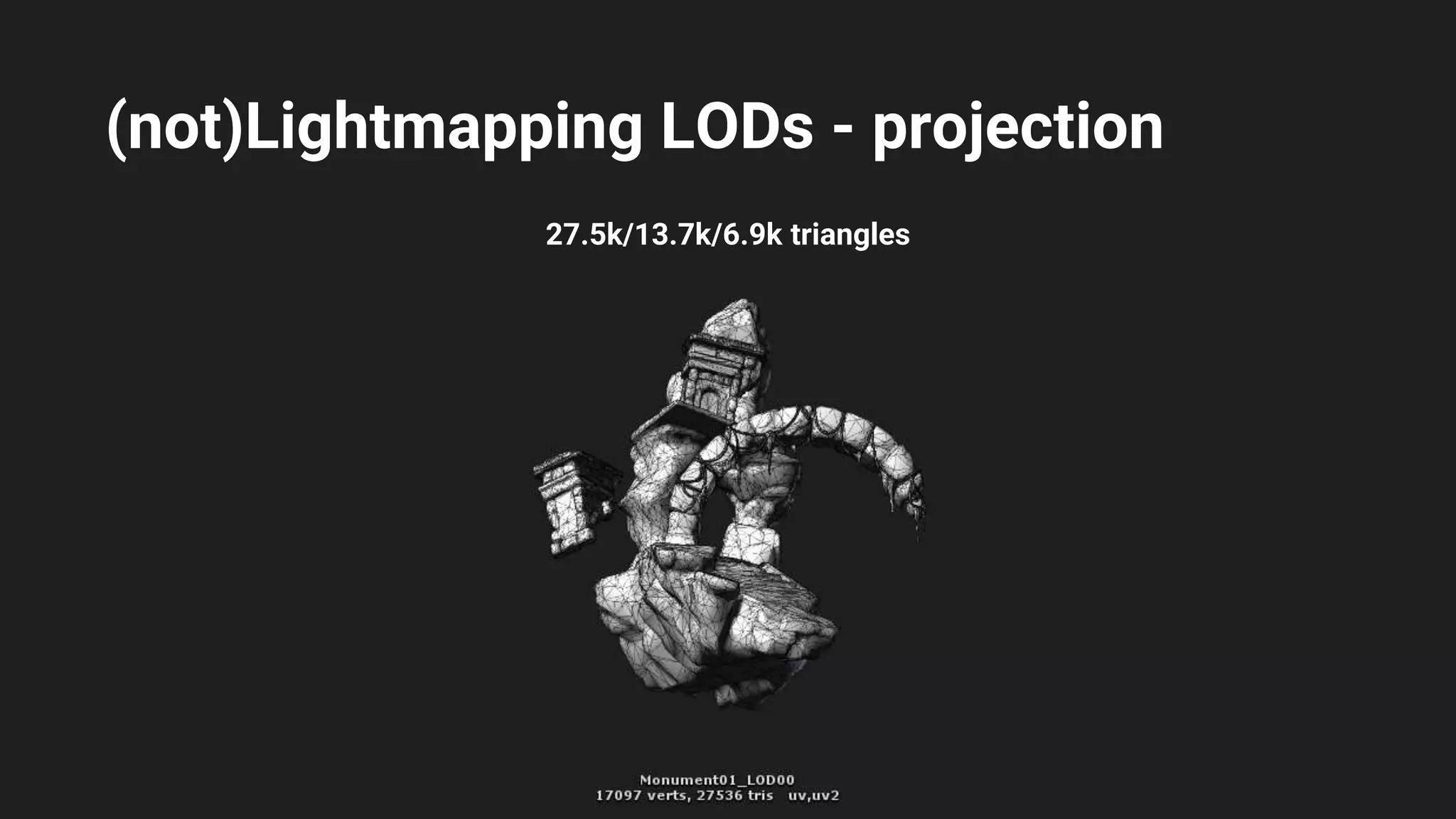

(not)Lightmapping LODs - projection
27.5k/13.7k/6.9k triangles

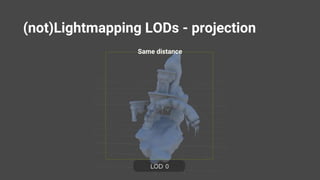

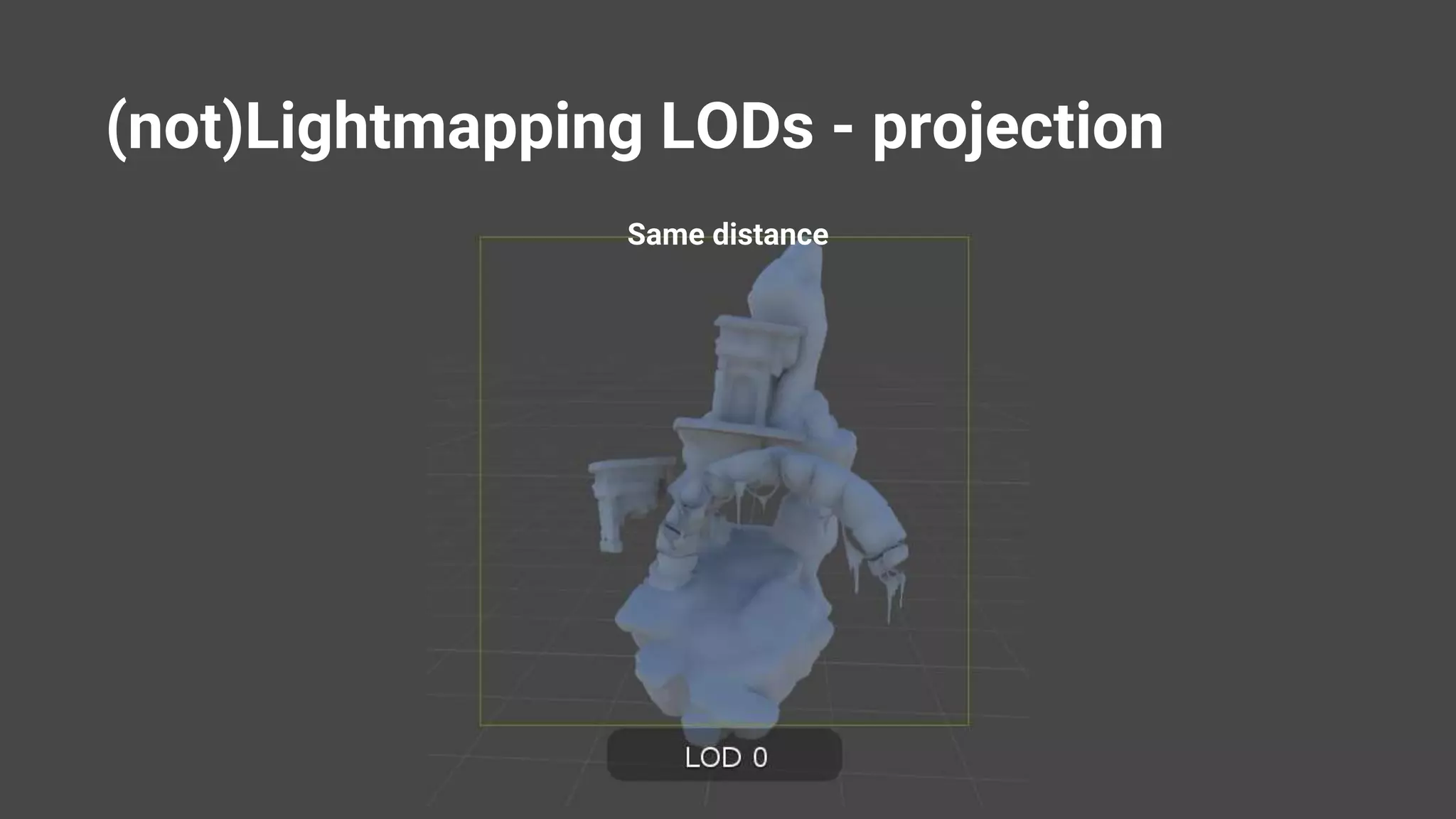

(not)Lightmapping LODs - projection
Same distance

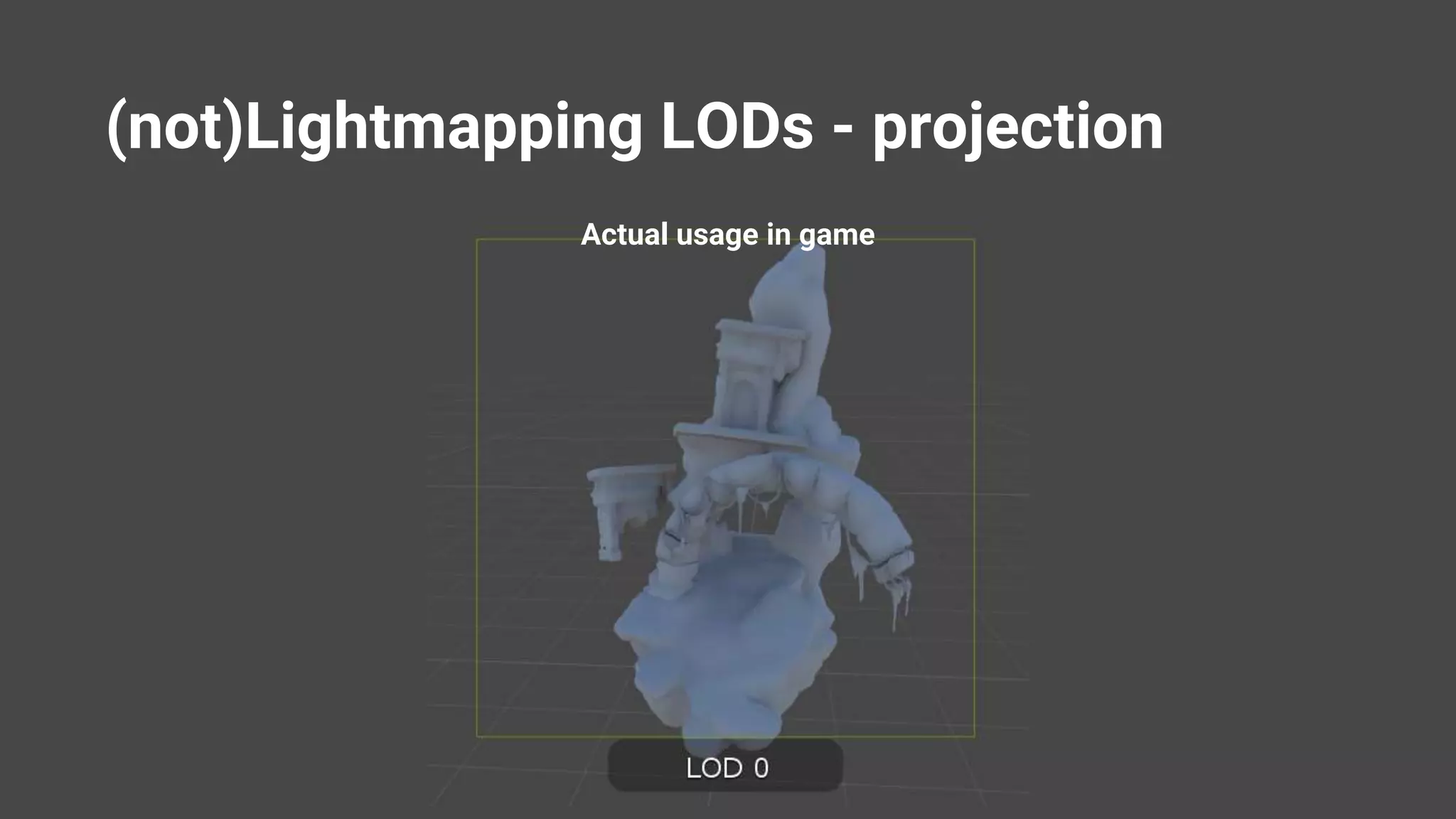

(not)Lightmapping LODs - projection
Actual usage in game

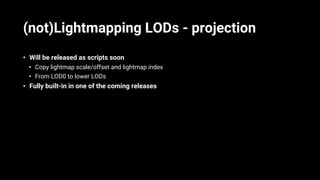

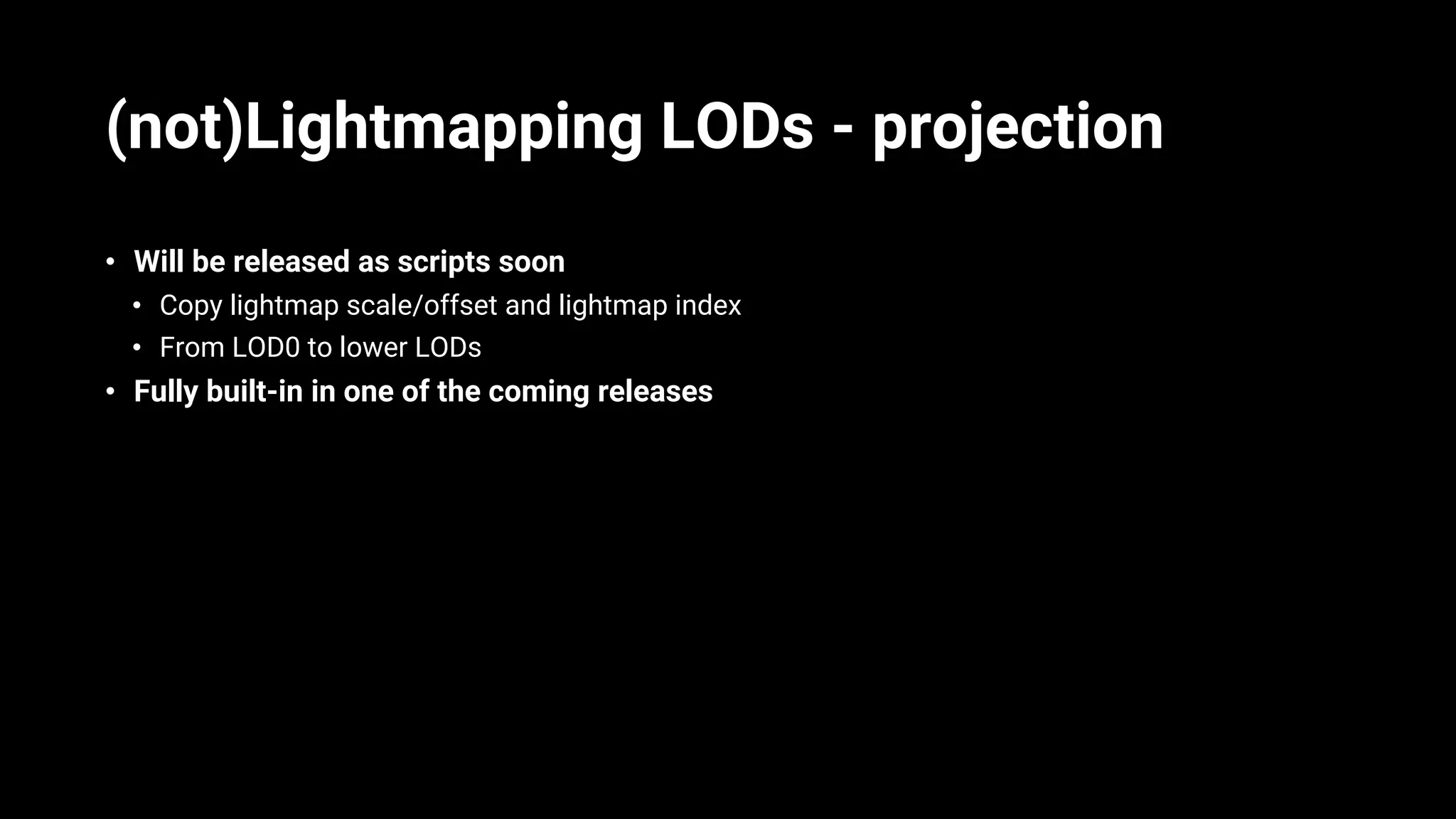

(not)Lightmapping LODs - projection
• Will be released as scripts soon
• Copy lightmap scale/offset and lightmap index
• From LOD0 to lower LODs
• Fully built-in in one of the coming releases

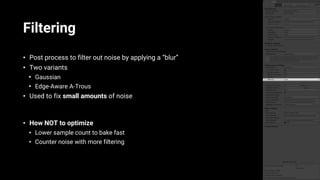

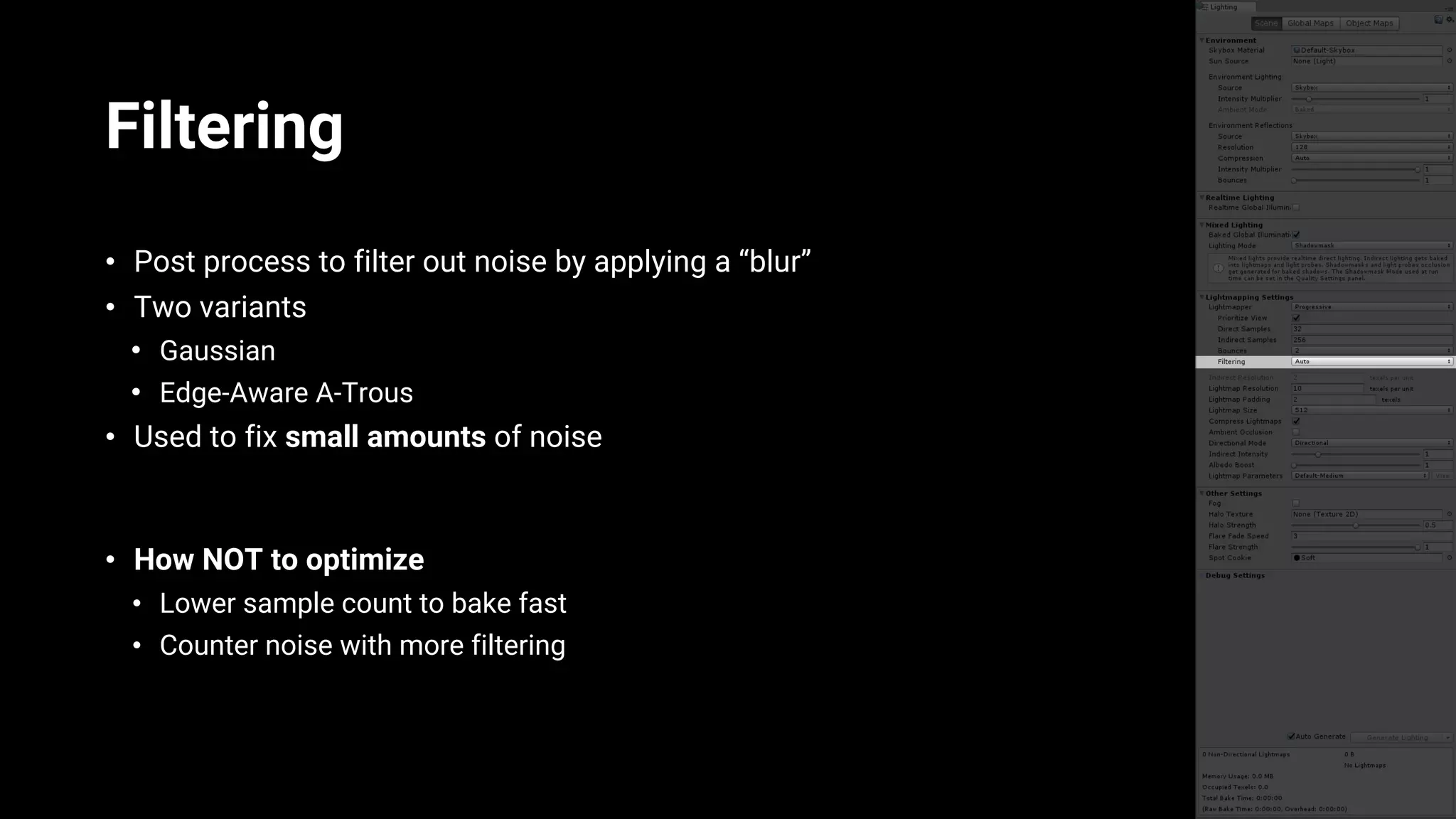

Filtering
• Post process to filter out noise by applying a “blur”
• Two variants
• Gaussian
• Edge-Aware A-Trous
• Used to fix small amounts of noise
• How NOT to optimize
• Lower sample count to bake fast
• Counter noise with more filtering

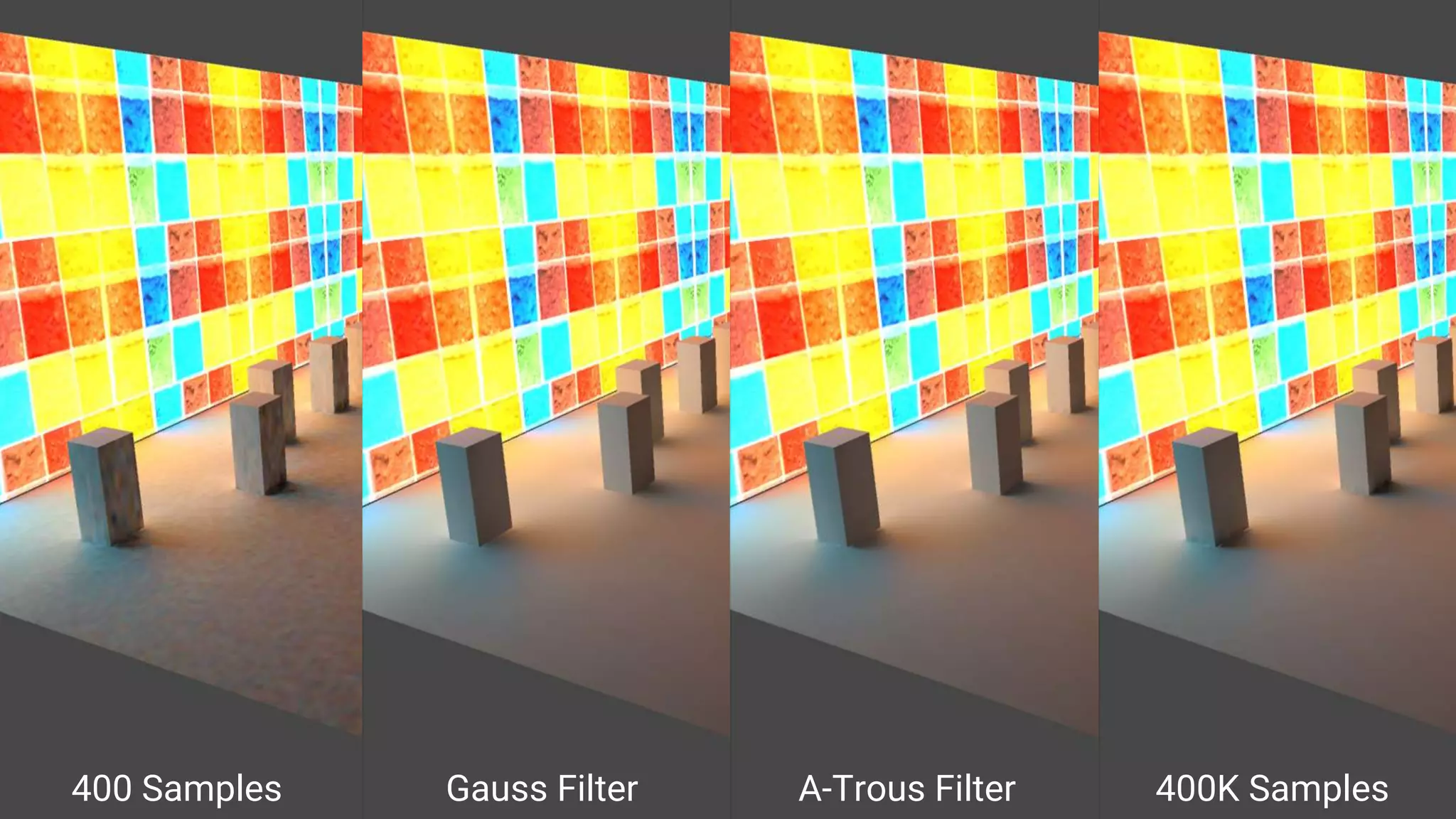

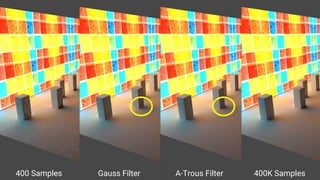

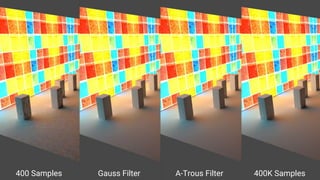

400 Samples Gauss Filter A-Trous Filter 400K Samples

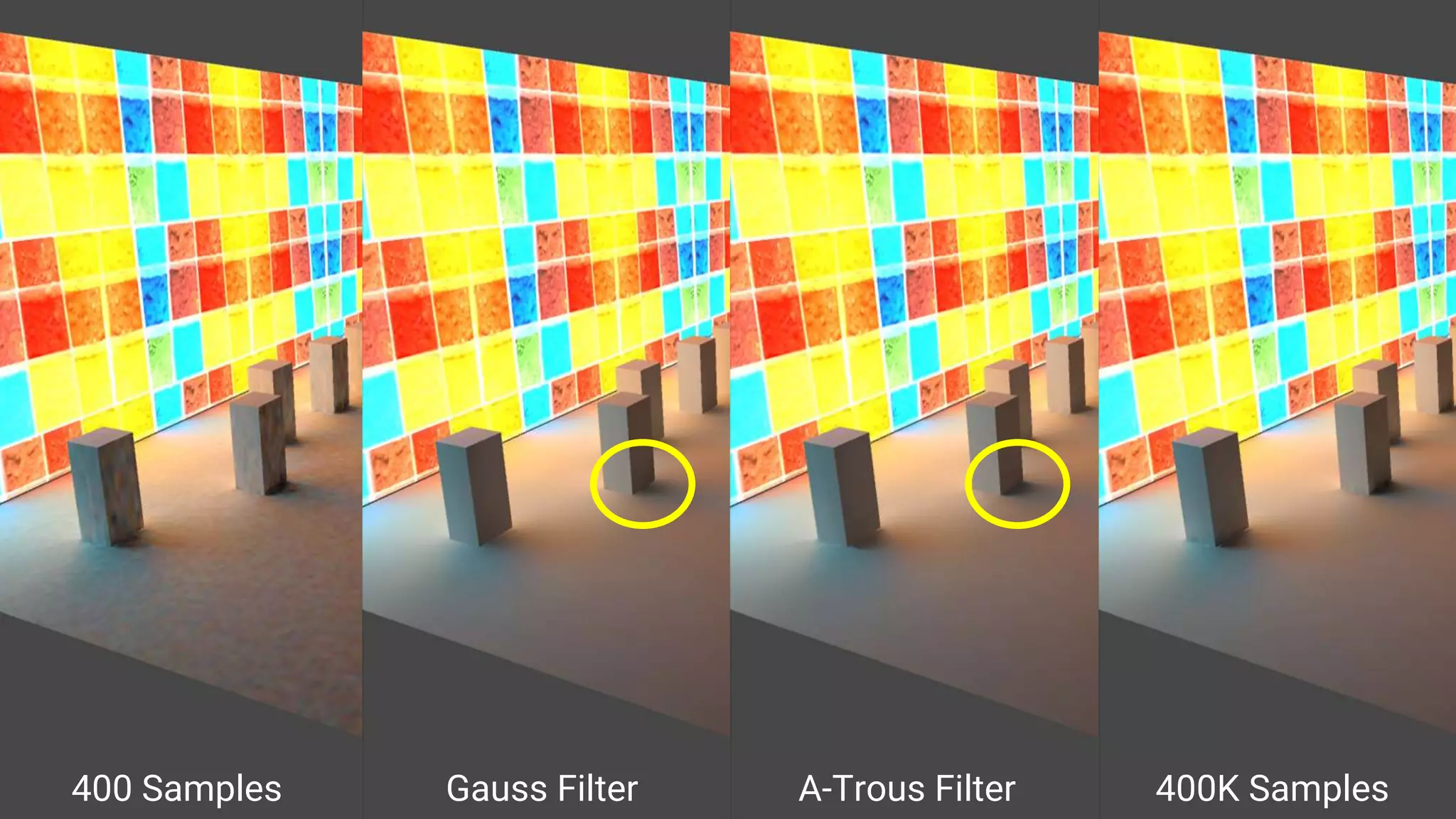

400 Samples Gauss Filter A-Trous Filter 400K Samples

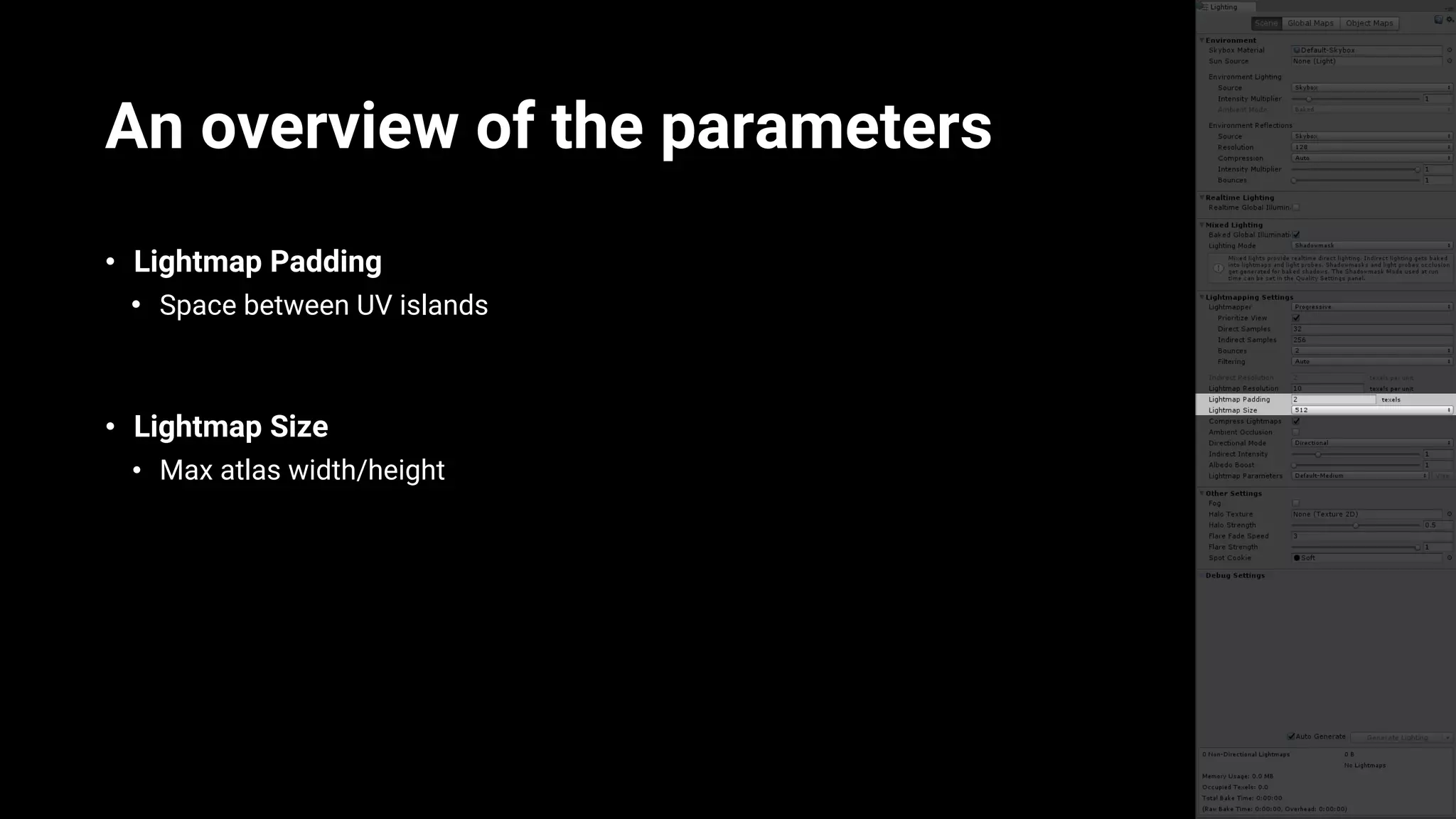

An overview of the parameters
• Lightmap Padding
• Space between UV islands
• Lightmap Size
• Max atlas width/height
Part 2: The GPU baking
backend

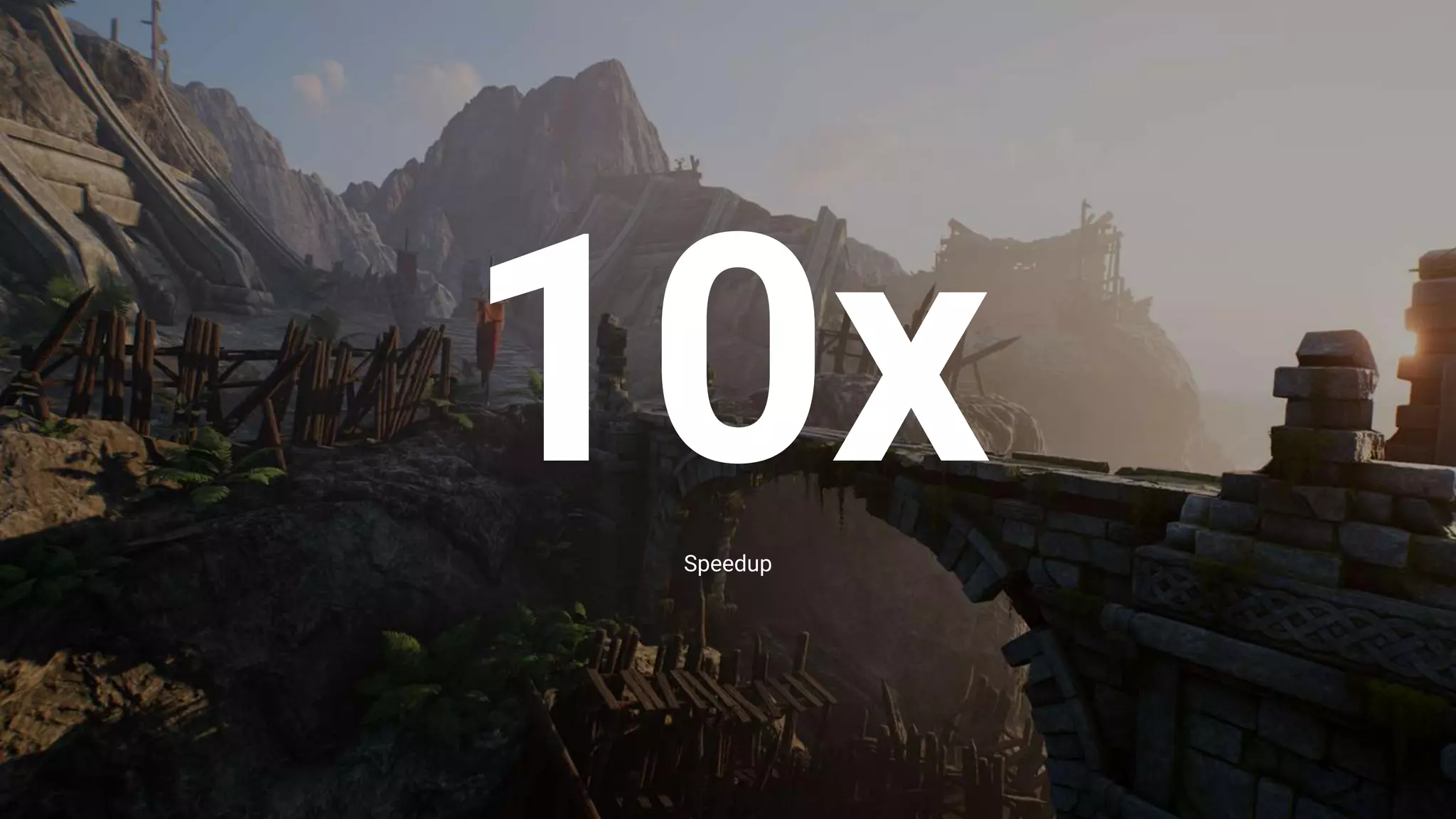

Speedup

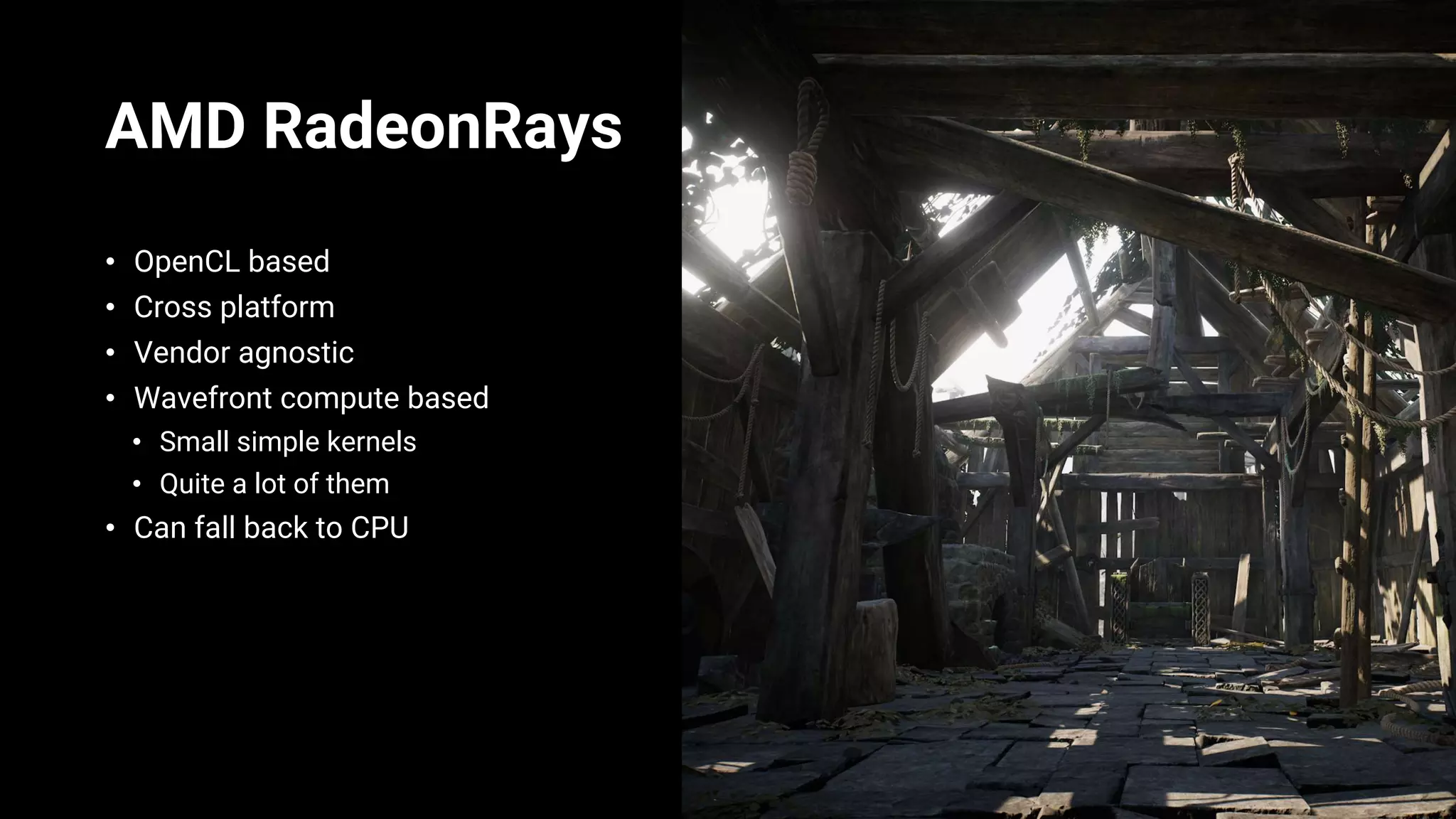

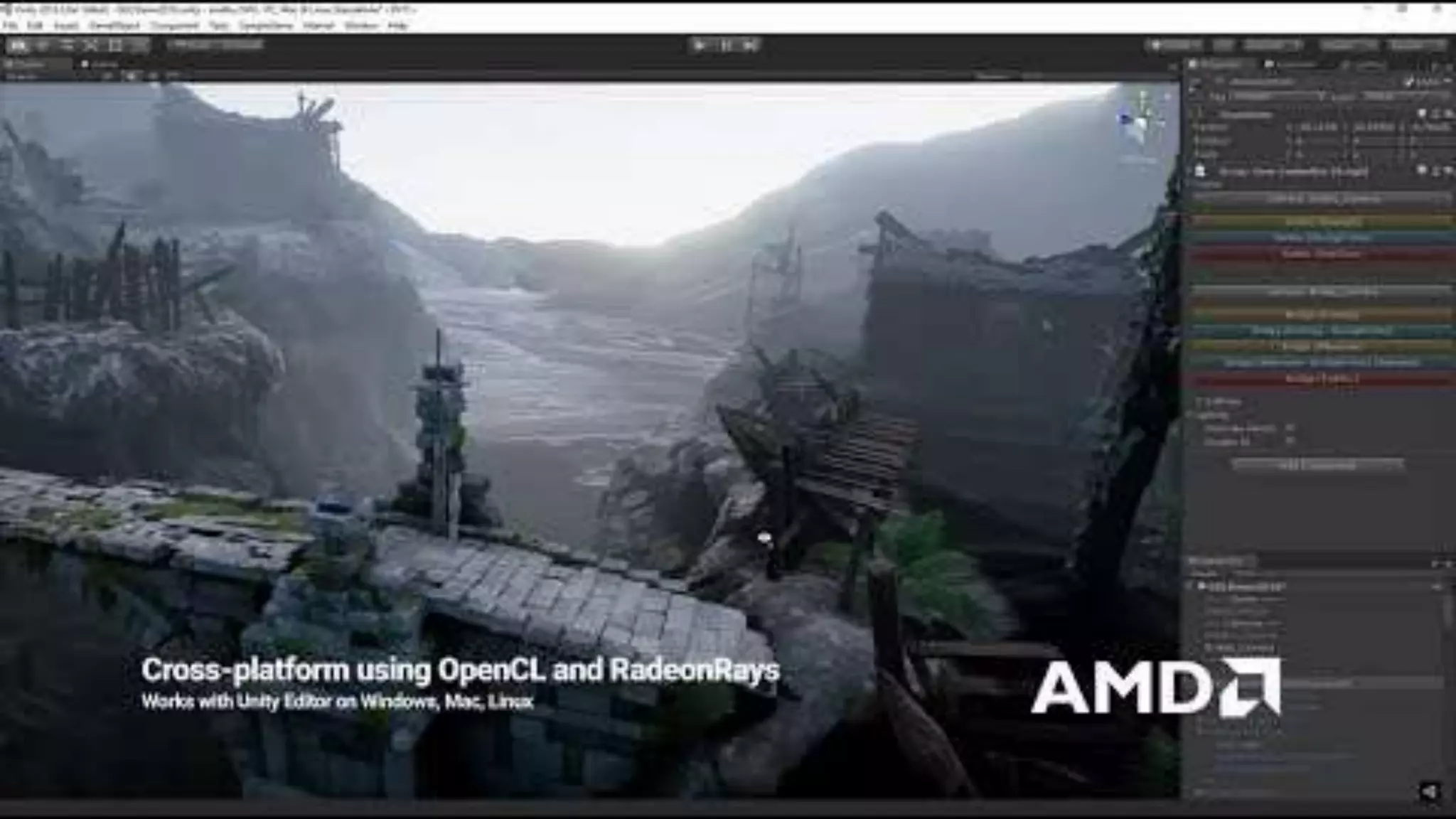

AMD RadeonRays
• OpenCL based
• Cross platform
• Vendor agnostic
• Wavefront compute based
• Small simple kernels
• Quite a lot of them
• Can fall back to CPU
Part 3: The Future

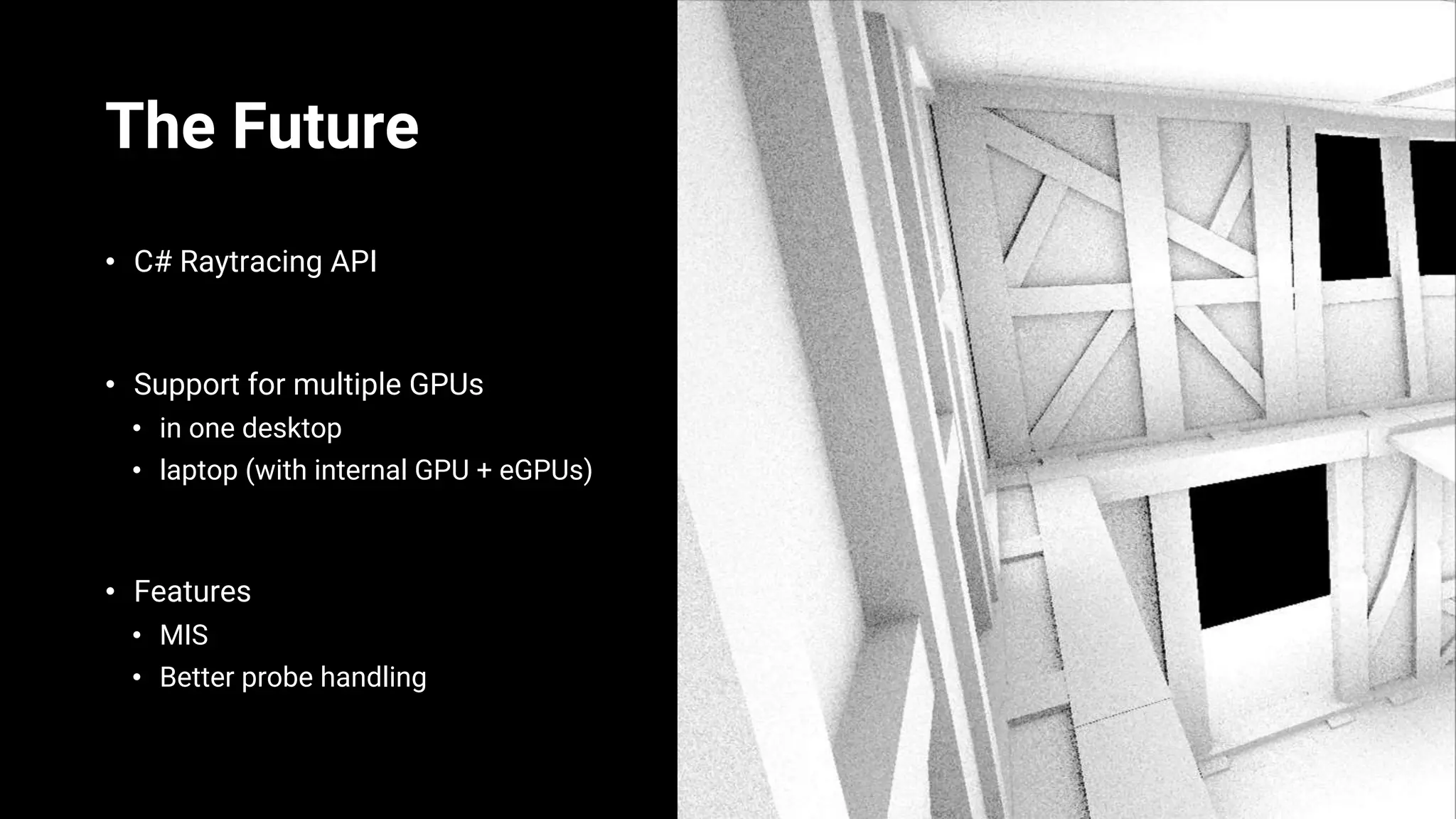

The Future
• C# Raytracing API
• Support for multiple GPUs
• in one desktop
• laptop (with internal GPU + eGPUs)
• Features
• MIS
• Better probe handling

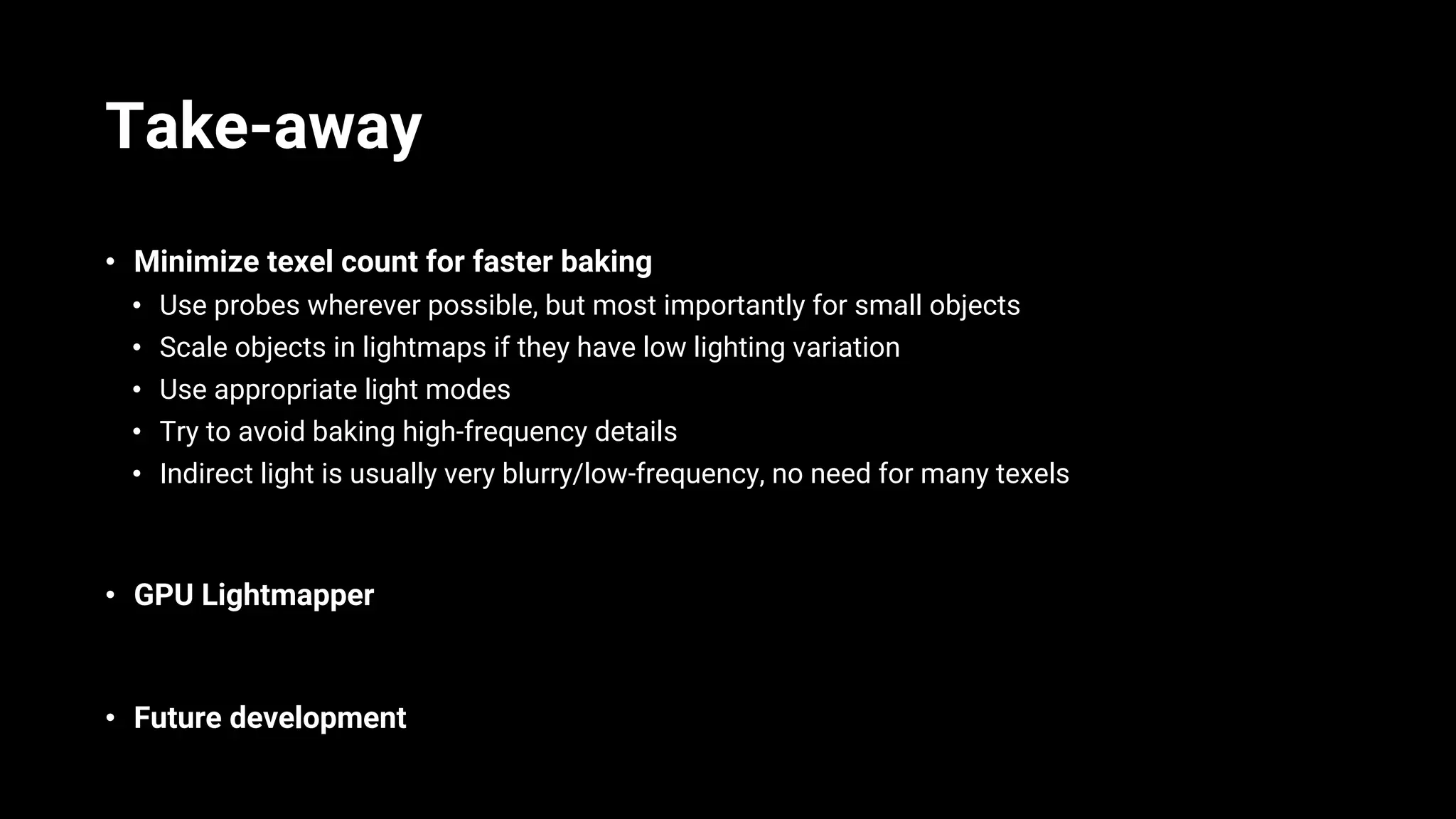

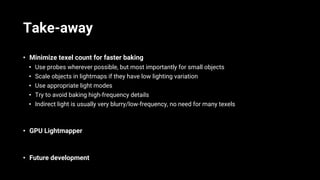

Take-away
• Minimize texel count for faster baking
• Use probes wherever possible, but most importantly for small objects
• Scale objects in lightmaps if they have low lighting variation
• Use appropriate light modes
• Try to avoid baking high-frequency details
• Indirect light is usually very blurry/low-frequency, no need for many texels
• GPU Lightmapper
• Future development
Thank you!
Q&A
