Resilience in Spatial and Urban
Systems 2
John Östh, Aura Reggiani
& Laurie Schintler
Smart People in Smart Cities
Faculty of Economics, Matej Bel University &
Regional Science Academy & The City of
Banská Bystrica

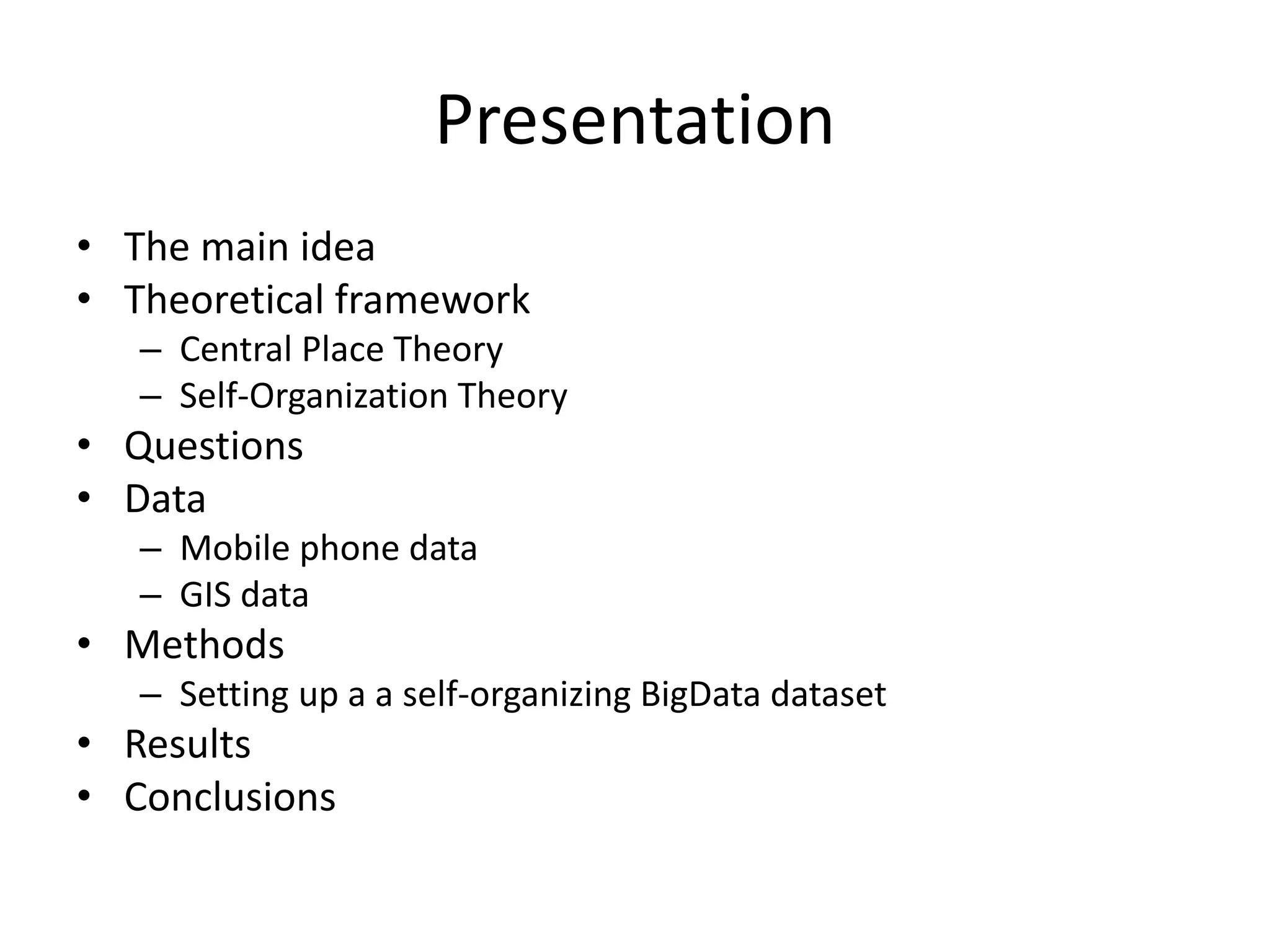

Presentation
• The main idea
• Theoretical framework
– Central Place Theory
– Self-Organization Theory
• Questions
• Data
– Mobile phone data
– GIS data
• Methods
– Setting up a a self-organizing BigData dataset
• Results
• Conclusions

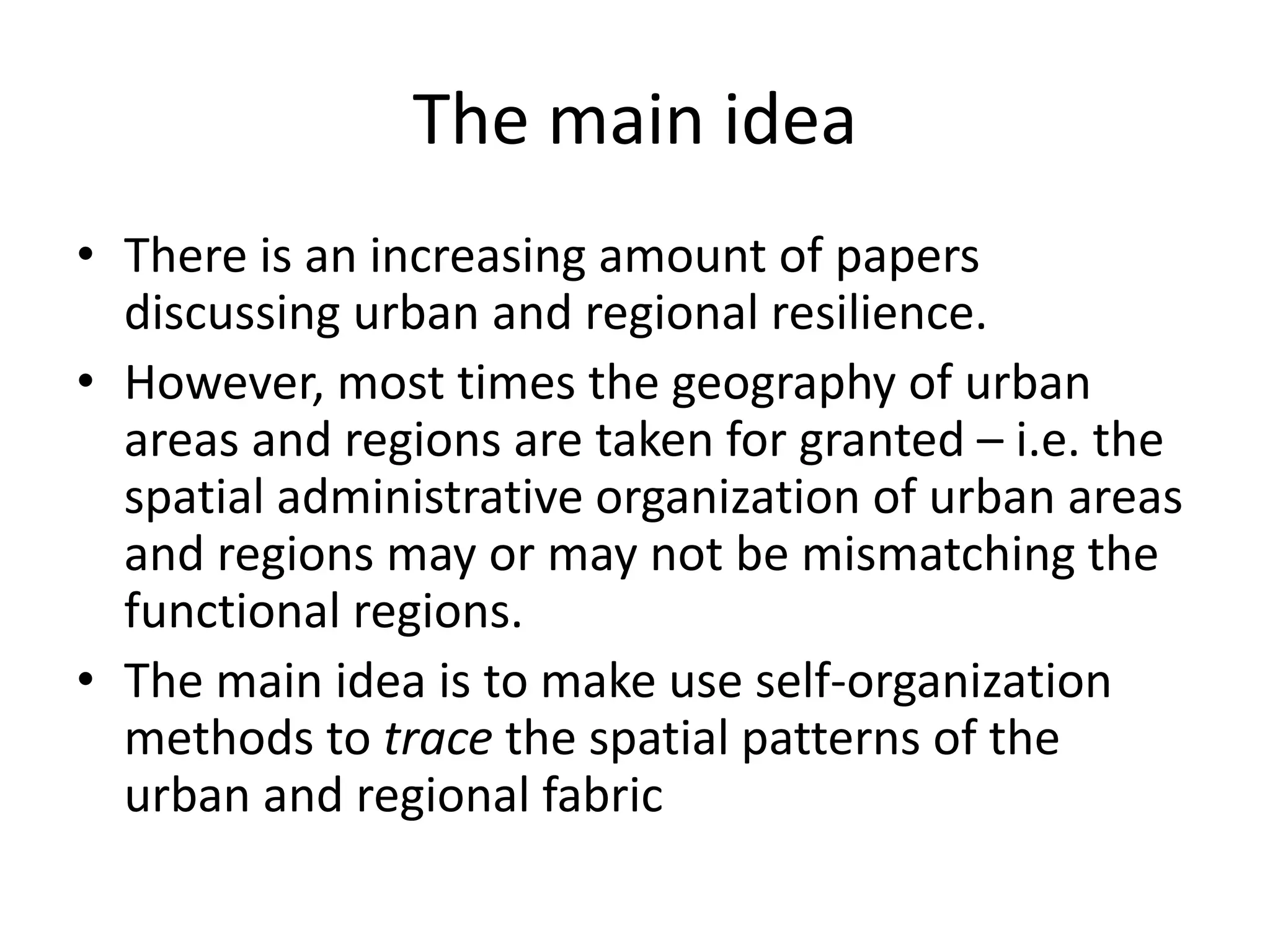

The main idea
• There is an increasing amount of papers
discussing urban and regional resilience.
• However, most times the geography of urban
areas and regions are taken for granted – i.e. the
spatial administrative organization of urban areas
and regions may or may not be mismatching the
functional regions.
• The main idea is to make use self-organization
methods to trace the spatial patterns of the
urban and regional fabric

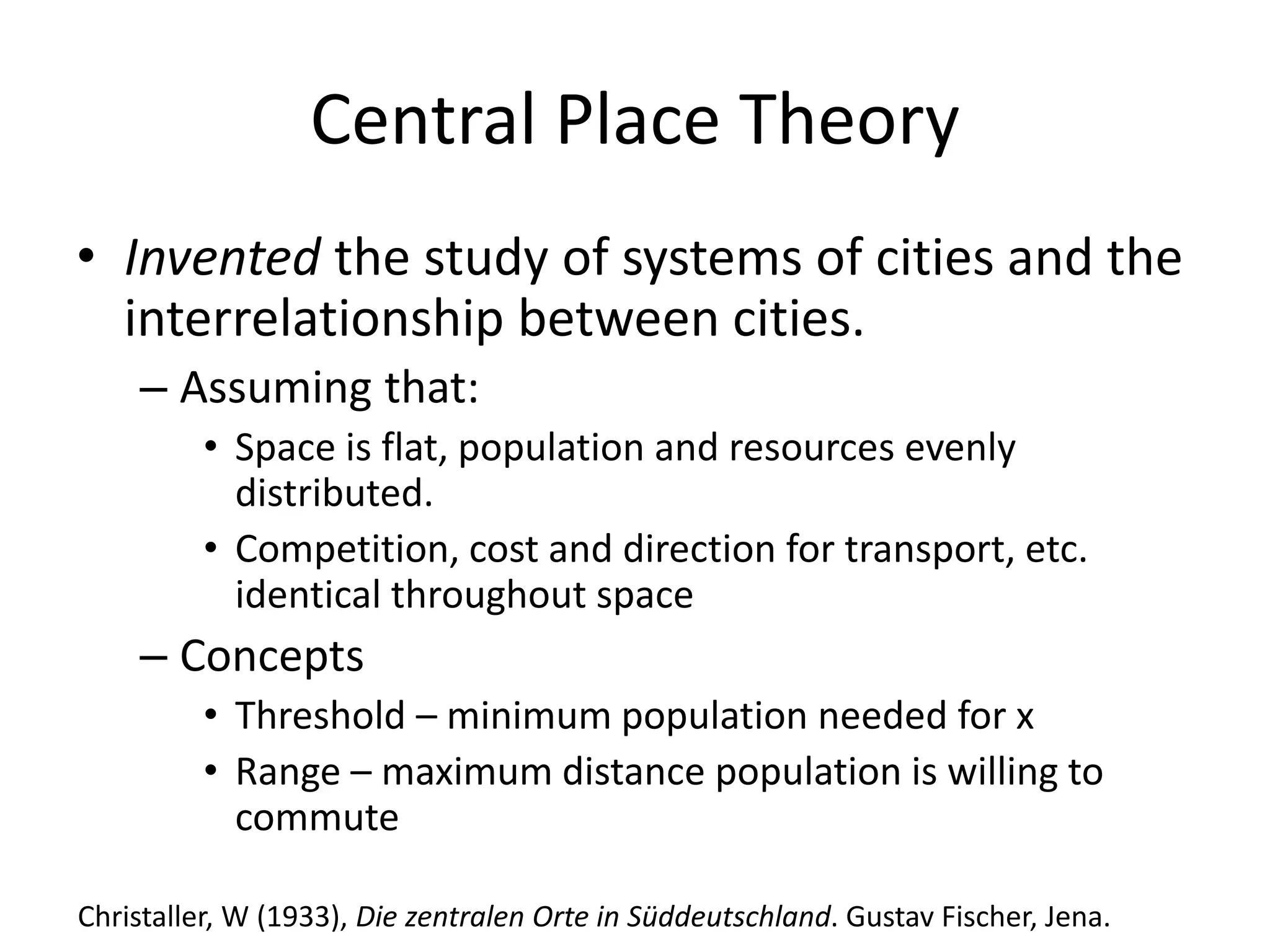

Central Place Theory
• Invented the study of systems of cities and the
interrelationship between cities.
– Assuming that:
• Space is flat, population and resources evenly
distributed.
• Competition, cost and direction for transport, etc.
identical throughout space
– Concepts
• Threshold – minimum population needed for x
• Range – maximum distance population is willing to
commute
Christaller, W (1933), Die zentralen Orte in Süddeutschland. Gustav Fischer, Jena.

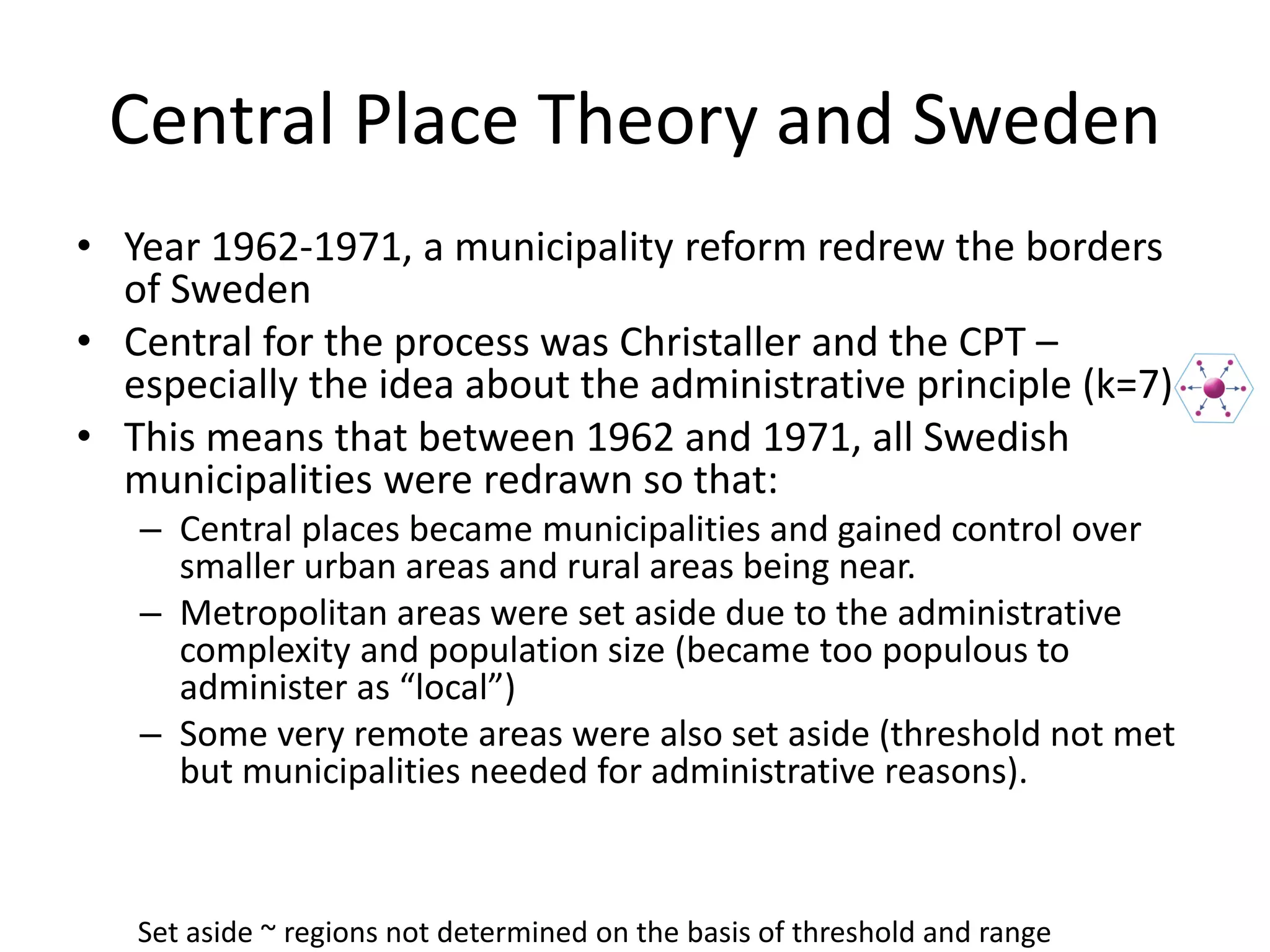

Central Place Theory and Sweden
• Year 1962-1971, a municipality reform redrew the borders
of Sweden
• Central for the process was Christaller and the CPT –
especially the idea about the administrative principle (k=7)
• This means that between 1962 and 1971, all Swedish
municipalities were redrawn so that:
– Central places became municipalities and gained control over
smaller urban areas and rural areas being near.
– Metropolitan areas were set aside due to the administrative
complexity and population size (became too populous to
administer as “local”)
– Some very remote areas were also set aside (threshold not met
but municipalities needed for administrative reasons).
Set aside ~ regions not determined on the basis of threshold and range

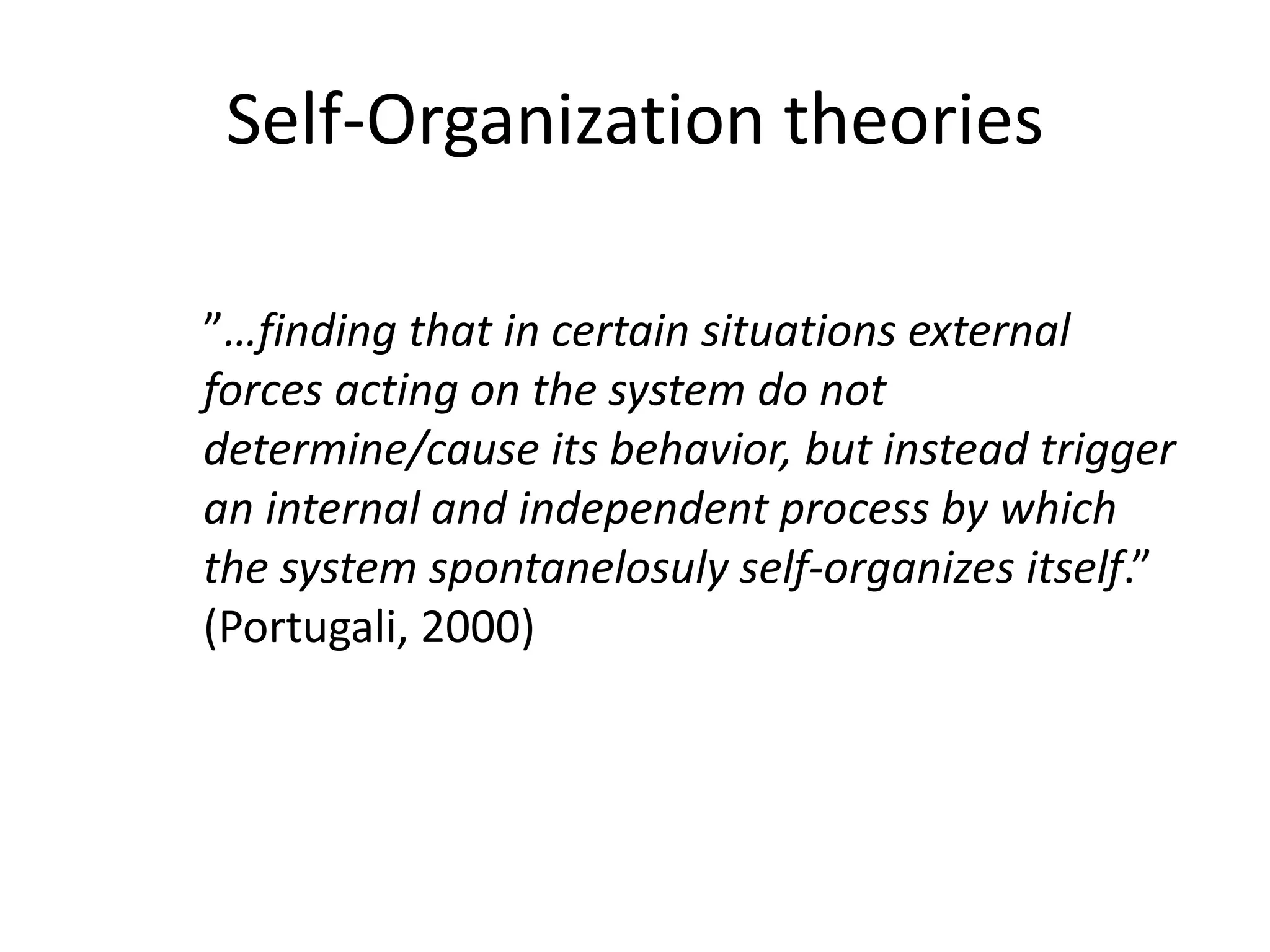

Self-Organization theories
”…finding that in certain situations external
forces acting on the system do not
determine/cause its behavior, but instead trigger
an internal and independent process by which
the system spontanelosuly self-organizes itself.”
(Portugali, 2000)

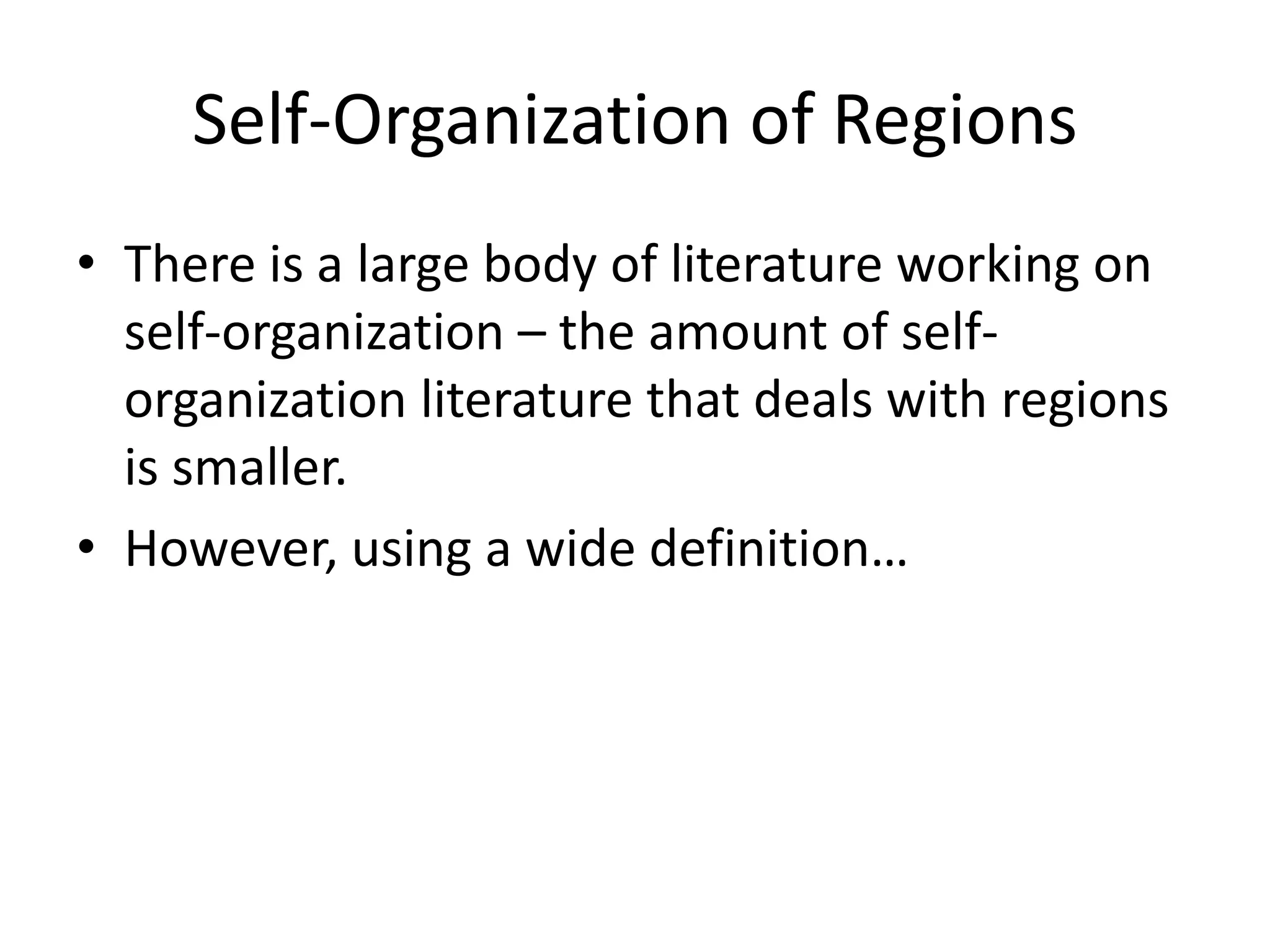

Self-Organization of Regions
• There is a large body of literature working on
self-organization – the amount of self-
organization literature that deals with regions
is smaller.
• However, using a wide definition…

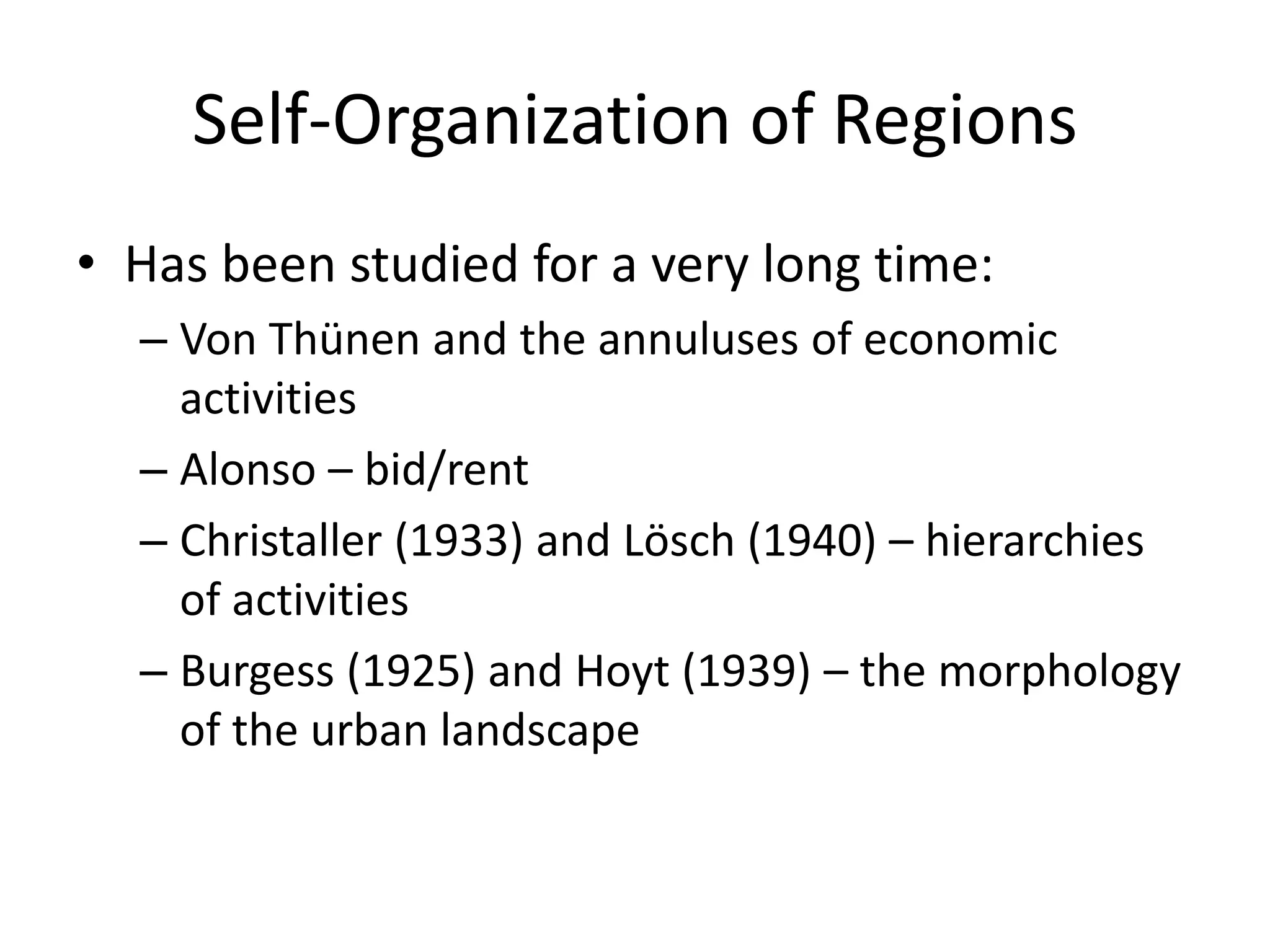

Self-Organization of Regions
• Has been studied for a very long time:
– Von Thünen and the annuluses of economic
activities
– Alonso – bid/rent
– Christaller (1933) and Lösch (1940) – hierarchies
of activities
– Burgess (1925) and Hoyt (1939) – the morphology
of the urban landscape

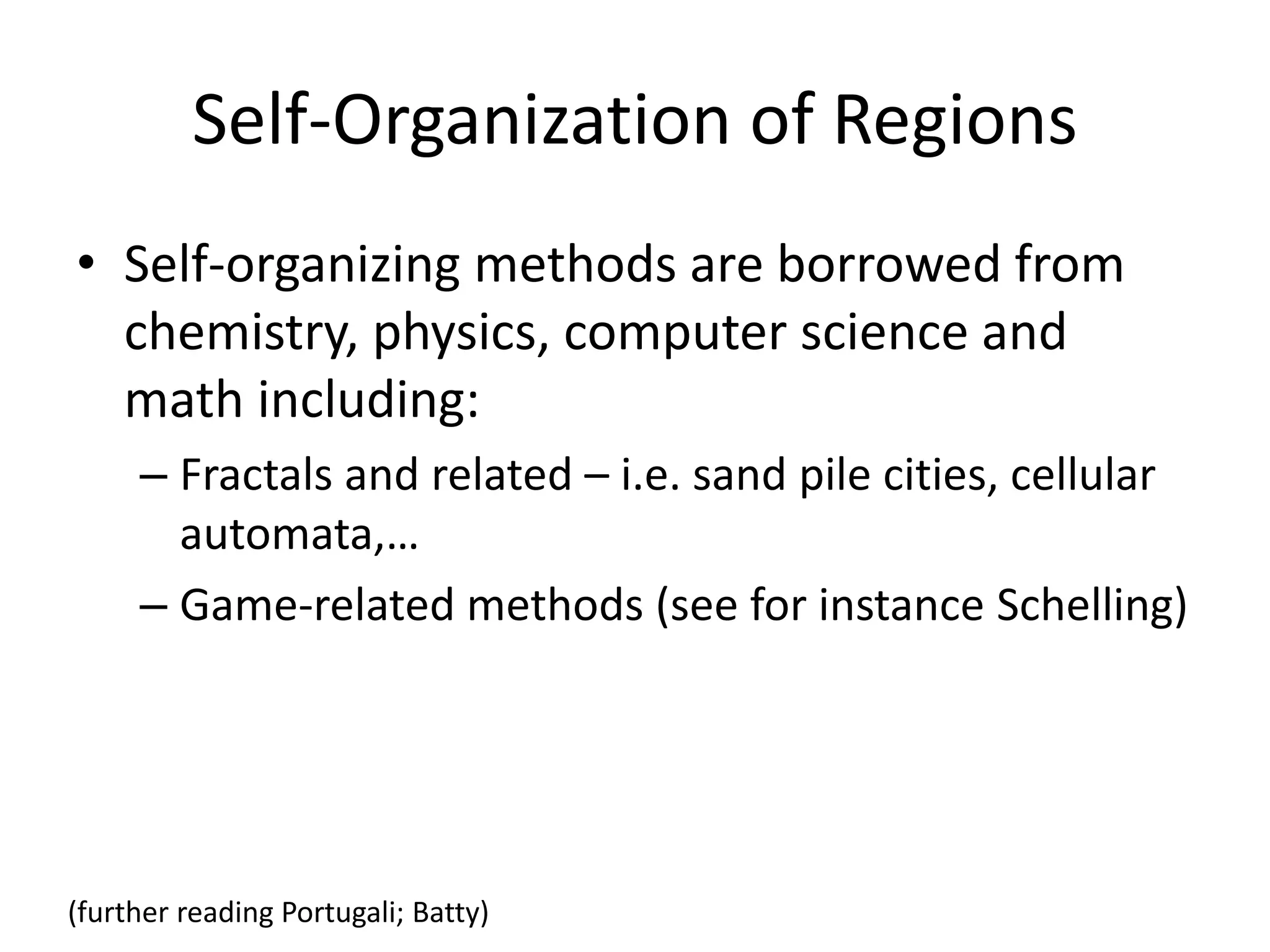

Self-Organization of Regions
• Self-organizing methods are borrowed from
chemistry, physics, computer science and
math including:
– Fractals and related – i.e. sand pile cities, cellular
automata,…
– Game-related methods (see for instance Schelling)
(further reading Portugali; Batty)

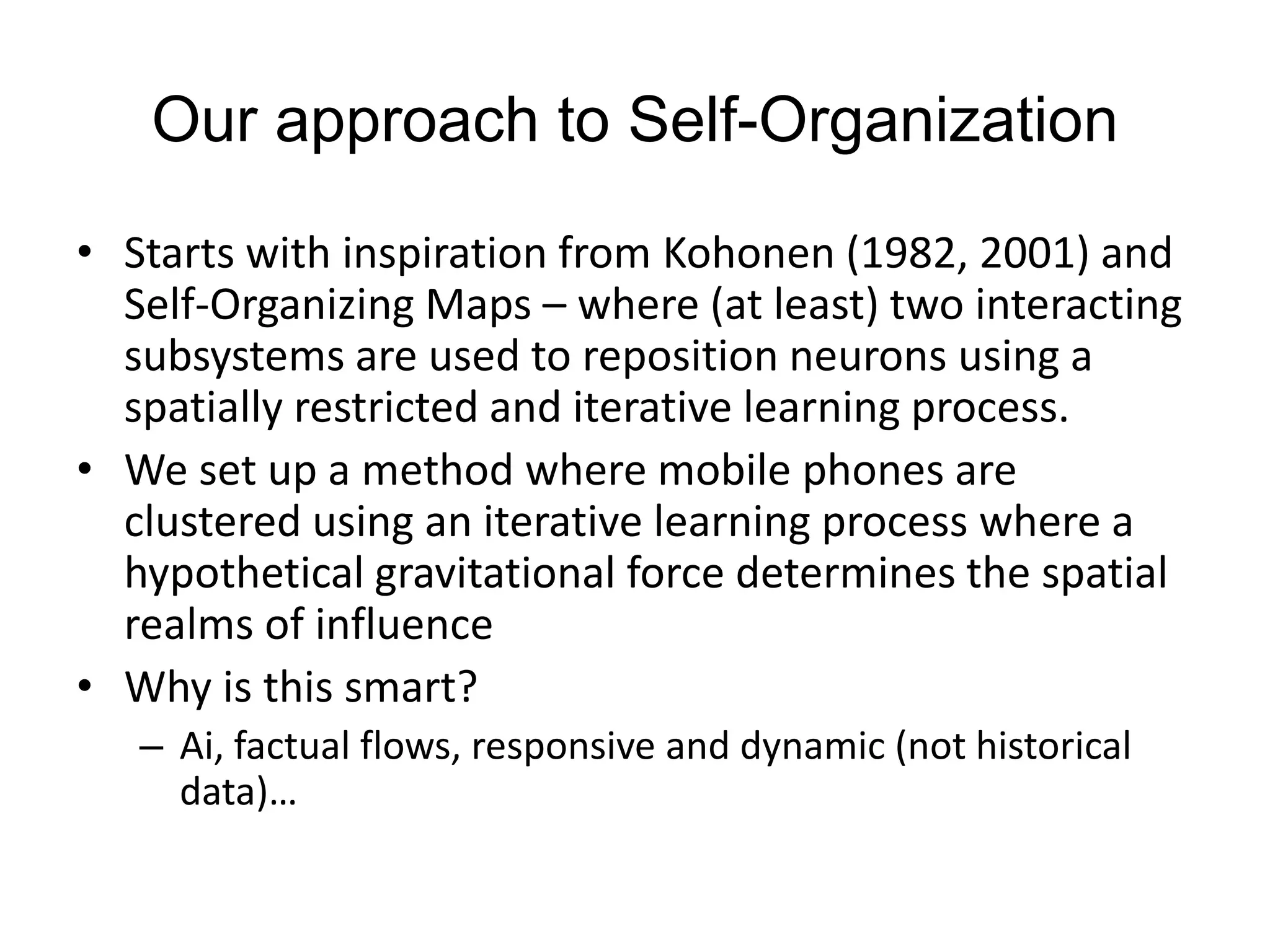

Our approach to Self-Organization
• Starts with inspiration from Kohonen (1982, 2001) and
Self-Organizing Maps – where (at least) two interacting
subsystems are used to reposition neurons using a
spatially restricted and iterative learning process.
• We set up a method where mobile phones are
clustered using an iterative learning process where a
hypothetical gravitational force determines the spatial
realms of influence
• Why is this smart?
– Ai, factual flows, responsive and dynamic (not historical
data)…

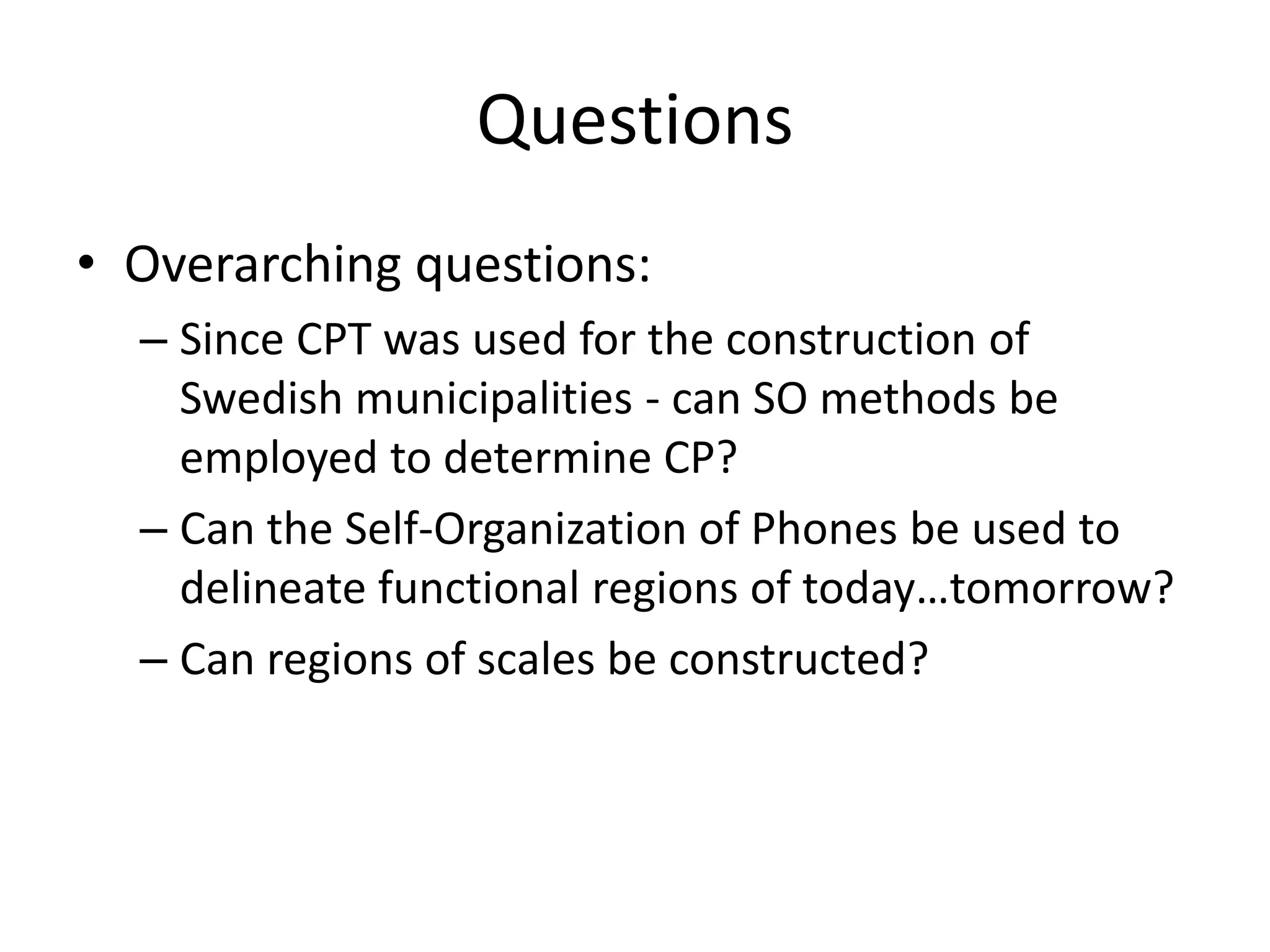

Questions
• Overarching questions:
– Since CPT was used for the construction of
Swedish municipalities - can SO methods be
employed to determine CP?
– Can the Self-Organization of Phones be used to
delineate functional regions of today…tomorrow?
– Can regions of scales be constructed?

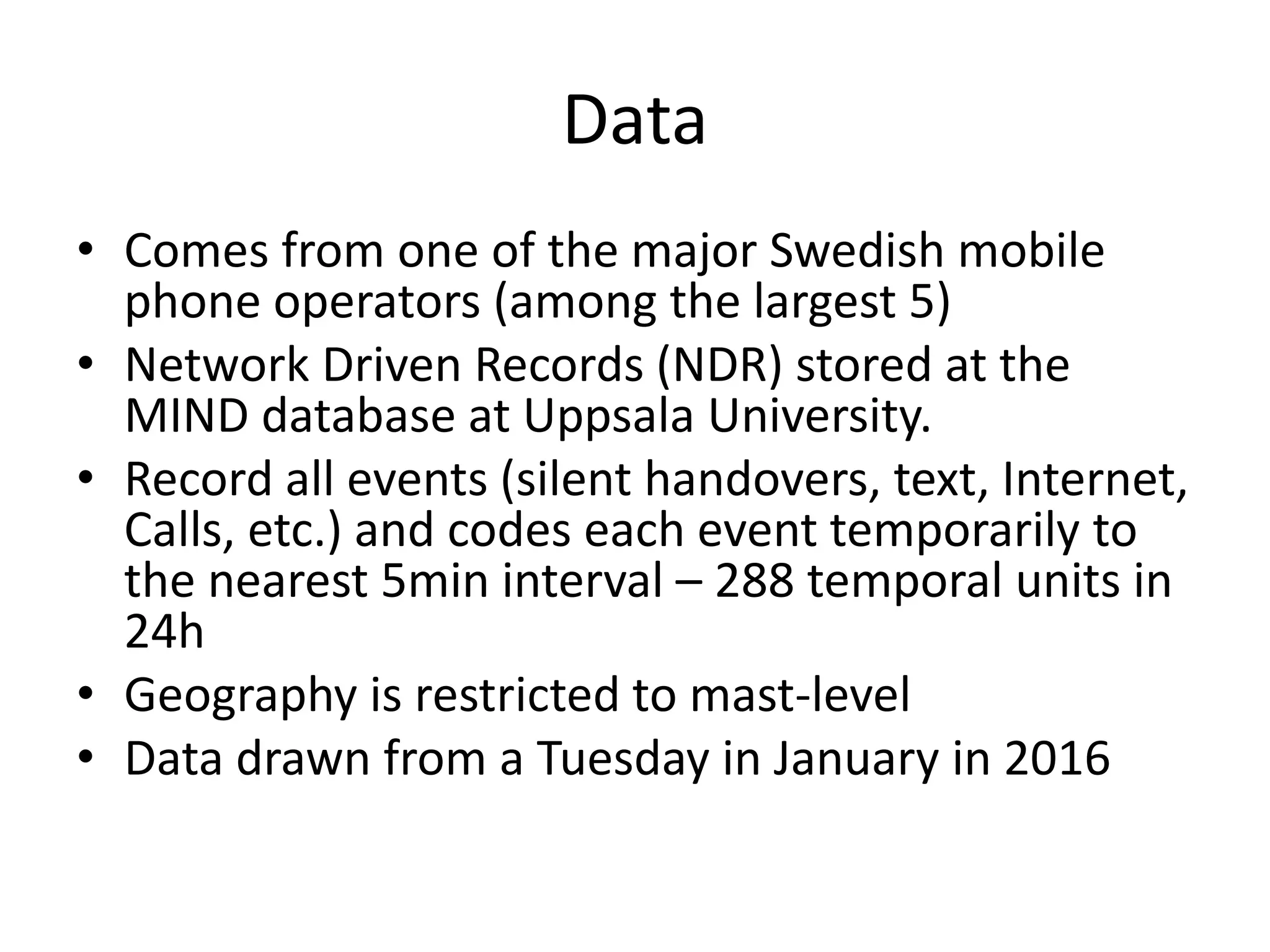

Data
• Comes from one of the major Swedish mobile
phone operators (among the largest 5)
• Network Driven Records (NDR) stored at the
MIND database at Uppsala University.
• Record all events (silent handovers, text, Internet,
Calls, etc.) and codes each event temporarily to
the nearest 5min interval – 288 temporal units in
24h
• Geography is restricted to mast-level
• Data drawn from a Tuesday in January in 2016

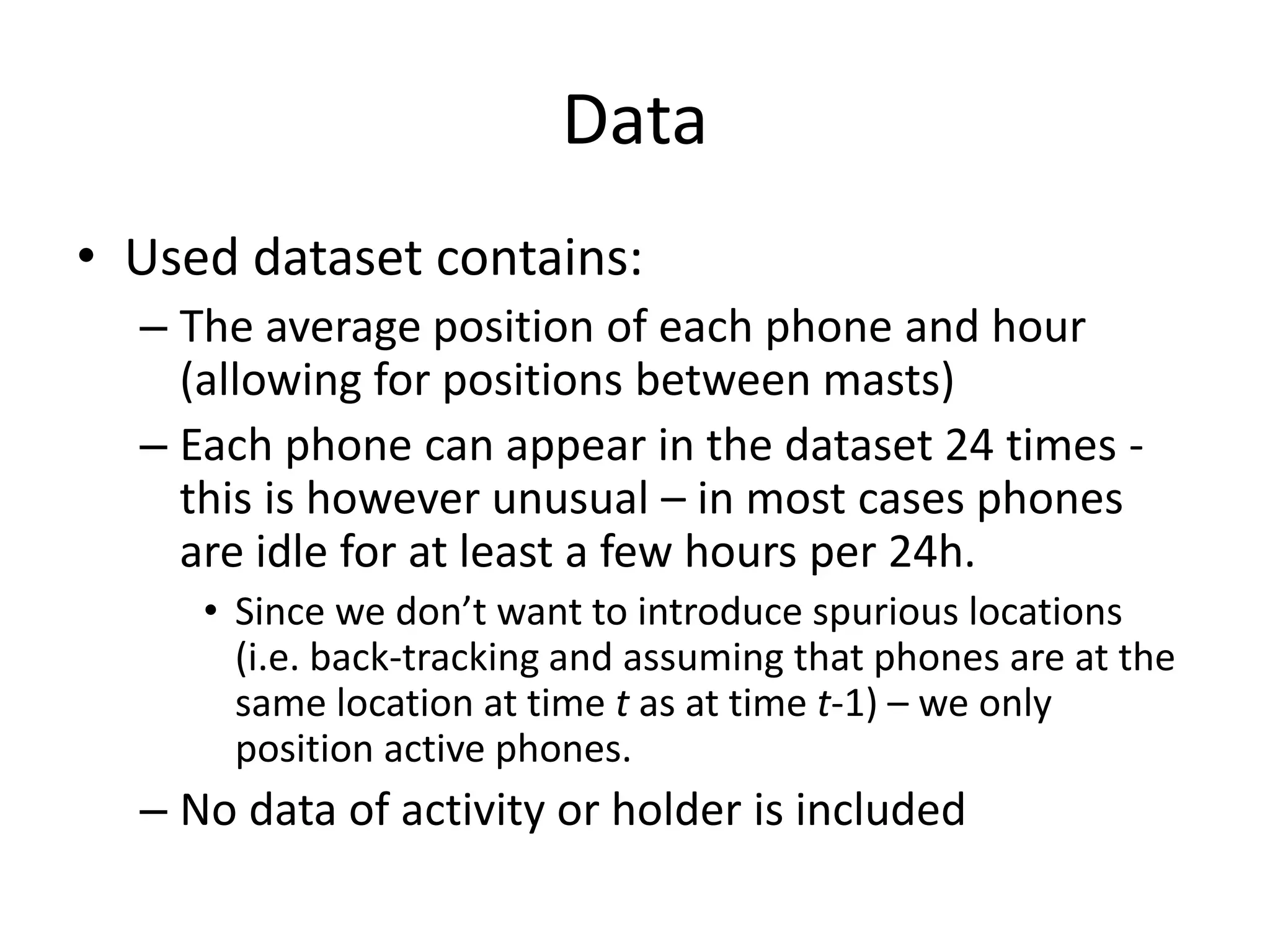

Data
• Used dataset contains:
– The average position of each phone and hour
(allowing for positions between masts)
– Each phone can appear in the dataset 24 times -
this is however unusual – in most cases phones
are idle for at least a few hours per 24h.
• Since we don’t want to introduce spurious locations
(i.e. back-tracking and assuming that phones are at the
same location at time t as at time t-1) – we only
position active phones.
– No data of activity or holder is included
Data

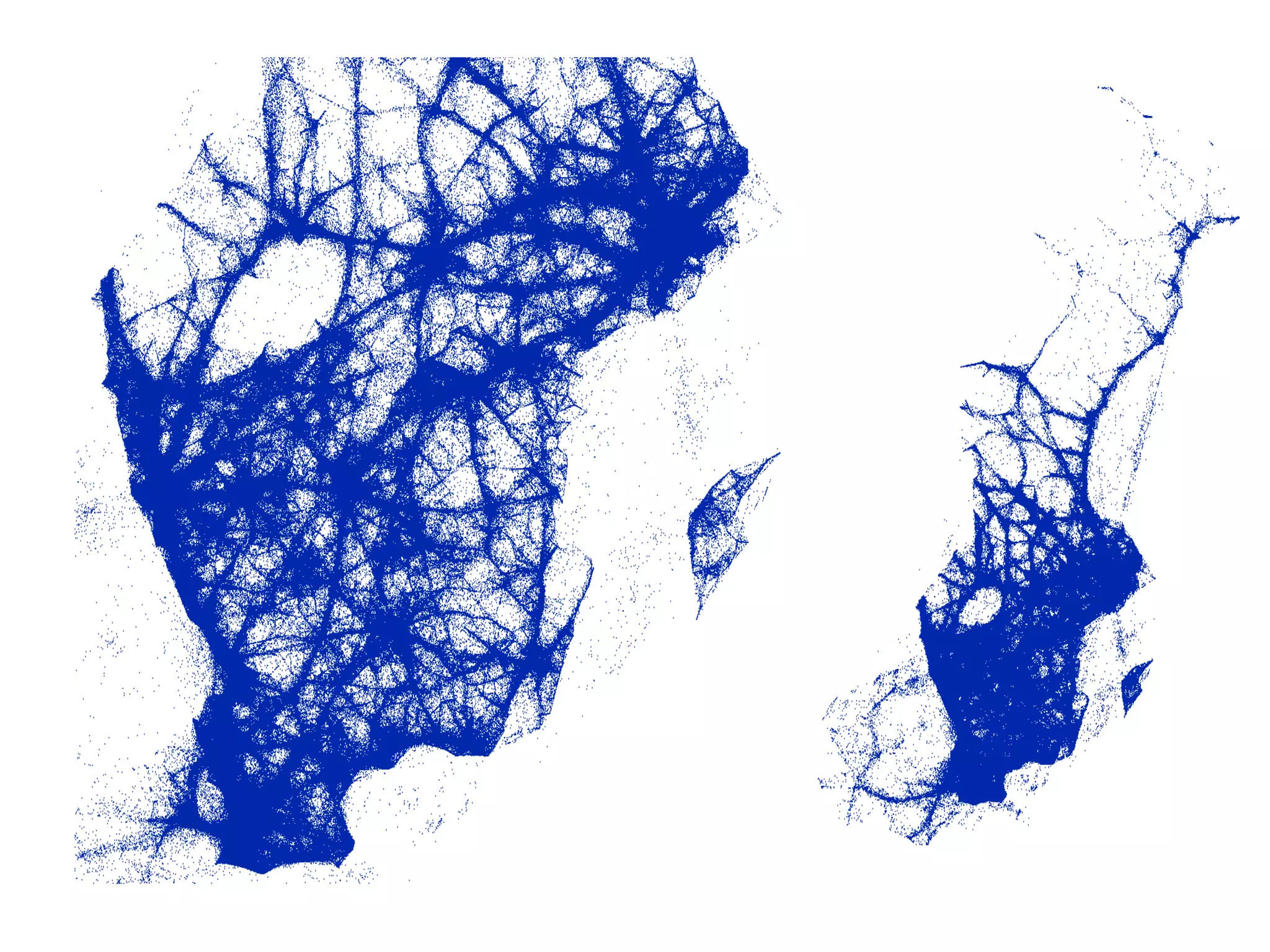

• To make handling of data easier, all average
coordinates are aggregated to the nearest
100m x 100m coordinate. The dataset still
contains of more than 1.6 million unique
locations of which the majority have more
than one phone

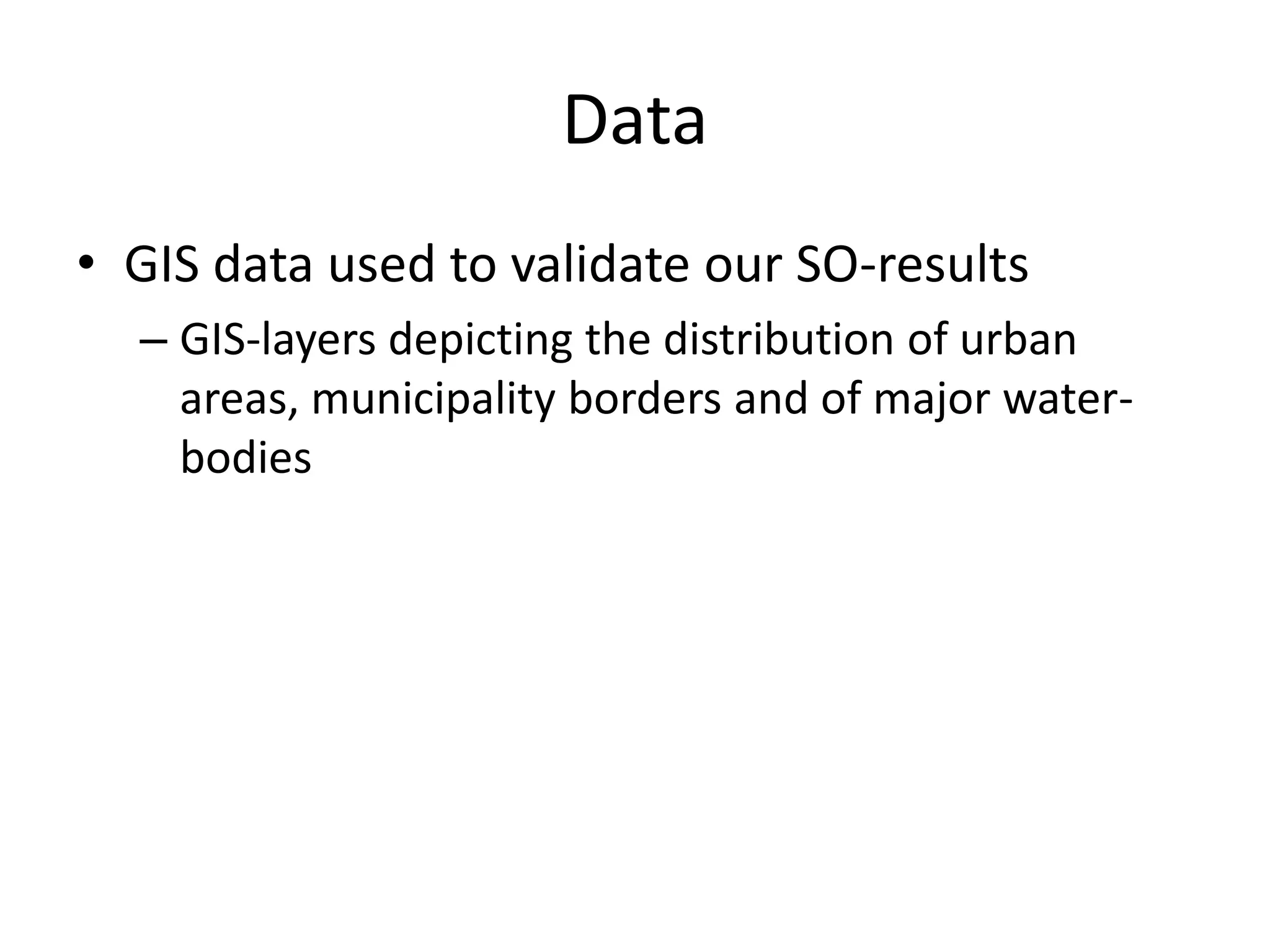

Data
• GIS data used to validate our SO-results
– GIS-layers depicting the distribution of urban
areas, municipality borders and of major water-
bodies

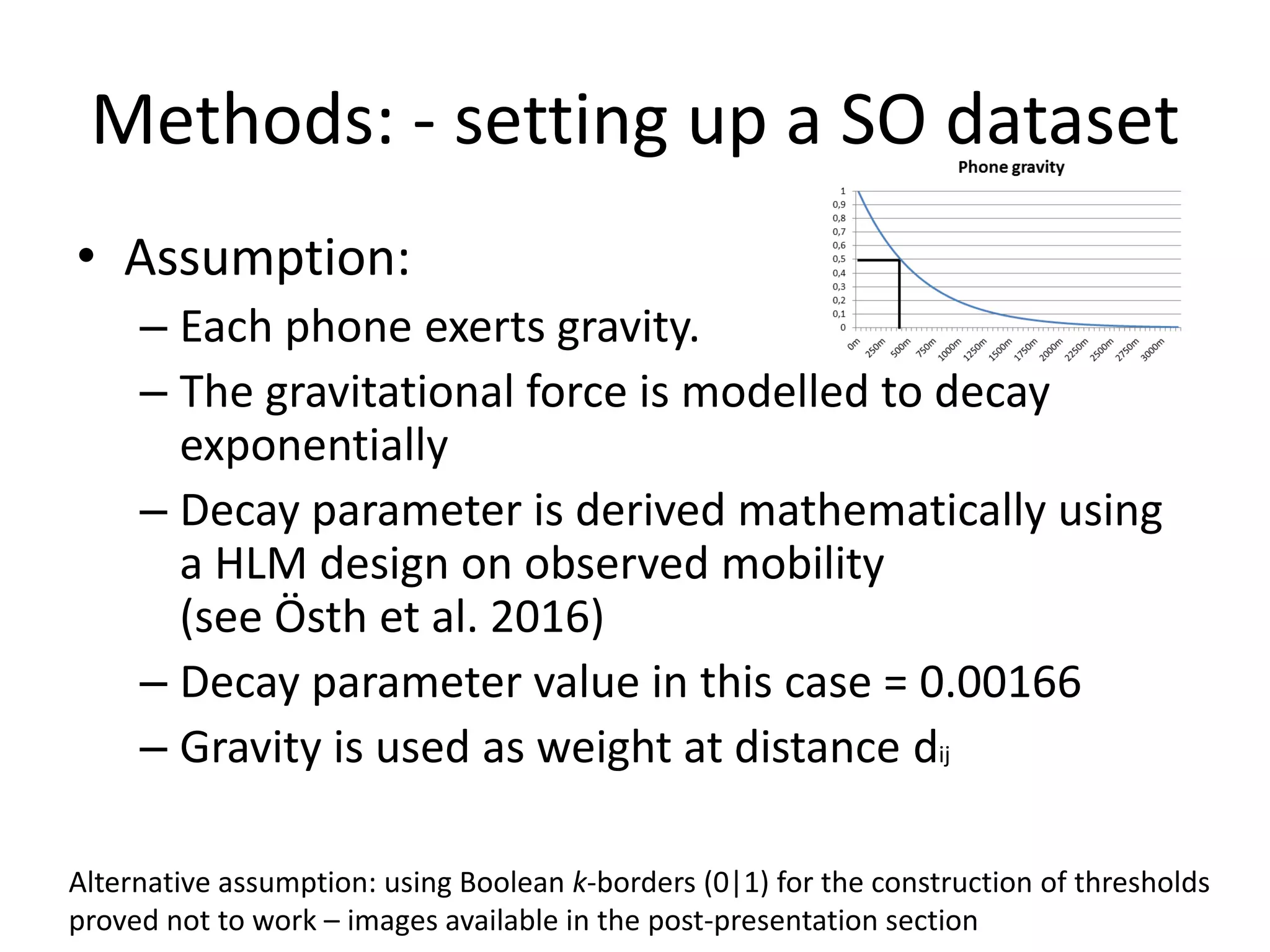

Methods: - setting up a SO dataset
• Assumption:
– Each phone exerts gravity.
– The gravitational force is modelled to decay
exponentially
– Decay parameter is derived mathematically using
a HLM design on observed mobility
(see Östh et al. 2016)
– Decay parameter value in this case = 0.00166
– Gravity is used as weight at distance dij
Alternative assumption: using Boolean k-borders (0|1) for the construction of thresholds
proved not to work – images available in the post-presentation section

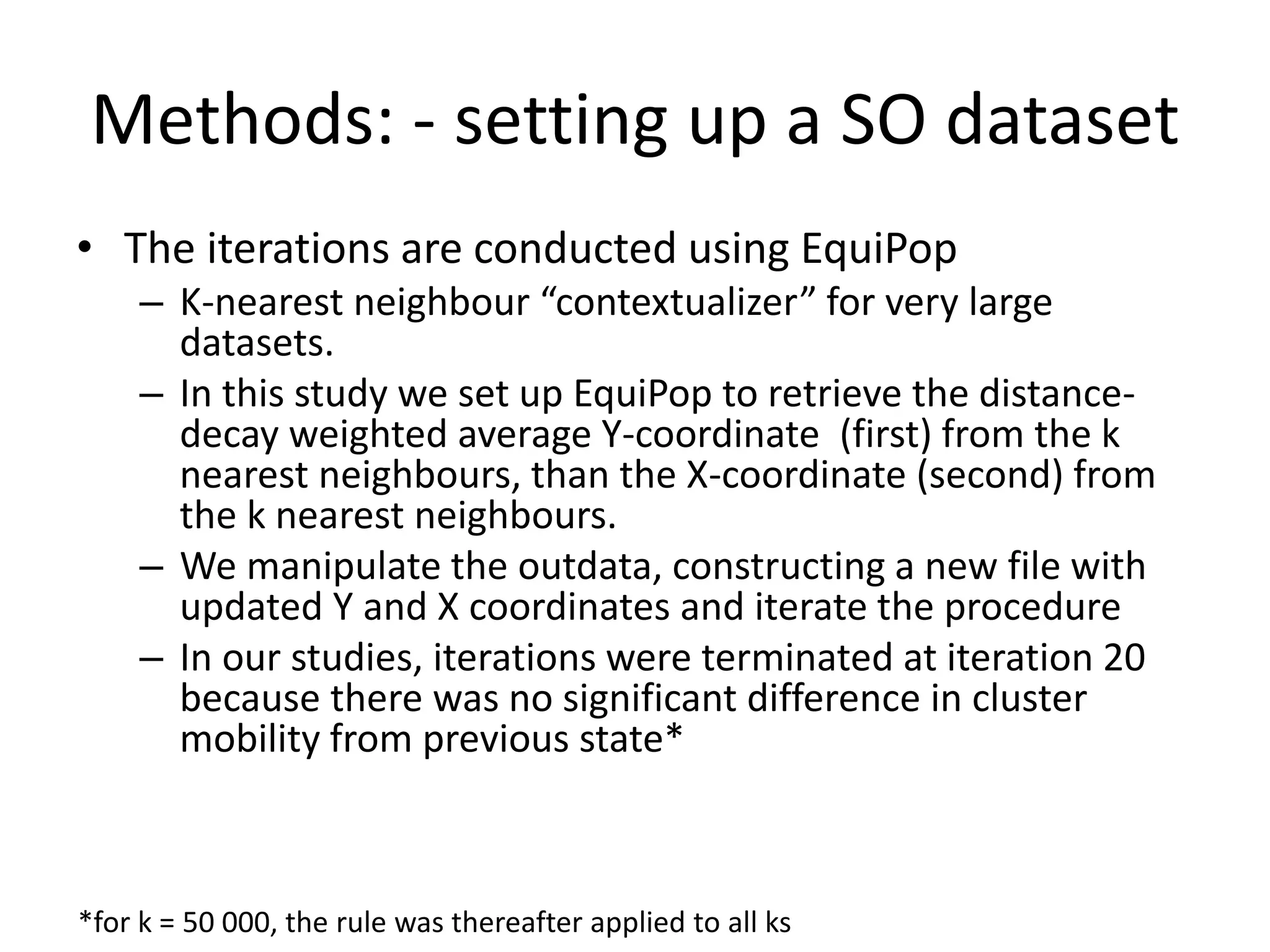

Methods: - setting up a SO dataset
• The iterations are conducted using EquiPop
– K-nearest neighbour “contextualizer” for very large
datasets.
– In this study we set up EquiPop to retrieve the distance-
decay weighted average Y-coordinate (first) from the k
nearest neighbours, than the X-coordinate (second) from
the k nearest neighbours.
– We manipulate the outdata, constructing a new file with
updated Y and X coordinates and iterate the procedure
– In our studies, iterations were terminated at iteration 20
because there was no significant difference in cluster
mobility from previous state*
*for k = 50 000, the rule was thereafter applied to all ks

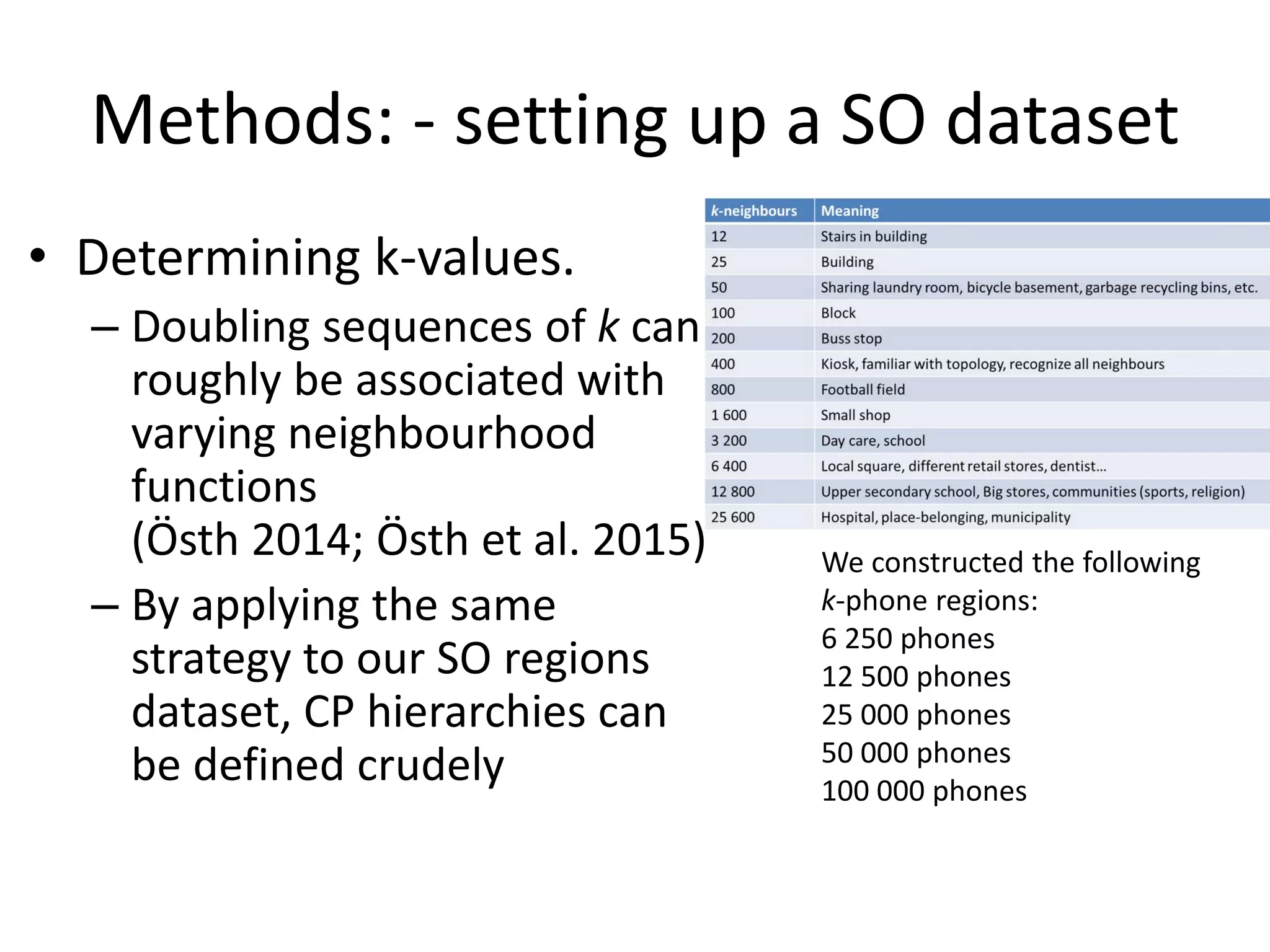

Methods: - setting up a SO dataset
• Determining k-values.
– Doubling sequences of k can
roughly be associated with
varying neighbourhood
functions
(Östh 2014; Östh et al. 2015)
– By applying the same
strategy to our SO regions
dataset, CP hierarchies can
be defined crudely
We constructed the following
k-phone regions:
6 250 phones
12 500 phones
25 000 phones
50 000 phones
100 000 phones

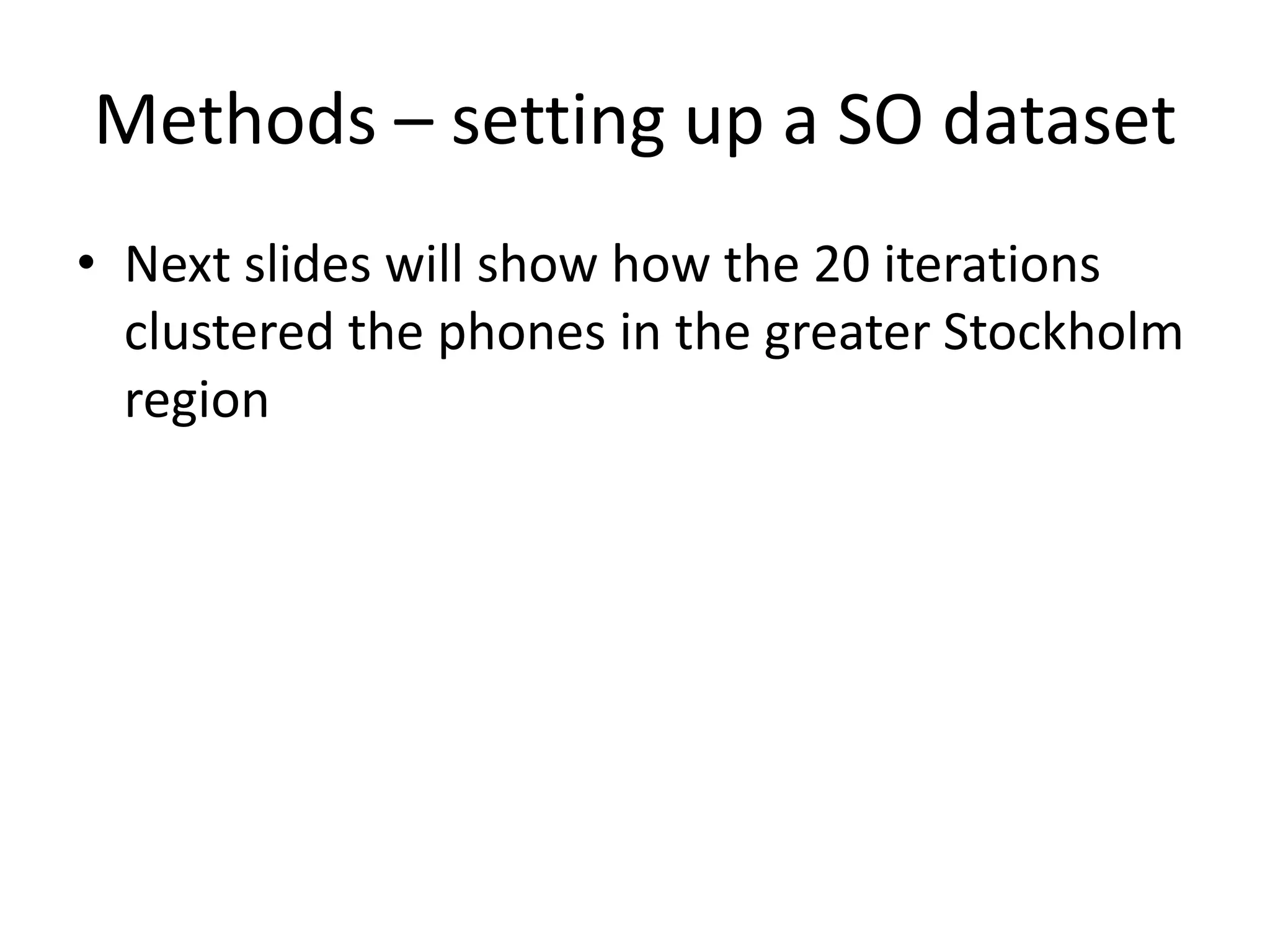

Methods – setting up a SO dataset

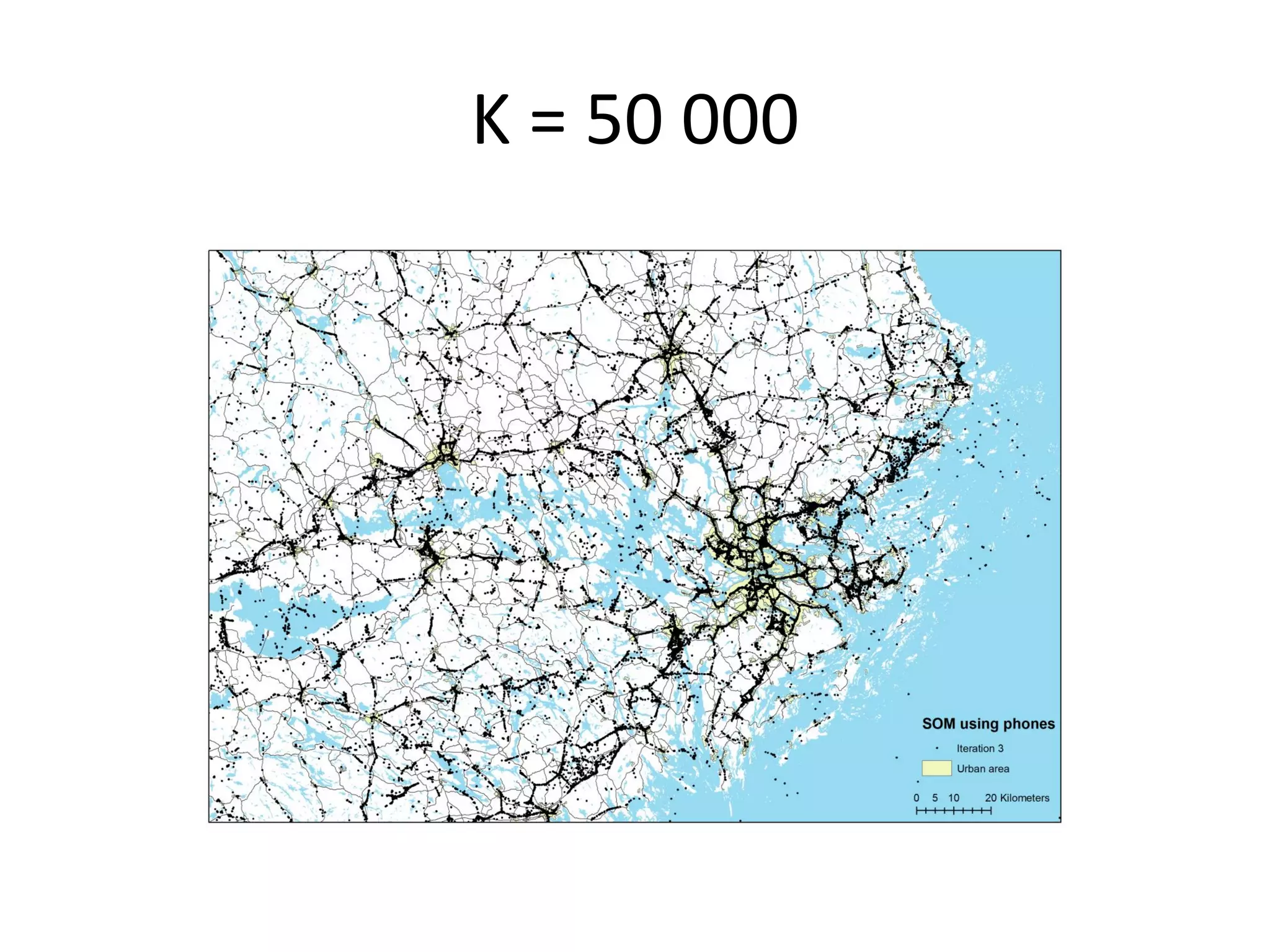

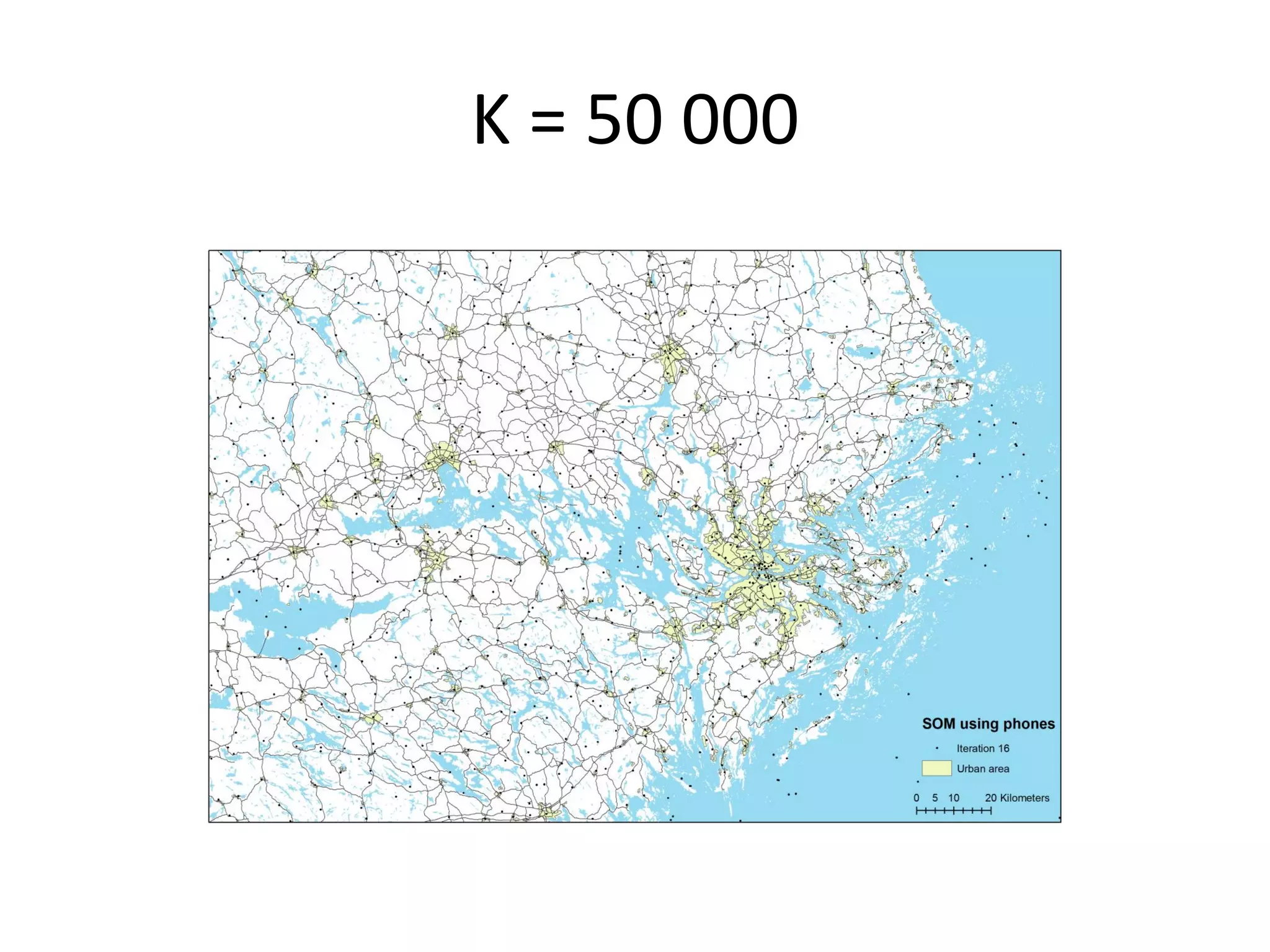

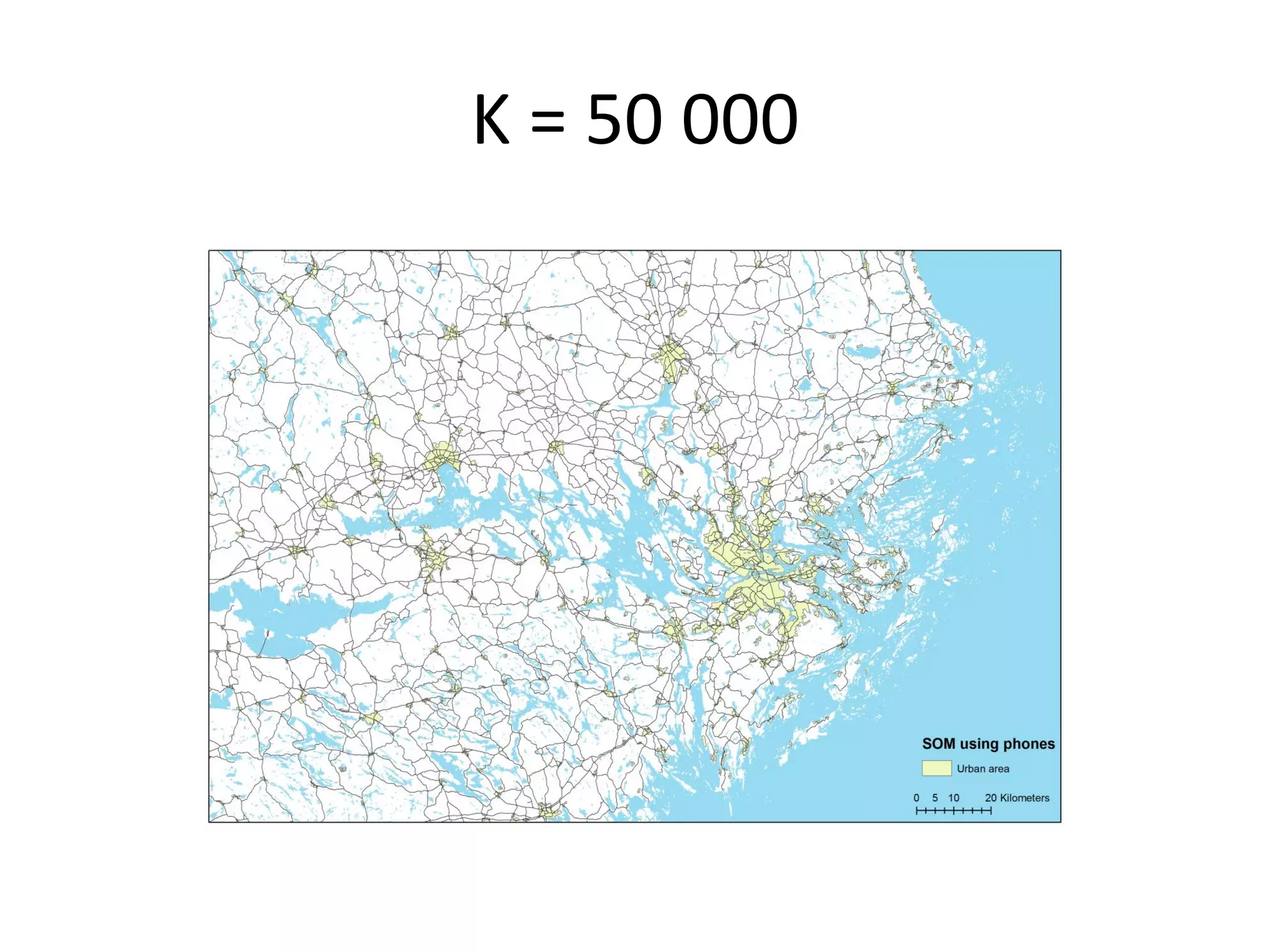

• Next slides will show how the 20 iterations
clustered the phones in the greater Stockholm
region

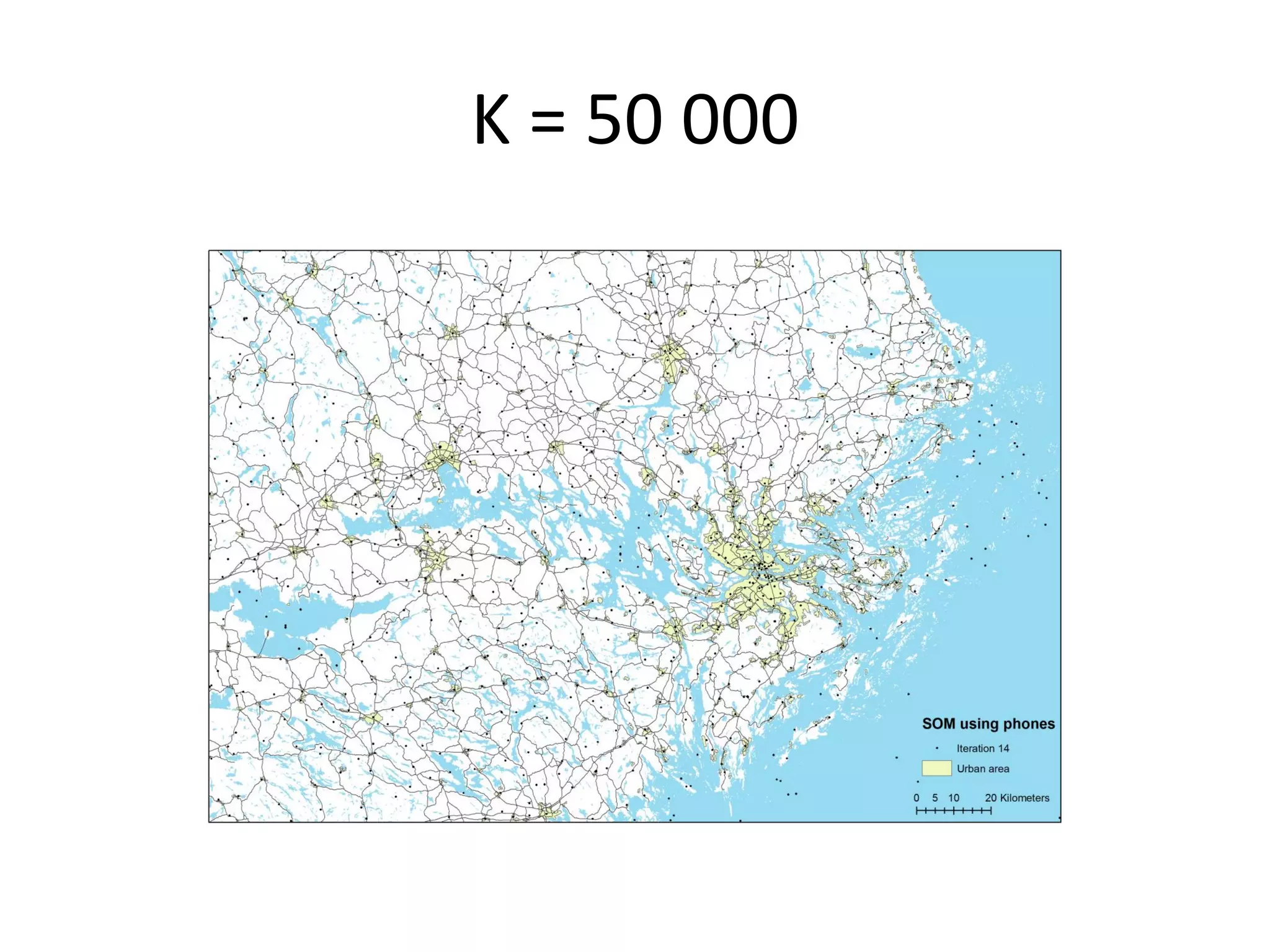

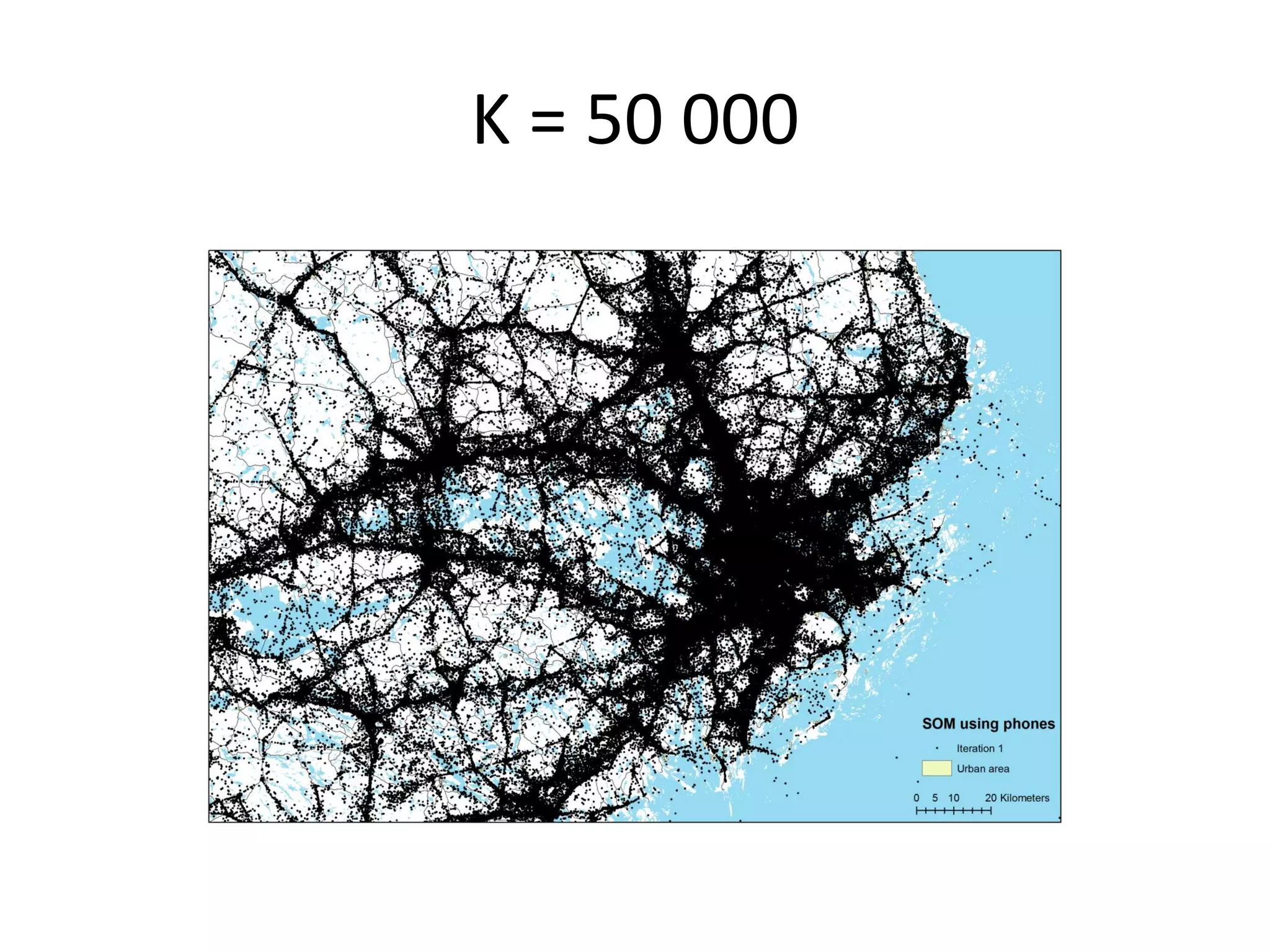

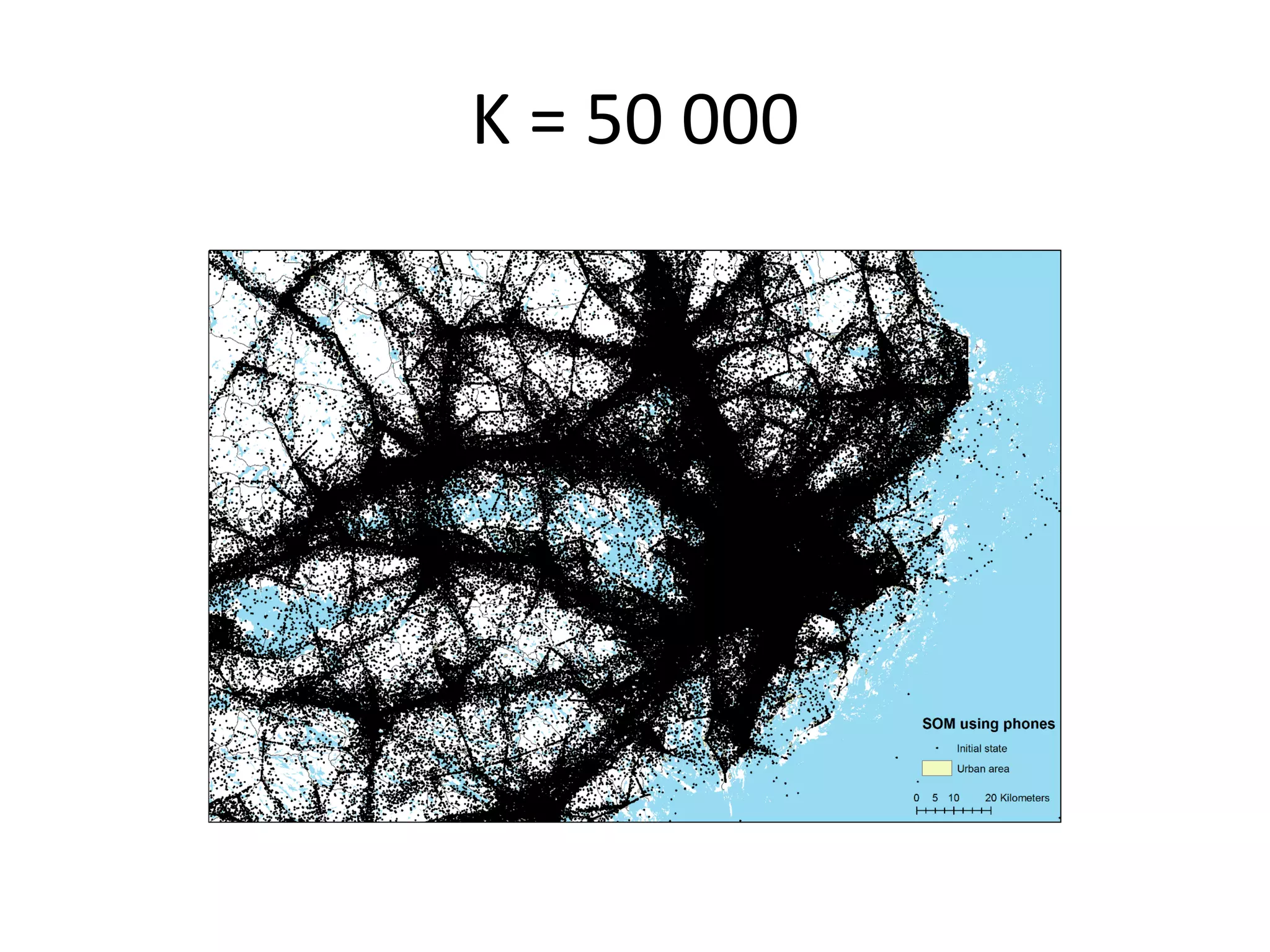

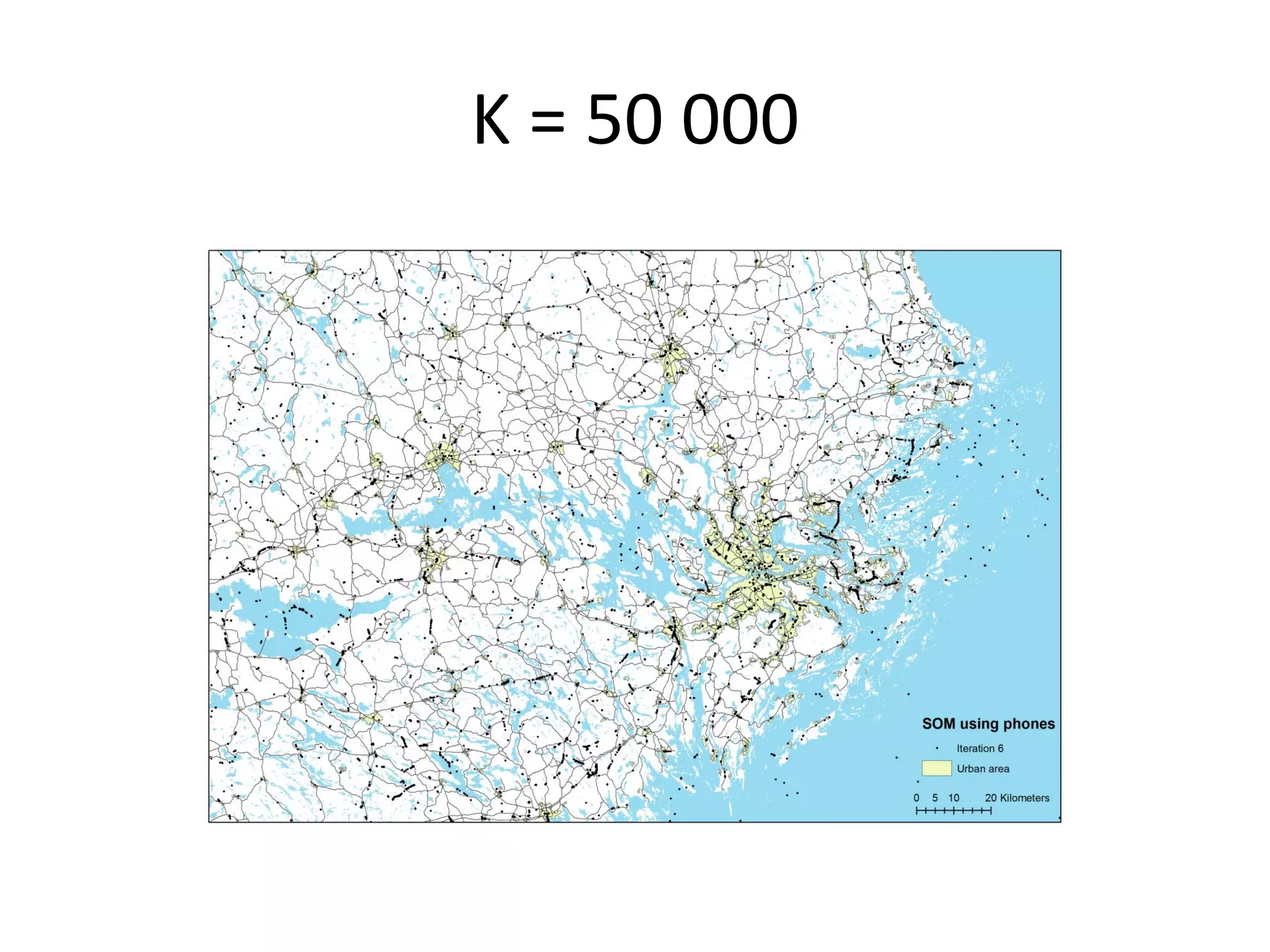

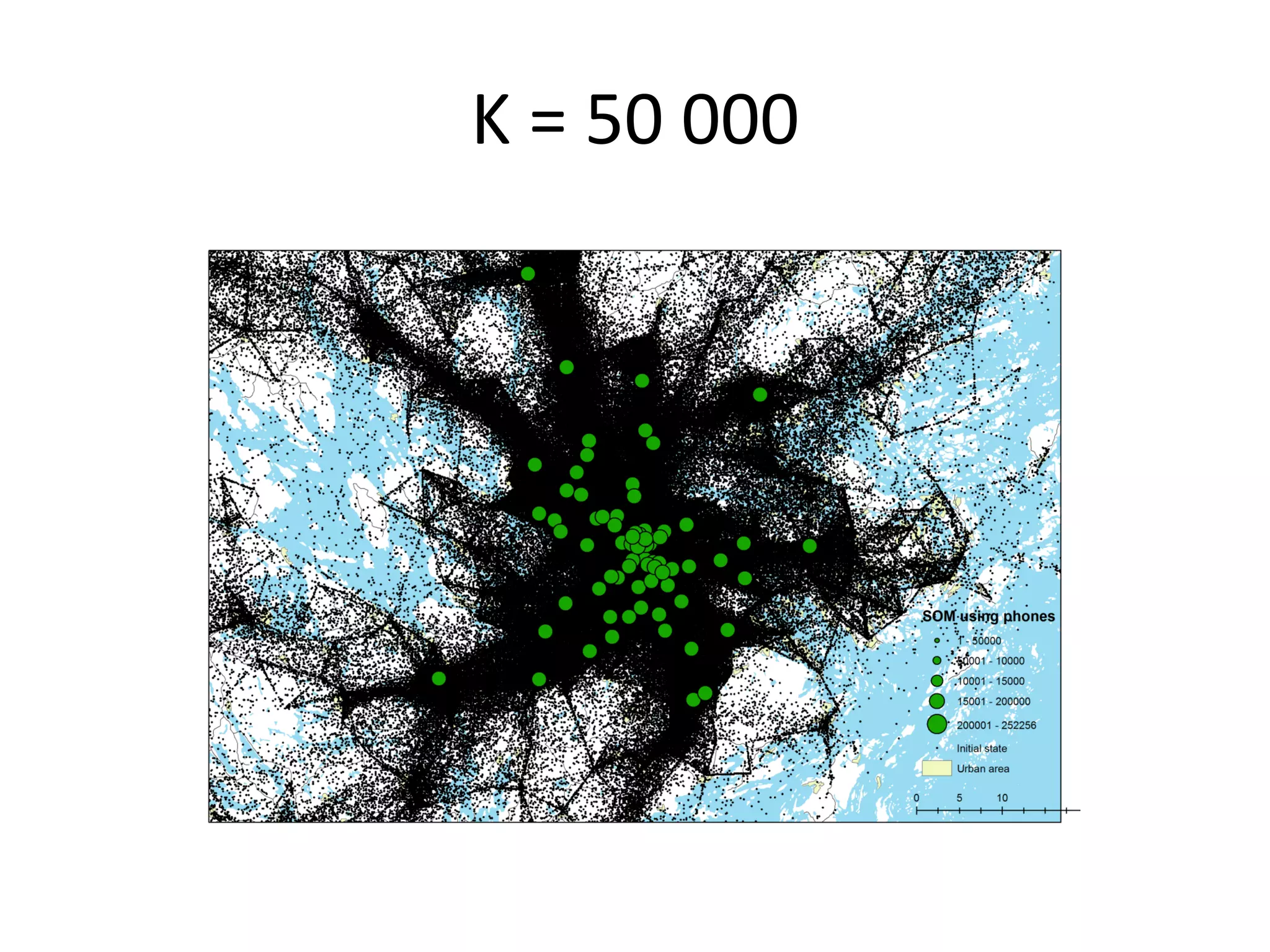

K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000
K = 50 000

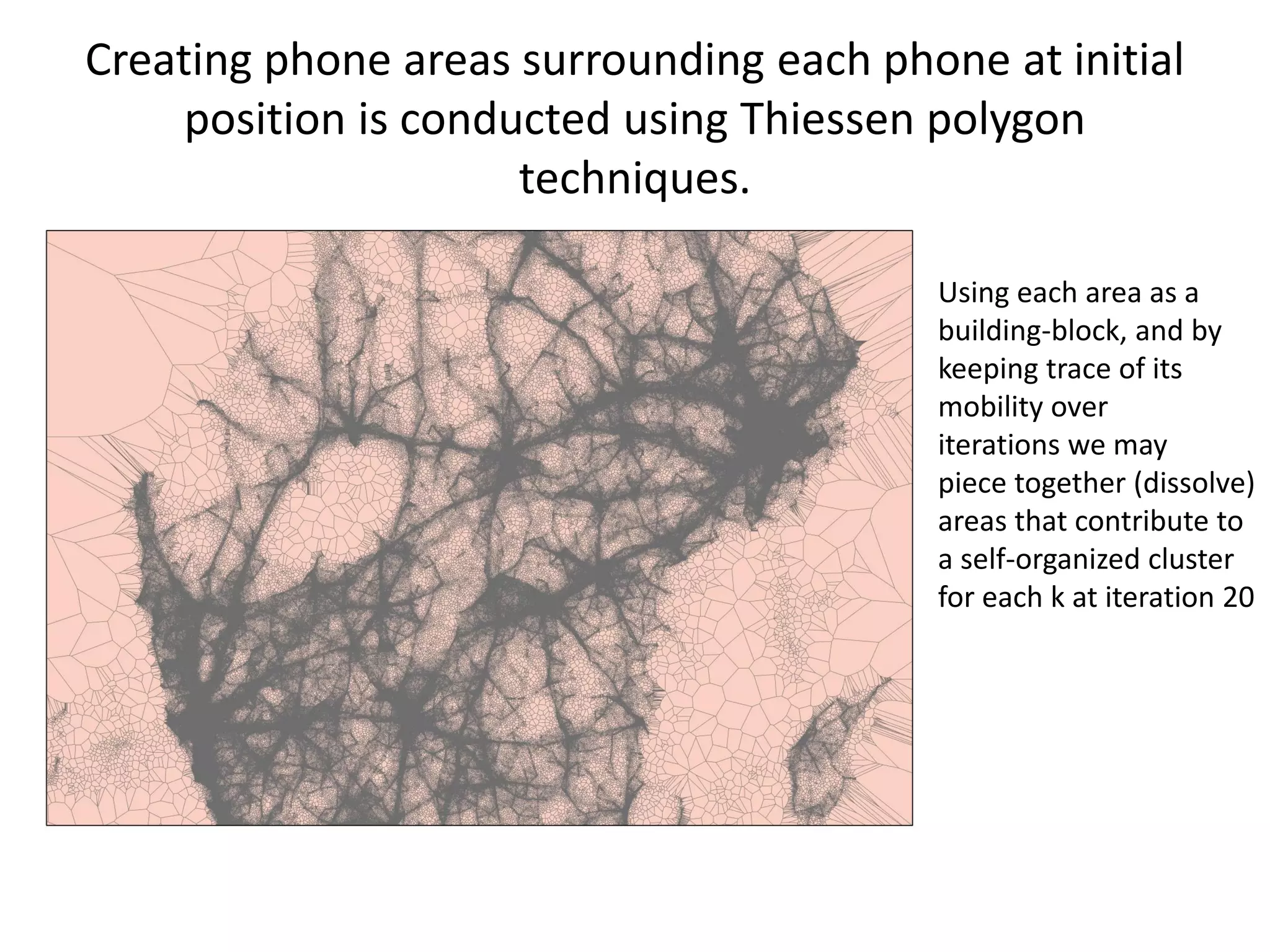

Converting points to areas
Creating phone areas surrounding each phone at initial
position is conducted using Thiessen polygon
techniques.
Using each area as a
building-block, and by
keeping trace of its
mobility over
iterations we may
piece together (dissolve)
areas that contribute to
a self-organized cluster
for each k at iteration 20

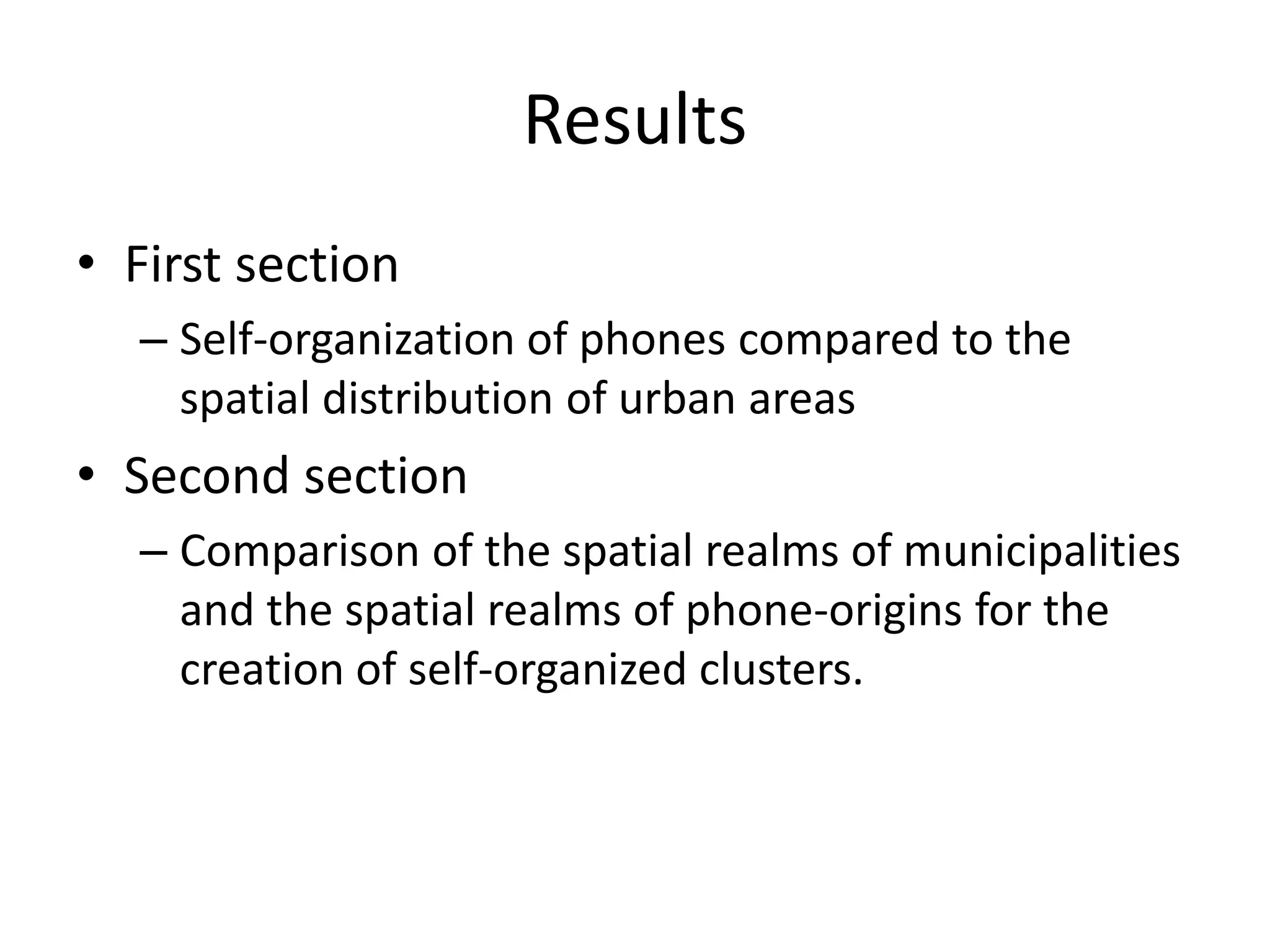

Results
• First section
– Self-organization of phones compared to the
spatial distribution of urban areas
• Second section
– Comparison of the spatial realms of municipalities
and the spatial realms of phone-origins for the
creation of self-organized clusters.

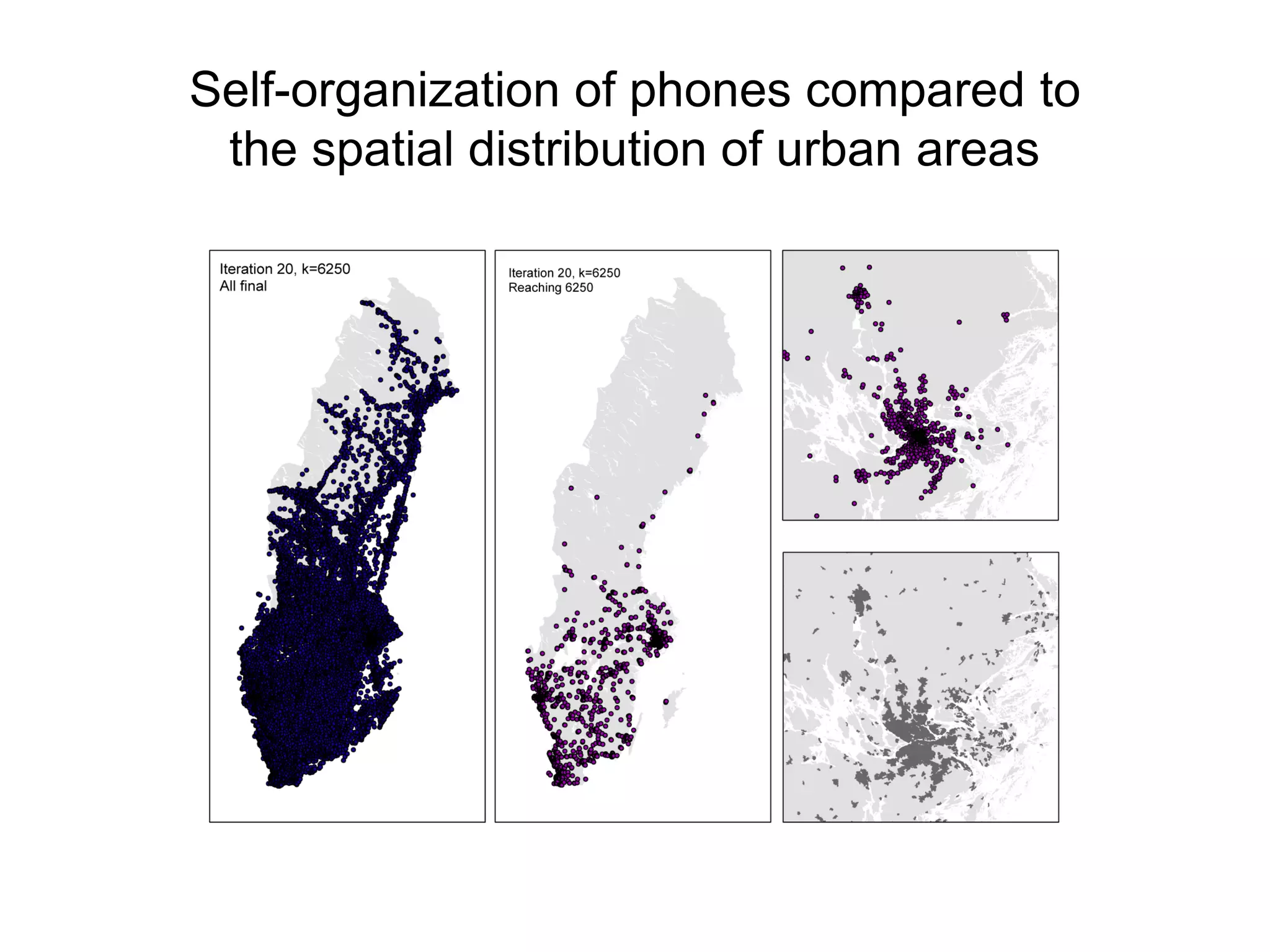

Self-organization of phones compared to
the spatial distribution of urban areas

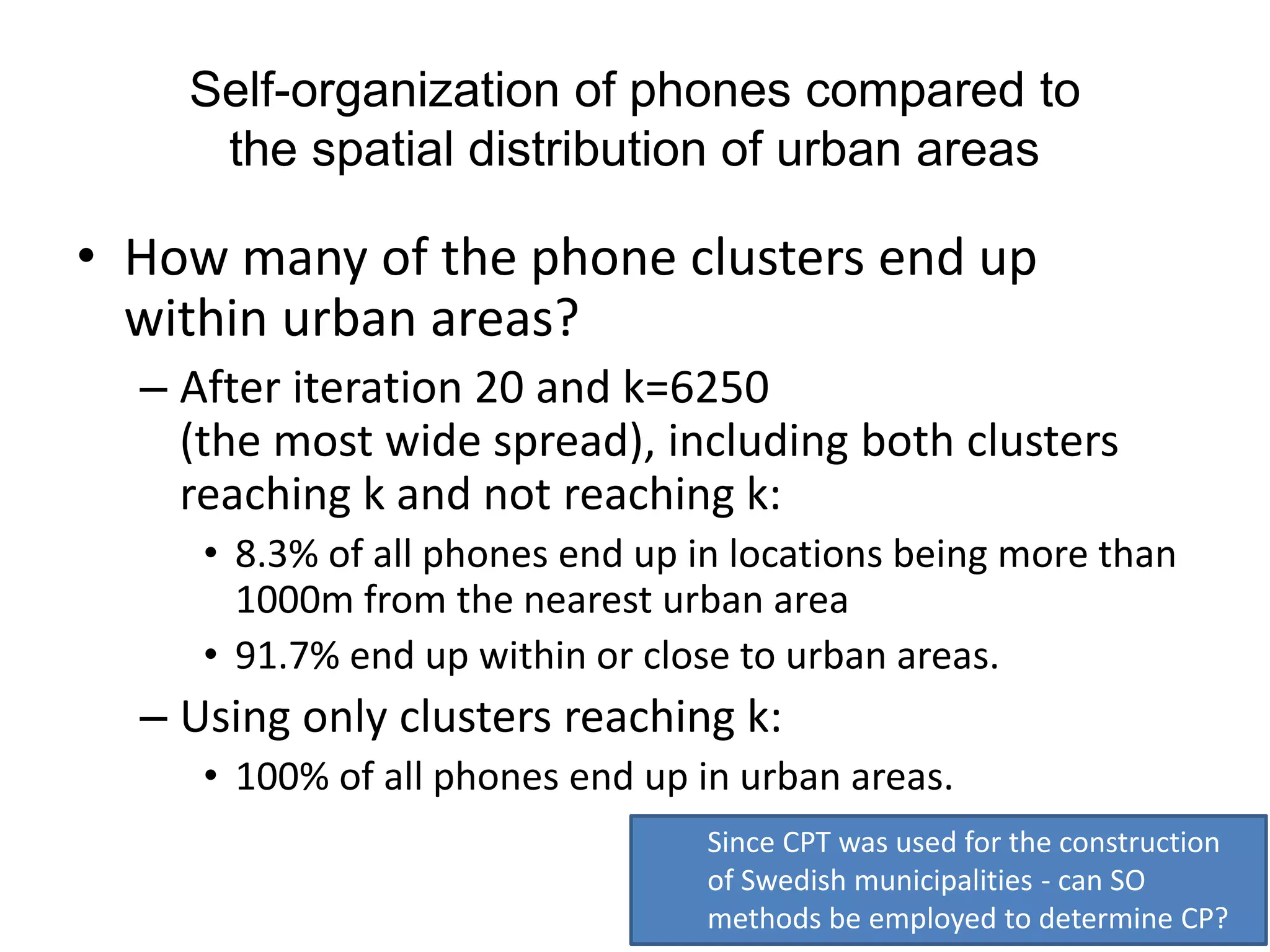

Self-organization of phones compared to
the spatial distribution of urban areas
• How many of the phone clusters end up
within urban areas?
– After iteration 20 and k=6250
(the most wide spread), including both clusters
reaching k and not reaching k:
• 8.3% of all phones end up in locations being more than
1000m from the nearest urban area
• 91.7% end up within or close to urban areas.
– Using only clusters reaching k:
• 100% of all phones end up in urban areas.
Since CPT was used for the construction
of Swedish municipalities - can SO
methods be employed to determine CP?

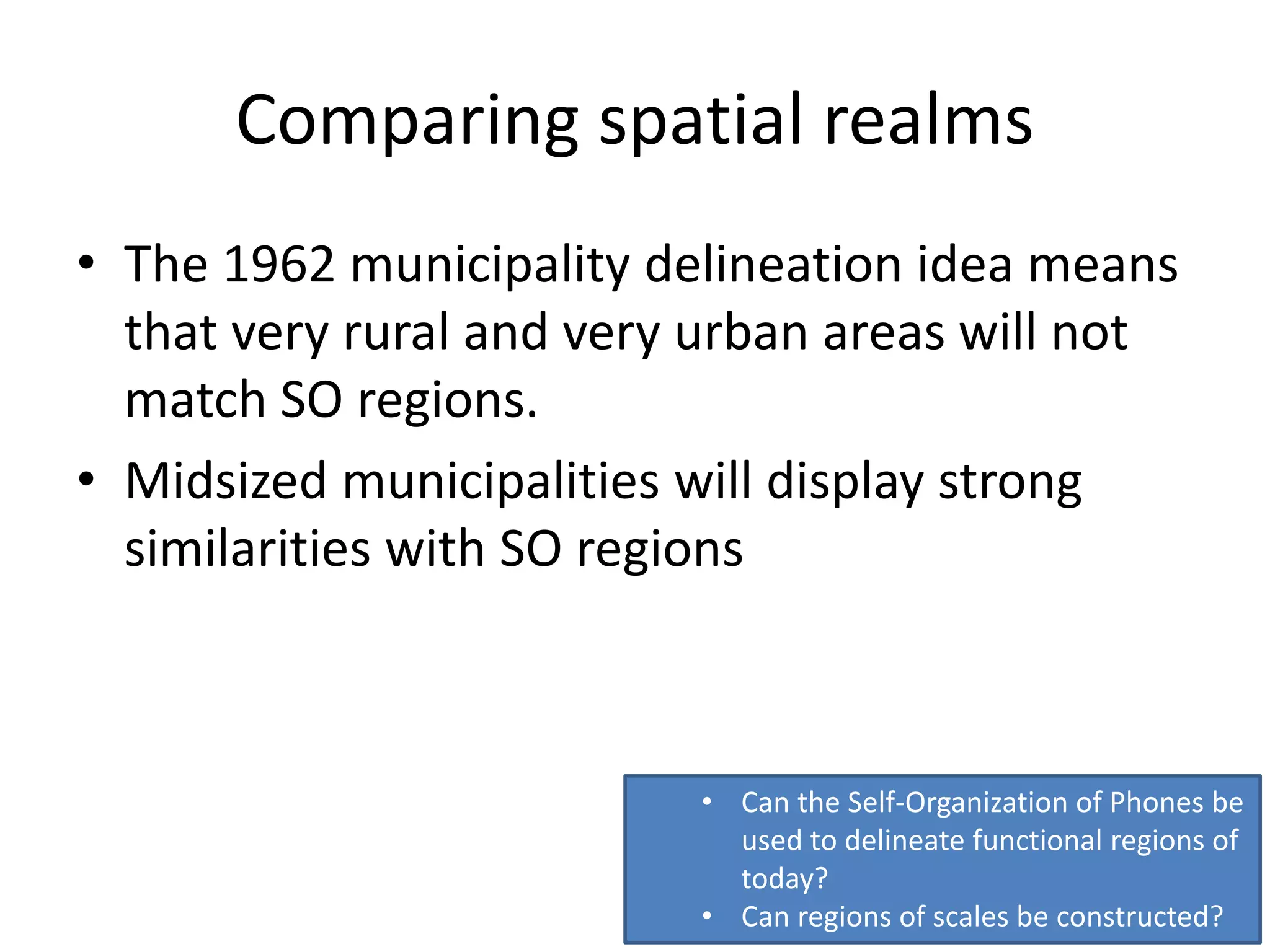

Comparing spatial realms
• The 1962 municipality delineation idea means
that very rural and very urban areas will not
match SO regions.
• Midsized municipalities will display strong
similarities with SO regions
• Can the Self-Organization of Phones be
used to delineate functional regions of
today?
• Can regions of scales be constructed?

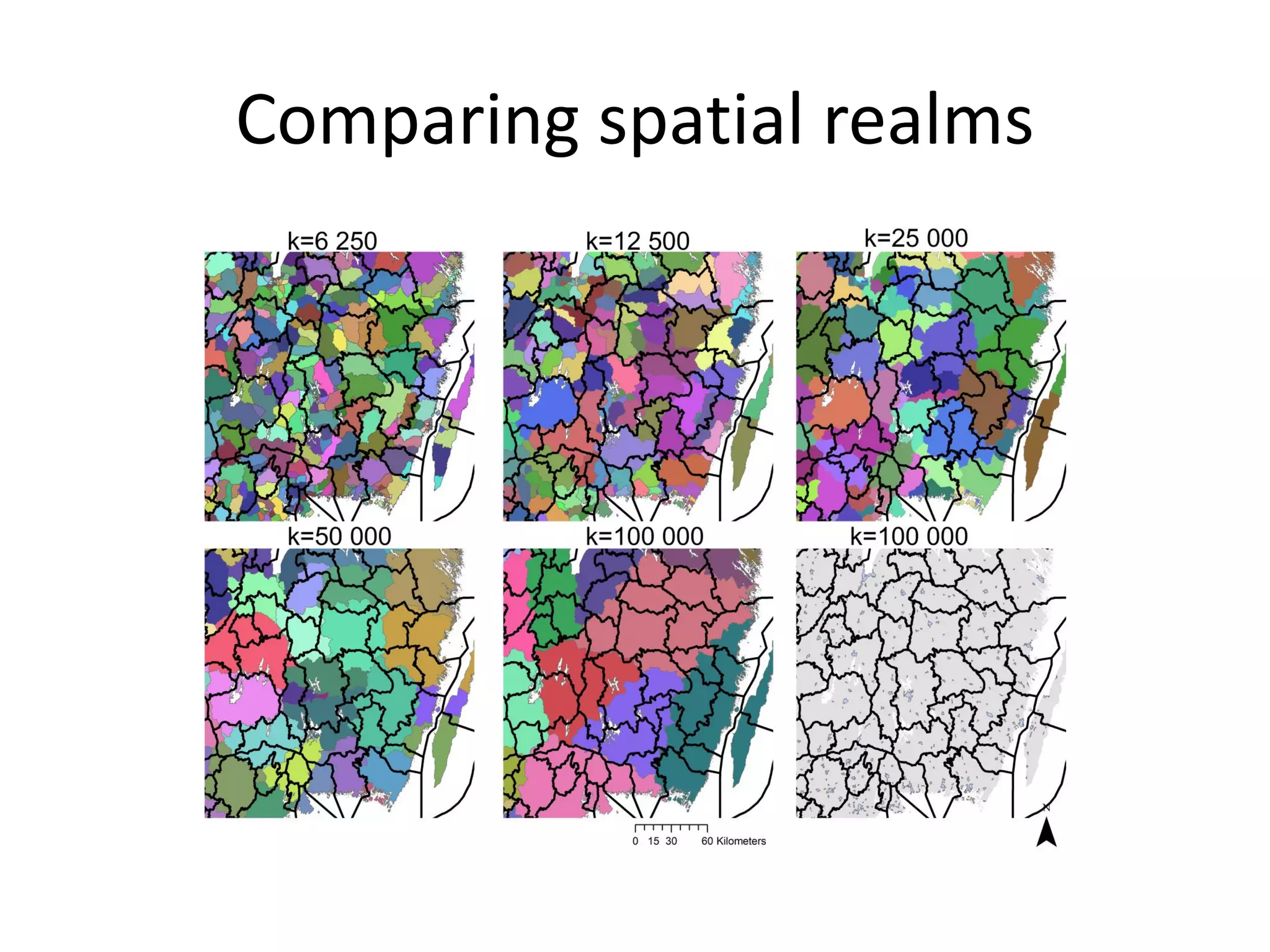

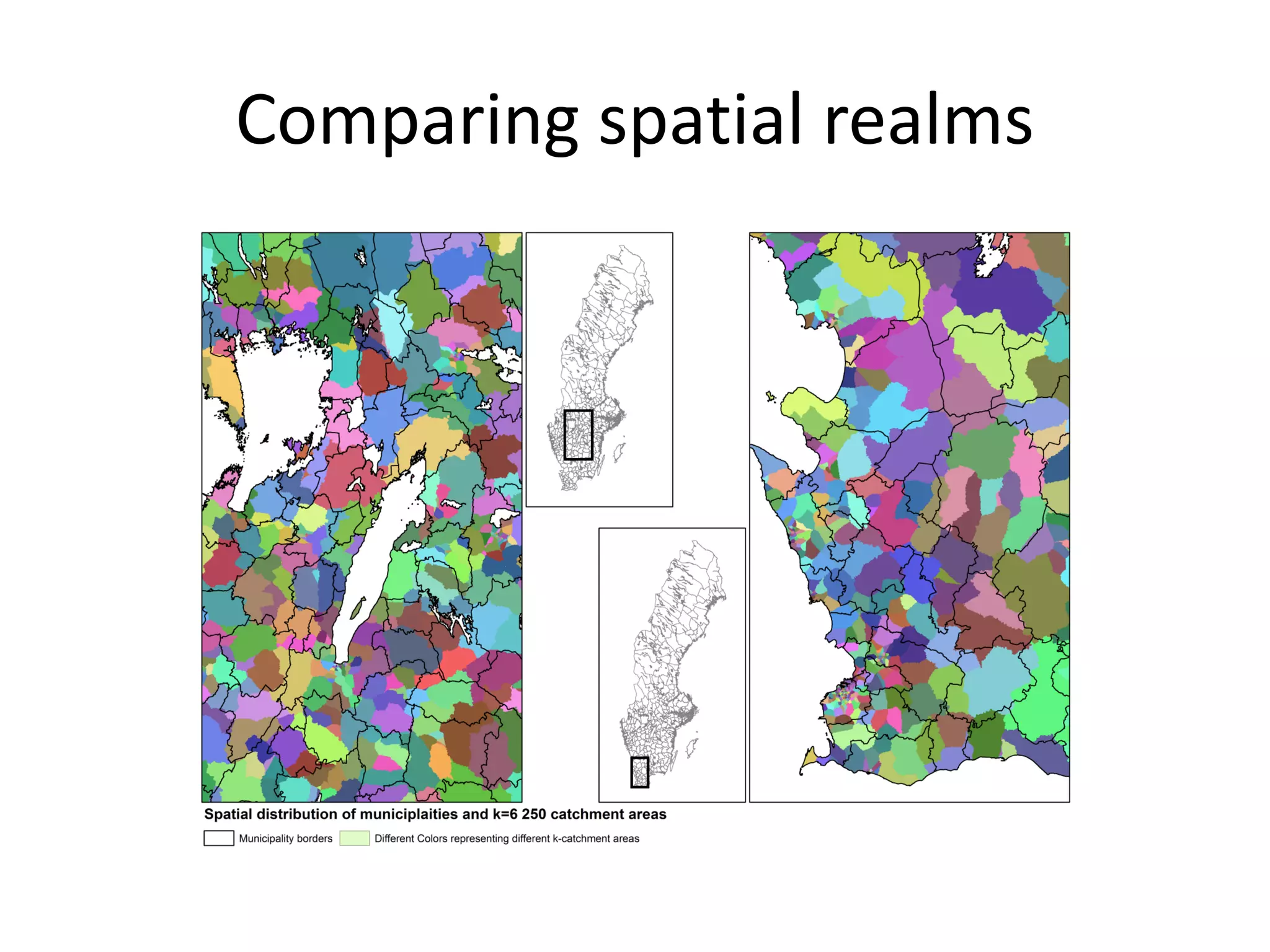

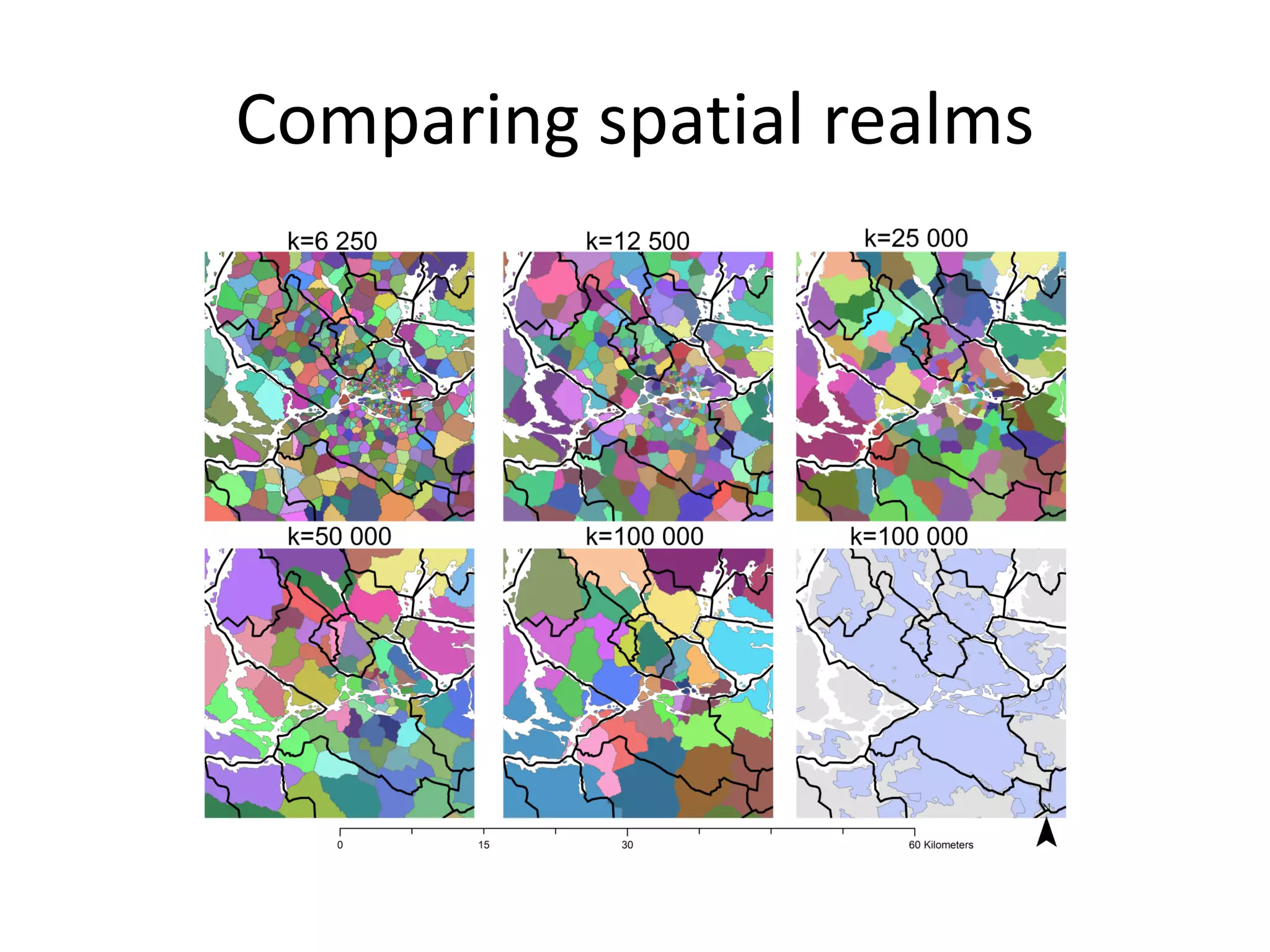

Comparing spatial realms
Comparing spatial realms
Comparing spatial realms
Conclusion
• Self-organization of phones can be used to
create functional regions.
• Using phones of specific hours or using the
trajectories of phones could help to construct
different functional regions
Post-presentation section

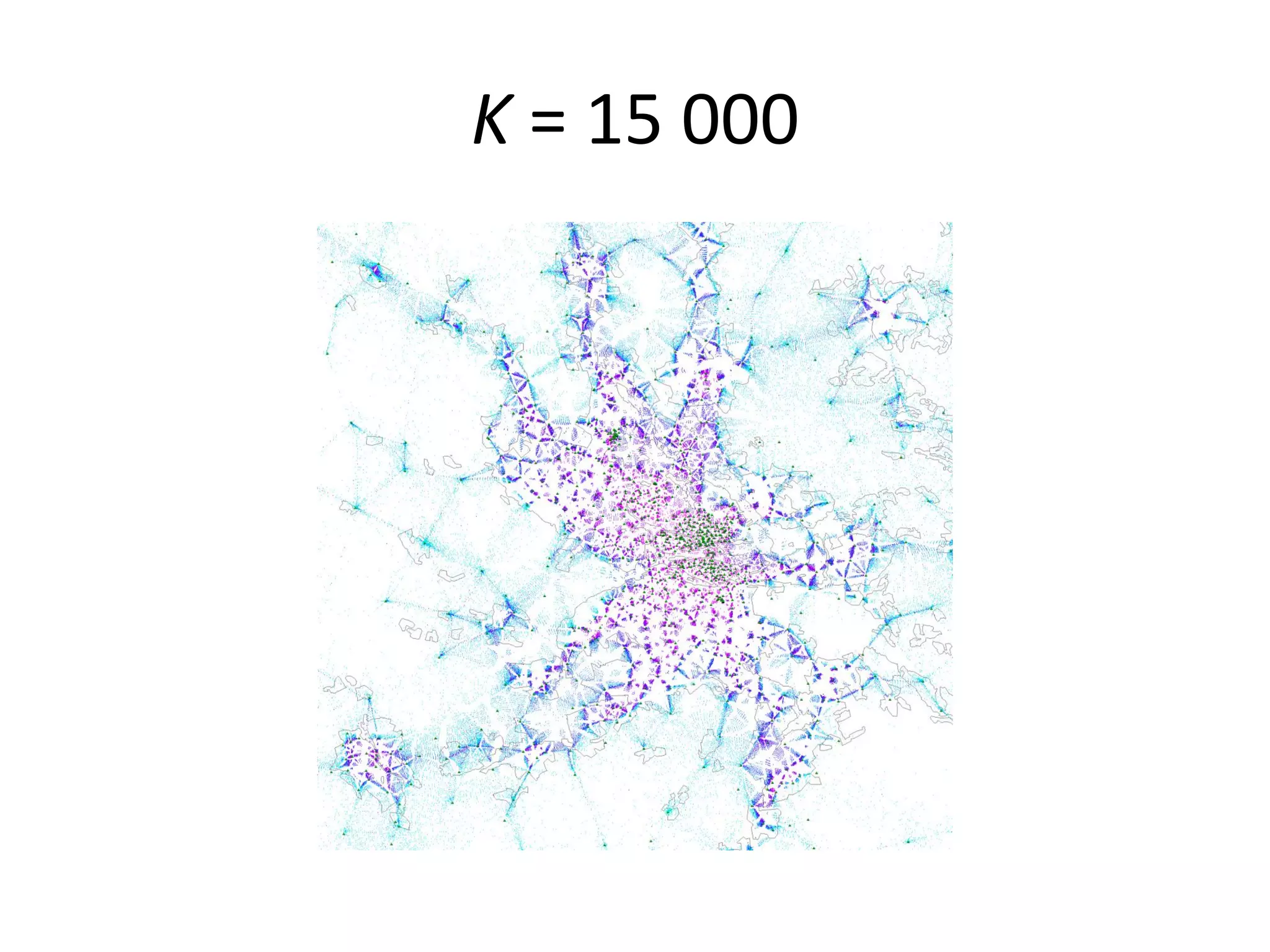

K = 15 000

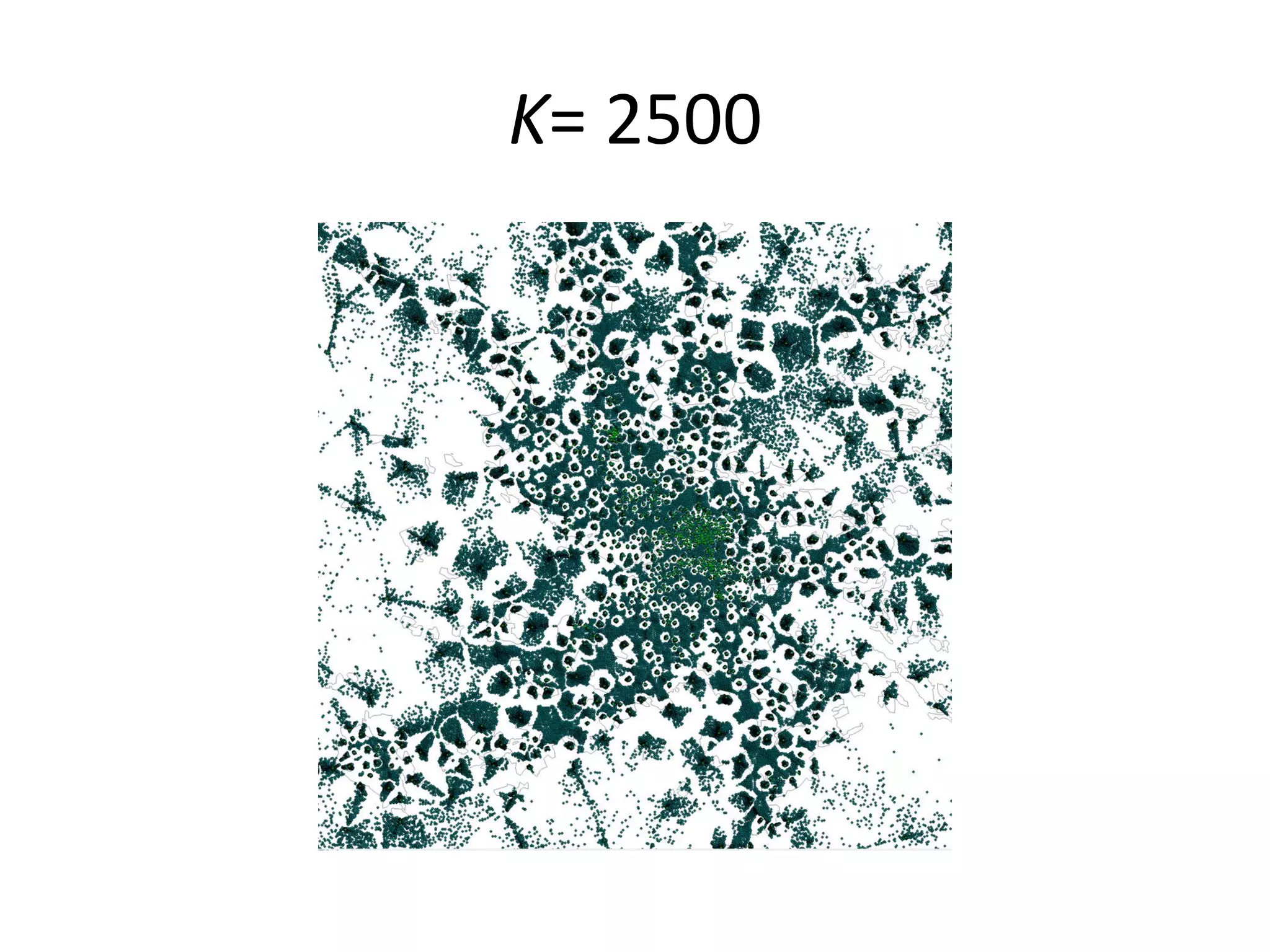

K= 2500

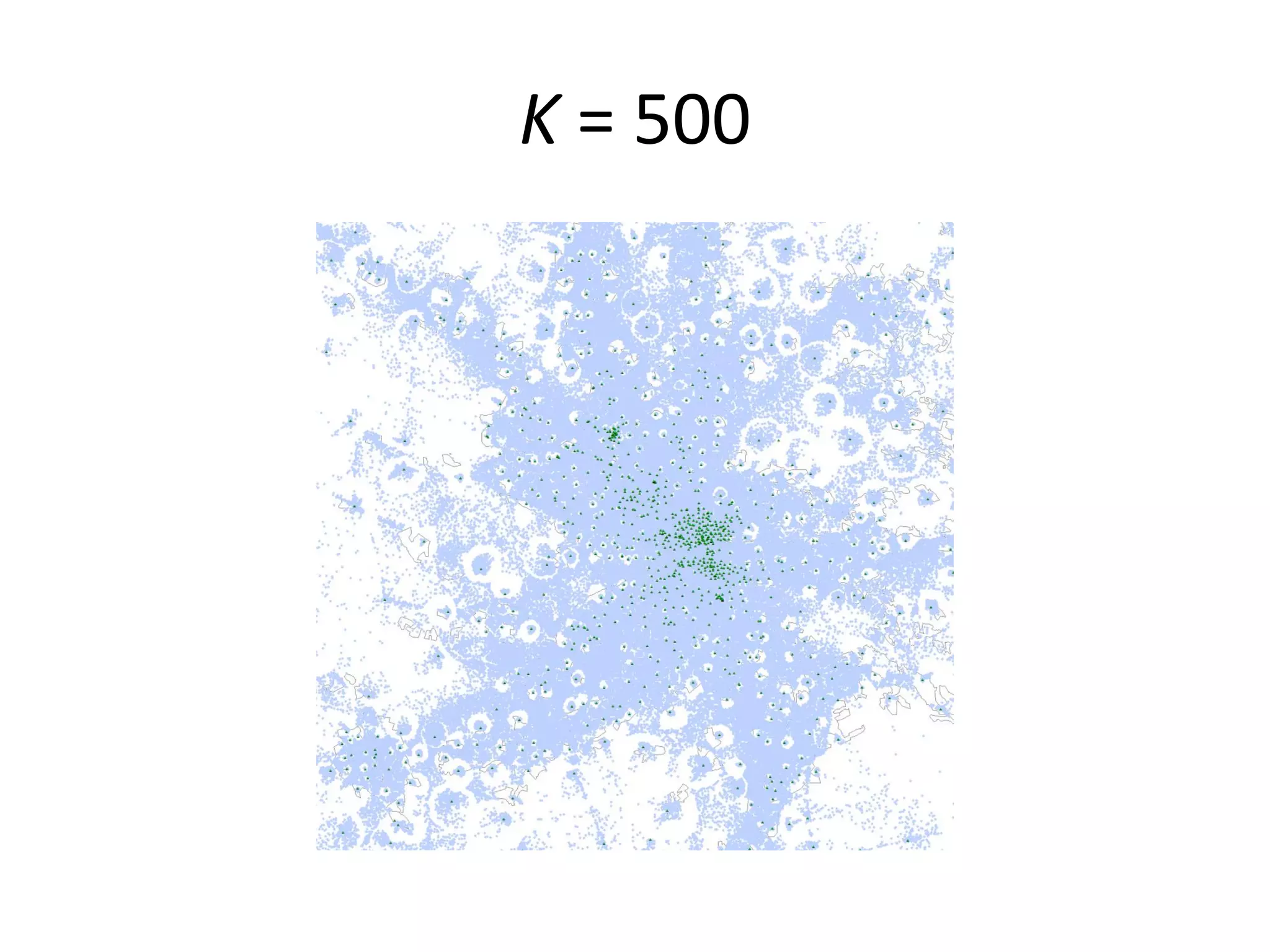

K = 500

More Related Content

What's hot

Smart Urban Planning Support through Web Data Science on Open and Enterprise ...
Smart Urban Planning Support through Web Data Science on Open and Enterprise ...Smart Urban Planning Support through Web Data Science on Open and Enterprise ...
Smart Urban Planning Support through Web Data Science on Open and Enterprise ...Gloria Re Calegari

Lewis Dijkstra, DG Regional Policy
Lewis Dijkstra, DG Regional PolicyLewis Dijkstra, DG Regional Policy
Lewis Dijkstra, DG Regional Policyplan4all

Vít Pászto - Rural and urban areas delimitation using fuzzy inference system
Vít Pászto	- Rural and urban areas delimitation using fuzzy inference systemVít Pászto	- Rural and urban areas delimitation using fuzzy inference system
Vít Pászto - Rural and urban areas delimitation using fuzzy inference systemswenney

GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...
GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...
GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...hpaocec

A0311020109
A0311020109A0311020109
A0311020109theijes

Regression_Presentation2
Regression_Presentation2Regression_Presentation2
Regression_Presentation2Drake Sprague

Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...
Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...
Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...Universität Salzburg

Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...
Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...
Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...Beniamino Murgante


What's hot (10)

Domain research presentation Midterm
Domain research presentation MidtermDomain research presentation Midterm
Domain research presentation Midterm

Smart Urban Planning Support through Web Data Science on Open and Enterprise ...
Smart Urban Planning Support through Web Data Science on Open and Enterprise ...Smart Urban Planning Support through Web Data Science on Open and Enterprise ...
Smart Urban Planning Support through Web Data Science on Open and Enterprise ...

Lewis Dijkstra, DG Regional Policy
Lewis Dijkstra, DG Regional PolicyLewis Dijkstra, DG Regional Policy
Lewis Dijkstra, DG Regional Policy

Vít Pászto - Rural and urban areas delimitation using fuzzy inference system
Vít Pászto	- Rural and urban areas delimitation using fuzzy inference systemVít Pászto	- Rural and urban areas delimitation using fuzzy inference system
Vít Pászto - Rural and urban areas delimitation using fuzzy inference system

Caenti Huelva2007 Wp4m Presentation
Caenti Huelva2007 Wp4m PresentationCaenti Huelva2007 Wp4m Presentation
Caenti Huelva2007 Wp4m Presentation

GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...
GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...
GIS in Public Health Research: Understanding Spatial Analysis and Interpretin...

A0311020109
A0311020109A0311020109
A0311020109

Regression_Presentation2
Regression_Presentation2Regression_Presentation2
Regression_Presentation2

Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...
Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...
Measuring regional difference in urban growth of Taipei city (Taiwan, China) ...

Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...
Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...
Integrating spatial and thematic data: the CRISOLA case for Malta and the Eur...


Similar to Resilience in Spatial and Urban Systems 2

Traffic models and estimation
Traffic models and estimation Traffic models and estimation
Traffic models and estimation Mina Yonan

GIS and Agent-based modeling: Part 1
GIS and Agent-based modeling: Part 1GIS and Agent-based modeling: Part 1
GIS and Agent-based modeling: Part 1crooksAndrew

IAOS 2018 - Defining the economic boundaries of cities. A global application,...
IAOS 2018 - Defining the economic boundaries of cities. A global application,...IAOS 2018 - Defining the economic boundaries of cities. A global application,...
IAOS 2018 - Defining the economic boundaries of cities. A global application,...StatsCommunications

Topological Data Analysis of Complex Spatial Systems
Topological Data Analysis of Complex Spatial SystemsTopological Data Analysis of Complex Spatial Systems
Topological Data Analysis of Complex Spatial SystemsMason Porter

Presentation A.K Nigam sir (2) (1).pptx
Presentation A.K Nigam sir (2)  (1).pptxPresentation A.K Nigam sir (2)  (1).pptx
Presentation A.K Nigam sir (2) (1).pptxspeedcomcyber25

GEOGRAPHIC INFORMATION SYSTEM.pptx
GEOGRAPHIC INFORMATION SYSTEM.pptxGEOGRAPHIC INFORMATION SYSTEM.pptx
GEOGRAPHIC INFORMATION SYSTEM.pptxFizaNaaz8

From econophysicsto networks to data science: Estonian network of payments
From econophysicsto networks to data science: Estonian network of paymentsFrom econophysicsto networks to data science: Estonian network of payments
From econophysicsto networks to data science: Estonian network of paymentsEesti Pank

Carpita metulini 111220_dssr_bari_version2
Carpita metulini 111220_dssr_bari_version2Carpita metulini 111220_dssr_bari_version2
Carpita metulini 111220_dssr_bari_version2University of Salerno

Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...
Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...
Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...Geokomunita

Data Communication 1
Data Communication 1Data Communication 1
Data Communication 1admercano101

Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAU
Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAUNye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAU
Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAUInfinIT - Innovationsnetværket for it

geographic information system pdf
geographic information system pdfgeographic information system pdf
geographic information system pdfRolan Ben Lorono

Cities: OECD analyses and indicators
Cities: OECD analyses and indicatorsCities: OECD analyses and indicators
Cities: OECD analyses and indicatorsOECDregions

Remote Sensing and GIS
Remote Sensing and GISRemote Sensing and GIS
Remote Sensing and GISMEHALAS3

real life applications of network in graph theory.pptx
real life applications of network in graph theory.pptxreal life applications of network in graph theory.pptx
real life applications of network in graph theory.pptxmathematicssac


Similar to Resilience in Spatial and Urban Systems 2 (20)

hkn_talk.ppt
hkn_talk.ppthkn_talk.ppt
hkn_talk.ppt

Traffic models and estimation
Traffic models and estimation Traffic models and estimation
Traffic models and estimation

GIS and Agent-based modeling: Part 1
GIS and Agent-based modeling: Part 1GIS and Agent-based modeling: Part 1
GIS and Agent-based modeling: Part 1

IAOS 2018 - Defining the economic boundaries of cities. A global application,...
IAOS 2018 - Defining the economic boundaries of cities. A global application,...IAOS 2018 - Defining the economic boundaries of cities. A global application,...
IAOS 2018 - Defining the economic boundaries of cities. A global application,...

Topological Data Analysis of Complex Spatial Systems
Topological Data Analysis of Complex Spatial SystemsTopological Data Analysis of Complex Spatial Systems
Topological Data Analysis of Complex Spatial Systems

Technical Note of EU FP7 MONICA Project: Mobility Prediction as a Service of ...
Technical Note of EU FP7 MONICA Project: Mobility Prediction as a Service of ...Technical Note of EU FP7 MONICA Project: Mobility Prediction as a Service of ...
Technical Note of EU FP7 MONICA Project: Mobility Prediction as a Service of ...

L8PDF.pdf
L8PDF.pdfL8PDF.pdf
L8PDF.pdf

Presentation A.K Nigam sir (2) (1).pptx
Presentation A.K Nigam sir (2)  (1).pptxPresentation A.K Nigam sir (2)  (1).pptx
Presentation A.K Nigam sir (2) (1).pptx

Poster
PosterPoster
Poster

GEOGRAPHIC INFORMATION SYSTEM.pptx
GEOGRAPHIC INFORMATION SYSTEM.pptxGEOGRAPHIC INFORMATION SYSTEM.pptx
GEOGRAPHIC INFORMATION SYSTEM.pptx

From econophysicsto networks to data science: Estonian network of payments
From econophysicsto networks to data science: Estonian network of paymentsFrom econophysicsto networks to data science: Estonian network of payments
From econophysicsto networks to data science: Estonian network of payments

Multimedia Mining
Multimedia Mining Multimedia Mining
Multimedia Mining

Carpita metulini 111220_dssr_bari_version2
Carpita metulini 111220_dssr_bari_version2Carpita metulini 111220_dssr_bari_version2
Carpita metulini 111220_dssr_bari_version2

Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...
Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...
Interaktívne webové mapy ako nástroj pre analýzu heterogénnych dát pre krízov...

Data Communication 1
Data Communication 1Data Communication 1
Data Communication 1

Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAU
Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAUNye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAU
Nye forskninsgresultater inden for geo-spatiale data af Christian S. Jensen, AAU

geographic information system pdf
geographic information system pdfgeographic information system pdf
geographic information system pdf

Cities: OECD analyses and indicators
Cities: OECD analyses and indicatorsCities: OECD analyses and indicators
Cities: OECD analyses and indicators

Remote Sensing and GIS
Remote Sensing and GISRemote Sensing and GIS
Remote Sensing and GIS

real life applications of network in graph theory.pptx
real life applications of network in graph theory.pptxreal life applications of network in graph theory.pptx
real life applications of network in graph theory.pptx


More from Regional Science Academy

Bots Versus Bohemians: Resiliency of Labor Markets in Automated Cities
Bots Versus Bohemians: Resiliency of Labor Markets in Automated CitiesBots Versus Bohemians: Resiliency of Labor Markets in Automated Cities
Bots Versus Bohemians: Resiliency of Labor Markets in Automated CitiesRegional Science Academy

A selection of regional science papers important for my career
A selection of regional science papers important for my careerA selection of regional science papers important for my career
A selection of regional science papers important for my careerRegional Science Academy

High-tech services to companies in the city: therise of the modern economy in...
High-tech services to companies in the city: therise of the modern economy in...High-tech services to companies in the city: therise of the modern economy in...
High-tech services to companies in the city: therise of the modern economy in...Regional Science Academy

Tourism in the Smart City:a Common place for tourists and residents
Tourism in the Smart City:a Common place for tourists and residentsTourism in the Smart City:a Common place for tourists and residents
Tourism in the Smart City:a Common place for tourists and residentsRegional Science Academy

BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENT
BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENTBANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENT
BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENTRegional Science Academy

Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...
Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...
Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...Regional Science Academy

Regional Brain Drain in the Chilean Economy
Regional Brain Drain in the Chilean EconomyRegional Brain Drain in the Chilean Economy
Regional Brain Drain in the Chilean EconomyRegional Science Academy

Creative Capital, Information & Communication Technologies, & Economic Growth...
Creative Capital, Information & Communication Technologies, & Economic Growth...Creative Capital, Information & Communication Technologies, & Economic Growth...
Creative Capital, Information & Communication Technologies, & Economic Growth...Regional Science Academy

Data requirements for smart people in smart cities
Data requirements for smart people in smart citiesData requirements for smart people in smart cities
Data requirements for smart people in smart citiesRegional Science Academy

Urban Empires – Cities as Global Rulers in the New Urban World
Urban Empires – Cities as Global Rulers in the New Urban WorldUrban Empires – Cities as Global Rulers in the New Urban World
Urban Empires – Cities as Global Rulers in the New Urban WorldRegional Science Academy

Geographic Clustering of Craft Breweries in Select American Cities
Geographic Clustering of Craft Breweries in Select American CitiesGeographic Clustering of Craft Breweries in Select American Cities
Geographic Clustering of Craft Breweries in Select American CitiesRegional Science Academy


More from Regional Science Academy (20)

Bots Versus Bohemians: Resiliency of Labor Markets in Automated Cities
Bots Versus Bohemians: Resiliency of Labor Markets in Automated CitiesBots Versus Bohemians: Resiliency of Labor Markets in Automated Cities
Bots Versus Bohemians: Resiliency of Labor Markets in Automated Cities

A selection of regional science papers important for my career
A selection of regional science papers important for my careerA selection of regional science papers important for my career
A selection of regional science papers important for my career

Population and Migration
Population and MigrationPopulation and Migration
Population and Migration

Challenges of Big Data Research
Challenges of Big Data ResearchChallenges of Big Data Research
Challenges of Big Data Research

Big Data and Big Cities
Big Data and Big CitiesBig Data and Big Cities
Big Data and Big Cities

THE CITY IN REGIONAL SCIENCE
THE CITY IN REGIONAL SCIENCETHE CITY IN REGIONAL SCIENCE
THE CITY IN REGIONAL SCIENCE

High-tech services to companies in the city: therise of the modern economy in...
High-tech services to companies in the city: therise of the modern economy in...High-tech services to companies in the city: therise of the modern economy in...
High-tech services to companies in the city: therise of the modern economy in...

The Geography of Urban Intelligence
The Geography of Urban IntelligenceThe Geography of Urban Intelligence
The Geography of Urban Intelligence

Matej Bel - Magnum Decus Hungariae
Matej Bel - Magnum Decus HungariaeMatej Bel - Magnum Decus Hungariae
Matej Bel - Magnum Decus Hungariae

Julian Wolpert
Julian Wolpert Julian Wolpert
Julian Wolpert

Tourism in the Smart City:a Common place for tourists and residents
Tourism in the Smart City:a Common place for tourists and residentsTourism in the Smart City:a Common place for tourists and residents
Tourism in the Smart City:a Common place for tourists and residents

Citiesand their (start-up) communities
Citiesand their (start-up) communitiesCitiesand their (start-up) communities
Citiesand their (start-up) communities

BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENT
BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENTBANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENT
BANSKÁ BYSTRICA IN CONTEXT OF SMART URBAN DEVELOPMENT

Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...
Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...
Assessing Metropolitan Transportation Investments: Spatial Econometrics-CGE C...

Regional Brain Drain in the Chilean Economy
Regional Brain Drain in the Chilean EconomyRegional Brain Drain in the Chilean Economy
Regional Brain Drain in the Chilean Economy

Resilience in Spatial and Urban Systems
Resilience in Spatial and Urban SystemsResilience in Spatial and Urban Systems
Resilience in Spatial and Urban Systems

Creative Capital, Information & Communication Technologies, & Economic Growth...
Creative Capital, Information & Communication Technologies, & Economic Growth...Creative Capital, Information & Communication Technologies, & Economic Growth...
Creative Capital, Information & Communication Technologies, & Economic Growth...

Data requirements for smart people in smart cities
Data requirements for smart people in smart citiesData requirements for smart people in smart cities
Data requirements for smart people in smart cities

Urban Empires – Cities as Global Rulers in the New Urban World
Urban Empires – Cities as Global Rulers in the New Urban WorldUrban Empires – Cities as Global Rulers in the New Urban World
Urban Empires – Cities as Global Rulers in the New Urban World

Geographic Clustering of Craft Breweries in Select American Cities
Geographic Clustering of Craft Breweries in Select American CitiesGeographic Clustering of Craft Breweries in Select American Cities
Geographic Clustering of Craft Breweries in Select American Cities


Recently uploaded

Sarah Lahm In Media Res Media Component
Sarah Lahm  In Media Res Media ComponentSarah Lahm  In Media Res Media Component
Sarah Lahm In Media Res Media ComponentInMediaRes1

The role of Geography in climate education: science and active citizenship
The role of Geography in climate education: science and active citizenshipThe role of Geography in climate education: science and active citizenship
The role of Geography in climate education: science and active citizenshipKarl Donert

Objectives n learning outcoms - MD 20240404.pptx
Objectives n learning outcoms - MD 20240404.pptxObjectives n learning outcoms - MD 20240404.pptx
Objectives n learning outcoms - MD 20240404.pptxMadhavi Dharankar

6 ways Samsung’s Interactive Display powered by Android changes the classroom
6 ways Samsung’s Interactive Display powered by Android changes the classroom6 ways Samsung’s Interactive Display powered by Android changes the classroom
6 ways Samsung’s Interactive Display powered by Android changes the classroomSamsung Business USA

The Shop Floor Overview in the Odoo 17 ERP
The Shop Floor Overview in the Odoo 17 ERPThe Shop Floor Overview in the Odoo 17 ERP
The Shop Floor Overview in the Odoo 17 ERPCeline George

ICS 2208 Lecture Slide Notes for Topic 6
ICS 2208 Lecture Slide Notes for Topic 6ICS 2208 Lecture Slide Notes for Topic 6
ICS 2208 Lecture Slide Notes for Topic 6Vanessa Camilleri

BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...
BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...
BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...Nguyen Thanh Tu Collection

16. Discovery, function and commercial uses of different PGRS.pptx
16. Discovery, function and commercial uses of different PGRS.pptx16. Discovery, function and commercial uses of different PGRS.pptx
16. Discovery, function and commercial uses of different PGRS.pptxUmeshTimilsina1

DiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfDiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfChristalin Nelson

Paul Dobryden In Media Res Media Component
Paul Dobryden In Media Res Media ComponentPaul Dobryden In Media Res Media Component
Paul Dobryden In Media Res Media ComponentInMediaRes1

BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...
BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...
BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...Nguyen Thanh Tu Collection

Scientific Writing :Research Discourse
Scientific  Writing :Research  DiscourseScientific  Writing :Research  Discourse
Scientific Writing :Research DiscourseAnita GoswamiGiri

STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptx
STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptxSTRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptx
STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptxkimdan468

Employablity presentation and Future Career Plan.pptx
Employablity presentation and Future Career Plan.pptxEmployablity presentation and Future Career Plan.pptx
Employablity presentation and Future Career Plan.pptxryandux83rd

Sulphonamides, mechanisms and their uses
Sulphonamides, mechanisms and their usesSulphonamides, mechanisms and their uses
Sulphonamides, mechanisms and their usesVijayaLaxmi84

Pastoral Poetry, Definition, Origin, Characteristics and Examples
Pastoral Poetry, Definition, Origin, Characteristics and ExamplesPastoral Poetry, Definition, Origin, Characteristics and Examples
Pastoral Poetry, Definition, Origin, Characteristics and ExamplesDrVipulVKapoor

Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...
Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...
Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...EduSkills OECD


Recently uploaded (20)

Mattingly "AI & Prompt Design" - Introduction to Machine Learning"
Mattingly "AI & Prompt Design" - Introduction to Machine Learning"Mattingly "AI & Prompt Design" - Introduction to Machine Learning"
Mattingly "AI & Prompt Design" - Introduction to Machine Learning"

Sarah Lahm In Media Res Media Component
Sarah Lahm  In Media Res Media ComponentSarah Lahm  In Media Res Media Component
Sarah Lahm In Media Res Media Component

The role of Geography in climate education: science and active citizenship
The role of Geography in climate education: science and active citizenshipThe role of Geography in climate education: science and active citizenship
The role of Geography in climate education: science and active citizenship

Objectives n learning outcoms - MD 20240404.pptx
Objectives n learning outcoms - MD 20240404.pptxObjectives n learning outcoms - MD 20240404.pptx
Objectives n learning outcoms - MD 20240404.pptx

6 ways Samsung’s Interactive Display powered by Android changes the classroom
6 ways Samsung’s Interactive Display powered by Android changes the classroom6 ways Samsung’s Interactive Display powered by Android changes the classroom
6 ways Samsung’s Interactive Display powered by Android changes the classroom

The Shop Floor Overview in the Odoo 17 ERP
The Shop Floor Overview in the Odoo 17 ERPThe Shop Floor Overview in the Odoo 17 ERP
The Shop Floor Overview in the Odoo 17 ERP

ICS 2208 Lecture Slide Notes for Topic 6
ICS 2208 Lecture Slide Notes for Topic 6ICS 2208 Lecture Slide Notes for Topic 6
ICS 2208 Lecture Slide Notes for Topic 6

BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...
BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...
BÀI TẬP BỔ TRỢ 4 KĨ NĂNG TIẾNG ANH LỚP 8 - CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC ...

16. Discovery, function and commercial uses of different PGRS.pptx
16. Discovery, function and commercial uses of different PGRS.pptx16. Discovery, function and commercial uses of different PGRS.pptx
16. Discovery, function and commercial uses of different PGRS.pptx

DiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfDiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdf

Paul Dobryden In Media Res Media Component
Paul Dobryden In Media Res Media ComponentPaul Dobryden In Media Res Media Component
Paul Dobryden In Media Res Media Component

BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...
BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...
BÀI TẬP BỔ TRỢ TIẾNG ANH 11 THEO ĐƠN VỊ BÀI HỌC - CẢ NĂM - CÓ FILE NGHE (GLOB...

Scientific Writing :Research Discourse
Scientific  Writing :Research  DiscourseScientific  Writing :Research  Discourse
Scientific Writing :Research Discourse

STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptx
STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptxSTRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptx
STRAND 1 FOUNDATION OF PRETECHNICALSTUDIE.pptx

Employablity presentation and Future Career Plan.pptx
Employablity presentation and Future Career Plan.pptxEmployablity presentation and Future Career Plan.pptx
Employablity presentation and Future Career Plan.pptx

Spearman's correlation,Formula,Advantages,
Spearman's correlation,Formula,Advantages,Spearman's correlation,Formula,Advantages,
Spearman's correlation,Formula,Advantages,

Sulphonamides, mechanisms and their uses
Sulphonamides, mechanisms and their usesSulphonamides, mechanisms and their uses
Sulphonamides, mechanisms and their uses

Introduction to Research ,Need for research, Need for design of Experiments, ...
Introduction to Research ,Need for research, Need for design of Experiments, ...Introduction to Research ,Need for research, Need for design of Experiments, ...
Introduction to Research ,Need for research, Need for design of Experiments, ...

Pastoral Poetry, Definition, Origin, Characteristics and Examples
Pastoral Poetry, Definition, Origin, Characteristics and ExamplesPastoral Poetry, Definition, Origin, Characteristics and Examples
Pastoral Poetry, Definition, Origin, Characteristics and Examples

Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...
Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...
Advancing Gender Equality The Crucial Role of Science and Technology 4 April ...


Resilience in Spatial and Urban Systems 2

  • 1. Resilience in Spatial and Urban Systems 2 John Östh, Aura Reggiani & Laurie Schintler Smart People in Smart Cities Faculty of Economics, Matej Bel University & Regional Science Academy & The City of Banská Bystrica
  • 2. Presentation • The main idea • Theoretical framework – Central Place Theory – Self-Organization Theory • Questions • Data – Mobile phone data – GIS data • Methods – Setting up a a self-organizing BigData dataset • Results • Conclusions
  • 3. The main idea • There is an increasing amount of papers discussing urban and regional resilience. • However, most times the geography of urban areas and regions are taken for granted – i.e. the spatial administrative organization of urban areas and regions may or may not be mismatching the functional regions. • The main idea is to make use self-organization methods to trace the spatial patterns of the urban and regional fabric
  • 4. Central Place Theory • Invented the study of systems of cities and the interrelationship between cities. – Assuming that: • Space is flat, population and resources evenly distributed. • Competition, cost and direction for transport, etc. identical throughout space – Concepts • Threshold – minimum population needed for x • Range – maximum distance population is willing to commute Christaller, W (1933), Die zentralen Orte in Süddeutschland. Gustav Fischer, Jena.
  • 5. Central Place Theory and Sweden • Year 1962-1971, a municipality reform redrew the borders of Sweden • Central for the process was Christaller and the CPT – especially the idea about the administrative principle (k=7) • This means that between 1962 and 1971, all Swedish municipalities were redrawn so that: – Central places became municipalities and gained control over smaller urban areas and rural areas being near. – Metropolitan areas were set aside due to the administrative complexity and population size (became too populous to administer as “local”) – Some very remote areas were also set aside (threshold not met but municipalities needed for administrative reasons). Set aside ~ regions not determined on the basis of threshold and range
  • 6. Self-Organization theories ”…finding that in certain situations external forces acting on the system do not determine/cause its behavior, but instead trigger an internal and independent process by which the system spontanelosuly self-organizes itself.” (Portugali, 2000)
  • 7. Self-Organization of Regions • There is a large body of literature working on self-organization – the amount of self- organization literature that deals with regions is smaller. • However, using a wide definition…
  • 8. Self-Organization of Regions • Has been studied for a very long time: – Von Thünen and the annuluses of economic activities – Alonso – bid/rent – Christaller (1933) and Lösch (1940) – hierarchies of activities – Burgess (1925) and Hoyt (1939) – the morphology of the urban landscape
  • 9. Self-Organization of Regions • Self-organizing methods are borrowed from chemistry, physics, computer science and math including: – Fractals and related – i.e. sand pile cities, cellular automata,… – Game-related methods (see for instance Schelling) (further reading Portugali; Batty)
  • 10. Our approach to Self-Organization • Starts with inspiration from Kohonen (1982, 2001) and Self-Organizing Maps – where (at least) two interacting subsystems are used to reposition neurons using a spatially restricted and iterative learning process. • We set up a method where mobile phones are clustered using an iterative learning process where a hypothetical gravitational force determines the spatial realms of influence • Why is this smart? – Ai, factual flows, responsive and dynamic (not historical data)…
  • 11. Questions • Overarching questions: – Since CPT was used for the construction of Swedish municipalities - can SO methods be employed to determine CP? – Can the Self-Organization of Phones be used to delineate functional regions of today…tomorrow? – Can regions of scales be constructed?
  • 12. Data • Comes from one of the major Swedish mobile phone operators (among the largest 5) • Network Driven Records (NDR) stored at the MIND database at Uppsala University. • Record all events (silent handovers, text, Internet, Calls, etc.) and codes each event temporarily to the nearest 5min interval – 288 temporal units in 24h • Geography is restricted to mast-level • Data drawn from a Tuesday in January in 2016
  • 13. Data • Used dataset contains: – The average position of each phone and hour (allowing for positions between masts) – Each phone can appear in the dataset 24 times - this is however unusual – in most cases phones are idle for at least a few hours per 24h. • Since we don’t want to introduce spurious locations (i.e. back-tracking and assuming that phones are at the same location at time t as at time t-1) – we only position active phones. – No data of activity or holder is included
  • 14. Data • To make handling of data easier, all average coordinates are aggregated to the nearest 100m x 100m coordinate. The dataset still contains of more than 1.6 million unique locations of which the majority have more than one phone
  • 15. Data • GIS data used to validate our SO-results – GIS-layers depicting the distribution of urban areas, municipality borders and of major water- bodies
  • 16. Methods: - setting up a SO dataset • Assumption: – Each phone exerts gravity. – The gravitational force is modelled to decay exponentially – Decay parameter is derived mathematically using a HLM design on observed mobility (see Östh et al. 2016) – Decay parameter value in this case = 0.00166 – Gravity is used as weight at distance dij Alternative assumption: using Boolean k-borders (0|1) for the construction of thresholds proved not to work – images available in the post-presentation section
  • 17. Methods: - setting up a SO dataset • The iterations are conducted using EquiPop – K-nearest neighbour “contextualizer” for very large datasets. – In this study we set up EquiPop to retrieve the distance- decay weighted average Y-coordinate (first) from the k nearest neighbours, than the X-coordinate (second) from the k nearest neighbours. – We manipulate the outdata, constructing a new file with updated Y and X coordinates and iterate the procedure – In our studies, iterations were terminated at iteration 20 because there was no significant difference in cluster mobility from previous state* *for k = 50 000, the rule was thereafter applied to all ks
  • 18. Methods: - setting up a SO dataset • Determining k-values. – Doubling sequences of k can roughly be associated with varying neighbourhood functions (Östh 2014; Östh et al. 2015) – By applying the same strategy to our SO regions dataset, CP hierarchies can be defined crudely We constructed the following k-phone regions: 6 250 phones 12 500 phones 25 000 phones 50 000 phones 100 000 phones
  • 19. Methods – setting up a SO dataset • Next slides will show how the 20 iterations clustered the phones in the greater Stockholm region
  • 20. K = 50 000
  • 21. K = 50 000
  • 22. K = 50 000
  • 23. K = 50 000
  • 24. K = 50 000
  • 25. K = 50 000
  • 26. K = 50 000
  • 27. K = 50 000
  • 28. K = 50 000
  • 29. K = 50 000
  • 30. K = 50 000
  • 31. K = 50 000
  • 32. K = 50 000
  • 33. K = 50 000
  • 34. K = 50 000
  • 35. K = 50 000
  • 36. K = 50 000
  • 37. K = 50 000
  • 38. K = 50 000
  • 39. K = 50 000
  • 40. K = 50 000
  • 41. K = 50 000
  • 42. K = 50 000
  • 43. K = 50 000
  • 44. K = 50 000
  • 46. Creating phone areas surrounding each phone at initial position is conducted using Thiessen polygon techniques. Using each area as a building-block, and by keeping trace of its mobility over iterations we may piece together (dissolve) areas that contribute to a self-organized cluster for each k at iteration 20
  • 47. Results • First section – Self-organization of phones compared to the spatial distribution of urban areas • Second section – Comparison of the spatial realms of municipalities and the spatial realms of phone-origins for the creation of self-organized clusters.
  • 48. Self-organization of phones compared to the spatial distribution of urban areas
  • 49. Self-organization of phones compared to the spatial distribution of urban areas • How many of the phone clusters end up within urban areas? – After iteration 20 and k=6250 (the most wide spread), including both clusters reaching k and not reaching k: • 8.3% of all phones end up in locations being more than 1000m from the nearest urban area • 91.7% end up within or close to urban areas. – Using only clusters reaching k: • 100% of all phones end up in urban areas. Since CPT was used for the construction of Swedish municipalities - can SO methods be employed to determine CP?
  • 50. Comparing spatial realms • The 1962 municipality delineation idea means that very rural and very urban areas will not match SO regions. • Midsized municipalities will display strong similarities with SO regions • Can the Self-Organization of Phones be used to delineate functional regions of today? • Can regions of scales be constructed?
  • 54. Conclusion • Self-organization of phones can be used to create functional regions. • Using phones of specific hours or using the trajectories of phones could help to construct different functional regions
  • 56. K = 15 000
