1. Requirements
Engineering
Indri Sudanawati Rozas
Mei 2012

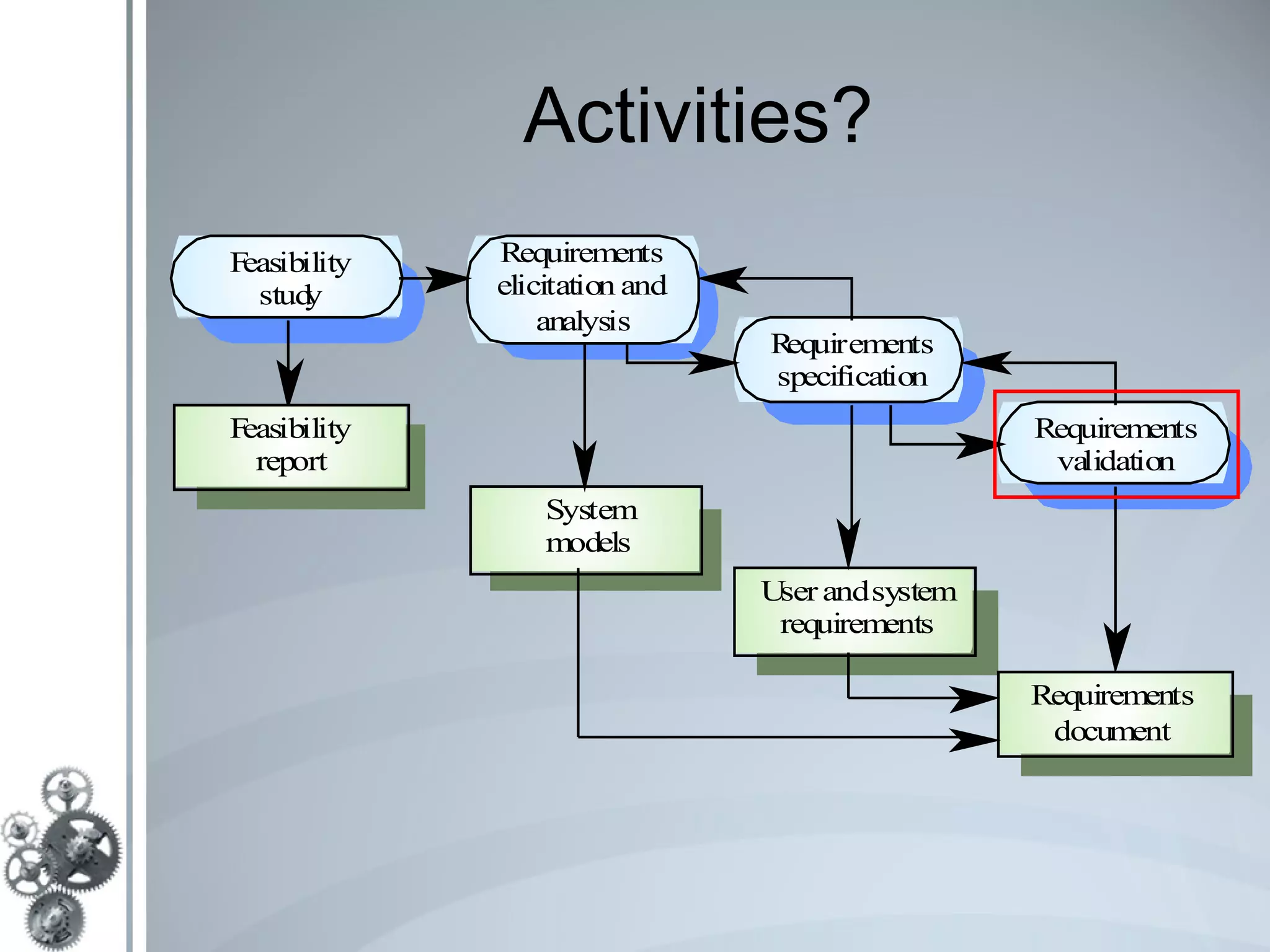

2. Activities?
Feasibility Requirements
study elicitation and
analysis
Requirements
specification
Feasibility Requirements
report validation
System
models
U and system
ser
requirements
Requirements
document

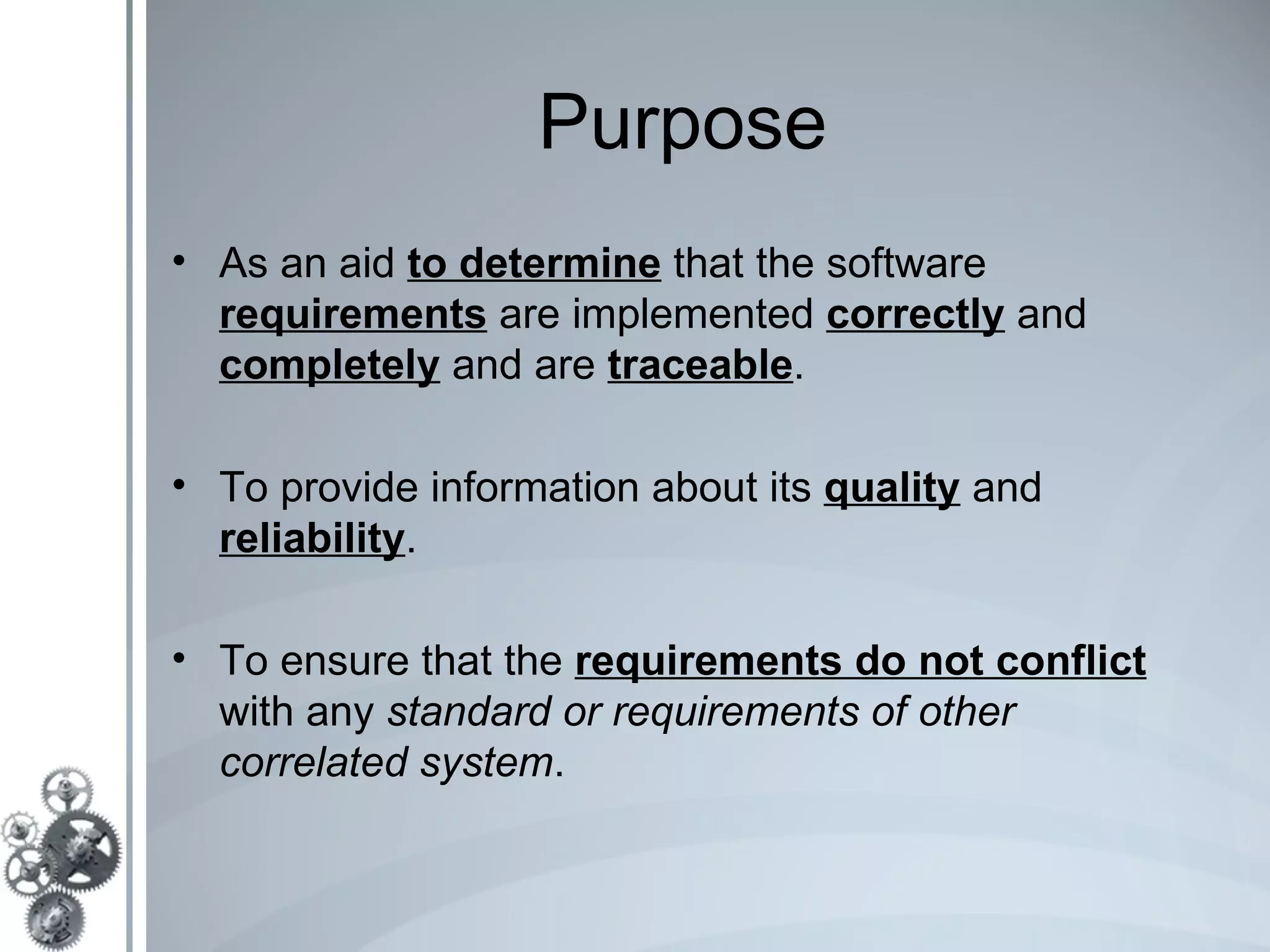

3. Purpose
• As an aid to determine that the software
requirements are implemented correctly and
completely and are traceable.
• To provide information about its quality and
reliability.
• To ensure that the requirements do not conflict
with any standard or requirements of other
correlated system.

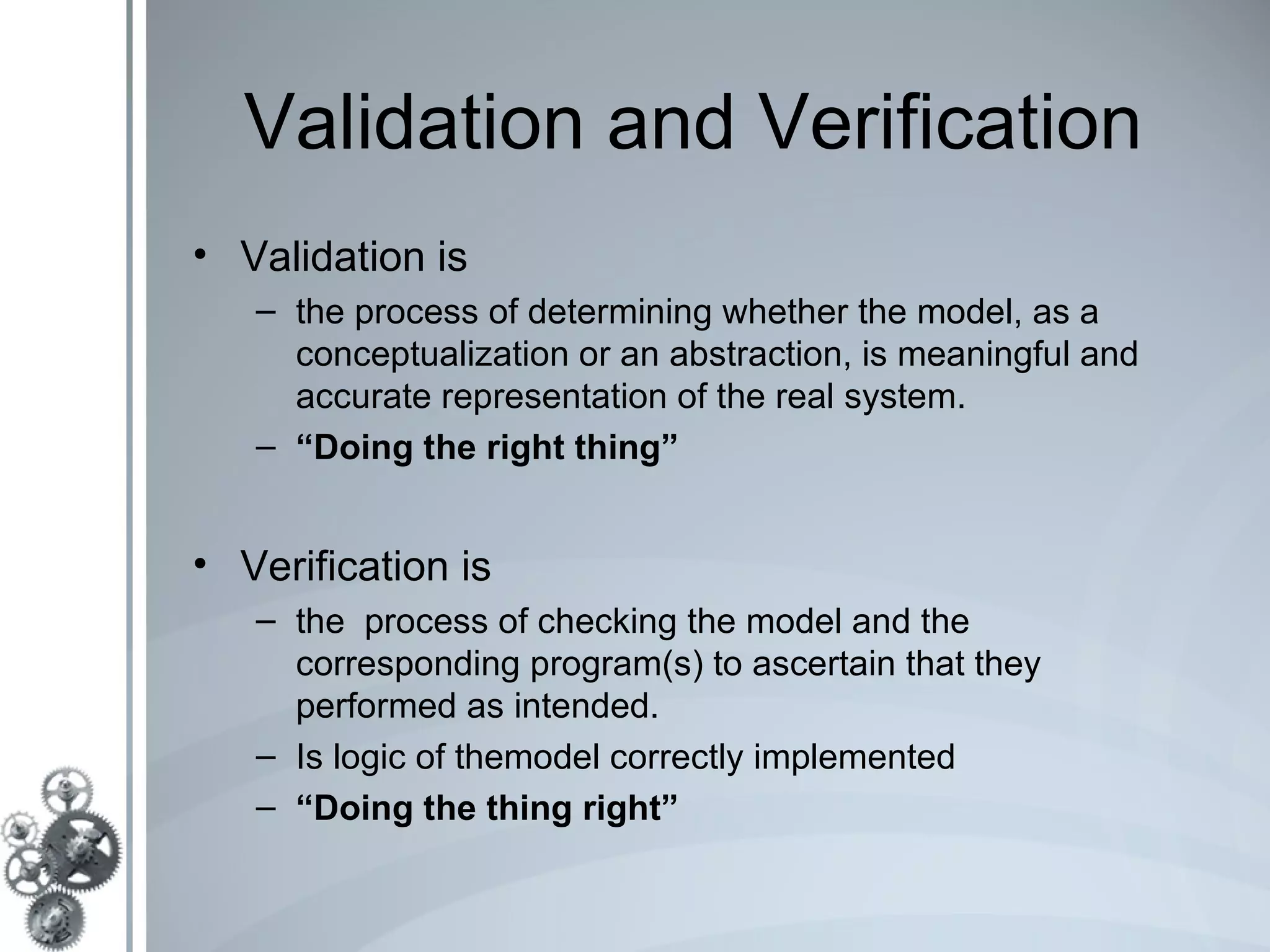

4. Validation and Verification
• Validation is
– the process of determining whether the model, as a
conceptualization or an abstraction, is meaningful and
accurate representation of the real system.
– “Doing the right thing”
• Verification is
– the process of checking the model and the
corresponding program(s) to ascertain that they
performed as intended.
– Is logic of themodel correctly implemented
– “Doing the thing right”

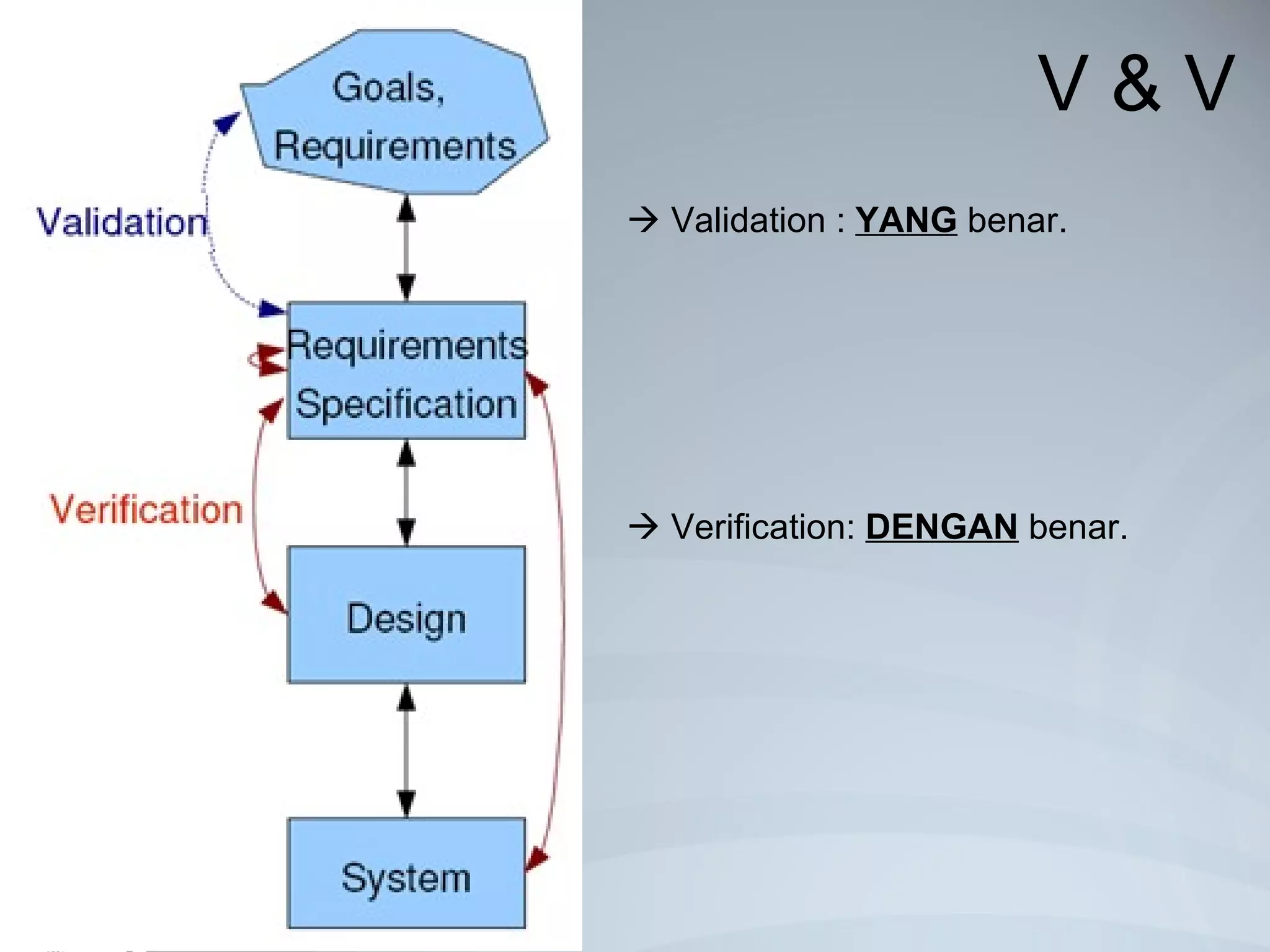

5. V&V
 Validation : YANG benar.
 Verification: DENGAN benar.

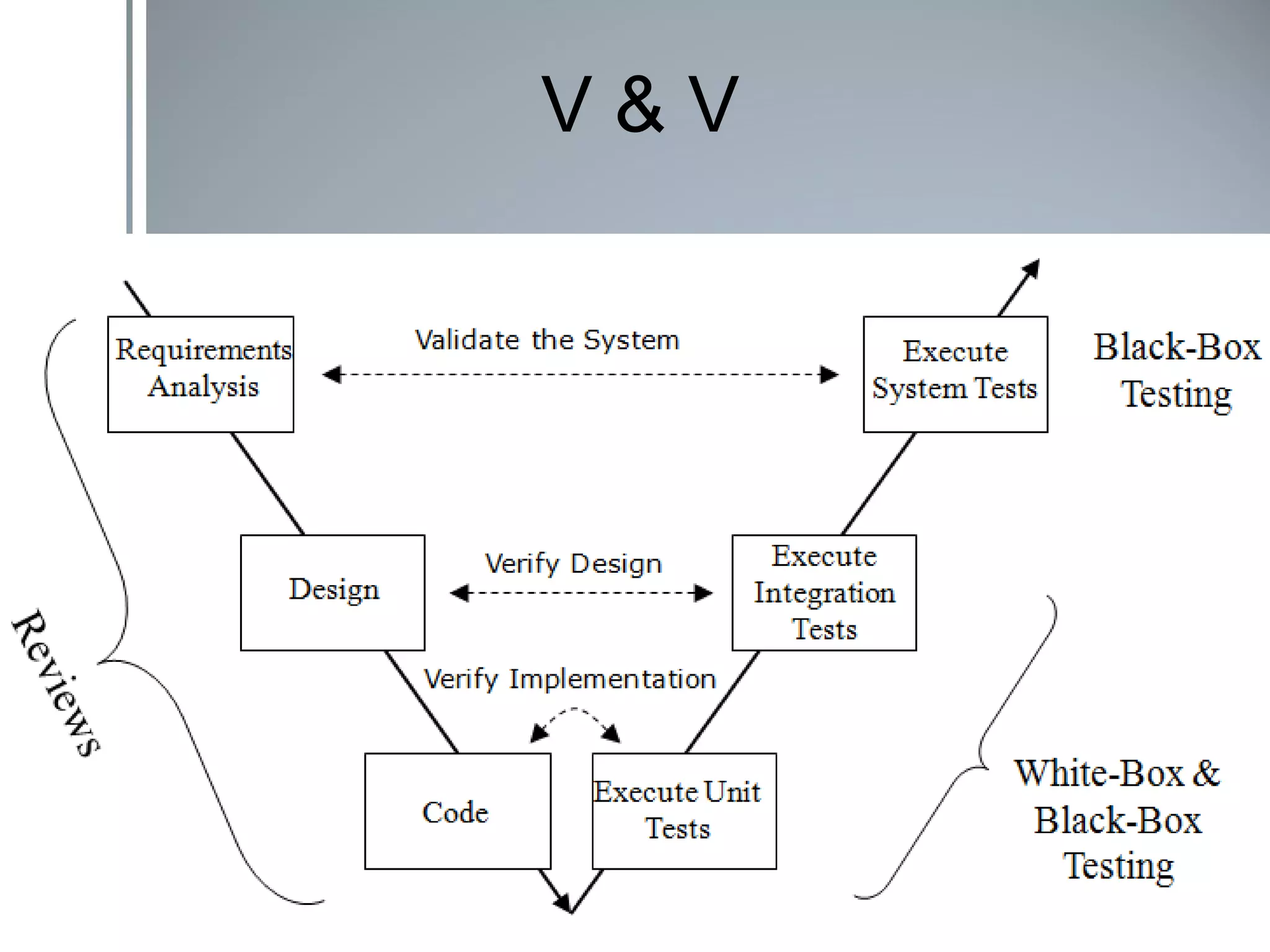

8. V&V

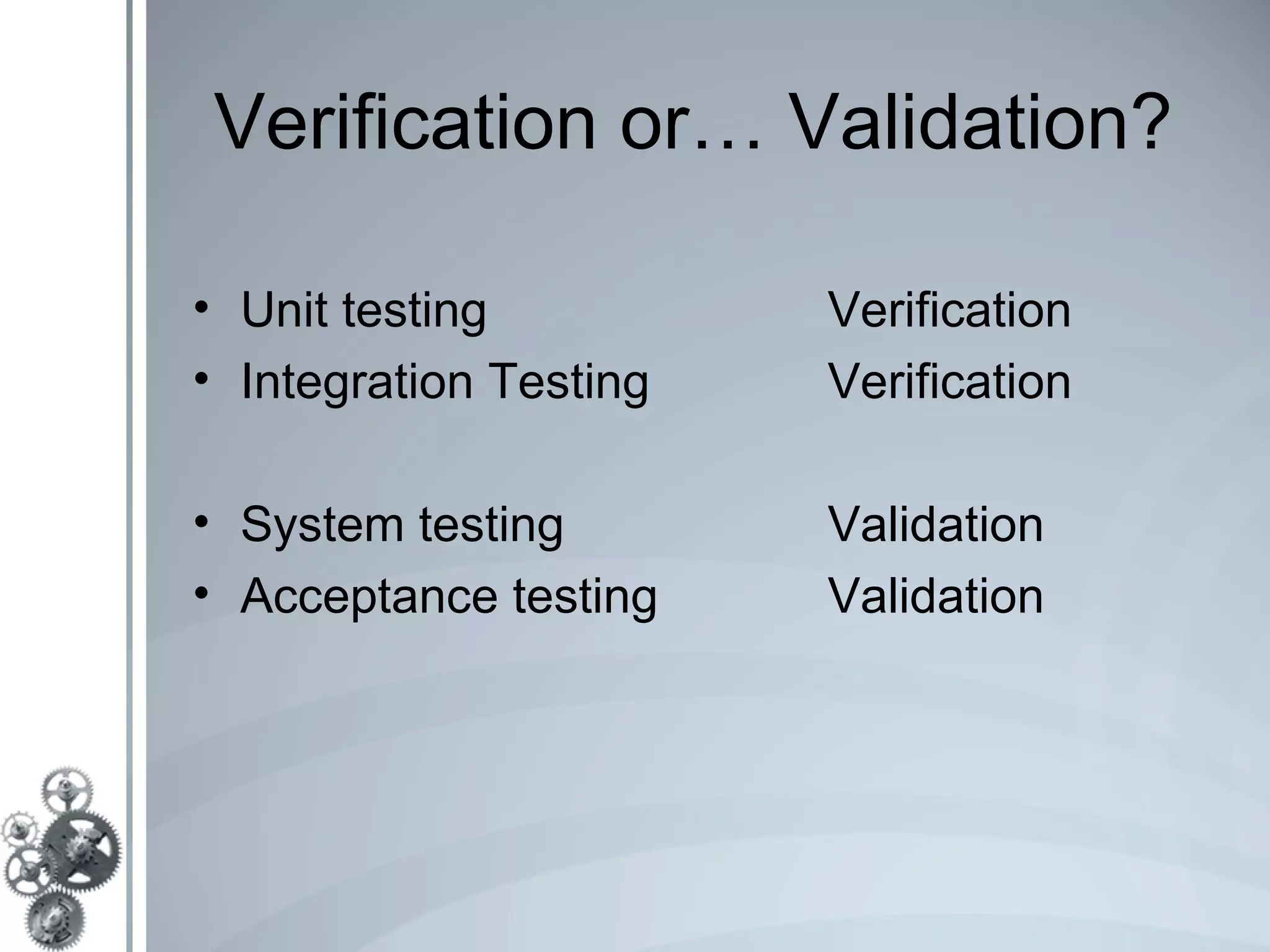

9. Verification or… Validation?
• Unit testing Verification
• Integration Testing Verification
• System testing Validation
• Acceptance testing Validation

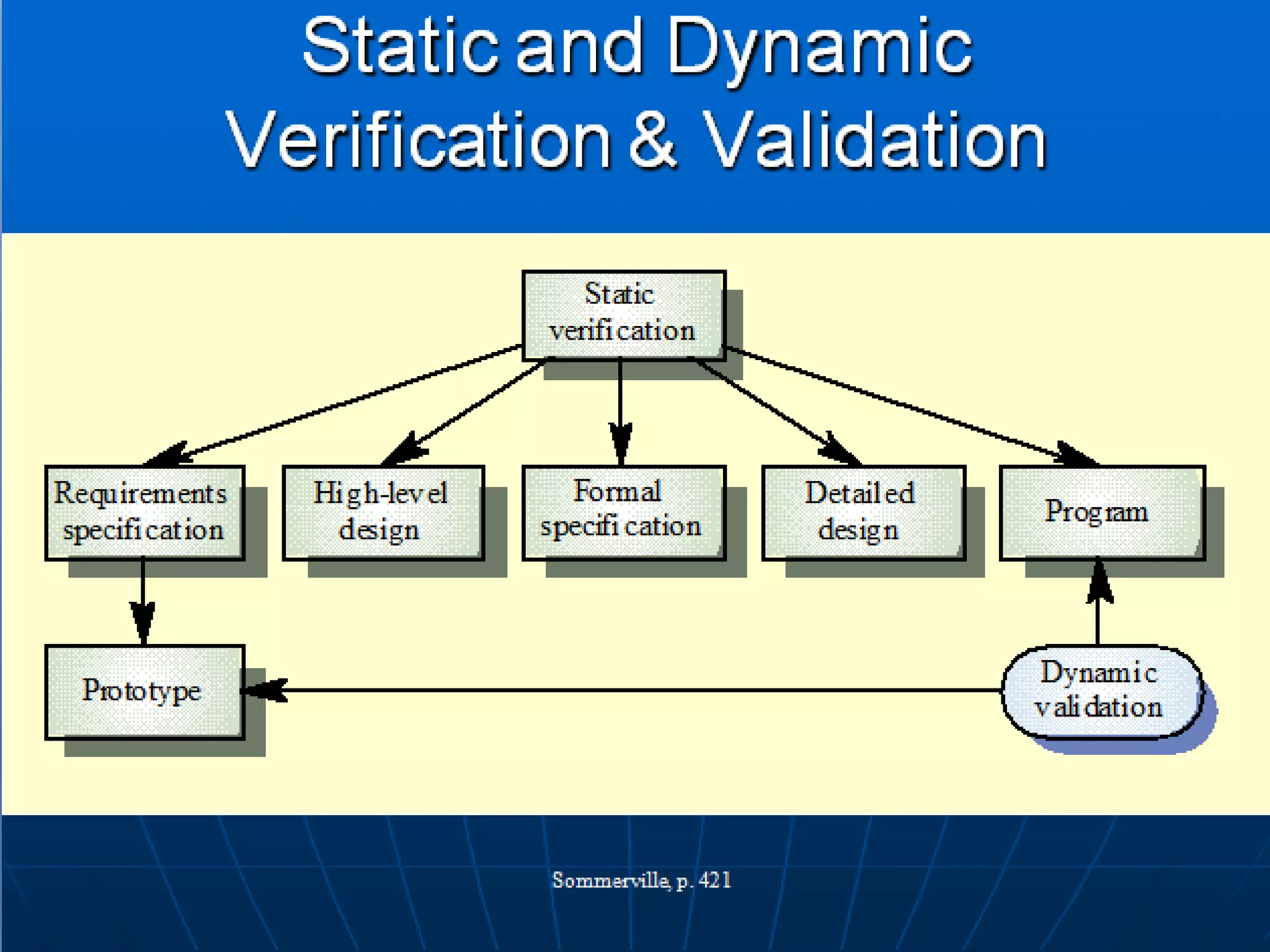

10. Verification & Validation
Techniques
• Static Methods
– Techniques applied to artifacts without
execution.
• Dynamic Methods
– Techniques applied to artifacts through
execution.
• Mathematically Based Methods
