This project describes a DC motor speed control system using an STM32 microcontroller. The speed of the DC motor is measured by an optocoupler encoder and sent to the controller. The user can set the target speed using push buttons. The controller then adjusts the motor speed using PWM output to try and match the target speed. The current and target speeds are displayed on an LCD screen.

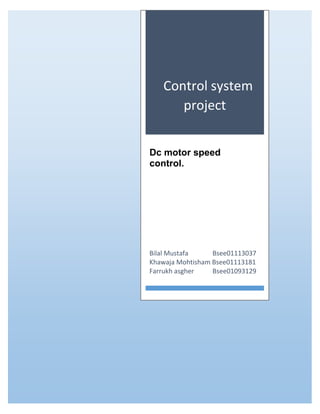

1. Control system
project
Dc motor speed
control.
Bilal Mustafa Bsee01113037
Khawaja Mohtisham Bsee01113181
Farrukh asgher Bsee01093129

2. Dc motor speed control.
This project describes the control for dc motor control. In this project the speed is measured by
optocoupler encoder and is sent to the controller and a reference speed is set by the user with
the push buttons and the controller tries to achieve that speed (set by the user) and the output is
displayed on LCD. The controller used in this project is stm32.
Sensor
Controller=Stm32
Plant=Dc Motor
Sensor=opto coupler encoder
PlantInput
by user
Controller Output
(speed)
Display

3. LCD 16x2.
LCD (Liquid Crystal Display) screen is an electronic display module and find a wide range of applications.
A 16x2 LCD display is very basic module and is very commonly used in various devices and circuits. These
modules are preferred over seven segments and other multi segment LEDs. The reasons being: LCDs are
economical; easily programmable; have no limitation of displaying special & even custom characters
A 16x2 LCD means it can display 16 characters per line and there are 2 such lines. In this LCD each
character is displayed in 5x7 pixel matrix. This LCD has two registers, namely, Command and Data.
The command register stores the command instructions given to the LCD. A command is an instruction
given to LCD to do a predefined task like initializing it, clearing its screen, setting the cursor position,
controlling display etc. The data register stores the data to be displayed on the LCD. The data is the ASCII
value of the character to be displayed on the LCD. Click to learn more about internal structure of a LCD.
Pin Diagram:

4. Pin Description
Pin No Function Name
1 Ground (0V) Ground
2 Supply voltage; 5V (4.7V – 5.3V) Vcc
3 Contrast adjustment; through a variable resistor VEE
4 Selects command register when low; and data register when high Register Select
5 Low to write to the register; High to read from the register Read/write
6 Sends data to data pins when a high to low pulse is given Enable
7
8-bit data pins
DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 Backlight VCC (5V) Led+
16 Backlight Ground (0V) Led-
Link stm with LCD
Stm pins Lcd pins
Pc10 4
Pc11 5
Pc12 6
Pc0 11
Pc1 12
Pc2 13
Pc3 14
5v 2
Gnd 1
Uln2003
The ULN2001A, ULN2002A, ULN2003 and ULN2004A are high voltage, high current Darlington arrays
each containing seven open collector Darlington pairs with common emitters. Each channel rated at
500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load
driving and the inputs are pinned opposite the outputs to simplify board layout.

5. The STM32F100RB
 24 MHz Cortex-M3 core
 8kByte SRAM, 128kByte flash
 51 high speed I/O Pins
 7 x 16-bit timers
 2 x Watchdog timers
 1 x RTC
 16 channel 12 bit ADC
 2 channel 12 bit DAC
 2 x SPI
 2 x I2C
 3 x USART
 1 x CEC (Consumer Electronics Control)
 PLL
 DMA

7. Code
#include "main.h"
#include "PWM.h"
#include "LCD.h"
uint32_t volatile rpm=0;
uint16_t volatile speed=0,set_speed=0,moter=0;
void Cyclic_Start(const uint16_t PERIOD)
{
RCC_APB1ENR |= 0x00000001;
TIM2_CR1 = 0;
TIM2_CNT = 0;
TIM2_PSC = 8-1; //1us
if(PERIOD > 1)
{
TIM2_ARR = (PERIOD-1);
}
else
{
TIM2_ARR = 1;
}
TIM2_CR1 = 0x0001;
}
void Cyclic_Wait(void)
{
while((TIM2_SR & 0x00000001)==0)

8. {
}
TIM2_SR = 0; //
}
void EXTI0_IRQHandler(void)
{
rpm=rpm+1;
EXTI_PR |= 0x00000001;
}
void display_lcd(void)
{
uint16_t num=0,num1=0,num2=0,num3=0;
int16_t static volatile count = 0;
if(++count>=320)
{
count=0;
LCD_Write_Str_To_Buff("SPEED=",6,0);
num=speed;
num1=num/100;
num=num%100;
num2=num/10;
num=num%10;
num3=num;
LCD_Write_Char_To_Buff('0'+num1,6);
LCD_Write_Char_To_Buff('0'+num2,7);
LCD_Write_Char_To_Buff('0'+num3,8);
// LCD_Write_Str_To_Buff("RPM",3,9);
LCD_Write_Str_To_Buff("SET-SPEED=",10,16);
num=set_speed;

9. num1=num/100;
num=num%100;
num2=num/10;
num=num%10;
num3=num;
LCD_Write_Char_To_Buff('0'+num1,26);
LCD_Write_Char_To_Buff('0'+num2,27);
LCD_Write_Char_To_Buff('0'+num3,28);
// LCD_Write_Str_To_Buff("RPM",3,29);
}
}
void moter_rpm_control(void)
{
if(speed>set_speed)
{
if(moter>0)
Set_PWM1(50*(--moter));
}
if(speed<set_speed)
{
if(moter<800)
Set_PWM1(50*(++moter));
}
}
void press_down(void)
{
int16_t static volatile state=0,count=0;

10. switch(state)
{
case 0:
if((GPIOC_IDR&0x00000080)!=0)
state=1;
break;
case 1:
if(++count>10)
{
count=0;
if((GPIOC_IDR&0x00000080)!=0)
{
set_speed=set_speed-1;
state=3;
}
else
state=0;
}
break;
case 3:
if((GPIOC_IDR&0x00000080)==0)
state=0;
break;
}
}
void press_up(void)
{
int16_t static volatile state=0,count=0;

11. switch(state)
{
case 0:
if((GPIOC_IDR&0x00000040)!=0)
state=1;
break;
case 1:
if(++count>10)
{
count=0;
if((GPIOC_IDR&0x00000040)!=0)
{
set_speed=set_speed+1;
state=3;
}
else
state=0;
}
break;
case 3:
if((GPIOC_IDR&0x00000040)==0)
state=0;
break;
}
}
int main(void)
{
RCC_APB2ENR |= 0x00000005; //enable clock to GPIOA and AFIO
GPIOA_CRL &=0xFFFFFFF0;
GPIOA_CRL |=0x00000008;

12. GPIOA_ODR &=0xFFFFFFFE;
AFIO_EXTICR1 &=0xFFFFFFF0;
AFIO_EXTICR1 |=0x00000000;
EXTI_RTSR &= 0xFFFFFFFE;
EXTI_RTSR |= 0x00000001;
EXTI_IMR = 0x00000001;
NVIC_ISER0 |= 1<<6;
RCC_APB2ENR |= 0x00000014; //GPIOC clock on
GPIOC_CRL &= 0x0000FFFF;
GPIOC_CRL |= 0x88110000;
GPIOC_ODR &= 0xFFFFFF3F;
GPIOA_CRH &= 0xFFFFFFF0; //clear previous config for port C pin 8
GPIOA_CRH |= 0x00000009;//config port A pin 8 as alternate functin output push-pull.
uint16_t volatile count=0,count1=0;
Cyclic_Start(1000); //1ms
LCD_Init();
PWM_INIT();
while(1) //every 1ms
{
if(++count1>50)
{
speed=(rpm/2);
rpm=0;
moter_rpm_control();
count1=0;
}
press_up();
press_down();
display_lcd();

13. if(++count>=10) // every 10ms
{
count = 0;
LCD_Update();
}
Cyclic_Wait();
}
return(1);
}
void SystemInit(void)
{
}
