Renzo Piano Presentation (B.Architecture)
- 1. RENZO PIANO BORN –14-SEP-1937 (GENOA,ITALY) NATIONALITY – ITALIAN GRADUATION – MILAN POLYTECHNIC UNIVERSITY (1964) UJJWAL SINGH JHARSI
- 2. ARCHITECT :-RENZO PIANO :-Renzo Piano Was Bron on September 14, 1937 in Genao (Italy), in Bosom of a wealthy family of construction. :- Ar.Renzo Piano Completed in Degree at The Architectural Association School in London. :- In 1971 He Along Richard Rogers won a contest that changed their lives. The construction of the centre Georges Pompidou in Paris.
- 3. AWARDS & REWARDS :-In 1989, Piano Was the recipient of the Royal Gold Medal. :-In 1990, Piano Was the recipient of the Kyoto Prize. :-In 1995, Piano Was the recipient of the Praemium Imperiale. :-In 1998, Piano Was the recipient of the Pritzker Architecture Prize. :-In 2002, Piano Was the recipient of the UIA Gold Medal. :-In 2008, Piano Was the recipient of the AIA Gold Medal. :-In 2008, Piano Was the recipient of the Sonning Prize.
- 4. HIGH TECHNOLOGICAL ARCHITECTURE :-RenzoPiano is often called a “High Tech” architecture his designs showcase technological shapes and materials. :-High-tech buildings are aften called machine-like, steel,Aluminium,and Glass combine with brightly colored braces, Girders, and beams. Many of the building parts are prefabricated in a factory and assembled Later. The support beams, duct work, and other functional elements are Placed on the exterior of the building, Where they become the focus of Attention. The interior spaces are open and adptable for many uses.

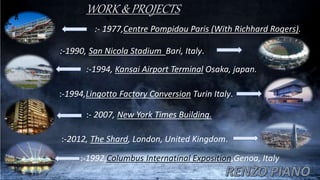

- 5. WORK & PROJECTS :-1977,Centre Pompidou Paris (With Richhard Rogers). :-1990, San Nicola Stadium Bari, Italy. :-1994, Kansai Airport Terminal Osaka, japan. :-1994,Lingotto Factory Conversion Turin Italy. :- 2007, New York Times Building. :-2012, The Shard, London, United Kingdom. :-1992,Columbus Internatinal Exposition,Genoa, Italy

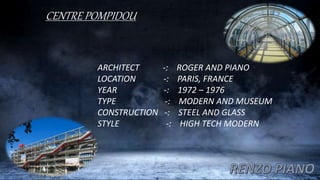

- 6. CENTRE POMPIDOU ARCHITECT -:ROGER AND PIANO LOCATION -: PARIS, FRANCE YEAR -: 1972 – 1976 TYPE -: MODERN AND MUSEUM CONSTRUCTION -: STEEL AND GLASS STYLE -: HIGH TECH MODERN
- 7. DESIGN & CONCEPT INTERIORVIEW :- In Desgin 1970, an international architecture Competition was launched based on a program to build a cultural and arts complex in the centre of historic paris set out by French president georges Pompidou. :- To maximize interior space, they turned the construction inside-out and expoed a skeleton of brightly colored tubes for mechanical system. The ducts on the outside of the building are colour Coded blue for air, green for fluids, yellow for electricity cables and red for movement and flow (elevators,stairs) and safety (fire extinguishes).

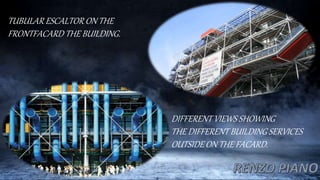

- 8. TUBULAR ESCALTOR ONTHE FRONTFACARD THE BUILDING. DIFFERENT VIEWS SHOWING THE DIFFERENT BUILDING SERVICES OUTSIDE ON THE FACARD.

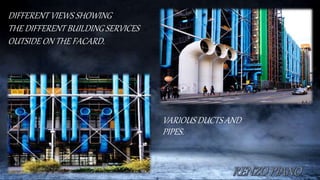

- 9. VARIOUS DUCTS AND PIPES. DIFFERENTVIEWS SHOWING THE DIFFERENT BUILDING SERVICES OUTSIDE ON THE FACARD.
- 10.
- 11. KANSAI INTERNATIONAL AIRPORT ARCHITECT: RENZO PAINO LOCATION : OSAKA,JAPAN YEAR : 1994 CONSTRUCTION : STEEL AND GLASS STYLE : HIGH TECH MODERN

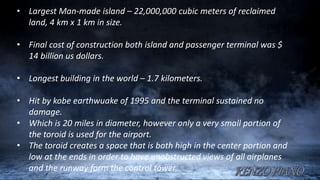

- 12. • Largest Man-madeisland – 22,000,000 cubic meters of reclaimed land, 4 km x 1 km in size. • Final cost of construction both island and passenger terminal was $ 14 billion us dollars. • Longest building in the world – 1.7 kilometers. • Hit by kobe earthwuake of 1995 and the terminal sustained no damage. • Which is 20 miles in diameter, however only a very small portion of the toroid is used for the airport. • The toroid creates a space that is both high in the center portion and low at the ends in order to have unobstructed views of all airplanes and the runway form the control tower.
- 13. Building section Primary trusstype is a triangular treedimendional truss.

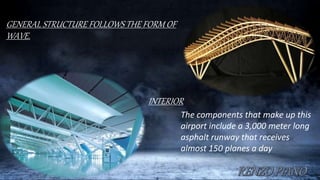

- 14. GENERAL STRUCTURE FOLLOWSTHE FORM OF WAVE. INTERIOR The components that make up this airport include a 3,000 meter long asphalt runway that receives almost 150 planes a day

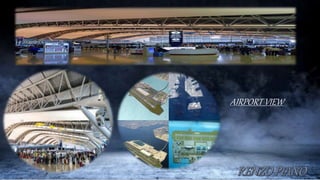

- 15.

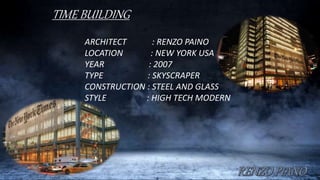

- 16. TIME BUILDING ARCHITECT :RENZO PAINO LOCATION : NEW YORK USA YEAR : 2007 TYPE : SKYSCRAPER CONSTRUCTION : STEEL AND GLASS STYLE : HIGH TECH MODERN

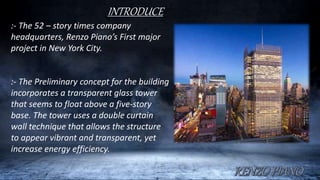

- 17. INTRODUCE :- The 52– story times company headquarters, Renzo Piano’s First major project in New York City. :- The Preliminary concept for the building incorporates a transparent glass tower that seems to float above a five-story base. The tower uses a double curtain wall technique that allows the structure to appear vibrant and transparent, yet increase energy efficiency.
- 18. :- THE FACARDOF THE TOWER ARE A COMBINATION OF GLASS CURTAIN WALLS AND A SCRIM OF WHITE CERAMIC TUBES, WHICH ACTS AS AN ENERGY EFFCIENT SUNCREEN. :- The steel-framed building, utilizes a screen of 1% (41.3mm) ceramic rods mounted on the exterior of glass curtain wall on the east-west and south facades. The rod spacing increases form the base to thr top, providing greater Transparency as the building rises. The steel framing and bracing is esposed at the four corner “notches” of the building.
- 19. :- The sunscreenstarts at the second floor,leaving the first open, transparent And permeable. :- The ground level has retail space and a graden, with office going up to the 50th floor. The top two floors consists of mechanical space and a rooftop conference facility.
- 20.

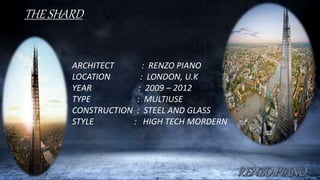

- 21. THE SHARD ARCHITECT :RENZO PIANO LOCATION : LONDON, U.K YEAR : 2009 – 2012 TYPE : MULTIUSE CONSTRUCTION : STEEL AND GLASS STYLE : HIGH TECH MORDERN

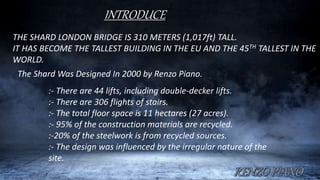

- 22. INTRODUCE THE SHARD LONDONBRIDGE IS 310 METERS (1,017ft) TALL. IT HAS BECOME THE TALLEST BUILDING IN THE EU AND THE 45TH TALLEST IN THE WORLD. The Shard Was Designed In 2000 by Renzo Piano. :- There are 44 lifts, including double-decker lifts. :- There are 306 flights of stairs. :- The total floor space is 11 hectares (27 acres). :- 95% of the construction materials are recycled. :-20% of the steelwork is from recycled sources. :- The design was influenced by the irregular nature of the site.

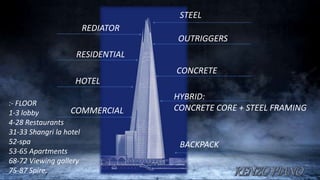

- 23. STEEL REDIATOR OUTRIGGERS RESIDENTIAL CONCRETE HOTEL HYBRID: CONCRETE CORE +STEEL FRAMING BACKPACK COMMERCIAL :- FLOOR 1-3 lobby 4-28 Restaurants 31-33 Shangri la hotel 52-spa 53-65 Apartments 68-72 Viewing gallery 75-87 Spire.
- 24.
