1. RELAY COORDINATION

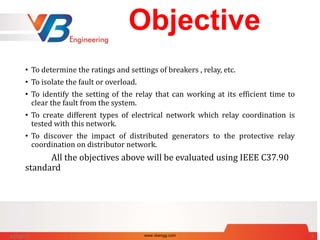

2. Objective
• To determine the ratings and settings of breakers , relay, etc.
• To isolate the fault or overload.
• To identify the setting of the relay that can working at its efficient time to
clear the fault from the system.
• To create different types of electrical network which relay coordination is
tested with this network.
• To discover the impact of distributed generators to the protective relay
coordination on distributor network.
All the objectives above will be evaluated using IEEE C37.90
standard
6/27/2017 www.vbengg.com 2

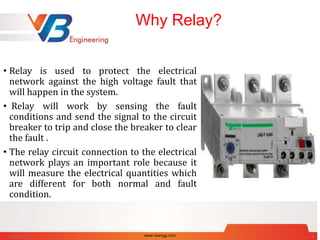

3. Why Relay?
• Relay is used to protect the electrical
network against the high voltage fault that
will happen in the system.
• Relay will work by sensing the fault
conditions and send the signal to the circuit
breaker to trip and close the breaker to clear
the fault .
• The relay circuit connection to the electrical
network plays an important role because it
will measure the electrical quantities which
are different for both normal and fault
condition.
6/27/2017 www.vbengg.com 3

4. What Is Relay Co-ordination?
• The protective relay as primary and backup is
important in distribution system.
• A relay itself will be the primary protection to
protect its own system element and when to backup
other relays for fault at a location, it is serve to be a
backup relay.
• The protective relay should be time coordinated
with the other relay, so that the primary relay will
always operate faster than its backup relay.
• So, the coordination and setting of a relay is really
important to ensure which relay to operate first and
the other one stand for the backup protection.
• Therefore, the relay can perform both function
either as primary relay or backup relay for a remote
zone of protection
6/27/2017 www.vbengg.com 4

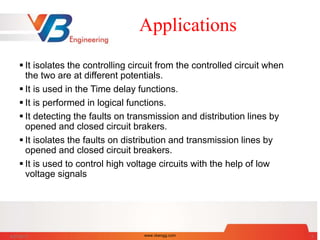

5. Applications
 It isolates the controlling circuit from the controlled circuit when
the two are at different potentials.
 It is used in the Time delay functions.
 It is performed in logical functions.
 It detecting the faults on transmission and distribution lines by
opened and closed circuit brakers.
 It isolates the faults on distribution and transmission lines by
opened and closed circuit breakers.
 It is used to control high voltage circuits with the help of low
voltage signals
6/27/2017 www.vbengg.com 5
