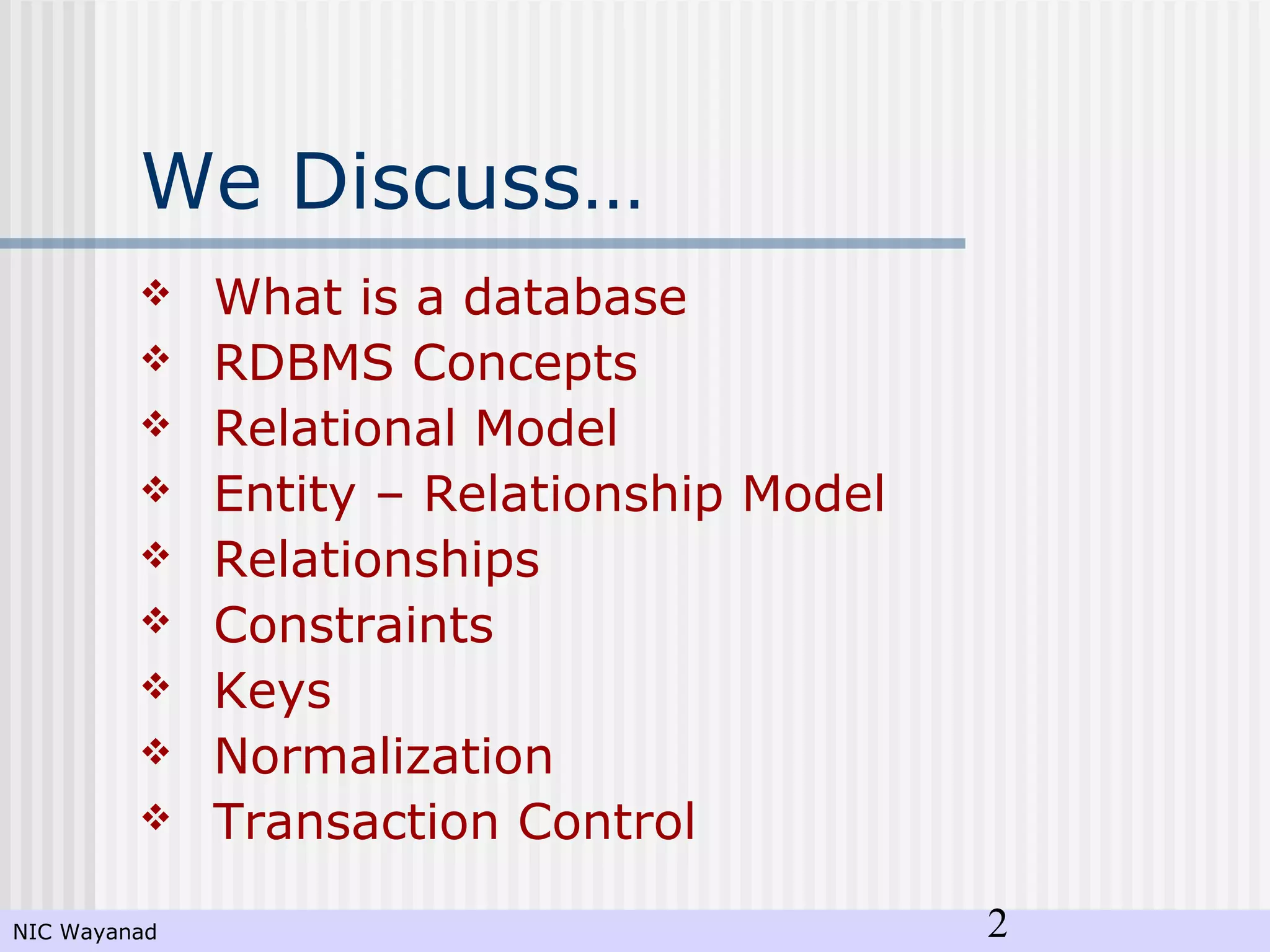

2. NIC Wayanad 2
We Discuss…
What is a database
RDBMS Concepts
Relational Model
Entity – Relationship Model
Relationships
Constraints
Keys
Normalization
Transaction Control
3. NIC Wayanad 3
What is a database ?
A database is an organized collection
of information
To manage databases, you need
database management systems
(DBMS)
4. NIC Wayanad 4
DBMS
A collection of programs that
enables you to store, modify, and
extract information from a database.
A computer program designed for
the purpose of managing database
5. NIC Wayanad 5
Type of databases
Four main types of databases
Hierarchical
Network
Relational
Object Relational
6. NIC Wayanad 6
Relational Database Concept
Dr. E.F.Codd proposed the relational
model for database system in 1970.
It is the basis for the relational
database management system
(RDBMS)
7. NIC Wayanad 7
Relational Database Model
Uses tables to organize data
Each table corresponds to an entity
Each row represents the instance of
that entity
Tables can be related each other
• Relation=Table
• Tuple=Row
• Attribute=Column
8. NIC Wayanad 8
RDBMS
Fundamental Features
ACID
Referential Integrity
Transactions
Unicode
other objects are supported
Data Domain
Cursor
Trigger
Function
Procedure
Database Capabilites
Union
Inner joins
Outer joins
Inner selects
Merge
Blobs
9. NIC Wayanad 9
Databases in marketRDBMS Maintainer Software license
4th Dimension 4D s.a.s Proprietary
Adabas Software AG ?
Adaptive Server
Enterprise Sybase Proprietary
Apache Derby Apache Apache License
DB2 IBM Proprietary
DBISAM Elevate Software Proprietary
ElevateDB Elevate Software Proprietary
Firebird Firebird project IPL and IDPL
Informix IBM Proprietary
HSQLDB HSQL Development Group BSD
H2 H2 Software Freeware
Ingres Ingres Corp. GPL and proprietary
InterBase CodeGear Proprietary
MaxDB MySQL AB, SAP AG GPL or proprietary
Microsoft SQL Server Microsoft Proprietary
MonetDB
The MonetDB Developer Team
MonetDB Public License
v1.1
MySQL MySQL AB GPL or proprietary
HP NonStop SQL Hewlett-Packard Proprietary
Oracle Oracle Corporation Proprietary
Oracle Rdb Oracle Corporation Proprietary
OpenEdge Progress Software Corporation Proprietary
OpenLink Virtuoso OpenLink Software GPL or proprietary
Pervasive PSQL Pervasive Software Proprietary
PostgreSQL
PostgreSQL Global Development
Group BSD
Pyrrho DBMS University of Paisley Proprietary
SmallSQL SmallSQL LGPL
SQL Anywhere Sybase Proprietary
SQLite D. Richard Hipp Public domain
Teradata Teradata Proprietary
Valentina Paradigma Software Proprietary
10. NIC Wayanad 10
Relational Model
Three key terms are used extensively in relational
models
Relation
• relation is a table with columns and rows
Attributes
• The named columns of the relation are
called attributes
Domains
• set of values the attributes are allowed to
take
11. NIC Wayanad 11
Relational Model
ProducerID ProducerName Place Sex Caste DateBirth
1 BALAKRISHNAN.P.K VATTOLI BAZAR M GEN
2 VASUDEVAN NAMBIAR BALUSSERY M GEN 01/07/1948
3 HARIDASAN.M KARIYATHANKAVU M GEN 11/05/1962
4 ASIYA.N.K VATTOLI BAZAR F OBC
5 VELU VATTOLI BAZAR M OBC 02/10/1947
6 KELUKUTTI NAIR. P VATTOLI BAZAR M GEN
7 ROHINI. V.K VATTOLI BAZAR F GEN 01/07/1933
8 SURESH BABU.K.R KARIYATHANKAVU M ST
9 KUTTINARAYANAN NAIR VATTOLI BAZAR M GEN 07/10/1971 Tuple
10 LAKSHMI.T.P VATTOLI BAZAR F GEN
11 ABUBAKKAR. M KAPPURAM M OBC 22/04/1959
12 RAJAN NAIR.O.K KARIYATHANKAVU M GEN 15/11/1956
13 PRABAKARAN NAIR.K.K VATTOLI BAZAR M GEN
14 BALAN.K.P VATTOLI BAZAR M SC 25/09/1967
Domain
•A relation has a unique name and represents particular entity
•Each row of a relation referred to as a tuple
•A Key is a part of tuple that uniquely distinguishes from other tuples
•relation is a set of tuples
12. NIC Wayanad 12
Data Modelling
Database Server
Model of system in
clients’s mind
ER Model of Client’s
model
Table model of ER
model
Tables on disk
13. Analysis StageAnalysis Stage
Identifies::
entitiesentities - things of significance- things of significance
relationshipsrelationships - associations between entities- associations between entities
functionsfunctions - processes in the business- processes in the business
businessbusiness rulesrules - restrictions or constraints- restrictions or constraints
Does NOT identify tables, views, files, screens,
reports, or other computer-specific items...
14. NIC Wayanad 14
Entity – Relationship Model
It facilitates communication between
the database designer and the end
user during the requirement
analysis.
To facilitate such communication the designer
needs adequate communication tools
15. NIC Wayanad 15
Basic Elements of ER Model
Entity
• An entity defines any person, place, thing
or concept
• Eg : (Producer, Taluk, Course)
Attribute
• Characteristics (properties) of an entity
• Eg: (ProducerName, MemberID, HouseName)
Relationship
• Logical linkage between two entities
17. NIC Wayanad 17
Let us model
A Depot is a place where Producers pours their
cow milk
A Producer is a person who belongs to a Depot
and regularly pours Milk to Society
A Collection Agent, who procures Milk from
Producers through Depot.
Procurement Register maintains by
Collection Agent with the details of Milk poured
by Producers
A Member is a Producer, who gets Membership
through board resolution.
18. NIC Wayanad 18
ER Model - Entities
The highlighted words becomes entity
Entities are represented by rectangular box
DepotDepot
ProducersProducers
MembersMembers
Collection AgentCollection Agent
Procurement RegisterProcurement Register
19. NIC Wayanad 19
ER Model - Attributes
Attributes are the properties of entities
Provides additional information about entity
Possible attributes for each entity
Depot : DepotID, Name, DateStart
Producers : Name, Address, DateofBirth, Sex, Caste and
MemberID etc
Collection Agent : Name, Address
Members: MemberID, Date of Admission, Share Value
Procurement Register: ProducerID, Date, Time, MilkQty,
Milk Value
20. NIC Wayanad 20
Relationships
A relationship is an association between
two or more entities
Each entity in a relationship plays a role
Examples:
if we are identifying relationships between
DEPOT and PRODUCER, then we might define
the “pours”, “Belongs to”
22. NIC Wayanad 22
ER Model - Relationships
Logical linkage between two entities
A relationship connects two or more entity sets
Relationships are represented by diamond shape
box
24. NIC Wayanad 24
Constraints….
are rules that describe what valid data
look like
ensure the logical and semantic
consistency
Rules used to ensure accuracy and
integrity of data
26. NIC Wayanad 26
PRIMARY KEY Constraints
primary key is a candidate key to
uniquely identify each row in a table
.
PCODE PANCH_NAME
01 KANIAMBETTA
02 KOTTATHARA
03 MEPPADI
04 MUTTIL
05 PADINJARETHARA
27. NIC Wayanad 27
PRIMARY KEY Constraints
Defining PRIMARY KEY
CREATE TABLE Depot (DepotID INT, DepotName
VARCHAR(20), CONSTRAINT dep_pk PRIMARY
KEY(DepotID))
Add a PRIMARY KEY to an existing table
ALTER TABLE Depot ADD CONSTRAINT pk_dep
PRIMARY KEY (DepotID)
28. NIC Wayanad 28
FOREIGN KEY Constraints
Foreign key: a field in a table that is a primary
key in another table
Foreign key creates a relationship between the
two tables
Enforces referential integrity
Maps to the PRIMARY KEY in parent table
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5 KADALMADU
6 MUNNOORE
ProducerID ProducerName DepotID
1 JOSEPH V.V 1
2 VELIYAN.V 3
3 JOHN.P.J 2
4 POULOSE. M M 2
5 JOSEPH.E.S 2
6 ACHANKUNHU N G 1
7 VARKY.M.M 1
8 MATHAI.M.M 5
9 APPACHAN.P.V 5
10 ISSAC.M.M 1
11 RAJU.P.T 2
Parent Table
(FK)
(PK)
29. NIC Wayanad 29
FOREIGN KEY Constraints..
Defining a FOREIGN KEY
CREATE TABLE Depot(DepotID INT PRIMARY KEY,DepotName
VARCHAR(20) NOT NULL);
CREATE TABLE Producers(ProducerID INT,ProducerName
VARCHAR(50) NOT NULL,DepotID INT, CONSTRAINT
pk_Prod PRIMARY KEY(ProducerID),CONSTRAINT
fk_prod FOREIGN KEY(DepotID) REFERENCES
Depot(DepotID) );
Add a FOREIGN KEY to an existing table
ALTER TABLE Producers ADD CONSTRAINT fk_Prod
FOREIGN KEY (DepotID) REFERENCES Depot(DepotID)
30. NIC Wayanad 30
UNIQUE KEY Constraints
No duplicates allowed in referenced column
NULL values are permitted
ProducerID ProducerName DepotID MemberID
1 JOSEPH V.V 1
2 VELIYAN.V 3 245
3 JOHN.P.J 2
4 POULOSE. M M 2
5 JOSEPH.E.S 2
6 ACHANKUNHU N G 1 154
7 VARKY.M.M 1
8 MATHAI.M.M 5 453
9 APPACHAN.P.V 5
10 ISSAC.M.M 1 12
11 RAJU.P.T 2
CREATE TABLE Producers(ProducerID INT PRIMARY KEY,ProducerName
VARCHAR(50) NOT NULL,DepotID INT,MemberID INT UNIQUE,CONSTRAINT
fk_prd1 FOREIGN KEY(DepotID) REFERENCES Depot(DepotID))
31. NIC Wayanad 31
CHECK Constraints
ensure valid data when adding or updating an
entry in a table
ProducerID ProducerName Sex DateJoin DateBirth ShareValue
1 JOSEPH V.V M 01/04/2001 11/04/1965 10
2 VELIYAN.V M 15/06/2007 12/09/1954 10
3 JOHN.P.J M 19/04/2003 08/05/1946 10
4 POULOSE. M M M 24/03/1997 10/05/1964 10
5 ANNAMMA F 26/07/2004 17/08/1959 10
6 ACHANKUNHU N G M 04/09/1992 18/07/1961 10
7 VARKY.M.M M 08/07/1991 19/03/1942 20
8 MATHAI.M.M M 17/08/1987 22/05/1938 10
M or F
Date Join >
Date Birth
>0CHECK Constraints -->
CREATE TABLE Producers(ProducerID INT ……,CONSTRAINT
check_Sex CHECK(Sex=‘M’ OR ‘F’),CONSTRAINT chk_share
CHECK(ShareValue>0))
32. NIC Wayanad 32
NOT NULL Constraints
Ensures that a specified column cannot contain a
Null Value
CREATE TABLE Depot(DepotID INT PRIMARY
KEY,DepotName VARCHAR(20) NOT NULL);
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5 KADALMADU
6 MUNNOORE
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5
6 MUNNOORE
Violation against NOT NULL
33. NIC Wayanad 33
Surrogate key
A surrogate key in a database is a unique identifier
surrogate key is not derived from application data
A surrogate key may be used as the primary key
some possible candidates for generating surrogates:
Globally Unique Identifiers (GUIDs)
Object Identifiers (OIDs)
Sybase or SQL Server identity column
Oracle SEQUENCE
PostgreSQL serial
MySQL AUTO_INCREMENT
MS Access AUTONUMBER
34. NIC Wayanad 34
Relationships
The following relationships can be
included in an E-R Model:
One-to-one
One-to-many
Many-to-many
35. NIC Wayanad 35
One-to-one Relationship
Each occurrence (row) of data in one entity is related to
only one occurrence of data in the other entity
Example: Each Producer has just one MemberID and each
MemberID is assigned to just one Producer
ProducerID ProducerName DepotID MemberID
1 JOSEPH V.V 1 5
2 VELIYAN.V 3 26
3 JOHN.P.J 2
4 POULOSE. M M 2 125
5 JOSEPH.E.S 2 110
6 ACHANKUNHU N G 1 12
7 VARKY.M.M 1 35
8 MATHAI.M.M 5
9 APPACHAN.P.V 5
10 ISSAC.M.M 1
11 RAJU.P.T 2 2
MemberID DateAdmit ShareValue
2 12/04/1987 10.00
5 12/04/1987 10.00
12 25/07/1988 10.00
26 25/09/1988 20.00
35 12/08/1997 10.00
110 02/12/2000 10.00
125 16/08/1998 10.00
PRODUCERS
MEMBERS
36. NIC Wayanad 36
One-to-many Relationship
Each occurrence of data in one entity can be
represented by many occurrences of the data in
the other entity
Example: each Depot carries many producers
PRODUCERS
DEPOT
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5 KADALMADU
6 MUNNOORE
ProducerID ProducerName DepotID
1 JOSEPH V.V 1
2 VELIYAN.V 3
3 JOHN.P.J 2
4 POULOSE. M M 2
5 JOSEPH.E.S 2
6 ACHANKUNHU N G 1
7 VARKY.M.M 1
8 MATHAI.M.M 5
9 APPACHAN.P.V 5
10 ISSAC.M.M 1
11 RAJU.P.T 2
37. NIC Wayanad 37
Many-to-many Relationship
Data can have multiple occurrences in
both entities
In a proper design, this can’t be included
in the physical database
40. NIC Wayanad 40
Normalization
..is a process you can use to split out
non-relational tables into relational tables.
..is a technique for designing relational
database tables to minimize duplication of
information
.. is to safeguard the database against
data anomalies
41. NIC Wayanad 41
Bad Design
Update anomaly
Employee 519 is shown as having different addresses on
different records.
42. NIC Wayanad 42
Bad Design
Insertion anomaly
Until the new faculty member is assigned to teach at least
one course, his details cannot be recorded.
43. NIC Wayanad 43
Bad Design
Deletion anomaly
All information about Dr. Giddens is lost when he
temporarily ceases to be assigned to any courses.
44. NIC Wayanad 44
First Normal Form (1NF)
Remove repeating columns by creating new table moving the
columns into the new table, and linking back to the old table in a
on-to-many relationship.
ProducerID ProducerName Address Day1Qty Day1Value Day2Qty Day2Value Day3Qty Day3Value
1 JOSEPH V.V KALPETTA 1.2 15.25 1.9 22.5
2 VELIYAN.V MEPPADI 2.4 36.3 2.9 39.5 3.5 49.5
3 JOHN.P.J KALPETTA 5.4 68.5
4 POULOSE. M M BATHERY 6.4 79.8 7.1 89.9 6.5 78.5
5 JOSEPH.E.S PULPALLY . 2.9 34.35
PRODUCERS_PROCUREMENT
•To Eliminate repeating groups
45. NIC Wayanad 45
First Normal Form (1NF)
ProducerID ProducerName Address Day1Qty Day1Value Day2Qty Day2Value Day3Qty Day3Value
1 JOSEPH V.V KALPETTA 1.2 15.25 1.9 22.5
2 VELIYAN.V MEPPADI 2.4 36.3 2.9 39.5 3.5 49.5
3 JOHN.P.J KALPETTA 5.4 68.5
4 POULOSE. MM BATHERY 6.4 79.8 7.1 89.9 6.5 78.5
5 JOSEPH.E.S PULPALLY . 2.9 34.35
Before
After
ProducerID ProducerName Address
1 JOSEPH V.V KALPETTA
2 VELIYAN.V MEPPADI
3 JOHN.P.J KALPETTA
4 POULOSE. M M BATHERY
5 JOSEPH.E.S PULPALLY
ProducerID Day Qty Value
1 1 1.2 15.25
1 3 1.9 22.5
2 1 2.4 36.3
2 2 2.9 39.5
2 3 3.5 49.5
3 3 5.4 68.5
4 1 6.4 79.8
4 2 7.1 89.9
4 3 6.5 78.5
5 2 2.9 34.35
PRODUCERS
PROCUREMENT
PRODUCERS_PROCUREMENT
46. NIC Wayanad 46
Second Normal Form (2NF)
Move repeating fields into a new table that contains a primary key
and relate it back to the old table using a foreign key
PRODUCERS
•The table must be in 1NF
•Creates many-to-one relationship,
separating static from dynamic information
ProducerID ProducerName Place
1 JOSEPH V.V KALPETTA
2 VELIYAN.V MEPPADI
3 JOHN.P.J KALPETA
4 POULOSE. M M BATHERY
5 JOSEPH.E.S PULPALLY
47. NIC Wayanad 47
Second Normal Form (2NF)
ProducerID Day Qty Value
1 1 1.2 15.25
1 3 1.9 22.5
2 1 2.4 36.3
2 2 2.9 39.5
2 3 3.5 49.5
3 3 5.4 68.5
4 1 6.4 79.8
4 2 7.1 89.9
4 3 6.5 78.5
5 2 2.9 34.35
PlaceID Place
1 MEPPADI
2 VYTHIRI
3 BATHERY
4 KALPETTA
5 PULPALLY
ProducerID ProducerName Placeid
1 JOSEPH V.V 4
2 VELIYAN.V 1
3 JOHN.P.J 4
4 POULOSE. M M 3
5 JOSEPH.E.S 5
ProducerID ProducerNamePlace
1 JOSEPH V.V KALPETTA
2 VELIYAN.V MEPPADI
3 JOHN.P.J KALPETTA
4 POULOSE. M MBATHERY
5 JOSEPH.E.S PULPALLY
Before
After
ProducerID Day Qty Value
1 1 1.2 15.25
1 3 1.9 22.5
2 1 2.4 36.3
2 2 2.9 39.5
2 3 3.5 49.5
3 3 5.4 68.5
4 1 6.4 79.8
4 2 7.1 89.9
4 3 6.5 78.5
5 2 2.9 34.35
48. NIC Wayanad 48
Third Normal form (3NF)
PRODUCERS
DEPOT
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5 KADALMADU
6 MUNNOORE
ProducerID ProducerName DepotID
1 JOSEPH V.V 1
2 VELIYAN.V 3
3 JOHN.P.J 2
4 POULOSE. M M 2
5 JOSEPH.E.S 2
6 ACHANKUNHU N G 1
7 VARKY.M.M 1
8 MATHAI.M.M 5
9 APPACHAN.P.V 5
10 ISSAC.M.M 1
11 RAJU.P.T 2
Before
After
ProducerIDProducerName
1 JOSEPH V.V
2 VELIYAN.V
3 JOHN.P.J
4 POULOSE. M M
5 JOSEPH.E.S
6 ACHANKUNHU N G
DepotID Name
1 OFFICE
2 VADUVANA
3 ANDOOR
4 PAMBALA
5 KADALMADU
6 MUNNOORE
DEPOTPRODUCERS
ProducerID DepotID
1 2
2 3
3 1
4 1
5 4
6 1
7 2
PROD_DEPOT
49. NIC Wayanad 49
Why Denormalization.,,,
Higher degrees on normalization….
involve more tables
need for a larger number of joins
can reduce performance
50. NIC Wayanad 50
Database transaction
is a unit of interaction with a DBMS
is a series of database operations which either
all occur, or all do not occur (Atomic)
are also called Logical Units of Work.
a database system will guarantee the
properties of ACID for each transaction.
51. NIC Wayanad 51
ACID
Atomicity:
Either all the tasks in a transaction
must be done, or none of them.
The transaction must be completed, or
else it must be undone (rolled back).
Consistency:
Every transaction must preserve the
integrity constraints — the declared
consistency rules — of the database.
52. NIC Wayanad 52
ACID
Isolation:
Two simultaneous transactions cannot
interfere with one another.
Intermediate results within a
transaction are not visible to other
transactions.
Durability:
Completed transactions cannot be
aborted later or their results discarded.
53. NIC Wayanad 53
Operating system support
RDBMS
Windows
Mac OS
X
Linux BSD UNIX
4th Dimension Yes Yes No No No
Adabas Yes No Yes No Yes
Adaptive Server
Enterprise Yes Yes Yes Yes Yes
Apache Derby 2
Yes Yes Yes Yes Yes
DB2 Yes No Yes No Yes
Firebird Yes Yes Yes Yes Yes
HSQLDB 2
Yes Yes Yes Yes Yes
H2 2
Yes Yes Yes Yes Yes
Informix Yes Yes Yes Yes Yes
Ingres Yes No Yes Yes Yes
InterBase
Yes No Yes No
Yes
(Solaris)
MaxDB Yes No Yes No Yes
Microsoft SQL Server Yes No No No No
MonetDB Yes Yes Yes No Yes
MySQL Yes Yes Yes Yes Yes
Oracle Yes Yes Yes No Yes
OpenEdge Yes No Yes No Yes
OpenLink Virtuoso Yes Yes Yes Yes Yes
PostgreSQL Yes Yes Yes Yes Yes
Pyrrho DBMS
Yes
(.NET) No
Yes
(Mono) No No
SmallSQL 2
Yes Yes Yes Yes Yes
SQL Anywhere Yes Yes Yes No Yes
SQLite Yes Yes Yes Yes Yes
Teradata Yes No Yes No Yes
Valentina Yes Yes Yes No No
54. NIC Wayanad 54
To Be Discussed
SQL in detail…
Security
User Accounts
Backup / replication
Data warehousing
Data mining
