1. Refactoring: Improving the Design of
Existing Code
Chapter 11
Dealing with Generalization
Abner Huang
2013/10/11

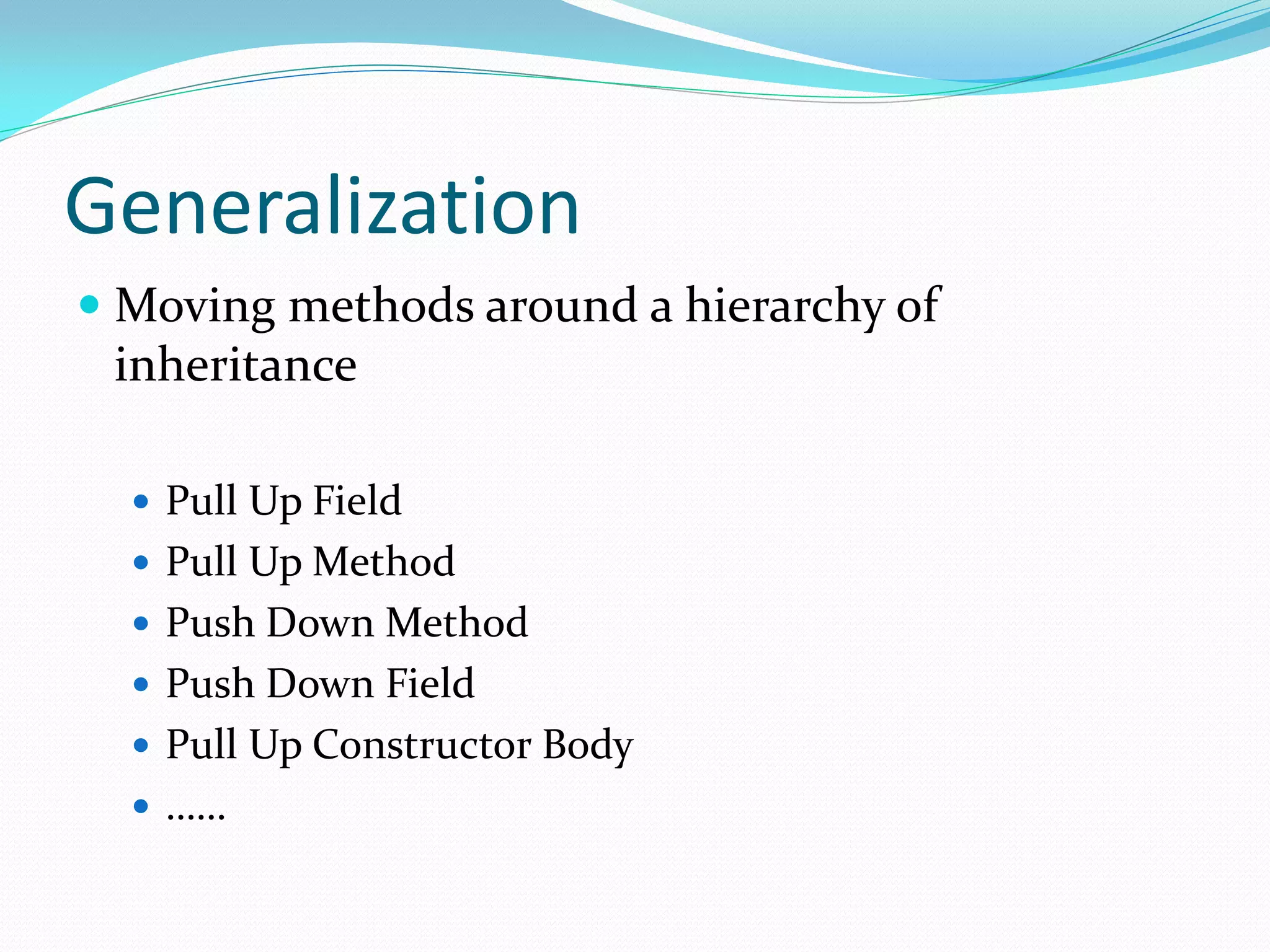

2. Generalization
 Moving methods around a hierarchy of
inheritance
 Pull Up Field
 Pull Up Method
 Push Down Method
 Push Down Field
 Pull Up Constructor Body
 ……

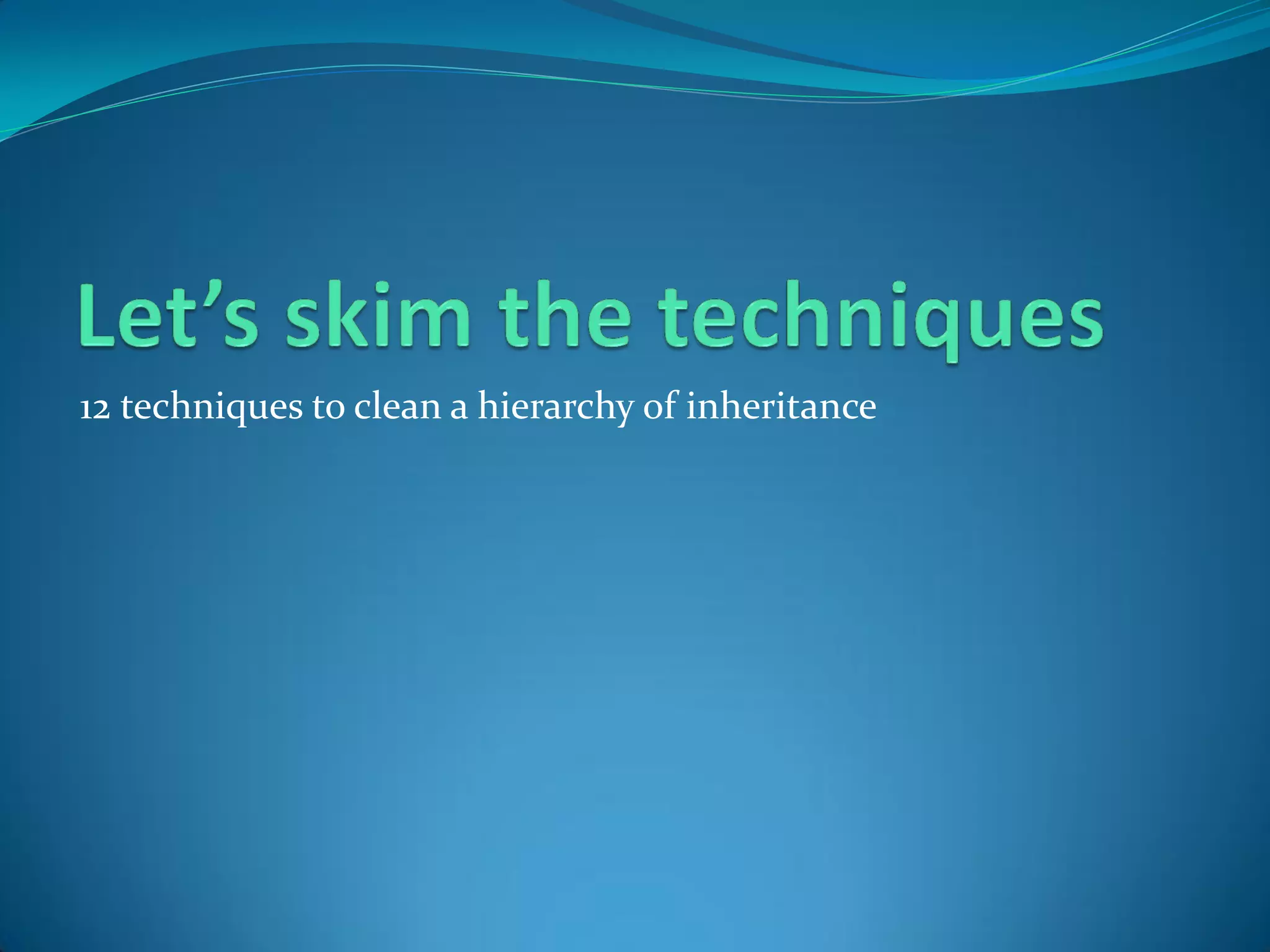

3. 12 techniques to clean a hierarchy of inheritance

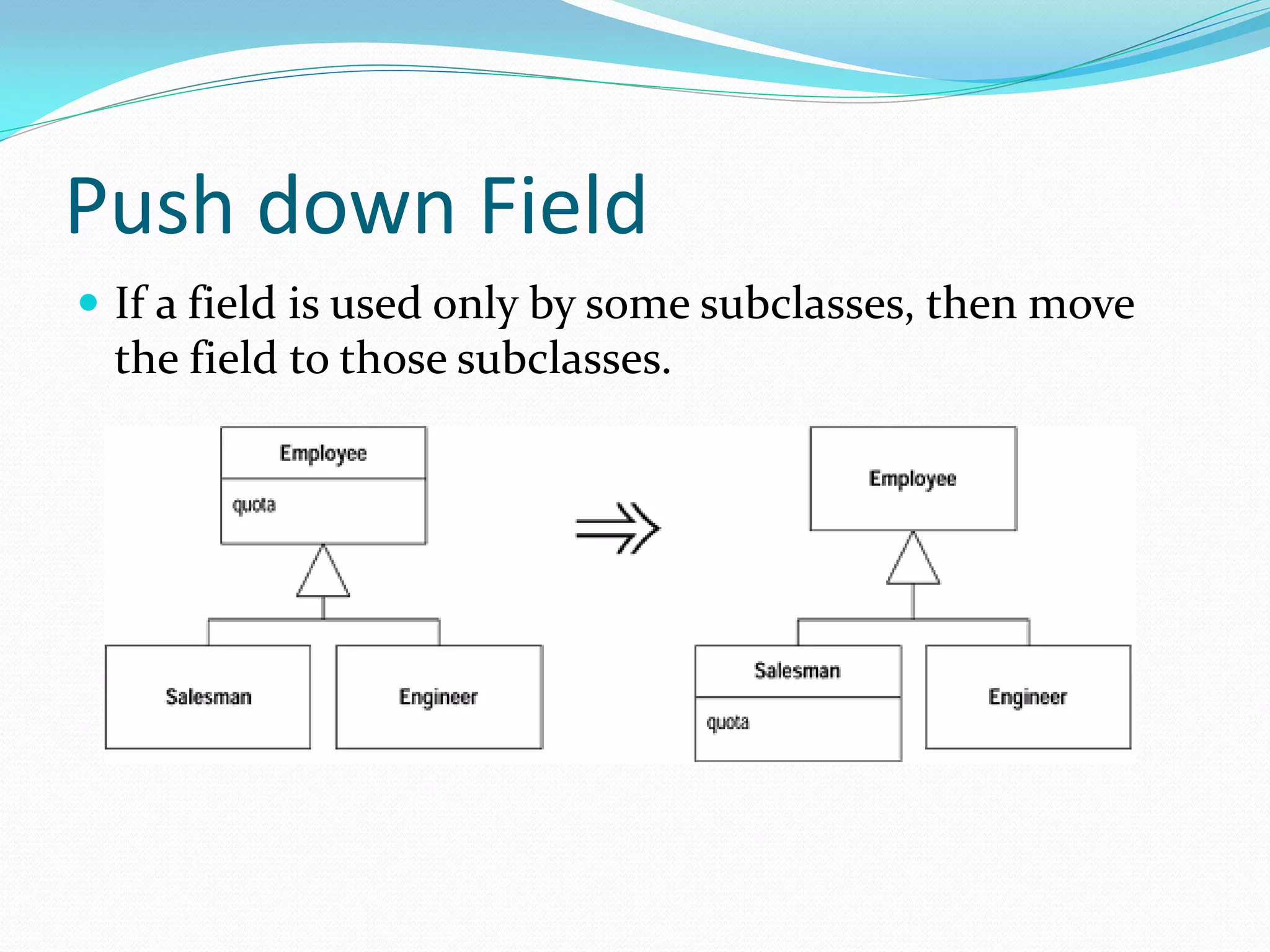

4. Push down Field
 If a field is used only by some subclasses, then move
the field to those subclasses.

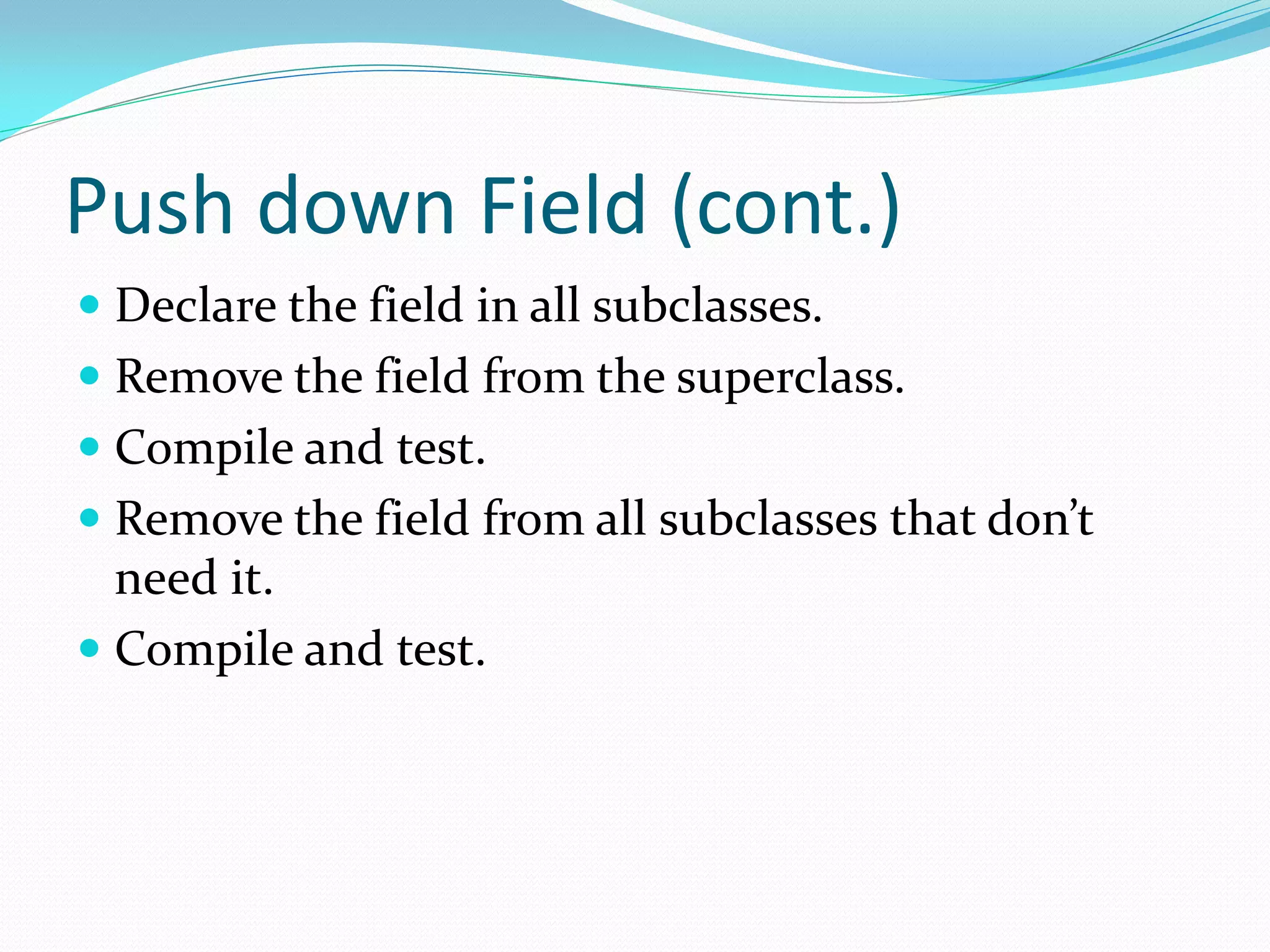

5. Push down Field (cont.)
 Declare the field in all subclasses.
 Remove the field from the superclass.
 Compile and test.
 Remove the field from all subclasses that don’t
need it.
 Compile and test.

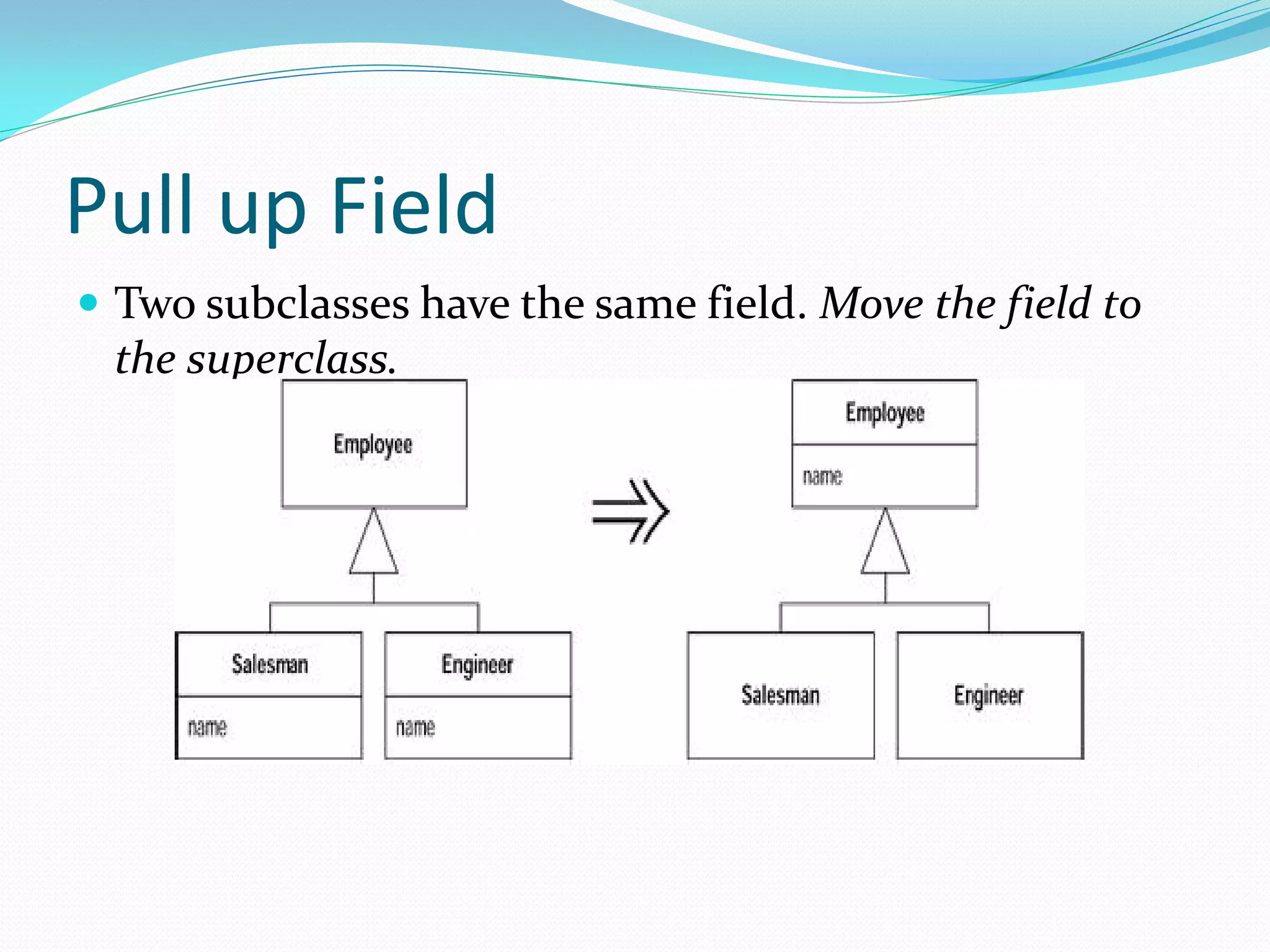

6. Pull up Field
 Two subclasses have the same field. Move the field to
the superclass.

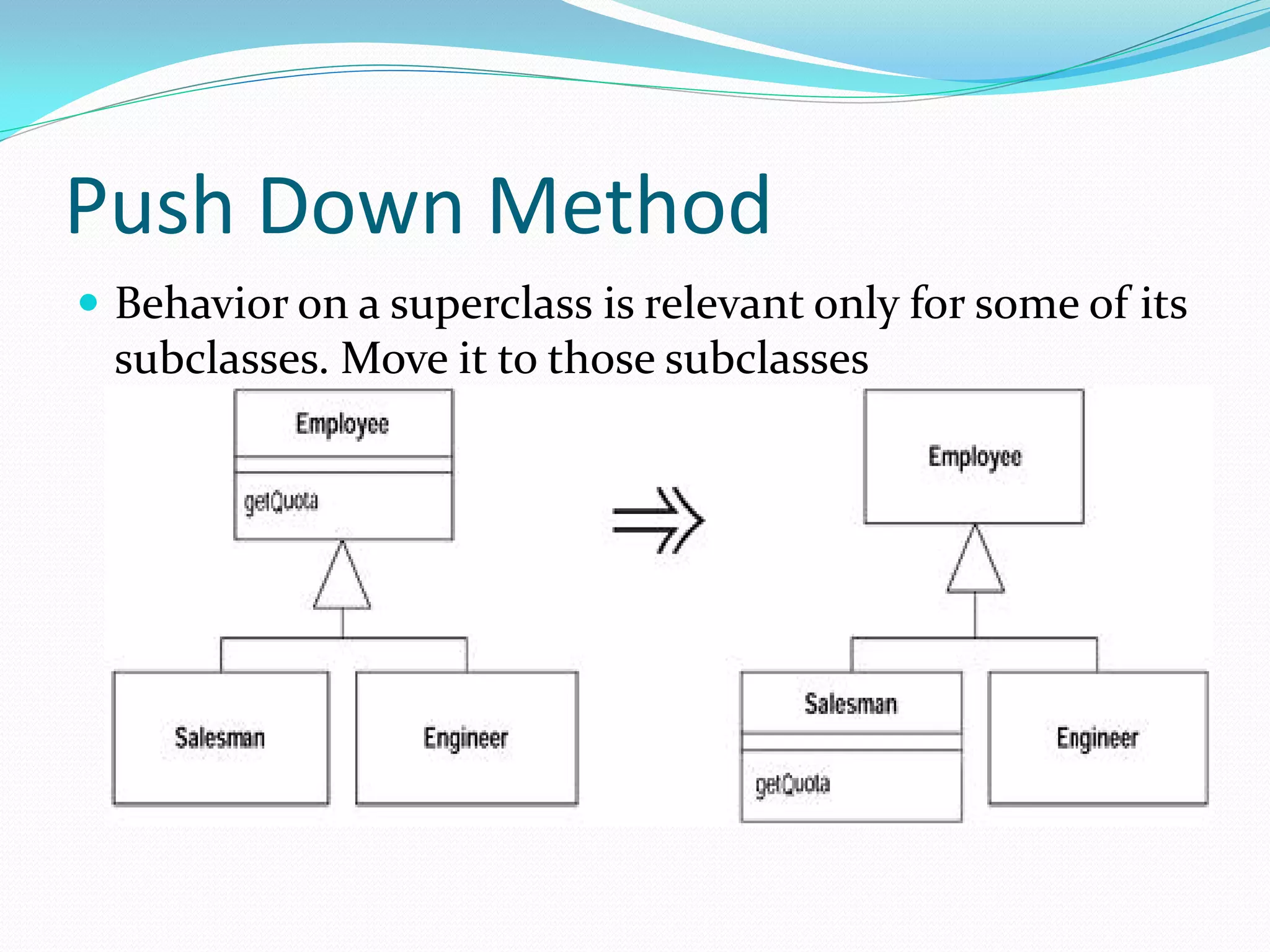

7. Push Down Method
 Behavior on a superclass is relevant only for some of its
subclasses. Move it to those subclasses

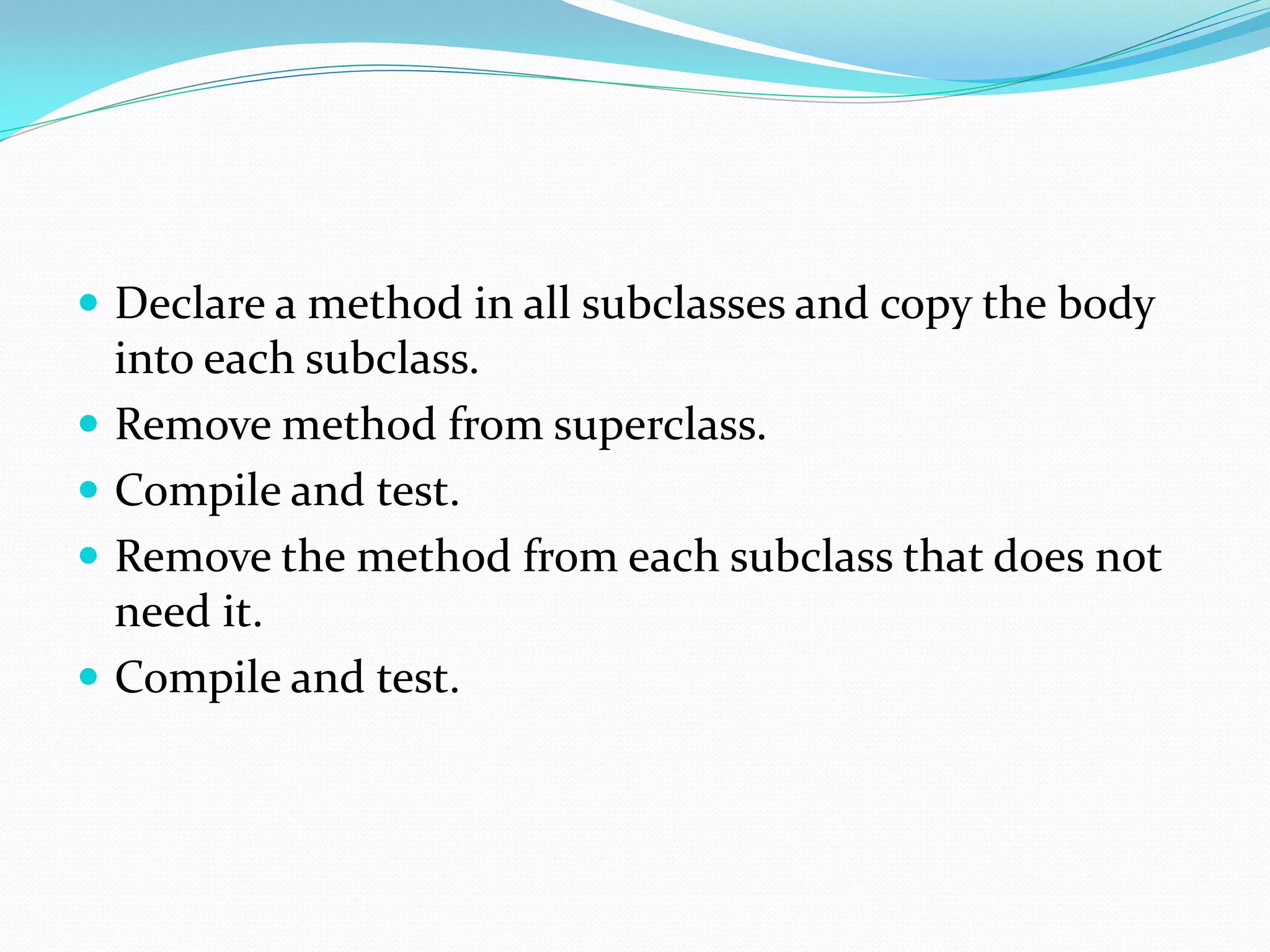

8.  Declare a method in all subclasses and copy the body
into each subclass.
 Remove method from superclass.
 Compile and test.
 Remove the method from each subclass that does not
need it.
 Compile and test.

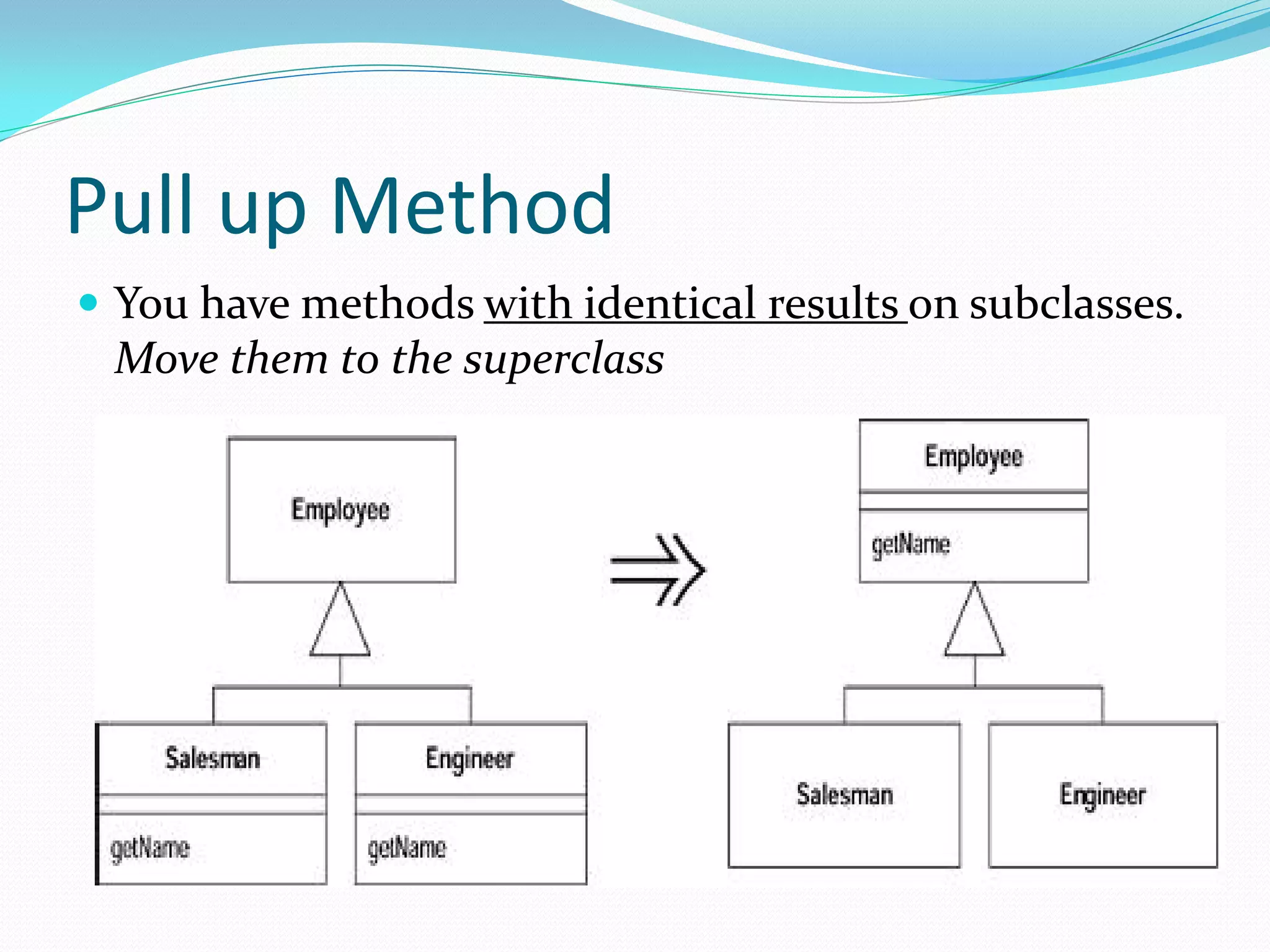

9. Pull up Method
 You have methods with identical results on subclasses.
Move them to the superclass

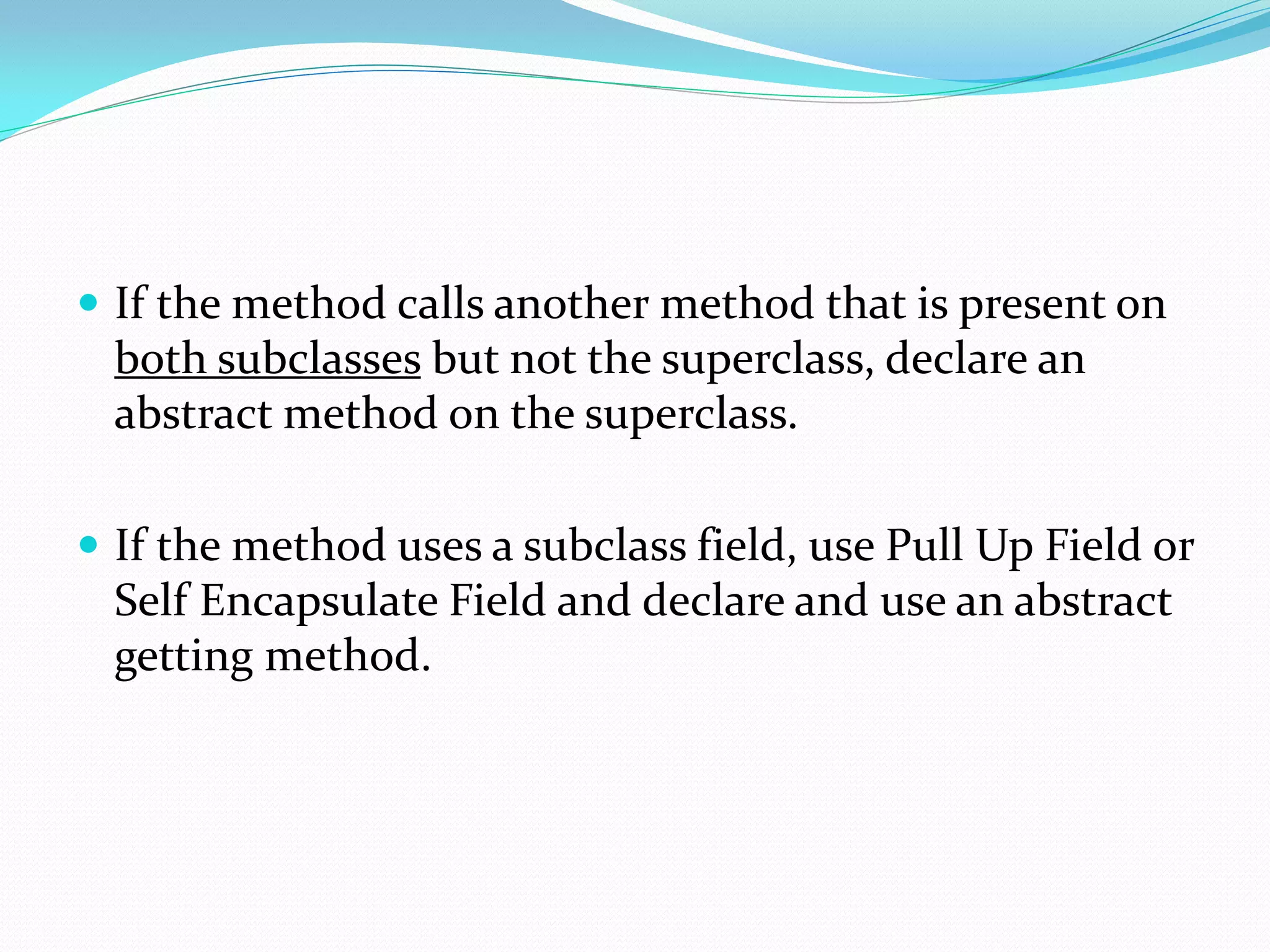

10.  If the method calls another method that is present on
both subclasses but not the superclass, declare an
abstract method on the superclass.
 If the method uses a subclass field, use Pull Up Field or
Self Encapsulate Field and declare and use an abstract
getting method.

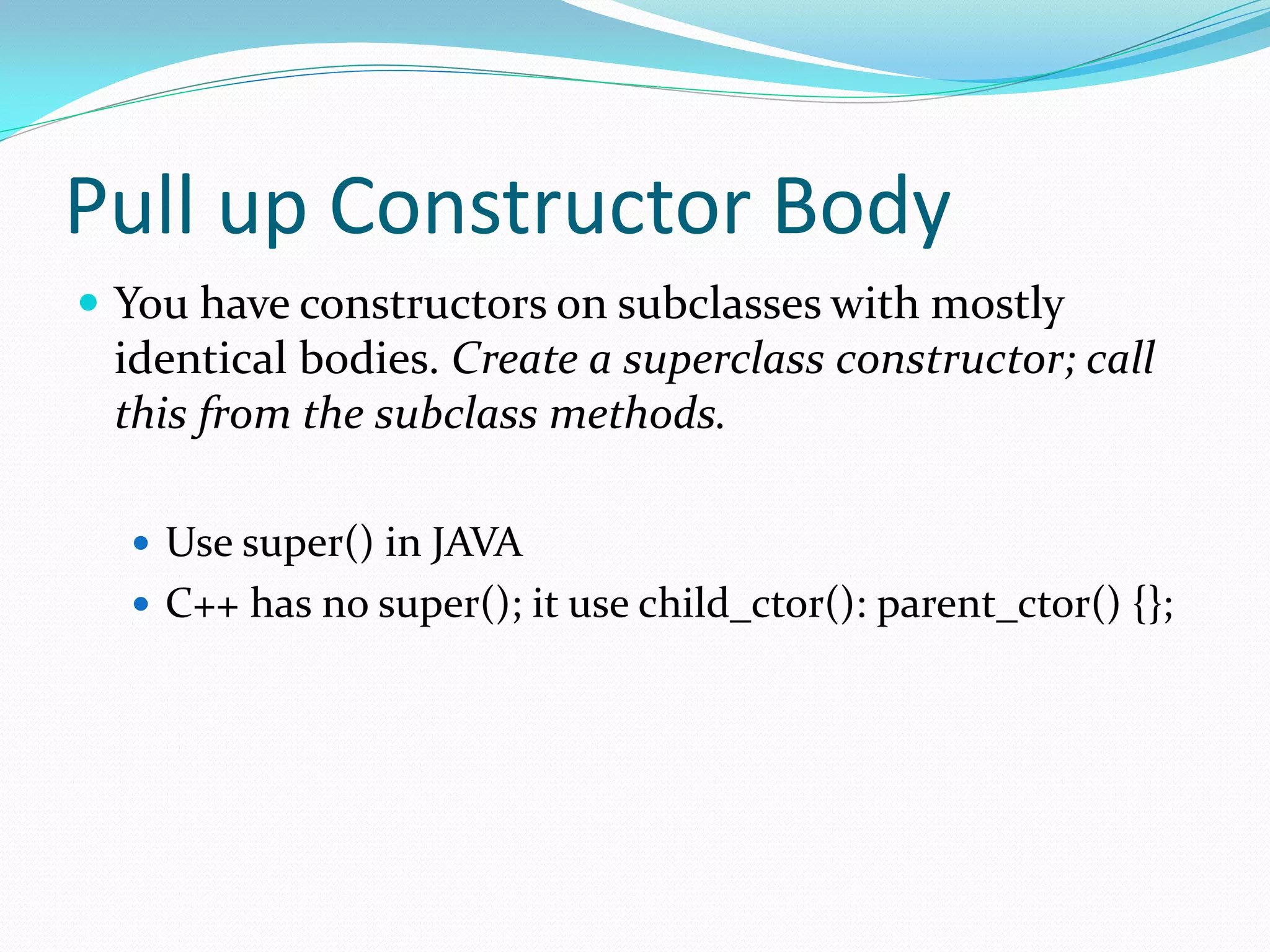

11. Pull up Constructor Body
 You have constructors on subclasses with mostly
identical bodies. Create a superclass constructor; call
this from the subclass methods.
 Use super() in JAVA
 C++ has no super(); it use child_ctor(): parent_ctor() {};

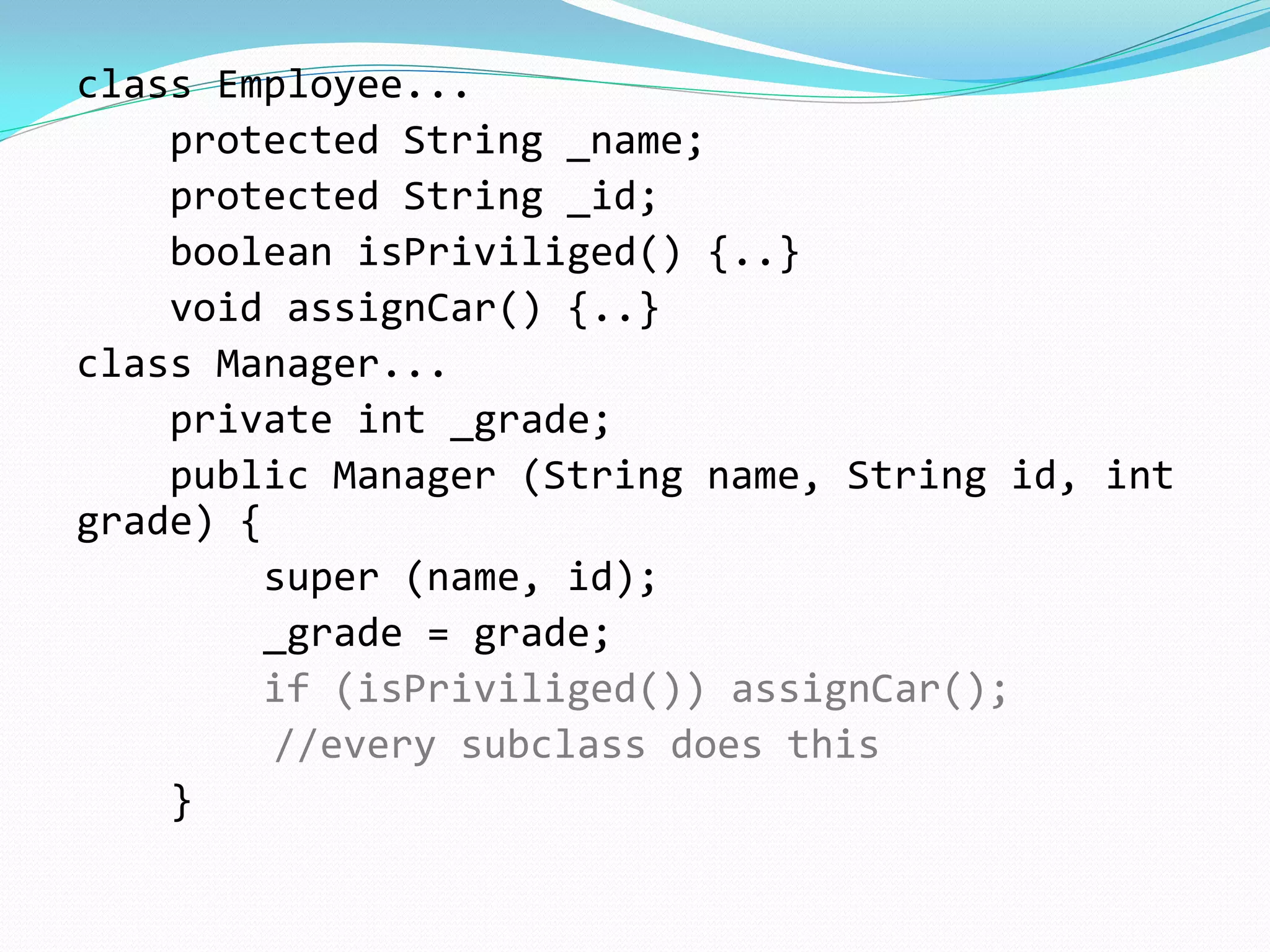

12. class Employee...
protected String _name;
protected String _id;
boolean isPriviliged() {..}
void assignCar() {..}
class Manager...
private int _grade;
public Manager (String name, String id, int
grade) {
super (name, id);
_grade = grade;
if (isPriviliged()) assignCar();
//every subclass does this
}

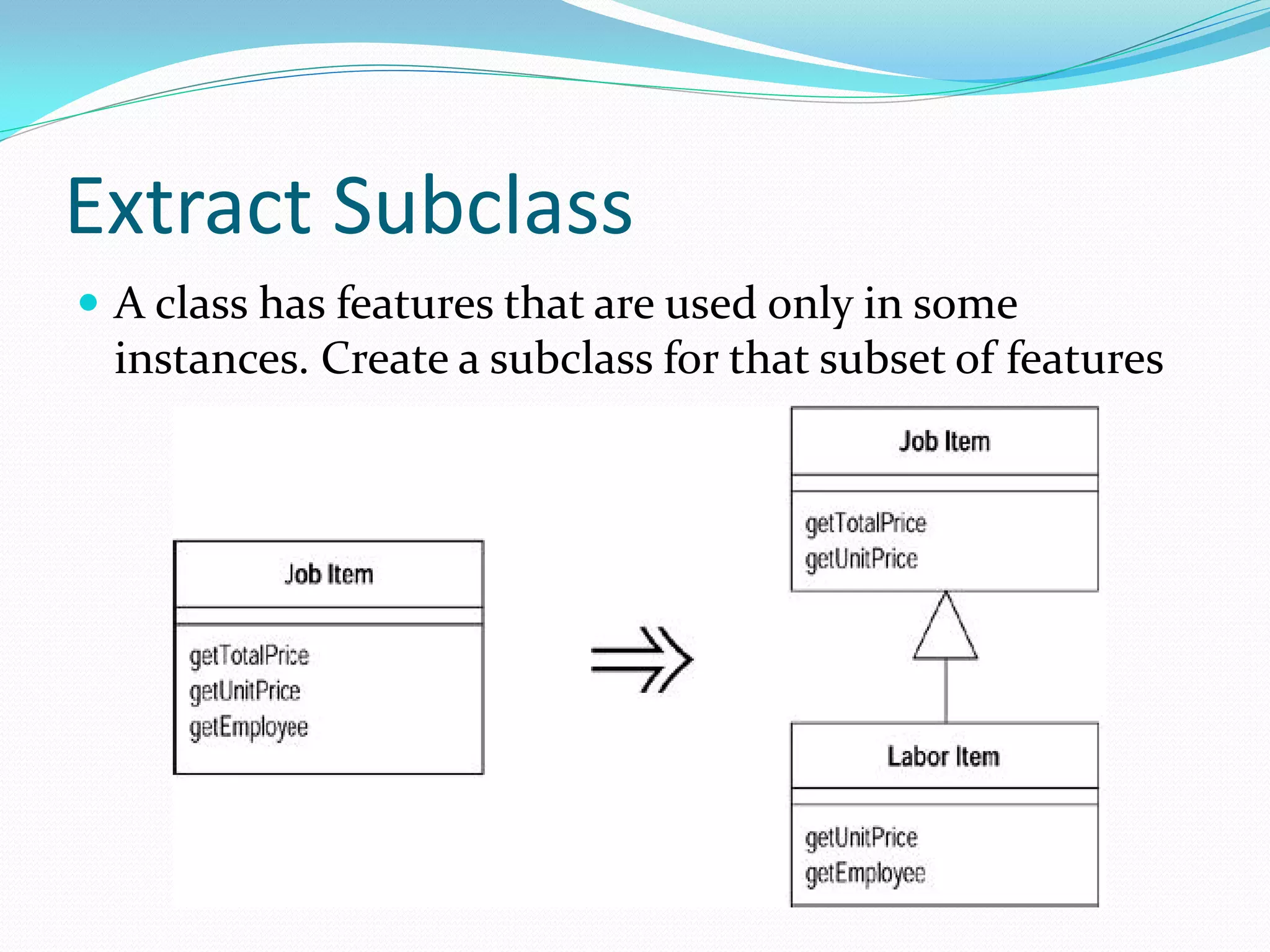

13. Extract Subclass
 A class has features that are used only in some
instances. Create a subclass for that subset of features

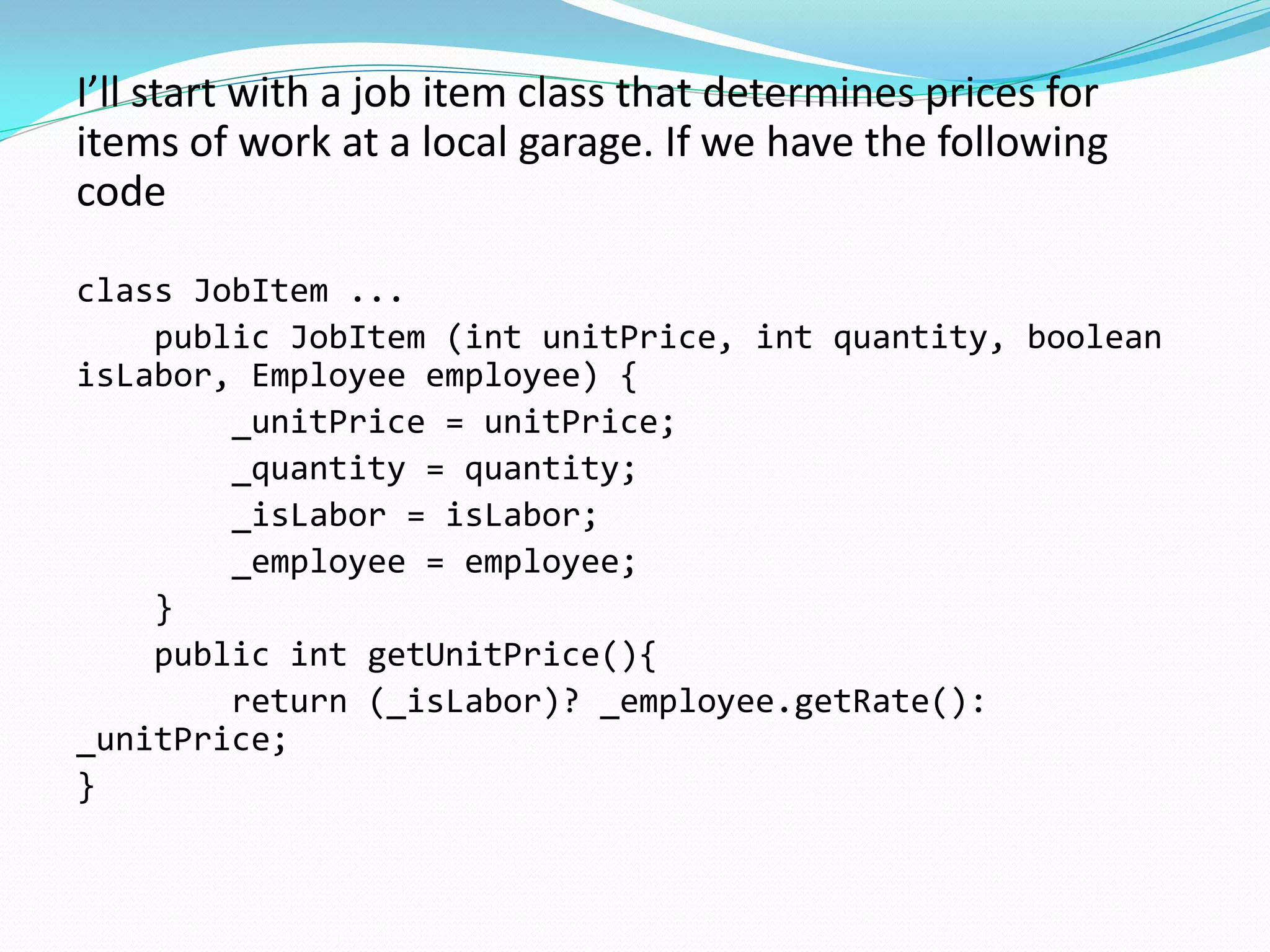

14. I’ll start with a job item class that determines prices for
items of work at a local garage. If we have the following
code
class JobItem ...
public JobItem (int unitPrice, int quantity, boolean
isLabor, Employee employee) {
_unitPrice = unitPrice;
_quantity = quantity;
_isLabor = isLabor;
_employee = employee;
}
public int getUnitPrice(){
return (_isLabor)? _employee.getRate():
_unitPrice;
}

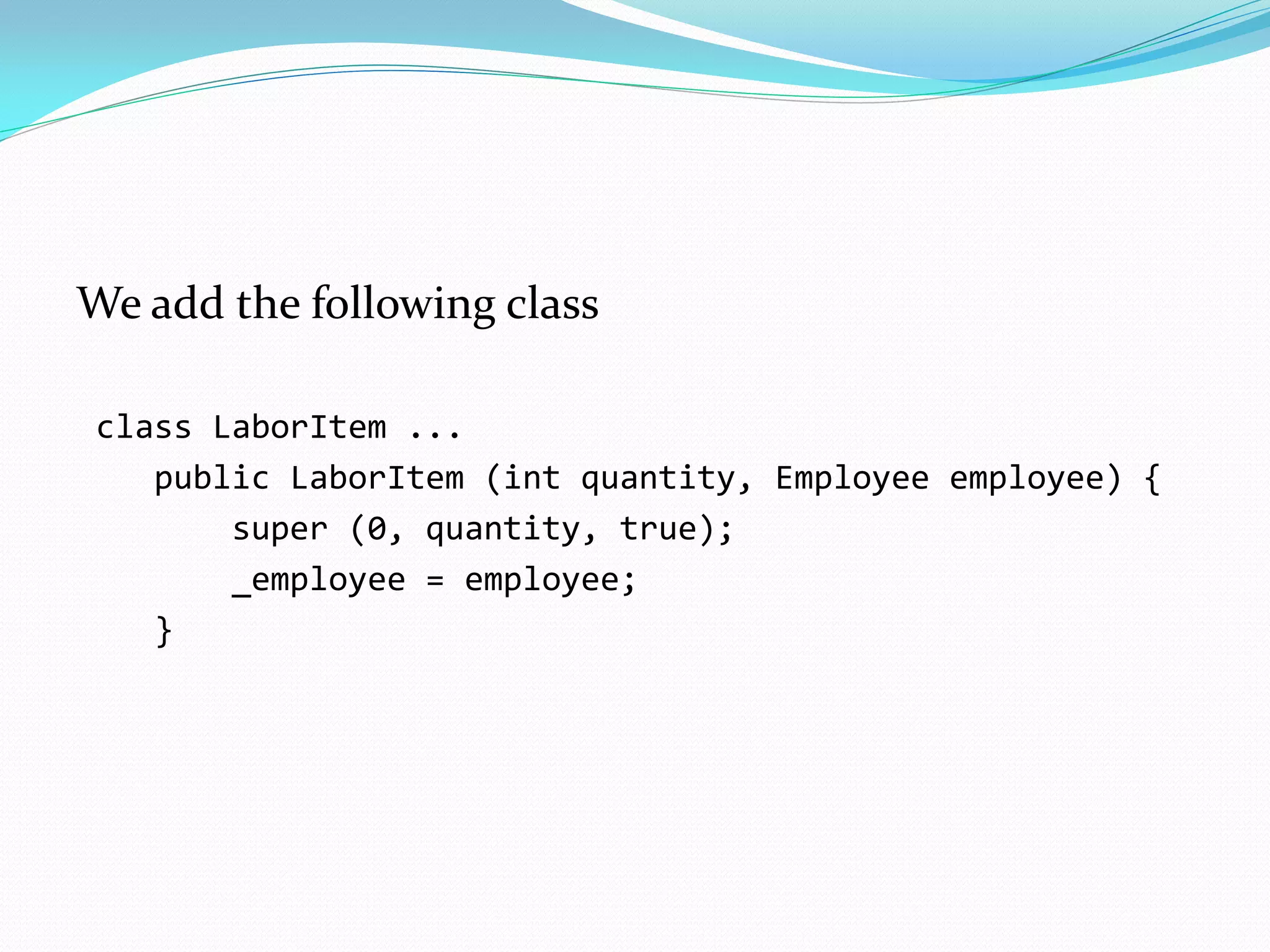

15. We add the following class
class LaborItem ...
public LaborItem (int quantity, Employee employee) {
super (0, quantity, true);
_employee = employee;
}

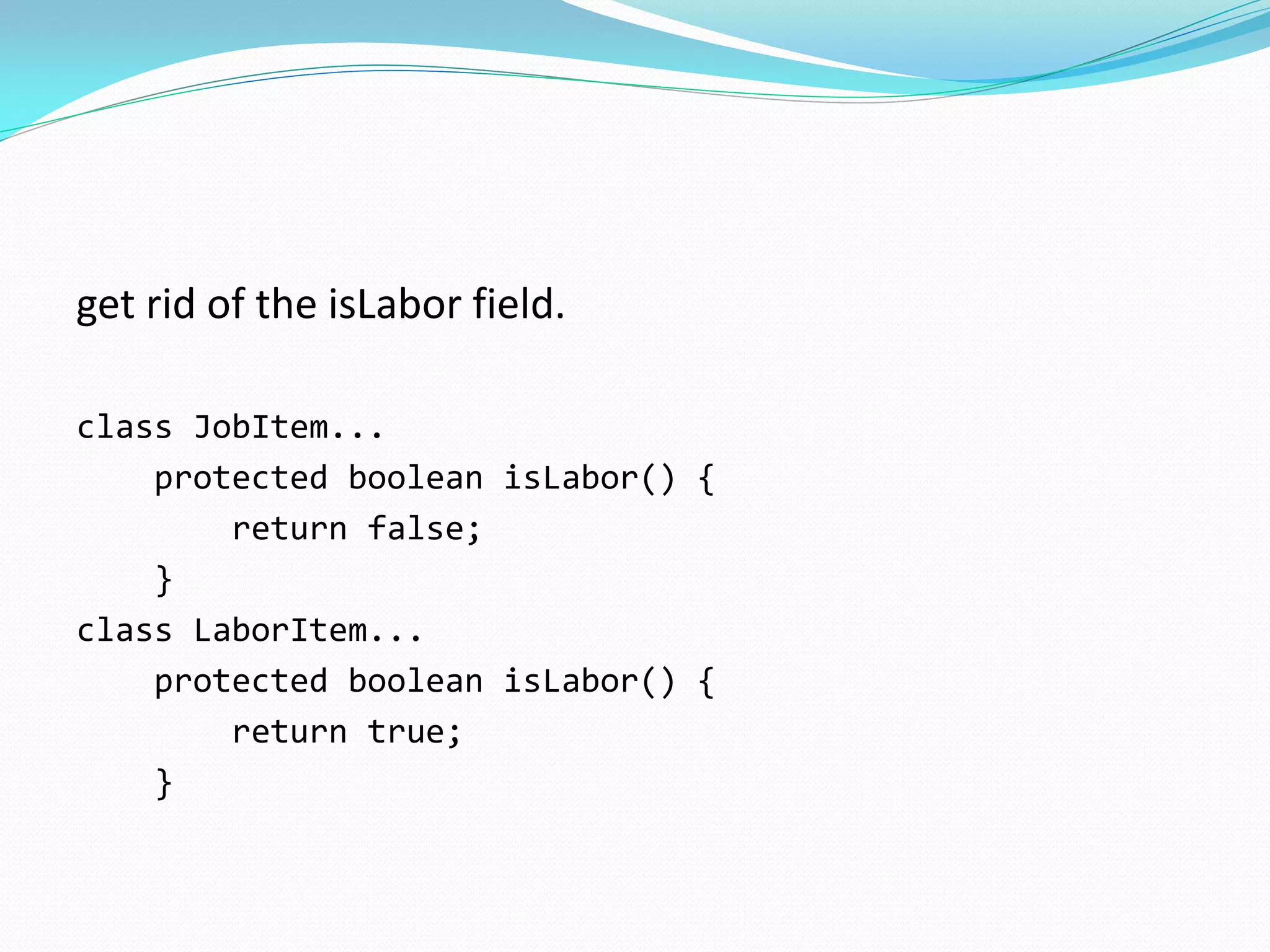

16. get rid of the isLabor field.
class JobItem...
protected boolean isLabor() {
return false;
}
class LaborItem...
protected boolean isLabor() {
return true;
}

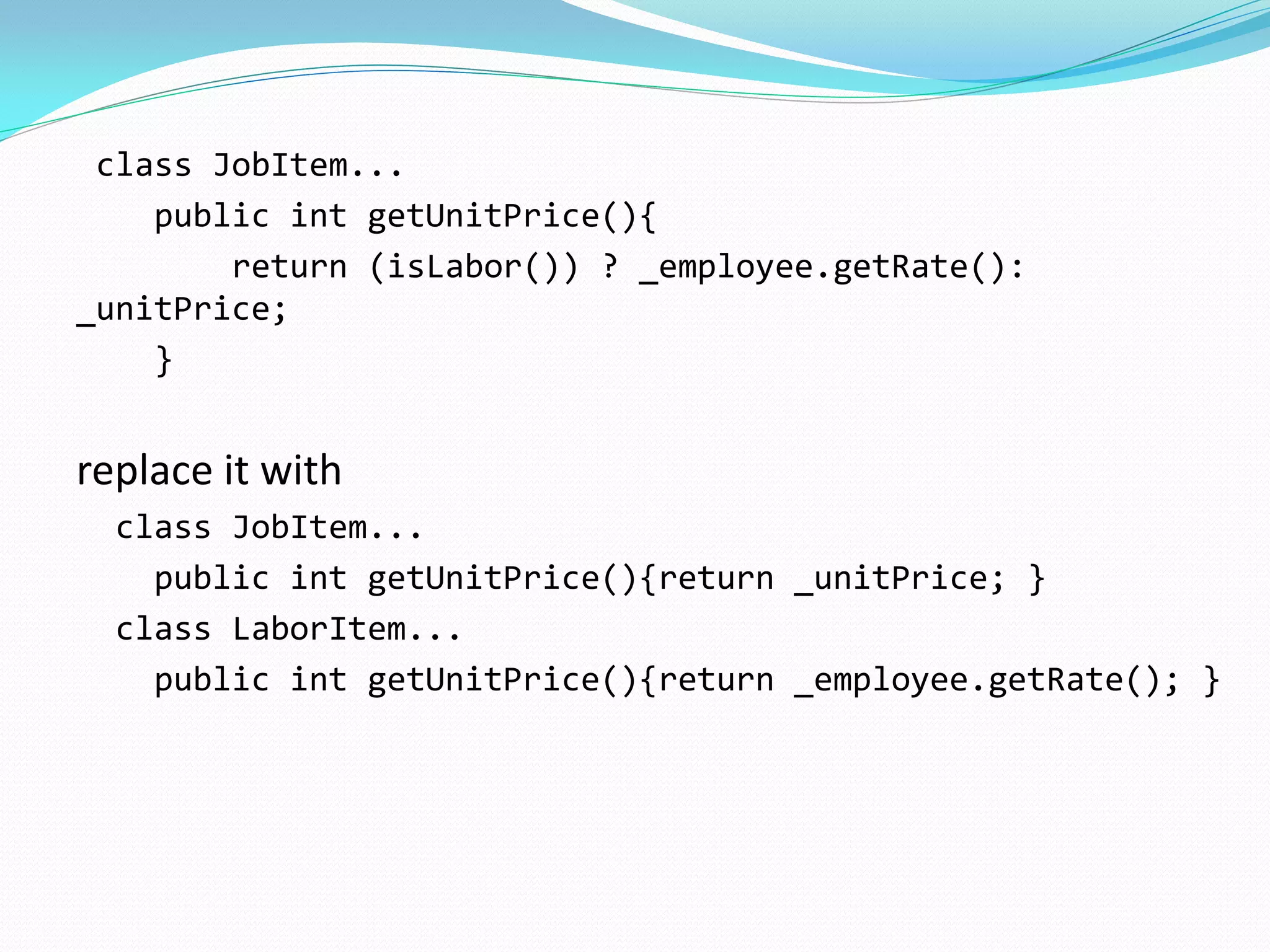

17. class JobItem...
public int getUnitPrice(){
return (isLabor()) ? _employee.getRate():
_unitPrice;
}
replace it with
class JobItem...
public int getUnitPrice(){return _unitPrice; }
class LaborItem...
public int getUnitPrice(){return _employee.getRate(); }

18. Extract Superclass
 You have two classes with similar features. Create a
superclass and move the common features to the
superclass.

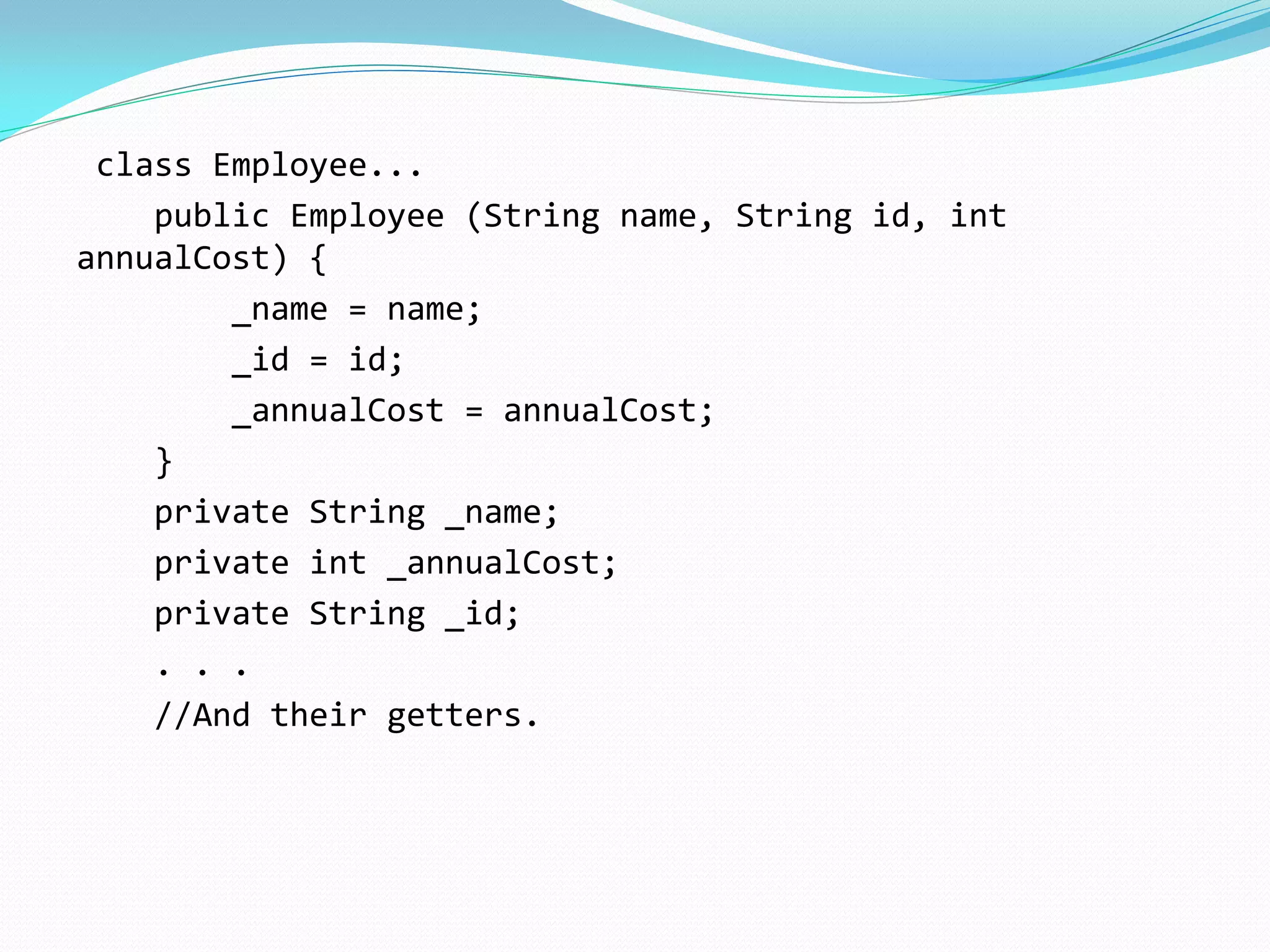

19. class Employee...
public Employee (String name, String id, int
annualCost) {
_name = name;
_id = id;
_annualCost = annualCost;
}
private String _name;
private int _annualCost;
private String _id;
. . .
//And their getters.

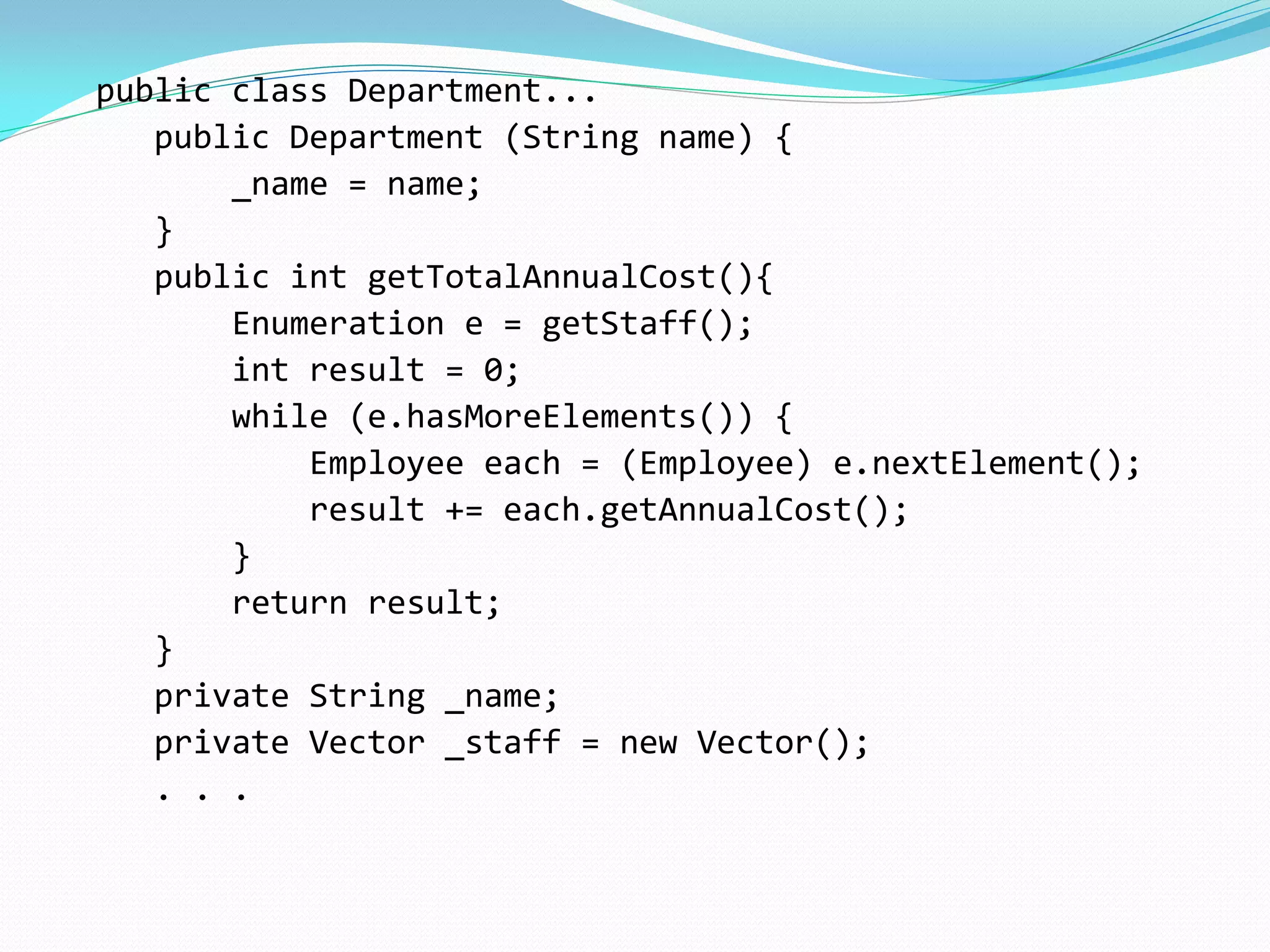

20. public class Department...
public Department (String name) {
_name = name;
}
public int getTotalAnnualCost(){
Enumeration e = getStaff();
int result = 0;
while (e.hasMoreElements()) {
Employee each = (Employee) e.nextElement();
result += each.getAnnualCost();
}
return result;
}
private String _name;
private Vector _staff = new Vector();
. . .

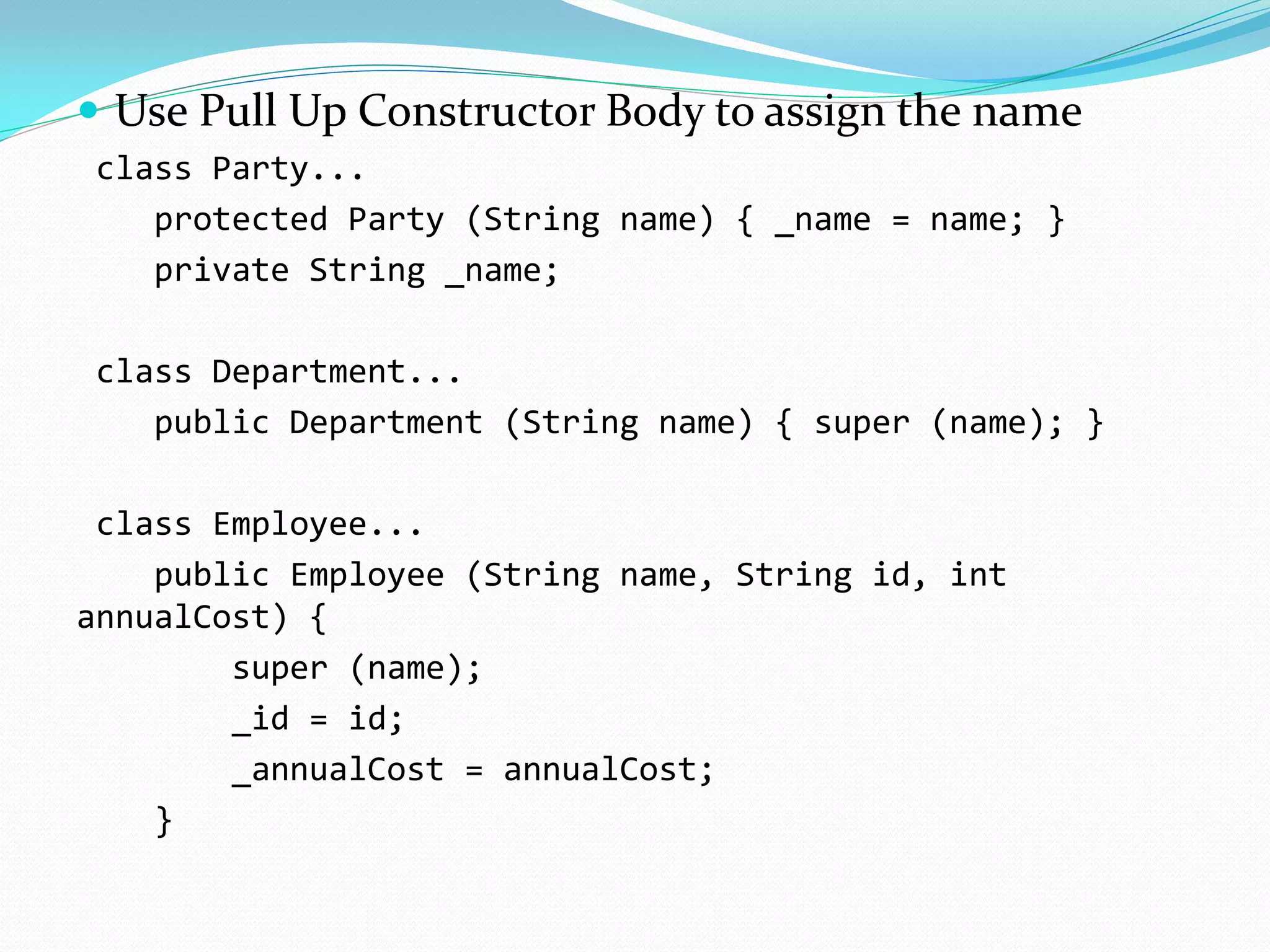

21.  Use Pull Up Constructor Body to assign the name
class Party...
protected Party (String name) { _name = name; }
private String _name;
class Department...
public Department (String name) { super (name); }
class Employee...
public Employee (String name, String id, int
annualCost) {
super (name);
_id = id;
_annualCost = annualCost;
}

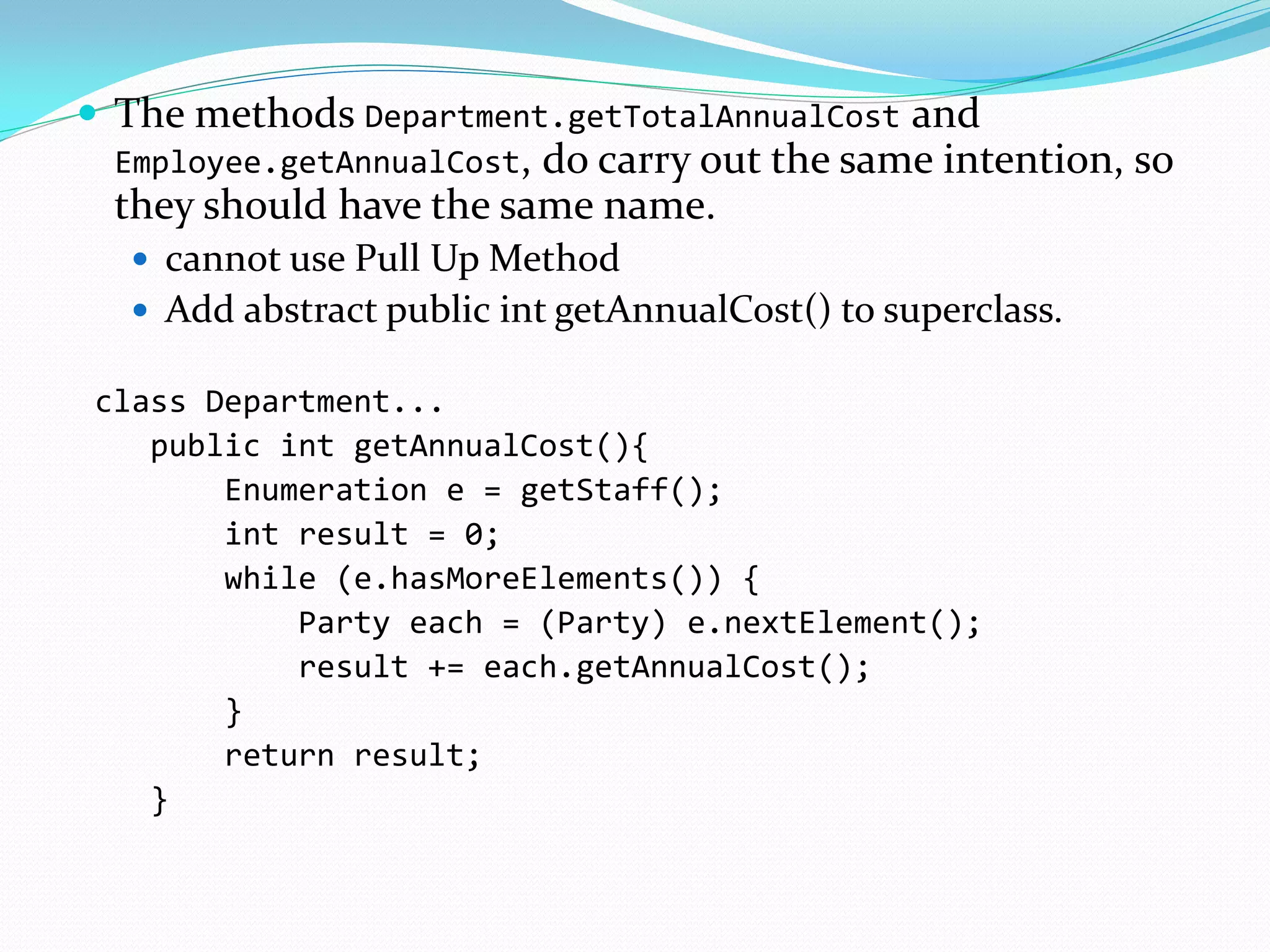

22.  The methods Department.getTotalAnnualCost and
Employee.getAnnualCost, do carry out the same intention, so
they should have the same name.
 cannot use Pull Up Method
 Add abstract public int getAnnualCost() to superclass.
class Department...
public int getAnnualCost(){
Enumeration e = getStaff();
int result = 0;
while (e.hasMoreElements()) {
Party each = (Party) e.nextElement();
result += each.getAnnualCost();
}
return result;
}

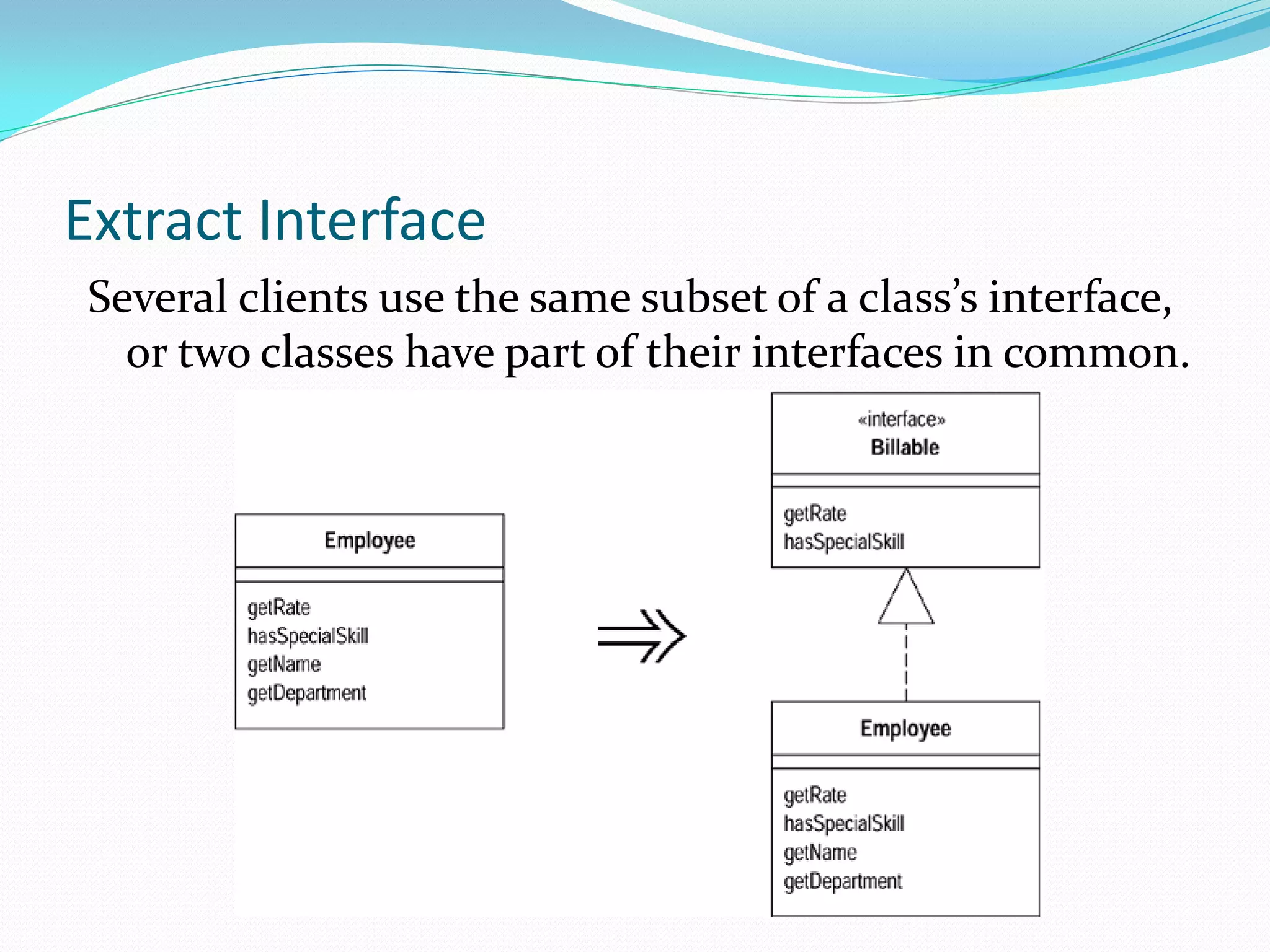

23. Extract Interface
Several clients use the same subset of a class’s interface,
or two classes have part of their interfaces in common.

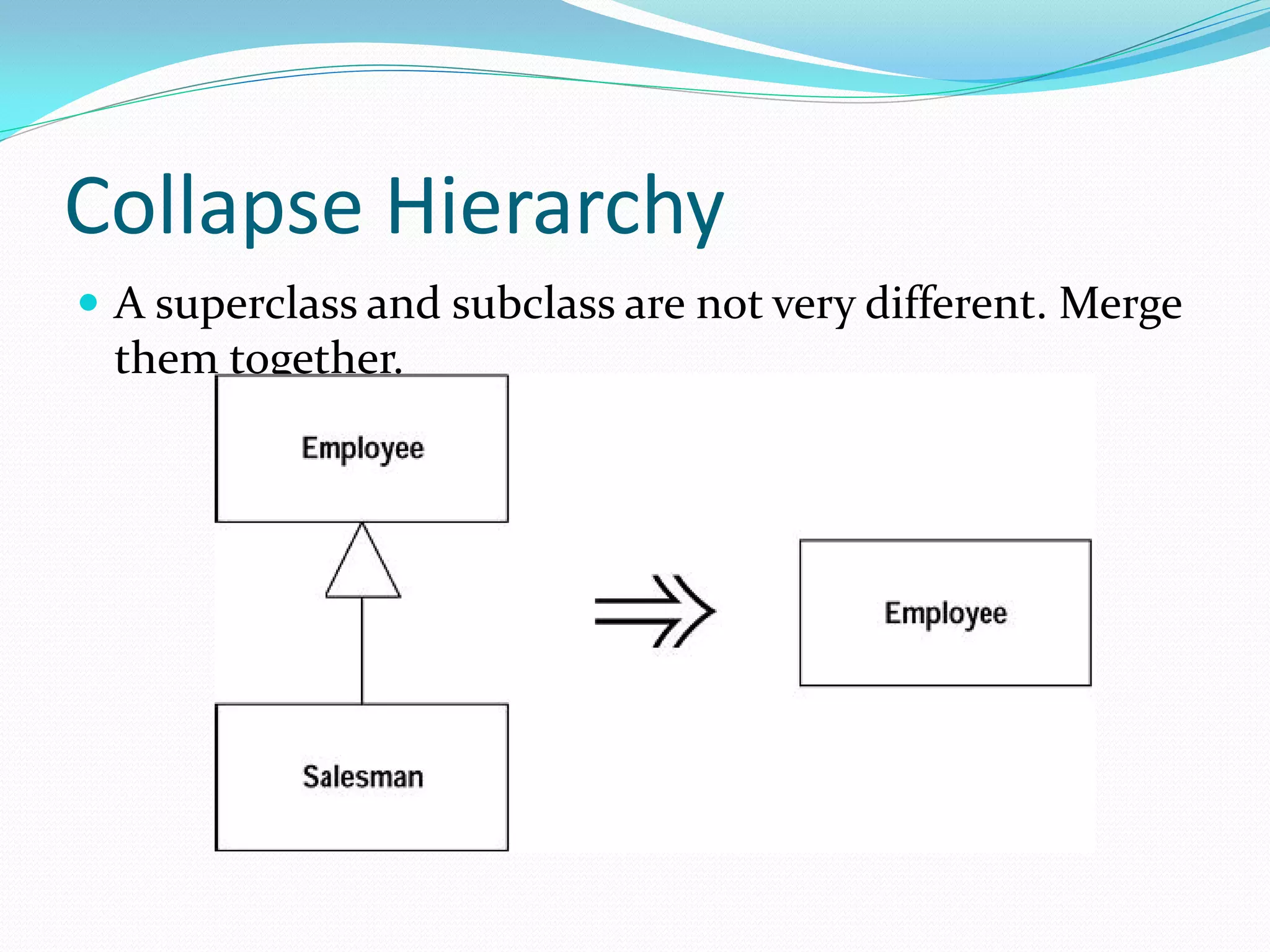

24. Collapse Hierarchy
 A superclass and subclass are not very different. Merge
them together.

25. Form Template Method
 You have two methods in subclasses that perform
similar steps in the same order, yet the steps are
different.
Class Customer {
public String statement() { … }
public String html_statement() { … }
…
}

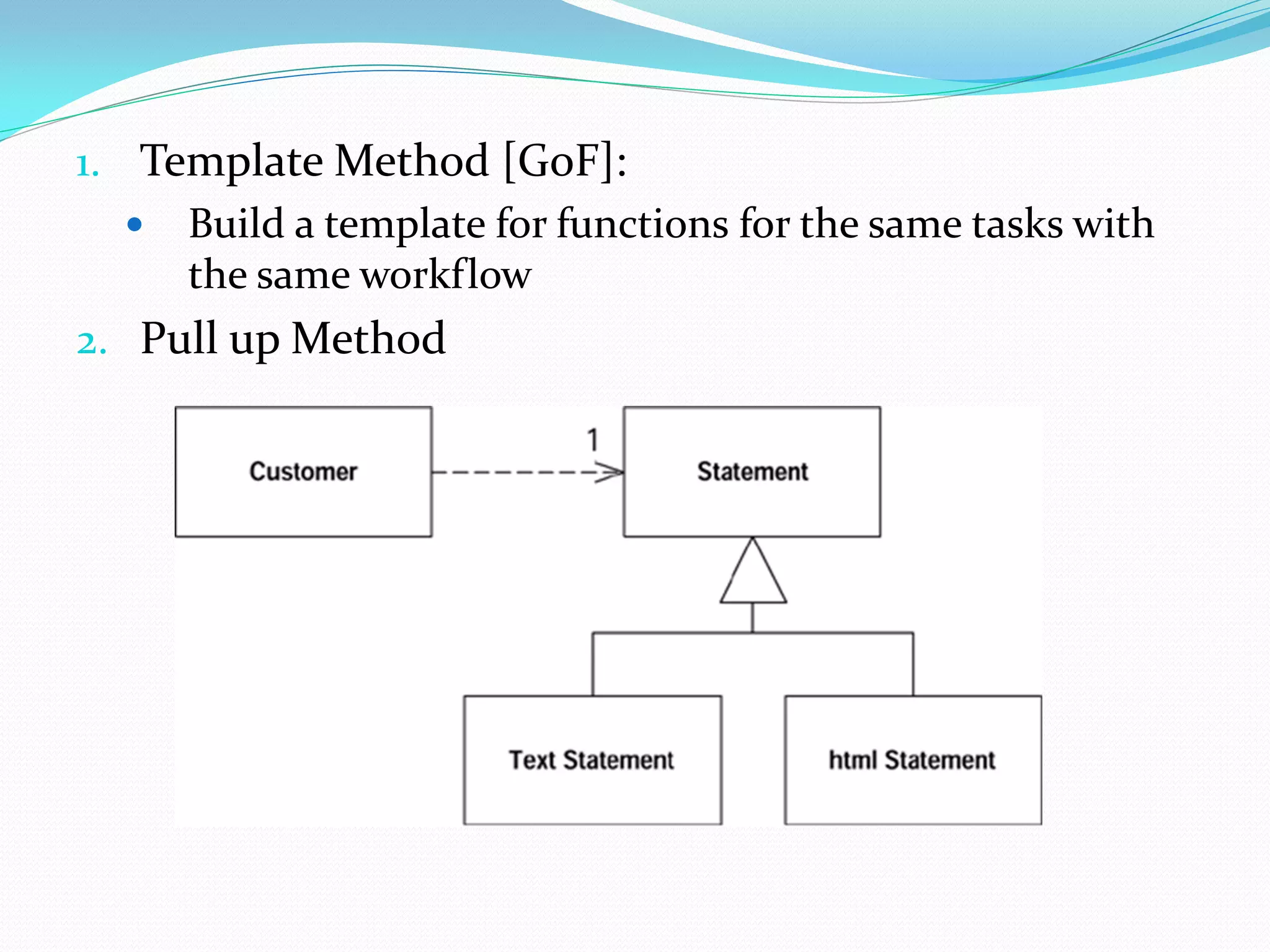

26. 1. Template Method [GoF]:
 Build a template for functions for the same tasks with
the same workflow
2. Pull up Method

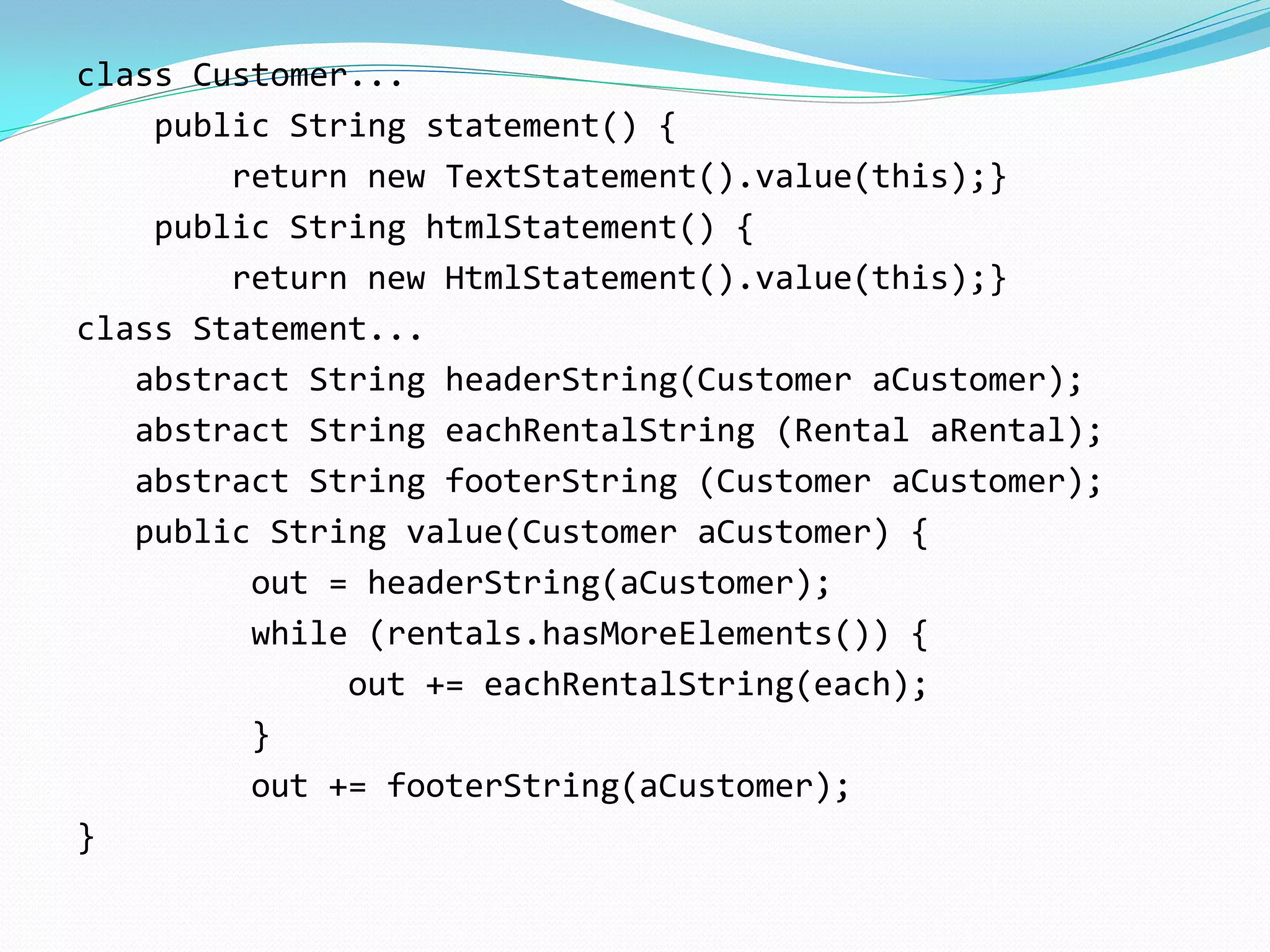

27. class Customer...
public String statement() {
return new TextStatement().value(this);}
public String htmlStatement() {
return new HtmlStatement().value(this);}
class Statement...
abstract String headerString(Customer aCustomer);
abstract String eachRentalString (Rental aRental);
abstract String footerString (Customer aCustomer);
public String value(Customer aCustomer) {
out = headerString(aCustomer);
while (rentals.hasMoreElements()) {
out += eachRentalString(each);
}
out += footerString(aCustomer);
}

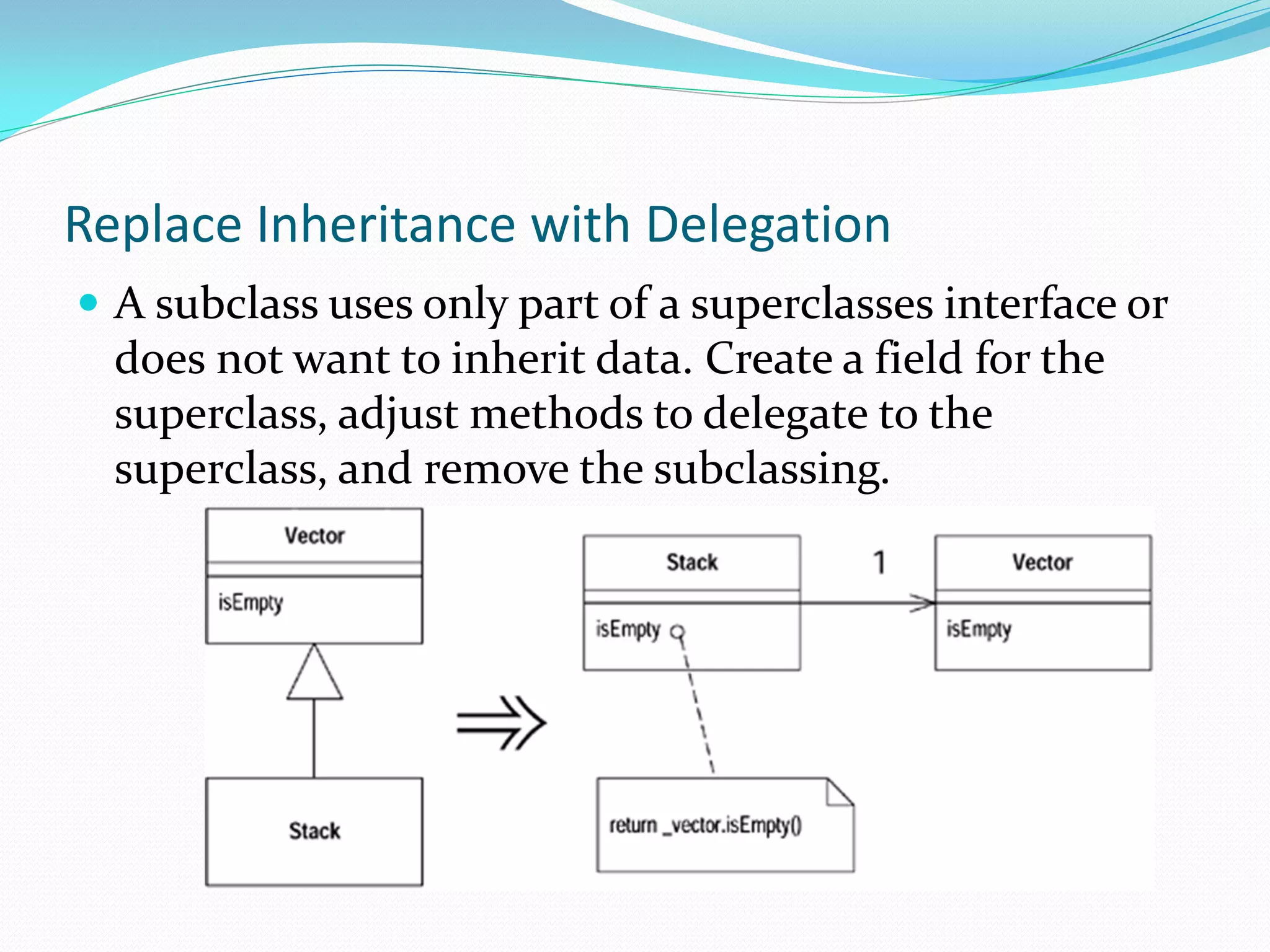

28. Replace Inheritance with Delegation
 A subclass uses only part of a superclasses interface or
does not want to inherit data. Create a field for the
superclass, adjust methods to delegate to the
superclass, and remove the subclassing.

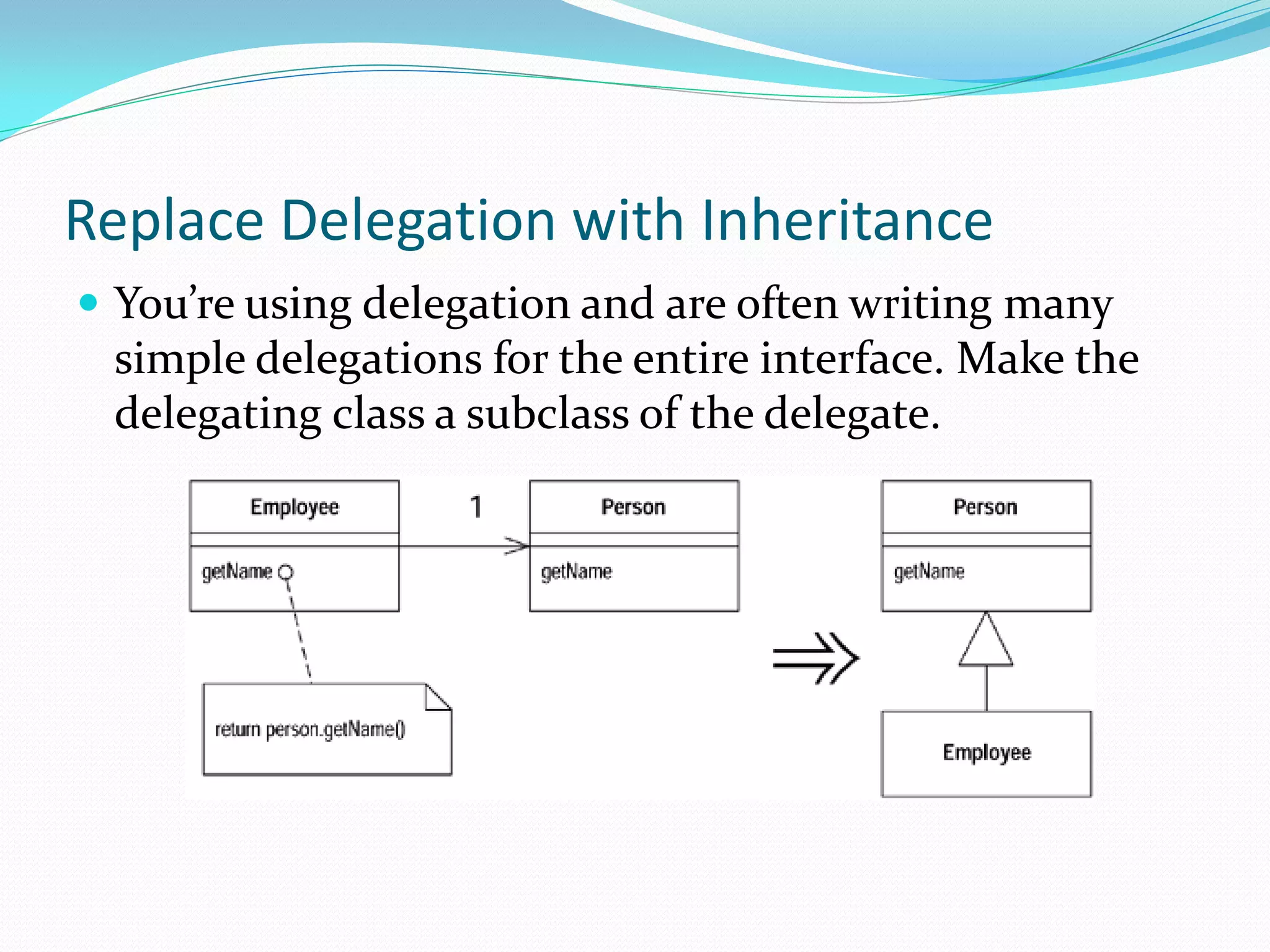

29. Replace Delegation with Inheritance
 You’re using delegation and are often writing many
simple delegations for the entire interface. Make the
delegating class a subclass of the delegate.

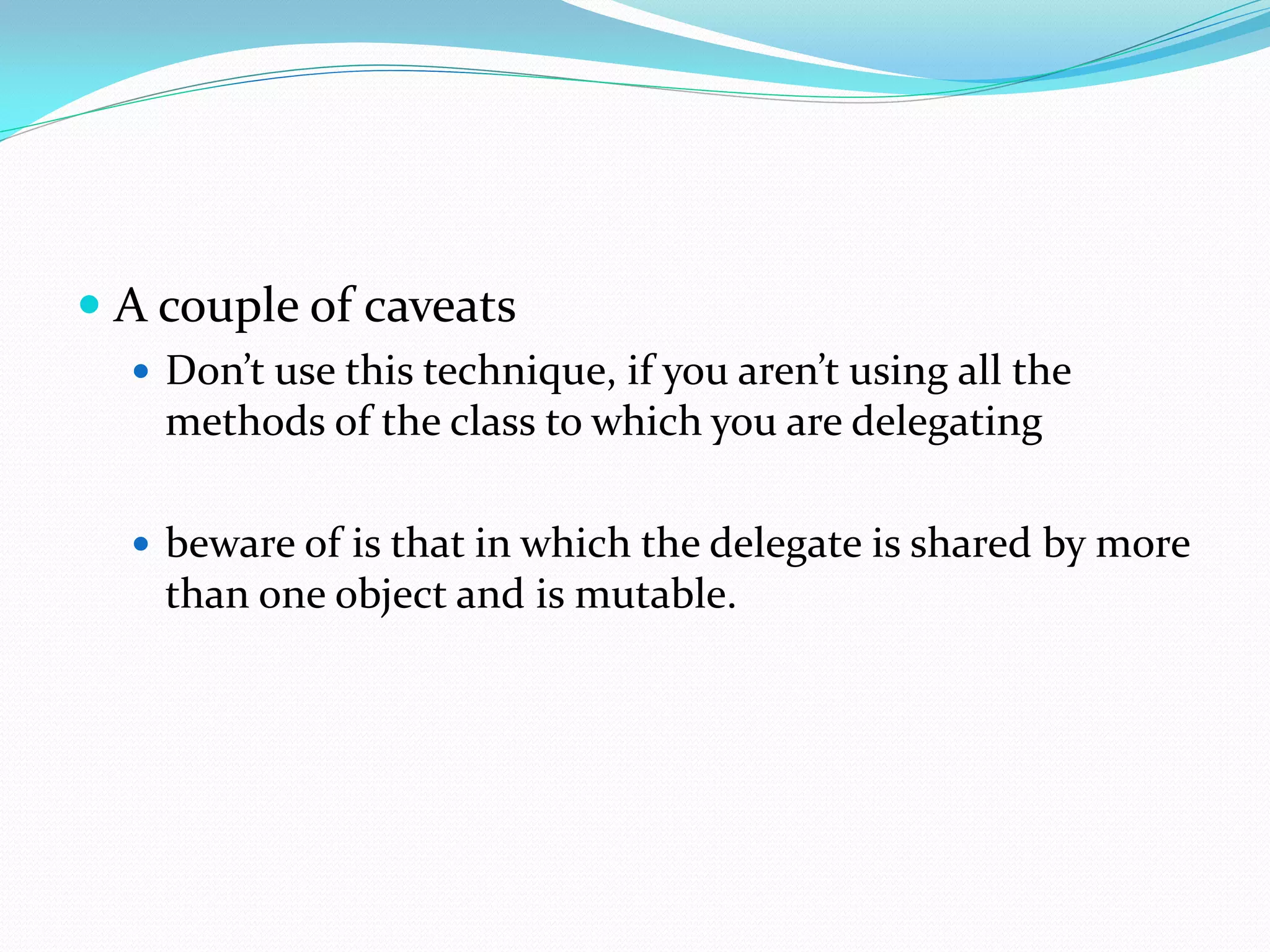

30.  A couple of caveats
 Don’t use this technique, if you aren’t using all the
methods of the class to which you are delegating
 beware of is that in which the delegate is shared by more
than one object and is mutable.

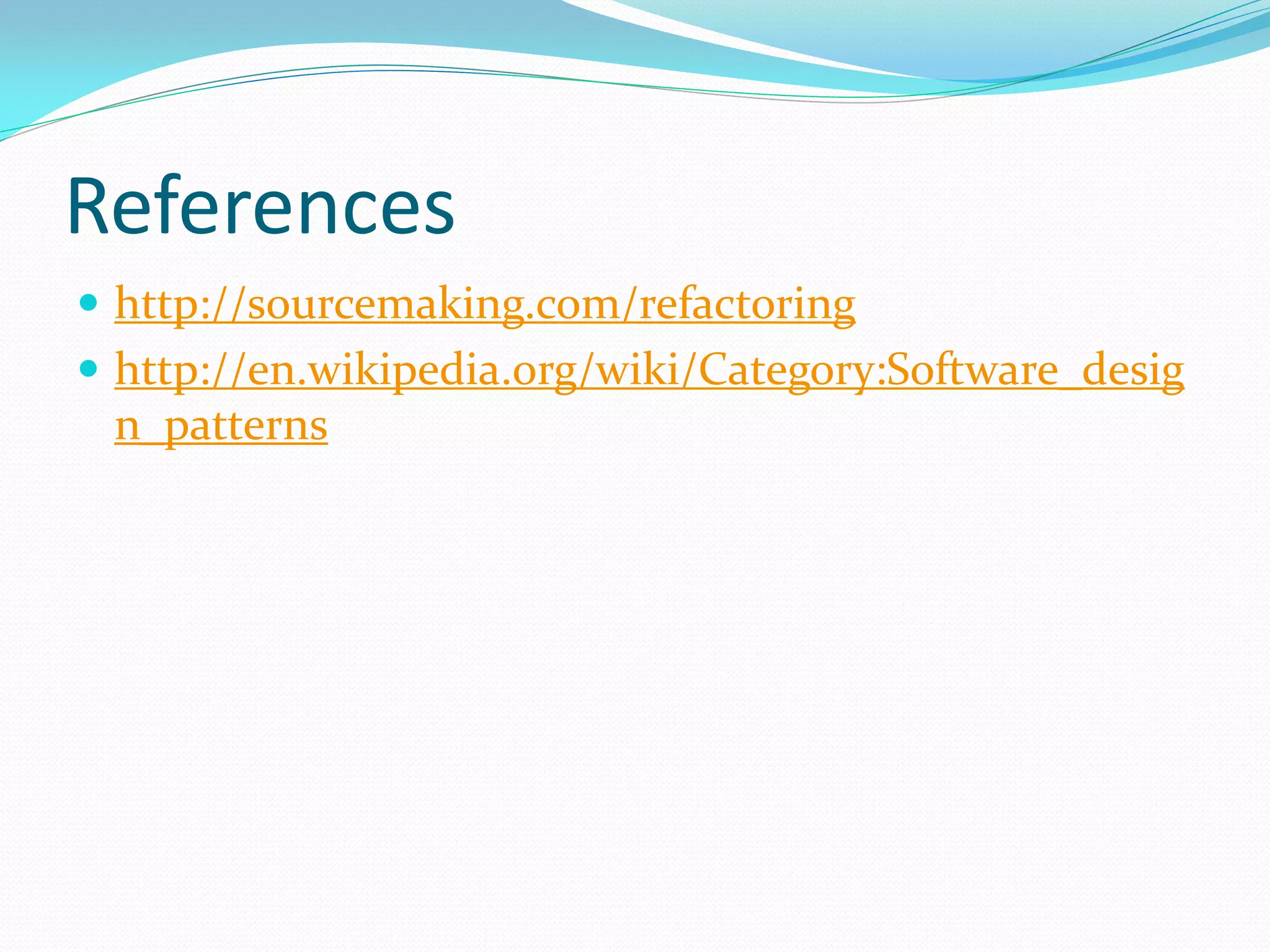

32. References
 http://sourcemaking.com/refactoring
 http://en.wikipedia.org/wiki/Category:Software_desig
n_patterns
