Redox Reactions in terms  of electrons transfer
Oxidation = loss of electrons A substance that  loses electrons  is said to be oxidised. Reduction = gain of electrons. A substance that  gains electrons  is said to be reduced. Remember LEO   ( L oss of  E lectrons is  O xidation) GER  ( G ain of  E lectrons is  R eduction) OR OIL   ( O xidation  I s  L oss of electrons) RIG  ( R eduction  I s  G ain of electrons)

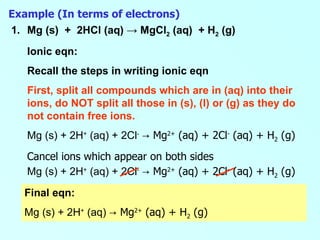

Example (In terms of electrons) 1. Mg (s)  +  2HCl (aq)  -> MgCl 2  (aq)  + H 2  (g) Ionic eqn: Recall the steps in writing ionic eqn First, split all compounds which are in (aq) into their ions, do NOT split all those in (s), (l) or (g) as they do not contain free ions. Mg (s) + 2H +  (aq) + 2Cl -   -> Mg 2+  (aq) + 2Cl -  (aq) + H 2  (g) Cancel ions which appear on both sides Mg (s) + 2H +  (aq) + 2Cl -   -> Mg 2+  (aq) + 2Cl -  (aq) + H 2  (g) Final eqn: Mg (s) + 2H +  (aq)  -> Mg 2+  (aq) + H 2  (g)

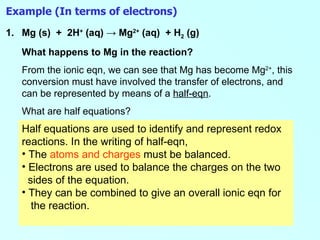

Example (In terms of electrons) 1. Mg (s)  +  2H +  (aq)  -> Mg 2+  (aq)  + H 2  (g) What happens to Mg in the reaction? From the ionic eqn, we can see that Mg has become Mg 2+ , this conversion must have involved the transfer of electrons, and can be represented by means of a  half-eqn .  What are half equations? ,[object Object],[object Object],[object Object],[object Object],[object Object],[object Object]

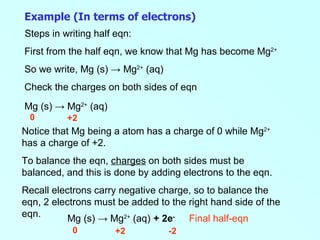

Steps in writing half eqn: First from the half eqn, we know that Mg has become Mg 2+ So we write, Mg (s)  ->  Mg 2+  (aq)   Check the charges on both sides of eqn Mg (s)  ->  Mg 2+  (aq)   Notice that Mg being a atom has a charge of 0 while Mg 2+  has a charge of +2. To balance the eqn,  charges  on both sides must be balanced, and this is done by adding electrons to the eqn. Recall electrons carry negative charge, so to balance the eqn, 2 electrons must be added to the right hand side of the eqn. Mg (s)  ->  Mg 2+  (aq)   + 2e - Final half-eqn Example (In terms of electrons) 0 +2 0 +2 -2
The electrons can be moved to the left hand side of eqn and the eqn becomes  Mg (s)  - 2e -   ->  Mg 2+  (aq) Example (In terms of electrons) It can be seen that  each magnesium atom  loses 2 electrons  to form a magnesium ion, hence magnesium is oxidised.
Which substance is reduced? Write the half eqn which involves the conversion of H +  to H 2 Steps: Balance the no. of H on both sides.   2 H +  (aq)  ->  H 2  (g)  Check the charges on both sides of eqn 2H +  (aq)  ->  H 2  (g) To balance the charges on both sides of eqn, electrons must be added to the left hand side of the eqn. 2H +  (aq)  + 2e -   ->  H 2  (g) The half-eqn is now complete. From the half eqn, we see that hydrogen ions have  gained electrons  to form hydrogen gas, hence hydrochloric acid is being reduced. Example (In terms of electrons) +2 0 +2 0 -2
Example (In terms of electrons) Note: Addition of the 2 half-eqns give the  overall  ionic eqn for the reaction Mg (s)  -> Mg (aq) + 2e - Eqn 1 2H +  (aq) + 2e -   ->  H 2  (g) Eqn 2 Adding Eqn 1 and 2, we get Mg (s) + 2H +  (aq) +  2e -   -> Mg (aq) +  2e -  + H 2  (g) Notice 2 electrons appear on both sides of eqn and should be cancelled to yield the final ionic eqn: Mg (s) + 2H +  (aq) -> Mg (aq) + H 2  (g)

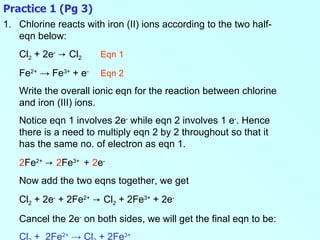

Practice 1 (Pg 3) ,[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object]

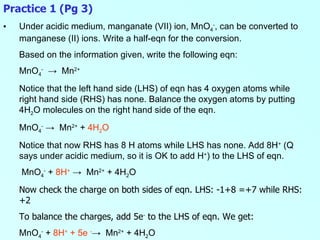

Practice 1 (Pg 3) ,[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object],[object Object]

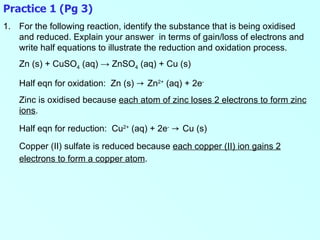

Practice 1 (Pg 3) ,[object Object],[object Object],[object Object],[object Object],[object Object],[object Object]
