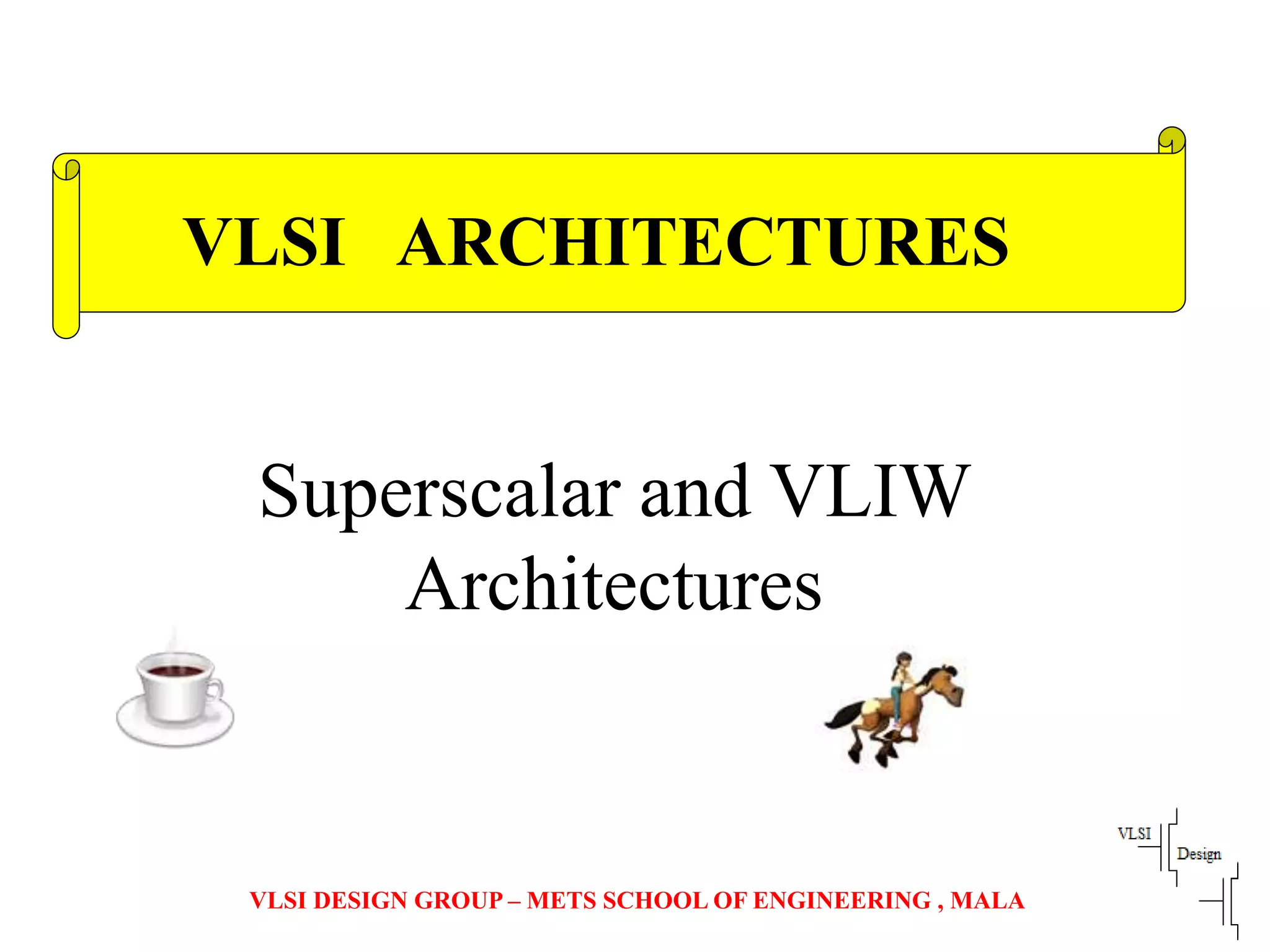

1. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Superscalar and VLIW
Architectures
VLSI ARCHITECTURES
2. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Outline
• Types of architectures
• Superscalar
• Differences between CISC, RISC and VLIW
• VLIW ( very long instruction word )
3. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Parallel processing
Processing instructions in parallel requires three
major tasks:
1. checking dependencies between instructions to
determine which instructions can be grouped
together for parallel execution;
2. assigning instructions to the functional units on
the hardware;
3. determining when instructions are initiated placed
together into a single word.
4. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Major categories
VLIW – Very Long Instruction Word
EPIC – Explicitly Parallel Instruction Computing
5. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Superscalar Processors
• Superscalar processors are designed to exploit more
instruction-level parallelism in user programs.
• Only independent instructions can be executed in
parallel without causing a wait state.
• The amount of instruction-level parallelism varies
widely depending on the type of code being executed.
6. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Pipelining in Superscalar Processors
• In order to fully utilise a superscalar processor of
degree m, m instructions must be executable in
parallel. This situation may not be true in all clock
cycles. In that case, some of the pipelines may be
stalling in a wait state.
• In a superscalar processor, the simple operation
latency should require only one cycle, as in the base
scalar processor.
8. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Superscalar Execution
9. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Superscalar Implementation
• Simultaneously fetch multiple instructions
• Logic to determine true dependencies involving
register values
• Mechanisms to communicate these values
• Mechanisms to initiate multiple instructions in
parallel
• Resources for parallel execution of multiple
instructions
• Mechanisms for committing process state in
correct order
10. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
VLIW History
The term coined by J.A. Fisher (Yale) in 1983
ELI S12 (prototype)
Trace (Commercial)
Origin lies in horizontal microcode optimization
Another pioneering work by B. Ramakrishna Rau in
1982
Poly cyclic (Prototype)
Cydra-5 (Commercial)
Recent developments
Trimedia – Philips
TMS320C6X – Texas Instruments
11. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
The VLIW Architecture
• A typical VLIW (very long instruction word) machine
has instruction words hundreds of bits in length.
• Multiple functional units are used concurrently in a
VLIW processor.
• All functional units share the use of a common large
register file.
12. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Why Superscalar Processors are
commercially more popular as
compared to VLIW processor ?
Binary code compatibility among scalar &
superscalar processors of same family
Same compiler works for all processors (scalars
and superscalars) of same family
Assembly programming of VLIWs is tedious
Code density in VLIWs is very poor
- Instruction encoding schemes
Area Performance
13. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Data path : A simple VLIW Architecture
FU FU FU
Register file
Scalability ?
Access time, area, power consumption sharply increase with
number of register ports
14. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Data path : Clustered VLIW Architecture
(distributed register file)
FU FU
Register file
FU FU
Register file
FU FU
Register file
Interconnection Network
15. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Coarse grain Fus with
VLIW core
MULT RAM ALU
Coarse grain
FU
Reg2
Reg1
Reg1
Reg1
Reg2
Reg2
Multiplexer network
Micro
Code
IR
Prg. Counter
Logic
Embedded (co)-processors as Fus in a VLIW architecture
16. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Application Specific FUs
FUfunctionality
number of inputs
number of outputs
latency initiation interval I/O time shape
Functional Units
17. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Comparison: CISC, RISC, VLIW
19. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Advantages of VLIW
Compiler prepares fixed packets of multiple
operations that give the full "plan of execution"
– dependencies are determined by compiler and used to
schedule according to function unit latencies
– function units are assigned by compiler and
correspond to the position within the instruction
packet ("slotting")
– compiler produces fully-scheduled, hazard-free code
=> hardware doesn't have to "rediscover"
dependencies or schedule
20. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
Disadvantages of VLIW
Compatibility across implementations is a major
problem
– VLIW code won't run properly with different number
of function units or different latencies
– unscheduled events (e.g., cache miss) stall entire
processor
Code density is another problem
– low slot utilization (mostly nops)
– reduce nops by compression ("flexible VLIW",
"variable-length VLIW")
23. VLSI DESIGN GROUP – METS SCHOOL OF ENGINEERING , MALA
References
1. Advanced Computer Architectures, Parallelism, Scalability,
Programmability, K. Hwang, 1993.
2. M. Smotherman, "Understanding EPIC Architectures and
Implementations" (pdf)
http://www.cs.clemson.edu/~mark/464/acmse_epic.pdf
3. Lecture notes of Mark Smotherman,
http://www.cs.clemson.edu/~mark/464/hp3e4.html
4. An Introduction To Very-Long Instruction Word (VLIW) Computer
Architecture, Philips Semiconductors,
http://www.semiconductors.philips.com/acrobat_download/other
/vliw-wp.pdf
5. Texas Instruments, Tutorial on TMS320C6000 VelociTI Advanced
VLIW Architecture.
http://www.acm.org/sigs/sigmicro/existing/micro31/pdf/m31_sesha
n.pdf
