Reactive streams processing using Akka Streams

This document provides a summary of a presentation about Akka streams. It discusses Reactive Streams, which is a standard for asynchronous stream processing with non-blocking back pressure. It provides examples of building stream processing graphs with Akka Streams in just a few lines of code to transform and process data from sources to sinks. It also gives a more complex example of processing sensor measurements from a web socket connection and writing the data to a database.

Embed presentation

Download as PDF, PPTX
Akka streams Johan Andrén JavaZone, Oslo, 2017-09-13 Reactive stream processing using
Johan Andrén Akka Team Stockholm Scala User Group @apnylle johan.andren@lightbend.com
Make building powerful concurrent & distributed applications simple. Akka is a toolkit and runtime for building highly concurrent, distributed, and resilient message-driven applications on the JVM Akka

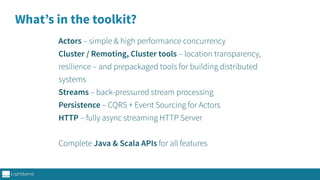

Actors – simple & high performance concurrency Cluster / Remoting, Cluster tools – location transparency, resilience – and prepackaged tools for building distributed systems Streams – back-pressured stream processing Persistence – CQRS + Event Sourcing for Actors HTTP – fully async streaming HTTP Server Complete Java & Scala APIs for all features What’s in the toolkit?
Reactive Streams reactive-streams.org
Reactive Streams timeline Oct 2013 RxJava, Akka and Twitter- people meeting “Soon thereafter” 2013 Reactive Streams Expert group formed Apr 2015 Reactive Streams Spec 1.0 TCK 5+ impls 2017 Inclusion in JDK9 Akka Streams, RxJava Vert.x, MongoDB, … Jul 2015 Akka Streams 1.0

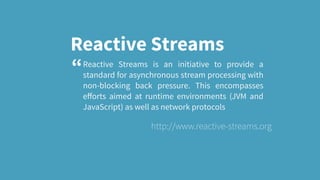

Reactive Streams Reactive Streams is an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “
Reactive Streams Reactive Streams is an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “

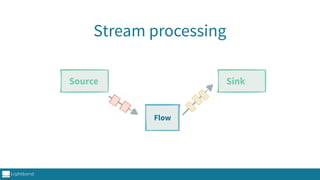

Stream processing Source Sink Flow
Reactive Streams Reactive Streams is an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “

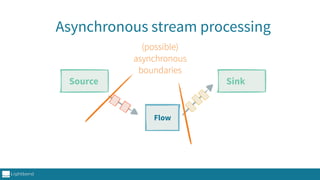

Asynchronous stream processing Source Sink (possible) asynchronous boundaries Flow
Reactive Streams Reactive Streams is an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “

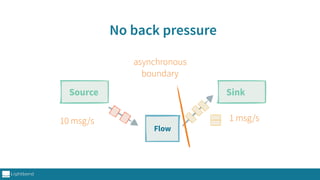

No back pressure Source Sink 10 msg/s 1 msg/s Flow asynchronous boundary
No back pressure Source Sink 10 msg/s 1 msg/s Flow asynchronous boundary OOM!!

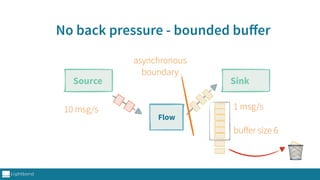

No back pressure - bounded buffer Source Sink 10 msg/s 1 msg/s Flow buffer size 6 🗑 asynchronous boundary
Async non blocking back pressure Source Sink 1 msg/s 1 msg/s Flow buffer size 6 🗑 asynchronous boundary Hey! give me 2 more

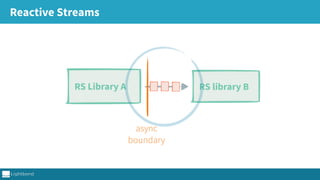

Reactive Streams RS Library A RS library B async boundary

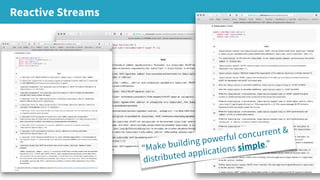

Reactive Streams “Make building powerful concurrent & distributed applications simple.”
Complete and awesome Java and Scala APIs (Just like everything in Akka) Akka Streams

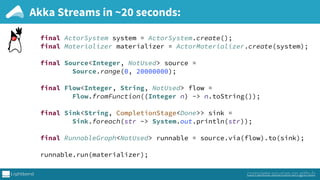

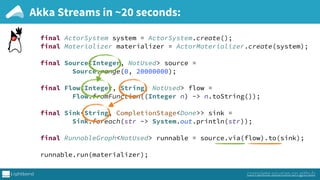

Akka Streams in ~20 seconds: final ActorSystem system = ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); complete sources on github
Akka Streams in ~20 seconds: final ActorSystem system = ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); complete sources on github

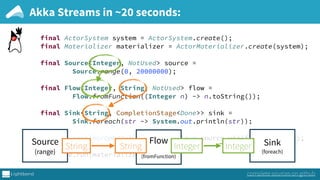

final ActorSystem system = ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); Akka Streams in ~20 seconds: complete sources on github Source (range) String Flow (fromFunction) Sink (foreach) String Integer Integer

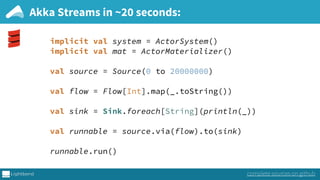

Akka Streams in ~20 seconds: implicit val system = ActorSystem()
 implicit val mat = ActorMaterializer()

 val source = Source(0 to 20000000)

 val flow = Flow[Int].map(_.toString())

 val sink = Sink.foreach[String](println(_))

 val runnable = source.via(flow).to(sink)

 runnable.run() complete sources on github

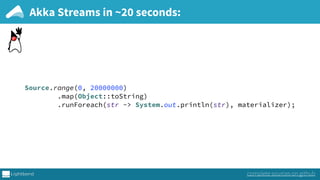

Akka Streams in ~20 seconds: Source.range(0, 20000000)
 .map(Object::toString)
 .runForeach(str -> System.out.println(str), materializer); complete sources on github

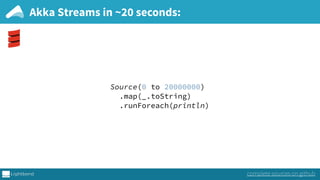

Akka Streams in ~20 seconds: Source(0 to 20000000)
 .map(_.toString)
 .runForeach(println) complete sources on github
Numbers as a service final Source<ByteString, NotUsed> numbers = Source.unfold(0L, n -> {
 long next = n + 1;
 return Optional.of(Pair.create(next, next));
 }).map(n -> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(
 ContentTypes.TEXT_PLAIN_UTF8,
 numbers
 )))
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); complete sources on github
final Source<ByteString, NotUsed> numbers = Source.unfold(0L, n -> {
 long next = n + 1;
 return Optional.of(Pair.create(next, next));
 }).map(n -> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(

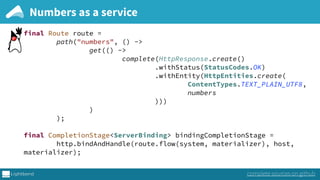

 Numbers as a service complete sources on github
return Optional.of(Pair.create(next, next));
 }).map(n -> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(
 ContentTypes.TEXT_PLAIN_UTF8,
 numbers
 )))
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); Numbers as a service complete sources on github

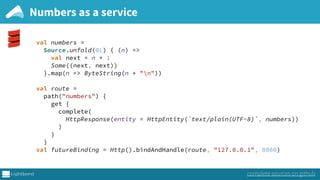

Numbers as a service val numbers =
 Source.unfold(0L) { (n) =>
 val next = n + 1
 Some((next, next))
 }.map(n => ByteString(n + "n"))

 val route =
 path("numbers") {
 get {
 complete( HttpResponse(entity = HttpEntity(`text/plain(UTF-8)`, numbers)) )
 }
 }
 val futureBinding = Http().bindAndHandle(route, "127.0.0.1", 8080) complete sources on github

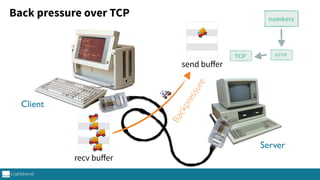

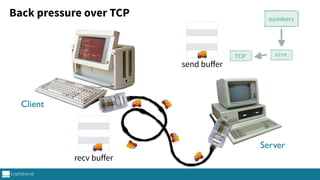

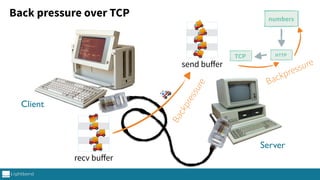

recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚 Back pressure over TCP numbers TCP HTTP Server Client
recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚑 Back pressure over TCP numbers TCP HTTP Backpressure Server Client
recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚑 Back pressure over TCP numbers TCP HTTP Backpressure Backpressure Server Client

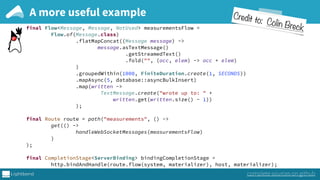

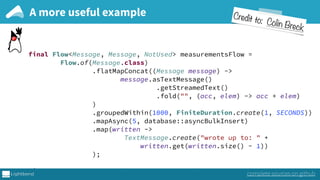

A more useful example complete sources on github final Flow<Message, Message, NotUsed> measurementsFlow =
 Flow.of(Message.class)
 .flatMapConcat((Message message) ->
 message.asTextMessage()
 .getStreamedText()
 .fold("", (acc, elem) -> acc + elem)
 )
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5, database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->
 get(() ->
 handleWebSocketMessages(measurementsFlow)
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); Credit to: Colin Breck
final Flow<Message, Message, NotUsed> measurementsFlow =
 Flow.of(Message.class)
 .flatMapConcat((Message message) ->
 message.asTextMessage()
 .getStreamedText()
 .fold("", (acc, elem) -> acc + elem)
 )
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5, database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->

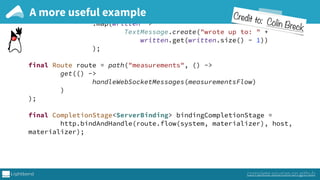

 A more useful example complete sources on github Credit to: Colin Breck
)
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5, database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->
 get(() ->
 handleWebSocketMessages(measurementsFlow)
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); A more useful example complete sources on github Credit to: Colin Breck

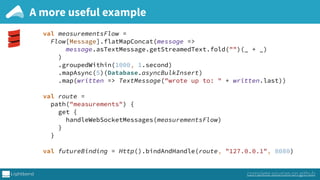

A more useful example complete sources on github val measurementsFlow =
 Flow[Message].flatMapConcat(message =>
 message.asTextMessage.getStreamedText.fold("")(_ + _)
 )
 .groupedWithin(1000, 1.second)
 .mapAsync(5)(Database.asyncBulkInsert)
 .map(written => TextMessage("wrote up to: " + written.last))

 val route =
 path("measurements") {
 get {
 handleWebSocketMessages(measurementsFlow)
 }
 }

 val futureBinding = Http().bindAndHandle(route, "127.0.0.1", 8080)

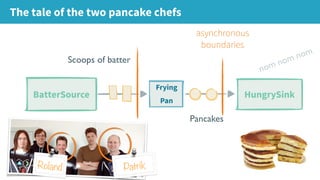

The tale of the two pancake chefs HungrySink Frying Pan BatterSource Scoops of batter Pancakes nom nom nom asynchronous boundaries Roland Patrik

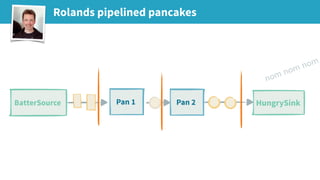

Rolands pipelined pancakes HungrySinkPan 2BatterSource Pan 1 nom nom nom

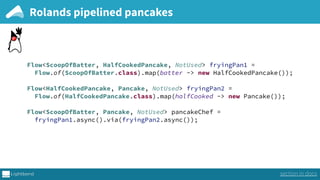

Rolands pipelined pancakes Flow<ScoopOfBatter, HalfCookedPancake, NotUsed> fryingPan1 =
 Flow.of(ScoopOfBatter.class).map(batter -> new HalfCookedPancake());

 Flow<HalfCookedPancake, Pancake, NotUsed> fryingPan2 =
 Flow.of(HalfCookedPancake.class).map(halfCooked -> new Pancake()); Flow<ScoopOfBatter, Pancake, NotUsed> pancakeChef =
 fryingPan1.async().via(fryingPan2.async()); section in docs

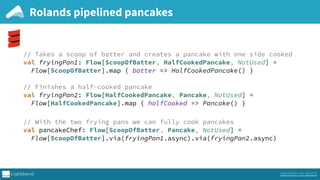

Rolands pipelined pancakes // Takes a scoop of batter and creates a pancake with one side cooked val fryingPan1: Flow[ScoopOfBatter, HalfCookedPancake, NotUsed] =
 Flow[ScoopOfBatter].map { batter => HalfCookedPancake() }

 // Finishes a half-cooked pancake
 val fryingPan2: Flow[HalfCookedPancake, Pancake, NotUsed] =
 Flow[HalfCookedPancake].map { halfCooked => Pancake() }
 // With the two frying pans we can fully cook pancakes val pancakeChef: Flow[ScoopOfBatter, Pancake, NotUsed] =
 Flow[ScoopOfBatter].via(fryingPan1.async).via(fryingPan2.async) section in docs
Patriks parallel pancakes HungrySink Pan 2 BatterSource Pan 1 Balance Merge nom nom nom
Patriks parallel pancakes Flow<ScoopOfBatter, Pancake, NotUsed> fryingPan =
 Flow.of(ScoopOfBatter.class).map(batter -> new Pancake());

 Flow<ScoopOfBatter, Pancake, NotUsed> pancakeChef =
 Flow.fromGraph(GraphDSL.create(builder -> {
 final UniformFanInShape<Pancake, Pancake> mergePancakes =
 builder.add(Merge.create(2));
 final UniformFanOutShape<ScoopOfBatter, ScoopOfBatter> dispatchBatter =
 builder.add(Balance.create(2));

 builder.from(dispatchBatter.out(0)) .via(builder.add(fryingPan.async())) .toInlet(mergePancakes.in(0));
 builder.from(dispatchBatter.out(1)) .via(builder.add(fryingPan.async())) .toInlet(mergePancakes.in(1));

 return FlowShape.of(dispatchBatter.in(), mergePancakes.out());
 })); section in docs

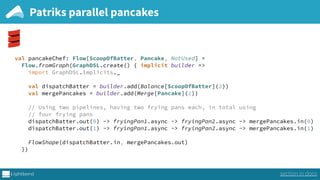

Patriks parallel pancakes val pancakeChef: Flow[ScoopOfBatter, Pancake, NotUsed] =
 Flow.fromGraph(GraphDSL.create() { implicit builder =>
 import GraphDSL.Implicits._
 val dispatchBatter = builder.add(Balance[ScoopOfBatter](2))
 val mergePancakes = builder.add(Merge[Pancake](2))

 // Using two pipelines, having two frying pans each, in total using
 // four frying pans
 dispatchBatter.out(0) ~> fryingPan1.async ~> fryingPan2.async ~> mergePancakes.in(0)
 dispatchBatter.out(1) ~> fryingPan1.async ~> fryingPan2.async ~> mergePancakes.in(1)

 FlowShape(dispatchBatter.in, mergePancakes.out)
 }) section in docs

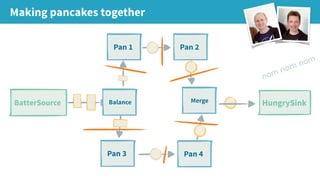

Making pancakes together HungrySink Pan 3 BatterSource Pan 1 Balance Merge Pan 2 Pan 4 nom nom nom

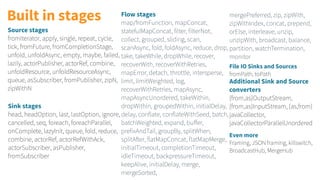

Built in stages Flow stages map/fromFunction, mapConcat, statefulMapConcat, filter, filterNot, collect, grouped, sliding, scan, scanAsync, fold, foldAsync, reduce, drop, take, takeWhile, dropWhile, recover, recoverWith, recoverWithRetries, mapError, detach, throttle, intersperse, limit, limitWeighted, log, recoverWithRetries, mapAsync, mapAsyncUnordered, takeWithin, dropWithin, groupedWithin, initialDelay, delay, conflate, conflateWithSeed, batch, batchWeighted, expand, buffer, prefixAndTail, groupBy, splitWhen, splitAfter, flatMapConcat, flatMapMerge, initialTimeout, completionTimeout, idleTimeout, backpressureTimeout, keepAlive, initialDelay, merge, mergeSorted, Source stages fromIterator, apply, single, repeat, cycle, tick, fromFuture, fromCompletionStage, unfold, unfoldAsync, empty, maybe, failed, lazily, actorPublisher, actorRef, combine, unfoldResource, unfoldResourceAsync, queue, asSubscriber, fromPublisher, zipN, zipWithN Sink stages head, headOption, last, lastOption, ignore, cancelled, seq, foreach, foreachParallel, onComplete, lazyInit, queue, fold, reduce, combine, actorRef, actorRefWithAck, actorSubscriber, asPublisher, fromSubscriber Additional Sink and Source converters {from,as}OutputStream, {from,as}InputStream, {as,from} javaCollector, javaCollectorParallelUnordered File IO Sinks and Sources fromPath, toPath mergePreferred, zip, zipWith, zipWithIndex, concat, prepend, orElse, interleave, unzip, unzipWith, broadcast, balance, partition, watchTermination, monitor Even more Framing, JSON framing, killswitch, BroadcastHub, MergeHub
But I want to connect other things!
A community for Akka Streams connectors http://github.com/akka/alpakka Alpakka

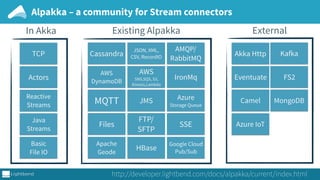

Alpakka – a community for Stream connectors Existing Alpakka MQTT AMQP/ RabbitMQ SSE Cassandra FTP/ SFTP JSON, XML, CSV, RecordIO IronMq Files AWS DynamoDB AWS SNS,SQS, S3, Kinesis,Lambda JMS Azure Storage Queue TCP In Akka Actors Reactive Streams Java Streams Basic File IO External Apache Geode Eventuate FS2 Akka Http HBase http://developer.lightbend.com/docs/alpakka/current/index.html Google Cloud Pub/Sub Camel Kafka MongoDB Azure IoT
But my usecase is a unique snowflake! ❄ ❄ ❄

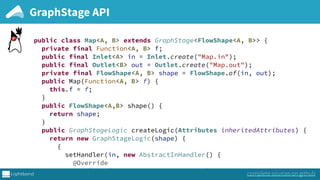

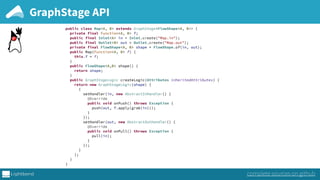

GraphStage API public class Map<A, B> extends GraphStage<FlowShape<A, B>> {
 private final Function<A, B> f;
 public final Inlet<A> in = Inlet.create("Map.in");
 public final Outlet<B> out = Outlet.create("Map.out"); private final FlowShape<A, B> shape = FlowShape.of(in, out); public Map(Function<A, B> f) {
 this.f = f;
 }
 public FlowShape<A,B> shape() {
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {
 push(out, f.apply(grab(in)));
 }
 });
 setHandler(out, new AbstractOutHandler() {
 @Override
 public void onPull() throws Exception {
 pull(in);
 }
 });
 }
 };
 }
 } complete sources on github
public class Map<A, B> extends GraphStage<FlowShape<A, B>> {
 private final Function<A, B> f;
 public final Inlet<A> in = Inlet.create("Map.in");
 public final Outlet<B> out = Outlet.create("Map.out"); private final FlowShape<A, B> shape = FlowShape.of(in, out); public Map(Function<A, B> f) {
 this.f = f;
 }
 public FlowShape<A,B> shape() {
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {

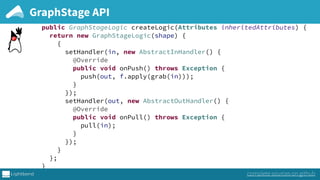

 GraphStage API complete sources on github
public FlowShape<A,B> shape() {
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {
 push(out, f.apply(grab(in)));
 }
 });
 setHandler(out, new AbstractOutHandler() {
 @Override
 public void onPull() throws Exception {
 pull(in);
 }
 });
 }
 };
 }
 } GraphStage API complete sources on github
GraphStage API class Map[A, B](f: A => B) extends GraphStage[FlowShape[A, B]] {

 val in = Inlet[A]("Map.in")
 val out = Outlet[B]("Map.out")
 override val shape = FlowShape.of(in, out)

 override def createLogic(attr: Attributes): GraphStageLogic =
 new GraphStageLogic(shape) {
 setHandler(in, new InHandler {
 override def onPush(): Unit = {
 push(out, f(grab(in)))
 }
 })
 setHandler(out, new OutHandler {
 override def onPull(): Unit = {
 pull(in)
 }
 })
 }
 } complete sources on github
When to use what abstraction modelling power complexity actors streams (completable) futures java.concurrency

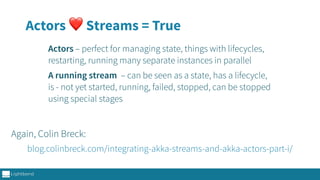

Actors ❤ Streams = True Actors – perfect for managing state, things with lifecycles, restarting, running many separate instances in parallel A running stream – can be seen as a state, has a lifecycle, is - not yet started, running, failed, stopped, can be stopped using special stages blog.colinbreck.com/integrating-akka-streams-and-akka-actors-part-i/ Again, Colin Breck:

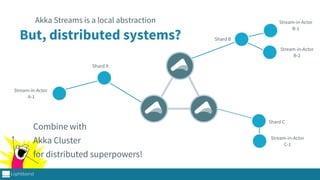

But, distributed systems? Stream-in-Actor C-1 Shard C Akka Streams is a local abstraction Combine with Akka Cluster for distributed superpowers! Stream-in-Actor A-1 Shard A Stream-in-Actor B-1 Shard B Stream-in-Actor B-2

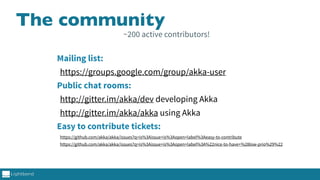

The community Mailing list: https://groups.google.com/group/akka-user Public chat rooms: http://gitter.im/akka/dev developing Akka http://gitter.im/akka/akka using Akka Easy to contribute tickets: https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3Aeasy-to-contribute https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3A%22nice-to-have+%28low-prio%29%22 ~200 active contributors!
Spørsmål? @apnylle johan.andren@lightbend.com http://akka.io Akka
Takk! @apnylle johan.andren@lightbend.com github.com/johanandren All sample code (Java & Scala) https://github.com/johanandren/akka-stream-samples/tree/javazone-2017 http://akka.io Akka

More Related Content

PDF
Reactive stream processing using Akka streams
byJohan Andrén

PDF
Reactive Applications in Java
byAlexander Mrynskyi

PDF
Next generation actors with Akka
byJohan Andrén

PDF
Buiilding reactive distributed systems with Akka
byJohan Andrén

PDF
Next generation message driven systems with Akka
byJohan Andrén

PDF
Next generation message driven systems with Akka
byJohan Andrén

PDF
Networks and types - the future of Akka
byJohan Andrén

PDF
Streaming all the things with akka streams
byJohan Andrén

Reactive stream processing using Akka streams
byJohan Andrén

Reactive Applications in Java
byAlexander Mrynskyi

Next generation actors with Akka
byJohan Andrén

Buiilding reactive distributed systems with Akka
byJohan Andrén

Next generation message driven systems with Akka
byJohan Andrén

Next generation message driven systems with Akka
byJohan Andrén

Networks and types - the future of Akka
byJohan Andrén

Streaming all the things with akka streams
byJohan Andrén


What's hot

PDF
Akka streams - Umeå java usergroup
byJohan Andrén

PDF
Asynchronous stream processing with Akka Streams
byJohan Andrén

PDF
Scala usergroup stockholm - reactive integrations with akka streams
byJohan Andrén

PDF
Async - react, don't wait - PingConf
byJohan Andrén

PDF
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
byKonrad Malawski

PPTX
Akka Actor presentation
byGene Chang

PDF
Reactive Streams / Akka Streams - GeeCON Prague 2014
byKonrad Malawski

PDF
A dive into akka streams: from the basics to a real-world scenario
byGioia Ballin

PDF
Reactive integrations with Akka Streams
byKonrad Malawski

PDF
VJUG24 - Reactive Integrations with Akka Streams
byJohan Andrén

PDF
Building reactive distributed systems with Akka
byJohan Andrén

PDF
Journey into Reactive Streams and Akka Streams
byKevin Webber

PPTX
Introduction to rx java for android
byEsa Firman

PDF
Reactive Streams: Handling Data-Flow the Reactive Way
byRoland Kuhn

PDF
End to End Akka Streams / Reactive Streams - from Business to Socket
byKonrad Malawski

PPTX
Developing distributed applications with Akka and Akka Cluster
byKonstantin Tsykulenko

PDF
Reactive programming with RxJava
byJobaer Chowdhury

PDF
Resilient Applications with Akka Persistence - Scaladays 2014
byBjörn Antonsson

PPTX
Samuele Resca - REACTIVE PROGRAMMING, DAMN. IT IS NOT ABOUT REACTJS - Codemot...
byCodemotion

PDF
Using akka streams to access s3 objects
byMikhail Girkin

Akka streams - Umeå java usergroup
byJohan Andrén

Asynchronous stream processing with Akka Streams
byJohan Andrén

Scala usergroup stockholm - reactive integrations with akka streams
byJohan Andrén

Async - react, don't wait - PingConf
byJohan Andrén

Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
byKonrad Malawski

Akka Actor presentation
byGene Chang

Reactive Streams / Akka Streams - GeeCON Prague 2014
byKonrad Malawski

A dive into akka streams: from the basics to a real-world scenario
byGioia Ballin

Reactive integrations with Akka Streams
byKonrad Malawski

VJUG24 - Reactive Integrations with Akka Streams
byJohan Andrén

Building reactive distributed systems with Akka
byJohan Andrén

Journey into Reactive Streams and Akka Streams
byKevin Webber

Introduction to rx java for android
byEsa Firman

Reactive Streams: Handling Data-Flow the Reactive Way
byRoland Kuhn

End to End Akka Streams / Reactive Streams - from Business to Socket
byKonrad Malawski

Developing distributed applications with Akka and Akka Cluster
byKonstantin Tsykulenko

Reactive programming with RxJava
byJobaer Chowdhury

Resilient Applications with Akka Persistence - Scaladays 2014
byBjörn Antonsson

Samuele Resca - REACTIVE PROGRAMMING, DAMN. IT IS NOT ABOUT REACTJS - Codemot...
byCodemotion

Using akka streams to access s3 objects
byMikhail Girkin


Similar to Reactive streams processing using Akka Streams

PDF
Exploring Reactive Integrations With Akka Streams, Alpakka And Apache Kafka
byLightbend

PDF
Building a Reactive System with Akka - Workshop @ O'Reilly SAConf NYC
byKonrad Malawski

PDF
Akka Streams and HTTP
byRoland Kuhn

PDF
Build Real-Time Streaming ETL Pipelines With Akka Streams, Alpakka And Apache...
byLightbend

PPTX
Reactive Streams - László van den Hoek
byRubiX BV

PDF
[Tokyo Scala User Group] Akka Streams & Reactive Streams (0.7)
byKonrad Malawski

PDF
Akka stream and Akka CQRS
byMilan Das

PDF
Understanding Akka Streams, Back Pressure, and Asynchronous Architectures
byLightbend

PDF
Akka A to Z: A Guide To The Industry’s Best Toolkit for Fast Data and Microse...
byLightbend

PDF
Not Only Streams for Akademia JLabs
byKonrad Malawski

PPTX
Intro to Akka Streams
byMichael Kendra

PDF
Reactive Streams 1.0 and Akka Streams
byDean Wampler

PDF
Reactive Stream Processing with Akka Streams
byKonrad Malawski

PDF
Functional Programming and Composing Actors
bylegendofklang

PDF
[PDF Download] Akka in Action 1st Edition Raymond Roestenburg fulll chapter
bylabliinagai

PDF
Akka in Action 1st Edition Raymond Roestenburg download pdf
byhimlalnunys

ODP
Introduction to Akka Streams [Part-I]
byKnoldus Inc.

PDF
Akka Streams - From Zero to Kafka
byMark Harrison

PDF
Writing Asynchronous Programs with Scala & Akka
byYardena Meymann

PPTX
Taking Akka Streams & Akka Http to Large Scale Production Applications
byAkara Sucharitakul

Exploring Reactive Integrations With Akka Streams, Alpakka And Apache Kafka
byLightbend

Building a Reactive System with Akka - Workshop @ O'Reilly SAConf NYC
byKonrad Malawski

Akka Streams and HTTP
byRoland Kuhn

Build Real-Time Streaming ETL Pipelines With Akka Streams, Alpakka And Apache...
byLightbend

Reactive Streams - László van den Hoek
byRubiX BV

[Tokyo Scala User Group] Akka Streams & Reactive Streams (0.7)
byKonrad Malawski

Akka stream and Akka CQRS
byMilan Das

Understanding Akka Streams, Back Pressure, and Asynchronous Architectures
byLightbend

Akka A to Z: A Guide To The Industry’s Best Toolkit for Fast Data and Microse...
byLightbend

Not Only Streams for Akademia JLabs
byKonrad Malawski

Intro to Akka Streams
byMichael Kendra

Reactive Streams 1.0 and Akka Streams
byDean Wampler

Reactive Stream Processing with Akka Streams
byKonrad Malawski

Functional Programming and Composing Actors
bylegendofklang

[PDF Download] Akka in Action 1st Edition Raymond Roestenburg fulll chapter
bylabliinagai

Akka in Action 1st Edition Raymond Roestenburg download pdf
byhimlalnunys

Introduction to Akka Streams [Part-I]
byKnoldus Inc.

Akka Streams - From Zero to Kafka
byMark Harrison

Writing Asynchronous Programs with Scala & Akka
byYardena Meymann

Taking Akka Streams & Akka Http to Large Scale Production Applications
byAkara Sucharitakul


More from Johan Andrén

PDF
Introduction to akka actors with java 8
byJohan Andrén

PDF
Scala frukostseminarium
byJohan Andrén

PDF
Introduction to Akka
byJohan Andrén

PDF
Async – react, don't wait
byJohan Andrén

PDF
Akka frukostseminarium
byJohan Andrén

PDF
Macros and reflection in scala 2.10
byJohan Andrén

PDF
Introduction to Scala
byJohan Andrén

PDF
Duchess scala-2012
byJohan Andrén

Introduction to akka actors with java 8
byJohan Andrén

Scala frukostseminarium
byJohan Andrén

Introduction to Akka
byJohan Andrén

Async – react, don't wait
byJohan Andrén

Akka frukostseminarium
byJohan Andrén

Macros and reflection in scala 2.10
byJohan Andrén

Introduction to Scala
byJohan Andrén

Duchess scala-2012
byJohan Andrén


Recently uploaded

PDF
Certified AI-Empowered SAFe Release Train Engineer.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

PDF
Transcript: What Thema can do: Leveraging metadata to support the discoverabi...
byBookNet Canada

PDF
A Simple Guide to Real Estate Tokenization on XRP Ledger.pdf
byemmajoh2025

PDF
Afsar Ahmed - Digital Marketing Portfolio
byAfsar Ahmed

PDF
"Painless Major Upgrade: A Strategy for Updating Large Codebases", Andrii Yat...
byFwdays

PDF
Parental Control App for Phones_ The Complete 2026 Guide for Safer, Smarter P...
byRyan Cooper

PDF
Computer-Based Training (CBT) The Backbone of Modern Technical & Defence Trai...
bycomputerbasedtrainin1

PDF
Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

PPTX
Spacecraft Guidance Quick Research Guide by Arthur Morgan
byArthur Morgan

PDF
Real-Time AI at Scale Masterclass - Challenges of AI at Scale
byScyllaDB

PDF
How PayPal Account Verification Works – Complete Guide for Online Businesses
byjhdhj3989

PDF
EU regulations for the North American book supply chain - Tech Forum 2026
byBookNet Canada

PPTX
INSY_7213_Theme Sessions 47 & 48 Advanced databases.pptx
bystormzy56

PDF
Why AI Girlfriends Are the Future of Digital Companionship
byAi Angels

PDF
Certified AI-Native Foundations Professional.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

PDF
TrustArc Webinar - From Zero to Privacy Hero: Launching Your Program Right an...
byTrustArc

PDF
When Drones Decide for Themselves_ Inside the Rise of Machine-Led Flight.pdf
byLyra Anderson

PPTX
The Lex Wire Precedent: A Technical Standard for Machine-Mediated Authority ...
byJeff Howell

PDF
Transcript: EU regulations for the North American book supply chain - Tech Fo...
byBookNet Canada

PPTX
Code Like Bro -A guide for better Coding
byMadan Panthi

Certified AI-Empowered SAFe Release Train Engineer.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

Transcript: What Thema can do: Leveraging metadata to support the discoverabi...
byBookNet Canada

A Simple Guide to Real Estate Tokenization on XRP Ledger.pdf
byemmajoh2025

Afsar Ahmed - Digital Marketing Portfolio
byAfsar Ahmed

"Painless Major Upgrade: A Strategy for Updating Large Codebases", Andrii Yat...
byFwdays

Parental Control App for Phones_ The Complete 2026 Guide for Safer, Smarter P...
byRyan Cooper

Computer-Based Training (CBT) The Backbone of Modern Technical & Defence Trai...
bycomputerbasedtrainin1

Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

Spacecraft Guidance Quick Research Guide by Arthur Morgan
byArthur Morgan

Real-Time AI at Scale Masterclass - Challenges of AI at Scale
byScyllaDB

How PayPal Account Verification Works – Complete Guide for Online Businesses
byjhdhj3989

EU regulations for the North American book supply chain - Tech Forum 2026
byBookNet Canada

INSY_7213_Theme Sessions 47 & 48 Advanced databases.pptx
bystormzy56

Why AI Girlfriends Are the Future of Digital Companionship
byAi Angels

Certified AI-Native Foundations Professional.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

TrustArc Webinar - From Zero to Privacy Hero: Launching Your Program Right an...
byTrustArc

When Drones Decide for Themselves_ Inside the Rise of Machine-Led Flight.pdf
byLyra Anderson

The Lex Wire Precedent: A Technical Standard for Machine-Mediated Authority ...
byJeff Howell

Transcript: EU regulations for the North American book supply chain - Tech Fo...
byBookNet Canada

Code Like Bro -A guide for better Coding
byMadan Panthi


Reactive streams processing using Akka Streams

  • 1.
    Akka streams Johan Andrén JavaZone,Oslo, 2017-09-13 Reactive stream processing using
  • 2.
    Johan Andrén Akka Team StockholmScala User Group @apnylle johan.andren@lightbend.com
  • 3.
    Make building powerfulconcurrent & distributed applications simple. Akka is a toolkit and runtime for building highly concurrent, distributed, and resilient message-driven applications on the JVM Akka
  • 4.
    Actors – simple& high performance concurrency Cluster / Remoting, Cluster tools – location transparency, resilience – and prepackaged tools for building distributed systems Streams – back-pressured stream processing Persistence – CQRS + Event Sourcing for Actors HTTP – fully async streaming HTTP Server Complete Java & Scala APIs for all features What’s in the toolkit?
  • 5.
  • 6.
    Reactive Streams timeline Oct2013 RxJava, Akka and Twitter- people meeting “Soon thereafter” 2013 Reactive Streams Expert group formed Apr 2015 Reactive Streams Spec 1.0 TCK 5+ impls 2017 Inclusion in JDK9 Akka Streams, RxJava Vert.x, MongoDB, … Jul 2015 Akka Streams 1.0
  • 7.
    Reactive Streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “
  • 8.
    Reactive Streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “
  • 9.
  • 10.
    Reactive Streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “
  • 11.
    Asynchronous stream processing SourceSink (possible) asynchronous boundaries Flow
  • 12.
    Reactive Streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org “
  • 13.
    No back pressure SourceSink 10 msg/s 1 msg/s Flow asynchronous boundary
  • 14.
    No back pressure SourceSink 10 msg/s 1 msg/s Flow asynchronous boundary OOM!!
  • 15.
    No back pressure- bounded buffer Source Sink 10 msg/s 1 msg/s Flow buffer size 6 🗑 asynchronous boundary
  • 16.
    Async non blockingback pressure Source Sink 1 msg/s 1 msg/s Flow buffer size 6 🗑 asynchronous boundary Hey! give me 2 more
  • 17.
    Reactive Streams RS LibraryA RS library B async boundary
  • 18.
    Reactive Streams “Make buildingpowerful concurrent & distributed applications simple.”
  • 19.
    Complete and awesome Javaand Scala APIs (Just like everything in Akka) Akka Streams
  • 20.
    Akka Streams in~20 seconds: final ActorSystem system = ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); complete sources on github
  • 21.
    Akka Streams in~20 seconds: final ActorSystem system = ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); complete sources on github
  • 22.
    final ActorSystem system= ActorSystem.create();
 final Materializer materializer = ActorMaterializer.create(system);

 final Source<Integer, NotUsed> source =
 Source.range(0, 20000000);

 final Flow<Integer, String, NotUsed> flow =
 Flow.fromFunction((Integer n) -> n.toString());

 final Sink<String, CompletionStage<Done>> sink =
 Sink.foreach(str -> System.out.println(str));

 final RunnableGraph<NotUsed> runnable = source.via(flow).to(sink);

 runnable.run(materializer); Akka Streams in ~20 seconds: complete sources on github Source (range) String Flow (fromFunction) Sink (foreach) String Integer Integer
  • 23.
    Akka Streams in~20 seconds: implicit val system = ActorSystem()
 implicit val mat = ActorMaterializer()

 val source = Source(0 to 20000000)

 val flow = Flow[Int].map(_.toString())

 val sink = Sink.foreach[String](println(_))

 val runnable = source.via(flow).to(sink)

 runnable.run() complete sources on github
  • 24.
    Akka Streams in~20 seconds: Source.range(0, 20000000)
 .map(Object::toString)
 .runForeach(str -> System.out.println(str), materializer); complete sources on github
  • 25.
    Akka Streams in~20 seconds: Source(0 to 20000000)
 .map(_.toString)
 .runForeach(println) complete sources on github
  • 26.
    Numbers as aservice final Source<ByteString, NotUsed> numbers = Source.unfold(0L, n -> {
 long next = n + 1;
 return Optional.of(Pair.create(next, next));
 }).map(n -> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(
 ContentTypes.TEXT_PLAIN_UTF8,
 numbers
 )))
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); complete sources on github
  • 27.
    final Source<ByteString, NotUsed>numbers = Source.unfold(0L, n -> {
 long next = n + 1;
 return Optional.of(Pair.create(next, next));
 }).map(n -> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(
 Numbers as a service complete sources on github
  • 28.
    return Optional.of(Pair.create(next, next));
 }).map(n-> ByteString.fromString(n.toString() + "n"));


 final Route route =
 path("numbers", () ->
 get(() ->
 complete(HttpResponse.create()
 .withStatus(StatusCodes.OK)
 .withEntity(HttpEntities.create(
 ContentTypes.TEXT_PLAIN_UTF8,
 numbers
 )))
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); Numbers as a service complete sources on github
  • 29.
    Numbers as aservice val numbers =
 Source.unfold(0L) { (n) =>
 val next = n + 1
 Some((next, next))
 }.map(n => ByteString(n + "n"))

 val route =
 path("numbers") {
 get {
 complete( HttpResponse(entity = HttpEntity(`text/plain(UTF-8)`, numbers)) )
 }
 }
 val futureBinding = Http().bindAndHandle(route, "127.0.0.1", 8080) complete sources on github
  • 30.
    recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚 Backpressure over TCP numbers TCP HTTP Server Client
  • 31.
    recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚑 Backpressure over TCP numbers TCP HTTP Backpressure Server Client
  • 32.
    recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚑 Backpressure over TCP numbers TCP HTTP Backpressure Backpressure Server Client
  • 33.
    A more usefulexample complete sources on github final Flow<Message, Message, NotUsed> measurementsFlow =
 Flow.of(Message.class)
 .flatMapConcat((Message message) ->
 message.asTextMessage()
 .getStreamedText()
 .fold("", (acc, elem) -> acc + elem)
 )
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5, database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->
 get(() ->
 handleWebSocketMessages(measurementsFlow)
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); Credit to: Colin Breck
  • 34.
    final Flow<Message, Message,NotUsed> measurementsFlow =
 Flow.of(Message.class)
 .flatMapConcat((Message message) ->
 message.asTextMessage()
 .getStreamedText()
 .fold("", (acc, elem) -> acc + elem)
 )
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5, database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->
 A more useful example complete sources on github Credit to: Colin Breck
  • 35.
    )
 .groupedWithin(1000, FiniteDuration.create(1, SECONDS))
 .mapAsync(5,database::asyncBulkInsert)
 .map(written ->
 TextMessage.create("wrote up to: " + written.get(written.size() - 1))
 );

 final Route route = path("measurements", () ->
 get(() ->
 handleWebSocketMessages(measurementsFlow)
 )
 );

 final CompletionStage<ServerBinding> bindingCompletionStage =
 http.bindAndHandle(route.flow(system, materializer), host, materializer); A more useful example complete sources on github Credit to: Colin Breck
  • 36.
    A more usefulexample complete sources on github val measurementsFlow =
 Flow[Message].flatMapConcat(message =>
 message.asTextMessage.getStreamedText.fold("")(_ + _)
 )
 .groupedWithin(1000, 1.second)
 .mapAsync(5)(Database.asyncBulkInsert)
 .map(written => TextMessage("wrote up to: " + written.last))

 val route =
 path("measurements") {
 get {
 handleWebSocketMessages(measurementsFlow)
 }
 }

 val futureBinding = Http().bindAndHandle(route, "127.0.0.1", 8080)
  • 37.
    The tale ofthe two pancake chefs HungrySink Frying Pan BatterSource Scoops of batter Pancakes nom nom nom asynchronous boundaries Roland Patrik
  • 38.
    Rolands pipelined pancakes HungrySinkPan2BatterSource Pan 1 nom nom nom
  • 39.
    Rolands pipelined pancakes Flow<ScoopOfBatter,HalfCookedPancake, NotUsed> fryingPan1 =
 Flow.of(ScoopOfBatter.class).map(batter -> new HalfCookedPancake());

 Flow<HalfCookedPancake, Pancake, NotUsed> fryingPan2 =
 Flow.of(HalfCookedPancake.class).map(halfCooked -> new Pancake()); Flow<ScoopOfBatter, Pancake, NotUsed> pancakeChef =
 fryingPan1.async().via(fryingPan2.async()); section in docs
  • 40.
    Rolands pipelined pancakes //Takes a scoop of batter and creates a pancake with one side cooked val fryingPan1: Flow[ScoopOfBatter, HalfCookedPancake, NotUsed] =
 Flow[ScoopOfBatter].map { batter => HalfCookedPancake() }

 // Finishes a half-cooked pancake
 val fryingPan2: Flow[HalfCookedPancake, Pancake, NotUsed] =
 Flow[HalfCookedPancake].map { halfCooked => Pancake() }
 // With the two frying pans we can fully cook pancakes val pancakeChef: Flow[ScoopOfBatter, Pancake, NotUsed] =
 Flow[ScoopOfBatter].via(fryingPan1.async).via(fryingPan2.async) section in docs
  • 41.
    Patriks parallel pancakes HungrySink Pan2 BatterSource Pan 1 Balance Merge nom nom nom
  • 42.
    Patriks parallel pancakes Flow<ScoopOfBatter,Pancake, NotUsed> fryingPan =
 Flow.of(ScoopOfBatter.class).map(batter -> new Pancake());

 Flow<ScoopOfBatter, Pancake, NotUsed> pancakeChef =
 Flow.fromGraph(GraphDSL.create(builder -> {
 final UniformFanInShape<Pancake, Pancake> mergePancakes =
 builder.add(Merge.create(2));
 final UniformFanOutShape<ScoopOfBatter, ScoopOfBatter> dispatchBatter =
 builder.add(Balance.create(2));

 builder.from(dispatchBatter.out(0)) .via(builder.add(fryingPan.async())) .toInlet(mergePancakes.in(0));
 builder.from(dispatchBatter.out(1)) .via(builder.add(fryingPan.async())) .toInlet(mergePancakes.in(1));

 return FlowShape.of(dispatchBatter.in(), mergePancakes.out());
 })); section in docs
  • 43.
    Patriks parallel pancakes valpancakeChef: Flow[ScoopOfBatter, Pancake, NotUsed] =
 Flow.fromGraph(GraphDSL.create() { implicit builder =>
 import GraphDSL.Implicits._
 val dispatchBatter = builder.add(Balance[ScoopOfBatter](2))
 val mergePancakes = builder.add(Merge[Pancake](2))

 // Using two pipelines, having two frying pans each, in total using
 // four frying pans
 dispatchBatter.out(0) ~> fryingPan1.async ~> fryingPan2.async ~> mergePancakes.in(0)
 dispatchBatter.out(1) ~> fryingPan1.async ~> fryingPan2.async ~> mergePancakes.in(1)

 FlowShape(dispatchBatter.in, mergePancakes.out)
 }) section in docs
  • 44.
    Making pancakes together HungrySink Pan3 BatterSource Pan 1 Balance Merge Pan 2 Pan 4 nom nom nom
  • 45.
    Built in stagesFlow stages map/fromFunction, mapConcat, statefulMapConcat, filter, filterNot, collect, grouped, sliding, scan, scanAsync, fold, foldAsync, reduce, drop, take, takeWhile, dropWhile, recover, recoverWith, recoverWithRetries, mapError, detach, throttle, intersperse, limit, limitWeighted, log, recoverWithRetries, mapAsync, mapAsyncUnordered, takeWithin, dropWithin, groupedWithin, initialDelay, delay, conflate, conflateWithSeed, batch, batchWeighted, expand, buffer, prefixAndTail, groupBy, splitWhen, splitAfter, flatMapConcat, flatMapMerge, initialTimeout, completionTimeout, idleTimeout, backpressureTimeout, keepAlive, initialDelay, merge, mergeSorted, Source stages fromIterator, apply, single, repeat, cycle, tick, fromFuture, fromCompletionStage, unfold, unfoldAsync, empty, maybe, failed, lazily, actorPublisher, actorRef, combine, unfoldResource, unfoldResourceAsync, queue, asSubscriber, fromPublisher, zipN, zipWithN Sink stages head, headOption, last, lastOption, ignore, cancelled, seq, foreach, foreachParallel, onComplete, lazyInit, queue, fold, reduce, combine, actorRef, actorRefWithAck, actorSubscriber, asPublisher, fromSubscriber Additional Sink and Source converters {from,as}OutputStream, {from,as}InputStream, {as,from} javaCollector, javaCollectorParallelUnordered File IO Sinks and Sources fromPath, toPath mergePreferred, zip, zipWith, zipWithIndex, concat, prepend, orElse, interleave, unzip, unzipWith, broadcast, balance, partition, watchTermination, monitor Even more Framing, JSON framing, killswitch, BroadcastHub, MergeHub
  • 46.
    But I wantto connect other things!
  • 47.
    A community forAkka Streams connectors http://github.com/akka/alpakka Alpakka
  • 48.
    Alpakka – acommunity for Stream connectors Existing Alpakka MQTT AMQP/ RabbitMQ SSE Cassandra FTP/ SFTP JSON, XML, CSV, RecordIO IronMq Files AWS DynamoDB AWS SNS,SQS, S3, Kinesis,Lambda JMS Azure Storage Queue TCP In Akka Actors Reactive Streams Java Streams Basic File IO External Apache Geode Eventuate FS2 Akka Http HBase http://developer.lightbend.com/docs/alpakka/current/index.html Google Cloud Pub/Sub Camel Kafka MongoDB Azure IoT
  • 49.
    But my usecaseis a unique snowflake! ❄ ❄ ❄
  • 50.
    GraphStage API public classMap<A, B> extends GraphStage<FlowShape<A, B>> {
 private final Function<A, B> f;
 public final Inlet<A> in = Inlet.create("Map.in");
 public final Outlet<B> out = Outlet.create("Map.out"); private final FlowShape<A, B> shape = FlowShape.of(in, out); public Map(Function<A, B> f) {
 this.f = f;
 }
 public FlowShape<A,B> shape() {
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {
 push(out, f.apply(grab(in)));
 }
 });
 setHandler(out, new AbstractOutHandler() {
 @Override
 public void onPull() throws Exception {
 pull(in);
 }
 });
 }
 };
 }
 } complete sources on github
  • 51.
    public class Map<A,B> extends GraphStage<FlowShape<A, B>> {
 private final Function<A, B> f;
 public final Inlet<A> in = Inlet.create("Map.in");
 public final Outlet<B> out = Outlet.create("Map.out"); private final FlowShape<A, B> shape = FlowShape.of(in, out); public Map(Function<A, B> f) {
 this.f = f;
 }
 public FlowShape<A,B> shape() {
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {
 GraphStage API complete sources on github
  • 52.
    public FlowShape<A,B> shape(){
 return shape;
 }
 public GraphStageLogic createLogic(Attributes inheritedAttributes) {
 return new GraphStageLogic(shape) {
 {
 setHandler(in, new AbstractInHandler() {
 @Override
 public void onPush() throws Exception {
 push(out, f.apply(grab(in)));
 }
 });
 setHandler(out, new AbstractOutHandler() {
 @Override
 public void onPull() throws Exception {
 pull(in);
 }
 });
 }
 };
 }
 } GraphStage API complete sources on github
  • 53.
    GraphStage API class Map[A,B](f: A => B) extends GraphStage[FlowShape[A, B]] {

 val in = Inlet[A]("Map.in")
 val out = Outlet[B]("Map.out")
 override val shape = FlowShape.of(in, out)

 override def createLogic(attr: Attributes): GraphStageLogic =
 new GraphStageLogic(shape) {
 setHandler(in, new InHandler {
 override def onPush(): Unit = {
 push(out, f(grab(in)))
 }
 })
 setHandler(out, new OutHandler {
 override def onPull(): Unit = {
 pull(in)
 }
 })
 }
 } complete sources on github
  • 54.
    When to usewhat abstraction modelling power complexity actors streams (completable) futures java.concurrency
  • 55.
    Actors ❤ Streams= True Actors – perfect for managing state, things with lifecycles, restarting, running many separate instances in parallel A running stream – can be seen as a state, has a lifecycle, is - not yet started, running, failed, stopped, can be stopped using special stages blog.colinbreck.com/integrating-akka-streams-and-akka-actors-part-i/ Again, Colin Breck:
  • 56.
    But, distributed systems? Stream-in-Actor C-1 ShardC Akka Streams is a local abstraction Combine with Akka Cluster for distributed superpowers! Stream-in-Actor A-1 Shard A Stream-in-Actor B-1 Shard B Stream-in-Actor B-2
  • 57.
    The community Mailing list: https://groups.google.com/group/akka-user Publicchat rooms: http://gitter.im/akka/dev developing Akka http://gitter.im/akka/akka using Akka Easy to contribute tickets: https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3Aeasy-to-contribute https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3A%22nice-to-have+%28low-prio%29%22 ~200 active contributors!
  • 58.
  • 59.
    Takk! @apnylle johan.andren@lightbend.com github.com/johanandren All sample code(Java & Scala) https://github.com/johanandren/akka-stream-samples/tree/javazone-2017 http://akka.io Akka
