Functional Programming and Composing Actors

&√ 
Deputy CTO 
Functional Programming
Composing Actors

&
without sacrificing
Communication
Resilience
√ 
Deputy CTO

4
Connectedness
«Software is becoming
increasingly interconnected»

5
Klang’s Conjecture
«If you cannot solve a problem without programming;
you cannot solve a problem with programming.»

My office door
7
Stunning views

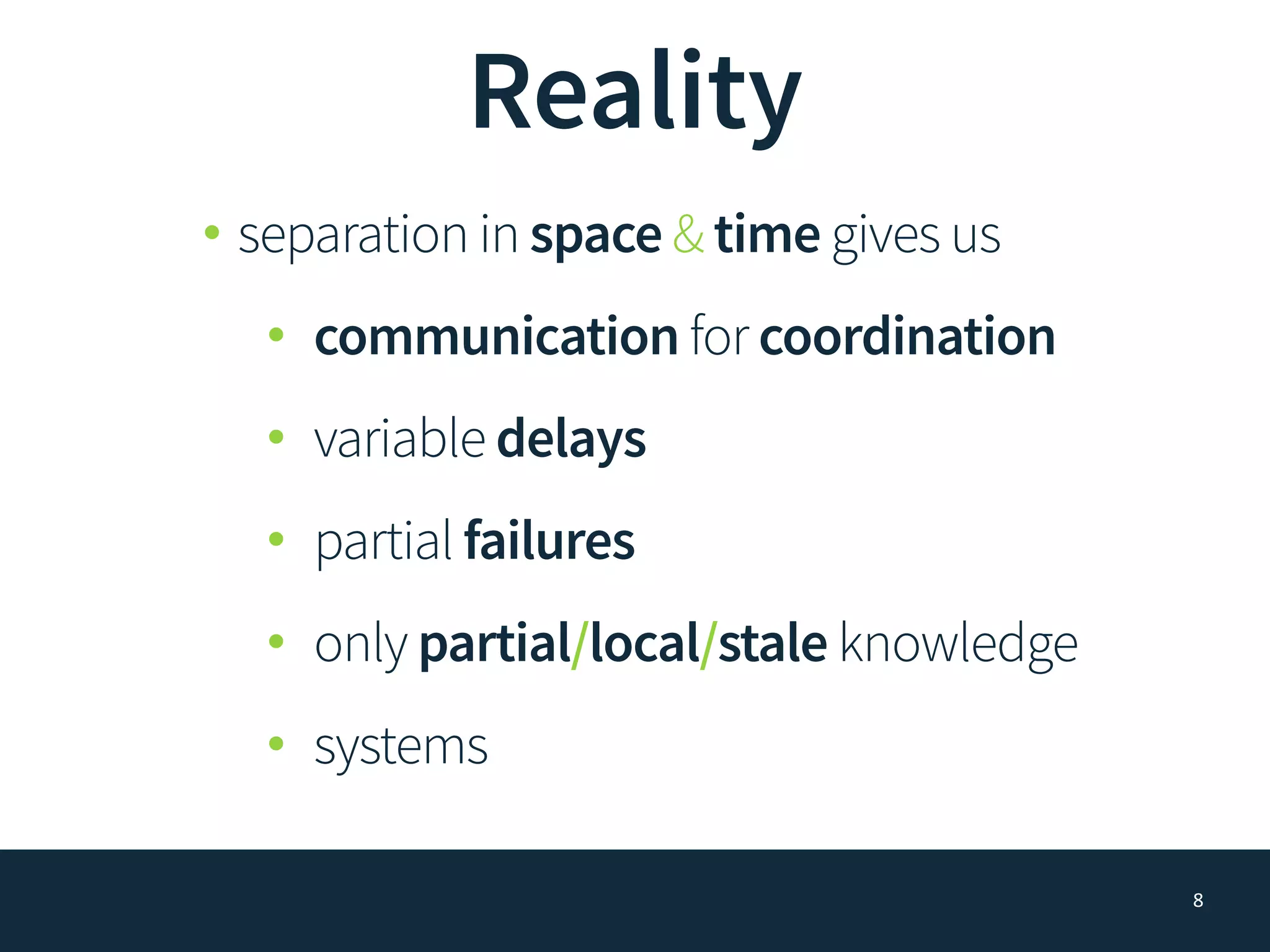

Reality
• separation in space & time gives us
• communication for coordination
• variable delays
• partial failures
• only partial/local/stale knowledge
• systems
8

9
system
«a set of things working together as parts of
a mechanism or an interconnecting network; 
a complex whole»
noun

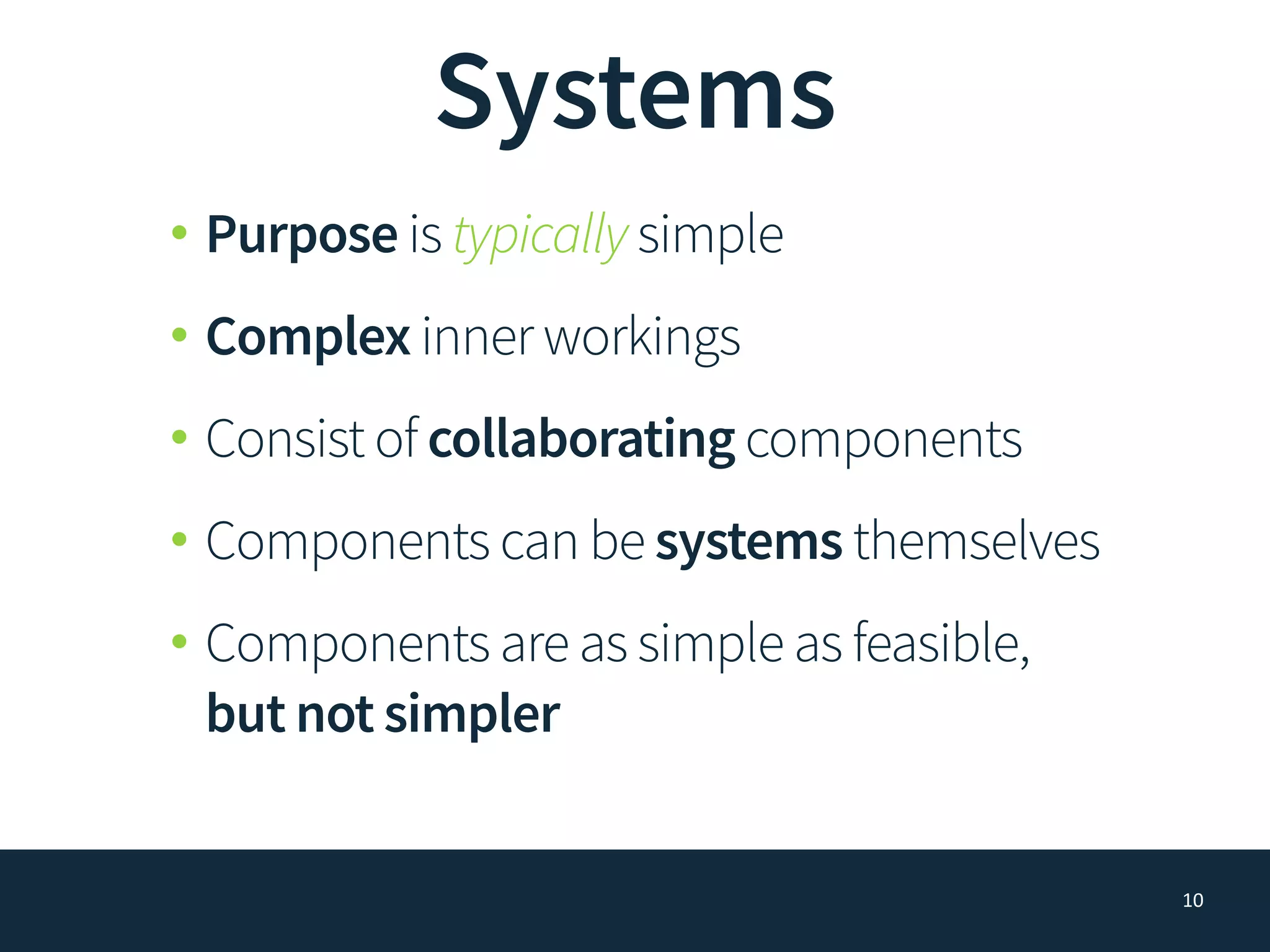

Systems
• Purpose is typically simple
• Complex inner workings
• Consist of collaborating components
• Components can be systems themselves
• Components are as simple as feasible,
but not simpler
10

11
Resilience
«Any suﬀiciently complex system is always
running in degraded mode»
— Richard I. Cook, MD “How complex systems fail” (paraphrased)

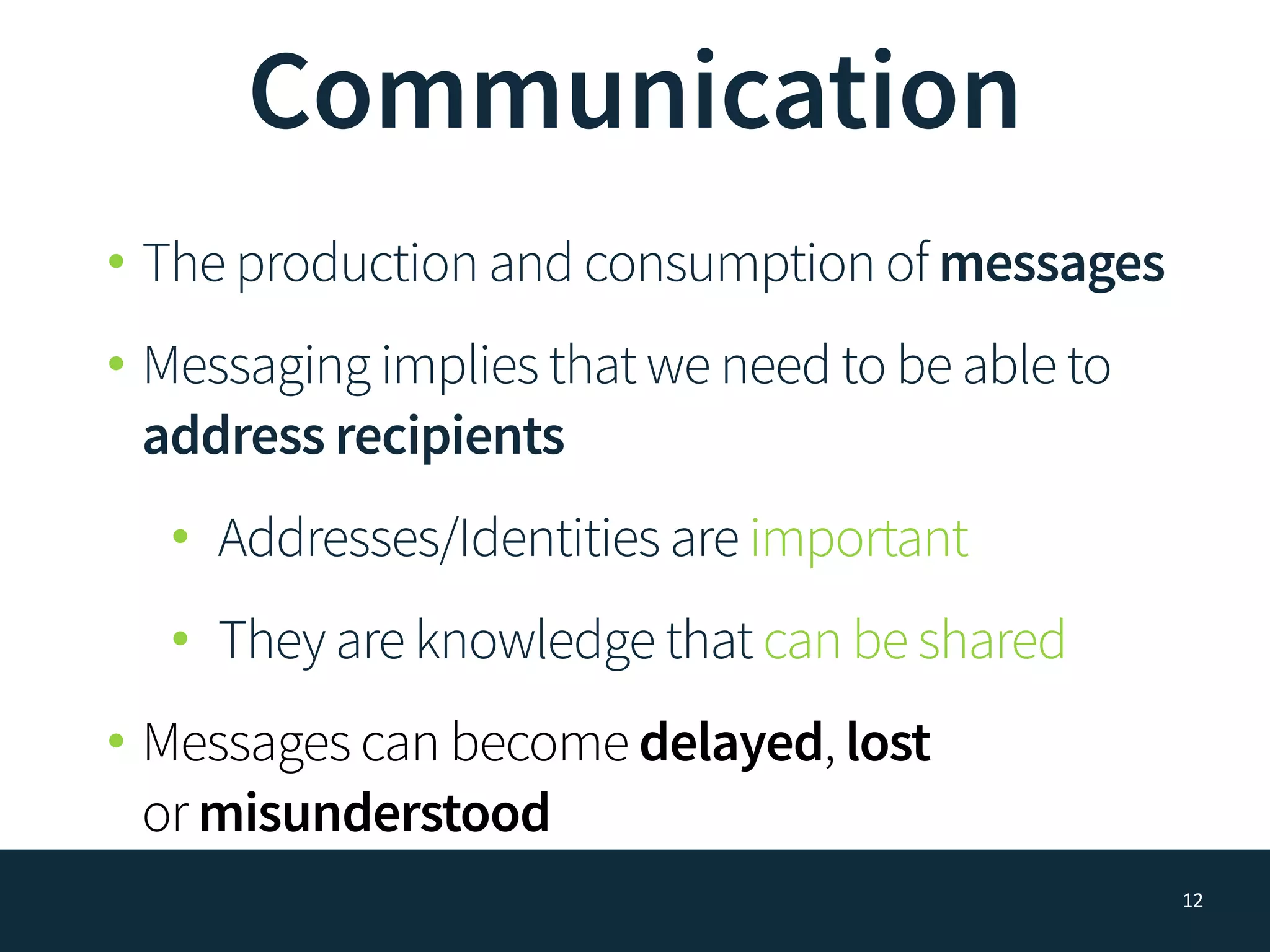

Communication
• The production and consumption of messages
• Messaging implies that we need to be able to
address recipients
• Addresses/Identities are important
• They are knowledge that can be shared
• Messages can become delayed, lost  
or misunderstood
12

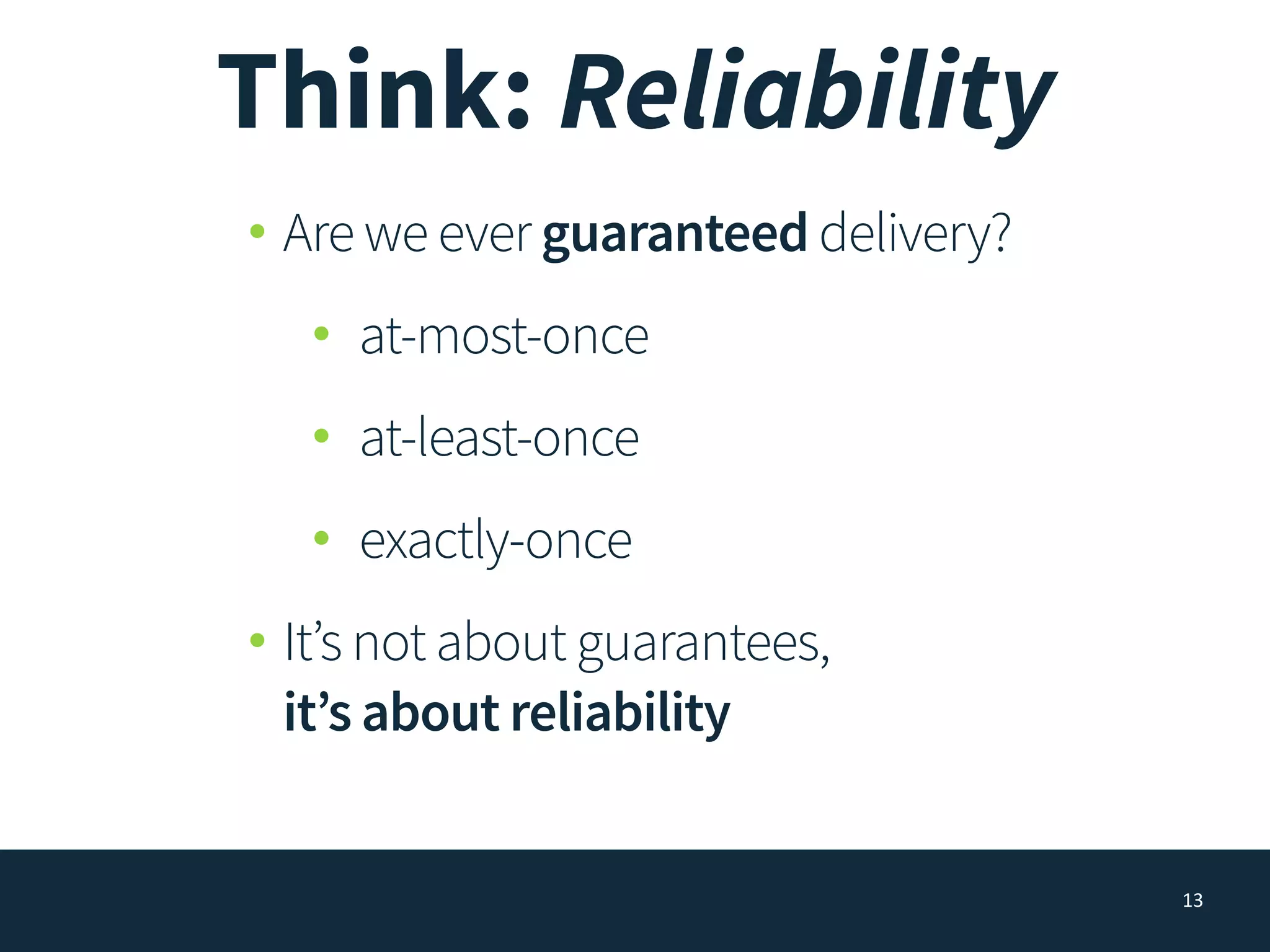

Think: Reliability
• Are we ever guaranteed delivery?
• at-most-once
• at-least-once
• exactly-once
• It’s not about guarantees, 
it’s about reliability
13

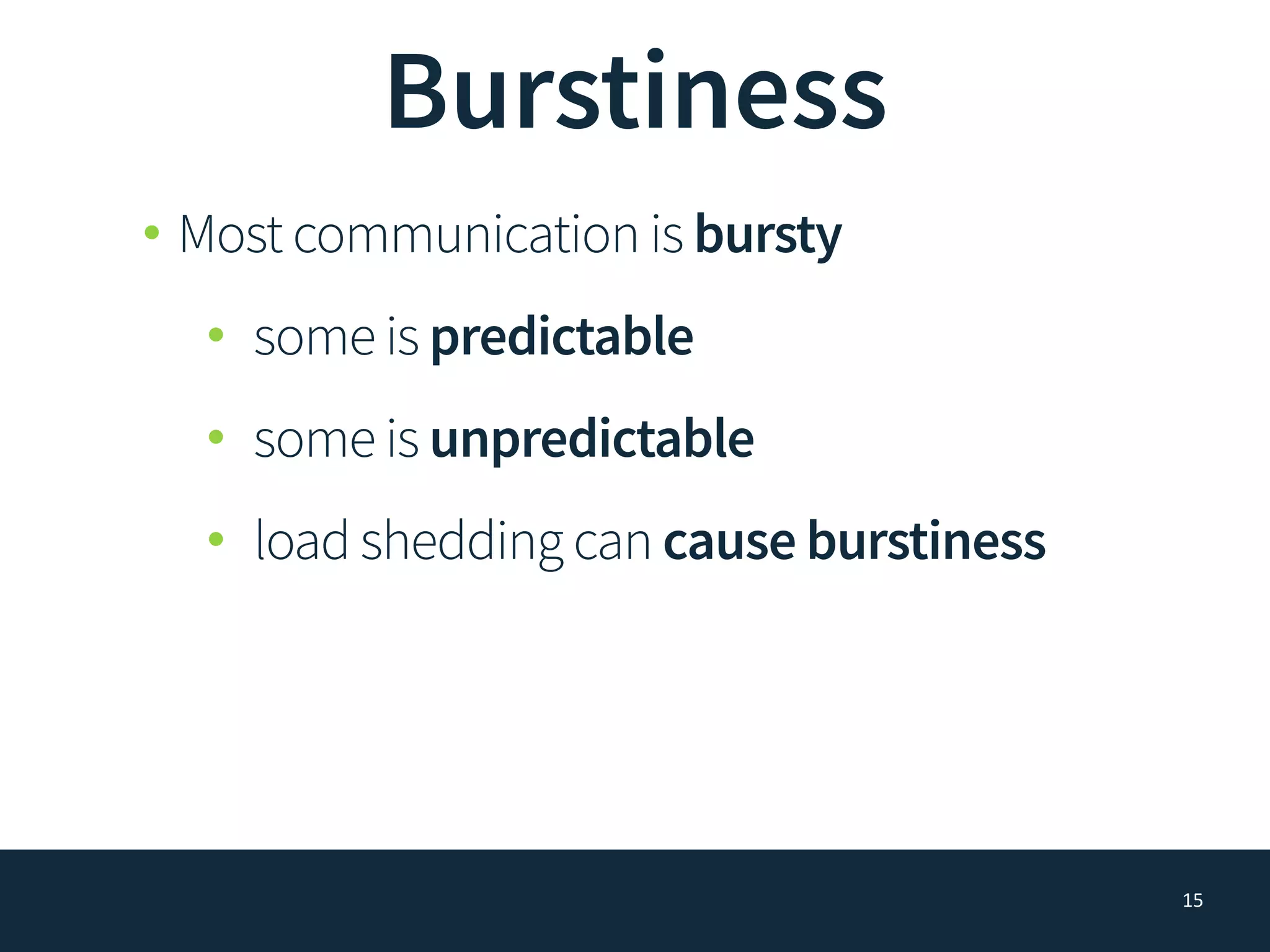

Burstiness
• Most communication is bursty
• some is predictable
• some is unpredictable
• load shedding can cause burstiness
15

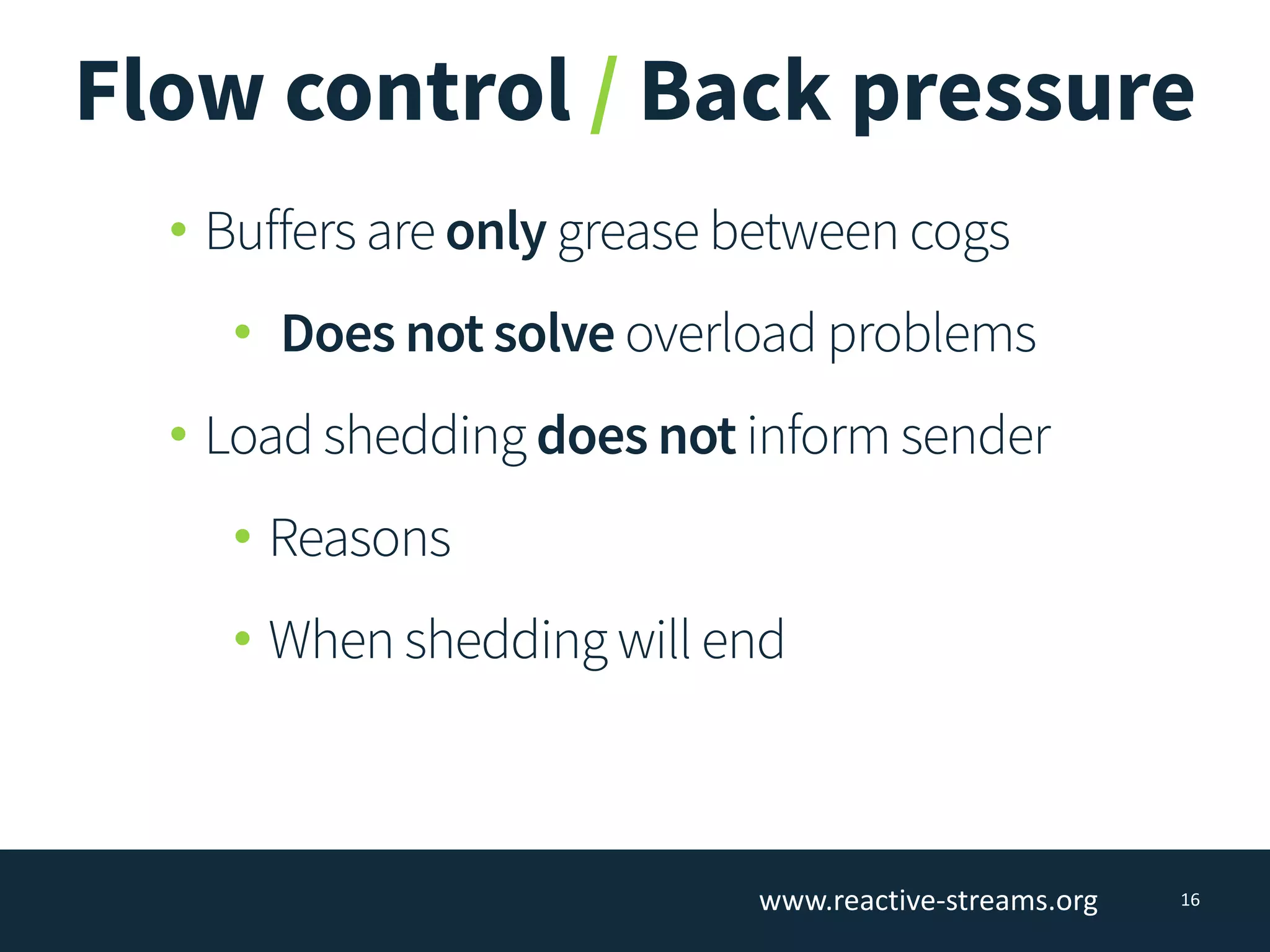

Flow control / Back pressure
16
• Buffers are only grease between cogs
• Does not solve overload problems
• Load shedding does not inform sender
• Reasons
• When shedding will end
www.reactive-‐streams.org

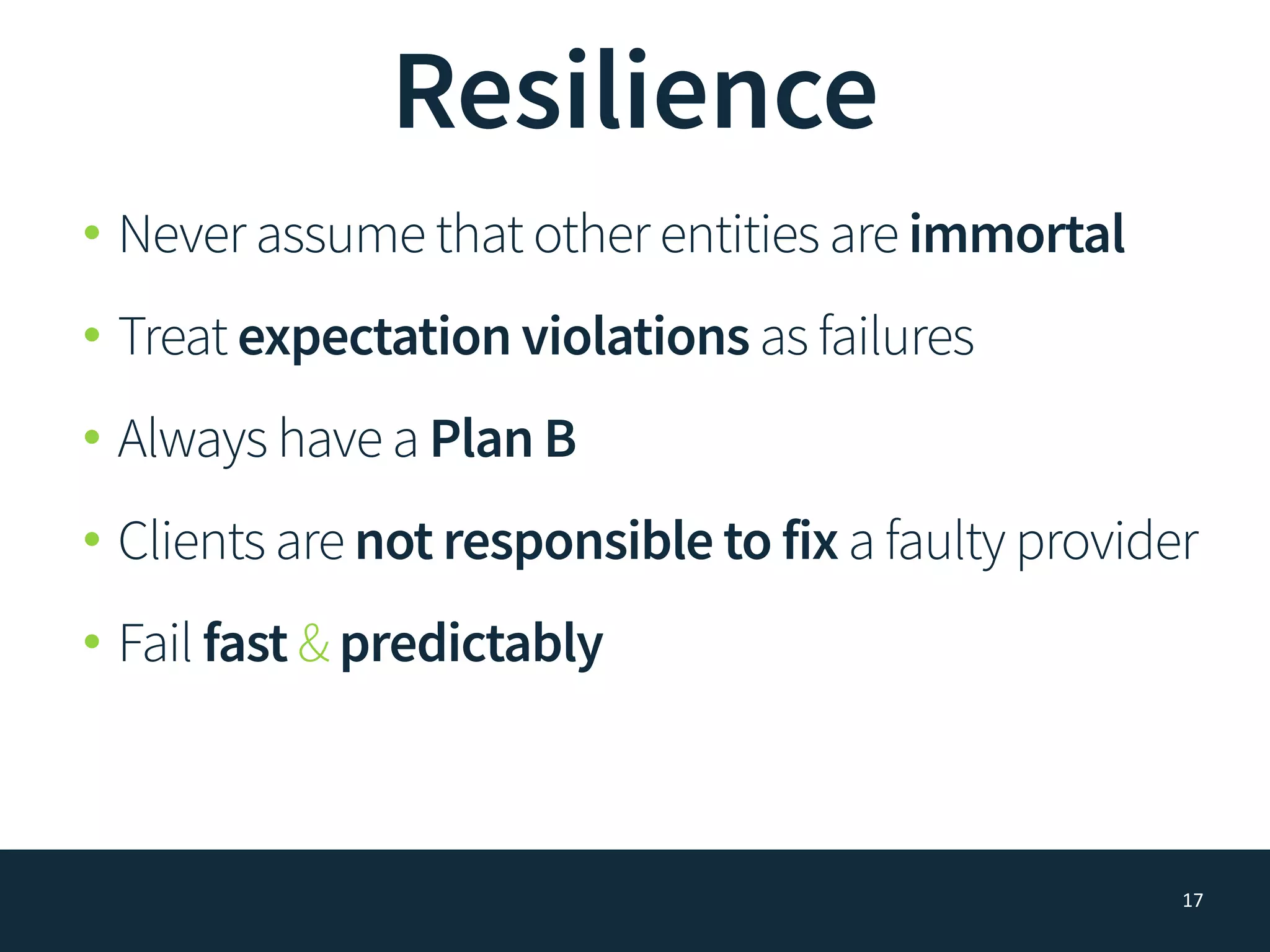

Resilience
• Never assume that other entities are immortal
• Treat expectation violations as failures
• Always have a Plan B
• Clients are not responsible to fix a faulty provider
• Fail fast & predictably
17

18
Supervision
• Responsibility to deal with the failure/corruption of other
• Does not place the burden of fixing it on the collaborators
«Quis custodiet ipsos custodes?»
— Decimus Iunius Iuvenalis

19

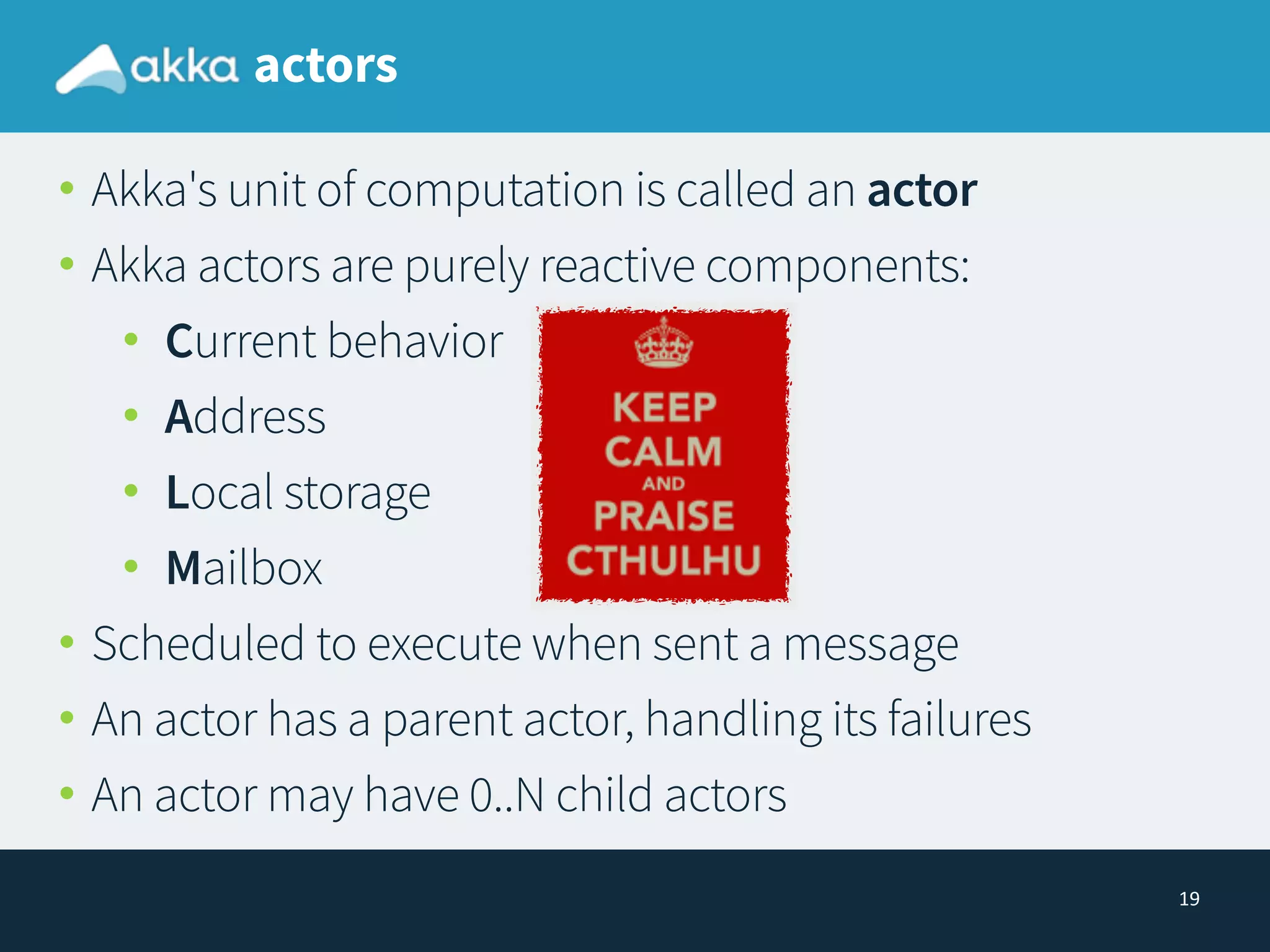

actors
• Akka's unit of computation is called an actor
• Akka actors are purely reactive components:
• Current behavior
• Address
• Local storage
• Mailbox
• Scheduled to execute when sent a message
• An actor has a parent actor, handling its failures
• An actor may have 0..N child actors

20

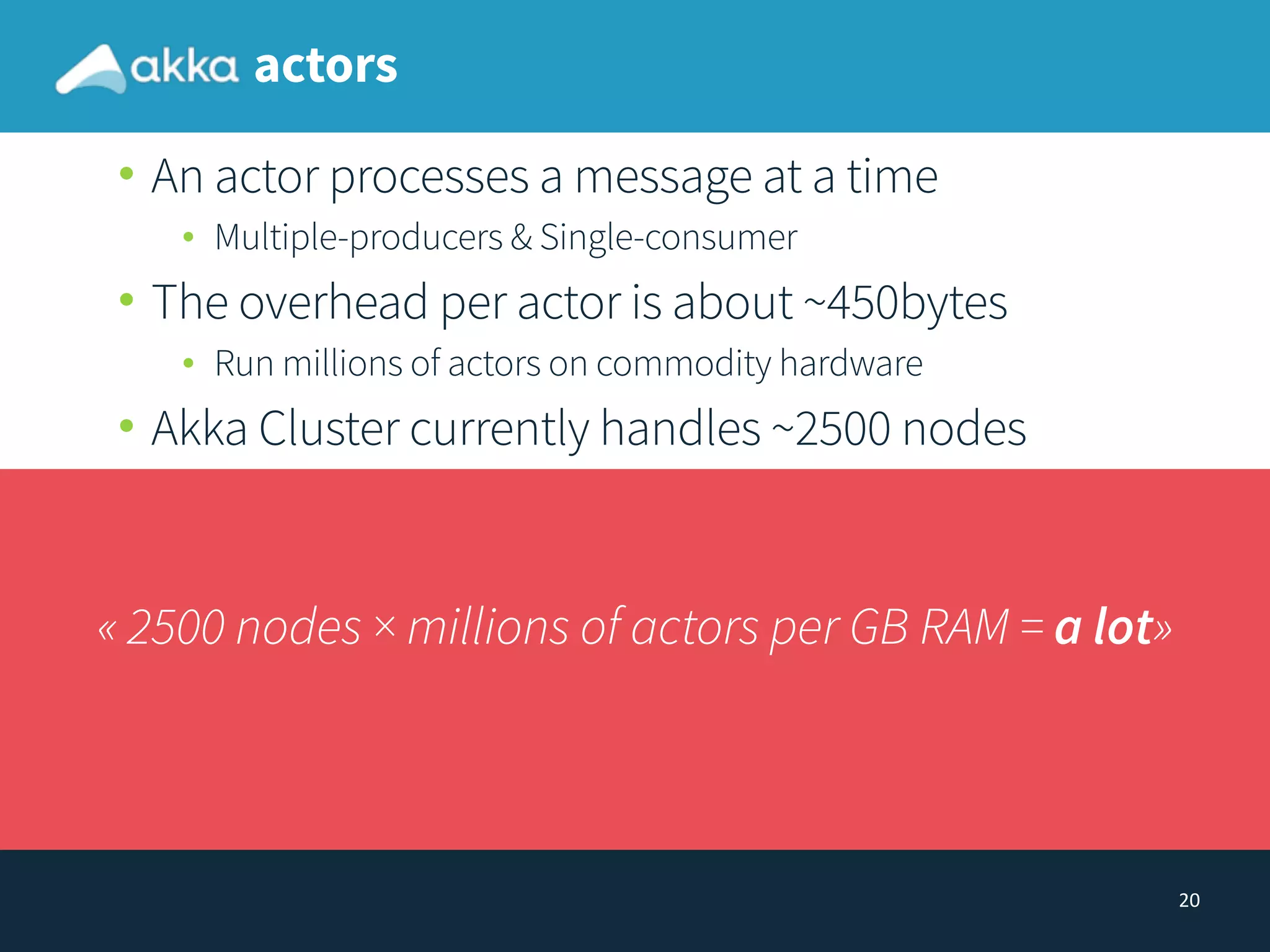

« 2500 nodes × millions of actors per GB RAM = a lot»
actors
• An actor processes a message at a time
• Multiple-producers & Single-consumer
• The overhead per actor is about ~450bytes
• Run millions of actors on commodity hardware
• Akka Cluster currently handles ~2500 nodes
actors

21

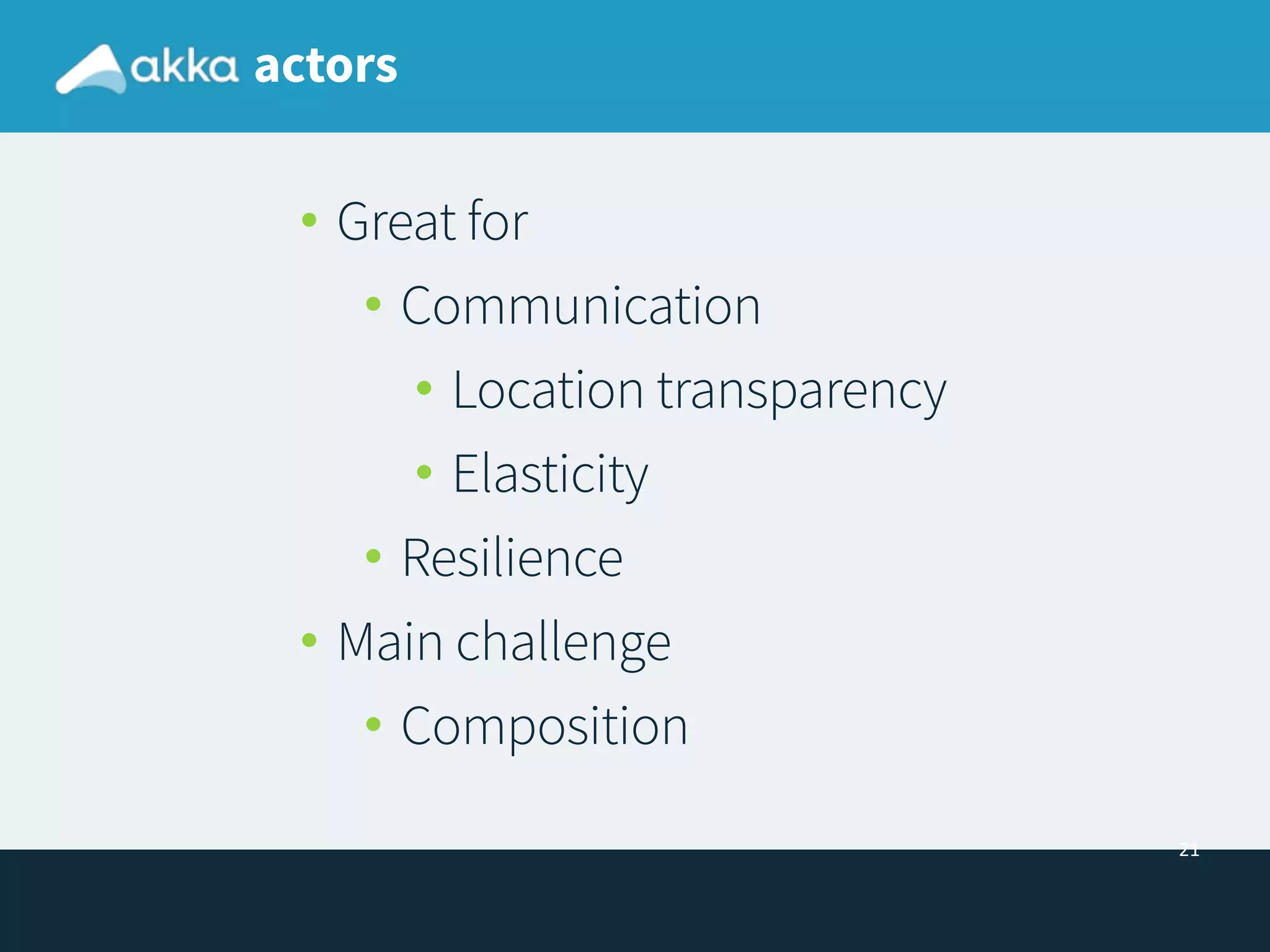

actors
• Great for
• Communication
• Location transparency
• Elasticity
• Resilience
• Main challenge
• Composition

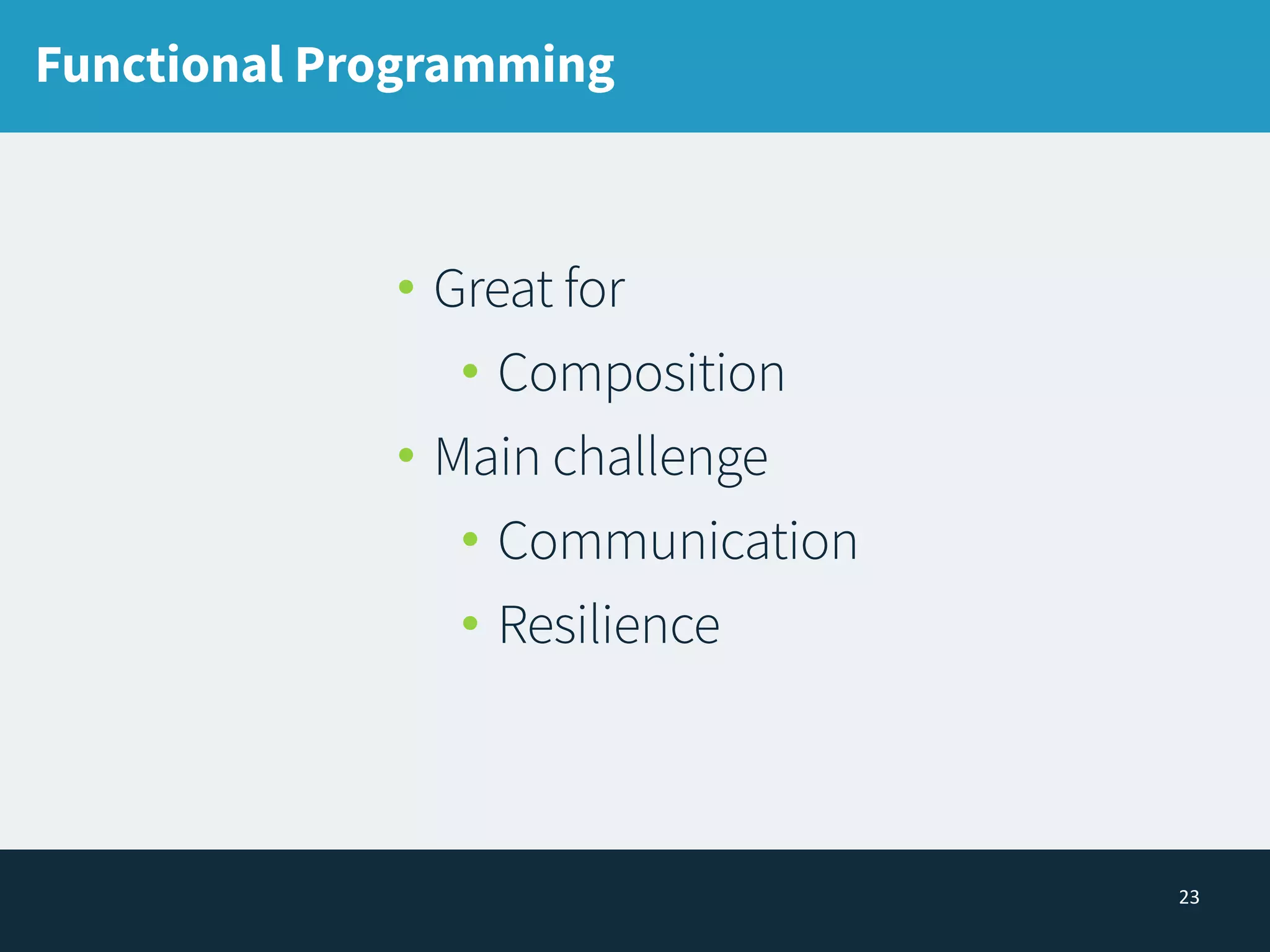

Functional Composition
a → b → c

23
• Great for
• Composition
• Main challenge
• Communication
• Resilience

24

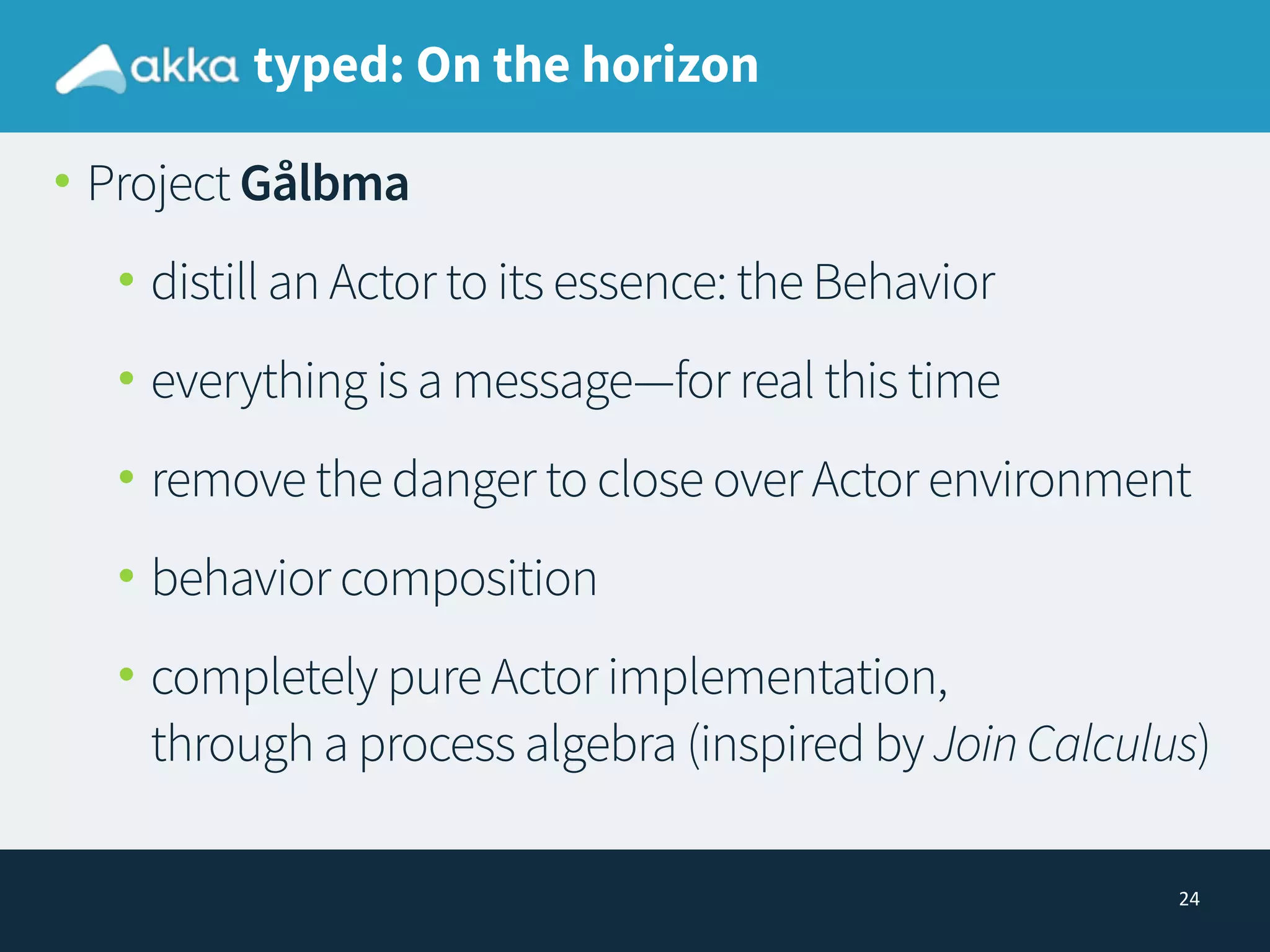

typed: On the horizon
• Project Gålbma
• distill an Actor to its essence: the Behavior
• everything is a message—for real this time
• remove the danger to close over Actor environment
• behavior composition
• completely pure Actor implementation, 
through a process algebra (inspired by JoinCalculus)

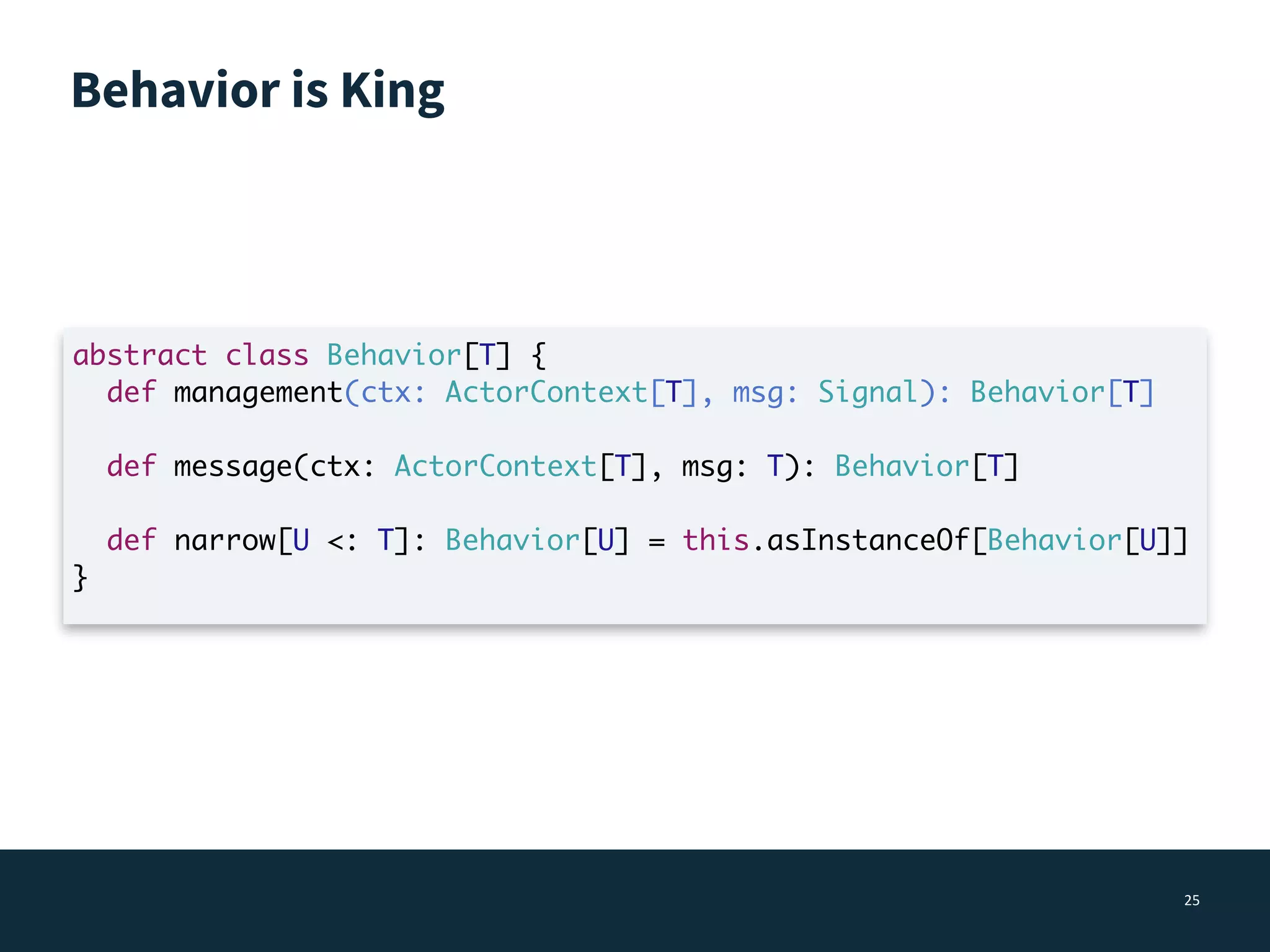

Behavior is King
25
abstract class Behavior[T] {
def management(ctx: ActorContext[T], msg: Signal): Behavior[T]
def message(ctx: ActorContext[T], msg: T): Behavior[T]
def narrow[U <: T]: Behavior[U] = this.asInstanceOf[Behavior[U]]
}

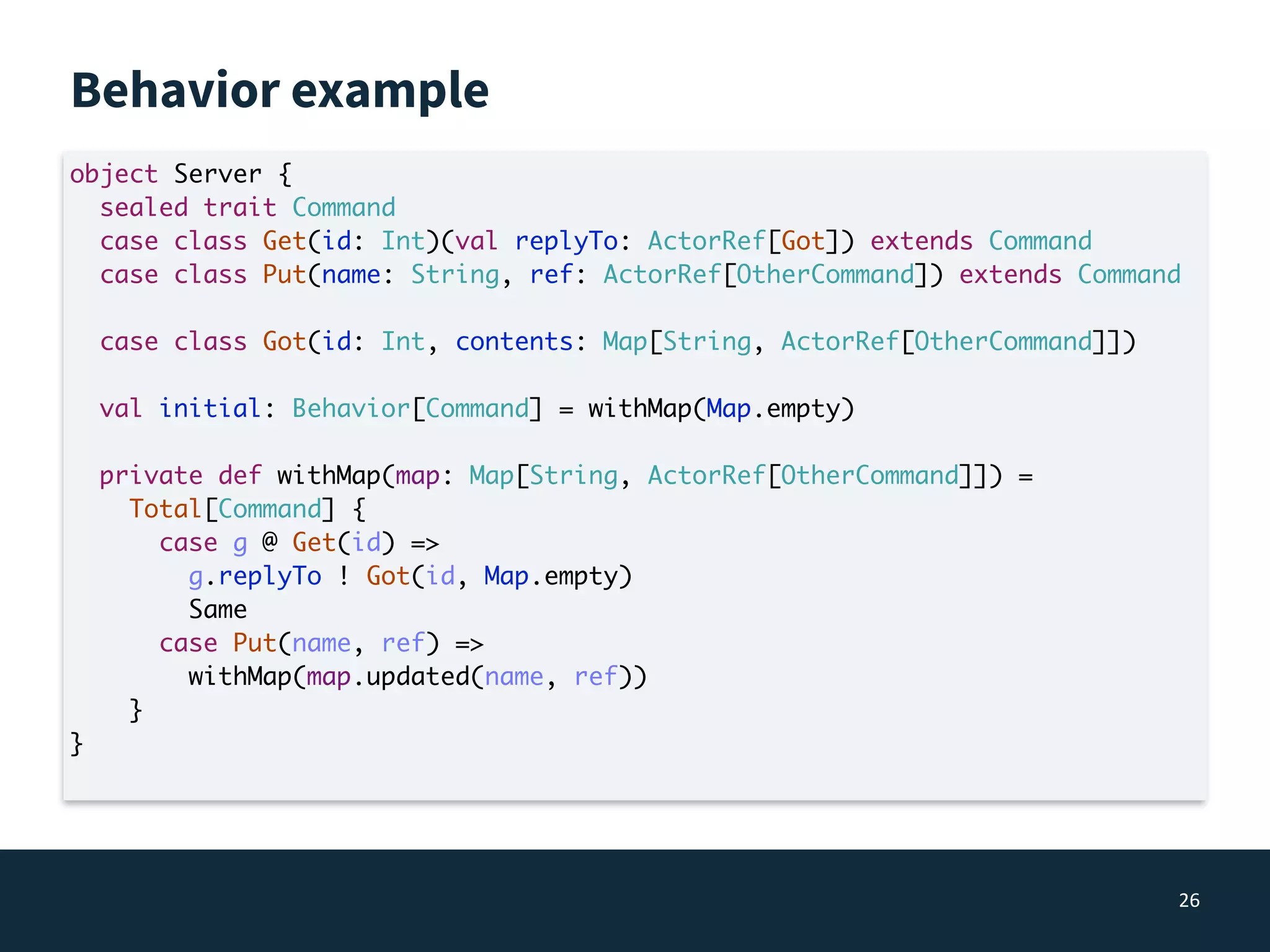

Behavior example
26
object Server {
sealed trait Command
case class Get(id: Int)(val replyTo: ActorRef[Got]) extends Command
case class Put(name: String, ref: ActorRef[OtherCommand]) extends Command
case class Got(id: Int, contents: Map[String, ActorRef[OtherCommand]])
val initial: Behavior[Command] = withMap(Map.empty)
private def withMap(map: Map[String, ActorRef[OtherCommand]]) =
Total[Command] {
case g @ Get(id) =>
g.replyTo ! Got(id, Map.empty)
Same
case Put(name, ref) =>
withMap(map.updated(name, ref))
}
}

Most common dev task?
• Receive inputs
• Transform data
• Produce outputs
• Drink coffee
27

28

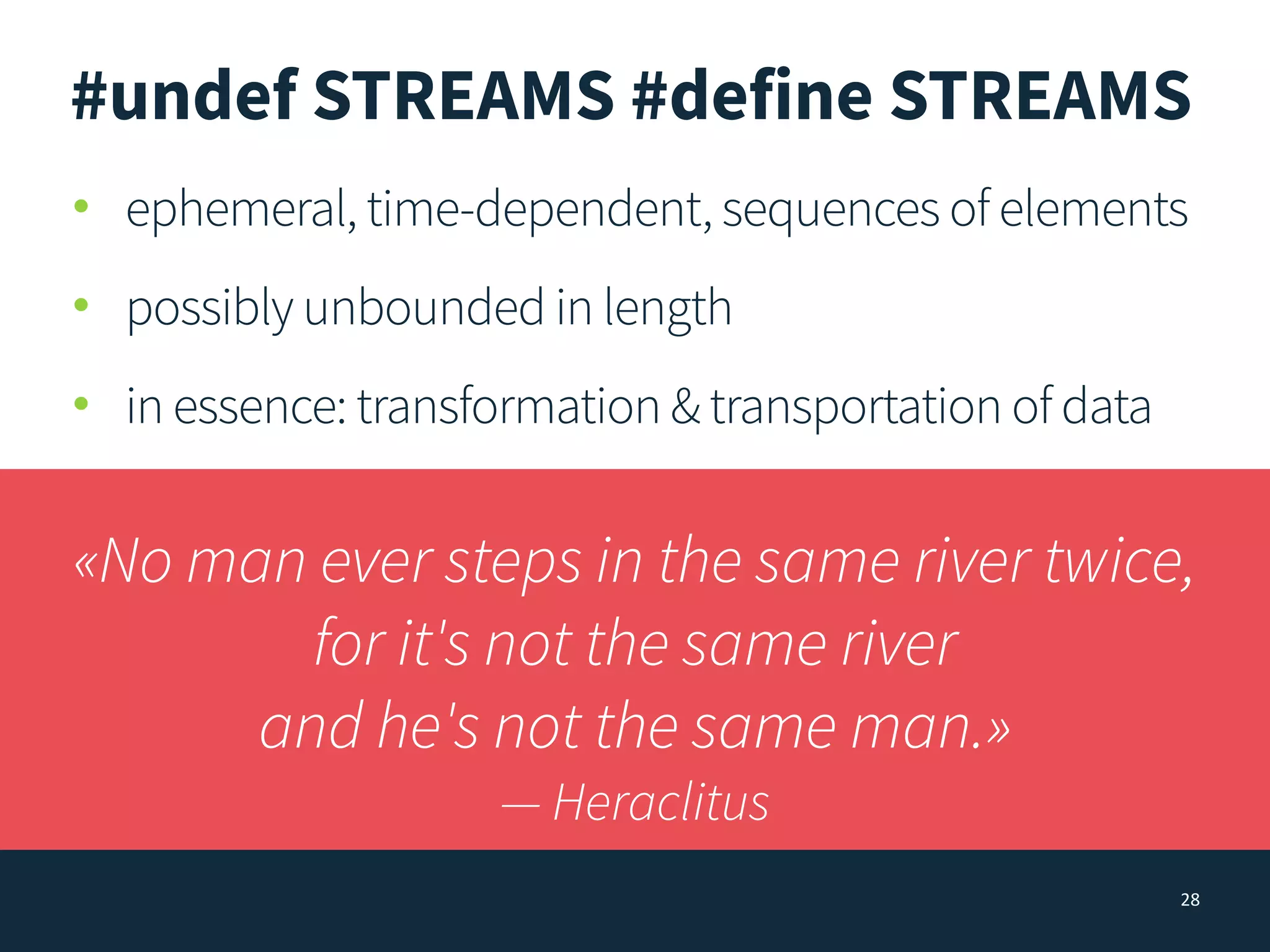

#undef STREAMS #define STREAMS
• ephemeral, time-dependent, sequences of elements
• possibly unbounded in length
• in essence: transformation & transportation of data
«No man ever steps in the same river twice,
for it's not the same river
and he's not the same man.»
— Heraclitus

i m m u t a b l e
REUSABLE
c o m p o s a b l e
c o o r d i n a t e d 
asynchronous 
transformations

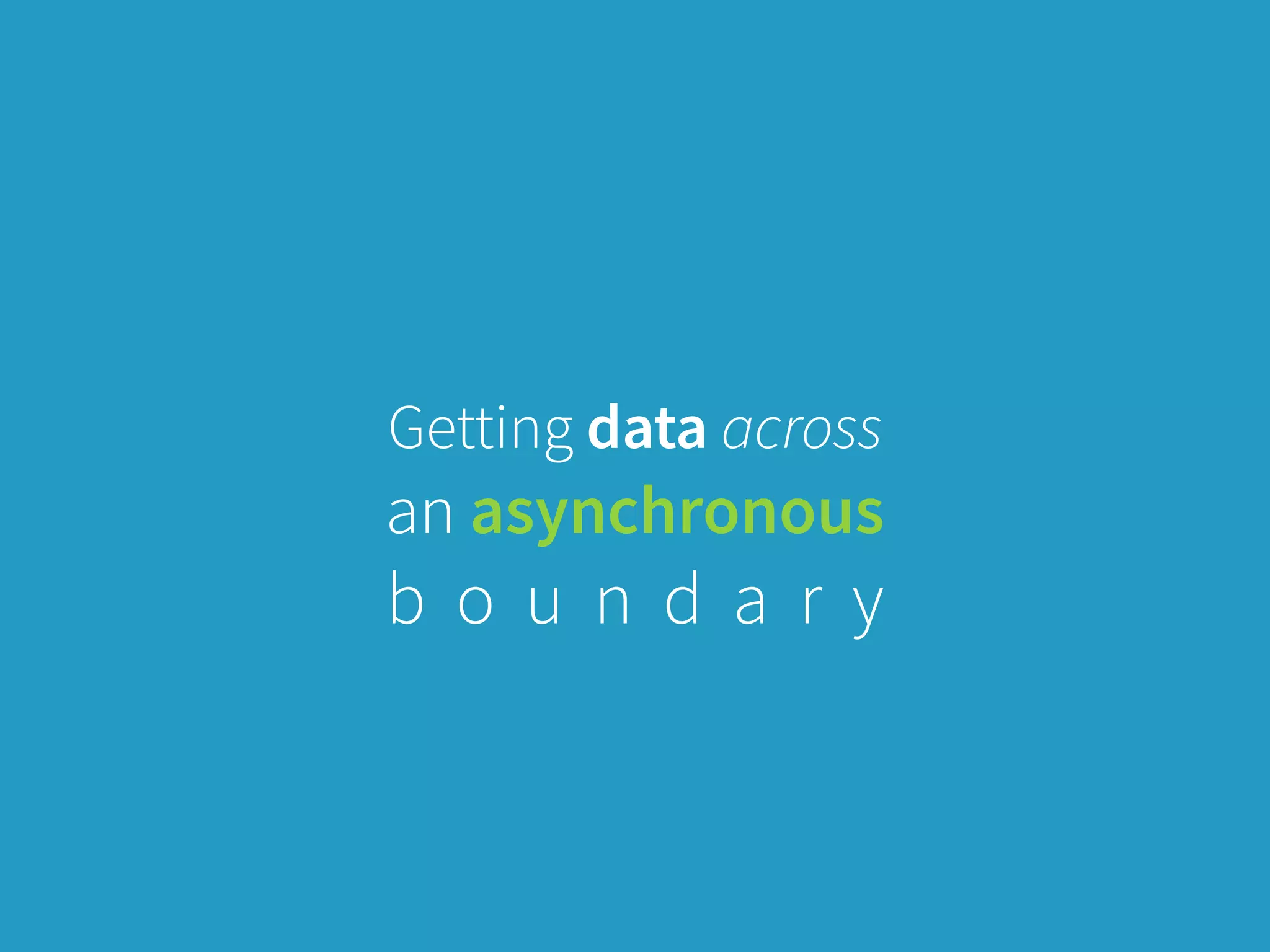

Getting data across
an asynchronous
b o u n d a r y

Getting data across
an asynchronous
b o u n d a r y 
with non-blocking 
back pressure

Reactive
Streams
Initiative
T
H
E

38

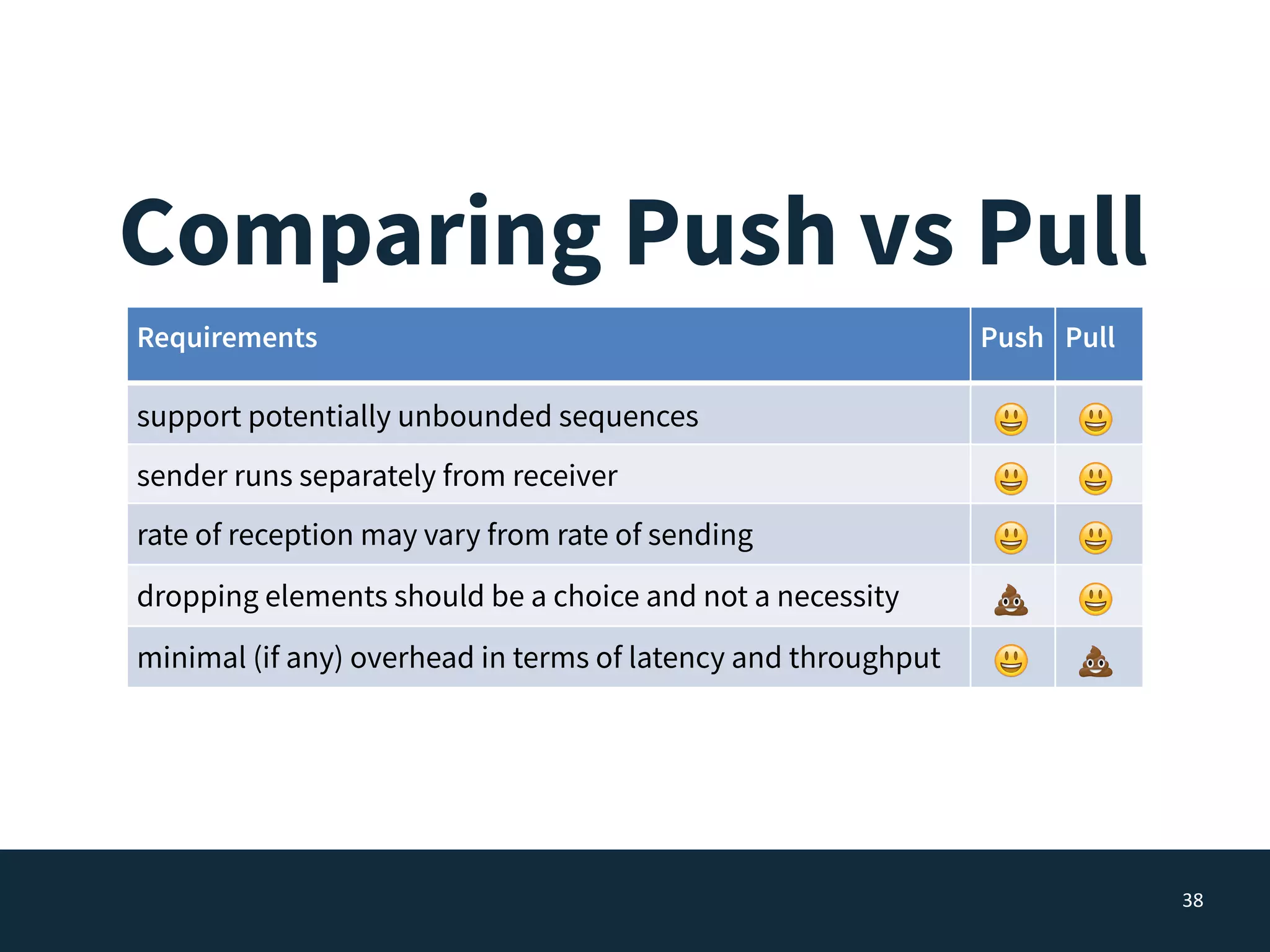

Requirements Push Pull
support potentially unbounded sequences 😃 😃
sender runs separately from receiver 😃 😃
rate of reception may vary from rate of sending 😃 😃
dropping elements should be a choice and not a necessity 💩 😃
minimal (if any) overhead in terms of latency and throughput 😃 💩
Comparing Push vs Pull

40

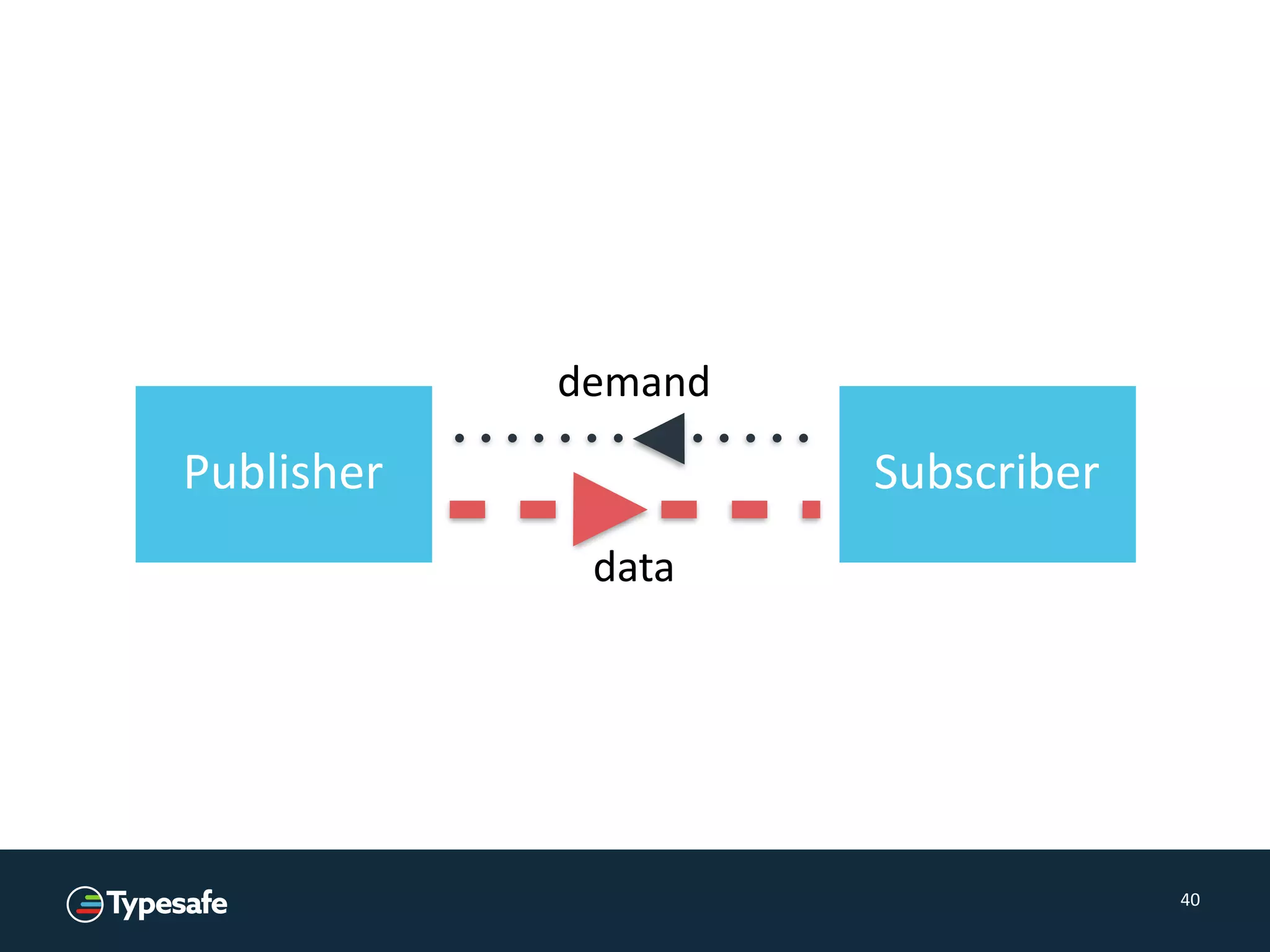

Publisher Subscriber
data
demand

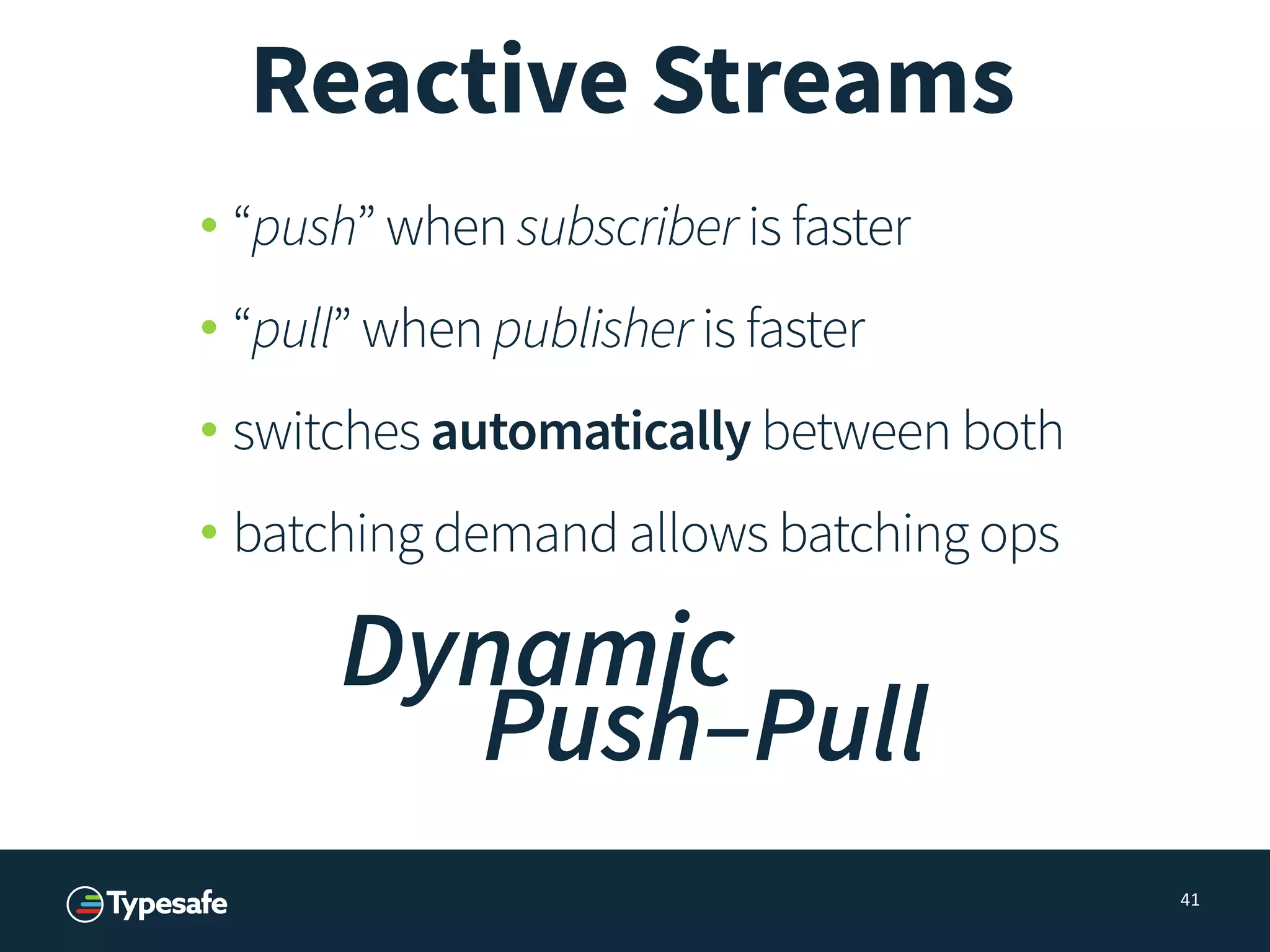

• “push” when subscriber is faster
• “pull” when publisher is faster
• switches automatically between both
• batching demand allows batching ops
41
Dynamic
Push–Pull
Reactive Streams

42

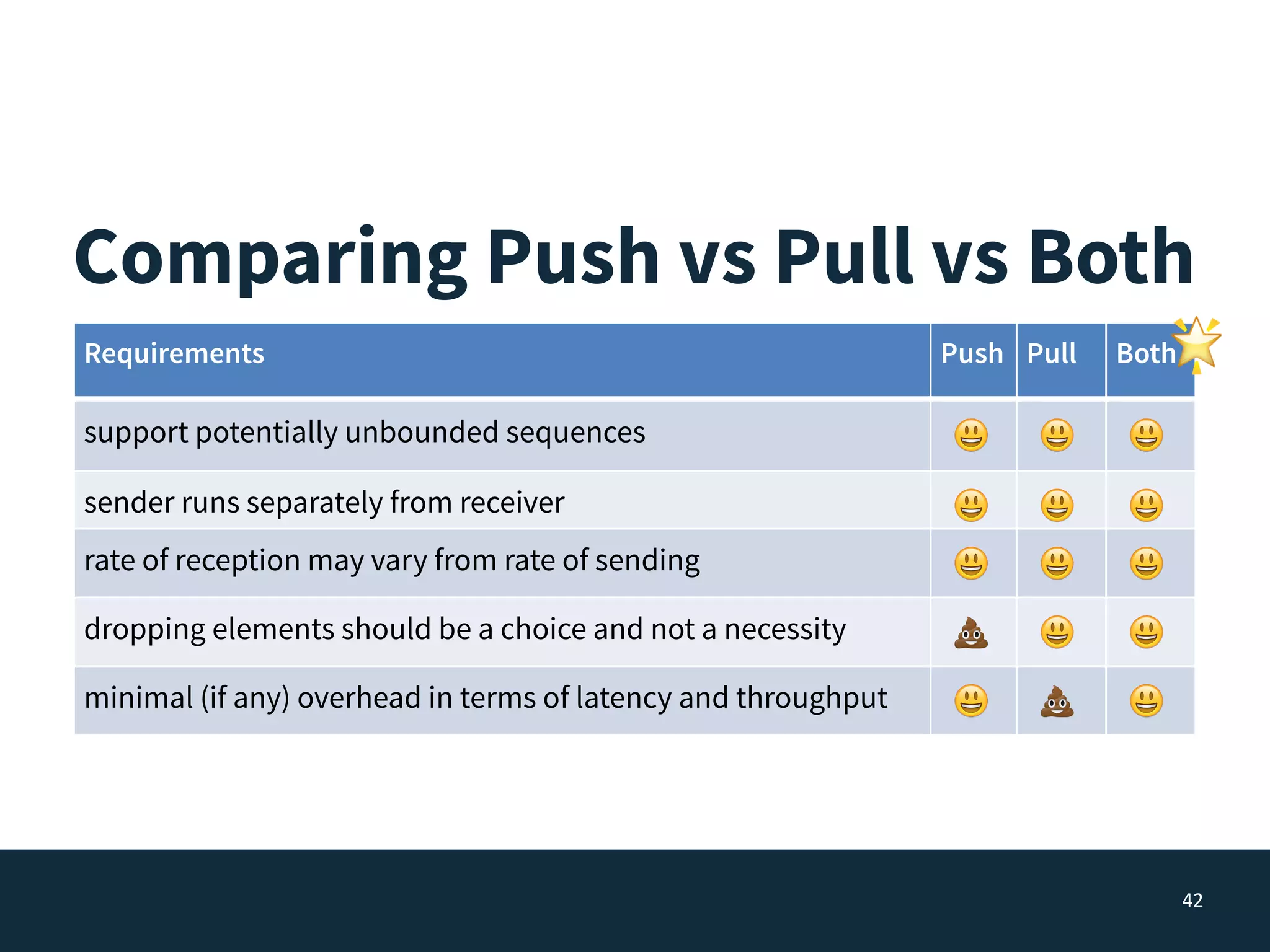

Requirements Push Pull Both
support potentially unbounded sequences 😃 😃 😃
sender runs separately from receiver 😃 😃 😃
rate of reception may vary from rate of sending 😃 😃 😃
dropping elements should be a choice and not a necessity 💩 😃 😃
minimal (if any) overhead in terms of latency and throughput 😃 💩 😃
Comparing Push vs Pull vs Both
🌟

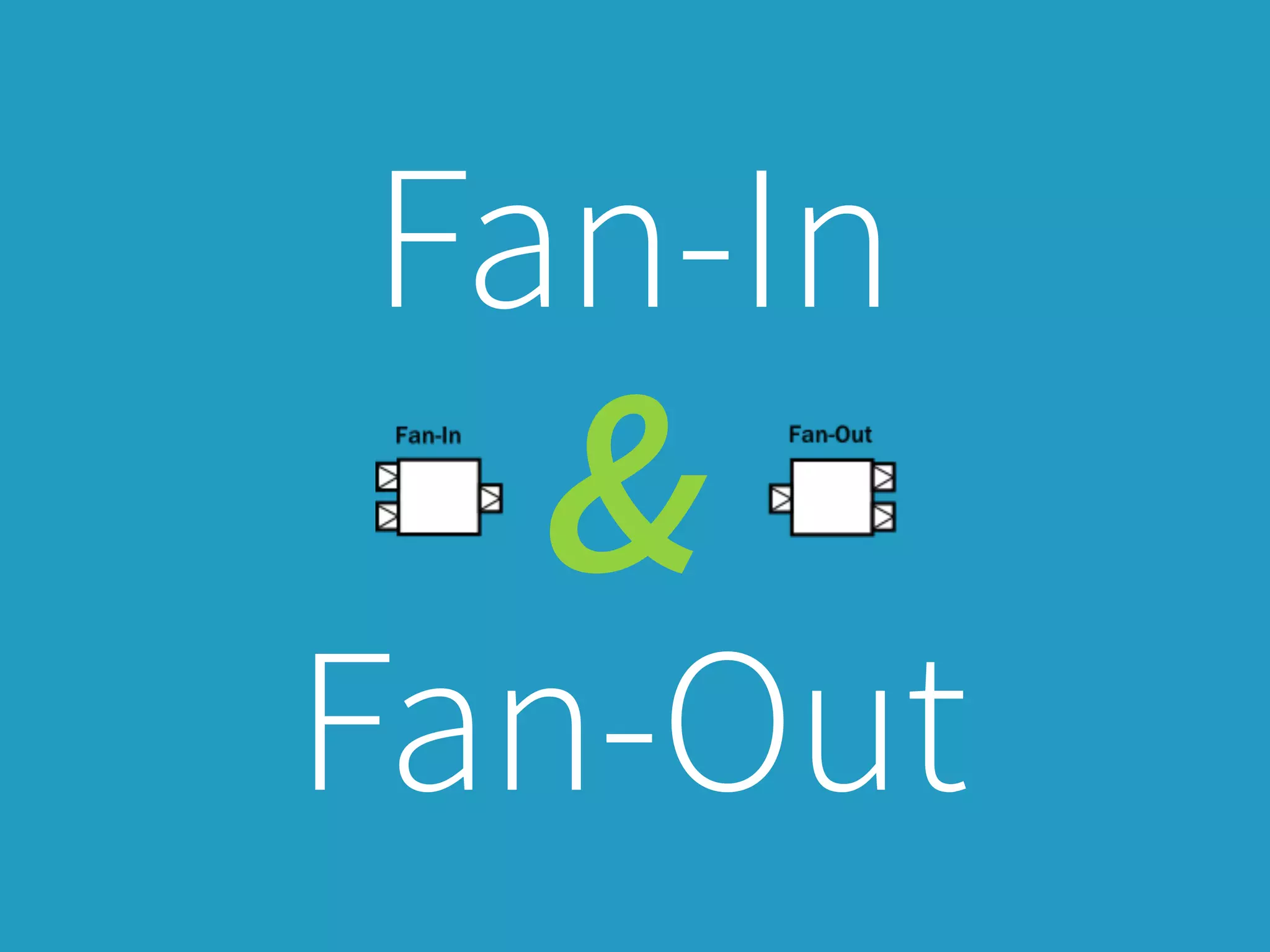

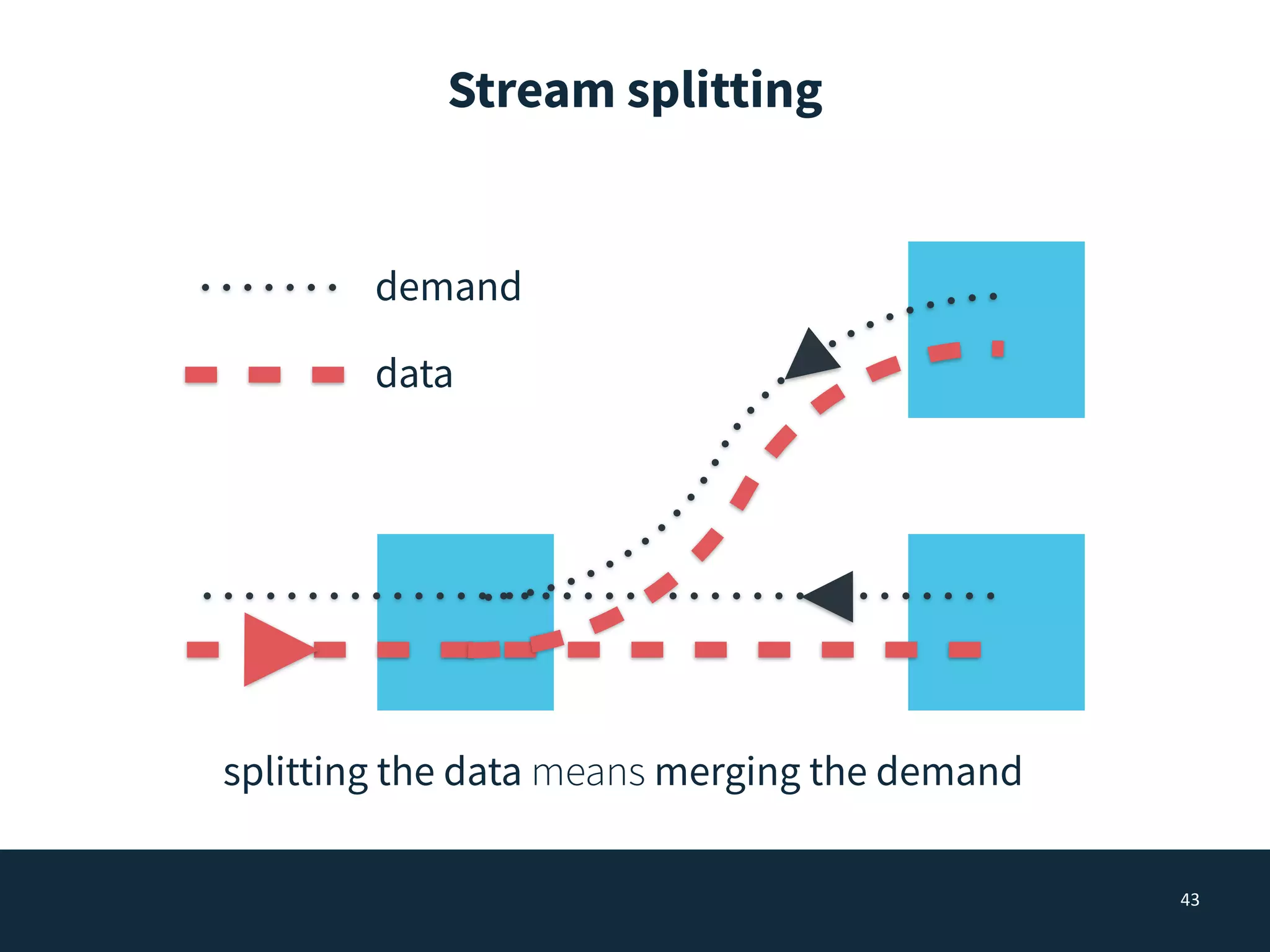

Stream splitting
43
demand
data
splitting the data means merging the demand

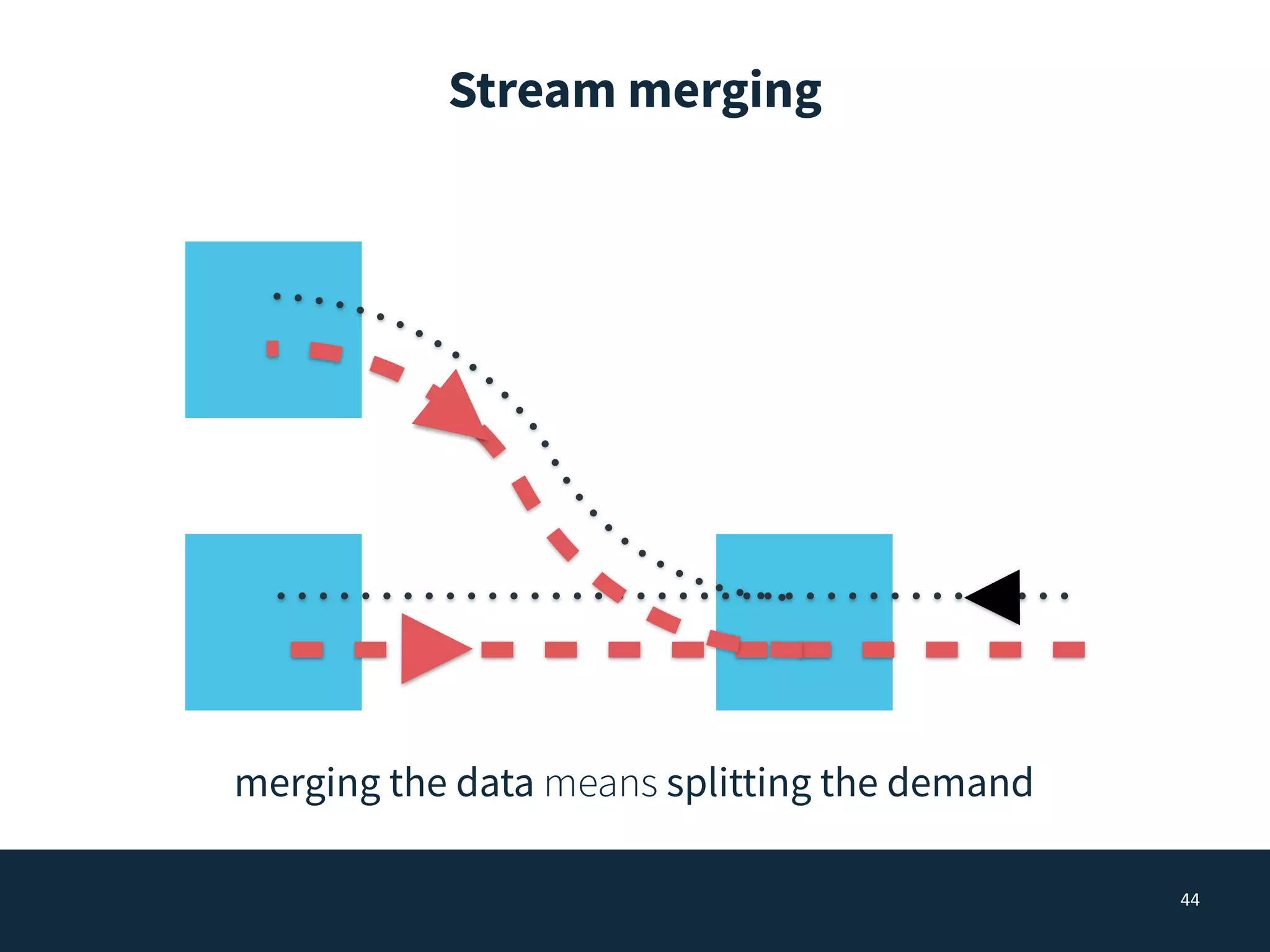

Stream merging
44
merging the data means splitting the demand

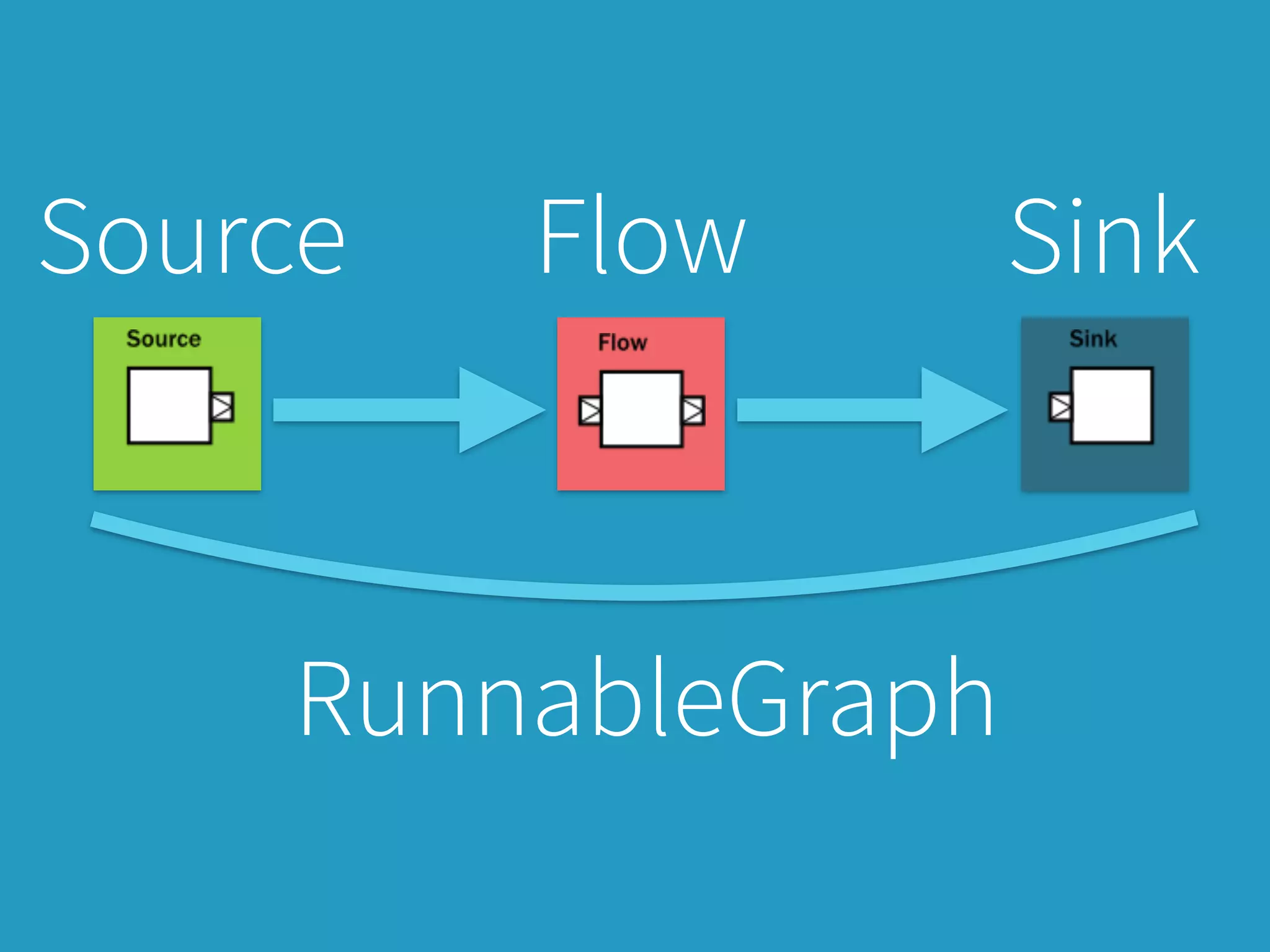

Source Flow Sink
RunnableGraph

46

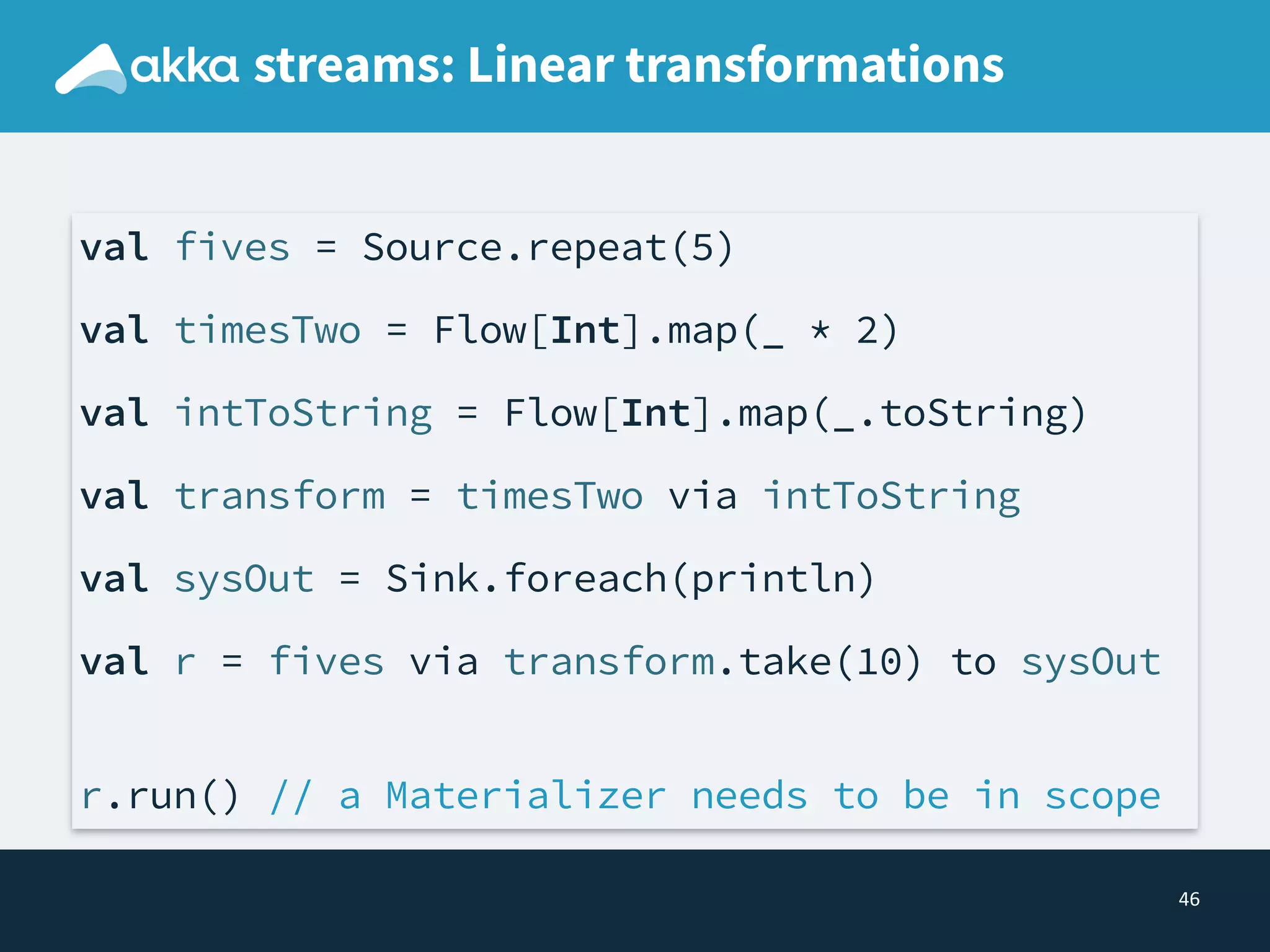

streams: Linear transformations
val fives = Source.repeat(5)
val timesTwo = Flow[Int].map(_ * 2)
val intToString = Flow[Int].map(_.toString)
val transform = timesTwo via intToString
val sysOut = Sink.foreach(println)
val r = fives via transform.take(10) to sysOut
 
r.run() // a Materializer needs to be in scope

48

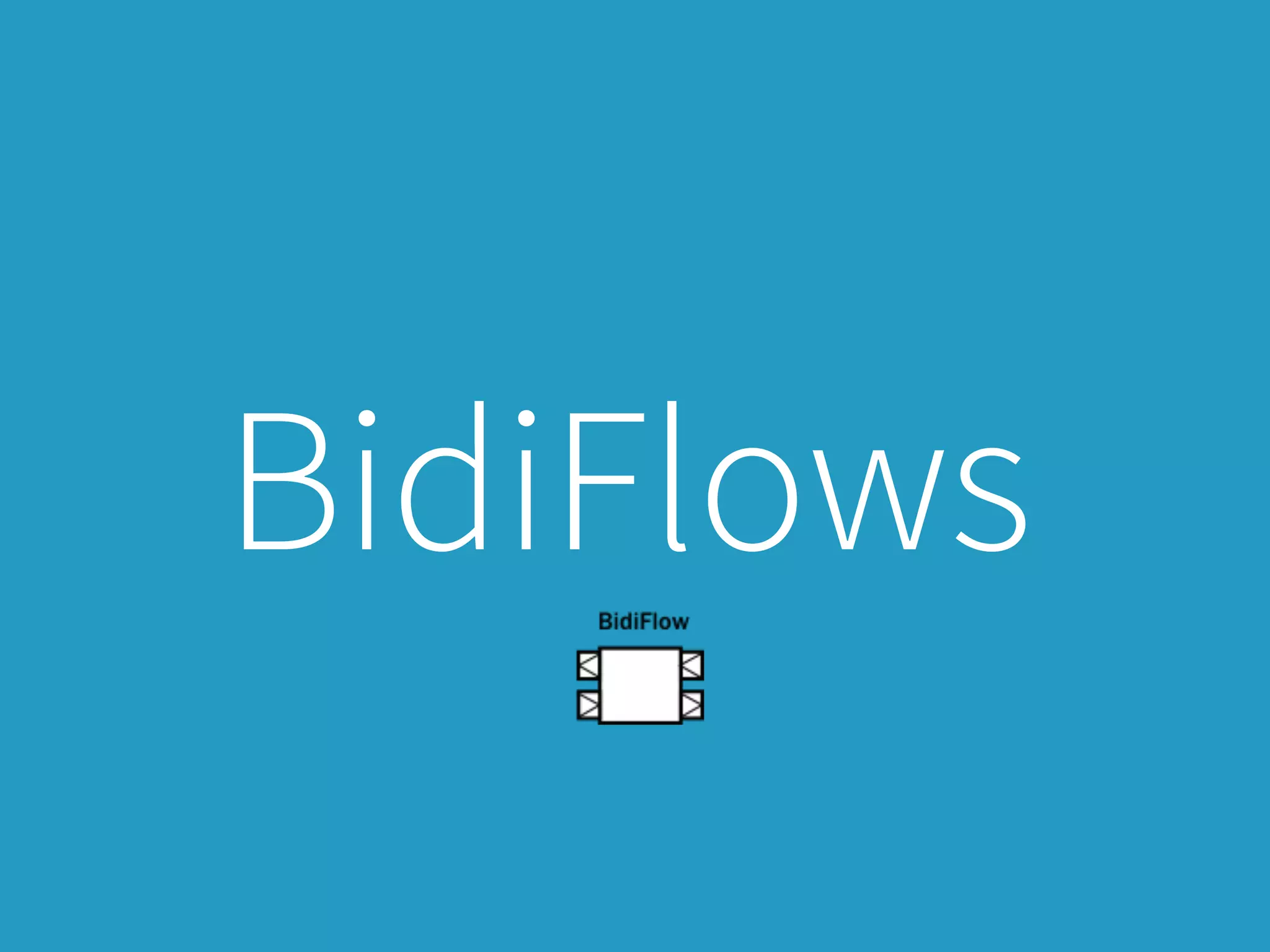

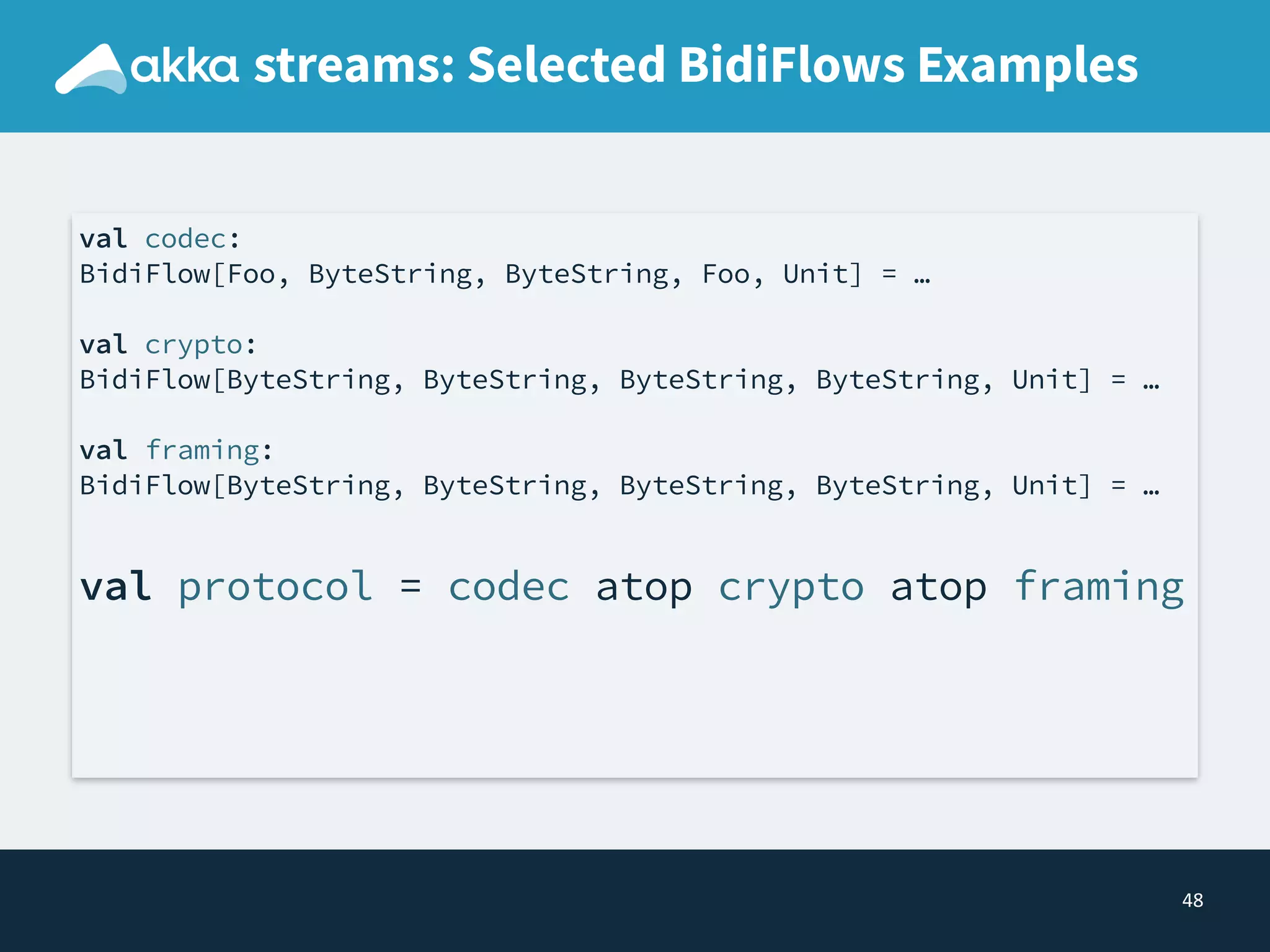

streams: Selected BidiFlows Examples
val codec:  
BidiFlow[Foo, ByteString, ByteString, Foo, Unit] = … 
 
val crypto: 
BidiFlow[ByteString, ByteString, ByteString, ByteString, Unit] = … 
 
val framing:  
BidiFlow[ByteString, ByteString, ByteString, ByteString, Unit] = … 
 
val protocol = codec atop crypto atop framing

52
streams: Cthulhu-Merge-Route Explained

55
streams: Materialization
• Akka Streams separates the what from the how & when
• declarative Source/Flow/Sink DSL to create a blueprint
• ActorMaterializer turns this into running Actors
• enables customizable materialization strategies
• optimization
• verification / validation
• distributed deployment

56
streams: MaterializedValues
• At Compositiontime
• MaterializedValues of respective sides are composed
• At Materializationtime
• A value of the final type of the MaterializedValue 
of the graph is returned

58

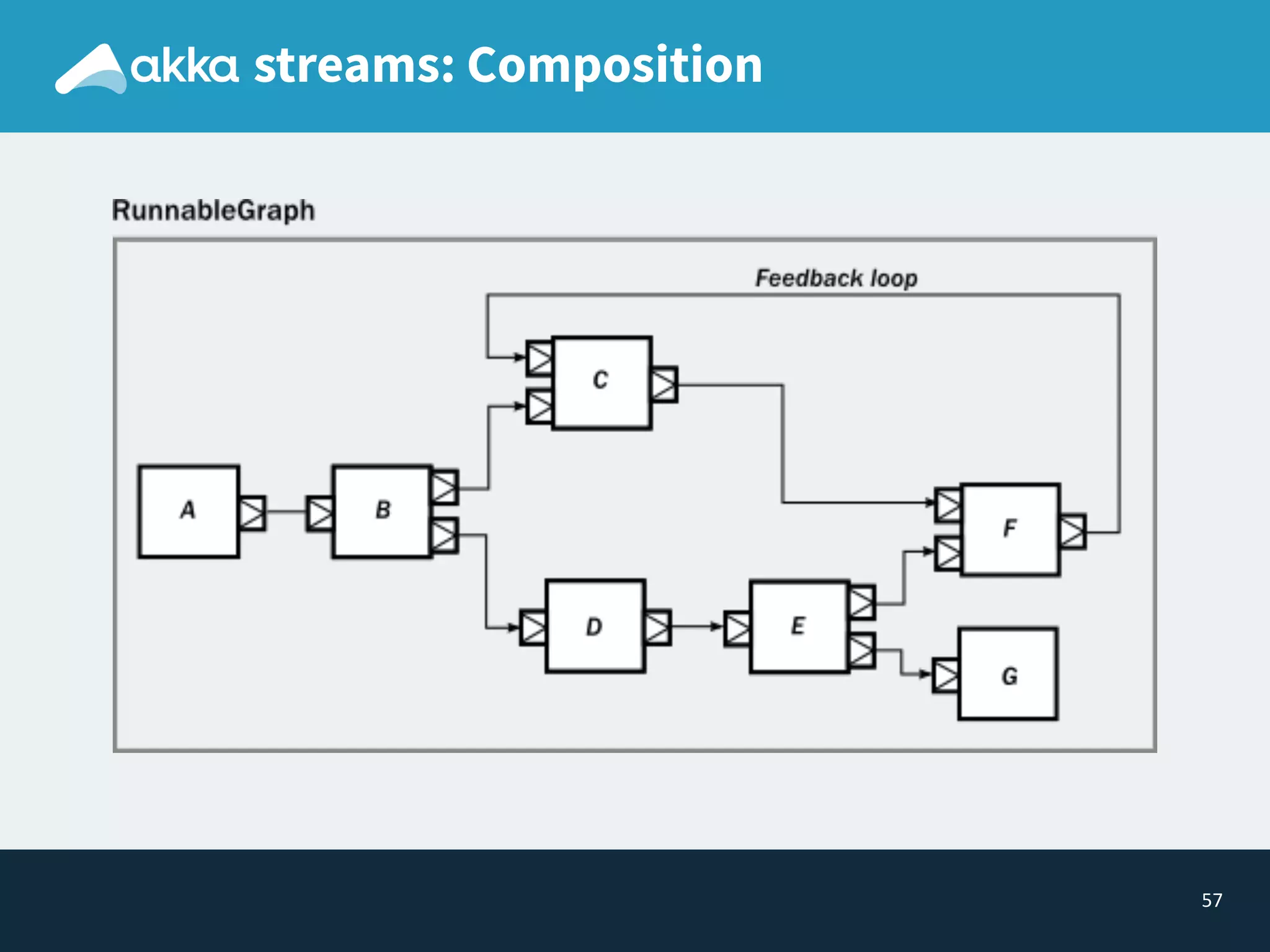

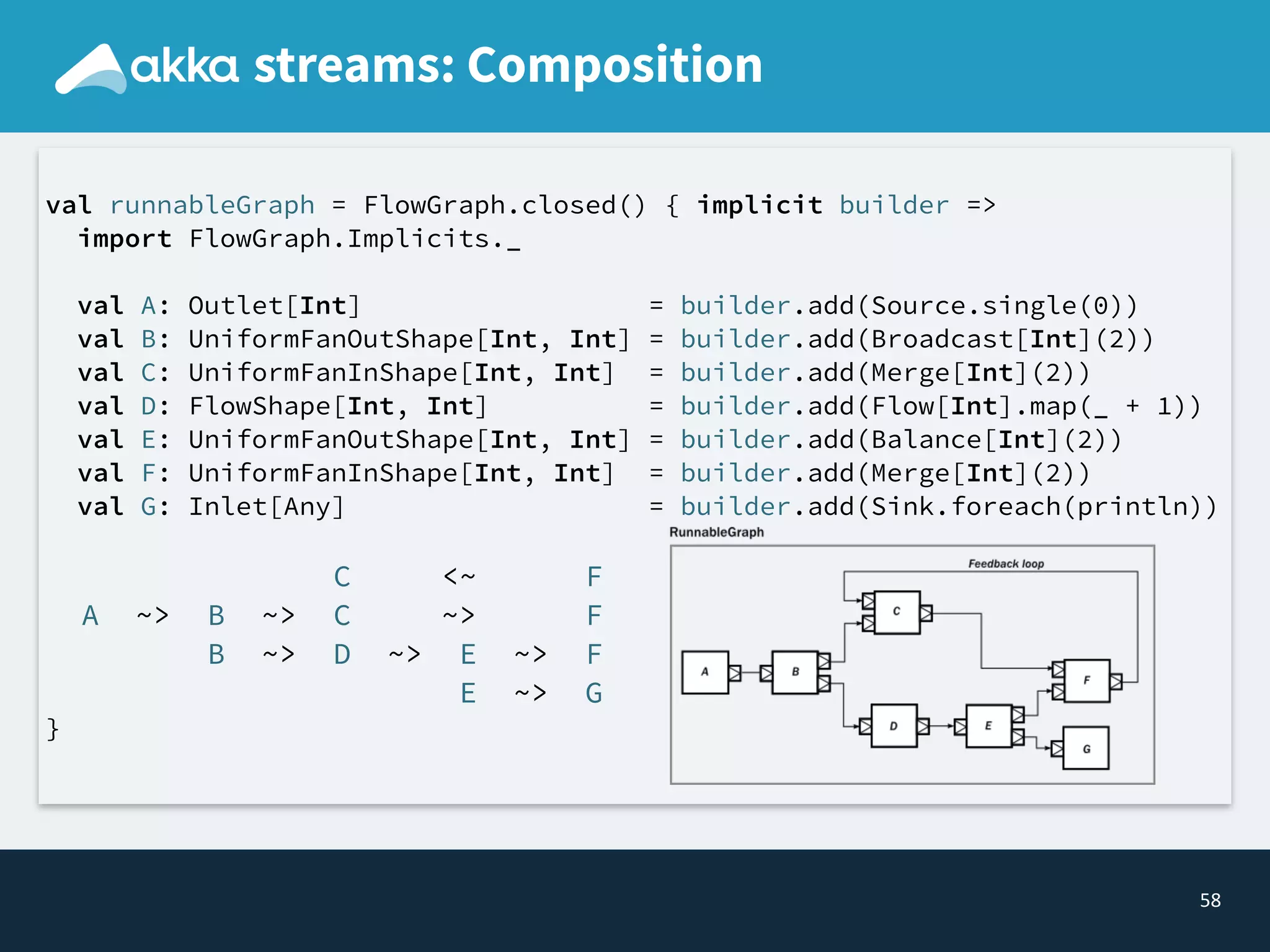

streams: Composition
val runnableGraph = FlowGraph.closed() { implicit builder =>
import FlowGraph.Implicits._
val A: Outlet[Int] = builder.add(Source.single(0))
val B: UniformFanOutShape[Int, Int] = builder.add(Broadcast[Int](2))
val C: UniformFanInShape[Int, Int] = builder.add(Merge[Int](2))
val D: FlowShape[Int, Int] = builder.add(Flow[Int].map(_ + 1))
val E: UniformFanOutShape[Int, Int] = builder.add(Balance[Int](2))
val F: UniformFanInShape[Int, Int] = builder.add(Merge[Int](2))
val G: Inlet[Any] = builder.add(Sink.foreach(println))
C <~ F
A ~> B ~> C ~> F
B ~> D ~> E ~> F
E ~> G
}

59

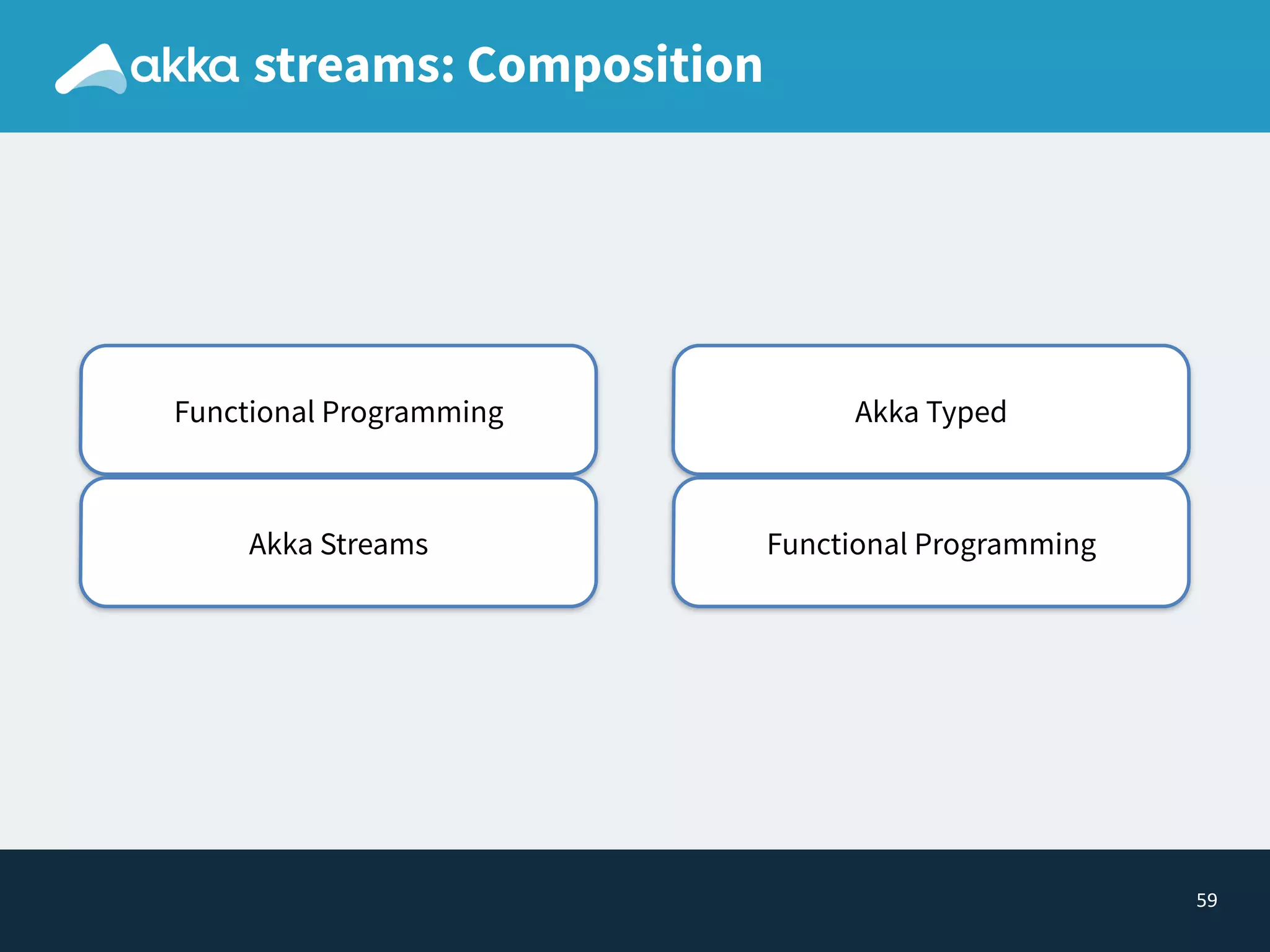

streams: Composition
Akka Streams
Akka Typed

60

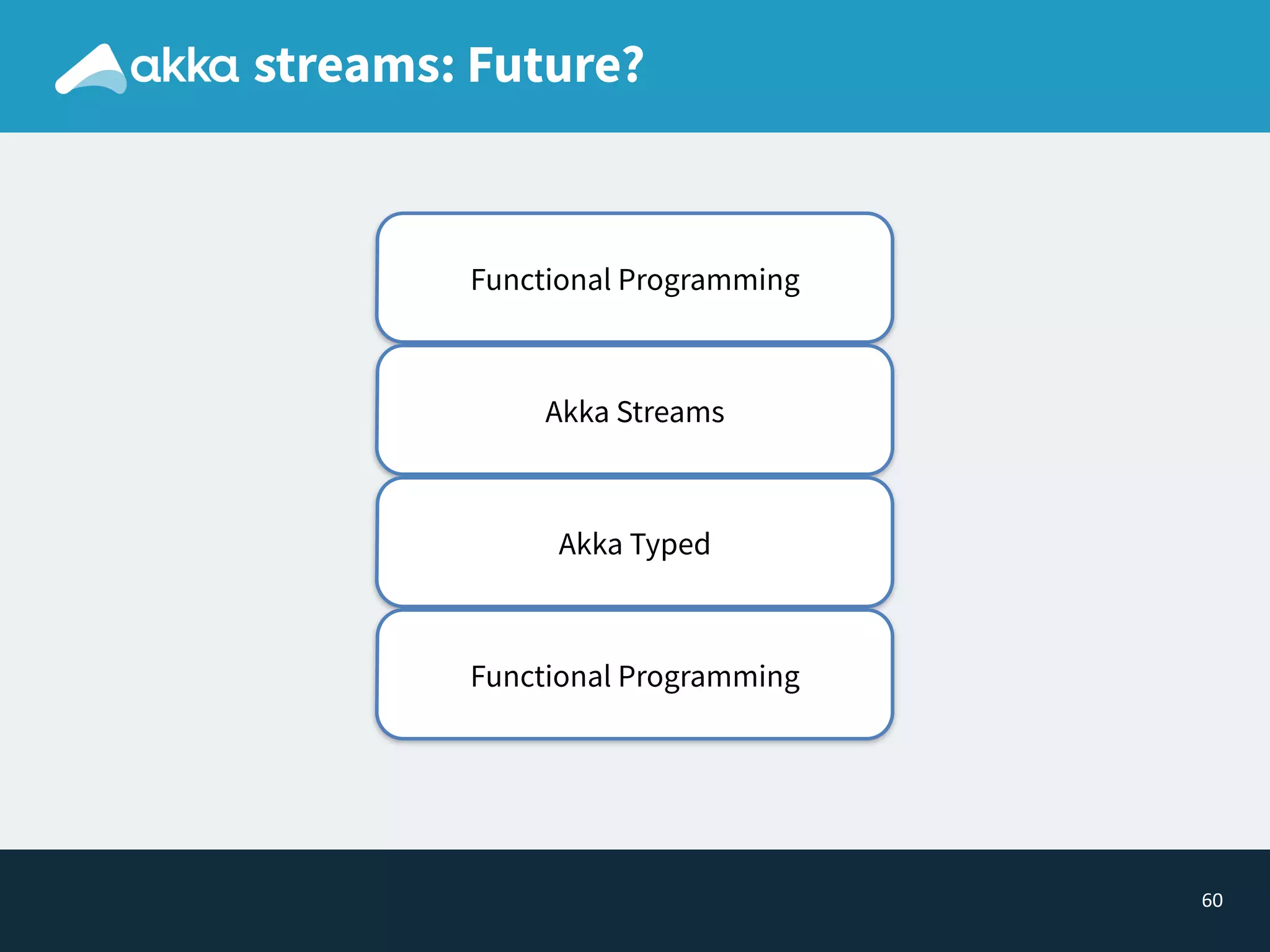

streams: Future?
Akka Streams
Akka Typed

61
Summary
Akka Streams and Akka Typed promises
both the compositionalstrengths of FP,
paired with the communicationalstrengths
and resilience of the Actor Model.

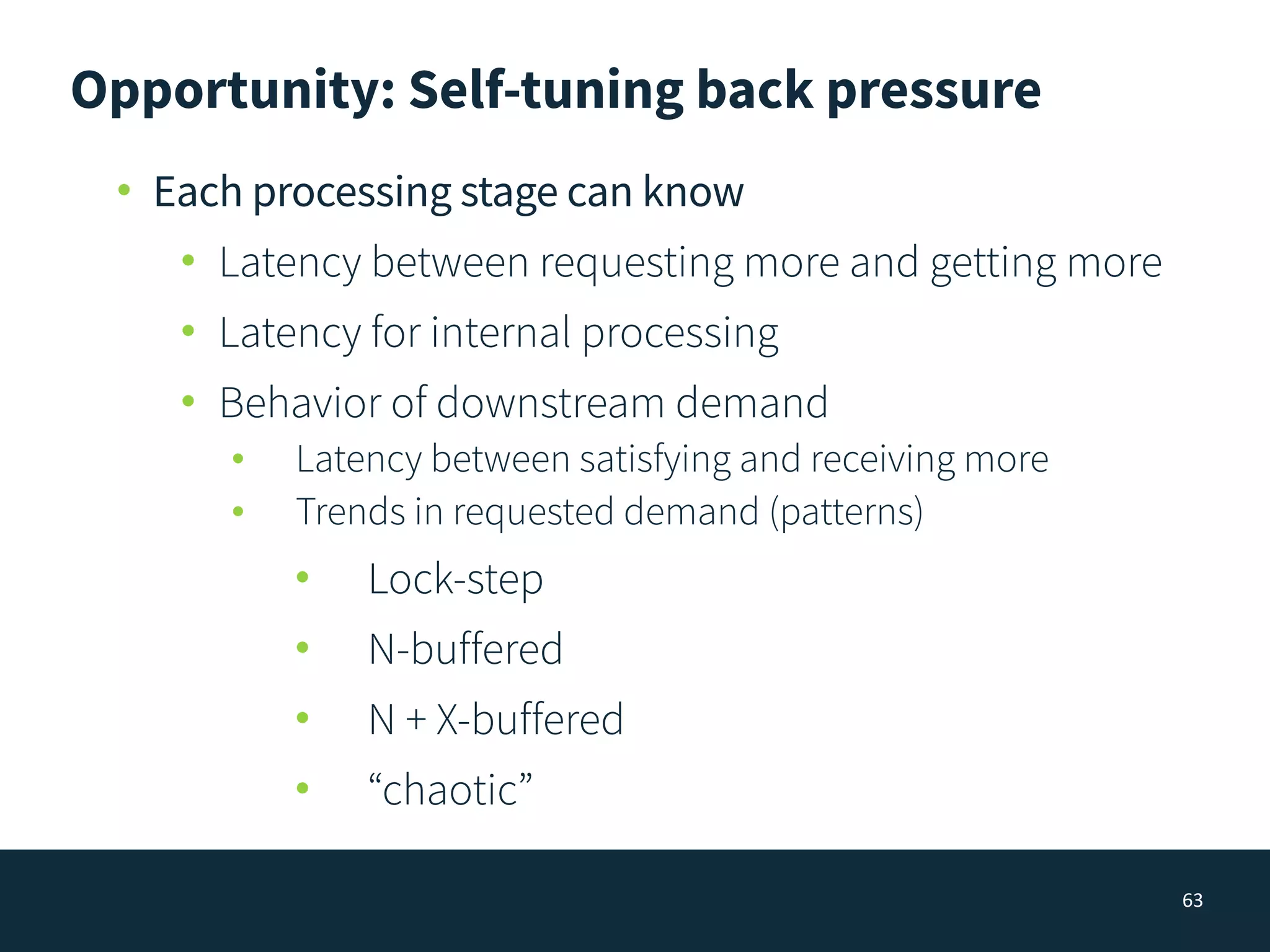

Opportunity: Self-tuning back pressure
63
• Each processing stage can know
• Latency between requesting more and getting more
• Latency for internal processing
• Behavior of downstream demand
• Latency between satisfying and receiving more
• Trends in requested demand (patterns)
• Lock-step
• N-buffered
• N + X-buffered
• “chaotic”

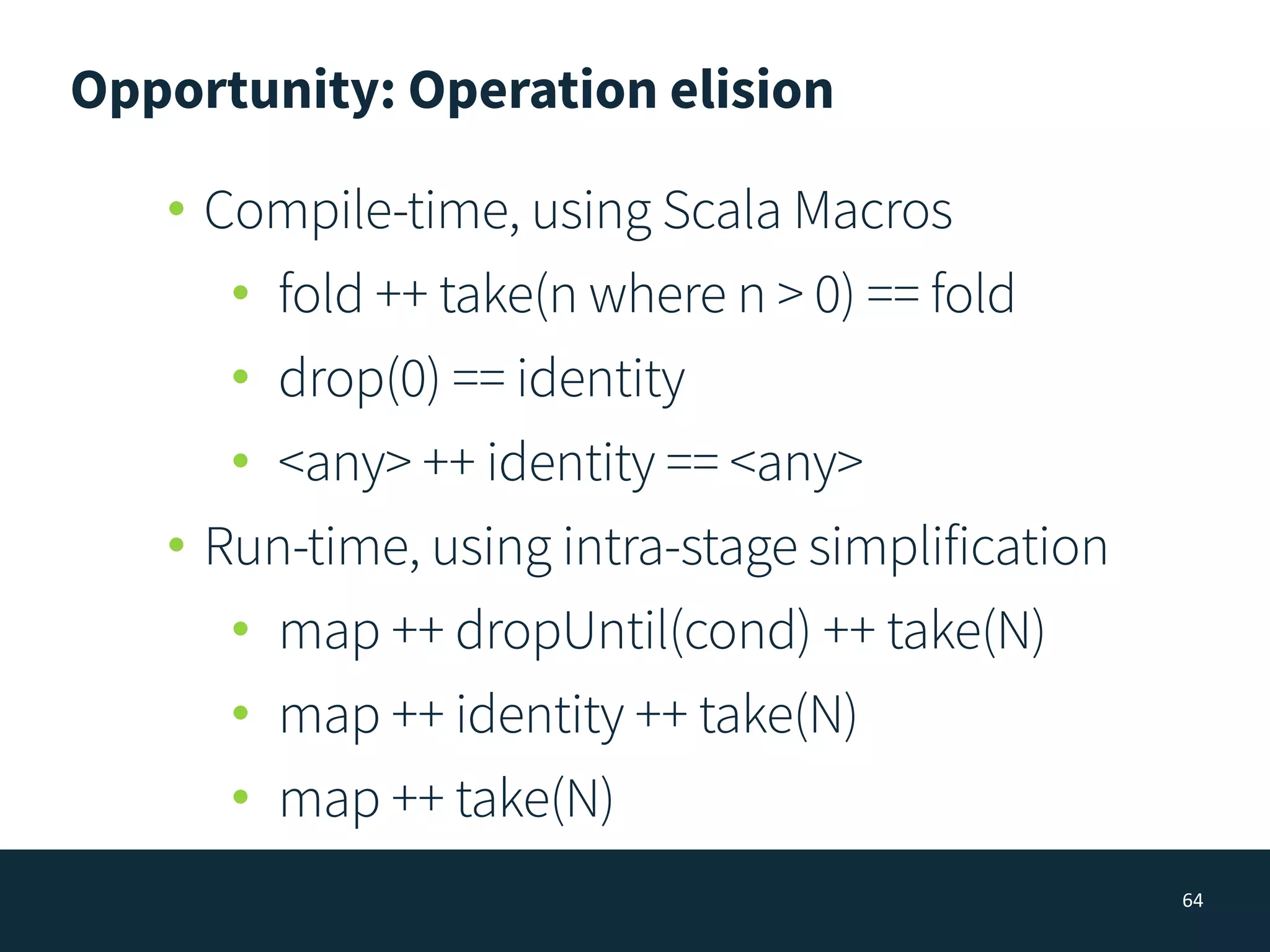

Opportunity: Operation elision
64
• Compile-time, using Scala Macros
• fold ++ take(n where n > 0) == fold
• drop(0) == identity
• <any> ++ identity == <any>
• Run-time, using intra-stage simplification
• map ++ dropUntil(cond) ++ take(N)
• map ++ identity ++ take(N)
• map ++ take(N)

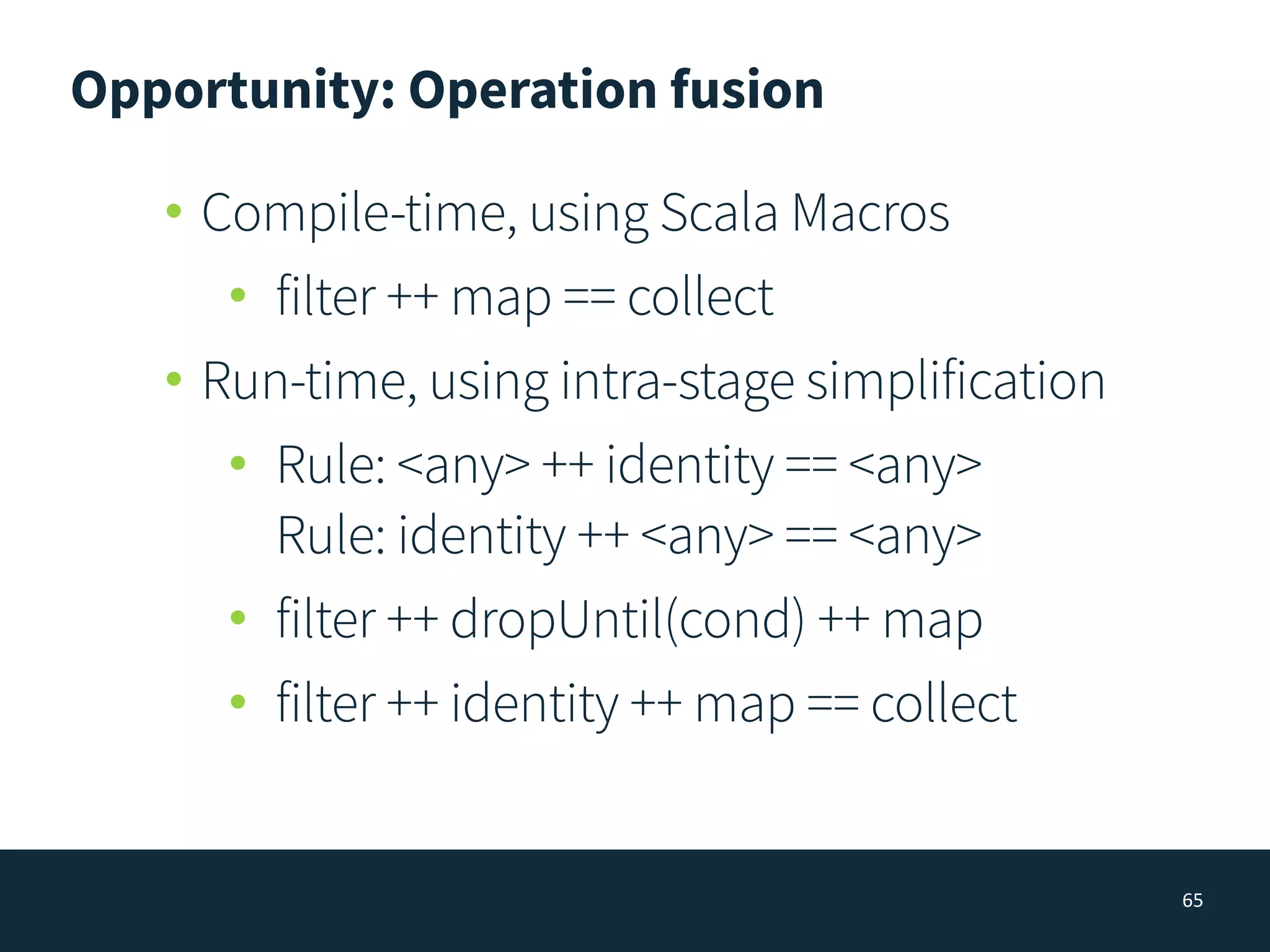

Opportunity: Operation fusion
65
• Compile-time, using Scala Macros
• filter ++ map == collect
• Run-time, using intra-stage simplification
• Rule: <any> ++ identity == <any> 
Rule: identity ++ <any> == <any>
• filter ++ dropUntil(cond) ++ map
• filter ++ identity ++ map == collect

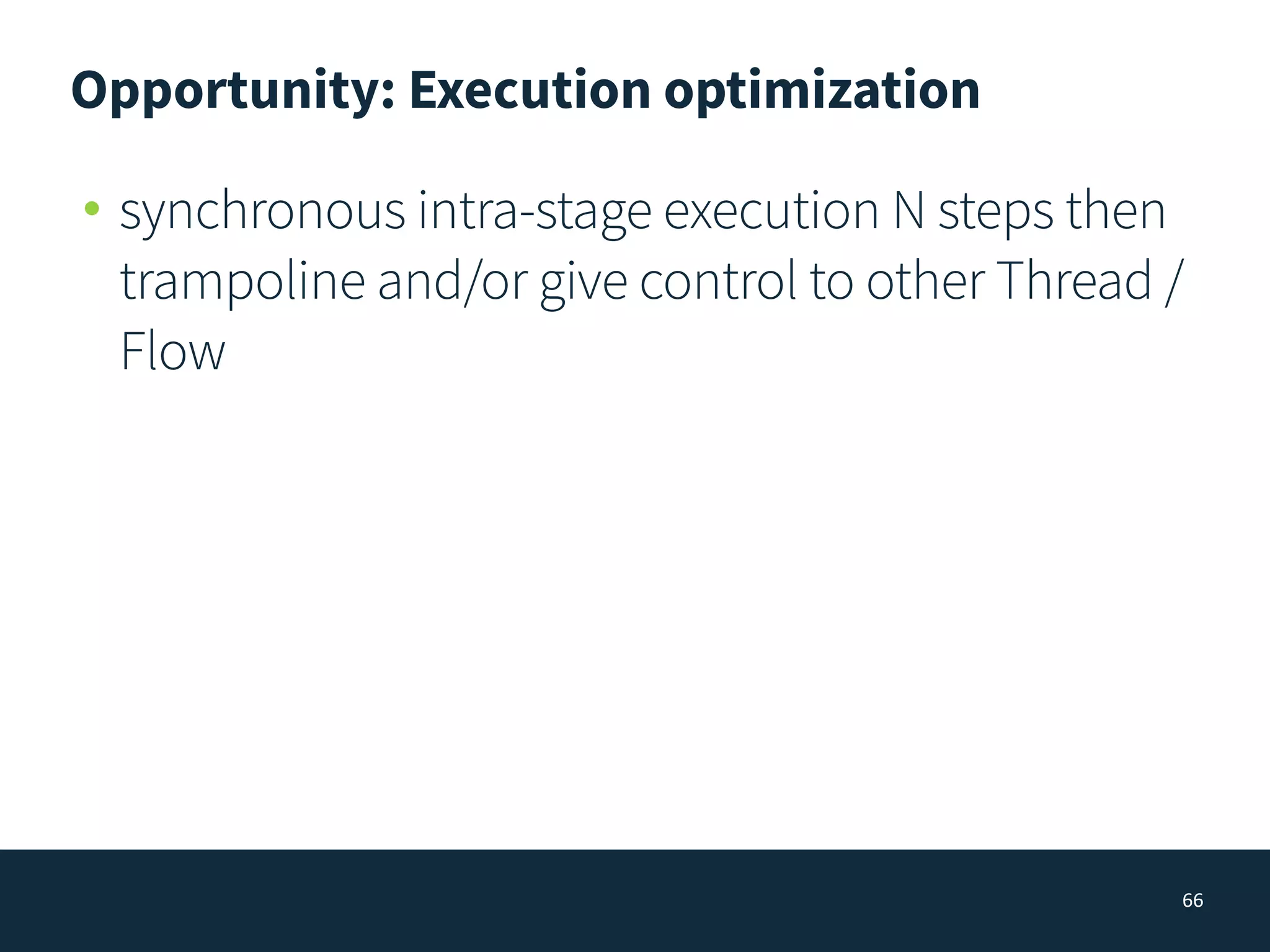

Opportunity: Execution optimization
66
• synchronous intra-stage execution N steps then
trampoline and/or give control to other Thread /
Flow

67

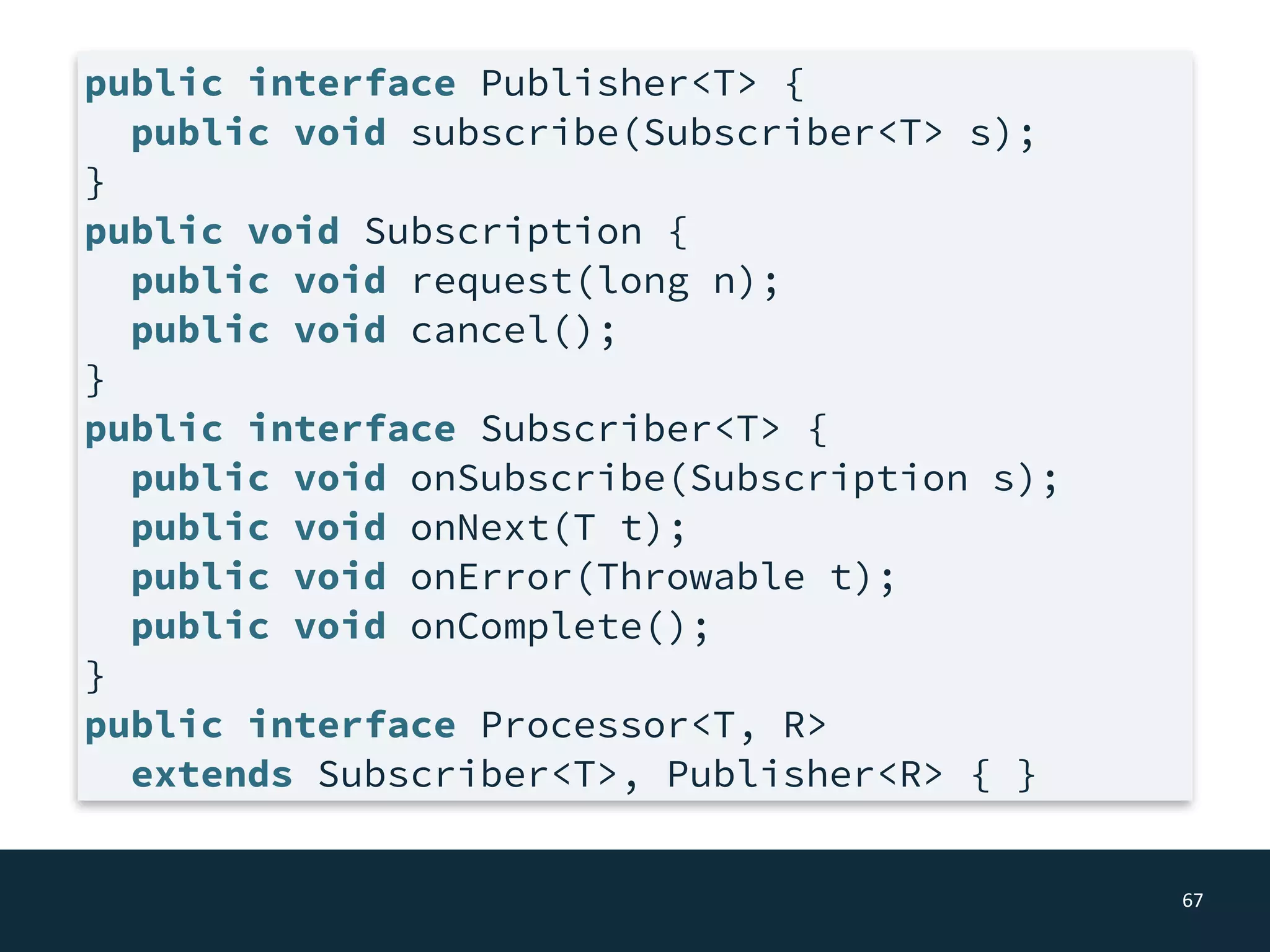

public interface Publisher<T> {
public void subscribe(Subscriber<T> s);
}
public void Subscription {
public void request(long n);
public void cancel();
}
public interface Subscriber<T> {
public void onSubscribe(Subscription s);
public void onNext(T t);
public void onError(Throwable t);
public void onComplete();
}
public interface Processor<T, R>
extends Subscriber<T>, Publisher<R> { }

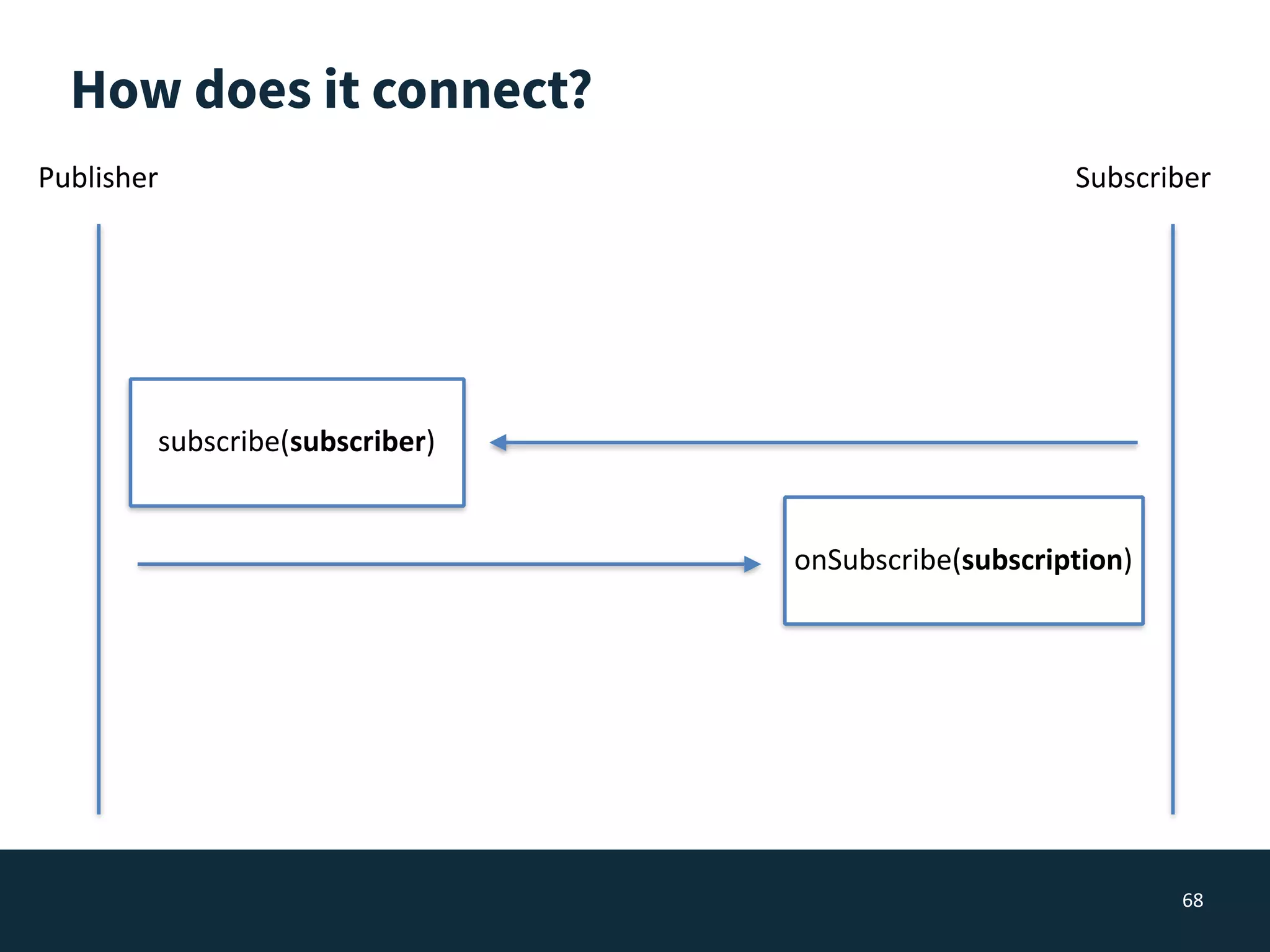

How does it connect?
68
SubscriberPublisher
subscribe(subscriber)
onSubscribe(subscription)

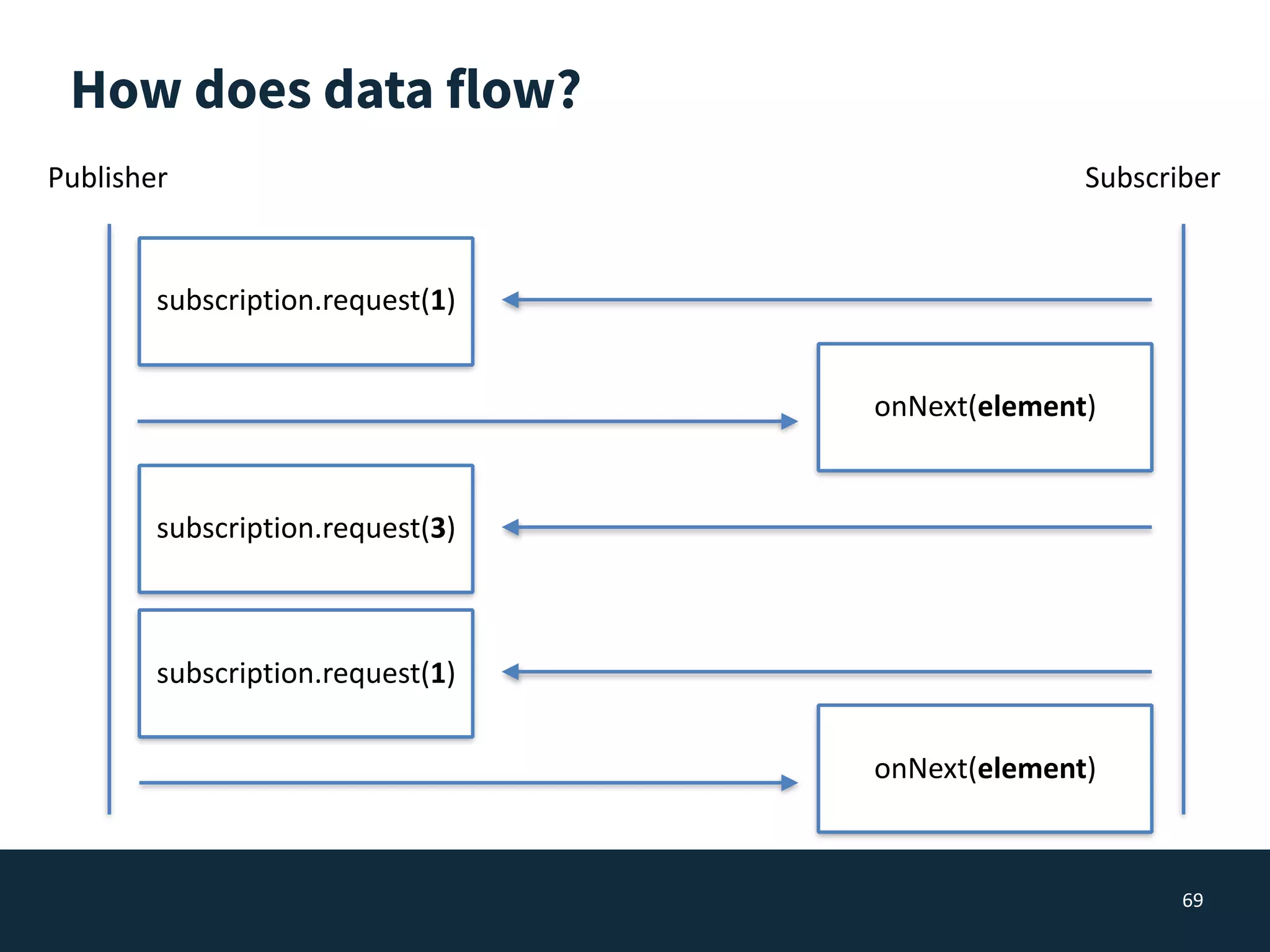

How does data flow?
69
SubscriberPublisher
subscription.request(1)
onNext(element)
onNext(element)

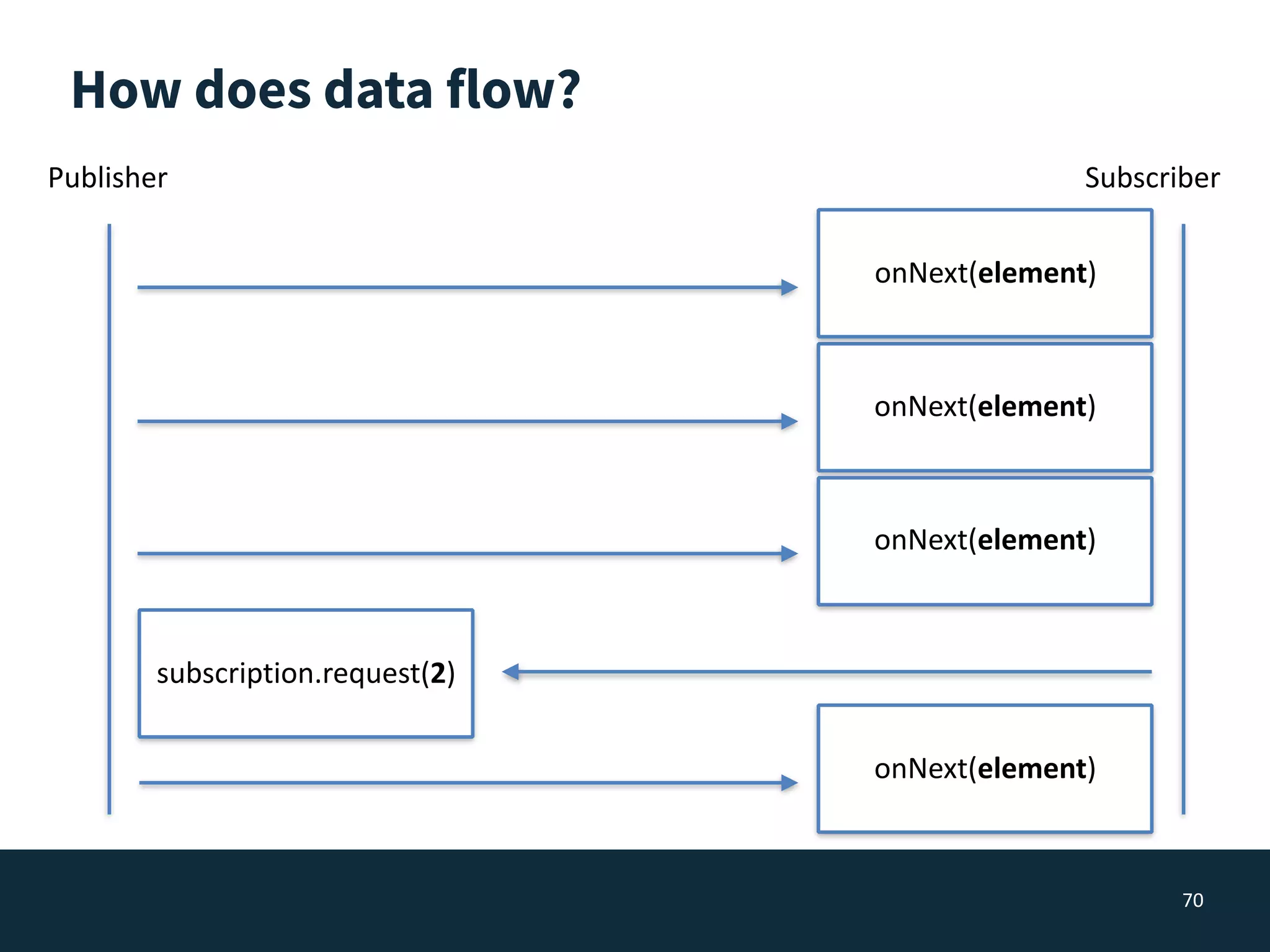

How does data flow?
70
SubscriberPublisher
onNext(element)
onNext(element)
onNext(element)
onNext(element)

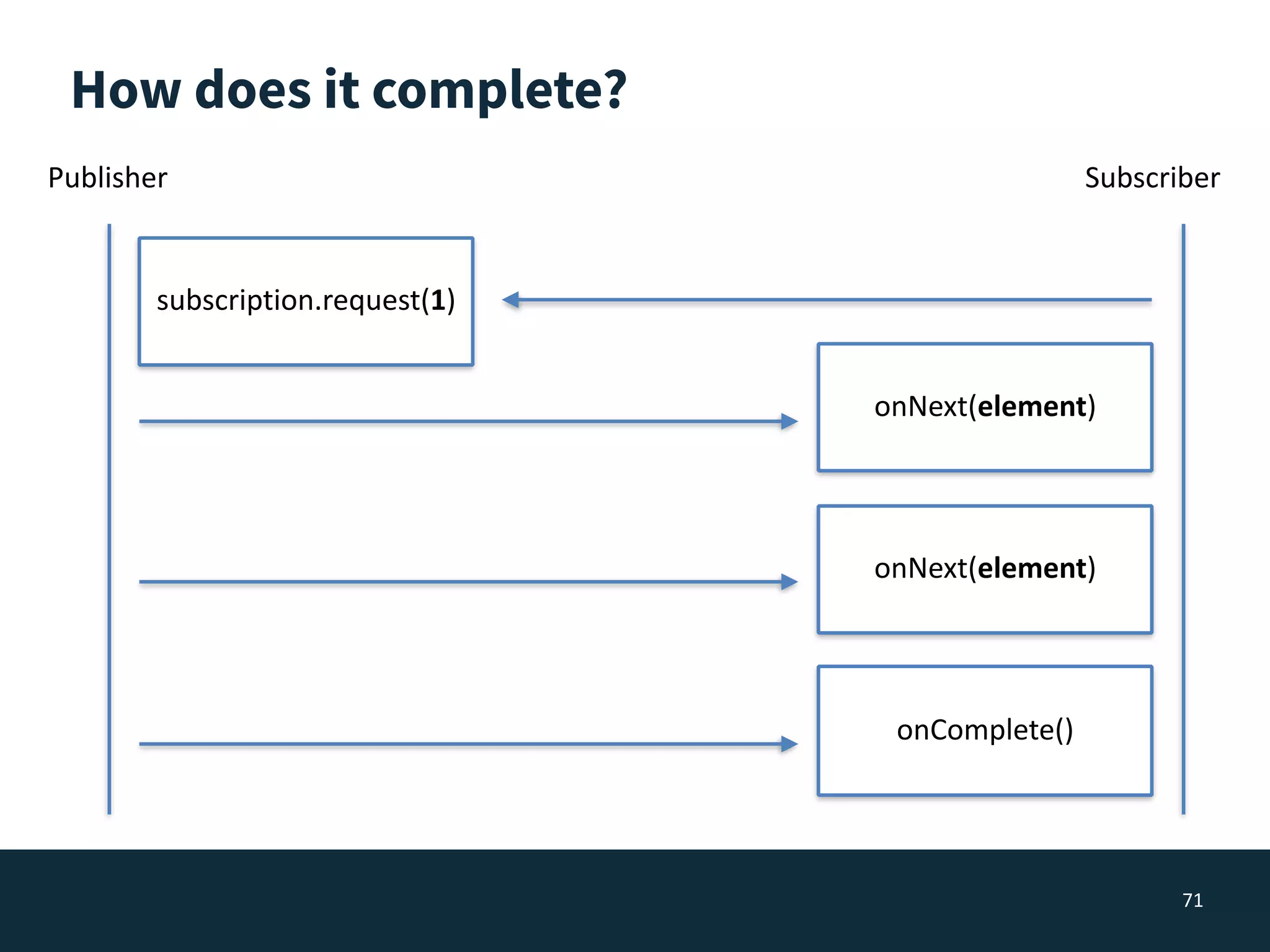

How does it complete?
71
SubscriberPublisher
onNext(element)
onComplete()
onNext(element)

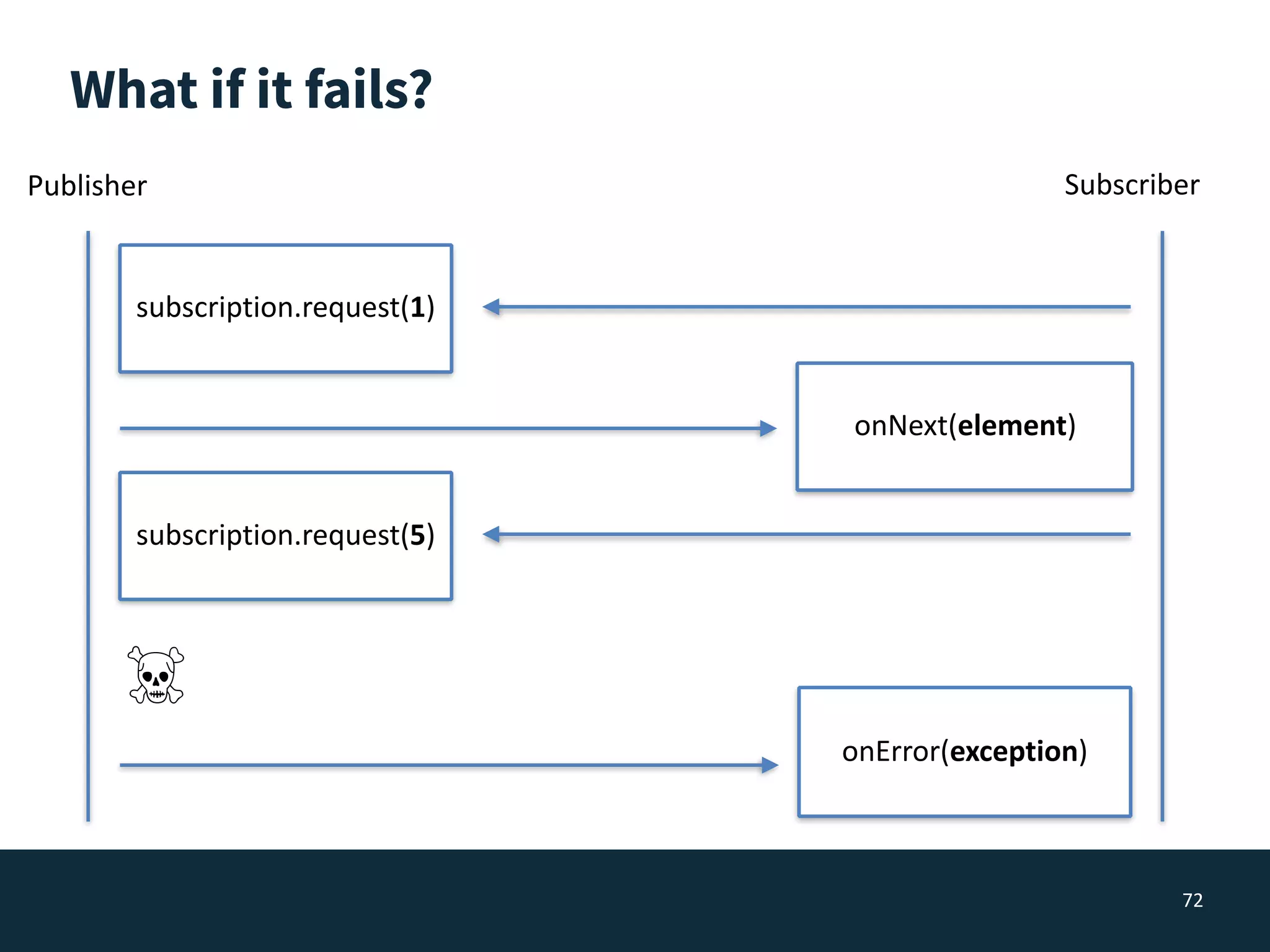

What if it fails?
72
SubscriberPublisher
onNext(element)
onError(exception)
☠

73
Try Akka Streams: (1.0) 
https://github.com/typesafehub/activator-akka-stream-scala
References
Reactive Streams for JVM 
https://github.com/reactive-streams/reactive-streams-jvm
