1. Akka Streams & HTTP
Dr. Roland Kuhn
@rolandkuhn — Akka Tech Lead

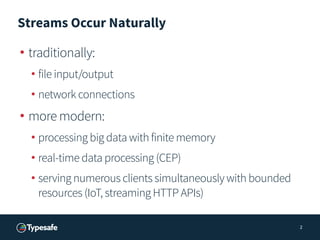

2. Streams Occur Naturally
• traditionally:
• file input/output
• network connections
• more modern:
• processing big data with finite memory
• real-time data processing (CEP)
• serving numerous clients simultaneously with bounded
resources (IoT, streaming HTTP APIs)
2

3. 3
What is a Stream?
• ephemeral, time-dependent sequence of elements
• possibly unbounded in length
• therefore focusing on transformations
«You cannot step twice into the same stream.
For as you are stepping in, other waters are ever
flowing on to you.» — Heraclitus

4. Reactive Traits
4

5. Reactive means Message Flow
5

6. Reactive means Message Flow
6
37% discount
with code
kuhnco

7. Distributed vs. Static Typing
• in general a very tough problem
• independent entities evolving concurrently
• promising progress on Project Gålbma
• in many specific cases no type evolution necessary
• letting uniform messages flow in safe conduits
• making streams even more interesting
7

8. Possible Solutions
• the Traditional way: blocking calls
8

9. Possible Solutions
• the Push way: buffering and/or dropping
(optimized for fast consumer)
9

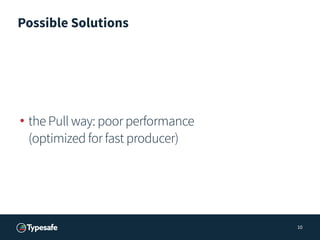

10. Possible Solutions
• the Pull way: poor performance
(optimized for fast producer)
10

11. Possible Solutions
• the Reactive way:
non-blocking & non-dropping & bounded
11

12. Reactive Streams

13. Origin and motivation
• all participants face the same basic problem
• all are building tools for their community
• a common solution benefits everybody
• interoperability to make best use of efforts
• propose to include in future JDK
13

14. Goals
• minimal interfaces—essentials only
• rigorous specification of semantics
• TCK for verification of implementation
• complete freedom for many idiomatic APIs
• specification should be efficiently implementable
14

15. Reactive Streams
• asynchronous & non-blocking
• flow of data
• flow of demand
• minimal coordination and contention
• message passing allows for distribution across
• applications, nodes, CPUs, threads, actors
15

16. A Data Market using Supply & Demand
• data elements flow downstream
• demand flows upstream
• data elements flow only when there is demand
• data in flight is bounded by signaled demand
• recipient is in control of maximal incoming data rate
16
Publisher Subscriber
data
demand

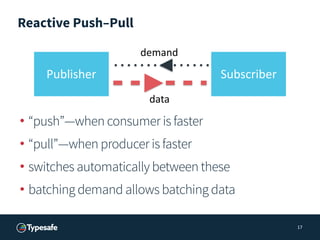

17. Reactive Push–Pull
• “push”—when consumer is faster
• “pull”—when producer is faster
• switches automatically between these
• batching demand allows batching data
17
Publisher Subscriber
data
demand

18. Explicit Demand: One-to-many
18
demand
data
Splitting the data means merging the demand

19. Explicit Demand: Many-to-one
19
Merging the data means splitting the demand

20. Back-Pressure is Contagious
• C is slow
• B must slow down
• A must slow down
20
CA B

21. • TCP for example has it built-in
Back-Pressure can be Propagated
21
CA B
networkhosts

22. The Meat
22
trait Publisher[T] {
def subscribe(sub: Subscriber[T]): Unit
}
trait Subscription {
def request(n: Long): Unit
def cancel(): Unit
}
trait Subscriber[T] {
def onSubscribe(s: Subscription): Unit
def onNext(e: T): Unit
def onError(t: Throwable): Unit
def onComplete(): Unit
}
Not user-level API
Intended as SPI for interop

23. Akka Streams

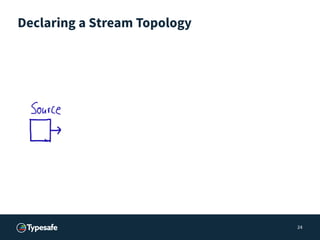

24. Declaring a Stream Topology
24

25. Declaring a Stream Topology
25

26. Declaring a Stream Topology
26

27. Declaring a Stream Topology
27

28. Declaring a Stream Topology
28

29. Declaring a Stream Topology
29

30. Declaring a Stream Topology
30

31. API Design
• goals:
• no magic
• supreme compositionality
• exhaustive model of bounded stream processing
• consequences:
• immutable and reusable stream blueprints
• explicit materialization step
31
http://doc.akka.io/docs/akka-stream-and-http-experimental/1.0-M2/stream-design.html

32. Declaring and Running a Stream
32
val upper = Source(Iterator from 0).take(10)
val lower = Source(1.second, 1.second, () => Tick)
val source = Source[(Int, Tick)]() { implicit b =>
val zip = Zip[Int, Tick]
val out = UndefinedSink[(Int, Tick)]
upper ~> zip.left ~> out
lower ~> zip.right
out
}
val flow = Flow[(Int, Tick)].map{ case (x, _) => s"tick $x" }
val sink = Sink.foreach(println)
val future = source.connect(flow).runWith(sink)

33. Declaring and Running a Stream
33
val upper = Source(Iterator from 0).take(10)
val lower = Source(1.second, 1.second, () => Tick)
val source = Source[(Int, Tick)]() { implicit b =>
val zip = Zip[Int, Tick]
val out = UndefinedSink[(Int, Tick)]
upper ~> zip.left ~> out
lower ~> zip.right
out
}
val flow = Flow[(Int, Tick)].map{ case (x, _) => s"tick $x" }
val sink = Sink.foreach(println)
val future = source.connect(flow).runWith(sink)

34. Declaring and Running a Stream
34
val upper = Source(Iterator from 0).take(10)
val lower = Source(1.second, 1.second, () => Tick)
val source = Source[(Int, Tick)]() { implicit b =>
val zip = Zip[Int, Tick]
val out = UndefinedSink[(Int, Tick)]
upper ~> zip.left ~> out
lower ~> zip.right
out
}
val flow = Flow[(Int, Tick)].map{ case (x, _) => s"tick $x" }
val sink = Sink.foreach(println)
val future = source.connect(flow).runWith(sink)

35. Materialization
• Akka Streams separate the what from the how
• declarative Source/Flow/Sink DSL to create blueprint
• FlowMaterializer turns this into running Actors
• this allows alternative materialization strategies
• optimization
• verification / validation
• cluster deployment
• only Akka Actors for now, but more to come!
35

36. Stream Sources
• org.reactivestreams.Publisher[T]
• org.reactivestreams.Subscriber[T]
• Iterator[T] / Iterable[T]
• Code block (function that produces Option[T])
• scala.concurrent.Future[T]
• TickSource
• ActorPublisher
• singleton / empty / failed
• … plus write your own (fully extensible)
36

37. Stream Sinks
• org.reactivestreams.Publisher[T]
• org.reactivestreams.Subscriber[T]
• ActorSubscriber
• scala.concurrent.Future[T]
• blackhole / foreach / fold / onComplete
• … or create your own
37

38. Linear Stream Transformations
• Deterministic (like for collections)
• map, filter, collect, grouped, drop, take, groupBy, …
• Time-Based
• takeWithin, dropWithin, groupedWithin, …
• Rate-Detached
• expand, conflate, buffer, …
• asynchronous
• mapAsync, mapAsyncUnordered, flatten, …
38

39. Nonlinear Stream Transformations
• Fan-In
• merge, concat, zip, …
• Fan-Out
• broadcast, route, balance, unzip, …
39

40. Akka HTTP

41. Why do we add an HTTP module?
• Akka is about building distributed applications
• distribution implies integration
• between internal (sub)systems
➜ akka-clusterbasedonakka-remote
• with external systems
➜ akka-http(linguafrancaoftheinternet)
41

42. Akka HTTP—The Origins: Spray.IO
• Fully embeddable HTTP stack based on Actors
• focused on HTTP integration (toolkit)
• server- and client-side
• seamlessly integrated with Akka
42

43. Spray.IO Features
• immutable, case class-based HTTP model
• fast, lightweight HTTP client and server
• powerful DSL for server-side API definition
• fully async & non-blocking, actor-friendly,
modular, testable
• based entirely on Scala & Akka Actors
43

44. Spray.IO Weaknesses
• handling of chunked requests is clunky, incomplete
• dealing with large message entities can be difficult
• some unintuitive corner-cases in routing DSL
• deep implicit argument chains in some cases hard
to debug
• missing features, foremost websocket support
44

45. Proxying Large Responses
45

46. Akka HTTP is Spray 2.0
• addressing the weaknesses, polishing the features
• Java API
• simplified module structure
• core improvement: fully stream-based
46

47. HTTP Stream Topology
47

48. The Application Stack
48
O/S-level network stack
Java NIO (JDK)
Akka IO
Akka HTTP Core
Akka HTTP
user-
level

49. Akka IO
• bridges Java NIO with Akka Actors or streams
• supports TCP, UDP and SSL
49

50. Akka HTTP Core
• implements HTTP/1.1 according to the RFCs
• based upon the TCP facilities of Akka IO
• exposed as freely reusable stream transformations
• low-level and extensible implementation of
HTTP model and spec
50

51. A Quick View of the HTTP Model
51
case class HttpRequest(
method: HttpMethod = HttpMethods.GET,
uri: Uri = Uri./,
headers: immutable.Seq[HttpHeader] = Nil,
entity: RequestEntity = HttpEntity.Empty,
protocol: HttpProtocol = HttpProtocols.`HTTP/1.1`
) extends HttpMessage
case class HttpResponse(
status: StatusCode = StatusCodes.OK,
headers: immutable.Seq[HttpHeader] = Nil,
entity: ResponseEntity = HttpEntity.Empty,
protocol: HttpProtocol = HttpProtocols.`HTTP/1.1`
) extends HttpMessage

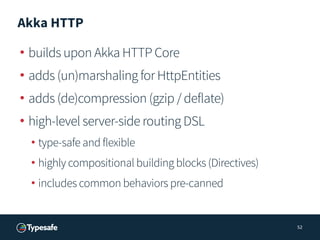

52. Akka HTTP
• builds upon Akka HTTP Core
• adds (un)marshaling for HttpEntities
• adds (de)compression (gzip / deflate)
• high-level server-side routing DSL
• type-safe and flexible
• highly compositional building blocks (Directives)
• includes common behaviors pre-canned
52

53. Stream Pipelines
53
TCP SSL HTTP App
Requests
Responses
optional
(not yet)

54. A Simple Server Example
54
import Directives._
val binding = Http().bind("localhost", 8080)
binding startHandlingWith {
path("order" / HexIntNumber) { id =>
get {
complete(s"Received GET for order $id")
} ~
put {
complete((actor ? Put(id)).mapTo[String])
}
}
}

55. Summary

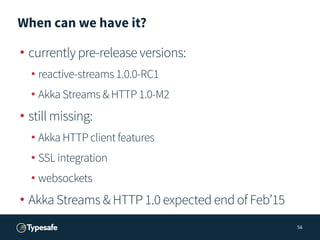

56. When can we have it?
• currently pre-release versions:
• reactive-streams 1.0.0-RC1
• Akka Streams & HTTP 1.0-M2
• still missing:
• Akka HTTP client features
• SSL integration
• websockets
• Akka Streams & HTTP 1.0 expected end of Feb’15
56

57. Resources
• https://github.com/akka/akka/tree/release-2.3-dev
• http://doc.akka.io/docs/akka-stream-and-http-
experimental/1.0-M2/
• akka-user mailing list
57
