safety in airport ramp areas

1. Awareness Training
Ramp Safety
The national airline of the Maldives

2. Welcome to your guide to ramp
safety
2

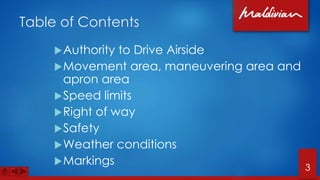

3. Table of Contents
Authority to Drive Airside
Movement area, maneuvering area and
apron area
Speed limits
Right of way
Safety
Weather conditions
Markings 3

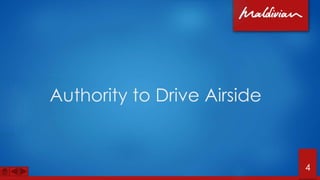

4. Authority to Drive Airside
4

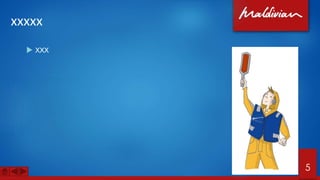

5. xxxxx
 xxx
5

6. Movement area,
maneuvering area and
apron are
6

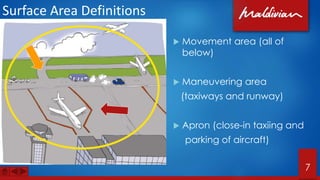

7. Surface Area Definitions
7
 Movement area (all of
below)
 Maneuvering area
(taxiways and runway)
 Apron (close-in taxiing and
parking of aircraft)

8. Maneuvering Area
It is forbidden to
drive on the
maneuvering
area (runway
and taxiways)
8

9. Speed Limits
9

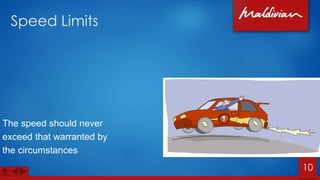

10. Speed Limits
10
The speed should never
exceed that warranted by
the circumstances

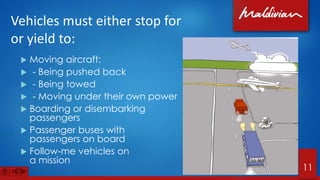

11. Vehicles must either stop for
or yield to:
 Moving aircraft:
 - Being pushed back
 - Being towed
 - Moving under their own power
 Boarding or disembarking
passengers
 Passenger buses with
passengers on board
 Follow-me vehicles on
a mission
11

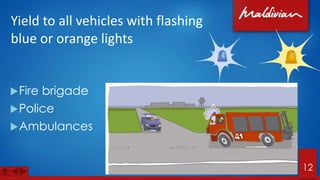

12. Yield to all vehicles with flashing
blue or orange lights
Fire brigade
Police
Ambulances
12

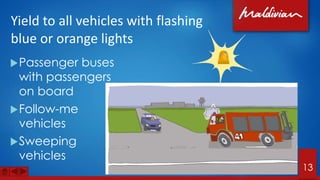

13. Yield to all vehicles with flashing
blue or orange lights
Passenger buses
with passengers
on board
Follow-me
vehicles
Sweeping
vehicles
13

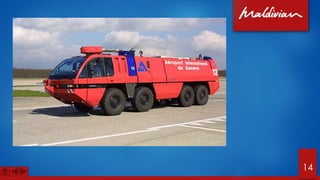

14. 14

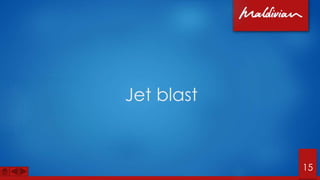

15. Jet blast
15

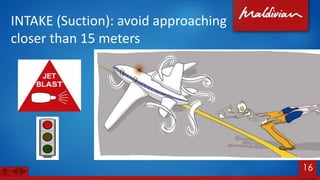

16. INTAKE (Suction): avoid approaching
closer than 15 meters
16

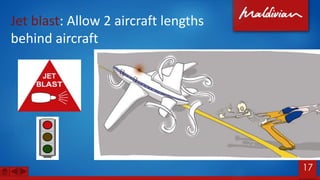

17. Jet blast: Allow 2 aircraft lengths
behind aircraft
17

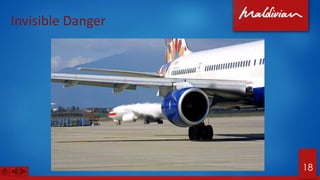

18. Invisible Danger
18

19. Running Engines
19

20. ANTI-COLLISION LIGHTS SWITCHED ON
INDICATE:
= Engines running or imminent start-up
= Imminent push-back
20

21. TAXI LIGHTS (HEADLIGHTS) SWITCHED ON
INDICATE:
= Moving aircraft
21

22. Propellers
22

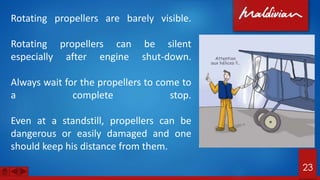

23. Rotating propellers are barely visible.
Rotating propellers can be silent
especially after engine shut-down.
Always wait for the propellers to come to
a complete stop.
Even at a standstill, propellers can be
dangerous or easily damaged and one
should keep his distance from them.
23

24. Follow-me Vehicles
24

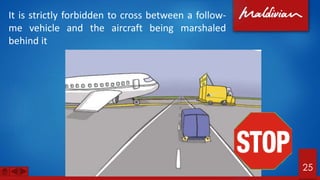

25. It is strictly forbidden to cross between a follow-
me vehicle and the aircraft being marshaled
behind it
25

26. It is strictly forbidden to cross between a follow-
me vehicle and the aircraft being marshaled
behind it
26

27. Smoking
27

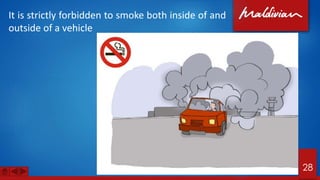

28. It is strictly forbidden to smoke both inside of and
outside of a vehicle
28

29. Alcohol and Drugs
29

30. Alcohol and Drugs
30

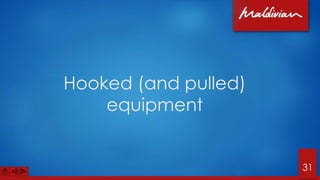

31. Hooked (and pulled)
equipment
31

32. Do not exceed a
train length of 10
units
Load carts and
dollies properly
and tie down the
load
Keep on eye the
load
32

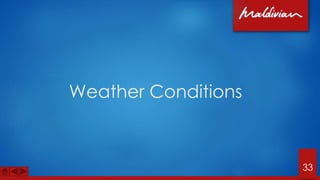

33. Weather Conditions
33

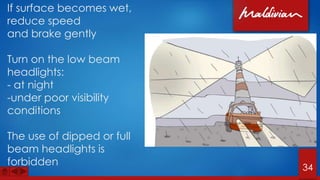

34. If surface becomes wet,
reduce speed
and brake gently
Turn on the low beam
headlights:
- at night
-under poor visibility
conditions
The use of dipped or full
beam headlights is
forbidden
34

35. Ramp Markings
35

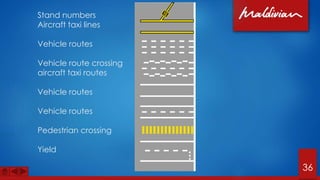

36. 36
Stand numbers
Aircraft taxi lines
Vehicle routes
Vehicle route crossing
aircraft taxi routes
Vehicle routes
Vehicle routes
Pedestrian crossing
Yield

37. 37
STOP
STRIP (for aircraft)
Jetty maneuvering
area
Aircraft safety envelope
Fuel
Aircraft energy source

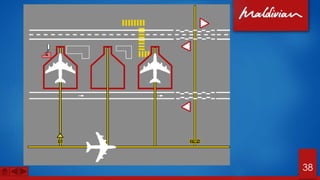

38. 38

39. 39

40. 40

41. 41

42. 42

43. 43
Thank you for your attention
