Radio Equipment Directive
The document outlines the process for placing radio equipment on the European market in compliance with the Radio Equipment Directive. The key steps include: determining requirements, performing tests according to relevant standards, performing a conformity assessment, identifying an appropriate standard, generating a Declaration of Conformity, applying the CE mark, placing the equipment on the market, and maintaining compliance. The process requires manufacturers to self-declare that their radio equipment meets all essential requirements for health, safety, electromagnetic compatibility and spectrum use.
More Related Content
Similar to Radio Equipment Directive
Radio Equipment Directive
- 1. Radio Equipment Directive DrSimon Hindle Manager – Radio Applications Engineering
- 3. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 4. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 5. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 6. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 7. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 8. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

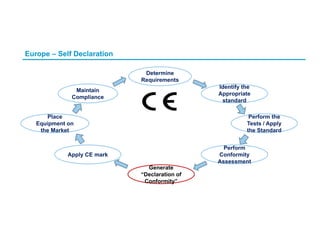

- 9. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 10. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 11. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

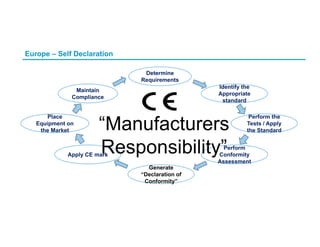

- 12. Europe – SelfDeclaration Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance “Manufacturers Responsibility”

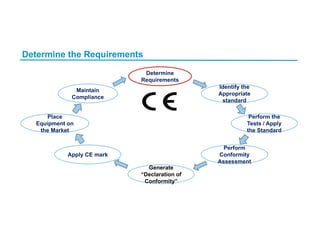

- 15. Determine the Requirements Determine Requirements Generate “Declarationof Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

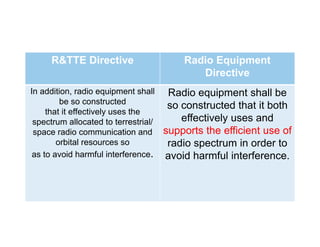

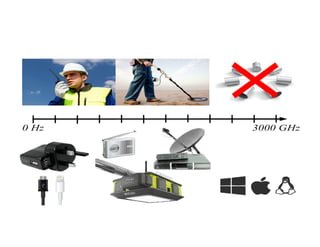

- 18. R&TTE Directive RadioEquipment Directive In addition, radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/ space radio communication and orbital resources so as to avoid harmful interference. Radio equipment shall be so constructed that it both effectively uses and supports the efficient use of radio spectrum in order to avoid harmful interference.
- 19. R&TTE Directive RadioEquipment Directive In addition, radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/ space radio communication and orbital resources so as to avoid harmful interference. Radio equipment shall be so constructed that it both effectively uses and supports the efficient use of radio spectrum in order to avoid harmful interference.
- 20. Article Essential Requirement 3.1a Safetyof Electrical Equipment the protection of health and safety of persons and of domestic animals and the protection of property, including the objectives with respect to safety requirements set out in Directive 2014/35/EU, but with no voltage limit applying; 3.1b EMC an adequate level of electromagnetic compatibility as set out in Directive 2014/30/EU. 3.2 Radio Radio equipment shall be so constructed that it both effectively uses and supports the efficient use of radio spectrum in order to avoid harmful interference. 3.3 Common Chargers … Software (Compliance)
- 21. Risk The RED isa 45 page document – How many times does the word risk appear?
- 23. Manufacturer Authorised Representative Importer Distributor Conformity Assessment Performed Y(10.1) X Check Check Compile Technical Documentation Y(10.3) X X X DoC Y Mandate X X Instructions Y (10.8) Mandate Y Check Marking Y(10.6/10.7) Mandate Importer Details Check Restrictions Y Mandate Corrective Y Y Y Y Hold Documentation Y(10.4) Y Y Market Surveillance Y Y Y Y Responsibility Process

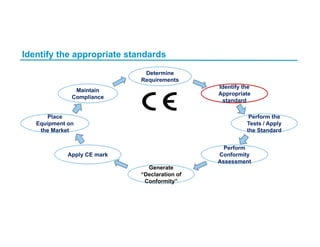

- 24. Identify the appropriatestandards Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 25. Latest Guidance -EG 203 367
- 26.

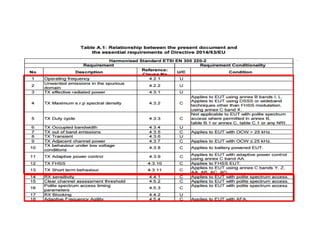

- 27. Radio Test Suite Extractfrom a radio test suite
- 28. What is aradio module ?… RF Chipset Micro- Controller Voltage Regulator Chip Antenna Matching Network External Antenna Connector Buffered I/O Pins Oscillator Can / Shield (not shown)

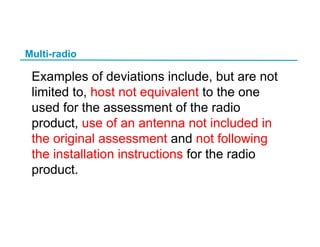

- 29. Multi-radio Examples of deviationsinclude, but are not limited to, host not equivalent to the one used for the assessment of the radio product, use of an antenna not included in the original assessment and not following the installation instructions for the radio product.

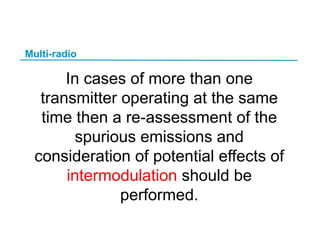

- 30. Multi-radio In cases ofmore than one transmitter operating at the same time then a re-assessment of the spurious emissions and consideration of potential effects of intermodulation should be performed.
- 31.
- 32. Concept of PrimaryProduct Standard

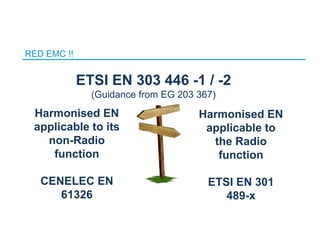

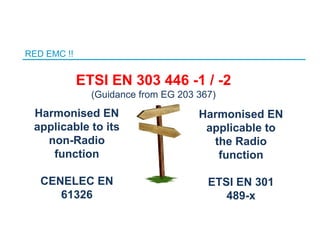

- 33. RED EMC !! ETSIEN 303 446 -1 / -2 (Guidance from EG 203 367) Harmonised EN applicable to the Radio function ETSI EN 301 489-x Harmonised EN applicable to its non-Radio function CENELEC EN 61326
- 34. RED EMC !! ETSIEN 303 446 -1 / -2 (Guidance from EG 203 367) Harmonised EN applicable to the Radio function ETSI EN 301 489-x Harmonised EN applicable to its non-Radio function CENELEC EN 61326

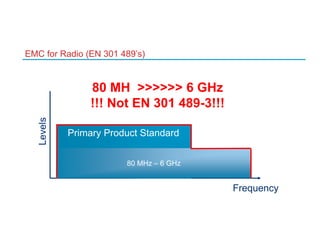

- 35. EMC for Radio(EN 301 489’s) Primary Product Standard 80 MHz – 1 GHz Levels Frequency 1.4 – 2.7 GHZ80 MHz – 6 GHz 80 MH >>>>>> 6 GHz !!! Not EN 301 489-3!!!

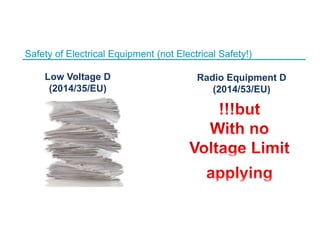

- 36. Safety of ElectricalEquipment (not Electrical Safety!) Low Voltage D (2014/35/EU) Radio Equipment D (2014/53/EU)
- 37. Perform an Assessment Determine Requirements Generate “Declarationof Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 38.

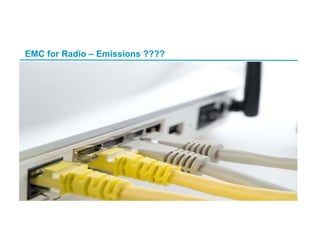

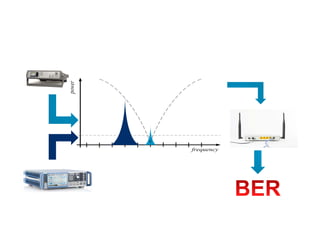

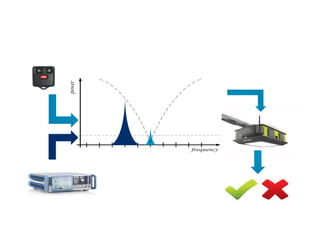

- 48. EMC for Radio– Emissions ????

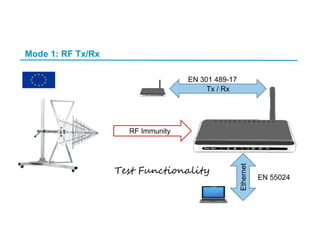

- 49. Mode 1: RFTx/Rx RF Immunity Ethernet Tx / Rx EN 301 489-17 EN 55024 Test Functionality
- 50. Mode 1: RFTx/Rx RF Immunity Measurement Tx / Rx EN 301 489-17 EN 61326CE + CE = CE
- 51. Mode 2: RFIdle/Standby RF Immunity Listen for RF emissions (using spectrum analyser)
- 52. Safety Tests: Dynamicand Documentation

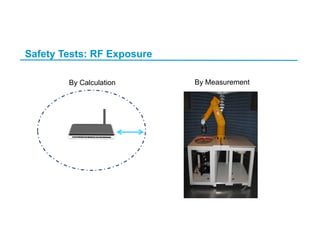

- 53. Safety Tests: RFExposure By Calculation By Measurement

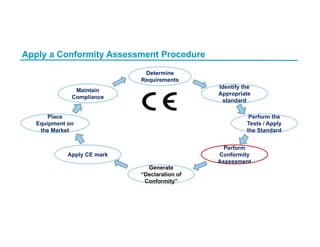

- 54. Apply a ConformityAssessment Procedure Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

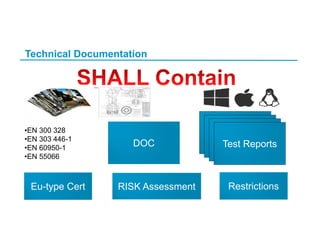

- 55. Technical Documentation •EN 300328 •EN 303 446-1 •EN 60950-1 •EN 55066 DOC Test ReportsTest ReportsTest ReportsTest Reports Eu-type Cert RestrictionsRISK Assessment

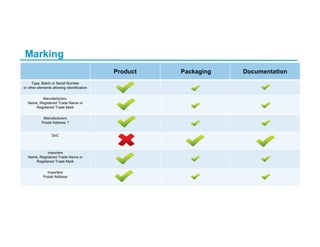

- 56. Marking Product Packaging Documentation Type,Batch or Serial Number or other elements allowing identification Manufacturers: Name, Registered Trade Name or Registered Trade Mark Manufacturers Postal Address ? DoC Importers Name, Registered Trade Name or Registered Trade Mark Importers Postal Address

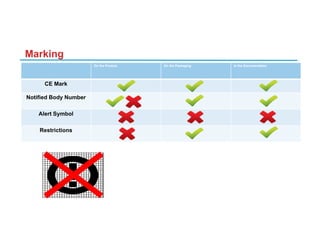

- 57. Marking On the ProductOn the Packaging In the Documentation CE Mark Notified Body Number Alert Symbol Restrictions
- 58.
- 59. Labelling Manufacturer Name Registered TradeName or Mark Serial Number Postal Address 1234 Manufactured by ACME Corp 1 Mount Pleasant Delhi ACME Widget S/N 1234ABCD Imported by Fred Blogs & CO 10 Downing Street London Hereby, ACME Corp declares that the radio equipment type non-specific SRD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: DoC: www.acmecorp.com/widget Note – The DoC statement does not have to appear on the label, but a copy of DoC must accompany the product, either Full of Simplified format is acceptable (Article 10.9) Note – The identification number of the notified body shall have the same height as the CE marking.

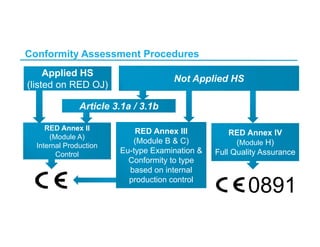

- 60. Conformity Assessment Procedures AppliedHS (listed on RED OJ) Not Applied HS RED Annex III (Module B & C) Eu-type Examination & Conformity to type based on internal production control RED Annex IV (Module H) Full Quality Assurance RED Annex II (Module A) Internal Production Control Article 3.1a / 3.1b 0891

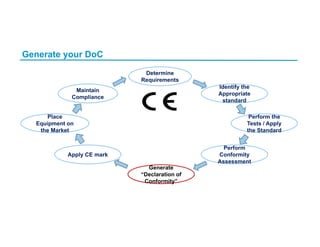

- 61. Generate your DoC Determine Requirements Generate “Declarationof Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

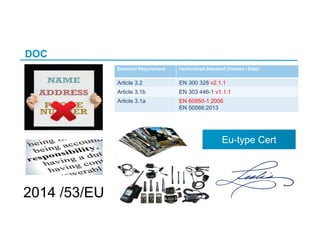

- 62. DOC Eu-type Cert Essential RequirementHarmonised Standard (Version / Date) Article 3.2 EN 300 328 v2.1.1 Article 3.1b EN 303 446-1 v1.1.1 Article 3.1a EN 60950-1:2006 EN 50566:2013 2014 /53/EU

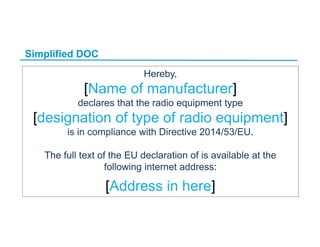

- 63. Simplified DOC Hereby, [Name ofmanufacturer] declares that the radio equipment type [designation of type of radio equipment] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of is available at the following internet address: [Address in here]
- 64. Mark the productand get it on the market. Determine Requirements Generate “Declaration of Conformity” Perform the Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance

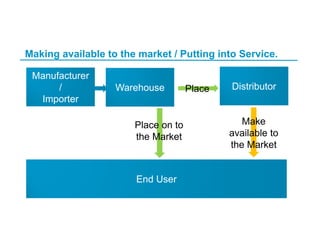

- 65. Making available tothe market / Putting into Service. Manufacturer / Importer DistributorWarehouse End User Place Place on to the Market Make available to the Market

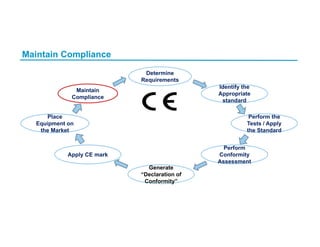

- 66. Maintain Compliance Determine Requirements Generate “Declaration of Conformity” Performthe Tests / Apply the Standard Perform Conformity Assessment Identify the Appropriate standard Apply CE mark Place Equipment on the Market Maintain Compliance
- 67. Notified Body Relationship Changesto Product Changes to Regulatory Requirement

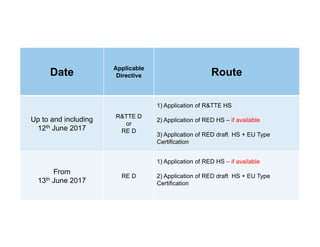

- 68. Date Applicable Directive Route Up toand including 12th June 2017 R&TTE D or RE D 1) Application of R&TTE HS 2) Application of RED HS – if available 3) Application of RED draft HS + EU Type Certification From 13th June 2017 RE D 1) Application of RED HS – if available 2) Application of RED draft HS + EU Type Certification
