This document summarizes a workshop on establishing a type approval laboratory. The workshop covered regulatory frameworks, test methodologies, and concepts for assessing conformity. Participants included regulators, standardization bodies, and network operators. Presentations were given on topics like safety, EMC, fixed and mobile networks. Breakout groups discussed the scope of equipment and standards for type approval. It was agreed to start with an independent testing facility and take a phased approach focused initially on essential requirements for user equipment and receivers. Establishing adequate normative frameworks and enforcement was identified as important to address issues like counterfeit devices.
Dr. Simon Hindle, Manager of Radio Applications Engineering at Element Materials Technology, covers the most recent updates with the Radio Equipment Directive, or RED. Learn more at http://www.nwemc.com/news/2016/12/09/rtte-vs-the-radio-equipment-directive-red
When you want to export your product in Korea, you need to get KC certification.
Here is the my company profile.
Our company provide the testing & certification services for electrical & electronic products.
As a KOLAS designated laboratory, we will best service for you to make your profit.
Accredited testing laboratory according to the harmonized standards for areas: EMC, radio equipment, low voltage directive, environmental testing, gas appliances directive and IP & IK testing.
Dr. Simon Hindle, Manager of Radio Applications Engineering at Element Materials Technology, covers the most recent updates with the Radio Equipment Directive, or RED. Learn more at http://www.nwemc.com/news/2016/12/09/rtte-vs-the-radio-equipment-directive-red
When you want to export your product in Korea, you need to get KC certification.
Here is the my company profile.
Our company provide the testing & certification services for electrical & electronic products.
As a KOLAS designated laboratory, we will best service for you to make your profit.
Accredited testing laboratory according to the harmonized standards for areas: EMC, radio equipment, low voltage directive, environmental testing, gas appliances directive and IP & IK testing.
TestEquipment is a leading company of Iran. They are the distributor of test equipment used in telecommunication industry and IT. They are Exclusive dealer of Fluke Networks and Anritsu, Spirent, Rhode & Schwarz, Empirix, JDSU, EXFO, Agilent Technologies.
They provide and supply all types of equipment that used in testing. They deals in product like IP Network testing, signals analysis, sources, generators, radio network, fiber network etc...
Who needs a CE mark and how do I get one? It is EU law that every product that enters the European Union meet the CE Directives and applicable Standards. This mark can only be applied to your product when you have fully complied with all relevant Directives and Standards for the type of system you are marketing and and a Declaration of Conformity has been developed.
It is particularity relevant to people responsible for the design and installation of PROFIBUS and PROFINET networks as outlined in the PI Guidelines on Earthing and Bonding of PROFIBUS and PROFINET Networks.
Also for those who want an awareness of the often misunderstood topic of EMC in industrial automation.
싸이퍼랩 RS30은 안드로이드 4.4를 지원하는 안드로이드 PDA로 1.3GHz Cortex Quad Core CPU를 채택한 기업용 모바일 컴퓨터로서 기존의 스마트폰 사용자 환경에 친숙한 유저 인터페이스를 제공하고, 기업의 업무환경에 적합하도록 견고성 및 NFC, 바코드스캔, 무선통신등 다양한 기능을 제공합니다.
유통 및 물류 산업분야 사용에 적합하게 설계되었으며, TCO(총소유비용)를 낮추어주는 경제적인 솔루션입니다.
최신 최고 사양
최신 CPU(쿼드코어 1.3Ghz), 높은 메모리용량(8Gb Flash/1Gb RAM) 및 견고한 디스플레이 (4.4인치 고릴라 글래스 3)를 채택한 최신 사양의 안드로이드 디바이스입니다.
스마트폰 사용자에 익숙한 환경
기존 스마트폰과 유사한 UI제공 및 안드로이드(버전4.4)에서 운용되는 모든 어플리케이션을 수정 없이 사용가능합니다.
기업용 환경에 적합한 견고성 제공
일반 스마트폰에 비해 IP54 방수방진 및 1.5m 낙하 충격에도 견딜수 있는 견고성 제공으로 유통, 물류, 창고등의 업무에 적합합니다.
다양한 통신기능
기업 업무에 필요한 무선랜(802.11b/g/n), 3G 통신(HSDPA), 블루투스등을 지원합니다.
다양한 데이타 취득 기능
다양한 바코드 리더(1D CCD, 1D Laser, 2D Imager) 및 NFC기능을 제공하여 다양한 종류의 바코드 인식 및 NFC를 활용한 RFID 어플리케이션을 구현할수 있습니다.
AppLock 기능
RS30 화면의 복잡한 메뉴를 사용자가 필요로하는 메뉴만 화면에 표시가능하여 기기의 화면을 단순하게 유지하여 우연한 사용자 실수를 사전에 방지합니다.
다양한 기기 관리툴 제공
다수의 기기를 제어 및 관리할수 있는 소프트웨어(SOTI) 및 어플리케이션 개발을 지원하는 툴(KALIPSO Mobile Application Generator)을 제공하여 사용자 효율성 및 관리자의 업무 용이성을 높여줍니다.
4.7인치 민감한 터치 패털
0.2mm 두께의 라텍스 장갑 사용가능
PLATFORM, PROCESSOR & MEMORY
Operating System & CPU
OS Version : Android 4.4.2
CPU : Cortex 1.3 GHz Quad-Core Processor
Memory
ROM : 8GB eMMC
RAM : 1GB LPDDR2 RAM
Expansion Slot :
One microSDHC card slot (up to 32GB)
SDXC supported
COMMUNICATION & DATA CAPTURE
Communication
USB Client : USB 2.0 OTG
WPAN : Bluetooth Class II, v4.0 and v2.1+EDR
WLAN : IEEE 802.11b/g/n networking
WWAN :
Built-in module for Quadband HSPA+/GSM
GSM/GPRS/EDGE/WCDMA/UMTS/HSDPA/HSUPA/HSPA+
Frequency band:
GSM/GPRS/EDGE: 850/900/1800/1900
WCDMA/UMTS/HSDPA/HSUPA: 850/900/1900/2100
HSPA+: 14.4 Mbps/5.76 Mbps
Built-in GPS with AGPS support, ephemeris downloadable
Data & Image Capture
Digital Camera : 8 Mega pixels with user-controllable flash
Barcode Reader : Ordering options include Linear Imager (SM1), 1D Laser (SE955), 2D Imager(SE4500)
HF RFID Reader :
ISO14443A/B (Mifare), ISO15693 (Felica)
Supports NFC (Peer-to-peer, Card reader, Card emulation)
ELECTRICAL CHARACTERISTICS
Batteries
Main Battery Pack :
Rechargeable Li-ion battery: 3.7V, 2500 mAh
Charging time: 4 hours
Backup Battery :
Rechargeable Li-ion battery: 3.7V, 70 mAh
Data retention for 30 minutes
Charging time: 4 hours
Power Adaptor
Power Supply Cord with :
Input AC 100~240 V, 50/60 Hz
Universal Power Adaptor :
Output DC 5V, 2A
Working Time
Supports working time for up to 8-10 hours.
PROGRAMMING SUPPORT
Development Environment & Tools
Integrated Environment : Development Visual Studio 2008, Visual Studio 2005
Software Development Kit :
Microsoft SDK
System API (DLL) for system configuration
Reader API (DLL) for reader configuration
Software & Utilities
CipherLab Software Package : Reader Configuration
Third-party Software : Kalipso
ACCESSORIES
Accessory Options :
Hardshell
Charging Cradle
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Wireless Telecom professional having 12+ years in Radio System profile having experience of Technology support to Product Development ( RF) and Customer by System Integration (ToT) with Radio Protocol / Product Testing ( RAN ) to achieve Quality & Company’s objectives.
Isolation is an integral part of many modern applications from medical to instrumentation to industrial. Most applications require the designer to integrate isolation in the design while improving performance, saving board space, increasing reliability levels, reducing power consumption, and, of course, cutting cost. This session provides an understanding of various isolator technologies, and offers suggestions on how to address such stringent design objectives.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
TestEquipment is a leading company of Iran. They are the distributor of test equipment used in telecommunication industry and IT. They are Exclusive dealer of Fluke Networks and Anritsu, Spirent, Rhode & Schwarz, Empirix, JDSU, EXFO, Agilent Technologies.
They provide and supply all types of equipment that used in testing. They deals in product like IP Network testing, signals analysis, sources, generators, radio network, fiber network etc...
Who needs a CE mark and how do I get one? It is EU law that every product that enters the European Union meet the CE Directives and applicable Standards. This mark can only be applied to your product when you have fully complied with all relevant Directives and Standards for the type of system you are marketing and and a Declaration of Conformity has been developed.
It is particularity relevant to people responsible for the design and installation of PROFIBUS and PROFINET networks as outlined in the PI Guidelines on Earthing and Bonding of PROFIBUS and PROFINET Networks.
Also for those who want an awareness of the often misunderstood topic of EMC in industrial automation.
싸이퍼랩 RS30은 안드로이드 4.4를 지원하는 안드로이드 PDA로 1.3GHz Cortex Quad Core CPU를 채택한 기업용 모바일 컴퓨터로서 기존의 스마트폰 사용자 환경에 친숙한 유저 인터페이스를 제공하고, 기업의 업무환경에 적합하도록 견고성 및 NFC, 바코드스캔, 무선통신등 다양한 기능을 제공합니다.
유통 및 물류 산업분야 사용에 적합하게 설계되었으며, TCO(총소유비용)를 낮추어주는 경제적인 솔루션입니다.
최신 최고 사양
최신 CPU(쿼드코어 1.3Ghz), 높은 메모리용량(8Gb Flash/1Gb RAM) 및 견고한 디스플레이 (4.4인치 고릴라 글래스 3)를 채택한 최신 사양의 안드로이드 디바이스입니다.
스마트폰 사용자에 익숙한 환경
기존 스마트폰과 유사한 UI제공 및 안드로이드(버전4.4)에서 운용되는 모든 어플리케이션을 수정 없이 사용가능합니다.
기업용 환경에 적합한 견고성 제공
일반 스마트폰에 비해 IP54 방수방진 및 1.5m 낙하 충격에도 견딜수 있는 견고성 제공으로 유통, 물류, 창고등의 업무에 적합합니다.
다양한 통신기능
기업 업무에 필요한 무선랜(802.11b/g/n), 3G 통신(HSDPA), 블루투스등을 지원합니다.
다양한 데이타 취득 기능
다양한 바코드 리더(1D CCD, 1D Laser, 2D Imager) 및 NFC기능을 제공하여 다양한 종류의 바코드 인식 및 NFC를 활용한 RFID 어플리케이션을 구현할수 있습니다.
AppLock 기능
RS30 화면의 복잡한 메뉴를 사용자가 필요로하는 메뉴만 화면에 표시가능하여 기기의 화면을 단순하게 유지하여 우연한 사용자 실수를 사전에 방지합니다.
다양한 기기 관리툴 제공
다수의 기기를 제어 및 관리할수 있는 소프트웨어(SOTI) 및 어플리케이션 개발을 지원하는 툴(KALIPSO Mobile Application Generator)을 제공하여 사용자 효율성 및 관리자의 업무 용이성을 높여줍니다.
4.7인치 민감한 터치 패털
0.2mm 두께의 라텍스 장갑 사용가능
PLATFORM, PROCESSOR & MEMORY
Operating System & CPU
OS Version : Android 4.4.2
CPU : Cortex 1.3 GHz Quad-Core Processor
Memory
ROM : 8GB eMMC
RAM : 1GB LPDDR2 RAM
Expansion Slot :
One microSDHC card slot (up to 32GB)
SDXC supported
COMMUNICATION & DATA CAPTURE
Communication
USB Client : USB 2.0 OTG
WPAN : Bluetooth Class II, v4.0 and v2.1+EDR
WLAN : IEEE 802.11b/g/n networking
WWAN :
Built-in module for Quadband HSPA+/GSM
GSM/GPRS/EDGE/WCDMA/UMTS/HSDPA/HSUPA/HSPA+
Frequency band:
GSM/GPRS/EDGE: 850/900/1800/1900
WCDMA/UMTS/HSDPA/HSUPA: 850/900/1900/2100
HSPA+: 14.4 Mbps/5.76 Mbps
Built-in GPS with AGPS support, ephemeris downloadable
Data & Image Capture
Digital Camera : 8 Mega pixels with user-controllable flash
Barcode Reader : Ordering options include Linear Imager (SM1), 1D Laser (SE955), 2D Imager(SE4500)
HF RFID Reader :
ISO14443A/B (Mifare), ISO15693 (Felica)
Supports NFC (Peer-to-peer, Card reader, Card emulation)
ELECTRICAL CHARACTERISTICS
Batteries
Main Battery Pack :
Rechargeable Li-ion battery: 3.7V, 2500 mAh
Charging time: 4 hours
Backup Battery :
Rechargeable Li-ion battery: 3.7V, 70 mAh
Data retention for 30 minutes
Charging time: 4 hours
Power Adaptor
Power Supply Cord with :
Input AC 100~240 V, 50/60 Hz
Universal Power Adaptor :
Output DC 5V, 2A
Working Time
Supports working time for up to 8-10 hours.
PROGRAMMING SUPPORT
Development Environment & Tools
Integrated Environment : Development Visual Studio 2008, Visual Studio 2005
Software Development Kit :
Microsoft SDK
System API (DLL) for system configuration
Reader API (DLL) for reader configuration
Software & Utilities
CipherLab Software Package : Reader Configuration
Third-party Software : Kalipso
ACCESSORIES
Accessory Options :
Hardshell
Charging Cradle
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Wireless Telecom professional having 12+ years in Radio System profile having experience of Technology support to Product Development ( RF) and Customer by System Integration (ToT) with Radio Protocol / Product Testing ( RAN ) to achieve Quality & Company’s objectives.
Isolation is an integral part of many modern applications from medical to instrumentation to industrial. Most applications require the designer to integrate isolation in the design while improving performance, saving board space, increasing reliability levels, reducing power consumption, and, of course, cutting cost. This session provides an understanding of various isolator technologies, and offers suggestions on how to address such stringent design objectives.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
2. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Scope of the Workshop
Normative, regulatory and standardization frameworks
Basic concepts of Type Approval Test Methodologies
Conformity Assessment Concepts & Requirements
Safety and EMC
Spectral Efficiency
Fixed Coommunications (Legacy & NGN) equipment
Mobile Communications equipment
Broadcasting services equipment
3. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Participation
Regulators (Tanzania, Kenya)
Standardisation Bodies (TBS)
Opearators
Sintesio Team - consisting of experts from the industry
(EMC, fixed networks, mobile networks, broadcasting),
specially selected for this particular project
4. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org

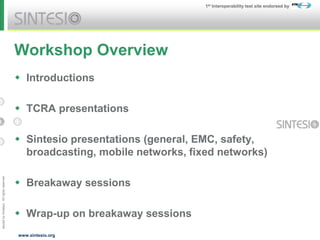

Workshop Overview
Introductions
TCRA presentations
Sintesio presentations (general, EMC, safety,
broadcasting, mobile networks, fixed networks)
Breakaway sessions
Wrap-up on breakaway sessions
5. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org

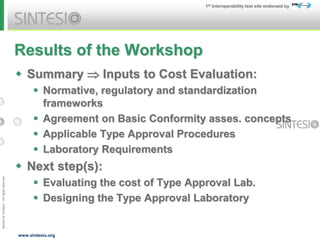

Results of the Workshop
Summary Inputs to Cost Evaluation:
Normative, regulatory and standardization
frameworks
Agreement on Basic Conformity asses. concepts
Applicable Type Approval Procedures
Laboratory Requirements
Next step(s):
Evaluating the cost of Type Approval Lab.
Designing the Type Approval Laboratory
6. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Current Status
Regulatory Framework well established
Type Approval in place
Testing limited at the most to field trials
Installation personell has to be certified
Vendors/ distributors have to be rgistered with the
authority
Problem of counterfeit, sub-standard mobile terminals
More normative framework still needed
More enforcement needed
7. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Type Approval is ...
Type approval is granted to a product that meets a
minimum set of regulatory, technical and safety
requirements.
Generally, type approval is required before a product is
allowed to be sold in a particular country, so the
requirements for a given product will vary around the
world.
8. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org

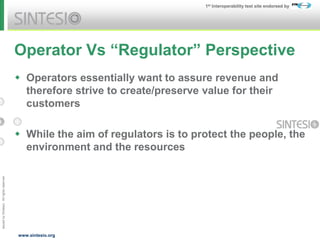

Operator Vs “Regulator” Perspective
Operators essentially want to assure revenue and
therefore strive to create/preserve value for their
customers
While the aim of regulators is to protect the people, the
environment and the resources
9. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Operators do
Performance measurement (KPIs, network element
counters, signalling monitoring)
Implementation / protocol conformance testing
field trial testing/ drive tests – real environment
interoperability testing
load testing
E2E testing
Sometimes have test plants / laboratories and are
better placed to conduct some tests
10. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Regulators/Governments Enforce
Essential requirements:
- Safety (LVD, SAR, radiated emissions)
- Electromagnetic Compatibility (emissions and
immunity)
- Efficient use of radiofrequency spectrum
Other
11. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Testing
Conformity
- To essential requirements
- Additional, e.g. interoperability, emergency …
Interoperability (Interconnection, interworking,
roaming, multiple vendor network)
- Not practical in type approval
- This is a real problem everybody faces
15. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Different Test & Measurement methods
Test methods Applicable for
Type Approval
Mean of Testing
(MoT)
Note
Conformance
testing
YES Laboratory ISO 9646 test methodology
Interoperability
Testing
CONDITIONAL Laboratory
/Network
ETSI recommendation
EG 202 237
Spectral
compatibility
YES Laboratory
/Network
Part of the
R&TTE 1999/05 directive
QoS
testing
NO Network Rec. ITU-T X.902
QoS
QoE
testing
NO Network Statistical methods,
e.g. Mean Opinion Score (MOS)
Acustic
measurement
CONDITIONAL Laboratory Rec. ITU-T P.64, P.79 and
ETSI EG 201 377-2
16. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Point of Reference: CE mark Approval
R&TTE Directive 1999/5/EC on radio and
telecommunications terminal equipment defines a
normative framework for CE mark approval and
represents a good example and a point of reference for
setting a type approval process on a national and
international level.
Low Voltage Directive (LVD) – Directive 2006/95/EC
Electro-Magnetic Compatibility (EMC) Directive – Directive
2004/108/EC
radio equipment shall be so constructed that it effectively
uses the spectrum allocated to terrestrial/space radio
communication
17. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
R&TTE Requirements
Essential
Requirements
Directive(s) Standards(s)
Presumption of
Conformance
Other(s)
Technical justification
Safety
EMC
Efficient use of RF Spectrum
Optional
3.1.a
3.1.b
3.2
3.3
R&TTE … Radio and Telecommunications Terminal Equipment
18. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Safety Standards
IEC 60065 for Household Audio/Video Equipment
IEC 60335 Household and similar electrical appliances
IEC 60601 Medical Electrical Equipment
IEC 60691 Thermal Links
IEC 60730 Automatic Electrical Controls
IEC 60745 Hand-held Electric Tools
IEC 60950 Information Technology Equipment
IEC 61010 Electrical Equipment for Measurement, Control and
Laboratory Use
IEC 61058 Switches for Appliances
IEC 61215 and IEC 61646 for Photovoltaic (PV) Modules
IEC 61965 for Cathode Ray Tubes
19. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Good practice
Low Voltage Directive (LVD) 2006/95/EC
http://ec.europa.eu/safety
Harmonized standard IEC/ETSI EN 60950
• Electric shock
• Energy hazards
• Fire
• Mechanical and heat hazards
• Radiation hazards
• Chemical hazards
• Electric strength
• Leakage current
• Resistance to fire
• Protection from electric shock
• Protection from energy hazards
• Physical and constructive requirements
and more then 400 pages in std. EN 60950

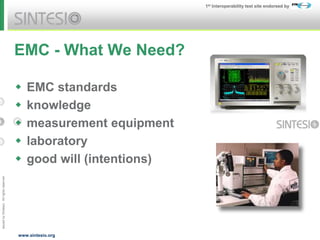

22. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Broadcasting technologies
VIDEO BROADCASTING (Digital)
TRANSMISSION
EQUIPMENT
(Transmitters, Repeaters,
Gap fillers)
RECEIVERS
(STB's, IdTV's, PC
receivers)
BROADCASTING
AUDIO BROADCASTING (Analogue: AM, FM)
VIDEO BROADCASTING (Analogue)
AUDIO BROADCASTING (Digital: DRM, T-DAB)
PLAYOUT EQUIPMENT
(Encoders, Multiplexers,
Terminal equipment)
23. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org *specific to DVB-T (free-to-air service)
TECHNOLOGY
ANALOGUE BROADCASTING DIGITAL BROADCASTING
AUDIO
VIDEO
AUDIO
T-DAB, DRM
VIDEO
TRANSMISSION
EQUIPMENT
(Transmitters, Repeaters,
Gap fillers)
RECEIVERS
(STB's, IdTV's, PC
receivers)
PLAYOUT EQUIPMENT
(Encoders, Multiplexers,
Terminal equipment)
NETWORK
DIRECTIVES
STANDARDS
TEST PROCEDURES
R&TTE Directive 1999/5/EC
(LVD Directive 73/23/EEC (2006/95/EC))
(EMC Directive 89/336/EEC (2004/108/EC))
SPECIAL
REQUIREMENTS
(NATIONAL)
EMC: EN 301 489 – 1 v1.8.1, EN 301 489 – 14 v1.2.1
SAFETY: EN 60065:2002 + A1:2006, EN 60215:1989 + A1:1992 +
A2:1994
RADIO: EN 302 296 v1.1.1, IEC 244-5 (clause 5.1)
Requirement
specifications for
DVB-T receivers
Test specifications
for DVB-T
receivers
GOVERNMENTAL AND
REGULATORY
SUPPORT
''INFORMATION
CAMPAIGN''
''VERIFICATION
PROCESS''
''ASO PLAN''
''PERMANENT TEST
PLATFORM''
ETSI ETR 290
IEC 60244-1
IEC 60244-6
…….
24. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Testing of receivers
Assuring that the receivers comply with (future!) DVB-T
network characteristics
Two approaches are proposed:
One-time testing at TAL (testing of one type, preparing
a report, support in solving problems, database support
for Communication campaign)
Permanent testing – permanent platform for
compatibility and interoperability testing (DVB-T network
is a changing environment!) using all approved
receivers on the market
25. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Mobile Communications Systems
1st Generation ( Analogue, e.g. AMPS, NMT, TACS)
2nd Generation (digital, e.g. GSM, PCS)
3rd Generation (IMT-2000/UMTS)
4th Generation (LTE Advanced)
Other (PMR, TETRA etc)
MAIN SCOPE?
26. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Main Subsystems
User
Equipmet
Access Network Core Network –
Circuit Switched
Core Network –
Packet Switched
Radio (Non-Radio)
.
.
.
UM
UU Mobility, Call & Session Management
R&TTE (Including safety & EMC) safety & EMC
27. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Fixed network equipment
Types of UE Types of NE
Softswitch
IMS system
Core routers
L2/L3 switches
BRAS
IPTV system platform
Legacy networks (ATM, FR)
SDH, PDH
DWDM, CWDM
Access network
Broadband MSAN equipment
(xDSL, FTTH, POTS, …)
Home Gateway
IP phone
(IP) PBX
POS
PC (softphone)
Set-top-box (STB)
Broadband access
Core and
aggregation network
Transport network
28. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Scope of the Breakaway session
Decide upon TAL framework
Which user eqipment and network elements should be
type approved?
What test methodologies should be used?
Which standards & recommendations should the
equipment comply to?
29. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Wrap-Up of the Breakaway Sessions – Common
R&TTE Directive is a good point of reference
Technology Independence is important
Phased approach is encouraged
The most problematic issues are to be addressed first
(i.e. user equipment, receivers)
(Harmonised) standards and their references to be
used wherever possible
30. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Issues Identified
Counterfeit mobile terminals
- cannot be solved by means of TA as those terminals
enter the market illegally
Questionable quality of network equipment, i.e.
equipment not meeting the declared operation
parametres
- can be solved by menas of TA only to some extent
31. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Cocluding Remarks
An independent testing facility is important for the
region.
Phased approach encouraged. Start with essential
requirements and then expand the scope based on the
demand
There is adequate regulatory framework but not
enough normative framework and, consequently, little
enforcement
32. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org

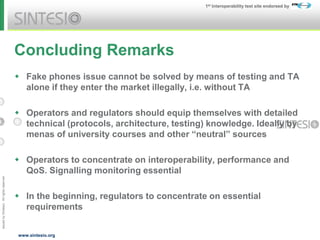

Concluding Remarks
Fake phones issue cannot be solved by means of testing and TA
alone if they enter the market illegally, i.e. without TA
Operators and regulators should equip themselves with detailed
technical (protocols, architecture, testing) knowledge. Ideally by
menas of university courses and other “neutral” sources
Operators to concentrate on interoperability, performance and
QoS. Signalling monitoring essential
In the beginning, regulators to concentrate on essential
requirements
35. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Conformance for Each OSI Layer!
OSI Model
Data unit Layer Function
Host
layers
Data
7. Application Network process to application
6. Presentation Data representation and encryption
5. Session Interhost communication
Segment 4. Transport End-to-end connections and reliability
Media
layers
Packet 3. Network Path determination and logical addressing
Frame 2. Data Link Physical addressing
Bit 1. Physical Media, signal and binary transmission
36. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Why safety?
Electrical products are now the cause of 80% of all
fires.
Technology trend leads to reduction and minimization
of electronic circuits.
The concentration of elements and concentration of
electric power per mm2 is increasing.
Electrical products can fail and may not guarante full
life time.
39. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
How to build the test site
Prepare enough place for:
Warehouse for measurement and IUT equipment
Filtering the Internal AC main power and IT network
(safety fuse and separate distribution)
Long term tests (tests can take more than 1 month)
Temperature&humidy tests (to assure separate
place for noisy test equipment
(temperature&humidity chamber))
AC/AC or DC/DC variation
40. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org

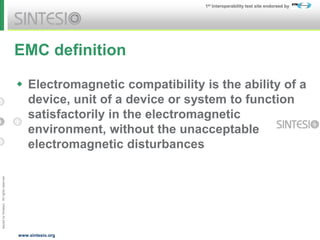

EMC definition
Electromagnetic compatibility is the ability of a
device, unit of a device or system to function
satisfactorily in the electromagnetic
environment, without the unacceptable
electromagnetic disturbances
42. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
EMC laboratory - 2
For civil use or military use
As a help of the domestic electronics industry
or just interception of the poor products on the
market
big difference for the investor
44. Issued
by
Sintesio;
All
rights
reserved
1st Interoperability test site endorsed by
www.sintesio.org
Types of Mobile User Equipment
Equipment Types
Access Network –
With Radio Parts
-NodeB
- BTS
- Repeater
.
.
.
Terminals / User
equipment
-MS
- UE
.
.
.
Access Network – No
Radio Parts
-RNC
-BSC
-TRAU
.
.
.
Core Network
- MSC/ VLR
-MSCS/ VLR
-HLR/AuC
-VLR
-SGSN
-GGSN
-EIR
-SCP
-SMSC
