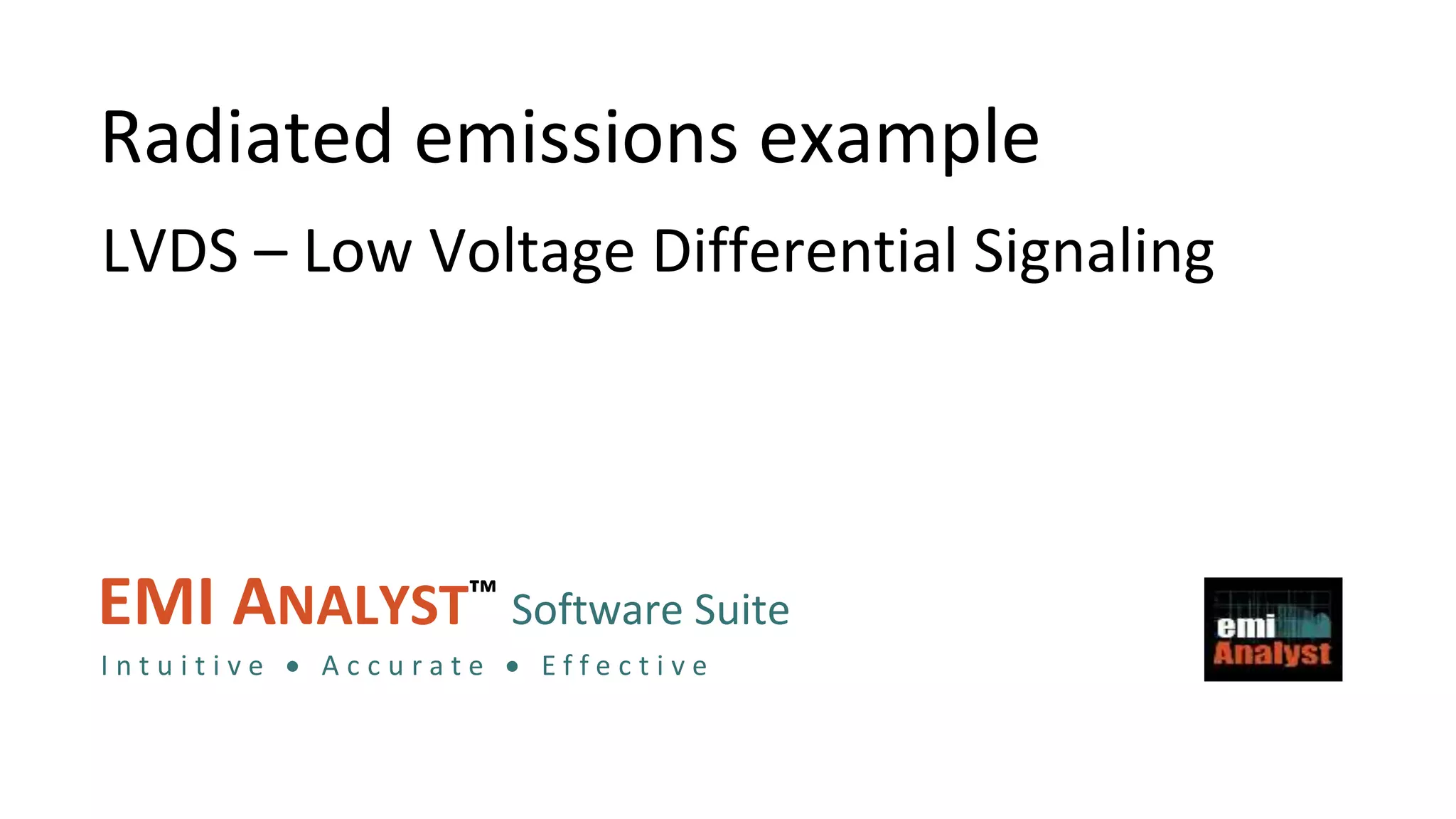

Radiated emissions example
LVDS – Low Voltage Differential Signaling

2. EMI Analyst™

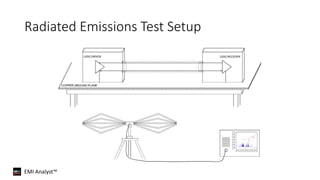

Radiated Emissions Test Setup
LVDS DRIVER LVDS RECEIVER

3. EMI Analyst™

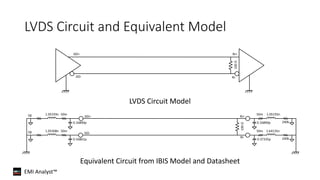

LVDS Circuit and Equivalent Model
LVDS Circuit Model
Equivalent Circuit from IBIS Model and Datasheet
DO+
DO-
RI+
RI-
100Ω
50m1.05193n
0.16890p
58
50m1.05308n
0.16861p
58
DO+
DO-
RI+
RI-
100Ω
50m 1.05193n
0.16890p 240k
50m 1.64135n
0.37335p 240k

4. EMI Analyst™
0V
VDO-
VDO+
VDM = VDO+ - VDO-
tRISE tFALL
0V
80%
20%

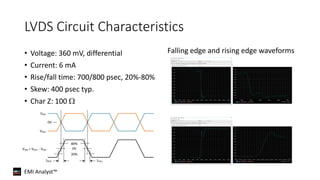

LVDS Circuit Characteristics
• Voltage: 360 mV, differential
• Current: 6 mA
• Rise/fall time: 700/800 psec, 20%-80%
• Skew: 400 psec typ.
• Char Z: 100 
Falling edge and rising edge waveforms

5. EMI Analyst™

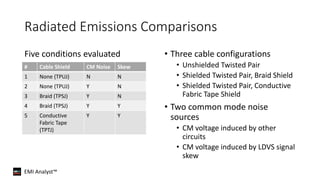

Radiated Emissions Comparisons
Five conditions evaluated • Three cable configurations
• Unshielded Twisted Pair
• Shielded Twisted Pair, Braid Shield
• Shielded Twisted Pair, Conductive
Fabric Tape Shield
• Two common mode noise
sources
• CM voltage induced by other
circuits
• CM voltage induced by LDVS signal
skew
# Cable Shield CM Noise Skew
1 None (TPUJ) N N
2 None (TPUJ) Y N
3 Braid (TPSJ) Y N
4 Braid (TPSJ) Y Y
5 Conductive
Fabric Tape
(TPTJ)
Y Y

6. EMI Analyst™
• Conditions
• 10 MHz data rate
• No skew
• No CM voltage
• Ideal ground conditions

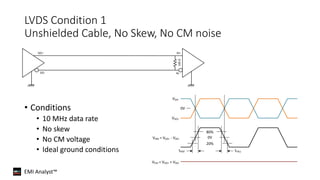

LVDS Condition 1
Unshielded Cable, No Skew, No CM noise
0V
VDO-
VDO+
VDM = VDO+ - VDO-
VCM = VDO+ + VDO-
tRISE tFALL
0V
80%
20%
DO+
DO-
RI+
RI-
100Ω

7. EMI Analyst™

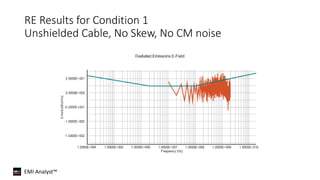

RE Results for Condition 1
Unshielded Cable, No Skew, No CM noise

8. EMI Analyst™
• Conditions
• 10 MHz data rate
• No skew
• 10 mV, 1 MHz CM flat spectrum

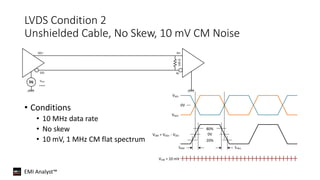

LVDS Condition 2
Unshielded Cable, No Skew, 10 mV CM Noise
DO+
DO-
RI+
RI-
100Ω
VCM
(noise)
0V
VDO-
VDO+
VDM = VDO+ - VDO-
VCM = 10 mV
tRISE tFALL
0V
80%
20%

9. EMI Analyst™

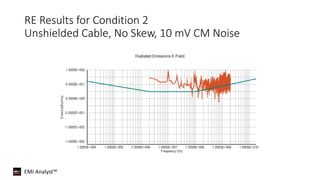

RE Results for Condition 2
Unshielded Cable, No Skew, 10 mV CM Noise

10. EMI Analyst™
• Conditions
• 10 MHz data rate
• No skew
• 10 mV, 1 MHz system CM noise

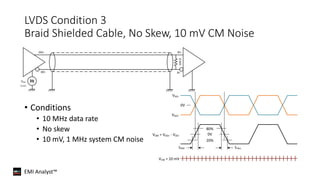

LVDS Condition 3
Braid Shielded Cable, No Skew, 10 mV CM Noise
DO+
DO-
RI+
RI-
100Ω
VCM
(noise)
0V
VDO-
VDO+
VDM = VDO+ - VDO-
VCM = 10 mV
tRISE tFALL
0V
80%
20%

11. EMI Analyst™

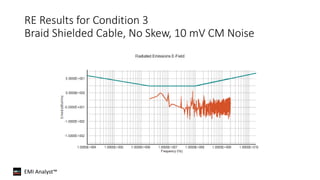

RE Results for Condition 3
Braid Shielded Cable, No Skew, 10 mV CM Noise

12. EMI Analyst™
LVDS Condition 4
Braid Shielded Cable, 200 ps Skew, 10 mV CM Noise
• Conditions
• 10 MHz data rate
• 0.2 nsec signal skew induces
70 mV CM pulses
• 10 mV, 1 MHz system CM noise
DO+
DO-
RI+
RI-
100Ω
VCM
(noise)
0V
VDO-
VDO+
VDM = VDO+ - VDO-
Signal VCM = VDO+ + VDO- = 70 mV
tRISE tFALL
0V
80%
20%
System VCM = 10 mV

13. EMI Analyst™

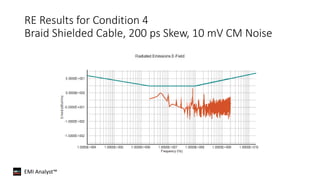

RE Results for Condition 4
Braid Shielded Cable, 200 ps Skew, 10 mV CM Noise

14. EMI Analyst™

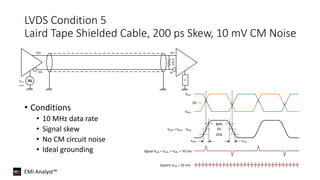

LVDS Condition 5
Laird Tape Shielded Cable, 200 ps Skew, 10 mV CM Noise
• Conditions
• 10 MHz data rate
• Signal skew
• No CM circuit noise
• Ideal grounding
DO+
DO-
RI+
RI-
100Ω
VCM
(noise)
Z
0V
VDO-
VDO+
VDM = VDO+ - VDO-
Signal VCM = VDO+ + VDO- = 70 mV
tRISE tFALL
0V
80%
20%
System VCM = 10 mV

15. EMI Analyst™

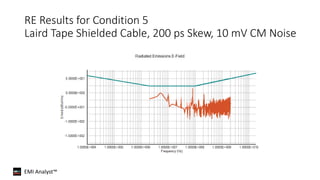

RE Results for Condition 5
Laird Tape Shielded Cable, 200 ps Skew, 10 mV CM Noise

16. EMI Analyst™
