The number of LTE (Long-Term Evolution) users and their applications has increased significantly in the last decade, which increased the demand on the mobile network. LTE-Advanced (LTE-A) comes with many features that can support this increasing demand. LTE-A supports Heterogeneous Networks (HetNets) deployment, in which it consists of a mix of macro-cells, remote radio heads, and low power nodes such as Pico-cells, and Femto-cells. Embedding this mix of base-stations in a macro-cellular network allows for achieving significant gains in coverage, throughput and system capacity compared to the use of macrocells only. These base-stations can operate on the same wireless channel as the macro-cellular network, which will provide higher spatial reuse via cell splitting. Also, it allows network operators to support higher data traffic by offloading it to smaller cells, such as Femto-cells. Hence, it enables network operators to provide their growing number of users with the required Quality of Service (QoS) that meets with their service demands. In-order for the network operators to make the best out of the heterogeneous LTE-A network, they need to use QoS-based packet scheduling algorithms that can efficiently manage the spectrum resources in the HetNets deployment. In this paper, we survey Quality of Service (QoS) based packet scheduling algorithms that were proposed in the literature for the use of packet scheduling in Heterogeneous LTE-A Networks. We start by explaining the concepts of QoS in LTE, heterogeneous LTE-A networks, and how traffic is classified within a packet scheduling architecture for heterogeneous LTE-A networks. Then, by summarising the proposed QoS-based packet scheduling algorithms in the literature for Heterogeneous LTE-A Networks, and for Femtocells LTE-A Networks. And finally, we provide some concluding remarks in the last section.
Traffic offloading impact on the performanceIJCNCJournal
Long Term Evolution (LTE) is defined by the Third Generation Partnership Project (3GPP) standards as
Release 8/9. The LTE supports at max 20 MHz channel bandwidth for a carrier. The number of LTE users
and their applications are increasing, which increases the demand on the system BW. A new feature of the
LTE-Advanced (LTE-A) which is defined in the 3GPP standards as Release 10/11 is called Carrier Aggregation (CA), this feature allows the network to aggregate more carriers in-order to provide a higher bandwidth. Carrier Aggregation has three main cases: Intra-band contiguous, Intra-band non-contiguous, Inter-band contiguous. In addition to the Carrier Aggregation feature, LTE-A supports Heterogeneous Networks (HetNets). HetNets consists of a mix of macro-cells, remote radio heads, and low power nodes such as pico-cells, and femto-cells. HetNets allow cellular network operators to support higher data traffic
by offloading it to a smaller cells such as femto-cells. The aim of this paper is to evaluate the Quality of Service (QoS) performance of the Modified Largest Weighted Delay First (MLWDF), the Exponential Rule (Exp-Rule), and the Logarithmic Rule (Log-Rule) scheduling algorithms while offloading 50% of the macro-cell's traffic to five femto-cells, 100% of the macro-cell's traffic to five femto-cells, 100% of the macro-cell's traffic to ten femto-cells, and to compare it with the case in-which traffic offloading is not
applied. The QoS performance evaluation is based on the system's average throughput, Packet Loss Rate (PLR), average packet delay, and fairness among users. The LTE-Sim-5 with modifications is used in the simulation process. Simulation results show that offloading 100% of the Macro-cell's traffic to five femtocells had the highest maximum throughput, and the best PLR values especially when using the Log-Rule, in-which using it maintained the PLR values around 0.15 despite increasing the number of users. The least average packet delay was achieved when offloading 100% of the Macro-cell's traffic to ten femto-cells, the delay dropped to below 5 ms. The fairness indicators for the three scheduling algorithms while traffic
offloading was applied fluctuated in a linear way between a range of values of 0.7 and 0.9.
Implementing a Session Aware Policy Based Mechanism for QoS Control in LTEIJERA Editor
Quality of Service (QoS) provisioning has become significant with the widely growth of multimedia applications and high increase in the number of users in both wireless and wired networks. In this paper, we implemented a session-aware policy based mechanism for QoS provisioning and control in LTE (Long Term Evolution) networks. Policies are a set of rules identifying the QoS parameters for users. Implementation included DiffServ (Differentiated Services) configuration and setting policies inside the PCRF (Policy Charging Rules Function) which is the brain entity in LTE, then mapping from QCI (QoS Class ID) to DiffServ. Moreover, the dialogue between PCEF (Policy Charging Enforcement Function) and PCRF was implemented. Simulations on four different traffic application types: VoIP (voice over IP), video, web, and ftp (file transfer protocol) were performed under the network simulator (ns2). Results showed that applying PCEF over the different traffic applications has a great effect in controlling these applications and specifically UDP (User Datagram Protocol) based applications such as video.
NETWORK PERFORMANCE EVALUATION WITH REAL TIME APPLICATION ENSURING QUALITY OF...ijngnjournal
The quality of service is a need in recent computer network developments. The present paper evaluates some characteristics in a proposed network topology such as dropped packets and bandwidth use, using two traffic sources, firstly a VoIP source over an UDP agent, then a CBR traffic source over an UDP agent as well as the previous one. Two possible configurations are proposed, implementing both of them in the Network Simulator, and implementing in one of them differentiated services to compare the results. Statistics results are shown, in both cases showing the accumulative dropped packet number and the throughput in the link, obtaining a reducer number of dropped packets in the stage with differentiated services, and an improvement in the bandwidth use.
QOS-B ASED P ERFORMANCE E VALUATION OF C HANNEL -A WARE /QOS-A WARE S CHEDULI...csandit
Long Term Evolution (LTE) is defined by the Third G
eneration Partnership Project (3GPP)
standards as Release 8/9. The LTE supports at max 2
0 MHz channel bandwidth for a carrier.
The number of LTE users and their applications are
increasing, which increases the demand on
the system BW. A new feature of the LTE-Advanced (L
TE-A) which is defined in the 3GPP
standards as Release 10/11 is called Carrier Aggreg
ation (CA), this feature allows the network
to aggregate more carriers in-order to provide a hi
gher bandwidth. Carrier Aggregation has
three main cases: Intra-band contiguous, Intra-band
non-contiguous, Inter-band contiguous.
The main contribution of this paper was in implemen
ting the Intra-band contiguous case by
modifying the LTE-Sim-5, then evaluating the Qualit
y of Service (QoS) performance of the
Modified Largest Weighted Delay First (MLWDF), the
Exponential Rule (Exp-Rule), and the
Logarithmic Rule (Log-Rule) scheduling algorithms
Two-level scheduling scheme for integrated 4G-WLAN network IJECEIAES
In this paper, a novel scheduling scheme for the Fourth Generation (4G)-Wireless Local Area Network (WLAN) network is proposed to ensure that end to end traffic transaction is provisioned seamlessly. The scheduling scheme is divided into two stages; in stage one, traffic is separated into Actual Time Traffic (ATT) and Non-Actual-Time Traffic (NATT), while in stage two, complex queuing strategy is performed. In stage one, Class-Based Queuing (CBQ) and Deficit Round Robin(DRR) are used for NATT and ATT applications, respectively to separate and forward traffic themselves according to source requirements. Whereas in the stage, two Control Priority Queuing (CPQ) is used to assign each class the appropriate priority level. Evaluation of the performance of the integrated network was done according to several metrics such as end-to-end delay, jitter, packet loss, and network’s throughput. Results demonstrate major improvements for AT services with minor degradation on NAT applications after implementing the new scheduling scheme.
Macro with pico cells (hetnets) system behaviour using well known scheduling ...ijwmn
This paper demonstrates the concept of using Heterogeneous networks (HetNets) to improve Long Term Evolution (LTE) system by introducing the LTE Advance (LTE-A). The type of HetNets that has been chosen for this study is Macro with Pico cells. Comparing the system performance with and without Pico cells has clearly illustrated using three well-known scheduling algorithms (Proportional Fair PF, Maximum Largest Weighted Delay First MLWDF and Exponential/Proportional Fair EXP/PF). The system is judged based on throughput, Packet Loss Ratio PLR, delay and fairness.. A simulation platform called LTE-Sim has been used to collect the data and produce the paper’s outcomes and graphs. The results prove that adding Pico cells enhances the overall system performance. From the simulation outcomes, the overall system performance is as follows: throughput is duplicated or tripled based on the number of users, the PLR is almost quartered, the delay is nearly reduced ten times (PF case) and changed to be a half (MLWDF/EXP cases), and the fairness stays closer to value of 1. It is considered an efficient and cost effective way to increase the throughput, coverage and reduce the latency.
PERFORMANCE COMPARISON OF PACKET SCHEDULING ALGORITHMS FOR VIDEO TRAFFIC IN L...ijmnct
In this paper we have studied downlink packet scheduling algorithms proposed for LTE cellular networks.
The study emphasize on three most promising scheduling algorithms such as: FLS, EXP rule and LOG rule.
The performance of these three algorithms is conducted over video traffic in a vehicular environment using
LTE-Sim simulator. The simulation was setup with varying number of users from 10 - 60 in fixed bounded
regions of 1 km radius. The main goal this study is to provide results that will help in the design process of
packet scheduler for LTE cellular networks, aiming to get better overall performance users. Simulation
results show that, the FLS scheme outperforms in terms of average system throughput, average packet
delay, PLR; and with a satisfactory level of fairness index.
Traffic offloading impact on the performanceIJCNCJournal
Long Term Evolution (LTE) is defined by the Third Generation Partnership Project (3GPP) standards as
Release 8/9. The LTE supports at max 20 MHz channel bandwidth for a carrier. The number of LTE users
and their applications are increasing, which increases the demand on the system BW. A new feature of the
LTE-Advanced (LTE-A) which is defined in the 3GPP standards as Release 10/11 is called Carrier Aggregation (CA), this feature allows the network to aggregate more carriers in-order to provide a higher bandwidth. Carrier Aggregation has three main cases: Intra-band contiguous, Intra-band non-contiguous, Inter-band contiguous. In addition to the Carrier Aggregation feature, LTE-A supports Heterogeneous Networks (HetNets). HetNets consists of a mix of macro-cells, remote radio heads, and low power nodes such as pico-cells, and femto-cells. HetNets allow cellular network operators to support higher data traffic
by offloading it to a smaller cells such as femto-cells. The aim of this paper is to evaluate the Quality of Service (QoS) performance of the Modified Largest Weighted Delay First (MLWDF), the Exponential Rule (Exp-Rule), and the Logarithmic Rule (Log-Rule) scheduling algorithms while offloading 50% of the macro-cell's traffic to five femto-cells, 100% of the macro-cell's traffic to five femto-cells, 100% of the macro-cell's traffic to ten femto-cells, and to compare it with the case in-which traffic offloading is not
applied. The QoS performance evaluation is based on the system's average throughput, Packet Loss Rate (PLR), average packet delay, and fairness among users. The LTE-Sim-5 with modifications is used in the simulation process. Simulation results show that offloading 100% of the Macro-cell's traffic to five femtocells had the highest maximum throughput, and the best PLR values especially when using the Log-Rule, in-which using it maintained the PLR values around 0.15 despite increasing the number of users. The least average packet delay was achieved when offloading 100% of the Macro-cell's traffic to ten femto-cells, the delay dropped to below 5 ms. The fairness indicators for the three scheduling algorithms while traffic
offloading was applied fluctuated in a linear way between a range of values of 0.7 and 0.9.
Implementing a Session Aware Policy Based Mechanism for QoS Control in LTEIJERA Editor
Quality of Service (QoS) provisioning has become significant with the widely growth of multimedia applications and high increase in the number of users in both wireless and wired networks. In this paper, we implemented a session-aware policy based mechanism for QoS provisioning and control in LTE (Long Term Evolution) networks. Policies are a set of rules identifying the QoS parameters for users. Implementation included DiffServ (Differentiated Services) configuration and setting policies inside the PCRF (Policy Charging Rules Function) which is the brain entity in LTE, then mapping from QCI (QoS Class ID) to DiffServ. Moreover, the dialogue between PCEF (Policy Charging Enforcement Function) and PCRF was implemented. Simulations on four different traffic application types: VoIP (voice over IP), video, web, and ftp (file transfer protocol) were performed under the network simulator (ns2). Results showed that applying PCEF over the different traffic applications has a great effect in controlling these applications and specifically UDP (User Datagram Protocol) based applications such as video.
NETWORK PERFORMANCE EVALUATION WITH REAL TIME APPLICATION ENSURING QUALITY OF...ijngnjournal
The quality of service is a need in recent computer network developments. The present paper evaluates some characteristics in a proposed network topology such as dropped packets and bandwidth use, using two traffic sources, firstly a VoIP source over an UDP agent, then a CBR traffic source over an UDP agent as well as the previous one. Two possible configurations are proposed, implementing both of them in the Network Simulator, and implementing in one of them differentiated services to compare the results. Statistics results are shown, in both cases showing the accumulative dropped packet number and the throughput in the link, obtaining a reducer number of dropped packets in the stage with differentiated services, and an improvement in the bandwidth use.
QOS-B ASED P ERFORMANCE E VALUATION OF C HANNEL -A WARE /QOS-A WARE S CHEDULI...csandit
Long Term Evolution (LTE) is defined by the Third G
eneration Partnership Project (3GPP)
standards as Release 8/9. The LTE supports at max 2
0 MHz channel bandwidth for a carrier.
The number of LTE users and their applications are
increasing, which increases the demand on
the system BW. A new feature of the LTE-Advanced (L
TE-A) which is defined in the 3GPP
standards as Release 10/11 is called Carrier Aggreg
ation (CA), this feature allows the network
to aggregate more carriers in-order to provide a hi
gher bandwidth. Carrier Aggregation has
three main cases: Intra-band contiguous, Intra-band
non-contiguous, Inter-band contiguous.
The main contribution of this paper was in implemen
ting the Intra-band contiguous case by
modifying the LTE-Sim-5, then evaluating the Qualit
y of Service (QoS) performance of the
Modified Largest Weighted Delay First (MLWDF), the
Exponential Rule (Exp-Rule), and the
Logarithmic Rule (Log-Rule) scheduling algorithms
Two-level scheduling scheme for integrated 4G-WLAN network IJECEIAES
In this paper, a novel scheduling scheme for the Fourth Generation (4G)-Wireless Local Area Network (WLAN) network is proposed to ensure that end to end traffic transaction is provisioned seamlessly. The scheduling scheme is divided into two stages; in stage one, traffic is separated into Actual Time Traffic (ATT) and Non-Actual-Time Traffic (NATT), while in stage two, complex queuing strategy is performed. In stage one, Class-Based Queuing (CBQ) and Deficit Round Robin(DRR) are used for NATT and ATT applications, respectively to separate and forward traffic themselves according to source requirements. Whereas in the stage, two Control Priority Queuing (CPQ) is used to assign each class the appropriate priority level. Evaluation of the performance of the integrated network was done according to several metrics such as end-to-end delay, jitter, packet loss, and network’s throughput. Results demonstrate major improvements for AT services with minor degradation on NAT applications after implementing the new scheduling scheme.
Macro with pico cells (hetnets) system behaviour using well known scheduling ...ijwmn
This paper demonstrates the concept of using Heterogeneous networks (HetNets) to improve Long Term Evolution (LTE) system by introducing the LTE Advance (LTE-A). The type of HetNets that has been chosen for this study is Macro with Pico cells. Comparing the system performance with and without Pico cells has clearly illustrated using three well-known scheduling algorithms (Proportional Fair PF, Maximum Largest Weighted Delay First MLWDF and Exponential/Proportional Fair EXP/PF). The system is judged based on throughput, Packet Loss Ratio PLR, delay and fairness.. A simulation platform called LTE-Sim has been used to collect the data and produce the paper’s outcomes and graphs. The results prove that adding Pico cells enhances the overall system performance. From the simulation outcomes, the overall system performance is as follows: throughput is duplicated or tripled based on the number of users, the PLR is almost quartered, the delay is nearly reduced ten times (PF case) and changed to be a half (MLWDF/EXP cases), and the fairness stays closer to value of 1. It is considered an efficient and cost effective way to increase the throughput, coverage and reduce the latency.
PERFORMANCE COMPARISON OF PACKET SCHEDULING ALGORITHMS FOR VIDEO TRAFFIC IN L...ijmnct
In this paper we have studied downlink packet scheduling algorithms proposed for LTE cellular networks.
The study emphasize on three most promising scheduling algorithms such as: FLS, EXP rule and LOG rule.
The performance of these three algorithms is conducted over video traffic in a vehicular environment using
LTE-Sim simulator. The simulation was setup with varying number of users from 10 - 60 in fixed bounded
regions of 1 km radius. The main goal this study is to provide results that will help in the design process of
packet scheduler for LTE cellular networks, aiming to get better overall performance users. Simulation
results show that, the FLS scheme outperforms in terms of average system throughput, average packet
delay, PLR; and with a satisfactory level of fairness index.
QOS-APCVS: AN ENHANCED EPS-IMS PCC ARCHITECTURE PROPOSAL TO IMPROVE MOBILE SE...ecij
IP Multimedia Subsystem’s (IMS) presents the framework architecture which can provide multimedia services for Evolved Packet System (EPS). In busy network, the main failures are service blocking, handover outage and non satisfying QoS criteria. So we aim to improve dependability of dedicated bearer
establishment in EPS-IMS Network. In mobile access network, we consider service is available if it is admitted by base station and is reliable if it is still supported in handover position. In core network, we consider service as reliable if its QoS criteria are satisfied. So we propose a new Qos Provisioning solution. To provide new application or to support handover service in busy network, our approach preempts resources by utility factor instead of priority consideration in existing works. In addition to
bandwidth reservation our solution allows core network reservation to improve the delay of real time service and minimize the loss rate of non-real time services.
In this project, we proposed a framework to support heterogenous traffic with different QoS demand in
WiMAX. This framework dynamically changes the bandwidth allocation (BA) for ongoing and new arrival
connections based on network condition and service demand. The objective is to efficiently use the
available bandwidth and provide QoS support in a fair manner. Dynamic allocation of spectrum prior to
transmission can mitigate the starvation problem of Non Real time application. The WFQ based dynamic
bandwidth allocation framework uses architecture that has packet scheduler scheme (PS), call admission
policy and a dynamic bandwidth allocation mechanism. By the simulation result we have showed that this
architecture could provide QoS support by being fair to all classes of services.
A SURVEY ON CALL ADMISSION CONTROL SCHEMES IN LTEIJCSES Journal
The growing number of mobile users with diverse applications such as VoIP, video, internet surfing etc. has made LTE networks to adopt a CAC strategy in order to ensure the quality of service (QoS) requirements of these applications. Over the years, several CAC schemes have been proposed to either accept or reject service requests. This paper presents a survey of these schemes under four different classes. The classes are: Bandwidth Reservation (BR), Bandwidth Degradation (BD), BR and BD and Non-BR and Non-BD (NBR-NBD). In each of the classification, the operation procedure, strengths and weaknesses of each scheme has been discussed. Furthermore, a comparative analysis of these schemes is also presented. The analysis provides insight into the challenges in the design of CAC by highlighting open research issues for future directions.
A Comparative Analysis of the Performance of VoIP Traffic with Different Type...ijcnac
The key QoS parameters for VoIP are delay, jitter and loss. In the Internet, VoIP requires
the underlying packet switched network to minimize the impact of these parameters. A
major contributing factor in this regard is traffic engineering carried out by scheduling
algorithms. This paper studies the behavior of different types of scheduling algorithms on
the delay, jitter and loss QoS parameters. The performance evaluation involves
identifying the scheduling algorithms which are most suitable for VoIP communications.
The result from the analysis also shows the impact of the QoS parameters on VoIP over
the Internet.
The article looks into the current state of the art of dynamic routing protocols with respect to their
possibilities to react to changes in the Quality of Service when selecting the best route towards a
destination network. New options that could leverage information about the ever changing QoS parameters
for data communication are analysed and a Cisco Performance Routing solution is described more in
detail. The practical part of this work focuses on a design and implementation of a test bed that provides a
scalable laboratory architecture to manipulate QoS parameters of different data communications flowing
through it. The test bed is used in various use cases that were used to evaluate Cisco Performance Routing
optimization capabilities in different scenarios.
Choosing the best quality of service algorithm using OPNET simulationIJECEIAES
The concept of quality of service (QoS) is a new computer technology. Previously, there was a slow internet connection to access the sites and it was slow to send information. But now, it requires speeding up the traffic and increasing the efficiency for audio and video. In this study, we discuss the concepts of QoS provided over the network to achieve these goals. This study aims to compare six algorithms to control the QoS, then, the best algorithm will be selected to improve the traffic. These algorithms are named first in first out (FIFO), priority queuing (PQ), custom queuing (CQ), CQ with low latency queuing (LLQ), weighted fair queuing (WFQ), WFQ with low latency queuing (LLQ), so the behavior of these algorithms can be measured. The results obtained by comparing between them using OPNET simulation show that the best algorithm is the priority queuing algorithm, followed by CQ, then CQ with LLQ, then WFQ, then WFQ with LLQ and finally FIFO. All these results are plotted in the form of graphs to show the paths of these algorithms for the single state with an operation time of 5 minutes for each algorithm.
Towards achieving-high-performance-in-5g-mobile-packet-cores-user-plane-functionEiko Seidel
White Paper Intel SK Telekom
This paper presents the architecture for a user plane function (UPF) in the mobile packet core (MPC) targeting 5G deployments.
I AM SUDANESE,MASTER OF TELECOM FROM SUDAN UNEVERSITY ,THIS IS MY DOCUMENT I INVESTIGATE IN LTE WITH MORE THAN 50 REFERENCE , GOD BLESS US ,PLEASE FEEL FREE TO ASK ABOUT ANY THING IN THIS TOPIC
MY EMAIL khalidaam2015@hotmail,khalidaa@sudatel.sd
دعواتكم لى وللوالدين ولاهلى , الحمد لله فبنعمته تتم الصالحات اللهم احفظ الدول الاسلامية من كل كيد واغدق عليهم الرخاء
A Fair and Efficient Packet Scheduling Scheme for IEEE 802.16 Broadband Wirel...ijasuc
This paper proposes a fair and efficient QoS scheduling scheme for IEEE 802.16 BWA systems that
satisfies both throughput and delay guarantee to various real and non-real time applications. The proposed
QoS scheduling scheme is compared with an existing QoS scheduling scheme proposed in literature in
recent past. Simulation results show that the proposed scheduling scheme can provide a tight QoS
guarantee in terms of delay, delay violation rate and throughput for all types of traffic as defined in the
WiMAX standard, thereby maintaining the fairness and helps to eliminate starvation of lower priority
class services. Bandwidth utilization of the system and fairness index of the resources are also
encountered to validate the QoS provided by our proposed scheduling scheme.
Call Admission Control Scheme With Multimedia Scheduling Service in WiMAX Net...Waqas Tariq
WiMAX network introduces a multimedia data scheduling service with different quality of service (QoS) requirements. Transmission opportunities are scheduled by the service according to the types of traffic data for the different connections or users. In the paper, we first propose a uniform definition of QoS level for the multimedia data types in the service. The QoS level of a connection are determined by the type of data of the connection and its allocated resources. Based on these QoS levels, we propose a call admission control (CAC) scheme for the entry admission of a new connection without degrading the network performance and the QoS of ongoing connections. The key idea of this scheme is to regulate the arriving traffic of the network such that the network can work at an optimal point, given under a heavy load traffic. Taking advantage of the simulation experiments, we confirm the fact that the proposed scheme can achieve better trade-off between the overall performance of network system and the QoS level of individual connection.
Our approach in this thesis is that, we have designed and built a National Carrier based core and edge network to simulate a real live scenario that spans the kingdom of Saudi Arabia. Some of the results in the thesis are presented against simulation time and some against network load.how to implement mpls on network
Dynamic Traffic Management Services to Provide High Performance in IntelRate ...IJMER
Abstract: Traffic is the chief puzzle problem in which every country faces to elaborate sending a
number of packets throughout the world. This paper proposes a new speculation for distributed traffic
management by availing the presumption of fuzzy logic. The routers are established by using an
IntelRate Controllers to manage the traffic congestion in the networks dynamically. Fuzzy logic is used
to previse the maximum allowable sending rate by observing the queue size of router. The network
traffic control protocol is unique to estimate the network parameter which involves link latency,
bottleneck bandwidth or packet loss rate in order to compute the allowed source sending rate. The fuzzy
logic based controller can measure queue size directly, it neglects various potential performance issues
arising due to parameter estimation as reduce consumption of computation and memory resource in
router. A network parameter, the queue size can be viewed accurately and if action should be taken to
regulate the source sending rate and it increases the resilience of the network to traffic congestion.
Using the fuzzy logic technique, QoS (Quality of Service) can achieve better performance than the
existing protocol that depends on the estimation of network parameter, to make the network more
adaptive for current traffic conditions.
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines
QOS-APCVS: AN ENHANCED EPS-IMS PCC ARCHITECTURE PROPOSAL TO IMPROVE MOBILE SE...ecij
IP Multimedia Subsystem’s (IMS) presents the framework architecture which can provide multimedia services for Evolved Packet System (EPS). In busy network, the main failures are service blocking, handover outage and non satisfying QoS criteria. So we aim to improve dependability of dedicated bearer
establishment in EPS-IMS Network. In mobile access network, we consider service is available if it is admitted by base station and is reliable if it is still supported in handover position. In core network, we consider service as reliable if its QoS criteria are satisfied. So we propose a new Qos Provisioning solution. To provide new application or to support handover service in busy network, our approach preempts resources by utility factor instead of priority consideration in existing works. In addition to
bandwidth reservation our solution allows core network reservation to improve the delay of real time service and minimize the loss rate of non-real time services.
In this project, we proposed a framework to support heterogenous traffic with different QoS demand in
WiMAX. This framework dynamically changes the bandwidth allocation (BA) for ongoing and new arrival
connections based on network condition and service demand. The objective is to efficiently use the
available bandwidth and provide QoS support in a fair manner. Dynamic allocation of spectrum prior to
transmission can mitigate the starvation problem of Non Real time application. The WFQ based dynamic
bandwidth allocation framework uses architecture that has packet scheduler scheme (PS), call admission
policy and a dynamic bandwidth allocation mechanism. By the simulation result we have showed that this
architecture could provide QoS support by being fair to all classes of services.
A SURVEY ON CALL ADMISSION CONTROL SCHEMES IN LTEIJCSES Journal
The growing number of mobile users with diverse applications such as VoIP, video, internet surfing etc. has made LTE networks to adopt a CAC strategy in order to ensure the quality of service (QoS) requirements of these applications. Over the years, several CAC schemes have been proposed to either accept or reject service requests. This paper presents a survey of these schemes under four different classes. The classes are: Bandwidth Reservation (BR), Bandwidth Degradation (BD), BR and BD and Non-BR and Non-BD (NBR-NBD). In each of the classification, the operation procedure, strengths and weaknesses of each scheme has been discussed. Furthermore, a comparative analysis of these schemes is also presented. The analysis provides insight into the challenges in the design of CAC by highlighting open research issues for future directions.
A Comparative Analysis of the Performance of VoIP Traffic with Different Type...ijcnac
The key QoS parameters for VoIP are delay, jitter and loss. In the Internet, VoIP requires
the underlying packet switched network to minimize the impact of these parameters. A
major contributing factor in this regard is traffic engineering carried out by scheduling
algorithms. This paper studies the behavior of different types of scheduling algorithms on
the delay, jitter and loss QoS parameters. The performance evaluation involves
identifying the scheduling algorithms which are most suitable for VoIP communications.
The result from the analysis also shows the impact of the QoS parameters on VoIP over
the Internet.
The article looks into the current state of the art of dynamic routing protocols with respect to their
possibilities to react to changes in the Quality of Service when selecting the best route towards a
destination network. New options that could leverage information about the ever changing QoS parameters
for data communication are analysed and a Cisco Performance Routing solution is described more in
detail. The practical part of this work focuses on a design and implementation of a test bed that provides a
scalable laboratory architecture to manipulate QoS parameters of different data communications flowing
through it. The test bed is used in various use cases that were used to evaluate Cisco Performance Routing
optimization capabilities in different scenarios.
Choosing the best quality of service algorithm using OPNET simulationIJECEIAES
The concept of quality of service (QoS) is a new computer technology. Previously, there was a slow internet connection to access the sites and it was slow to send information. But now, it requires speeding up the traffic and increasing the efficiency for audio and video. In this study, we discuss the concepts of QoS provided over the network to achieve these goals. This study aims to compare six algorithms to control the QoS, then, the best algorithm will be selected to improve the traffic. These algorithms are named first in first out (FIFO), priority queuing (PQ), custom queuing (CQ), CQ with low latency queuing (LLQ), weighted fair queuing (WFQ), WFQ with low latency queuing (LLQ), so the behavior of these algorithms can be measured. The results obtained by comparing between them using OPNET simulation show that the best algorithm is the priority queuing algorithm, followed by CQ, then CQ with LLQ, then WFQ, then WFQ with LLQ and finally FIFO. All these results are plotted in the form of graphs to show the paths of these algorithms for the single state with an operation time of 5 minutes for each algorithm.
Towards achieving-high-performance-in-5g-mobile-packet-cores-user-plane-functionEiko Seidel
White Paper Intel SK Telekom
This paper presents the architecture for a user plane function (UPF) in the mobile packet core (MPC) targeting 5G deployments.
I AM SUDANESE,MASTER OF TELECOM FROM SUDAN UNEVERSITY ,THIS IS MY DOCUMENT I INVESTIGATE IN LTE WITH MORE THAN 50 REFERENCE , GOD BLESS US ,PLEASE FEEL FREE TO ASK ABOUT ANY THING IN THIS TOPIC
MY EMAIL khalidaam2015@hotmail,khalidaa@sudatel.sd
دعواتكم لى وللوالدين ولاهلى , الحمد لله فبنعمته تتم الصالحات اللهم احفظ الدول الاسلامية من كل كيد واغدق عليهم الرخاء
A Fair and Efficient Packet Scheduling Scheme for IEEE 802.16 Broadband Wirel...ijasuc
This paper proposes a fair and efficient QoS scheduling scheme for IEEE 802.16 BWA systems that
satisfies both throughput and delay guarantee to various real and non-real time applications. The proposed
QoS scheduling scheme is compared with an existing QoS scheduling scheme proposed in literature in
recent past. Simulation results show that the proposed scheduling scheme can provide a tight QoS
guarantee in terms of delay, delay violation rate and throughput for all types of traffic as defined in the
WiMAX standard, thereby maintaining the fairness and helps to eliminate starvation of lower priority
class services. Bandwidth utilization of the system and fairness index of the resources are also
encountered to validate the QoS provided by our proposed scheduling scheme.
Call Admission Control Scheme With Multimedia Scheduling Service in WiMAX Net...Waqas Tariq
WiMAX network introduces a multimedia data scheduling service with different quality of service (QoS) requirements. Transmission opportunities are scheduled by the service according to the types of traffic data for the different connections or users. In the paper, we first propose a uniform definition of QoS level for the multimedia data types in the service. The QoS level of a connection are determined by the type of data of the connection and its allocated resources. Based on these QoS levels, we propose a call admission control (CAC) scheme for the entry admission of a new connection without degrading the network performance and the QoS of ongoing connections. The key idea of this scheme is to regulate the arriving traffic of the network such that the network can work at an optimal point, given under a heavy load traffic. Taking advantage of the simulation experiments, we confirm the fact that the proposed scheme can achieve better trade-off between the overall performance of network system and the QoS level of individual connection.
Our approach in this thesis is that, we have designed and built a National Carrier based core and edge network to simulate a real live scenario that spans the kingdom of Saudi Arabia. Some of the results in the thesis are presented against simulation time and some against network load.how to implement mpls on network
Dynamic Traffic Management Services to Provide High Performance in IntelRate ...IJMER
Abstract: Traffic is the chief puzzle problem in which every country faces to elaborate sending a
number of packets throughout the world. This paper proposes a new speculation for distributed traffic
management by availing the presumption of fuzzy logic. The routers are established by using an
IntelRate Controllers to manage the traffic congestion in the networks dynamically. Fuzzy logic is used
to previse the maximum allowable sending rate by observing the queue size of router. The network
traffic control protocol is unique to estimate the network parameter which involves link latency,
bottleneck bandwidth or packet loss rate in order to compute the allowed source sending rate. The fuzzy
logic based controller can measure queue size directly, it neglects various potential performance issues
arising due to parameter estimation as reduce consumption of computation and memory resource in
router. A network parameter, the queue size can be viewed accurately and if action should be taken to
regulate the source sending rate and it increases the resilience of the network to traffic congestion.
Using the fuzzy logic technique, QoS (Quality of Service) can achieve better performance than the
existing protocol that depends on the estimation of network parameter, to make the network more
adaptive for current traffic conditions.
Similar to QoS-based Packet Scheduling Algorithms for Heterogeneous LTE-Advanced Networks: Concepts and a Literature Survey (20)
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Macroeconomics- Movie Location
This will be used as part of your Personal Professional Portfolio once graded.
Objective:
Prepare a presentation or a paper using research, basic comparative analysis, data organization and application of economic information. You will make an informed assessment of an economic climate outside of the United States to accomplish an entertainment industry objective.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
Digital Tools and AI for Teaching Learning and Research
QoS-based Packet Scheduling Algorithms for Heterogeneous LTE-Advanced Networks: Concepts and a Literature Survey

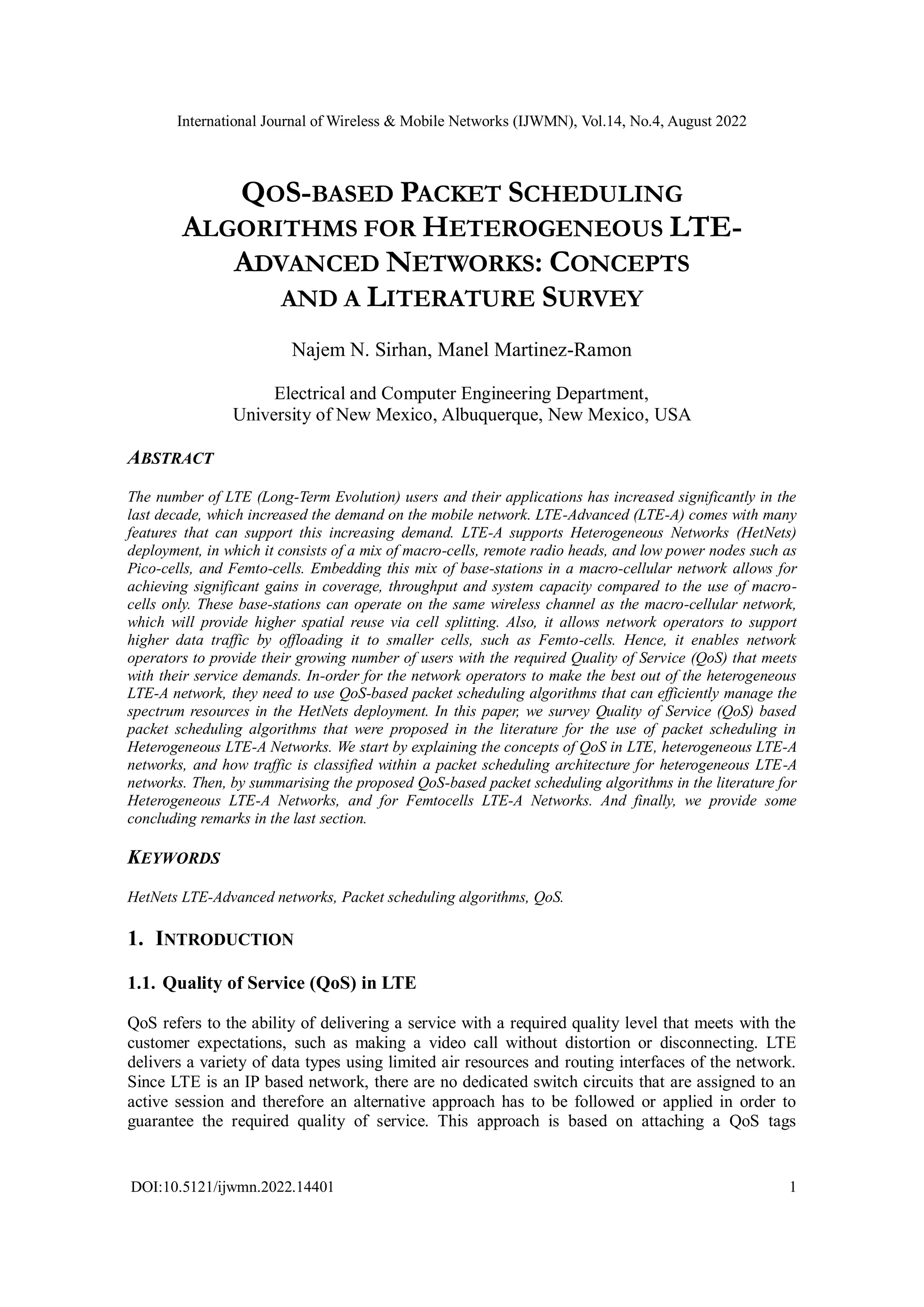

1. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
DOI:10.5121/ijwmn.2022.14401 1
QOS-BASED PACKET SCHEDULING
ALGORITHMS FOR HETEROGENEOUS LTE-
ADVANCED NETWORKS: CONCEPTS
AND A LITERATURE SURVEY
Najem N. Sirhan, Manel Martinez-Ramon
Electrical and Computer Engineering Department,
University of New Mexico, Albuquerque, New Mexico, USA
ABSTRACT
The number of LTE (Long-Term Evolution) users and their applications has increased significantly in the
last decade, which increased the demand on the mobile network. LTE-Advanced (LTE-A) comes with many
features that can support this increasing demand. LTE-A supports Heterogeneous Networks (HetNets)
deployment, in which it consists of a mix of macro-cells, remote radio heads, and low power nodes such as
Pico-cells, and Femto-cells. Embedding this mix of base-stations in a macro-cellular network allows for
achieving significant gains in coverage, throughput and system capacity compared to the use of macro-
cells only. These base-stations can operate on the same wireless channel as the macro-cellular network,
which will provide higher spatial reuse via cell splitting. Also, it allows network operators to support
higher data traffic by offloading it to smaller cells, such as Femto-cells. Hence, it enables network
operators to provide their growing number of users with the required Quality of Service (QoS) that meets
with their service demands. In-order for the network operators to make the best out of the heterogeneous
LTE-A network, they need to use QoS-based packet scheduling algorithms that can efficiently manage the
spectrum resources in the HetNets deployment. In this paper, we survey Quality of Service (QoS) based
packet scheduling algorithms that were proposed in the literature for the use of packet scheduling in
Heterogeneous LTE-A Networks. We start by explaining the concepts of QoS in LTE, heterogeneous LTE-A
networks, and how traffic is classified within a packet scheduling architecture for heterogeneous LTE-A
networks. Then, by summarising the proposed QoS-based packet scheduling algorithms in the literature for
Heterogeneous LTE-A Networks, and for Femtocells LTE-A Networks. And finally, we provide some
concluding remarks in the last section.
KEYWORDS
HetNets LTE-Advanced networks, Packet scheduling algorithms, QoS.
1. INTRODUCTION
1.1. Quality of Service (QoS) in LTE
QoS refers to the ability of delivering a service with a required quality level that meets with the
customer expectations, such as making a video call without distortion or disconnecting. LTE
delivers a variety of data types using limited air resources and routing interfaces of the network.
Since LTE is an IP based network, there are no dedicated switch circuits that are assigned to an
active session and therefore an alternative approach has to be followed or applied in order to
guarantee the required quality of service. This approach is based on attaching a QoS tags

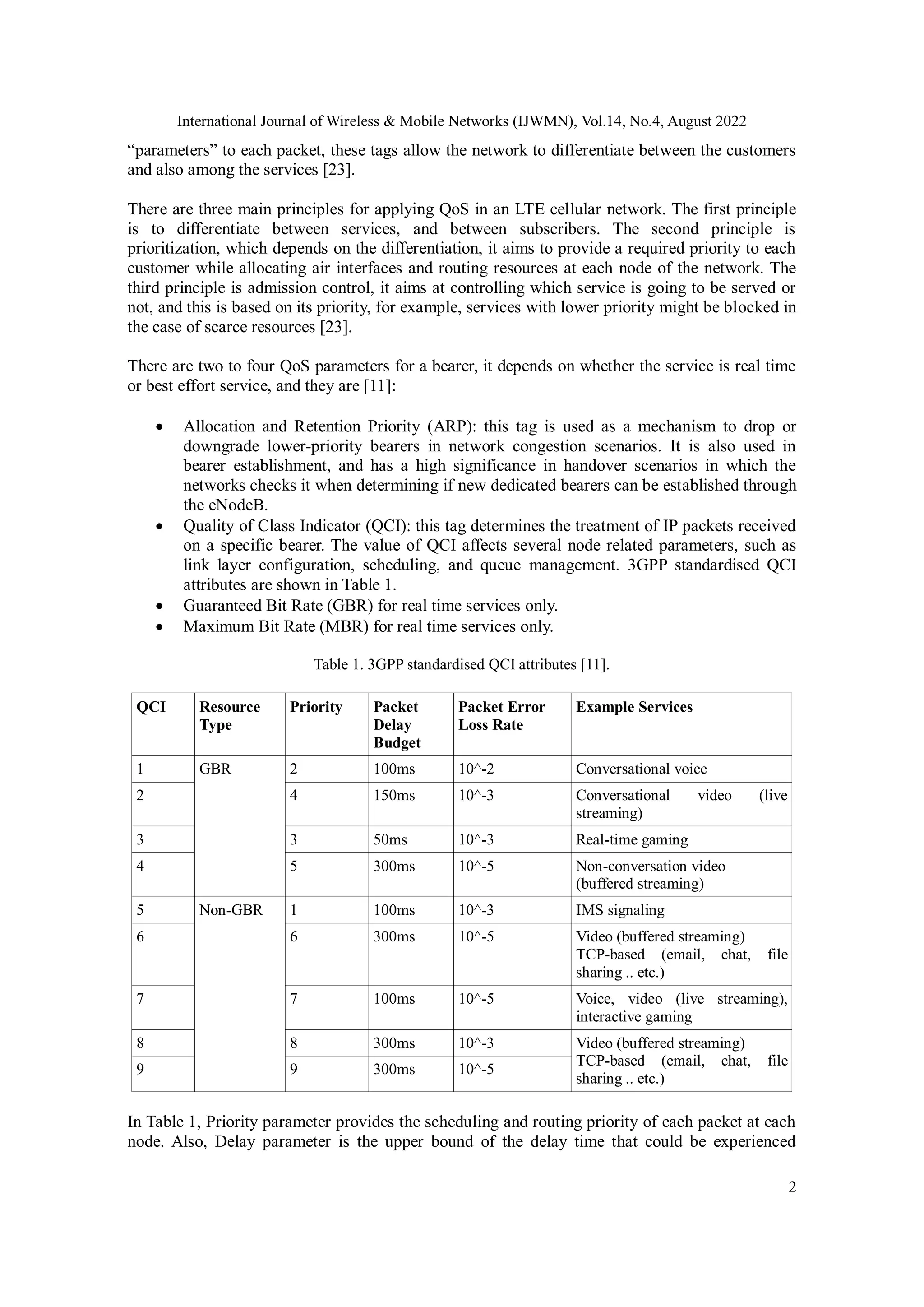

2. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
2
“parameters” to each packet, these tags allow the network to differentiate between the customers
and also among the services [23].
There are three main principles for applying QoS in an LTE cellular network. The first principle
is to differentiate between services, and between subscribers. The second principle is
prioritization, which depends on the differentiation, it aims to provide a required priority to each
customer while allocating air interfaces and routing resources at each node of the network. The
third principle is admission control, it aims at controlling which service is going to be served or
not, and this is based on its priority, for example, services with lower priority might be blocked in
the case of scarce resources [23].
There are two to four QoS parameters for a bearer, it depends on whether the service is real time
or best effort service, and they are [11]:
Allocation and Retention Priority (ARP): this tag is used as a mechanism to drop or
downgrade lower-priority bearers in network congestion scenarios. It is also used in
bearer establishment, and has a high significance in handover scenarios in which the
networks checks it when determining if new dedicated bearers can be established through
the eNodeB.
Quality of Class Indicator (QCI): this tag determines the treatment of IP packets received
on a specific bearer. The value of QCI affects several node related parameters, such as
link layer configuration, scheduling, and queue management. 3GPP standardised QCI
attributes are shown in Table 1.
Guaranteed Bit Rate (GBR) for real time services only.
Maximum Bit Rate (MBR) for real time services only.
Table 1. 3GPP standardised QCI attributes [11].
QCI Resource
Type
Priority Packet
Delay
Budget
Packet Error
Loss Rate
Example Services
1 GBR 2 100ms 10^-2 Conversational voice
2 4 150ms 10^-3 Conversational video (live
streaming)
3 3 50ms 10^-3 Real-time gaming
4 5 300ms 10^-5 Non-conversation video
(buffered streaming)
5 Non-GBR 1 100ms 10^-3 IMS signaling
6 6 300ms 10^-5 Video (buffered streaming)
TCP-based (email, chat, file
sharing .. etc.)
7 7 100ms 10^-5 Voice, video (live streaming),
interactive gaming
8 8 300ms 10^-3 Video (buffered streaming)
TCP-based (email, chat, file
sharing .. etc.)
9 9 300ms 10^-5
In Table 1, Priority parameter provides the scheduling and routing priority of each packet at each
node. Also, Delay parameter is the upper bound of the delay time that could be experienced
3. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
3
between the User Equipment (UE) and the Packet Gateway (P-GW). Also, Packet Error Loss
Rate (PELR) parameter is the the upper bound of the percentage of the packets that might be lost.
In order to manage the delivery of packets in a differentiated manner, packets are grouped into
bearers. A Bearer is defined by the combination of QoS class and a destination IP address. A
bearer may include packets belonging to different services, as long they require the same QCI and
the same UE. There are two main types of bearers, Guaranteed Bit Rate (GBR) and Non-
Guaranteed Bit Rate (N-GBR). In the case of GBR bearers, they are established on demand
because a minimum amount of bandwidth is reserved by the network regardless of whether it is
used or not during the admission control function, inactivity timers are used to control air
interface to free up resources. The precedence of service blocking over service dropping in
congestion scenarios, GBR bearer should not experience any packet loss on the IP network or the
radio link due to congestion. GBR bearers are used for real time services. In the case of N-GBR
bearers, there are no specific reserved bandwidth so they can remain established for long periods
of time, Precedence of service dropping over service blocking in congestion scenarios, they are
treated with lower priority than the N-GBR bearers, they experience packet loss during
congestion, they are used for best effort services [11][2]. Uplink bearers are created at the UE.
While the creation of downlink bearers depends on the type of used protocol, whether it is GPRS
Tunnelling Protocol (GTP) or Proxy Mobile IPv6 (PMIP). In the case of GTP, the downlink
bearers are created at the P-GW, more specifically at Policy and Charging Control Function
(PCRF). In the case of using the PIMP, the downlink bearers are created at the S-GW more
specifically at the Binding and Error Reporting Function (BBERF) [23].
The PCRF is the policy server in the Evolved Packet Core (EPC). The PCRF takes the available
network information and operator-configured policies to create service session-level policy
decisions. The decisions, known as Policy and Charging Control (PCC) rules “PCC block
diagram is shown in Figure 1”, are forwarded to the Policy and Charging Enforcement Function
(PCEF) located in the Packet Data Network Gateway (PDN-GW). Part of the PCC rules is the
Traffic Flow Templates (TFTs) as shown in Figure 2. The PCEF enforces policy decisions by
establishing bearers, determines which packet flows are mapped into each dedicated bearers, and
performing traffic policing and shaping as shown in Figure 3 [11][2].
Figure 1. PCC block diagram [17]
4. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
4
The six main functions of the PCC are shown in Figure 1 and they are; Subscription Profile
Repository (SPR), Online Charging System (OCS), Application Function (AF), Policy Charging
Rules Function (PCRF), Policy Charging Enforcement Function (PCEF), Traffic Detection
Function (TDF) [17].
The PCEF is the main component of PCC, and its use is mandatory. An operator can have pre-
provisioned PCC rules in the PCEF. The PCEF act as a gateway for services, it allows a service
data flow, that is subject to policy control, this provides a means of blocking unknown or
unenforced traffic. It acts as a Charging Trigger Function (CTF) where through Diameter Credit
Control (DCC) it feeds information to an OCS in order to track usage. It also act as a Charging
Data Function (CDF) through offline charging records required for typical post-paid services and
charging reconciliation. And it also enforces QoS, it converts a QoS class identifier value to IP-
session specific QoS attribute values and determine the QoS class identifier value from a set of
IP-session specific QoS attribute values. It also enforces the authorized QoS of a service data
flow according to the active PCC rule [17].
Figure 2. PCRF output forms the PCC rules [2]
Figure 3. Traffic Flow Templates [2]
1.2. Heterogeneous LTE-A Networks (LTE-A Hetnets)
Heterogeneous Networks (HetNets) include a mix of macro-cells, remote radio heads, and low
power nodes such as pico-cells, and femto-cells [19].
5. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
5
Macro-cells are high power eNodeB with a coverage of few kilometres, it provides an open
public access with guaranteed minimum data rate under a maximum tolerable delay, it uses a
dedicated back-haul that is capable of emitting power up to 46 dBm [18].
Remote Radio Head (RRH) are compact-size, high-power and low-weight units, which are
mounted outside the conventional macro-cell’s base station, and connected to it through a fibre
optic cable to create a distributed base station, in-which the central macro-cell’s base station
controls the baseband signal processing, and moves some of the radio circuitry into the remote
antenna. The use of RRHs reduces the power consumption by eliminating the power losses in the
antenna cable [21].
Pico-cells are low power eNodeBs with a coverage of 300 meters, they are usually deployed in a
centralized way with the same back-haul and access features as macro-cells, they are deployed in
outdoor or indoor coverage, and they are capable of emitting power between 23 to 30 dBm [20].
Femto-cells are also called as home base stations, they are indoor base stations that are installed
in homes and offices for getting better coverage and capacity gain. They provide better coverage
due to the short distance between the transmitter and the receiver “about 50 meters at max” which
reduces the power consumption. They provide better capacity gain by achieving higher Signal to
Interference plus Noise Ratio (SINR) through the use of dedicated base stations to its users [19]
[20].
Fig 4. A basic model that represent the LTE-A HetNets which consists of a macro-cell and a femto-cell, and
how they are connected to the LTE core network [21]
2. TRAFFIC CLASSIFICATION FOR QOS LTE-A PACKET SCHEDULING
ALGORITHM
In [12], they propose two Service Specific Queue Sorting Algorithms (SSSA) one for Real Time
(RT) and the other for Non Real Time (NRT) streaming video traffic. They implemented their
SSSA in a QoS aware dynamic Packet Scheduling Architecture (PSA) that is designed by [13],
which is shown in Figure 5.
6. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
6
Fig 5. Packet scheduling Architecture designed by [13]
In [13], the packet scheduling architecture that they designed is suitable to be used for real-time
traffic due to its ability to differentiate mix traffic into service specific queues, and it also sort
users into queues, and adaptively reserves available resources to real time and non-real time
traffic types. This scheduler adds two functionalities to the LTE-A downlink transmission. The
first function is service specific queue sorting algorithms for service level performance
optimization. The second function is adaptive Time Domain (TD) prioritizing algorithm for
network level optimization.
In [13], for the case of real time traffic this approach significantly reduces delay and packet Drop
Rate (PDR), while satisfying minimum throughput requirements of non-real time streaming video
traffic. This is done by slightly delaying Best Effort (BE) traffic. In the case of real time video
streaming, a ratio of the instantaneous and average achieved throughput is taken into account to
prioritize users with lower average achieved throughput. Also the normalized waiting time is
taken into account.
The SSSA that was designed by [12] consists of Traffic differentiator, TD scheduler, and FD
scheduler. The traffic differentiator classifies the incoming traffic into four classes and sorts users
according to their traffic type. The four traffic classifications are, control traffic “e.g. control
information”, real time traffic “e.g. voice calls”, non real time traffic “e.g. streaming traffic”, and
background traffic “e.g. Best Effort traffic such as e-mail ”. The TD scheduler picks a pool of
users from these queues and then the FD scheduler allocates Physical Resource Blocks (PRB) to
the users. These queues represent the QoS requirements for each traffic type. In the case of
control traffic queue, the control traffic is equally important for all users, therefore users are
sorted in round robin fashion. In the case of BE traffic queue, the BE traffic does not have a QoS
requirements. In the case of real time traffic queue, the delay of real time traffic has to be
maintained less than a delay budget, which is defined to as an upper bound of delay for real time
traffic. The RT users are being sorted by an algorithm that is the product of normalized waiting
time of each user and its channel conditions, then the product is added into the queue length of
the user. Packets in the queue are being normalized by the queue algorithm by means of
arranging them according to their delays, the packet with the longest delay comes first.
Normalizing the packets has the benefit of prioritizing them to reduce the Packet Drop Rate
(PDR) due to time out. As a result the delay will be reduced, fairness among users will be
improved, and the system's overall throughput will be improved. In the case of non real time
7. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
7
traffic queue, the QoS requirement for non real time streaming video traffic is defined based on
making the instantaneous throughput of a user as an upper bound to its non real time throughput
requirement. The metric that was used is the product of normalized waiting time, which is a ratio
of minimum required throughput and average achieved throughput, and channel conditions of
each user. The use of normalized waiting time will result in improving the fairness among users
by equalizing their waiting time and reducing their delay.
3. QOS-BASED PACKET SCHEDULING FOR LTE-A HETNETS
The deployment of hybrid radio access has two main challenges: providing effective QoS and fair
admission control. Motivated by these challenges, [4] propose a traffic-aware OFDMA hybrid
small-cell deployment for QoS provisioning and an optimal admission control strategy for next-
generation cellular systems. In order to do so, the traffic awareness in their proposed framework
is accomplished by deriving a novel traffic-aware utility function, that differentiates the user QoS
levels with the user’s priority indexes, channel conditions, and traffic characteristics. They also
propose an admission control algorithm based on their utility function. They tested their proposed
framework, and their results showed that it achieved an optimum QoS performance in terms of
total throughput and traffic delay.
In [4], their proposed framework “as shown in Figure 6” consists of four main parts and is
embedded into each Small-cell Access Point (SAP). The four parts are, the QoS Classification of
Heterogeneous Traffic, the Calculation of Utility Function, Traffic-Aware Admission Control, and
Power Constraint Scheduling. In the QoS Classification of Heterogeneous Traffic part, the
requests of the small-cell users (SUs) and the External Users (EUs) are used in order to calculate
the average waiting time for each user type, these calculations results in classifying the traffic
into different QoS types, such as the Best Effort (BE) traffic, video streaming traffic and the
Constant Bit Rate (CBR) traffic. On the Calculation of Utility Function part, they define how the
sub-carrier k is allocated to user n, they have three different definitions, each one of them depends
on the traffic QoS type. In the Traffic-Aware Admission Control part, they implemented an
admission control algorithm that focus on balancing the load on the system that are based on a set
of rules which are specific for performing admission control in a hybrid small cell with
heterogeneous user traffic. In order for these rules to be applied, they defined certain priorities,
one for the user type and the other for the traffic type, for example, for the user priority, the SUs
has a higher priority over the EUs, and for the traffic priority, the priority decreases from CBR to
video conferencing to BE. In the power constraint scheduling, they proposed a utility function
with an optimized objective to allocate sub-carriers to users with power constraints.
8. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
8
Fig 6. Framework proposed by [4]
In [4], their utility function was modelled based on OFDMA system parameters and queue
models using MATLAB. Their minimal algorithm routine that was implemented in C was used
through the MATLAB Mex file to perform sub-carrier allocation decisions. They compared three
different schemes in terms of mean delay and delay variance of the worst case user of each traffic
class, and they displayed their simulation results in plots. In Scheme 1, only the TA-Utility
scheme was implemented, while In Scheme 2, the TA-Utility scheme was enhanced using the
proposed admission control procedure. In the third scheme, the Maximum-Largest Weighted
Delay First (M-LWDF) scheduling was used.
In [4], their simulation results for the case of CBR traffic and in terms of the mean delay for the
worst case CBR user, for both Scheme 1 and Scheme 2 remained within 50 ms for arrivals below
300 KB/s when compared with a mean delay of 80 ms under the M-LWDF scheme. For arrivals
beyond 300 KB/s, the M-LWDF scheme has the mean delay increasing almost linearly, while
Scheme 1 and Scheme 2 resulted in a slowly increasing mean delay with Scheme 2 resulting in
up to 50 ms less delay than Scheme 1 at arrival rates beyond 650 kB/s. The delay variance of
CBR users for different arrival rates. In the case of the delay variance for their proposed schemes
when compared with the M-LWDF scheme indicated that a higher degree of fairness is achieved
for different CBR users.
In [4], their simulation results for the case of video traffic and in terms of the mean delay for the
worst case video users, scheme 1 has a comparable mean queuing delay to M-LWDF for all
arrivals below 350 KB/s. Beyond 350 KB/s, the mean delay was increasing slower than the M-
LWDF scheme. Scheme 2 resulted in further improvement from Scheme 1 with the maximum
mean delay reaching up to 190 ms. Therefore, the TA-Utility scheduling offers significant delay
9. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
9
performance gains for delay-sensitive traffic classes. In the case of the delay variance, it was
lower for both Scheme 1 and Scheme 2 when compared with that of the M-LWDF scheme,
showing good fairness performance.
In [4], their simulation results for the case of BE traffic and in terms of the mean delay for the
worst case BE user, the mean delay for BE users was much higher and reached up to 1s for both
Scheme 1 and Scheme 2 when the arrival rate was 600 KB/s and above. In the case of the delay
variance, it was significantly higher for low data rates for their proposed schemes, particularly for
Scheme 1. However, as the arrival rates of BE users increased, the delay variance converged
toward that of the M-LWDF scheme.
In [3] the authors propose and evaluate an optimal scheduling scheme for QoS provisioning for
hybrid small cells. This framework takes into account the power constraint in addition to the
user's priority index and traffic characteristics in order to efficiently provide differentiated QoS
benefits to users served under an OFDMA hybrid small cell.
In [3], the authors briefly introduced the difference between the three small cell access polices,
the open access, closed access, and hybrid access policy. The authors recommended the use of the
hyper access policy which is a mix of the first two polices, and it provides a differentiated service
to the Small Cell Users (SUs) and Macrocell Users (MUs). This is because it provides a
guaranteed QoS as in the closed access policy, and the capacity enhancements as in the open
access. They also explained how a previous two hybrid policy failed to consider the nature of the
higher layer traffic in performing scheduling and access control for small cells.
In [3], the authors explained their system model for the OFDMA based hybrid small cells. They
started by presenting and a briefly reviewing some of the current scheduling and whether they are
suitable to be used as a scheduling mechanism in the small cells or not. For example, the PF and
the M-LWDF are not suitable because they don't provide bounded delay performance.
In [3], the authors presented the formula of their utility function that is associated with the
allocation of subcarrier k to user n, and how the formula parameter values could be changed to
represent different user and traffic types. Then they explained their optimization objective of
subcarrier allocation with power constraints using their proposed utility function. Then they
solved their optimization objective after classifying it into the Multiple Choice Knapsack
Problem (MCKP).
In [3], the authors explained how they evaluated the performance of their system using MAT-
LAB and the minimal algorithm routine is implemented in C. They classified users based on their
traffic into three classes, the Constant Bit Rate (CBR) users, Video Streaming users, and the Best
Effort (BE) users. Then they explained their simulation scenario and its parameters which they
used in order to measure the throughput performance and the delay. They measured the time
average throughput performance that was achieved by the users, and they represented it in bar
graphs. They also presented the mean delay vs. arrival rate performance of their proposed
solution for the three user types in comparison with the M-LWDF and they represented their
results in line graphs. According to their graphs, it was clear that their utility could achieve lower
and bounded delay for delay-sensitive traffic types such as the video streaming and CBR when
compared to the M-LWDF. However, the BE traffic experienced large delays when compared to
the M-LWDF but it remained in the acceptable range. Finally, the authors drew their conclusions
and they stated that their proposed work could be used as a framework in order to design efficient
admission control algorithms in a hybrid small cell network.
10. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
10
In [8], the authors introduced the concept of Cognitive Radio (CR) based small cells and how
they cluster users that utilize different channels in order to prevent the occurrence of a
communication bottleneck by the use of dynamic spectrum access techniques. They also
introduced the two main challenges in the deployment of such cells. The first challenge is in
detecting the available channels by performing an accurate spectrum sensing and monitoring. The
second challenge is to maintain a reliable topology control which is directly related to the
available spectrum and the utilization of the licensed channels.
In [8], the authors introduced the system architecture and their proposed framework. They
explained their scenario's network architecture, communication nodes, and the traffic type. They
used a figure that shows the effect of applying their topology in clustering the users. They
explained the two main parts that their proposed framework which is located in the CR Base
Station consists of, the Monitoring and the Assignment. The Monitoring module gathers the CR
requests' information such as the spectrum utilization, packet losses, delay and jitter) and also the
background traffic information. The Assignment module responsibilities relies on analysing the
information gathered by the monitoring module in order to make a decision for the spectral
topology assignment based on a formula that represent the relationship between traffic density
and throughput utilization.
In [8], the authors explained how they created and evaluated the performance of their proposed
framework by the use of ns-2. They also explained in detail the performance parameters that they
used such as the latency, throughput, packet loss, and jitter and spectrum utilization. For each one
of these parameters they studied the effect of incrementing the number of frequencies under
different traffic densities. Their results showed that the system's performance improved in terms
of all these parameters when the number of frequencies was increased.
The authors of [14] proposed a multi-hop wireless network that uses the Any-cast Back-pressure
(AB) routing “a practical distributed any-cast routing protocol designed to scale with the number
of gateways and to exploit path and gateway diversity” as a scalable mobile back-haul for dense
small cell deployments. Also the authors explained how their proposed solution uses the any-cast
back-pressure routing. Firstly, they explained the operation of distributed any-cast back-pressure
routing and how it finds the appropriate trade off between getting as geographically close as
possible to the destination and how it evenly distributes the load among all neighbours by
exploiting queue backlog differential information. Secondly, they explained how they took into
considerations the 3GPP data plane architecture. Finally, they explained the flexibility of the AB
in the deployment of new gateways and with the addition of new capacity.
Also in [14], the authors explained how they used ns-3 to evaluate and compare the performance
of their routing solution and two other unicast routing solutions, the Unicast-multipath and the
Unicast-Shortest Path. Their comparative evaluation was based on a 5x5 grid of femtocells
scenario, they considered two different back-haul settings in their simulations, homogeneous and
heterogeneous transmission rates, and they measured the throughput and latency for both settings.
In the case of homogeneous link rates scenario, they measured the throughput and delay when the
number of gateways increased from one to five. Their simulation results showed that the AB
outperformed the other uni-cast routing solutions. In the case of heterogeneous link rates
scenario, they evaluated how the three routing protocols utilized the aggregated capacity offered
by five gateways under wireless link dynamically in order to study the dependency of the
aggregated throughput and latency on the percentage of links using the lowest 802.11a rate (i.e.,
6Mbps). Their simulation results showed that their solution outperformed the other uni-cast
routing solutions, so the authors defended their choice of using the AB as a transport routing for
dense small cell deployments.
11. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
11
4. QOS-BASED PACKET SCHEDULING FOR LTE-A FEMTOCELLS
According to [16], Resource Blocks (RBs) can be shared among several Femtocell users
simultaneously, however, they can't be shared among macro users. This is because the RBs are
orthogonal to each other in the case of macro cells, this means that there is no need for the
interference coordination among macro users. However, in the case where Femtocells are present,
the RBs, which are being used by Femtocells are not orthogonal to the macro cell, so Interference
coordination is needed among those users.
There are two coordination approaches for interference coordination, the inter-tier and intra-tier
interference coordination. In the case of Inter-tier interference coordination strategy, the
allocation of RBs between the macro-cell and Femtocell users is always orthogonal. The RB that
is assigned to a macro user is not applicable to be reused. The RB that could be reused are the
ones that are assigned to Femtocell users. In the case of Intra-tier interference coordination
strategy, it is needed only for the Femto-tier where two floor models were considered, the Inter-
floor and the Intra-floor models. In the case of Inter-floor modelling, a group of RBs is reserved
for the fairness improvement of macro user, then the remaining RBs are equally divided into two
groups. Each RB group is assigned to Femtocell users of the alternate floors. In the case of Intra-
floor Modelling, Femtocell user can only reuse an RB that is served by another femtocell user
when its Femtocell user’s serving Femtocell BS is non-adjacent to the already assigned Femtocell
user’s serving Femtocell BS. The Femtocell BSs must be at least 10 meters apart in order for the
RB to be reused, irrespective of Femtocell BS locations on the same floor, either in the same
stripe or in different stripes [16].
The PF in a multi-user diversity is not efficient because it only allocates one RB for each user. In
order to improve the PF to work in the addition of Femtocells, [16] has proposed a two-tier radio
resource reuse and interference coordination technique that was employed to LTE-A Femtocells
that uses the PF scheduling scheme as its baseline, they called it the Modified Proportional Fair
(MPF). The idea of their scheduler is to facilitate the RB reuse among Femtocell users. Their
scheduler doesn't only consider Femtocell users with the max PM but it also considers other
Femtocell users for assigning RB in a TTI, subject to the interference coordination strategy. They
applied their scheduler and tested its performance in an indoor environments. Their schedule is
shown in Figure 7.
In the process of radio resource scheduling for macro and Femtocell users, usually Femtocell
users have better coverage that result in a better signal quality. So in [16], they added the
mechanism of the macro user RB reservation to provide fairness to macro users. It works by
reserving a certain percentage of the total RBs of the system bandwidth for the macro users to be
served in every TTI.
In [16], They compared their proposed MPF with and without the existence of interference to the
regular PF in terms of average throughput and fairness. In terms of average throughput, their
proposed MPF outperformed the regular PF in the absence of interference coordination.
However, in the presence of interference it had a lower value average throughput. This is because
an RB cannot be allocated blindly in the presence of interference. In terms of fairness, both the
MPF and the PF had a similar performance. They also investigated the performance of the Macro
user RB reservation in terms of the fairness of macro users as well as the average fairness
performance of the system. Their simulation results showed that the average fairness performance
of macro users and also the system performance was improved. They also investigated the
performance of their proposed MPF scheduler in terms of spectral and energy efficiencies,
varying the value of maxPM of MPF scheduler. Their simulation results showed that their
proposed scheduler has the ability to meet the spectral efficiency requirements of LTE-Advanced
12. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
12
systems taking into consideration the reduction in energy per bit assurance. So they suggest the
use of their proposed resource reuse scheduler in the tier level in addition to the macro-cell level
in order to improve both spectral and energy efficiencies that is able to meet with the highest data
rate at low transmission energy per bit requirement of LTE-Advanced systems.
Fig 7. Resource scheduler proposed by [16]
The authors of [5] presented in their study a simulation tool for LTE femtocells, which was
implemented as a module of the emerging open source LTE-SIM framework. It encompasses
heterogeneous scenarios with both macro and femtocells, spectrum allocation techniques, user
mobility, femtocell access policies, and several other features related to this promising
technology. Also, the authors described the LTE, highlighted the pros and cons which are related
to the development of this new technology and the most important open issues that justify the
need of a simulation framework.
Also in [5], the authors described their developed module, with particular emphasis on the newly
implemented propagation loss models for indoor scenarios, the introduction of new network
topology objects, and the enhancements of some modules of the LTE-SIM framework. Also, they
provided an overview about some of the possible studies that could be carried out using their
simulation framework, such as; The impact that the co-layer interference due to the
communication between home base station and user in an indoor scenario composed by a single
5×5 apartment grid. The impact of the femtocell deployment in urban environments. They
13. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
13
designed a scenario consisting of one macro-cell and 56 buildings located as in a typical urban
cross. They proposed a scalability analysis of their proposed module in terms of both simulation
time and memory usage on a Linux machine with a 2.6 GHz CPU and 4 GBytes of RAM. These
analysis were done by varying the number of UEs per building.
The authors of [6] presented and provided a detailed explanation about their module for
simulating LTE femtocell within the LTE-Sim open-source framework, their module was
designed to simulate Heterogeneous scenarios of macro-cells and Femtocells. They started their
paper by introducing Femtocells and the need for their deployments to boost the network
capacity, and to guarantee a better coverage for those areas which are currently provided with an
unsatisfactory service if served by the macro-cells. Also, the authors described the framework by
explaining what its main classes could handle. Its classes could handle new network devices, for
example, handling Home eNodeB (HeNB) which could be configured for working with both
open and closed access modes, and also an enhanced user equipments which could be recognized
whether if they are inside or outside a building at certain times. Its classes could also handle
handover procedures between macro-cells and Femtocells. Its classes could also handle new
topology objects such as Femtocell, building and a street. And its classes could also handle new
channel models in order to cope with the characteristics of indoor environment.
Also in [6], the authors displayed their numerical results in the form of bar figures. They studied
how the aggregate cell throughput was affected by the frequency reuse factor under the
probability that a single Femtocell is active. Their results showed that when a single Femtocell
was active half the time, the aggregate cell throughput was best at frequency reuse 1/1, and when
it was active all the time, the aggregate cell throughput was best at frequency reuse 1/2. They also
studied how the network capacity was enhanced by the deployment of Femtocells. They deployed
two different scenarios, the first scenario included buildings which are distributed in a macro-cell
without Femtocells, and the second scenario is similar to the first, but in addition it had one
Femtocells per apartment that was assumed to be active and working on the same operating
bandwidth of the macro-cell. They compared the resulted throughput for both scenarios under
different number of UEs per HeNB. Their results showed that not only the throughput was
increased by the use of femtocells, but also it increased when the number of UEs was increased
per HeNB.
The authors of [15] provided a quality based Call Admission Control and resource allocation
mechanism to avoid resource overloading and call quality degradation. They investigated the
problem of congestion, which could occur when a large number of Femtocells are using the
Digital Subscriber Line (DSL) as a back-haul link. They briefly introduced the concepts of Self
Organizing Networks (SONs), policy based network management, Femtocell networks and how
voice calls are converted into Voice over Internet Protocol (VoIP) calls and encapsulated in a
tunnel to be transmitted into the HeNBGW which is located in the operator's core network. Then,
they briefly list the related work in this area, and how they differ from their own work in terms of
how the voice traffic was emulated and also from where they located the measurement node
which was responsible of measuring the voice call quality. Then, they described the network
architecture of their deployed scenario that they used as a reference architecture in the
development of their proposed admission control.
Also in [15], the authors described their proposed QoS based call admission control. Their
description approach started by explaining how they measure the quality of on-going voice calls
passing through the HeNBGW, they call this measurement value the Mean Opinion Square
(MOS), this MOS value was mapped with a quality rating. The measurement of the MOS was
based on calculating the packet delay, packet jitter, and packet loss. Then, they explained their
Call Admission Control (CAC) algorithm by a flowchart that describes the decision making
14. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
14
process. Then they explained how the DSL Access Multiplexer (DSLAM) monitors the
bandwidth in the Expedited Forwarding (EF) queue and shapes the traffic by dropping any
packets that arrives when the buffer is full. Then, they described how their proposed solution was
implemented and validated by the use of ns-3 network simulator. They explained their deployed
scenario and its parameters. At the end of their paper, the authors presented their results in
figures, they studied how the MOS value was affected by the increase of the number of on-line
calls versus time in two scenarios, in one scenario they used the CAC and dynamic resource
allocation, and in another scenario they didn't use it. According to their results, in the scenario
where their proposed solution was not used, the MOS dropped dramatically when the number of
on-line calls increased. However, when their solution was used, the MOS maintained with a high
quality rating.
In [1], the authors' main objective is to provide a unified multimedia-aware framework for
downlink scheduling and radio resource management for the base station of an LTE Femtocell
known as HeNB. This framework prioritize GBR traffic over NGBR traffic, and it aims to
provide efficiency to GBR contents while at the same time preserving fairness for NGBR
contents as well. The framework's algorithm is basically adaptive and opportunistic, for each
traffic class, it assigns the Resource Blocks (RBs) to the users based on their Channel Quality
Indicator (CQI) value. Then, they described their proposed model and how its algorithm works
and acts as a MAC layer which enhances the efficiency of resource management process to be
dynamic and opportunistic, and they described this by the use of workflow and a diagram. Then,
they described how they implemented their framework and evaluated it by the use of ns-3
network simulator in particular using the LTE module developed by the LENA project.
The authors of [9], presented an architectural solution “it is transparent to the 3GPP architecture”
for efficiently deploying Femtocells in the form of Networks of Femtocells (NoFs). The NoFs is
designed in the framework of the Broadband Evolved FEMTO Networks (BeFEMTO) System
architecture, it is a group of Femtocells in the same administrative domain that cooperates
together for a global performance improvement. The key to this improvement is the introduction
of a new entity called a Local Femto Gateway (LFGW) which acts as a proxy for Femtocells
inside the NoF when establishing communications with the EPC, and also the modifications in
the femtocells in the local network. Since their solution is a two-level routing approach. The
highest level is carried out by the Mobile Network Layer (MNL), while the lowest-level routing
is carried out by the Transport Network Layer (TNL).
Also in [9], the authors started their paper by introducing the LFGW functionalities that provide
an architectural connection between the Femtocells. In the second part, the authors explained the
concept of NoFs and their functionalities as opposed to the stand alone Femtocells. Then, the
authors proposed their architectural solution for the integration of NoFs in the 3GPP Evolved
Packet System (EPS). They proposed it by an overview of the NoFs system architecture and its
supporting functional entities such as the LFGW and the Modified HeNBs.
Also in [9], the authors presented the main traffic and mobility management challenges that can
arise in a NoF, these challenges could be classified into two main problems according to whether
they belong to the MNL or TNL. Their solution's improvements to the Mobile Network Layer
(MNL) was in determining the GPRS Tunnelling Protocol (GTP) endpoints by their newly
designed local location and hand off management mechanisms in order to provide user location
and session continuity whilst reducing the volume of signalling traffic that reaches the functional
entities in the EPC. Their solution's improvements to the Transport Network Layer (TNL) was in
finding the routing path towards the endpoint by the use of Back-pressure based distributed
routing mechanism.
15. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
15
5. CONCLUSION
This survey paper has provided a detailed explanation of the concepts of QoS in LTE,
heterogeneous LTE-A networks, and how traffic is classified within a packet scheduling
architecture for heterogeneous LTE-A networks. Then, it summarised the proposed QoS-based
packet scheduling algorithms in the literature for Heterogeneous LTE-A Networks, and for
Femtocells LTE-A Networks. The importance of this paper, is laying the foundation of
understanding the technologies which will be further studied and modelled as a part of the 5G
network and beyond 5G.
CONFLICTS OF INTEREST
The authors declare no conflict of interest.
APPENDIX A: LTE PROTOCOL STACKS
LTE's radio protocol architecture is separated into two protocol stacks, the first one is the control
plane protocol stacks and the second one is the user plane protocol stack as shown in Figure A1
and Figure A2. In these two figures, only the protocols with white background were designed by
3GPP, the others were designed by IETF [10]. In addition, Figure A3 displays the LTE protocol
architecture between the eNodeB and the UE with the functionalities of each sub-layers. An
example of LTE data flow for three IP packets in the downlink is displayed in Figure A4 “the case
of uplink is similar” [7].
The Control plane protocol stack includes the Radio Resource Control layer (RRC) which
handles radio-specific functionality that depends on the UE's two modes, either idle or connected.
In the case of idle mode, the UE keeps on monitoring the paging channel for detecting incoming
calls and acquiring system information. In this mode, control plane protocols include cell
selection and re-selection procedures. In the connected mode downlink channel quality and
neighbor cell information are being transmitted by the UE to the E-UTRAN to aid it to select the
most suitable cell for the UE. In this mode, control plane protocol includes the RRC protocol
[22]. The RRC protocol manages UE’s signaling and data connections, and it also includes
functions for handover [10].
Figure A1. Control plane protocol stack [10]
The topmost layer in the control plane protocol stack is the Non-Access Stratum (NAS), this
protocol's transactions contents is only visible to the UE and the MME, it consists of two separate
protocols, the EPS Mobility Management (EMM) and the EPS Session Management (ESM). The
responsibility of the EPS Mobility Management (EMM) protocol is to handle the UE mobility
within the system. When the UE is in idle mode, the EMM protocol attaches the UE to the
network and detach it from the network, it also keeps track of the UE location in a process called
16. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
16
Tracking Area Updating (TAU). It also includes the functionalities of re-activating the UE from
its idle mode which has two scenarios that differ from the initiating party, one scenario is UE
initiated based which is called service request, the other is network initiated based which is called
paging. The EMM protocol also authenticates and protect the UE identity, controls the NAS layer
security functions, encrypt and protect the integrity of users. The EPS Session Management
(ESM) protocol is used for E-UTRAN bearer management procedures in the case if the bearer
contexts are not available in the network and E-UTRAN procedures can not start immediately
[10].
Figure A2. User plane protocol stack [10]
The User plane protocol stack between the UE and eNodeB consists of the following sub-layers
[7][10]:
Packet Data Convergence Protocol (PDCP), this protocol's responsibility varies according to the
plane type. In the user plane, it is responsible of IP header compression to reduce the amount of
bits to be transmitted over the air interface based on a compression technique known as Robust
Header Compression (ROHC). In the control plane, it performs encryption, ciphering and
deciphering, integrity protection, and also it is responsible of in-sequence delivery and duplicate
removal for handover.
Radio Link Control (RLC), this protocol segments and concatenates the PDCP-Protocol Data
Units (PDCP-PDUs) for radio interface transmission. It performs error correction with the
Automatic Repeat Request (ARQ) method. In addition, it provides services to the RLC in the
form of radio bearers. For each UE there is one configured RLC entity per radio bearer.
Medium Access Control (MAC), this layer performs scheduling which is hosted in the eNodeB for
both downlink and uplink, multiplex the data into Layer 1 transport blocks, performs error
correction with Hybrid ARQ, and it provides services to the RLC in the form of logical channels.
PHYsical layer (PHY), it is the Layer 1 of LTE-Uu radio interface, it performs the typical
physical layer functions such as, coding and decoding, modulation and demodulation, and multi-
antenna mapping. In addition, it provides services to the MAC layer in the form of transport
channels.
17. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
17
Figure A3. LTE protocol architecture between the eNodeB and UE (downlink) [7]
Figure A4. Example of LTE data flow [7]
REFERENCES
[1] Ahmed, Iffat, Leonardo Badia, Nicola Baldo, and Marco Miozzo. "Design of a unified multimedia-
aware framework for resource allocation in lte femtocells." In Proceedings of the 9th ACM
international symposium on Mobility management and wireless access, pp. 159-162. 2011.
[2] Alcatel, QoS in LTE, PSCR Demo Days,” [Online]. Available:
http://www.pscr.gov/projects/broadband/700mhz_demo_net/meetings/stakeholder_mtg_122010/day_
1/5.2_qos_priority_preemption-alu.pdf
[3] Balakrishnan, Ravikumar, Berk Canberk, and Ian F. Akyildiz. "Traffic-aware utility based QoS
provisioning in OFDMA hybrid smallcells." In 2013 IEEE International Conference on
Communications (ICC), pp. 6464-6468. IEEE, 2013.
18. International Journal of Wireless & Mobile Networks (IJWMN), Vol.14, No.4, August 2022
18
[4] Balakrishnan, Ravikumar, and Berk Canberk. "Traffic-aware QoS provisioning and admission control
in OFDMA hybrid small cells." IEEE Transactions on Vehicular Technology 63, no. 2 (2013): 802-
810.
[5] Capozzi, Francesco, Giuseppe Piro, Luigi A. Grieco, Gennaro Boggia, and Pietro Camarda. "On
accurate simulations of LTE femtocells using an open source simulator." EURASIP Journal on
Wireless Communications and Networking 2012, no. 1 (2012): 1-13.
[6] Capozzi, Francesco, Giuseppe Piro, Luigi Alfredo Grieco, Gennaro Boggia, and Pietro Camarda. "A
system-level simulation framework for LTE femtocells." In SimuTools, pp. 211-213. 2012.
[7] Dahlman, Erik, Stefan Parkvall, and Johan Skold. 4G: LTE/LTE-advanced for mobile broadband.
Academic press, 2013.
[8] Erel, Müge, Yusuf Özçevik, and Berk Canberk. "A topology control mechanism for cognitive
smallcell networks under heterogeneous traffic." In 2013 IEEE 14th International Symposium on" A
World of Wireless, Mobile and Multimedia Networks"(WoWMoM), pp. 1-6. IEEE, 2013.
[9] Ferragut, Jaime, Josep Mangues-Bafalluy, José Núñez-Martínez, and Frank Zdarsky. "Traffic and
mobility management in networks of femtocells." Mobile Networks and Applications 17, no. 5
(2012): 662-673.
[10] Holma, Harri, and Antti Toskala, eds. LTE for UMTS: OFDMA and SC-FDMA based radio access.
John Wiley & Sons, 2009.
[11] ixia, “Quality of Service (QoS) and Policy Management in Mobile Data Networks, Validating Service
Quality to Ensure Subscriber Quality of Experience (QoE),” [Online]. Available:
http://www.ixiacom.com/pdfs/library/white_papers/policy_management.pdf
[12] Kausar, Rehana, Yue Chen, and Kok Keong Chai. "Service specific queue sorting and scheduling
algorithm for OFDMA-based LTE-advanced networks." In 2011 International Conference on
Broadband and Wireless Computing, Communication and Applications, pp. 116-121. IEEE, 2011.
[13] Kausar, R., Y. Chen, and K. K. Chai. "QoS aware Packet Scheduling with adaptive resource
