Apache Spark 2.0 includes improvements that provide considerable speedups for CPU-intensive queries through techniques like code generation. Profiling tools like flame graphs can help analyze where CPU cycles are spent by visualizing stack traces. Flame graphs are useful for performance troubleshooting but have limitations. Testing Spark applications locally and through unit tests allows faster iteration compared to running on clusters and saves resources. It is also important to test with local approximations of distributed components like HDFS and Hive.

1. Profiling & Testing with Spark
Apache Spark 2.0 Improvements, Flame Graphs & Testing

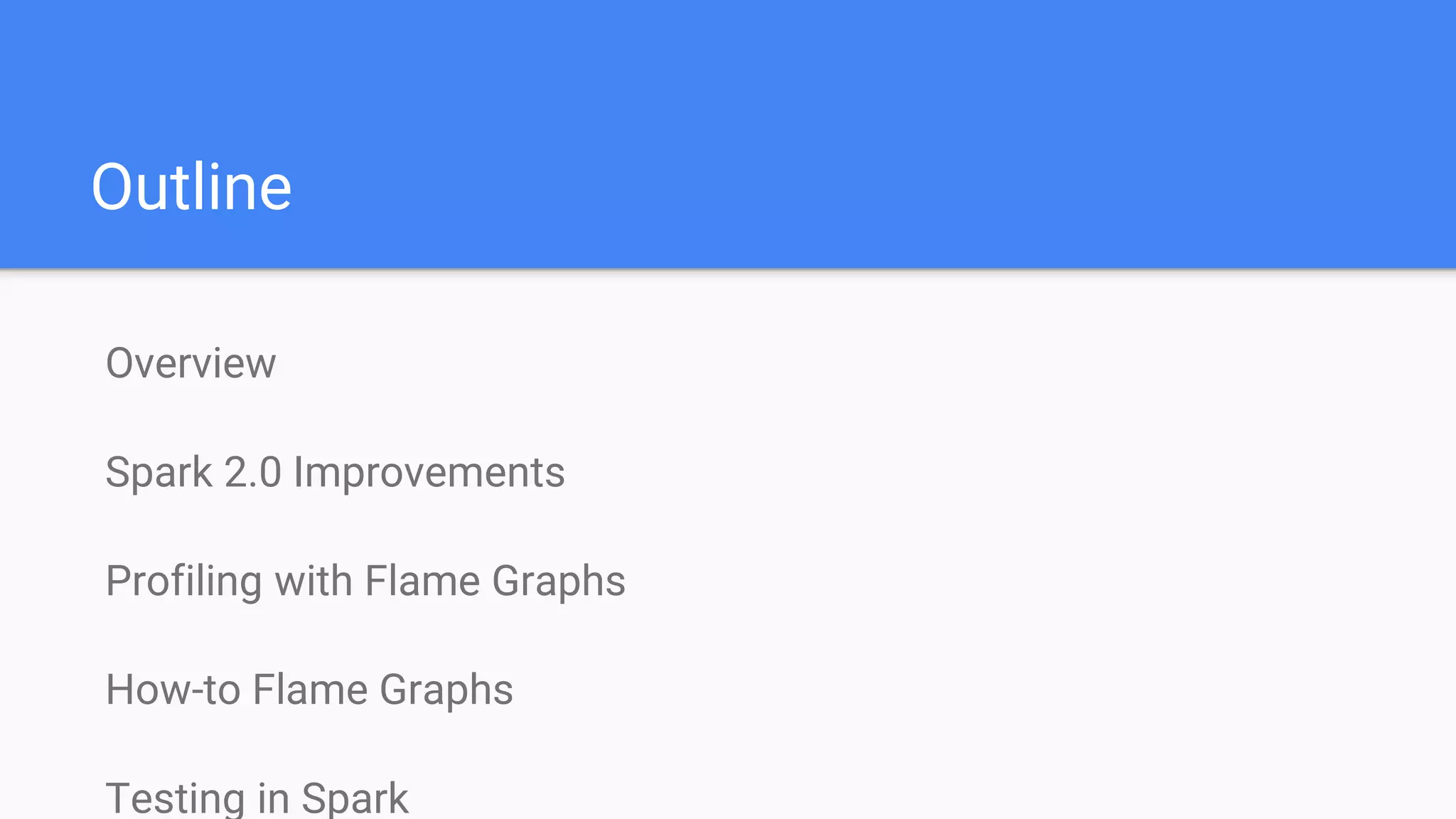

2. Outline
Overview
Spark 2.0 Improvements
Profiling with Flame Graphs
How-to Flame Graphs
Testing in Spark

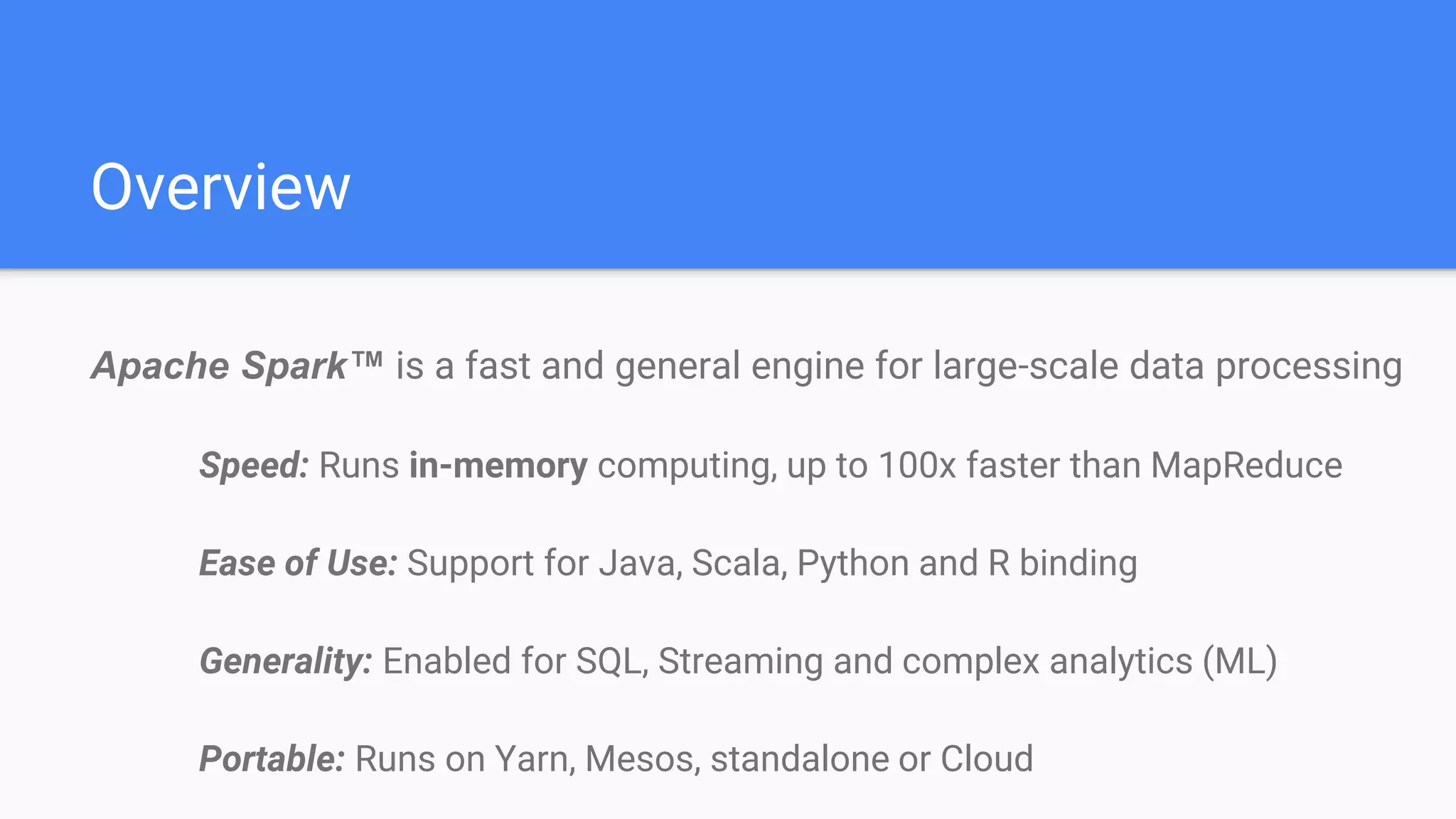

3. Overview
Apache Spark™ is a fast and general engine for large-scale data processing
Speed: Runs in-memory computing, up to 100x faster than MapReduce
Ease of Use: Support for Java, Scala, Python and R binding
Generality: Enabled for SQL, Streaming and complex analytics (ML)
Portable: Runs on Yarn, Mesos, standalone or Cloud

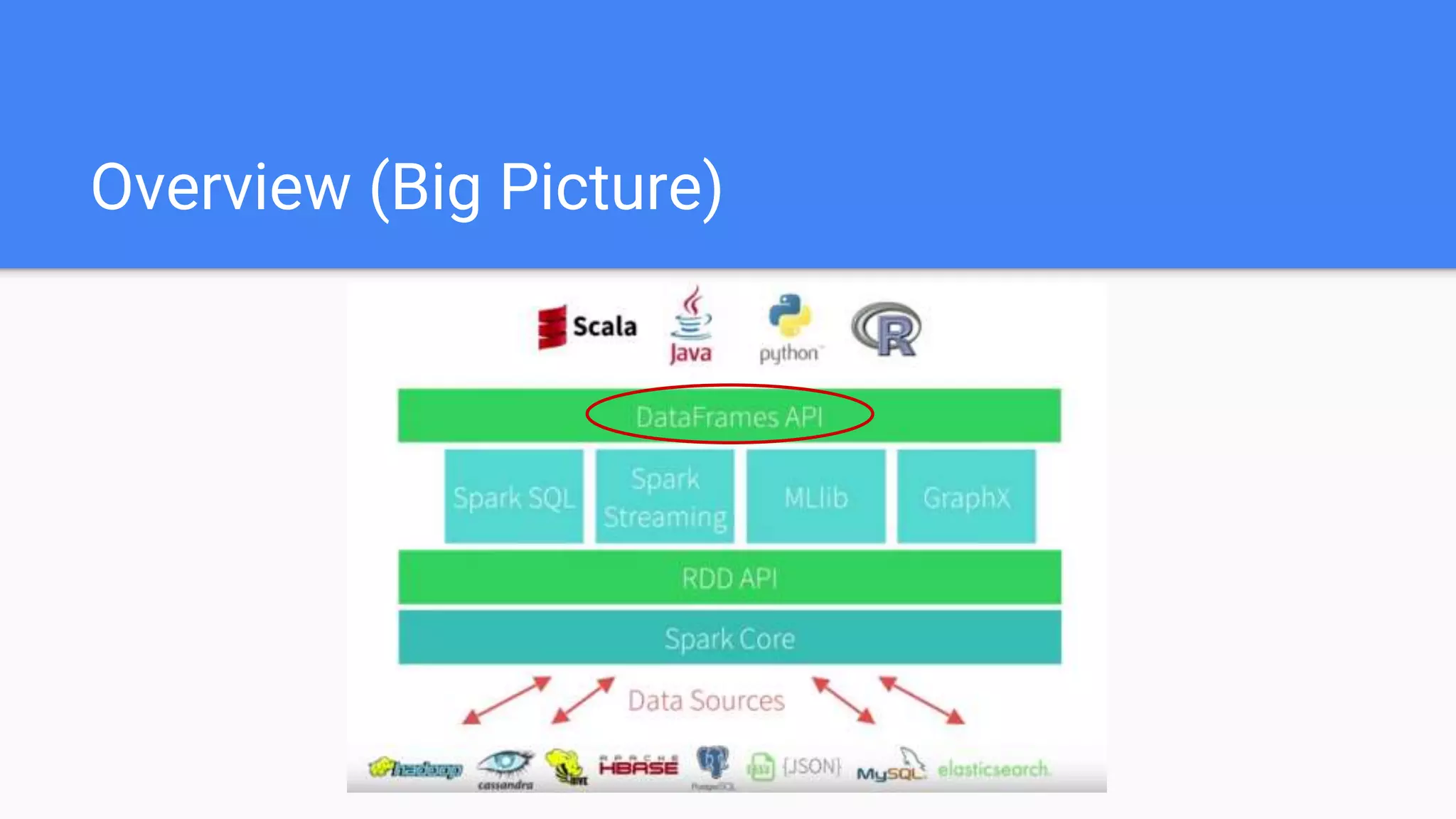

4. Overview (Big Picture)

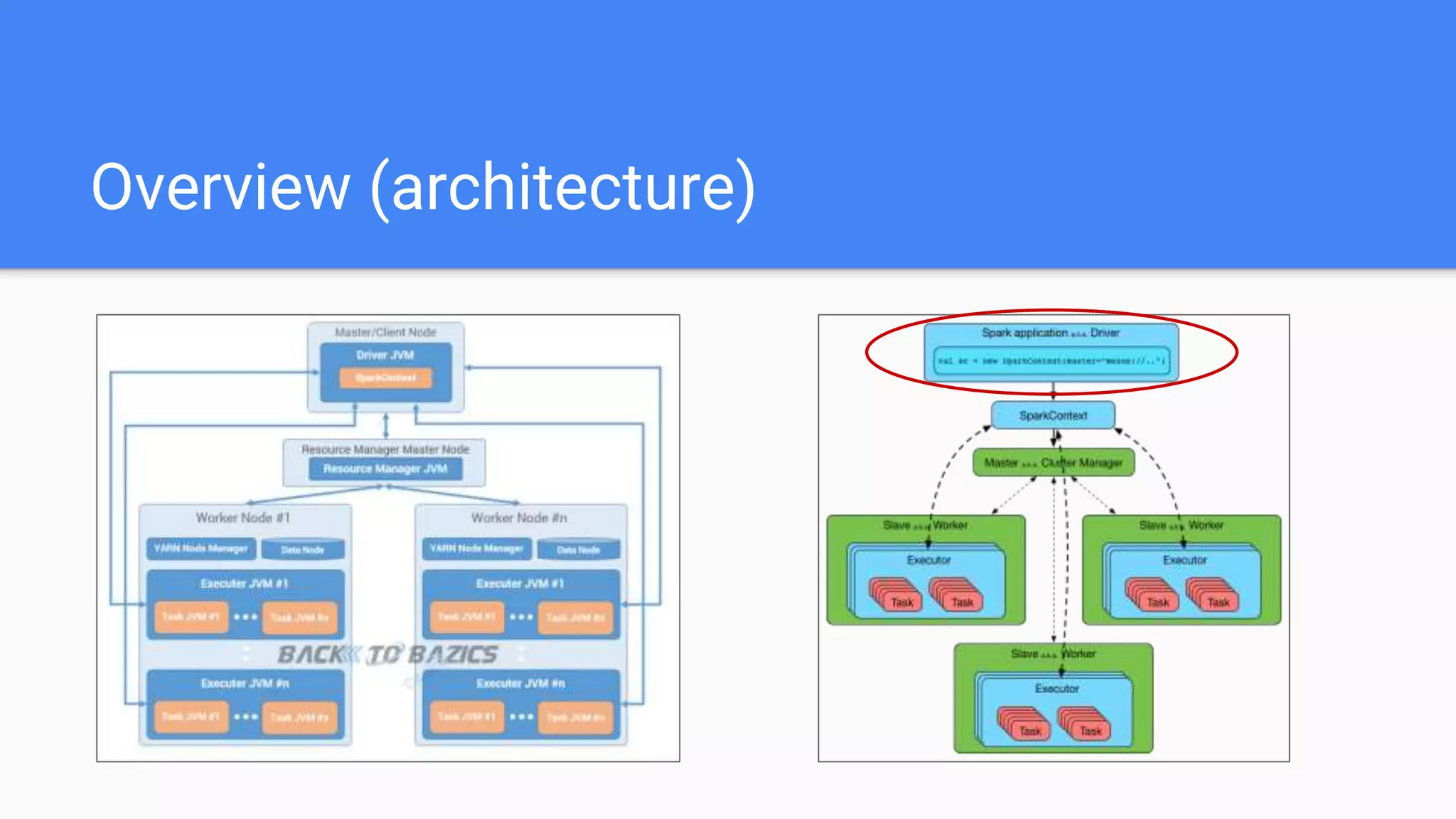

5. Overview (architecture)

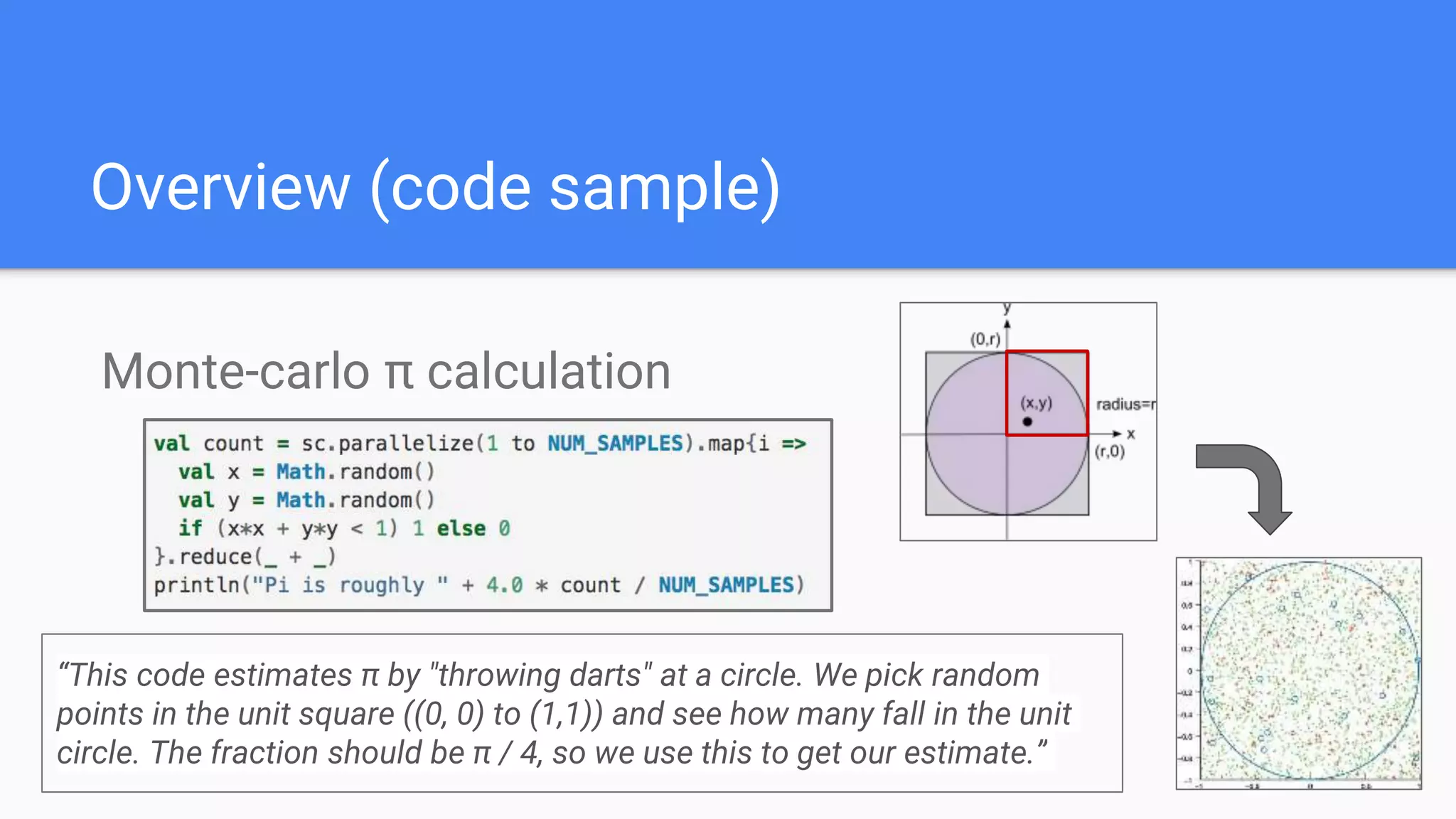

6. Overview (code sample)
Monte-carlo π calculation
“This code estimates π by "throwing darts" at a circle. We pick random
points in the unit square ((0, 0) to (1,1)) and see how many fall in the unit
circle. The fraction should be π / 4, so we use this to get our estimate.”

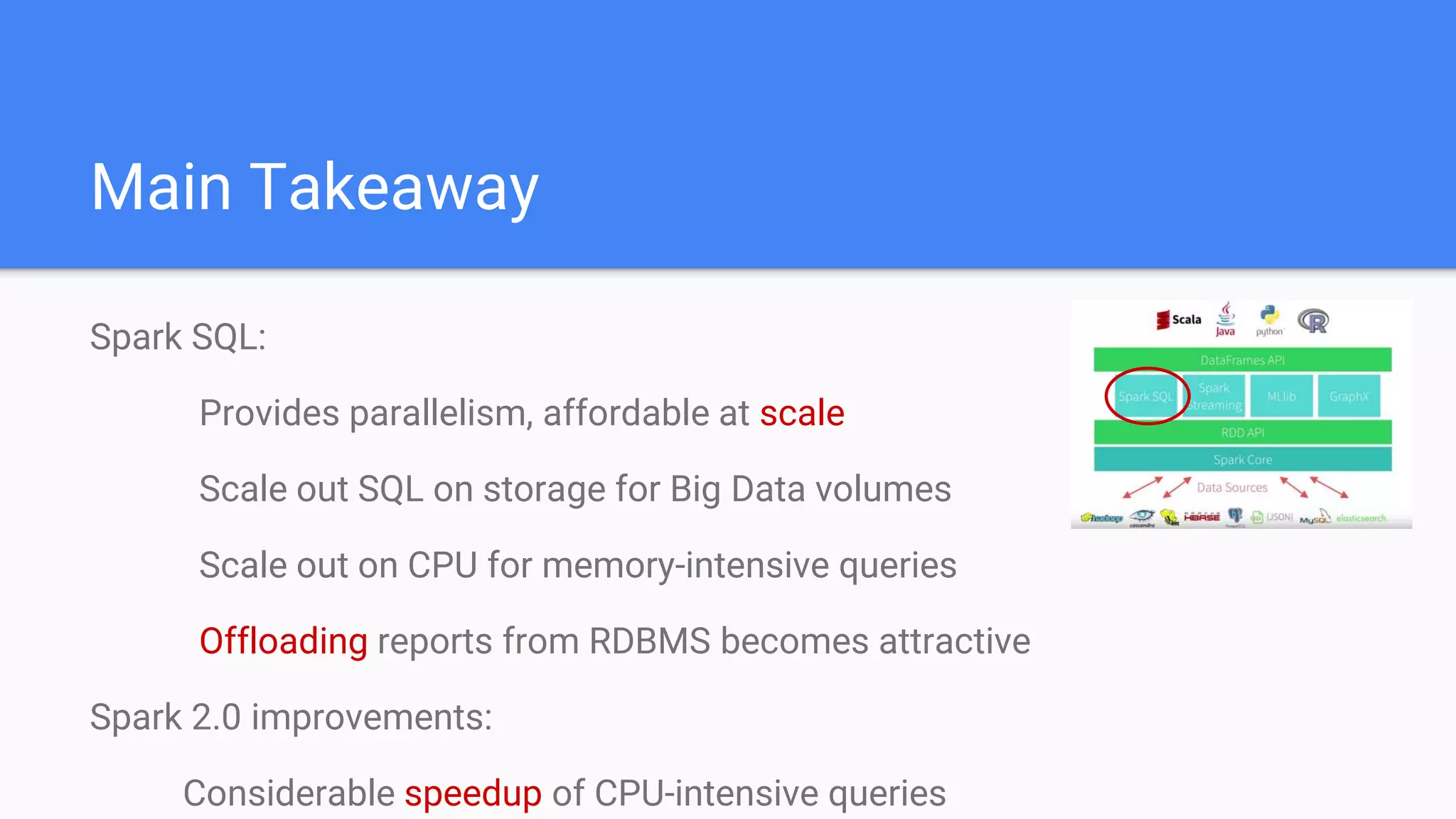

7. Main Takeaway
Spark SQL:
Provides parallelism, affordable at scale
Scale out SQL on storage for Big Data volumes
Scale out on CPU for memory-intensive queries
Offloading reports from RDBMS becomes attractive
Spark 2.0 improvements:
Considerable speedup of CPU-intensive queries

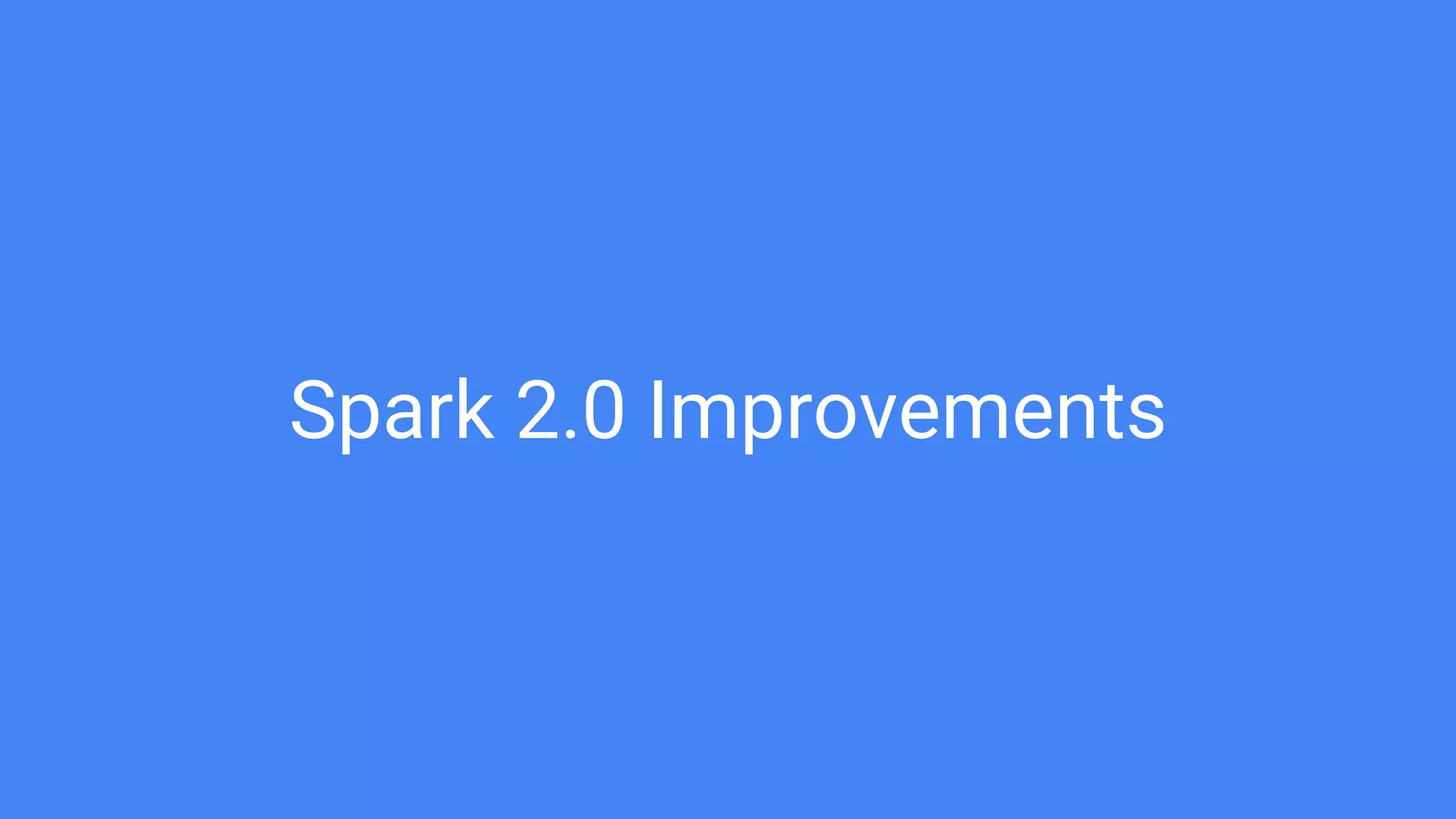

8. Spark 2.0 Improvements

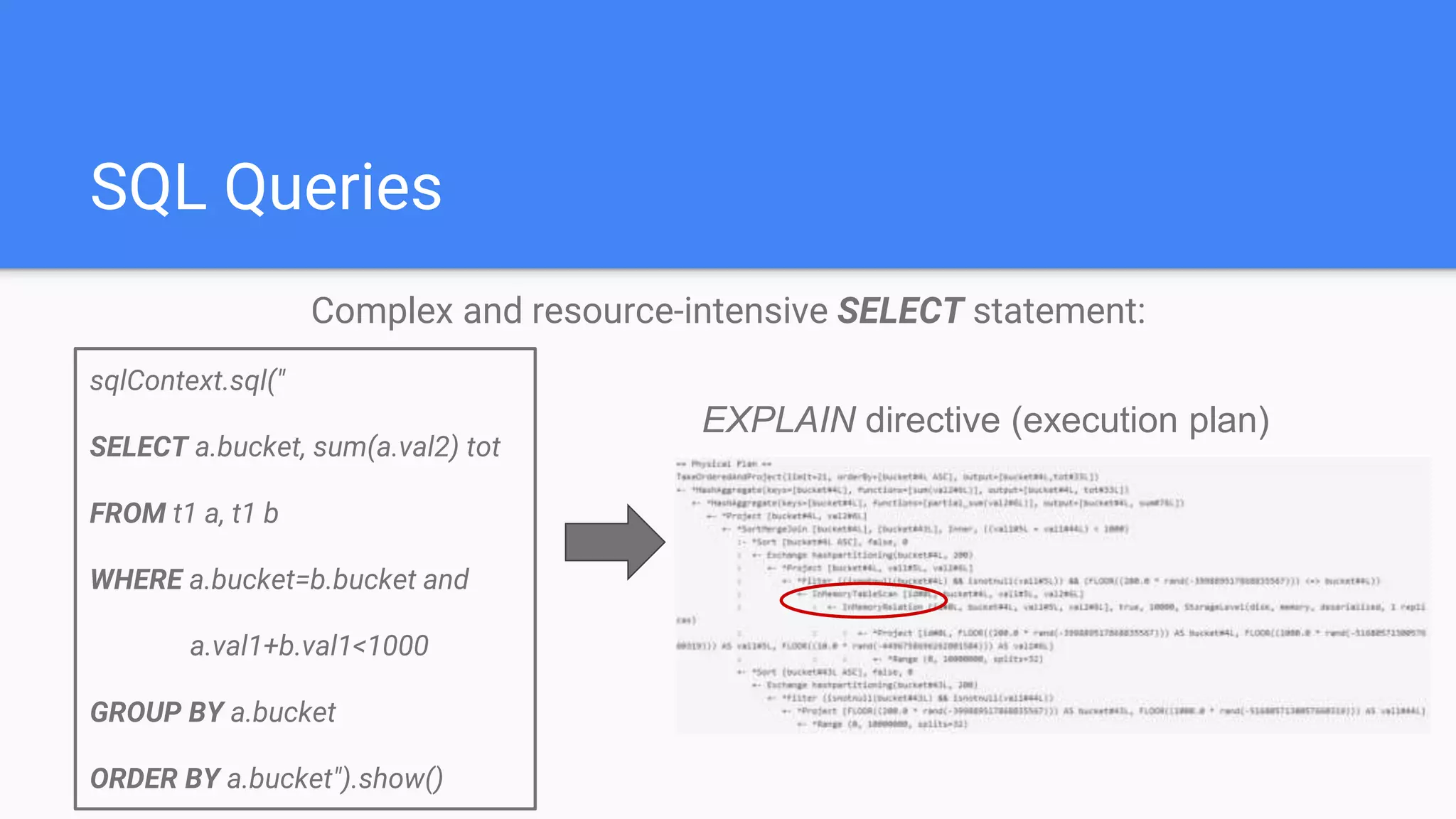

9. SQL Queries
sqlContext.sql("
SELECT a.bucket, sum(a.val2) tot
FROM t1 a, t1 b
WHERE a.bucket=b.bucket and
a.val1+b.val1<1000
GROUP BY a.bucket
ORDER BY a.bucket").show()
Complex and resource-intensive SELECT statement:
EXPLAIN directive (execution plan)

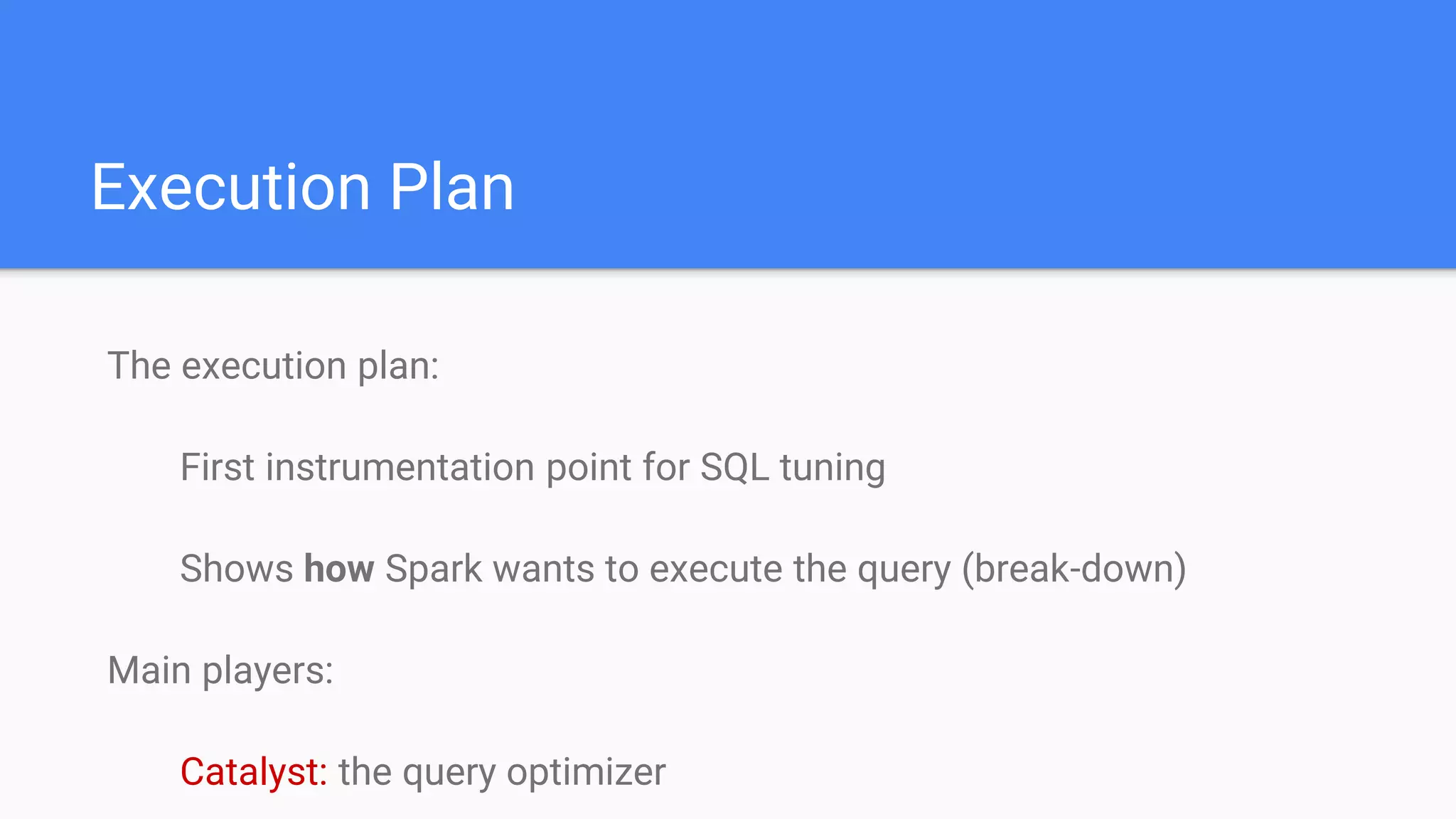

10. Execution Plan
The execution plan:
First instrumentation point for SQL tuning
Shows how Spark wants to execute the query (break-down)
Main players:
Catalyst: the query optimizer

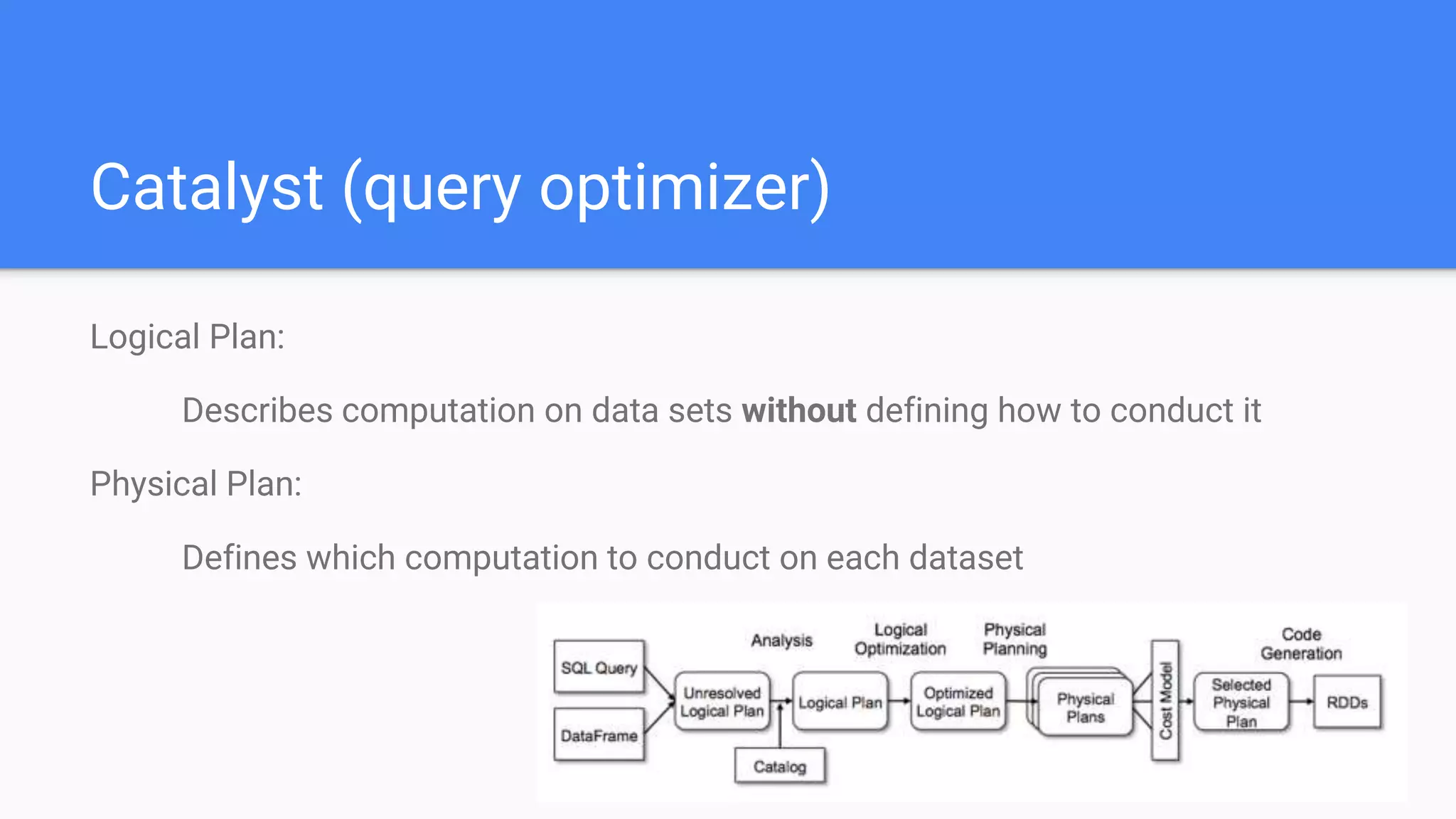

11. Catalyst (query optimizer)
Logical Plan:
Describes computation on data sets without defining how to conduct it
Physical Plan:
Defines which computation to conduct on each dataset

12. Project Tungsten (Goal)
“Improves the memory and CPU efficiency of Spark backend
execution by pushing performance close to the limits of
modern hardware.”

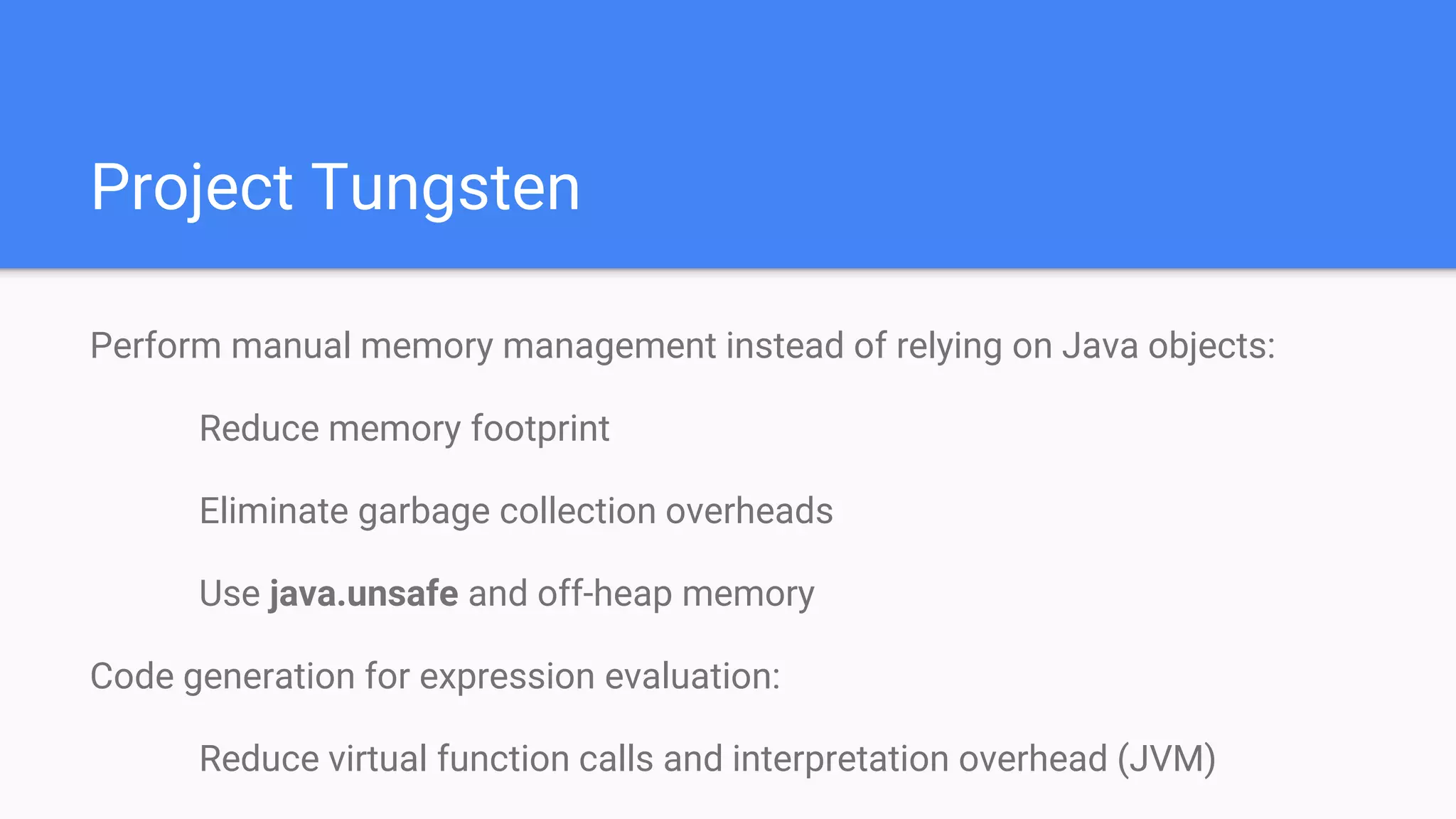

13. Project Tungsten
Perform manual memory management instead of relying on Java objects:
Reduce memory footprint
Eliminate garbage collection overheads
Use java.unsafe and off-heap memory
Code generation for expression evaluation:
Reduce virtual function calls and interpretation overhead (JVM)

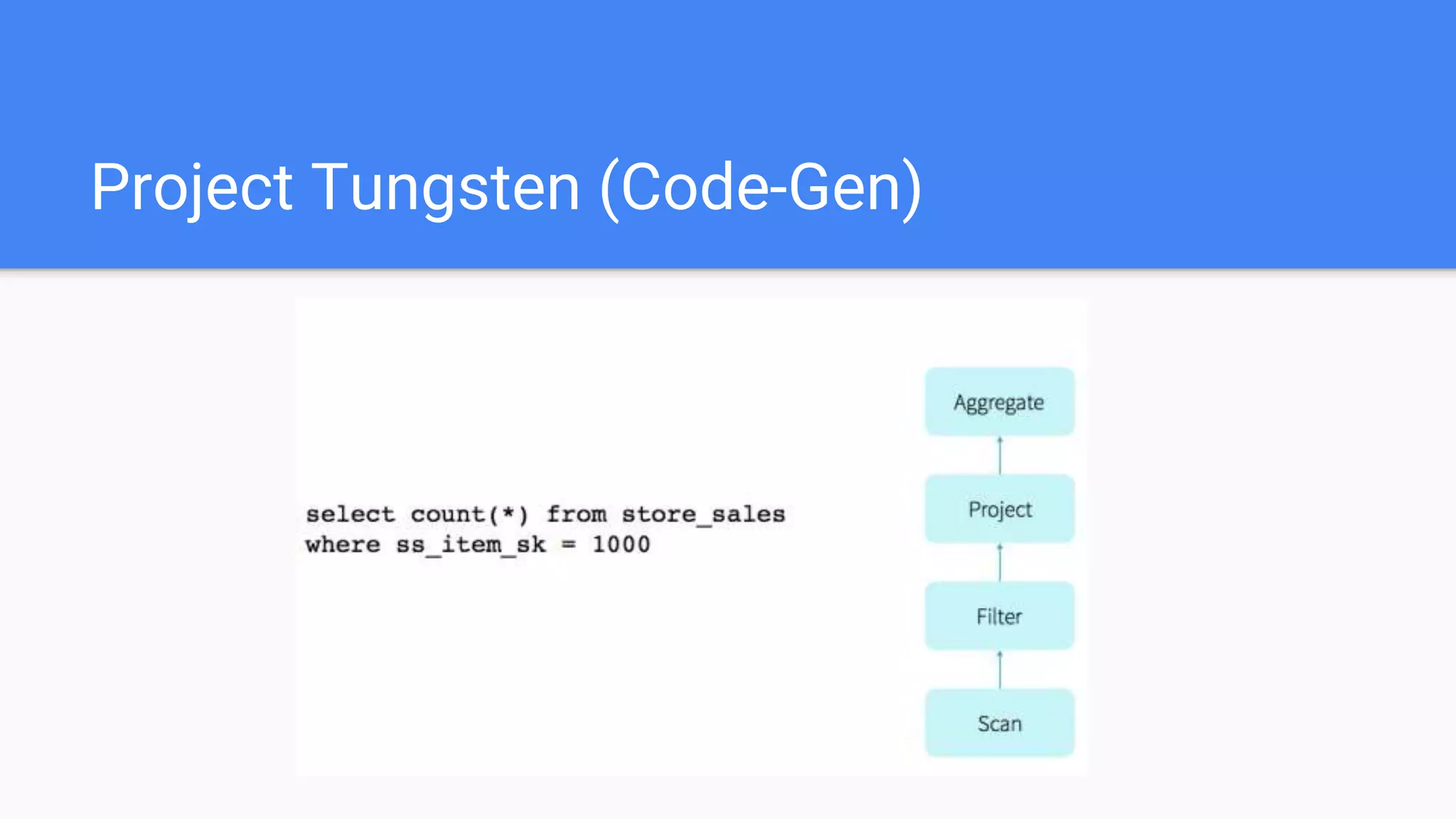

14. Project Tungsten (Code-Gen)

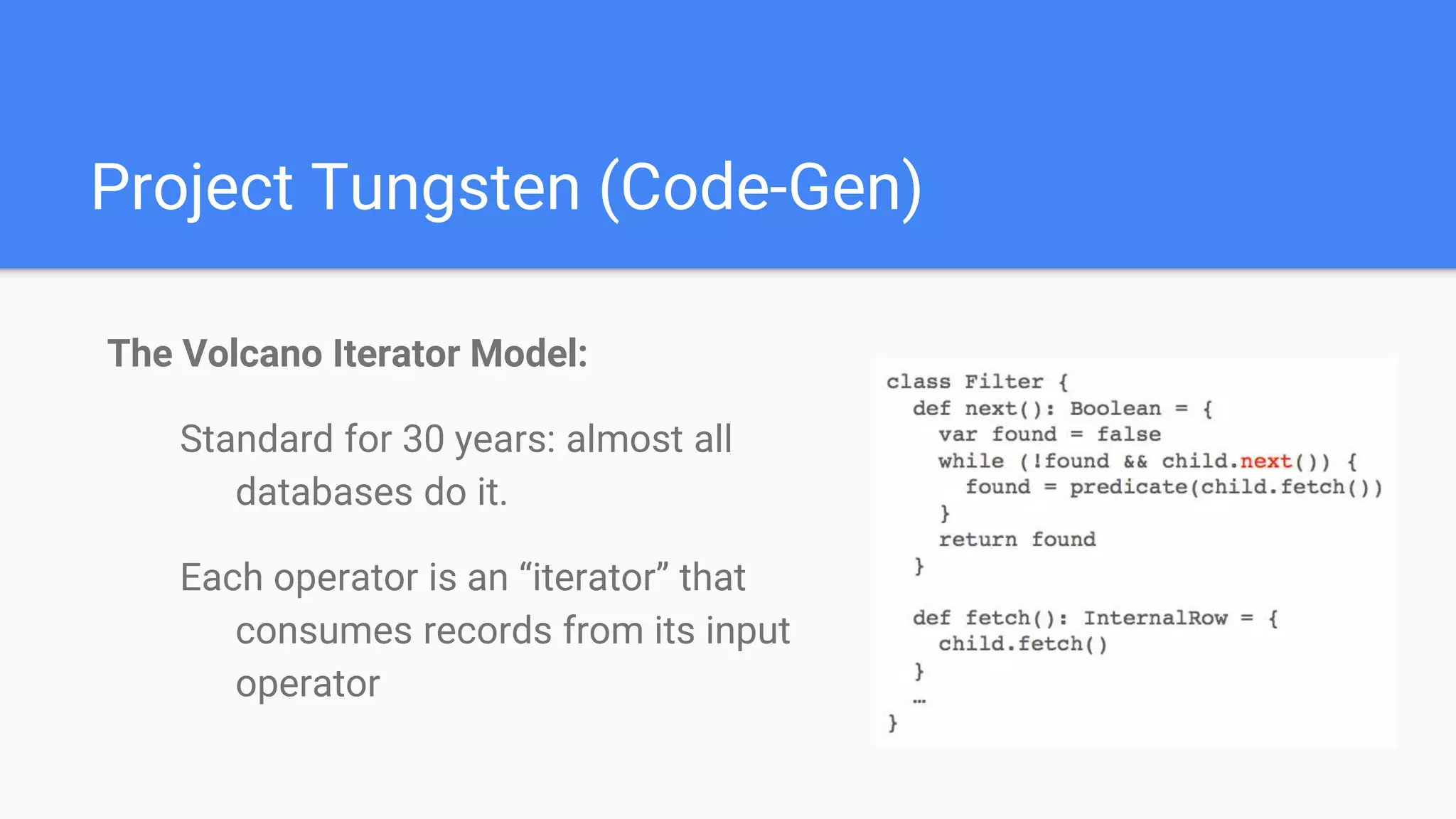

15. Project Tungsten (Code-Gen)
The Volcano Iterator Model:
Standard for 30 years: almost all
databases do it.
Each operator is an “iterator” that
consumes records from its input
operator

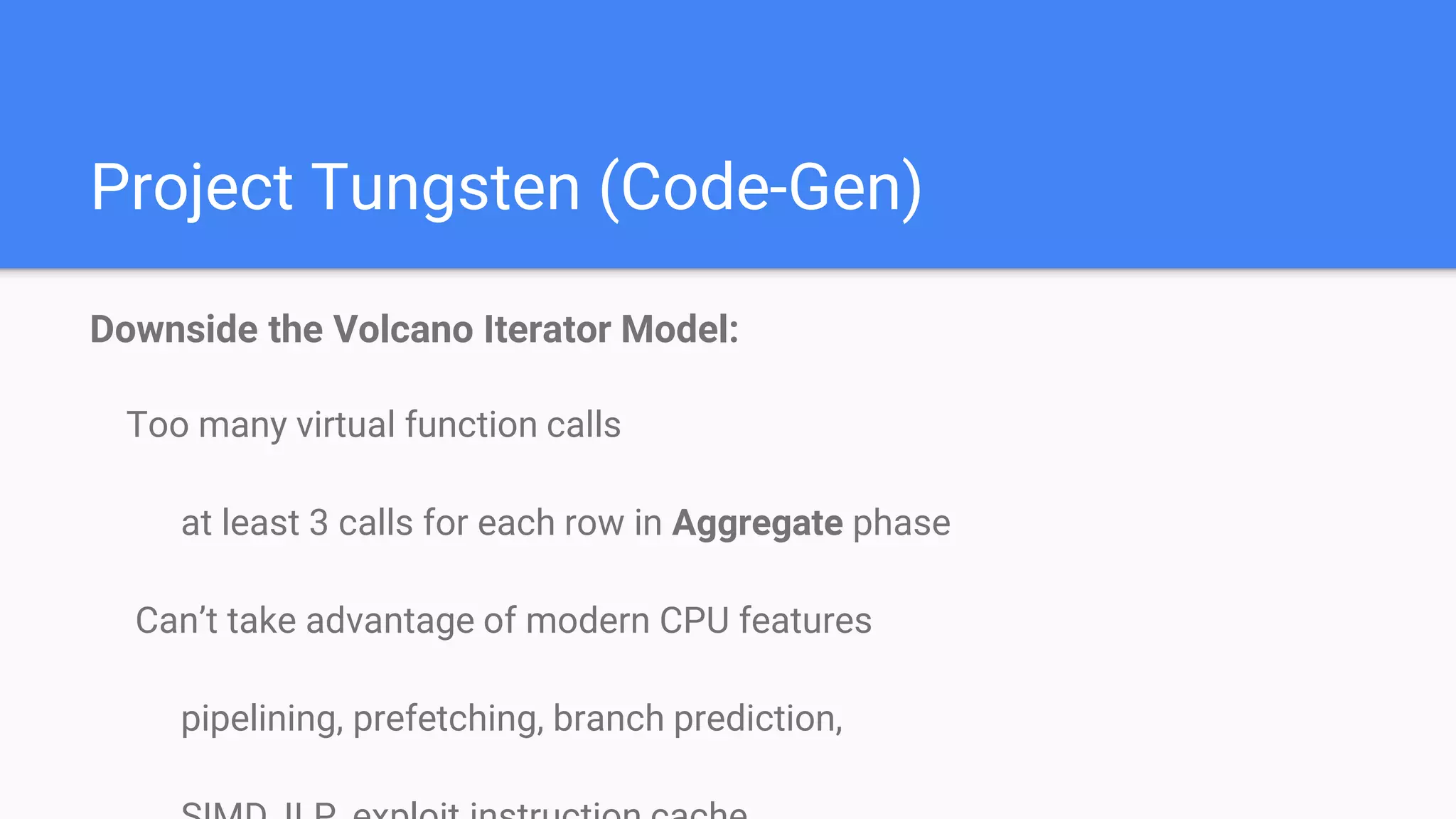

16. Project Tungsten (Code-Gen)
Downside the Volcano Iterator Model:
Too many virtual function calls
at least 3 calls for each row in Aggregate phase
Can’t take advantage of modern CPU features
pipelining, prefetching, branch prediction,

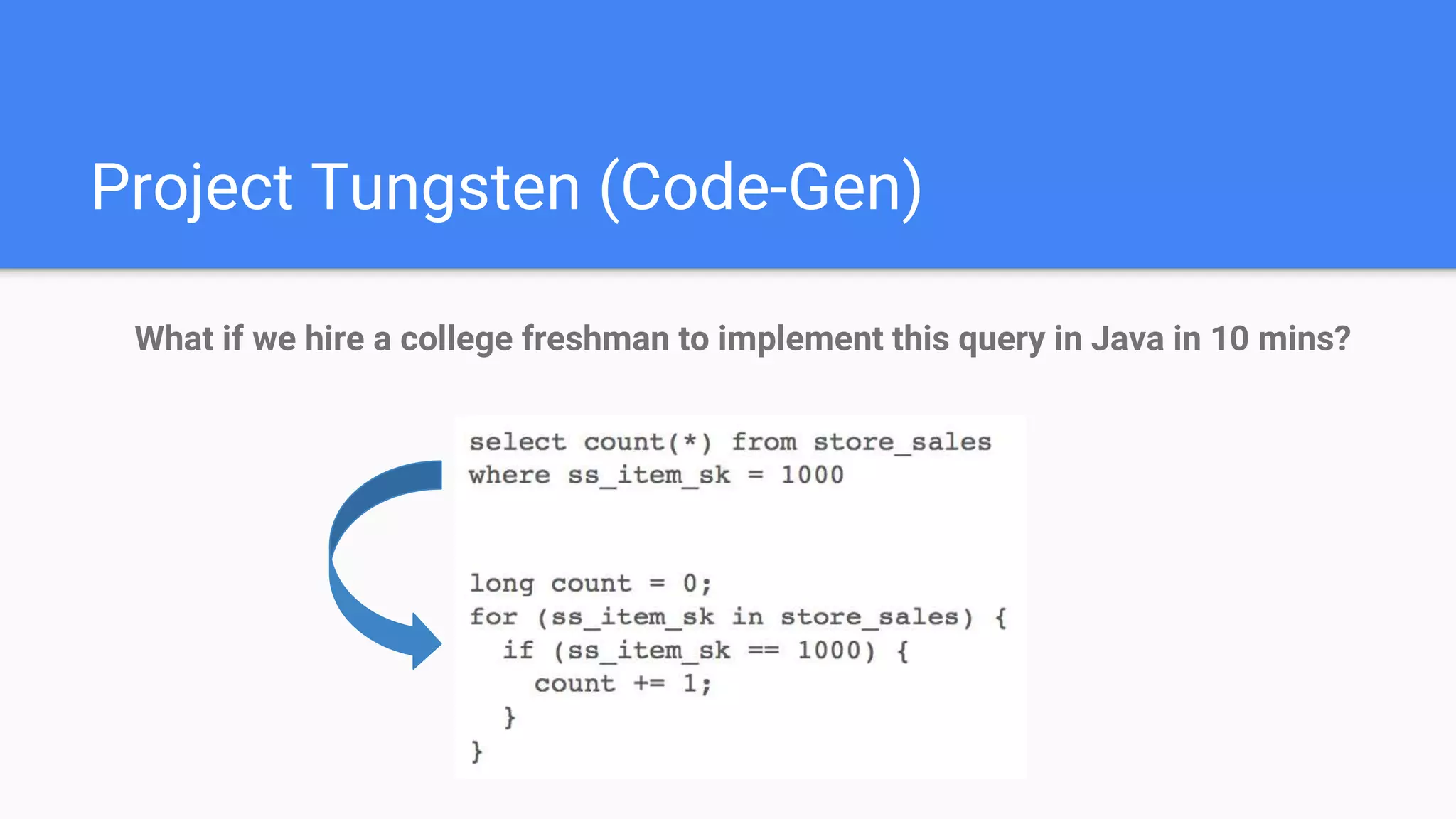

17. Project Tungsten (Code-Gen)
What if we hire a college freshman to implement this query in Java in 10 mins?

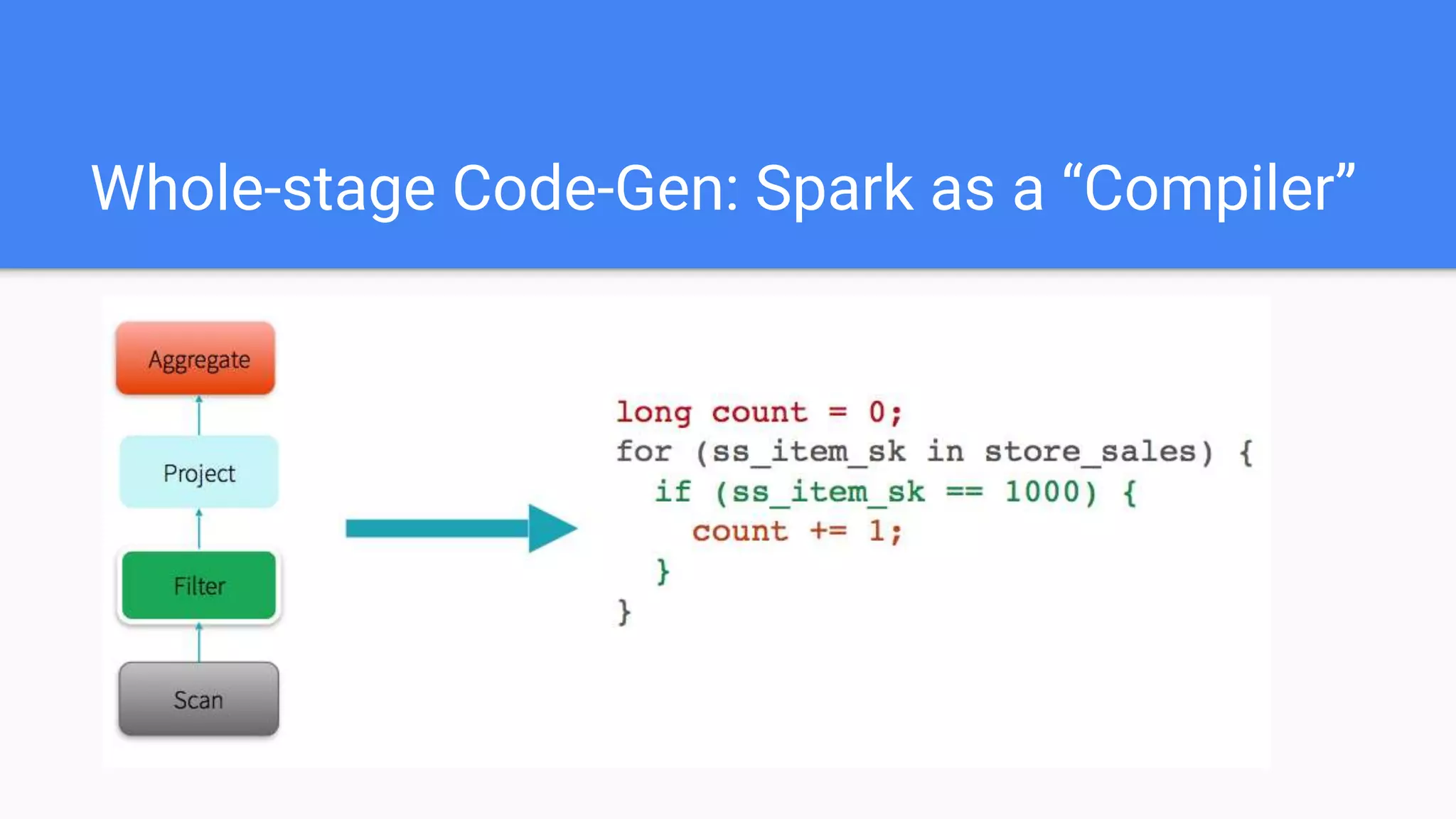

18. Whole-stage Code-Gen: Spark as a “Compiler”

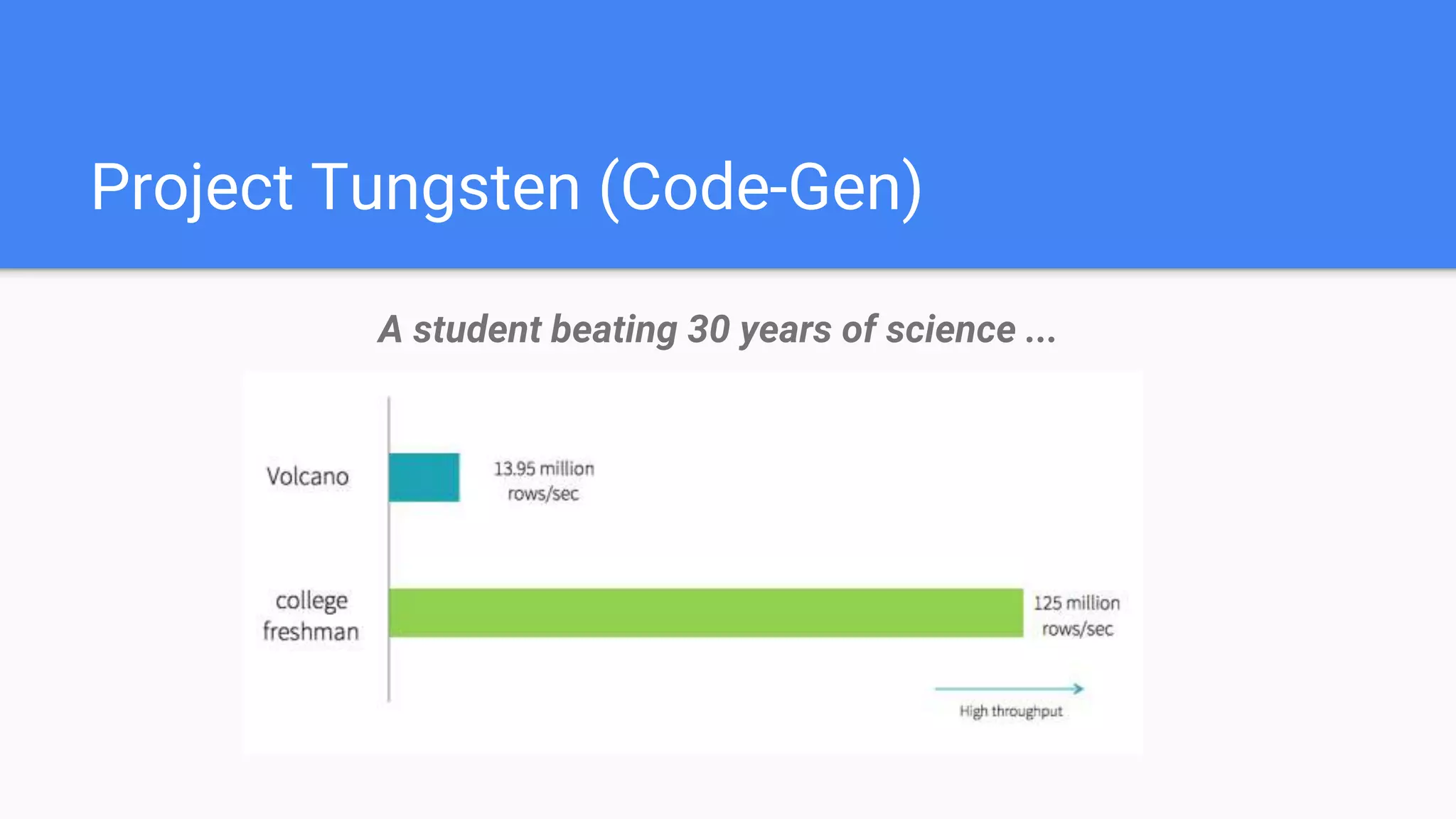

19. Project Tungsten (Code-Gen)
A student beating 30 years of science ...

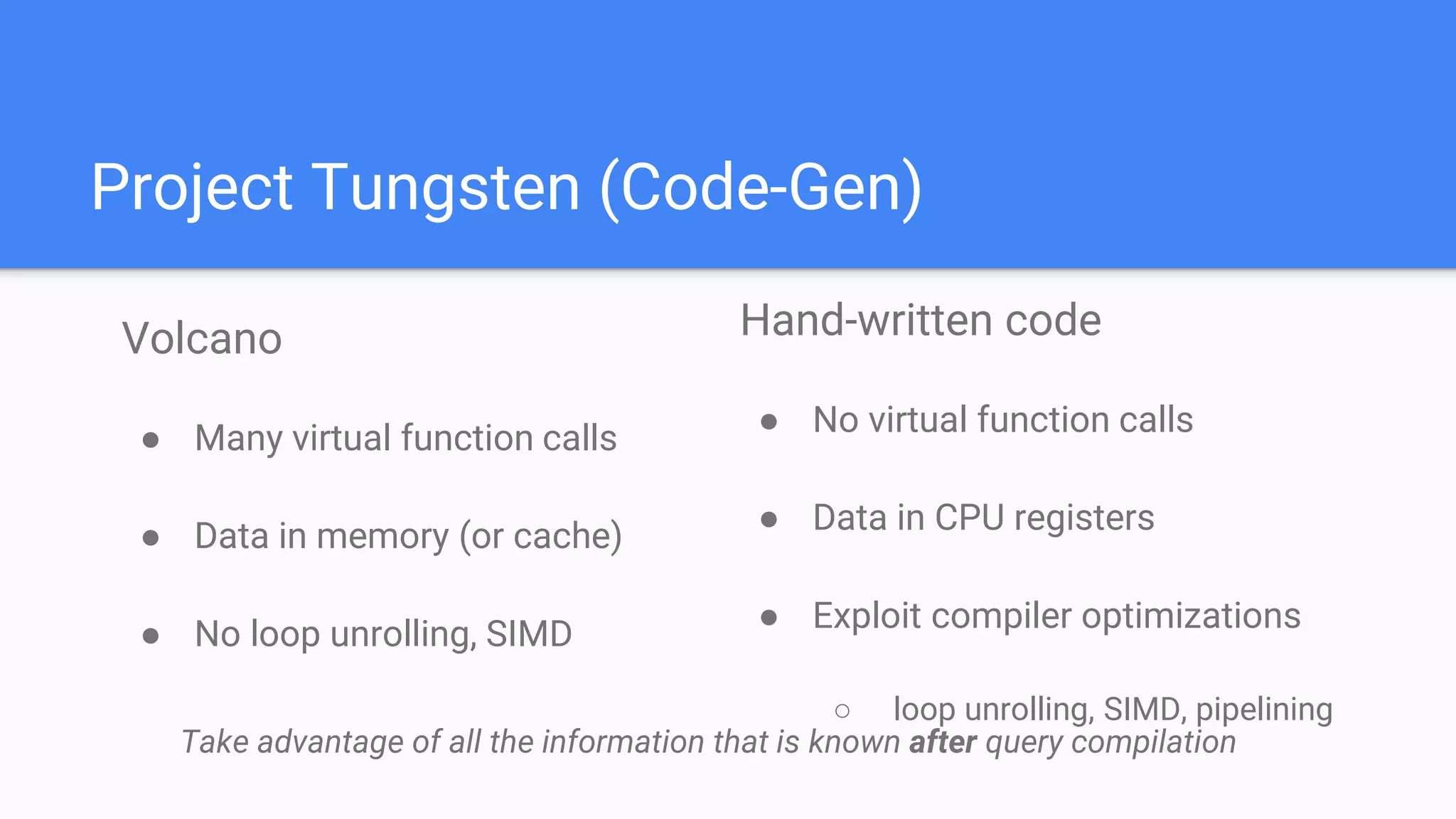

20. Project Tungsten (Code-Gen)
Volcano
● Many virtual function calls
● Data in memory (or cache)
● No loop unrolling, SIMD
Hand-written code
● No virtual function calls
● Data in CPU registers
● Exploit compiler optimizations
○ loop unrolling, SIMD, pipelining
Take advantage of all the information that is known after query compilation

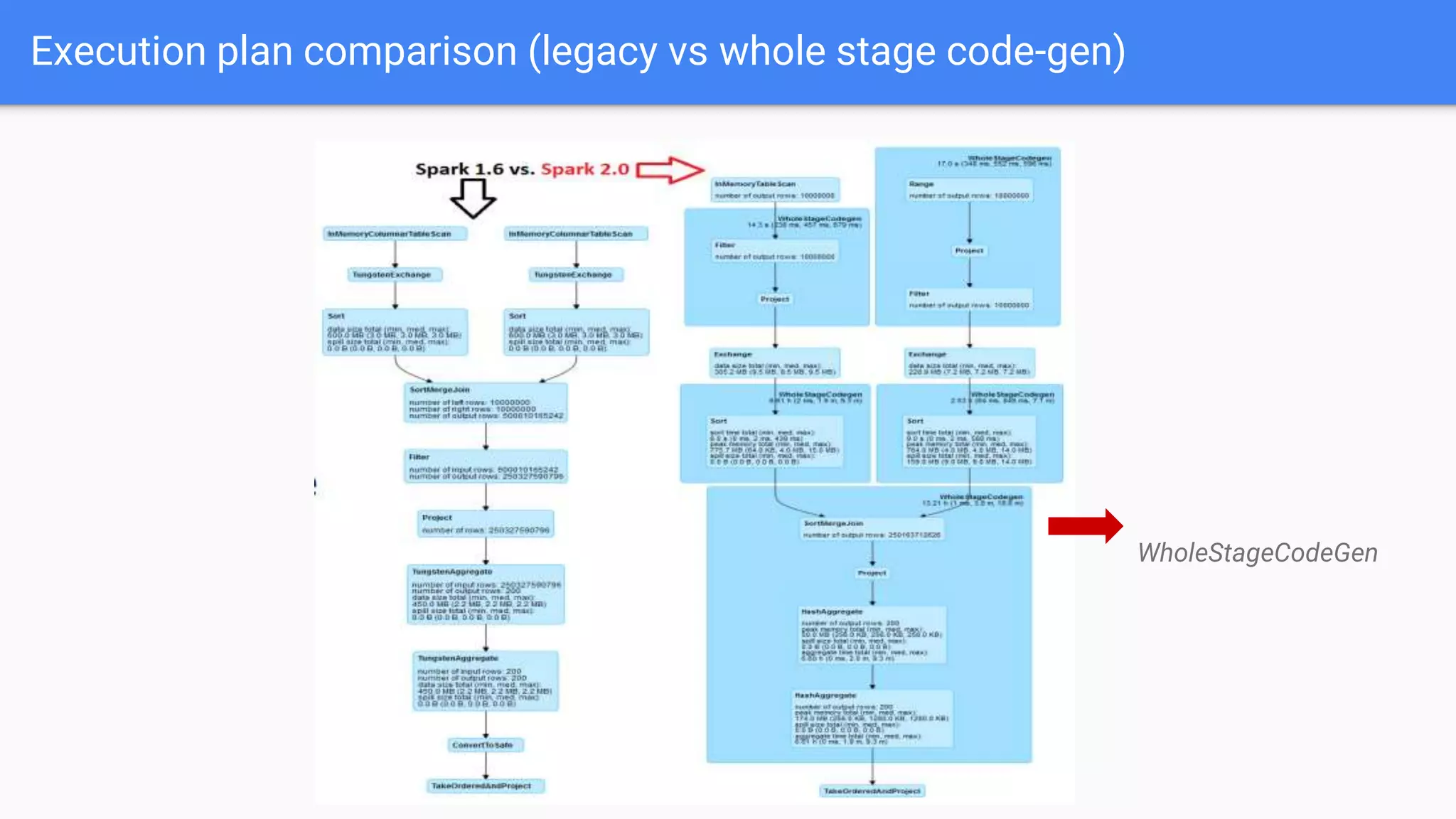

21. Execution plan comparison (legacy vs whole stage code-gen)
WholeStageCodeGen

22. Profiling with Flame Graphs

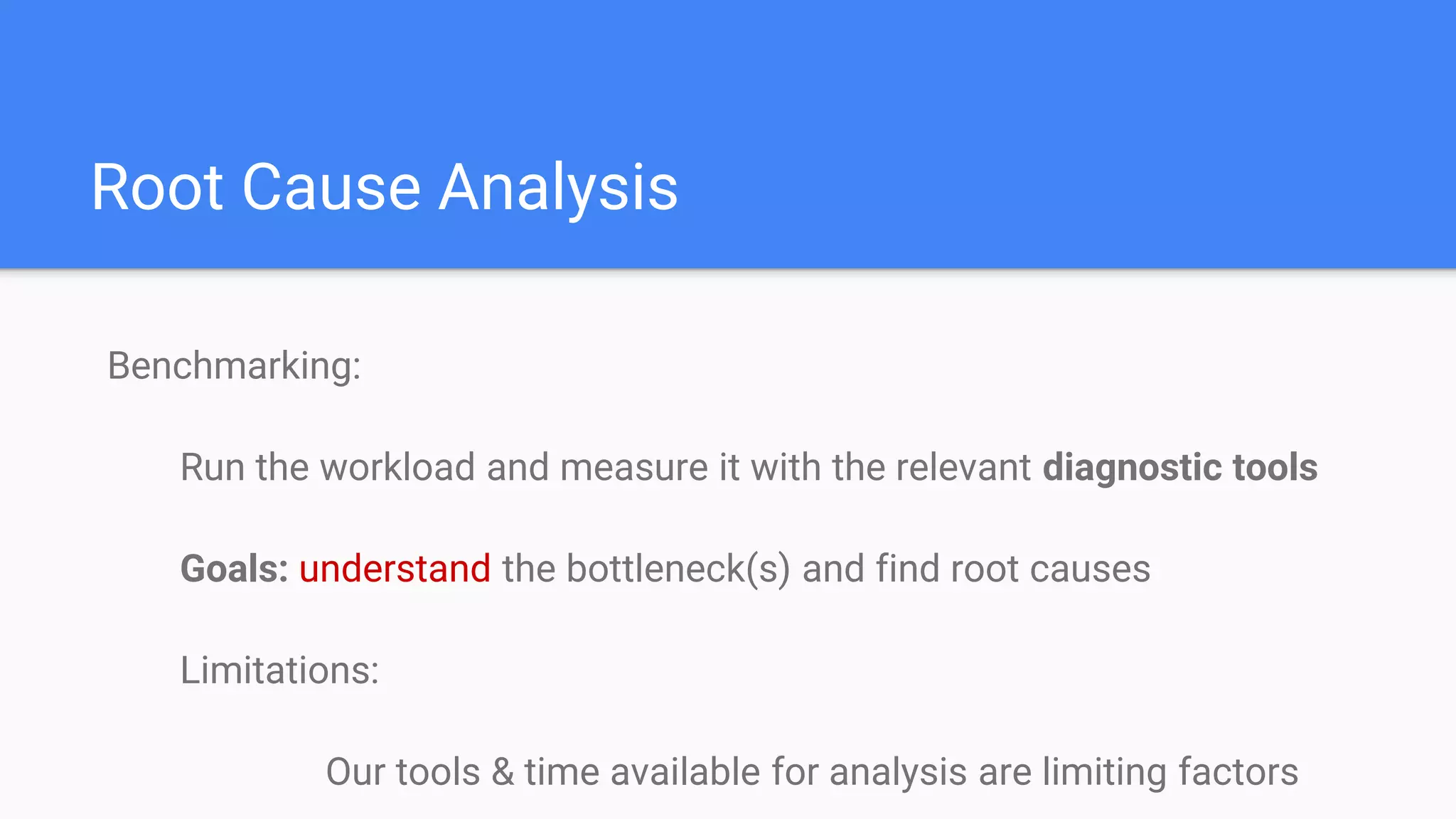

23. Root Cause Analysis
Benchmarking:
Run the workload and measure it with the relevant diagnostic tools
Goals: understand the bottleneck(s) and find root causes
Limitations:
Our tools & time available for analysis are limiting factors

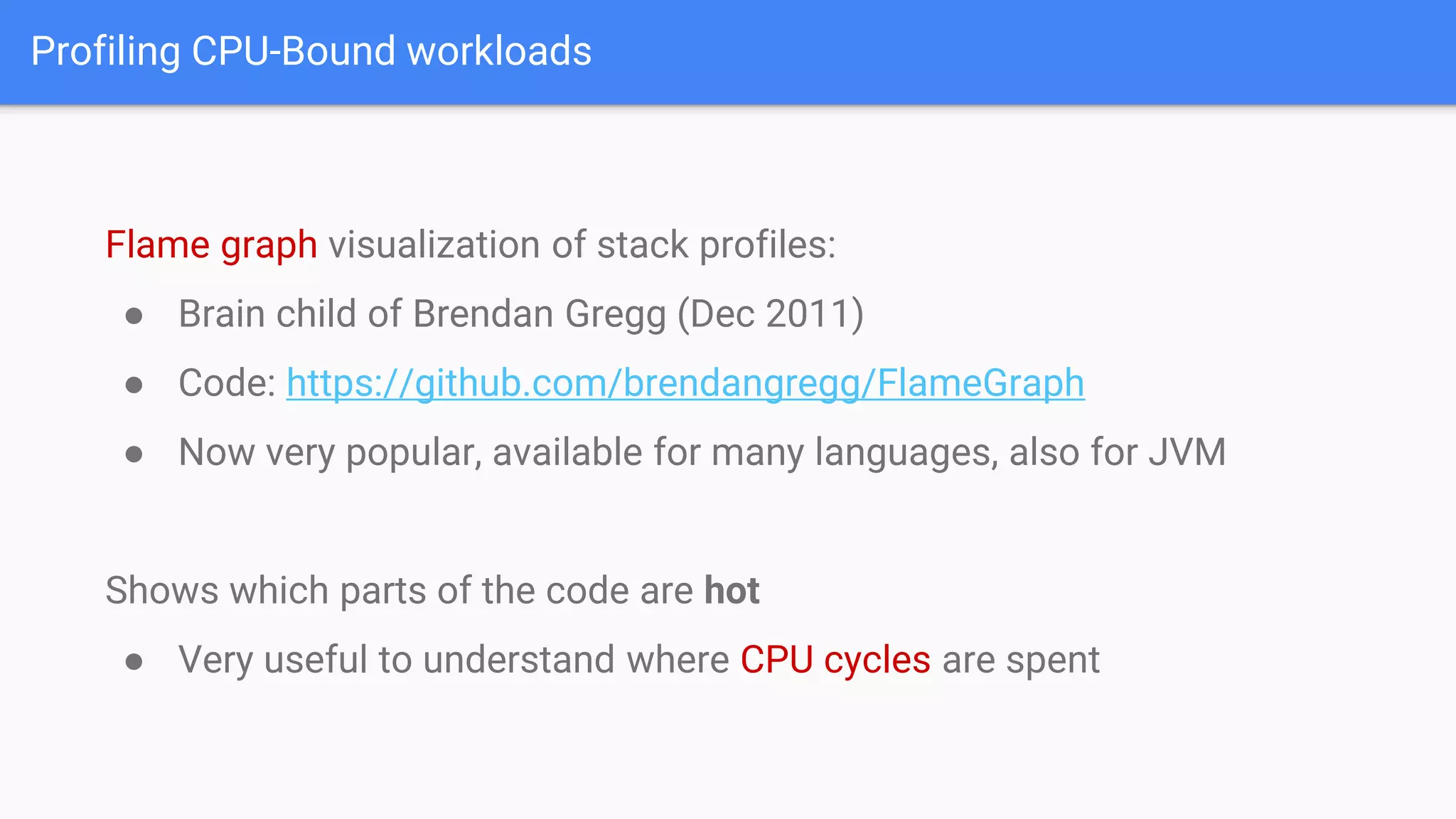

24. Profiling CPU-Bound workloads
Flame graph visualization of stack profiles:
● Brain child of Brendan Gregg (Dec 2011)
● Code: https://github.com/brendangregg/FlameGraph
● Now very popular, available for many languages, also for JVM
Shows which parts of the code are hot
● Very useful to understand where CPU cycles are spent

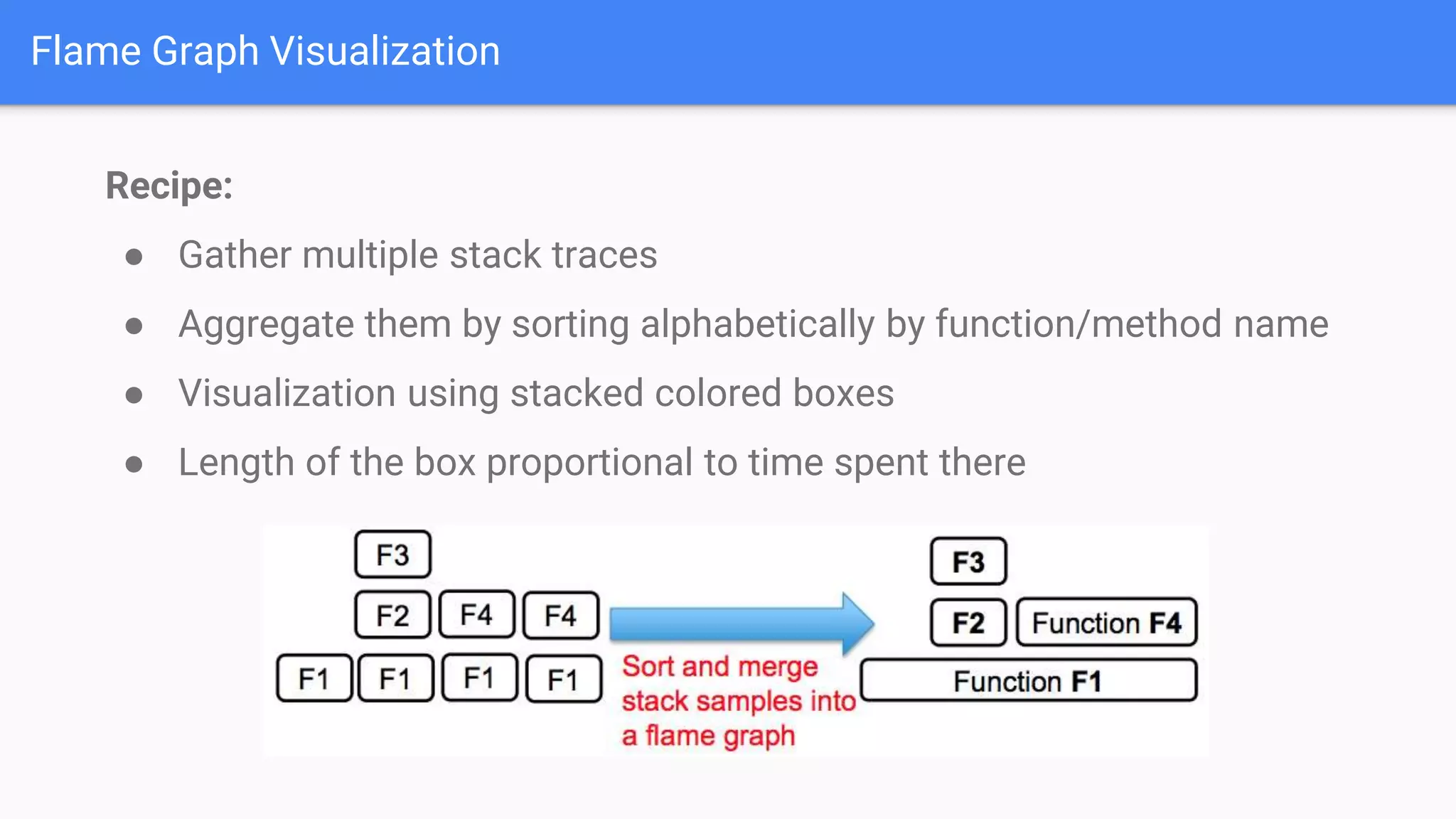

25. Flame Graph Visualization
Recipe:
● Gather multiple stack traces
● Aggregate them by sorting alphabetically by function/method name
● Visualization using stacked colored boxes
● Length of the box proportional to time spent there

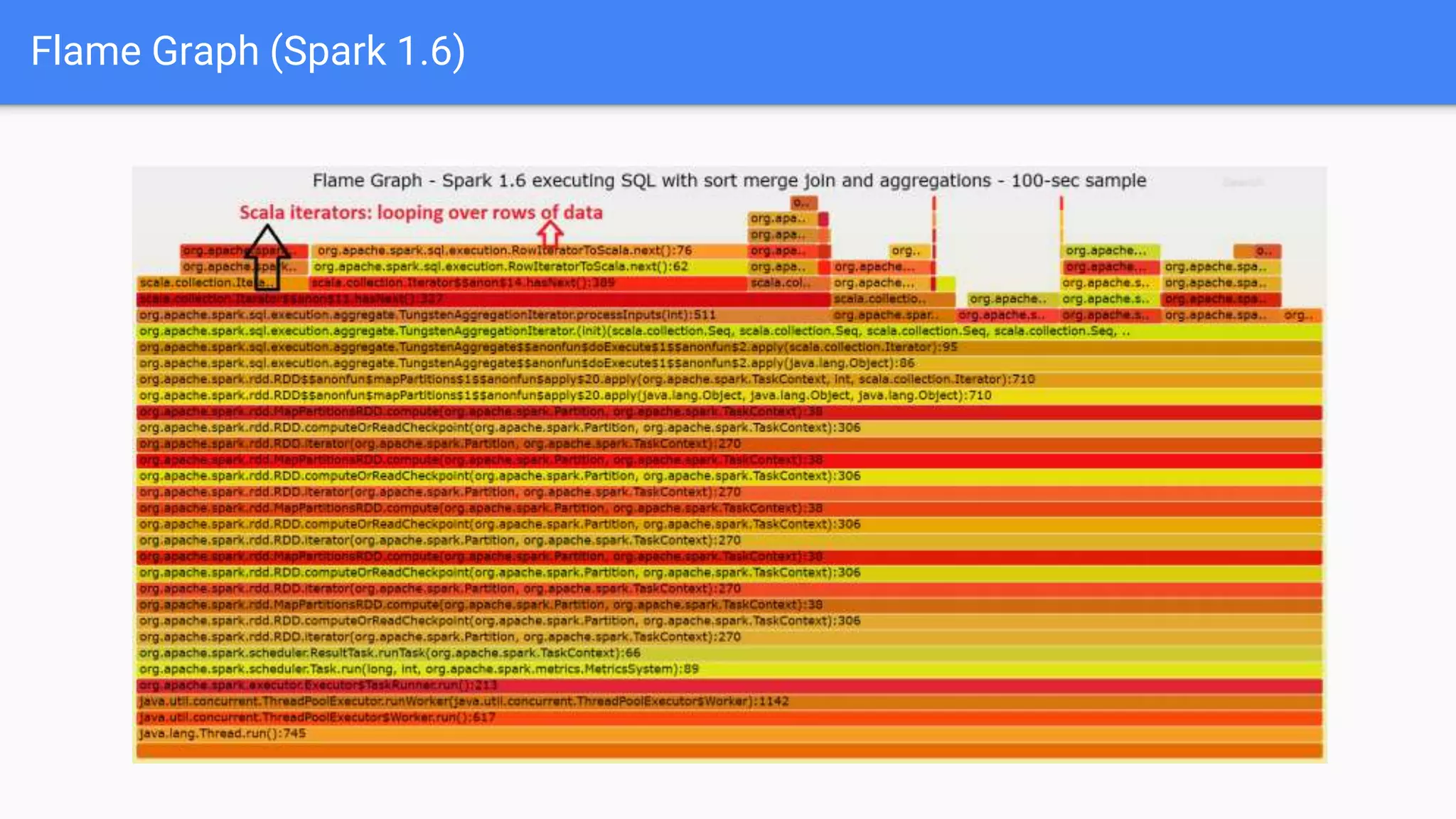

26. Flame Graph (Spark 1.6)

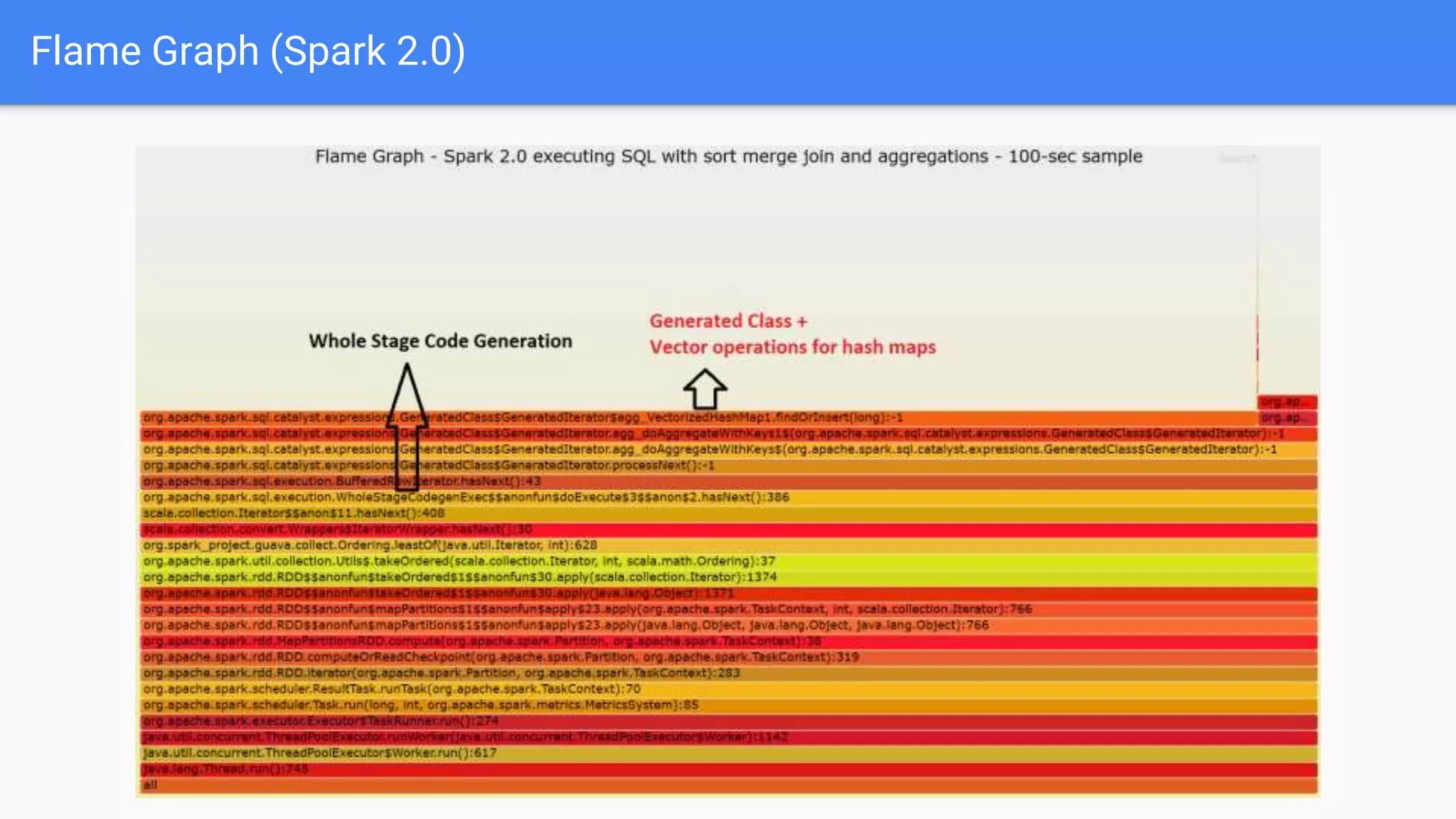

27. Flame Graph (Spark 2.0)

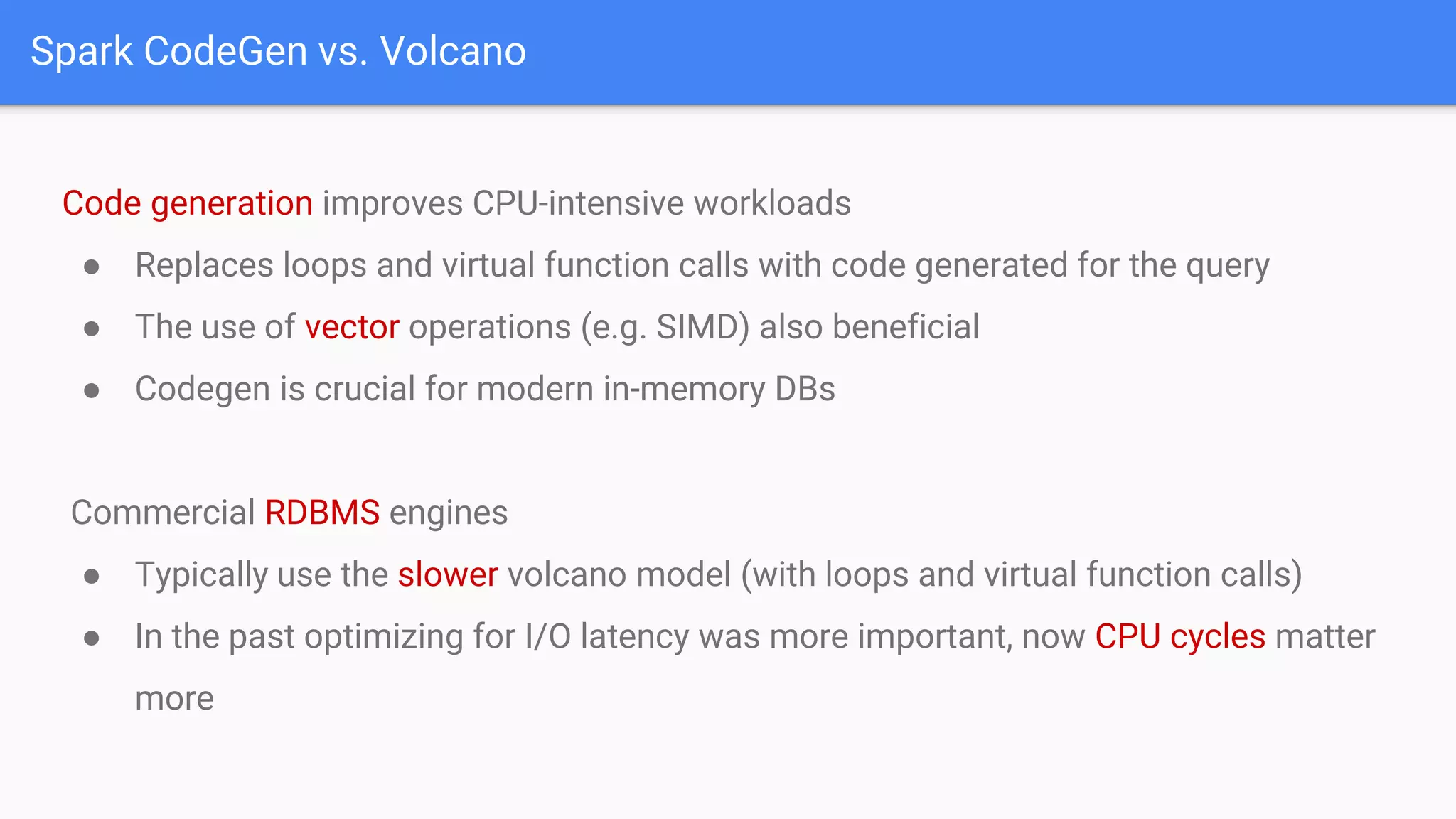

28. Spark CodeGen vs. Volcano
Code generation improves CPU-intensive workloads
● Replaces loops and virtual function calls with code generated for the query
● The use of vector operations (e.g. SIMD) also beneficial
● Codegen is crucial for modern in-memory DBs
Commercial RDBMS engines
● Typically use the slower volcano model (with loops and virtual function calls)
● In the past optimizing for I/O latency was more important, now CPU cycles matter
more

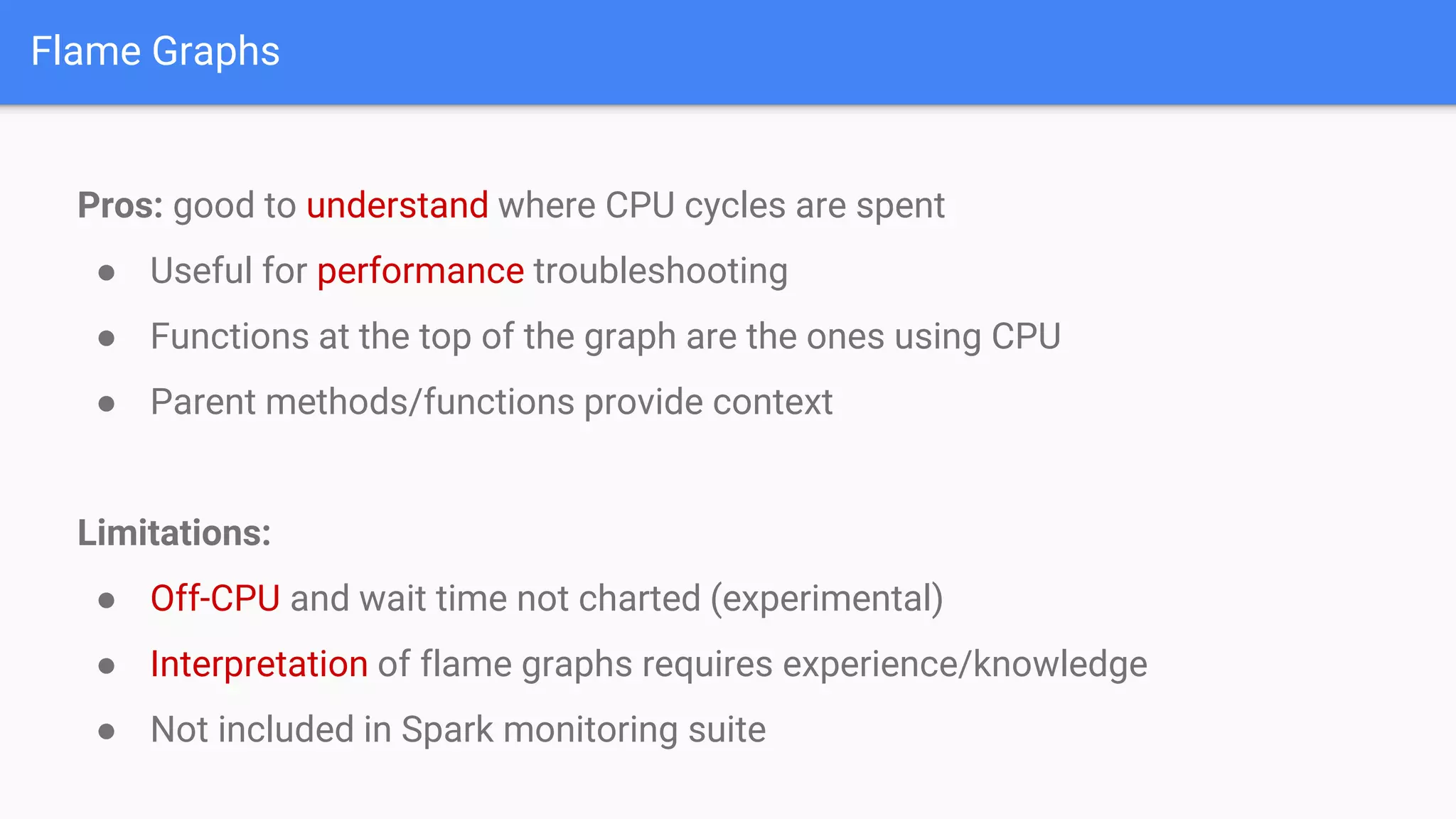

29. Flame Graphs
Pros: good to understand where CPU cycles are spent
● Useful for performance troubleshooting
● Functions at the top of the graph are the ones using CPU
● Parent methods/functions provide context
Limitations:
● Off-CPU and wait time not charted (experimental)
● Interpretation of flame graphs requires experience/knowledge
● Not included in Spark monitoring suite

30. How-to Flame Graphs

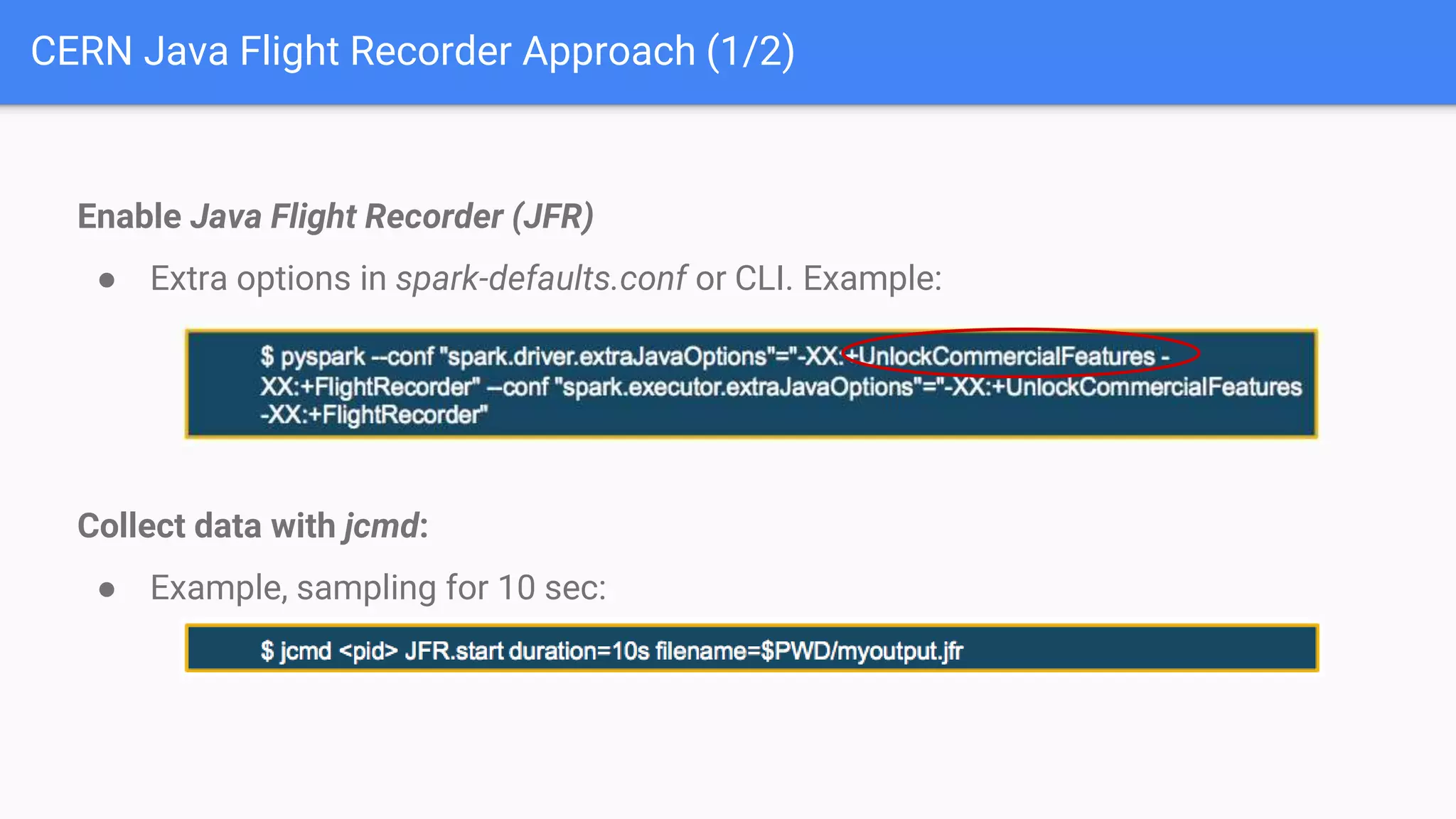

31. CERN Java Flight Recorder Approach (1/2)
Enable Java Flight Recorder (JFR)
● Extra options in spark-defaults.conf or CLI. Example:
Collect data with jcmd:
● Example, sampling for 10 sec:

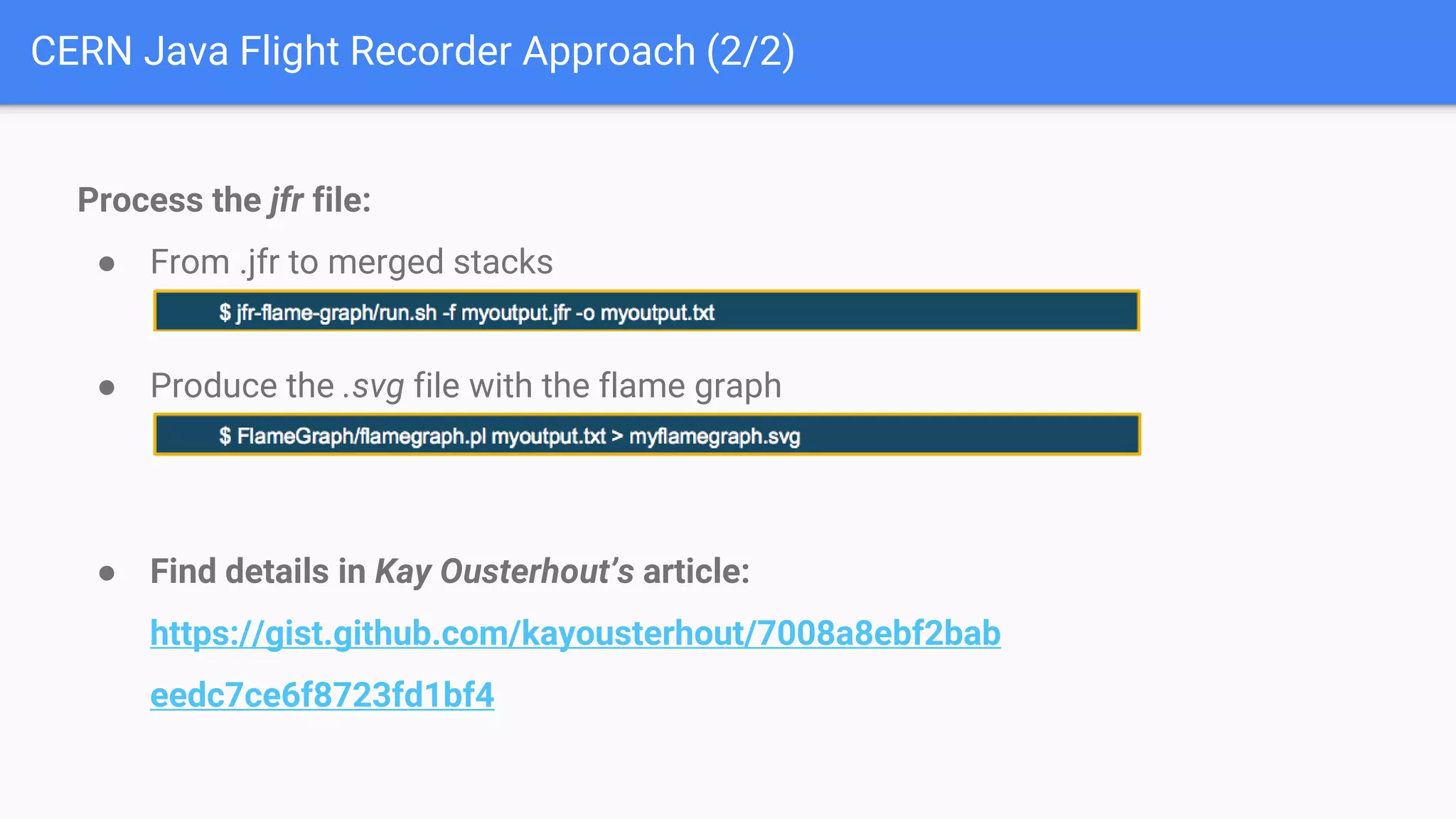

32. CERN Java Flight Recorder Approach (2/2)
Process the jfr file:
● From .jfr to merged stacks
● Produce the .svg file with the flame graph
● Find details in Kay Ousterhout’s article:
https://gist.github.com/kayousterhout/7008a8ebf2bab
eedc7ce6f8723fd1bf4

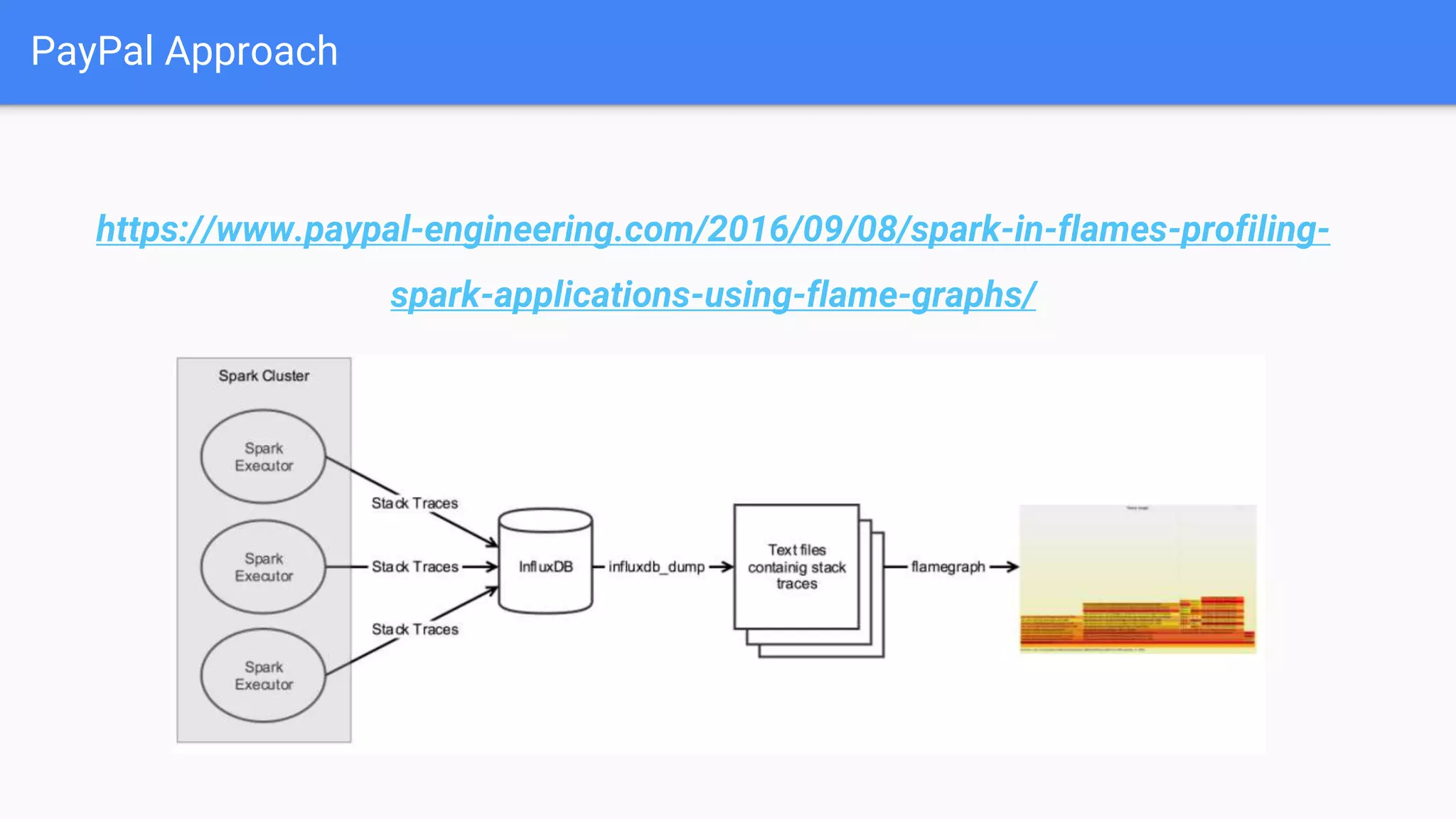

33. PayPal Approach
https://www.paypal-engineering.com/2016/09/08/spark-in-flames-profiling-
spark-applications-using-flame-graphs/

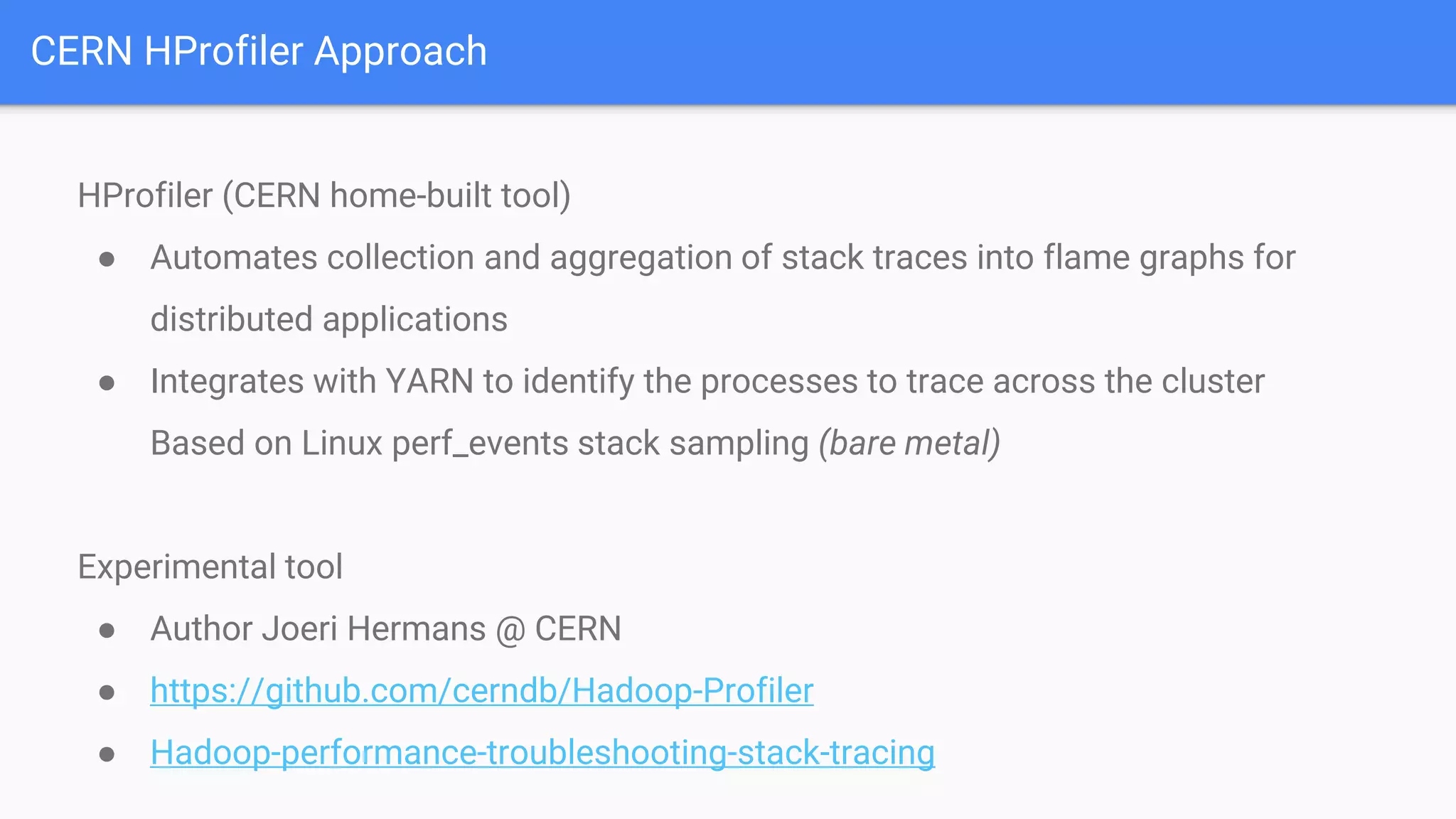

34. CERN HProfiler Approach
HProfiler (CERN home-built tool)
● Automates collection and aggregation of stack traces into flame graphs for
distributed applications
● Integrates with YARN to identify the processes to trace across the cluster
Based on Linux perf_events stack sampling (bare metal)
Experimental tool
● Author Joeri Hermans @ CERN
● https://github.com/cerndb/Hadoop-Profiler
● Hadoop-performance-troubleshooting-stack-tracing

35. Testing in Spark

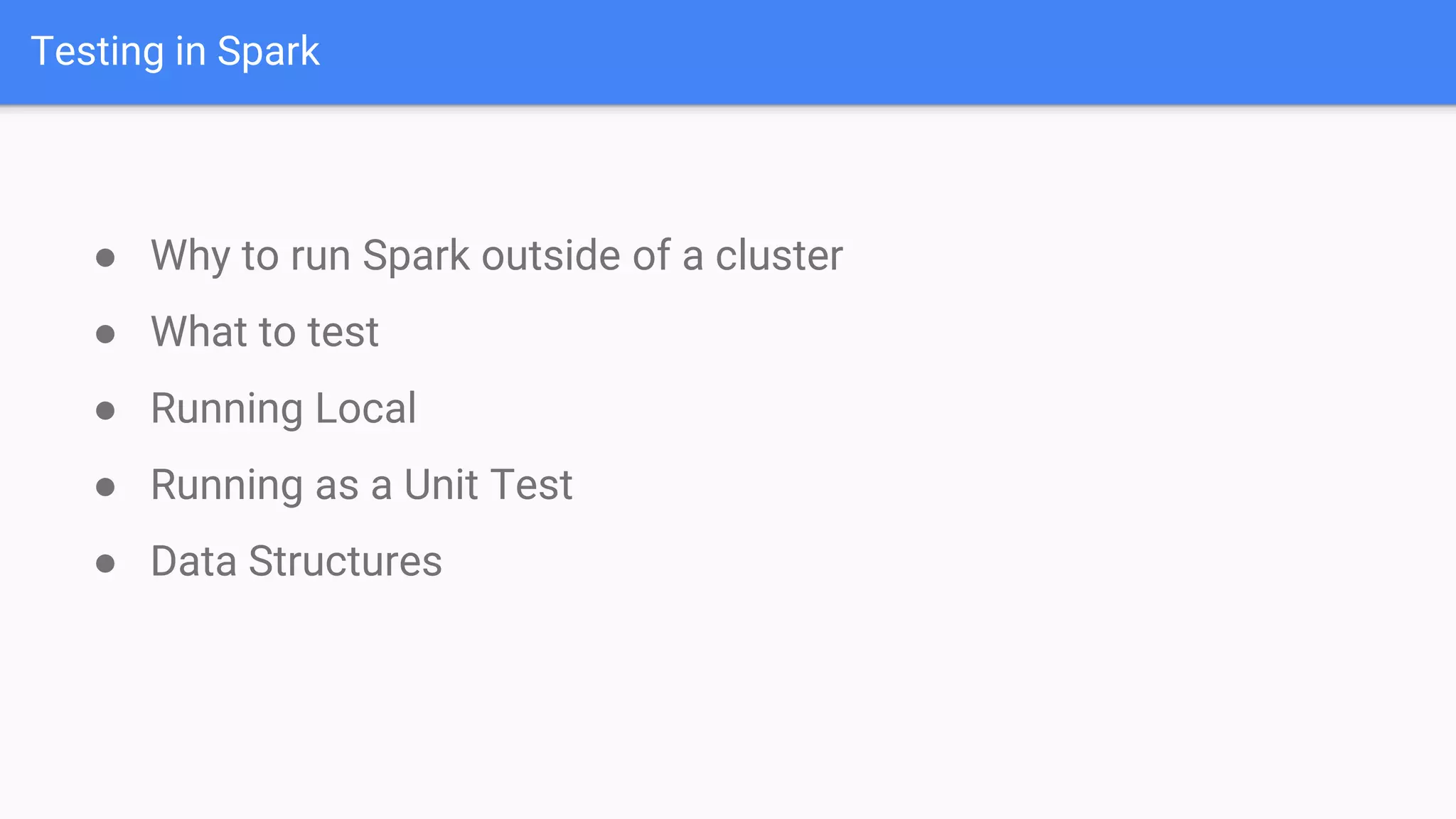

36. Testing in Spark
● Why to run Spark outside of a cluster
● What to test
● Running Local
● Running as a Unit Test
● Data Structures

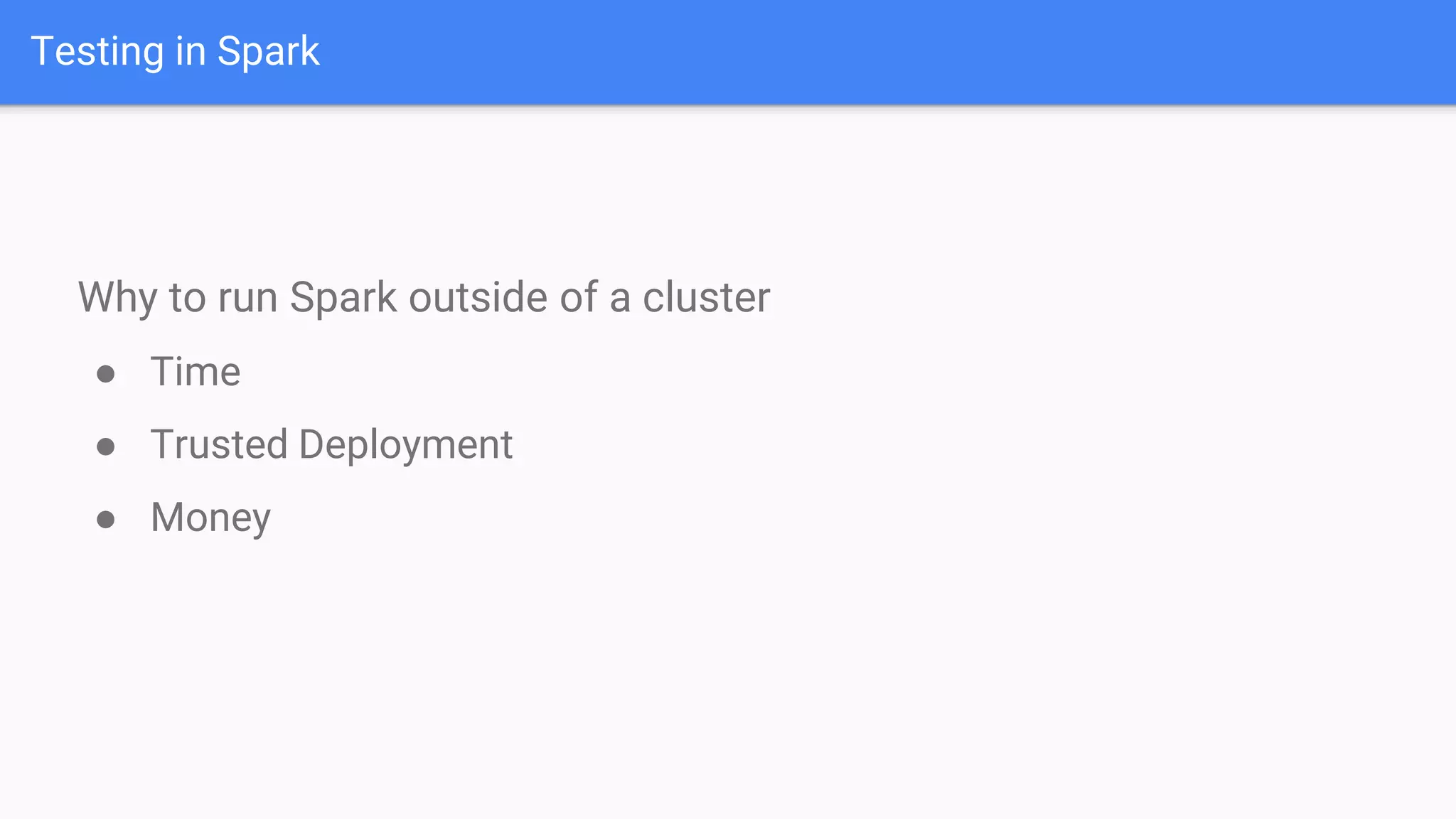

37. Testing in Spark
Why to run Spark outside of a cluster
● Time
● Trusted Deployment
● Money

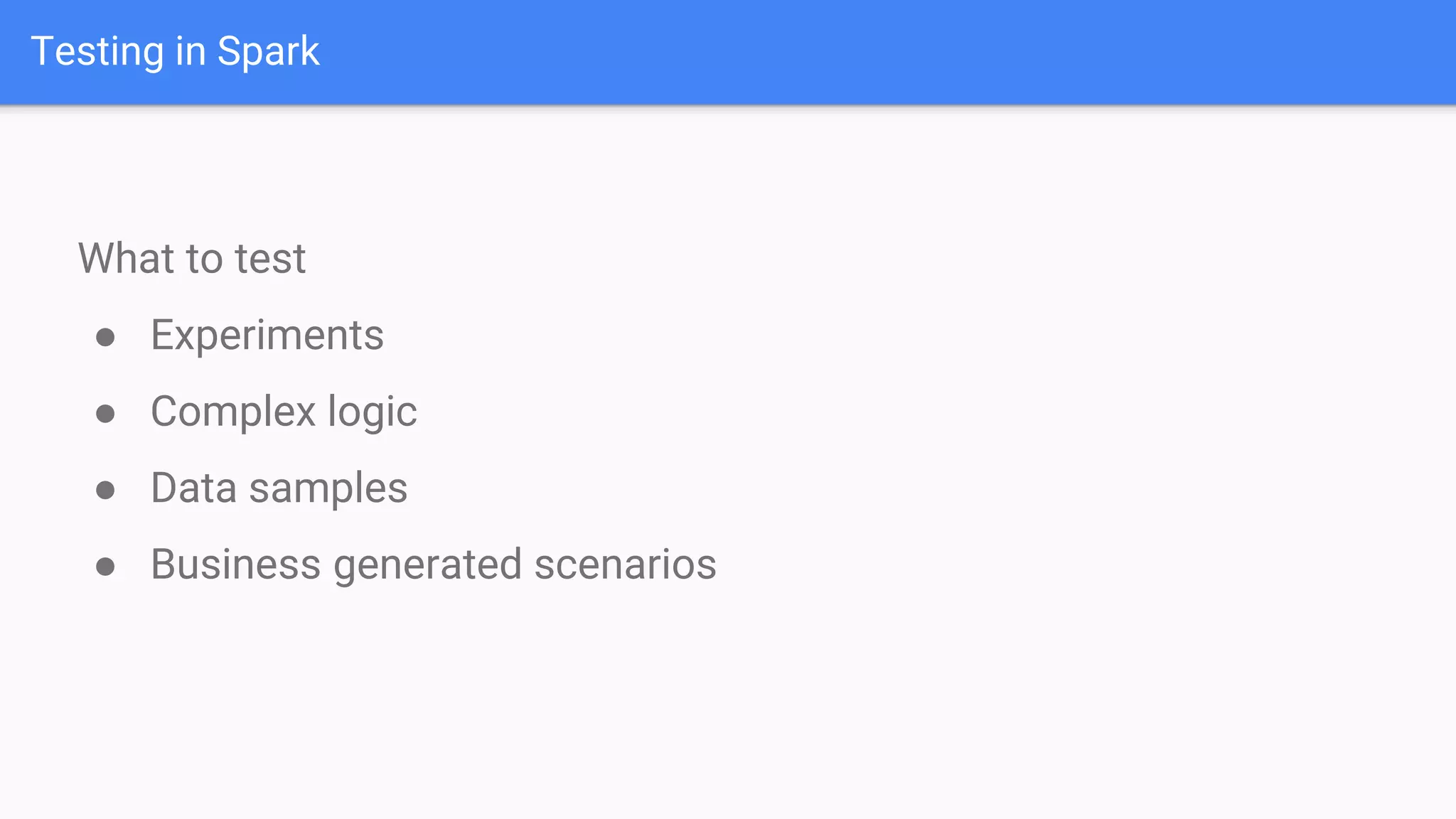

38. Testing in Spark
What to test
● Experiments
● Complex logic
● Data samples
● Business generated scenarios

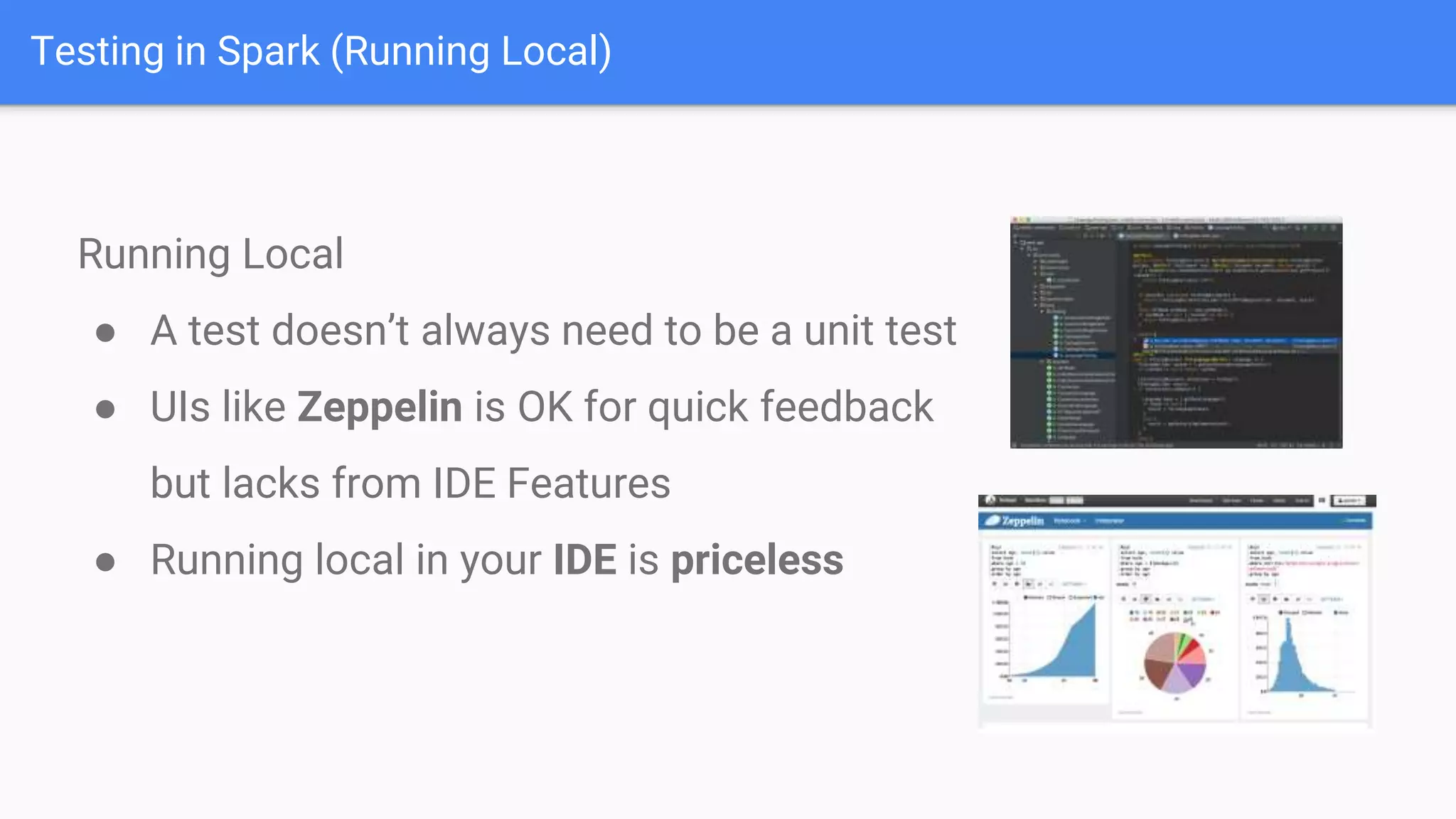

39. Testing in Spark (Running Local)
Running Local
● A test doesn’t always need to be a unit test
● UIs like Zeppelin is OK for quick feedback
but lacks from IDE Features
● Running local in your IDE is priceless

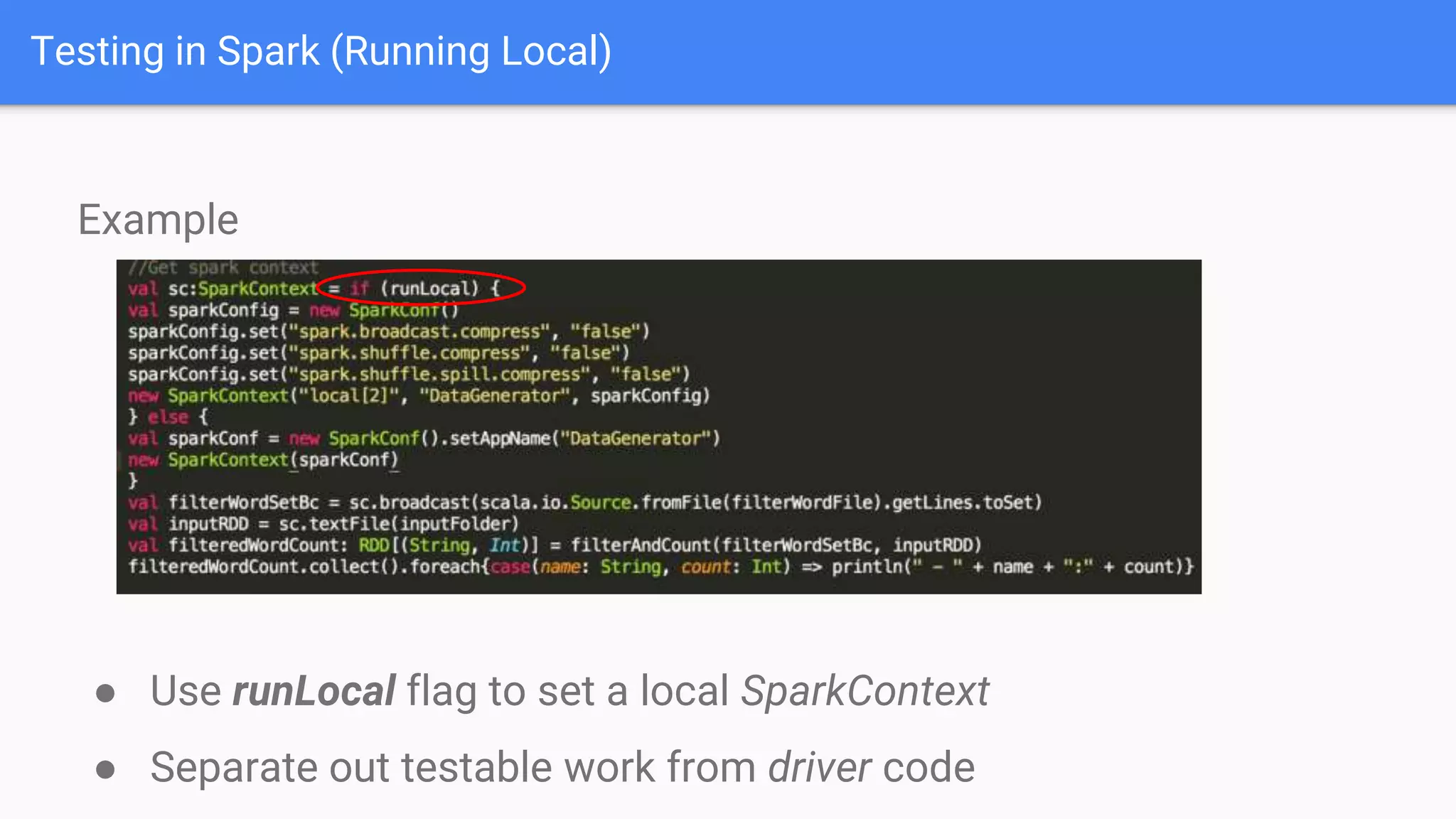

40. Testing in Spark (Running Local)
Example
● Use runLocal flag to set a local SparkContext
● Separate out testable work from driver code

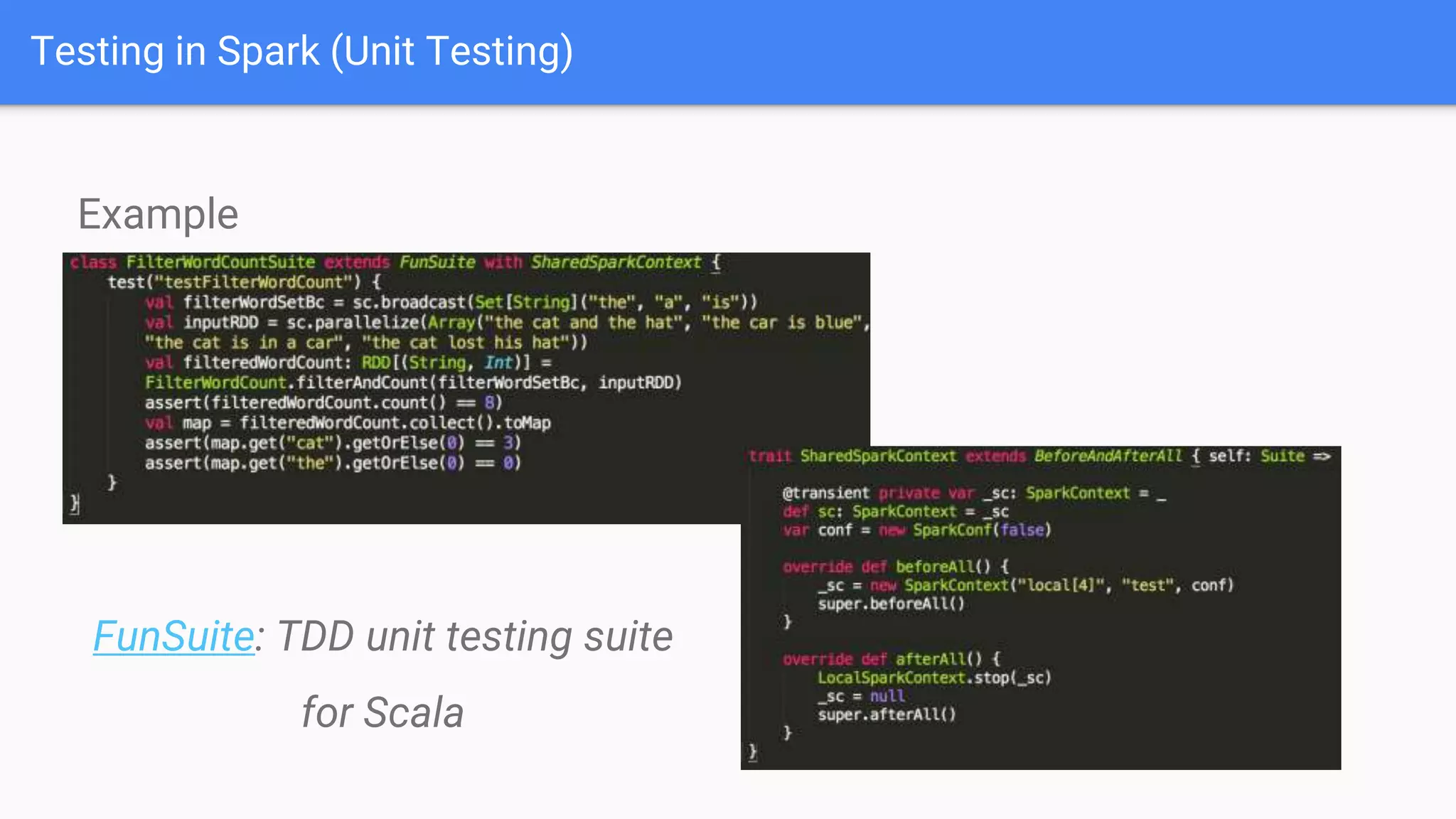

41. Testing in Spark (Unit Testing)
Example
FunSuite: TDD unit testing suite
for Scala

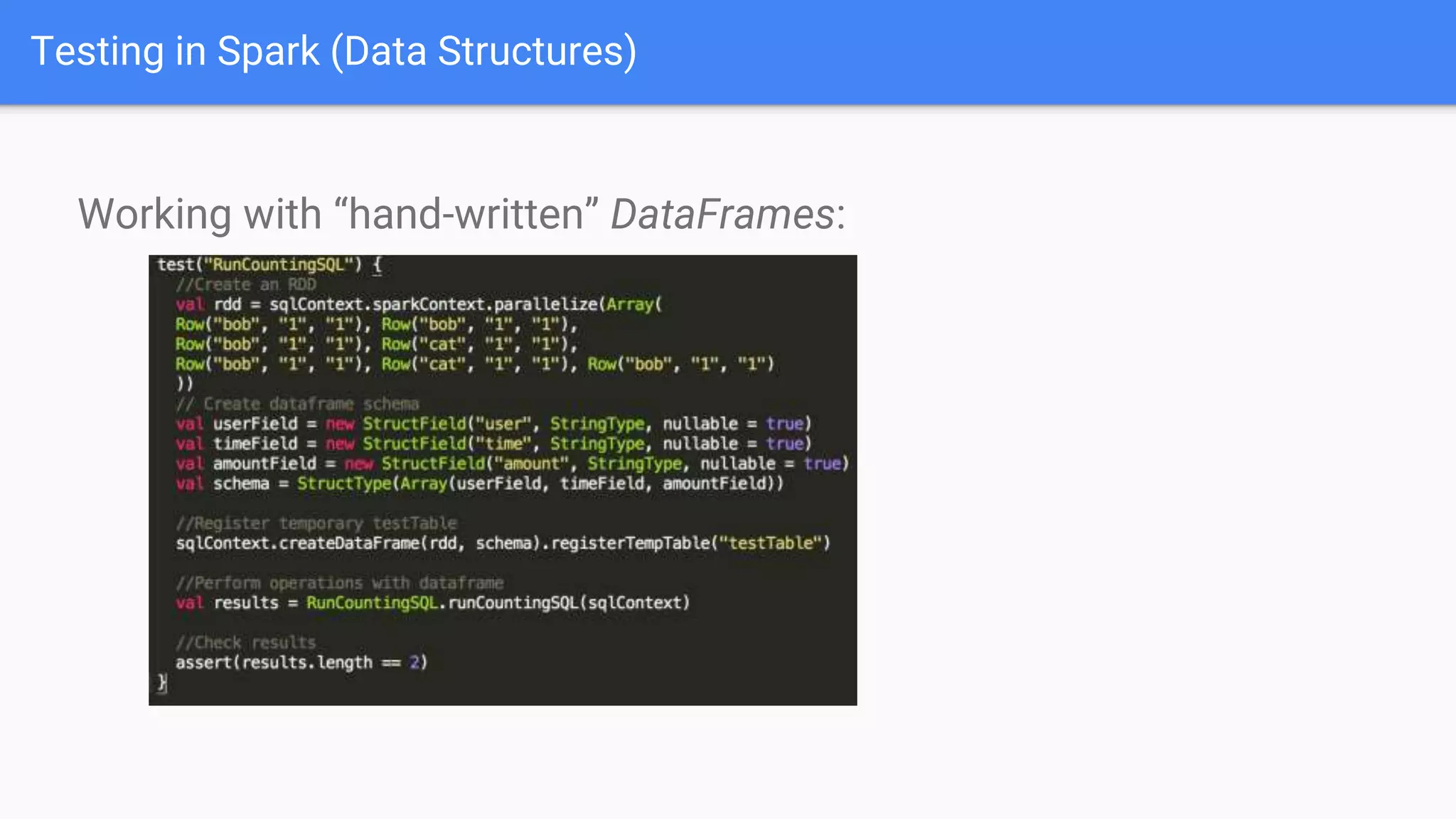

42. Testing in Spark (Data Structures)
Working with “hand-written” DataFrames:

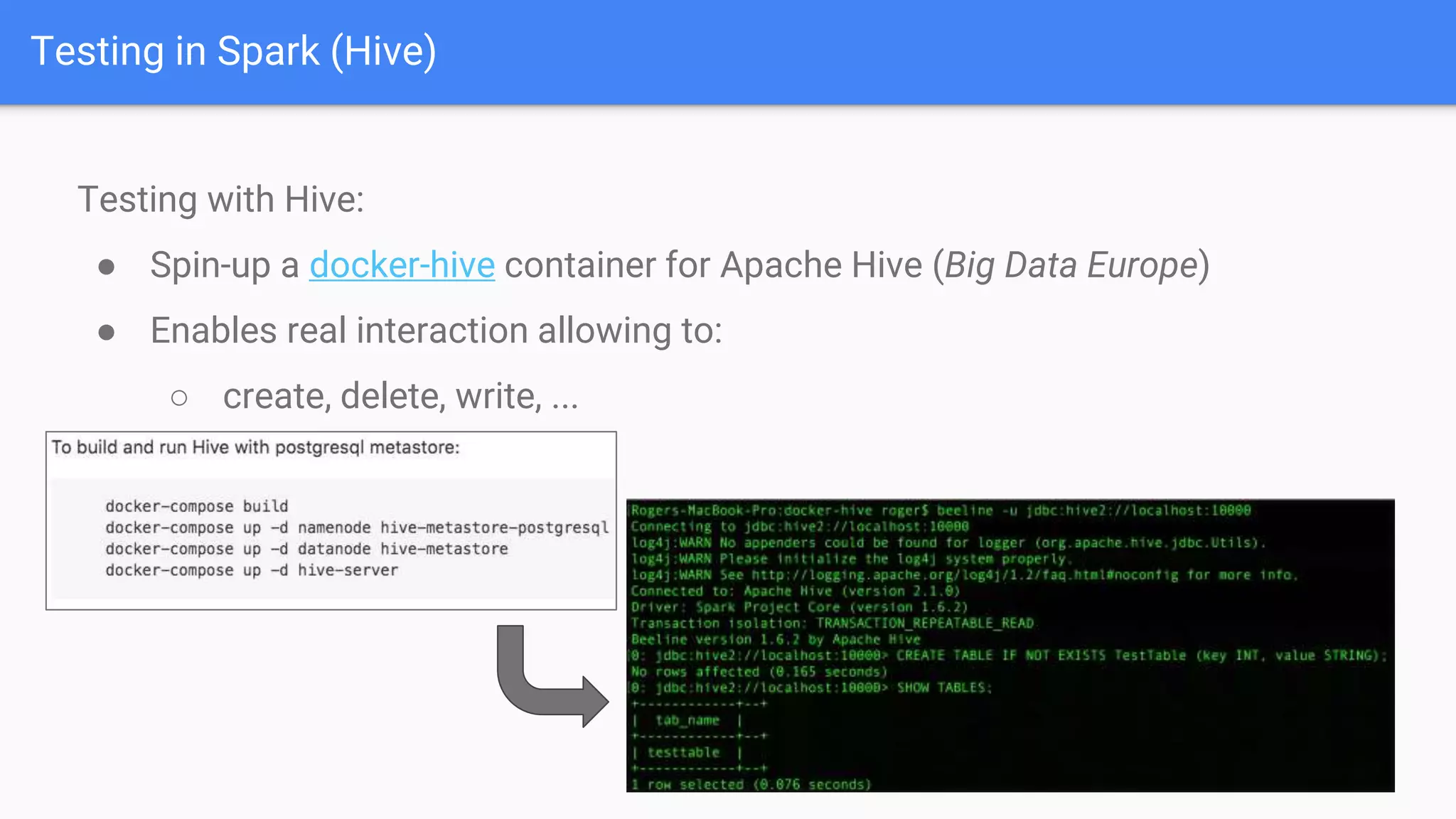

43. Testing in Spark (Hive)
Testing with Hive:
● Spin-up a docker-hive container for Apache Hive (Big Data Europe)
● Enables real interaction allowing to:
○ create, delete, write, ...

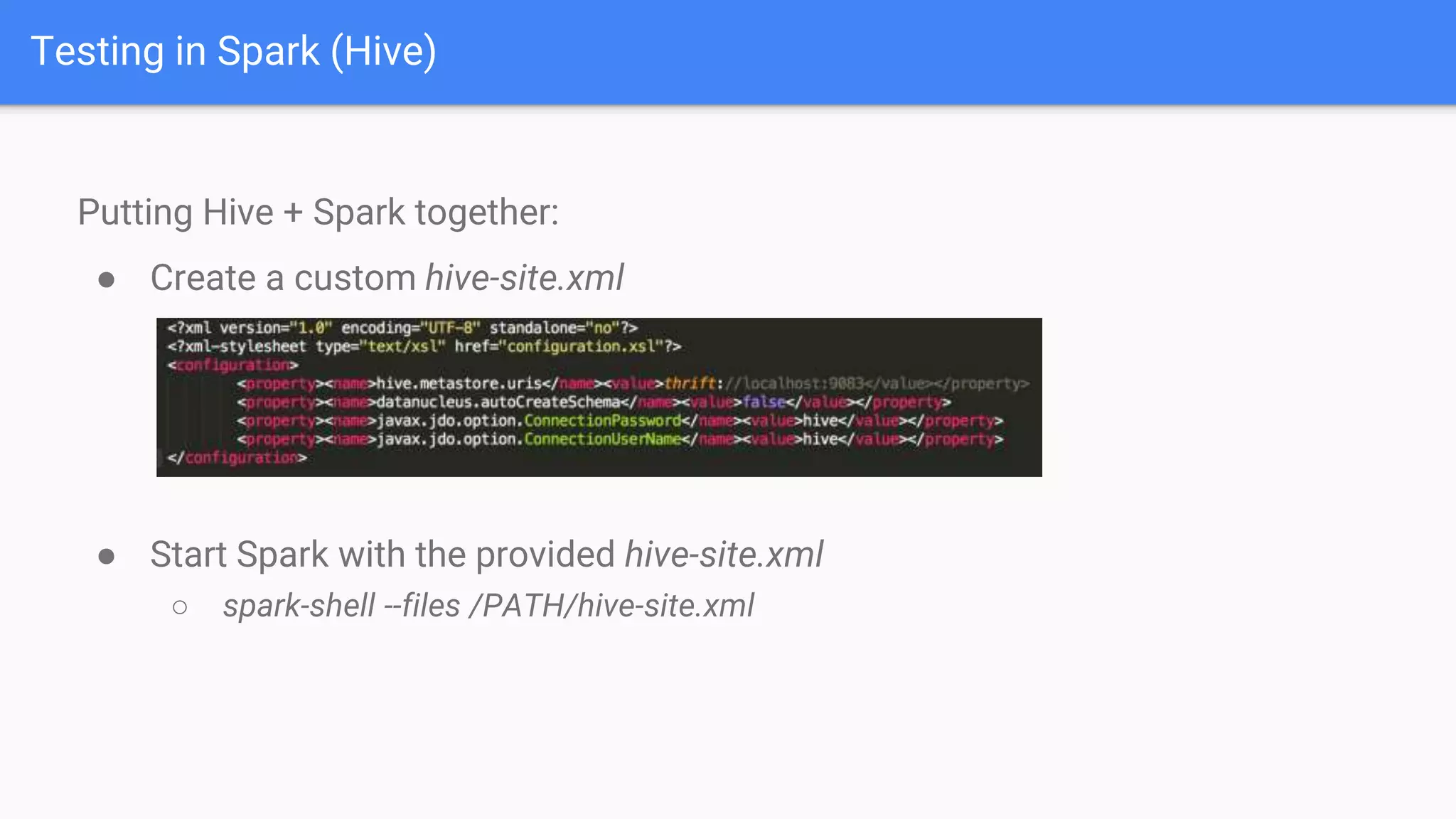

44. Testing in Spark (Hive)
Putting Hive + Spark together:
● Create a custom hive-site.xml
● Start Spark with the provided hive-site.xml
○ spark-shell --files /PATH/hive-site.xml

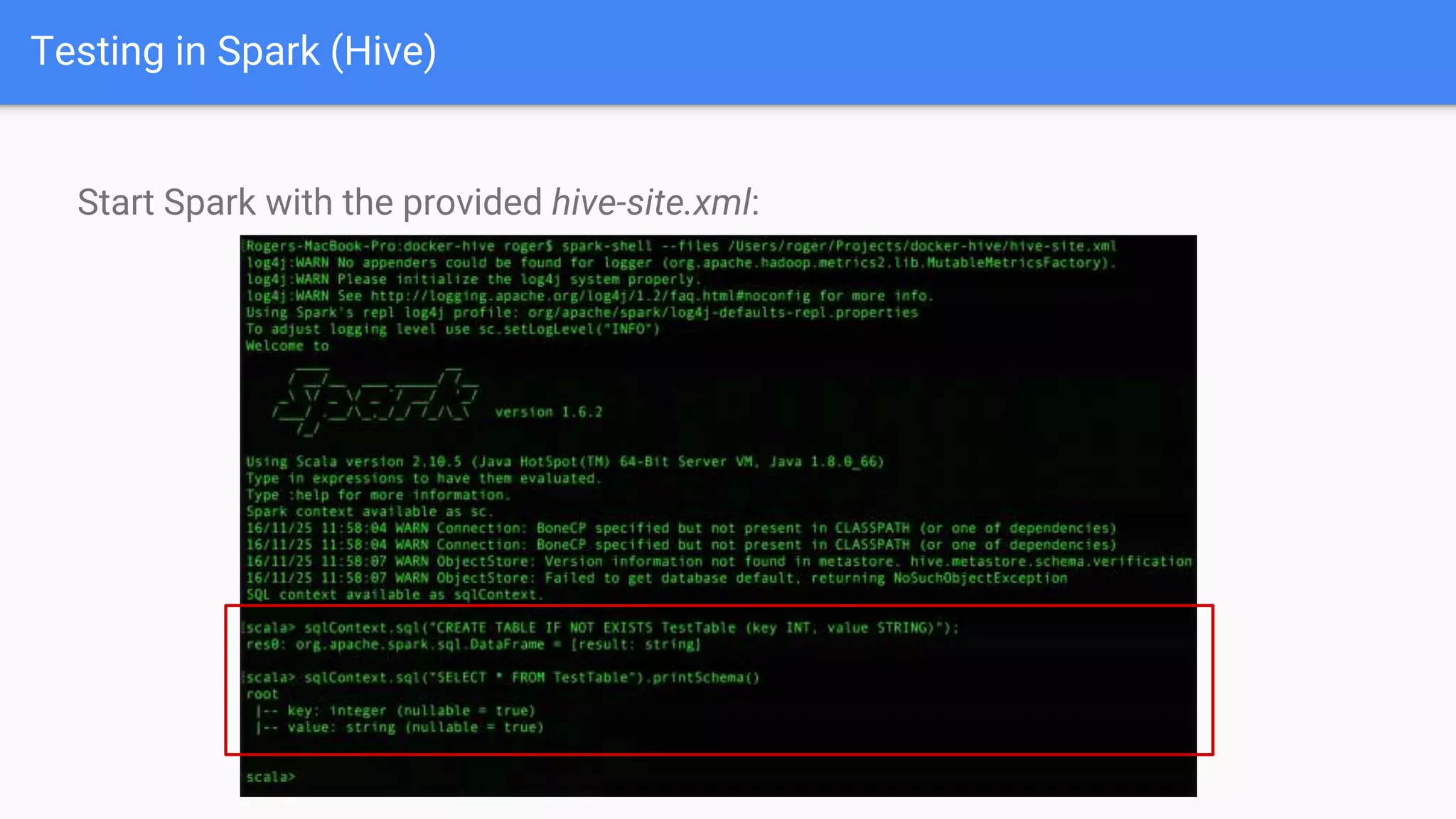

45. Testing in Spark (Hive)
Start Spark with the provided hive-site.xml:

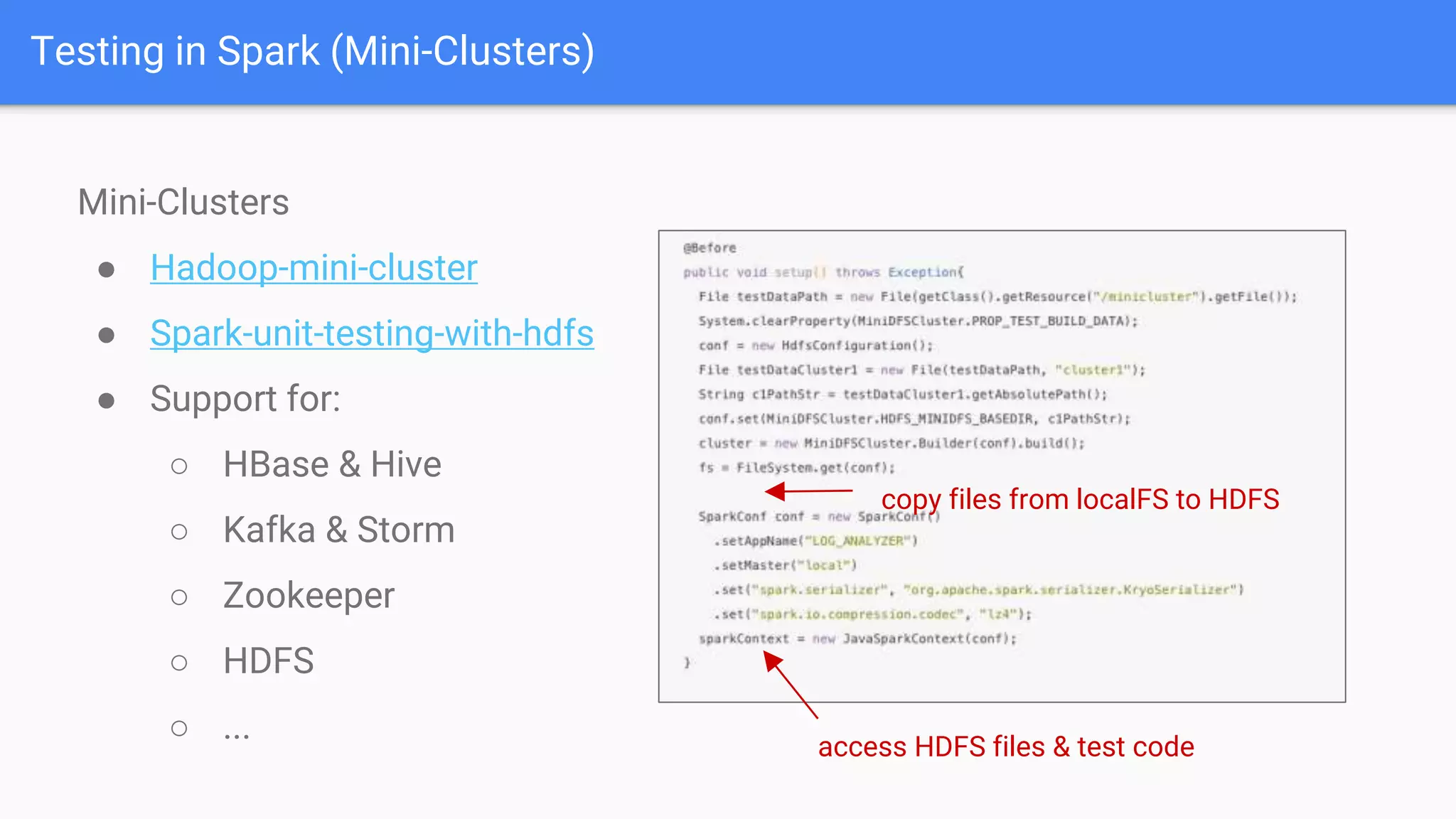

46. Testing in Spark (Mini-Clusters)
Mini-Clusters
● Hadoop-mini-cluster
● Spark-unit-testing-with-hdfs
● Support for:
○ HBase & Hive
○ Kafka & Storm
○ Zookeeper
○ HDFS
○ ... access HDFS files & test code
copy files from localFS to HDFS

47. Conclusions

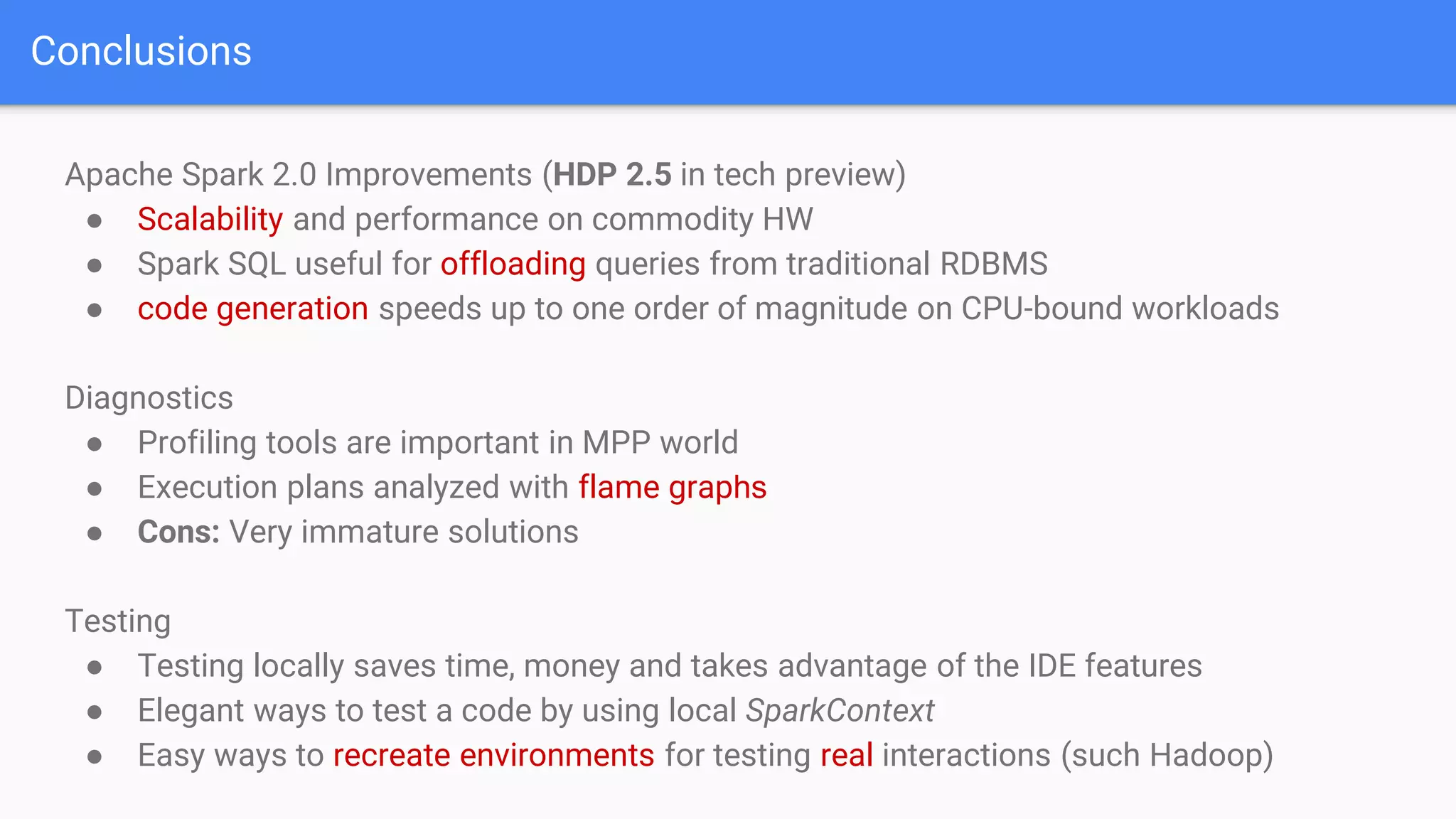

48. Conclusions
Apache Spark 2.0 Improvements (HDP 2.5 in tech preview)
● Scalability and performance on commodity HW
● Spark SQL useful for offloading queries from traditional RDBMS
● code generation speeds up to one order of magnitude on CPU-bound workloads
Diagnostics
● Profiling tools are important in MPP world
● Execution plans analyzed with flame graphs
● Cons: Very immature solutions
Testing
● Testing locally saves time, money and takes advantage of the IDE features
● Elegant ways to test a code by using local SparkContext
● Easy ways to recreate environments for testing real interactions (such Hadoop)

49. Profiling & Testing with Spark
THANK YOU!

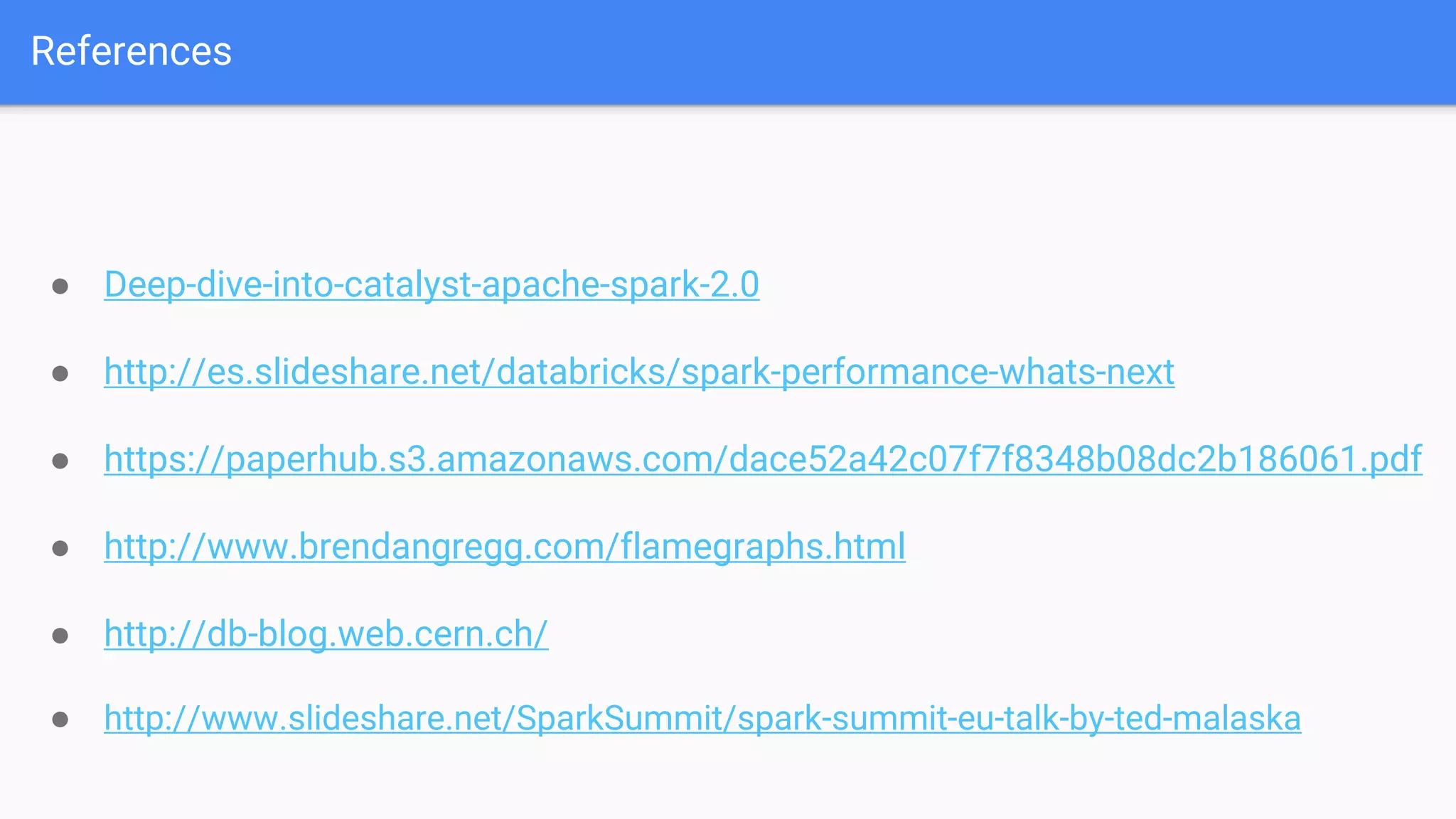

50. References
● Deep-dive-into-catalyst-apache-spark-2.0
● http://es.slideshare.net/databricks/spark-performance-whats-next
● https://paperhub.s3.amazonaws.com/dace52a42c07f7f8348b08dc2b186061.pdf
● http://www.brendangregg.com/flamegraphs.html
● http://db-blog.web.cern.ch/
● http://www.slideshare.net/SparkSummit/spark-summit-eu-talk-by-ted-malaska

51. Q & A
