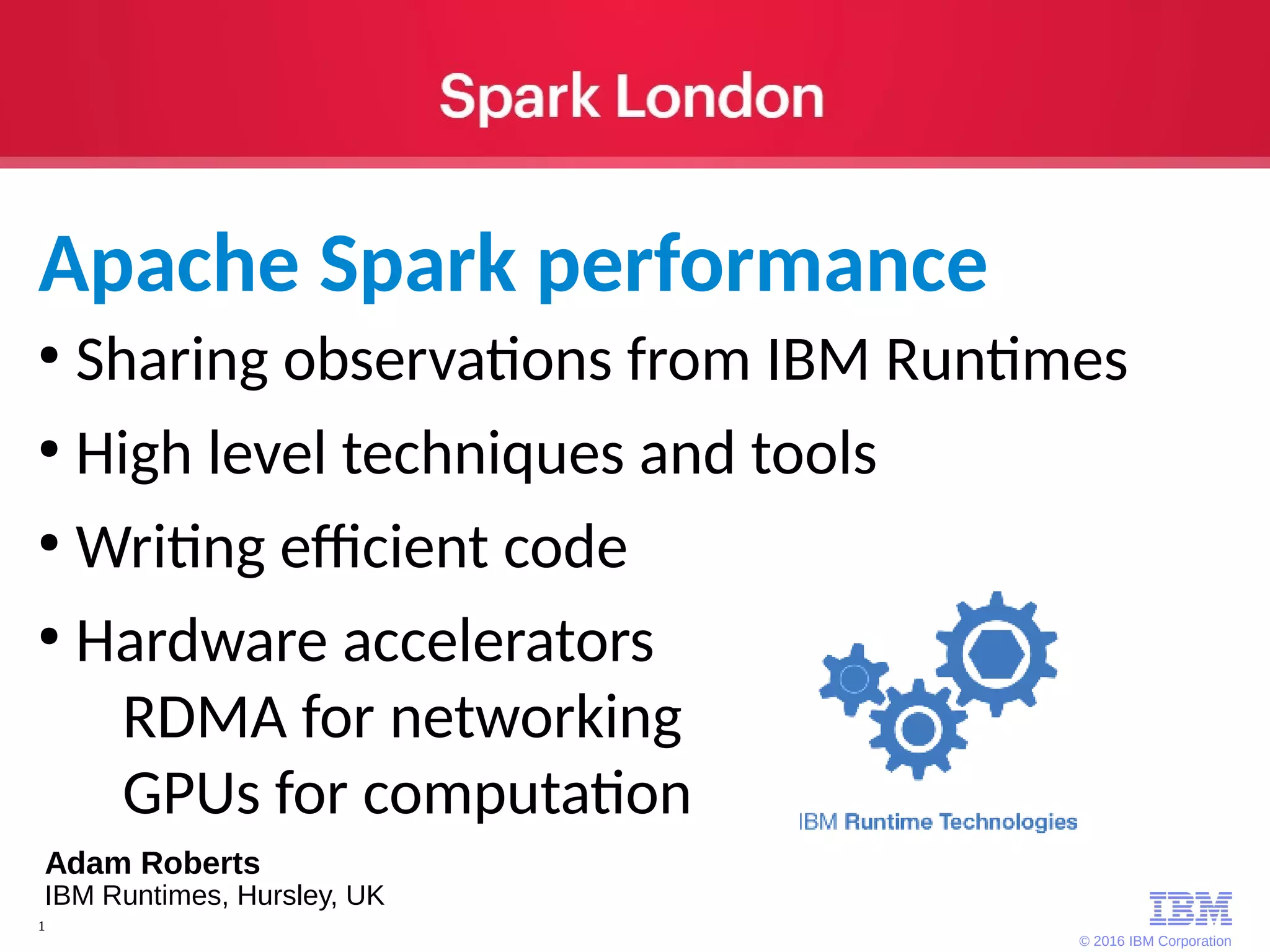

Apache Spark Performance Observations

© 2016 IBM Corporation
1
●
Sharing observations from IBM Runtimes
●
High level techniques and tools
●
Writing efficient code
●
Hardware accelerators
RDMA for networking
GPUs for computation
Apache Spark performance
Adam Roberts
IBM Runtimes, Hursley, UK

2
Workloads we're especially interested in
●
HIBench
●
SparkSqlPerf, all 100 TPC-DS queries
●
Real customer applications
●
PoCs and Spark demos

3
What I will be covering
✔
Best practices for Java/Scala code
✔
Writing code that works well with a JIT compiler
✔
Profiling techniques you can use
✔
How to use RDMA for fast networking
✔
How to use GPUs for fast data processing
✔
How we can use the above to dramatically increase our Spark
performance: get results faster
✔
Package for anyone to try

4
What I won't be covering
●
High-level application design decisions
●
Avoiding the shuffle: knowing which Spark methods to use
●
File systems, operating systems, and file types to use
●
Conventional Spark options e.g. spark.shuffle.*, compression
codecs, spark.memory.*, spark.rpc.*, spark.streaming.*,
spark.dynamicAllocation.*
●
Java options in depth: though a matching -Xms and -Xmx
shows good results in Spark 2 (omitted by default in a PR) and
we use the Kryo serializer

5
Tooling we use, all freely available
●
Health Center
●
TPROF with Visual Performance Analyzer
●
GCMV: garbage collection and memory visualizer
●
MAT: diagnose and resolve memory leaks
●
Linux perf tools
●
Jenkins, Slack, Maven, ScalaTest, Eclipse, Intellij Community
Edition

6
Profiling Spark with Healthcenter
-Xhealthcenter:level=headless

7
Profiling Java with TPROF
-agentlib:jprof=tprof

8
Tips for performance in Java and Scala
●
Locals are faster than globals
Can prove closed set of storage readers / modifers
Fields and statics slow; parameters and locals fast
●
Constants are faster than variables
Can copy constants inline or across memory caches
Java’s final and Scala’s val are your friends
●
private is faster than public
private methods can't be dynamically redefined
protected and “package private” just as slow as public
●
Small methods (≤100 bytecodes) are good
More opportunities to in-line them
●
Simple is faster than complex
Easier for the JIT to reason about the effects
●
Limit extension points and architectural complexity when practical
Makes call sites concrete.

9
Scala has lots of features, not all of them are fast
●
Understand the implementation of Scala language features – use them
judiciously
●
Reduce uncertainty for the compiler in your coding style: use type
ascription, avoid ambiguous polymorphism
●
Stick to common coding patterns - the JIT is tuned for them, as new
workloads emerge the latest JITs will change too
●
Focus on performance hotspots using the profiling tools I mentioned
●
Too much emphasis on performance can compromise
maintainability!
●
Too much emphasis on maintainability can compromise
performance!

10
Idiomatic vs imperative Scala

11
for (x <- 1 to 10) {
println(“Value of x: “ + x)
}
val values = List(1,2,3,4,5,6)
for (x <- values) {
}
val x = 1
while (x <= 10) {
x = x + 1
}
val values = List(1,2,3,4,5,6)
var x = 0
while (x < values.length) {
println(“Value of x: “ + values(x))
x = x + 1
}
Scala for loops

12
Takeaway is to avoid boxing/unboxing (involves object
allocation) – avoid collections of type AnyRef! Know your types
Convert to AnyRef with care

13
●
Max heap size, initial heap size, quickstart can make a big
difference - for Spark 2 we've noticed that a matching -Xms and
-Xmx improves performance on HiBench and SparkSqlPerf
●
O* JDK has a method size bytecode limit for the JIT, ours does not,
if you do use O*JDK try -XX:DontCompileHugeMethods if you find
certain queries become very slow
●
Experiment then profile – spend your time in what's actually
used the most, not nitpicking over barely used code paths!
●
spark-env.sh for environment variables
●
spark-defaults.conf for Spark settings
Observations with Java options

14
●
The VM searches the JAR, loads and verifies bytecodes
to internal representation, runs bytecode form directly
●
After many invocations (or via sampling) code gets
compiled at ‘cold’ or ‘warm’ level
●
An internal, low overhead sampling thread is used to
identify frequently used methods
●
Methods may get recompiled at ‘hot’ or ‘scorching’ levels
(for more optimizations)
●
Transition to ‘scorching’ goes through a temporary
profiling step
cold
hot
scorching
profiling
interpreter
warm
Java's intermediate bytecodes are compiled as required and based on runtime profiling
- code is compiled 'just in time' as required
- dynamic compilation can determine the target machine capabilities and app demands
The JIT takes a holistic view of the application, looking for global
optimizations based on actual usage patterns, and speculative
assumptions

15
export IBM_JAVA_OPTIONS=”-Xint“ to run without it, see the difference for yourself
What a difference a JIT makes...

16
●
Using type ascription
●
Avoiding ambiguities
●
Preferring val/final and private
●
Reducing non-obvious polymorphism
●
Avoiding collections of AnyRef
●
Avoiding JNI
Writing JIT friendly code guidelines

17
IBM JDK8 SR3
(tuned)
IBM JDK8 SR3
(out of the box)
PageRank 160% 148%
Sleep 187% 113%
Sort 103% 147%
WordCount 130% 146%
Bayes 100% 91%
Terasort 160% 131%
1/Geometric mean of HiBench time on zLinux 32 cores, 25G heap
Improvements in successive IBM Java 8 releases Performance compared with OpenJDK 8
HiBench huge, Spark 2.0.1, Linux Power8 12 core * 8-way SMT
1.35x
Can we tune a JDK to work well with Spark?

18
Contributing back changes to Spark core
[SPARK-18231]: optimising the SizeEstimator
Hot methods in these classes with PageRank:
●
[SPARK-18196]: optimising CompactBuffer
●
[SPARK-18197]: optimising AppendOnlyMap
●
[SPARK-18224]: optimising PartitionedPairBuffer
Blog post for more details here

19
Takeaways
●
Profile Lots In Pre-production (PLIP)
Our tools will help
●
Not all Java implementations are the same
●
Remember to focus on what's hot in the profiles!
Make a change, rebuild and reprofile, repeat
●
Many ways to achieve the same goal in Scala, use
convenient code in most places and simple
imperative code for what's critical

20
We can only get so far writing fast code,
I'll talk about RDMA for fast networking
and how we can use GPUs for fast
processing
Beyond optimum code...

21
●
Feature available in our SDK for Java: Java Sockets over
RDMA
●
Requires RDMA capable network adapter
●
Investigating other RDMA implementations so we can
avoid marshalling and data (de)serialization costs
●
Breaking Sorting World Records with RDMA
●
Getting started with RDMA
Remote Direct Memory Access (RDMA)

22
Spark VM
Buffer
Off
Heap
Buffer
Spark VM
Buffer
Off
Heap
Buffer
Ether/IB
SwitchRDMA NIC/HCA RDMA NIC/HCA
OS OS
DMA DMA
(Z-Copy) (Z-Copy)
(B-Copy)(B-Copy)
Acronyms:
Z-Copy – Zero Copy
B-Copy – Buffer Copy
IB – InfiniBand
Ether - Ethernet
NIC – Network Interface Card
HCA – Host Control Adapter
●
Low-latency, high-throughput networking
●
Direct 'application to application' memory pointer exchange between remote hosts
●
Off-load network processing to RDMA NIC/HCA – OS/Kernel Bypass (zero-copy)
●
Introduces new IO characteristics that can influence the Apache Spark transfer plan
Spark node #1 Spark node #2

23
TCP/IP
RDMA
RDMA exhibits improved throughput and reduced latency
Our JVM makes RDMA available transparently via Java.net.Socket
APIs (JsoR) or explicitly via com.ibm jVerbs calls

24
32 cores (1 master, 4 nodes x 8 cores/node, 32GB Mem/node), IBM Java 8
0 100 200 300 400 500 600
Spark HiBench TeraSort [30GB]
Execution Time (sec)
556s
159s
TCP/IP
JSoR
Elapsed time with 30 GB of
data, 32 GB executor

25
TPC-H benchmark 100Gb
30% improvement in database
operations
Shuffle-intensive benchmarks
show 30% - 40% better
performance with RDMA
HiBench PageRank 3Gb
40% faster, lower CPU usage
32 cores
(1 master, 4 nodes x 8 cores/node,
32GB Mem/node)

26
Why?
●
Faster computation of results or the ability to process more
data in the same amount of time – we want to improve
accuracy of systems and free up CPUs for boring work
●
GPUs becoming available in servers and many modern
computers for us to use
●
Drivers and SDKs freely available
Fast computation: Graphics Processing Units

27
z13
BigInsights
How popular is Java?

28
AlphaGo: 1,202 CPUs, 176 GPUs
Titan: 18,688 GPUs, 18,688 CPUs
CERN and Geant: reported to be using GPUs
Oak Ridge, IBM “the world's fastest supercomputers by 2017”: two, $325m
Databricks: recent blog post mentions deep learning with GPUs and Spark
Who's interested in GPUs?

29
GPUs excel at executing many of the same operations at once (Single
Instruction Multiple Data programming)
We'll program using CUDA or OpenCL – like C and C++ and we'll write JNI
code to access data in our Java world using the GPU
We'll run code on computers that are shipped with graphics cards, there
are free CUDA drivers for x86-64 Windows, Linux, and IBM's Power LE,
OpenCL drivers, SDK and source also widely available
CPUGPU

30
Assume we have an integer array in CUDA C called myData
Allocate space on the GPU (device side) using cudaMalloc, this returns a
pointer we'll use later. Let's say we call this variable myDataOnGPU
Copy myData from the host to your allocated space (myDataOnGPU) using
cudaMemcpyHostToDevice
Process your data on the GPU in a kernel (we use <<< and >>>)
Copy the result back (what's at myDataOnGPU replaces myData on the
host) using cudaMemcpyDeviceToHost
How do we use a GPU?

31
__global__ void addingKernel(int* array1, int* array2){
array1[threadIdx.x] += array2[threadIdx.x];
}
__global__ : it's a function we can call on the host (CPU), it's available
to be called from everywhere
How is the data arranged and how can I access it?
Sequentially, a kernel runs on a grid (blocks x threads) and it's how we
can run many threads that work on different parts of the data
int*? A pointer to integers we've copied to the GPU
threadIdx.x?
We use this as an index to our array, remember lots of threads run on
the GPU. Access each item for our example using this

32
●
Assume we have an integer array on the Java heap: myData
●
Create a native method in Java or Scala
●
Write .cpp or .c code with a matching signature for your native method
●
In your native code, use JNI to get a pointer to your data
●
With this pointer, we can figure out how much memory we need
●
Allocate space on the GPU (device side): cudaMalloc, returns
myDataOnTheGPU
●
Copy myData to your allocated space (myDataOnTheGPU) using
cudaMemcpyHostToDevice
●
Process your data on the GPU in a kernel (look for <<< and >>>)
●
Copy the result back (what's now at myDataOnTheGPU replaces myData
on the host) using cudaMemcpyDeviceToHost
●
Release the elements (updating your JNI pointer so the data in our JVM
heap is now the result)
How would we use a GPU with Java or Scala?
Easier ways?

33
Our option: -Dcom.ibm.gpu.enable/enforce/disable
40,000,000
400,000,000
Ints sorted
per second
Array length
400m per sec
40m per sec
Sorting throughput for ints
30,000 300,000 3,000,000 30,000,000 300,000,000
Details online here
Making it simple: Java class library modification

34
Our option: -Xjit:enableGPU
Making it simple: Java JIT compiler modification
Use an IntStream and specify our JIT option
Primitive types can be used (byte, char, short, int, float, double, long)

35
Measured performance improvement with a GPU using four programs
using
1-CPU-thread sequential execution
160-CPU-thread parallel execution
Experimental environment used
IBM Java 8 Service Release 2 for PowerPC Little Endian
Two 10-core 8-SMT IBM POWER8 CPUs at 3.69 GHz with 256GB memory
(160 hardware threads in total) with one NVIDIA Kepler K40m GPU (2880
CUDA cores in total) at 876 MHz with 12GB global memory (ECC off)
Performance of GPU enabled lambdas

36
Name Summary Data size Data type
MM A dense matrix
multiplication: C =
A.B
1024 x 1024 (1m)
items
double
SpMM As above, sparse
matrix
500k x 500k (250m)
items
double
Jacobi2D Solve an equation
using the Jacobi
method
8192 x 8192 (67m)
items
double
LifeGame Conway's Game of
Life with 10k
iterations
512 x 512 (262k)
items
byte

37
This shows GPU execution time speedup amounts compared to
what's in blue (1 CPU thread) and yellow (160 CPU threads)
The higher the bar, the bigger the speedup!

38
Similar to JCuda but provides a higher level abstraction, production ready and
supported by us
●
No arbitrary and unrestricted use of Pointer(long)
●
Still feels like Java instead of C
Write your kernel and compile it into a fat binary
nvcc --fatbin AdamKernel.cu
Add your Java code
import com.ibm.cuda.*;
import com.ibm.cuda.CudaKernel.*;
Load your fat binary
module = new Loader().loadModule("AdamDoubler.fatbin",
device);
Making it simple: CUDA4J API

39
Only doubling integers; could be any use case where we're doing the same
operation to lots of elements at once
Full code listing at the end, Javadocs: search IBM Java 8 API com.ibm.cuda
* Tip: the offsets are byte offsets, so you'll want your index in Java * the size of the object!
module = new Loader().loadModule("AdamDoubler.fatbin", device);
kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider");
stream = new CudaStream(device);
numElements = 100;
myData = new int[numElements];
Util.fillWithInts(myData);
CudaGrid grid = Util.makeGrid(numElements, stream);
buffer1 = new CudaBuffer(device, numElements * Integer.BYTES);
buffer1.copyFrom(myData);
Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements);
kernel.launch(grid, kernelParams);
buffer1.copyTo(myData);
If our dynamically created grid
dimensions are too big we need to
break down the problem and use the
slice* API: doChunkingProblem()
Our kernel, compiles into AdamDoubler.fatbin

40
●
Recommendation algorithms such as
●
Alternating Least Squares
●
Movie recommendations on Netflix
●
Recommended purchases on Amazon
●
Similar songs with Spotify
●
Clustering algorithms such as
●
K-means (unsupervised learning)
●
Produce clusters from data to determine which cluster a
new item can be categorised as
●
Identify anomalies: transaction fraud or erroneous data
●
Classification algorithms such as
●
Logistic regression
●
Create a model that we can use to predict where to
plot the next item in a sequence
●
Healthcare: predict adverse drug reactions based on
known interactions between similar drugs
Improving MLlib

41
●
Under the covers optimisation, set the spark.mllib.ALS.useGPU property
●
Full paper: http://arxiv.org/abs/1603.03820
●
Full implementation: https://github.com/IBMSparkGPU
Netflix 1.5 GB 12 threads, CPU 64 threads, CPU GPU
Intel, IBM Java 8 676 seconds N/A 140 seconds
Currently always sends work to a GPU regardless of size, remember we
have limited device memory!
2x Intel(R) Xeon(R) CPU E5-2667 v2 @ 3.30GHz, 16 cores in the machine
(SMT-2), 256 GB RAM vs 2x Nvidia Tesla K80Ms
Also available for Power LE.
Improving Alternating Least Squares

42
We modified the existing ALS (.scala) implementation's computeFactors method
●
Added code to check if spark.mllib.ALS.useGPU is set
●
If set we'll then call our native method written to ue JNI (.cpp)
●
Our JNI method calls native CUDA (.cu) method
●
CUDA used to send our data to the GPU, calls our kernel, returns the results over JNI
back to the Java heap
●
Built with our Spark distribution and the shared library is included: libGPUALS.so
●
Remember this will require the CUDA runtime (libcudart) and a capable GPU
ALS.scala
computeFactors
CuMFJNIInterface.cpp
ALS.cu libGPUALS.so

43
We can send code to a GPU with APIs or if we make substantial changes
to existing implementations, but we can also make our changes at a
higher level to be more pervasive
Input: user application using DataFrame or Datasets, data stored in
Parquet format for now
✔
Spark with Tungsten. Uses UnsafeRow and, sun.misc.unsafe, idea is to bring Spark closer
to the hardware than previously, exploit CPUA caches, improved memory and CPU
efficiency, reduce GC times, avoid Java object overheads – good deep dive here
✔
Spark with Catalyst. Optimiser for Spark SQL APIs, good deep dive here, transforms a
query plan (abstraction of a user's program) into an optimised version, generates
optimised code with Janino compiler
✔
Spark with our changes: Java and core Spark class optimisations, optimised JIT
Pervasive GPU opportunities for Spark

44
Output: generated code able to leverage auto-SIMD and GPUs
We want generated code that:
✔
has a counted loop, e.g. one controlled by an automatic induction
variable that increases from a lower to an upper bound
✔
accesses data in a linear fashion
✔
has as few branches as possible (simple for the GPU's kernel)
✔
does not have external method calls or contains only calls that can
be easily inlined
These help a JIT to either use auto-SIMD capabilities or GPUs

45
Problems
1) Data representation of columnar storage (CachedBatch with Array[Byte]) isn't commonly used
2) Compression schemes are specific to CachedBatch, limited to just several data types
3) Building in-memory cache involves a long code path -> virtual method calls, conditional branches
4) Generated whole-stage code -> unnecessary conversion from CachedBatch or ColumnarBatch to
UnsafeRow
Solutions
1) Use ColumnarBatch format instead of CachedBatch for the in-memory cache generated by the
cache() method. ColumnarBatch and ColumnVector are commonly used data representations for
columnar storage
2) Use a common compression scheme (e.g. lz4) for all of the data types in a ColumnVector
3) Generate code at runtime that is simple and specialized for building a concrete instance of the in-
memory cache
4) Generate whole-stage code that directly reads data from columnar storage
(1) and (2) increase code reuse, (3) improves runtime performance of executing the cache() method
and (4) improves performance of user defined DataFrame and Dataset operations

46
We propose a new columnar format: CachedColumnarBatch, that has a pointer to
ColumnarBatch (used by Parquet reader) that keeps each column as
OnHeapUnsafeColumnVector instead of OnHeapColumnVector.
Not yet using GPUS!
●
[SPARK-13805], merged into 2.0, performance improvement: 1.2x
Get data from ColumnVector directly by avoiding a copy from ColumnVector to
UnsafeRow when a program reads data in parquet format
●
[SPARK-14098] will be merged into 2.2, performance improvement: 3.4x
Generate optimized code to build CachedColumnarBatch, get data from a
ColumnVector directly by avoiding a copy from the ColumnVector to UnsafeRow,
and use lz4 to compress ColumnVector when df.cache() or ds.cache is executed
●
Remove indirection at offsets field when accessing each element in
UnsafeArrayData, reduce memory footprint of UnsafeArrayData

47
●
[SPARK-16043], performance improvement: 1.2x
Use a Scala primitive array (e.g. Array[Int]) instead of Array[Any] for
avoiding boxing operations when putting a primitive array into
GenericArrayData
●
Eliminate boxing operations to put a primitive array into GenericArrayData
when a Dataset program with a primitive array is ran
●
[SPARK-16213], to be merged into 2.2, performance improvement: 16.6x
Eliminate boxing operations to put a primitive array into GenericArrayData
when a DataFrame program with a primitive array is ran
●
Eliminate boxing operations to put a primitive array into
GenericArrayData when a DataFrame program with a primitive array is
used

48
●
improving a commonly used API and contributing the code
●
Ensuring generated code is in the right format for exploitation
●
Making it simple for any Spark user to exploit hardware accelerators, be it
GPU or auto-SIMD code for the latest processors
●
We know how to build GPU based applications
●
We can figure out if a GPU is available
●
We can figure out what code to generate
●
We can figure out which GPU to send that code to
●
All while retaining Java safety features such as exceptions, bounds
checking, serviceability, tracing and profiling hooks
●
Assuming you have the hardware, add an option and watch
performance improve: this is our goal
What's in it for me?

49
●
We provide an optimised JDK with Spark bundle that includes hardware
offloading, profiling, a tuned JIT and is under constant development
●
We can talk more about performance aspects, not covered FPGAs, CAPI flash,
an improved serializer, GC optimisations, object layout, monitoring...
●
Upcoming blog post at spark.tc outlining the Catalyst related work
●
Look out for more pull requests and involvement from IBM, we want to improve
performance for everybody and maintain Spark's status
●
Open to ideas and wanting to work in communities for everyone's benefit
http://ibm.biz/spark-kit
Feedback and suggestions welcome: aroberts@uk.ibm.com
Wrapping it all up...

Backup slides, code listing, legal
information and disclaimers beyond this point

51
CUDA core: part of the GPU, they execute groups of threads
Kernel: a function we'll run on the GPU
Grid: think of it as a CUBE of BLOCKS which lay out THREADS; our GPU functions
(KERNELS) run on one of these, we need to know the grid dimensions for each
kernel
Threads: these do our computation, much more available than with CPUs
Blocks: groups of threads
Recommended reading:
http://docs.nvidia.com/cuda/cuda-c-programming-guide/#thread-hierarchy
The nvidia-smi command tells you about your GPU's limits
One GPU can have MANY CUDA cores, each CUDA core executes many threads

52
CUDA grid: why is this important?
To achieve parallelism: a layout of
threads we can use to solve our
big data problems
Block dimensions?
How many threads can run on a block
Grid dimensions?
How many blocks we can have
threadIdx.x? (BLOCKS contain THREADS)
Built in variable to get the current x coordinate of a given THREAD (can have an x,
y, z coordinate too)
blockIdx.x? (GRIDS contain BLOCKS)
Built in variable to get the current x coordinate of a given BLOCK (can have an x, y,
z coordinate too)

53
For figuring out the dimensions we can use the following Java code, we want
512 threads and as many blocks as possible for the problem size
int log2BlockDim = 9;
int numBlocks = (numElements + 511) >> log2BlockDim;
int numThreads = 1 << log2BlockDim;
Size Blocks Threads
500 1 512
1,024 2 512
32,000 63 512
64,000 125 512
100,000 196 512
512,000 1,000 512
1,024,000 2,000 512

CUDA4J sample, part 1 of 3
import com.ibm.cuda.CudaKernel.*;
public class Sample {
private static final boolean PRINT_DATA = false;
private static int numElements;
private static int[] myData;
private static CudaBuffer buffer1;
private static CudaDevice device = new CudaDevice(0);
private static CudaModule module;
private static CudaKernel kernel;
private static CudaStream stream;
public static void main(String[] args) {
try {
module = new Loader().loadModule("AdamDoubler.fatbin", device);
kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider");
stream = new CudaStream(device);
doSmallProblem();
doMediumProblem();
doChunkingProblem();
} catch (CudaException e) {
e.printStackTrace();
} catch (Exception e) {
e.printStackTrace();
}
}
private static void doSmallProblem() throws Exception {
System.out.println("Doing the small sized problem");
numElements = 100;
System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>");
int[] originalArrayCopy = new int[myData.length];
System.arraycopy(myData, 0, originalArrayCopy, 0, myData.length);
Util.checkArrayResultsDoubler(myData, originalArrayCopy);
}

private static void doMediumProblem() throws Exception {
System.out.println("Doing the medium sized problem");
numElements = 5_000_000;
// This is only when handling more than max blocks * max threads per kernel
// Grid dim is the number of blocks in the grid
// Block dim is the number of threads in a block
// buffer1 is how we'll use our data on the GPU
// myData is on CPU, transfer it
// Our stream executes the kernel, can launch many streams at once
System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX +
">>>");
Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1,
numElements);
}

private static void doChunkingProblem() throws Exception {
// I know 5m doesn't require chunking on the GPU but this does
System.out.println("Doing the too big to handle in one kernel problem");
numElements = 70_000_000;
// Check we can actually launch a kernel with this grid size
try {
int[] originalArrayCopy = new int[numElements];
System.arraycopy(myData, 0, originalArrayCopy, 0, numElements);
} catch (CudaException ce) {
if (ce.getMessage().equals("invalid argument")) {
System.out.println("it was invalid argument, too big!");
int maxThreadsPerBlockX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_BLOCK_DIM_X);
int maxBlocksPerGridX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_GRID_DIM_Y);
long maxThreadsPerGrid = maxThreadsPerBlockX * maxBlocksPerGridX;
// 67,107,840 on my Windows box
System.out.println("Max threads per grid: " + maxThreadsPerGrid);
long numElementsAtOnce = maxThreadsPerGrid;
long elementsDone = 0;
grid = new CudaGrid(maxBlocksPerGridX, maxThreadsPerBlockX, stream);
while (elementsDone < numElements) {
if ( (elementsDone + numElementsAtOnce) > numElements) {
numElementsAtOnce = numElements - elementsDone; // Just do the remainder
}
long toOffset = numElementsAtOnce + elementsDone;
// It's the byte offset not the element index offset
CudaBuffer slicedSection = buffer1.slice(elementsDone * Integer.BYTES, toOffset * Integer.BYTES);
Parameters kernelParams = new Parameters(2).set(0, slicedSection).set(1, numElementsAtOnce);
elementsDone += numElementsAtOnce;
}
} else {
System.out.println(ce.getMessage());
}
}
}

CUDA4J kernel
#include <stdint.h>
#include <stdio.h>
/**
* 2D grid so we can have 1024 threads and many blocks
* Remember 1 grid -> has blocks/threads and one kernel runs on one grid
* In CUDA 6.5 we have cudaOccupancyMaxPotentialBlockSize which helps
*
* Let's say we have 100 ints to double, keeping it simple
* Assume we want to run with 256 threads at once
* For this size our kernel will be set up as follows
* 1 grid, 1 block, 512 threads
* blockDim.x is going to be 1
* threadIdx.x will remain at 0
* threadIdx.y will range from 0 to 512
* So we'll go from 1 to 512 and we'll limit access to how many elements we
have
*/
extern "C" __global__ void Cuda_cuda4j_AdamDoubler(int* toDouble, int
numElements){
int index = blockDim.x * threadIdx.x + threadIdx.y;
if (index < numElements) { // Don't go out of bounds
toDouble[index] *= 2; // Just double it
}
}
extern "C" __global__ void Cuda_cuda4j_AdamDoubler_Strider(int* toDouble,
int numElements){
int i = blockIdx.x * blockDim.x + threadIdx.x;
if (i < numElements) { // don't go overboard
toDouble[i] *= 2;
}
}

Lambda example, part 1 of 2
import java.util.stream.IntStream;
public class Lambda {
private static long startTime = 0;
// -Xjit:enableGPU is our JVM option
public static void main(String[] args) {
boolean timeIt = true;
int numElements = 500_000_000;
int[] toDouble = new int[numElements];
Util.fillWithInts(toDouble);
myDoublerWithALambda(toDouble, timeIt);
double[] toHalf = new double[numElements];
Util.fillWithDoubles(toHalf);
myHalverWithALambda(toHalf, timeIt);
double[] toRandomFunc = new double[numElements];
Util.fillWithDoubles(toRandomFunc);
myRandomFuncWithALambda(toRandomFunc, timeIt);
}
private static void myDoublerWithALambda(int[] myArray, boolean timeIt) {
if (timeIt) startTime = System.currentTimeMillis();
IntStream.range(0, myArray.length).parallel().forEach(i -> {
myArray[i] = myArray[i] * 2; // Done on GPU for us
});
if (timeIt) {
System.out.println("Done doubling with a lambda, time taken: " +
(System.currentTimeMillis() - startTime) + " milliseconds");
}
}

private static void myHalverWithALambda(double[] myArray, boolean timeIt)
{
myArray[i] = myArray[i] / 2; // Again on GPU
});
if (timeIt) {
System.out.println("Done halving with a lambda, time taken: " +
}
}
private static void myRandomFuncWithALambda(double[] myArray, boolean
timeIt) {
myArray[i] = myArray[i] * 3.142; // Double so we don't lose precision
});
if (timeIt) {
System.out.println("Done with the random func with a lambda, time
taken: " +
}
}
}
Lambda example, part 2 of 2

Utility methods, part 1 of 2
public class Util {
protected static void fillWithInts(int[] toFill) {
for (int i = 0; i < toFill.length; i++) {
toFill[i] = i;
}
}
protected static void fillWithDoubles(double[] toFill) {
for (int i = 0; i < toFill.length; i++) {
toFill[i] = i;
}
}
protected static void printArray(int[] toPrint) {
System.out.println();
for (int i = 0; i < toPrint.length; i++) {
if (i == toPrint.length - 1) {
System.out.print(toPrint[i] + ".");
} else {
System.out.print(toPrint[i] + ", ");
}
}
System.out.println();
}
protected static CudaGrid makeGrid(int numElements, CudaStream stream) {
int numThreads = 512;
int numBlocks = (numElements + (numThreads - 1)) / numThreads;
return new CudaGrid(numBlocks, numThreads, stream);
}

/*
* Array will have been doubled at this point
*/
protected static void checkArrayResultsDoubler(int[] toCheck, int[] originalArray) {
long errorCount = 0;
// Check result, data has been copied back here
if (toCheck.length != originalArray.length) {
System.err.println("Something's gone horribly wrong, different array length");
}
for (int i = 0; i < originalArray.length; i++) {
if (toCheck[i] != (originalArray[i] * 2) ) {
errorCount++;
/*
System.err.println("Got an error, " + originalArray[i] +
" is incorrect: wasn't doubled correctly!" +
" Got " + toCheck[i] + " but should be " + originalArray[i] * 2);
*/
} else {
//System.out.println("Correct, doubled " + originalArray[i] + " and it became " +
toCheck[i]);
}
}
System.err.println("Incorrect results: " + errorCount);
}
}
Utility methods, part 2 of 2

CUDA4J module loader
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStream;
import com.ibm.cuda.CudaDevice;
import com.ibm.cuda.CudaException;
import com.ibm.cuda.CudaModule;
public class Loader {
private final CudaModule.Cache moduleCache = new CudaModule.Cache();
CudaModule loadModule(String moduleName, CudaDevice device) throws CudaException,
IOException {
CudaModule module = moduleCache.get(device, moduleName);
if (module == null) {
try (InputStream stream = getClass().getResourceAsStream(moduleName)) {
if (stream == null) {
throw new FileNotFoundException(moduleName);
}
module = new CudaModule(device, stream);
moduleCache.put(device, moduleName, module);
}
}
return module;
}
}

CUDA4J build script on Windows
nvcc -fatbin AdamDoubler.cu
"C:ibm8sr3gasdkbinjava" -version
"C:ibm8sr3gasdkbinjavac" *.java
"C:ibm8sr3gasdkbinjava" -Xmx2g Sample
"C:ibm8sr3gasdkbinjava" -Xmx4g Lambda
"C:ibm8sr3gasdkbinjava" -Xjit:enableGPU={verbose} -Xmx4g
Lambda

Set the PATH to include the CUDA library. For example, set
PATH=<CUDA_LIBRARY_PATH>;%PATH%, where the
<CUDA_LIBRARY_PATH> variable is the full path to the CUDA library. The
<CUDA_LIBRARY_PATH> variable is C:Program FilesNVIDIA GPU
Computing ToolkitCUDAv7.5bin, which assumes CUDA is installed to
the default directory.
Note: If you are using Just-In-Time Compiler (JIT) based GPU support, you must also
include paths to the NVIDIA Virtual Machine (NVVM) library, and to the NVDIA
Management Library (NVML). For example, the <CUDA_LIBRARY_PATH> variable
is C:Program FilesNVIDIA GPU Computing
ToolkitCUDAv7.5bin;<NVVM_LIBRARY_PATH>;<NVML_LIBRARY_P
ATH>.
If the NVVM library is installed to the default directory, the
<NVVM_LIBRARY_PATH> variable is C:Program FilesNVIDIA GPU
Computing ToolkitCUDAv7.5nvvmbin. You can find the NVML
library in your NVIDIA drivers directory. The default location of this directory is
C:Program FilesNVIDIA CorporationNVSMI.
From IBM's Java 8 docs
Environment example, see the docs for details

Notices and Disclaimers
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this document may be reproduced or
transmitted in any form without written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been
reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM
shall have no responsibility to update this information. THIS document is distributed "AS IS" without any warranty, either express
or implied. In no event shall IBM be liable for any damage arising from the use of this information, including but not limited to,
loss of data, business interruption, loss of profit or loss of opportunity. IBM products and services are warranted according to the
terms and conditions of the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without
notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are
presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual
performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products,
programs or services available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not
necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither
intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal
counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s
business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or
represent or warrant that its services or products will ensure that the customer is in compliance with any law.

Notices and Disclaimers (con’t)
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products in connection with this publication
and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not
warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s
products. IBM expressly disclaims all warranties, expressed or implied, including but not limited to, the implied warranties
of merchantability and fitness for a particular purpose.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any
IBM patents, copyrights, trademarks or other intellectual property right.
IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document
Management System™, Global Business Services ®, Global Technology Services ®, Information on Demand, ILOG,
LinuxONE™, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™,
PureApplication®, pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®,
pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®,
urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International
Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might
be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and
trademark information" at: www.ibm.com/legal/copytrade.shtml.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their
respective owners.
Databricks is a registered trademark of Databricks, Inc.
Apache Spark, Apache Cassandra, Apache Hadoop, Apache Maven, Spark, Apache, any other Apache project
mentioned here and the Apache product logos including the Spark logo are trademarks of The Apache Software
Foundation

Apache Spark Performance Observations

Recommended

Recommended

More Related Content

Similar to Apache Spark Performance Observations

Similar to Apache Spark Performance Observations (20)

Recently uploaded

Recently uploaded (20)

Apache Spark Performance Observations
