The document contains a table summarizing the time and distance taken to complete various steps in a process under the present and proposed methods. It recorded the time taken and number of steps for operations, transportation, inspection, and delays. The total time taken was reduced from 15 hours 29 minutes to 9 hours 33 minutes when moving from the present to the proposed method, saving almost 8 hours. Maps show the layout and routes taken under each method.

1. BY: GROUP 5

3. DIST. IN CHART

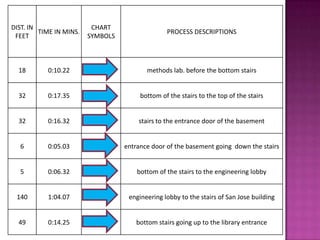

TIME IN MINS. PROCESS DESCRIPTIONS
FEET SYMBOLS
18 0:10.22 methods lab. before the bottom stairs
32 0:17.35 bottom of the stairs to the top of the stairs
32 0:16.32 stairs to the entrance door of the basement
6 0:05.03 entrance door of the basement going down the stairs
5 0:06.32 bottom of the stairs to the engineering lobby
140 1:04.07 engineering lobby to the stairs of San Jose building
49 0:14.25 bottom stairs going up to the library entrance

4. - - open the door
27 0:06.08 library entrance to OPAC
- 0:55.15 searching in OPAC
141 2:44.11 OPAC to bookshelf
- 1:11.59 finding the book
27 0:08.35 bookshelf to the counter
- 0:21.00 counter-clearing the book

5. 105 3:04.00 counter to exit library
- 0:05.00 exit library
- - open the door
69 1:09.00 exit library to hallway
23 0:30.40 top stairs going down to the entrance basement
27 0:27.00 entrance door of the basement to the top of the stairs
30 0:40.33 from the top of the stairs to the bottom of the stairs
20 0:20.22 bottom of the stairs to the Methods lab.

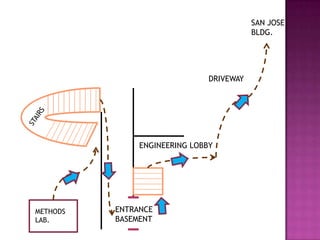

7. SAN JOSE
BLDG.
DRIVEWAY
ENGINEERING LOBBY
METHODS ENTRANCE
LAB. BASEMENT

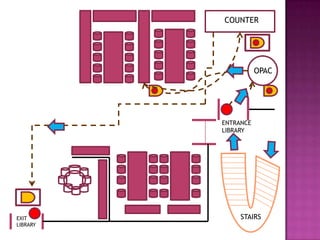

8. COUNTER
OPAC
ENTRANCE
LIBRARY
EXIT STAIRS
LIBRARY

9. HALLWAY
METHODS
LAB
ENTRANCE
BASEMENT STAIRS

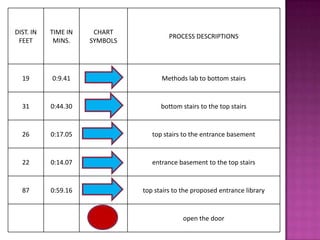

11. DIST. IN TIME IN CHART
PROCESS DESCRIPTIONS
FEET MINS. SYMBOLS
19 0:9.41 Methods lab to bottom stairs
31 0:44.30 bottom stairs to the top stairs
26 0:17.05 top stairs to the entrance basement
22 0:14.07 entrance basement to the top stairs
87 0:59.16 top stairs to the proposed entrance library
open the door

12. 5 0:04.01 entrance library to the proposed OPAC
0:15.41 searching books in OPAC
45 0:43.13 OPAC to shelves
0:08.32 finding the book
60 0:44.03 shelves to the proposed counter
0:19.12 counter clearing
20 0:12.01 counter to exit library

13. 0:05.00 exit library
open the door
80 0:41.12 exit library to hallway
26 0:13.41 top stairs going down to entrance basement
25 0:12.01 entrance basement to the top stairs
31 0:15.18 top stairs to bottom stairs
15 0:08.24 bottom stairs to methods lab.

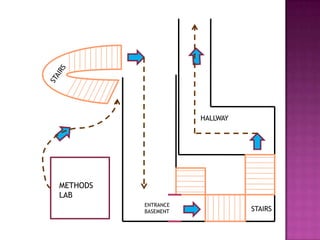

15. HALLWAY
METHODS
LAB
ENTRANCE
BASEMENT STAIRS

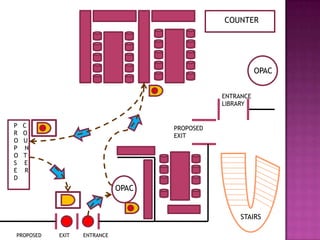

16. COUNTER
OPAC
ENTRANCE
LIBRARY
P C PROPOSED
R O EXIT
O U
P N
O T
S E
E R
D
OPAC
STAIRS
PROPOSED EXIT ENTRANCE

17. HALLWAY
METHODS
LAB
ENTRANCE
BASEMENT STAIRS

18. ELEMENTS PRESENT METHOD PROPOSED METHOD DIFFERENCE
TIME TIME TIME
STEPS STEPS STEPS
ALLOTTED ALLOTTED ALLOTTED
OPERATION 5 2:08.14 5 0:43.25 0 1:25.29
TRANSPORTATION 16 10:23.05 14 5:37.13 2 4:46.32
INSPECTION 2 0:25.00 2 0:24.12 0 0:0.88
DELAY 4 2:33.14 4 0:48.25 0 1:45.29
STORAGE
TOTAL 27 15:29.33 25 9:33.15 2 7:58.18
