In this session, attendees will learn how to use R in the distributed environment of Hadoop using the rmr package. Additionally, the R package googleVis will be used to show how application development teams can incorporate the power of R and the power of Google Chart Tools into their applications quickly and easily. The result is a rich custom data visualization with far less coding than what would otherwise be required. The session will begin by discussing R basics and then moving to concrete examples of statistical analysis on data sets. This will be accompanied by an application development example showing custom visualization of the analysis using googleVis. The application development example will show a browser based app both kicking off the data set analysis using R as well as the visualization of the result. Visualization examples will use both googleVis as well as basic Google Chart Tools. Attendees will leave the session with a concrete example of how to incorporate R into their existing application development practices and how to use Hadoop and its ecosystem to build custom visualizations.

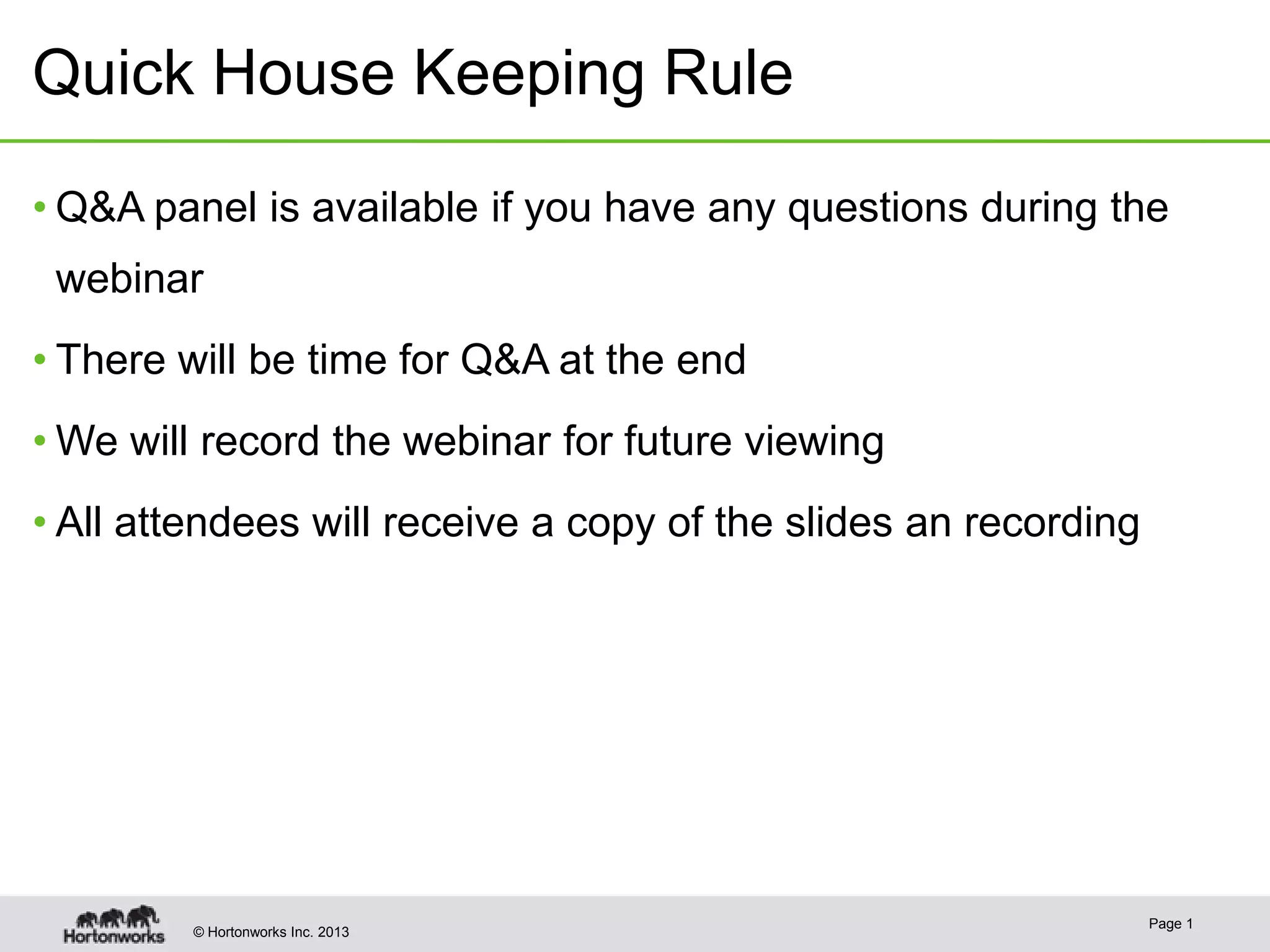

1. Quick House Keeping Rule
• Q&A panel is available if you have any questions during the
webinar
• There will be time for Q&A at the end
• We will record the webinar for future viewing
• All attendees will receive a copy of the slides an recording
Page 1
© Hortonworks Inc. 2013

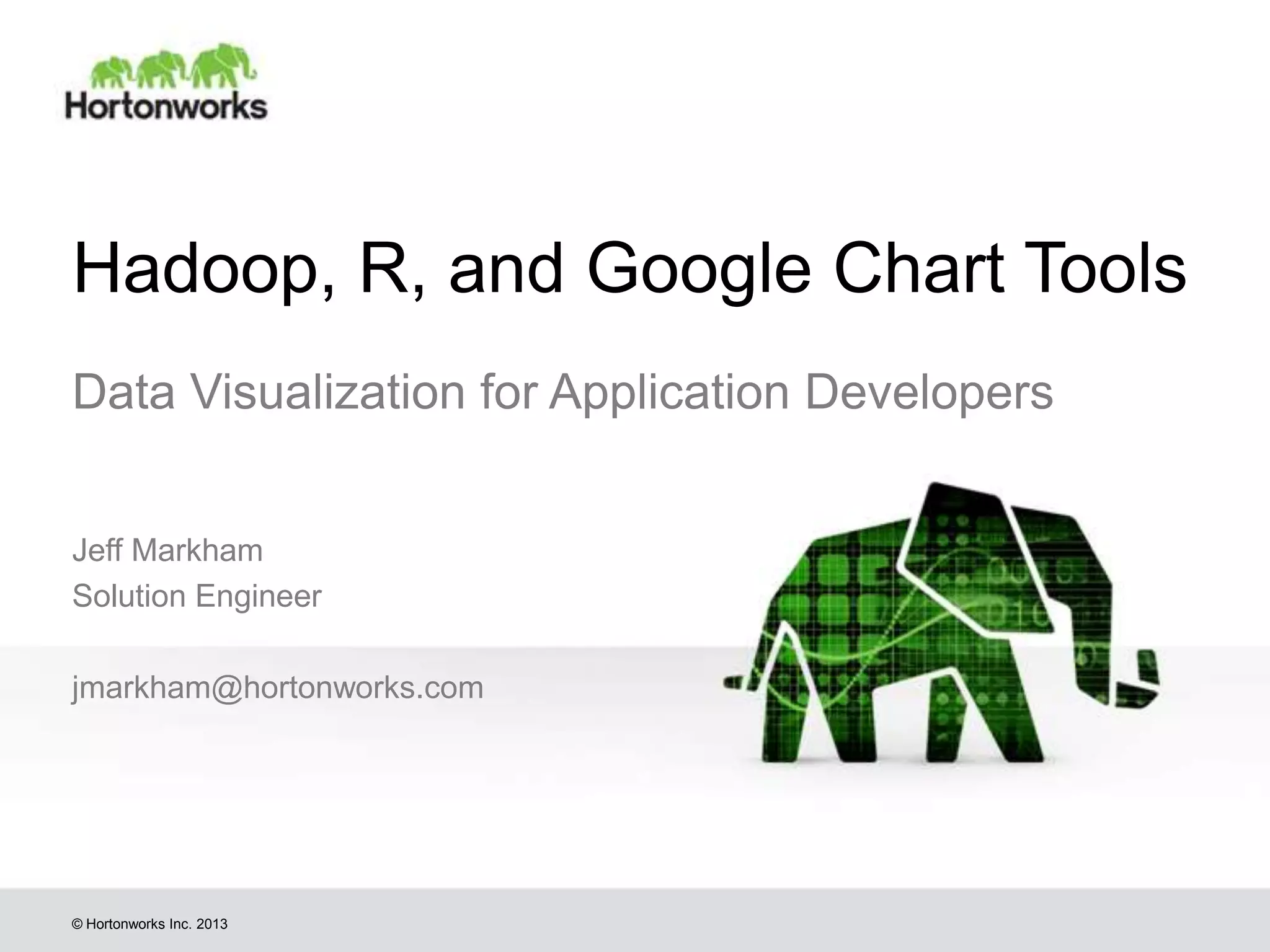

2. Hadoop, R, and Google Chart Tools
Data Visualization for Application Developers
Jeff Markham
Solution Engineer
jmarkham@hortonworks.com
© Hortonworks Inc. 2013

3. Agenda
• Introductions
• Use Case Description
• Preparation
• Demo
• Review
• Q&A
Page 3
© Hortonworks Inc. 2013

4. Use Case Description
• Visualizing data
• Tools vs. application development
• Choosing the technology
• Hortonworks Data Platform
• RHadoop
• Google Charts
Page 4
© Hortonworks Inc. 2013

5. Preparation: Install HDP
OPERATIONAL DATA Hortonworks
SERVICES SERVICES
Data Platform (HDP)
Manage &
AMBARI FLUME Store, HIVE
PIG
Operate at Process and HBASE Enterprise Hadoop
Scale SQOOP Access Data
OOZIE HCATALOG
• The ONLY 100% open source
WEBHDFS
Distributed MAP REDUCE and complete distribution
HADOOP CORE Storage & Processing (in 2.0)
HDFS YARN
PLATFORM SERVICES Enterprise Readiness: HA,
DR, Snapshots, Security, …
• Enterprise grade, proven and
tested at scale
HORTONWORKS
DATA PLATFORM (HDP) • Ecosystem endorsed to
ensure interoperability
OS Cloud VM Appliance
Page 5
© Hortonworks Inc. 2013

6. Preparation: Install R
• Install R language
• Install appropriate packages
– rhdfs
– rmr2
– googleVis
– shiny
– Dependencies for all above
Page 6
© Hortonworks Inc. 2013

7. Preparation
• rmr2
– Functions to allow for MapReduce in R apps
• rhdfs
– Functions allowing HDFS access in R apps
• googleVis
– Use of Google Chart Tools in R apps
• shiny
– Interactive web apps for R developers
Page 7
© Hortonworks Inc. 2013

8. Demo Walkthrough
Using Hadoop, R, and Google Chart Tools
© Hortonworks Inc. 2012

9. Visualization Use Case
• Data from CDC
– Vital statistics publicly available data
– 2010 US birth data file
S 201001 7 2 2 30105
2 011 06 1 123 3405 1 06 01 2 2
SAMPLE RECORD
0321 1006 314 2000 2 222 22
2 2 2 122222 11 3 094 1 M 04 200940 39072 3941
083 22 2 2 22 110 110 00
0000000 00 000000000 000000 000 000000000000000000011
101 1 111 10 1 1 1 111111 11 1 1 11
source: http://www.cdc.gov/nchs/data_access/vitalstatsonline.htm
Page 9
© Hortonworks Inc. 2013

10. Visualization Use Case
• Put data into HDFS
– Create input directory
– Put data into input directory
CREATE HDFS DIR
> hadoop fs –mkdir /user/jeff/natality
PUT DATA INTO HDFS
> hadoop fs –put ~/VS2010NATL.DETAILUS.DAT
/user/jeff/natality/
Page 10
© Hortonworks Inc. 2013

11. Visualization Use Case
• Write R script
– Specify use of RHadoop packages
– Initialize HDFS
– Specify data input and output location
#!/usr/bin/env Rscript
require('rmr2')
require('rhdfs')
hdfs.init()
R SCRIPT
hdfs.data.root = 'natality'
hdfs.data = file.path(hdfs.data.root, 'VS2010NATL.DETAILUS.DAT')
hdfs.out.root = hdfs.data.root
hdfs.out = file.path(hdfs.out.root, 'out')
...
Page 11
© Hortonworks Inc. 2013

12. Visualization Use Case
• Write R script
– Write mapper function
– Write reducer function
...
mapper = function(k, fields) {
keyval(as.integer(substr(fields, 89, 90)),1)
}
R SCRIPT
reducer = function(key, vv) {
# count values for each key
keyval(key, sum(as.numeric(vv),na.rm=TRUE))
}
...
Page 12
© Hortonworks Inc. 2013

13. Visualization Use Case
• Write R script
– Write job function
...
job = function (input, output) {
mapreduce(input = input,
output = output,
R SCRIPT
input.format = "text",
map = mapper,
reduce = reducer,
combine = T)
}...
Page 13
© Hortonworks Inc. 2013

14. Visualization Use Case
• Write R script
– Write result to HDFS output directory
...
R SCRIPT
out = from.dfs(job(hdfs.data, hdfs.out))
results.df = as.data.frame(out,stringsAsFactors=F)
Page 14
© Hortonworks Inc. 2013

15. Visualization Use Case
• Create Shiny application
– Create directory
– Create ui.R
– Create server.R
SHINY APP DIR
> mkdir ~/my-shiny-app
Page 15
© Hortonworks Inc. 2013

16. Visualization Use Case
• Create Shiny application
– Create ui.R
shinyUI(pageWithSidebar(
# Application title
headerPanel("2010 US Births"),
sidebarPanel(. . .),
UI.R SOURCE
mainPanel(
tabsetPanel(
tabPanel("Line Chart", htmlOutput("lineChart")),
tabPanel("Column Chart", htmlOutput("columnChart"))
)
)
))
Page 16
© Hortonworks Inc. 2013

17. Visualization Use Case
• Create Shiny application
– Create server.R
library(googleVis)
library(shiny)
library(rmr2)
library(rhdfs)
SERVER.R SOURCE
hdfs.init()
hdfs.data.root = 'natality'
hdfs.data = file.path(hdfs.data.root, 'out')
df = as.data.frame(from.dfs(hdfs.data))
...
Page 17
© Hortonworks Inc. 2013

18. Visualization Use Case
• Create Shiny application
– Create server.R
...
shinyServer(function(input, output) {
output$lineChart <- renderGvis({
SERVER.R SOURCE
gvisLineChart(df, options=list(
vAxis="{title:'Number of Births'}",
hAxis="{title:'Age of Mother'}",
legend="none"
))
})
...
Page 18
© Hortonworks Inc. 2013

19. Visualization Use Case
• Run Shiny application
> shiny::runApp('~/my-shiny-app')
Loading required package: shiny
Welcome to googleVis version 0.4.0
RUN SHINY APP
...
HADOOP_CMD=/usr/bin/hadoop
Be sure to run hdfs.init()
Listening on port 8100
Page 19
© Hortonworks Inc. 2013

20. Visualization Use Case
• View Shiny application
Page 20
© Hortonworks Inc. 2013

21. Demo Live
Using Hadoop, R, and Google Chart Tools
© Hortonworks Inc. 2012

22. Visualization Use Case
• Architecture recap
– Analyze data sets with R on Hadoop
– Choose RHadoop packages
– Visualize data with Google Chart Tools via googleVis package
– Render googleVis output in Shiny applications
• Architecture next steps
– Integrate Shiny application into existing web apps
– Create further data models with R
Page 22
© Hortonworks Inc. 2013

23. HDP: Enterprise Hadoop Distribution
OPERATIONAL DATA Hortonworks
SERVICES SERVICES
Data Platform (HDP)
Manage &
AMBARI FLUME Store, HIVE
PIG
Operate at Process and HBASE Enterprise Hadoop
Scale SQOOP Access Data
OOZIE HCATALOG
• The ONLY 100% open source
WEBHDFS
Distributed MAP REDUCE and complete distribution
HADOOP CORE Storage & Processing (in 2.0)
HDFS YARN
PLATFORM SERVICES Enterprise Readiness: HA,
DR, Snapshots, Security, …
• Enterprise grade, proven and
tested at scale
HORTONWORKS
DATA PLATFORM (HDP) • Ecosystem endorsed to
ensure interoperability
OS Cloud VM Appliance
Page 23
© Hortonworks Inc. 2013

24. HDP Sandbox
Page 24
© Hortonworks Inc. 2013

25. Thank You!
Jeff Markham
Solution Engineer
jmarkham@hortonworks.com
Page 25
© Hortonworks Inc. 2012
