Prevention of Data Loss in physical implementation of FIFOs and Data Synchronizers

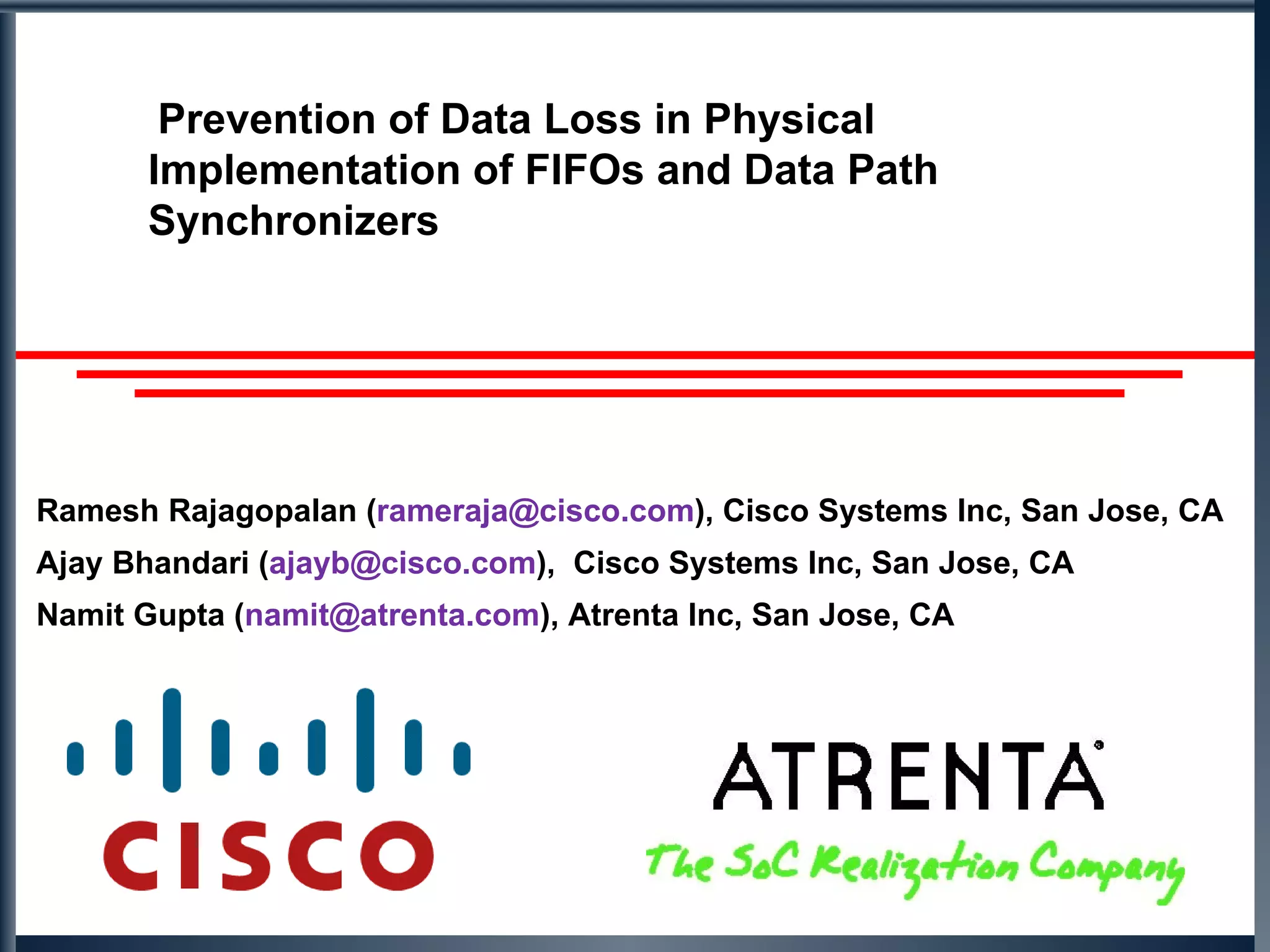

1. Prevention of Data Loss in Physical
Implementation of FIFOs and Data Path
Synchronizers
Ramesh Rajagopalan (rameraja@cisco.com), Cisco Systems Inc, San Jose, CA
Ajay Bhandari (ajayb@cisco.com), Cisco Systems Inc, San Jose, CA
Namit Gupta (namit@atrenta.com), Atrenta Inc, San Jose, CA

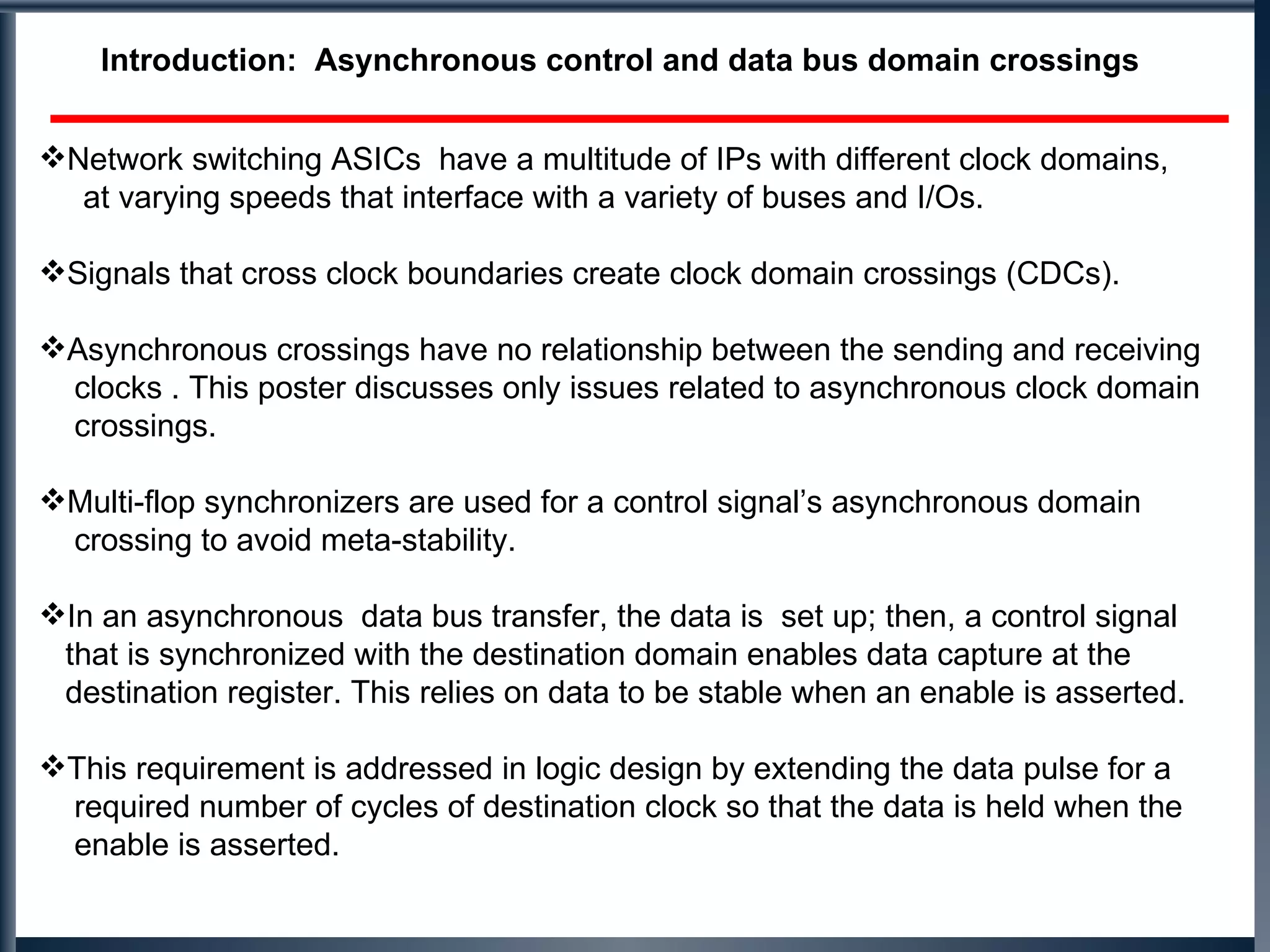

2. Introduction: Asynchronous control and data bus domain crossings
Network switching ASICs have a multitude of IPs with different clock domains,
at varying speeds that interface with a variety of buses and I/Os.
Signals that cross clock boundaries create clock domain crossings (CDCs).
Asynchronous crossings have no relationship between the sending and receiving
clocks . This poster discusses only issues related to asynchronous clock domain
crossings.
Multi-flop synchronizers are used for a control signal’s asynchronous domain
crossing to avoid meta-stability.
In an asynchronous data bus transfer, the data is set up; then, a control signal
that is synchronized with the destination domain enables data capture at the
destination register. This relies on data to be stable when an enable is asserted.
This requirement is addressed in logic design by extending the data pulse for a
required number of cycles of destination clock so that the data is held when the
enable is asserted.
3. Data loss issue and its prevention by logic design
In an asynchronous data bus transfer, each valid transition on the source
data should get captured in the destination domain to prevent data loss.
To prevent data loss in a fast-to-slow clock domain data crossing:
1) Data must be held long enough to be registered by the destination flop.
2) Data should not change when the control (qualifier) signal that gates
or enables the data crossing is active.
Logic design ensures that
1) the data is held long enough by extending the data pulse for the time
it takes to latch the data at the destination.
2) data is allowed to change only after receiving feedback from the
destination domain after latching the current data.
4. Impact on physical design implementation of data path synchronizers
During physical implementation of a data path synchronizer, the control
signals from the source domain to the destination domain are timing-wise
unconstrained in their path from the multi-flop synchronizers to the
enable/mux-select or AND-based qualifiers.
The unconstrained standard cell placement and detailed routing of the
control path might result in a sub-optimal placement of the cells and scenic
routing .
As the technology node advanced, the RC interconnect values have
increased by several folds especially for the lower routing layers.
Higher net delay values could be seen for the control signal used as a
synchronized enable at the qualifying gate of the domain crossing .
6. Delay due to physical implementation impacting data transfer across
Clock Domains
The impact of the large interconnect delay on the falling edge of the control signal is illustrated.
The extended active enable signal would result in latching an unknown value of the data at the
destination domain. A similar issue occurs due to the delay in the rising edge of the control signal
as well.
7. Need for a methodology to mitigate data loss due to physical
implementation
To mitigate the large physical net delay in the control signal, logic designers could
introduce one more synchronizer register in the destination domain before sending
the feedback to source domain to enable the data change to the next value.
Such logic design-based solutions that introduce additional latencies would work for a
given ratio of fast-to-slow clocks, with the control path delay due to physical
implementation not exceeding one cycle of the destination clock.
However, for designs:
1) that need to handle varying fast to slow clock ratios (as high as 10:1) based on
different operating modes or due to use of the power reduction mode in the design, or
2) that are intolerant to any additional latency, or
3) that use very high layout utilization and are subject to local routing congestion,
it would be better to physically constrain the control signal paths to place and route
them within the allowed delay
8. Physical design methodology to mitigate data loss due to physical delay
in enabling the fast-to-slow data crossings
Physical Design methodology to be followed:
3)Identify the destination register and the enable that gates the data crossing
The SpyGlass® CDC tool in a CrossingInfo.rpt lists the “mux-select synchronizers”,
“enable synchronizers”, “AND gate-based synchronizers” and
“FIFOs” (with read pointer and write pointer instances).
2) Using this information create an “instance group” of cells in the control path.
Make this instance group into a soft guide for placement purposes in the Cadence EDI tool
3) During cell placement, set the soft guide effort level to high to increase the degree
of closeness between placement of the control path logic listed under a given soft guide.
4) For improved results, pre-place the enable gating logic and fix it prior to
incremental placement to get the cells in the soft guide placed near the fixed logic.
Also, set a higher net weight on nets that need to be shorter.
5) Create a max delay constraint from the last synchronizer register to the pin where
the control gates the data crossings.
6) Report timing for the control signal path (as an unconstrained path) and the analyze
the actual delays for potential data loss.
9. Mux select control path :
Reduction in net length/delay with suggested physical design methodology
Logic View of Mux select control path
Physical view - 1.5 mm long Mux select control Net length reduced to 130microns after
path (Before using the suggested physical design using suggested physical methodology
methodology)
10. FIFO empty signal logic :
Reduction in net length/delay by applying suggested physical design methodology
Logical view – FIFO empty logic
Physical view - 430 microns long FIFO Net length reduced to 120 microns after
empty signal path (Before using the using suggested physical methodology
suggested physical design methodology)
11. Conclusion, Limitations and Future Work
CONCLUSION:
Prevention of data loss in a fast-to-slow clock domain data crossing
needs to be addressed at both the logical and physical levels.
The critical aspect is the implementation of a control path in a data
synchronizer within the delay limit
. Physical design techniques such as creating a soft guide for placement
of control path logic proved to be very useful in bringing some guidance
on the otherwise unconstrained control path.
LIMITATIONS
No single frame work or tool to infer destination domain registers and
qualifier gates of CDC logic and create physical placement groups.
FUTURE WORK
Automation of the generation of the placement constraints is slated to be
done in near future.
