Transducers convert one form of energy into another such as electrical, mechanical, electromagnetic, chemical, acoustic or thermal energy. A pressure transducer specifically converts pressure into an electrical signal through the physical deformation of strain gages bonded to a diaphragm inside the transducer. When pressure is applied, the diaphragm deflects and introduces strain to the gages, changing their electrical resistance in proportion to the measured pressure. There are several styles of pressure transducers including PC board mountable, general purpose, heavy duty/industrial, and flush diaphragm types.

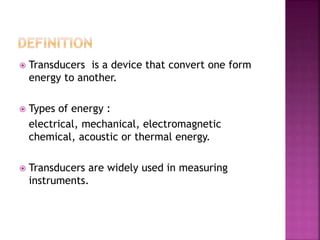

2.  Transducers is a device that convert one form
energy to another.
 Types of energy :
electrical, mechanical, electromagnetic
chemical, acoustic or thermal energy.
 Transducers are widely used in measuring
instruments.

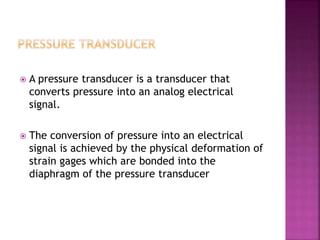

3.  A pressure transducer is a transducer that
converts pressure into an analog electrical
signal.
 The conversion of pressure into an electrical
signal is achieved by the physical deformation of
strain gages which are bonded into the
diaphragm of the pressure transducer

4.  Pressure applied to the pressure transducer
produces a deflection of the diaphragm which
introduces strain to the gages
 The strain will produce an electrical resistance
change proportional to the pressure.

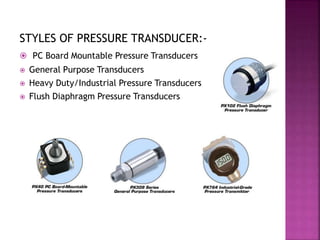

5. STYLES OF PRESSURE TRANSDUCER:-
 PC Board Mountable Pressure Transducers
 General Purpose Transducers
 Heavy Duty/Industrial Pressure Transducers
 Flush Diaphragm Pressure Transducers

6. THE END
