Cloud Meets Big
Data For
VMware
Environments
<Phil King
EMC Solutions are Powered by
Intel® Xeon® Processor
Technology

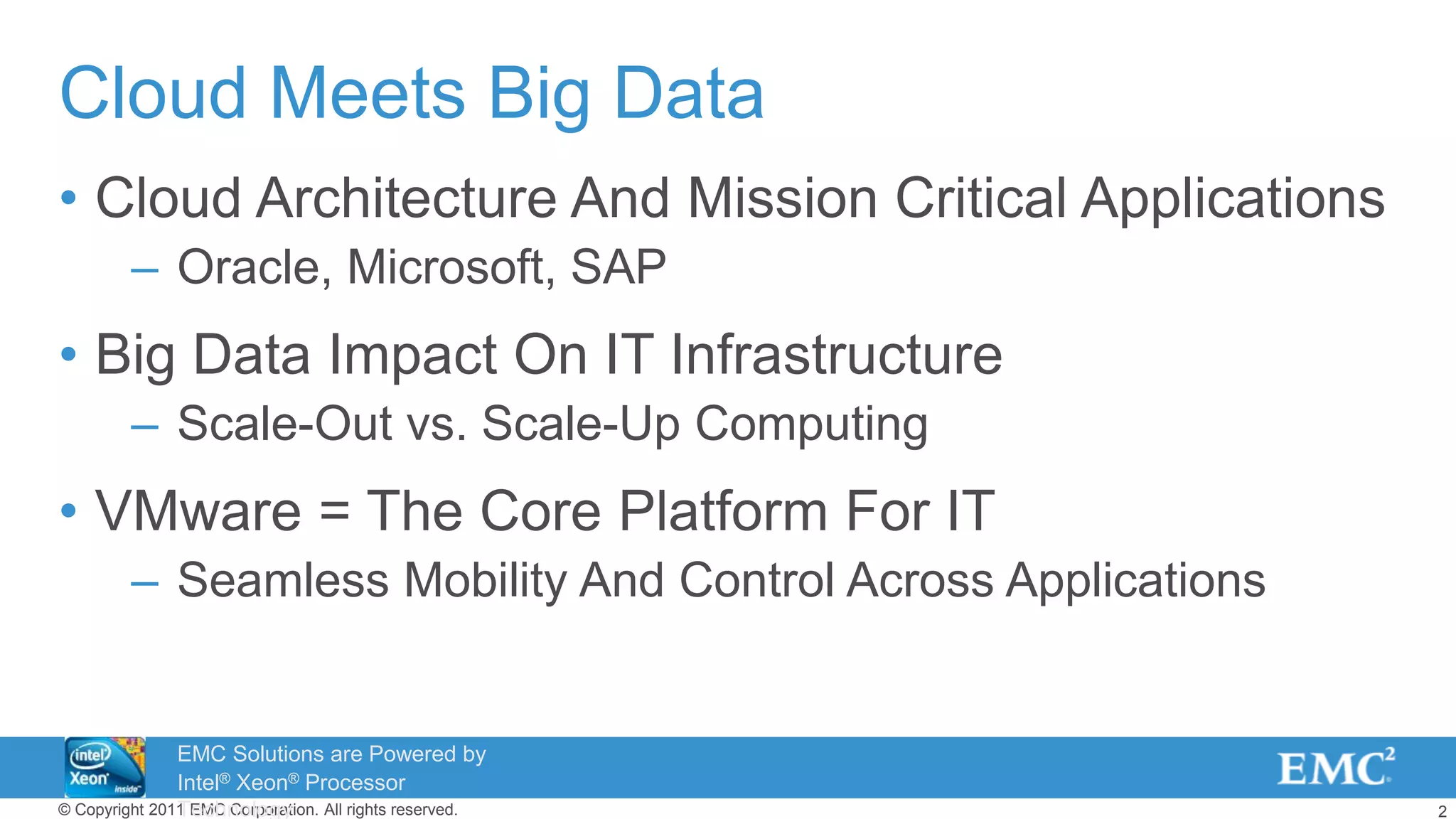

Cloud Meets Big Data
• Cloud Architecture And Mission Critical Applications
– Oracle, Microsoft, SAP
• Big Data Impact On IT Infrastructure
– Scale-Out vs. Scale-Up Computing
• VMware = The Core Platform For IT
– Seamless Mobility And Control Across Applications
Technology

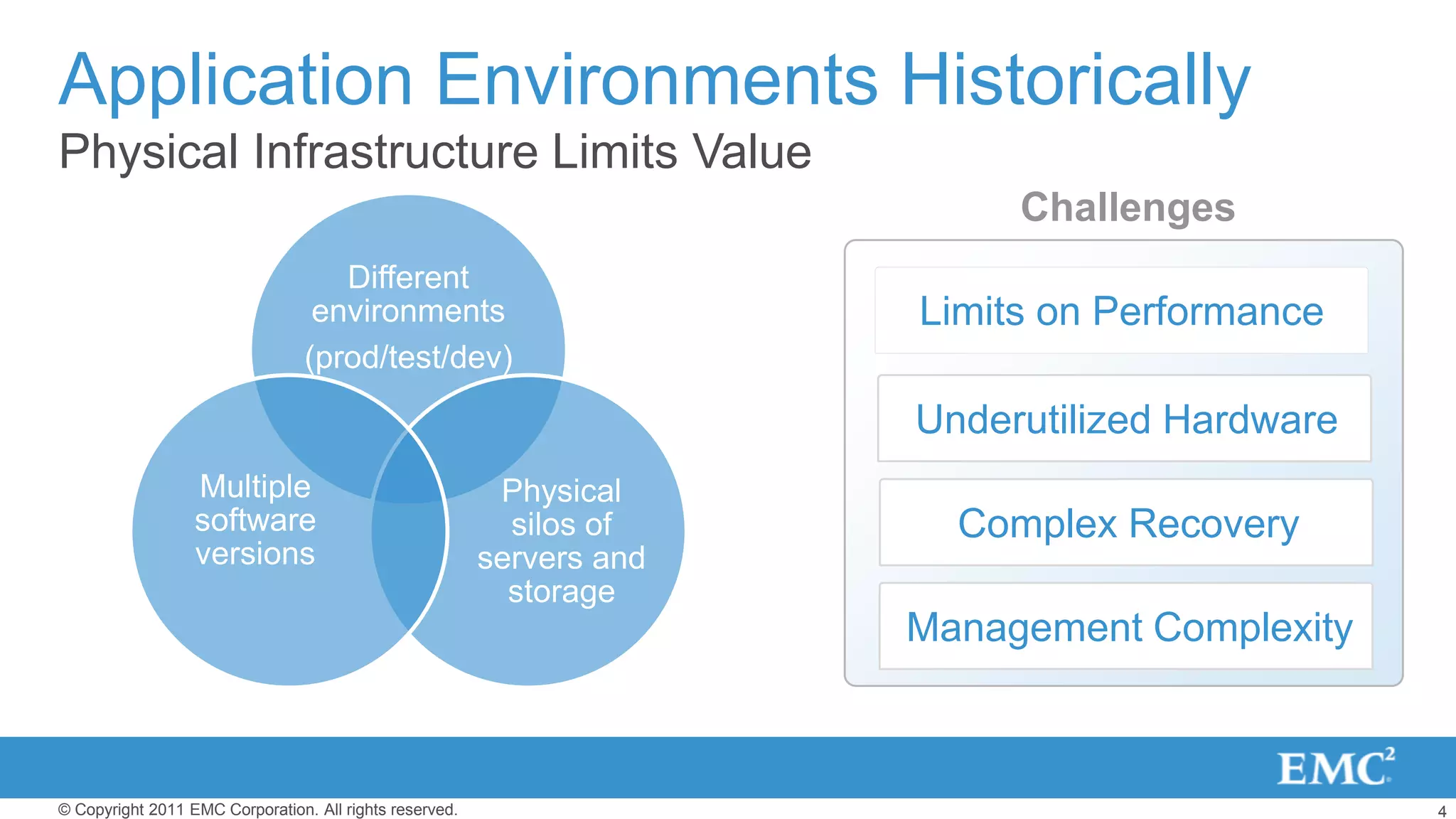

Application Environments Historically
Physical Infrastructure Limits Value
Challenges
Limits on Performance
Different
environments
(prod/test/dev)
Physical
silos of
servers and
storage
Multiple
software
versions
Underutilized Hardware
Management Complexity
Complex Recovery

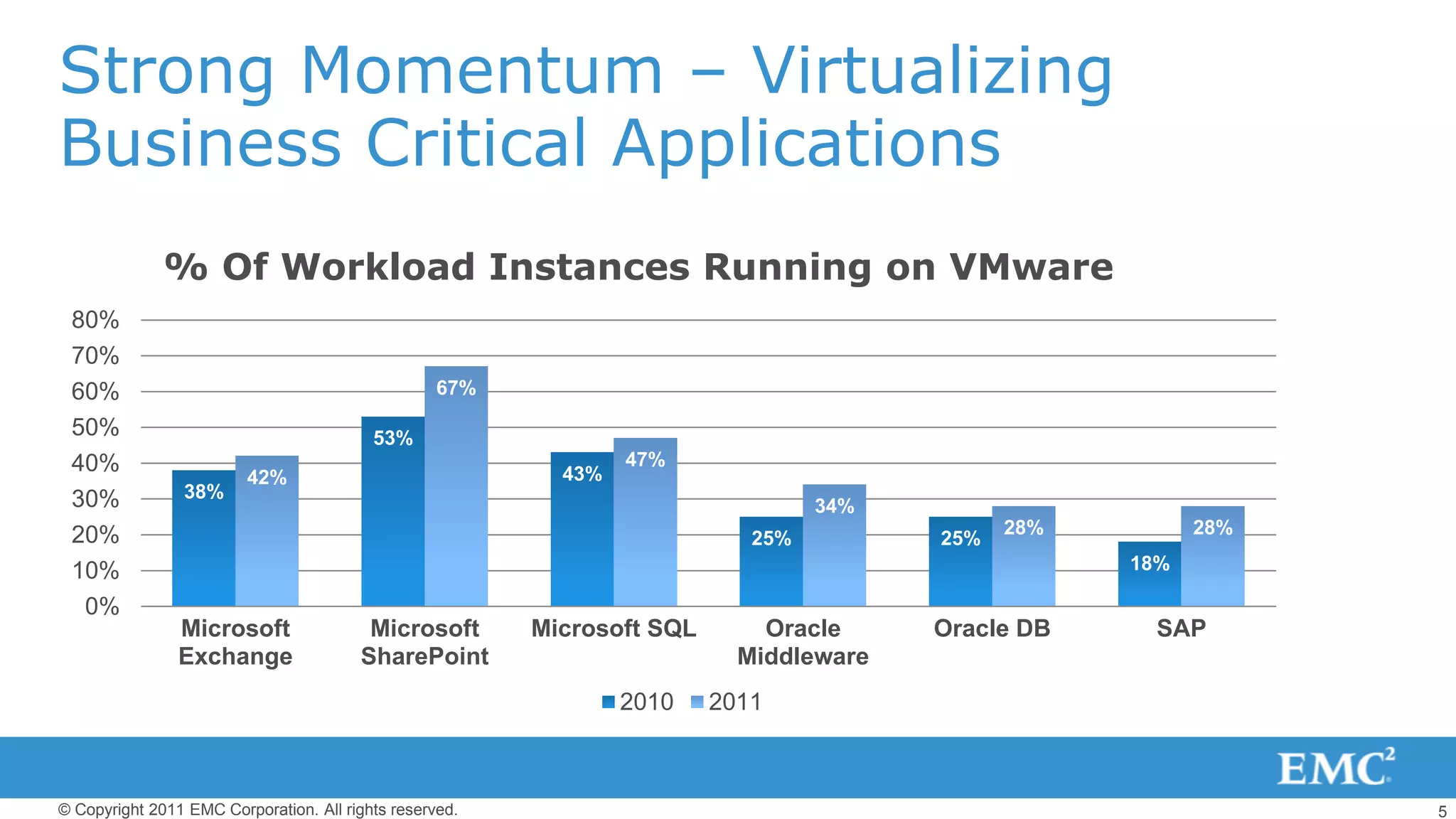

Strong Momentum – Virtualizing
Business Critical Applications
38%
53%
43%
25% 25%
18%
42%
67%
47%
34%
28% 28%
0%
10%
20%
30%
40%
50%
60%
70%
80%
Microsoft
Exchange
Microsoft
SharePoint
Microsoft SQL Oracle
Middleware
Oracle DB SAP
2010 2011
% Of Workload Instances Running on VMware

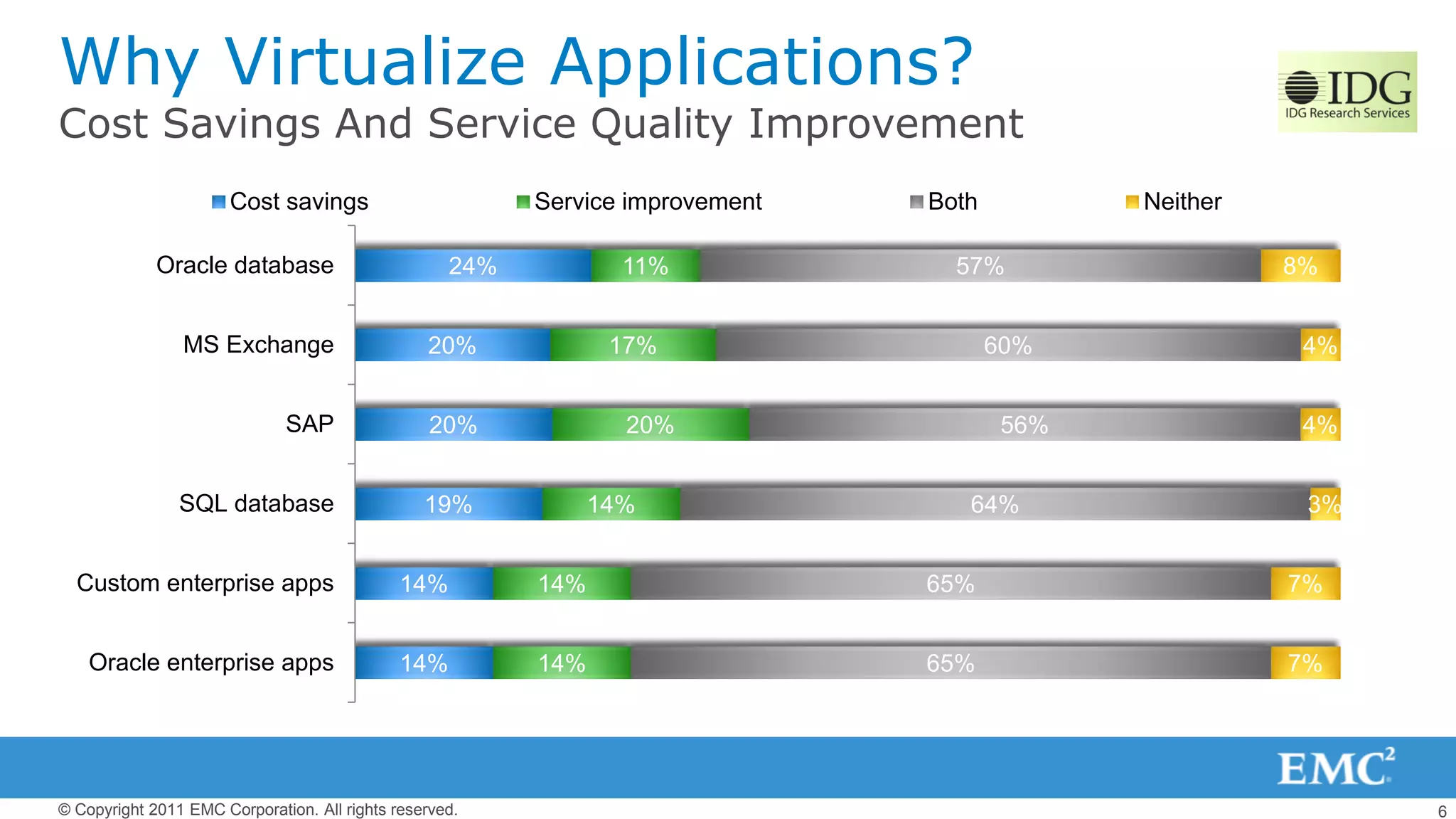

Why Virtualize Applications?
Cost Savings And Service Quality Improvement
14%
14%
19%
20%
20%
24%
14%
14%
14%
20%
17%
11%
65%
65%
64%
56%
60%
57%
7%
7%
3%
4%
4%
8%
Oracle enterprise apps
Custom enterprise apps
SQL database
SAP
MS Exchange
Oracle database
Cost savings Service improvement Both Neither

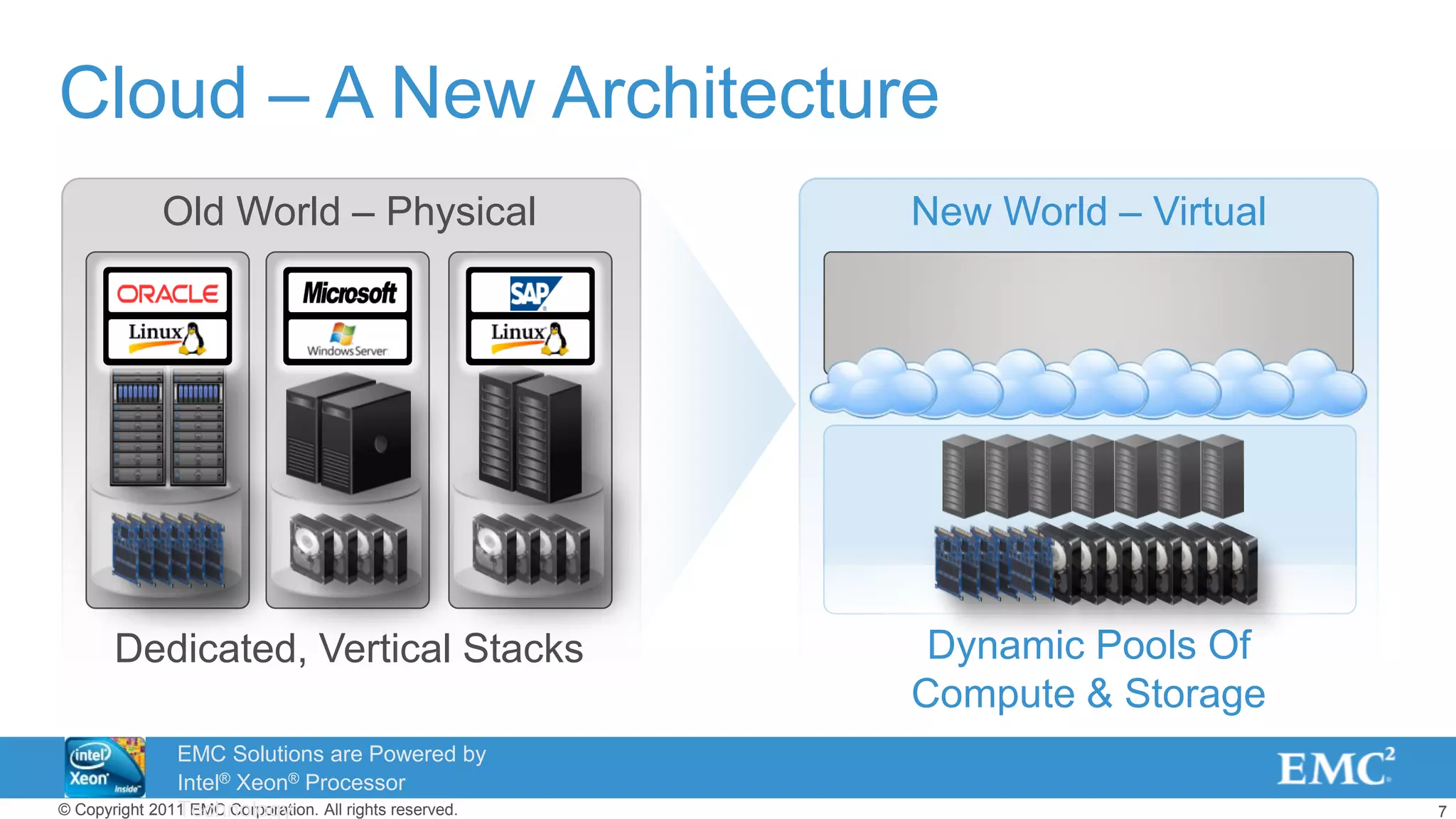

Cloud – A New Architecture
Dedicated, Vertical Stacks
Old World – Physical New World – Virtual
Dynamic Pools Of
Compute & Storage
Technology

vSphere
vFabric
vCenter

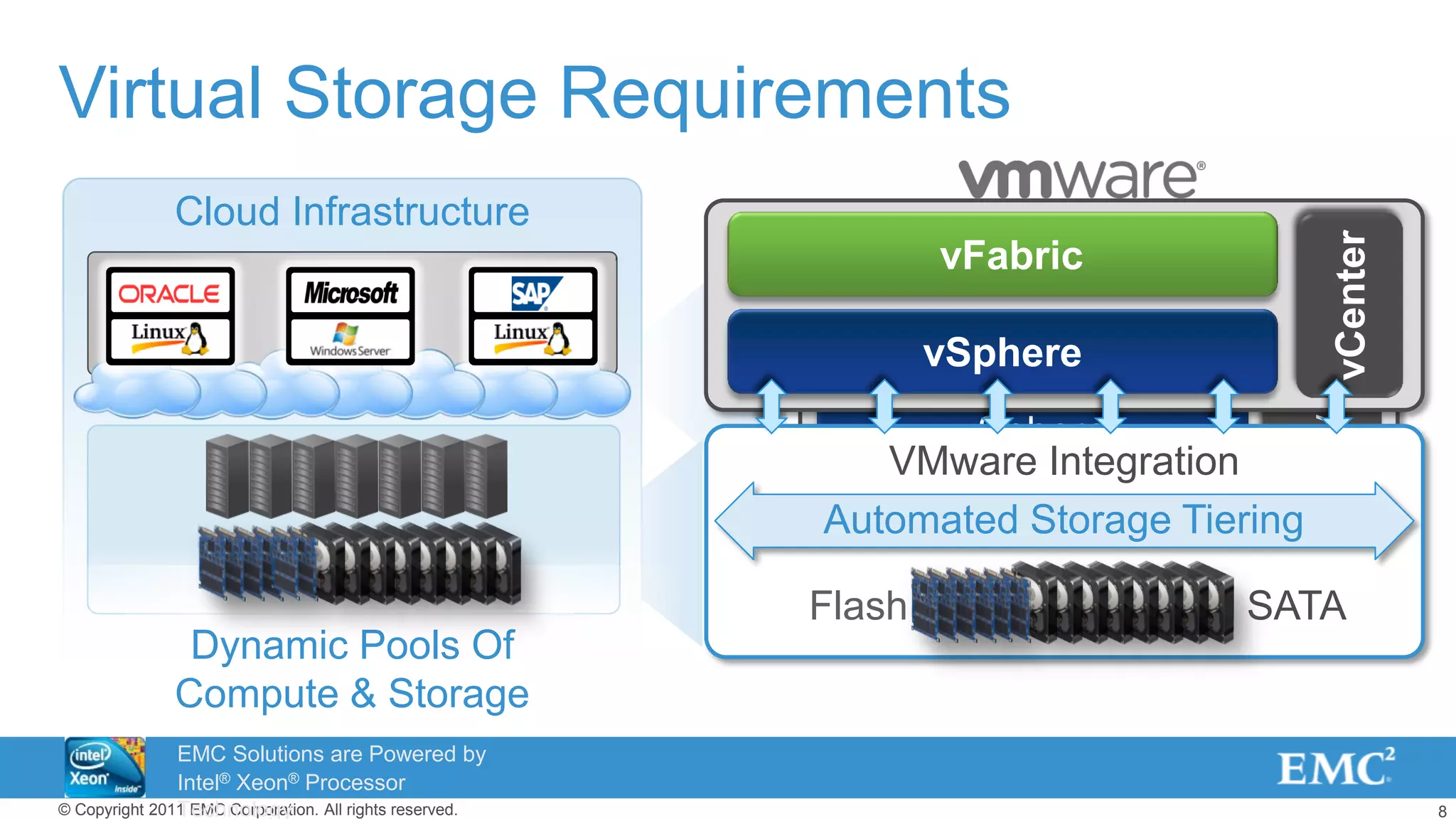

Virtual Storage Requirements
vSphere
vFabric
vCenter
Flash SATA
Automated Storage Tiering
VMware Integration
Cloud Infrastructure
Dynamic Pools Of
Compute & Storage
Technology

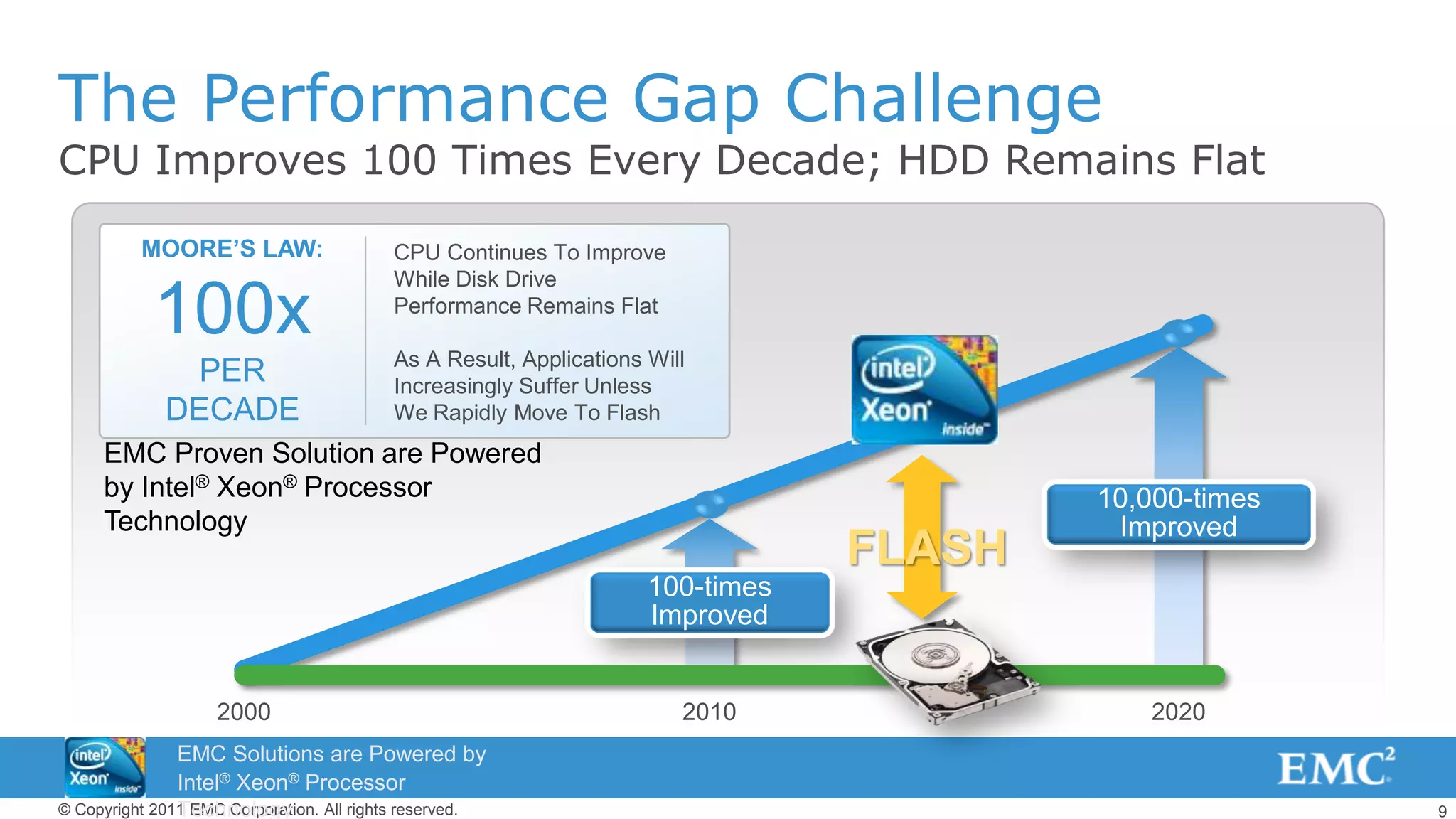

The Performance Gap Challenge
CPU Improves 100 Times Every Decade; HDD Remains Flat
100-times
Improved
10,000-times
Improved
2000 2010 2020
MOORE’S LAW:
100x
PER
DECADE
CPU Continues To Improve
While Disk Drive
Performance Remains Flat
As A Result, Applications Will
Increasingly Suffer Unless
We Rapidly Move To Flash
FLASH
EMC Proven Solution are Powered
by Intel® Xeon® Processor
Technology
Technology

Oracle
server
Static Association Of
Disk Groups To Applications
Based On Best Gues
Exchange
server
SQL
server
MANUAL PROCESS
• FAST Cache continuously ensures
that the hottest data is served from
high performance Flash SSDs
• FAST VP (Virtual Pools)* optimizes
storage pools automatically,
ensuring that active data is being
served from SSDs, while cold data is
moved to lower cost disk
• EMC Proven Solution Results:
– 150% more OLTP TPM
– 3X more users
– 80% faster tuning
– Powered by Intel® Xeon® Processor
Technology
SSD NL-
SAS
SAS
Dynamic, Self-Optimizing
Storage Pools
Based On Actual Data Activity
Oracle Microsoft SAP
100% AUTOMATED

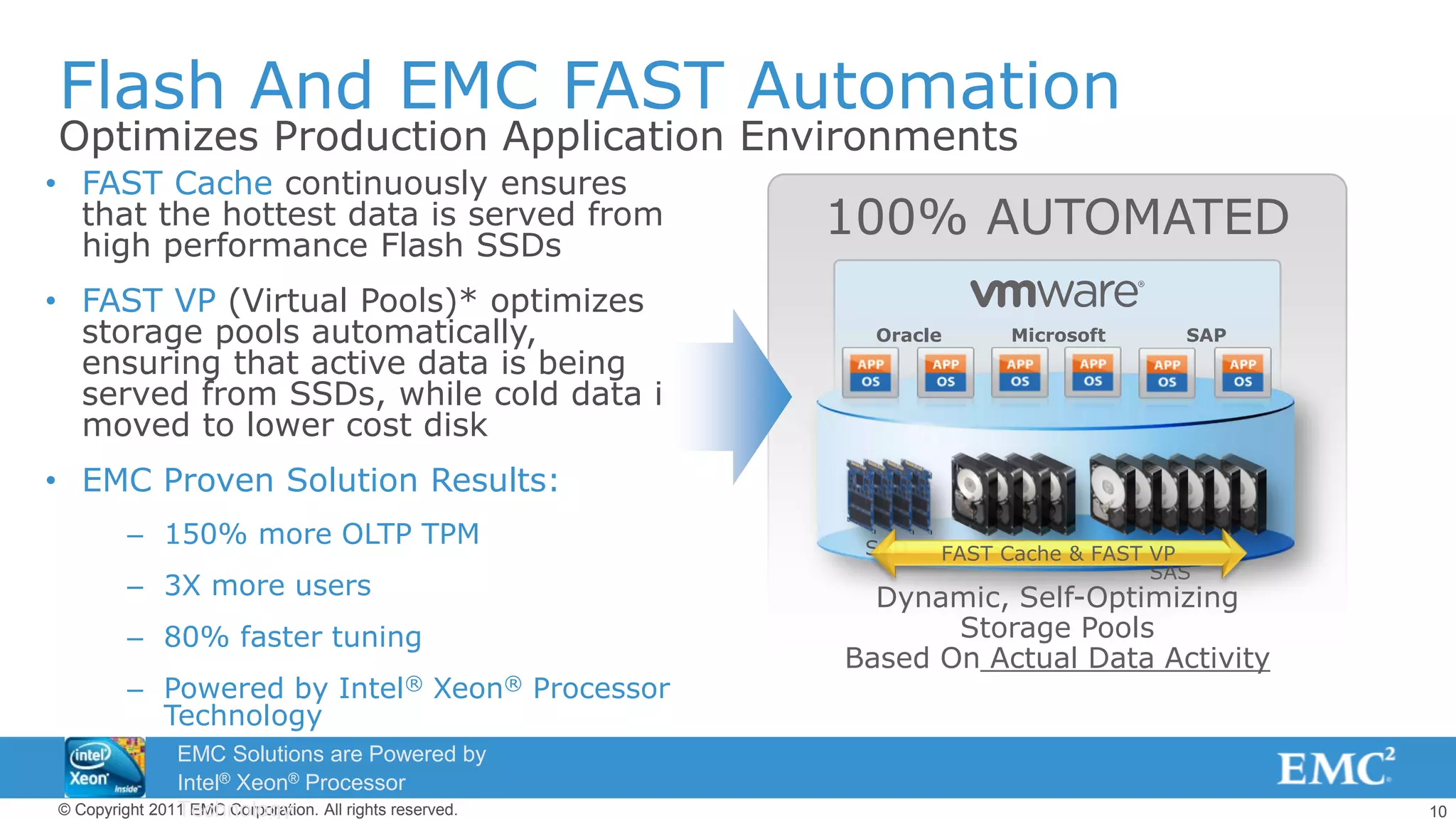

Flash And EMC FAST Automation
FAST Cache & FAST VP
Optimizes Production Application Environments
Technology

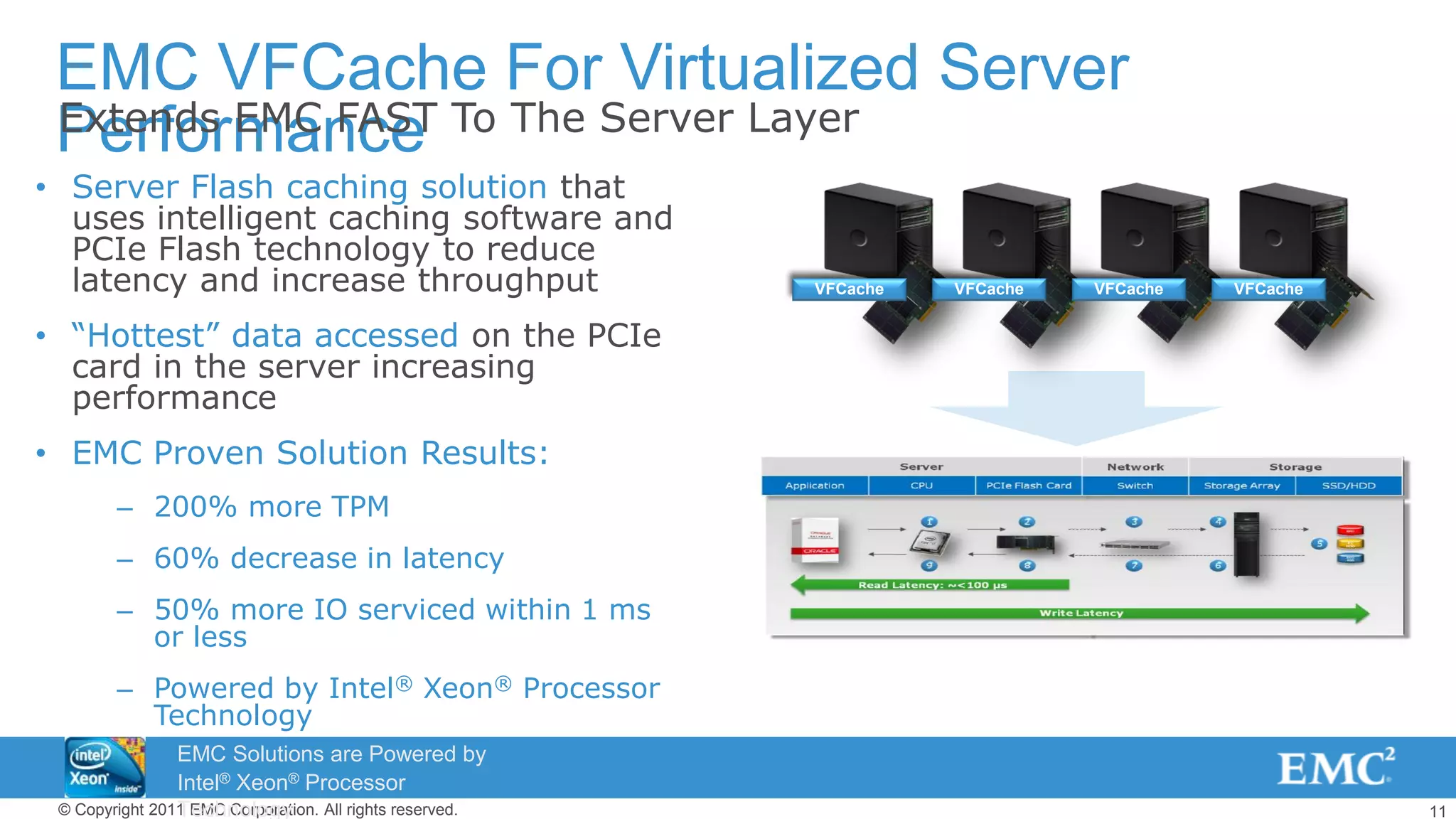

EMC VFCache For Virtualized Server
Performance
• Server Flash caching solution that
uses intelligent caching software and
PCIe Flash technology to reduce
latency and increase throughput
• “Hottest” data accessed on the PCIe
card in the server increasing
performance
• EMC Proven Solution Results:
– 200% more TPM
– 60% decrease in latency
– 50% more IO serviced within 1 ms
or less
– Powered by Intel® Xeon® Processor
Technology
VFCache VFCache VFCacheVFCache
Extends EMC FAST To The Server Layer
Technology

Virtualized Production Applications
CLAL Insurance
• Doubled Oracle server
utilization from 15-20%
to nearly 50%
• Increased database
performance and mobility
with VMware
Synopsis
• SAP production
runtime increased
by 9x through FAST
• Database response
efficiency increased
470%
Vanderbilt
• Virtualized SQL Server
• FAST Cache deployed
• 78% of all I/O serviced
by just 1.6% EFD

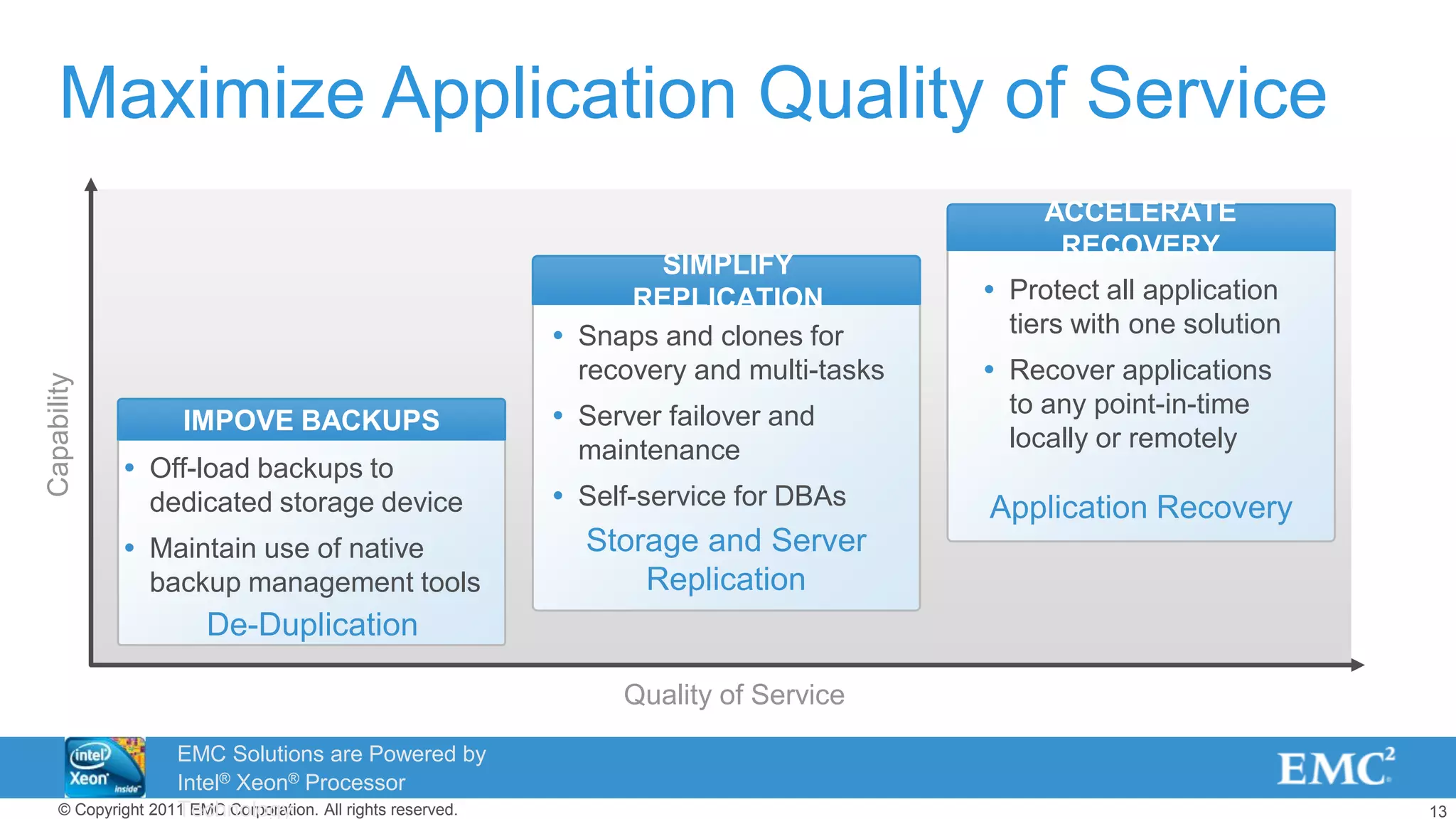

Maximize Application Quality of Service
Capability
Quality of Service
IMPOVE BACKUPS
 Off-load backups to
dedicated storage device
 Maintain use of native
backup management tools
De-Duplication
SIMPLIFY
REPLICATION
 Snaps and clones for
recovery and multi-tasks
 Server failover and
maintenance
 Self-service for DBAs
Storage and Server
Replication
ACCELERATE
RECOVERY
 Protect all application
tiers with one solution
 Recover applications
to any point-in-time
locally or remotely
Application Recovery
Technology

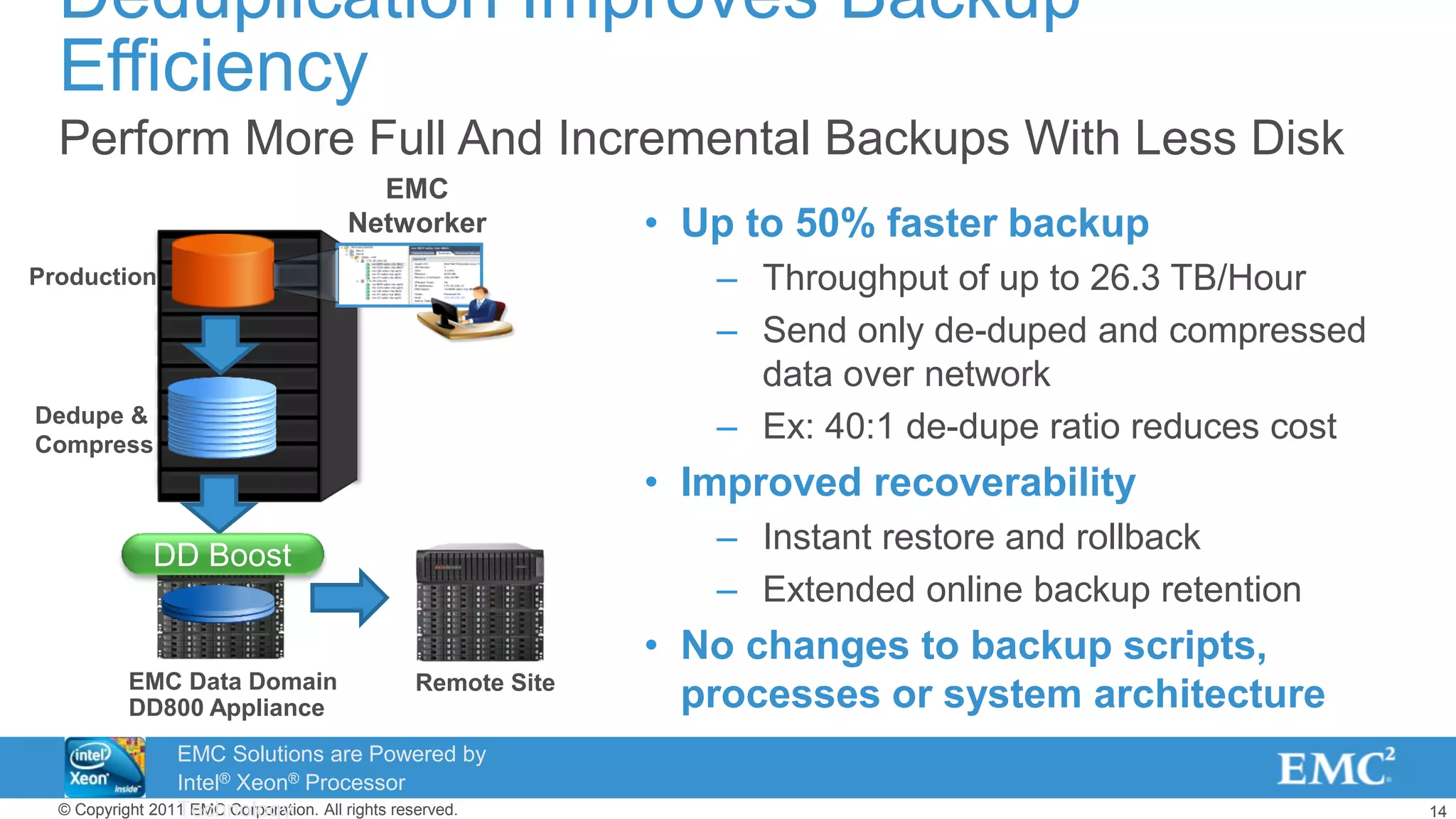

Deduplication Improves Backup
Efficiency
Perform More Full And Incremental Backups With Less Disk
Production
Dedupe &
Compress
EMC Data Domain
DD800 Appliance
• Up to 50% faster backup
– Throughput of up to 26.3 TB/Hour
– Send only de-duped and compressed
data over network
– Ex: 40:1 de-dupe ratio reduces cost
• Improved recoverability
– Instant restore and rollback
– Extended online backup retention
• No changes to backup scripts,
processes or system architectureRemote Site
EMC
Networker
DD Boost
Technology

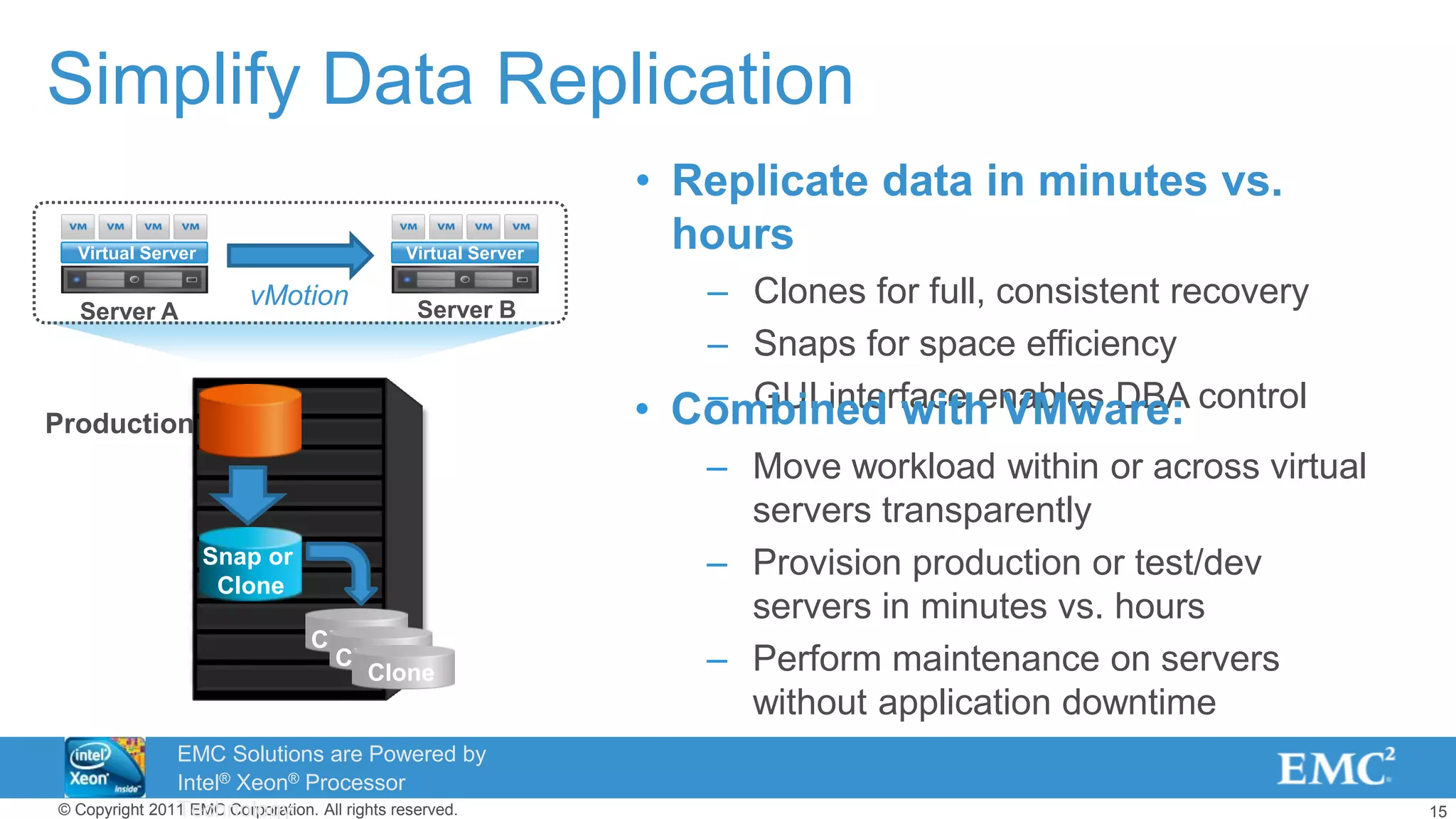

Simplify Data Replication
• Replicate data in minutes vs.
hours
– Clones for full, consistent recovery
– Snaps for space efficiency
– GUI interface enables DBA control
CloneDB
Snap or
Clone
CloneDB
Clone
• Combined with VMware:
– Move workload within or across virtual
servers transparently
– Provision production or test/dev
servers in minutes vs. hours
– Perform maintenance on servers
without application downtime
Production
Server A Server B
Virtual Server Virtual Server
vMotion
Technology

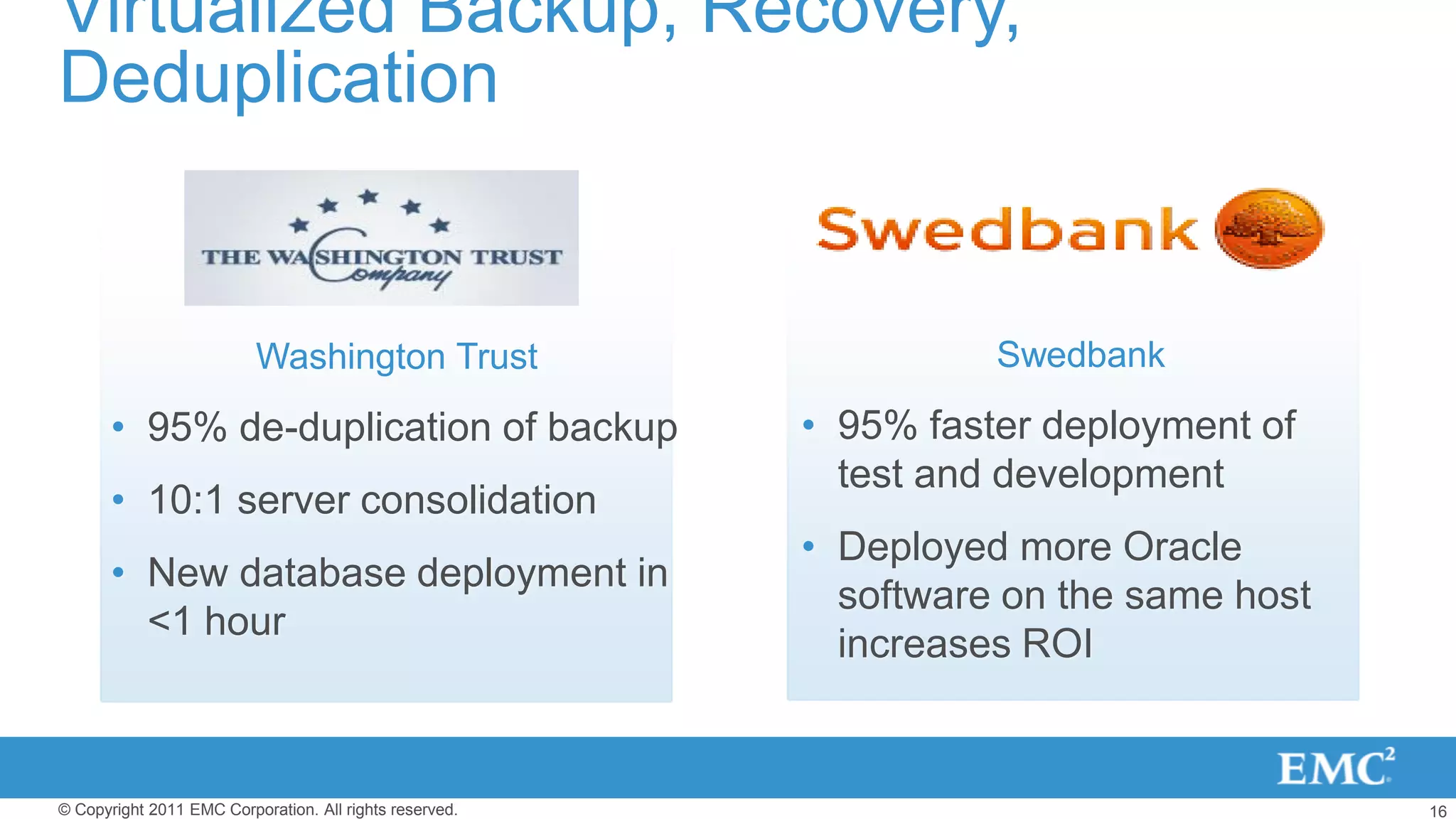

Virtualized Backup, Recovery,
Deduplication
Washington Trust
• 95% de-duplication of backup
• 10:1 server consolidation
• New database deployment in
<1 hour
Swedbank
• 95% faster deployment of
test and development
• Deployed more Oracle
software on the same host
increases ROI

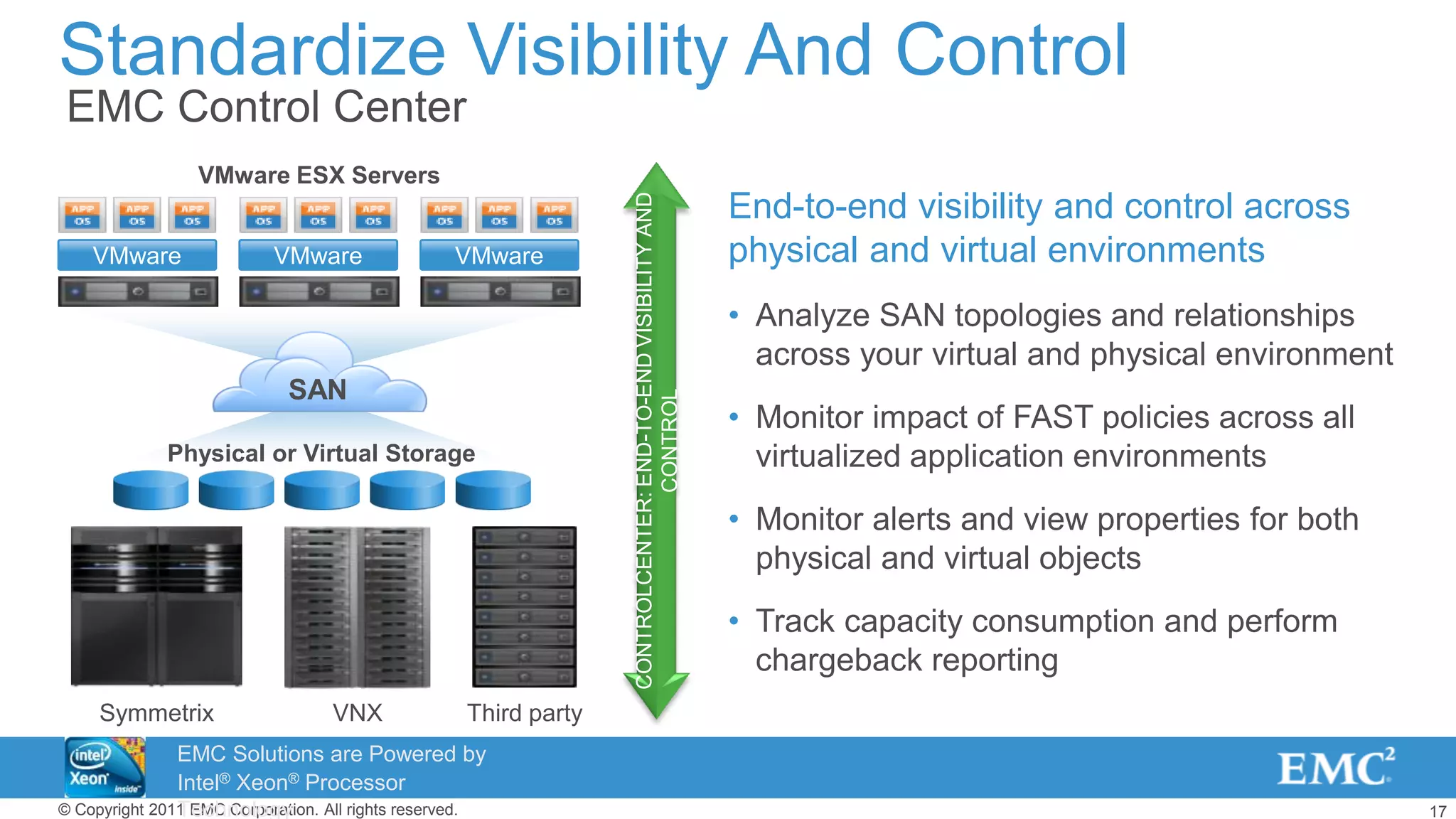

Standardize Visibility And Control
End-to-end visibility and control across
physical and virtual environments
• Analyze SAN topologies and relationships
across your virtual and physical environment
• Monitor impact of FAST policies across all
virtualized application environments
• Monitor alerts and view properties for both
physical and virtual objects
• Track capacity consumption and perform
chargeback reporting
CONTROLCENTER:END-TO-ENDVISIBILITYAND
CONTROL
SAN
VMware ESX Servers
Physical or Virtual Storage
VMware VMware VMware
Symmetrix VNX Third party
EMC Control Center
Technology

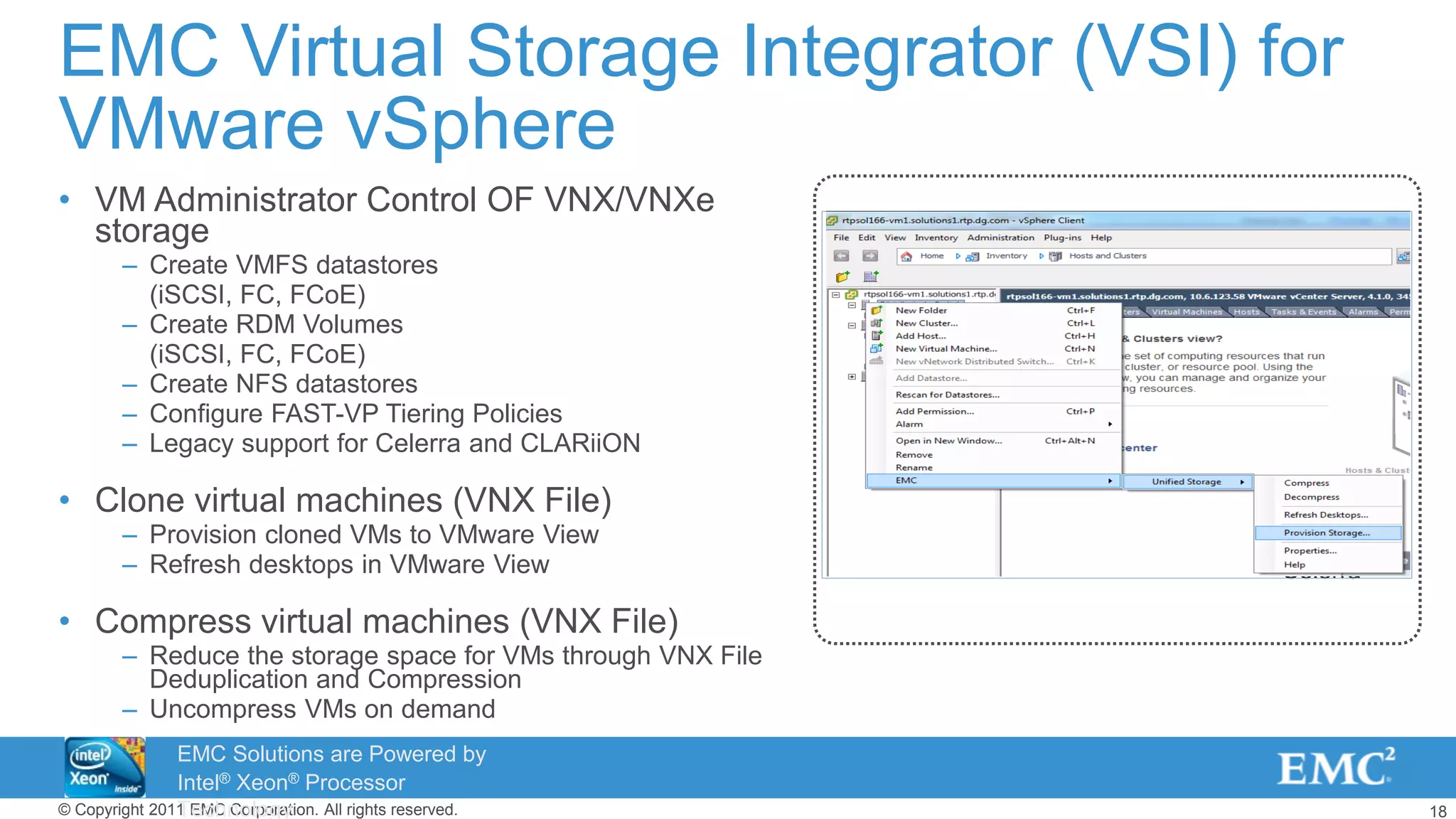

EMC Virtual Storage Integrator (VSI) for
VMware vSphere
• VM Administrator Control OF VNX/VNXe
storage
– Create VMFS datastores
(iSCSI, FC, FCoE)
– Create RDM Volumes
(iSCSI, FC, FCoE)
– Create NFS datastores
– Configure FAST-VP Tiering Policies
– Legacy support for Celerra and CLARiiON
• Clone virtual machines (VNX File)
– Provision cloned VMs to VMware View
– Refresh desktops in VMware View
• Compress virtual machines (VNX File)
– Reduce the storage space for VMs through VNX File
Deduplication and Compression
– Uncompress VMs on demand
Celerra
Technology

Big Data
Impact On
Virtual
Infrastructure
Technology

Unstructured Data

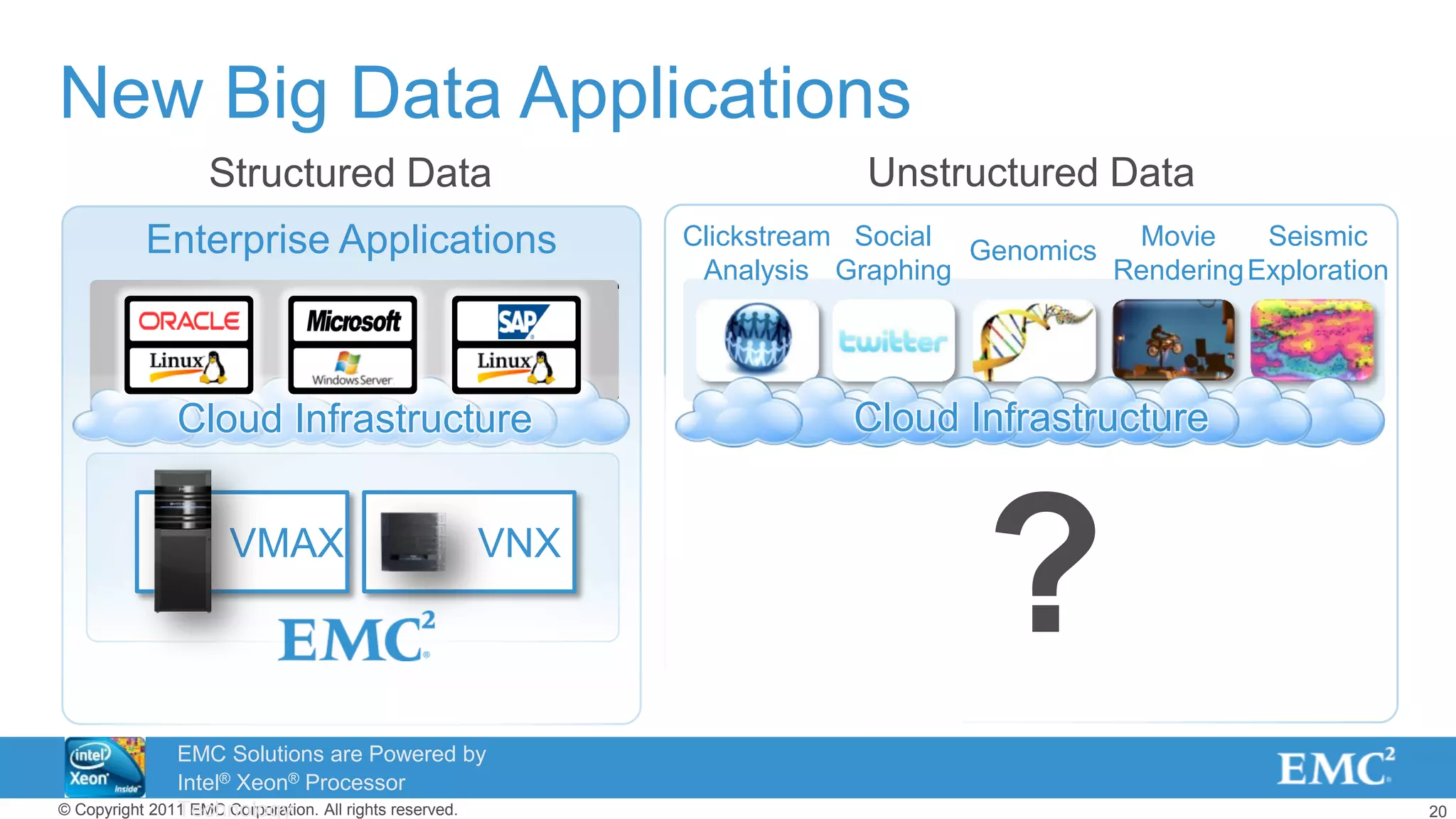

New Big Data Applications
Clickstream
Analysis
Genomics
Seismic
Exploration
Movie
Rendering
Social
Graphing
?
Enterprise Applications
VMAX VNX
Structured Data
Cloud InfrastructureCloud Infrastructure
Technology

Big Data In Enterprise Applications
Example Big Data
Sources
• Large Scale Test,
Development
• Large Home Directories
• Unstructured Data
Source: IDC
By 2012, 80% of all
storage capacity sold
will be for file-based
data
Technology
Technology

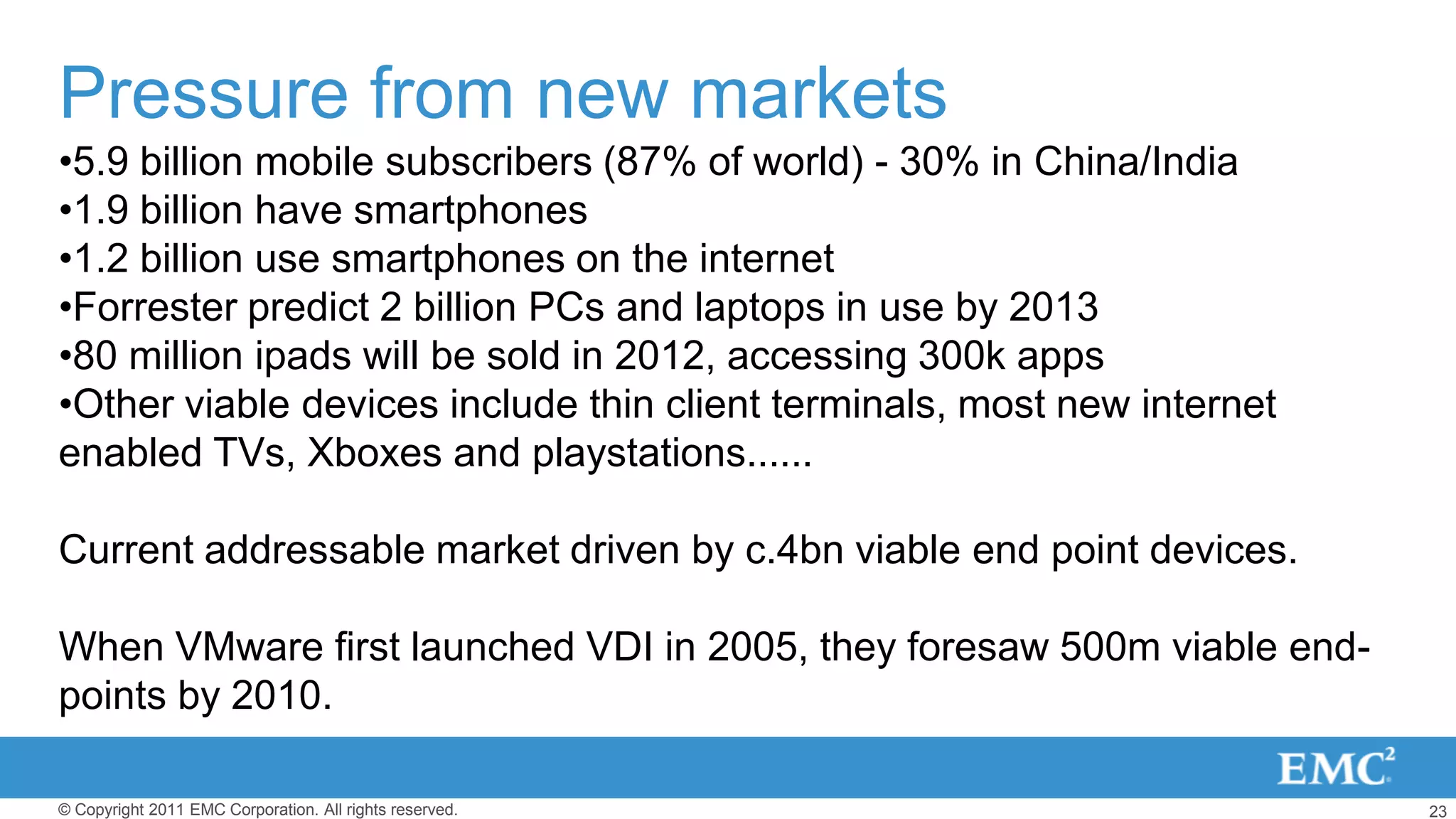

Data goes global

Pressure from new markets
•5.9 billion mobile subscribers (87% of world) - 30% in China/India
•1.9 billion have smartphones
•1.2 billion use smartphones on the internet
•Forrester predict 2 billion PCs and laptops in use by 2013
•80 million ipads will be sold in 2012, accessing 300k apps
•Other viable devices include thin client terminals, most new internet
enabled TVs, Xboxes and playstations......
Current addressable market driven by c.4bn viable end point devices.
When VMware first launched VDI in 2005, they foresaw 500m viable end-
points by 2010.

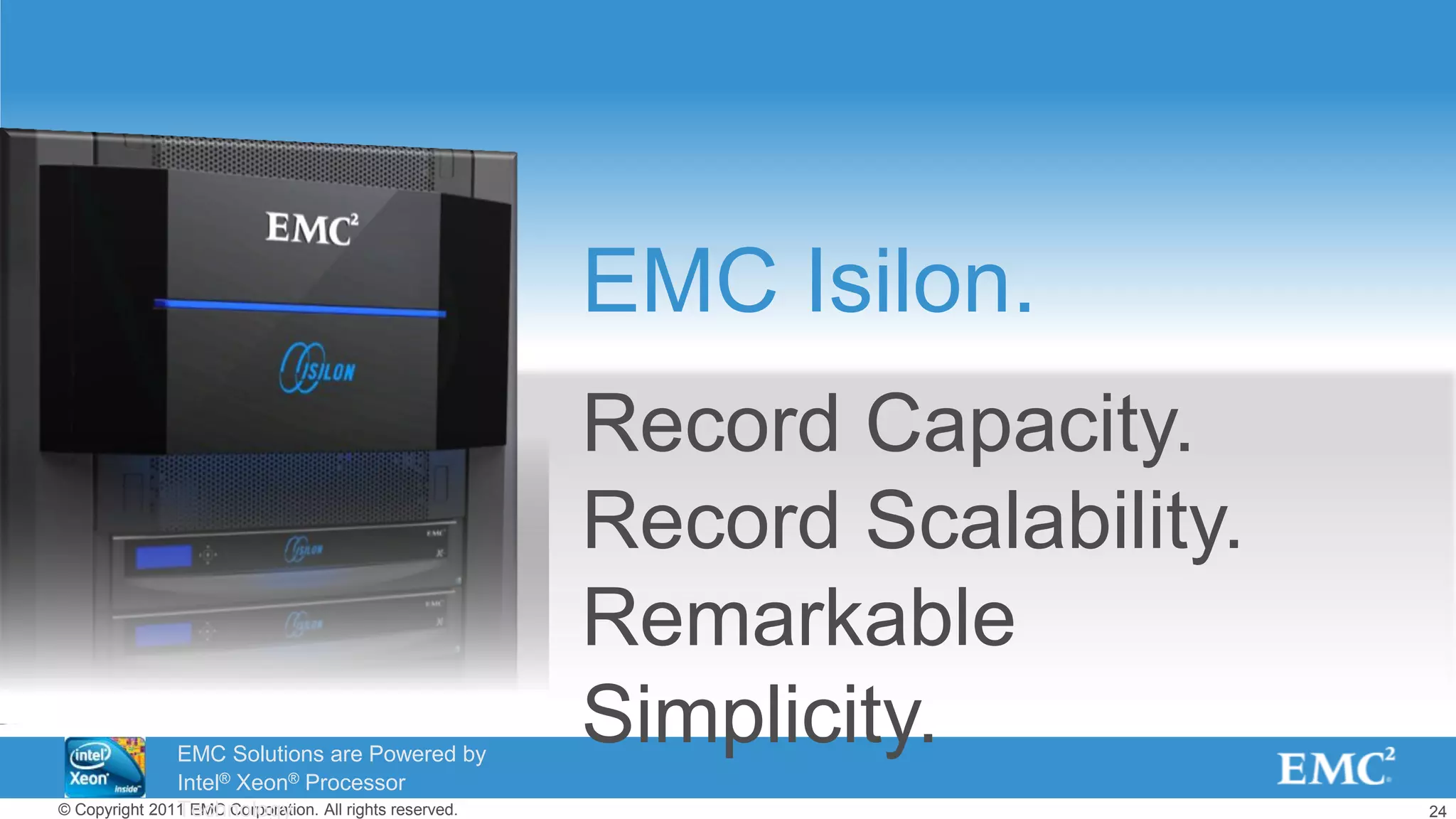

EMC Isilon.
Record Capacity.
Record Scalability.
Remarkable
Simplicity.EMC Solutions are Powered by
Technology

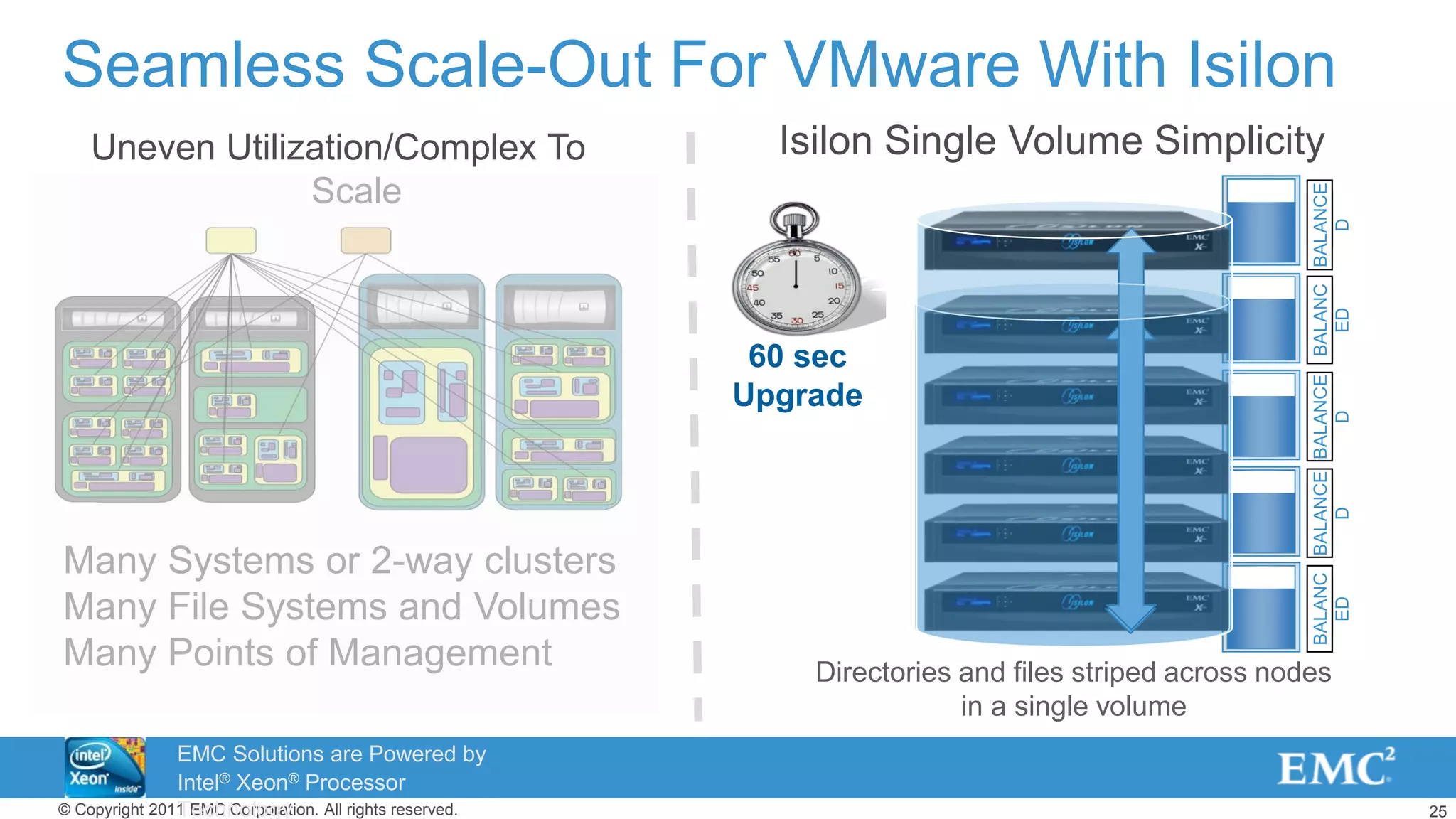

Isilon Single Volume Simplicity
EMPTYEMPTYEMPTYEMPTYEMPTYFULLFULLFULLFULLBALANC
ED
BALANCE
D
BALANCE
D
BALANC
ED
BALANCE
D
Directories and files striped across nodes
in a single volume
60 sec
Upgrade
Seamless Scale-Out For VMware With Isilon
Uneven Utilization/Complex To
Scale
Many Systems or 2-way clusters
Many File Systems and Volumes
Many Points of Management
Technology

Unstructured Data
Big Data ApplicationsEnterprise Applications
Structured Data

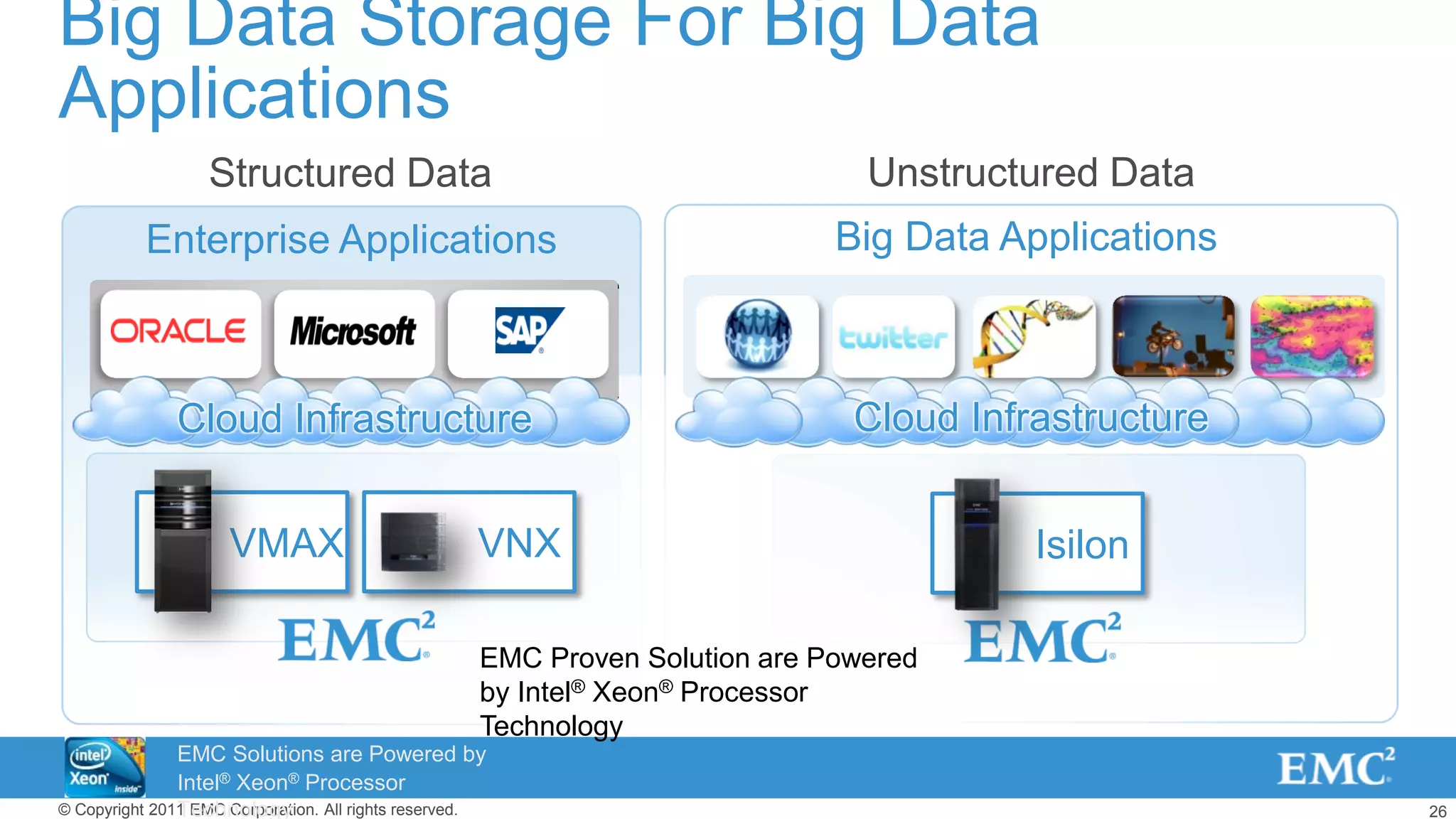

Big Data Storage For Big Data
Applications
VMAX VNX Isilon
Cloud InfrastructureCloud Infrastructure
Technology
Technology

Enterprise Applications

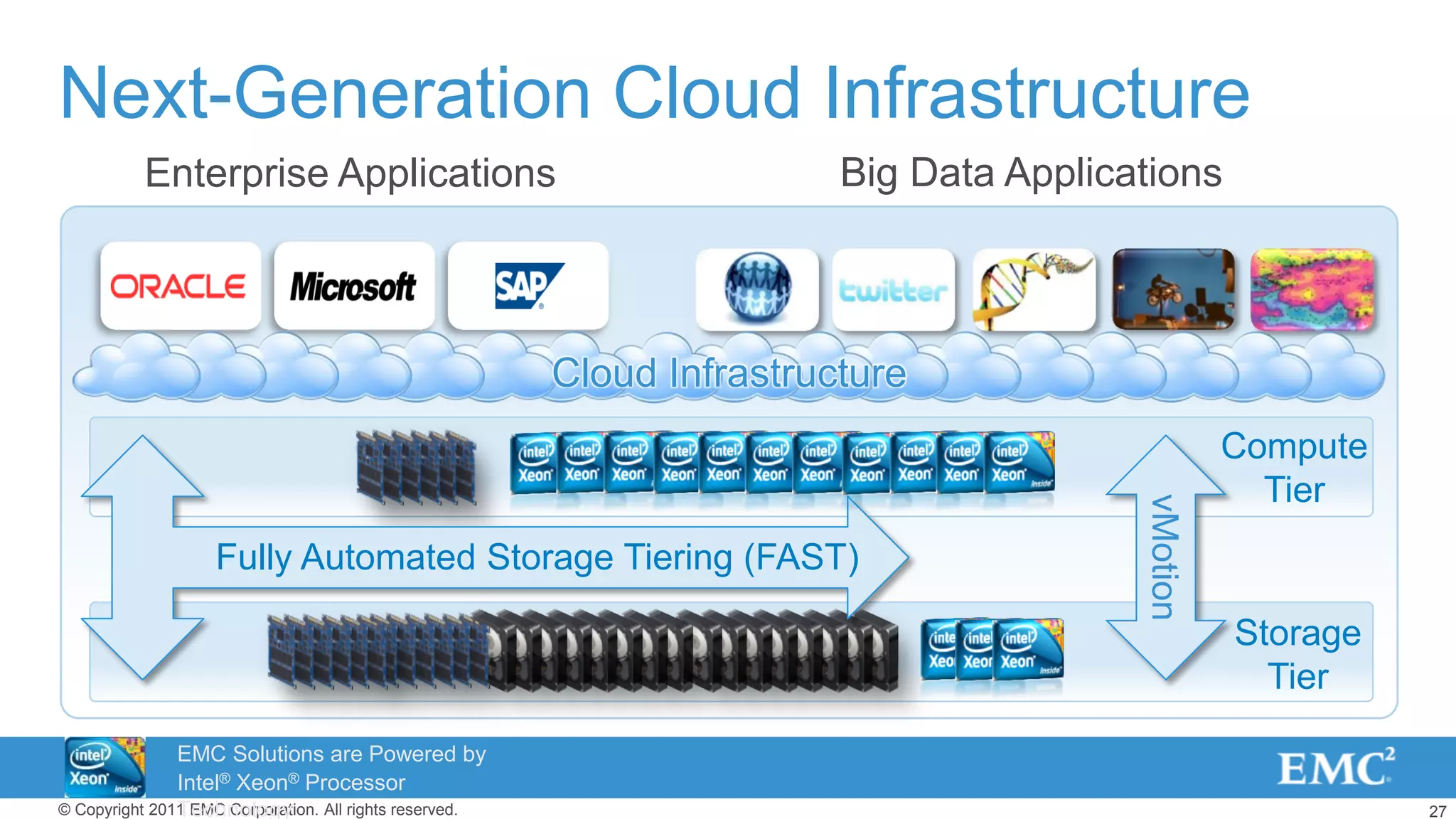

Next-Generation Cloud Infrastructure
Big Data Applications
vMotion
Fully Automated Storage Tiering (FAST)
Compute
Tier
Storage
Tier
Cloud Infrastructure
Technology

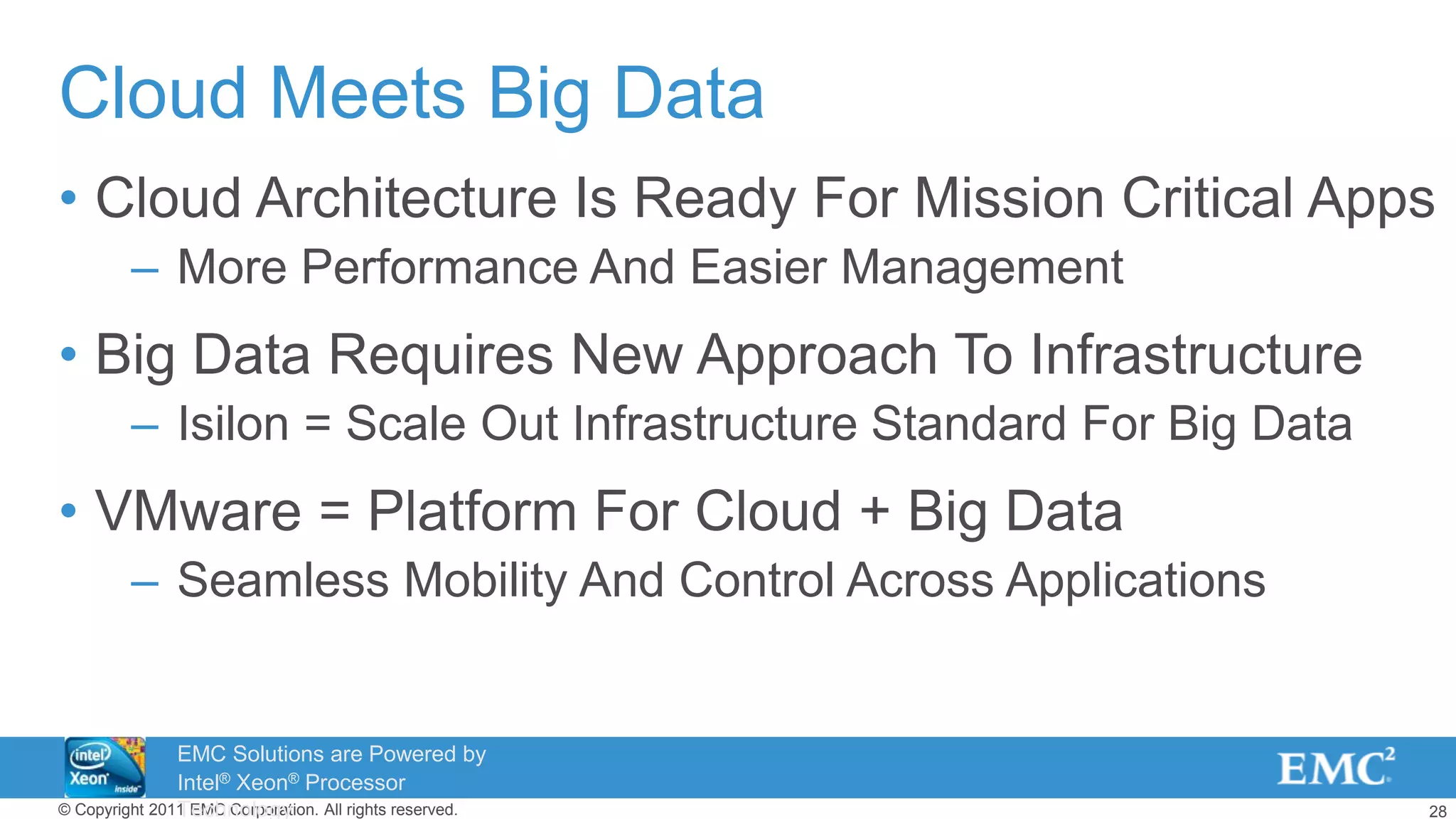

Cloud Meets Big Data
• Cloud Architecture Is Ready For Mission Critical Apps
– More Performance And Easier Management
• Big Data Requires New Approach To Infrastructure
– Isilon = Scale Out Infrastructure Standard For Big Data
• VMware = Platform For Cloud + Big Data
– Seamless Mobility And Control Across Applications
Technology
