EMC Isilon Solutions for Data Archives

1© Copyright 2014 EMC Corporation. All rights reserved.
EMC Isilon Solutions
for Enterprise Data
Archives
<Month> 2014
<Presenter name + Title>

Download this slide
http://ouo.io/BDbu1e

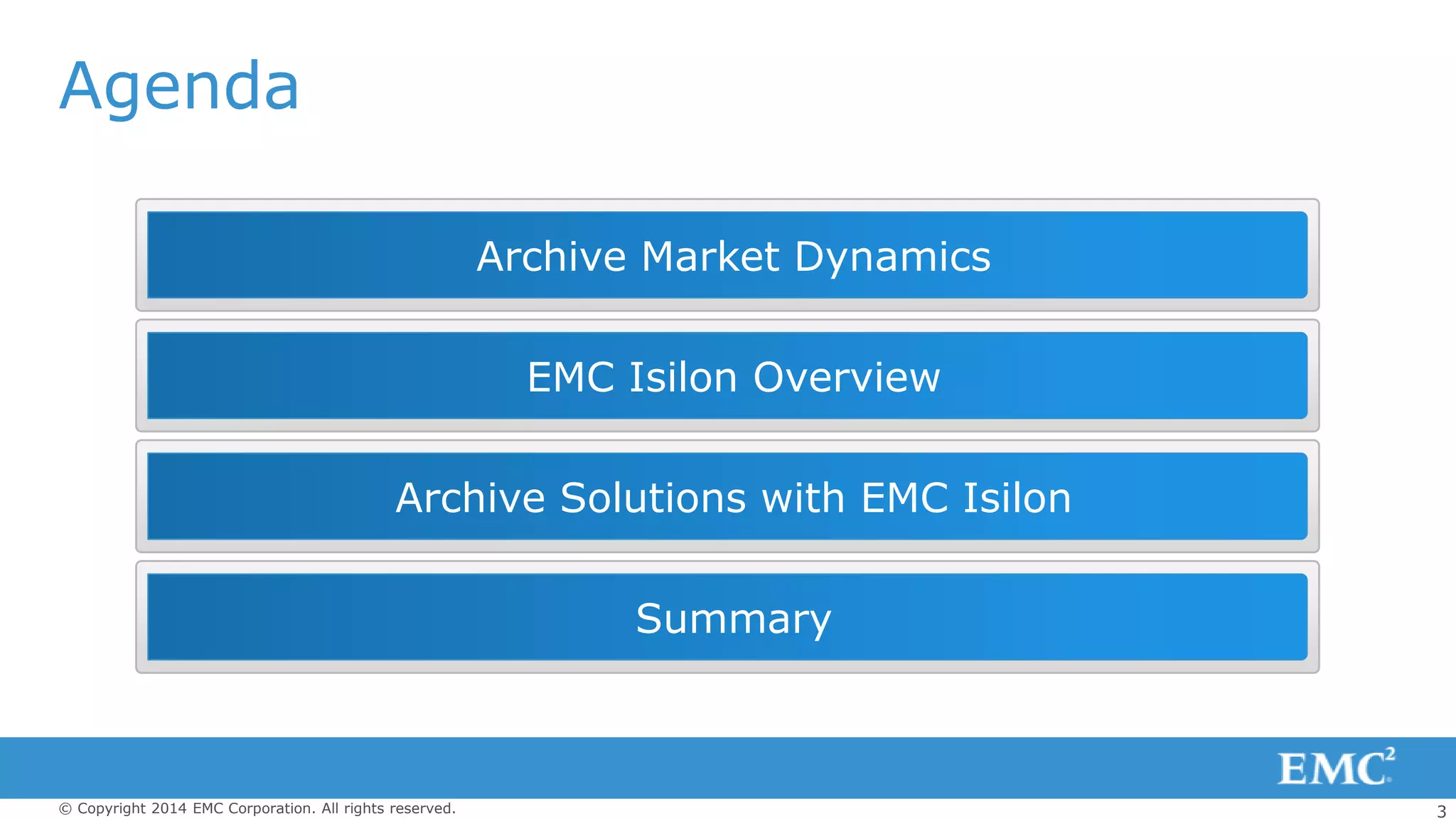

Agenda
Archive Market Dynamics
EMC Isilon Overview
Archive Solutions with EMC Isilon
Summary

File Data Growth
0
20
40
60
80
100
120
140
160
180
200
2013 2014 2015 2016 2017
Exabytes
File: 53. 1% CAGR
Block: 28.9% CAGR
• Analysts expect data on
scale-out storage to grow at
twice the rate of traditional
scale up storage
• Growth drivers include:
• Media rich applications
• Big Data
• Cloud services
• Mobile devices
• Social Networking
• 2nd and 3rd generation platforms
Source: IDC 2013

Rapid
Data
Growth
Exhaust
Available
Capacity
Buy
More
Disk
More
Backup
Complexity
& Cost
More Power,
Cooling,
Space
Higher
Management
Costs
The Vicious Storage Cycle
$$$$$
Archiving Breaks the Cycle
Reclaim expensive existing primary storage
Reduce on-going primary storage acquisition costs
Get static data out of the recurring backup process
Reduce backup storage acquisition costs
Reduce management and operating costs

Digital Archiving is Growing Rapidly
15,034 22,071 33,217
51,992
79,151
123,157
197,334
302,995
2008 2009 2010 2011 2012 2013 2014 2015
0
50,000
100,000
150,000
200,000
250,000
300,000
350,000
Backup Exec
Petabytes
Source: ESG: Total Worldwide Digital Archive Capacity, All Content Types, 2008-2015

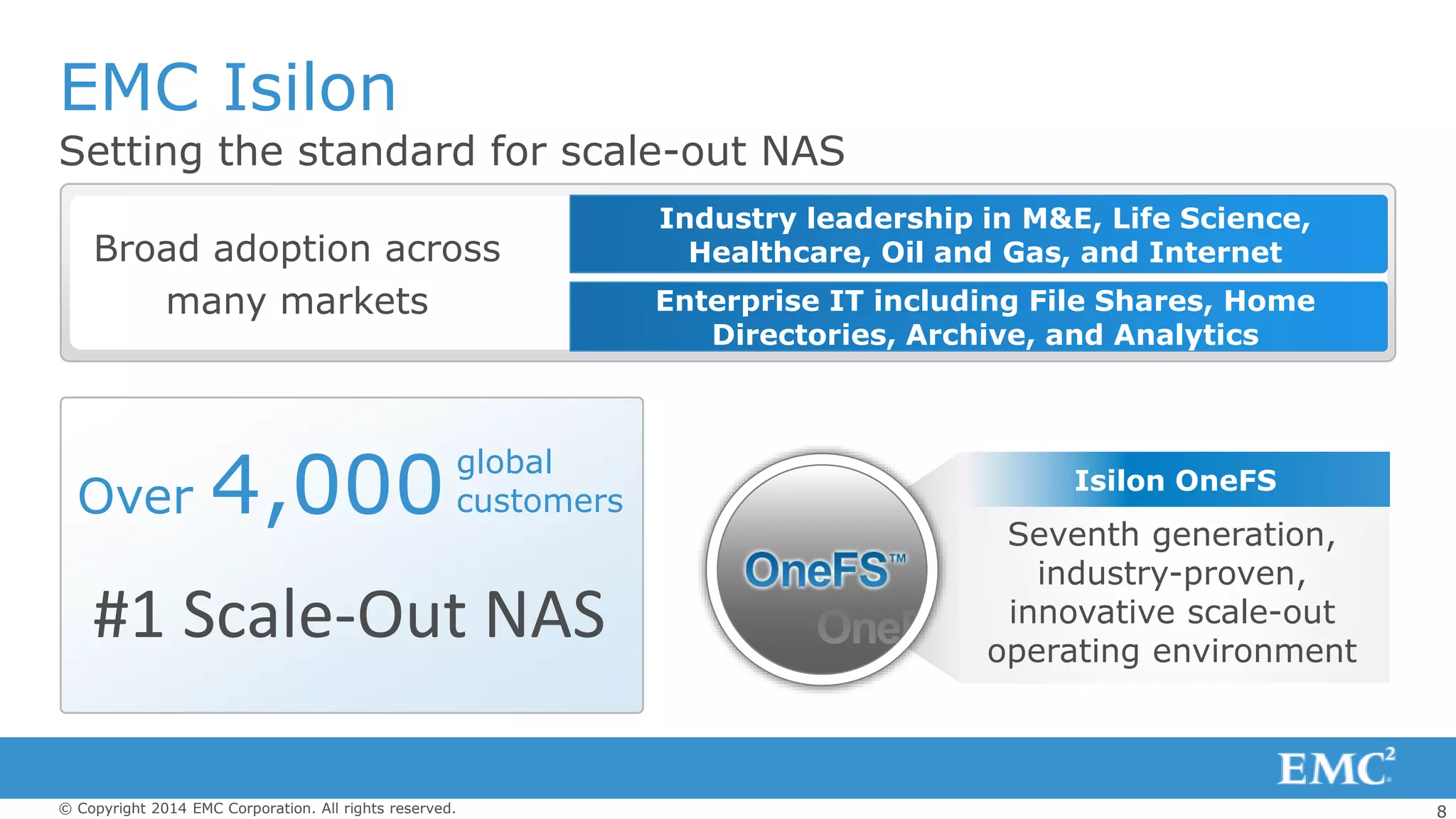

EMC Isilon Overview

Setting the standard for scale-out NAS
EMC Isilon
Over 4,000 Seventh generation,
industry-proven,
innovative scale-out
operating environment
Isilon OneFS
global
customers
Industry leadership in M&E, Life Science,
Healthcare, Oil and Gas, and Internet
Enterprise IT including File Shares, Home
Directories, Archive, and Analytics
Broad adoption across
many markets
#1 Scale-Out NAS

 2 logos and quotes from Gartner and IDC (1
sentence each)
EMC Isilon – Only vendor to receive
“Outstanding” in Critical Capabilities
for Scale-Out File Storage
IDC Marketscape names EMC Isilon a
Leader in Scale-Out File Storage Market
- Critical Capabilities for Scale-Out File System Storage,
January 2013
- Worldwide Scale-Out File-Based Storage,
December 2012

Single Storage Pool For File Data Consolidation
Isilon Scale-Out Innovation
Simple to Use and Scale
 Manage 20+ PBs with <1 FTE
Predictable Performance
 Grows linearly to over 1.6M SPECsfs and 100GB/s
Unmatched Efficiency
 80%+ Utilization
 Automated tiering
 Smart Dedupe
Highly Resilient
 Availability and protection scale with data
Enterprise Proven
 Security, Management and Data Protection Tools
Operational Flexibility
 File, Object, and Hadoop Protocols

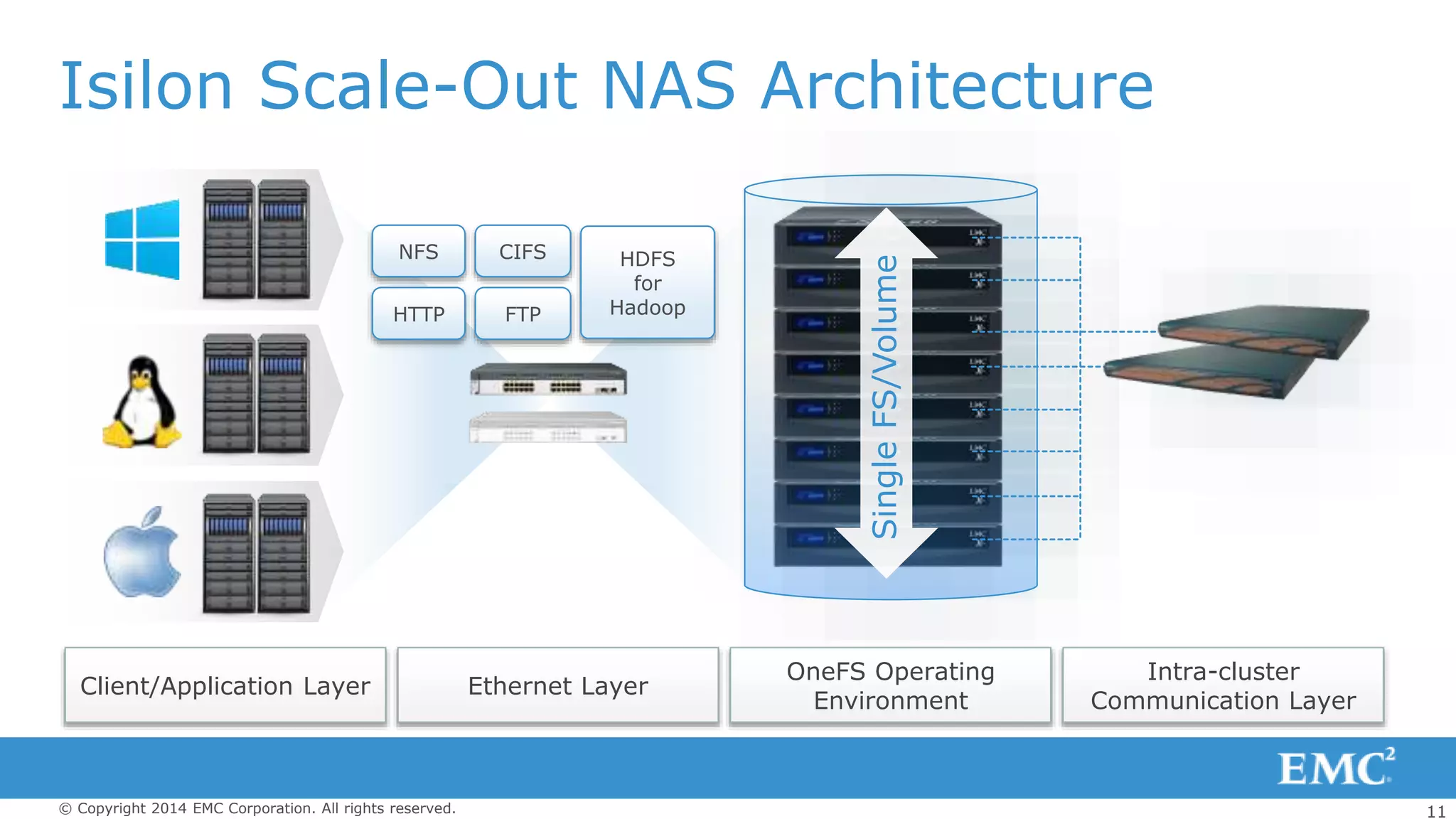

Isilon Scale-Out NAS Architecture
OneFS Operating
Environment
Intra-cluster
Communication Layer
Client/Application Layer Ethernet Layer
SingleFS/Volume
CIFSNFS
FTPHTTP
HDFS
for
Hadoop

Isilon Core Innovation
OneFS scale-out operating system
Automated
Tiering
Linear
Scalability
High
Performance
Single File
System Simplicity
Easy
Growth
Unmatched
Efficiency

Isilon
Scale-out NAS product family
Linear Scaling of Performance and Capacity
Purpose-built for IOPS-
intensive, random access,
file-based applications
Flexible solution for high
concurrent and sequential
throughput applications
Ideal for cost-effective,
large-capacity storage
S-Series
X-Series
NL-Series
PERFORMANCE
CAPACITY

Isilon AutoBalance
Gain New Levels of Efficiency
• AutoBalance automatically moves content
to new storage nodes while system is
online and in production
• Eliminates “hot spots”
• Enables unmatched storage capacity
utilization of more than 80%
EMPTY
EMPTY
EMPTY
EMPTY
EMPTY
FULL
FULL
FULL
FULL
BALANCED
BALANCED
BALANCED
BALANCED
BALANCED
AutoBalance
Automated data balancing across nodes reduces
costs, complexity, and risks for scaling storage

OneFS scales from
18TB to 20PB
in a single file system,
single volume
 Under 60 seconds to
scale with no downtime
More scalable than traditional storage systems
Largest and Most Scalable File System

Isilon SmartPools
Optimize Resources with Automated Tiering
 Single point of management
– Single file system/single volume
– Multiple performance tiers
 Automatic data movement
– Policy-based tiering management
– Transparent reallocation
– NO application changes
 Optimize storage resources
– Automatically match storage resources
with data requirements
– Eliminate data migration
S-Series
Performance
NL-Series
Active archives
X-Series
Collaboration
Reduced
cost/TB

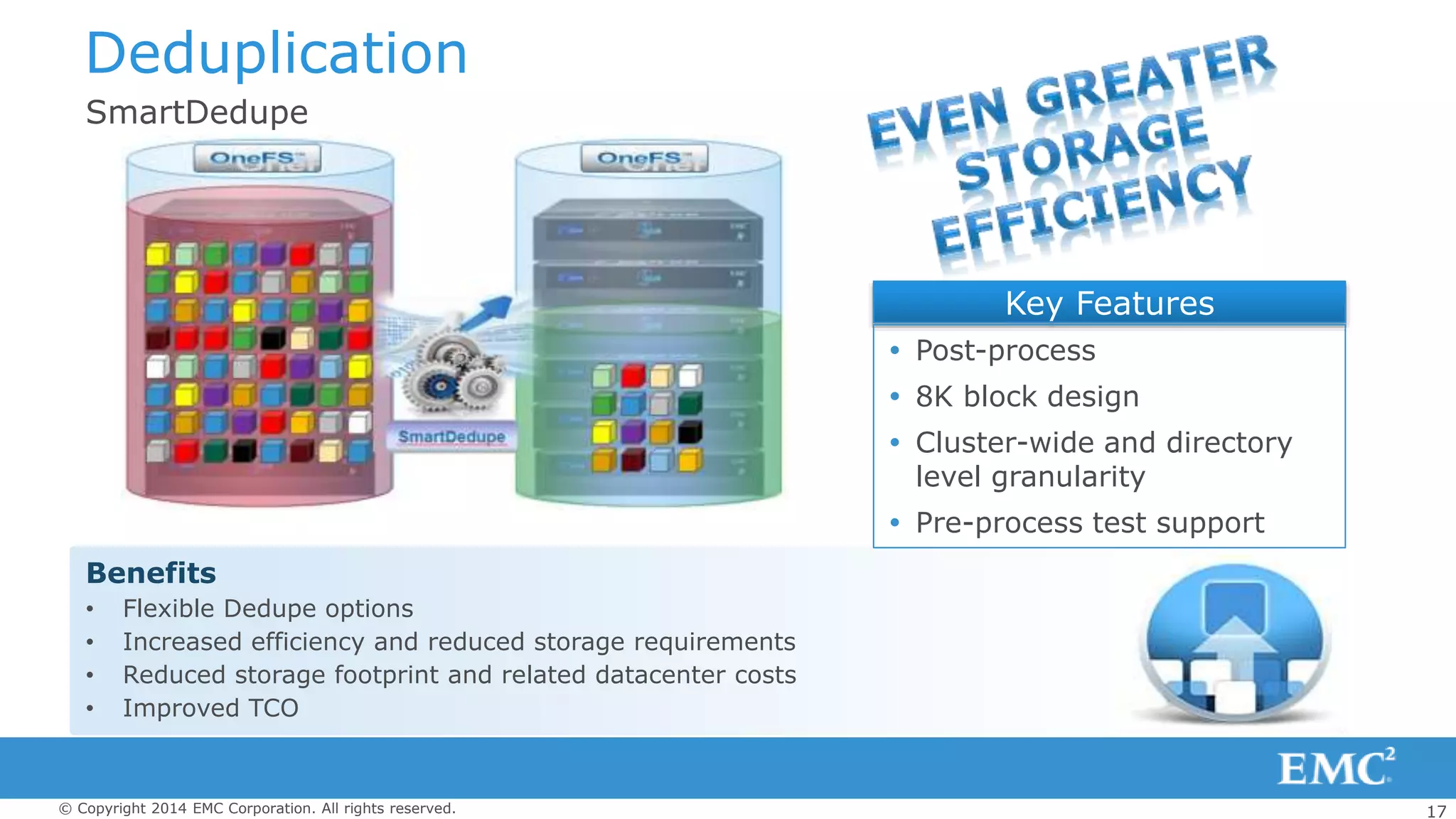

Deduplication
SmartDedupe
Benefits
• Flexible Dedupe options
• Increased efficiency and reduced storage requirements
• Reduced storage footprint and related datacenter costs
• Improved TCO
Key Features
 Post-process
 8K block design
 Cluster-wide and directory
level granularity
 Pre-process test support

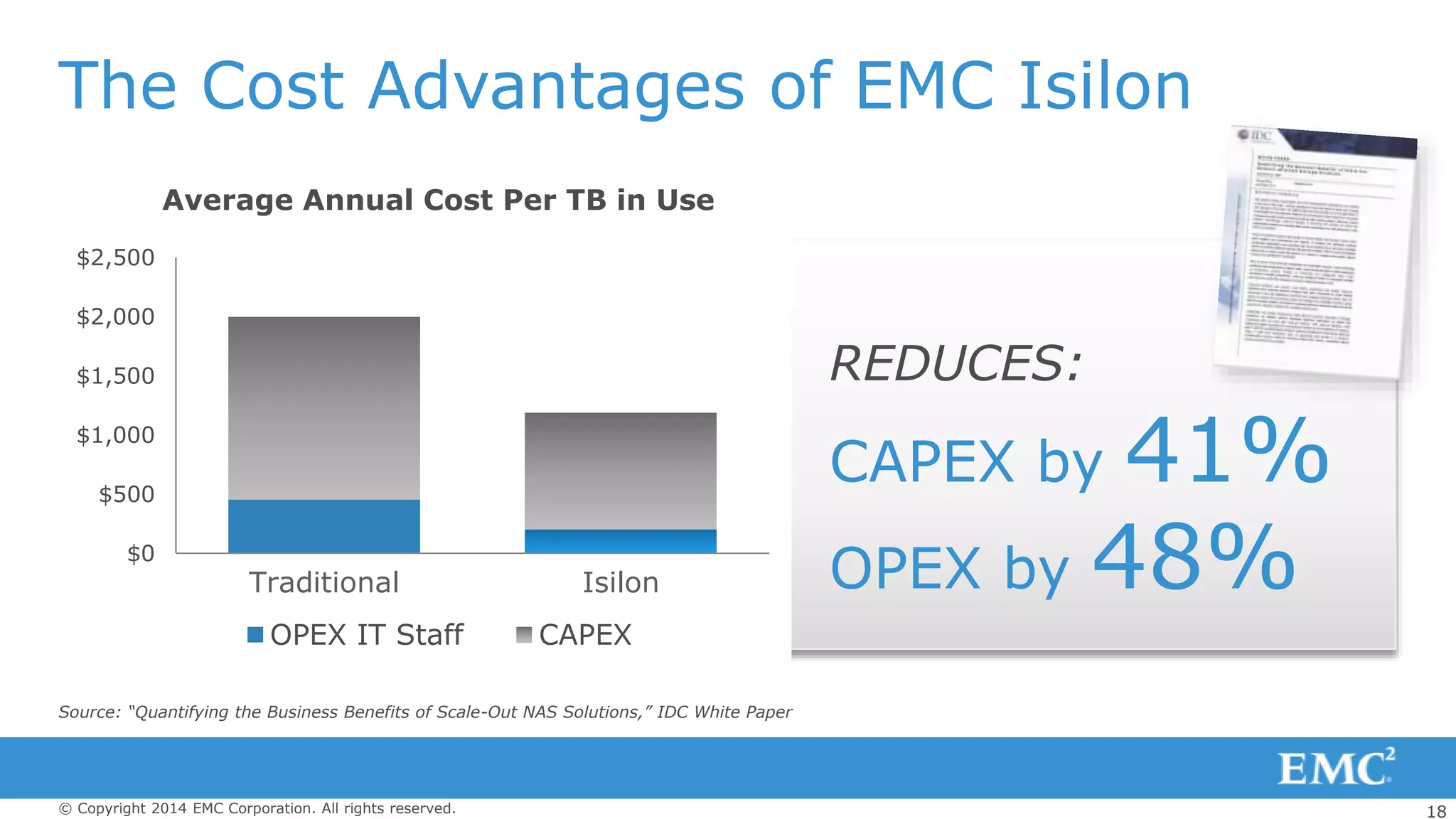

The Cost Advantages of EMC Isilon
REDUCES:
$0
$500
$1,000
$1,500
$2,000
$2,500
Traditional Isilon
Average Annual Cost Per TB in Use
OPEX IT Staff CAPEX
Source: “Quantifying the Business Benefits of Scale-Out NAS Solutions,” IDC White Paper
CAPEX by 41%
OPEX by 48%

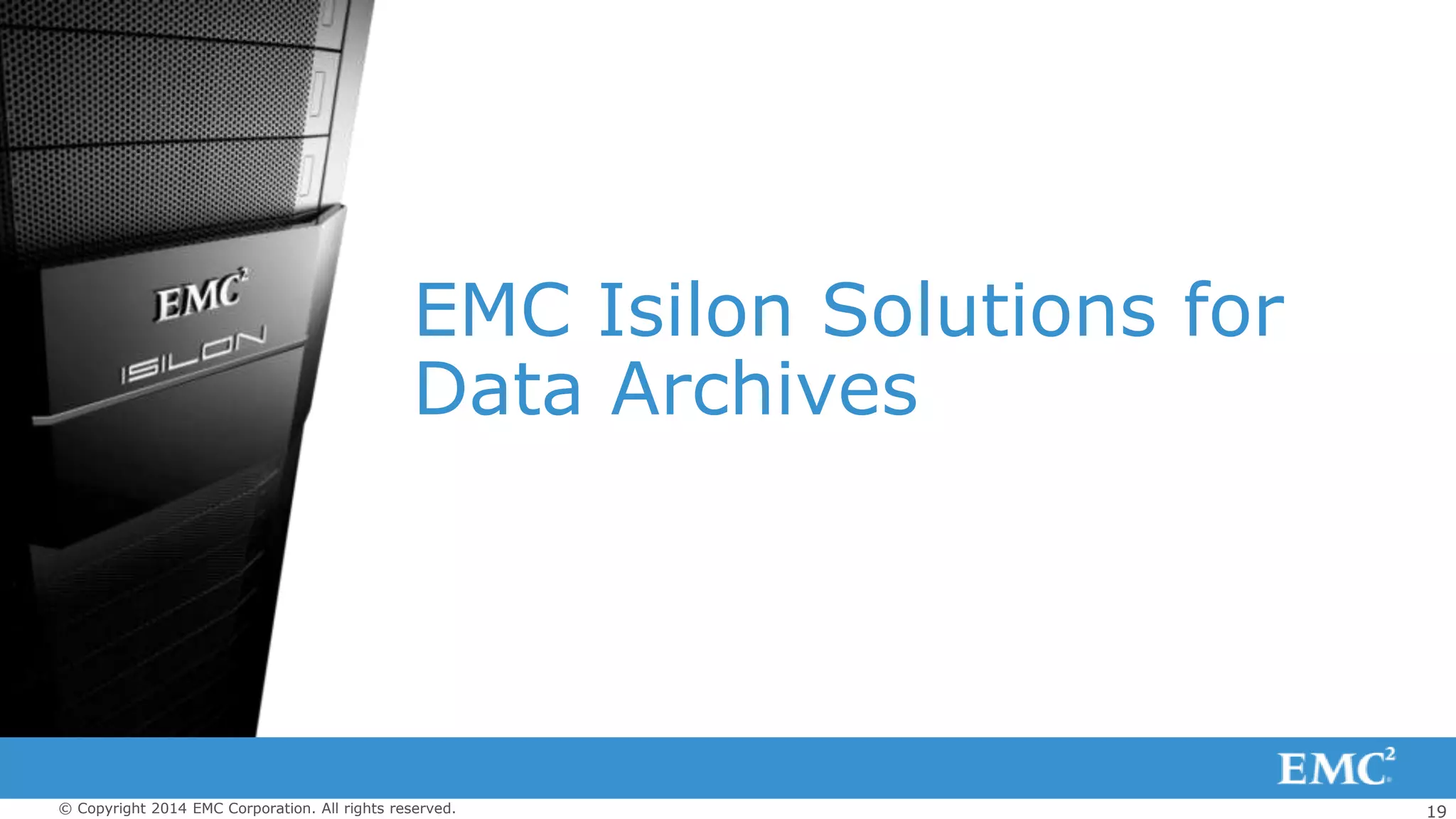

EMC Isilon Solutions for
Data Archives

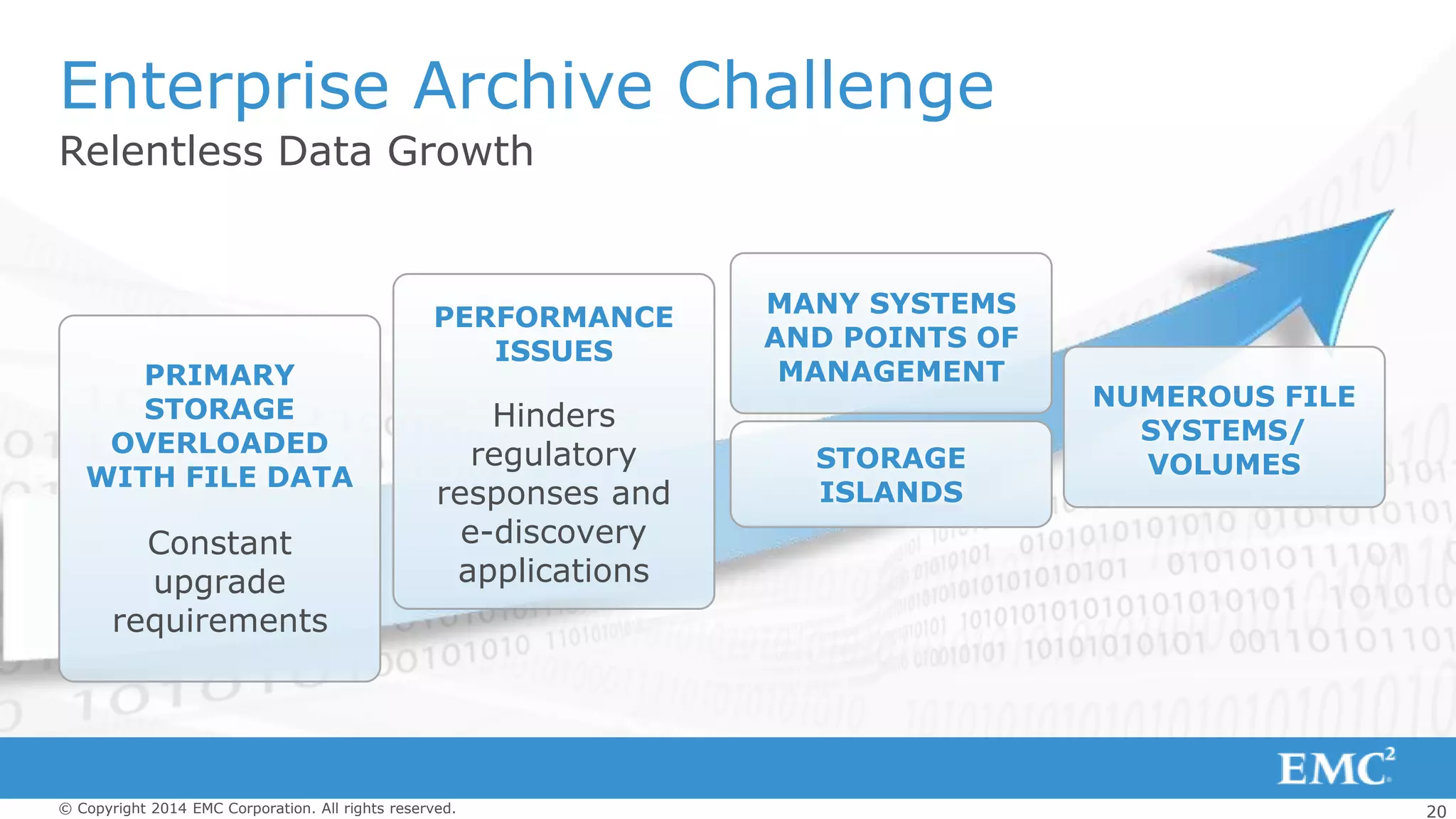

Relentless Data Growth
PRIMARY
STORAGE
OVERLOADED
WITH FILE DATA
Constant
upgrade
requirements
PERFORMANCE
ISSUES
Hinders
regulatory
responses and
e-discovery
applications
Enterprise Archive Challenge
STORAGE
ISLANDS
MANY SYSTEMS
AND POINTS OF
MANAGEMENT
NUMEROUS FILE
SYSTEMS/
VOLUMES

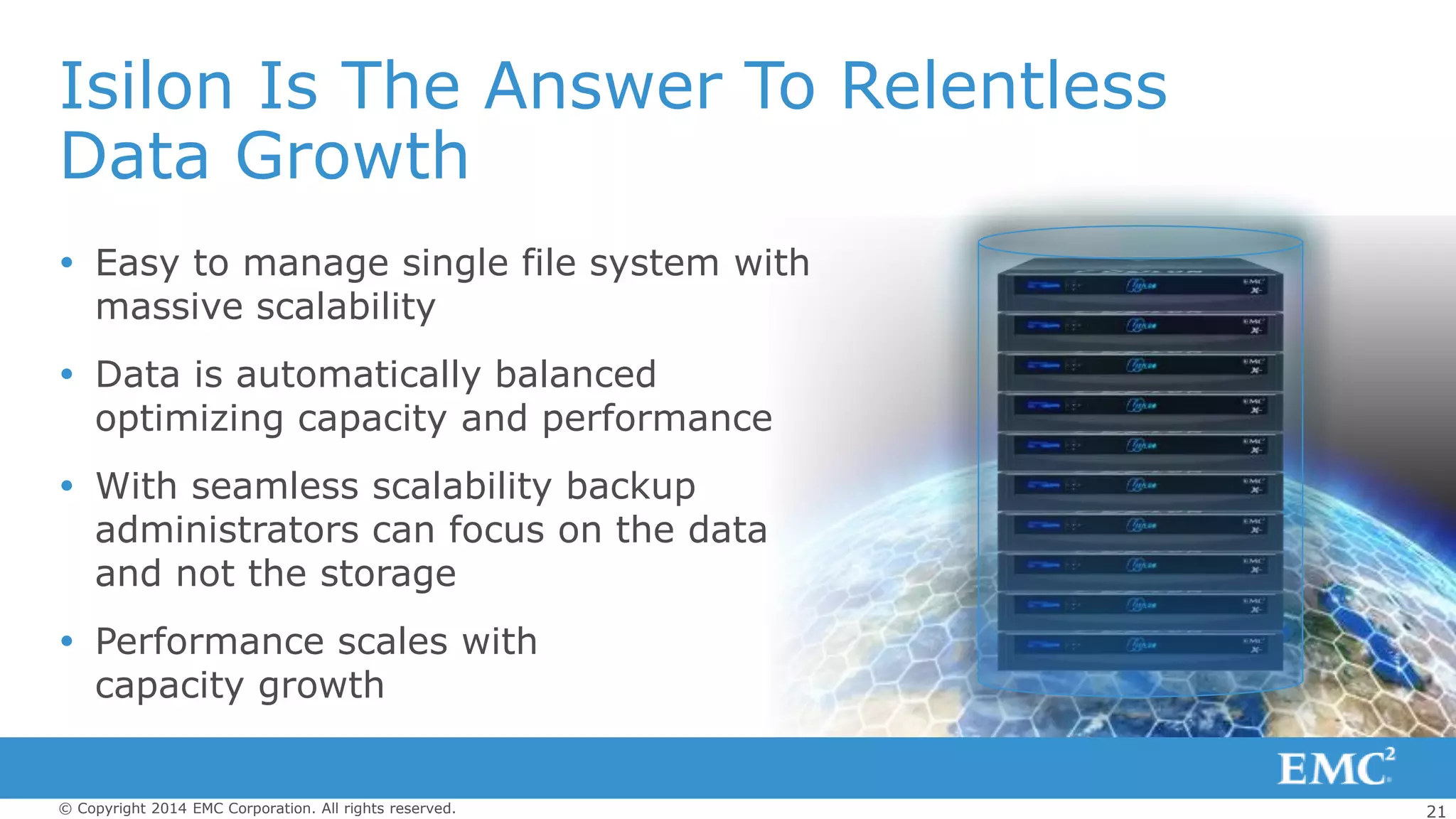

Isilon Is The Answer To Relentless
Data Growth
 Easy to manage single file system with
massive scalability
 Data is automatically balanced
optimizing capacity and performance
 With seamless scalability backup
administrators can focus on the data
and not the storage
 Performance scales with
capacity growth

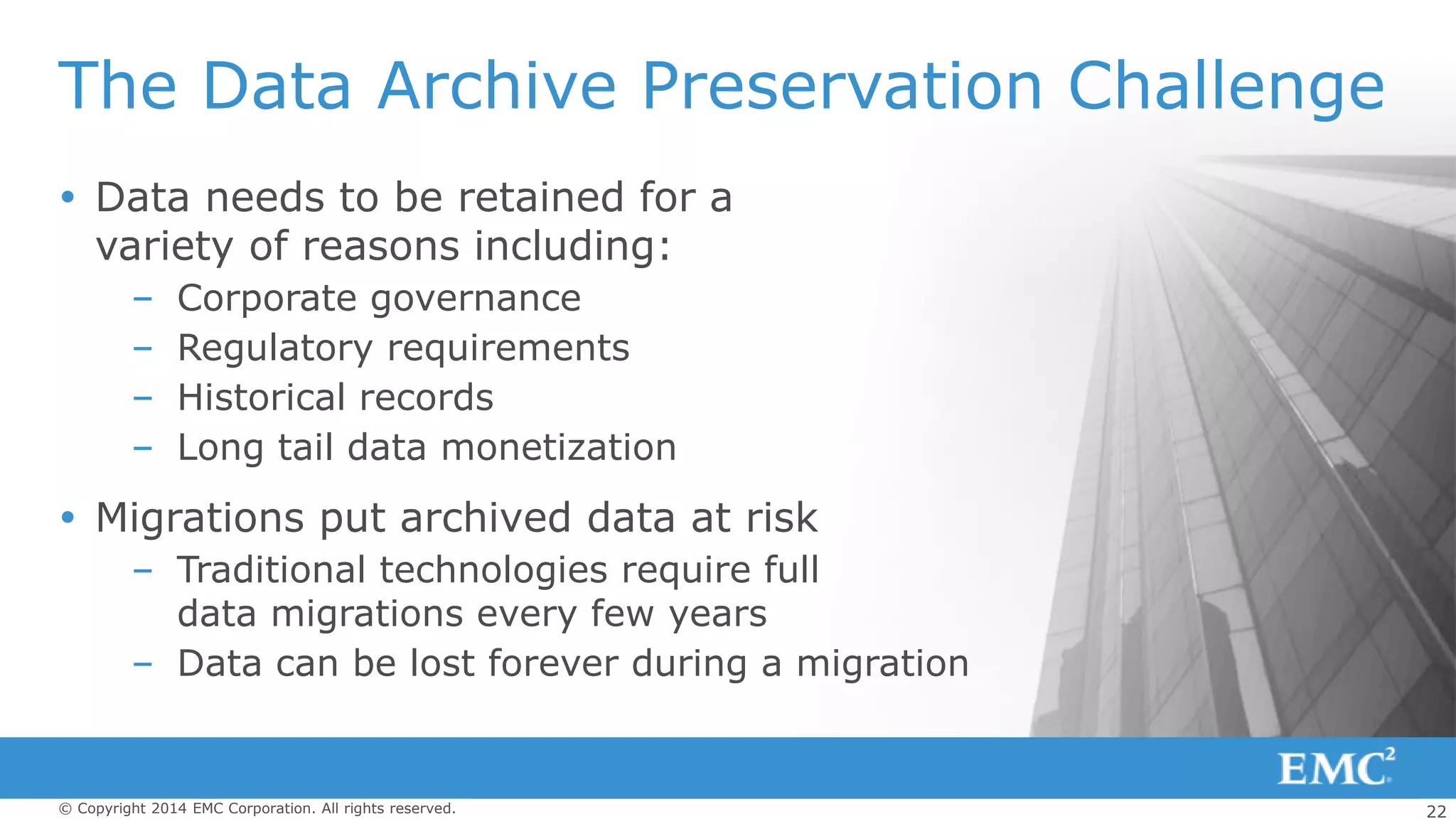

The Data Archive Preservation Challenge
 Data needs to be retained for a
variety of reasons including:
– Corporate governance
– Regulatory requirements
– Historical records
– Long tail data monetization
 Migrations put archived data at risk
– Traditional technologies require full
data migrations every few years
– Data can be lost forever during a migration

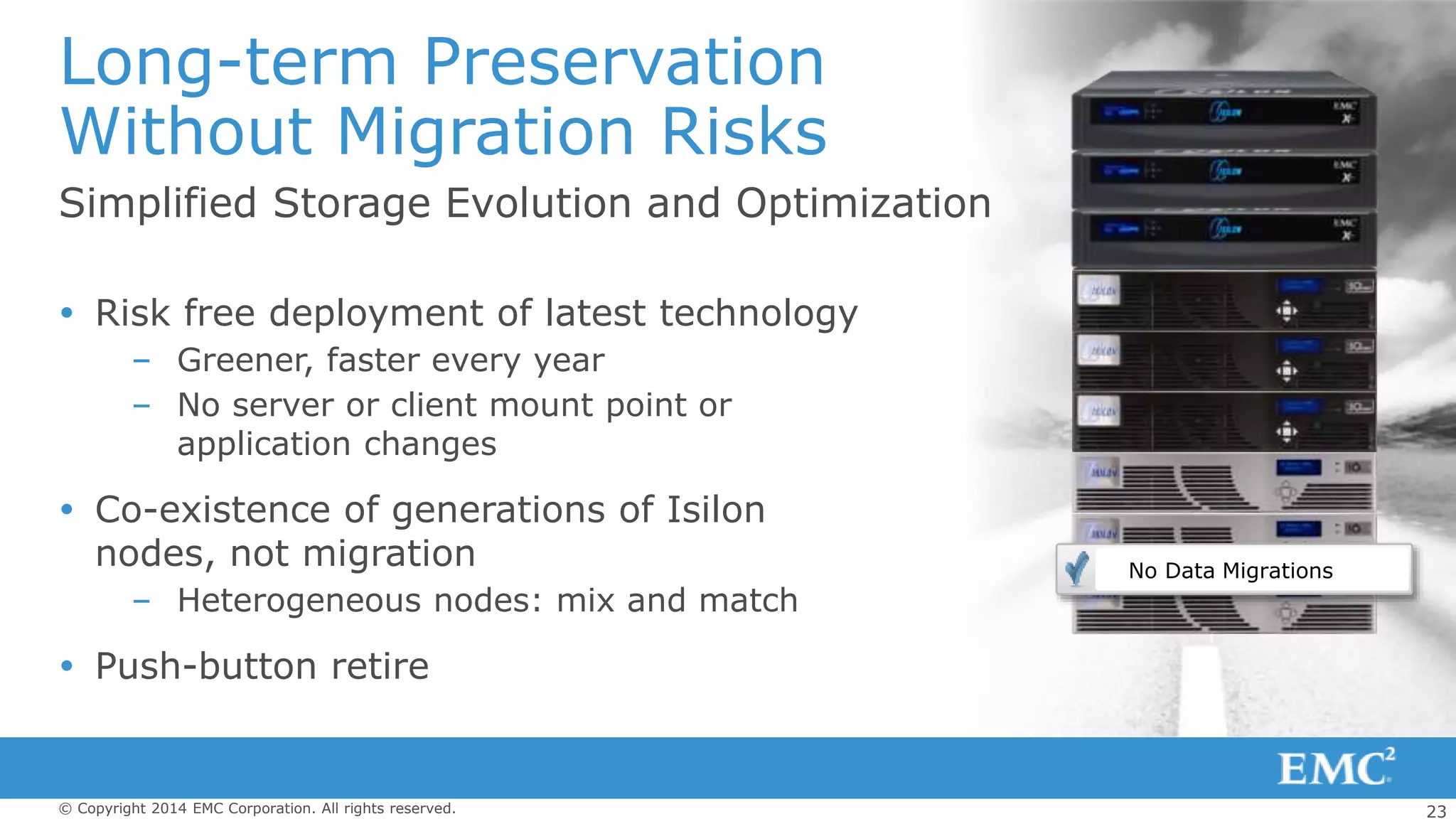

Simplified Storage Evolution and Optimization
Long-term Preservation
Without Migration Risks
 Risk free deployment of latest technology
– Greener, faster every year
– No server or client mount point or
application changes
 Co-existence of generations of Isilon
nodes, not migration
– Heterogeneous nodes: mix and match
 Push-button retire
No Data Migrations

Archiving Is About Preservation
The Archive Data Protection Challenge
Legacy scale up systems are still dependent on traditional data protection
Typically use traditional RAID which consume up to 30%+ of
the available disk capacity
Time to rebuild a RAID group after a drive failure continues to
increase with drive capacity increasing risk of data loss
Archives also need to survive major disasters
Data loss susceptible to 2 disk failures/2 controller failures

With N+2, N+3, and
N+4 protection,
data is 100% available
if multiple drives or
nodes fail
With N+1 protection,
data is 100%
available even if a
single drive
or node fails
Highly resilient, clustered architecture
Data Protection and Availability
100%
100%
100%
100%
100%
100%
100%
100%
FAILED
FAILED
And with Isilon, the
more nodes in the
cluster, the faster
drive rebuild time

Multi-site data protection with EMC Isilon SyncIQ
Disaster Recovery Protection for Archives
SyncIQ
Isilon Archive Isilon DR Target
Search
Retrieve
Index, Copy
• Index
• Move to
Archive
Repository
WAN/LAN
Corporate Information
Archive App

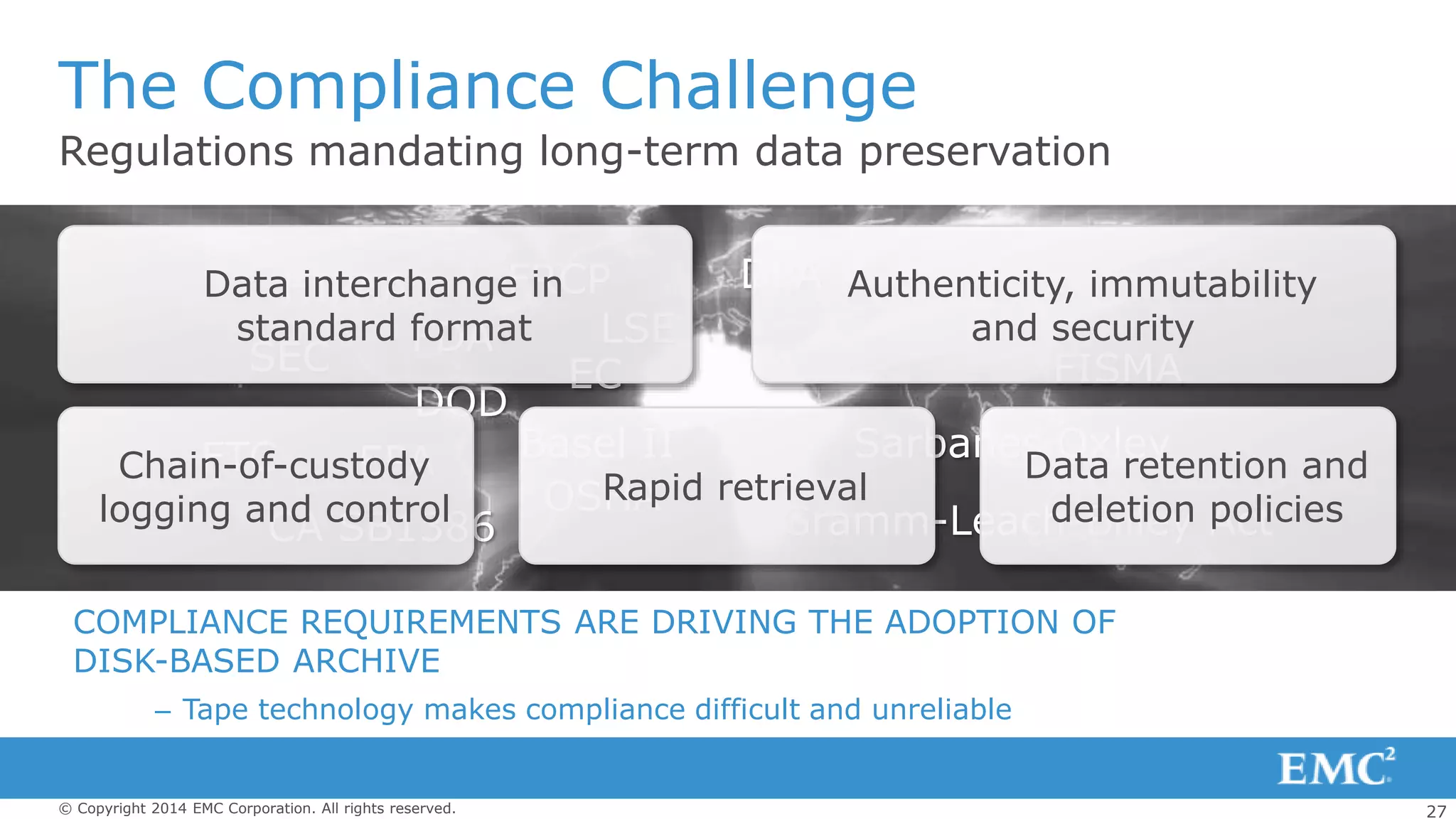

Regulations mandating long-term data preservation
The Compliance Challenge
COMPLIANCE REQUIREMENTS ARE DRIVING THE ADOPTION OF
DISK-BASED ARCHIVE
– Tape technology makes compliance difficult and unreliable
FRCP
DOD
SEC
Sarbanes Oxley
HIPAA
LSE
Basel II
FDA
Gramm-Leach-Bliley Act
FTC
CA SB1386
EC
OSHA
EPA
DPA
FISMA
Data interchange in
standard format
Authenticity, immutability
and security
Chain-of-custody
logging and control
Rapid retrieval
Data retention and
deletion policies

Isilon Addresses Security and Compliance
• Roles-based access control (RBAC)
• Authentication Zones for secure
isolation
• SmartLock -WORM Data Protection
• File System Auditing
• Data at Rest Encryption (DARE)
with Self-Encrypting Drives (SEDs)

Manages Retention and Deletion and Provides Immutability

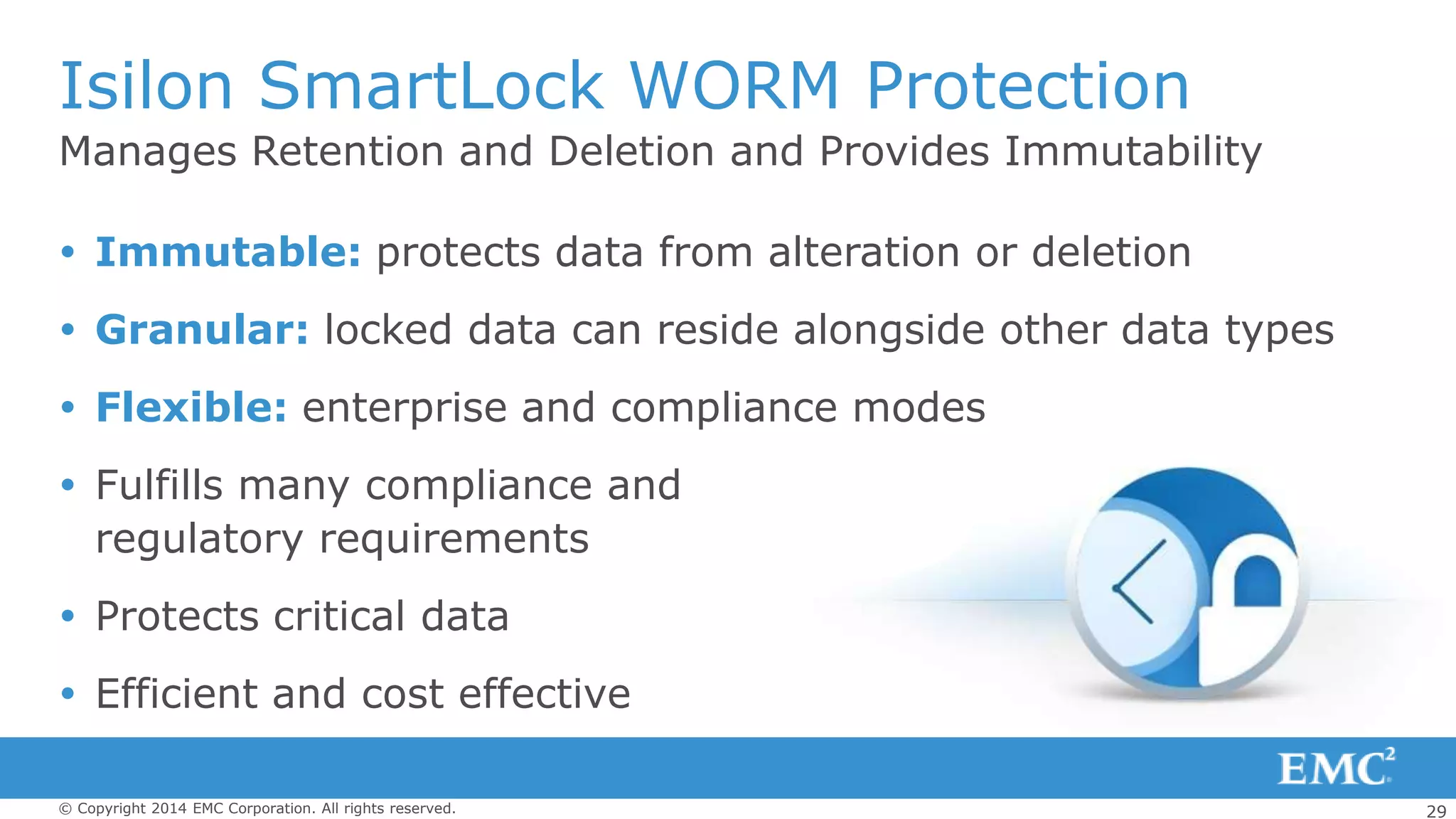

Isilon SmartLock WORM Protection
 Immutable: protects data from alteration or deletion
 Granular: locked data can reside alongside other data types
 Flexible: enterprise and compliance modes
 Fulfills many compliance and
regulatory requirements
 Protects critical data
 Efficient and cost effective

File System Auditing
Benefits
• Meet regulatory compliance requirements
• Address typical file auditing requirements
• Easy to implement
Key Features
 SMB/CIFS support
 EMC plug-in
 Varonis and other 3rd
party audit solution
support
 Sarbanes-Oxley & HIPAA
Event Logger (CEE)

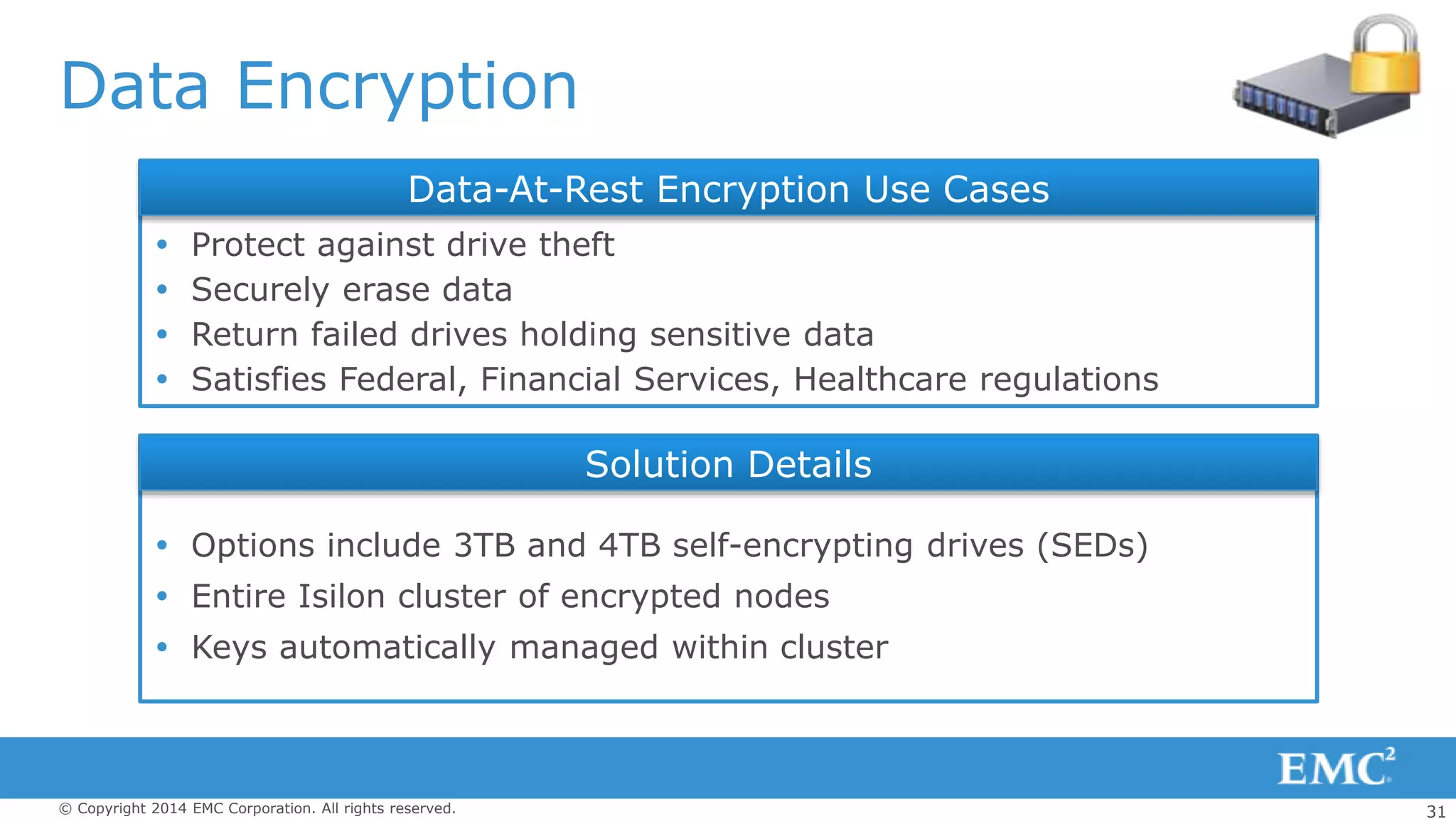

Data Encryption
 Protect against drive theft
 Securely erase data
 Return failed drives holding sensitive data
 Satisfies Federal, Financial Services, Healthcare regulations
 Options include 3TB and 4TB self-encrypting drives (SEDs)
 Entire Isilon cluster of encrypted nodes
 Keys automatically managed within cluster
Solution Details
Data-At-Rest Encryption Use Cases

Archiving Applications With Isilon
Flexible
 All major Archiving applications
support archiving on disk
 Choose the Archiving
application that meets your
unique needs
Isilon NL400 platform
• Optimized for…
– Nearline archiving
– Disaster recovery
– Disk-to-disk backup
• Choice of 36, 72, 108 or 144 TB
capacity nodes
• CPU to handle advanced operations
NL400
The EMC Isilon Advantage

Large-scale data archive
Isilon Scale-Out NAS
Simple to Manage
 Single file system, single volume, global namespace
Massively Scalable
 Scales to 20 PB in a single volume
Unmatched Efficiency
 Over 80% storage utilization and automated storage tiering
Enterprise data protection
 Efficient backup and disaster recovery, and N+1 thru N+4 redundancy
Robust security options
 Roles-based administration; Authentication Zones;
SEC 17a-4 compliant WORM data security
Operational Flexibility
 Multi-protocol support and support by all major archive applications

EMC Isilon Solutions for Data Archives

EMC Isilon Solutions for Data Archives

More Related Content

What's hot

Similar to EMC Isilon Solutions for Data Archives

More from solarisyougood

Recently uploaded

EMC Isilon Solutions for Data Archives
