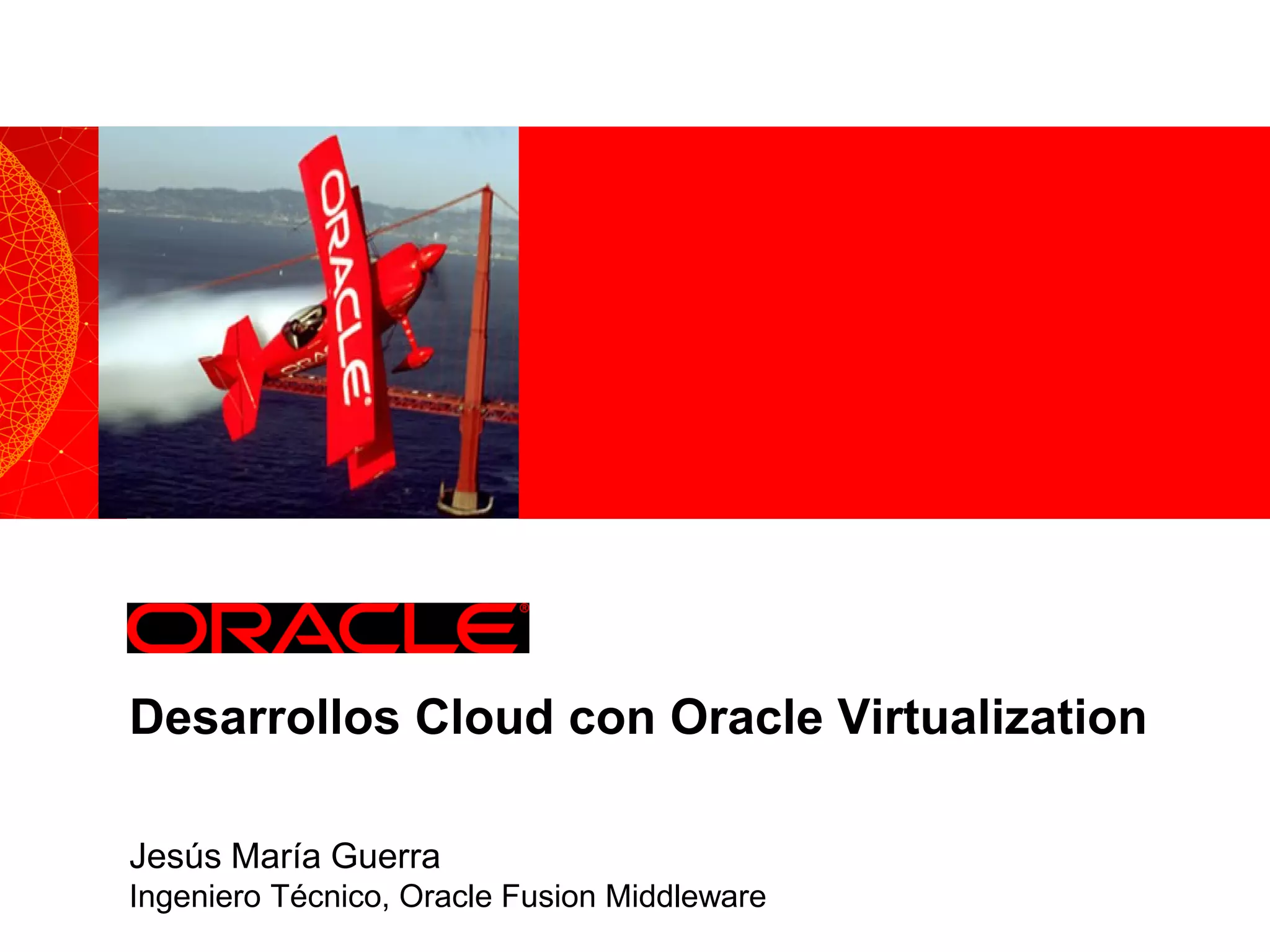

1. <Insert Picture Here>
Desarrollos Cloud con Oracle Virtualization
Jesús María Guerra
Ingeniero Técnico, Oracle Fusion Middleware

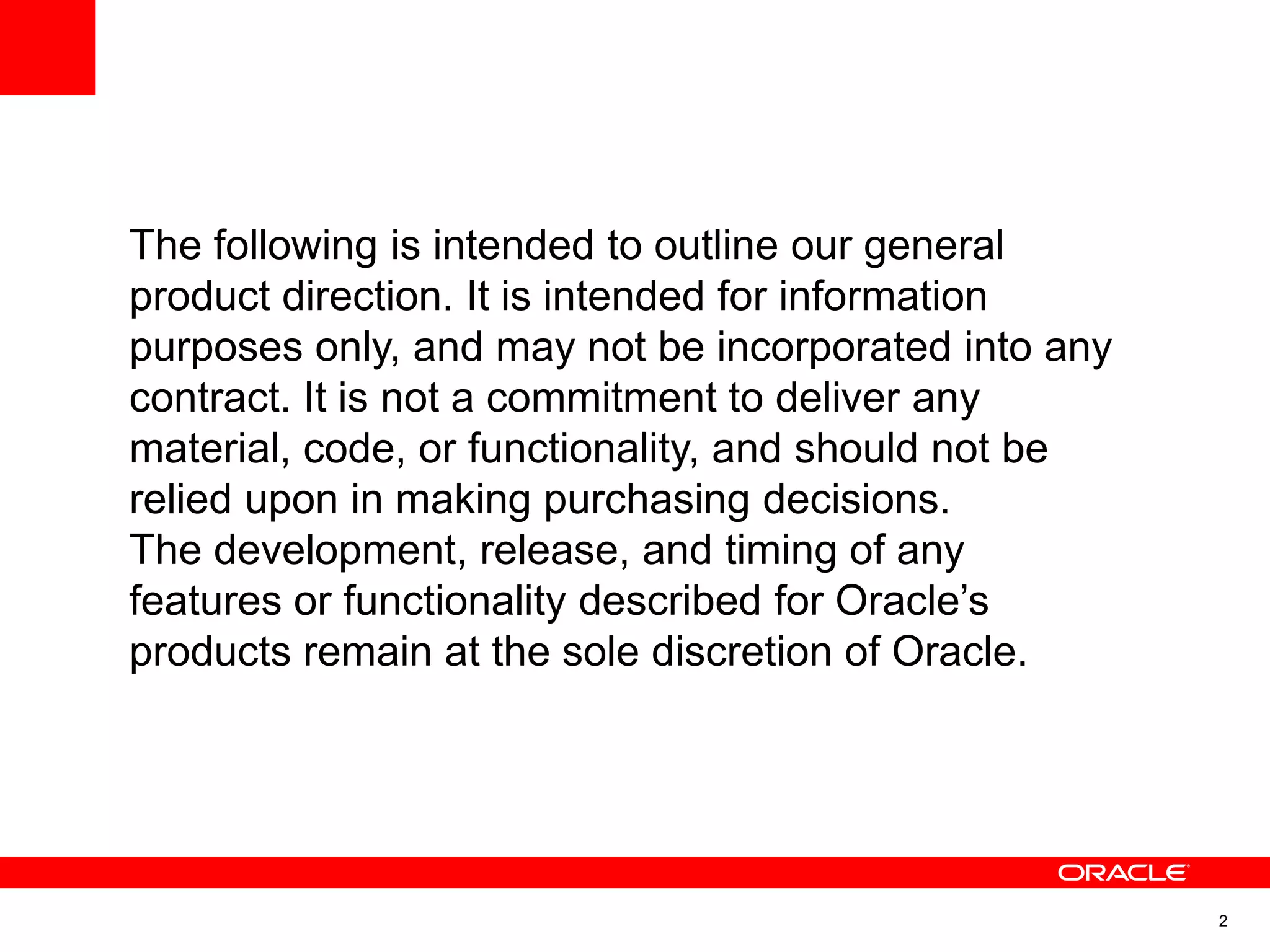

2. The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remain at the sole discretion of Oracle.
2

3. • Virtualization and Cloud Computing
• Oracle VM Server Virtualization
• Beyond Consolidation
• Customer Successes
• Next Steps & Resources
Agenda
3

4. How Does Virtualization Support Cloud
Cloud Characteristic
Resource pooling
Rapid elasticity
Fast deployment
Capability
• Enables software to run on shared
hardware
• Grow, shrink or move applications
through cloning and live migration
• Add/Remove hardware without downtime
• Package whole applications for fast, easy
deployment
• Simplify Dev/Test by cloning test and
production environments
4

5. Server Virtualization and Clustering Deliver
Resource Pooling and Elastic Scalability
Both server virtualization and clustering are key technologies for cloud

6. Oracle Cloud Platform & Cloud Management
Platform as a Service
Infrastructure as a Service
Oracle VM for x86
Operating Systems: Oracle Enterprise Linux
Cloud Management
Oracle Enterprise Manager
Database Grid: Oracle Database, RAC, ASM, Partitioning,
IMDB Cache, Active Data Guard, Database Security
Application Grid: WebLogic Server, Coherence, Tuxedo, JRockit
Shared Services
Integration:
SOA Suite
Security:
Identity Mgmt
Process Mgmt:
BPM Suite
User Interaction:
WebCenter
Oracle LinuxOracle Solaris
Oracle VM for SPARC (LDom)
Solaris Containers
Servers
Storage
Physical and Virtual
Systems Management
Ops Center
Oracle ApplicationsOracle Applications
Third Party
Applications
Third Party
Applications
ISV
Applications
ISV
Applications
6
Application Quality
Management:
Testing,
Patch Management
Application Performance
Management:
RUEI, SLA Managment,
Monitoring, Diagnostics
Lifecycle Management:
Provisioning,
VM Templates,
Large-Scale Automation
Configuration Mgmt:
Discovery, Gold Templates,
Change Detection,
Rollback, Compliance

7. • Virtualization and Cloud Computing
• Oracle VM Server Virtualization
• Beyond Consolidation
• Customer Successes
• Next Steps & Resources
Agenda
7

8. Virtualization and Cloud Computing
• Oracle is the only vendor to
provide an integrated “full-stack”
management solution
• Virtualization and enterprise
workloads managed together
• Management solution for private-
and public cloud providers
• End-to-end provisioning and
management of enterprise
application workloads
• From bare-metal provisioning of
physical servers to guest creation,
deployment, & management
• Virtual appliances with Oracle VM
Templates and Oracle Assembly
Builder
• This level of control is required for
cloud computing.
Oracle Enterprise
Manager
Platform
as a Service
Products
Infrastructure
as a Service
Products
Software
as a Service
Offerings &
Infrastructure
8

9. • Evolution of Solaris Logical Domains;
Integration with Oracle VM family
• Highly efficient hypervisor for Sun
Chip Multithreading (CMT) servers
• Multiple, independent Solaris OS
instances
SPARC (CMT) Hardware
Solaris
Oracle VM Server for SPARC
Oracle VM Server Virtualization
Platform Choice & Flexibility
• High performance hypervisor for
x86/x64 architecture
• Supported guests: Linux,
Solaris, and Windows
x86/x64 Hardware
Solaris
Oracle VM Server for x86
Linux Windows
• Roadmap: uniform, integrated virtualization management
across SPARC CMT and x86/x64 through Oracle VM Manager
9

10. Oracle VM Server for x86
10
• Free to download
• Enterprise-quality support
• Real-world deployment testing
• Risk-free virtualization
• High performance x86 virtualization
• Supports both Oracle and non-Oracle applications
• The only x86 server virtualization software supported and
certified for all Oracle software

11. Oracle VM Manager
• Browser-based
management solution
• Included with Oracle VM
• Full VM lifecycle
management:
• Create
• Configure
• Clone
• Share
• Boot
• Migrate
• Oracle VM Management Pack
for Oracle Enterprise Manager
11

12. VM
Physical Server:
• Enterprise Linux
• Windows
Oracle VM
Manager
VMware Virtual Machines
(vmdk images)
• Windows
• Linux
Physical-to-Virtual / Virtual-to-Virtual
Machine Conversion
NAS, SAN, iSCSI
Oracle VM Servers
Oracle VM Server Pool
VM VM VM VM
• Consolidate Servers
• Eliminate VMware license expense
12

13. Cluster
VM VM VM VM
Oracle VM Servers
NFS, SAN, iSCSI
Cluster
VM VM VM VM
Oracle VM Servers
NFS, SAN, iSCSI
Clustered Manager
Browser
XE, SE, EE, or RAC
Database
Oracle VM High Availability
Complete Solution
Planned Events:
• e.g. maintenance or upgrades
• Secure Live Migration
• Zero interruption
SSL Migration
X
Unplanned Events
• e.g. Server or VM failure
• HA Auto-restart in pool
• No manual intervention
X
HA Auto Restart
mm
Pool Masters assure
secure migration or
HA restarts complete
in the event of a
Manager outage
13

14. Secure Live Migration
Uninterrupted Service
• Industry First:
• Encrypted Live Migration by
Default
• No additional hardware
required
• Eliminates requirement for
dedicated network
• Other products migrate VM
data in the clear
• Requires dedicated network
• Leaves sensitive data
vulnerable (passwords,
account numbers, etc.)
• More secure, more flexible
VM
NAS, SAN, iSCSI
Oracle VM Servers
Oracle VM Server Pool
VM Secure Live Migration (SSL)VM VM
14

15. • Virtualization and Cloud Computing
• Oracle VM Server Virtualization
• Beyond Consolidation
• Customer Successes
• Next Steps & Resources
Agenda
15

16. It’s All About the Applications
• Develop products that make enterprise software…
• Easier to deploy
• Easier to manage
• Easier to support
• Provide exceptional performance and scalability
under load
• Provide deterministic high-availability
• Support for large-scale storage infrastructure
• Economics to permit ubiquity, i.e. virtualization-by-
default architectures
16

17. 17
VM
NAS, SAN, iSCSI
Oracle VM Servers
Oracle VM Server Pool
VM VM
Oracle VM Templates Accelerate
Application Deployment
E-Delivery
Download from Oracle
• Pre-built, pre-configured VM
• Complete app, middleware, DB
installation
• Complete Siebel CRM,
Database 11g, Enterprise
Manager…
Import via
Oracle VM
Manager
File
Siebel
CRM
VM
Customize & Save
as Golden Images
VM
Save days or weeks in installation and
configuration time
Start-Up in
Oracle VM Pool
VM 1
Siebel
CRM
VM 2
Siebel
CRM
Enterprise
Manager

18. Oracle VM Templates
• Oracle Database 11g
• Oracle Siebel CRM 8.1
• Oracle PeopleSoft
• Oracle Enterprise Manager
• Oracle Fusion Middleware
• Oracle Enterprise Linux
• More…
• edelivery.oracle.com/linux
Deploy software faster without installing &
configuring from scratch; lower overall costs
18

19. Middleware Virtualization with Oracle VM
WebLogic Server Virtualization Option Oracle Virtual Assembly Builder
• Runs natively on hypervisor
• Higher density
• Better performance
• Reduced operational cost
• Simpler patching
• Improved security
• Package up complex structure from dev/test and
reconstitute in production
• Minimize setup time and risk of hard-to-debug
configuration errors

20. PaaS Foundation Based on Oracle Virtual
Assembly Builder and Oracle VM
PaaS ApplicationPaaS Application
Catalog
Virtualized Resource Pool
ComputeCompute NetworkNetwork StorageStorage
OVAB StudioOVAB Studio
IntrospectIntrospect
ComposeCompose
PackagePackage
DeployDeploy
Tenants
Administrators •Deploy assemblies
•Create assemblies
One Time
Effort
Repeated
Activity

21. • Virtualization and Cloud Computing
• Oracle VM Server Virtualization
• Beyond Consolidation
• Customer Successes
• Next Steps & Resources
Agenda
21

22. NEW : Full Oracle Software Stack Certified and
Supported on Oracle VM on Amazon EC2
• Amazon EC2 now supports Oracle
VM
• Fully certified and supported:
Oracle Database, Oracle Fusion
Middleware, Oracle applications
(EBS, PeopleSoft, Siebel)
• Oracle Linux support and Amazon
Premium Support
• Amazon Machine Images (AMIs)
based on Oracle VM Templates
Certified &
supported

23. • Virtualization and Cloud Computing
• Oracle VM Server Virtualization
• Beyond Consolidation
• Customer Successes
• Next Steps & Resources
Agenda
23

24. 24
Why Do Customers Choose Oracle VM
Certification
Performance
Cost Effective
Oracle VM
Enterprise-Quality
Support
Interoperability, security, high
availability across the stack
Global, 24x7, large-scale
support
Fully certified and supported
with Oracle products
Virtualize database and apps
with confidence
Zero license fees; affordable
support fees
Customer Success
Integrated with Apps

25. Final Thoughts
• Oracle provides complete application stack and delivers
the most innovative technologies
• Only Oracle offers complete, integrated, open solutions
that support physical, virtual and cloud environments.
• Oracle enables lower costs and higher quality of service
for your physical, virtual and cloud IT environments.
25

26. 26
• http://www.oracle.com/virtualization
• Follow us on Twitter
www.twitter.com/orcl_virtualize
• Oracle Virtualization Blog
http://blogs.oracle.com/virtualization
Oracle Virtualization
