Practical Implementation of Virtual Machine
1. Principles of Virtualization
Unit - 8
Practical Implementation of Virtual Machine
Date:
Department of Computer Engineering
Jain Group of Institution, Bangalore
Presented By:
Rubal Sagwal
Assistant Professor
Department of Computer Engineering
1ADAD

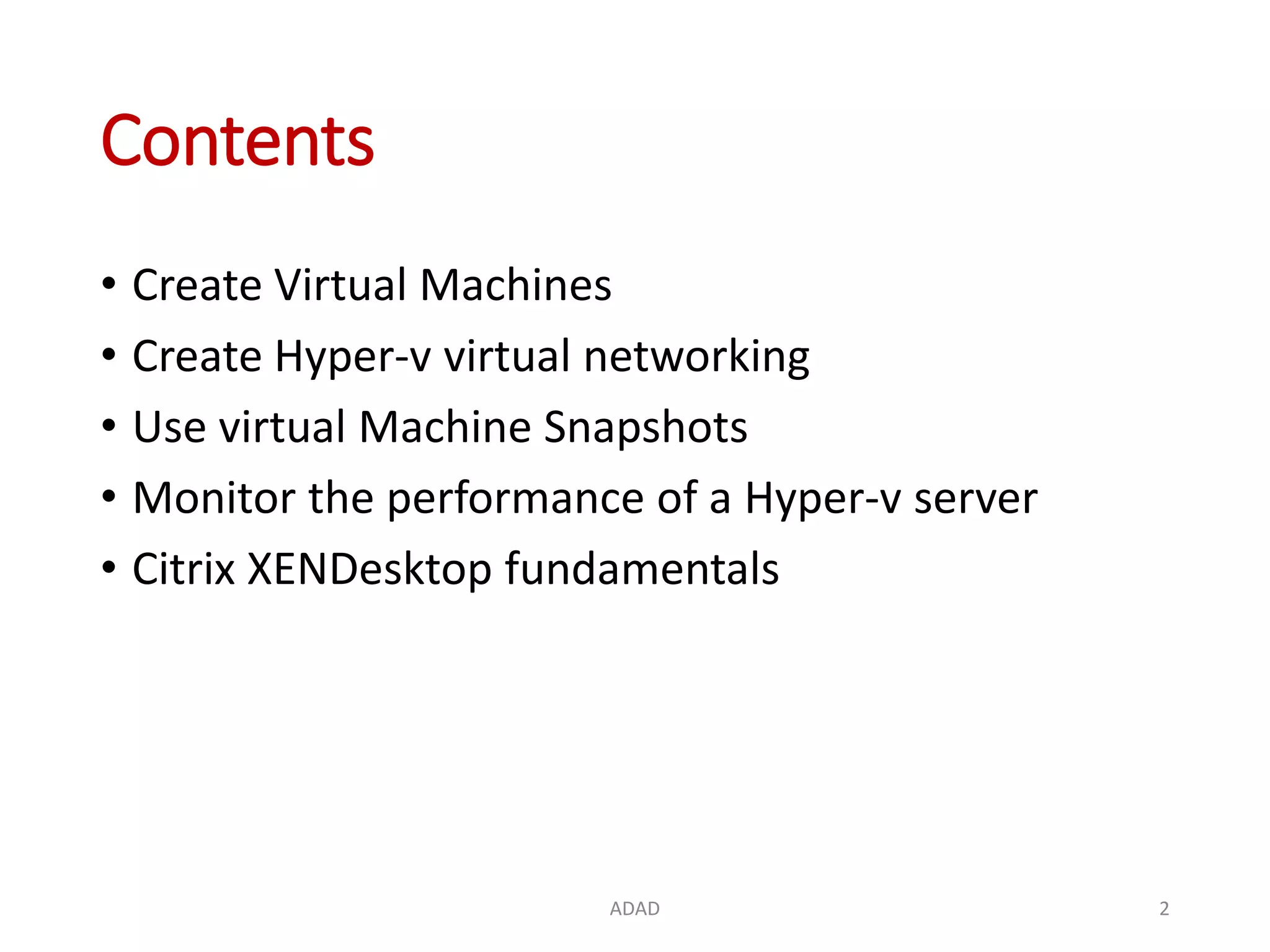

2. Contents
• Create Virtual Machines
• Create Hyper-v virtual networking
• Use virtual Machine Snapshots
• Monitor the performance of a Hyper-v server
• Citrix XENDesktop fundamentals
ADAD 2
4. Introduction – Virtual Machine
• A virtual machine (VM) is an operating system or
application environment that is installed on
software – which imitates dedicated hardware.
• The end user has the same experience on a virtual
machine as they would have on dedicated
hardware.
• Specialized software – called a hypervisor –
emulates the PC client or server's CPU,
memory, hard disk, network and other hardware
resources completely, enabling virtual machines to
share the resources.
ADAD 4
5. Creating Virtual Machines
• Thus, a virtual machine is like a physical computer that runs on an
operating system and application.
• But instead of physical hardware, it uses virtual hardware
resources.
• Every virtual machine has virtual devices such as virtual CPU,
memory, network interface, hard drive and so on, that provides
the same functionality as physical hardware.
• These virtual hardware resources are actually mapped to the
physical hardware of the ESXI where the virtual machine is
running.
• For example, a virtual machine’s virtual RAM is mapped to the
memory address of RAM on the physical host. When you create a
virtual machine in vSphere, a set of files is created. Virtual
machines’ virtual hardware characters are determined by these
files.
ADAD 5
7. Contd…
Creating Virtual Machines - A virtual machine consists
of several files that are stored on a storage device
ADAD 7
• VMX File:
• It is the primary file of the virtual machine. All the
configuration information of the virtual machine is
stored in this file. When you create a virtual machine
you will provide some details like virtual machine name,
OS type etc. All these information are stored in this file.
• VMDK File:
• Virtual disk descriptor will store all the virtual drive
information such as the size of the disk, virtual drive
adapter type and drive sectors. It will provide this
information to the virtual machine and by using this
information the virtual machine will decide where to
write the contents.
8. Contd…
Creating Virtual Machines - A virtual machine consists
of several files that are stored on a storage device
ADAD 8
• NVRAM File:
• Like a physical machine, the virtual machine also has
BIOS. This file will store the BIOS information.
• Flat. VMDK File:
• Whatever stored in the virtual machine’s hard disk is
contained in this file. This file is created when a virtual
hard drive is added to the virtual machine. The size of
this file will be equal to the size of the virtual machine’s
hard drive size.
9. Contd…
Creating Virtual Machines
ADAD 9
• To create a virtual machine on the ESXi host, log in
to the host using vSphere Client by providing host’s
IP address and login credential.
• Launch Create VM Wizard.
• In the navigation bar of vSphere Client, click Home and
click the Inventory icon.
• Right-click the ESXi host in the inventory and select New
Virtual Machine.
• The New virtual Machine wizard will be launched and in
the configuration, there will be two options:
• Typical
• Custom
10. Contd…
Creating Virtual Machines
ADAD 10
• Choose Typical.
• Specify the Virtual Machine Name:
• Specify a name for the VM instance in the “Name and
Location” section. Virtual machines will be identified
with this name, so give a unique name to each VM.
• Choose the Datastore
• Here you will specify where you want to store the virtual
machine files. Datastore is the storage available in the
ESXi, for example, hard drive in the ESXi is a datastore.
The vsphere client will display all the datastore available
on the ESXi server. In this example, there is only one
datastore available. Name of the datastore is datastore1.
11. Contd…
Creating Virtual Machines
ADAD 11
• After choosing the guest OS, select the version of
the guest OS. For example, if you want to install
Windows XP choose Microsoft Windows as the
guest OS and Windows XP as the version.
• In this step, we are only choosing the guest OS
which we are going to install. It will not install guest
OS. We have to do it after creating the VM.
• Create a Disk for VM
• In this step, we have to specify the size of virtual
machine’s virtual disk size.
12. Contd…
Creating Virtual Machines
ADAD 12
• Create a Disk for VM
• In this step, we have to specify the size of virtual machine’s
virtual disk size.
• When creating a virtual disk, these virtual disk types are
available.
• Thick Provision Lazy Zeroed
• In this type, the space required for the virtual disk is allocated
when the virtual disk is created. For example, if the virtual
disk size is 20GB, it is immediately allocated from the physical
disk. But the old contents of the disk are not erased.
Whenever the virtual machine wants to write something, it is
immediately written to the disk so this type of disk provides
better performance.
13. Contd…
Creating Virtual Machines
ADAD 13
• Thick Provision Eager Zeroed
• In this type, the space required for the virtual disk is allocated
when the virtual disk is created. In contrast to the lazy zero
format, the data remaining on the physical device is erased
and filed with zero when the virtual disk is created.
Whenever the virtual machine wants to write something, it is
immediately written to the disk so this type of disk provides
better performance.
• Thin Provision
• Use this format to save storage space. When vSphere creates
a thin provisioned disk, it only writes a small amount of
metadata to the datastore. It does not allocate or zero out of
any disk space.
14. Contd…
Creating Virtual Machines
ADAD 14
• VM – Ready to Install
• The wizard will display the summary of the options that you have
selected in the previous step in the “Ready to Complete” section.
• This is an example for VM creation using typical
configuration.
• In the custom configuration, it will ask for the following
additional information like a number of CPU and CPU cores
Memory size and SCSI controller type.
• In both typical and custom configuration, you can change
the value of these settings, after the virtual machine is
created.
• We have created the virtual machine successfully but we
have not installed the guest OS. Attach the guest OS source
image to the VM and install the OS.
16. Hyper-V Role
• Hyper V is the type 1 hypervisor from Microsoft –
hyper V role enables us to create a virtualized
server environment in your windows server, where
you can create and manage multiple virtual
machines.
• If you install this hyper V role in your windows
server, you will get hyper V manager in the start
menu, using this hyper V manager you can install a
virtual machine and manage the virtual
environment.
ADAD 16
17. Contd…
Hyper-V Role
1. Server Manager Dashboard:
• To install hyper V role on the Windows server, open the
Server Manager.
• Click Add roles and features on the server manager
wizard.
2. Installation Type:
• There are two options available “Role-based or feature-
based installation”, or “Remote Desktop Services
Installation”.
• Choose the Role-based or feature-based installation.
ADAD 17
18. Contd…
Hyper-V Role
3. Select the Server:
• Choose select the server and click Next button.
• This option will be useful when you have more than one
Windows server in your environment, you can also install roles
and features from the local server to a remote server.
4. Select Hyper V role:
• Choose Hyper V role and click Next button.
• Click add features for additional features required for
the hyper V role.
• Next, it will display the introduction about the hyper V
role, click next.
ADAD 18
19. Contd…
Hyper-V Role
5. Virtual Switches:
• Select the network adapter to be used by the virtual switches
that are required for virtual machine communication.
6. Default Stores:
• Select the default location to store the virtual hard disk files
and location to store the virtual machine configuration files.
7. Conformation:
• Here you can view the summary of your installation and click
next to continue. Then it will add the Hyper V role in the
windows server.
• After the installation completes, restart the server
ADAD 19
20. Contd…
Hyper-V Role
8. Hyper V Manager:
• Once the system reboots, you can view the hyper V
manager in the start menu. Using this hyper V manager,
we can perform all the virtual machine tasks like
creating new VM.
ADAD 20
22. Introduction
• Now-a-days all the organizations are moving towards
virtualization because of its advantages. One of the
major advantages of virtualization is snapshot.
• For example, if you want to test some software in your
physical machine, you have to setup the hardware,
install OS and run the software. You can go quickly to
any of the previous states by using the snapshot
feature.
• A virtual network provides networking for a virtual
machine. The concept of virtual networking is similar to
physical networking. But here we use software switch
and the virtual machine’s virtual network adapter will
be connected to this software switch.
ADAD 22
23. Hyper-V virtual Networking
• In the next diagram there are three virtual
machines VM1, VM2, VM3 in the hyper V server
and there are two virtual switches, one is internal
and another is an external switch.
• Each virtual machine has one or more virtual
network adapter and these virtual network
adapters are connected to the virtual switch. These
virtual switches provide connectivity to all virtual
machines.
ADAD 23
25. Contd…
Hyper-V virtual Networking
ADAD 25
• Now all the three virtual machines can
communicate among themselves because they are
all connected to the same switch.
• VM1 has two virtual network adapters.
• One is connected to the internal switch and
• another network adapter is connected to the external
switch.
• The external switch is connected to a physical
network adapter which allows the communication
between the physical network and VM1.
26. Contd…
Hyper-V virtual Networking
ADAD 26
• But VM2 and VM3 cannot communicate with the physical network
because they are connected to the internal switch and there is no
physical adapter connected to the external switch.
• The physical network adapter is the hyper-V server’s (windows2008
server) physical network adapter.
• In case, if the virtual machine needs to communicate with the outside
world, then it should be connected to an external switch which has a
physical network adapter connected to it.
• This is the basic idea of virtual networking.
• In the physical network, the network adapter is connected to physical
switch ports to enable communication. Similarly, in the virtual machine,
the virtual network adapter is connected to a virtual switch. In a virtual
switch, a port will be created when we connect the two virtual
machines. If we disconnect a virtual machine the port is also deleted
automatically. That is virtual switch ports are added or removed
automatically.
27. Contd…
Hyper-V virtual Networking
ADAD 27
• Hyper-V Virtual Network Types
• We can create multiple virtual networks in the hyper-V.
There are three types of virtual network in hyper-V.
• External Virtual Network
• This type of virtual network allows the communication
of virtual machine with the external world through the
physical network adapter attached to it. So when you
create an external virtual adapter you must associate a
physical network adapter to it.
• A physical network adapter can be attached to only one
external virtual network. If you create multiple external
virtual networks you need multiple physical adapters.
28. Contd…
Hyper-V virtual Networking
ADAD 28
• Internal Virtual Network
• This type of virtual network allows communication
among the virtual machines running on the same
physical server (host) and also with the host. For
example, in a windows 2008 Hyper V host if you have
created two virtual machines VM1 and VM2. Now if you
connect the VM1 and VM2 to internal network switch
they can communicate with each other and also with
the windows 2008 hyper V host.
• Private Virtual Network
• This type is similar to the internal virtual network with
the only difference that the host cannot communicate
with the virtual machine.
29. Contd…
Hyper-V virtual Networking
ADAD 29
• Creating hyper-V virtual network
• We can create and manage a hyper-V virtual network using
the virtual network manager. Now we will discuss how to
create a hyper V virtual network.
• To create a virtual network:
• First, launch the hyper V manager. To launch hyper V manager go
to Windows Server 2008 Start menu -> Programs ->
Administrative Tools -> Hyper-V Manager.
• In the Hyper-V manager wizard, you can see the Actions panel.
• Select Virtual Network Manager in the Actions panel.
• Once the virtual network manager is loaded it will show the dialog
box.
• Select which type of virtual network you are going to create. For
example, select External and click Add.
30. Contd…
Hyper-V virtual Networking
ADAD 30
• Give a name to this virtual network. You have selected
external, so it has to be bounded to the physical
network adapter.
• choose the adapter from the drop down.
• Select the adapter which you want to connect to this
virtual network. Then click OK.
• Next, it will show a warning window, click Yes to save
changes.
• Now we have successfully created the external virtual
network. Similarly, you can create internal and private
virtual network.
31. Contd…
Hyper-V virtual Networking
ADAD 31
• Assigning Virtual Machines to Virtual Networks
• If a virtual machine needs to communicate with other
machines it should be connected to the virtual network using
the virtual network adapter.
• A virtual machine can have one or more network adapter. But
a virtual network adapter can be connected to only one
virtual network.
• If you want to connect your VM to the virtual network, go to
hyper-V manager console and right click your virtual machine
and select settings. Here you can see all the hardware devices
attached to your VM.
• Select the network adapter in the right-side pane. You can
associate this to one of the available virtual network using the
drop-down menu under Network.
•
33. Virtual Machine Snapshot
ADAD 33
• Snapshot is a feature which allows us to preserve or capture the
current state of a virtual machine.
• Once the snapshot is taken you can return to that particular
state of the virtual machine at any time.
• For example, you can install some software or test some software
on the running VM. But you are not sure whether the virtual
machine will work or not after these operations. Now you can
take a snapshot of the running virtual machine and you can
proceed with the software installation or testing. After
performing these operations, if something is messed up you can
return to the snapshot without any interruption.
• In short, snapshot simply captures the state of the virtual machine
at a particular point of time; you can go back to this state at any
time and resume your work. Snapshots are very useful in test and
development environment.
34. Contd…
Virtual Machine Snapshot
ADAD 34
• Creating a Snapshot
• It is very simple to create a snapshot in Hyper-V. To create a
snapshot, open the Hyper-V Manager. Right-click the virtual
machine that we want to take the snapshot and select the
Snapshot command in the menu. Then the snapshot will be
created.
• What Happened when you create a Snapshot
• As discussed in the previous chapter virtual machine is a set
of files. In hyper-V the configuration of the virtual machine is
stored in the.xml file and virtual hard disk contents are stored
in .VHD file. These files contain the operating system, user
data and application data. The processor state is stored in
.VSV file and memory contents are stored in the .bin file.
• If you change the configuration of the virtual machine such as
increasing the RAM size or attaching a network adapter, the
configuration file is updated.
35. Contd…
Virtual Machine Snapshot
ADAD 35
• The virtual machine’s .VHD file is equivalent to the physical
machine’s hard drive. In the physical machine, changes such
as saving some data, running application will be stored on
the hard drive. Similarly, when you are working with the
virtual machine the changes are stored in the .VHD file.
• When you take a snapshot of the virtual machine, the
hyper-V pause the virtual machine and create a new
automatic virtual hard disk (AVHD) file. This is called as a
differencing file. A differencing disk stores changes, or
differences, that would otherwise be written to the original
virtual hard disk. As the VM continues to change, the
differencing disk grows in size. The differencing disk is
attached to the virtual machine and the VM is resumed.
Hyper-V also captures the processor state, memory
contents of the VM and creates a new copy of configuration
file. These files are stored in a separate folder.
36. Contd…
Virtual Machine Snapshot
ADAD 36
• The processor and memory states are captured only when
taking the snapshot of a running virtual machine. If you take
the snapshot of powered off machine then hyper-V need
not capture these data.
• After taking the snapshot the .VHD is detached from the
virtual machine and the differencing file that is the .AVHD is
attached to the VM. So after taking a snapshot the changes
you are making in the virtual machine such as saving data is
stored in the new .AVHD file. The initial hard drive file that is
the .VHD is not modified. So you can easily go back to the
snapshot state because the contents stored in the .VHD files
are intact.
• A new .AVHD file is created and attached to the VM for each
snapshot taken.
37. Contd…
Virtual Machine Snapshot
ADAD 37
• The snapshot cannot be used as a backup because
when you take the snapshot it is not copying the
contents of .VHD into the .AVHD. The new file only
stores the changes made in the operating system,
user data and application data when the VM is
running after taking the snapshot.
• In short, when you take a snapshot the active
.AVHD file which is currently attached to the VM is
detached and new .AVHD is attached to the VM.
The old AVHD file will be the parent of new AVHD
file. The new AVHD file updates the changes to the
VM until another snapshot is taken.
38. Contd…
Virtual Machine Snapshot
ADAD 38
• Viewing the Snapshot
• After taking the snapshot you can see the virtual machine’s
snapshot details under the Snapshots section in the hyper-V
console. The snapshots are stored in parent-child hierarchy
tree structure. In the image, you can notice that under the
snapshot there is a child called ‘Now’, which represents the
currently running VM after taking the snapshot.
• Whenever you want to make some major changes in VM, you
can take additional snapshots. For example, if you want to
test multiple applications in the same virtual machine, install
the application first, test it and take a snapshot. Then install
the second one and take one more snapshot.
39. Contd…
Virtual Machine Snapshot
ADAD 39
• Reverting to the previous snapshot
• After making changes to the VM if something is messed up and you
want to go back to the previous state, you can use the revert
option. Revert option will restore the virtual machine to the state
when the last snapshot was taken.
• When you use this revert option the virtual machine is stopped and
the current differencing disk file (.AVHD) is deleted so all the
changes that are done after taking the snapshot will be deleted.
Then the data saved in the snapshot is loaded into the virtual
machine and new AVHD is created. Finally, the VM is restarted and
saved processor state and memory state files (.VSV and .bin) are
also loaded.
• If you take the snapshot when the virtual machine is powered off
then the snapshot will not contain the .VSV and .BIN file.
• If you revert to that snapshot the virtual machine will be in the
powered off state because the processor and memory status is not
available.
40. Contd…
Virtual Machine Snapshot
ADAD 40
• Apply Option
• By using the revert option we can only go back to the last snapshot state. If
there are three snapshots and you want to go back to the first or second
snapshot, then we have to use this Apply option. If you want to use this Apply
option, select the snapshot to which you want to go back then right click it.
• Deleting Snapshot
• If you do not need any snapshot or snapshot sub tree in the future, you can
delete it. When you delete a single snapshot it will delete the configuration file,
processor state and memory state files associated with that snapshot
immediately. If the AVHD file does not contain any child AVHD then it is also
deleted. That is the AVHD associated with the snapshot should not be a parent
of any AVHD. If it contains only one child, the child AVHD is merged with the
parent AVHD when the virtual machine is powered off.
• If it has more than one child then this AVHD is retained until only one remains
and then it is merged with the parent AVHD when the virtual machine is
powered off.
• In the same way, you can delete the entire snapshot sub tree.
41. Contd…
Virtual Machine Snapshot
ADAD 41
• Renaming the Snapshot
• The snapshots will be listed in the snapshot pane. You
can notice that the snapshot name is the virtual
machine name followed by date and time.
• In real time you will have many virtual machines and you
will take many snapshots. By looking at a particular
snapshot time you cannot identify the reason of the
snapshot and what is stored in the snapshot. So for the
easy identification, we can rename the snapshots.
• If you want to rename the snapshot select the snapshot,
right-click and select Rename from the menu and give a
new name which specifies the purpose of the snapshot.
43. Performance of Hyper V Server
ADAD 43
• Monitoring and keeping track of hypervisor performance is
one of the major jobs of the administrator. The
administrator can use the available performance monitoring
tools.
• But we have to use the appropriate tools to get the correct
result. For example, we have to inbuilt performance
monitoring tools in the Hyper-V - Task manager and
Performance Monitor.
• The Task Manager is a simple tool. It is not virtualization
aware so we cannot view the resource utilization by a virtual
machine against the total system resources. Suppose if we
are using it on the virtual machine we cannot only view the
resource utilization percentage of allocated virtual resources
because the task manager doesn’t know that it is a virtual
machine.
44. Contd…
Performance of Hyper V Server
ADAD 44
• The Hyper-V provides a series of unique counters in
the Performance Monitor. Since the hyper-V
provides virtualization specific counters, the
administrators are able to analyse resource
utilization at the host level and virtual machine
levels. For example, the Hyper-V counter called
“Hyper-V Hypervisor Logical Processor (_Total)%
Total Run Time” will report the total processor time
spent in running both the host and guest machines.
45. Contd…
Performance of Hyper V Server
ADAD 45
• Things to be monitored on hyper-V
• In a hypervisor environment, we need to monitor both the host
resources and the guest resources. Availability of enough host
resources will result in better performance of the virtual machine that
is running on the top of the hypervisor. If there is the contention for
resources all the virtual machines compete for the resources, which
lead to performance degradation. So we need to monitor regularly to
ensure that resources are properly utilized.
• We need to monitor the guest machine also. Even if the host has
enough resources without proper allocation of virtual machines will
affect the virtual machine performance.
• The important things to be monitored for the smooth running of the
system are overall health of the system, memory utilization and
availability, processor utilization, network bandwidth utilization and
performance and storage performance. All these have to be monitored
for both host and guest.
• There are many performance counters available in performance
monitor tool to monitor these resources. We will discuss the major
counters to monitor.
46. Contd…
Performance of Hyper V Server - The top level performance
counters to monitor are:
ADAD 46
• Overall health of Hypervisor and Virtual Machine
• To check the overall health there are two counters, the
first one is” Hyper-V Virtual Machine Health Summary”.
It has only two options, Health Ok and Health critical.
• Another counter to check overall health is “Hyper-V
Hypervisor. Using this we can identify many things like
how many logical processors are identified by machine,
the number of virtual machines currently running, a
total number of pages and a number of virtual
processors.
47. Contd…
Performance of Hyper V Server - The top level performance
counters to monitor are:
ADAD 47
• Processor:
• From the Hyper-V Hypervisor counter we got an idea of
a number of logical processors and number of virtual
processors now we need to monitor the performance of
these processors.
• The first counter Hyper-V Hypervisor Logical Processor is
used to monitor how much of the physical processor is
used.
• The Hyper-V Hypervisor Root Virtual Processor” is used
to monitor how much CPU, the root is using.
• The “Hyper-V Hypervisor Virtual Processor” is used to
monitor how much CPU the guest is using.
48. Contd…
Performance of Hyper V Server - The top level performance
counters to monitor are:
ADAD 48
• Memory
• Using the network counters we can monitor the overall performance of the
Network.
• The “Network Interface” counter is used to monitor the network performance
of the physical device. Using this we can monitor, Total Bytes/sec, Bit/sec,
offloaded connections, Packet receive errors, packet outbound error.
• Next one is” Hyper-V Virtual Switch”. As the name indicates, it is used to
monitor the virtual switch. It is necessary to monitor the virtual switch because
all the virtual machine’s traffics are handled by the virtual switch. Suppose if
you have configured internal virtual network the traffic will exist only in the
virtual switch. Using these counter, we can monitor the virtual switch’s
Bytes/sec and Packets / sec.
• Next counter is “Hyper-V Virtual Network Adapter”. It is used to monitor the
virtual network adapter of a VM. Using this we can identify how traffic is
entering into a particular VM and how much traffic it is generating. We can get
the details of each virtual network adapter by using this and also we can see
which VM is generating more traffic. Using this counter we can monitor
Bytes/sec and Packets / sec details of a virtual network adapter.
49. Contd…
Performance of Hyper V Server - The top level performance
counters to monitor are:
ADAD 49
• Storage:
• With the use of the storage counters we can monitor the
overall disk performance of the entire system and disk
performance of each VM.
• The counter “Physical Disk” gives an idea about overall
storage performance of the system. Using this we can
monitor Current Disk Queue Length, Disk Bytes/sec, Disk
Transfers / sec. Current Disk Queue Length gives one an
idea of how busy the drives are.
51. Citrix XenDesktop Fundamentals
ADAD 51
• Citrix XenDesktop is a Desktop Virtualization product
suite from Citrix.
• In XenDesktop, the administrator will publish the
desktop and application on the server so multiple users
can access these simultaneously. The application and
desktop will be running in the server not in the client
device so the user can access it from any device.
• Using this XenDesktop a user can access their corporate
desktop and application from anywhere and from any
device. So the user can work from anywhere. The end
user device must be installed with Citrix Receiver.
52. Contd…
Citrix XenDesktop Fundamentals
ADAD 52
• The published apps and desktops are running in
virtual machines and centrally managed.
• XenDesktop allows the employees to securely
access their corporate-issued virtual apps and
desktops from their personal computer or mobile
device. Users are using their own device so the
organization doesn’t require providing hardware to
the employees. Hence IT hardware cost is reduced.
The image 5.2.12 below shows the architecture and
the components of Citrix XenDesktop.
54. Contd…
Citrix XenDesktop Fundamentals
ADAD 54
• Delivery Controller
• Delivery controller’s function is to distribute the hosted
application and desktops to the users.
• Virtual Delivery Agent
• The virtual delivery agent has to be installed on all the servers
which are hosting the application. It manages the
communication between the application and Citrix receiver. It
is used along with the delivery controller.
• Citrix Receiver
• Citrix Receiver is installed in the end user devices such as
desktops and laptops.
Citrix Store Front
• Citrix Store Front authenticates the users when they access
the published application.
55. Contd…
Citrix XenDesktop Fundamentals
ADAD 55
• Citrix Studio
• It is a console where the applications are published and
managed.
• Citrix Director
• It serves as a tool for monitoring and to troubleshoot
the Xen App and Xen Desktop environments.
57. Contd…
Citrix XenDesktop Fundamentals
ADAD 57
• In the Citrix studio, we have to publish our desktop and
application. Once it is published then it will be available
in the store Font. The store font provides self-service
access to the desktop and application because it shows
all the published application and desktops to the users
and it authenticates the users when they access their
published resources. Citrix receiver is installed in the
client devices and it provides access to published
resources from any device. Citrix director is a web
based tool for monitoring and troubleshooting.
• Using HDX technology it delivers a high definition
graphical experience to users and the NetScaler
Gateway is responsible for load balancing.
•
58. Contd…
Citrix XenDesktop Fundamentals
ADAD 58
• Deploying App using Citrix XenApp
• Before publishing App using XenApp, you need to install
and configure license server, Citrix XenApp server and
Web Interface.
• The license server is the major component of the
XenApp.
• XenApp is used to install and publish the application. All
the published applications will be available in the Web
Interface.
• Here we will only discuss how to publish the application.
59. Contd…
Citrix XenDesktop Fundamentals
ADAD 59
• Publishing Applications using XenAppAppCenter
1. Open the Citrix AppCenter console.
2. Expand Citrix Resources >XenApp> [Farm Name].
3. Right-click Applications and select Publish application:
Click Next at the Welcome screen
4. Choose the application type that you are going to publish
then click Next.
5. Browse the application executable location.
6. Select which Servers/Worker Groups will run the application.
7. Select which Users/Groups will be allowed to access the
published application.
8. Configure the location of application shortcuts.
9. Check the Configure advanced application settings now check
box, then click Next.
60. Contd…
Citrix XenDesktop Fundamentals
ADAD 60
• Configure Advanced Application Settings
1. Continuing from the step above, select which
connections you will accept.
2. Associate file types with the application if needed.
3. Check Allow only one instance of the application for
each user, if required. Limit instances allowed to run
in server farm will ensure that you’re complying with
license restrictions.
4. Configure Client options.
5. These application appearance settings will only apply
if you are publishing on a Server Desktop.
6. The application will now show in Citrix AppCenter.
