1. Capturing, Analyzing &
Optimizing your SQL
Padraig O'Sullivan - http://posulliv.com/
Ronald Bradford - http://ronaldbradford.com/
ODTUG – June 2010

2. Capturing your SQL
ODTUG – June 2010

3. MySQL Provided Options
Slow Query Log
General Query Log
Binary Log
Connectors
Processlist
Engine status
Status variables
ODTUG – June 2010

4. Other Techniques
MySQL Proxy

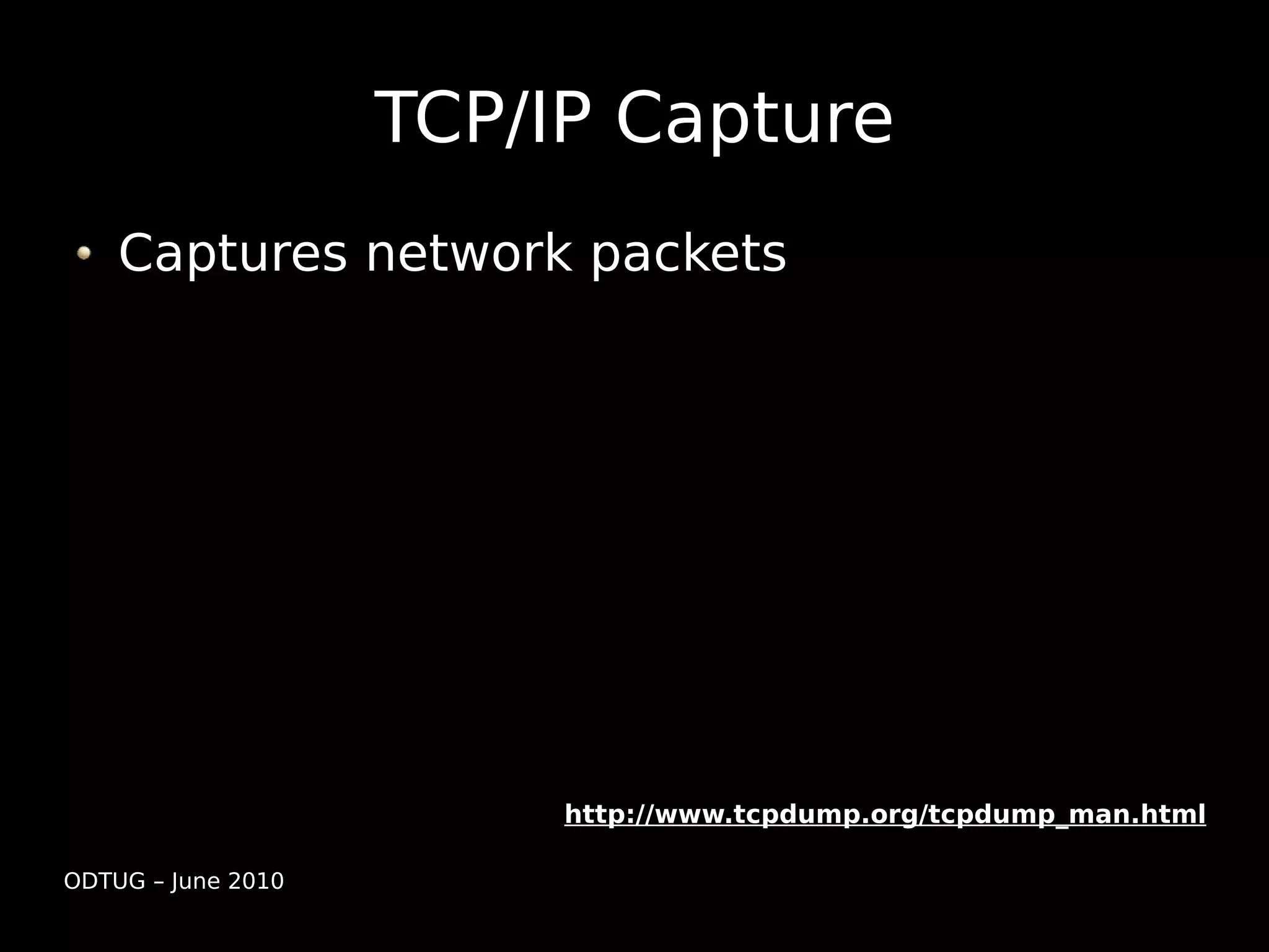

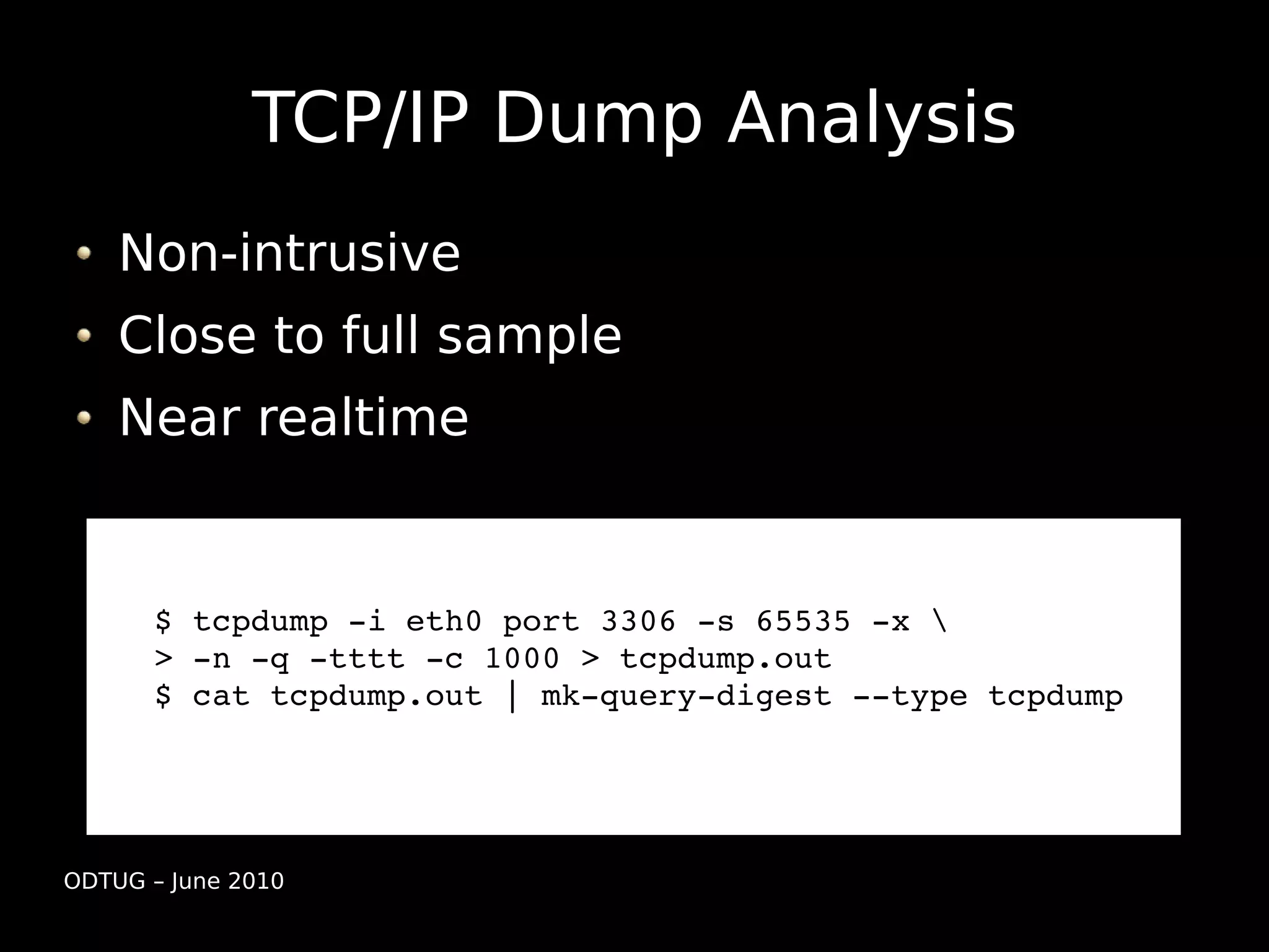

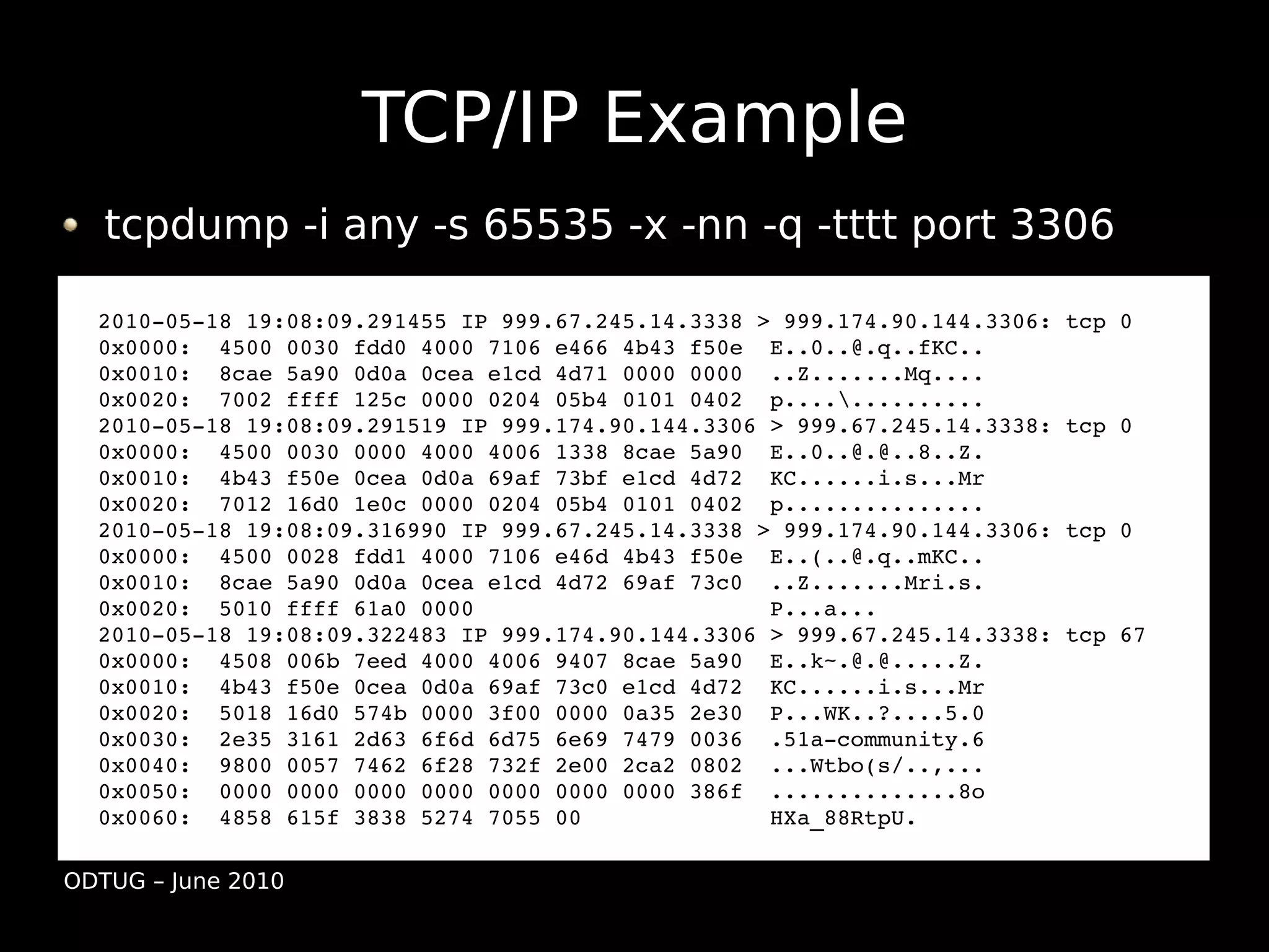

TCP/IP Capture

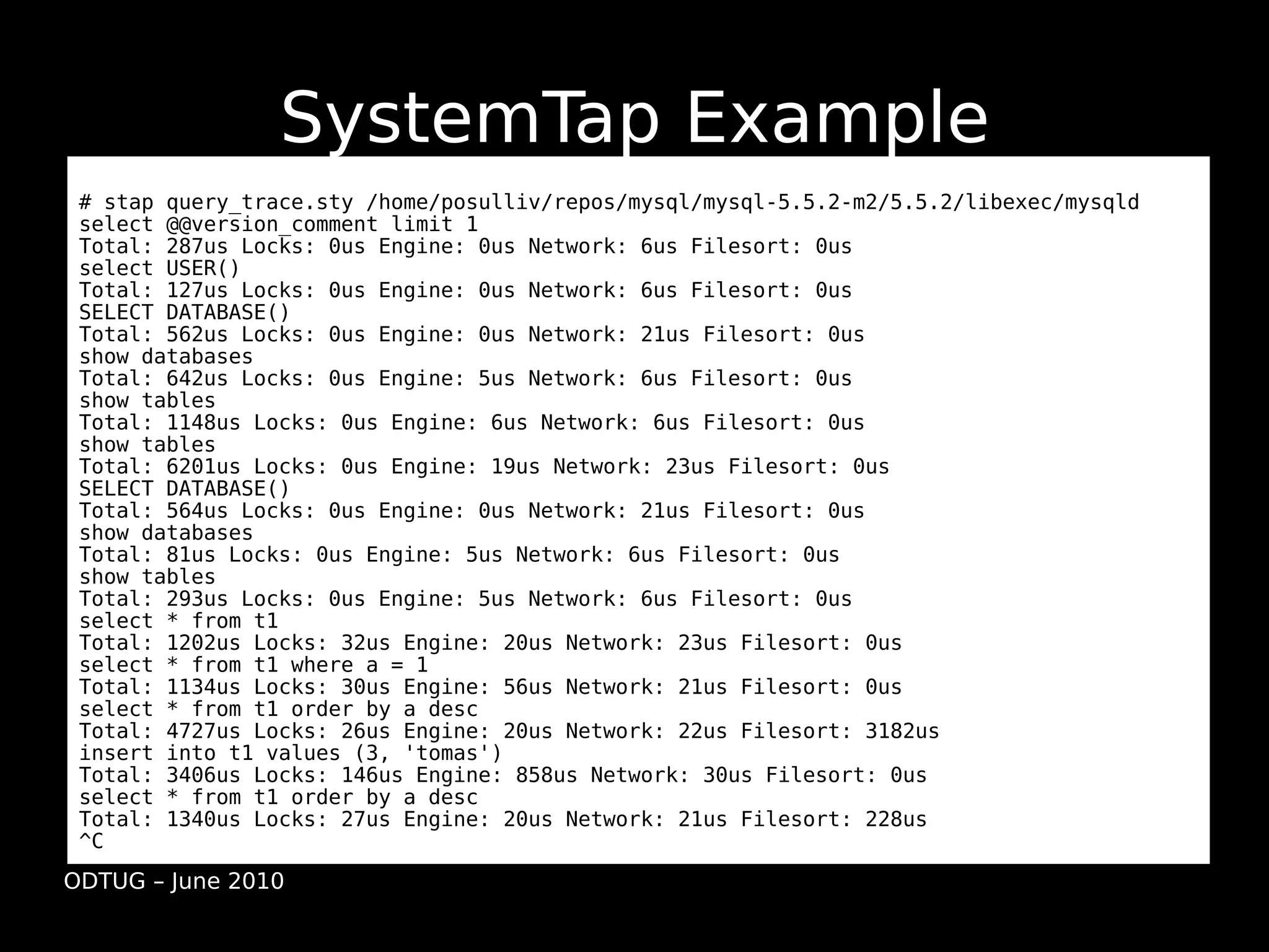

Dtrace/SystemTap
Application Management
ODTUG – June 2010

5. Slow Query Log
Not enabled by default
log-slow-queries = /path/to/file (5.0)
slow_query_log/slow_query_log_file (5.1)
Granularity of seconds
Microsecond patch by percona
Default slow time is 10 seconds
long_query_time = 2
Log output to file or table (5.1)
log_output = FILE | TABLE | BOTH
http://dev.mysql.com/doc/refman/5.1/en/slow-query-log.html
ODTUG – June 2010

6. Slow Query Log Example
# Time: 100518 19:34:31
# User@Host: user[db] @ localhost []
# Query_time: 4 Lock_time: 0 Rows_sent: 1155 Rows_examined: 1663671
select distinct visitorid from log where
timestamp like '20100518%' and accountid!=1 and
accountid!=37 and file not like '%admin%';
# Time: 100518 19:35:37
# User@Host: user[db] @ localhost []
# Query_time: 4 Lock_time: 0 Rows_sent: 6 Rows_examined: 1662525
select distinct accountid from log
where timestamp>='20100518132033' and accountid NOT IN ('0','1','37','1635');
# Time: 100518 19:35:41
# User@Host: user[db] @ localhost []
# Query_time: 4 Lock_time: 0 Rows_sent: 2477 Rows_examined: 1664996
select timestamp, file from log
where timestamp>='20100518000000' and timestamp<='end' and accountid!=1 and accountid!=37
order by timestamp desc;
# Time: 100518 19:35:44
# User@Host: user[db] @ localhost []
# Query_time: 3 Lock_time: 0 Rows_sent: 1157 Rows_examined: 1663676
select distinct visitorid from log
where timestamp like '20100518%' and accountid!=1 and accountid!=37
and file not like '%admin%';
ODTUG – June 2010

7. Slow Query Table Example
mysql> select start_time, query_time, rows_sent, rows_examined, db, sql_text
­> from mysql.slow_log;
+­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| start_time | query_time | rows_sent | rows_examined | db | sql_text |
+­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| 2010­06­14 13:43:37 | 00:03:45 | 1 | 31290045 | drupal | select count(*) from search_index |
+­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
1 row in set (0.00 sec)
mysql>
ODTUG – June 2010

8. General Query Log
Not enabled by default
log = /path/to/file
general_log/general_log_file (5.1)
Log output to file or table (5.1)
log_output = FILE | TABLE | BOTH
Never use in production
Ideal for development, unit testing
environments
http://dev.mysql.com/doc/refman/5.1/en/query-log.html
ODTUG – June 2010

9. General Query Log Example
Output using Wordpress
26 Query SELECT * FROM wp_users WHERE user_login = 'xxxx'
26 Query SELECT meta_key, meta_value FROM wp_usermeta WHERE user_id = 2
26 Query SELECT option_value FROM wp_options WHERE option_name = 'sidebars_widgets' LIMIT 1
26 Query SELECT SQL_CALC_FOUND_ROWS wp_posts.* FROM wp_posts WHERE 1=1 AND
wp_posts.post_type = 'post' AND (wp_posts.post_status = 'publish' OR wp_posts.post_status = 'private')
ORDER BY wp_posts.post_date DESC LIMIT 0, 10
26 Query SELECT FOUND_ROWS()
26 Query SELECT t.*, tt.*, tr.object_id FROM wp_terms AS t INNER JOIN wp_term_taxonomy AS tt
ON tt.term_id = t.term_id INNER JOIN wp_term_relationships AS tr
ON tr.term_taxonomy_id = tt.term_taxonomy_id WHERE tt.taxonomy IN ('category', 'post_tag') AND
tr.object_id IN (2849, 2842, 2836, 2824, 2812, 2680, 2813, 2800, 2770, 2784) ORDER BY t.name ASC
26 Query SELECT post_id, meta_key, meta_value FROM wp_postmeta WHERE post_id
IN (2849,2842,2836,2824,2812,2680,2813,2800,2770,2784)
ODTUG – June 2010

10. General Query Log Example (2)
Framework new connection
23 Connect user@host
23 Query SELECT 1
23 Query SET NAMES utf8
23 Query SET character_set_results = NULL
23 Query SHOW VARIABLES
23 Query SHOW COLLATION
23 Query SET autocommit=1
23 Query SET SESSION TRANSACTION ISOLATION LEVEL READ COMMITTED
23 Query SET autocommit=0
ODTUG – June 2010

11. General Query Log Example (3)
Finding framework overhead
ROLLBACK after every SELECT
SELECT 1 – connection ping test
23 Query select count(*) from collection where account_name = 'xxx'
and user_id = '313'
23 Query rollback
23 Query select 1
23 Query select count(*) from collection where account_name = 'xxx'
and user_id = '346'
23 Query rollback
23 Query select 1
23 Query select name,user_id,date_format(`register_time`,'%Y%m%d%H%i%S') as
createTime from account where name = 'xxx' and
user_id = '346' and `status` = '1'
23 Query rollback
23 Query select 1
23 Query select max(mdate) from received where account_name = 'xxx'
And user_id = '346' order by mdate desc
23 Query rollback
ODTUG – June 2010

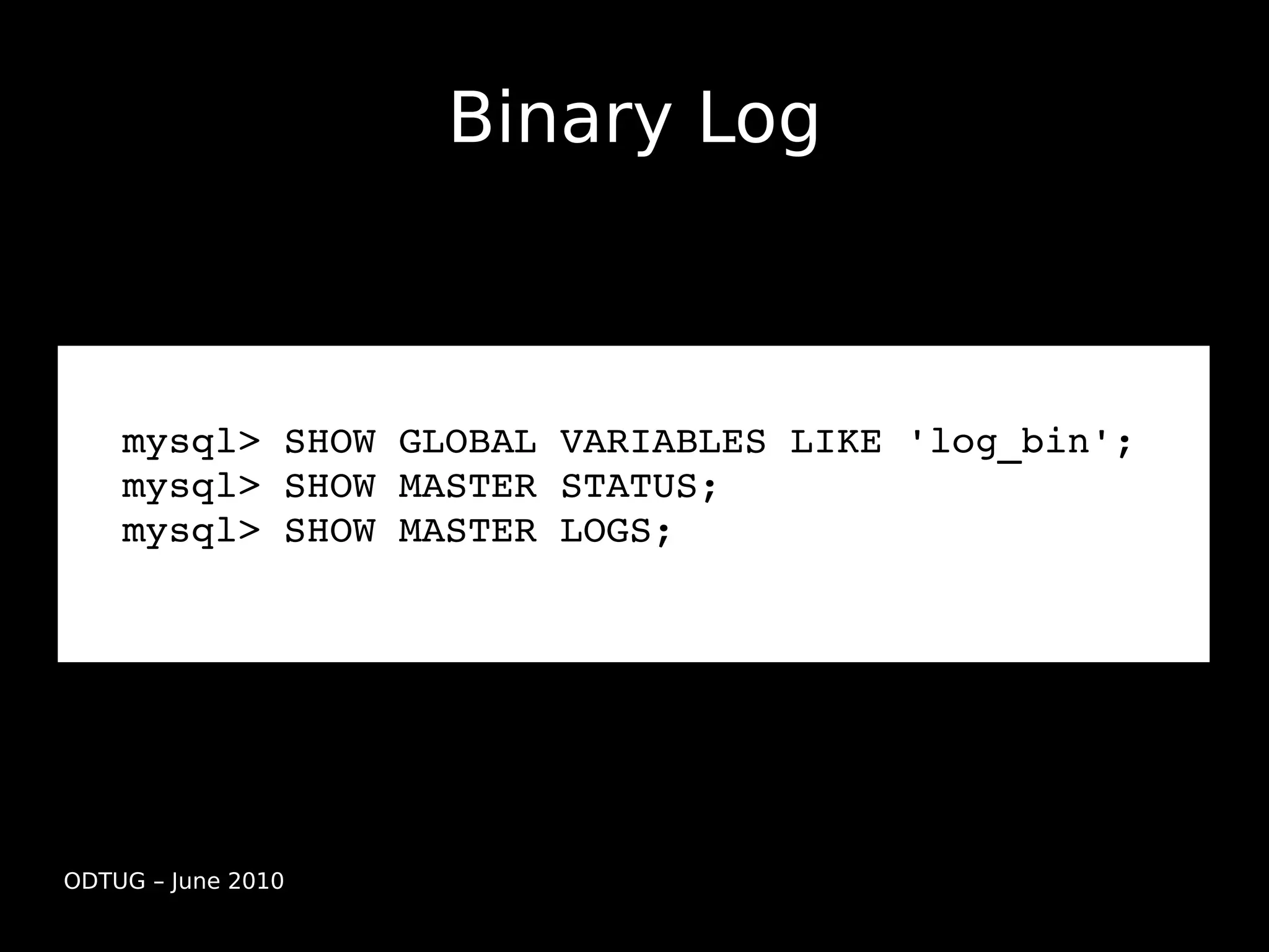

12. Binary Log
Not enabled by default
log-bin = /path/to/file
expire_log_days = 5
View with mysqlbinlog
http://dev.mysql.com/doc/refman/5.1/en/binary-log.html
ODTUG – June 2010

13. Binary Log Example
mysqlbinlog /path/to/log-bin.000000
# at 2461
#100604 10:49:43 server id 1 end_log_pos 2632 Query thread_id=6
exec_time=0 error_code=0
use blog/*!*/;
SET TIMESTAMP=1275662983/*!*/;
UPDATE `wp_postmeta` SET `meta_value` = '1275662983' WHERE
`meta_key` = '_edit_lock'
AND `post_id` = 2849
/*!*/;
# at 21107
#100604 10:58:49 server id 1 end_log_pos 21469 Query thread_id=62 exec_time=0
error_code=0
use monitoringmysql/*!*/;
SET TIMESTAMP=1275663529/*!*/;
SET @@session.time_zone='SYSTEM'/*!*/;
INSERT INTO wp_redirection_logs
(url,sent_to,created,agent,redirection_id,ip,referrer,module_id,group_id)
VALUES ('/mysql­monitoring/dbtuna',NULL,NOW(),'Mozilla/5.0
(compatible; Yahoo! Slurp/3.0; http
://help.yahoo.com/help/us/ysearch/slurp)',NULL, '67.195.114.227', NULL, 3, NULL)
/*!*/;
ODTUG – June 2010

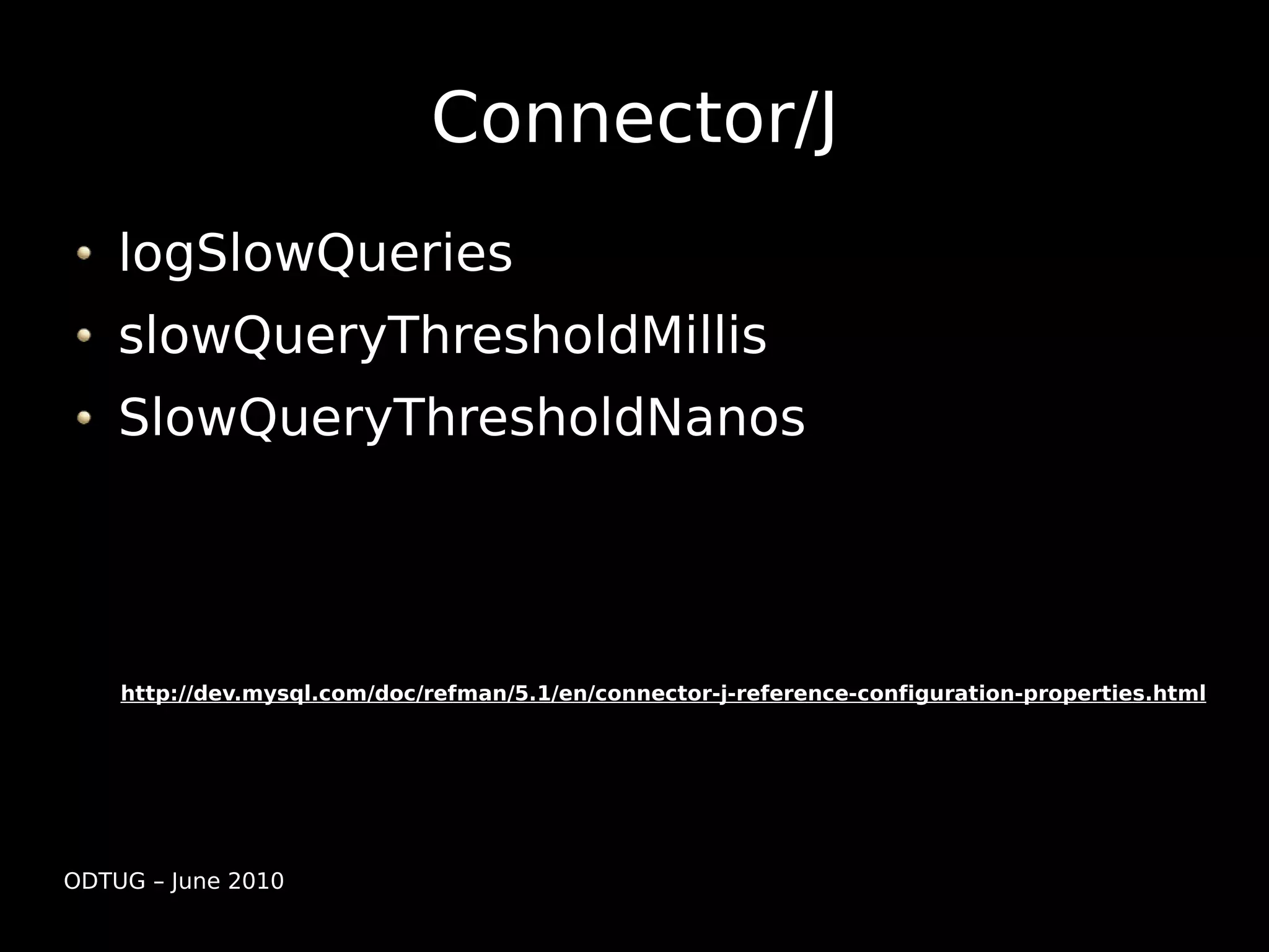

14. Connector/J
logSlowQueries
slowQueryThresholdMillis
SlowQueryThresholdNanos
http://dev.mysql.com/doc/refman/5.1/en/connector-j-reference-configuration-properties.html
ODTUG – June 2010

15. Processlist
Current connection/thread
No filtering options
Ideal for locking
mysql> SHOW [FULL] PROCESSLIST
$ mysqladmin [­v] processlist
mysql> SELECT * FROM INFORMATION_SCHEMA.PROCESSLIST (5.1))
http://dev.mysql.com/doc/refman/5.1/en/show-processlist.html
ODTUG – June 2010

16. Processlist Example
mysql [localhost] {root} ((none)) > show processlist;
+­­­­­­­+­­­­­­+­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­
­­­­­+
| Id | User | Host | db | Command | Time | State | Info
|
+­­­­­­­+­­­­­­+­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­
­­­­­+
| 7 | root | localhost | NULL | Query | 0 | NULL | show processlist
|
| 20017 | root | localhost | oltp | Query | 0 | creating table | create table bench1 (a
int NOT NULL,i int,s char(10),primary key (a)) |
| 20020 | root | localhost | oltp | Query | 1 | copy to tmp table | ALTER TABLE bench ADD
i919 integer,ADD i920 integer,ADD i921 integer,ADD i922 integer,ADD i923 |
+­­­­­­­+­­­­­­+­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­
­­­­­+
3 rows in set (0.00 sec)
ODTUG – June 2010

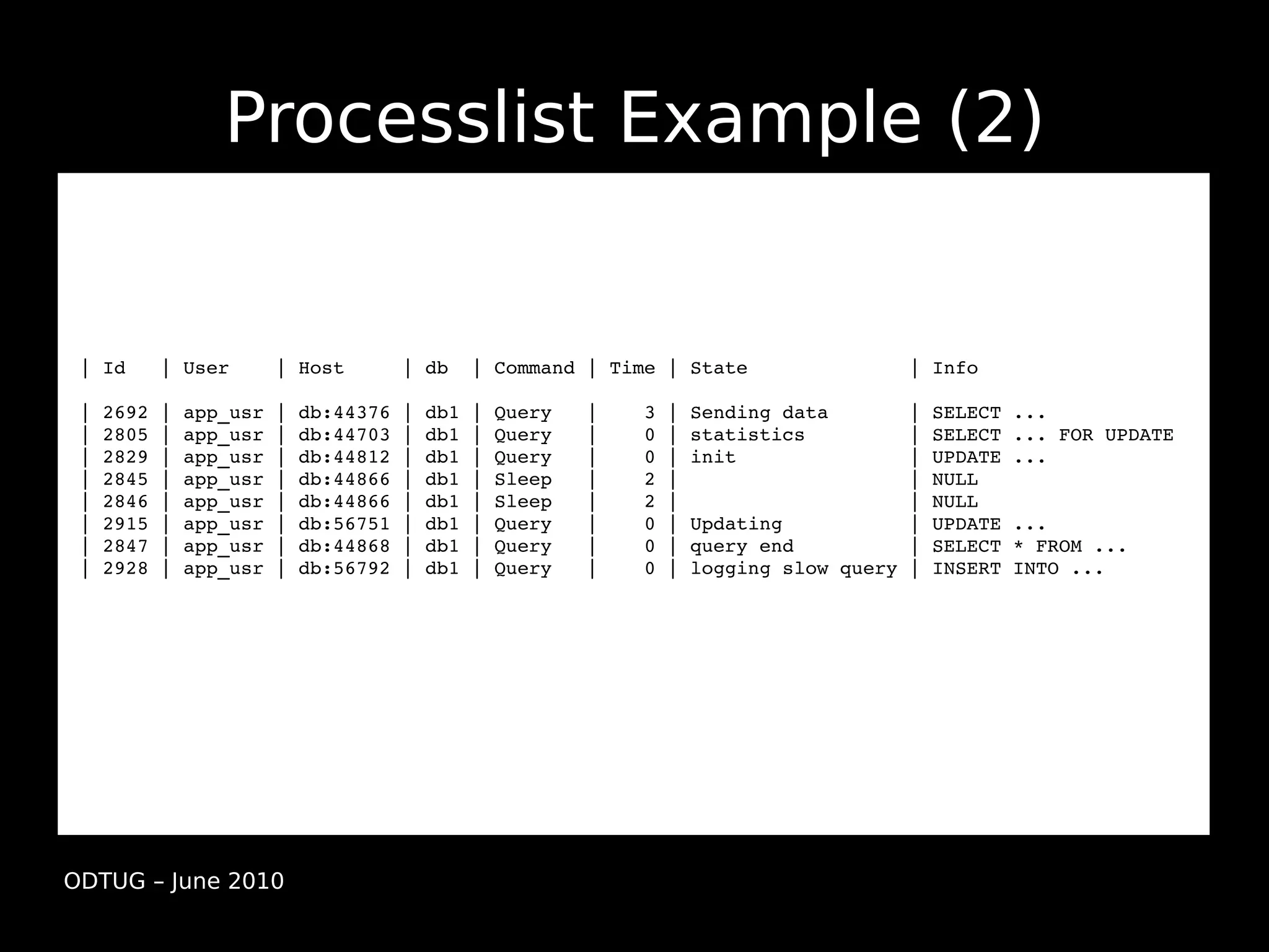

17. Processlist Example (2)
| Id | User | Host | db | Command | Time | State | Info
| 2692 | app_usr | db:44376 | db1 | Query | 3 | Sending data | SELECT ...
| 2805 | app_usr | db:44703 | db1 | Query | 0 | statistics | SELECT ... FOR UPDATE
| 2829 | app_usr | db:44812 | db1 | Query | 0 | init | UPDATE ...
| 2845 | app_usr | db:44866 | db1 | Sleep | 2 | | NULL
| 2846 | app_usr | db:44866 | db1 | Sleep | 2 | | NULL
| 2915 | app_usr | db:56751 | db1 | Query | 0 | Updating | UPDATE ...
| 2847 | app_usr | db:44868 | db1 | Query | 0 | query end | SELECT * FROM ...
| 2928 | app_usr | db:56792 | db1 | Query | 0 | logging slow query | INSERT INTO ...
ODTUG – June 2010

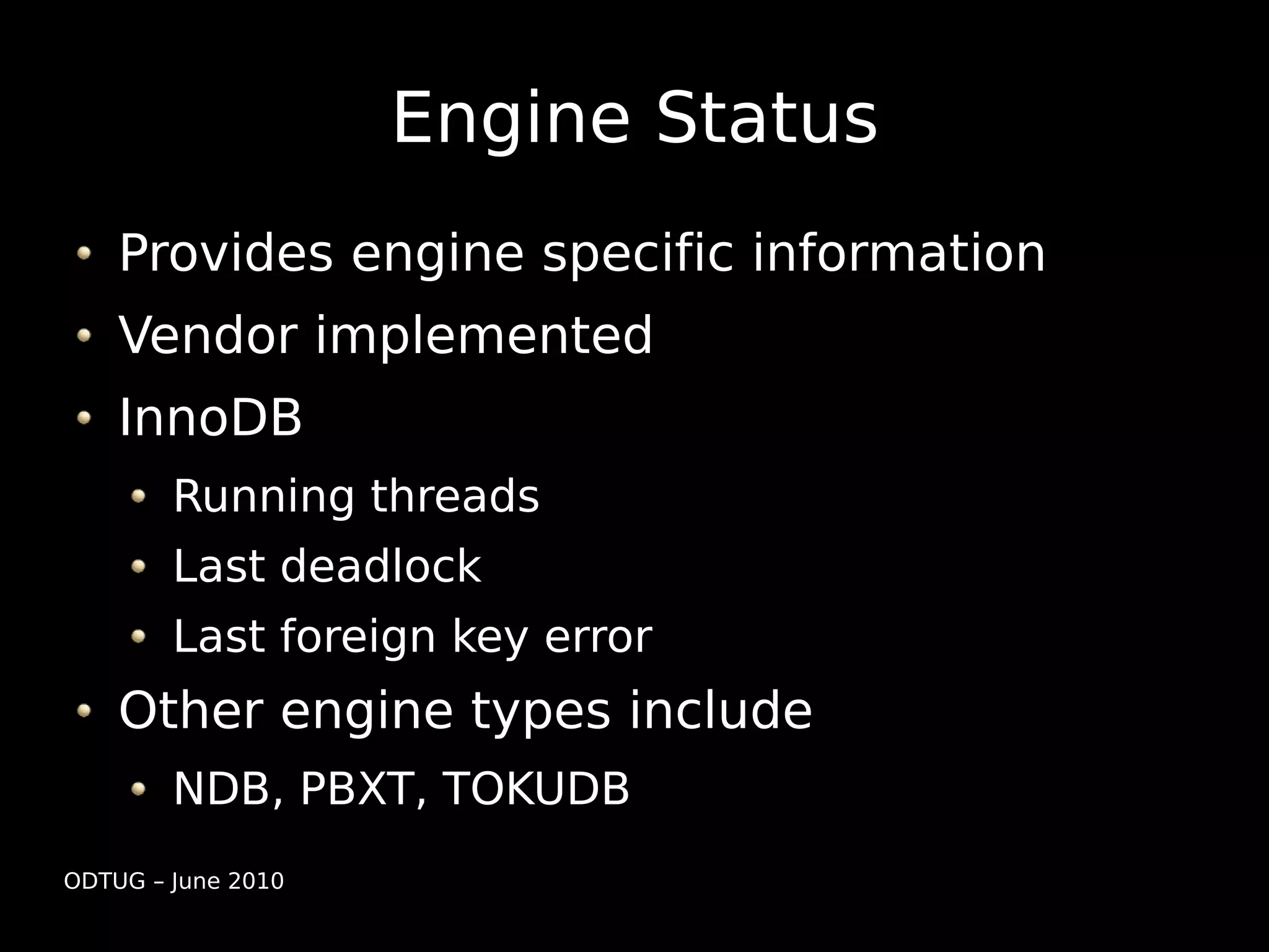

18. Engine Status
Provides engine specific information
Vendor implemented
InnoDB
Running threads
Last deadlock
Last foreign key error
Other engine types include
NDB, PBXT, TOKUDB
ODTUG – June 2010

19. Engine Status
mysql> SHOW ENGINE INNODB STATUS;
http://dev.mysql.com/doc/refman/5.1/en/show-engine.html
ODTUG – June 2010

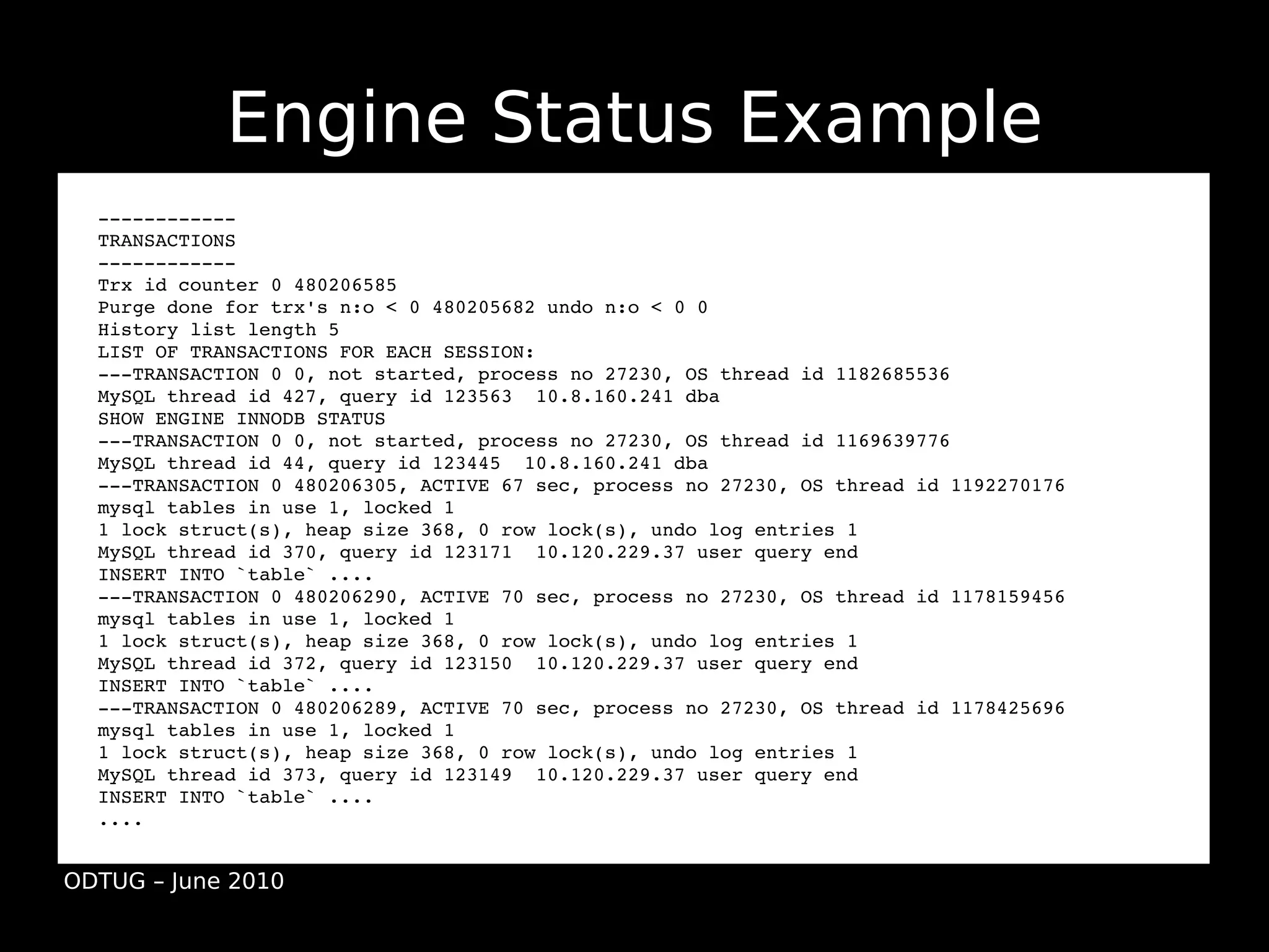

20. Engine Status Example
­­­­­­­­­­­­
TRANSACTIONS
­­­­­­­­­­­­
Trx id counter 0 480206585
Purge done for trx's n:o < 0 480205682 undo n:o < 0 0
History list length 5
LIST OF TRANSACTIONS FOR EACH SESSION:
­­­TRANSACTION 0 0, not started, process no 27230, OS thread id 1182685536
MySQL thread id 427, query id 123563 10.8.160.241 dba
SHOW ENGINE INNODB STATUS
­­­TRANSACTION 0 0, not started, process no 27230, OS thread id 1169639776
MySQL thread id 44, query id 123445 10.8.160.241 dba
­­­TRANSACTION 0 480206305, ACTIVE 67 sec, process no 27230, OS thread id 1192270176
mysql tables in use 1, locked 1
1 lock struct(s), heap size 368, 0 row lock(s), undo log entries 1
MySQL thread id 370, query id 123171 10.120.229.37 user query end
INSERT INTO `table` ....
­­­TRANSACTION 0 480206290, ACTIVE 70 sec, process no 27230, OS thread id 1178159456
mysql tables in use 1, locked 1
1 lock struct(s), heap size 368, 0 row lock(s), undo log entries 1
MySQL thread id 372, query id 123150 10.120.229.37 user query end
INSERT INTO `table` ....
­­­TRANSACTION 0 480206289, ACTIVE 70 sec, process no 27230, OS thread id 1178425696
mysql tables in use 1, locked 1
1 lock struct(s), heap size 368, 0 row lock(s), undo log entries 1
MySQL thread id 373, query id 123149 10.120.229.37 user query end
INSERT INTO `table` ....
....
ODTUG – June 2010

21. Engine Status Example (2)
------------------------
LATEST DETECTED DEADLOCK
------------------------
090624 14:32:18
*** (1) TRANSACTION:
TRANSACTION 0 39639074, ACTIVE 0 sec, process no 27807, OS thread id 1176562016 inserting
mysql tables in use 1, locked 1
LOCK WAIT 7 lock struct(s), heap size 1216
MySQL thread id 1225, query id 4695283 10.120.19.204 db update
INSERT INTO table VALUES(254381,638,1,57)
*** (1) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 0 page no 6371457 n bits 248 index `PRIMARY` of table `db/table` trx id 0 39639074 lock_mode X insert intention waiting
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
0: len 8; hex 73757072656d756d; asc supremum;;
*** (2) TRANSACTION:
TRANSACTION 0 39639079, ACTIVE 0 sec, process no 27807, OS thread id 1179224416 inserting, thread declared inside InnoDB 500
mysql tables in use 1, locked 1
7 lock struct(s), heap size 1216
MySQL thread id 1229, query id 4695295 prodgos23.eao.abn-iad.ea.com 10.120.19.204 madden_2010 update
INSERT INTO table VALUES(254382,746,1,57)
*** (2) HOLDS THE LOCK(S):
RECORD LOCKS space id 0 page no 6371457 n bits 248 index `PRIMARY` of table `madden_2010_franchise_xbl2/franchise_draft_board` trx id 0 39639079
lock_mode X
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
0: len 8; hex 73757072656d756d; asc supremum;;
*** (2) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 0 page no 6371457 n bits 248 index `PRIMARY` of table `db/table` trx id 0 39639079 lock_mode X insert intention waiting
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
0: len 8; hex 73757072656d756d; asc supremum;;
*** WE ROLL BACK TRANSACTION (2)
ODTUG – June 2010

22. Status Variables
Shows incrementing internal counters
Volume of SQL
Read/Write ratio
ODTUG – June 2010

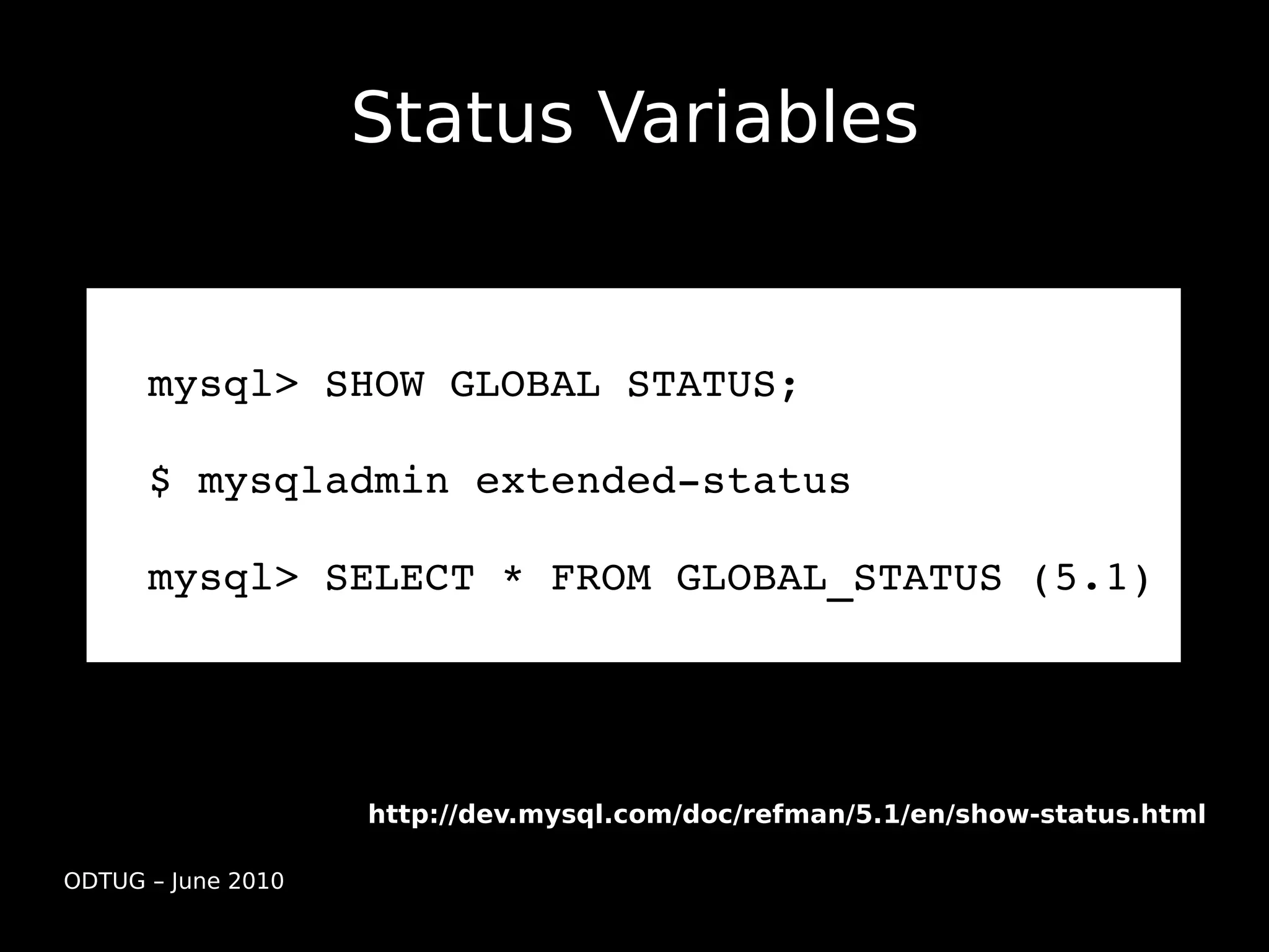

23. Status Variables
mysql> SHOW GLOBAL STATUS;
$ mysqladmin extended­status
mysql> SELECT * FROM GLOBAL_STATUS (5.1)
http://dev.mysql.com/doc/refman/5.1/en/show-status.html
ODTUG – June 2010

24. Status Variables Example
| Com_select | 553971 |
| Com_insert | 64068 |
| Com_insert_select | 6521 |
| Com_update | 190627 |
| Com_update_multi | 4809 |
| Com_delete | 95197 |
| Com_delete_multi | 1408 |
| Com_replace | 1549 |
| Com_replace_select | 0 |
ODTUG – June 2010

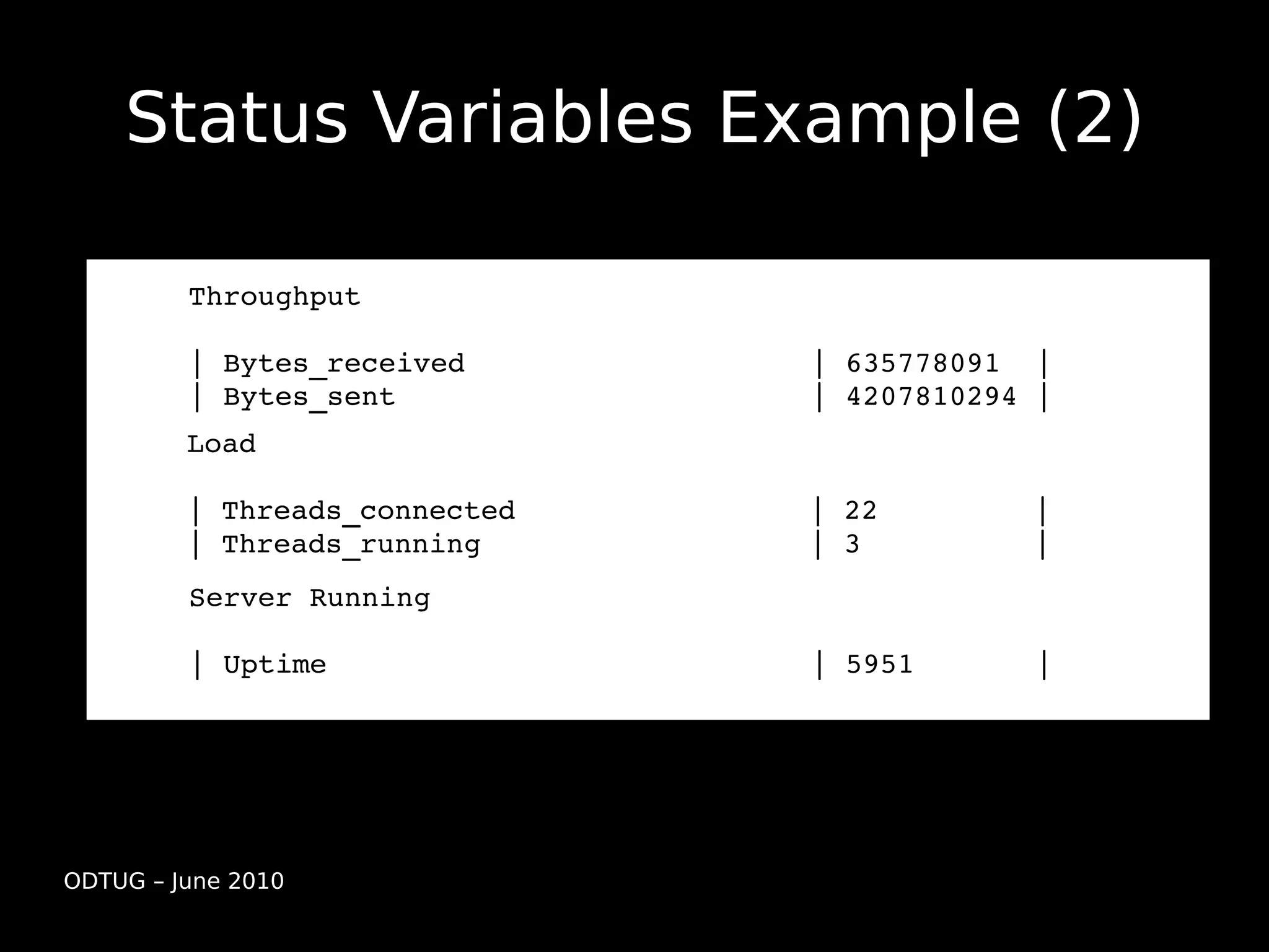

25. Status Variables Example (2)
| Bytes_received | 635778091 |
| Bytes_sent | 4207810294 |
Throughput
| Bytes_received | 635778091 |
| Bytes_sent | 4207810294 |
Load
| Threads_connected | 22 |
| Threads_connected | 22 |
| Threads_running | 3 |
| Threads_running | 3 |
Server Running
| Uptime | 5951 |
ODTUG – June 2010

26. Status Variables Example (3)
●$ mysqladmin ­u ­p ­r ­s 1 extended status | grep ­v “| 0”
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+
| Variable_name | Value |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+
| Bytes_received | 8888 |
| Bytes_sent | 151482 |
| Com_select | 114 |
| Com_show_status | 1 |
| Created_tmp_tables | 2 |
| Handler_read_key | 194 |
| Handler_read_next | 273 |
| Handler_read_rnd | 165 |
| Handler_read_rnd_next | 47416 |
| Handler_write | 289 |
| Key_read_requests | 1555 |
| Questions | 116 |
| Select_range | 23 |
| Select_scan | 3 |
| Sort_rows | 165 |
| Sort_scan | 3 |
| Table_locks_immediate | 115 |
| Threads_connected | ­1 |
| Threads_running | ­1 |
| Uptime | 1 |
| Uptime_since_flush_status | 1 |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­+
ODTUG – June 2010

27. MySQL Proxy
Included histogram.lua
Gives read/write breakdown per table
Shows top executing queries by frequency
Shows max and avg execution time
http://dev.mysql.com/doc/refman/5.1/en/mysql-proxy.html
https://launchpad.net/mysql-proxy
http://ronaldbradford.com/blog/sql-query-analysis-with-mysql-proxy-2009-09-02/
ODTUG – June 2010

28. MySQL Proxy Example
mysql> select * from histogram.tables;
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­+
| table | reads | writes |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­+
| schema1.dotCommLookup | 991 | 0 |
| schema2xxxxxx.dotCommClient | 6 | 0 |
| schema2xxxxxx.ReleaseNumbers | 3 | 6 |
| schema2xxxxxx.PAYCYCLE | 1 | 0 |
| schema1.dotCommClient | 1505 | 0 |
| schema1.Job | 131 | 0 |
| schema2xxxxxx.CondMod | 0 | 28 |
| schema2xxxxxx.SPINFO | 3 | 0 |
| schema1.Poll | 1184 | 633 |
| schema2xxxxxx.LaborSchedules | 0 | 96 |
| schema1.JobRequest | 192 | 0 |
| schema1.PollTasks | 454 | 1048 |
| schema1.Tasks | 1048 | 0 |
| schema1.auth | 141 | 59 |
| schema2xxxxxx.dotComm | 2 | 0 |
| schema2xxxxxx.MenuItem | 0 | 2446 |
| schema1.Location | 19 | 118 |
| schema2xxxxxx.CONCASH | 2 | 0 |
| schema1.dotComm | 156 | 0 |
| schema1.Client | 47 | 0 |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­+
20 rows in set (0.00 sec)
ODTUG – June 2010

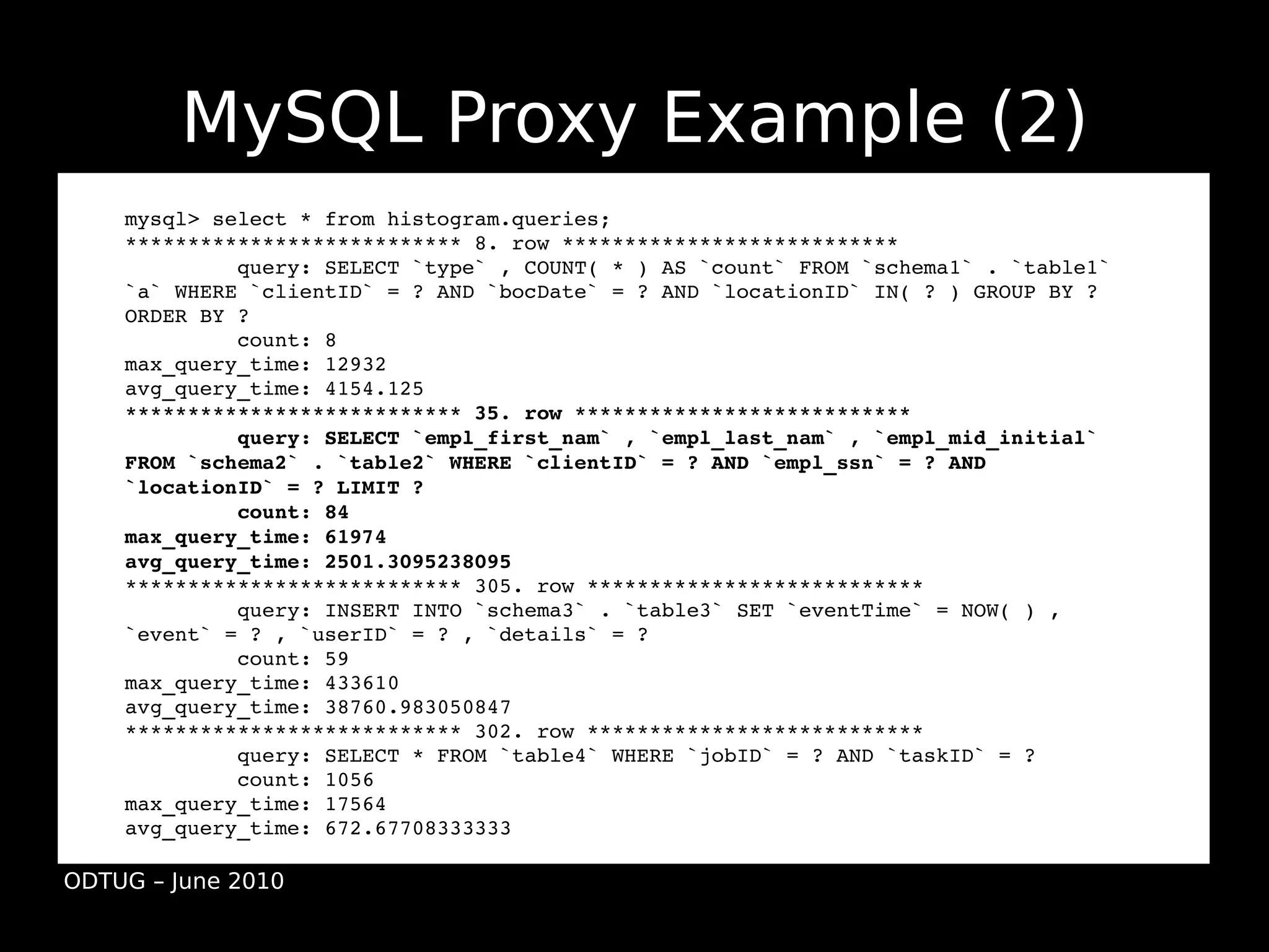

29. MySQL Proxy Example (2)
mysql> select * from histogram.queries;
*************************** 8. row ***************************
query: SELECT `type` , COUNT( * ) AS `count` FROM `schema1` . `table1`
`a` WHERE `clientID` = ? AND `bocDate` = ? AND `locationID` IN( ? ) GROUP BY ?
ORDER BY ?
count: 8
max_query_time: 12932
avg_query_time: 4154.125
*************************** 35. row ***************************
query: SELECT `empl_first_nam` , `empl_last_nam` , `empl_mid_initial`
FROM `schema2` . `table2` WHERE `clientID` = ? AND `empl_ssn` = ? AND
`locationID` = ? LIMIT ?
count: 84
max_query_time: 61974
avg_query_time: 2501.3095238095
*************************** 305. row ***************************
query: INSERT INTO `schema3` . `table3` SET `eventTime` = NOW( ) ,
`event` = ? , `userID` = ? , `details` = ?
count: 59
max_query_time: 433610
avg_query_time: 38760.983050847
*************************** 302. row ***************************
query: SELECT * FROM `table4` WHERE `jobID` = ? AND `taskID` = ?
count: 1056
max_query_time: 17564
avg_query_time: 672.67708333333
ODTUG – June 2010

30. TCP/IP Capture
Captures network packets
http://www.tcpdump.org/tcpdump_man.html
ODTUG – June 2010

31. TCP/IP Example
tcpdump -i any -s 65535 -x -nn -q -tttt port 3306
2010­05­18 19:08:09.291455 IP 999.67.245.14.3338 > 999.174.90.144.3306: tcp 0
0x0000: 4500 0030 fdd0 4000 7106 e466 4b43 f50e E..0..@.q..fKC..
0x0010: 8cae 5a90 0d0a 0cea e1cd 4d71 0000 0000 ..Z.......Mq....
0x0020: 7002 ffff 125c 0000 0204 05b4 0101 0402 p..............
2010­05­18 19:08:09.291519 IP 999.174.90.144.3306 > 999.67.245.14.3338: tcp 0
0x0000: 4500 0030 0000 4000 4006 1338 8cae 5a90 E..0..@.@..8..Z.
0x0010: 4b43 f50e 0cea 0d0a 69af 73bf e1cd 4d72 KC......i.s...Mr
0x0020: 7012 16d0 1e0c 0000 0204 05b4 0101 0402 p...............
2010­05­18 19:08:09.316990 IP 999.67.245.14.3338 > 999.174.90.144.3306: tcp 0
0x0000: 4500 0028 fdd1 4000 7106 e46d 4b43 f50e E..(..@.q..mKC..
0x0010: 8cae 5a90 0d0a 0cea e1cd 4d72 69af 73c0 ..Z.......Mri.s.
0x0020: 5010 ffff 61a0 0000 P...a...
2010­05­18 19:08:09.322483 IP 999.174.90.144.3306 > 999.67.245.14.3338: tcp 67
0x0000: 4508 006b 7eed 4000 4006 9407 8cae 5a90 E..k~.@.@.....Z.
0x0010: 4b43 f50e 0cea 0d0a 69af 73c0 e1cd 4d72 KC......i.s...Mr
0x0020: 5018 16d0 574b 0000 3f00 0000 0a35 2e30 P...WK..?....5.0
0x0030: 2e35 3161 2d63 6f6d 6d75 6e69 7479 0036 .51a­community.6
0x0040: 9800 0057 7462 6f28 732f 2e00 2ca2 0802 ...Wtbo(s/..,...
0x0050: 0000 0000 0000 0000 0000 0000 0000 386f ..............8o
0x0060: 4858 615f 3838 5274 7055 00 HXa_88RtpU.
ODTUG – June 2010

32. DTrace/SystemTap
Observability technologies
Enable the behavior of running systems
and applications to be investigated
Zero probe effect when not enabled
http://www.sun.com/bigadmin/content/dtrace/index.jsp
http://sourceware.org/systemtap/
ODTUG – June 2010

33. SystemTap Example
# stap query_trace.sty /home/posulliv/repos/mysql/mysql-5.5.2-m2/5.5.2/libexec/mysqld
select @@version_comment limit 1
Total: 287us Locks: 0us Engine: 0us Network: 6us Filesort: 0us
select USER()
Total: 127us Locks: 0us Engine: 0us Network: 6us Filesort: 0us
SELECT DATABASE()
Total: 562us Locks: 0us Engine: 0us Network: 21us Filesort: 0us
show databases
Total: 642us Locks: 0us Engine: 5us Network: 6us Filesort: 0us
show tables
Total: 1148us Locks: 0us Engine: 6us Network: 6us Filesort: 0us
show tables
Total: 6201us Locks: 0us Engine: 19us Network: 23us Filesort: 0us
SELECT DATABASE()
Total: 564us Locks: 0us Engine: 0us Network: 21us Filesort: 0us
show databases
Total: 81us Locks: 0us Engine: 5us Network: 6us Filesort: 0us
show tables
Total: 293us Locks: 0us Engine: 5us Network: 6us Filesort: 0us
select * from t1
Total: 1202us Locks: 32us Engine: 20us Network: 23us Filesort: 0us
select * from t1 where a = 1
Total: 1134us Locks: 30us Engine: 56us Network: 21us Filesort: 0us
select * from t1 order by a desc
Total: 4727us Locks: 26us Engine: 20us Network: 22us Filesort: 3182us
insert into t1 values (3, 'tomas')
Total: 3406us Locks: 146us Engine: 858us Network: 30us Filesort: 0us
select * from t1 order by a desc
Total: 1340us Locks: 27us Engine: 20us Network: 21us Filesort: 228us
^C
ODTUG – June 2010

34. Analyzing your SQL
ODTUG – June 2010

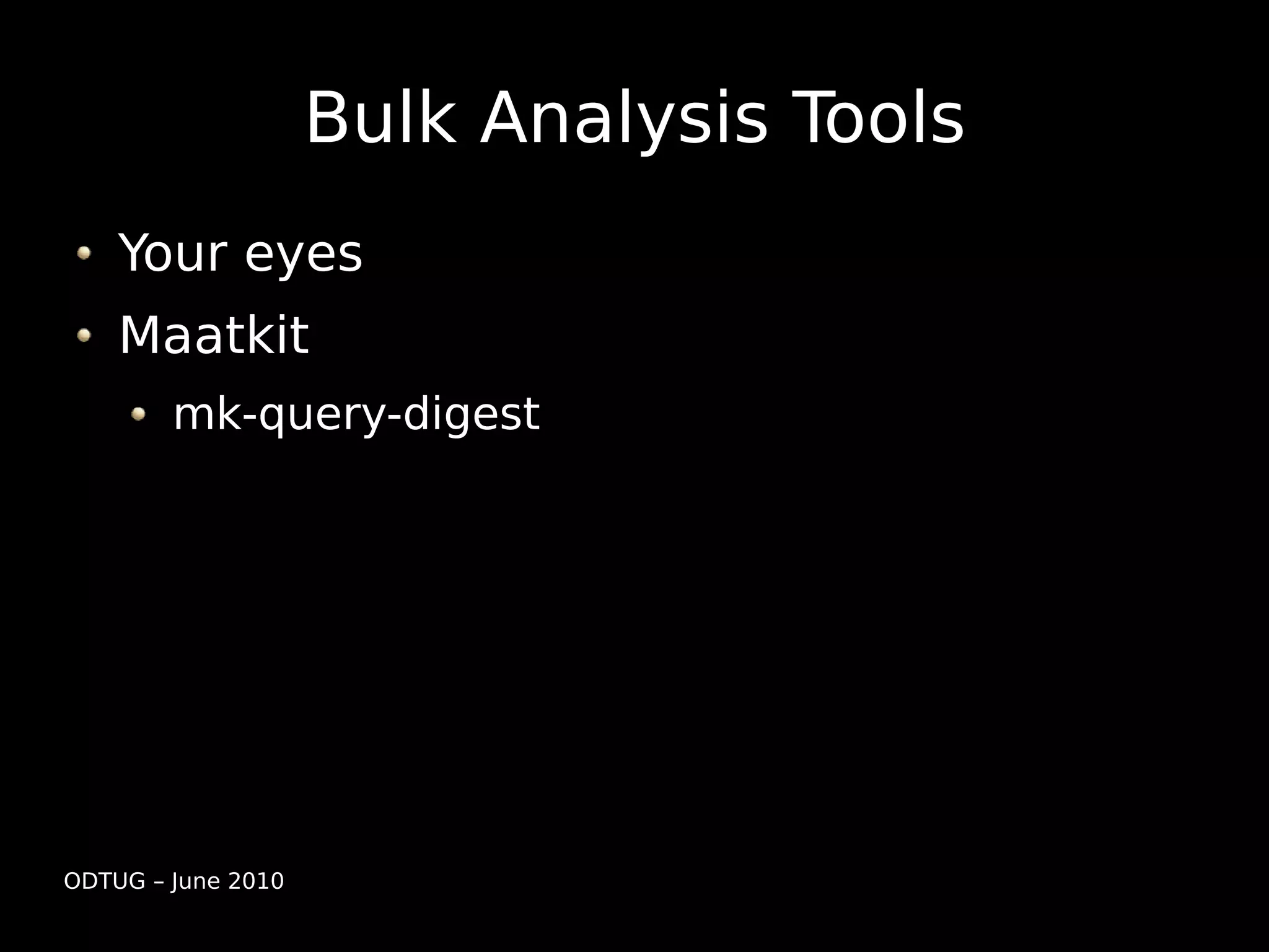

35. Bulk Analysis Tools
Your eyes
Maatkit
mk-query-digest
ODTUG – June 2010

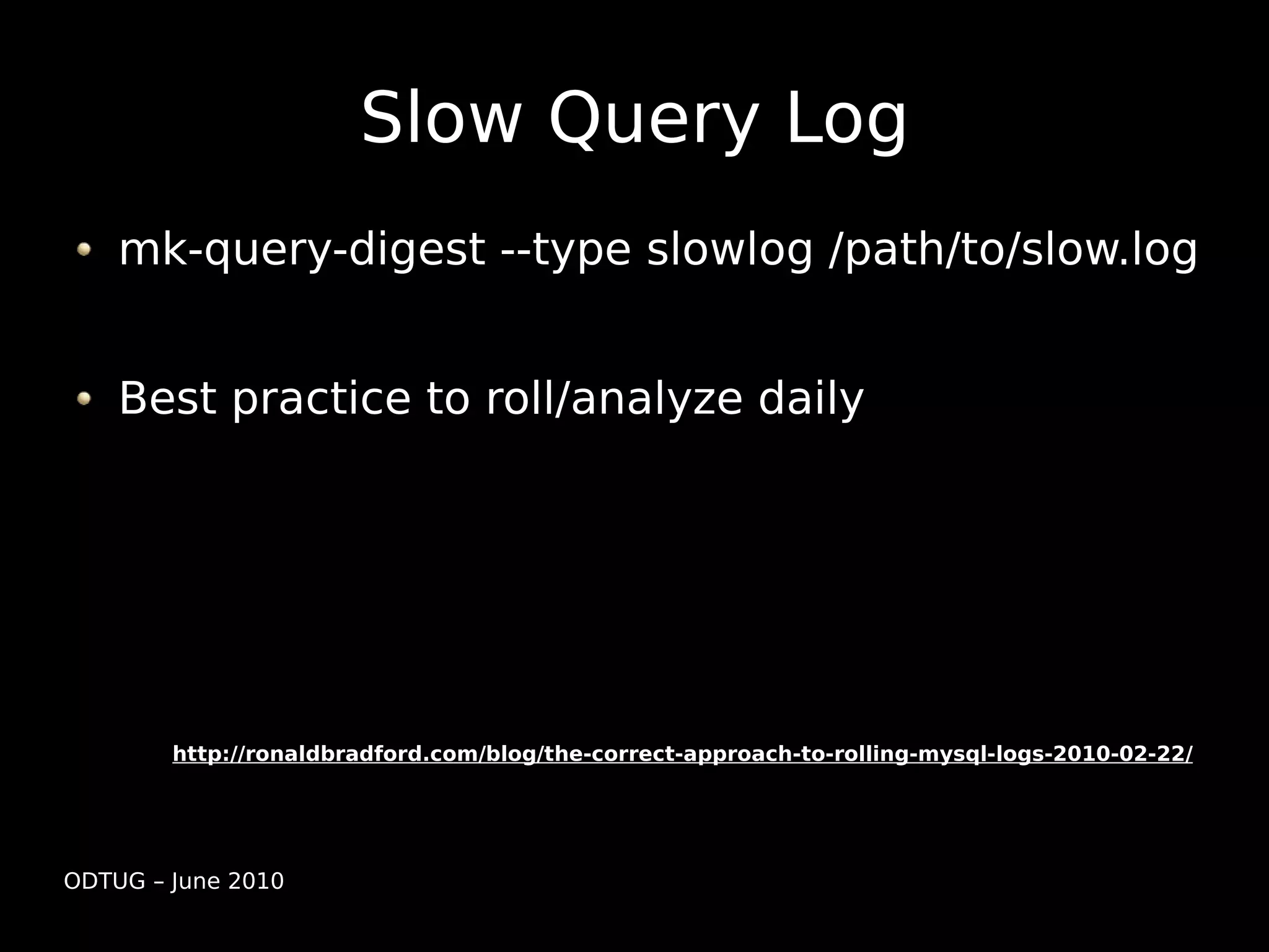

36. Slow Query Log
mk-query-digest --type slowlog /path/to/slow.log
Best practice to roll/analyze daily
http://ronaldbradford.com/blog/the-correct-approach-to-rolling-mysql-logs-2010-02-22/
ODTUG – June 2010

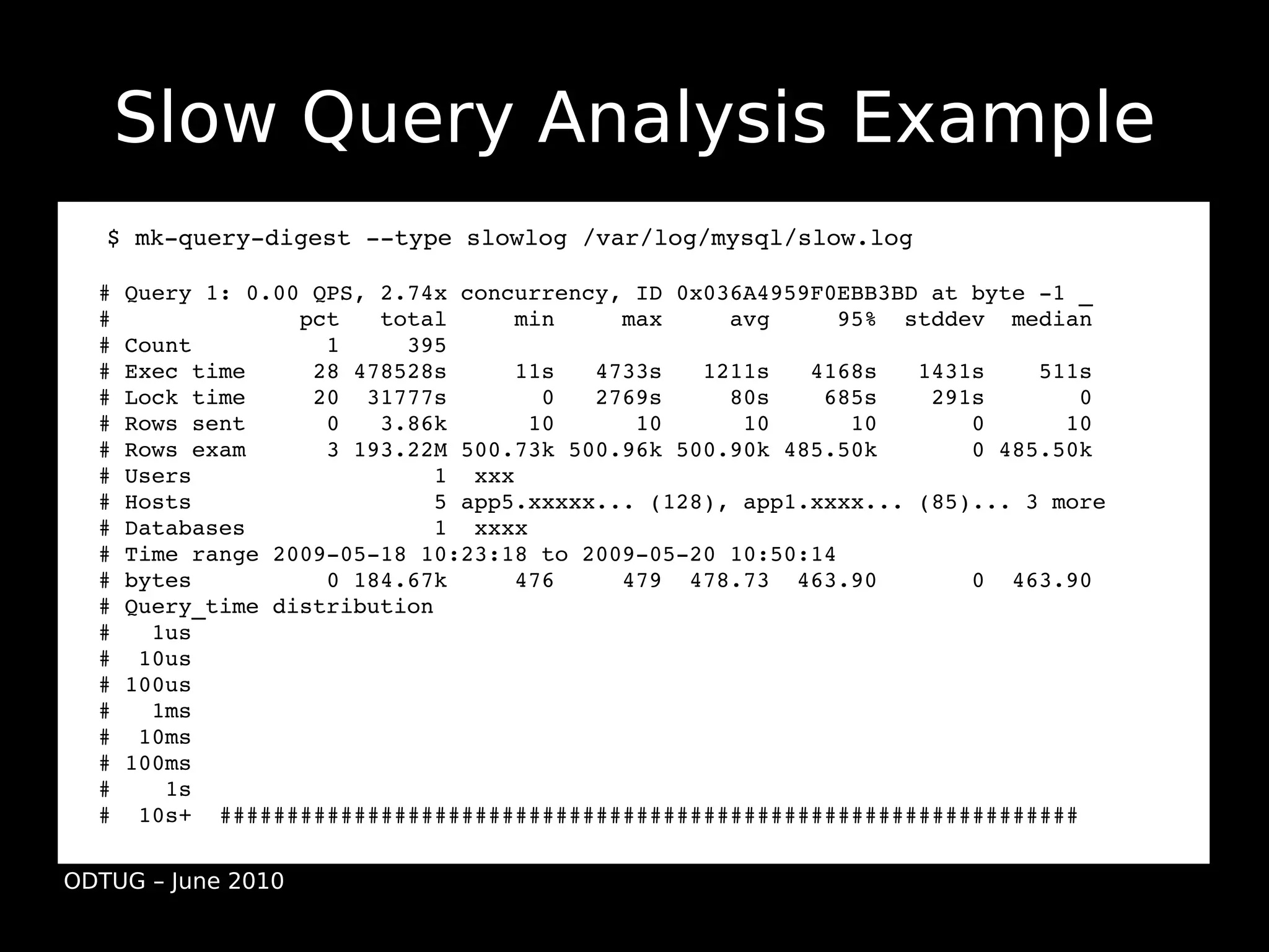

37. Slow Query Analysis Example
● $ mk­query­digest ­­type slowlog /var/log/mysql/slow.log
●
# Query 1: 0.00 QPS, 2.74x concurrency, ID 0x036A4959F0EBB3BD at byte ­1 _
# pct total min max avg 95% stddev median
# Count 1 395
# Exec time 28 478528s 11s 4733s 1211s 4168s 1431s 511s
# Lock time 20 31777s 0 2769s 80s 685s 291s 0
# Rows sent 0 3.86k 10 10 10 10 0 10
# Rows exam 3 193.22M 500.73k 500.96k 500.90k 485.50k 0 485.50k
# Users 1 xxx
# Hosts 5 app5.xxxxx... (128), app1.xxxx... (85)... 3 more
# Databases 1 xxxx
# Time range 2009­05­18 10:23:18 to 2009­05­20 10:50:14
# bytes 0 184.67k 476 479 478.73 463.90 0 463.90
# Query_time distribution
# 1us
# 10us
# 100us
# 1ms
# 10ms
# 100ms
# 1s
# 10s+ ################################################################
ODTUG – June 2010

38. Slow Query Analysis Example
# Tables
# SHOW TABLE STATUS FROM `xxxx` LIKE 'gg'G
# SHOW CREATE TABLE `xxxx`.`gg`G
# SHOW TABLE STATUS FROM `xxxx ` LIKE 'gr'G
# SHOW CREATE TABLE `xxxx `.`gr`G
# SHOW TABLE STATUS FROM `xxxx ` LIKE 'tt'G
# SHOW CREATE TABLE `xxxx `.`tt`G
# EXPLAIN
SELECT tt.*,
(SELECT COUNT(*) FROM gg WHERE gg.tt_user_id = tt.id) AS g_c,
(SELECT COUNT(*) FROM WHERE gr.tt_user_id = tt.id ) AS r_c
FROM tt AS tt
WHERE 1 AND tt.user_type = 'CUSTOMER'
GROUP BY tt.id HAVING g_c > 1 OR r_c > 1
ORDER BY tt.id desc, g_c DESC , r_c DESC
LIMIT 10 OFFSET 0G
ODTUG – June 2010

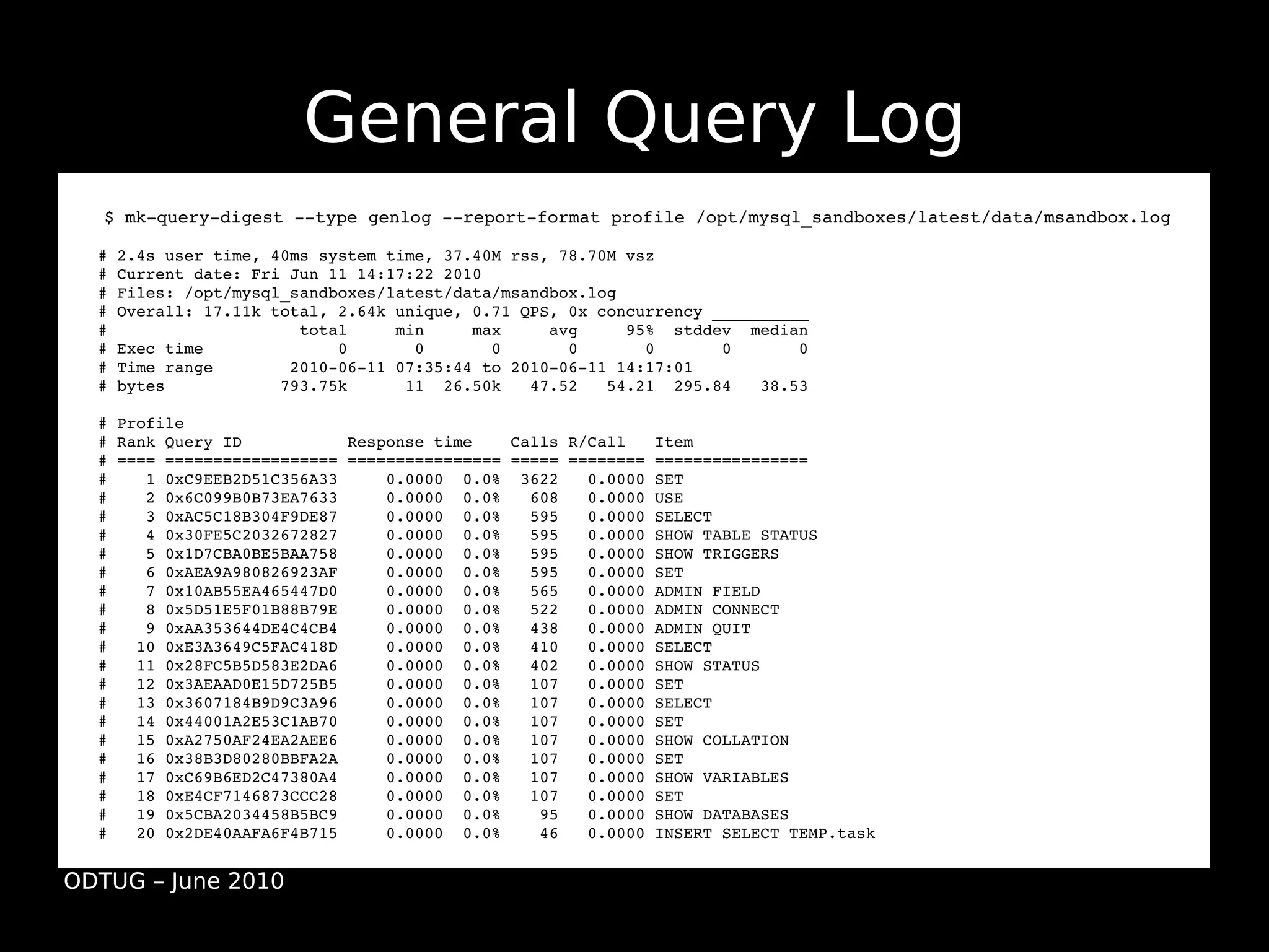

39. General Query Log
● $ mk­query­digest ­­type genlog ­­report­format profile /opt/mysql_sandboxes/latest/data/msandbox.log
# 2.4s user time, 40ms system time, 37.40M rss, 78.70M vsz
# Current date: Fri Jun 11 14:17:22 2010
# Files: /opt/mysql_sandboxes/latest/data/msandbox.log
# Overall: 17.11k total, 2.64k unique, 0.71 QPS, 0x concurrency __________
# total min max avg 95% stddev median
# Exec time 0 0 0 0 0 0 0
# Time range 2010­06­11 07:35:44 to 2010­06­11 14:17:01
# bytes 793.75k 11 26.50k 47.52 54.21 295.84 38.53
# Profile
# Rank Query ID Response time Calls R/Call Item
# ==== ================== ================ ===== ======== ================
# 1 0xC9EEB2D51C356A33 0.0000 0.0% 3622 0.0000 SET
# 2 0x6C099B0B73EA7633 0.0000 0.0% 608 0.0000 USE
# 3 0xAC5C18B304F9DE87 0.0000 0.0% 595 0.0000 SELECT
# 4 0x30FE5C2032672827 0.0000 0.0% 595 0.0000 SHOW TABLE STATUS
# 5 0x1D7CBA0BE5BAA758 0.0000 0.0% 595 0.0000 SHOW TRIGGERS
# 6 0xAEA9A980826923AF 0.0000 0.0% 595 0.0000 SET
# 7 0x10AB55EA465447D0 0.0000 0.0% 565 0.0000 ADMIN FIELD
# 8 0x5D51E5F01B88B79E 0.0000 0.0% 522 0.0000 ADMIN CONNECT
# 9 0xAA353644DE4C4CB4 0.0000 0.0% 438 0.0000 ADMIN QUIT
# 10 0xE3A3649C5FAC418D 0.0000 0.0% 410 0.0000 SELECT
# 11 0x28FC5B5D583E2DA6 0.0000 0.0% 402 0.0000 SHOW STATUS
# 12 0x3AEAAD0E15D725B5 0.0000 0.0% 107 0.0000 SET
# 13 0x3607184B9D9C3A96 0.0000 0.0% 107 0.0000 SELECT
# 14 0x44001A2E53C1AB70 0.0000 0.0% 107 0.0000 SET
# 15 0xA2750AF24EA2AEE6 0.0000 0.0% 107 0.0000 SHOW COLLATION
# 16 0x38B3D80280BBFA2A 0.0000 0.0% 107 0.0000 SET
# 17 0xC69B6ED2C47380A4 0.0000 0.0% 107 0.0000 SHOW VARIABLES
# 18 0xE4CF7146873CCC28 0.0000 0.0% 107 0.0000 SET
# 19 0x5CBA2034458B5BC9 0.0000 0.0% 95 0.0000 SHOW DATABASES
# 20 0x2DE40AAFA6F4B715 0.0000 0.0% 46 0.0000 INSERT SELECT TEMP.task
ODTUG – June 2010

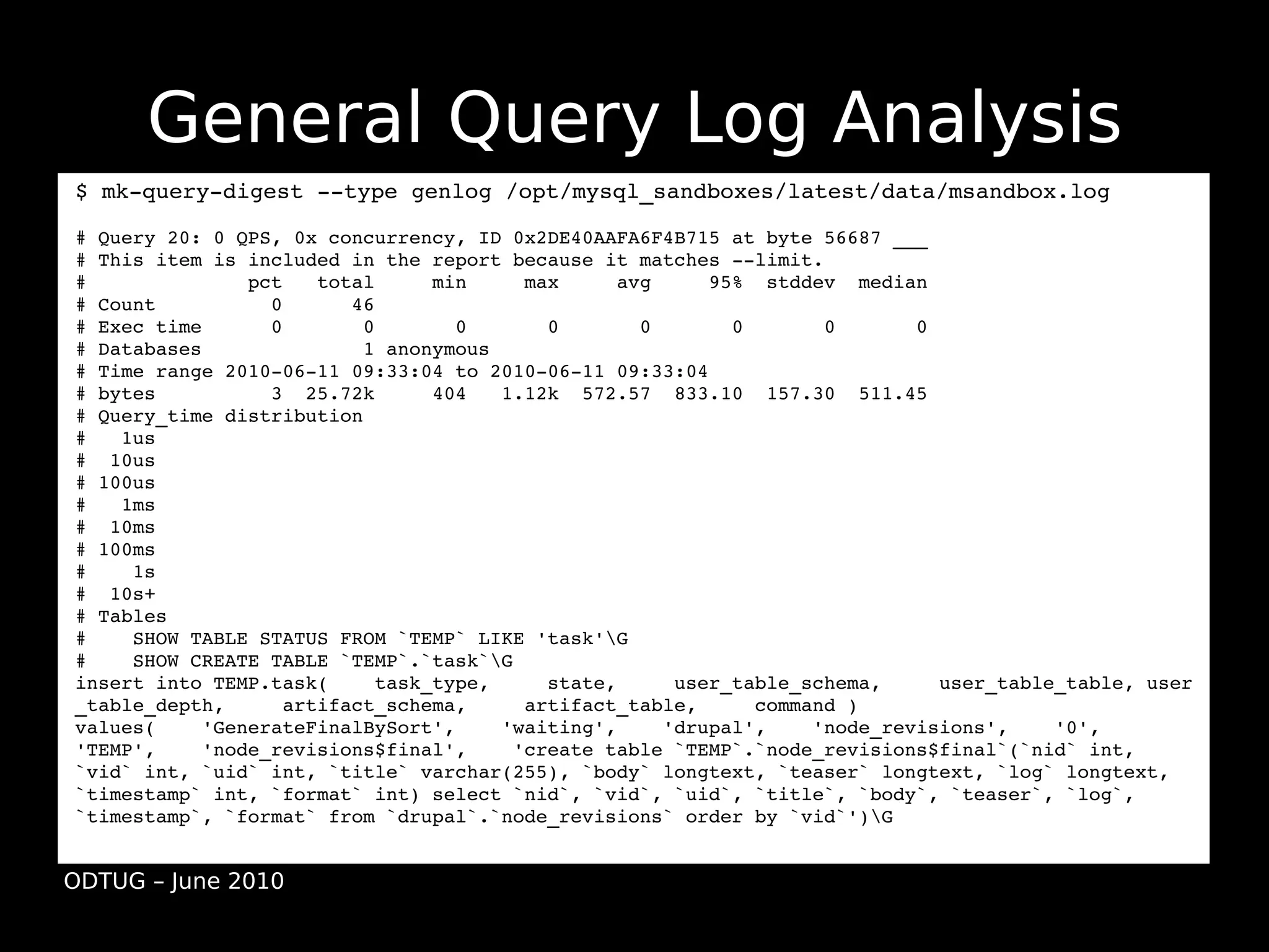

40. General Query Log Analysis
$ mk­query­digest ­­type genlog /opt/mysql_sandboxes/latest/data/msandbox.log
# Query 20: 0 QPS, 0x concurrency, ID 0x2DE40AAFA6F4B715 at byte 56687 ___
# This item is included in the report because it matches ­­limit.
# pct total min max avg 95% stddev median
# Count 0 46
# Exec time 0 0 0 0 0 0 0 0
# Databases 1 anonymous
# Time range 2010­06­11 09:33:04 to 2010­06­11 09:33:04
# bytes 3 25.72k 404 1.12k 572.57 833.10 157.30 511.45
# Query_time distribution
# 1us
# 10us
# 100us
# 1ms
# 10ms
# 100ms
# 1s
# 10s+
# Tables
# SHOW TABLE STATUS FROM `TEMP` LIKE 'task'G
# SHOW CREATE TABLE `TEMP`.`task`G
insert into TEMP.task( task_type, state, user_table_schema, user_table_table, user
_table_depth, artifact_schema, artifact_table, command )
values( 'GenerateFinalBySort', 'waiting', 'drupal', 'node_revisions', '0',
'TEMP', 'node_revisions$final', 'create table `TEMP`.`node_revisions$final`(`nid` int,
`vid` int, `uid` int, `title` varchar(255), `body` longtext, `teaser` longtext, `log` longtext,
`timestamp` int, `format` int) select `nid`, `vid`, `uid`, `title`, `body`, `teaser`, `log`,
`timestamp`, `format` from `drupal`.`node_revisions` order by `vid`')G
ODTUG – June 2010

41. Binary Log
mysql> SHOW GLOBAL VARIABLES LIKE 'log_bin';
mysql> SHOW MASTER STATUS;
mysql> SHOW MASTER LOGS;
ODTUG – June 2010

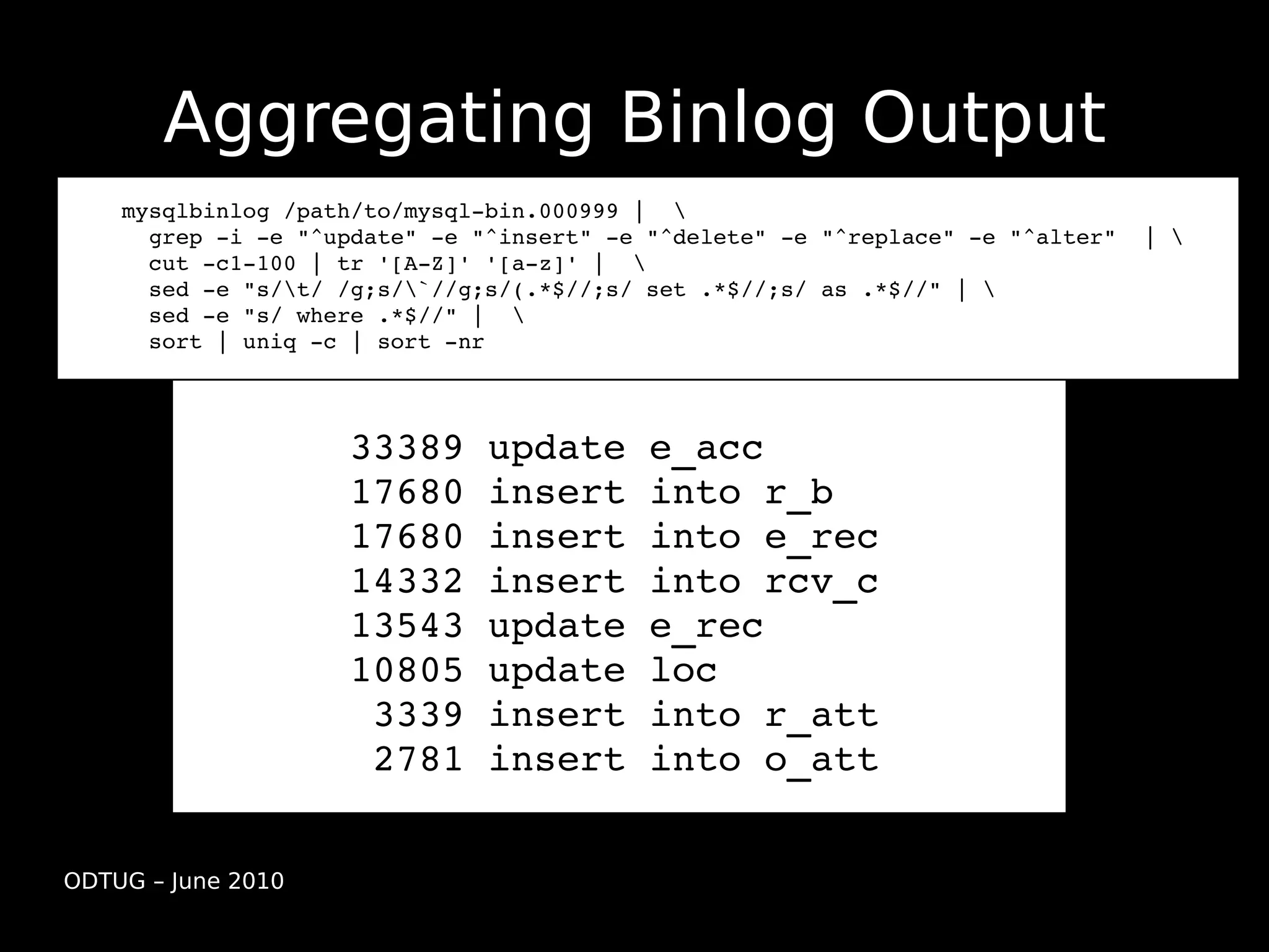

42. Aggregating Binlog Output
mysqlbinlog /path/to/mysql­bin.000999 |
grep ­i ­e "^update" ­e "^insert" ­e "^delete" ­e "^replace" ­e "^alter" |
cut ­c1­100 | tr '[A­Z]' '[a­z]' |
sed ­e "s/t/ /g;s/`//g;s/(.*$//;s/ set .*$//;s/ as .*$//" |
sed ­e "s/ where .*$//" |
sort | uniq ­c | sort ­nr
33389 update e_acc
17680 insert into r_b
17680 insert into e_rec
14332 insert into rcv_c
13543 update e_rec
10805 update loc
3339 insert into r_att
2781 insert into o_att
ODTUG – June 2010

43. Maatkit
$ mysqlbinlog /opt/mysql_sandboxes/latest/data/msandbox.000001
> | ./mk­query­digest ­­type binlog ­­report­format profile
# Profile
# Rank Query ID Response time Calls R/Call Item
# ==== ================== ================ ===== ======== ================
# 1 0xBE1EAF34D33DE48B 0.0000 0.0% 3 0.0000 CREATE TABLE coitest_?k.customers
`bulkload`.`customers$final`
# 2 0x0A44B866EBFF94FC 0.0000 0.0% 3 0.0000 DROP
# 3 0x7B747B0DEABCA018 0.0000 0.0% 3 0.0000 CREATE TABLE coitest_?k.orders
`bulkload`.`orders$final`
# 4 0xB4E2D6D6475B00FF 0.0000 0.0% 3 0.0000 DROP
# 5 0xF5DAC1762A3DE61F 0.0000 0.0% 3 0.0000 DROP
# 6 0x42EF521F930E2DB7 0.0000 0.0% 3 0.0000 CREATE TABLE coitest_?k.orders
`bulkload`.`orders$parent`
# 7 0xE4D87F83229BB741 0.0000 0.0% 18 0.0000 UPDATE bulkload.task
# 8 0x5A7960FD3F39E5F8 0.0000 0.0% 3 0.0000 CREATE TABLE bulkload.progress
# 9 0x813031B8BBC3B329 0.0000 0.0% 60141 0.0000 COMMIT
# 10 0x854DE5DBCC259DFB 0.0000 0.0% 30000 0.0000 INSERT bulkload.items$parent
# 11 0x3FBD919BC7E69704 0.0000 0.0% 87 0.0000 INSERT bulkload.progress
# 12 0xE50052BA71B4D17C 0.0000 0.0% 3 0.0000 DROP TABLE if
# 13 0xD645DADD65C8DD01 0.0000 0.0% 18 0.0000 INSERT SELECT bulkload.task
# 14 0x5B6EB50967F9BAB8 0.0000 0.0% 18 0.0000 UPDATE bulkload.task
# 15 0x277902B2380B46B4 0.0000 0.0% 1 0.0000 DROP
# 16 0x15174D089E600489 0.0000 0.0% 3 0.0000 CREATE TABLE bulkload.task
# 17 0x6F1EE7DAFC74D9AF 0.0000 0.0% 3 0.0000 CREATE TABLE coitest_?k.items
`bulkload`.`items$child`
# 18 0x85FFF5AA78E5FF6A 0.0000 0.0% 60141 0.0000 BEGIN
# 19 0x9EE6FD43C5546BA1 0.0000 0.0% 3 0.0000 CREATE TABLE bulkload.items$parent
`bulkload`.`items$parent`
# 20 0x51DCCB95FA917A6F 0.0000 0.0% 3 0.0000 DROP TABLE if
ODTUG – June 2010

44. Status variables Analysis
Gathering global status per time interval
Reporting options
statpack
http://ronaldbradford.com/blog/using-statpack-with-show-status-2009-06-18/
ODTUG – June 2010

45. statpack Example
====================================================================================================
Uptime: 17 days 17 hours 22 mins Snapshot Period 1: 59 minute interval
====================================================================================================
Variable Delta/Percentage Per Second Total
=================================================================================...
====================================================================================================
Statement Activity
====================================================================================================
SELECT: 13,503,876 3,798.56 4,298,170,239 (94.25%)
INSERT: 91,101 25.63 25,327,062 (0.56%)
UPDATE: 782,004 219.97 220,640,296 (4.84%)
DELETE: 9,674 2.72 2,485,643 (0.05%)
COMMIT: 46,422 13.06 13,700,478 (0.30%)
ROLLBACK: 0 0.00 13 (0.00%)
...
====================================================================================================
Temporary Space
====================================================================================================
tmp_table_size Efficiency: 2.10%
Memory Temp Tables: 26,467 7.45 9,335,030
Disk Temp Tables: 25,951 7.30 9,138,705
Temp Files: 2 0.00 601
ODTUG – June 2010

46. TCP/IP Dump Analysis
Non-intrusive
Close to full sample
Near realtime
$ tcpdump ­i eth0 port 3306 ­s 65535 ­x
> ­n ­q ­tttt ­c 1000 > tcpdump.out
$ cat tcpdump.out | mk­query­digest ­­type tcpdump
ODTUG – June 2010

47. TCP/IP Dump Summary
# 4.1s user time, 85.9ms system time, 17.85M rss, 18.46M vsz
# Overall: 1.99k total, 86 unique, 321.13 QPS, 0.21x concurrency _________
# total min max avg 95% stddev median
# Exec time 1s 39us 70ms 649us 839us 4ms 152us
# Time range 2010­03­30 17:52:42.569092 to 2010­03­30 17:52:48.772254
# bytes 186.80k 13 1.61k 96.03 166.51 196.84 40.45
# Rows affe 59 0 2 0.03 0 0.18 0
# Warning c 5 0 2 0.00 0 0.07 0
# 4% (98) No_index_used
# Profile
# Rank Query ID Response time Calls R/Call Item
# ==== ================== ================ ===== ======== ================
# 3 0xC9ECBBF2C88C2336 0.0875 7.5% 568 0.0002 SELECT r_c
# 4 0x448E4AEB7E02AF72 0.0785 6.7% 566 0.0001 SELECT r_t
# 5 0xCF3A86CFCC509800 0.0596 5.1% 5 0.0119 SELECT h_c_i
# 6 0x8D86ED007917BCE6 0.0480 4.1% 131 0.0004 SELECT loc
# 7 0xDB8614598CD1ED36 0.0416 3.6% 1 0.0416 SELECT lml r
# 8 0x9BA140CF9CE950C8 0.0316 2.7% 1 0.0316 SELECT bsc
# 9 0x633F85619F198C33 0.0219 1.9% 23 0.0010 SELECT hlm mt
# 10 0xADCCD37E265C8300 0.0197 1.7% 79 0.0002 SELECT h_l_l
ODTUG – June 2010

48. TCP/IP Dump Query Review
# Query 6: 23.02 QPS, 0.01x concurrency, ID 0x8D86ED007917BCE6 at byte ­2
# This item is included in the report because it matches ­­limit.
# pct total min max avg 95% stddev median
# Count 6 131
# Exec time 3 48ms 160us 5ms 366us 690us 477us 247us
# Hosts 5 10.0.0.77 (86), 10.0.0.36 (21), 10.0.0.79 (20)... 2 more
# Time range 2010­03­30 17:52:43.034021 to 2010­03­30 17:52:48.724815
# bytes 8 15.93k 123 125 124.54 124.25 1 124.25
# Errors 1 none
# Rows affe 0 0 0 0 0 0 0 0
# Warning c 0 0 0 0 0 0 0 0
# Query_time distribution
# 1us
# 10us
# 100us ################################################################
# 1ms ##
# 10ms
# 100ms
# 1s
# 10s+
# Tables
# SHOW TABLE STATUS LIKE 'loc'G
# SHOW CREATE TABLE `loc`G
# EXPLAIN
SELECT l.* FROM loc p, loc l WHERE p.id=2090 AND l.lft BETWEEN p.lft AND p.rgt AND
l.depth=p.depth+1 ORDER BY l.lftG
ODTUG – June 2010

49. mycheckpoint
SQL orientated monitoring utility for
MySQL
Measures various metrics
Stores measurements in database
Metrics can be accessed through SQL
Can generate HTML reports and Google
charts easily
http://code.openark.org/forge/mycheckpoint/documentation
ODTUG – June 2010

50. SQL Analysis Tools
EXPLAIN
mk-visual-explain
SHOW CREATE TABLE
SHOW INDEXES
SHOW TABLE STATUS
I_S Table/Index size
SHOW SESSION STATUS
SHOW PROFILE
ODTUG – June 2010

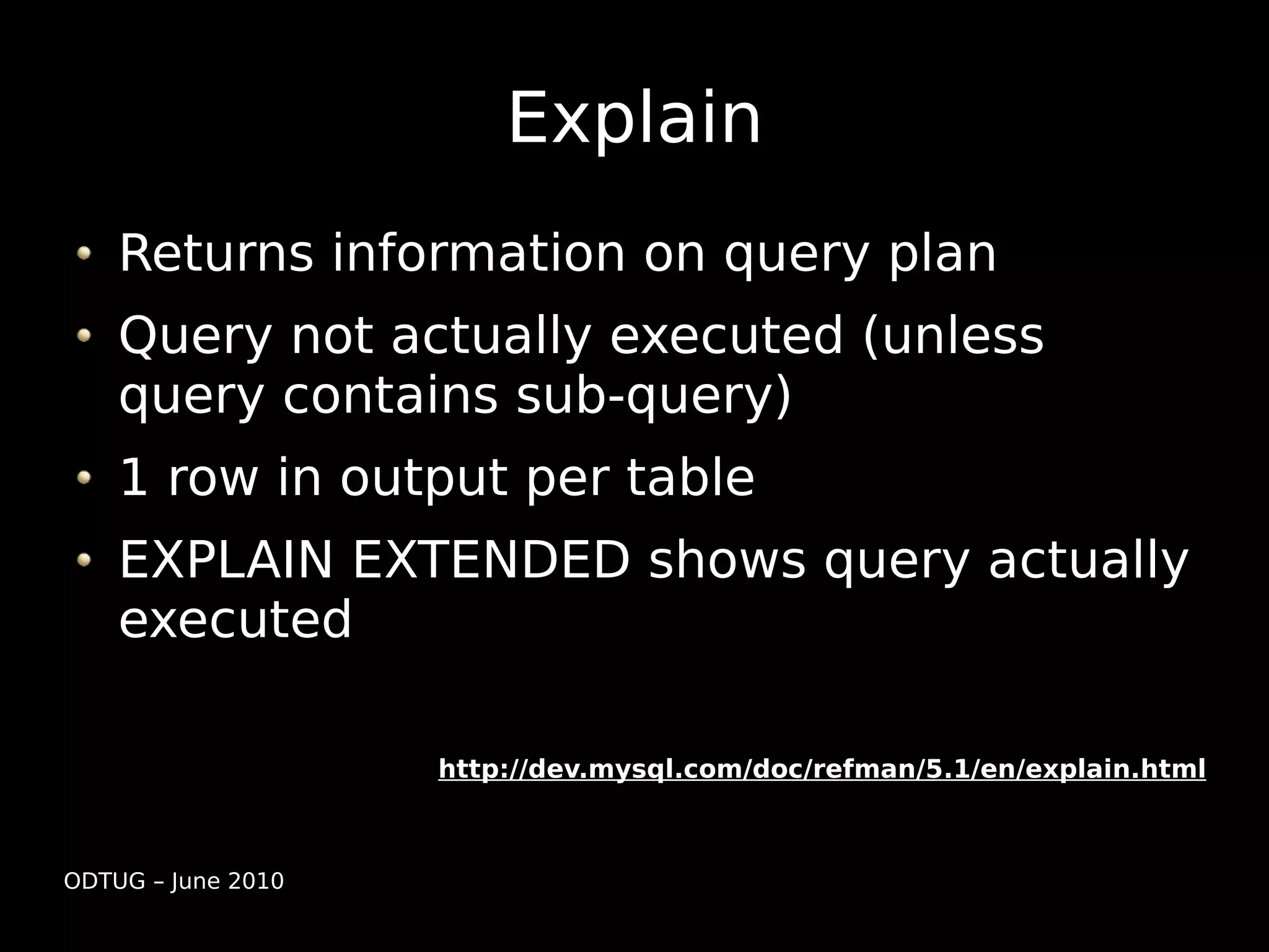

51. Explain
Returns information on query plan
Query not actually executed (unless
query contains sub-query)
1 row in output per table
EXPLAIN EXTENDED shows query actually
executed
http://dev.mysql.com/doc/refman/5.1/en/explain.html
ODTUG – June 2010

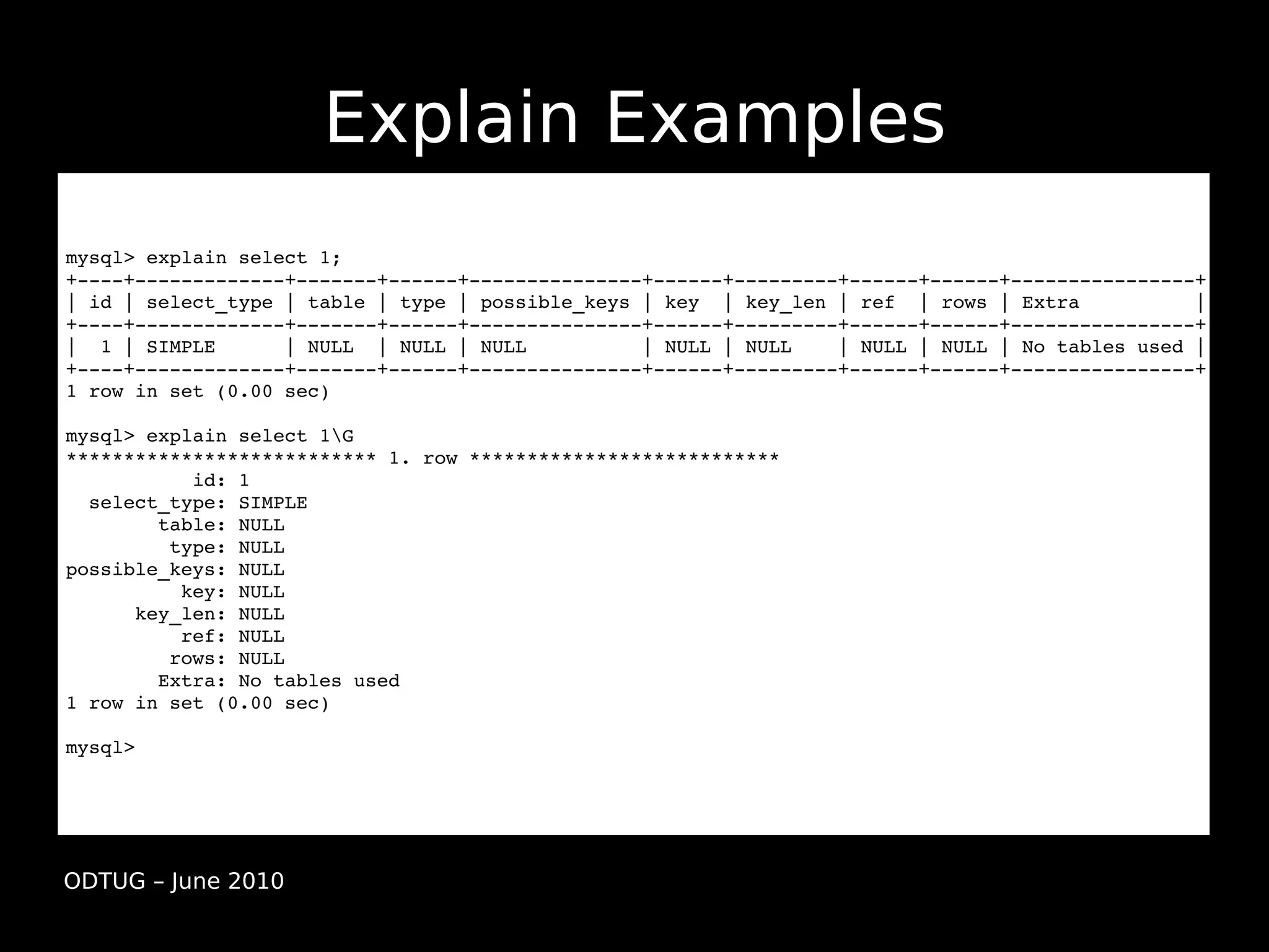

52. Explain Examples
mysql> explain select 1;
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | NULL | NULL | NULL | NULL | NULL | NULL | NULL | No tables used |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­+
1 row in set (0.00 sec)
mysql> explain select 1G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: NULL
type: NULL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: NULL
Extra: No tables used
1 row in set (0.00 sec)
mysql>
ODTUG – June 2010

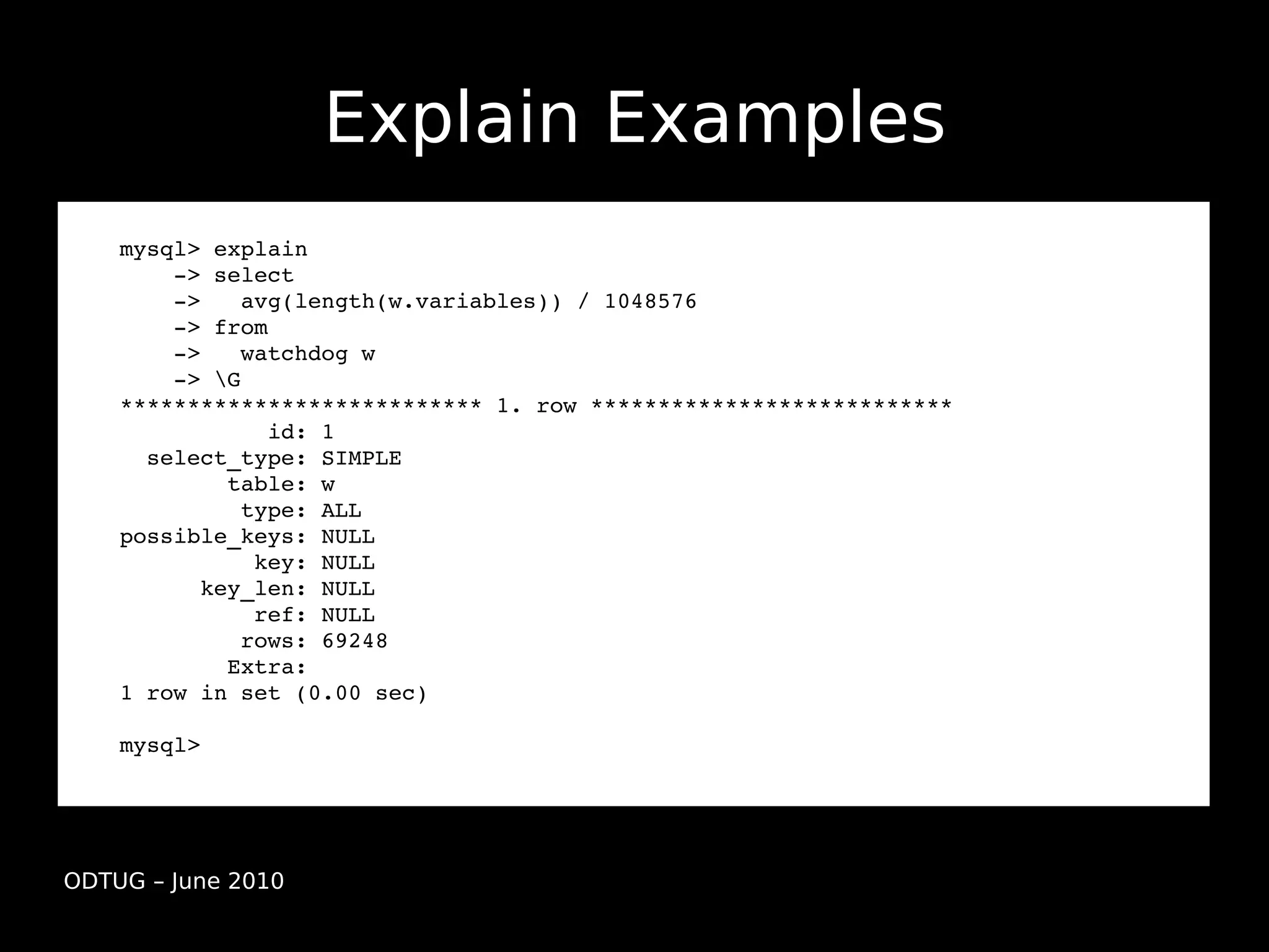

53. Explain Examples
mysql> explain
­> select
­> avg(length(w.variables)) / 1048576
­> from
­> watchdog w
­> G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: w
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 69248
Extra:
1 row in set (0.00 sec)
mysql>
ODTUG – June 2010

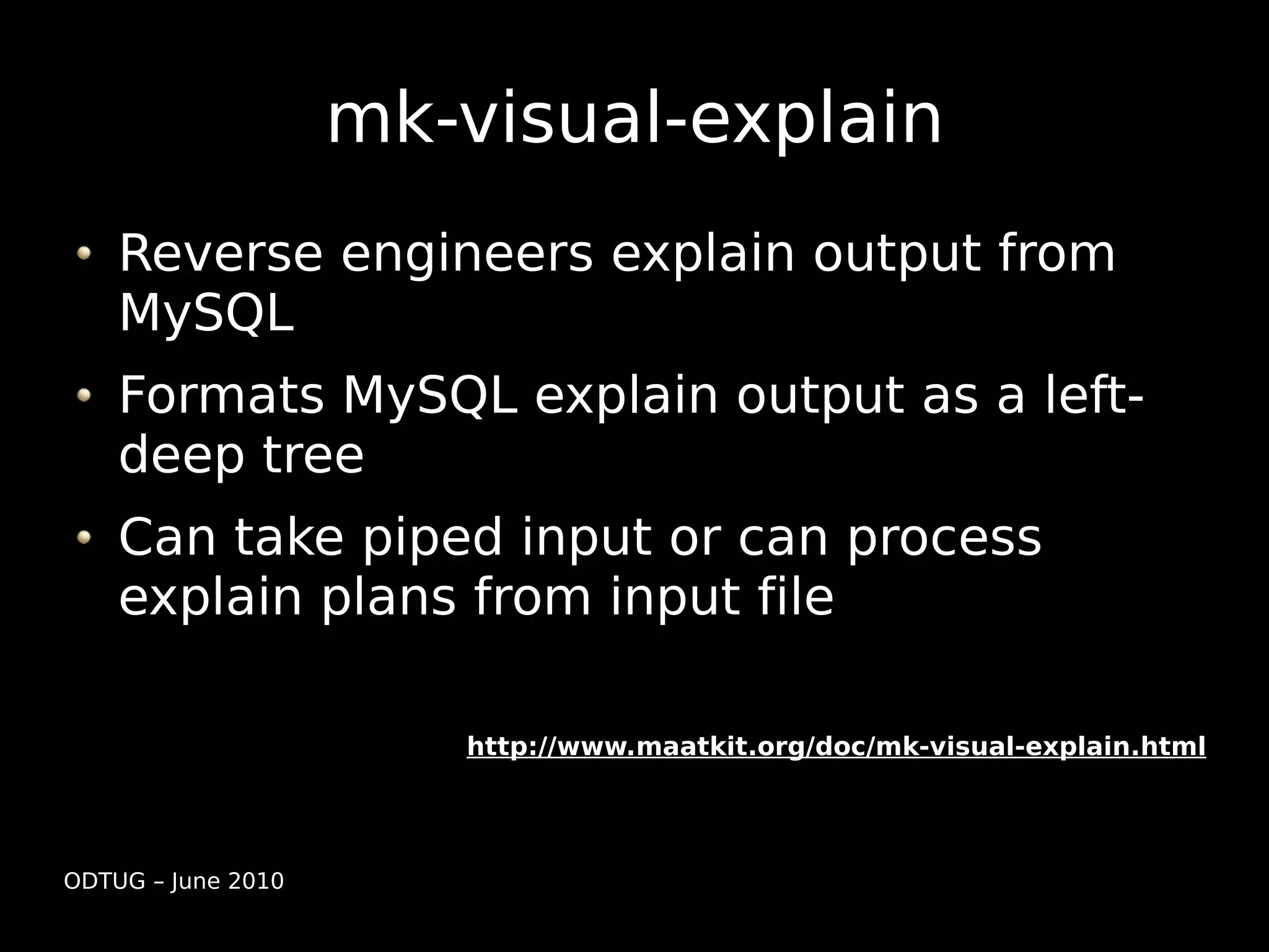

54. mk-visual-explain
Reverse engineers explain output from
MySQL
Formats MySQL explain output as a left-
deep tree
Can take piped input or can process
explain plans from input file
http://www.maatkit.org/doc/mk-visual-explain.html
ODTUG – June 2010

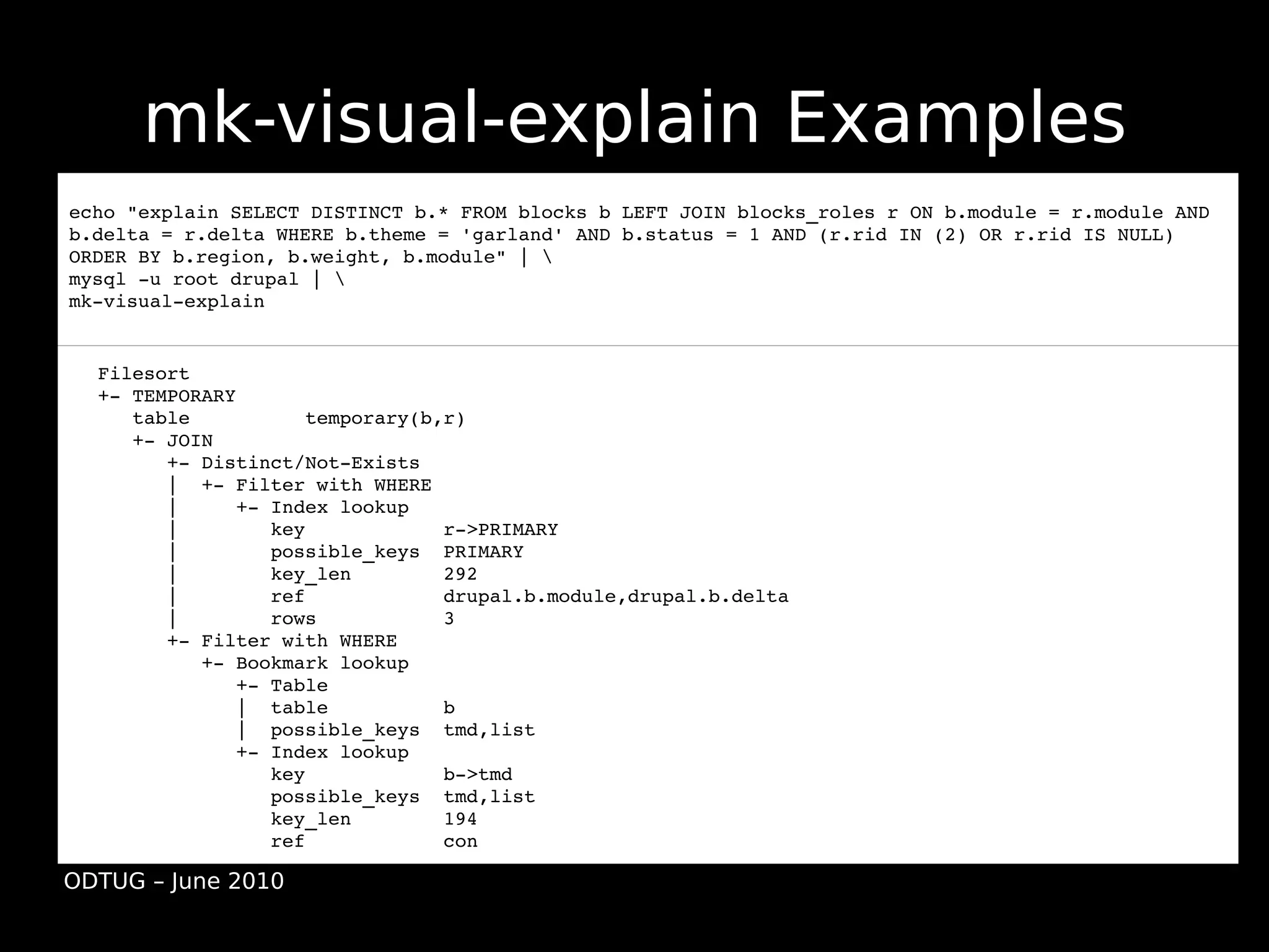

55. mk-visual-explain Examples
echo "explain SELECT DISTINCT b.* FROM blocks b LEFT JOIN blocks_roles r ON b.module = r.module AND
b.delta = r.delta WHERE b.theme = 'garland' AND b.status = 1 AND (r.rid IN (2) OR r.rid IS NULL)
ORDER BY b.region, b.weight, b.module" |
mysql ­u root drupal |
mk­visual­explain
Filesort
+­ TEMPORARY
table temporary(b,r)
+­ JOIN
+­ Distinct/Not­Exists
| +­ Filter with WHERE
| +­ Index lookup
| key r­>PRIMARY
| possible_keys PRIMARY
| key_len 292
| ref drupal.b.module,drupal.b.delta
| rows 3
+­ Filter with WHERE
+­ Bookmark lookup
+­ Table
| table b
| possible_keys tmd,list
+­ Index lookup
key b­>tmd
possible_keys tmd,list
key_len 194
ref con
ODTUG – June 2010

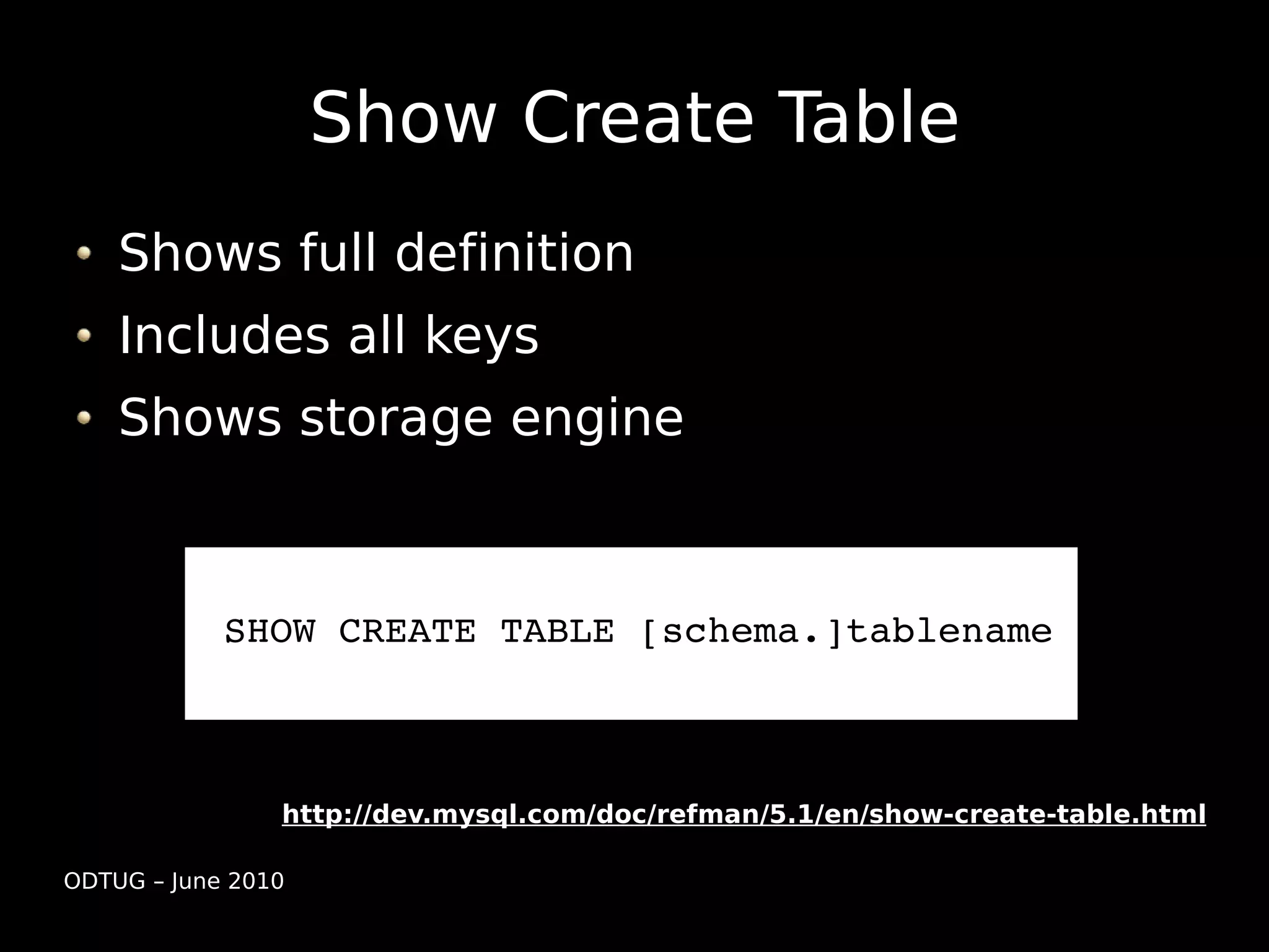

56. Show Create Table
Shows full definition
Includes all keys
Shows storage engine
SHOW CREATE TABLE [schema.]tablename
http://dev.mysql.com/doc/refman/5.1/en/show-create-table.html
ODTUG – June 2010

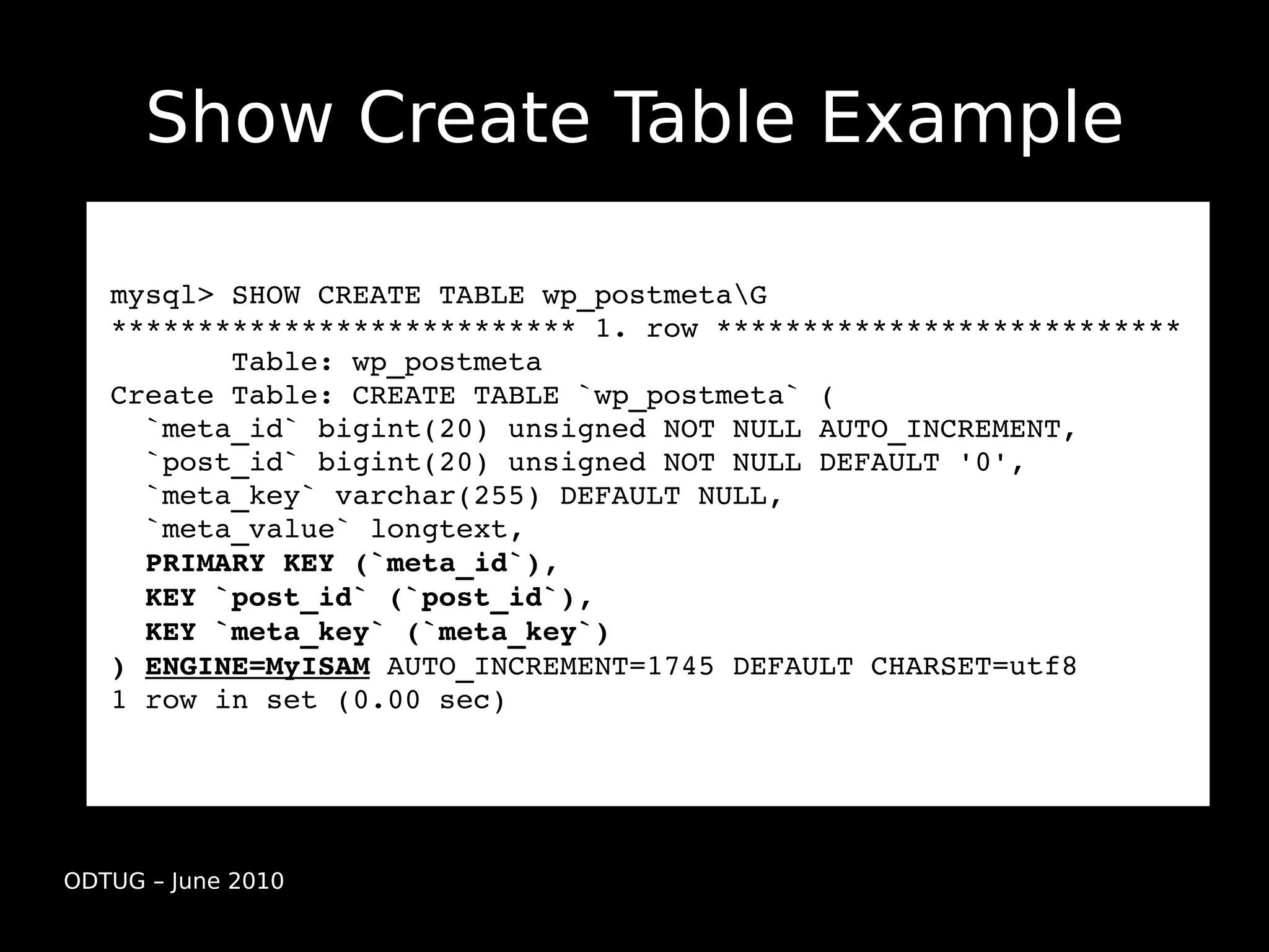

57. Show Create Table Example
mysql> SHOW CREATE TABLE wp_postmetaG
*************************** 1. row ***************************
Table: wp_postmeta
Create Table: CREATE TABLE `wp_postmeta` (
`meta_id` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
`post_id` bigint(20) unsigned NOT NULL DEFAULT '0',
`meta_key` varchar(255) DEFAULT NULL,
`meta_value` longtext,
PRIMARY KEY (`meta_id`),
KEY `post_id` (`post_id`),
KEY `meta_key` (`meta_key`)
) ENGINE=MyISAM AUTO_INCREMENT=1745 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
ODTUG – June 2010

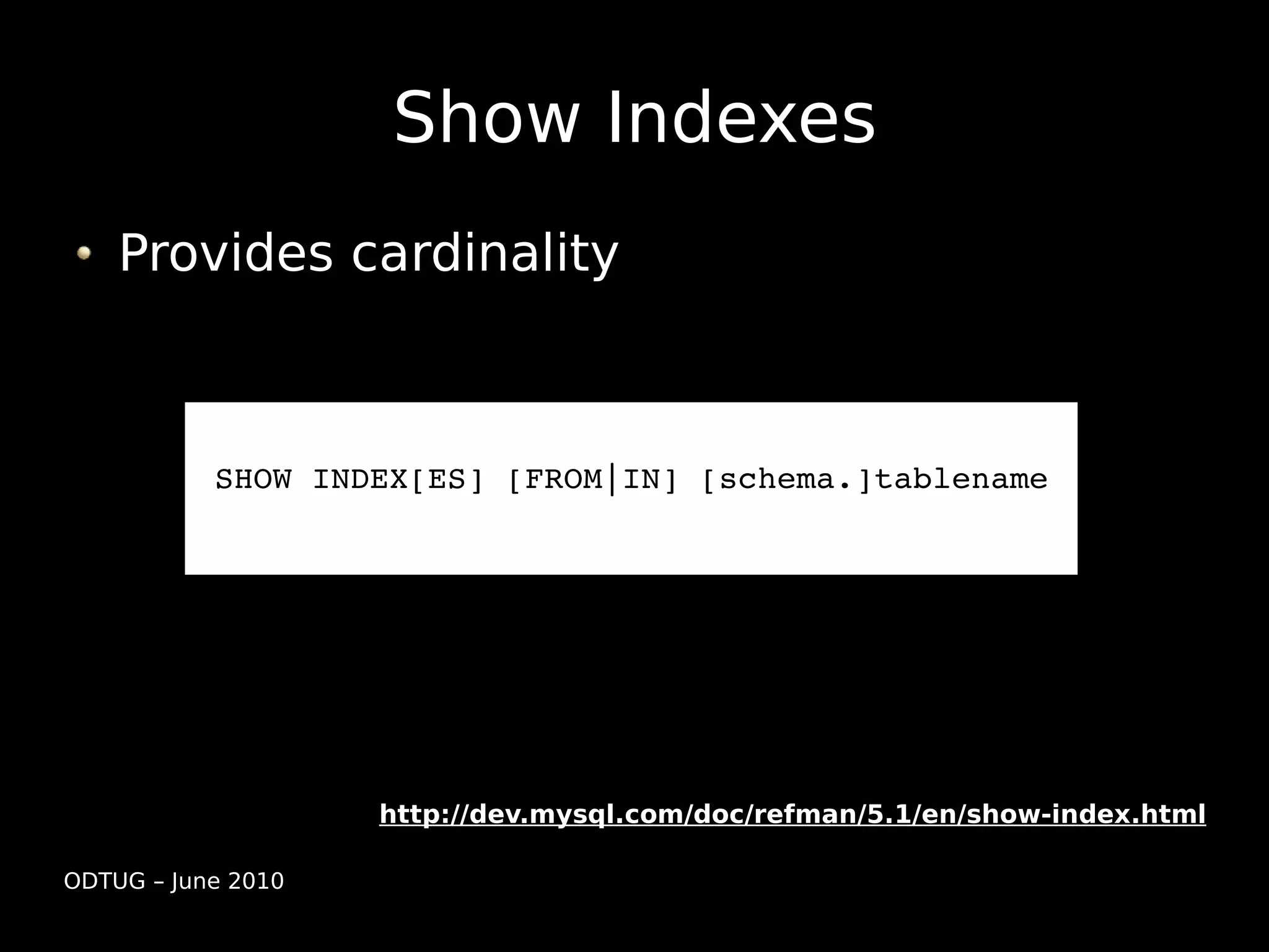

58. Show Indexes
Provides cardinality
SHOW INDEX[ES] [FROM|IN] [schema.]tablename
http://dev.mysql.com/doc/refman/5.1/en/show-index.html
ODTUG – June 2010

59. Show Index Example
mysql> SHOW INDEXES FROM wp_postmeta;
+­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­+­­­­­­+­­­­­­­­­­­­+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type |
+­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­+­­­­­­+­­­­­­­­­­­­+
| wp_postmeta | 0 | PRIMARY | 1 | meta_id | A | 1351 | NULL | NULL | | BTREE |
| wp_postmeta | 1 | post_id | 1 | post_id | A | 450 | NULL | NULL | | BTREE |
| wp_postmeta | 1 | meta_key | 1 | meta_key | A | 7 | NULL | NULL | YES | BTREE |
+­­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­+­­­­­­+­­­­­­­­­­­­+
ODTUG – June 2010

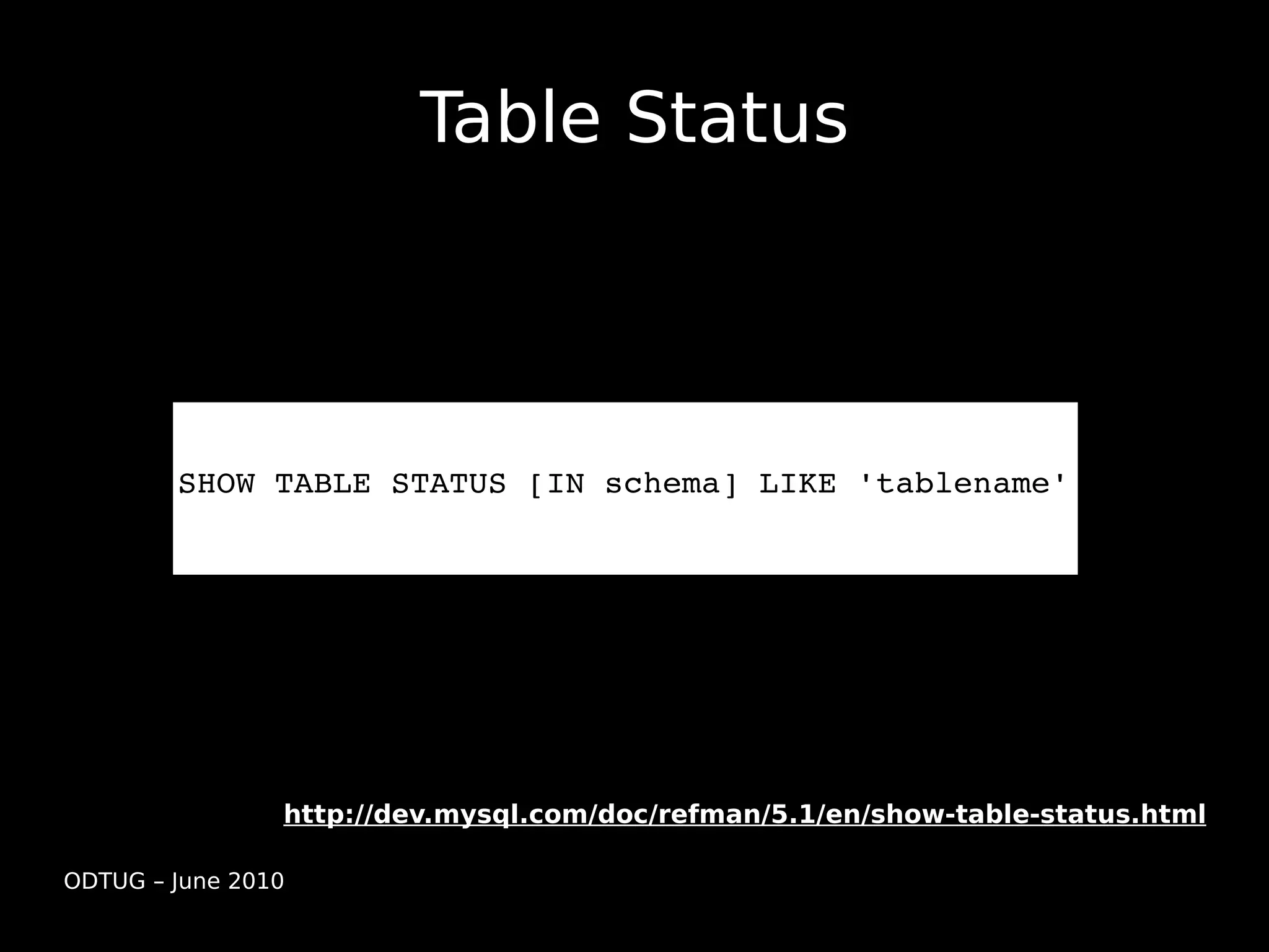

60. Table Status
SHOW TABLE STATUS [IN schema] LIKE 'tablename'
http://dev.mysql.com/doc/refman/5.1/en/show-table-status.html
ODTUG – June 2010

61. Table Status Example
mysql> SHOW TABLE STATUS LIKE 'wp_postmeta'G
*************************** 1. row ***************************
Name: wp_postmeta
Engine: MyISAM
Version: 10
Row_format: Dynamic
Rows: 1351
Avg_row_length: 46
Data_length: 62960
Max_data_length: 281474976710655
Index_length: 58368
Data_free: 76
Auto_increment: 1745
Create_time: 2009­09­08 09:57:51
Update_time: 2010­06­04 15:06:47
Check_time: 2010­06­01 11:12:54
Collation: utf8_general_ci
Checksum: NULL
Create_options:
Comment:
1 row in set (0.00 sec)
ODTUG – June 2010

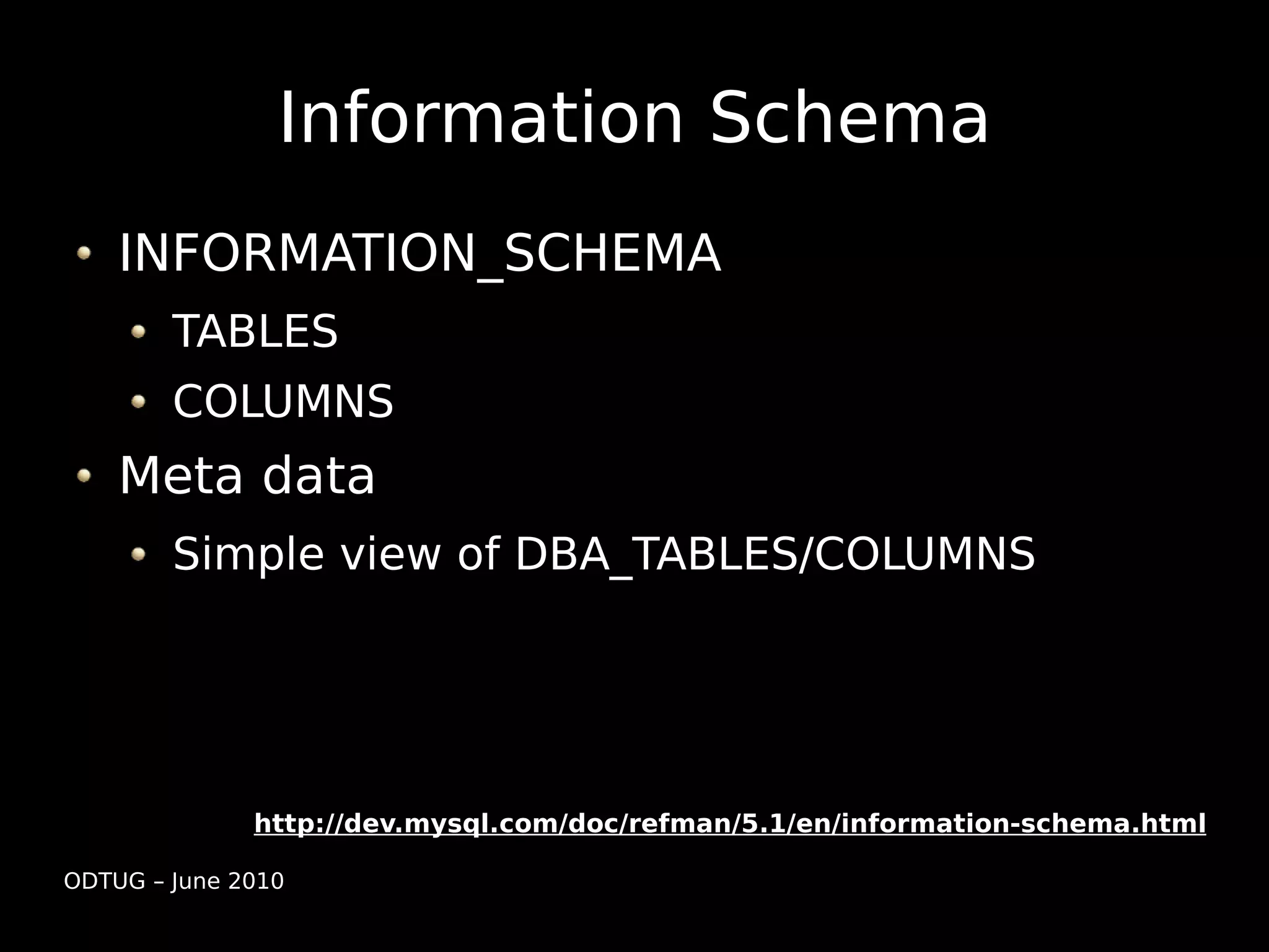

62. Information Schema
INFORMATION_SCHEMA
TABLES
COLUMNS
Meta data
Simple view of DBA_TABLES/COLUMNS
http://dev.mysql.com/doc/refman/5.1/en/information-schema.html
ODTUG – June 2010

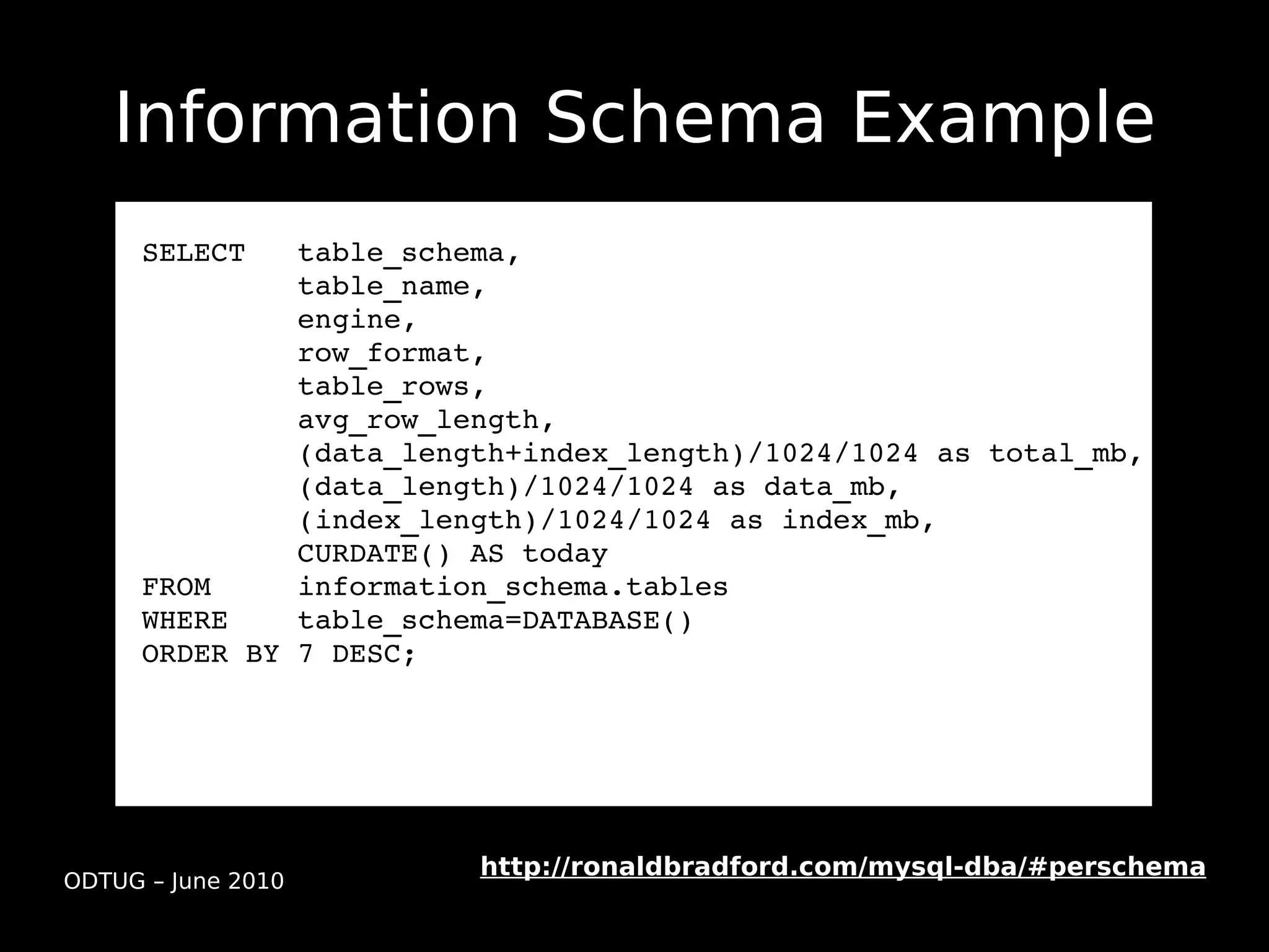

63. Information Schema Example
SELECT table_schema,
table_name,
engine,
row_format,
table_rows,
avg_row_length,
(data_length+index_length)/1024/1024 as total_mb,
(data_length)/1024/1024 as data_mb,
(index_length)/1024/1024 as index_mb,
CURDATE() AS today
FROM information_schema.tables
WHERE table_schema=DATABASE()
ORDER BY 7 DESC;
http://ronaldbradford.com/mysql-dba/#perschema
ODTUG – June 2010

64. Information Schema Example
+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+
| table_name | engine | row_format | table_rows | avg_row_length | total_mb | data_mb | index_mb |
+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+
| xxxxxxx | InnoDB | Compact | 1778523 | 314 | 658.39062500 | 533.84375000 | 124.54687500 |
| xxxxxxxxx | InnoDB | Compact | 553266 | 846 | 472.25000000 | 446.75000000 | 25.50000000 |
| xxxxxxx | InnoDB | Compact | 435892 | 884 | 392.25000000 | 367.81250000 | 24.43750000 |
| xxxxxxxxxxxxxx | InnoDB | Compact | 1106547 | 65 | 133.26562500 | 68.59375000 | 64.67187500 |
| xxxxxxxxxxxxxxxx | InnoDB | Compact | 58281 | 531 | 30.34375000 | 29.51562500 | 0.82812500 |
| xxxxxxxxxx | InnoDB | Compact | 68721 | 298 | 28.12500000 | 19.54687500 | 8.57812500 |
...
ODTUG – June 2010

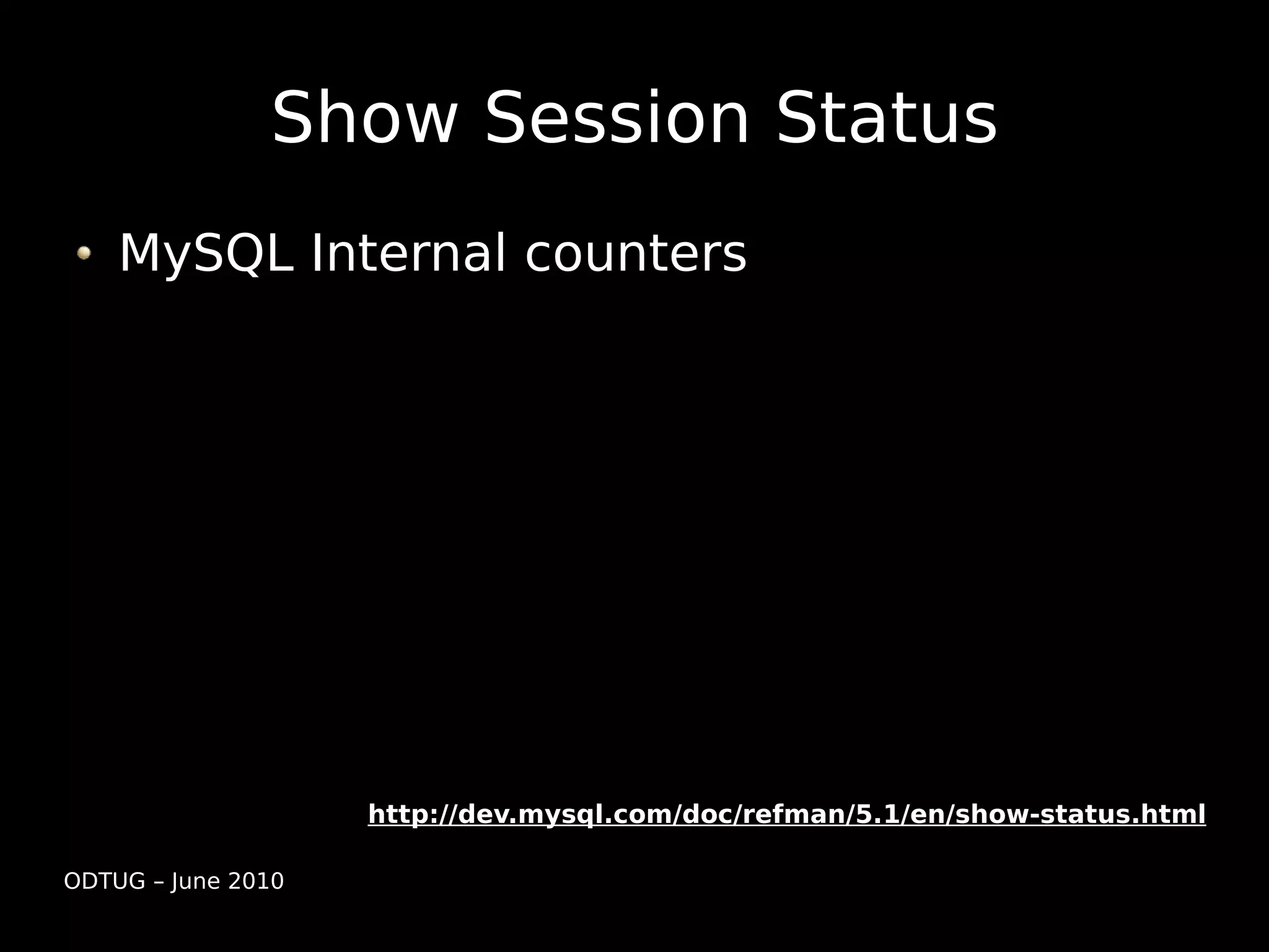

65. Show Session Status
MySQL Internal counters
http://dev.mysql.com/doc/refman/5.1/en/show-status.html
ODTUG – June 2010

66. Show Session Status Example
SHOW SESSION STATUS LIKE 'Created%';
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
| Variable_name | Value |
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
| Created_tmp_disk_tables | 1 |
| Created_tmp_files | 5 |
| Created_tmp_tables | 3 |
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
SELECT ...;
SHOW SESSION STATUS LIKE 'Created%';
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
| Variable_name | Value |
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
| Created_tmp_disk_tables | 2 |
| Created_tmp_files | 5 |
| Created_tmp_tables | 3 |
+­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­+
ODTUG – June 2010

67. Show Profile
Provides internal message calls
Descriptions not always accurate
SET PROFILING = 1;
SHOW PROFILES;
SHOW PROFILE [FOR QUERY n];
http://dev.mysql.com/doc/refman/5.1/en/show-profiles.html
ODTUG – June 2010

68. Show Profile Example
mysql> SHOW PROFILESG
*************************** 1. row ***************************
Query_ID: 1
Duration: 0.00081600
Query: SELECT t.*, tt.*, tr.object_id FROM wp_terms
AS t INNER JOIN wp_term_taxonomy AS tt ON
tt.term_id = t.term_id INNER JOIN
wp_term_relationships AS tr ON
tr.term_taxonomy_id = tt.term_taxonomy_id
WHERE tt.taxonomy IN
('category', 'post_tag') AND
tr.object_id IN (2487)
ORDER BY t.name ASC
ODTUG – June 2010

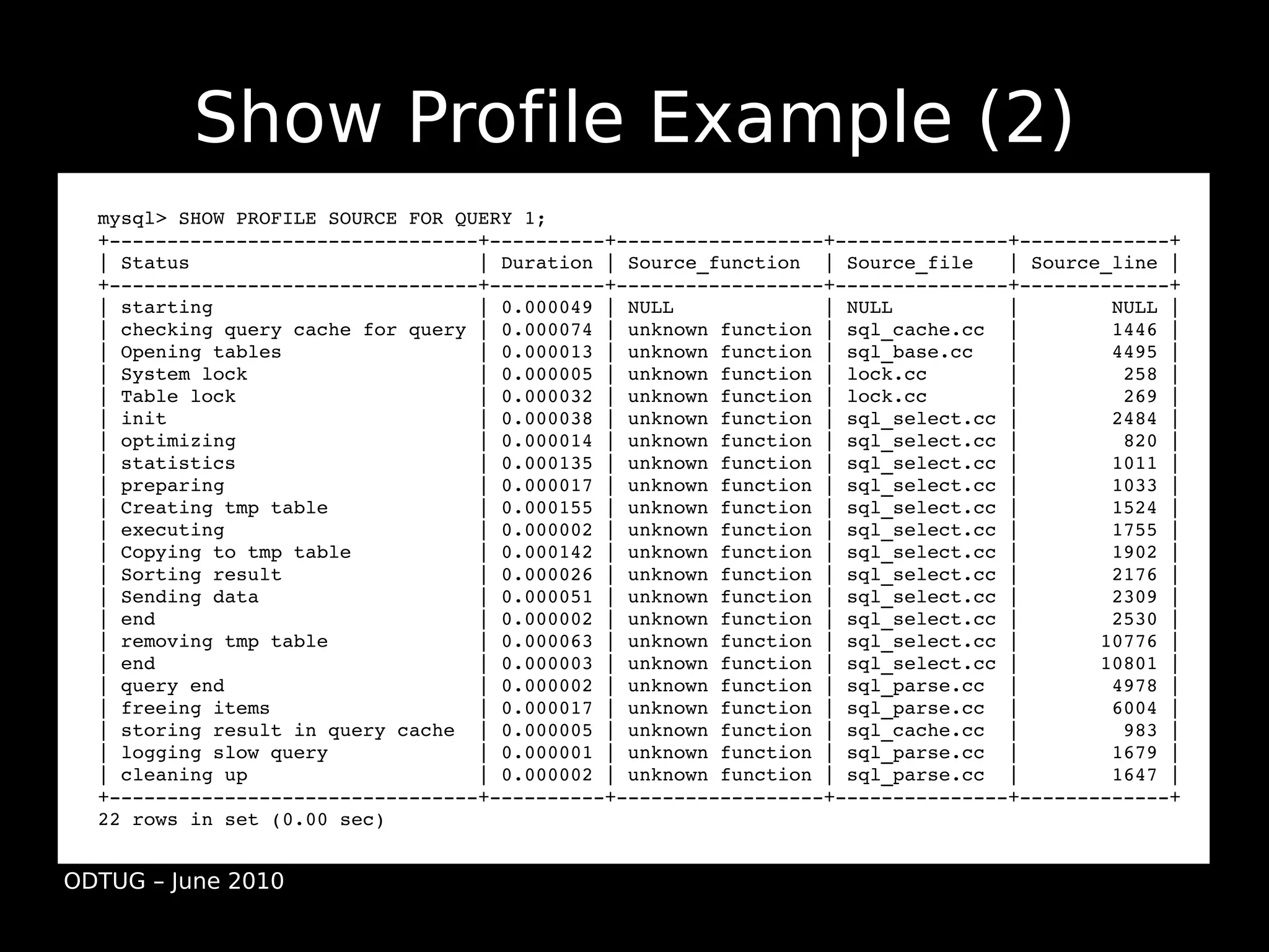

69. Show Profile Example (2)
mysql> SHOW PROFILE SOURCE FOR QUERY 1;
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
| Status | Duration | Source_function | Source_file | Source_line |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
| starting | 0.000049 | NULL | NULL | NULL |
| checking query cache for query | 0.000074 | unknown function | sql_cache.cc | 1446 |
| Opening tables | 0.000013 | unknown function | sql_base.cc | 4495 |
| System lock | 0.000005 | unknown function | lock.cc | 258 |
| Table lock | 0.000032 | unknown function | lock.cc | 269 |
| init | 0.000038 | unknown function | sql_select.cc | 2484 |
| optimizing | 0.000014 | unknown function | sql_select.cc | 820 |
| statistics | 0.000135 | unknown function | sql_select.cc | 1011 |
| preparing | 0.000017 | unknown function | sql_select.cc | 1033 |
| Creating tmp table | 0.000155 | unknown function | sql_select.cc | 1524 |
| executing | 0.000002 | unknown function | sql_select.cc | 1755 |
| Copying to tmp table | 0.000142 | unknown function | sql_select.cc | 1902 |
| Sorting result | 0.000026 | unknown function | sql_select.cc | 2176 |
| Sending data | 0.000051 | unknown function | sql_select.cc | 2309 |
| end | 0.000002 | unknown function | sql_select.cc | 2530 |
| removing tmp table | 0.000063 | unknown function | sql_select.cc | 10776 |
| end | 0.000003 | unknown function | sql_select.cc | 10801 |
| query end | 0.000002 | unknown function | sql_parse.cc | 4978 |
| freeing items | 0.000017 | unknown function | sql_parse.cc | 6004 |
| storing result in query cache | 0.000005 | unknown function | sql_cache.cc | 983 |
| logging slow query | 0.000001 | unknown function | sql_parse.cc | 1679 |
| cleaning up | 0.000002 | unknown function | sql_parse.cc | 1647 |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
22 rows in set (0.00 sec)
ODTUG – June 2010

70. Show Profile Example (3)
mysql> SHOW PROFILES;
+­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­
| 1 | 0.00084800 | SELECT t.*, tt.*, tr.object_id FROM wp_terms AS t ...
| 2 | 0.00006000 | SELECT t.*, tt.*, tr.object_id FROM wp_terms AS t ....
+­­­­­­­­­­+­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­
2 rows in set (0.00 sec)
mysql> SHOW PROFILE SOURCE FOR QUERY 2;
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
| starting | 0.000034 | NULL | NULL | NULL |
| checking query cache for query | 0.000008 | unknown function | sql_cache.cc | 1446 |
| checking privileges on cached | 0.000004 | unknown function | sql_cache.cc | 1534 |
| sending cached result to clien | 0.000010 | unknown function | sql_cache.cc | 1629 |
| logging slow query | 0.000002 | unknown function | sql_parse.cc | 1679 |
| cleaning up | 0.000002 | unknown function | sql_parse.cc | 1647 |
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
ODTUG – June 2010

71. Optimizing your
SQL
ODTUG – June 2010

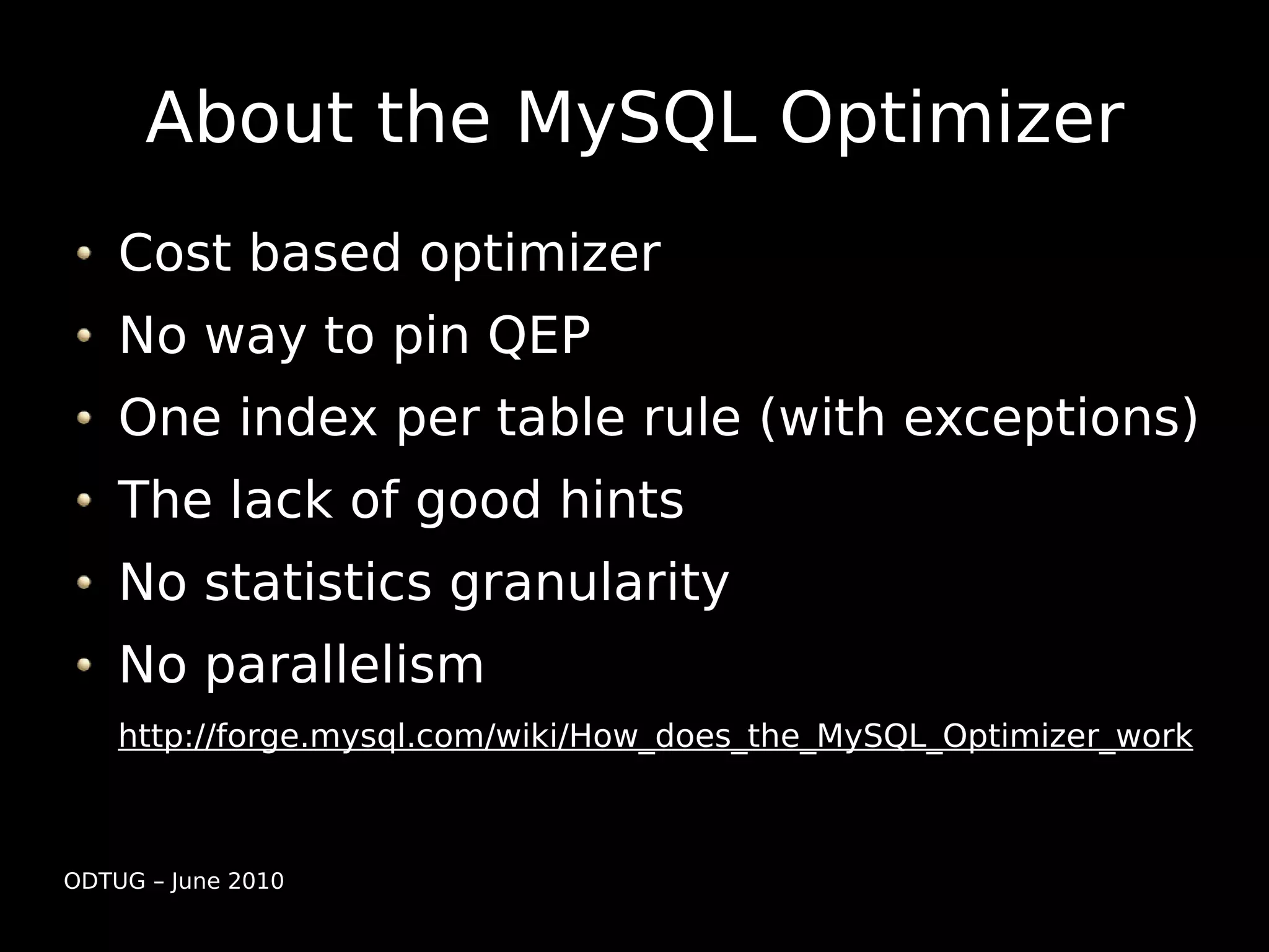

72. About the MySQL Optimizer
Cost based optimizer
No way to pin QEP
One index per table rule (with exceptions)
The lack of good hints
No statistics granularity
No parallelism
http://forge.mysql.com/wiki/How_does_the_MySQL_Optimizer_work
ODTUG – June 2010

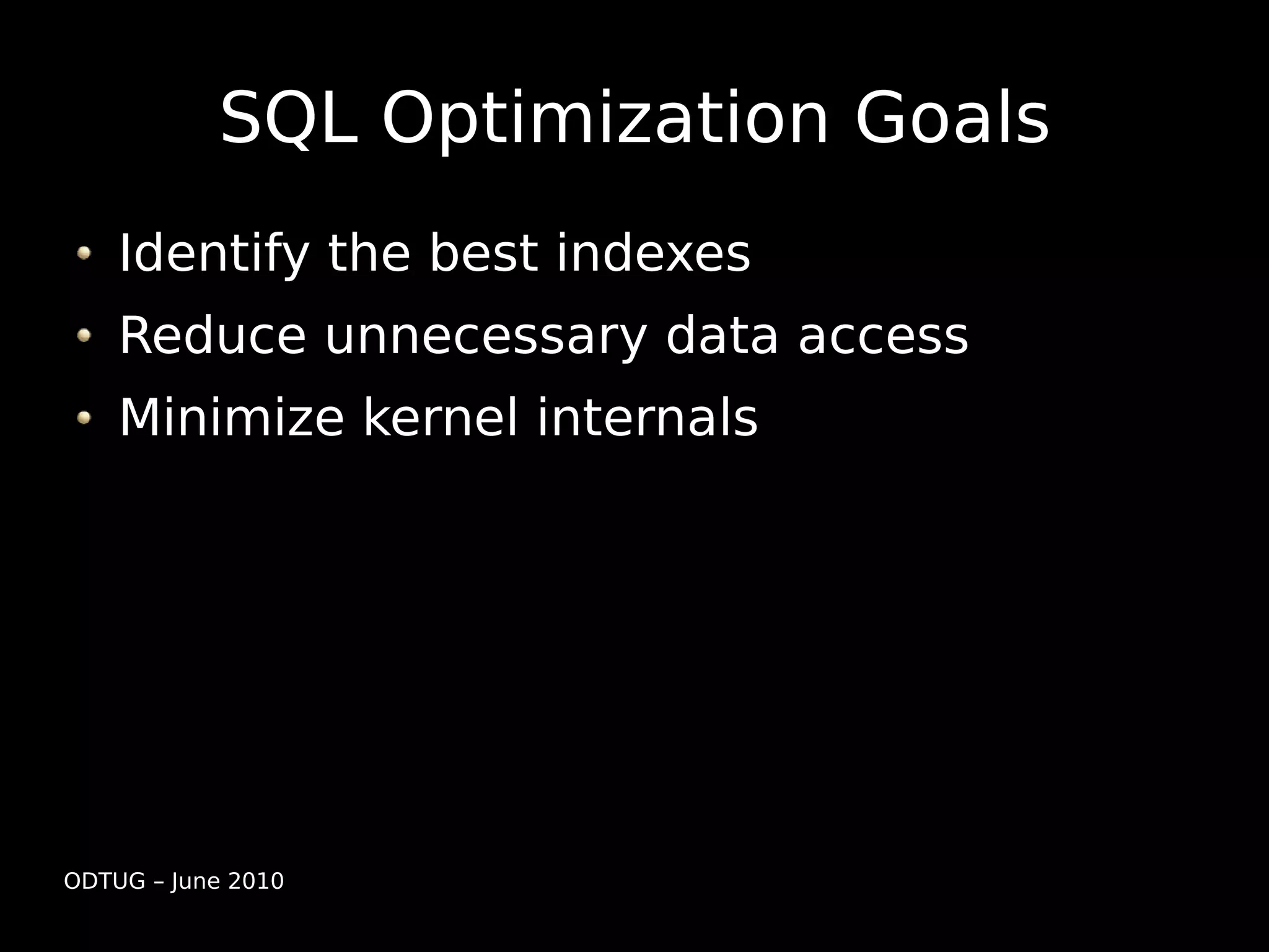

73. SQL Optimization Goals
Identify the best indexes
Reduce unnecessary data access
Minimize kernel internals
ODTUG – June 2010

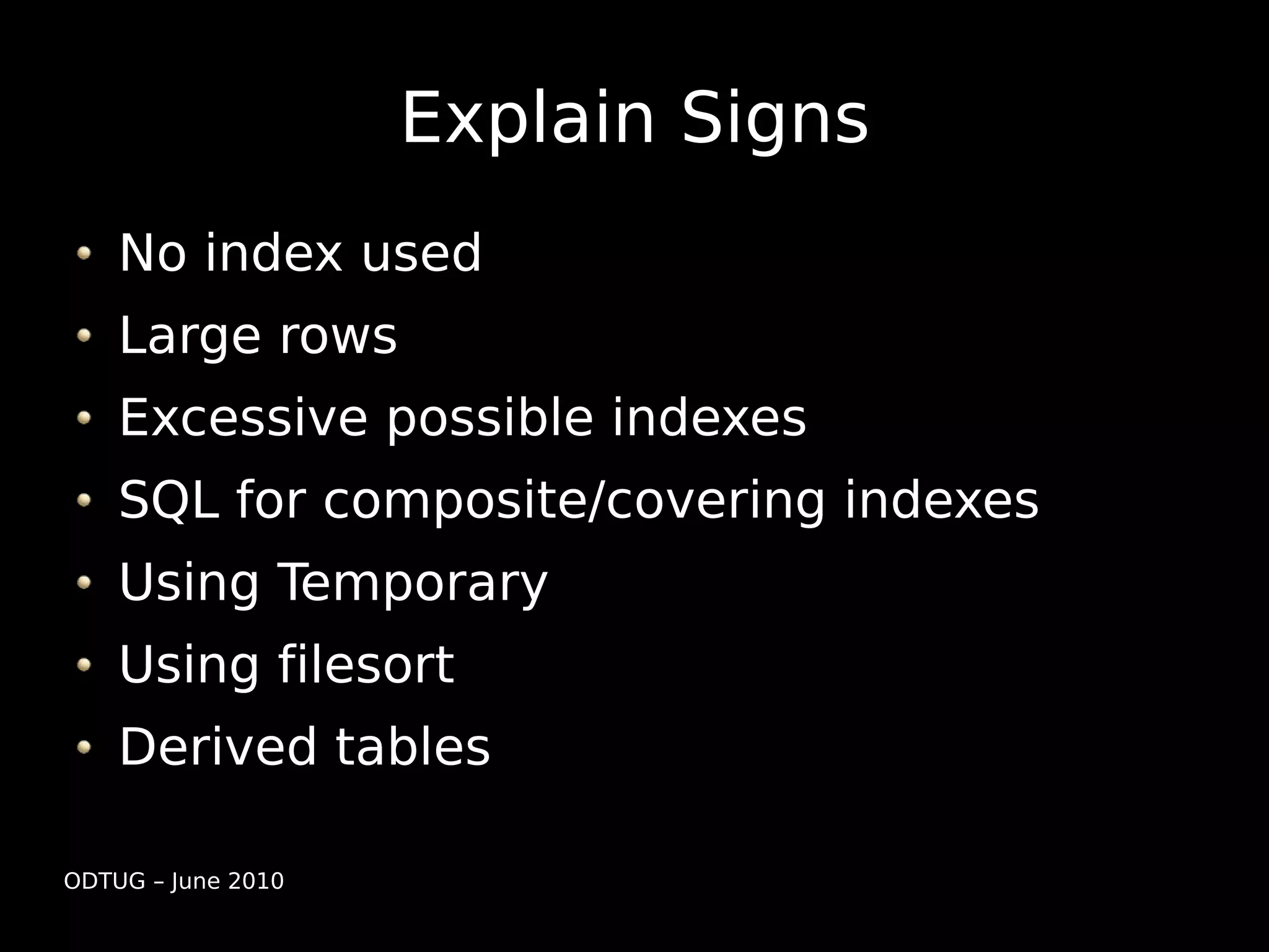

74. Explain Signs
No index used
Large rows
Excessive possible indexes
SQL for composite/covering indexes
Using Temporary
Using filesort
Derived tables
ODTUG – June 2010

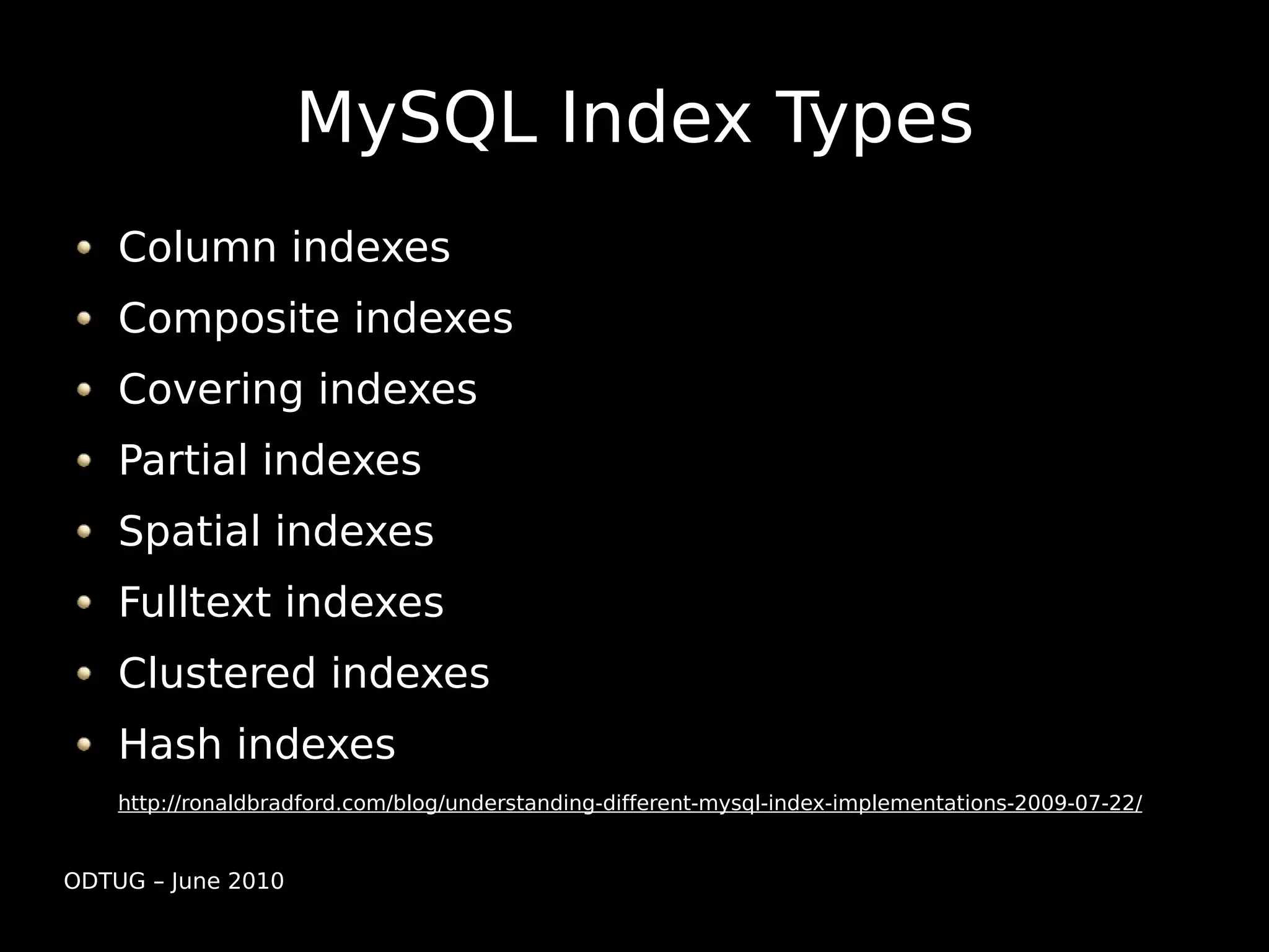

75. MySQL Index Types
Column indexes
Composite indexes
Covering indexes
Partial indexes
Spatial indexes
Fulltext indexes
Clustered indexes
Hash indexes
http://ronaldbradford.com/blog/understanding-different-mysql-index-implementations-2009-07-22/
ODTUG – June 2010

76. Column Index – Sub-optimal Design
CREATE TABLE `content` (
`ContentID` int(11) NOT NULL auto_increment,
....
`Promo` tinyint(1) NOT NULL,
`Theme` float NOT NULL,
`ForDelete` tinyint(1) NOT NULL,
PRIMARY KEY (`ContentID`),
KEY `CategoryID` (`CategoryID`),
KEY `Verified` (`Verified`),
KEY `FileName` (`FileName`(10)),
KEY `FileDuration` (`FileDuration`),
KEY `Votes` (`Votes`),
KEY `FileDir` (`FileDir`),
KEY `ForDelete` (`ForDelete`),
KEY `UserID` (`UserID`),
KEY `Type` (`Type`),
KEY `CategoryType` (`CategoryType`),
KEY `DateAdded` (`DateAdded`)
)
ODTUG – June 2010

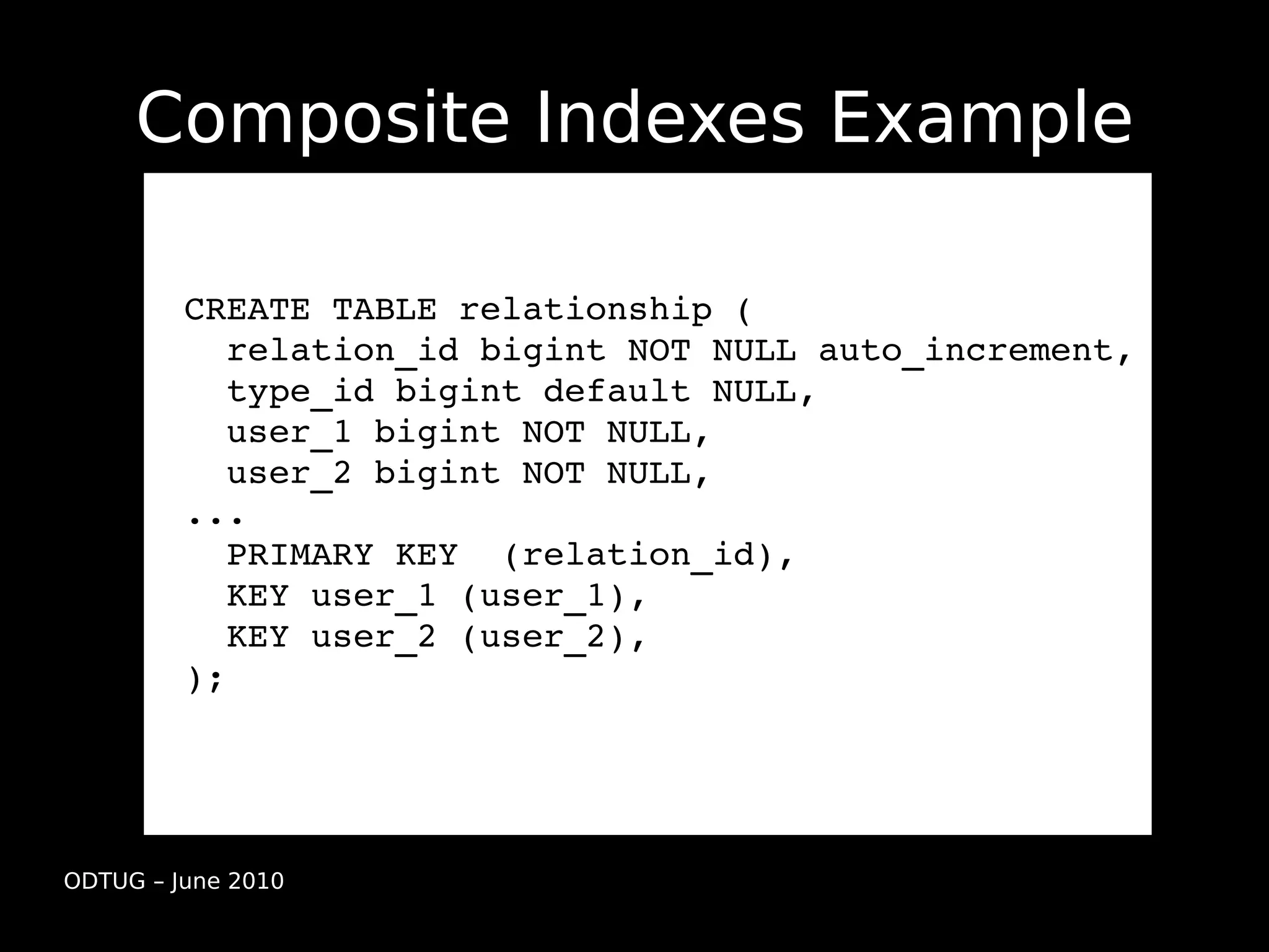

77. Composite Indexes Example
CREATE TABLE relationship (
relation_id bigint NOT NULL auto_increment,
type_id bigint default NULL,
user_1 bigint NOT NULL,
user_2 bigint NOT NULL,
...
PRIMARY KEY (relation_id),
KEY user_1 (user_1),
KEY user_2 (user_2),
);
ODTUG – June 2010

78. Composite Indexes
explain SELECT user_2 FROM relationship WHERE user_1 = '1580980221' AND user_2 IN (508534334,521894993);
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| 1 | SIMPLE | relationship | range | user_1,user_2 | user_2 | 8 | NULL | 2 | Using where |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
ALTER TABLE relationship DROP INDEX user_2, ADD INDEX user_2 (user_2, user_1);
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | relationship | range | user_1,user_2 | user_2 | 16 | NULL | 2 | Using where;Using Index |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
ODTUG – June 2010

79. Covering Indexes Example
CREATE TABLE logging (
source_addr int(10) unsigned NOT NULL,
source_port int(9) unsigned NOT NULL,
destn_addr int(10) unsigned NOT NULL,
destn_port int(9) unsigned NOT NULL,
protocol int(9) unsigned NOT NULL,
log_time int(11) unsigned NOT NULL,
size int(11) unsigned NOT NULL,
KEY log_time (log_time),
KEY size (size),
KEY source_port (src_port),
KEY destn_port (destn_port),
KEY source_addr (source_addr),
KEY destn_addr (dstn_addr)
) ENGINE=MyISAM;
ODTUG – June 2010

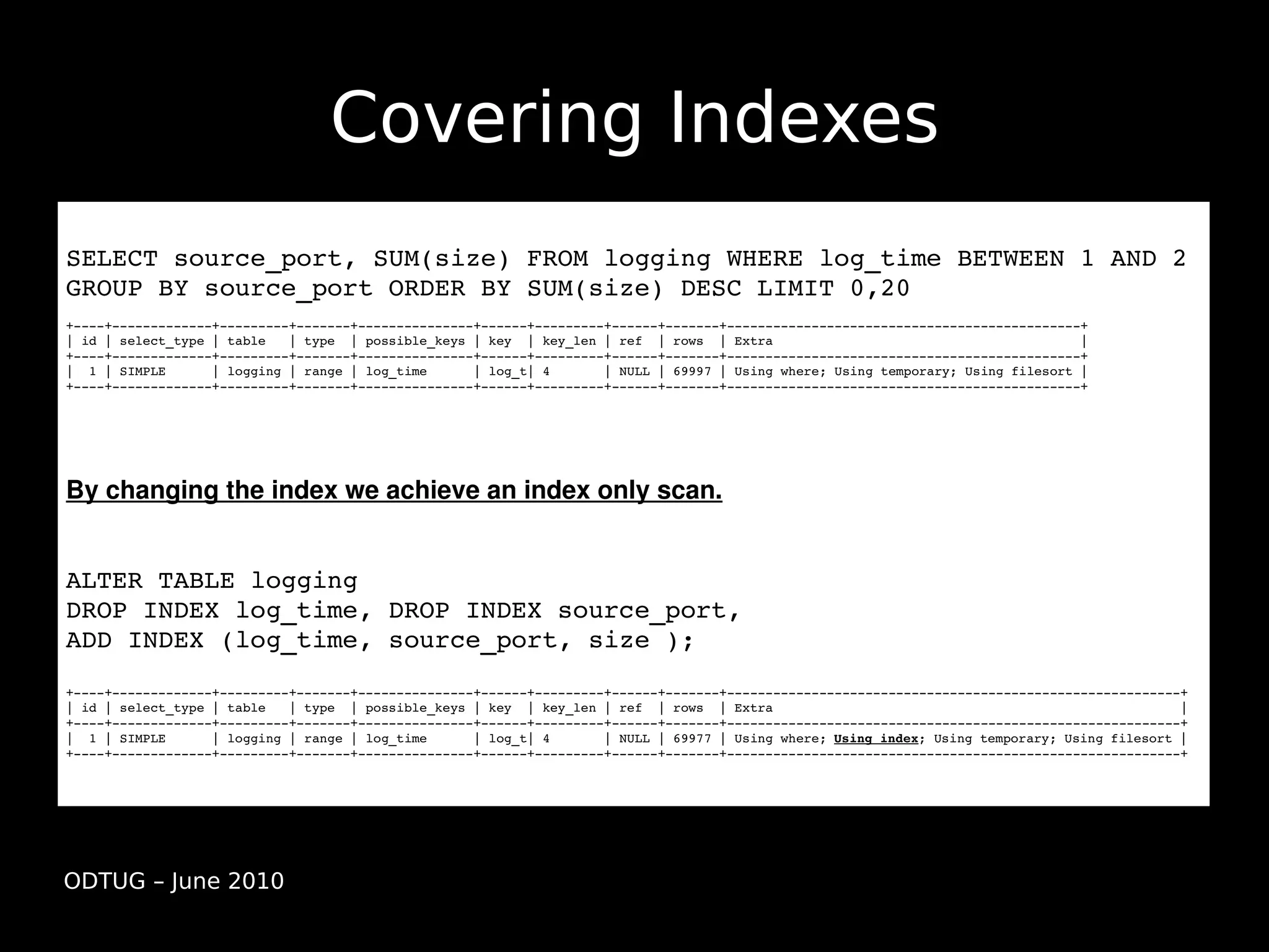

80. Covering Indexes
SELECT source_port, SUM(size) FROM logging WHERE log_time BETWEEN 1 AND 2
GROUP BY source_port ORDER BY SUM(size) DESC LIMIT 0,20
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | logging | range | log_time | log_t| 4 | NULL | 69997 | Using where; Using temporary; Using filesort |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
By changing the index we achieve an index only scan.
ALTER TABLE logging
DROP INDEX log_time, DROP INDEX source_port,
ADD INDEX (log_time, source_port, size );
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | logging | range | log_time | log_t| 4 | NULL | 69977 | Using where; Using index; Using temporary; Using filesort |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
ODTUG – June 2010

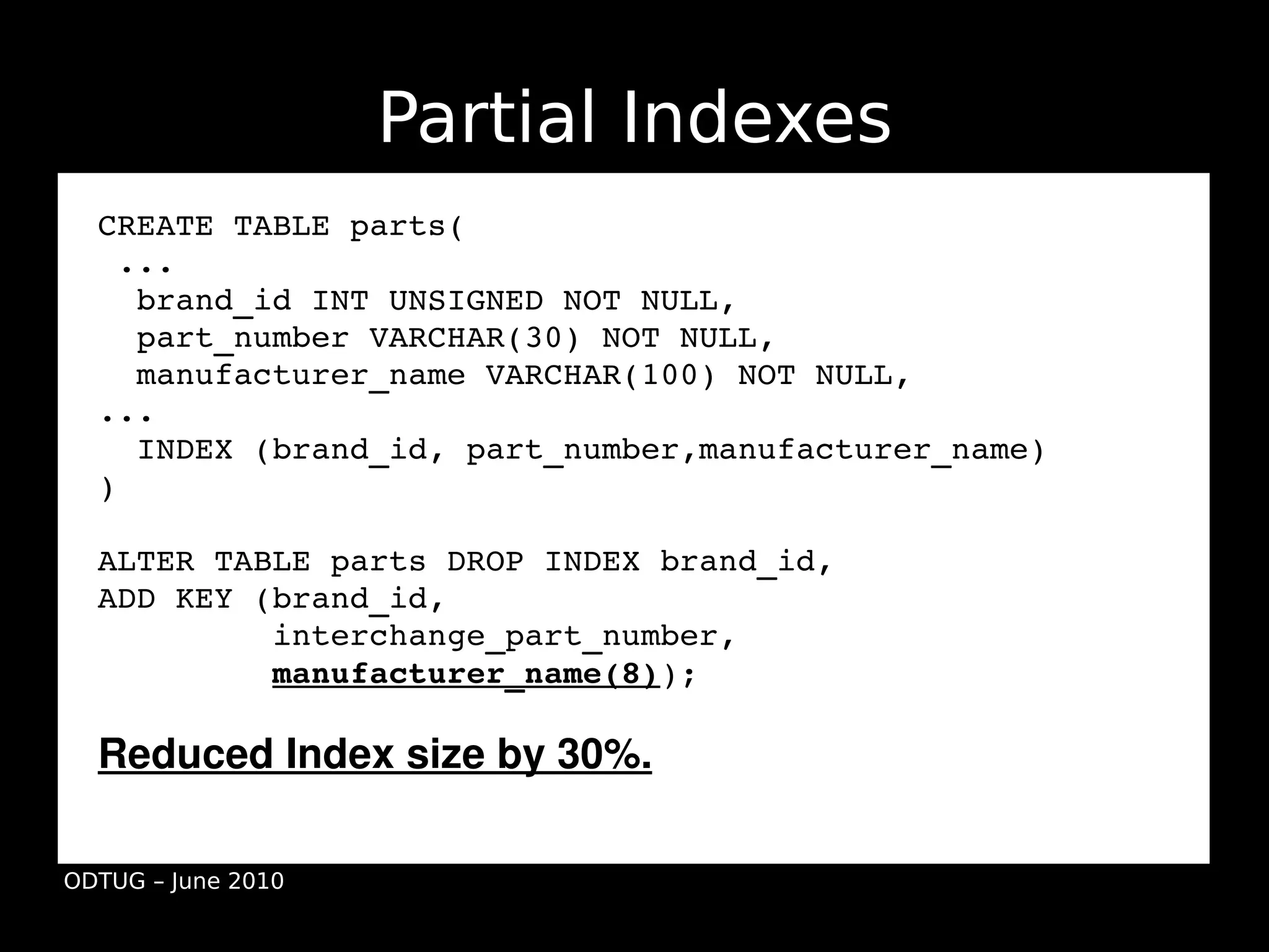

81. Partial Indexes
CREATE TABLE parts(
...
brand_id INT UNSIGNED NOT NULL,
part_number VARCHAR(30) NOT NULL,
manufacturer_name VARCHAR(100) NOT NULL,
...
INDEX (brand_id, part_number,manufacturer_name)
)
ALTER TABLE parts DROP INDEX brand_id,
ADD KEY (brand_id,
interchange_part_number,
manufacturer_name(8));
Reduced Index size by 30%.
ODTUG – June 2010

82. QEP – Using Filesort
EXPLAIN SELECT itemid FROM items WHERE productid=999 GROUP BY itemid;
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra
|
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | items | ref | productid | productid | 4 | const | 1 | Using where; Using filesort
Using filesort
|
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
1 row in set (0.00 sec)
EXPLAIN SELECT DISTINCT
DISTINCT itemid FROM items WHERE productid=999
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
| 1 | SIMPLE | items | ref | productid | productid | 4 | const | 1 | |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
ODTUG – June 2010

83. QEP – Using Filesort
mysql> show profile source for query 1;
+­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
| Status | Duration | Source_function | Source_file | Source_line |
+­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­­­+
| (initialization) | 0.000003 | open_tables | sql_base.cc | ...
| preparing | 0.000021 | exec | sql_select.cc | 1594 |
| executing | 0.000005 | exec | sql_select.cc | 1990 |
| Sorting result | 0.000121 | exec | sql_select.cc | 2114 |
| Sending data | 0.000033 | mysql_select | sql_select.cc | 2318 |
| end | 0.000007 | mysql_execute_command | sql_parse.cc | 5141 |
| query end | 0.000005 | mysql_parse | sql_parse.cc | 6142 |
...
ODTUG – June 2010

84. MySQL Index Sizes
NULL columns
Bigint vs int
InnoDB secondary index PK value
ODTUG – June 2010

85. NULL Index Columns
CREATE TABLE child(
child_id INT UNSIGNED NOT NULL,
parent_id INT UNSIGNED,
PRIMARY KEY(child_id),
INDEX(parent_id));
mysql> explain select * from child where parent_id=42;
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| 1 | SIMPLE | child | ref | parent_id | parent_id | 5 | const | 1 | Using where |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­+
ODTUG – June 2010

86. NULL Index Columns (2)
mysql> SELECT parent_id FROM CHILD PROCEDURE ANALYSE(5,2000)G
*************************** 1. row ***************************
Field_name: odtug.CHILD.parent_id
Min_value: 1
Max_value: 13
Min_length: 1
Max_length: 2
Empties_or_zeros: 0
Nulls: 0
Avg_value_or_avg_length: 7.0000
Std: 3.7417
Optimal_fieldtype: TINYINT(2) UNSIGNED NOT NULL
1 row in set (0.00 sec)
ODTUG – June 2010

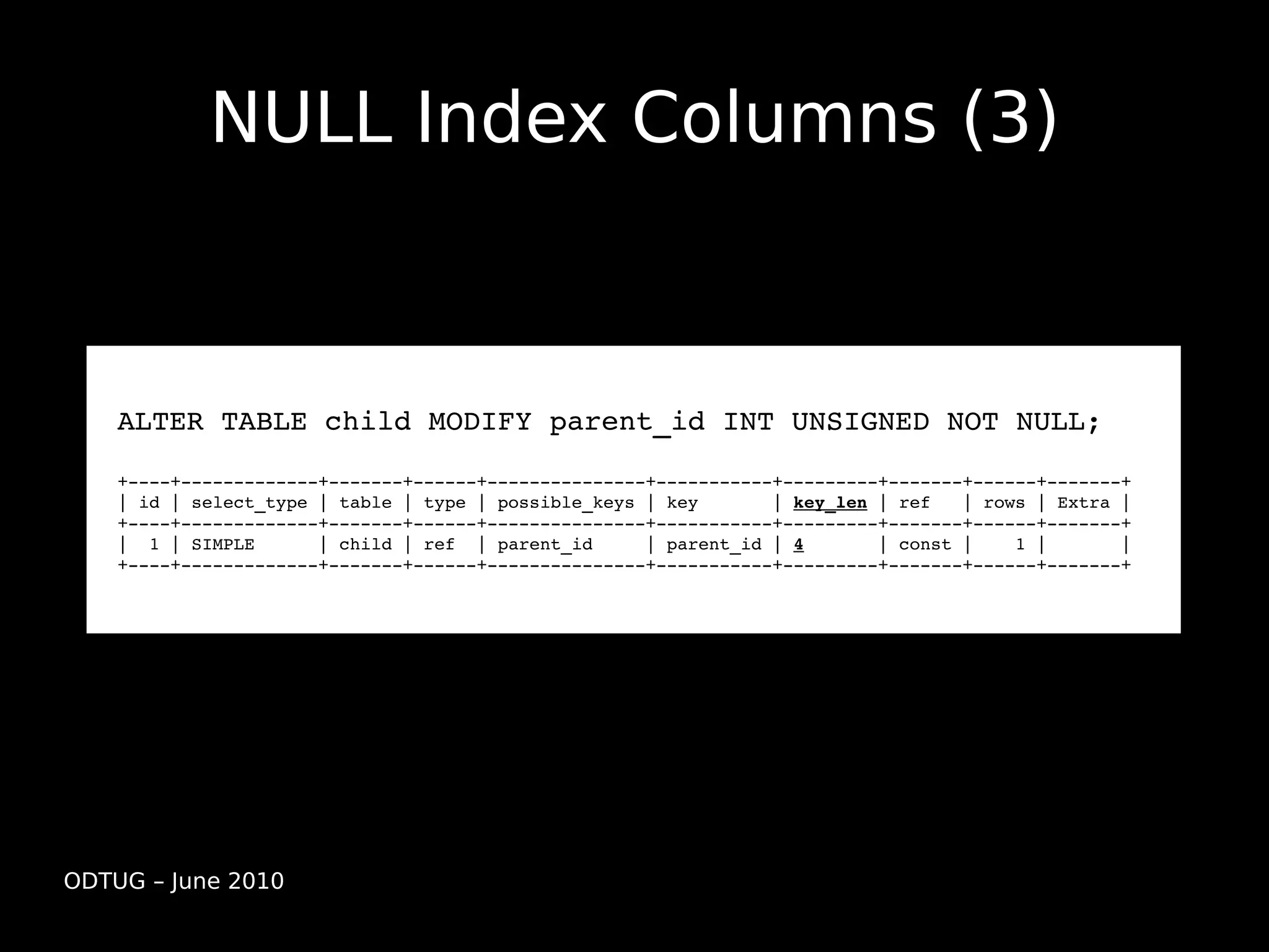

87. NULL Index Columns (3)
ALTER TABLE child MODIFY parent_id INT UNSIGNED NOT NULL;
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
| 1 | SIMPLE | child | ref | parent_id | parent_id | 4 | const | 1 | |
+­­­­+­­­­­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­+­­­­­­+­­­­­­­+
ODTUG – June 2010

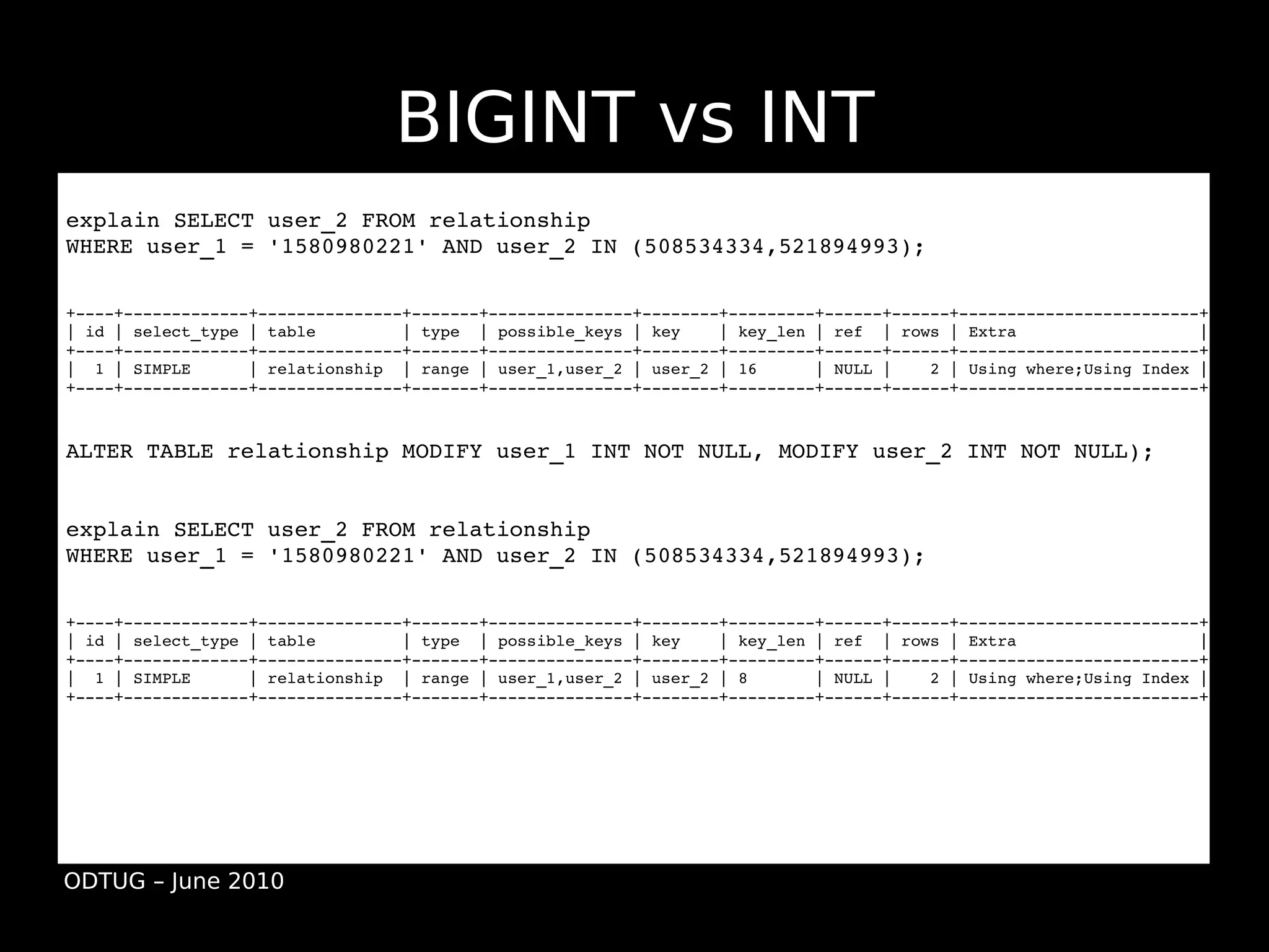

88. BIGINT vs INT
explain SELECT user_2 FROM relationship
WHERE user_1 = '1580980221' AND user_2 IN (508534334,521894993);
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | relationship | range | user_1,user_2 | user_2 | 16 | NULL | 2 | Using where;Using Index |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
ALTER TABLE relationship MODIFY user_1 INT NOT NULL, MODIFY user_2 INT NOT NULL);
explain SELECT user_2 FROM relationship
WHERE user_1 = '1580980221' AND user_2 IN (508534334,521894993);
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | relationship | range | user_1,user_2 | user_2 | 8 | NULL | 2 | Using where;Using Index |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­+
ODTUG – June 2010

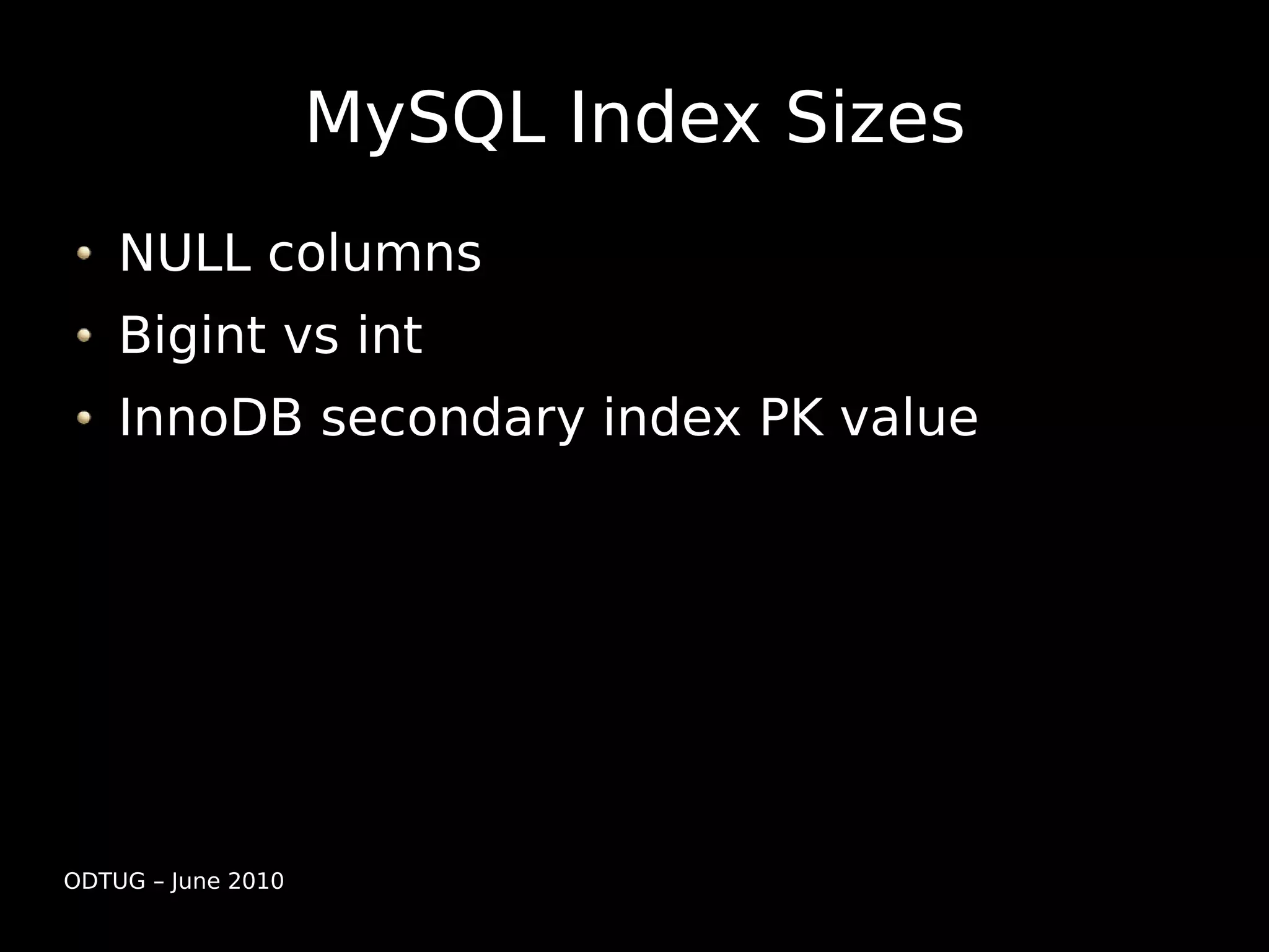

89. MySQL Index Sizes
NULL columns
Bigint vs int
InnoDB secondary index PK value
ODTUG – June 2010

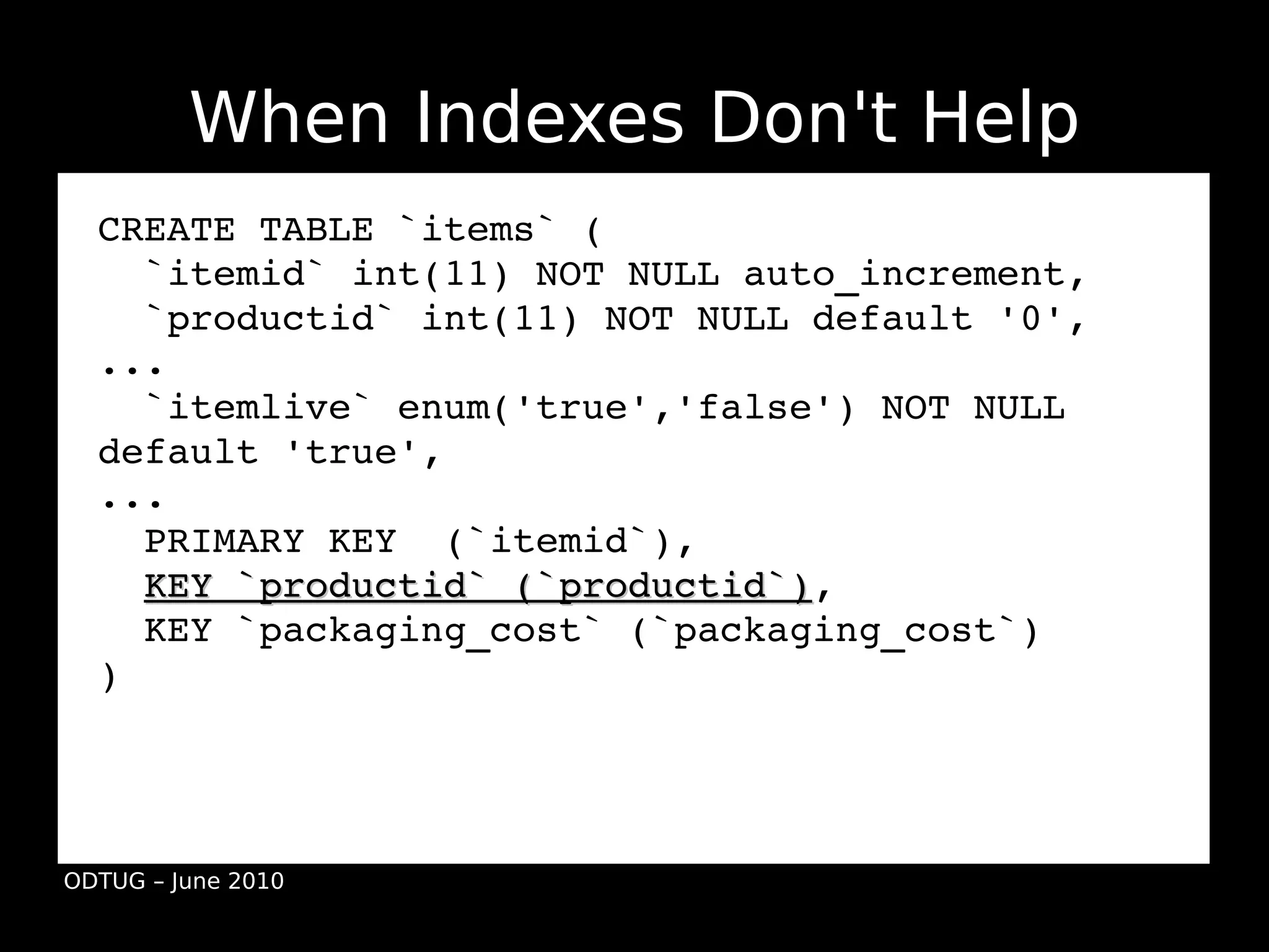

90. When Indexes Don't Help
CREATE TABLE `items` (
`itemid` int(11) NOT NULL auto_increment,
`productid` int(11) NOT NULL default '0',
...
`itemlive` enum('true','false') NOT NULL
default 'true',
...
PRIMARY KEY (`itemid`),
KEY `productid` (`productid`),
KEY `productid` (`productid`)
KEY `packaging_cost` (`packaging_cost`)
)
ODTUG – June 2010

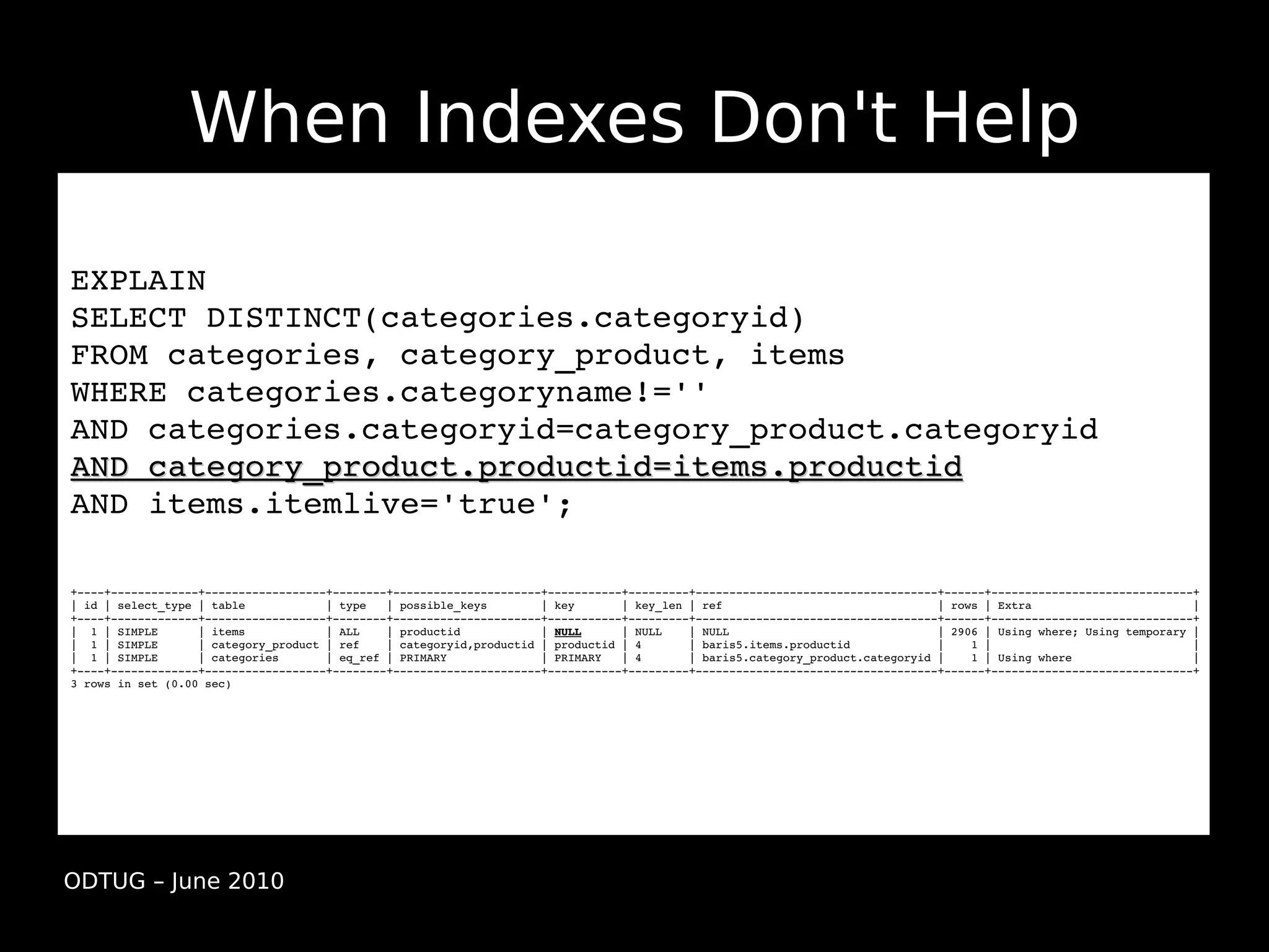

91. When Indexes Don't Help
EXPLAIN
SELECT DISTINCT(categories.categoryid)
FROM categories, category_product, items
WHERE categories.categoryname!=''
AND categories.categoryid=category_product.categoryid
AND category_product.productid=items.productid
AND category_product.productid=items.productid
AND items.itemlive='true';
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
NULL | NULL | NULL | 2906 | Using where; Using temporary |
| 1 | SIMPLE | items | ALL | productid | NULL
| 1 | SIMPLE | category_product | ref | categoryid,productid | productid | 4 | baris5.items.productid | 1 | |
| 1 | SIMPLE | categories | eq_ref | PRIMARY | PRIMARY | 4 | baris5.category_product.categoryid | 1 | Using where |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
3 rows in set (0.00 sec)
ODTUG – June 2010

92. When Indexes Don't Help
Adding an index can reduce this full table scan
mysql> alter table items drop index productid, add index (productid,itemlive);
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra
|
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| 1 | SIMPLE | items | index | productid | productid | 5 | NULL | 2180 | Using
where; Using index; Using temporary |
| 1 | SIMPLE | category_product | ref | categoryid,productid | productid | 4 | ronald.items.productid | 1 |
|
| 1 | SIMPLE | categories | eq_ref | PRIMARY | PRIMARY | 4 | baris5.category_product.categoryid | 1 | Using
where |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­+­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­+­­­­­­­­­­­+­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+­­­­­­
+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
ODTUG – June 2010

93. Optimizing SQL for Locking
DML is a blocking statement for MyISAM
Long running cleanup scripts
DELETE FROM fts_datacache
WHERE productid NOT IN (
SELECT productid
FROM xcart_products_categories
WHERE categoryid IN (297,1356,1366,1361,1202,...)
GROUP BY productid
3+ minutes to run SELECT
ODTUG – June 2010

94. Optimizing SQL for Locking
Rewriting statement into 2 statements
can reduce locking time to ~10 ms
CREATE TEMPORARY TABLE delete_cache (
productid INT NOT NULL,
primary key (productid)) ENGINE=MEMORY
SELECT DISTINCT productid
FROM retailbl_xcart.xcart_products_categories
WHERE categoryid IN (297,1356,1366,1361,1202,...);
DELETE FROM fts_datacache
WHERE productid NOT IN
(SELECT productid FROM delete_cache);
ODTUG – June 2010

95. Don't Forget Update
UPDATE T
SET STATE = 'MISFIRED'
WHERE (STATE = 'WAITING' OR STATE = 'WAITING')
AND NEXT_FIRE_TIME < 263352299544
EXPLAIN SELECT NAME,STATE
FROM T
WHERE (STATE = 'WAITING' OR STATE = 'WAITING')
AND NEXT_FIRE_TIME < 263350625813;
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
| 1 | SIMPLE | QRTZ_TRIGGERS | ALL | NULL | NULL | NULL | NULL | 1185 | Using where |
+­­­­+­­­­­­­­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­­­­­­­+­­­­­­+­­­­­­­­­+­­­­­­+­­­­­­+­­­­­­­­­­­­­+
ODTUG – June 2010

96. Remove Duplicate Indexes
CREATE TABLE `accounts` (
`accountid` int(11) NOT NULL auto_increment,
...
`retail_date` date NOT NULL,
`customer_survey` tinyint(1) NOT NULL default '1',
PRIMARY KEY (`accountid`),
KEY `accountid` (`accountid`)
);
CREATE TABLE `vehicle_applications` (
PRIMARY KEY (`id`),
KEY `mcp_index` (`product_id`,`make`,`model`,`year`),
KEY `status_idx` (`status`),
KEY `sid_idx` (`status_identifier`),
KEY `product_id_idx` (`product_id`),
)
ODTUG – June 2010

97. The Most Optimal
SQL is the SQL You
Can Eliminate
ODTUG – June 2010

98. Eliminating SQL – Example 1
Following executed 6,000 times in 5 min period
SELECT pages_id,
pages_livestats_code,
pages_title,
pages_parent,
pages_exhibid,
pages_theme,
pages_accession_num
FROM pages
WHERE pages_id = 0
0 is an invalid pages_id
ODTUG – June 2010

99. Eliminating SQL – Example 2
Following executed on single page load
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist` WHERE (ArtistID = 196 )
5 Query SELECT * FROM `artist` WHERE (ArtistID = 2188)
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
5 Query SELECT * FROM `artist`
ODTUG – June 2010

100. Eliminating SQL – Example 3
Row at a time (RAT) processing
SELECT * FROM activities_theme WHERE theme_parent_id=0
SELECT * FROM activities_theme WHERE theme_parent_id=1
SELECT * FROM activities_theme WHERE theme_parent_id=2
SELECT * FROM activities_theme WHERE theme_parent_id=11
SELECT * FROM activities_theme WHERE theme_parent_id=16
Chunk at a time (CAT) processing
SELECT *
FROM activities_theme
WHERE theme_parent_id in (0,1,2,11,16)
ODTUG – June 2010

101. Conclusion
ODTUG – June 2010

102. Capture/Analysis/Optimization
Improvement is a reoccurring process
Ideally you should analyze all SQL
Changes in data size and result set size
over time can affect SQL performance
ODTUG – June 2010
