WELCOME.....
URINE FORMATION
Where is urine formed???
As we all know , urine is
formed in kidneys.

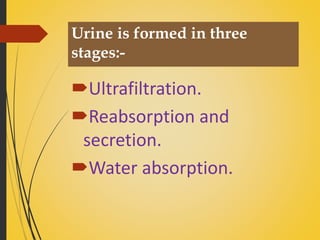

Urine is formed in three
stages:-
Ultrafiltration.
Reabsorption and
secretion.
Water absorption.
Ultrafiltration
 In this step , blood undergoes filtration
through the pores of the Glomerulus in the
Bowman’s capsule.
 The size of the efferent vessel is less than
that of the afferent vessel.
 This will lead to the increase of pressure inside the
Glomerulus , resulting in filtration.
 The filtrate is formed and is collected in the capsular
space of the Bowman’s capsule.
 This filtrate is called GLOMERULAR FILTRATE.
COMPONENTS OF
GLOMERULAR FILTRATE.
 Glomerular filtrate is similar to that of Plasma.
Water,glucose, amino
acids , ions of
sodium , potassium ,
and calcium ,
vitamins , urea ,uric
acid , creatinine etc…
Reabsorption and secretion
The glomerular filtrate
formed is transported to the
COLLECTING DUCT
through the RENAL
TUNULE.

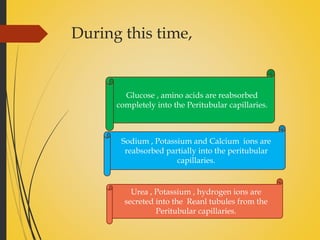

During this time,
Glucose , amino acids are reabsorbed
completely into the Peritubular capillaries.
Sodium , Potassium and Calcium ions are
reabsorbed partially into the peritubular
capillaries.
Urea , Potassium , hydrogen ions are
secreted into the Reanl tubules from the
Peritubular capillaries.
Water absorption
 Here excess water seen in the Glomerular
Filtrate is absorbed in the Collecting Duct.
 Both the kidneys produce about 127 ml of
GF per minute ,out of which 126 ml is
reabsorbed into the blood. i.e 1 ml forms
urine.
 As a result Glomerular filtrate is changed
into urine.
 Later the Urine is transported from the Collecting Duct to
the Ureter through the Pelvis.
 Urine is temporarily stored in the Urinary bladder.
 When the urinary bladder is full , there is a sensation to
urinate and urine is eliminated through the Urethra.
 i.e. MICTURITION process occurs.
Components Of Urine
 Water
- 96 %
 Urea
-2%
 Uric acid , Creatinine ,Nacl ,Kcl,
phosphate , Calcium salts etc.
-2 %
Do you know???
UROCHROME is the pigment
responsible for the pale yellow colour
of urine.
This urochrome is formed by the
disintegration of Haemoglobin.
HOW URINE IS
FORMED?
Questions………..
 What is the role of glomerulus in
ultrafiltration?
 Name the pigment responsible for the
yellow colour of urine?
 List out the components of Glomerular
filtrate?
 Define Ultrafiltration?
 Explain about reabsorption and secretion?
FOLLOW UP
Draw a neat labelled diagram of
Nepron illustrating the stages in urine
formation?
“Urinating frequency is more in rainy
season than in Summer season “ why?
