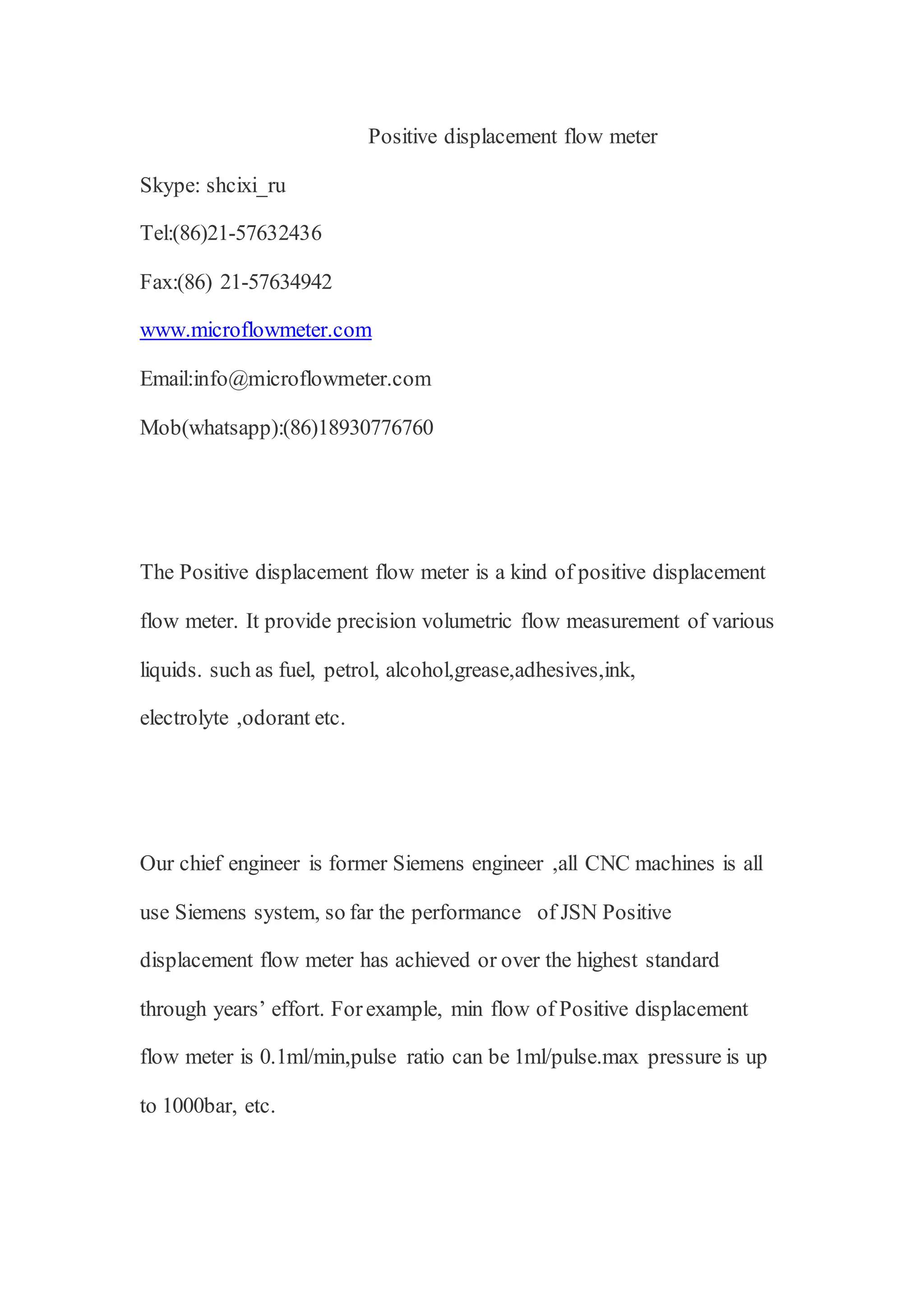

Positive displacement flow meter
1. Positive displacement flow meter
Skype: shcixi_ru
Tel:(86)21-57632436
Fax:(86) 21-57634942
www.microflowmeter.com
Email:info@microflowmeter.com
Mob(whatsapp):(86)18930776760
The Positive displacement flow meter is a kind of positive displacement
flow meter. It provide precision volumetric flow measurement of various
liquids. such as fuel, petrol, alcohol,grease,adhesives,ink,
electrolyte ,odorant etc.
Our chief engineer is former Siemens engineer ,all CNC machines is all
use Siemens system, so far the performance of JSN Positive
displacement flow meter has achieved or over the highest standard
through years’ effort. Forexample, min flow of Positive displacement
flow meter is 0.1ml/min,pulse ratio can be 1ml/pulse.max pressure is up
to 1000bar, etc.

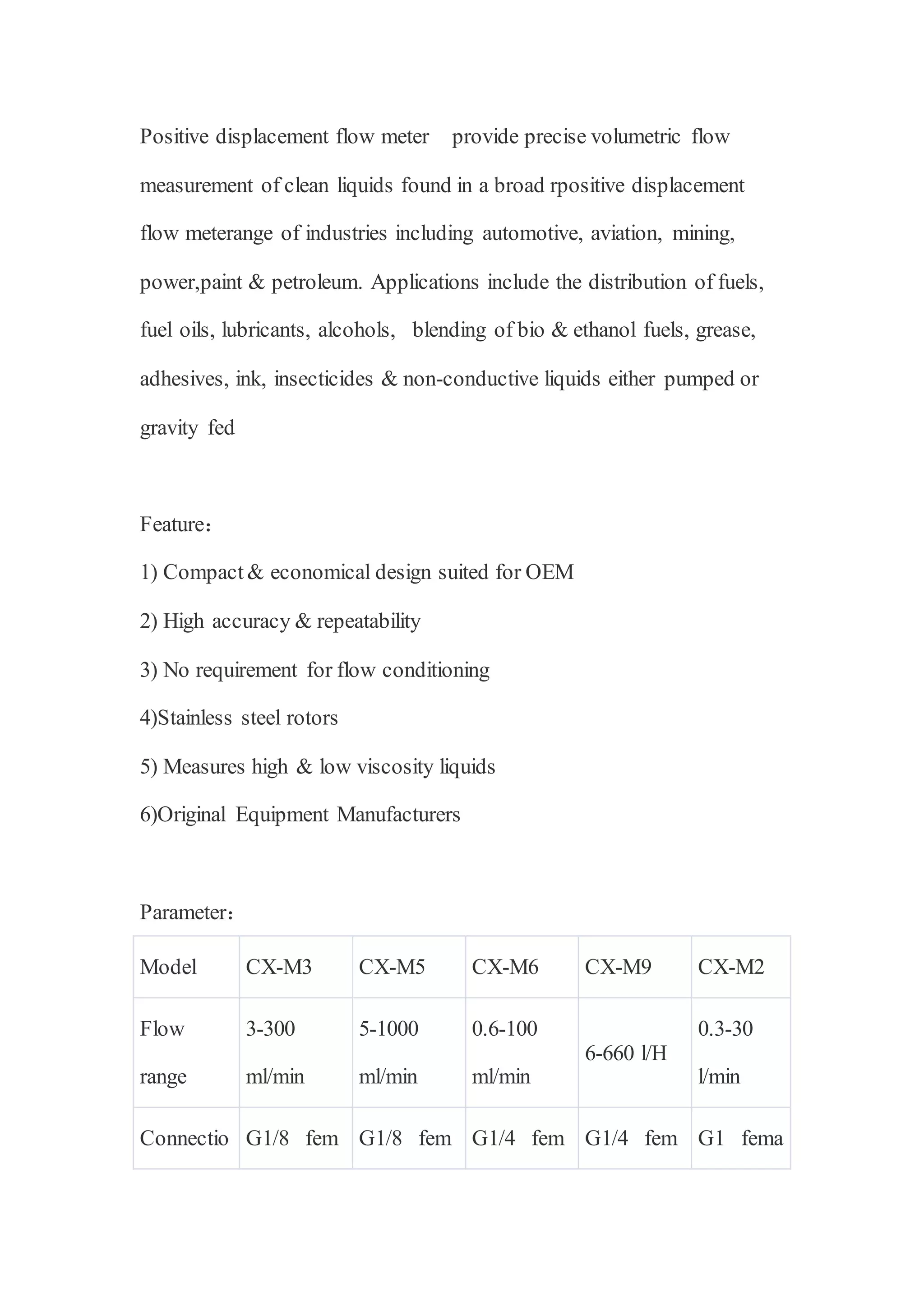

2. Positive displacement flow meter provide precise volumetric flow
measurement of clean liquids found in a broad rpositive displacement
flow meterange of industries including automotive, aviation, mining,
power,paint & petroleum. Applications include the distribution of fuels,
fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease,
adhesives, ink, insecticides & non-conductive liquids either pumped or
gravity fed
Feature：
1) Compact & economical design suited for OEM
2) High accuracy & repeatability
3) No requirement for flow conditioning
4)Stainless steel rotors
5) Measures high & low viscosity liquids
6)Original Equipment Manufacturers
Parameter：
Model CX-M3 CX-M5 CX-M6 CX-M9 CX-M2
Flow
range
3-300
ml/min
5-1000
ml/min
0.6-100
ml/min
6-660 l/H
0.3-30
l/min
Connectio G1/8 fem G1/8 fem G1/4 fem G1/4 fem G1 fema

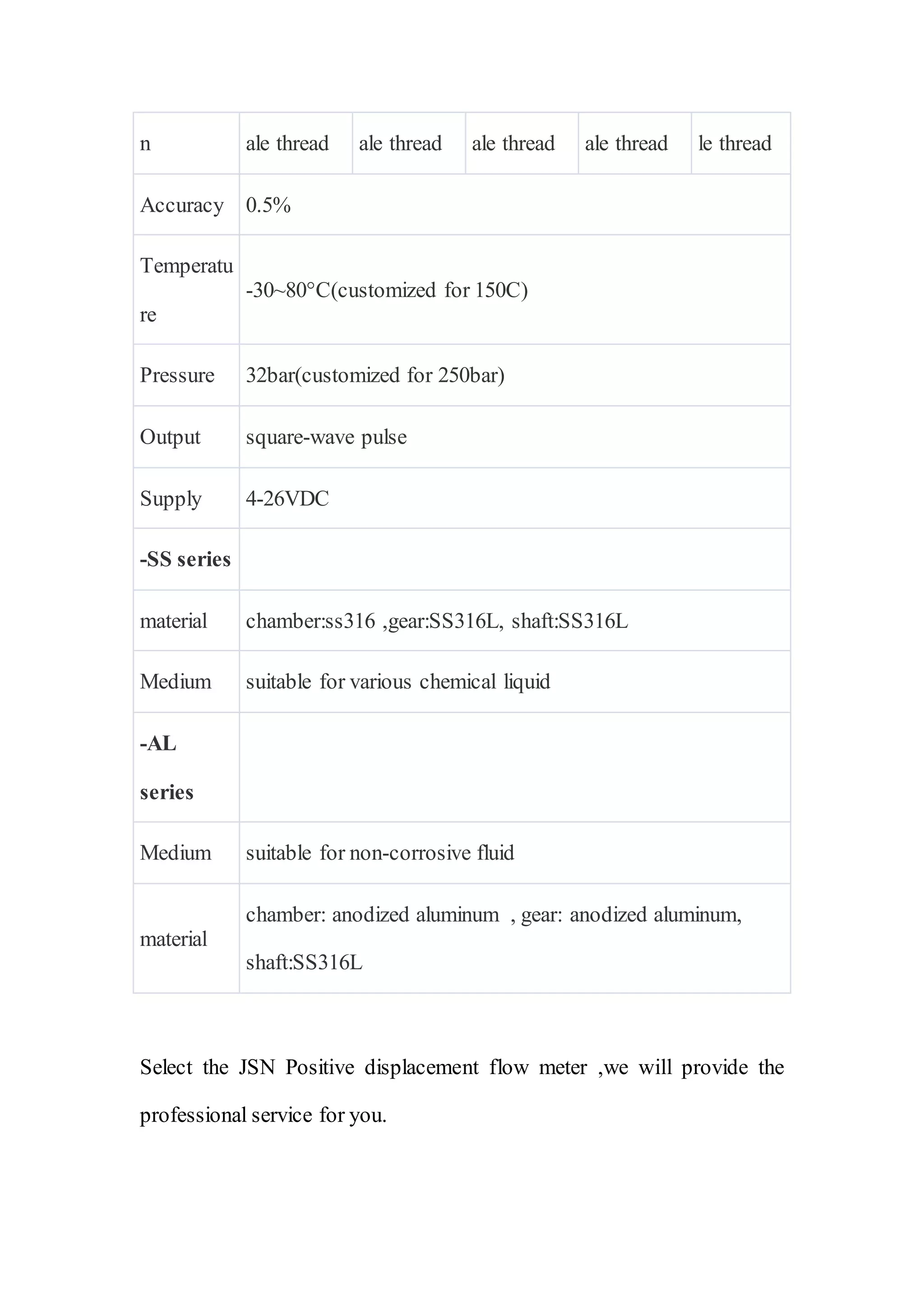

3. n ale thread ale thread ale thread ale thread le thread
Accuracy 0.5%
Temperatu
re
-30~80°C(customized for 150C)
Pressure 32bar(customized for 250bar)
Output square-wave pulse
Supply 4-26VDC
-SS series
material chamber:ss316 ,gear:SS316L, shaft:SS316L
Medium suitable for various chemical liquid
-AL
series
Medium suitable for non-corrosive fluid
material
chamber: anodized aluminum , gear: anodized aluminum,
shaft:SS316L
Select the JSN Positive displacement flow meter ,we will provide the
professional service for you.
