The micro flow meter is a precision positive displacement flow meter designed for accurate volumetric measurement of various liquids, including fuels and adhesives. It features a compact design, high accuracy, and the ability to measure both high and low viscosity liquids, with performance specifications such as a minimum flow rate of 0.1 ml/min and maximum pressure of 1000 bar. Applications span multiple industries, and customization options are available for different temperature and pressure requirements.

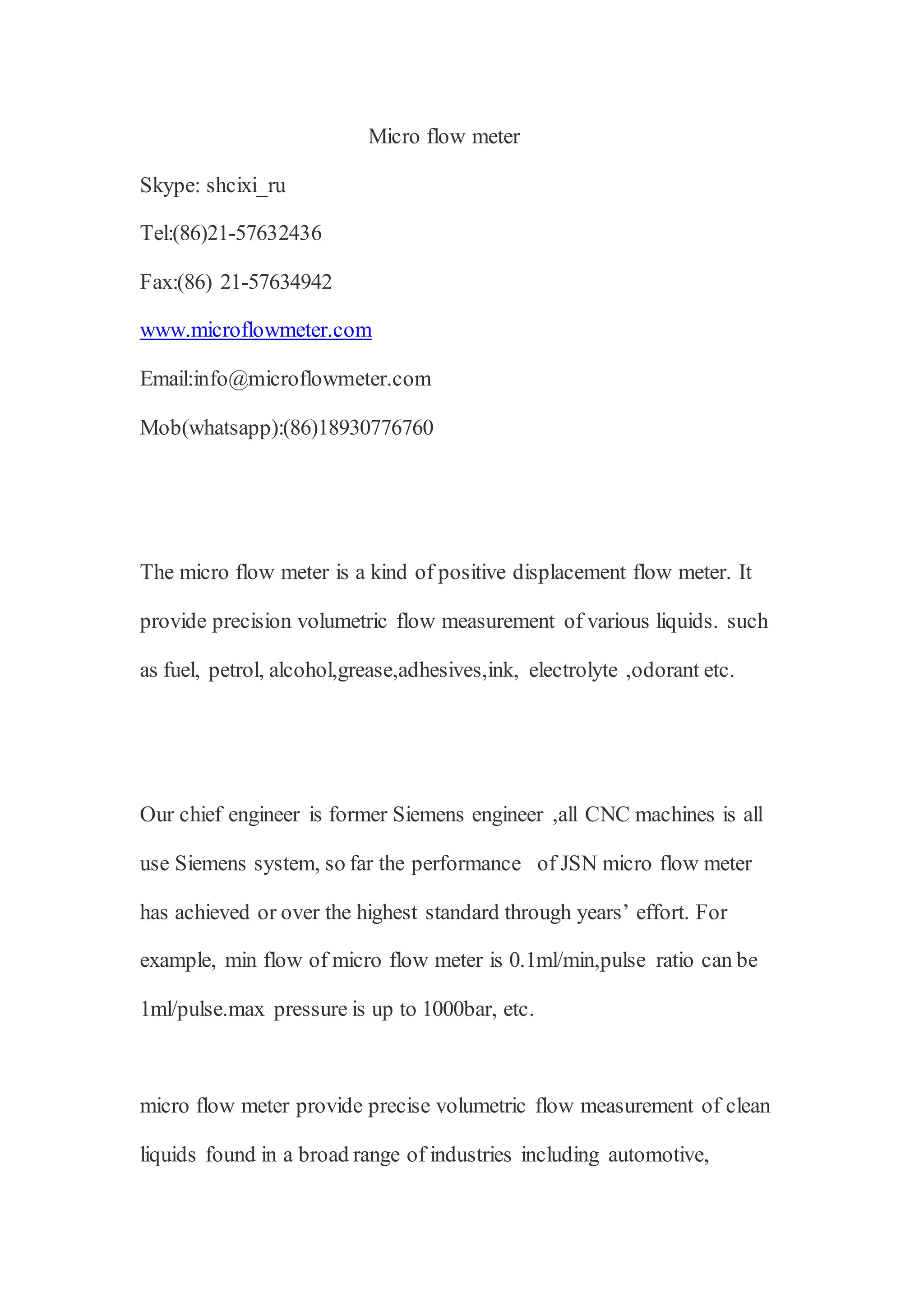

1. Micro flow meter
Skype: shcixi_ru
Tel:(86)21-57632436
Fax:(86) 21-57634942
www.microflowmeter.com
Email:info@microflowmeter.com
Mob(whatsapp):(86)18930776760
The micro flow meter is a kind of positive displacement flow meter. It
provide precision volumetric flow measurement of various liquids. such
as fuel, petrol, alcohol,grease,adhesives,ink, electrolyte ,odorant etc.
Our chief engineer is former Siemens engineer ,all CNC machines is all
use Siemens system, so far the performance of JSN micro flow meter
has achieved or over the highest standard through years’ effort. For
example, min flow of micro flow meter is 0.1ml/min,pulse ratio can be
1ml/pulse.max pressure is up to 1000bar, etc.
micro flow meter provide precise volumetric flow measurement of clean
liquids found in a broad range of industries including automotive,

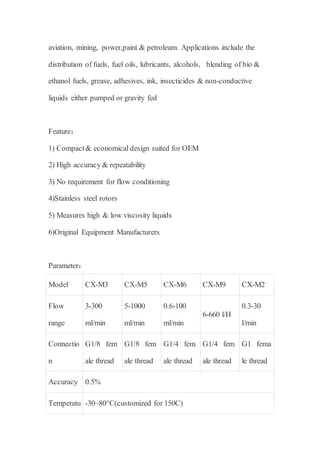

2. aviation, mining, power,paint & petroleum. Applications include the
distribution of fuels, fuel oils, lubricants, alcohols, blending of bio &
ethanol fuels, grease, adhesives, ink, insecticides & non-conductive
liquids either pumped or gravity fed
Feature：
1) Compact & economical design suited for OEM
2) High accuracy & repeatability
3) No requirement for flow conditioning
4)Stainless steel rotors
5) Measures high & low viscosity liquids
6)Original Equipment Manufacturers
Parameter：
Model CX-M3 CX-M5 CX-M6 CX-M9 CX-M2
Flow
range
3-300
ml/min
5-1000
ml/min
0.6-100
ml/min
6-660 l/H
0.3-30
l/min
Connectio
n
G1/8 fem
ale thread
G1/8 fem
ale thread
G1/4 fem
ale thread
G1/4 fem
ale thread
G1 fema
le thread
Accuracy 0.5%
Temperatu -30~80°C(customized for 150C)

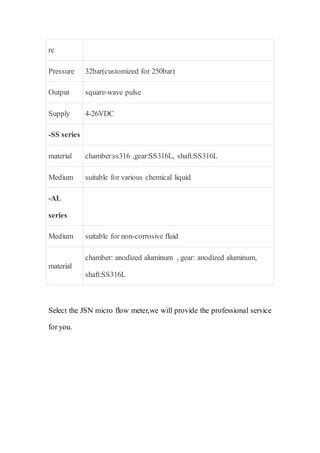

3. re
Pressure 32bar(customized for 250bar)
Output square-wave pulse
Supply 4-26VDC
-SS series
material chamber:ss316 ,gear:SS316L, shaft:SS316L
Medium suitable for various chemical liquid
-AL
series
Medium suitable for non-corrosive fluid
material
chamber: anodized aluminum , gear: anodized aluminum,
shaft:SS316L
Select the JSN micro flow meter,we will provide the professional service
for you.
