The low flow meter is a positive displacement flow meter that provides precise volumetric flow measurement of various liquids like fuels, chemicals, and adhesives. It was developed by engineers formerly from Siemens to achieve the highest standards, with flow ranges from 0.1 ml/min to 660 l/h, maximum pressure up to 1000 bar, and accuracy of 0.5%. The compact design makes it suitable for OEM applications across industries like automotive, mining, and petroleum to distribute and measure fuels, lubricants, and other liquids.

1. Low flow meter
Skype: shcixi_ru
Tel:(86)21-57632436
Fax:(86) 21-57634942
www.microflowmeter.com
Email:info@microflowmeter.com
Mob(whatsapp):(86)18930776760
The low flow meter is a kind of positive displacement flow meter. It
provide precision volumetric flow measurement of various liquids. such
as fuel, petrol, alcohol,grease,adhesives,ink, electrolyte ,odorant etc.
Our chief engineer is former Siemens engineer ,all CNC machines is all
use Siemens system, so far the performance of JSN low flow meter
has achieved or over the highest standard through years’ effort. For
example, min flow of low flow meter is 0.1ml/min,pulse ratio can be
1ml/pulse.max pressure is up to 1000bar, etc.
low flow meter provide precise volumetric flow measurement of clean
liquids found in a broad range of industries including automotive,

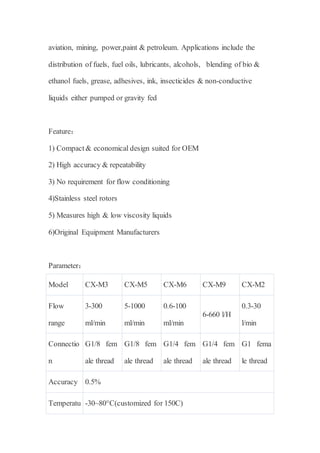

2. aviation, mining, power,paint & petroleum. Applications include the
distribution of fuels, fuel oils, lubricants, alcohols, blending of bio &
ethanol fuels, grease, adhesives, ink, insecticides & non-conductive
liquids either pumped or gravity fed
Feature：
1) Compact & economical design suited for OEM
2) High accuracy & repeatability
3) No requirement for flow conditioning
4)Stainless steel rotors
5) Measures high & low viscosity liquids
6)Original Equipment Manufacturers
Parameter：
Model CX-M3 CX-M5 CX-M6 CX-M9 CX-M2
Flow
range
3-300
ml/min
5-1000
ml/min
0.6-100
ml/min
6-660 l/H
0.3-30
l/min
Connectio
n
G1/8 fem
ale thread
G1/8 fem
ale thread
G1/4 fem
ale thread
G1/4 fem
ale thread
G1 fema
le thread
Accuracy 0.5%
Temperatu -30~80°C(customized for 150C)

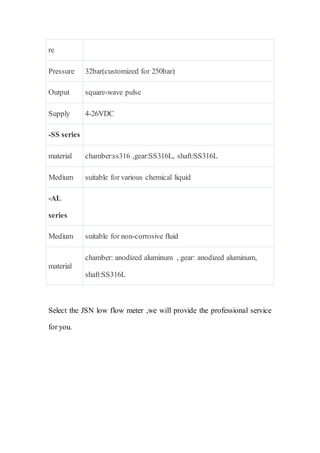

3. re
Pressure 32bar(customized for 250bar)
Output square-wave pulse
Supply 4-26VDC
-SS series
material chamber:ss316 ,gear:SS316L, shaft:SS316L
Medium suitable for various chemical liquid
-AL
series
Medium suitable for non-corrosive fluid
material
chamber: anodized aluminum , gear: anodized aluminum,
shaft:SS316L
Select the JSN low flow meter ,we will provide the professional service
for you.
