This document provides an overview of shoulder arthroscopy procedures including patient positioning, room setup, skin marking of bony landmarks, creation of portals, and navigation of the glenohumeral joint and subacromial space. It discusses the lateral decubitus position as the preferred approach and describes skin marking for the basic posterior, anterior superior, anterior inferior, and posterior lateral portals. Key steps are outlined including insertion of the arthroscope through the posterior portal for initial visualization of the glenohumeral joint.

1. Shoulder Arthroscopy:
Basic Portals – Landmarks –
Navigation
Nikolaos Tzanakakis
Orthopedic Surgeon
2nd Orthopedic Dept.
Center for Shoulder Arthroscopy
IASO General Hospital
Athens, Greece

2. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

3. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

4. Patient Positioning: Beach Chair
can easily convert to open surgery…
ask your instructors later today
www.shoulder.gr

5. Patient Positioning:
Lateral Decubitus
Our preferred position
www.shoulder.gr

6. Lateral Decubitus positioning
30° backward inclination
www.shoulder.gr

7. Padding bony prominences
Adequate patient stabilization
Beware of the neck
Patient Positioning:
Lateral Decubitus
www.shoulder.gr

8. Arm Draping
www.shoulder.gr

9. Traction: NO more than 4 Kgrs
Axonal traction:
3.2 Kg for body weight<65 Kg
4.0 Kg for body weight>65 Kg
www.shoulder.gr

10. Choose patient positioning
Beach chair VS. Lateral decubitus
 Are equally useful and promising
 Have the same landmarks
 Decision depends on surgeon’s training
and preferences
www.shoulder.gr

11. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

12. Room Set up
Lateral decubitus allows easy access to the
anterior and posterior part of the joint
www.shoulder.gr

13. Keep the operating room cold
to avoid fogging
but
Keep the
patient warm
www.shoulder.gr

14. Instruments in side pocket –
easily available
www.shoulder.gr

15. The arthroscopic tower opposite
the surgeon
www.shoulder.gr

16. Is everything ready
BEFORE starting ?
www.shoulder.gr

17. Commonly used tools arranged
by the scrub nurse
www.shoulder.gr

18. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

19. Skin Marking – Bony Landmarks
www.shoulder.gr

20. Skin Marking – Basic Portals
P
AS
AI
PL
L
www.shoulder.gr
N

21. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

22. Before Entering the Scope
Spinal Needle
insertion
www.shoulder.gr

23. Saline Backflow
Saline in
Before Entering the Scope
www.shoulder.gr

24. Arthroscope in GH joint
www.shoulder.gr

25. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space
www.shoulder.gr

26. First view from posterior portal
www.shoulder.gr

27. View from posterior portal
www.shoulder.gr

28. Checking Rotator cuff
PASTA
Full RC tear
www.shoulder.gr

29. Creating Anterior Portals
www.shoulder.gr

30. Creating Anterior Superior Portal
www.shoulder.gr

31. Switching stick into AS portal
www.shoulder.gr

32. Scope into Anterior Superior portal
www.shoulder.gr

33. View from Anterior Superior portal
www.shoulder.gr

34. View from Anterior Superior portal
www.shoulder.gr

35. Creating Anterior Inferior portal
www.shoulder.gr

36. Three main portals for GH arthroscopy
www.shoulder.gr

37. Topics
 Patient positioning
 Room set-up
 Landmarks - Skin Marking
 Creating portals
 Glenohumeral Joint Navigation
 Subacromial Space Navigation
www.shoulder.gr

38. Creating the PosteroLateral
portal
1cm distal, 1cm posterior to PL acromion corner
www.shoulder.gr

39. Two posterior portals:
better view & better suture management
Portals for Subacromial arthroscopy
www.shoulder.gr

40. Portals for Subacromial arthroscopy
 Scope into Posterolateral portal
www.shoulder.gr

41. Portals for Subacromial arthroscopy
 Create the Lateral portal
 3-4cm distal to the lateral acromion
www.shoulder.gr

42. Don’t Worry…be happy
www.shoulder.gr

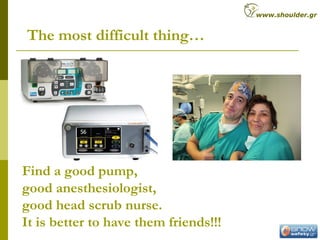

43. Find a good pump,
good anesthesiologist,
good head scrub nurse.
It is better to have them friends!!!
The most difficult thing…
www.shoulder.gr

44. Bleeding control
www.shoulder.gr

45. Bursa removal
www.shoulder.gr

46. Uncovering acromion
www.shoulder.gr

47. AC joint – Auxiliary portal
www.shoulder.gr

48. Checking Rotator Cuff Pathology
www.shoulder.gr

49. Thank you for your attention
www.shoulder.gr
