This document describes a portable and economical conductivity meter. It is a microprocessor-based handheld device that measures conductivity in a range of 0-19.99 mS or 0-1999 uS, depending on the model. It is waterproof, easy to use in both indoor and outdoor environments, and runs on lithium batteries that provide approximately 150 hours of power. The meter floats and has features like auto-power off, hold function, and replaceable electrodes. It is presented as a good choice for use in schools, labs, and manufacturing plants due to its affordable price and portability.

1. PORTABLE ECONOMICAL
CONDUCTIVITY METER
MODEL NO.- ACM-COND-SCAN-1101
R

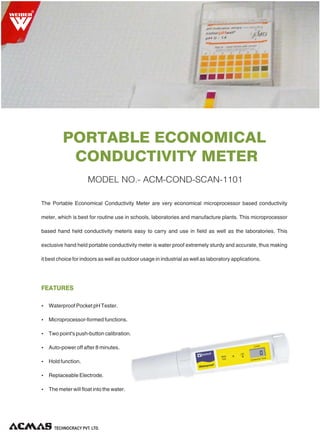

2. PORTABLE ECONOMICAL
CONDUCTIVITY METER
R
Ÿ Waterproof Pocket pH Tester.
Ÿ Microprocessor-formed functions.
Ÿ Two point's push-button calibration.
Ÿ Auto-power off after 8 minutes.
Ÿ Hold function.
Ÿ Replaceable Electrode.
Ÿ The meter will float into the water.
The Portable Economical Conductivity Meter are very economical microprocessor based conductivity
meter, which is best for routine use in schools, laboratories and manufacture plants. This microprocessor
based hand held conductivity meteris easy to carry and use in field as well as the laboratories. This
exclusive hand held portable conductivity meter is water proof extremely sturdy and accurate, thus making
it best choice for indoors as well as outdoor usage in industrial as well as laboratory applications.
FEATURES
MODEL NO.- ACM-COND-SCAN-1101

3. MODEL
Testing range
Testing accuracy
Calibration point
Calibration
solution
Coefficient of
Temp.
Compensation
Battery
Power-on time
External size
(mm)
Weight
TECHNICAL SPECIFICATIONS
COND-SCAN40
0~19.99mS
±1%F.S
1 point
12.85mS
COND-SCAN20
0~199.9uS
±1%F.S
1 point
146.6uS
2% / ℃ 2% / ℃ 2% / ℃
G13-A CNB 1.5 Lithium
Approximately 150 hours
180(length)×30(diameter)
85g 85g 85g
COND-SCAN30
0~1999uS
±1%F.S
1 point
1408uS
G13-A CNB 1.5 Lithium
Approximately 150 hours
180(length)×30(diameter)
G13-A CNB 1.5 Lithium
Approximately 150 hours
180(length)×30(diameter)
R

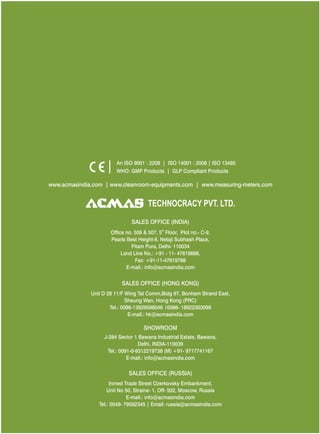

4. TECHNOCRACY PVT. LTD.
