The Economical Total Chlorine Detector model ACM-120-SC is a compact, lightweight device designed for quantitative detection of total chlorine in liquid samples, featuring high sensitivity and a quick analysis time of 3 minutes. It operates with a 9V battery for over 40 hours and provides accurate measurements within a range of 0.05 to 9.99 mg/L. Applications include analysis of drinking, living, sea, surface, and wastewater, making it suitable for various laboratory and analytical tasks.

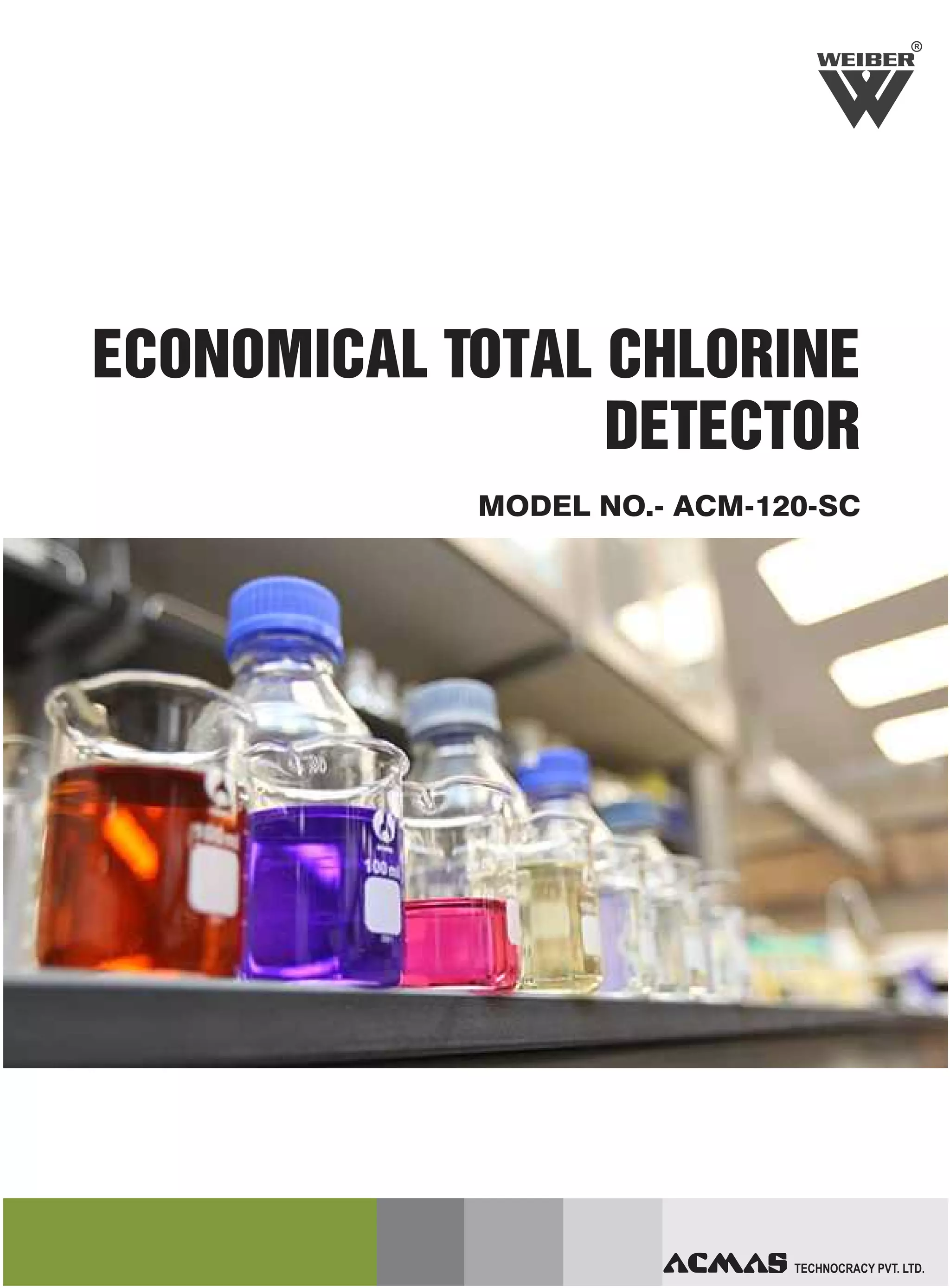

1. R
ECONOMICAL TOTAL CHLORINE
DETECTOR
MODEL NO.- ACM-120-SC

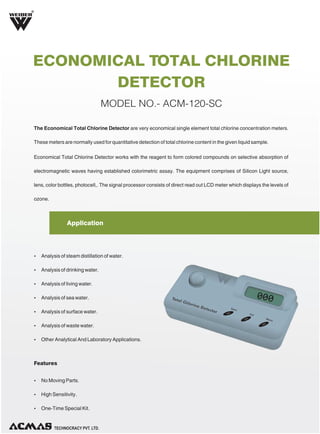

2. R
ECONOMICAL TOTAL CHLORINE
DETECTOR
MODEL NO.- ACM-120-SC
The Economical Total Chlorine Detector are very economical single element total chlorine concentration meters.
These meters are normally used for quantitative detection of total chlorine content in the given liquid sample.
Economical Total Chlorine Detector works with the reagent to form colored compounds on selective absorption of
electromagnetic waves having established colorimetric assay. The equipment comprises of Silicon Light source,
lens, color bottles, photocell,. The signal processor consists of direct read out LCD meter which displays the levels of
ozone.
Application
Ÿ Analysis of steam distillation of water.
Ÿ Analysis of drinking water.
Ÿ Analysis of living water.
Ÿ Analysis of sea water.
Ÿ Analysis of surface water.
Ÿ Analysis of waste water.
Ÿ Other Analytical And Laboratory Applications.
Features
Ÿ No Moving Parts.
Ÿ High Sensitivity.
Ÿ One-Time Special Kit.
TECHNOLOGIES PVT. LTD

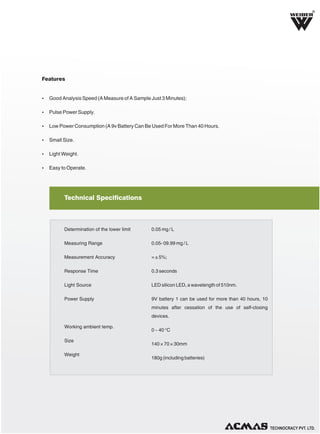

3. R
Features
Ÿ Good Analysis Speed (A Measure of A Sample Just 3 Minutes);
Ÿ Pulse Power Supply.
Ÿ Low Power Consumption (A 9v Battery Can Be Used For More Than 40 Hours.
Ÿ Small Size.
Ÿ Light Weight.
Ÿ Easy to Operate.
Technical Specifications
Determination of the lower limit
0.05 mg / L
Measuring Range
0.05- 09.99 mg / L
Measurement Accuracy
= ± 5%;
Response Time
0.3 seconds
Light Source
LED silicon LED, a wavelength of 510nm.
Power Supply
9V battery 1 can be used for more than 40 hours, 10
minutes after cessation of the use of self-closing
devices.
Working ambient temp.
Size
Weight
0 ~ 40 °C
140 × 70 × 30mm
180g (including batteries)
TECHNOLOGIES PVT. LTD
