The document describes the economical cyanuric acid analyzer model ACM-107-SC, a device used for detecting cyanuric acid concentrations in various liquid samples. It features high sensitivity, no moving parts, and operates with low power consumption, providing results in about 3 minutes. Applications include the analysis of drinking water, wastewater, and other laboratory uses.

1. R
ECONOMICAL CYANURIC
ACID ANALYZER
MODEL NO.- ACM-107-SC

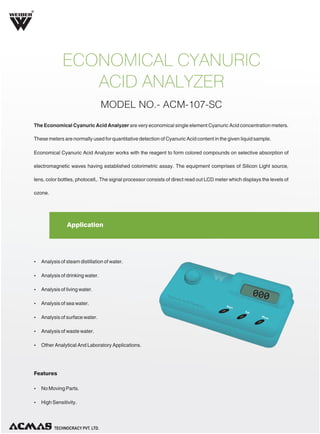

2. R
ECONOMICAL CYANURIC
ACID ANALYZER
MODEL NO.- ACM-107-SC
The Economical Cyanuric Acid Analyzer are very economical single element Cyanuric Acid concentration meters.
These meters are normally used for quantitative detection of Cyanuric Acid content in the given liquid sample.
Economical Cyanuric Acid Analyzer works with the reagent to form colored compounds on selective absorption of
electromagnetic waves having established colorimetric assay. The equipment comprises of Silicon Light source,
lens, color bottles, photocell,. The signal processor consists of direct read out LCD meter which displays the levels of
ozone.
Application
Ÿ Analysis of steam distillation of water.
Ÿ Analysis of drinking water.
Ÿ Analysis of living water.
Ÿ Analysis of sea water.
Ÿ Analysis of surface water.
Ÿ Analysis of waste water.
Ÿ Other Analytical And Laboratory Applications.
Features
Ÿ No Moving Parts.
Ÿ High Sensitivity.
TECHNOLOGIES PVT. LTD.

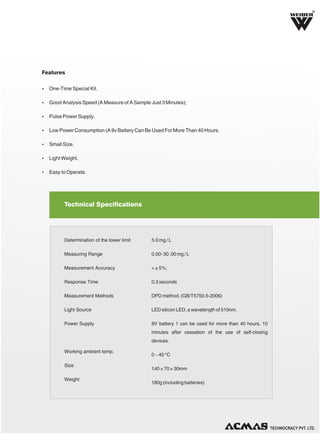

3. R
Features
Ÿ One-Time Special Kit.
Ÿ Good Analysis Speed (A Measure of A Sample Just 3 Minutes);
Ÿ Pulse Power Supply.
Ÿ Low Power Consumption (A 9v Battery Can Be Used For More Than 40 Hours.
Ÿ Small Size.
Ÿ Light Weight.
Ÿ Easy to Operate.
Technical Specifications
Determination of the lower limit
5.0 mg / L
Measuring Range
0.00- 30 .00 mg / L
Measurement Accuracy
= ± 5%;
Response Time
0.3 seconds
Measurement Methods
DPD method. (GB/T5750.5-2006)
Light Source
LED silicon LED, a wavelength of 510nm.
Power Supply
9V battery 1 can be used for more than 40 hours, 10
minutes after cessation of the use of self-closing
devices.
Working ambient temp.
Size
Weight
0 ~ 40 °C
140 × 70 × 30mm
180g (including batteries)
TECHNOLOGIES PVT. LTD.

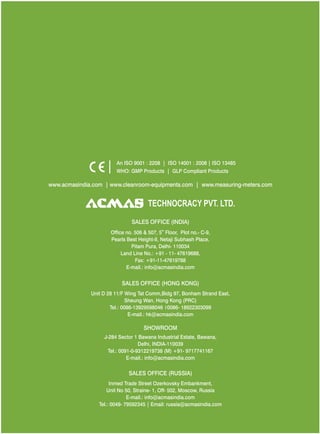

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
