The document details the specifications and features of the ACM-MP-513 analytical microprocessor based conductivity meter produced by Technologies Pvt. Ltd., ideal for research and laboratory use. It measures various parameters like conductivity, resistivity, TDS, salinity, and temperature with high accuracy and includes a data storage capability for 100 sample groups. The meter features RS-232 communication, automatic temperature compensation, and comes with a flexible electrode holder and software support.

1. R
ANALYTICAL MICROPROCESSOR
BASED CONDUCTIVITY METER
MODEL NO.- ACM-MP-513
TECHNOLOGIES PVT. LTD.

2. R
ANALYTICAL MICROPROCESSOR
BASED CONDUCTIVITY METER
MODEL NO.- ACM-MP-513
The Analytical Microprocessor Based Conductivity Meter is highly developed microprocessor based
conductivity meter with computer connectivity which makes it ideal for analytical usages in testing and research,
laboratories and manufacture plants. This microprocessor based table top conductivity meter is capable of
measuring Conductivity, Resistivity, TDS, Salinity and Temperature with an Ion selective electrode with immense
accuracy.
FEATURES
Ÿ Analytical bench top conductivity meter.
Ÿ RS 232 C Interface.
Ÿ Data Storage of upto 100 samples groups readings.
Ÿ Supplied with Software for interpretation logging as well as analysis.
Ÿ Plastic conductivity electrode.
Ÿ Automatic Temperature Compensation.
Ÿ Self-Diagnostic with Message Codes Display.
KEY INCLUSIONS
Ÿ 2301-M plastic conductivity electrode K=1, ATC.
Ÿ Model 602 flexible electrode holder.
Ÿ RS-232 Communication Software.
TECHNOLOGIES PVT. LTD.

3. R

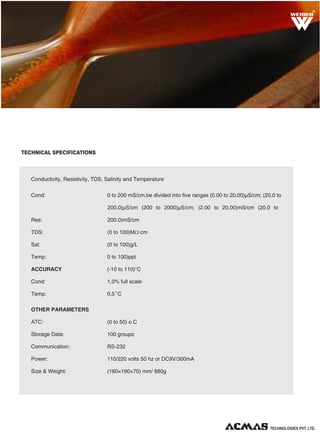

TECHNICAL SPECIFICATIONS
MEASURING PARAMETERS
Conductivity, Resistivity, TDS, Salinity and Temperature
Cond:
0 to 200 mS/cm,be divided into five ranges (0.00 to 20.00)µS/cm; (20.0 to
200.0)µS/cm (200 to 2000)µS/cm; (2.00 to 20.00)mS/cm (20.0 to
Res:
200.0)mS/cm
TDS:
(0 to 100)MΩ·cm
Sal:
(0 to 100)g/L
Temp:
0 to 100)ppt
ACCURACY
(-10 to 110)°C
Cond:
1.0% full scale
Temp:
0.5 o C
OTHER PARAMETERS
ATC:
(0 to 50) o C
Storage Data:
100 groups
Communication:
RS-232
Power:
110/220 volts 50 hz or DC9V/300mA
Size & Weight:
(160×190×70) mm/ 880g
TECHNOLOGIES PVT. LTD.
