The document describes the ACM-130-SC economical water copper content detector, a device designed for quantifying copper concentration in liquids across various applications, including drinking water and wastewater analysis. It features a compact design, high sensitivity, and operates with a low power consumption system powered by a 9V battery. The device utilizes a colorimetric assay method for detection, with a quick measurement response time of 0.3 seconds.

1. R

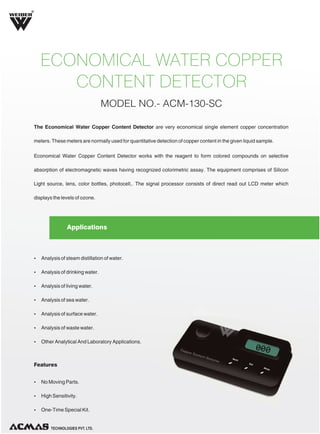

ECONOMICAL WATER COPPER
CONTENT DETECTOR
MODEL NO.- ACM-130-SC

2. R
ECONOMICAL WATER COPPER
CONTENT DETECTOR
MODEL NO.- ACM-130-SC
The Economical Water Copper Content Detector are very economical single element copper concentration
meters. These meters are normally used for quantitative detection of copper content in the given liquid sample.
Economical Water Copper Content Detector works with the reagent to form colored compounds on selective
absorption of electromagnetic waves having recognized colorimetric assay. The equipment comprises of Silicon
Light source, lens, color bottles, photocell,. The signal processor consists of direct read out LCD meter which
displays the levels of ozone.
Applications
Ÿ Analysis of steam distillation of water.
Ÿ Analysis of drinking water.
Ÿ Analysis of living water.
Ÿ Analysis of sea water.
Ÿ Analysis of surface water.
Ÿ Analysis of waste water.
Ÿ Other Analytical And Laboratory Applications.
Features
Ÿ No Moving Parts.
Ÿ High Sensitivity.
Ÿ One-Time Special Kit.
TECHNOLOGIES PVT. LTD.

3. R

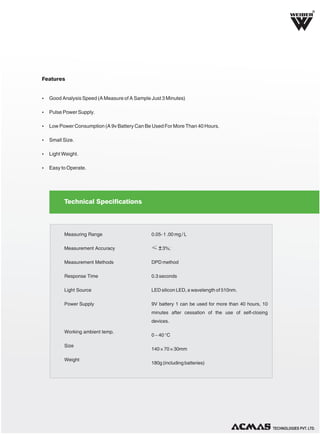

Features
Ÿ Good Analysis Speed (A Measure of A Sample Just 3 Minutes)
Ÿ Pulse Power Supply.
Ÿ Low Power Consumption (A 9v Battery Can Be Used For More Than 40 Hours.
Ÿ Small Size.
Ÿ Light Weight.
Ÿ Easy to Operate.
Technical Specifications
Measuring Range
0.05- 1 .00 mg / L
Measurement Accuracy
≤ ± 3%;
Measurement Methods
DPD method
Response Time
0.3 seconds
Light Source
LED silicon LED, a wavelength of 510nm.
Power Supply
9V battery 1 can be used for more than 40 hours, 10
minutes after cessation of the use of self-closing
devices.
Working ambient temp.
Size
Weight
0 ~ 40 °C
140 × 70 × 30mm
180g (including batteries)
TECHNOLOGIES PVT. LTD.

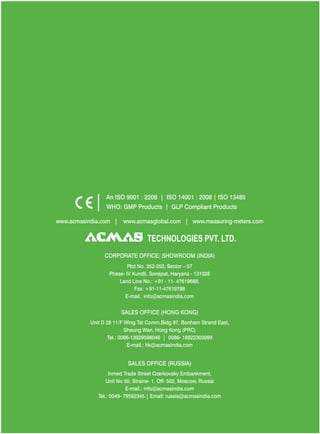

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
