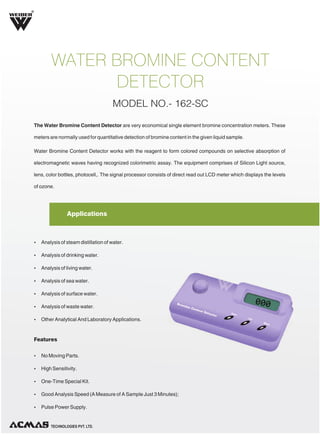

1. R
WATER BROMINE CONTENT
DETECTOR
MODEL NO.- 162-SC

2. R
WATER BROMINE CONTENT
DETECTOR
MODEL NO.- 162-SC
The Water Bromine Content Detector are very economical single element bromine concentration meters. These
meters are normally used for quantitative detection of bromine content in the given liquid sample.
Water Bromine Content Detector works with the reagent to form colored compounds on selective absorption of
electromagnetic waves having recognized colorimetric assay. The equipment comprises of Silicon Light source,
lens, color bottles, photocell,. The signal processor consists of direct read out LCD meter which displays the levels
of ozone.
Applications
Ÿ Analysis of steam distillation of water.
Ÿ Analysis of drinking water.
Ÿ Analysis of living water.
Ÿ Analysis of sea water.
Ÿ Analysis of surface water.
Ÿ Analysis of waste water.
Ÿ Other Analytical And Laboratory Applications.
Features
Ÿ No Moving Parts.
Ÿ High Sensitivity.
Ÿ One-Time Special Kit.
Ÿ Good Analysis Speed (A Measure of A Sample Just 3 Minutes);
Ÿ Pulse Power Supply.
TECHNOLOGIES PVT. LTD.

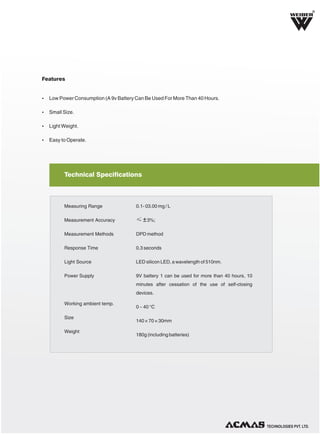

3. R
Features
Ÿ Low Power Consumption (A 9v Battery Can Be Used For More Than 40 Hours.
Ÿ Small Size.
Ÿ Light Weight.
Ÿ Easy to Operate.
Technical Specifications
Measuring Range
0.1- 03.00 mg / L
Measurement Accuracy
≤ ± 3%;
Measurement Methods
DPD method
Response Time
0.3 seconds
Light Source
LED silicon LED, a wavelength of 510nm.
Power Supply
9V battery 1 can be used for more than 40 hours, 10
minutes after cessation of the use of self-closing
devices.
Working ambient temp.
Size
Weight
0 ~ 40 °C
140 × 70 × 30mm
180g (including batteries)
TECHNOLOGIES PVT. LTD.

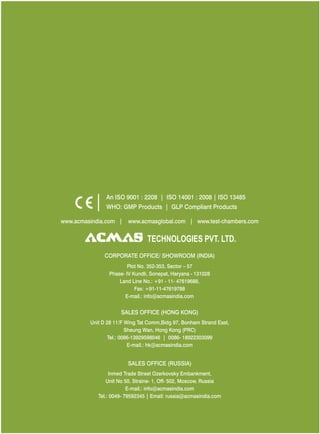

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
