p-n junction: built-in potential and constant Fermi level
•
0 likes•553 views
This document discusses the calculation of the built-in potential in a p-n junction. It covers determining the equilibrium electron and hole concentrations using the Fermi-Dirac distribution and relates them to the built-in potential. It also examines how the extrinsic Fermi level remains constant throughout the p-n junction under equilibrium conditions.
Report
Share
Report
Share
Recommended
Built-in potential and extrinsic Fermi level in p-n junction diode
Built-in potential and extrinsic Fermi level in p-n junction diodeRCC Institute of Information Technology
Calculation of built-in potential and determination of nature of extrinsic Fermi level in p-n junction diodeMetal-Semiconductor Contact
This document discusses metal-semiconductor contacts and the electrical characteristics of Schottky diodes. It describes how metal-semiconductor contacts are classified based on the work function difference between the metal and semiconductor, and whether they form Schottky or Ohmic contacts. It then provides details on the Poisson equation used to model Schottky diodes and derive expressions for key parameters like built-in potential, space-charge width, maximum electric field, and junction capacitance. Finally, it discusses how the Schottky barrier height can be lowered due to image force effects.
Density of states of bulk semiconductor
This document discusses the density of states (DoS) for bulk semiconductors. It begins by defining DoS as the number of available energy states per unit energy interval per unit dimension in real space. It then derives the DoS for bulk semiconductors using the Bloch theorem and shows that the DoS is proportional to the square root of energy. Finally, it defines the effective DoS, which accounts for occupancy based on the Fermi-Dirac distribution.
I-V characteristics of p-n junction diode
This document discusses the I-V characteristics of a p-n junction diode. It derives equations for the current-voltage relationship under forward and reverse bias conditions. The derivation considers minority carrier diffusion currents and uses low-level injection approximations. It also examines the temperature dependence of the I-V characteristics and derives an equation showing the exponential relationship between current and temperature.
Tunnel diode
This document discusses a lecture on tunnel diodes given by Arpan Deyasi of RCC Institute of Information Technology, Kolkata, India. The lecture covers the mechanism of carrier transport in tunnel diodes, which is tunneling. It also discusses the criteria for tunneling to occur, including a lower depletion width, lower effective mass, and degenerate doping. Examples are given of materials that can satisfy these criteria, such as semiconductors with large bandgaps or lower effective masses. The characteristic I-V curve of a tunnel diode is presented, showing its negative differential resistance region. Finally, applications of tunnel diodes such as in oscillators are mentioned.
Quantum-Espresso_10_8_14
Quantum Espresso is a suite of open-source computer codes for electronic structure calculations and materials modeling based on density functional theory and plane waves. It can be used to calculate material properties including ground-state energy, atomic forces, stresses, molecular dynamics, and more. The document provides an introduction and overview of Quantum Espresso, including examples of input files for defining crystal structures, pseudopotentials, k-points, and performing calculations of total energy and phonon frequencies. Convergence of key parameters like the plane wave cutoff energy and k-point sampling is also discussed.
Chapter5 carrier transport phenomena
1) The document discusses carrier transport in semiconductors, including drift and diffusion currents. Carrier drift occurs due to an electric field and is characterized by carrier mobility, while diffusion is due to concentration gradients and characterized by the diffusion coefficient.
2) Mobility is affected by phonon and ionized impurity scattering. The net mobility is the sum of these scattering components. Conductivity is directly proportional to carrier concentration and mobility.
3) The Hall effect can be used to determine the type of semiconductor (n-type or p-type), carrier concentration, and carrier mobility. Measurement of the Hall voltage polarity indicates type, and its magnitude relates to concentration and mobility.
Generation and Recombination related to Carrier Transport
This document summarizes lecture material from an Electronic Devices course taught by Arpan Deyasi at RCC Institute of Information Technology in Kolkata, India. The document discusses quasi-Fermi levels, generation and recombination of carriers, and the continuity equation as it relates to excess carriers in semiconductors. Key points include definitions of quasi-Fermi levels for n-type and p-type materials, equations describing generation and recombination rates, and the continuity equation modeling carrier transport and generation/recombination processes in non-uniformly doped semiconductors.
Recommended
Built-in potential and extrinsic Fermi level in p-n junction diode
Built-in potential and extrinsic Fermi level in p-n junction diodeRCC Institute of Information Technology
Calculation of built-in potential and determination of nature of extrinsic Fermi level in p-n junction diodeMetal-Semiconductor Contact
This document discusses metal-semiconductor contacts and the electrical characteristics of Schottky diodes. It describes how metal-semiconductor contacts are classified based on the work function difference between the metal and semiconductor, and whether they form Schottky or Ohmic contacts. It then provides details on the Poisson equation used to model Schottky diodes and derive expressions for key parameters like built-in potential, space-charge width, maximum electric field, and junction capacitance. Finally, it discusses how the Schottky barrier height can be lowered due to image force effects.
Density of states of bulk semiconductor
This document discusses the density of states (DoS) for bulk semiconductors. It begins by defining DoS as the number of available energy states per unit energy interval per unit dimension in real space. It then derives the DoS for bulk semiconductors using the Bloch theorem and shows that the DoS is proportional to the square root of energy. Finally, it defines the effective DoS, which accounts for occupancy based on the Fermi-Dirac distribution.
I-V characteristics of p-n junction diode
This document discusses the I-V characteristics of a p-n junction diode. It derives equations for the current-voltage relationship under forward and reverse bias conditions. The derivation considers minority carrier diffusion currents and uses low-level injection approximations. It also examines the temperature dependence of the I-V characteristics and derives an equation showing the exponential relationship between current and temperature.
Tunnel diode
This document discusses a lecture on tunnel diodes given by Arpan Deyasi of RCC Institute of Information Technology, Kolkata, India. The lecture covers the mechanism of carrier transport in tunnel diodes, which is tunneling. It also discusses the criteria for tunneling to occur, including a lower depletion width, lower effective mass, and degenerate doping. Examples are given of materials that can satisfy these criteria, such as semiconductors with large bandgaps or lower effective masses. The characteristic I-V curve of a tunnel diode is presented, showing its negative differential resistance region. Finally, applications of tunnel diodes such as in oscillators are mentioned.
Quantum-Espresso_10_8_14
Quantum Espresso is a suite of open-source computer codes for electronic structure calculations and materials modeling based on density functional theory and plane waves. It can be used to calculate material properties including ground-state energy, atomic forces, stresses, molecular dynamics, and more. The document provides an introduction and overview of Quantum Espresso, including examples of input files for defining crystal structures, pseudopotentials, k-points, and performing calculations of total energy and phonon frequencies. Convergence of key parameters like the plane wave cutoff energy and k-point sampling is also discussed.
Chapter5 carrier transport phenomena
1) The document discusses carrier transport in semiconductors, including drift and diffusion currents. Carrier drift occurs due to an electric field and is characterized by carrier mobility, while diffusion is due to concentration gradients and characterized by the diffusion coefficient.
2) Mobility is affected by phonon and ionized impurity scattering. The net mobility is the sum of these scattering components. Conductivity is directly proportional to carrier concentration and mobility.
3) The Hall effect can be used to determine the type of semiconductor (n-type or p-type), carrier concentration, and carrier mobility. Measurement of the Hall voltage polarity indicates type, and its magnitude relates to concentration and mobility.
Generation and Recombination related to Carrier Transport
This document summarizes lecture material from an Electronic Devices course taught by Arpan Deyasi at RCC Institute of Information Technology in Kolkata, India. The document discusses quasi-Fermi levels, generation and recombination of carriers, and the continuity equation as it relates to excess carriers in semiconductors. Key points include definitions of quasi-Fermi levels for n-type and p-type materials, equations describing generation and recombination rates, and the continuity equation modeling carrier transport and generation/recombination processes in non-uniformly doped semiconductors.
Perovskite solar cells
Perovskite Solar Cells
a short general overview presentation
hadi maghsoudi
device structure
crystal structure
preparation synthesis method
review papers
Chapter4 semiconductor in equilibrium
The document discusses semiconductor equilibrium and carrier concentrations. It introduces intrinsic and extrinsic semiconductors. Intrinsic semiconductors have no impurities, with electron and hole concentrations (ni, pi) determined by the material properties and temperature. Extrinsic semiconductors are doped with impurities that add either electrons or holes. Donor impurities add free electrons making an n-type semiconductor. Acceptor impurities add free holes making a p-type semiconductor. The Fermi level position determines whether electrons or holes are the majority carrier. Examples of doping silicon with phosphorus and boron are provided to illustrate n-type and p-type doping.
Carrier transport processes
This document discusses carrier transport in semiconductors. It covers topics like drift, diffusion, calculation of drift velocity, scattering mechanisms, and Einstein's relation. The document was created by Arpan Deyasi, who is a course coordinator for the Electronic Devices course at RCC Institute of Information Technology in Kolkata, India. It contains calculations and explanations of concepts related to carrier transport.
Fermi Level
This document discusses the position of the Fermi level in intrinsic and extrinsic semiconductors. It begins by defining the intrinsic Fermi level position in an intrinsic semiconductor. It then describes how the Fermi level shifts in n-type and p-type extrinsic semiconductors due to the introduction of donor and acceptor dopants. Equations are provided for calculating the intrinsic carrier concentration and extrinsic carrier concentrations in n-type and p-type materials.
Carrier transport phenomena
This document discusses carrier transport phenomena in semiconductors. There are two processes that contribute to carrier transport - drift and diffusion. Drift is the movement of carriers due to an external applied electric field. Diffusion is the flow of carriers due to a density gradient. The total current in a semiconductor is the sum of the drift and diffusion currents. Mobility is the ratio of carrier drift velocity to the applied electric field and is affected by scattering from impurities, the lattice, and surfaces.
Chapter3 introduction to the quantum theory of solids
The document provides an introduction to the quantum theory of solids, including:
1. How allowed and forbidden energy bands form in solids due to the interaction of atomic electron wave functions when atoms are brought close together in a crystal lattice.
2. Electrical conduction in solids is explained using the concept of electron effective mass and holes, within the framework of the energy band model.
3. The Kronig-Penney model is used to quantitatively relate the energy, wave number, and periodic potential within a solid, resulting in allowed and forbidden energy bands.
Ch4 lecture slides Chenming Hu Device for IC
The document discusses PN junctions and their properties. It covers:
1) The basic structure of a PN junction and its energy band diagram under equilibrium conditions. A depletion region forms where the bands bend.
2) The built-in potential that exists across the depletion region due to the diffusion of charge carriers. This potential can be calculated from the doping concentrations.
3) The behavior of a PN junction under forward and reverse bias, including how the depletion region width changes with applied voltage. Carrier injection also occurs under forward bias.
4) Breakdown mechanisms that can occur under high reverse bias, including avalanche and tunneling breakdown. Zener diodes are designed to operate
Langevin theory of Paramagnetism
Paramagnetism has been explained using the classical approach. Derivation of Magnetization and Susceptibility in case of paramagnetism using Langevin Theory of Paramagnetism.
Absorption coefficient of quantum well structure
The document discusses the absorption coefficient in a quantum well for intraband transitions between energy levels. It presents the formula for absorption coefficient as a function of oscillator strength between levels, doping density, and Lorentzian lineshape. It derives the oscillator strength between the two lowest consecutive states in terms of the quantum well width. The absorption coefficient is then incorporated with a Lorentzian lineshape to better fit practical experimental data.
Foundation of Optical Detector
This document discusses optical detectors and receivers. It describes how optical receivers convert optical signals to electrical signals using devices like p-n junction diodes, p-i-n junction diodes, and avalanche photodiodes (APDs). It explains the process of photodetection involving the absorption of photons, generation of electron-hole pairs, transportation of carriers, and collection of photocurrents. It also covers topics like quantum efficiency, internal quantum efficiency, responsivity, and comparisons of p-n junction photodiodes and p-i-n junction photodiodes. APDs are noted as having higher sensitivity due to avalanche gain but also higher operating voltages and non-linear output.
Perovskite Solar Cell
A perovskite solar cell is a type of solar cell which includes a perovskite structured compound, most commonly a hybrid organic-inorganic lead or tin halide-based material, as the light-harvesting active layer.
Solar cell
This document discusses solar cells and photovoltaic effect. It begins by explaining that the available solar radiation bandwidth is 0.124 to 3 eV due to absorption by the ozone layer. Semiconductors with a bandgap in this range are required to convert this solar energy. Solar cells are semiconductor devices that convert sunlight directly into electrical energy using the photovoltaic effect. The photovoltaic effect occurs when photons are absorbed, promoting electrons to leave their atomic orbitals and become conductive. Key solar cell parameters like open circuit voltage, short circuit current, fill factor, and conversion efficiency are also defined and formulas to calculate them are provided. Factors affecting solar cell performance such as resistances, temperature, and band
Molecular Beam Epitaxy-MBE---ABU SYED KUET
Molecular beam epitaxy (MBE) is a method for growing thin films one layer at a time under ultra-high vacuum conditions. It involves heating solid sources of material in effusion cells to create molecular beams that are deposited on a heated substrate. The absence of carrier gases and ultra-high vacuum environment result in films of the highest purity. MBE is widely used to manufacture semiconductor devices and is considered a fundamental tool for nanotechnology development due to its precise control over layer thickness down to a single atomic layer.
Boltzmann transport equation
The Boltzmann transport equation (BTE) describes the time evolution of the distribution function under the influence of diffusion, forces/fields, and collisions. The BTE states that in steady state, the net change in distribution function due to these three processes is zero. The BTE is solved using approximations that the perturbations from equilibrium are small and collisions can be described by a relaxation time. Solving the BTE provides the distribution function, from which current density and carrier density can be determined through integration over crystal momentum space.
Gain parameters of BJT
This document discusses the bipolar junction transistor. It describes the emitter, collector, and base regions and their doping levels. The current gain parameters alpha and beta are defined as the ratios of various currents. Alpha is approximately 1 due to some carrier recombination and leakage currents. Beta is much greater than 1. Injection, transport, and collection efficiencies are also defined. The document discusses base width modulation and the Early effect where the base width decreases with increasing collector voltage. Punch-through breakdown occurs when the depletion regions merge.
Plasmonic nanoantennas
The document discusses plasmonic nanoantennas and their use in controlling the radiative properties of nanoemitters. It begins with a brief history of plasmonics and defines key concepts like localized surface plasmon resonances and nanoantennas. It then covers topics like the effects of nanoantenna shape and fabrication techniques. Applications discussed include surface-enhanced spectroscopy, fluorescence, solar cells, and nanomedicine. In conclusion, nanoantennas can modify emission properties and provide field enhancement and confinement, enabling applications while fabrication challenges at the nanoscale remain.
reducible and irreducible representations
1. Representations in group theory can be classified as reducible or irreducible. Reducible representations can be broken down into simpler representations, while irreducible representations cannot.
2. Matrix representations of symmetry operations in a point group, like C2h, may be reducible. Block diagonalization can simplify reducible representations into irreducible representations that are 1x1 matrices.
3. Irreducible representations provide essential information about the symmetry of molecular orbitals. Their symbols indicate dimensionality, symmetry properties, and whether the representation is symmetric or antisymmetric under various symmetry operations.
7 band structure
The document discusses the transition from discrete atomic energy levels to energy bands in crystalline solids. As atoms come together to form a crystal lattice, the discrete energy levels of individual atoms broaden and overlap, forming continuous bands of allowed energies separated by forbidden gaps. Electrons near the top of the valence band can be excited into the conduction band, where they behave as free particles able to move through the solid and conduct electricity. Covalent bonding between atoms is also explained using the concept of energy bands.
Electrochemical reduction of Carbon Dioxide
Electrochemical carbon dioxide reduction is a promising approach to addressing rising CO2 levels and providing an alternative fuel source. Noble metal catalysts have been used, but their cost is prohibitive for large-scale applications. The document discusses various catalyst materials studied for CO2 reduction, including copper and gold nanoparticles. Key factors that influence the selectivity and efficiency of products like carbon monoxide and formate include the choice of electrocatalyst, electrolyte, particle size and morphology, and presence of grain boundaries or edge sites. Oxidized nanoparticles and high pressures can also improve performance. Further optimization of catalyst properties is needed to develop scalable and economical CO2 reduction technologies.
CURIE TEMPERATURE PPT
This document discusses the properties of ferrimagnetic materials. It defines ferrites as ceramic-like materials with magnetic properties that are used in electronic devices. Soft ferrites are used in transformer cores while hard ferrites are used in refrigerator magnets. The document discusses the B-H curve formation and Curie temperature of ferrimagnetic materials. It provides the Curie temperatures of different materials and describes the working of an apparatus used to measure Curie temperature. Finally, it outlines some applications of ferrites such as in microwave frequency devices, computer memory, and magnetic recording heads.
Foundation of optical transmitter
The document discusses optical transmitters, specifically lasers and LEDs. It describes how lasers use stimulated emission to convert electrical signals to coherent, monochromatic light, while LEDs use spontaneous emission to produce incoherent, polychromatic light. The document also covers the differences between lasers and LEDs in terms of driving current needs, power conversion efficiency, numerical aperture, response time, junction area, lifetime, spectrum width, and cost.
Effective mass
This document discusses semiconductor materials and devices. It covers the classification of materials based on their band structure, including direct and indirect bandgap semiconductors. It also discusses the classification of semiconductors as n-type or p-type based on the position of the Fermi level. Finally, it derives expressions for the effective mass of electrons and holes in semiconductors.
More Related Content
What's hot
Perovskite solar cells
Perovskite Solar Cells
a short general overview presentation
hadi maghsoudi
device structure
crystal structure
preparation synthesis method
review papers
Chapter4 semiconductor in equilibrium
The document discusses semiconductor equilibrium and carrier concentrations. It introduces intrinsic and extrinsic semiconductors. Intrinsic semiconductors have no impurities, with electron and hole concentrations (ni, pi) determined by the material properties and temperature. Extrinsic semiconductors are doped with impurities that add either electrons or holes. Donor impurities add free electrons making an n-type semiconductor. Acceptor impurities add free holes making a p-type semiconductor. The Fermi level position determines whether electrons or holes are the majority carrier. Examples of doping silicon with phosphorus and boron are provided to illustrate n-type and p-type doping.
Carrier transport processes
This document discusses carrier transport in semiconductors. It covers topics like drift, diffusion, calculation of drift velocity, scattering mechanisms, and Einstein's relation. The document was created by Arpan Deyasi, who is a course coordinator for the Electronic Devices course at RCC Institute of Information Technology in Kolkata, India. It contains calculations and explanations of concepts related to carrier transport.
Fermi Level
This document discusses the position of the Fermi level in intrinsic and extrinsic semiconductors. It begins by defining the intrinsic Fermi level position in an intrinsic semiconductor. It then describes how the Fermi level shifts in n-type and p-type extrinsic semiconductors due to the introduction of donor and acceptor dopants. Equations are provided for calculating the intrinsic carrier concentration and extrinsic carrier concentrations in n-type and p-type materials.
Carrier transport phenomena
This document discusses carrier transport phenomena in semiconductors. There are two processes that contribute to carrier transport - drift and diffusion. Drift is the movement of carriers due to an external applied electric field. Diffusion is the flow of carriers due to a density gradient. The total current in a semiconductor is the sum of the drift and diffusion currents. Mobility is the ratio of carrier drift velocity to the applied electric field and is affected by scattering from impurities, the lattice, and surfaces.
Chapter3 introduction to the quantum theory of solids
The document provides an introduction to the quantum theory of solids, including:
1. How allowed and forbidden energy bands form in solids due to the interaction of atomic electron wave functions when atoms are brought close together in a crystal lattice.
2. Electrical conduction in solids is explained using the concept of electron effective mass and holes, within the framework of the energy band model.
3. The Kronig-Penney model is used to quantitatively relate the energy, wave number, and periodic potential within a solid, resulting in allowed and forbidden energy bands.
Ch4 lecture slides Chenming Hu Device for IC
The document discusses PN junctions and their properties. It covers:
1) The basic structure of a PN junction and its energy band diagram under equilibrium conditions. A depletion region forms where the bands bend.
2) The built-in potential that exists across the depletion region due to the diffusion of charge carriers. This potential can be calculated from the doping concentrations.
3) The behavior of a PN junction under forward and reverse bias, including how the depletion region width changes with applied voltage. Carrier injection also occurs under forward bias.
4) Breakdown mechanisms that can occur under high reverse bias, including avalanche and tunneling breakdown. Zener diodes are designed to operate
Langevin theory of Paramagnetism
Paramagnetism has been explained using the classical approach. Derivation of Magnetization and Susceptibility in case of paramagnetism using Langevin Theory of Paramagnetism.
Absorption coefficient of quantum well structure
The document discusses the absorption coefficient in a quantum well for intraband transitions between energy levels. It presents the formula for absorption coefficient as a function of oscillator strength between levels, doping density, and Lorentzian lineshape. It derives the oscillator strength between the two lowest consecutive states in terms of the quantum well width. The absorption coefficient is then incorporated with a Lorentzian lineshape to better fit practical experimental data.
Foundation of Optical Detector
This document discusses optical detectors and receivers. It describes how optical receivers convert optical signals to electrical signals using devices like p-n junction diodes, p-i-n junction diodes, and avalanche photodiodes (APDs). It explains the process of photodetection involving the absorption of photons, generation of electron-hole pairs, transportation of carriers, and collection of photocurrents. It also covers topics like quantum efficiency, internal quantum efficiency, responsivity, and comparisons of p-n junction photodiodes and p-i-n junction photodiodes. APDs are noted as having higher sensitivity due to avalanche gain but also higher operating voltages and non-linear output.
Perovskite Solar Cell
A perovskite solar cell is a type of solar cell which includes a perovskite structured compound, most commonly a hybrid organic-inorganic lead or tin halide-based material, as the light-harvesting active layer.
Solar cell
This document discusses solar cells and photovoltaic effect. It begins by explaining that the available solar radiation bandwidth is 0.124 to 3 eV due to absorption by the ozone layer. Semiconductors with a bandgap in this range are required to convert this solar energy. Solar cells are semiconductor devices that convert sunlight directly into electrical energy using the photovoltaic effect. The photovoltaic effect occurs when photons are absorbed, promoting electrons to leave their atomic orbitals and become conductive. Key solar cell parameters like open circuit voltage, short circuit current, fill factor, and conversion efficiency are also defined and formulas to calculate them are provided. Factors affecting solar cell performance such as resistances, temperature, and band
Molecular Beam Epitaxy-MBE---ABU SYED KUET
Molecular beam epitaxy (MBE) is a method for growing thin films one layer at a time under ultra-high vacuum conditions. It involves heating solid sources of material in effusion cells to create molecular beams that are deposited on a heated substrate. The absence of carrier gases and ultra-high vacuum environment result in films of the highest purity. MBE is widely used to manufacture semiconductor devices and is considered a fundamental tool for nanotechnology development due to its precise control over layer thickness down to a single atomic layer.
Boltzmann transport equation
The Boltzmann transport equation (BTE) describes the time evolution of the distribution function under the influence of diffusion, forces/fields, and collisions. The BTE states that in steady state, the net change in distribution function due to these three processes is zero. The BTE is solved using approximations that the perturbations from equilibrium are small and collisions can be described by a relaxation time. Solving the BTE provides the distribution function, from which current density and carrier density can be determined through integration over crystal momentum space.
Gain parameters of BJT
This document discusses the bipolar junction transistor. It describes the emitter, collector, and base regions and their doping levels. The current gain parameters alpha and beta are defined as the ratios of various currents. Alpha is approximately 1 due to some carrier recombination and leakage currents. Beta is much greater than 1. Injection, transport, and collection efficiencies are also defined. The document discusses base width modulation and the Early effect where the base width decreases with increasing collector voltage. Punch-through breakdown occurs when the depletion regions merge.
Plasmonic nanoantennas
The document discusses plasmonic nanoantennas and their use in controlling the radiative properties of nanoemitters. It begins with a brief history of plasmonics and defines key concepts like localized surface plasmon resonances and nanoantennas. It then covers topics like the effects of nanoantenna shape and fabrication techniques. Applications discussed include surface-enhanced spectroscopy, fluorescence, solar cells, and nanomedicine. In conclusion, nanoantennas can modify emission properties and provide field enhancement and confinement, enabling applications while fabrication challenges at the nanoscale remain.
reducible and irreducible representations
1. Representations in group theory can be classified as reducible or irreducible. Reducible representations can be broken down into simpler representations, while irreducible representations cannot.
2. Matrix representations of symmetry operations in a point group, like C2h, may be reducible. Block diagonalization can simplify reducible representations into irreducible representations that are 1x1 matrices.
3. Irreducible representations provide essential information about the symmetry of molecular orbitals. Their symbols indicate dimensionality, symmetry properties, and whether the representation is symmetric or antisymmetric under various symmetry operations.
7 band structure
The document discusses the transition from discrete atomic energy levels to energy bands in crystalline solids. As atoms come together to form a crystal lattice, the discrete energy levels of individual atoms broaden and overlap, forming continuous bands of allowed energies separated by forbidden gaps. Electrons near the top of the valence band can be excited into the conduction band, where they behave as free particles able to move through the solid and conduct electricity. Covalent bonding between atoms is also explained using the concept of energy bands.
Electrochemical reduction of Carbon Dioxide
Electrochemical carbon dioxide reduction is a promising approach to addressing rising CO2 levels and providing an alternative fuel source. Noble metal catalysts have been used, but their cost is prohibitive for large-scale applications. The document discusses various catalyst materials studied for CO2 reduction, including copper and gold nanoparticles. Key factors that influence the selectivity and efficiency of products like carbon monoxide and formate include the choice of electrocatalyst, electrolyte, particle size and morphology, and presence of grain boundaries or edge sites. Oxidized nanoparticles and high pressures can also improve performance. Further optimization of catalyst properties is needed to develop scalable and economical CO2 reduction technologies.
CURIE TEMPERATURE PPT
This document discusses the properties of ferrimagnetic materials. It defines ferrites as ceramic-like materials with magnetic properties that are used in electronic devices. Soft ferrites are used in transformer cores while hard ferrites are used in refrigerator magnets. The document discusses the B-H curve formation and Curie temperature of ferrimagnetic materials. It provides the Curie temperatures of different materials and describes the working of an apparatus used to measure Curie temperature. Finally, it outlines some applications of ferrites such as in microwave frequency devices, computer memory, and magnetic recording heads.
What's hot (20)
Chapter3 introduction to the quantum theory of solids
Chapter3 introduction to the quantum theory of solids
Similar to p-n junction: built-in potential and constant Fermi level
Foundation of optical transmitter
The document discusses optical transmitters, specifically lasers and LEDs. It describes how lasers use stimulated emission to convert electrical signals to coherent, monochromatic light, while LEDs use spontaneous emission to produce incoherent, polychromatic light. The document also covers the differences between lasers and LEDs in terms of driving current needs, power conversion efficiency, numerical aperture, response time, junction area, lifetime, spectrum width, and cost.
Effective mass
This document discusses semiconductor materials and devices. It covers the classification of materials based on their band structure, including direct and indirect bandgap semiconductors. It also discusses the classification of semiconductors as n-type or p-type based on the position of the Fermi level. Finally, it derives expressions for the effective mass of electrons and holes in semiconductors.
Electrical properties of p-n junction
This document discusses the electrical properties of p-n junctions. It describes abrupt and linearly graded p-n junction profiles and their depletion widths, electric fields, junction potentials, and capacitances. Equations for the depletion capacitance and diffusion capacitance of abrupt and linearly graded p-n junctions are also presented.
Varactor diode
1) The document discusses the electrical characteristics of a varactor diode, which is a diode with a variable capacitance that depends on the applied reverse bias voltage.
2) It explains the doping profile and Poisson's equation that governs the electric field and potential distribution in the diode.
3) Equations are derived for the junction capacitance as a function of the applied reverse bias voltage based on the doping profile and boundary conditions of the p-n junction.
Hall Effect
This document discusses the Hall effect and its analysis for determining properties of semiconductor materials. The Hall effect can be used to:
1) Distinguish whether a semiconductor is n-type or p-type based on the nature of doping.
2) Measure the majority carrier concentration.
3) Calculate the majority carrier mobility.
The document provides equations to analyze the Hall effect for both n-type and p-type semiconductors and determine values such as Hall voltage, drift velocity, current density, and Hall coefficient.
JFET
This document discusses the JFET (junction field-effect transistor). It begins by defining a field-effect transistor as a device where the electric field controlling current flow is perpendicular to the direction of current. It then describes the structure of an n-channel JFET, showing how a p-type channel is created between two n-type regions. Key features of the JFET are that it is a voltage-controlled, majority-carrier device with higher input impedance and lower output impedance than BJT transistors. The document provides equations for calculating the pinch-off voltage and expressions for transconductance. It concludes by outlining some applications of JFETs in RF amplifiers, measuring instruments, oscillators, and digital circuits
Q-V characteristics of MOS Capacitor
This document discusses the charge-potential characteristics of a metal-oxide-semiconductor (MOS) capacitor. It defines band bending and presents the mathematical equations that describe the Poisson equation and charge variation in the MOS structure. Graphs are shown to represent the charge profile in different regimes like accumulation, depletion, weak inversion and strong inversion based on the applied gate voltage. The surface electric field and surface charge are also derived from the Poisson equation and Gauss' law.
Shockley Diode & SCR
This document discusses the Shockley diode and silicon controlled rectifier (SCR). It describes the Shockley diode as a four-layer PNPN structure with three junctions, where the outer junctions are forward biased and the inner junction is reverse biased. The document presents the equivalent circuit of the Shockley diode and analyses its current components. It notes that the Shockley diode has a long unstable region that can be reduced by adding a bias to the inner junction, creating the SCR, which has a lower breakdown voltage. The characteristic equation of the SCR is also provided.
Foundation of Optoelectronics
The document discusses optical processes like absorption, emission, and stimulated emission. It covers properties of stimulated emission, types of recombination processes, Einstein's relation between stimulated and spontaneous emission, population inversion, and derivation of the absorption coefficient. The key topics are optical processes in optoelectronics, Einstein's relation describing radiative transitions, and the derivation of the absorption coefficient from transition rates.
Similar to p-n junction: built-in potential and constant Fermi level (9)
More from RCC Institute of Information Technology
Scaling in conventional MOSFET for constant electric field and constant voltage
Scaling in conventional MOSFET for constant electric field and constant voltageRCC Institute of Information Technology
Scaling in conventional MOSFETCarrier scattering and ballistic transport
The document discusses various types of carrier scattering that can occur in semiconductor devices. It describes scattering from ionized impurities, neutral impurities, dipoles, acoustic phonons via deformation potential and piezoelectric potential, optical phonons through polar and nonpolar interactions, and dislocations. It also defines ballistic transport as occurring when the carrier mean free path is longer than the device dimensions, resulting in phase coherent motion without scattering or heat generation.
Electromagnetic Wave Propagations
This document summarizes lecture notes on electromagnetic wave propagation in free space from a course on electromagnetic theory. It begins with an introduction and lists the course details. It then derives Maxwell's equations in free space and shows that they lead to wave equations for the electric and magnetic fields. It is shown that the electric and magnetic field vectors are perpendicular to each other and the propagation vector. Key concepts discussed include the Poynting vector, energy, impedance, phase velocity, wavelength, and the relation between the electric and magnetic fields. Several examples are worked through.
Biot-Savart law
This document contains lecture notes on electromagnetic theory from a course taught by Arpan Deyasi. It discusses the Biot-Savart law, which gives mathematical expressions for the magnetic field created by steady current-carrying wires and distributions of electric current. It also covers the Lorentz force law and how it relates to the combined electric and magnetic forces on a moving charged particle. Examples are presented on calculating magnetic fields and forces. The document concludes by deriving the solenoidal property of magnetic fields.
Ampere's circuital law
This document contains lecture notes on Ampere's circuital law from an Electromagnetic Theory course taught by Arpan Deyasi. It includes the integral and differential forms of Ampere's law, examples of using the law to determine magnetic fields and currents, and a case study of the magnetic field due to an infinite sheet of current. The key points covered are that the line integral of the magnetic field around a closed path equals the total current enclosed, and the curl of the magnetic field equals the current density.
Magnetic Potentials
This document contains lecture notes from a course on electromagnetic theory taught by Arpan Deyasi. It covers topics on magnetic scalar and vector potentials, including their definitions, properties, and applications to problems involving magnetic fields generated by currents. The notes provide the mathematical relationships between magnetic fields and potentials, and work through examples such as calculating the potentials for an infinite solenoid and current-carrying wire.
Reflection and Transmission coefficients in transmission line
Reflection and Transmission coefficients in transmission lineRCC Institute of Information Technology
This document discusses transmission line propagation coefficients including reflection coefficient and transmission coefficient. It defines the reflection coefficient as the ratio of reflected to incident voltage or current. Reflection and transmission coefficients are derived for a transmission line terminated by a load impedance. Standing wave patterns on transmission lines are also analyzed. Key properties of standing waves include maximum and minimum voltages occurring at intervals of half wavelength and voltages/currents being 90 degrees out of phase.Impedance in transmission line
The document discusses transmission line impedance and input impedance. It defines characteristic impedance as the ratio of voltage to current waves travelling along a transmission line. It provides expressions for characteristic impedance in terms of line parameters R, L, G, C. It then derives expressions for input impedance of open circuit, short circuit, matched and mismatched lossless transmission lines. It shows that input impedance is capacitive for a short open circuit line and inductive for a short circuit line.
Distortionless Transmission Line
This document discusses transmission lines and the conditions required for distortionless transmission. It notes that losses in transmission lines can occur due to I2R loss, skin effect, and crystallization. Distortion can arise from amplitude distortion, attenuation distortion, and phase distortion. The conditions for distortionless transmission are that the attenuation constant must be zero and the phase velocity must be independent of frequency. This requires that the line's inductance and capacitance per unit length satisfy LG/RC=1/2. The document also examines propagation constants and phase velocity for lossless transmission lines. It provides examples of calculating phase velocity, propagation constant, and phase wavelength for given line parameters.
Quantum Hall Effect
The document summarizes a lecture on the quantum Hall effect. It defines the quantum Hall effect as a phenomenon where the resistance of a quantum well system is quantized under low temperature and high magnetic field conditions. It then provides calculations to show that the quantum Hall resistance is quantized and equal to h/q^2, where h is Planck's constant and q is the elementary charge. Finally, it discusses how the quantization occurs due to the formation of discrete energy levels called Landau levels in the presence of a magnetic field.
Telegrapher's Equation
This document discusses transmission lines and the Telegrapher's equation. It begins by introducing transmission lines and their parameters such as resistance, inductance, conductance and capacitance per unit length. It then derives the Telegrapher's equation that describes voltage and current on a transmission line. It shows how the equation can be used to find the propagation constant and solve for voltage and current as a function of position and time. It also discusses phase velocity and provides examples of calculating attenuation constant, phase constant, and phase velocity for different transmission line scenarios.
Dielectrics
This document discusses the topic of electrostatics and dielectrics in the Electromagnetic Theory course. It defines a dielectric as a material where charge displacement occurs in an external electric field rather than free motion of charges. Dielectrics are classified as polar or nonpolar depending on whether they have a permanent dipole moment. The types of polarization in dielectrics are electronic, orientation, and ionic polarization. Key concepts discussed include polarization density, polarization charge density, the relationship between polarization and electric field through susceptibility and relative permittivity, atomic polarizability, and the relationship between polarization and electric displacement. An example problem calculates the polarization given the electric displacement.
Capacitor
1) The document discusses different types of capacitors including parallel plate, cylindrical, and spherical capacitors. Equations for electrostatic potential and electric field are derived for each type.
2) Examples problems are worked out on determining the capacitance of a parallel plate capacitor when a dielectric slab is inserted, and the capacitance of a coaxial cylindrical capacitor with dielectrics of different permittivities in each region.
3) Key equations presented include the capacitance of parallel plate, cylindrical, and spherical capacitors in terms of their geometric parameters and dielectric properties.
Electrical Properties of Dipole
1) An electric dipole is formed when two equal but opposite charges are separated by an infinitesimal distance. The dipole moment is defined as the product of the charge magnitude and the distance between them.
2) The electrostatic potential and electric field due to a dipole can be expressed in terms of the dipole moment. The potential and field decrease with increasing distance from the dipole.
3) A torque is experienced by a dipole when placed in an external electric field, with the torque being proportional to the cross product of the dipole moment and the electric field.
Application of Gauss' Law
This document contains lecture notes on electrostatics and the application of Gauss' law from a course on electromagnetic theory taught by Arpan Deyasi. It defines line charge density, surface charge density, and volume charge density. It then uses Gauss' law to derive expressions for the electric field and potential due to different charge distributions, including line charges, surface charges on a ring and plane, and volume charges in a cylinder and sphere. Example problems are worked through applying Gauss' law to find electric fields and potentials for these various charge distributions.
Fundamentals of Gauss' Law
This document discusses Gauss's law and related electromagnetic theory concepts taught in a course. It provides:
1) An overview of Gauss's law, which states that the total outward electric flux through a closed surface is equal to the total charge enclosed divided by the permittivity of the medium.
2) Derivations and proofs of Gauss's law using calculus theorems like divergence theorem.
3) Applications of Gauss's law to problems involving charge distributions and electric field calculations.
4) Discussions of related concepts like Gauss's law in polarized media, current continuity equation, relaxation time, and Poisson's equation.
5) Example problems demonstrating the application of these electromagnetic theory principles.
Fundamentals of Coulomb's Law
This document discusses Coulomb's law and some key concepts in electrostatics, including:
- Coulomb's law describes the electrostatic force between two point charges, being directly proportional to the product of the charges and inversely proportional to the square of the distance between them.
- The electric field intensity and electric flux density are introduced.
- Properties of the electric field such as it being irrotational are examined.
- The electrostatic potential is defined and its relationship to the electric field is explored.
Vector Integration
This document discusses vector calculus theorems including Stokes' theorem and the divergence theorem. Stokes' theorem relates the line integral of a vector field around a closed curve to the surface integral of the curl of the vector field over any surface bounded by the curve. The divergence theorem relates the volume integral of the divergence of a vector field over a volume to the surface integral of the vector field over the boundary surface of that volume. The document provides proofs of these theorems and examples of their applications to problems involving conservative vector fields and evaluating integrals.
Scalar and vector differentiation
This document discusses a course on electromagnetic theory taught by Arpan Deyasi. It covers topics related to vector differentiation, including the vector differential operator in Cartesian, cylindrical and spherical coordinates. It also covers differentiation of scalar functions, including calculating gradients, directional derivatives and finding normals to surfaces. Finally, it discusses differentiation of vector functions, specifically divergence, which represents the volume density of the net outward flux from a vector field.
Coordinate transformation
The document discusses various coordinate transformations between Cartesian, cylindrical, and spherical coordinate systems. It provides the transformation equations for scalar and vector variables between these coordinate systems. Examples are included to demonstrate transforming between Cartesian and cylindrical coordinates for points in both scalar and vector form. The key topics covered are the four types of coordinate transformations, the transformation equations, and examples to illustrate the transformations.
More from RCC Institute of Information Technology (20)
Scaling in conventional MOSFET for constant electric field and constant voltage
Scaling in conventional MOSFET for constant electric field and constant voltage
Reflection and Transmission coefficients in transmission line
Reflection and Transmission coefficients in transmission line
Recently uploaded
Butterfly Valves Manufacturer (LBF Series).pdf
We have designed & manufacture the Lubi Valves LBF series type of Butterfly Valves for General Utility Water applications as well as for HVAC applications.
SELENIUM CONF -PALLAVI SHARMA - 2024.pdf
Begin your journey to contribute to Selenium - A Talk at the Selenium Conference 2024
Presentation on Food Delivery Systems
This presentation is about Food Delivery Systems and how they are developed using the Software Development Life Cycle (SDLC) and other methods. It explains the steps involved in creating a food delivery app, from planning and designing to testing and launching. The slide also covers different tools and technologies used to make these systems work efficiently.
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原件一模一样【微信：bwp0011】《(Humboldt毕业证书)柏林大学毕业证学位证》【微信：bwp0011】学位证，留信认证（真实可查，永久存档）原件一模一样纸张工艺/offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原。
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问微bwp0011
【主营项目】
一.毕业证【微bwp0011】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！
二.真实使馆公证(即留学回国人员证明,不成功不收费)
三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）
四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度)
如果您处于以下几种情况：
◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【微bwp0011】
◇面对父母的压力，希望尽快拿到；
◇不清楚认证流程以及材料该如何准备；
◇回国时间很长，忘记办理；
◇回国马上就要找工作，办给用人单位看；
◇企事业单位必须要求办理的
◇需要报考公务员、购买免税车、落转户口
◇申请留学生创业基金
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
Blood finder application project report (1).pdf
Blood Finder is an emergency time app where a user can search for the blood banks as
well as the registered blood donors around Mumbai. This application also provide an
opportunity for the user of this application to become a registered donor for this user have
to enroll for the donor request from the application itself. If the admin wish to make user
a registered donor, with some of the formalities with the organization it can be done.
Specialization of this application is that the user will not have to register on sign-in for
searching the blood banks and blood donors it can be just done by installing the
application to the mobile.
The purpose of making this application is to save the user’s time for searching blood of
needed blood group during the time of the emergency.
This is an android application developed in Java and XML with the connectivity of
SQLite database. This application will provide most of basic functionality required for an
emergency time application. All the details of Blood banks and Blood donors are stored
in the database i.e. SQLite.
This application allowed the user to get all the information regarding blood banks and
blood donors such as Name, Number, Address, Blood Group, rather than searching it on
the different websites and wasting the precious time. This application is effective and
user friendly.
Assistant Engineer (Chemical) Interview Questions.pdf
These are interview questions for the post of Assistant Engineer (Chemical)
一比一原版(uoft毕业证书)加拿大多伦多大学毕业证如何办理
原版一模一样【微信：741003700 】【(uoft毕业证书)加拿大多伦多大学毕业证成绩单】【微信：741003700 】学位证，留信认证（真实可查，永久存档）原件一模一样纸张工艺/offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原。
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
【主营项目】
一.毕业证【q微741003700】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！
二.真实使馆公证(即留学回国人员证明,不成功不收费)
三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）
四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度)
如果您处于以下几种情况：
◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【q/微741003700】
◇面对父母的压力，希望尽快拿到；
◇不清楚认证流程以及材料该如何准备；
◇回国时间很长，忘记办理；
◇回国马上就要找工作，办给用人单位看；
◇企事业单位必须要求办理的
◇需要报考公务员、购买免税车、落转户口
◇申请留学生创业基金
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
办理(uoft毕业证书)加拿大多伦多大学毕业证【微信：741003700 】外观非常简单，由纸质材料制成，上面印有校徽、校名、毕业生姓名、专业等信息。
办理(uoft毕业证书)加拿大多伦多大学毕业证【微信：741003700 】格式相对统一，各专业都有相应的模板。通常包括以下部分：
校徽：象征着学校的荣誉和传承。
校名:学校英文全称
授予学位：本部分将注明获得的具体学位名称。
毕业生姓名：这是最重要的信息之一，标志着该证书是由特定人员获得的。
颁发日期：这是毕业正式生效的时间，也代表着毕业生学业的结束。
其他信息：根据不同的专业和学位，可能会有一些特定的信息或章节。
办理(uoft毕业证书)加拿大多伦多大学毕业证【微信：741003700 】价值很高，需要妥善保管。一般来说，应放置在安全、干燥、防潮的地方，避免长时间暴露在阳光下。如需使用，最好使用复印件而不是原件，以免丢失。
综上所述，办理(uoft毕业证书)加拿大多伦多大学毕业证【微信：741003700 】是证明身份和学历的高价值文件。外观简单庄重，格式统一，包括重要的个人信息和发布日期。对持有人来说，妥善保管是非常重要的。
一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
原版一模一样【微信：741003700 】【(爱大毕业证书)爱荷华大学毕业证成绩单】【微信：741003700 】学位证，留信认证（真实可查，永久存档）原件一模一样纸张工艺/offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原。
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
【主营项目】
一.毕业证【q微741003700】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！
二.真实使馆公证(即留学回国人员证明,不成功不收费)
三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）
四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度)
如果您处于以下几种情况：
◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【q/微741003700】
◇面对父母的压力，希望尽快拿到；
◇不清楚认证流程以及材料该如何准备；
◇回国时间很长，忘记办理；
◇回国马上就要找工作，办给用人单位看；
◇企事业单位必须要求办理的
◇需要报考公务员、购买免税车、落转户口
◇申请留学生创业基金
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
办理(爱大毕业证书)爱荷华大学毕业证【微信：741003700 】外观非常简单，由纸质材料制成，上面印有校徽、校名、毕业生姓名、专业等信息。
办理(爱大毕业证书)爱荷华大学毕业证【微信：741003700 】格式相对统一，各专业都有相应的模板。通常包括以下部分：
校徽：象征着学校的荣誉和传承。
校名:学校英文全称
授予学位：本部分将注明获得的具体学位名称。
毕业生姓名：这是最重要的信息之一，标志着该证书是由特定人员获得的。
颁发日期：这是毕业正式生效的时间，也代表着毕业生学业的结束。
其他信息：根据不同的专业和学位，可能会有一些特定的信息或章节。
办理(爱大毕业证书)爱荷华大学毕业证【微信：741003700 】价值很高，需要妥善保管。一般来说，应放置在安全、干燥、防潮的地方，避免长时间暴露在阳光下。如需使用，最好使用复印件而不是原件，以免丢失。
综上所述，办理(爱大毕业证书)爱荷华大学毕业证【微信：741003700 】是证明身份和学历的高价值文件。外观简单庄重，格式统一，包括重要的个人信息和发布日期。对持有人来说，妥善保管是非常重要的。
Null Bangalore | Pentesters Approach to AWS IAM
#Abstract:
- Learn more about the real-world methods for auditing AWS IAM (Identity and Access Management) as a pentester. So let us proceed with a brief discussion of IAM as well as some typical misconfigurations and their potential exploits in order to reinforce the understanding of IAM security best practices.
- Gain actionable insights into AWS IAM policies and roles, using hands on approach.
#Prerequisites:
- Basic understanding of AWS services and architecture
- Familiarity with cloud security concepts
- Experience using the AWS Management Console or AWS CLI.
- For hands on lab create account on [killercoda.com](https://killercoda.com/cloudsecurity-scenario/)
# Scenario Covered:
- Basics of IAM in AWS
- Implementing IAM Policies with Least Privilege to Manage S3 Bucket
- Objective: Create an S3 bucket with least privilege IAM policy and validate access.
- Steps:
- Create S3 bucket.
- Attach least privilege policy to IAM user.
- Validate access.
- Exploiting IAM PassRole Misconfiguration
-Allows a user to pass a specific IAM role to an AWS service (ec2), typically used for service access delegation. Then exploit PassRole Misconfiguration granting unauthorized access to sensitive resources.
- Objective: Demonstrate how a PassRole misconfiguration can grant unauthorized access.
- Steps:
- Allow user to pass IAM role to EC2.
- Exploit misconfiguration for unauthorized access.
- Access sensitive resources.
- Exploiting IAM AssumeRole Misconfiguration with Overly Permissive Role
- An overly permissive IAM role configuration can lead to privilege escalation by creating a role with administrative privileges and allow a user to assume this role.
- Objective: Show how overly permissive IAM roles can lead to privilege escalation.
- Steps:
- Create role with administrative privileges.
- Allow user to assume the role.
- Perform administrative actions.
- Differentiation between PassRole vs AssumeRole
Try at [killercoda.com](https://killercoda.com/cloudsecurity-scenario/)
Supermarket Management System Project Report.pdf
Supermarket management is a stand-alone J2EE using Eclipse Juno program.
This project contains all the necessary required information about maintaining
the supermarket billing system.
The core idea of this project to minimize the paper work and centralize the
data. Here all the communication is taken in secure manner. That is, in this
application the information will be stored in client itself. For further security the
data base is stored in the back-end oracle and so no intruders can access it.
Height and depth gauge linear metrology.pdf
Height gauges may also be used to measure the height of an object by using the underside of the scriber as the datum. The datum may be permanently fixed or the height gauge may have provision to adjust the scale, this is done by sliding the scale vertically along the body of the height gauge by turning a fine feed screw at the top of the gauge; then with the scriber set to the same level as the base, the scale can be matched to it. This adjustment allows different scribers or probes to be used, as well as adjusting for any errors in a damaged or resharpened probe.
AI in customer support Use cases solutions development and implementation.pdf
AI in customer support will integrate with emerging technologies such as augmented reality (AR) and virtual reality (VR) to enhance service delivery. AR-enabled smart glasses or VR environments will provide immersive support experiences, allowing customers to visualize solutions, receive step-by-step guidance, and interact with virtual support agents in real-time. These technologies will bridge the gap between physical and digital experiences, offering innovative ways to resolve issues, demonstrate products, and deliver personalized training and support.
https://www.leewayhertz.com/ai-in-customer-support/#How-does-AI-work-in-customer-support
DESIGN AND MANUFACTURE OF CEILING BOARD USING SAWDUST AND WASTE CARTON MATERI...
The need for ecofriendly materials as building materials in this century cannot be overemphasized
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
原版一模一样【微信：741003700 】【(uofo毕业证书)美国俄勒冈大学毕业证成绩单】【微信：741003700 】学位证，留信认证（真实可查，永久存档）原件一模一样纸张工艺/offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原。
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
【主营项目】
一.毕业证【q微741003700】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！
二.真实使馆公证(即留学回国人员证明,不成功不收费)
三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）
四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度)
如果您处于以下几种情况：
◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【q/微741003700】
◇面对父母的压力，希望尽快拿到；
◇不清楚认证流程以及材料该如何准备；
◇回国时间很长，忘记办理；
◇回国马上就要找工作，办给用人单位看；
◇企事业单位必须要求办理的
◇需要报考公务员、购买免税车、落转户口
◇申请留学生创业基金
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
办理(uofo毕业证书)美国俄勒冈大学毕业证【微信：741003700 】外观非常简单，由纸质材料制成，上面印有校徽、校名、毕业生姓名、专业等信息。
办理(uofo毕业证书)美国俄勒冈大学毕业证【微信：741003700 】格式相对统一，各专业都有相应的模板。通常包括以下部分：
校徽：象征着学校的荣誉和传承。
校名:学校英文全称
授予学位：本部分将注明获得的具体学位名称。
毕业生姓名：这是最重要的信息之一，标志着该证书是由特定人员获得的。
颁发日期：这是毕业正式生效的时间，也代表着毕业生学业的结束。
其他信息：根据不同的专业和学位，可能会有一些特定的信息或章节。
办理(uofo毕业证书)美国俄勒冈大学毕业证【微信：741003700 】价值很高，需要妥善保管。一般来说，应放置在安全、干燥、防潮的地方，避免长时间暴露在阳光下。如需使用，最好使用复印件而不是原件，以免丢失。
综上所述，办理(uofo毕业证书)美国俄勒冈大学毕业证【微信：741003700 】是证明身份和学历的高价值文件。外观简单庄重，格式统一，包括重要的个人信息和发布日期。对持有人来说，妥善保管是非常重要的。
Recently uploaded (20)
Assistant Engineer (Chemical) Interview Questions.pdf
Assistant Engineer (Chemical) Interview Questions.pdf
openshift technical overview - Flow of openshift containerisatoin
openshift technical overview - Flow of openshift containerisatoin
EV BMS WITH CHARGE MONITOR AND FIRE DETECTION.pptx
EV BMS WITH CHARGE MONITOR AND FIRE DETECTION.pptx
AI in customer support Use cases solutions development and implementation.pdf
AI in customer support Use cases solutions development and implementation.pdf
DESIGN AND MANUFACTURE OF CEILING BOARD USING SAWDUST AND WASTE CARTON MATERI...
DESIGN AND MANUFACTURE OF CEILING BOARD USING SAWDUST AND WASTE CARTON MATERI...
p-n junction: built-in potential and constant Fermi level
- 1. Course: Electronic Devices paper code: EC301 Course Coordinator: Arpan Deyasi Department of Electronics and Communication Engineering RCC Institute of Information Technology Kolkata, India 8/19/2020 1Arpan Deyasi, RCCIIT, India Topic: Junction
- 2. Calculation of built-in potential EF EV EC EFI qΦFp qΦFn Vbi 8/19/2020 2Arpan Deyasi, RCCIIT, India

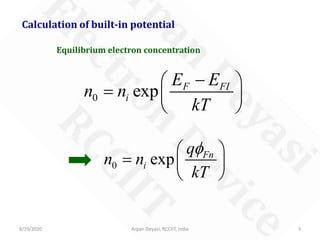

- 3. Calculation of built-in potential Equilibrium electron concentration 0 exp F FI i E E n n kT − = 0 exp Fn i q n n kT φ = 8/19/2020 3Arpan Deyasi, RCCIIT, India
- 4. 0 lnFn i nkT q n φ = Calculation of built-in potential ln D Fn i kT N q n φ = 8/19/2020 4Arpan Deyasi, RCCIIT, India

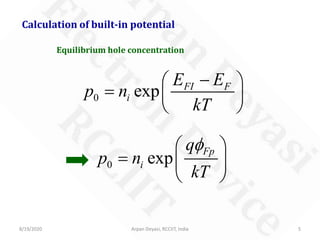

- 5. Calculation of built-in potential Equilibrium hole concentration 0 exp FI F i E E p n kT − = 0 exp Fp i q p n kT φ = 8/19/2020 5Arpan Deyasi, RCCIIT, India

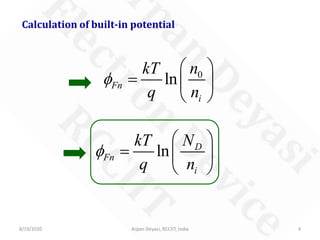

- 6. Calculation of built-in potential 0 lnFp i pkT q n φ = ln A Fp i kT N q n φ = 8/19/2020 6Arpan Deyasi, RCCIIT, India

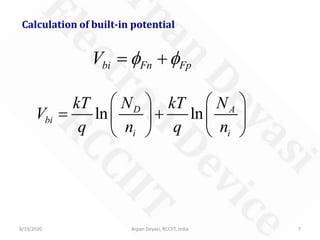

- 7. Calculation of built-in potential bi Fn FpV φ φ= + ln lnD A bi i i kT N kT N V q n q n + 8/19/2020 7Arpan Deyasi, RCCIIT, India

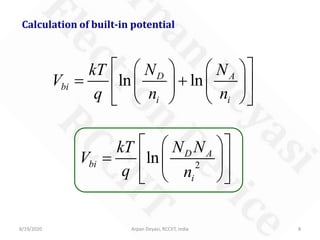

- 8. ln lnD A bi i i kT N N V q n n + Calculation of built-in potential 2 ln D A bi i kT N N V q n = 8/19/2020 8Arpan Deyasi, RCCIIT, India
- 9. Extrinsic Fermi Level is constant 8/19/2020 9Arpan Deyasi, RCCIIT, India We consider p-n junction under external bias 0pJ = Under equilibrium 0 0 0p z p dp qp E qD dz µ − =
- 10. 8/19/2020 10Arpan Deyasi, RCCIIT, India 0 0 p z p dp p E D dz µ = Extrinsic Fermi Level is constant 0 0 p z p D dp p E dzµ =

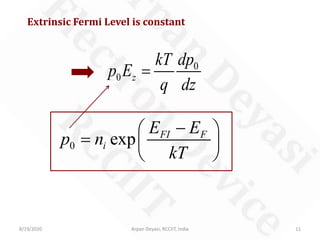

- 11. 8/19/2020 Arpan Deyasi, RCCIIT, India 11 Extrinsic Fermi Level is constant 0 0 z dpkT p E q dz = 0 exp FI F i E E p n kT − =

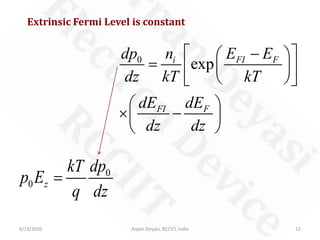

- 12. 8/19/2020 Arpan Deyasi, RCCIIT, India 12 0 expi FI F FI F dp n E E dz kT kT dE dE dz dz − = × − Extrinsic Fermi Level is constant 0 0 z dpkT p E q dz =
- 13. 8/19/2020 Arpan Deyasi, RCCIIT, India 13 Extrinsic Fermi Level is constant z dV E dz = − FI z d E E dz q =− − 1 FI z dE E q dz = 0 0 z dpkT p E q dz =
- 14. 8/19/2020 Arpan Deyasi, RCCIIT, India 14 Extrinsic Fermi Level is constant 1 exp exp FI F FI i i FI F FI F E E dE n kT q dz nkT E E dE dE q kT kT dz dz − × = − × × −
- 15. 8/19/2020 Arpan Deyasi, RCCIIT, India 15 FI FI FdE dE dE dz dz dz = − Extrinsic Fermi Level is constant 0FdE dz =
