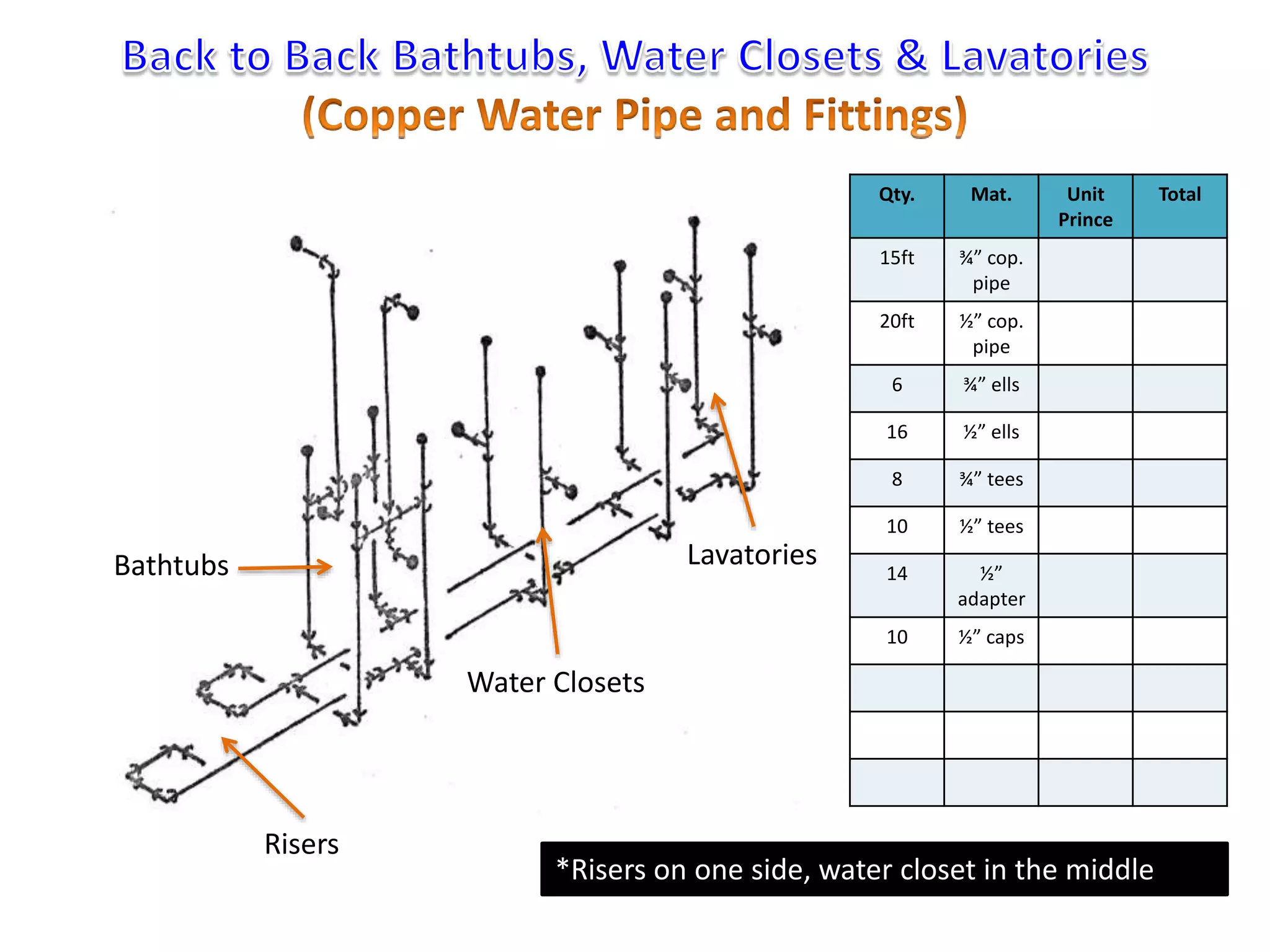

Bathtubs
Water Closets
Lavatories
Qty. Mat. Unit
Prince
Total
15ft ¾” cop.
pipe
20ft ½” cop.
pipe
6 ¾” ells
16 ½” ells
8 ¾” tees
10 ½” tees
14 ½”
adapter
10 ½” caps
Risers
*Risers on one side, water closet in the middle

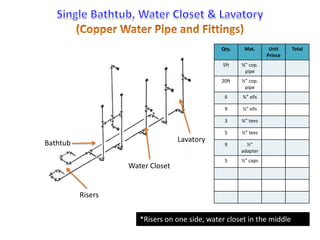

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
20ft ½” cop.
pipe
6 ¾” ells
9 ½” ells
3 ¾” tees
5 ½” tees
9 ½”
adapter
5 ½” caps
Risers
*Risers on one side, water closet in the middle

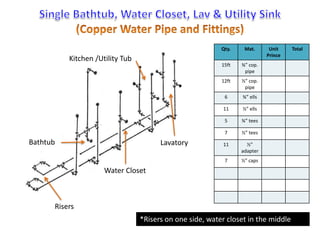

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
15ft ¾” cop.
pipe
12ft ½” cop.
pipe
6 ¾” ells
11 ½” ells
5 ¾” tees
7 ½” tees
11 ½”
adapter
7 ½” caps
Kitchen /Utility Tub
Risers
*Risers on one side, water closet in the middle
Bathtubs
Lavatories
Water Closets
Qty. Mat. Unit
Prince
Total
15ft ¾” cop.
pipe
20ft ½” cop.
pipe
4 ¾” ells
17 ½” ells
8 ¾” tees
10 ½” tees
18 ½”
adapter
10 ½” caps
Risers
*Risers in middle, water closet in the middle
Bathtub
Lavatory
Water Closet
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
24ft ½” cop.
pipe
4 ¾” ells
11 ½” ells
3 ¾” tees
5 ½” tees
8 ½”
adapter
5 ½” caps
Risers
*Risers in middle, water closet in the middle

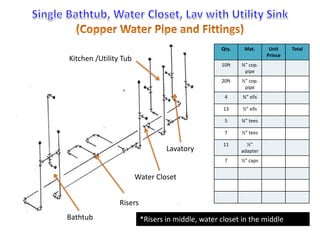

Bathtub
Lavatory
Water Closet
Qty. Mat. Unit
Prince
Total
10ft ¾” cop.
pipe
20ft ½” cop.
pipe
4 ¾” ells
13 ½” ells
5 ¾” tees
7 ½” tees
11 ½”
adapter
7 ½” caps
Kitchen /Utility Tub
Risers
*Risers in middle, water closet in the middle
Bathtubs
Water
Closets
Lavatories
Qty. Mat. Unit
Prince
Total
15ft ¾” cop.
pipe
20ft ½” cop.
pipe
6 ¾” ells
16 ½” ells
8 ¾” tees
10 ½” tees
14 ½”
adapter
10 ½” caps
Risers
*Risers on one side, water closet on end

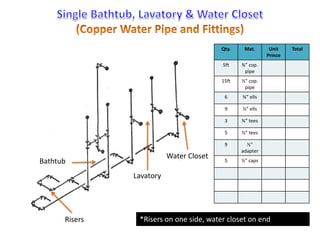

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
15ft ½” cop.
pipe
6 ¾” ells
9 ½” ells
3 ¾” tees
5 ½” tees
9 ½”
adapter
5 ½” caps
Risers *Risers on one side, water closet on end

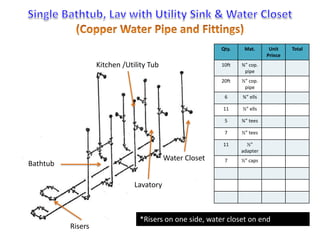

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
10ft ¾” cop.
pipe
20ft ½” cop.
pipe
6 ¾” ells
11 ½” ells
5 ¾” tees
7 ½” tees
11 ½”
adapter
7 ½” caps
Kitchen /Utility Tub
Risers
*Risers on one side, water closet on end

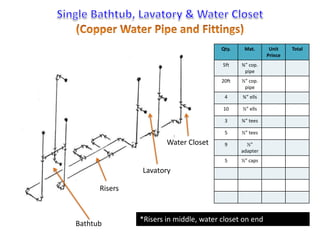

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
20ft ½” cop.
pipe
4 ¾” ells
10 ½” ells
3 ¾” tees
5 ½” tees
9 ½”
adapter
5 ½” caps
Risers
*Risers in middle, water closet on end

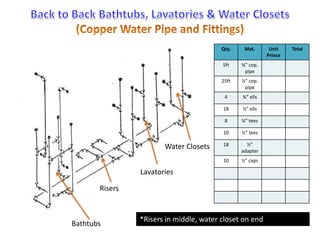

Bathtubs
Water Closets
Lavatories
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
25ft ½” cop.
pipe
4 ¾” ells
18 ½” ells
8 ¾” tees
10 ½” tees
18 ½”
adapter
10 ½” caps
Risers
*Risers in middle, water closet on end

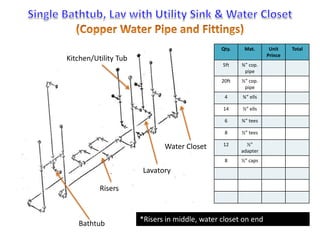

Bathtub
Water Closet
Lavatory
Qty. Mat. Unit
Prince
Total
5ft ¾” cop.
pipe
20ft ½” cop.
pipe
4 ¾” ells
14 ½” ells
6 ¾” tees
8 ½” tees
12 ½”
adapter
8 ½” caps
Risers
*Risers in middle, water closet on end
Kitchen/Utility Tub

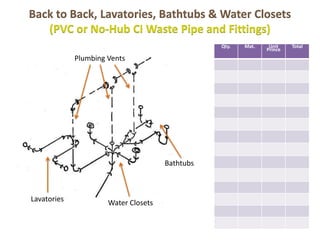

Back to Back, Lavatories, Bathtubs & Water Closets
(PVC or No-Hub CI Waste Pipe and Fittings)
Bathtubs
Lavatories Water Closets
Qty. Mat. Unit
Prince
Total
Plumbing Vents

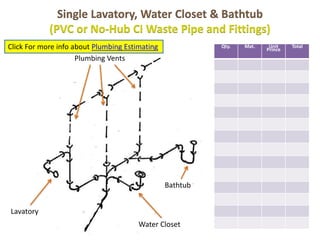

Bathtub
Click For more info about Plumbing Estimating
Water Closet
Lavatory
Single Lavatory, Water Closet & Bathtub
(PVC or No-Hub CI Waste Pipe and Fittings)
Qty. Mat. Unit
Prince
Total
Plumbing Vents

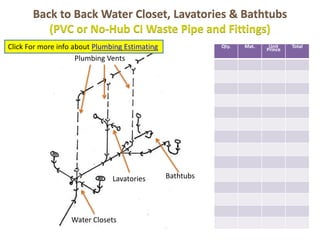

Back to Back Water Closet, Lavatories & Bathtubs
(PVC or No-Hub CI Waste Pipe and Fittings)
Bathtubs
Click For more info about Plumbing Estimating
Lavatories
Water Closets
Qty. Mat. Unit
Prince
Total
Plumbing Vents
Single Water Closet, Lavatory & Bathtub
(PVC or No-Hub CI Waste Pipe and Fittings)
Bathtub
Click For more info about Plumbing Estimating
Lavatory
Water Closet
Qty. Mat. Unit
Prince
Total
Plumbing Vents

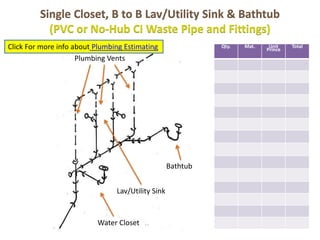

Single Closet, B to B Lav/Utility Sink & Bathtub
(PVC or No-Hub CI Waste Pipe and Fittings)
Bathtub
Click For more info about Plumbing Estimating
Lav/Utility Sink
Water Closet
Qty. Mat. Unit
Prince
Total
Plumbing Vents

Free Help with Plumbing Isometric Drawings

  • 1.
    Bathtubs Water Closets Lavatories Qty. Mat. Unit Prince Total 15ft ¾” cop. pipe 20ft ½” cop. pipe 6 ¾” ells 16 ½” ells 8 ¾” tees 10 ½” tees 14 ½” adapter 10 ½” caps Risers *Risers on one side, water closet in the middle
  • 2.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 20ft ½” cop. pipe 6 ¾” ells 9 ½” ells 3 ¾” tees 5 ½” tees 9 ½” adapter 5 ½” caps Risers *Risers on one side, water closet in the middle
  • 3.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 15ft ¾” cop. pipe 12ft ½” cop. pipe 6 ¾” ells 11 ½” ells 5 ¾” tees 7 ½” tees 11 ½” adapter 7 ½” caps Kitchen /Utility Tub Risers *Risers on one side, water closet in the middle
  • 4.
    Bathtubs Lavatories WaterClosets Qty. Mat. Unit Prince Total 15ft ¾” cop. pipe 20ft ½” cop. pipe 4 ¾” ells 17 ½” ells 8 ¾” tees 10 ½” tees 18 ½” adapter 10 ½” caps Risers *Risers in middle, water closet in the middle
  • 5.
    Bathtub Lavatory WaterCloset Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 24ft ½” cop. pipe 4 ¾” ells 11 ½” ells 3 ¾” tees 5 ½” tees 8 ½” adapter 5 ½” caps Risers *Risers in middle, water closet in the middle
  • 6.
    Bathtub Lavatory WaterCloset Qty. Mat. Unit Prince Total 10ft ¾” cop. pipe 20ft ½” cop. pipe 4 ¾” ells 13 ½” ells 5 ¾” tees 7 ½” tees 11 ½” adapter 7 ½” caps Kitchen /Utility Tub Risers *Risers in middle, water closet in the middle
  • 7.
    Bathtubs Water Closets Lavatories Qty. Mat. Unit Prince Total 15ft ¾” cop. pipe 20ft ½” cop. pipe 6 ¾” ells 16 ½” ells 8 ¾” tees 10 ½” tees 14 ½” adapter 10 ½” caps Risers *Risers on one side, water closet on end
  • 8.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 15ft ½” cop. pipe 6 ¾” ells 9 ½” ells 3 ¾” tees 5 ½” tees 9 ½” adapter 5 ½” caps Risers *Risers on one side, water closet on end
  • 9.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 10ft ¾” cop. pipe 20ft ½” cop. pipe 6 ¾” ells 11 ½” ells 5 ¾” tees 7 ½” tees 11 ½” adapter 7 ½” caps Kitchen /Utility Tub Risers *Risers on one side, water closet on end
  • 10.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 20ft ½” cop. pipe 4 ¾” ells 10 ½” ells 3 ¾” tees 5 ½” tees 9 ½” adapter 5 ½” caps Risers *Risers in middle, water closet on end
  • 11.
    Bathtubs Water Closets Lavatories Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 25ft ½” cop. pipe 4 ¾” ells 18 ½” ells 8 ¾” tees 10 ½” tees 18 ½” adapter 10 ½” caps Risers *Risers in middle, water closet on end
  • 12.
    Bathtub Water Closet Lavatory Qty. Mat. Unit Prince Total 5ft ¾” cop. pipe 20ft ½” cop. pipe 4 ¾” ells 14 ½” ells 6 ¾” tees 8 ½” tees 12 ½” adapter 8 ½” caps Risers *Risers in middle, water closet on end Kitchen/Utility Tub
  • 13.
    Back to Back,Lavatories, Bathtubs & Water Closets (PVC or No-Hub CI Waste Pipe and Fittings) Bathtubs Lavatories Water Closets Qty. Mat. Unit Prince Total Plumbing Vents
  • 14.
    Bathtub Click Formore info about Plumbing Estimating Water Closet Lavatory Single Lavatory, Water Closet & Bathtub (PVC or No-Hub CI Waste Pipe and Fittings) Qty. Mat. Unit Prince Total Plumbing Vents
  • 15.
    Back to BackWater Closet, Lavatories & Bathtubs (PVC or No-Hub CI Waste Pipe and Fittings) Bathtubs Click For more info about Plumbing Estimating Lavatories Water Closets Qty. Mat. Unit Prince Total Plumbing Vents
  • 16.
    Single Water Closet,Lavatory & Bathtub (PVC or No-Hub CI Waste Pipe and Fittings) Bathtub Click For more info about Plumbing Estimating Lavatory Water Closet Qty. Mat. Unit Prince Total Plumbing Vents
  • 17.
    Single Closet, Bto B Lav/Utility Sink & Bathtub (PVC or No-Hub CI Waste Pipe and Fittings) Bathtub Click For more info about Plumbing Estimating Lav/Utility Sink Water Closet Qty. Mat. Unit Prince Total Plumbing Vents

Editor's Notes

  • #14 I did not make a list of pipe and fittings to use for waste and vent. Sizing will depend on codes and drainage fixture units (D.F.U.). With this drawing it shouldn’t be too difficult to come up with a pipe and fitting takeoff once sizing has been done.
  • #15 I did not make a list of pipe and fittings to use for waste and vent. Sizing will depend on codes and drainage fixture units (D.F.U.). With this drawing it shouldn’t be too difficult to come up with a pipe and fitting takeoff once sizing has been done.
  • #16 I did not make a list of pipe and fittings to use for waste and vent. Sizing will depend on codes and drainage fixture units (D.F.U.). With this drawing it shouldn’t be too difficult to come up with a pipe and fitting takeoff once sizing has been done.
  • #17 I did not make a list of pipe and fittings to use for waste and vent. Sizing will depend on codes and drainage fixture units (D.F.U.). With this drawing it shouldn’t be too difficult to come up with a pipe and fitting takeoff once sizing has been done.
  • #18 I did not make a list of pipe and fittings to use for waste and vent. Sizing will depend on codes and drainage fixture units (D.F.U.). With this drawing it shouldn’t be too difficult to come up with a pipe and fitting takeoff once sizing has been done.
