Plastic Formwork Construction System
- 1.

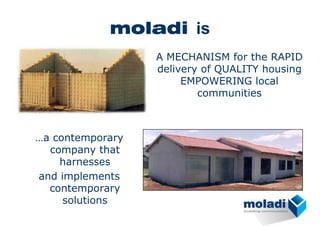

- 2. moladi is A MECHANISMfor the RAPID delivery of QUALITY housing EMPOWERING local communities …a contemporary company that harnesses and implements contemporary solutions
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.

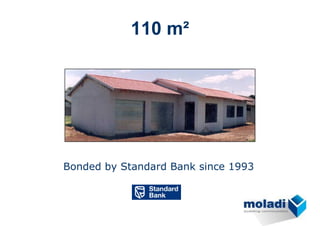

- 39. 110 m² Bonded byStandard Bank since 1993
- 40.
- 41.
- 42.
- 43.

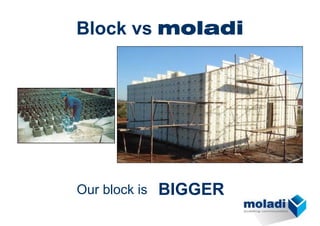

- 44. Block vs moladi Ourblock is BIGGER

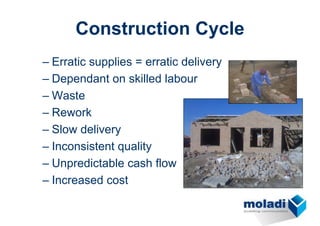

- 45. Construction Cycle – Erraticsupplies = erratic delivery – Dependant on skilled labour – Waste – Rework – Slow delivery – Inconsistent quality – Unpredictable cash flow – Increased cost
- 46. moladi Cycle – Constantsupply = constant delivery – Known cost – Unskilled operators – Next to no waste – Increased productivity – Reduced cost – Consistent quality – Predictable cash flow
- 47. Key Benefits • NHBRC– Rational Design • Agrément Certified (CSIR) • SABS tested and approved • Engineer Certified * – Foundation – Super Structure – Roof • Superior wall strength • Quality Controls • Community acceptance NBR SABS - 0400 ...QUALITY * Professional Indemnity

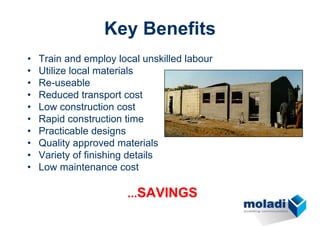

- 48. Key Benefits • Trainand employ local unskilled labour • Utilize local materials • Re-useable • Reduced transport cost • Low construction cost • Rapid construction time • Practicable designs • Quality approved materials • Variety of finishing details • Low maintenance cost ...SAVINGS
- 49. Key Benefits • Speedwithout compromising quality • No need to plaster • No need to chase • No beam filling • Waterproof • Reinforced • Waste reduction • Logistics • Alterations and additions ...SAVINGS

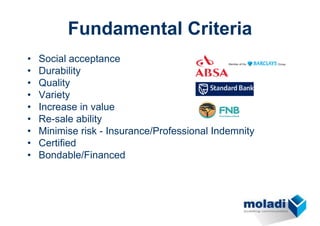

- 50. Fundamental Criteria • Socialacceptance • Durability • Quality • Variety • Increase in value • Re-sale ability • Minimise risk - Insurance/Professional Indemnity • Certified • Bondable/Financed
- 51. SABS Test Waterproof • Testmethod is for the worst case scenario i.e. Cape Town 1,000-mm rainfall per annum with a wind speed of 30 metre/second conducted over a 24- hour period.

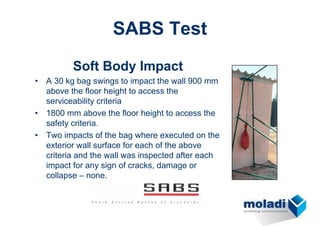

- 52. SABS Test Soft BodyImpact • A 30 kg bag swings to impact the wall 900 mm above the floor height to access the serviceability criteria • 1800 mm above the floor height to access the safety criteria. • Two impacts of the bag where executed on the exterior wall surface for each of the above criteria and the wall was inspected after each impact for any sign of cracks, damage or collapse – none.

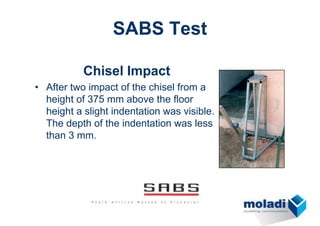

- 53. SABS Test Chisel Impact •After two impact of the chisel from a height of 375 mm above the floor height a slight indentation was visible. The depth of the indentation was less than 3 mm.

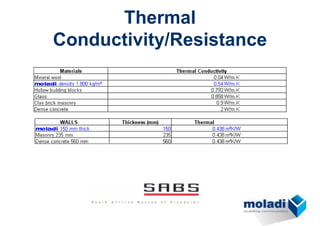

- 54. SABS Test • Alltest conducted by the South African Bureau of Standards, have been executed on a 100 mm (4 inch) wall as this is an acceptable norm for in situ walls and is also the standard applied to low cost housing units. • Thermal conductivity of 100 mm moladi wall = 0,54 W/m.K
- 55.
