1. PISTON
Internal Combustion
Engine

2. (Position)

3. Function

4.  Transmits gas forces by the combustion of
the fuel
 Undergoes severe thermal stresses and
fluctuates mechanical stress

5. COMPONENTS

7. Opposed Piston Opposed Cylinder

8. Hydraulics and
Free Piston Engines

9. Piston and Cylinder
(V-Type Engine)

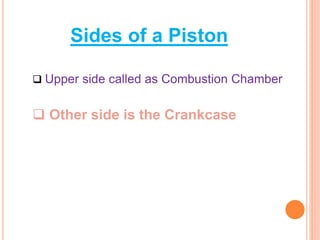

10. Sides of a Piston
 Upper side called as Combustion Chamber
 Other side is the Crankcase

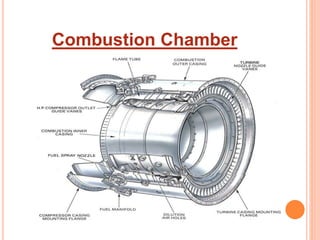

11. Combustion Chamber

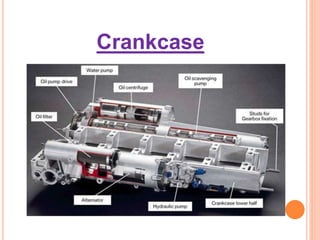

12. Crankcase

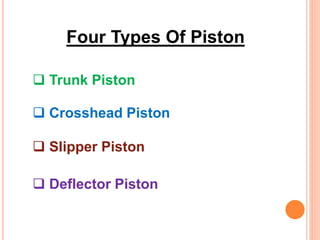

13. Four Types Of Piston
 Trunk Piston
 Crosshead Piston
 Slipper Piston
 Deflector Piston

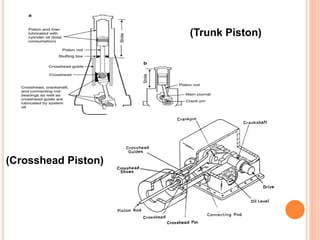

14. (Trunk Piston)
(Crosshead Piston)

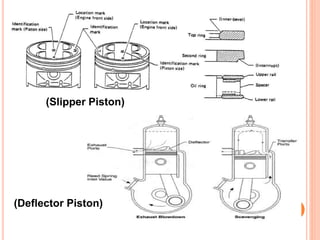

15. (Slipper Piston)
(Deflector Piston)

16. More Details:-
http://auto.howstuffworks.com/engine2.htm
