Perf tuning with-multitenant
- 1. BASLE BERN BRUGGDÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. GENEVA HAMBURG COPENHAGEN LAUSANNE MUNICH STUTTGART VIENNA ZURICH Running your production with Multitenant Performance & Tuning challenges Jacques Kostic Principal Consultant IMS Lausanne

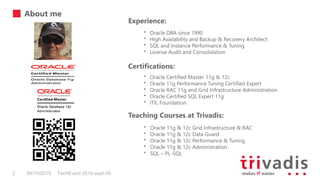

- 2. TechEvent 2016-sept-092 09/10/2016 Experience: •Oracle DBA since 1990 • High Availability and Backup & Recovery Architect • SQL and Instance Performance & Tuning • License Audit and Consolidation Certifications: • Oracle Certified Master 11g & 12c • Oracle 11g Performance Tuning Certified Expert • Oracle RAC 11g and Grid Infrastructure Administration • Oracle Certified SQL Expert 11g • ITIL Foundation Teaching Courses at Trivadis: • Oracle 11g & 12c Grid Infrastructure & RAC • Oracle 11g & 12c Data Guard • Oracle 11g & 12c Performance & Tuning • Oracle 11g & 12c Administration • SQL – PL-SQL About me

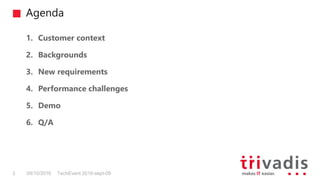

- 3. Agenda TechEvent 2016-sept-093 09/10/2016 1.Customer context 2. Backgrounds 3. New requirements 4. Performance challenges 5. Demo 6. Q/A
- 4.

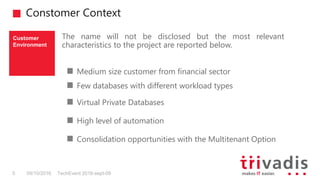

- 5. Constomer Context TechEvent 2016-sept-09509/10/2016 The name will not be disclosed but the most relevant characteristics to the project are reported below. Customer Environment Medium size customer from financial sector Few databases with different workload types Virtual Private Databases High level of automation Consolidation opportunities with the Multitenant Option
- 6.

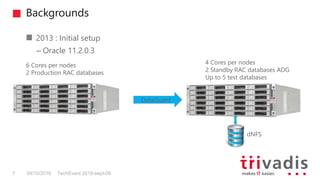

- 7. Backgrounds TechEvent 2016-sept-097 09/10/2016 2013: Initial setup – Oracle 11.2.0.3 dNFS 6 Cores per nodes 2 Production RAC databases DataGuard 4 Cores per nodes 2 Standby RAC databases ADG Up to 5 test databases

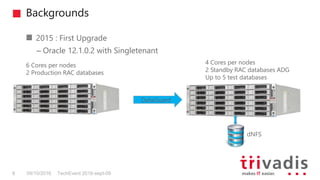

- 8. Backgrounds TechEvent 2016-sept-098 09/10/2016 2015: First Upgrade – Oracle 12.1.0.2 with Singletenant dNFS 6 Cores per nodes 2 Production RAC databases DataGuard 4 Cores per nodes 2 Standby RAC databases ADG Up to 5 test databases

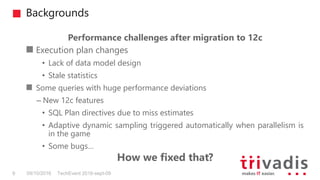

- 9. Backgrounds TechEvent 2016-sept-099 09/10/2016 Performancechallenges after migration to 12c Execution plan changes • Lack of data model design • Stale statistics Some queries with huge performance deviations – New 12c features • SQL Plan directives due to miss estimates • Adaptive dynamic sampling triggered automatically when parallelism is in the game • Some bugs… How we fixed that?
- 10. Backgrounds TechEvent 2016-sept-0910 09/10/2016 SQL> Alter system set optimizer_adaptive_features=FALSE; System altered. SQL> Et voila!
- 11.
- 12. TechEvent 2016-sept-0912 09/10/2016 NewRequirements
- 13. New Requirements TechEvent 2016-sept-091309/10/2016 New customer to absorb Double the size of all databases Have the same performance in test environments Same automation procedures

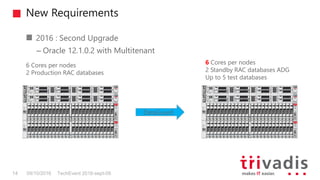

- 14. New Requirements TechEvent 2016-sept-091409/10/2016 2016 : Second Upgrade – Oracle 12.1.0.2 with Multitenant 6 Cores per nodes 2 Production RAC databases DataGuard 6 Cores per nodes 2 Standby RAC databases ADG Up to 5 test databases

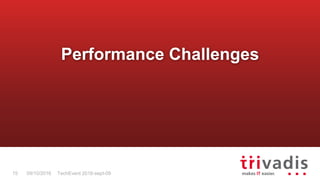

- 15.
- 16. Performance Challenges TechEvent 2016-sept-091609/10/2016 Production databases One small OLTP database One mix OLTP-DWH medium database – VPD! – Financial consolidation can be scheduled at any time by end users – Average execution time is within one hour – Parallel executions are used for certain steps

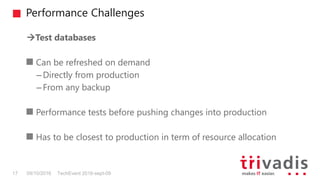

- 17. Performance Challenges TechEvent 2016-sept-091709/10/2016 Test databases Can be refreshed on demand – Directly from production – From any backup Performance tests before pushing changes into production Has to be closest to production in term of resource allocation

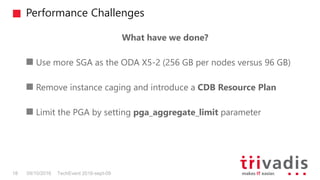

- 18. Performance Challenges TechEvent 2016-sept-091809/10/2016 What have we done? Use more SGA as the ODA X5-2 (256 GB per nodes versus 96 GB) Remove instance caging and introduce a CDB Resource Plan Limit the PGA by setting pga_aggregate_limit parameter

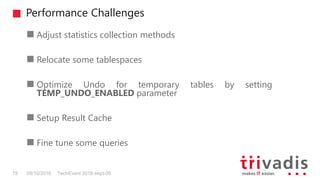

- 19. Performance Challenges TechEvent 2016-sept-091909/10/2016 Adjust statistics collection methods Relocate some tablespaces Optimize Undo for temporary tables by setting TEMP_UNDO_ENABLED parameter Setup Result Cache Fine tune some queries

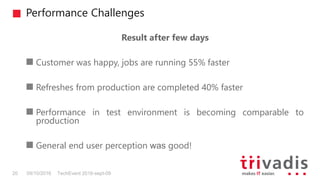

- 20. Performance Challenges TechEvent 2016-sept-092009/10/2016 Result after few days Customer was happy, jobs are running 55% faster Refreshes from production are completed 40% faster Performance in test environment is becoming comparable to production General end user perception was good!

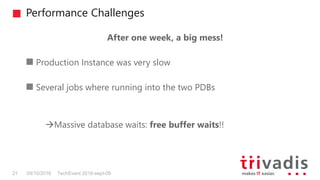

- 21. Performance Challenges TechEvent 2016-sept-092109/10/2016 After one week, a big mess! Production Instance was very slow Several jobs where running into the two PDBs Massive database waits: free buffer waits!!

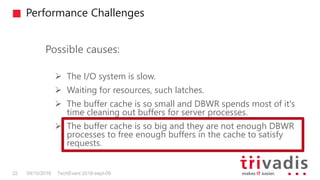

- 22. Performance Challenges TechEvent 2016-sept-092209/10/2016 Possible causes: The I/O system is slow. Waiting for resources, such latches. The buffer cache is so small and DBWR spends most of it's time cleaning out buffers for server processes. The buffer cache is so big and they are not enough DBWR processes to free enough buffers in the cache to satisfy requests.
- 23. Performance Challenges TechEvent 2016-sept-092309/10/2016 Limitations with Multitenant Shared pool Buffer cache I/O activity
- 24.
