The Time is Now: Migrating from Oracle Warehouse Builder to Oracle Data Integrator 12c

www.RedPillAnalytics.com info@RedPillAnalytics.com @RedPillA © 2014 RED PILL Analytics
The Time is Now!
2
Stewart Bryson
medium.com/@stewartbryson @stewartbryson linkedin.com/in/stewartbryson
Migrating from Oracle Warehouse
Builder to Oracle Data Integrator 12c

© 2014 RED PILL Analytics
Who is Red Pill Analytics?

Red Pill Analytics: Leadership
4
Stewart Bryson
Oracle ACE Director
Previously From:
Rittman Mead
Informix Software
Data Warehousing &
Business Intelligence
since 1996
Kevin McGinley
Oracle ACE Director
Previously From:
Accenture
BI Consulting Group
Data Warehousing &
Business Intelligence
since 1997

About Red Pill Analytics
Other Services
• Expert Retainer
• Support
• Training
5
• DevOps for BI and
DI
• Hosted or On-
premise
• Used in Capacity
Analytics
Capacity Analytics
• Development-as-a-
service
• Agile methodology
• Faster/cheaper
than traditional
consulting
• Subscription billing

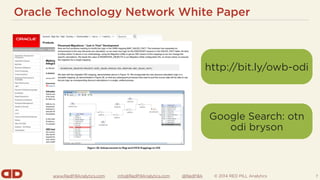

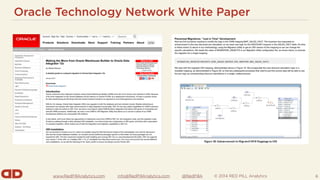

Oracle Technology Network White Paper
6

Oracle Technology Network White Paper
7
http://bit.ly/owb-odi
Google Search: otn
odi bryson

Man in the Mirror

Goodbye Old Friend

Migrations are Hard

Add Value

Have a Mission Statement

Mission Statement
13
Any task undertaken to migrate content from OWB to ODI
will add immediate value to our BI stakeholders.

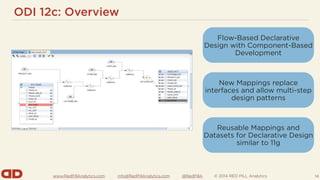

ODI 12c: Overview
14
Flow-Based Declarative
Design with Component-Based
Development
New Mappings replace
interfaces and allow multi-step
design patterns
Reusable Mappings and
Datasets for Declarative Design
similar to 11g

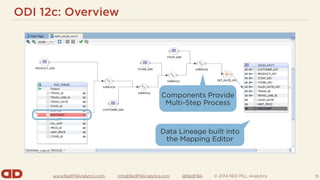

ODI 12c: Overview
15
Components Provide
Multi-Step Process
Data Lineage built into
the Mapping Editor

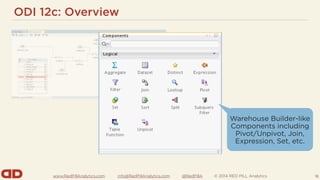

ODI 12c: Overview
16
Warehouse Builder-like
Components including
Pivot/Unpivot, Join,
Expression, Set, etc.

ODI 12c: Overview
17

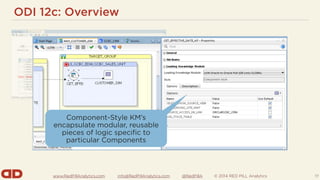

Component-Style KM’s
encapsulate modular, reusable
pieces of logic specific to
particular Components

ODI 12c: Overview
18

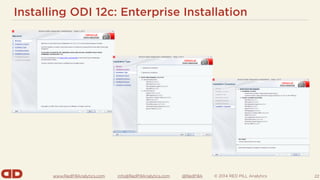

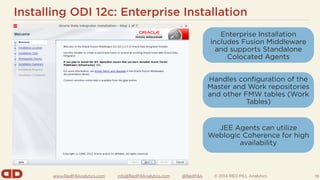

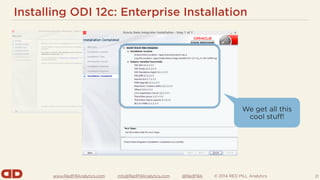

Installing ODI 12c: Enterprise Installation
19
Enterprise Installation
includes Fusion Middleware
and supports Standalone
Colocated Agents
Handles configuration of the
Master and Work repositories
and other FMW tables (Work
Tables)
JEE Agents can utilize
Weblogic Coherence for high
availability

20

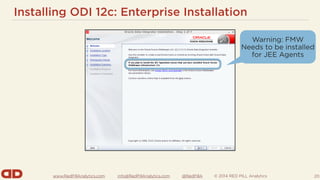

Warning: FMW
Needs to be installed
for JEE Agents

21
We get all this
cool stuff!

22

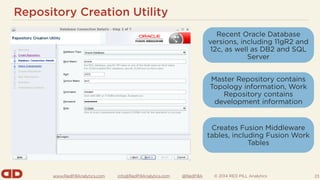

Repository Creation Utility
23
Recent Oracle Database
versions, including 11gR2 and
12c, as well as DB2 and SQL
Server
Master Repository contains
Topology information, Work
Repository contains
development information
Creates Fusion Middleware
tables, including Fusion Work
Tables

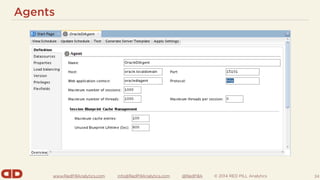

Agents
24

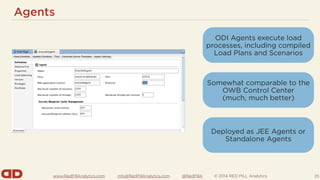

Agents
25
ODI Agents execute load
processes, including compiled
Load Plans and Scenarios
Somewhat comparable to the
OWB Control Center
(much, much better)
Deployed as JEE Agents or
Standalone Agents

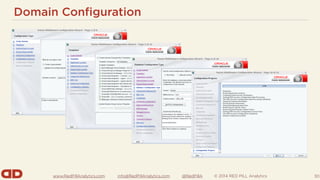

Domain Configuration
26
Use built-in FMW and WLS
functionality to “harden” our
ODI Agents
Our JEE-deployed ODI Agent
is comparable to an ETL Server
Utilizing Coherence gives us
performance increases in
certain circumstances, fault
tolerance, etc.

27
Domain
Configuration
Templates make it
easy to mix and
match deployed
functionality to
our domain

28

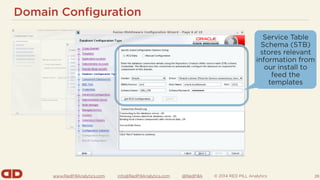

Service Table
Schema (STB)
stores relevant
information from
our install to
feed the
templates

29

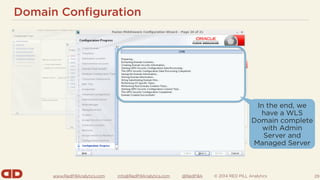

In the end, we
have a WLS
Domain complete
with Admin
Server and
Managed Server

30

OWB Runtime Integration

OWB Runtime Integration
32
Execute OWB processes as
standard ODI processes,
including Mappings and
Process Flows
Full execution from OWB
Control Center captured in
standard ODI audit tables
Orchestrate our loads
wherever we want: ODI Load
Plans or OWB Process Flows

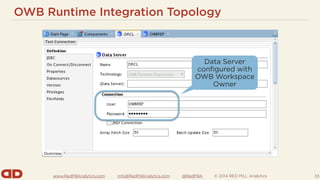

OWB Runtime Integration Topology
33
Data Server
configured with
OWB Workspace
Owner

34
JDBC
Configuration to
the OWB
Workspace

35

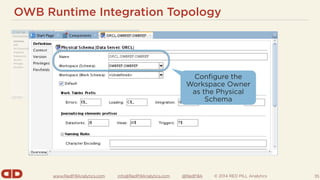

Configure the
Workspace Owner
as the Physical
Schema

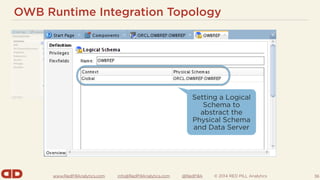

36

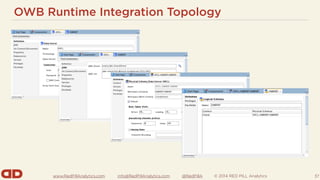

Setting a Logical
Schema to
abstract the
Physical Schema
and Data Server

37

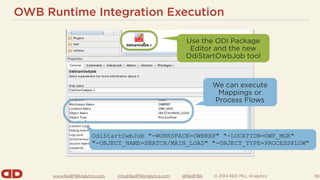

OWB Runtime Integration Execution
38
Use the ODI Package
Editor and the new
OdiStartOwbJob tool
We can execute
Mappings or
Process Flows
OdiStartOwbJob "-WORKSPACE=OWBREP" "-LOCATION=OWF_MGR"
"-OBJECT_NAME=SBATCH/MAIN_LOAD" "-OBJECT_TYPE=PROCESSFLOW"

39
ODI Scenario for
Process Flow
Mapping Execution
Main Process
Flow execution
Sub-Process
Flow execution
Sub-Process
Flow execution Mapping Execution

40

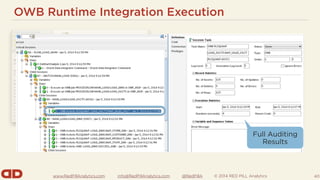

Full Auditing
Results

41

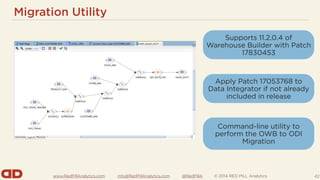

Migration Utility
42
Supports 11.2.0.4 of
Warehouse Builder with Patch
17830453
Apply Patch 17053768 to
Data Integrator if not already
included in release
Command-line utility to
perform the OWB to ODI
Migration

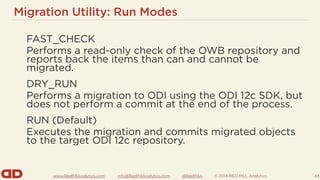

Migration Utility: Run Modes
FAST_CHECK
Performs a read-only check of the OWB repository and
reports back the items than can and cannot be
migrated.
DRY_RUN
Performs a migration to ODI using the ODI 12c SDK, but
does not perform a commit at the end of the process.
RUN (Default)
Executes the migration and commits migrated objects
to the target ODI 12c repository.
43

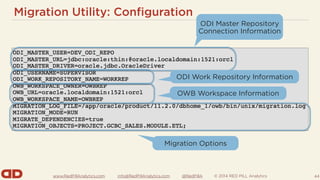

Migration Utility: Configuration
44
ODI Master Repository
Connection Information
ODI Work Repository Information
Migration Options
OWB Workspace Information

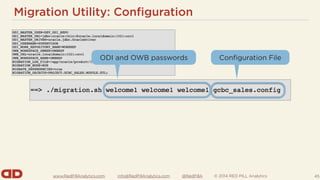

45
Configuration File
ODI and OWB passwords

46

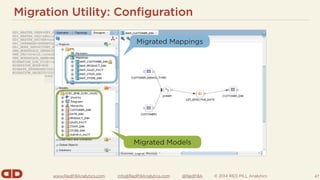

Migration Results

Migrated Mappings
Migrated Models
47

48

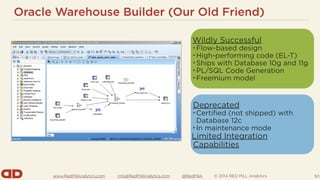

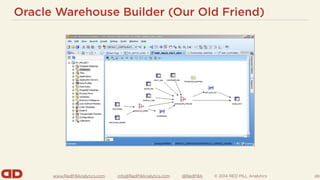

Oracle Warehouse Builder (Our Old Friend)
49

Oracle Warehouse Builder (Our Old Friend)
50
Wildly Successful
•Flow-based design
•High-performing code (EL-T)
•Ships with Database 10g and 11g
•PL/SQL Code Generation
•Freemium model
Deprecated
•Certified (not shipped) with
Database 12c
•In maintenance mode
Limited Integration
Capabilities

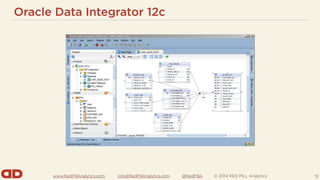

Oracle Data Integrator 12c
51

Oracle Data Integrator 12c
52
Best of both worlds!
•Now with flow-based design
•High-performing code (EL-T)
•Knowledge Module architecture
•Enterprise Manager integration
•Fusion Middleware integration
Is there value in changing?
•“Our organization has a major
investment in OWB”
•“Our mappings and process
flows just work”

If Only There Was a Way to…
53

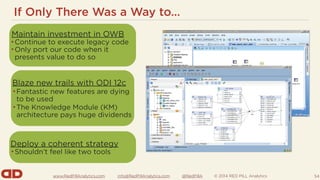

If Only There Was a Way to…
54
Maintain investment in OWB
•Continue to execute legacy code
•Only port our code when it
presents value to do so
Blaze new trails with ODI 12c
• Fantastic new features are dying
to be used
• The Knowledge Module (KM)
architecture pays huge dividends
Deploy a coherent strategy
•Shouldn’t feel like two tools

It’s not an easy choice

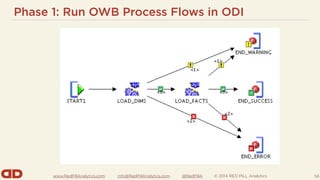

Phase 1: Run OWB Process Flows in ODI
56

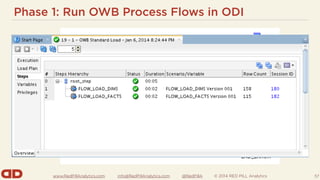

Phase 1: Run OWB Process Flows in ODI
57

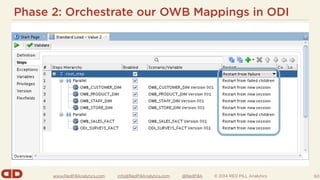

Phase 2: Orchestrate our OWB Mappings in ODI
58

59

60

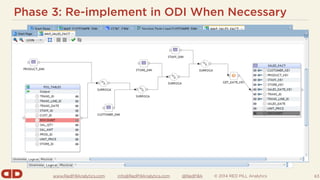

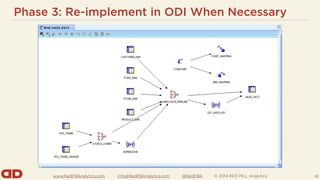

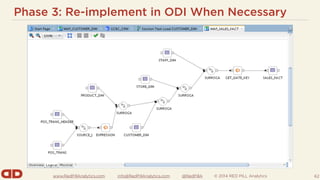

Phase 3: Re-implement in ODI When Necessary
61

62

63
