12c Pluggable databases

© 2013TechEvent 27 April 2013 2

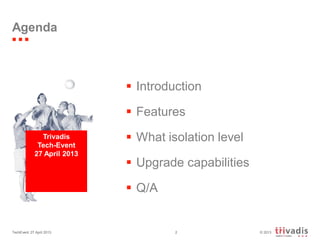

Agenda
 Introduction
 Features
 What isolation level
 Upgrade capabilities
 Q/A
Trivadis
Tech-Event
27 April 2013

Introduction

Introduction
 Pluggable Databases (PDBs) is new feature in
Oracle Database 12c that introduce a notion of
container database (CDB)
 One container (CDB) to handle multiple PDBs:
 Dedicate instance
 Several instances in RAC mode

Introduction
 More efficient in resource consumption, scalability and
manageability by consolidating many PDBs onto a single
platform
 Single CDB will support 250 pluggable databases (more is
licensed)

Introduction

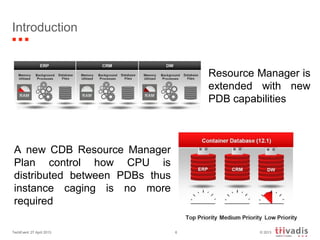

Resource Manager is
extended with new
PDB capabilities
A new CDB Resource Manager
Plan control how CPU is
distributed between PDBs thus
instance caging is no more
required

© 2013
Introduction

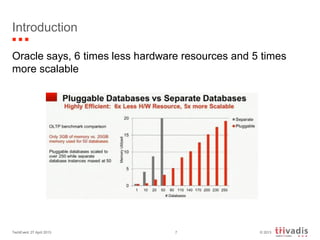

Oracle says, 6 times less hardware resources and 5 times
more scalable
TechEvent 27 April 2013 7

Features

Features
 Split Data Dictionary
 CDB “root” dictionary
 Each PDB have its own private dictionary
 Fully backwards compatible with an ordinary pre-
12.1 database
 Compatible RAC, each instance will opens CDB as
a whole
 PDBs are fully compatible with all database options
 Resource manager is extended for PDBs

Features
 Unplug and Plug to move databases:
 to new platform or release
 to exchange databases between environments
 to enhance high availability
 Management thought a new Administrator role:
CDB Administrator
 Unique service name for PDBs
 A default service that cannot be dropped is created
 “lsnrctl status” gives the name off all opened PDBs 
 Additional services can be created

Features
 Fast provisioning, patching and upgrade
 PDB cloning or provisioning from “PDB Seed” template
 Upgrade by unplugging and plugging to a higher oracle
version allow quick PDB upgrades
 Upgrading the CDB will upgrade all PDBs
 Better database administration
 RMAN Backup apply to the CDB as a whole or to
individual PDBs
 Protect the full CDB including all PDBs with data guard

What isolation level

What isolation level: list PDBs
 Any users in one PDB will not see anything about the other PDB
databases on the same instance
 Select from x$con as sysdba will give the same result
From sales PDB
oracle@srv12c:~/ [CDBPRD]sqlplus system@sales
Enter password:
SQL>select name,con_id from v$pdbs;
NAME CON_ID
------------------------------ ------
SALES 3

What isolation level: list PDBs
 Same filter will apply on con_id for gv$pdbs view in RAC mode.
From CDB
oracle@srv12c:~/ [CDBPRD]sqlplus system
Enter password:
SQL>select name,con_id from v$pdbs;
NAME CON_ID
------------------------------ ------
PDB$SEED 2
SALES 3
ALLRACES 4

What isolation level: change PDB
Service is not changed if you change the container within your session.
Enter password:
SQL>select SYS_CONTEXT('userenv','service_name') from dual;
SYS_CONTEXT('USERENV','SERVICE_NAME')
---------------------------------------------------------
Sales
SQL>alter session set container=allraces;
Session altered.
SQL> select SYS_CONTEXT('userenv','service_name') from dual;
SYS_CONTEXT('USERENV','SERVICE_NAME')
---------------------------------------------------------
sales

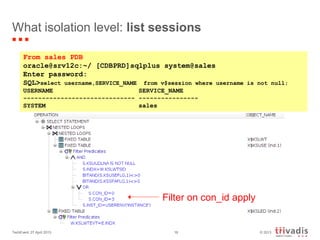

What isolation level: list sessions
From sales PDB
Enter password:
SQL>select username,SERVICE_NAME from v$session where username is not null;
USERNAME SERVICE_NAME
------------------------------ ----------------
SYSTEM sales
Filter on con_id apply

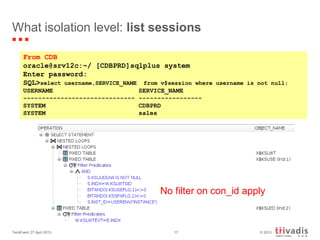

What isolation level: list sessions
From CDB
oracle@srv12c:~/ [CDBPRD]sqlplus system
Enter password:
SQL>select username,SERVICE_NAME from v$session where username is not null;
USERNAME SERVICE_NAME
------------------------------ -----------------
SYSTEM CDBPRD
SYSTEM sales
No filter on con_id apply

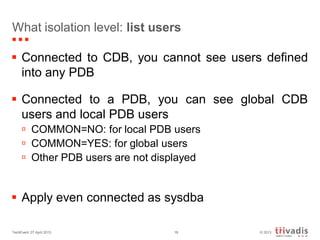

What isolation level: list users
 Connected to CDB, you cannot see users defined
into any PDB
 Connected to a PDB, you can see global CDB
users and local PDB users
 COMMON=NO: for local PDB users
 COMMON=YES: for global users
 Other PDB users are not displayed
 Apply even connected as sysdba

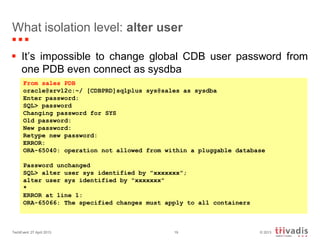

What isolation level: alter user
 It’s impossible to change global CDB user password from
one PDB even connect as sysdba
From sales PDB
oracle@srv12c:~/ [CDBPRD]sqlplus sys@sales as sysdba
Enter password:
SQL> password
Changing password for SYS
Old password:
New password:
Retype new password:
ERROR:
ORA-65040: operation not allowed from within a pluggable database
Password unchanged
SQL> alter user sys identified by "xxxxxxx";
alter user sys identified by "xxxxxxx"
*
ERROR at line 1:
ORA-65066: The specified changes must apply to all containers

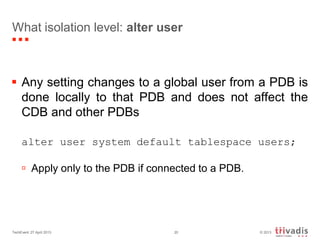

What isolation level: alter user
 Any setting changes to a global user from a PDB is
done locally to that PDB and does not affect the
CDB and other PDBs
alter user system default tablespace users;
 Apply only to the PDB if connected to a PDB.

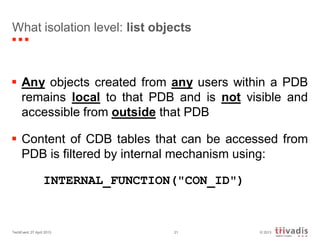

What isolation level: list objects
 Any objects created from any users within a PDB
remains local to that PDB and is not visible and
accessible from outside that PDB
 Content of CDB tables that can be accessed from
PDB is filtered by internal mechanism using:
INTERNAL_FUNCTION("CON_ID")

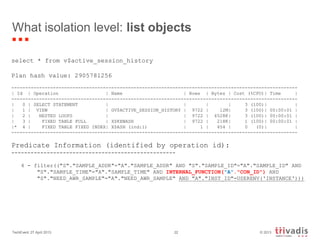

select * from v$active_session_history
Plan hash value: 2905781256
-------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
-------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | | | 3 (100)| |
| 1 | VIEW | GV$ACTIVE_SESSION_HISTORY | 9722 | 12M| 3 (100)| 00:00:01 |
| 2 | NESTED LOOPS | | 9722 | 4528K| 3 (100)| 00:00:01 |
| 3 | FIXED TABLE FULL | X$KEWASH | 9722 | 218K| 1 (100)| 00:00:01 |
|* 4 | FIXED TABLE FIXED INDEX| X$ASH (ind:1) | 1 | 454 | 0 (0)| |
-------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
4 - filter(("S"."SAMPLE_ADDR"="A"."SAMPLE_ADDR" AND "S"."SAMPLE_ID"="A"."SAMPLE_ID" AND
"S"."SAMPLE_TIME"="A"."SAMPLE_TIME" AND INTERNAL_FUNCTION("A"."CON_ID") AND
"S"."NEED_AWR_SAMPLE"="A"."NEED_AWR_SAMPLE" AND "A"."INST_ID"=USERENV('INSTANCE')))

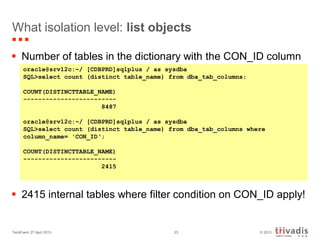

 Number of tables in the dictionary with the CON_ID column
 2415 internal tables where filter condition on CON_ID apply!
oracle@srv12c:~/ [CDBPRD]sqlplus / as sysdba
SQL>select count (distinct table_name) from dba_tab_columns;
COUNT(DISTINCTTABLE_NAME)
-------------------------
8487
oracle@srv12c:~/ [CDBPRD]sqlplus / as sysdba
SQL>select count (distinct table_name) from dba_tab_columns where
column_name= 'CON_ID‘;
COUNT(DISTINCTTABLE_NAME)
-------------------------
2415

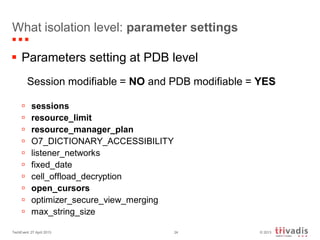

What isolation level: parameter settings
 Parameters setting at PDB level
Session modifiable = NO and PDB modifiable = YES
 sessions
 resource_limit
 resource_manager_plan
 O7_DICTIONARY_ACCESSIBILITY
 listener_networks
 fixed_date
 cell_offload_decryption
 open_cursors
 optimizer_secure_view_merging
 max_string_size

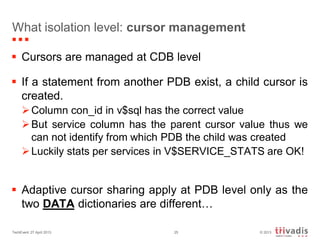

What isolation level: cursor management
 Cursors are managed at CDB level
 If a statement from another PDB exist, a child cursor is
created.
Column con_id in v$sql has the correct value
But service column has the parent cursor value thus we
can not identify from which PDB the child was created
Luckily stats per services in V$SERVICE_STATS are OK!
 Adaptive cursor sharing apply at PDB level only as the
two DATA dictionaries are different…

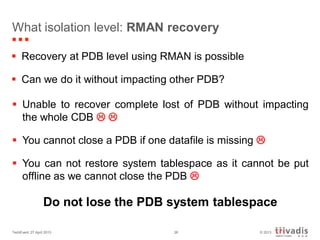

What isolation level: RMAN recovery
 Recovery at PDB level using RMAN is possible
 Can we do it without impacting other PDB?
 Unable to recover complete lost of PDB without impacting
the whole CDB  
 You cannot close a PDB if one datafile is missing 
 You can not restore system tablespace as it cannot be put
offline as we cannot close the PDB 
Do not lose the PDB system tablespace

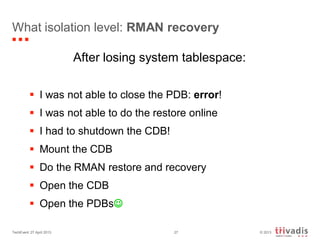

What isolation level: RMAN recovery
After losing system tablespace:
 I was not able to close the PDB: error!
 I was not able to do the restore online
 I had to shutdown the CDB!
 Mount the CDB
 Do the RMAN restore and recovery
 Open the CDB
 Open the PDBs

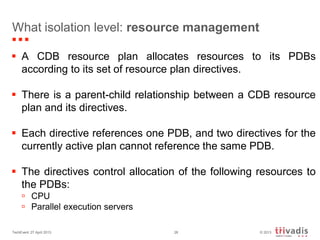

What isolation level: resource management
 A CDB resource plan allocates resources to its PDBs
according to its set of resource plan directives.
 There is a parent-child relationship between a CDB resource
plan and its directives.
 Each directive references one PDB, and two directives for the
currently active plan cannot reference the same PDB.
 The directives control allocation of the following resources to
the PDBs:
 CPU
 Parallel execution servers

Shares in a CDB Resource Plan
Use CREATE_CDB_PLAN_DIRECTIVE procedure in the
DBMS_RESOURCE_MANAGER package and specify a value
for the SHARE parameter

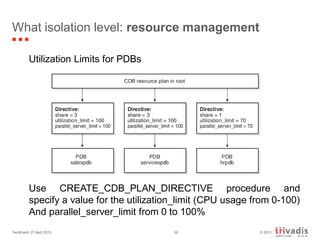

Utilization Limits for PDBs
Use CREATE_CDB_PLAN_DIRECTIVE procedure and
specify a value for the utilization_limit (CPU usage from 0-100)
And parallel_server_limit from 0 to 100%

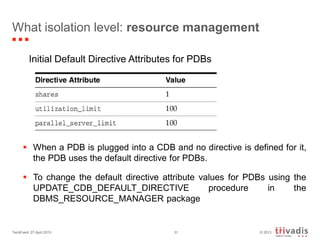

Initial Default Directive Attributes for PDBs
 When a PDB is plugged into a CDB and no directive is defined for it,
the PDB uses the default directive for PDBs.
 To change the default directive attribute values for PDBs using the
UPDATE_CDB_DEFAULT_DIRECTIVE procedure in the
DBMS_RESOURCE_MANAGER package

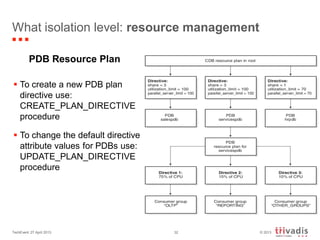

PDB Resource Plan
 To create a new PDB plan
directive use:
CREATE_PLAN_DIRECTIVE
procedure
 To change the default directive
attribute values for PDBs use:
UPDATE_PLAN_DIRECTIVE
procedure

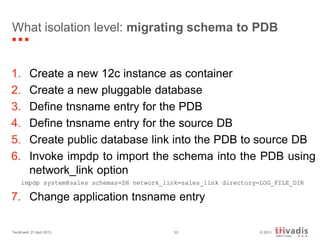

What isolation level: migrating schema to PDB
1. Create a new 12c instance as container
2. Create a new pluggable database
3. Define tnsname entry for the PDB
4. Define tnsname entry for the source DB
5. Create public database link into the PDB to source DB
6. Invoke impdp to import the schema into the PDB using
network_link option
impdp system@sales schemas=SH network_link=sales_link directory=LOG_FILE_DIR
7. Change application tnsname entry

Upgrade capabilities

Upgrade capabilities: 12c upgrade new features
 Interactive upgrade capabilities
 Interactively run fixup scripts during the pre-upgrade
phase to resolve found issues
 Post-upgrade fixup scripts are generated depending on
the results of the upgrade process.
 DBUA prompts to fix critical issues that are found
 Parallel processing of the upgrade process
 Upgrade scripts and processes can run in parallel, taking
full advantage of CPU capacity and shortening the
upgrade time

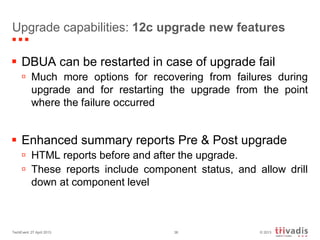

Upgrade capabilities: 12c upgrade new features
 DBUA can be restarted in case of upgrade fail
 Much more options for recovering from failures during
upgrade and for restarting the upgrade from the point
where the failure occurred
 Enhanced summary reports Pre & Post upgrade
 HTML reports before and after the upgrade.
 These reports include component status, and allow drill
down at component level

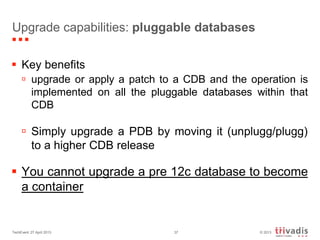

Upgrade capabilities: pluggable databases
 Key benefits
 upgrade or apply a patch to a CDB and the operation is
implemented on all the pluggable databases within that
CDB
 Simply upgrade a PDB by moving it (unplugg/plugg)
to a higher CDB release
 You cannot upgrade a pre 12c database to become
a container

Upgrade capabilities: upgrade process
DBUA11.2.x.x 12c
Degree 8

Conclusions

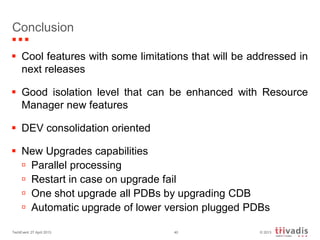

Conclusion
 Cool features with some limitations that will be addressed in
next releases
 Good isolation level that can be enhanced with Resource
Manager new features
 DEV consolidation oriented
 New Upgrades capabilities
 Parallel processing
 Restart in case on upgrade fail
 One shot upgrade all PDBs by upgrading CDB
 Automatic upgrade of lower version plugged PDBs

Thank you very much for your attention
?

Presentation 12c pdb

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Presentation 12c pdb

Similar to Presentation 12c pdb (20)

More from Jacques Kostic

More from Jacques Kostic (12)

Recently uploaded

Recently uploaded (20)

Presentation 12c pdb
