1. Percutaneous Mitral Valve
Interventions For Mitral Regurgitation
1

2. STRUCTURE AND ANATOMY OF THE MITRAL VALVE
• The MV comprises of anterior (aortic)
and posterior (mural) leaflets, with
three segments each (A1A2A3, P1P2P3)
labeled from the lateral to medial
aspect of heart.
• The mitral annulus is a saddle shaped
structure composed of fibrocollagenous
tissue attached to the mitral leaflets.
• The anterior portion of the mitral
annulus is attached to the fibrous
trigones which contain conduction
tissue
• The posterior annulus is less well
developed, more muscular and prone
to dilation. 2

3. ETIOLOGY OF MR
3

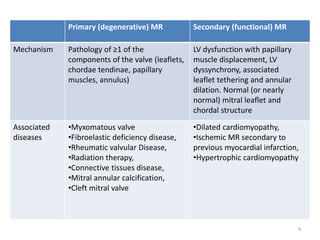

4. Primary (degenerative) MR Secondary (functional) MR
Mechanism Pathology of ≥1 of the
components of the valve (leaflets,
chordae tendinae, papillary
muscles, annulus)
LV dysfunction with papillary
muscle displacement, LV
dyssynchrony, associated
leaflet tethering and annular
dilation. Normal (or nearly
normal) mitral leaflet and
chordal structure
Associated
diseases
•Myxomatous valve
•Fibroelastic deficiency disease,
•Rheumatic valvular Disease,
•Radiation therapy,
•Connective tissues disease,
•Mitral annular calcification,
•Cleft mitral valve
•Dilated cardiomyopathy,
•Ischemic MR secondary to
previous myocardial infarction,
•Hypertrophic cardiomyopathy
4

5. 5

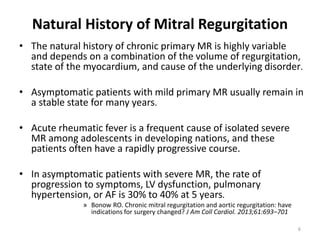

6. Natural History of Mitral Regurgitation
• The natural history of chronic primary MR is highly variable
and depends on a combination of the volume of regurgitation,
state of the myocardium, and cause of the underlying disorder.
• Asymptomatic patients with mild primary MR usually remain in
a stable state for many years.
• Acute rheumatic fever is a frequent cause of isolated severe
MR among adolescents in developing nations, and these
patients often have a rapidly progressive course.
• In asymptomatic patients with severe MR, the rate of
progression to symptoms, LV dysfunction, pulmonary
hypertension, or AF is 30% to 40% at 5 years.
» Bonow RO. Chronic mitral regurgitation and aortic regurgitation: have
indications for surgery changed? J Am Coll Cardiol. 2013;61:693–701
6

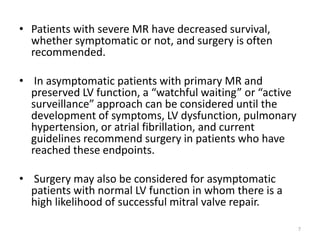

7. • Patients with severe MR have decreased survival,
whether symptomatic or not, and surgery is often
recommended.
• In asymptomatic patients with primary MR and
preserved LV function, a “watchful waiting” or “active
surveillance” approach can be considered until the
development of symptoms, LV dysfunction, pulmonary
hypertension, or atrial fibrillation, and current
guidelines recommend surgery in patients who have
reached these endpoints.
• Surgery may also be considered for asymptomatic
patients with normal LV function in whom there is a
high likelihood of successful mitral valve repair.
7

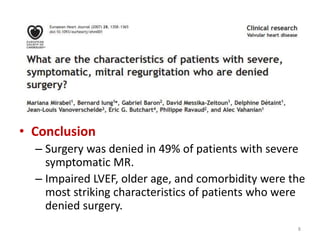

8. • Conclusion
– Surgery was denied in 49% of patients with severe
symptomatic MR.
– Impaired LVEF, older age, and comorbidity were the
most striking characteristics of patients who were
denied surgery.
8

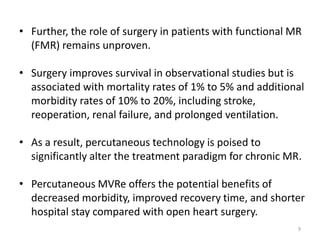

9. • Further, the role of surgery in patients with functional MR
(FMR) remains unproven.
• Surgery improves survival in observational studies but is
associated with mortality rates of 1% to 5% and additional
morbidity rates of 10% to 20%, including stroke,
reoperation, renal failure, and prolonged ventilation.
• As a result, percutaneous technology is poised to
significantly alter the treatment paradigm for chronic MR.
• Percutaneous MVRe offers the potential benefits of
decreased morbidity, improved recovery time, and shorter
hospital stay compared with open heart surgery.
9

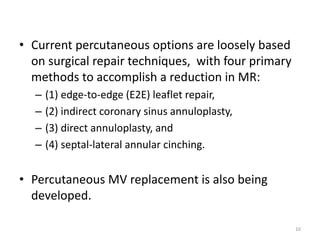

10. • Current percutaneous options are loosely based
on surgical repair techniques, with four primary
methods to accomplish a reduction in MR:
– (1) edge-to-edge (E2E) leaflet repair,
– (2) indirect coronary sinus annuloplasty,
– (3) direct annuloplasty, and
– (4) septal-lateral annular cinching.
• Percutaneous MV replacement is also being
developed.
10

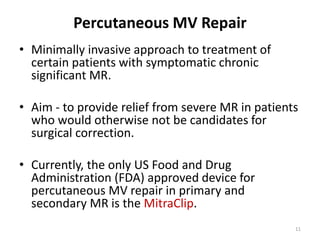

11. Percutaneous MV Repair
• Minimally invasive approach to treatment of
certain patients with symptomatic chronic
significant MR.
• Aim - to provide relief from severe MR in patients
who would otherwise not be candidates for
surgical correction.
• Currently, the only US Food and Drug
Administration (FDA) approved device for
percutaneous MV repair in primary and
secondary MR is the MitraClip.
11

12. MitraClip
12

13. History
• Dr. Fred St. Goar
– sketched the first
drawings of this catheter-
based device.
• The first human implant
of Mitraclip was
performed in June 2003
by Dr. Jose Condado on
55-year old Octalina
Mendoza from,
Venezuela.
13

14. • The MitraClip is a cobalt chromium clip
covered with a polypropylene fabric, has
two arms and works by grasping and
approximating edges of the anterior and
posterior valvular leaflet segments in
patients with severe MR.
• It is a catheter-based technology that was
designed after the surgical Alfieri technique
which connects the middle segment of the
anterior leaflet to the middle scallop of the
posterior leaflet of a regurgitant MV.
• MitraClip received initial CE-Mark approval
in Europe in 2008 and was approved by the
FDA in 2013 for use in primary MR and
2019 for use in functional MR.
14

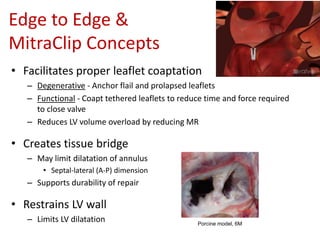

15. Edge to Edge &
MitraClip Concepts
• Facilitates proper leaflet coaptation
– Degenerative - Anchor flail and prolapsed leaflets
– Functional - Coapt tethered leaflets to reduce time and force required
to close valve
– Reduces LV volume overload by reducing MR
• Creates tissue bridge
– May limit dilatation of annulus
• Septal-lateral (A-P) dimension
– Supports durability of repair
• Restrains LV wall
– Limits LV dilatation Porcine model, 6M

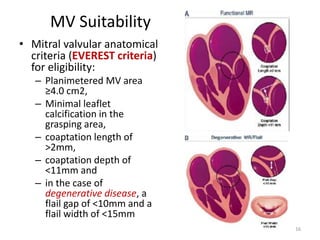

16. MV Suitability
• Mitral valvular anatomical
criteria (EVEREST criteria)
for eligibility:
– Planimetered MV area
≥4.0 cm2,
– Minimal leaflet
calcification in the
grasping area,
– coaptation length of
>2mm,
– coaptation depth of
<11mm and
– in the case of
degenerative disease, a
flail gap of <10mm and a
flail width of <15mm
16

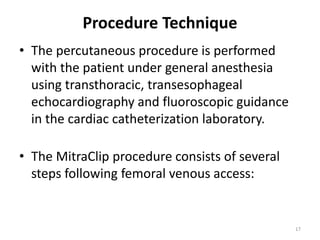

17. Procedure Technique
• The percutaneous procedure is performed
with the patient under general anesthesia
using transthoracic, transesophageal
echocardiography and fluoroscopic guidance
in the cardiac catheterization laboratory.
• The MitraClip procedure consists of several
steps following femoral venous access:
17

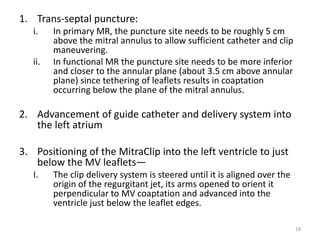

18. 1. Trans-septal puncture:
i. In primary MR, the puncture site needs to be roughly 5 cm
above the mitral annulus to allow sufficient catheter and clip
maneuvering.
ii. In functional MR the puncture site needs to be more inferior
and closer to the annular plane (about 3.5 cm above annular
plane) since tethering of leaflets results in coaptation
occurring below the plane of the mitral annulus.
2. Advancement of guide catheter and delivery system into
the left atrium
3. Positioning of the MitraClip into the left ventricle to just
below the MV leaflets—
I. The clip delivery system is steered until it is aligned over the
origin of the regurgitant jet, its arms opened to orient it
perpendicular to MV coaptation and advanced into the
ventricle just below the leaflet edges.
18

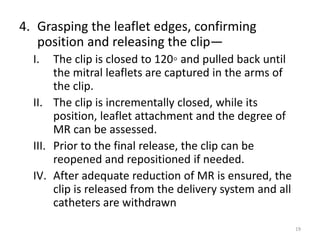

19. 4. Grasping the leaflet edges, confirming
position and releasing the clip—
I. The clip is closed to 120◦ and pulled back until
the mitral leaflets are captured in the arms of
the clip.
II. The clip is incrementally closed, while its
position, leaflet attachment and the degree of
MR can be assessed.
III. Prior to the final release, the clip can be
reopened and repositioned if needed.
IV. After adequate reduction of MR is ensured, the
clip is released from the delivery system and all
catheters are withdrawn
19

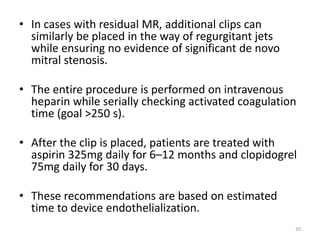

20. • In cases with residual MR, additional clips can
similarly be placed in the way of regurgitant jets
while ensuring no evidence of significant de novo
mitral stenosis.
• The entire procedure is performed on intravenous
heparin while serially checking activated coagulation
time (goal >250 s).
• After the clip is placed, patients are treated with
aspirin 325mg daily for 6–12 months and clopidogrel
75mg daily for 30 days.
• These recommendations are based on estimated
time to device endothelialization.
20

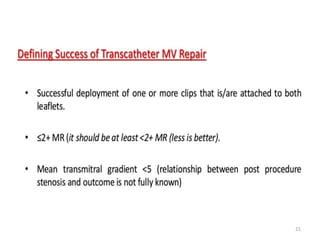

21. 21

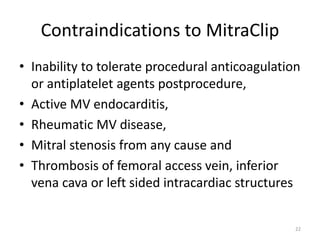

22. Contraindications to MitraClip
• Inability to tolerate procedural anticoagulation
or antiplatelet agents postprocedure,
• Active MV endocarditis,
• Rheumatic MV disease,
• Mitral stenosis from any cause and
• Thrombosis of femoral access vein, inferior
vena cava or left sided intracardiac structures
22

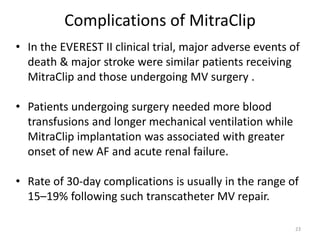

23. Complications of MitraClip
• In the EVEREST II clinical trial, major adverse events of
death & major stroke were similar patients receiving
MitraClip and those undergoing MV surgery .
• Patients undergoing surgery needed more blood
transfusions and longer mechanical ventilation while
MitraClip implantation was associated with greater
onset of new AF and acute renal failure.
• Rate of 30-day complications is usually in the range of
15–19% following such transcatheter MV repair.
23

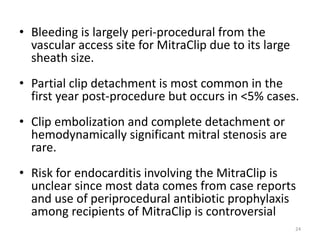

24. • Bleeding is largely peri-procedural from the
vascular access site for MitraClip due to its large
sheath size.
• Partial clip detachment is most common in the
first year post-procedure but occurs in <5% cases.
• Clip embolization and complete detachment or
hemodynamically significant mitral stenosis are
rare.
• Risk for endocarditis involving the MitraClip is
unclear since most data comes from case reports
and use of periprocedural antibiotic prophylaxis
among recipients of MitraClip is controversial
24

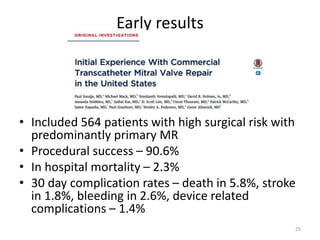

25. Early results
• Included 564 patients with high surgical risk with
predominantly primary MR
• Procedural success – 90.6%
• In hospital mortality – 2.3%
• 30 day complication rates – death in 5.8%, stroke
in 1.8%, bleeding in 2.6%, device related
complications – 1.4%
25

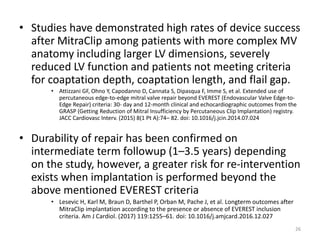

26. • Studies have demonstrated high rates of device success
after MitraClip among patients with more complex MV
anatomy including larger LV dimensions, severely
reduced LV function and patients not meeting criteria
for coaptation depth, coaptation length, and flail gap.
• Attizzani GF, Ohno Y, Capodanno D, Cannata S, Dipasqua F, Imme S, et al. Extended use of
percutaneous edge-to-edge mitral valve repair beyond EVEREST (Endovascular Valve Edge-to-
Edge Repair) criteria: 30- day and 12-month clinical and echocardiographic outcomes from the
GRASP (Getting Reduction of Mitral Insufficiency by Percutaneous Clip Implantation) registry.
JACC Cardiovasc Interv. (2015) 8(1 Pt A):74– 82. doi: 10.1016/j.jcin.2014.07.024
• Durability of repair has been confirmed on
intermediate term followup (1–3.5 years) depending
on the study, however, a greater risk for re-intervention
exists when implantation is performed beyond the
above mentioned EVEREST criteria
• Lesevic H, Karl M, Braun D, Barthel P, Orban M, Pache J, et al. Longterm outcomes after
MitraClip implantation according to the presence or absence of EVEREST inclusion
criteria. Am J Cardiol. (2017) 119:1255–61. doi: 10.1016/j.amjcard.2016.12.027
26

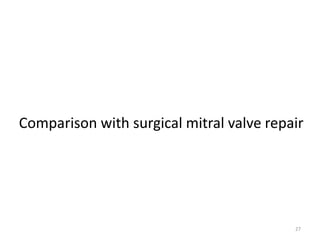

27. Comparison with surgical mitral valve repair
27

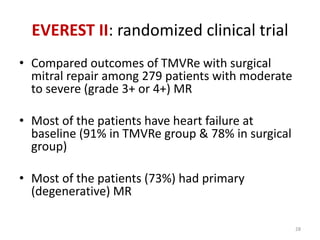

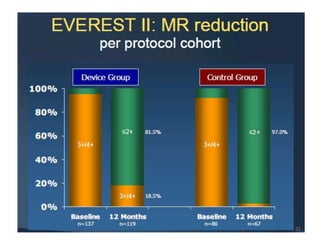

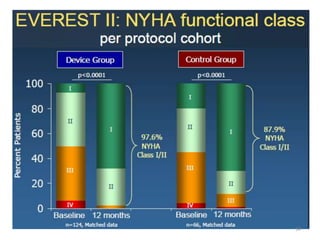

28. EVEREST II: randomized clinical trial
• Compared outcomes of TMVRe with surgical
mitral repair among 279 patients with moderate
to severe (grade 3+ or 4+) MR
• Most of the patients have heart failure at
baseline (91% in TMVRe group & 78% in surgical
group)
• Most of the patients (73%) had primary
(degenerative) MR
28

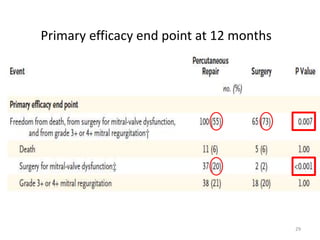

29. Primary efficacy end point at 12 months
29

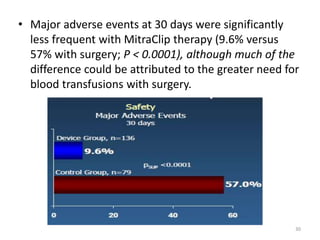

30. • Major adverse events at 30 days were significantly
less frequent with MitraClip therapy (9.6% versus
57% with surgery; P < 0.0001), although much of the
difference could be attributed to the greater need for
blood transfusions with surgery.
30

31. 31

32. 32

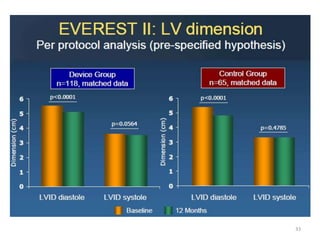

33. 33

34. 34

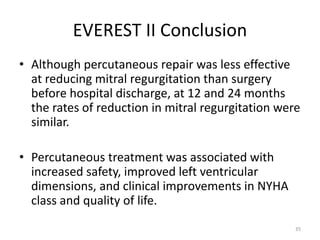

35. EVEREST II Conclusion
• Although percutaneous repair was less effective
at reducing mitral regurgitation than surgery
before hospital discharge, at 12 and 24 months
the rates of reduction in mitral regurgitation were
similar.
• Percutaneous treatment was associated with
increased safety, improved left ventricular
dimensions, and clinical improvements in NYHA
class and quality of life.
35

36. 36

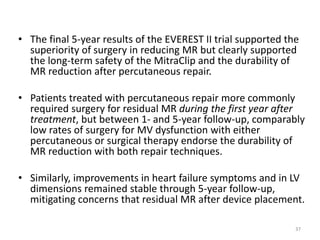

37. • The final 5-year results of the EVEREST II trial supported the
superiority of surgery in reducing MR but clearly supported
the long-term safety of the MitraClip and the durability of
MR reduction after percutaneous repair.
• Patients treated with percutaneous repair more commonly
required surgery for residual MR during the first year after
treatment, but between 1- and 5-year follow-up, comparably
low rates of surgery for MV dysfunction with either
percutaneous or surgical therapy endorse the durability of
MR reduction with both repair techniques.
• Similarly, improvements in heart failure symptoms and in LV
dimensions remained stable through 5-year follow-up,
mitigating concerns that residual MR after device placement.
37

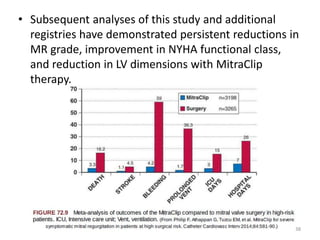

38. • Subsequent analyses of this study and additional
registries have demonstrated persistent reductions in
MR grade, improvement in NYHA functional class,
and reduction in LV dimensions with MitraClip
therapy.
38

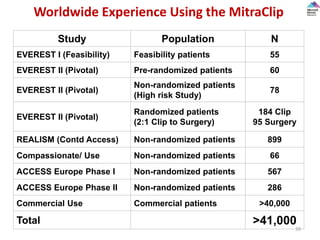

39. Worldwide Experience Using the MitraClip
Study Population N
EVEREST I (Feasibility) Feasibility patients 55
EVEREST II (Pivotal) Pre-randomized patients 60
EVEREST II (Pivotal)
Non-randomized patients
(High risk Study)
78
EVEREST II (Pivotal)
Randomized patients
(2:1 Clip to Surgery)
184 Clip
95 Surgery
REALISM (Contd Access) Non-randomized patients 899
Compassionate/ Use Non-randomized patients 66
ACCESS Europe Phase I Non-randomized patients 567
ACCESS Europe Phase II Non-randomized patients 286
Commercial Use Commercial patients >40,000
Total >41,000
39

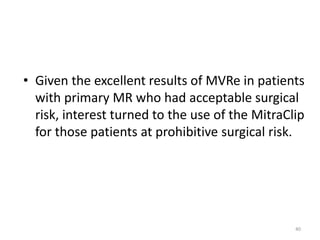

40. • Given the excellent results of MVRe in patients
with primary MR who had acceptable surgical
risk, interest turned to the use of the MitraClip
for those patients at prohibitive surgical risk.
40

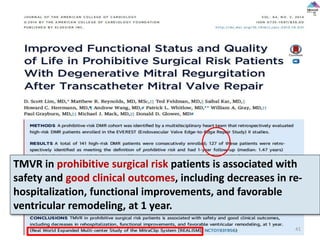

41. TMVR in prohibitive surgical risk patients is associated with
safety and good clinical outcomes, including decreases in re-
hospitalization, functional improvements, and favorable
ventricular remodeling, at 1 year.
41

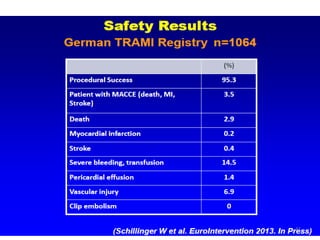

42. 42

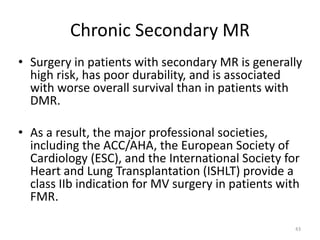

43. Chronic Secondary MR
• Surgery in patients with secondary MR is generally
high risk, has poor durability, and is associated
with worse overall survival than in patients with
DMR.
• As a result, the major professional societies,
including the ACC/AHA, the European Society of
Cardiology (ESC), and the International Society for
Heart and Lung Transplantation (ISHLT) provide a
class IIb indication for MV surgery in patients with
FMR.
43

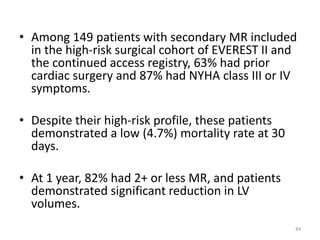

44. • Among 149 patients with secondary MR included
in the high-risk surgical cohort of EVEREST II and
the continued access registry, 63% had prior
cardiac surgery and 87% had NYHA class III or IV
symptoms.
• Despite their high-risk profile, these patients
demonstrated a low (4.7%) mortality rate at 30
days.
• At 1 year, 82% had 2+ or less MR, and patients
demonstrated significant reduction in LV
volumes.
44

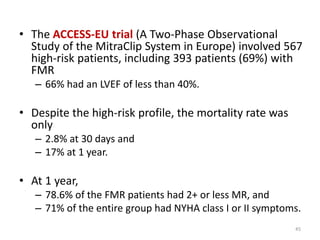

45. • The ACCESS-EU trial (A Two-Phase Observational
Study of the MitraClip System in Europe) involved 567
high-risk patients, including 393 patients (69%) with
FMR
– 66% had an LVEF of less than 40%.
• Despite the high-risk profile, the mortality rate was
only
– 2.8% at 30 days and
– 17% at 1 year.
• At 1 year,
– 78.6% of the FMR patients had 2+ or less MR, and
– 71% of the entire group had NYHA class I or II symptoms.
45

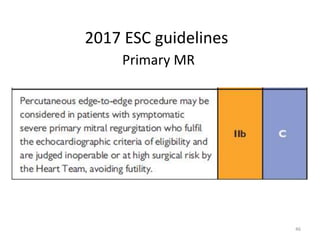

46. 2017 ESC guidelines
Primary MR
46

47. 2017 ESC guidelines
Secondary MR
47

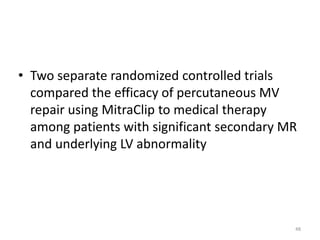

48. • Two separate randomized controlled trials
compared the efficacy of percutaneous MV
repair using MitraClip to medical therapy
among patients with significant secondary MR
and underlying LV abnormality
48

49. MITRA-FR trial
• The trial enrolled
– 304 symptomatic patients with LV dysfunction (EF 15–40%)
and
– moderate to severe secondary MR
• Randomized either to percutaneous mitral-valve repair
plus medical therapy (n = 152) or medical therapy
alone (n = 152).
• Placement of MitraClip was successful in 95.8% of the
treatment arm with 91.9% of the patients showing <3
grade residual MR at discharge
49

50. months

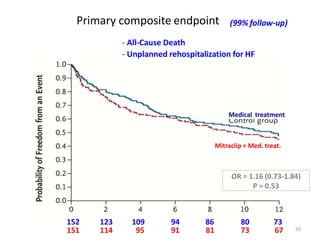

152 123 109 94 86 80 73
151 114 95 91 81 73 67
Primary composite endpoint (99% follow-up)
- All-Cause Death
- Unplanned rehospitalization for HF
Mitraclip + Med. treat.
Medical treatment
OR = 1.16 (0.73-1.84)
P = 0.53
50

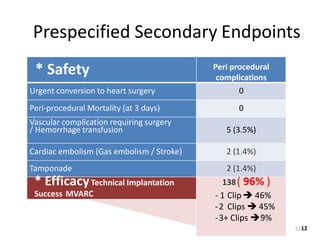

51. 12
* Safety Peri procedural
complications
Urgent conversion to heart surgery 0
Peri-procedural Mortality (at 3 days) 0
Vascular complication requiring surgery
/ Hemorrhage transfusion 5 (3.5%)
Cardiac embolism (Gas embolism / Stroke) 2 (1.4%)
Tamponade 2 (1.4%)
* EfficacyTechnical Implantation
Success MVARC
138( 96% )
- 1 Clip  46%
-2 Clips  45%
-3+ Clips 9%
Prespecified Secondary Endpoints
51

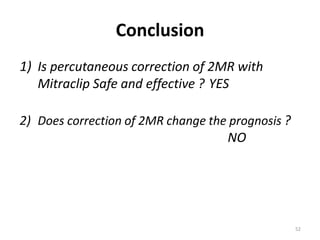

52. Conclusion
1) Is percutaneous correction of 2MR with
Mitraclip Safe and effective ? YES
2) Does correction of 2MR change the prognosis ?
NO
52

53. • The lack of a clinical benefit of percutaneous
mitral-valve repair on the primary outcome
suggests that the underlying cardiomyopathy
might be the principal driver of subsequent
adverse clinical outcomes in patients with
secondary mitral regurgitation.
• Another explanation for the lack of clinical
benefit observed could be the fact that some of
the patients who underwent percutaneous
mitral-valve repair had incomplete correction of
mitral regurgitation.
53

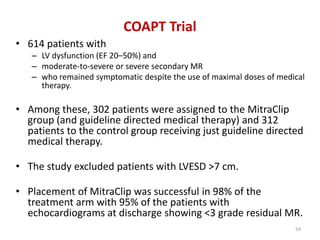

54. COAPT Trial
• 614 patients with
– LV dysfunction (EF 20–50%) and
– moderate-to-severe or severe secondary MR
– who remained symptomatic despite the use of maximal doses of medical
therapy.
• Among these, 302 patients were assigned to the MitraClip
group (and guideline directed medical therapy) and 312
patients to the control group receiving just guideline directed
medical therapy.
• The study excluded patients with LVESD >7 cm.
• Placement of MitraClip was successful in 98% of the
treatment arm with 95% of the patients with
echocardiograms at discharge showing <3 grade residual MR.
54

55. 55

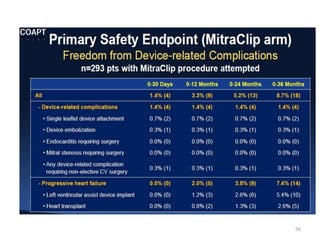

56. 56

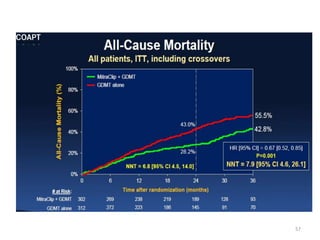

57. 57

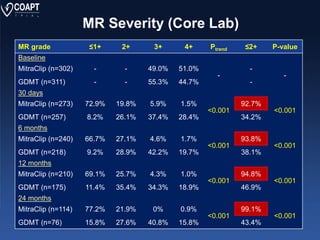

58. MR Severity (Core Lab)
MR grade ≤1+ 2+ 3+ 4+ Ptrend ≤2+ P-value
Baseline
MitraClip (n=302) - - 49.0% 51.0%
-
-
-
GDMT (n=311) - - 55.3% 44.7% -
30 days
MitraClip (n=273) 72.9% 19.8% 5.9% 1.5%
<0.001
92.7%
<0.001
GDMT (n=257) 8.2% 26.1% 37.4% 28.4% 34.2%
6 months
MitraClip (n=240) 66.7% 27.1% 4.6% 1.7%
<0.001
93.8%
<0.001
GDMT (n=218) 9.2% 28.9% 42.2% 19.7% 38.1%
12 months
MitraClip (n=210) 69.1% 25.7% 4.3% 1.0%
<0.001
94.8%
<0.001
GDMT (n=175) 11.4% 35.4% 34.3% 18.9% 46.9%
24 months
MitraClip (n=114) 77.2% 21.9% 0% 0.9%
<0.001
99.1%
<0.001
GDMT (n=76) 15.8% 27.6% 40.8% 15.8% 43.4%

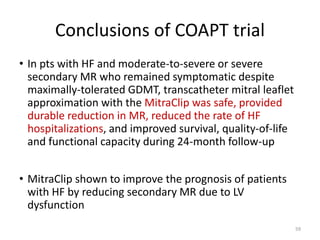

59. Conclusions of COAPT trial
• In pts with HF and moderate-to-severe or severe
secondary MR who remained symptomatic despite
maximally-tolerated GDMT, transcatheter mitral leaflet
approximation with the MitraClip was safe, provided
durable reduction in MR, reduced the rate of HF
hospitalizations, and improved survival, quality-of-life
and functional capacity during 24-month follow-up
• MitraClip shown to improve the prognosis of patients
with HF by reducing secondary MR due to LV
dysfunction
59

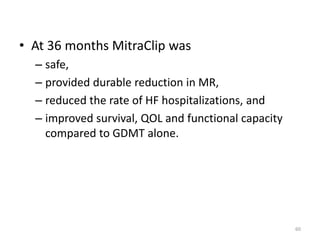

60. • At 36 months MitraClip was
– safe,
– provided durable reduction in MR,
– reduced the rate of HF hospitalizations, and
– improved survival, QOL and functional capacity
compared to GDMT alone.
60

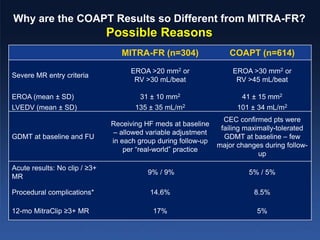

61. Why are the COAPT Results so Different from MITRA-FR?
Possible Reasons
MITRA-FR (n=304) COAPT (n=614)
Severe MR entry criteria
EROA >20 mm2 or
RV >30 mL/beat
EROA >30 mm2 or
RV >45 mL/beat
EROA (mean ± SD) 31 ± 10 mm2 41 ± 15 mm2
LVEDV (mean ± SD) 135 ± 35 mL/m2 101 ± 34 mL/m2
GDMT at baseline and FU
Receiving HF meds at baseline
– allowed variable adjustment
in each group during follow-up
per “real-world” practice
CEC confirmed pts were
failing maximally-tolerated
GDMT at baseline – few
major changes during follow-
up
Acute results: No clip / ≥3+
MR
9% / 9% 5% / 5%
Procedural complications* 14.6% 8.5%
12-mo MitraClip ≥3+ MR 17% 5%

62. PASCAL Transcatheter MV Repair:
62

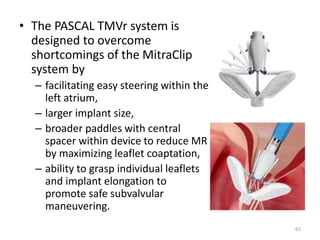

63. • The PASCAL TMVr system is
designed to overcome
shortcomings of the MitraClip
system by
– facilitating easy steering within the
left atrium,
– larger implant size,
– broader paddles with central
spacer within device to reduce MR
by maximizing leaflet coaptation,
– ability to grasp individual leaflets
and implant elongation to
promote safe subvalvular
maneuvering.
63

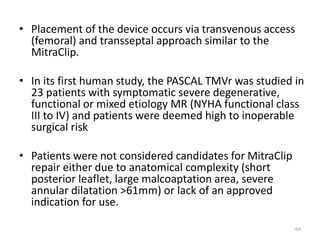

64. • Placement of the device occurs via transvenous access
(femoral) and transseptal approach similar to the
MitraClip.
• In its first human study, the PASCAL TMVr was studied in
23 patients with symptomatic severe degenerative,
functional or mixed etiology MR (NYHA functional class
III to IV) and patients were deemed high to inoperable
surgical risk
• Patients were not considered candidates for MitraClip
repair either due to anatomical complexity (short
posterior leaflet, large malcoaptation area, severe
annular dilatation >61mm) or lack of an approved
indication for use.
64

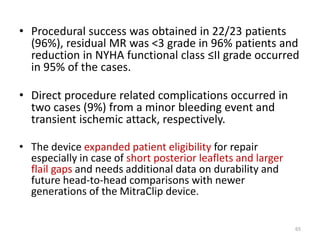

65. • Procedural success was obtained in 22/23 patients
(96%), residual MR was <3 grade in 96% patients and
reduction in NYHA functional class ≤II grade occurred
in 95% of the cases.
• Direct procedure related complications occurred in
two cases (9%) from a minor bleeding event and
transient ischemic attack, respectively.
• The device expanded patient eligibility for repair
especially in case of short posterior leaflets and larger
flail gaps and needs additional data on durability and
future head-to-head comparisons with newer
generations of the MitraClip device.
65

66. Other percutaneous approaches
66

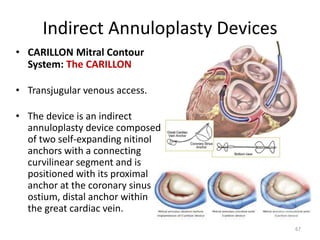

67. Indirect Annuloplasty Devices
• CARILLON Mitral Contour
System: The CARILLON
• Transjugular venous access.
• The device is an indirect
annuloplasty device composed
of two self-expanding nitinol
anchors with a connecting
curvilinear segment and is
positioned with its proximal
anchor at the coronary sinus
ostium, distal anchor within
the great cardiac vein.
67

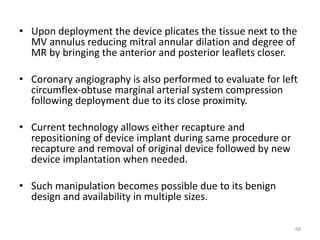

68. • Upon deployment the device plicates the tissue next to the
MV annulus reducing mitral annular dilation and degree of
MR by bringing the anterior and posterior leaflets closer.
• Coronary angiography is also performed to evaluate for left
circumflex-obtuse marginal arterial system compression
following deployment due to its close proximity.
• Current technology allows either recapture and
repositioning of device implant during same procedure or
recapture and removal of original device followed by new
device implantation when needed.
• Such manipulation becomes possible due to its benign
design and availability in multiple sizes.
68

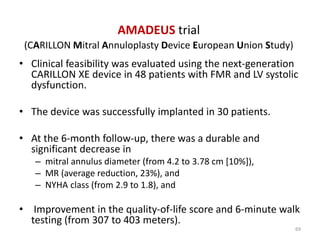

69. • Clinical feasibility was evaluated using the next-generation
CARILLON XE device in 48 patients with FMR and LV systolic
dysfunction.
• The device was successfully implanted in 30 patients.
• At the 6-month follow-up, there was a durable and
significant decrease in
– mitral annulus diameter (from 4.2 to 3.78 cm [10%]),
– MR (average reduction, 23%), and
– NYHA class (from 2.9 to 1.8), and
• Improvement in the quality-of-life score and 6-minute walk
testing (from 307 to 403 meters).
AMADEUS trial
(CARILLON Mitral Annuloplasty Device European Union Study)
69

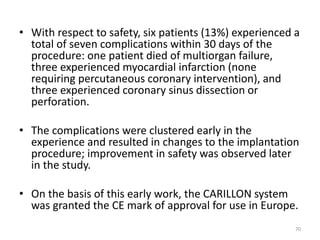

70. • With respect to safety, six patients (13%) experienced a
total of seven complications within 30 days of the
procedure: one patient died of multiorgan failure,
three experienced myocardial infarction (none
requiring percutaneous coronary intervention), and
three experienced coronary sinus dissection or
perforation.
• The complications were clustered early in the
experience and resulted in changes to the implantation
procedure; improvement in safety was observed later
in the study.
• On the basis of this early work, the CARILLON system
was granted the CE mark of approval for use in Europe.
70

71. • The objective of the TITAN trial was to assess the haemodynamic
and clinical significance of treating FMR percutaneously in HF
patients using the Carillon Mitral Contour System.
• Follow-up of patients in whom the device was recaptured during the
index procedure provided a non-randomized, non-blinded
comparison group.
• Device implantation was shown to be safe, with no major adverse
event attributable to the annuloplasty device.
• In contrast to the comparison group, implanted patients displayed a
significant reduction in the degree of FMR that was associated with
reverse remodelling.
• There was sustained benefit in clinical parameters of NYHA class and
6MWD up to 24 months.
71

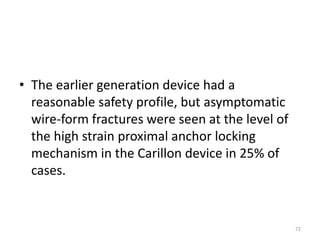

72. • The earlier generation device had a
reasonable safety profile, but asymptomatic
wire-form fractures were seen at the level of
the high strain proximal anchor locking
mechanism in the Carillon device in 25% of
cases.
72

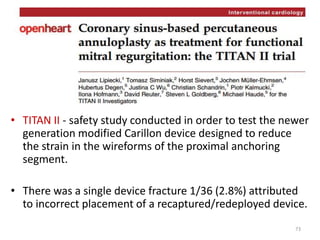

73. • TITAN II - safety study conducted in order to test the newer
generation modified Carillon device designed to reduce
the strain in the wireforms of the proximal anchoring
segment.
• There was a single device fracture 1/36 (2.8%) attributed
to incorrect placement of a recaptured/redeployed device.
73

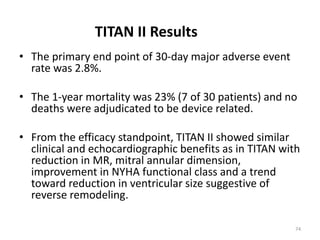

74. • The primary end point of 30-day major adverse event
rate was 2.8%.
• The 1-year mortality was 23% (7 of 30 patients) and no
deaths were adjudicated to be device related.
• From the efficacy standpoint, TITAN II showed similar
clinical and echocardiographic benefits as in TITAN with
reduction in MR, mitral annular dimension,
improvement in NYHA functional class and a trend
toward reduction in ventricular size suggestive of
reverse remodeling.
TITAN II Results
74

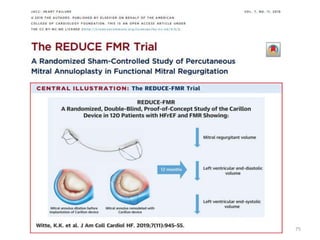

75. 75

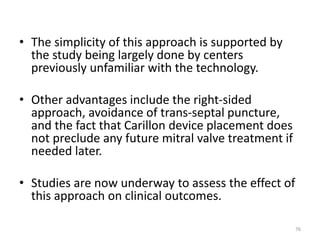

76. • The simplicity of this approach is supported by
the study being largely done by centers
previously unfamiliar with the technology.
• Other advantages include the right-sided
approach, avoidance of trans-septal puncture,
and the fact that Carillon device placement does
not preclude any future mitral valve treatment if
needed later.
• Studies are now underway to assess the effect of
this approach on clinical outcomes.
76

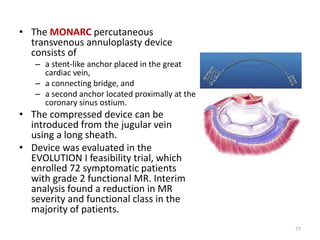

77. • The MONARC percutaneous
transvenous annuloplasty device
consists of
– a stent-like anchor placed in the great
cardiac vein,
– a connecting bridge, and
– a second anchor located proximally at the
coronary sinus ostium.
• The compressed device can be
introduced from the jugular vein
using a long sheath.
• Device was evaluated in the
EVOLUTION I feasibility trial, which
enrolled 72 symptomatic patients
with grade 2 functional MR. Interim
analysis found a reduction in MR
severity and functional class in the
majority of patients.
77

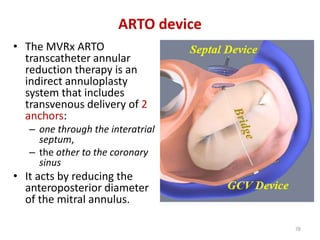

78. ARTO device
• The MVRx ARTO
transcatheter annular
reduction therapy is an
indirect annuloplasty
system that includes
transvenous delivery of 2
anchors:
– one through the interatrial
septum,
– the other to the coronary
sinus
• It acts by reducing the
anteroposterior diameter
of the mitral annulus.
78

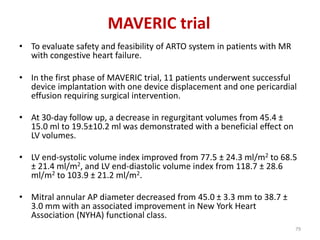

79. MAVERIC trial
• To evaluate safety and feasibility of ARTO system in patients with MR
with congestive heart failure.
• In the first phase of MAVERIC trial, 11 patients underwent successful
device implantation with one device displacement and one pericardial
effusion requiring surgical intervention.
• At 30-day follow up, a decrease in regurgitant volumes from 45.4 ±
15.0 ml to 19.5±10.2 ml was demonstrated with a beneficial effect on
LV volumes.
• LV end-systolic volume index improved from 77.5 ± 24.3 ml/m2 to 68.5
± 21.4 ml/m2, and LV end-diastolic volume index from 118.7 ± 28.6
ml/m2 to 103.9 ± 21.2 ml/m2.
• Mitral annular AP diameter decreased from 45.0 ± 3.3 mm to 38.7 ±
3.0 mm with an associated improvement in New York Heart
Association (NYHA) functional class.
79

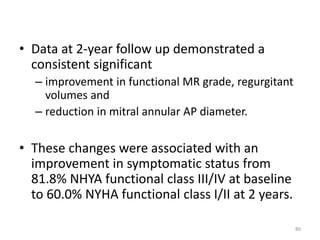

80. • Data at 2-year follow up demonstrated a
consistent significant
– improvement in functional MR grade, regurgitant
volumes and
– reduction in mitral annular AP diameter.
• These changes were associated with an
improvement in symptomatic status from
81.8% NHYA functional class III/IV at baseline
to 60.0% NYHA functional class I/II at 2 years.
80

81. Mitral Loop Cerclage Catheter System
• In the mitral loop cerclage
procedure, both the femoral
vein and left subclavian vein
are accessed.
• The cerclage is accomplished
by using a guidewire to enter
the coronary sinus and great
cardiac vein, crossing the
interventricular septum from
the anterior interventricular
vein into the right ventricle,
snaring this wire from the
right ventricular outflow tract
and forming a loop around
mitral annular plane.
81

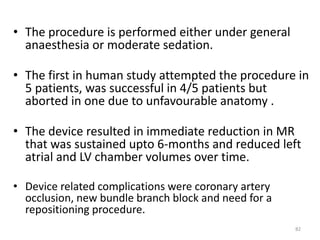

82. • The procedure is performed either under general
anaesthesia or moderate sedation.
• The first in human study attempted the procedure in
5 patients, was successful in 4/5 patients but
aborted in one due to unfavourable anatomy .
• The device resulted in immediate reduction in MR
that was sustained upto 6-months and reduced left
atrial and LV chamber volumes over time.
• Device related complications were coronary artery
occlusion, new bundle branch block and need for a
repositioning procedure.
82

83. CARDIOBAND
• The Cardioband device
delivers direct sutureless
anchors around the mitral
annulus to connect the
annuloplasty device.
• The cardioband system
enables adjustable septo-
lateral diameter
compression, reducing MV
annulus size and severity of
MR.
83

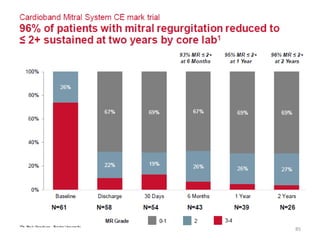

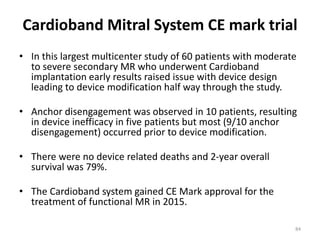

84. Cardioband Mitral System CE mark trial
• In this largest multicenter study of 60 patients with moderate
to severe secondary MR who underwent Cardioband
implantation early results raised issue with device design
leading to device modification half way through the study.
• Anchor disengagement was observed in 10 patients, resulting
in device inefficacy in five patients but most (9/10 anchor
disengagement) occurred prior to device modification.
• There were no device related deaths and 2-year overall
survival was 79%.
• The Cardioband system gained CE Mark approval for the
treatment of functional MR in 2015.
84

85. 85

86. 86

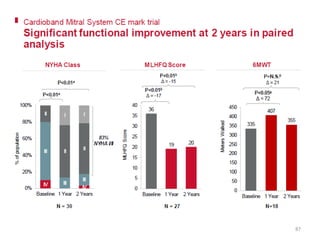

87. 87

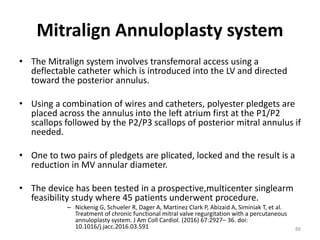

88. Mitralign Annuloplasty system
• The Mitralign system involves transfemoral access using a
deflectable catheter which is introduced into the LV and directed
toward the posterior annulus.
• Using a combination of wires and catheters, polyester pledgets are
placed across the annulus into the left atrium first at the P1/P2
scallops followed by the P2/P3 scallops of posterior mitral annulus if
needed.
• One to two pairs of pledgets are plicated, locked and the result is a
reduction in MV annular diameter.
• The device has been tested in a prospective,multicenter singlearm
feasibility study where 45 patients underwent procedure.
– Nickenig G, Schueler R, Dager A, Martinez Clark P, Abizaid A, Siminiak T, et al.
Treatment of chronic functional mitral valve regurgitation with a percutaneous
annuloplasty system. J Am Coll Cardiol. (2016) 67:2927– 36. doi:
10.1016/j.jacc.2016.03.591 88

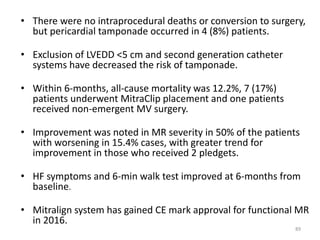

89. • There were no intraprocedural deaths or conversion to surgery,
but pericardial tamponade occurred in 4 (8%) patients.
• Exclusion of LVEDD <5 cm and second generation catheter
systems have decreased the risk of tamponade.
• Within 6-months, all-cause mortality was 12.2%, 7 (17%)
patients underwent MitraClip placement and one patients
received non-emergent MV surgery.
• Improvement was noted in MR severity in 50% of the patients
with worsening in 15.4% cases, with greater trend for
improvement in those who received 2 pledgets.
• HF symptoms and 6-min walk test improved at 6-months from
baseline.
• Mitralign system has gained CE mark approval for functional MR
in 2016.
89

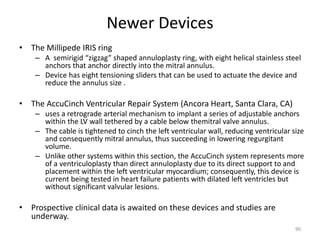

90. Newer Devices
• The Millipede IRIS ring
– A semirigid “zigzag” shaped annuloplasty ring, with eight helical stainless steel
anchors that anchor directly into the mitral annulus.
– Device has eight tensioning sliders that can be used to actuate the device and
reduce the annulus size .
• The AccuCinch Ventricular Repair System (Ancora Heart, Santa Clara, CA)
– uses a retrograde arterial mechanism to implant a series of adjustable anchors
within the LV wall tethered by a cable below themitral valve annulus.
– The cable is tightened to cinch the left ventricular wall, reducing ventricular size
and consequently mitral annulus, thus succeeding in lowering regurgitant
volume.
– Unlike other systems within this section, the AccuCinch system represents more
of a ventriculoplasty than direct annuloplasty due to its direct support to and
placement within the left ventricular myocardium; consequently, this device is
current being tested in heart failure patients with dilated left ventricles but
without significant valvular lesions.
• Prospective clinical data is awaited on these devices and studies are
underway.
90

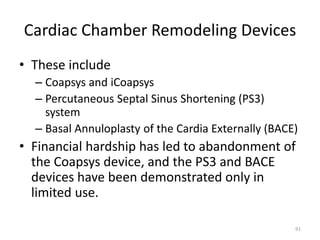

91. Cardiac Chamber Remodeling Devices
• These include
– Coapsys and iCoapsys
– Percutaneous Septal Sinus Shortening (PS3)
system
– Basal Annuloplasty of the Cardia Externally (BACE)
• Financial hardship has led to abandonment of
the Coapsys device, and the PS3 and BACE
devices have been demonstrated only in
limited use.
91

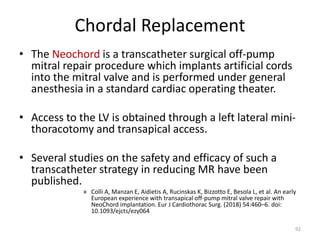

92. Chordal Replacement
• The Neochord is a transcatheter surgical off-pump
mitral repair procedure which implants artificial cords
into the mitral valve and is performed under general
anesthesia in a standard cardiac operating theater.
• Access to the LV is obtained through a left lateral mini-
thoracotomy and transapical access.
• Several studies on the safety and efficacy of such a
transcatheter strategy in reducing MR have been
published.
» Colli A, Manzan E, Aidietis A, Rucinskas K, Bizzotto E, Besola L, et al. An early
European experience with transapical off-pump mitral valve repair with
NeoChord implantation. Eur J Cardiothorac Surg. (2018) 54:460–6. doi:
10.1093/ejcts/ezy064
92

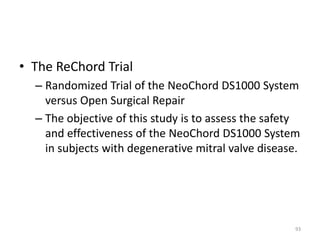

93. • The ReChord Trial
– Randomized Trial of the NeoChord DS1000 System
versus Open Surgical Repair
– The objective of this study is to assess the safety
and effectiveness of the NeoChord DS1000 System
in subjects with degenerative mitral valve disease.
93

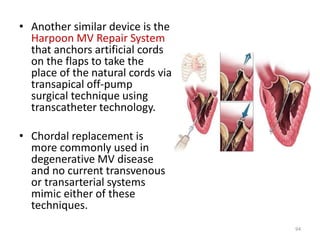

94. • Another similar device is the
Harpoon MV Repair System
that anchors artificial cords
on the flaps to take the
place of the natural cords via
transapical off-pump
surgical technique using
transcatheter technology.
• Chordal replacement is
more commonly used in
degenerative MV disease
and no current transvenous
or transarterial systems
mimic either of these
techniques.
94

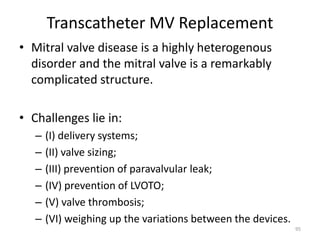

95. Transcatheter MV Replacement
• Mitral valve disease is a highly heterogenous
disorder and the mitral valve is a remarkably
complicated structure.
• Challenges lie in:
– (I) delivery systems;
– (II) valve sizing;
– (III) prevention of paravalvular leak;
– (IV) prevention of LVOTO;
– (V) valve thrombosis;
– (VI) weighing up the variations between the devices.
95

96. Valve in Valve (Sapien 3)
• Careful preoperative CTA and echocardiographic
assessment should be performed to demonstrate that the
annular calcifications are relatively circular and their size is
sufficient to allow for seating of the valve before the
operation begins.
• Transseptal route is frequently used
• As per VIVID registry data, 88.8% of 349 mitral VIV
procedures were clinically successful.
• In June 2017, Sapien 3 valve received US-FDA approval for
VIV procedures at aortic and mital poitions in high risk
patients.
96

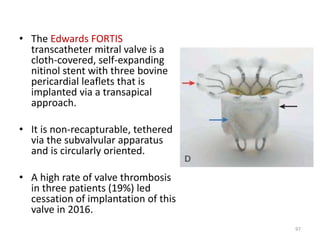

97. • The Edwards FORTIS
transcatheter mitral valve is a
cloth-covered, self-expanding
nitinol stent with three bovine
pericardial leaflets that is
implanted via a transapical
approach.
• It is non-recapturable, tethered
via the subvalvular apparatus
and is circularly oriented.
• A high rate of valve thrombosis
in three patients (19%) led
cessation of implantation of this
valve in 2016.
97

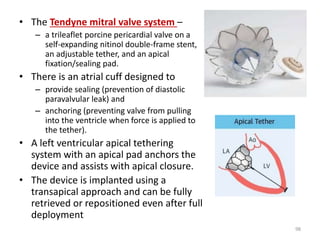

98. • The Tendyne mitral valve system –
– a trileaflet porcine pericardial valve on a
self-expanding nitinol double-frame stent,
an adjustable tether, and an apical
fixation/sealing pad.
• There is an atrial cuff designed to
– provide sealing (prevention of diastolic
paravalvular leak) and
– anchoring (preventing valve from pulling
into the ventricle when force is applied to
the tether).
• A left ventricular apical tethering
system with an apical pad anchors the
device and assists with apical closure.
• The device is implanted using a
transapical approach and can be fully
retrieved or repositioned even after full
deployment
98

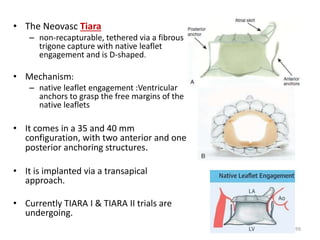

99. • The Neovasc Tiara
– non-recapturable, tethered via a fibrous
trigone capture with native leaflet
engagement and is D-shaped.
• Mechanism:
– native leaflet engagement :Ventricular
anchors to grasp the free margins of the
native leaflets
• It comes in a 35 and 40 mm
configuration, with two anterior and one
posterior anchoring structures.
• It is implanted via a transapical
approach.
• Currently TIARA I & TIARA II trials are
undergoing.
99

100. • Medtronic’s transcatheter mitral valve
(Intrepid) consists of a self-expanding
nitinol frame that is deployed via
transapical approach.
• It has dual structure design consisting of
a circular inner stent to house the valve
and a conformable outer fixation ring to
engage the mitral anatomy.
• Mechanism: A “champagne cork-like”
effect produced by a radial force along
the valve stent
• APOLLO trial is being conducted to
evaluate feasibility of TMVR in MR.
100

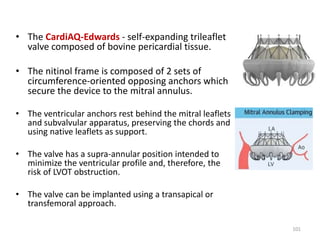

101. • The CardiAQ-Edwards - self-expanding trileaflet
valve composed of bovine pericardial tissue.
• The nitinol frame is composed of 2 sets of
circumference-oriented opposing anchors which
secure the device to the mitral annulus.
• The ventricular anchors rest behind the mitral leaflets
and subvalvular apparatus, preserving the chords and
using native leaflets as support.
• The valve has a supra-annular position intended to
minimize the ventricular profile and, therefore, the
risk of LVOT obstruction.
• The valve can be implanted using a transapical or
transfemoral approach.
101

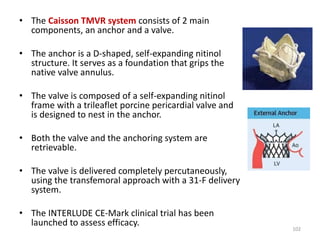

102. • The Caisson TMVR system consists of 2 main
components, an anchor and a valve.
• The anchor is a D-shaped, self-expanding nitinol
structure. It serves as a foundation that grips the
native valve annulus.
• The valve is composed of a self-expanding nitinol
frame with a trileaflet porcine pericardial valve and
is designed to nest in the anchor.
• Both the valve and the anchoring system are
retrievable.
• The valve is delivered completely percutaneously,
using the transfemoral approach with a 31-F delivery
system.
• The INTERLUDE CE-Mark clinical trial has been
launched to assess efficacy.
102

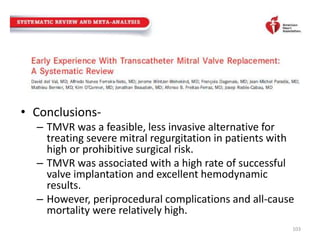

103. • Conclusions-
– TMVR was a feasible, less invasive alternative for
treating severe mitral regurgitation in patients with
high or prohibitive surgical risk.
– TMVR was associated with a high rate of successful
valve implantation and excellent hemodynamic
results.
– However, periprocedural complications and all-cause
mortality were relatively high.
103

104. In conclusion
104

105. MitraClip is good but there are issues
• Failure to eliminate MR
– Is moderate(≤2+) good enough?
– Residual severe (3-4+) MR in 5% patients
• Late recurrence of MR
– Reduces option for surgical repair
• Mitral stenosis
– MPG <5 mmHg in cath lab can be worse when
patient is ambulatory
105

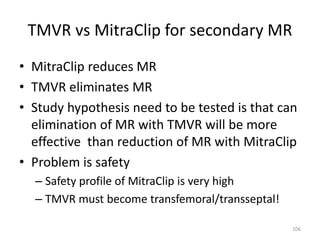

106. TMVR vs MitraClip for secondary MR
• MitraClip reduces MR
• TMVR eliminates MR
• Study hypothesis need to be tested is that can
elimination of MR with TMVR will be more
effective than reduction of MR with MitraClip
• Problem is safety
– Safety profile of MitraClip is very high
– TMVR must become transfemoral/transseptal!
106

107. 107
