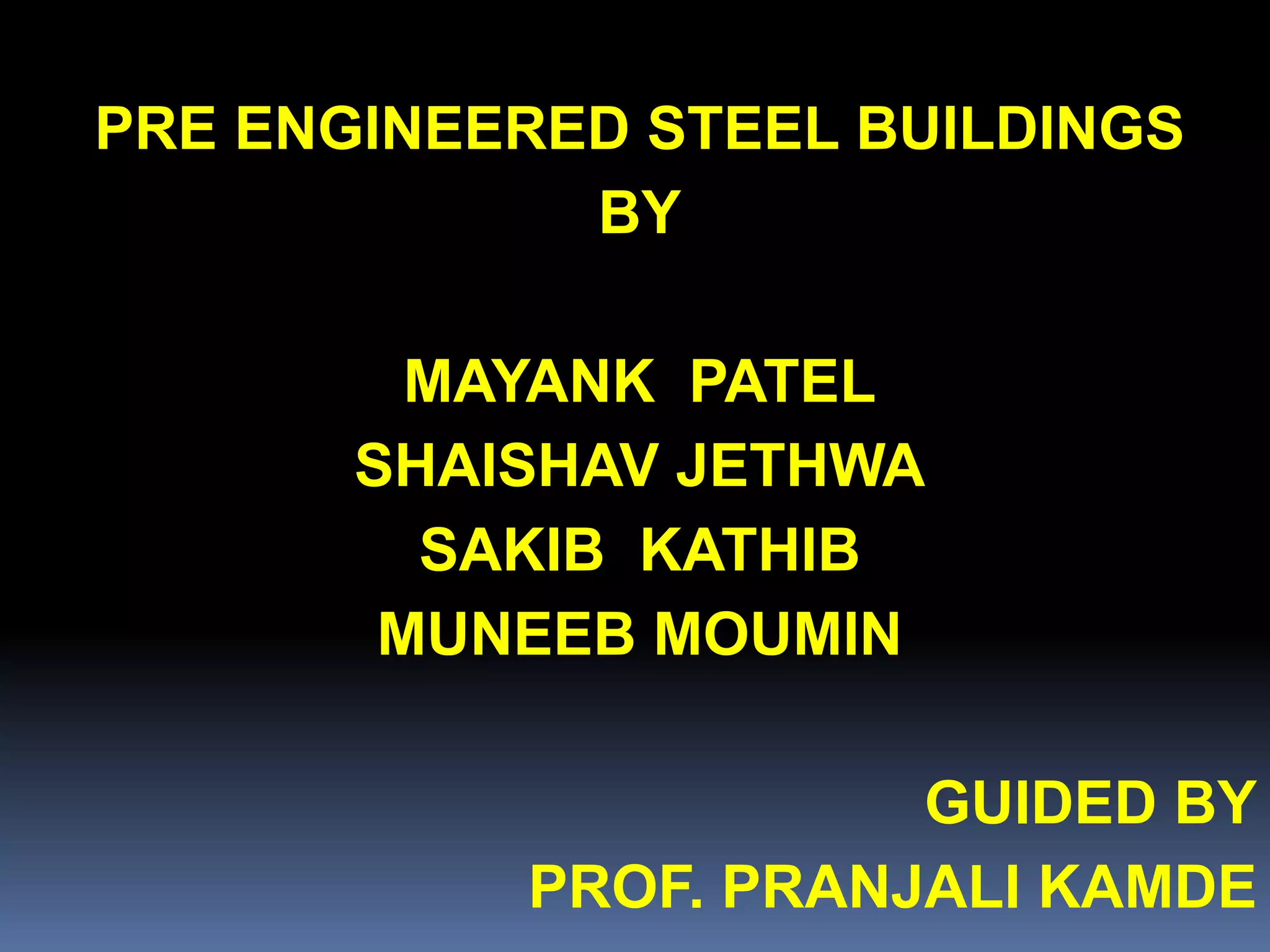

1. PRE ENGINEERED STEEL BUILDINGS
BY
MAYANK PATEL
SHAISHAV JETHWA
SAKIB KATHIB
MUNEEB MOUMIN
GUIDED BY
PROF. PRANJALI KAMDE

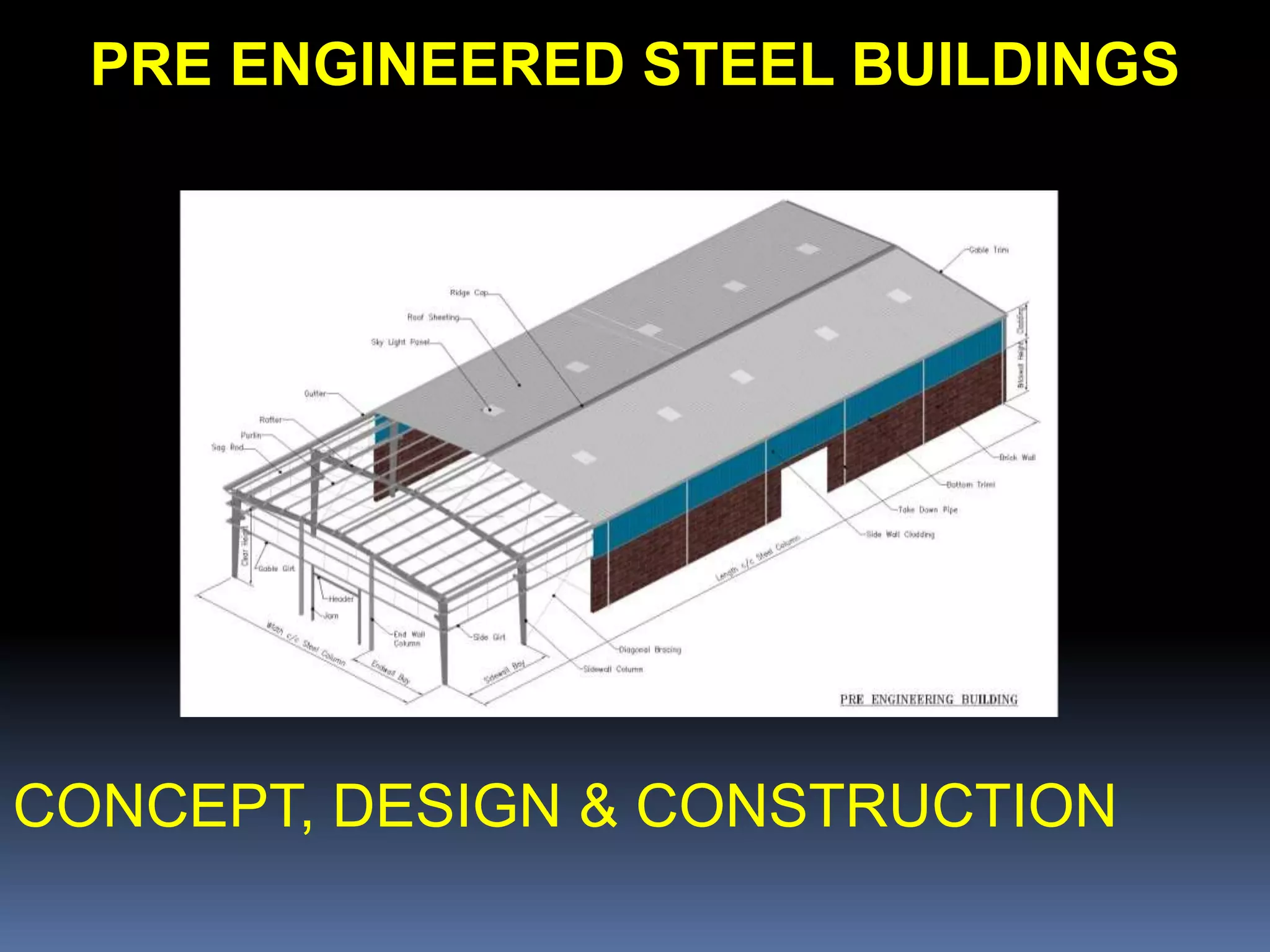

2. CONCEPT, DESIGN & CONSTRUCTION
PRE ENGINEERED STEEL BUILDINGS

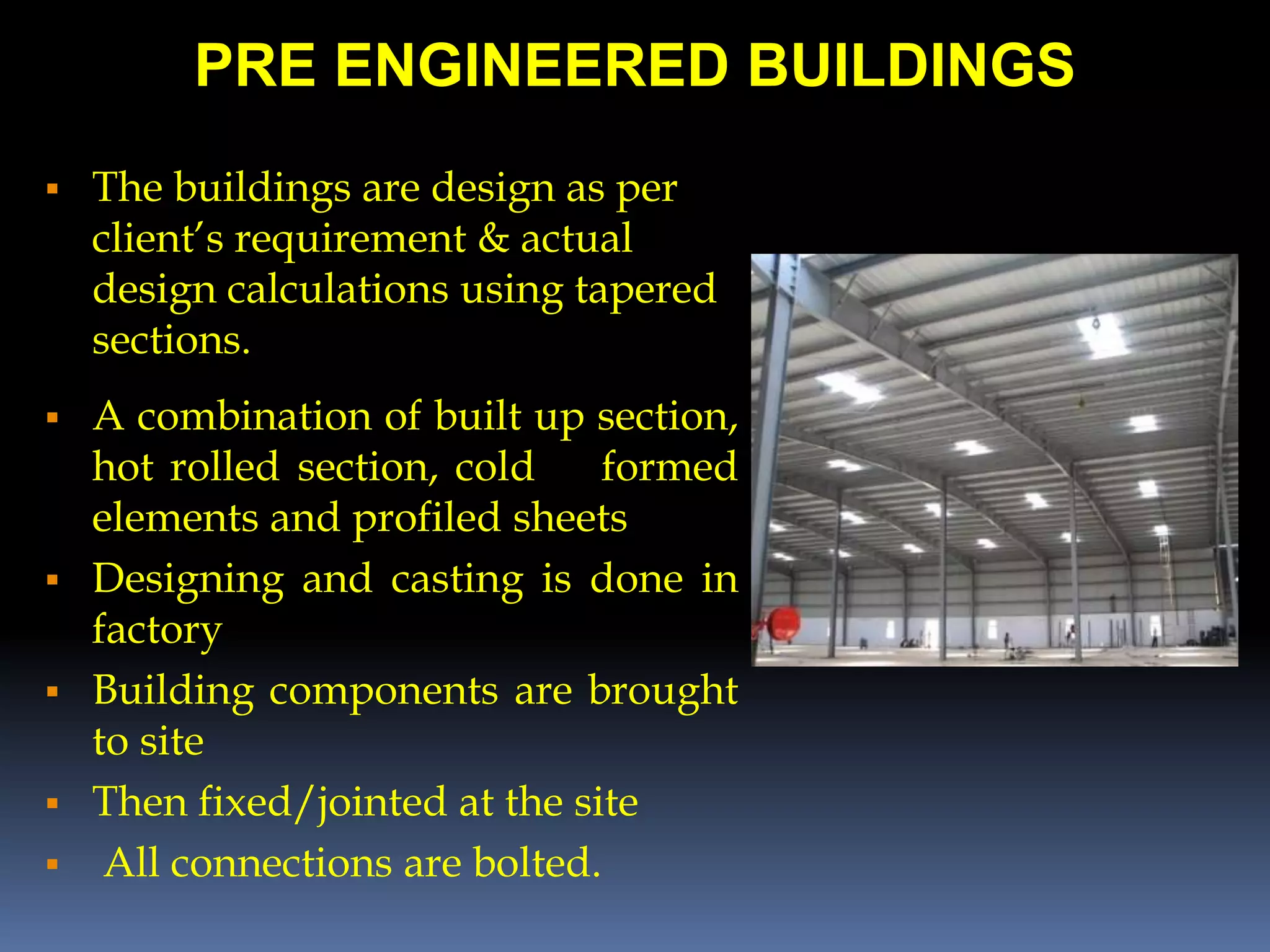

3. PRE ENGINEERED BUILDINGS
 The buildings are design as per
client’s requirement & actual
design calculations using tapered
sections.
 A combination of built up section,
hot rolled section, cold formed
elements and profiled sheets
 Designing and casting is done in
factory
 Building components are brought
to site
 Then fixed/jointed at the site
 All connections are bolted.

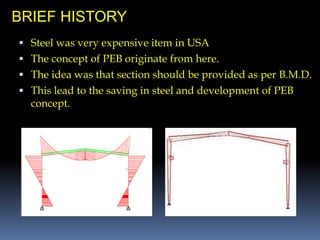

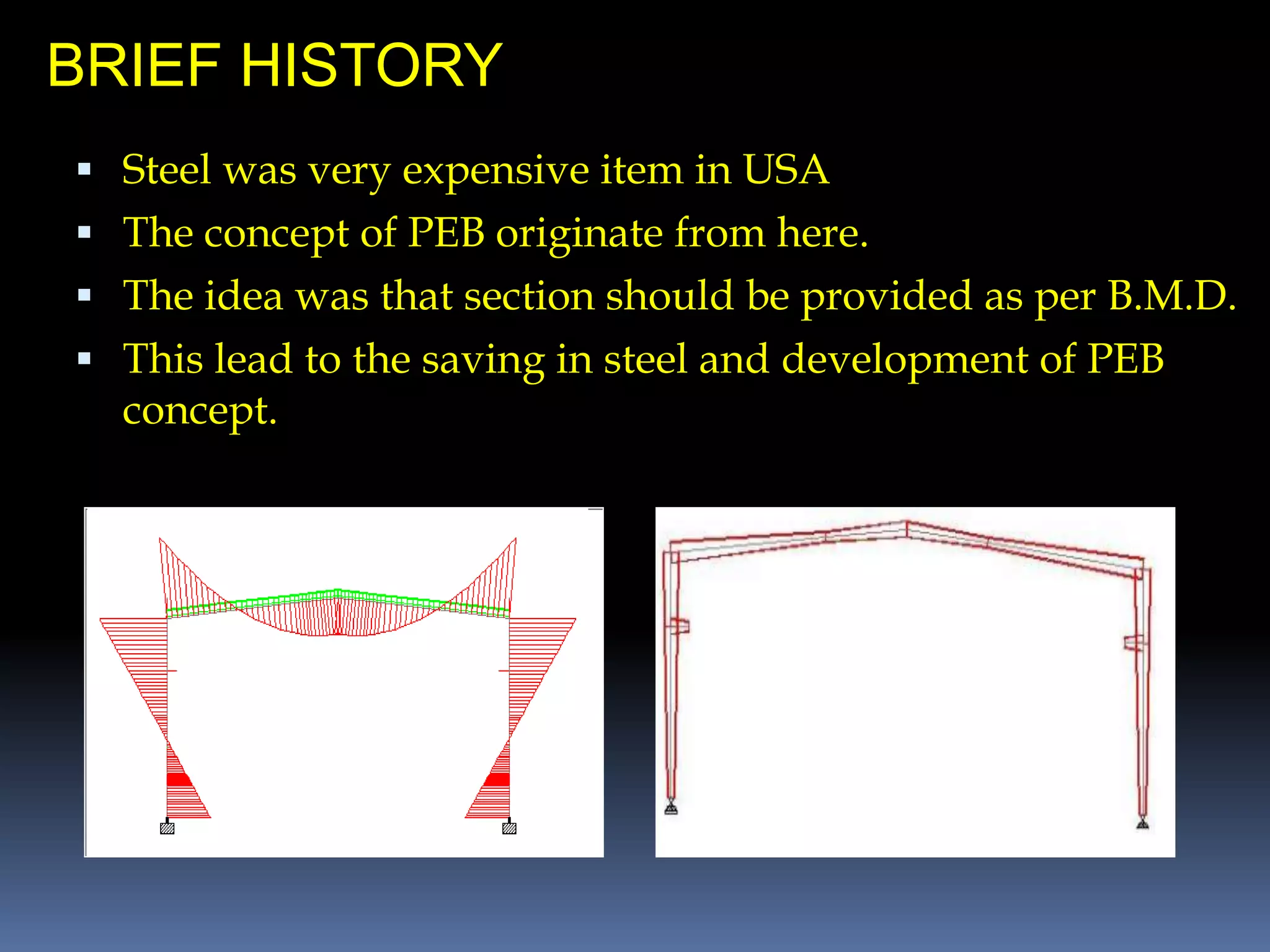

4.  Steel was very expensive item in USA
 The concept of PEB originate from here.
 The idea was that section should be provided as per B.M.D.
 This lead to the saving in steel and development of PEB
concept.
BRIEF HISTORY

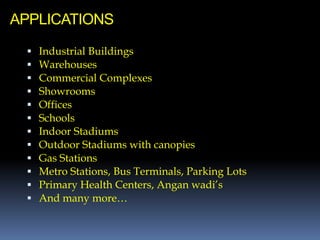

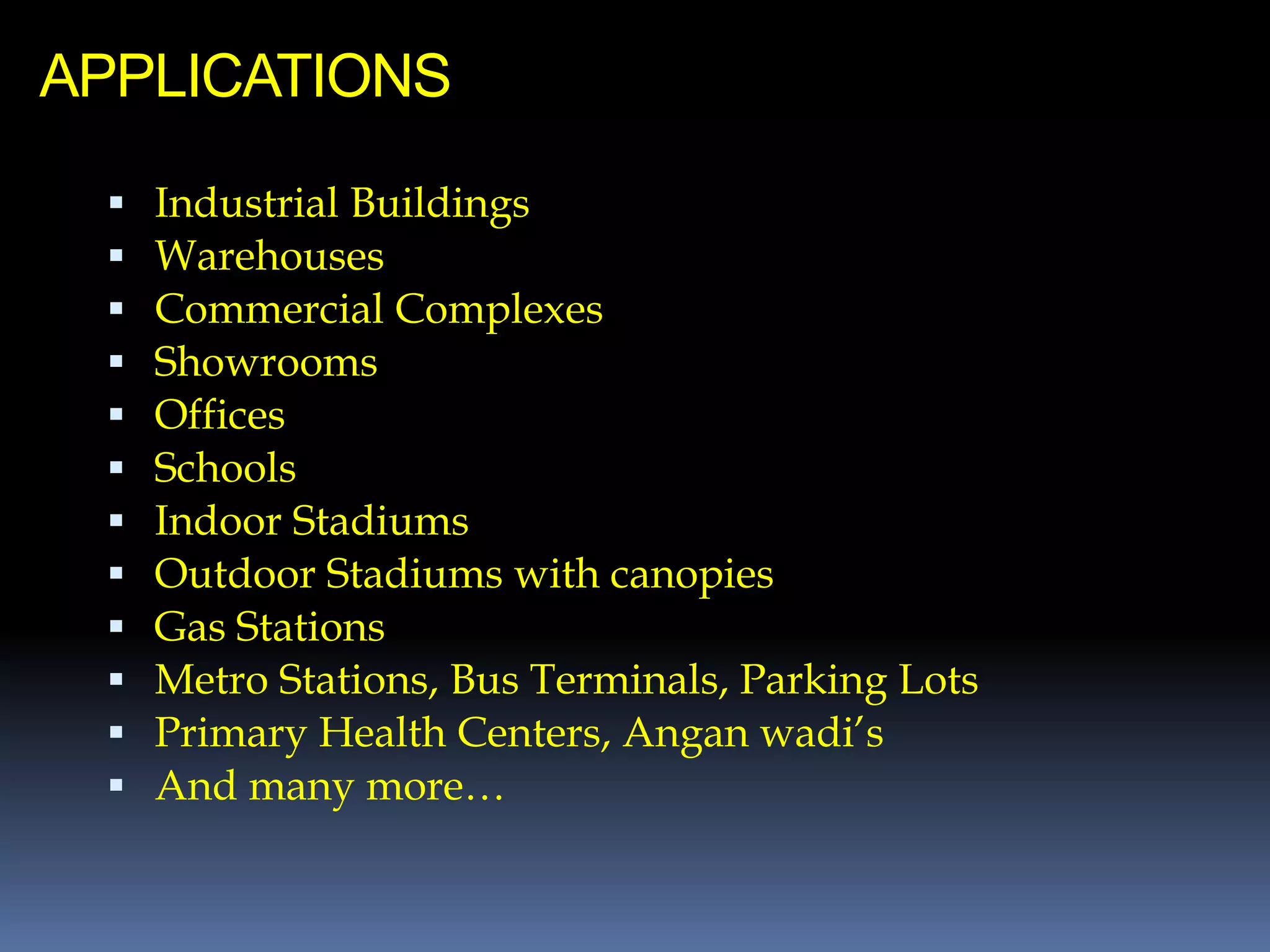

5. APPLICATIONS
 Industrial Buildings
 Warehouses
 Commercial Complexes
 Showrooms
 Offices
 Schools
 Indoor Stadiums
 Outdoor Stadiums with canopies
 Gas Stations
 Metro Stations, Bus Terminals, Parking Lots
 Primary Health Centers, Angan wadi’s
 And many more…

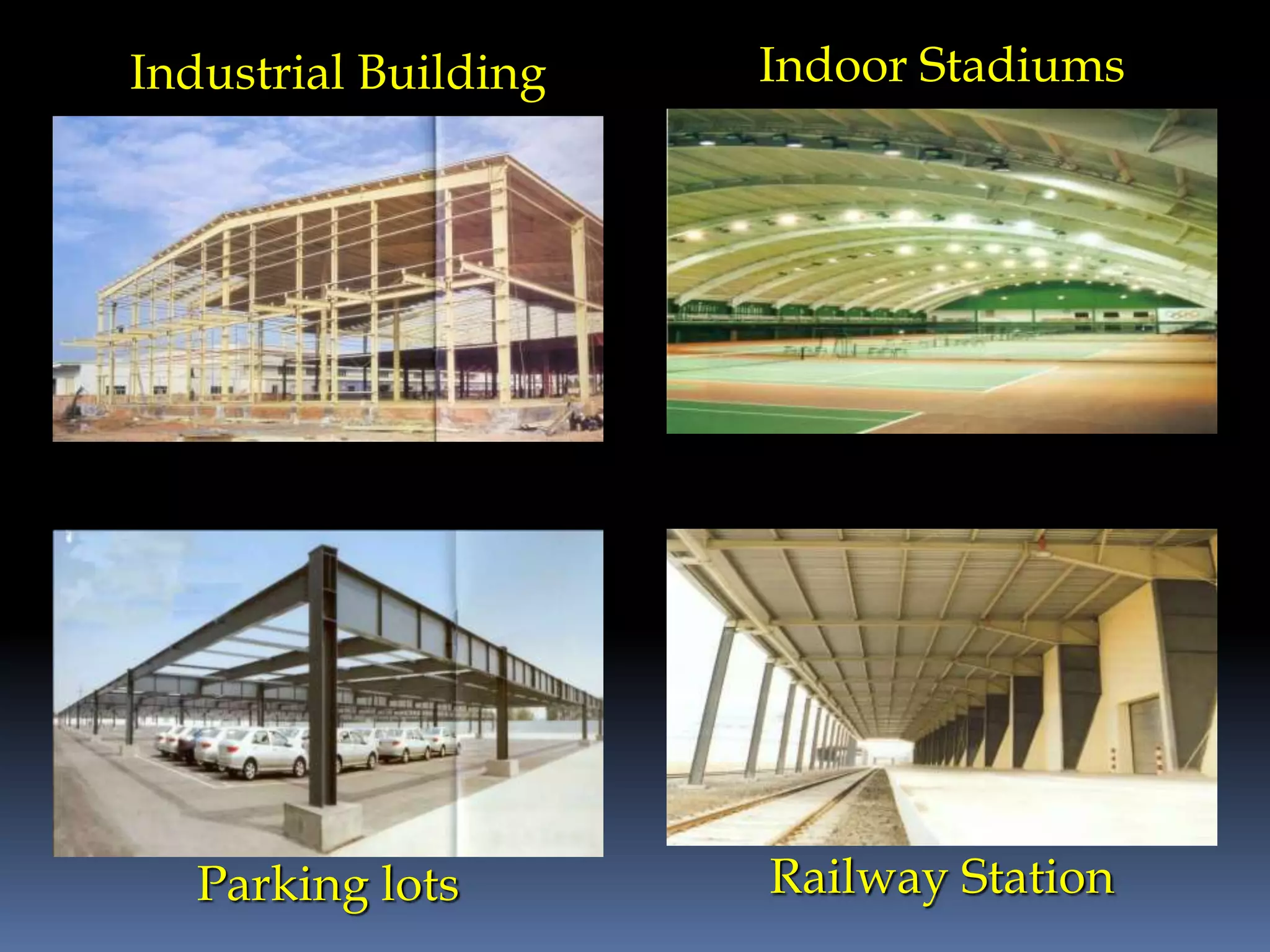

6. Industrial Building
Parking lots
Indoor Stadiums
Railway Station

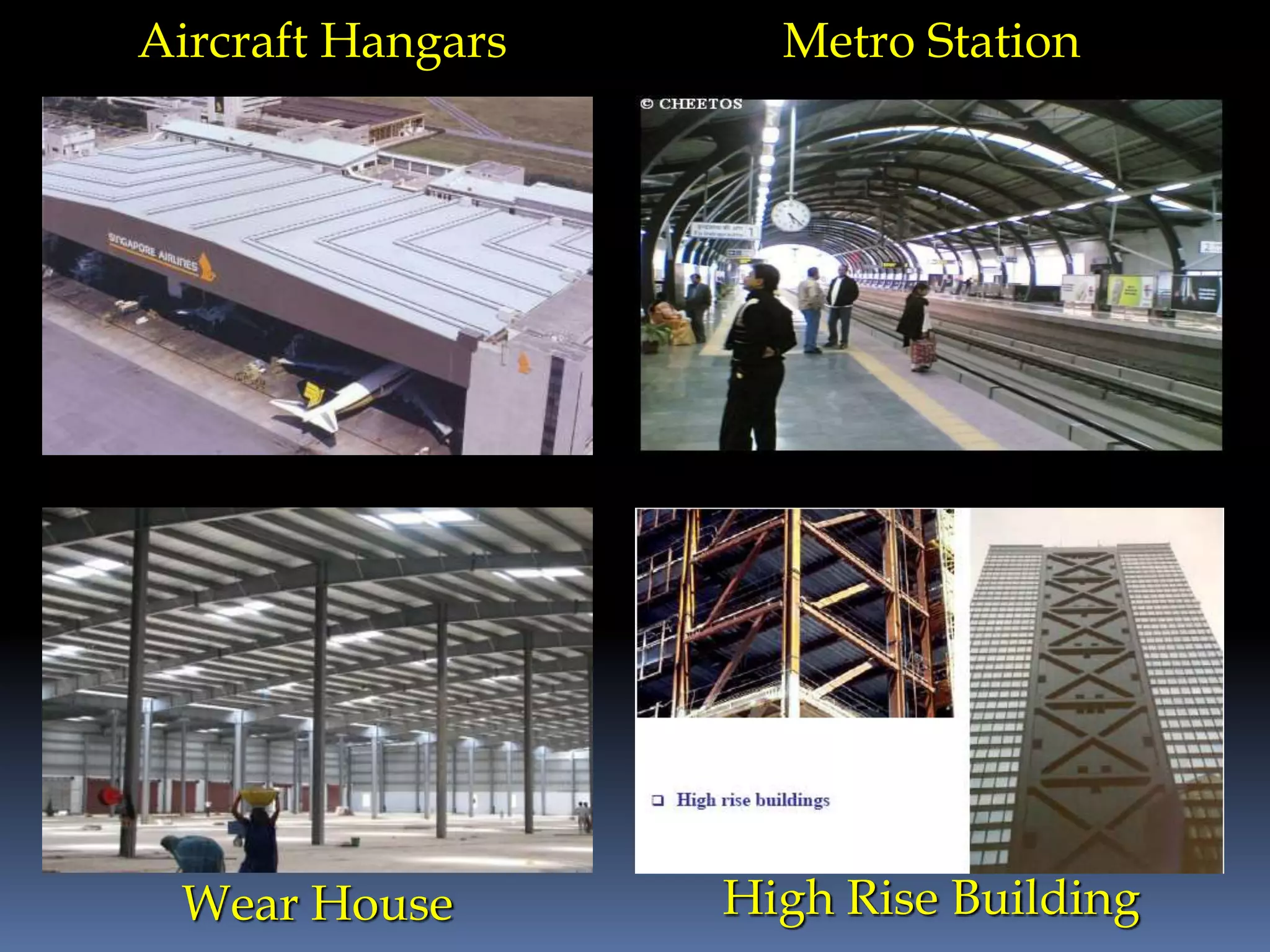

7. Aircraft Hangars Metro Station
Wear House High Rise Building

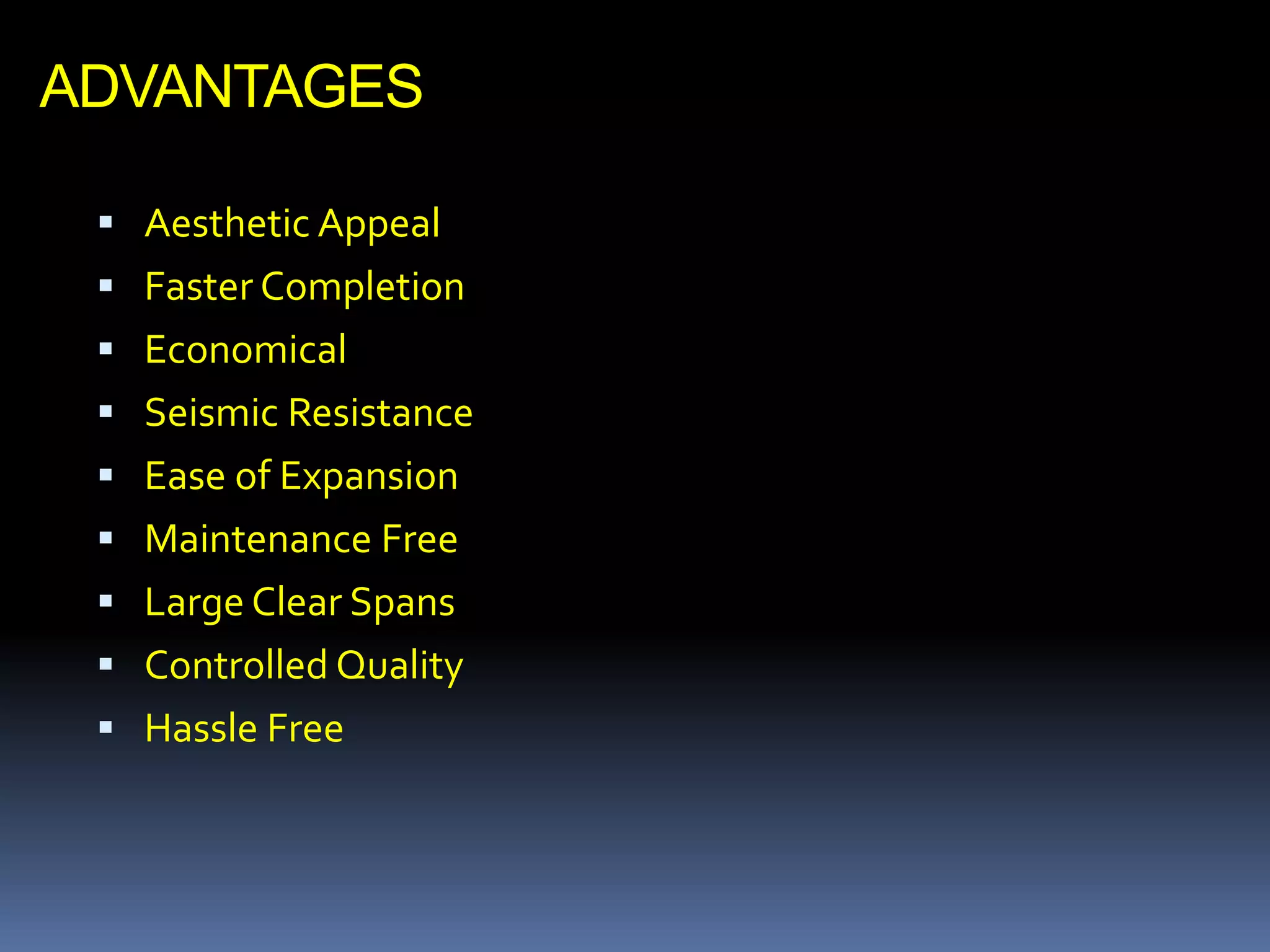

8. ADVANTAGES
 Aesthetic Appeal
 Faster Completion
 Economical
 Seismic Resistance
 Ease of Expansion
 Maintenance Free
 Large Clear Spans
 Controlled Quality
 Hassle Free

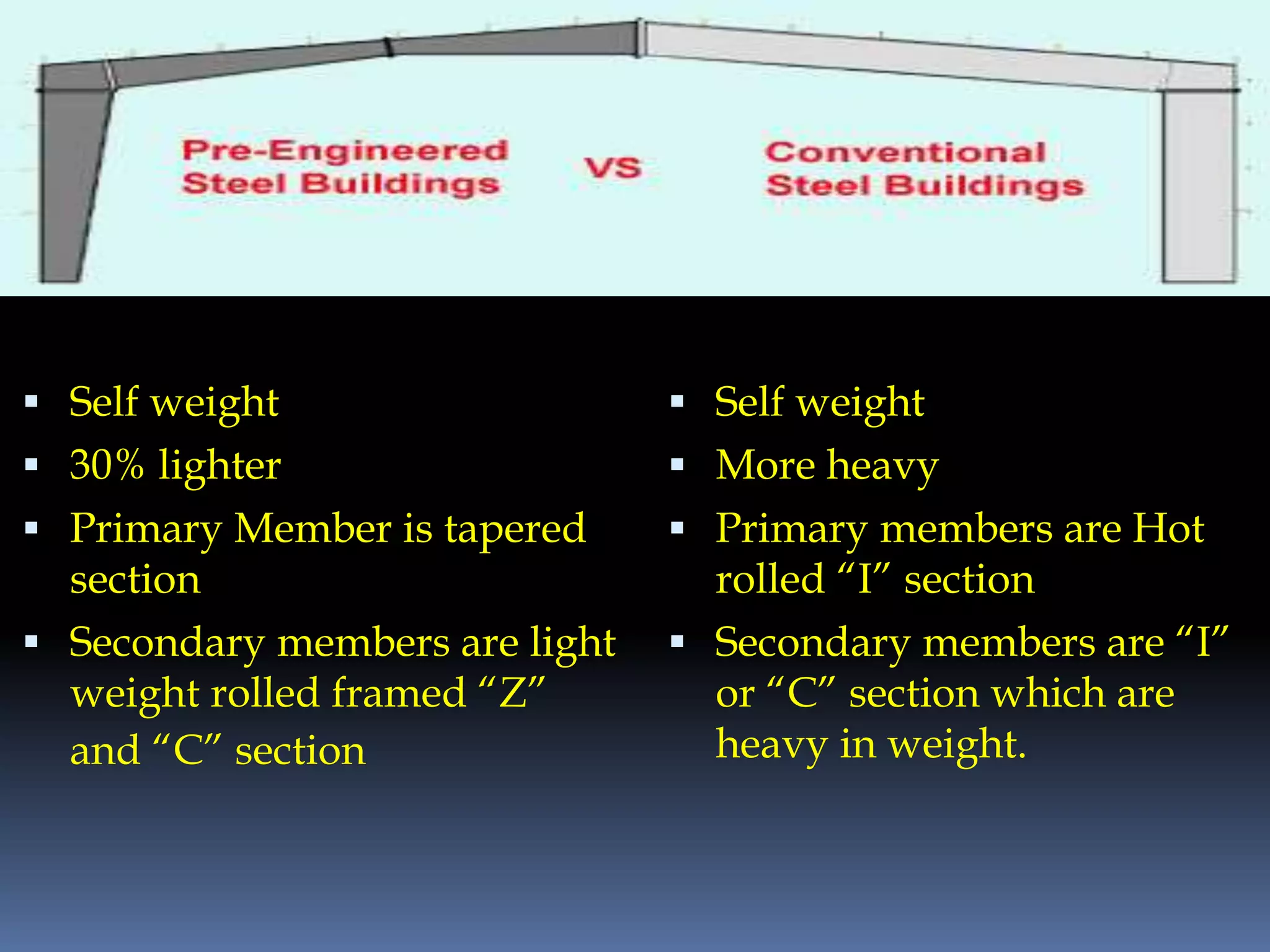

9.  Self weight
 30% lighter
 Primary Member is tapered
section
 Secondary members are light
weight rolled framed “Z”
and “C” section
 Self weight
 More heavy
 Primary members are Hot
rolled “I” section
 Secondary members are “I”
or “C” section which are
heavy in weight.

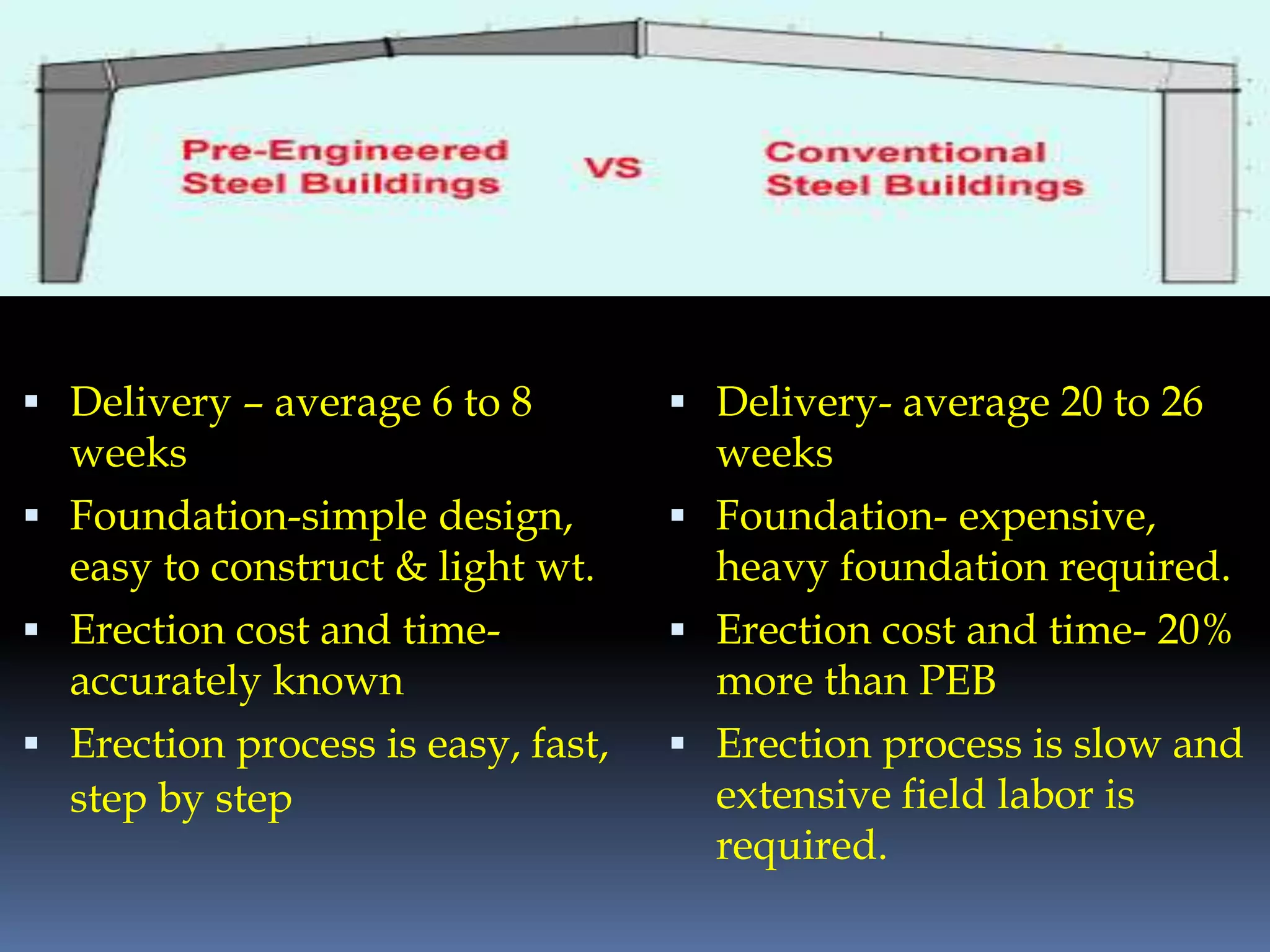

10.  Delivery – average 6 to 8
weeks
 Foundation-simple design,
easy to construct & light wt.
 Erection cost and time-
accurately known
 Erection process is easy, fast,
step by step
 Delivery- average 20 to 26
weeks
 Foundation- expensive,
heavy foundation required.
 Erection cost and time- 20%
more than PEB
 Erection process is slow and
extensive field labor is
required.

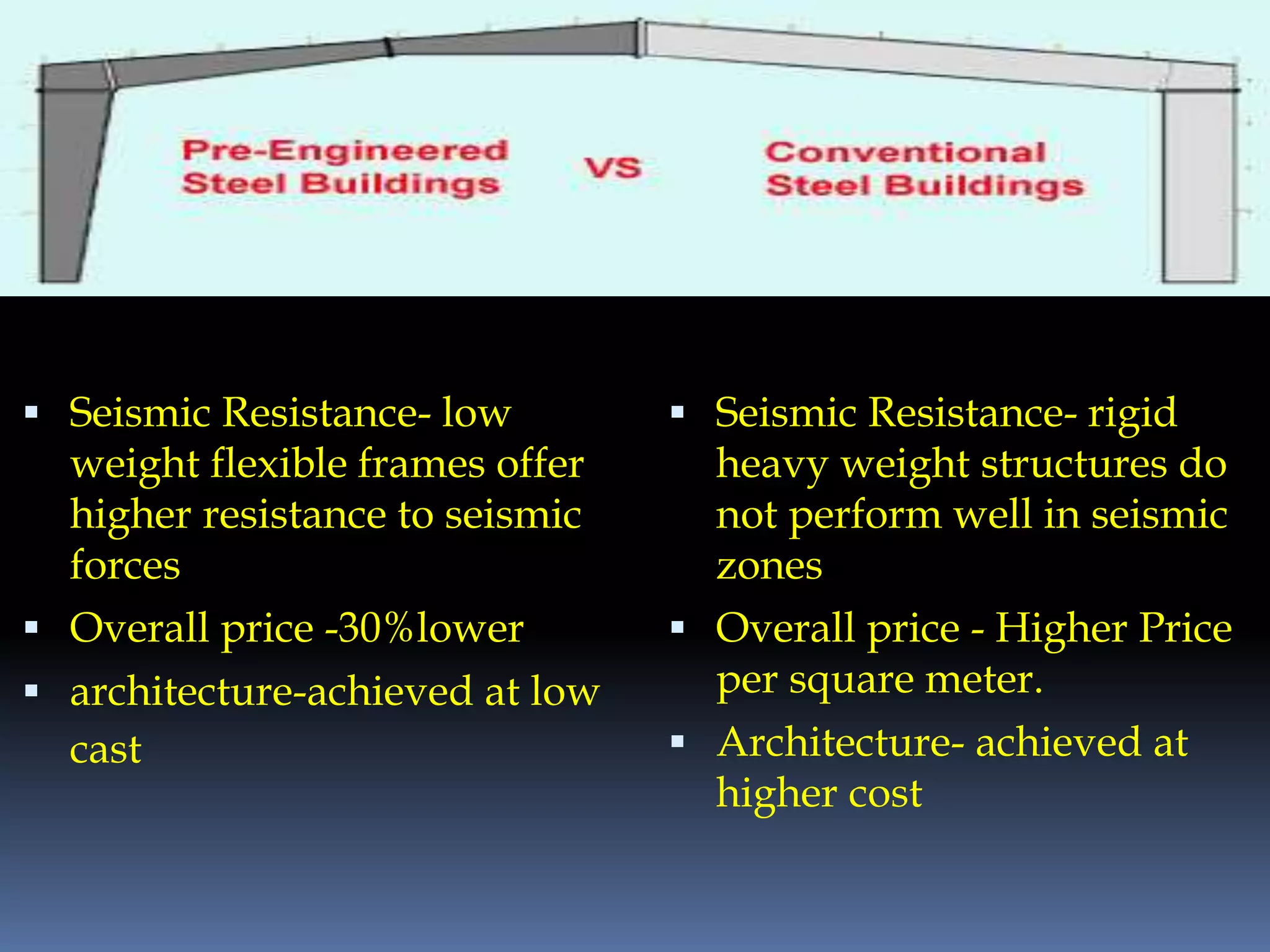

11.  Seismic Resistance- low
weight flexible frames offer
higher resistance to seismic
forces
 Overall price -30%lower
 architecture-achieved at low
cast
 Seismic Resistance- rigid
heavy weight structures do
not perform well in seismic
zones
 Overall price - Higher Price
per square meter.
 Architecture- achieved at
higher cost

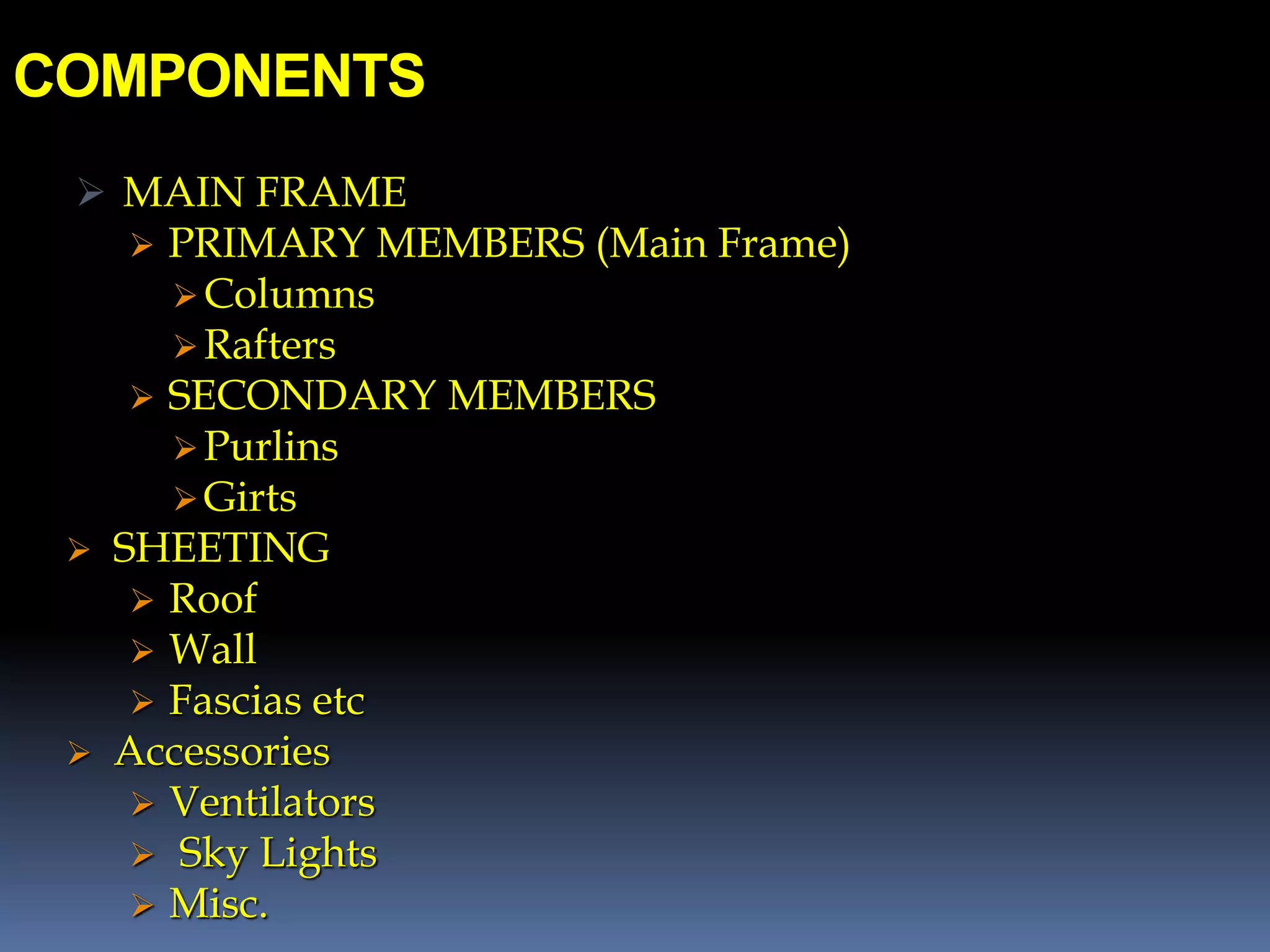

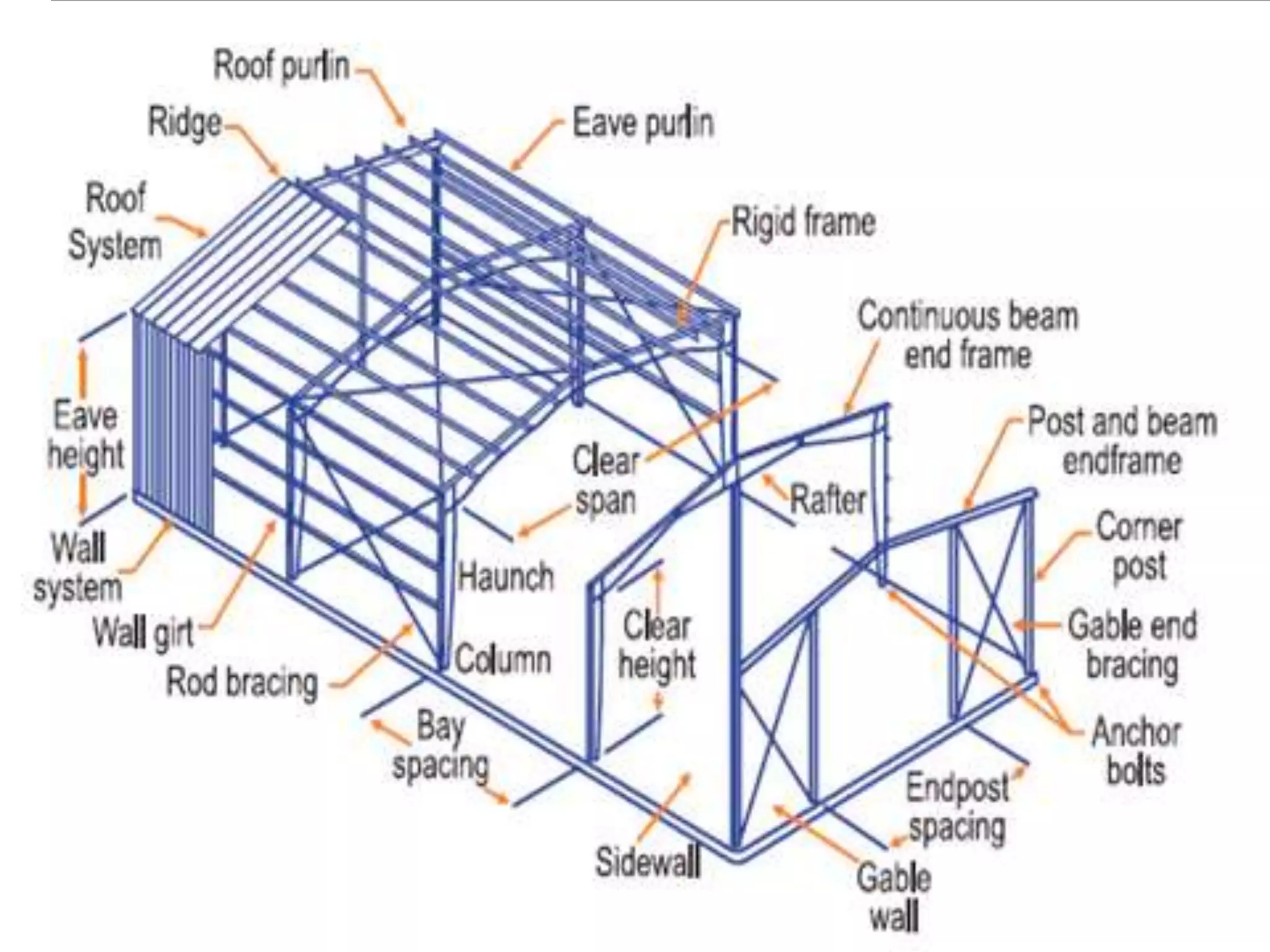

12. COMPONENTS
 MAIN FRAME
 PRIMARY MEMBERS (Main Frame)
Columns
Rafters
 SECONDARY MEMBERS
Purlins
Girts
 SHEETING
 Roof
 Wall
 Fascias etc
 Accessories
 Ventilators
 Sky Lights
 Misc.

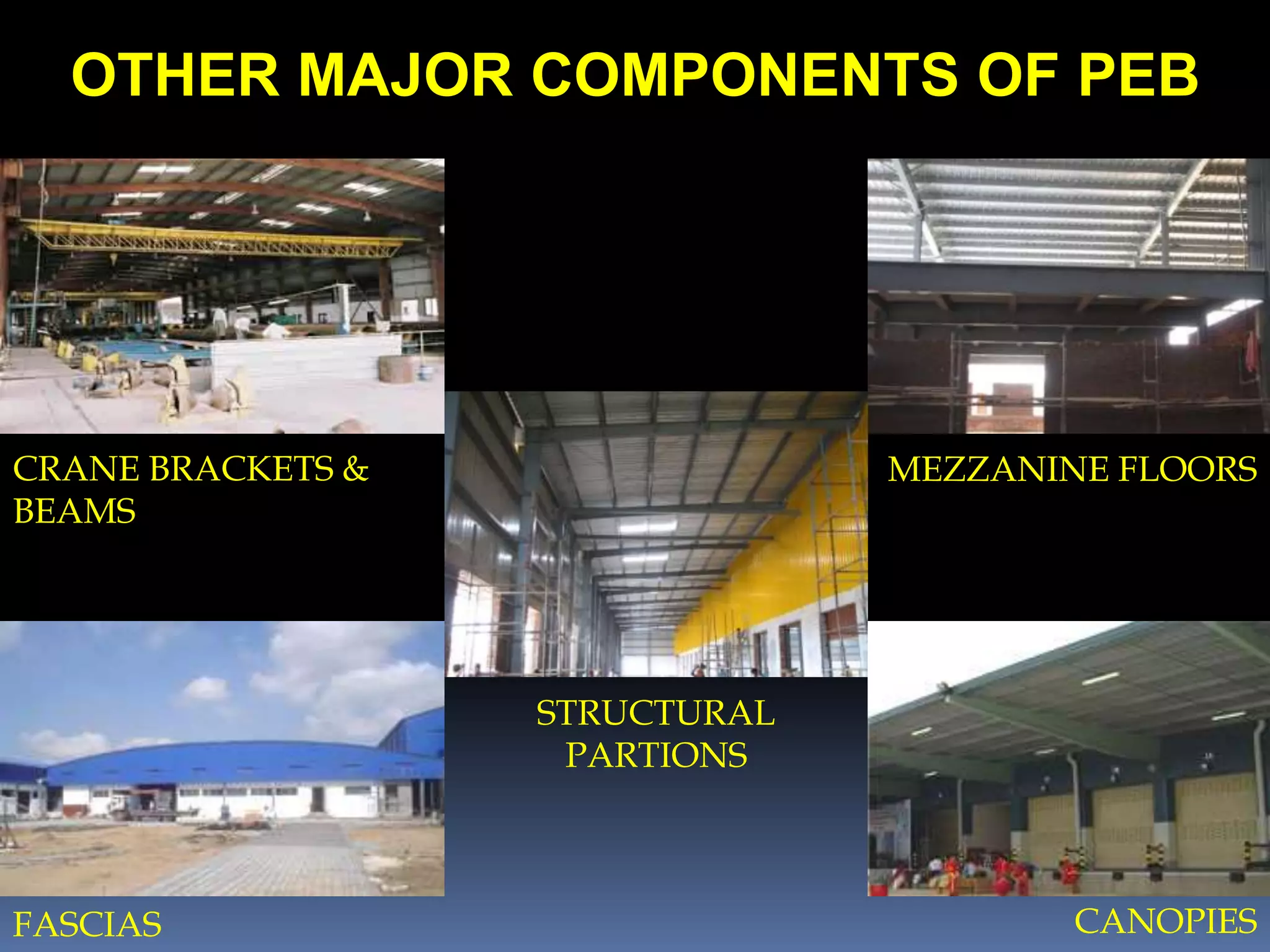

14. OTHER MAJOR COMPONENTS OF PEB
CRANE BRACKETS &
BEAMS
MEZZANINE FLOORS
STRUCTURAL
PARTIONS
FASCIAS CANOPIES

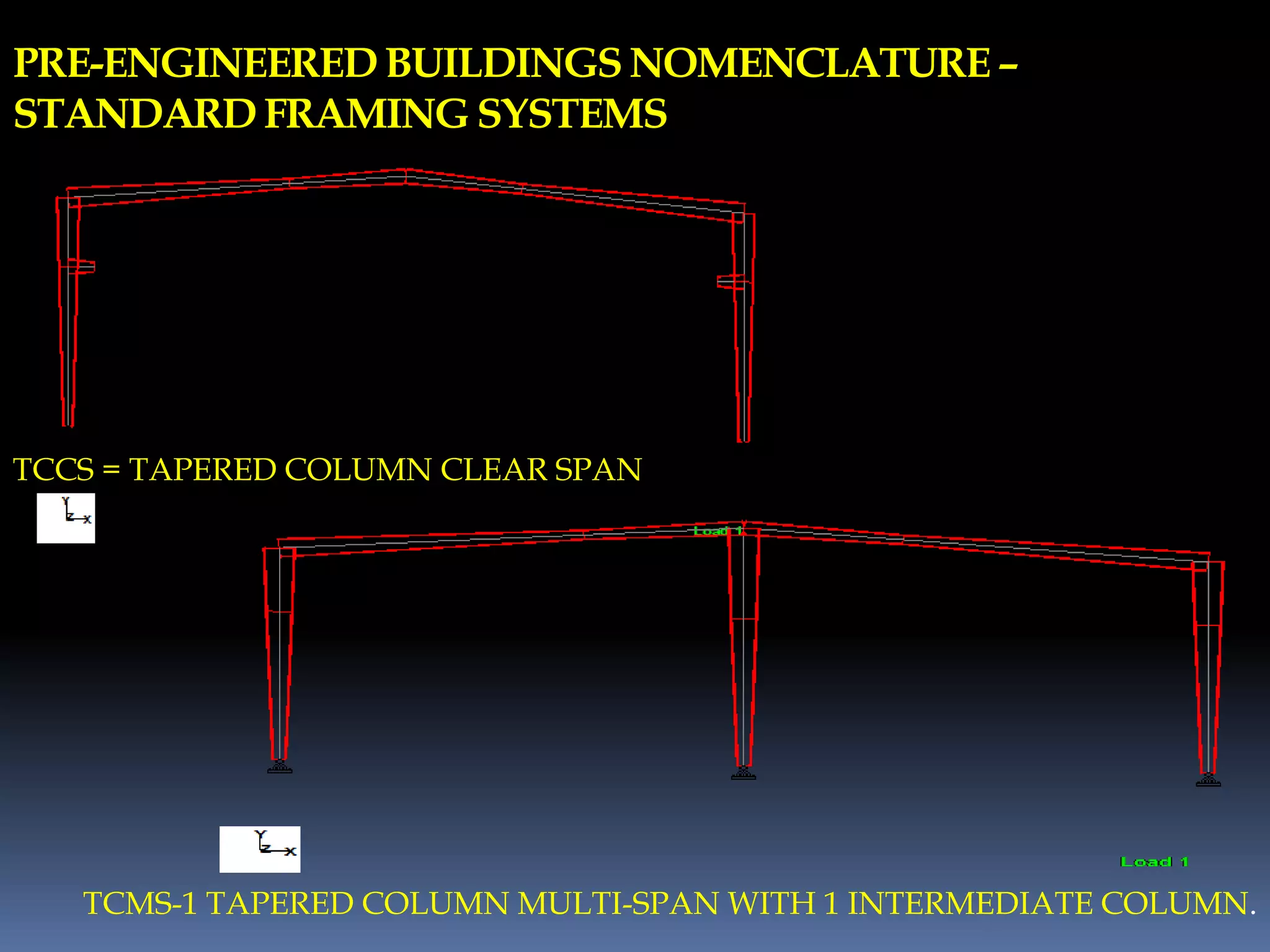

15. PRE-ENGINEERED BUILDINGS NOMENCLATURE –
STANDARD FRAMING SYSTEMS
TCCS = TAPERED COLUMN CLEAR SPAN
TCMS-1 TAPERED COLUMN MULTI-SPAN WITH 1 INTERMEDIATE COLUMN.

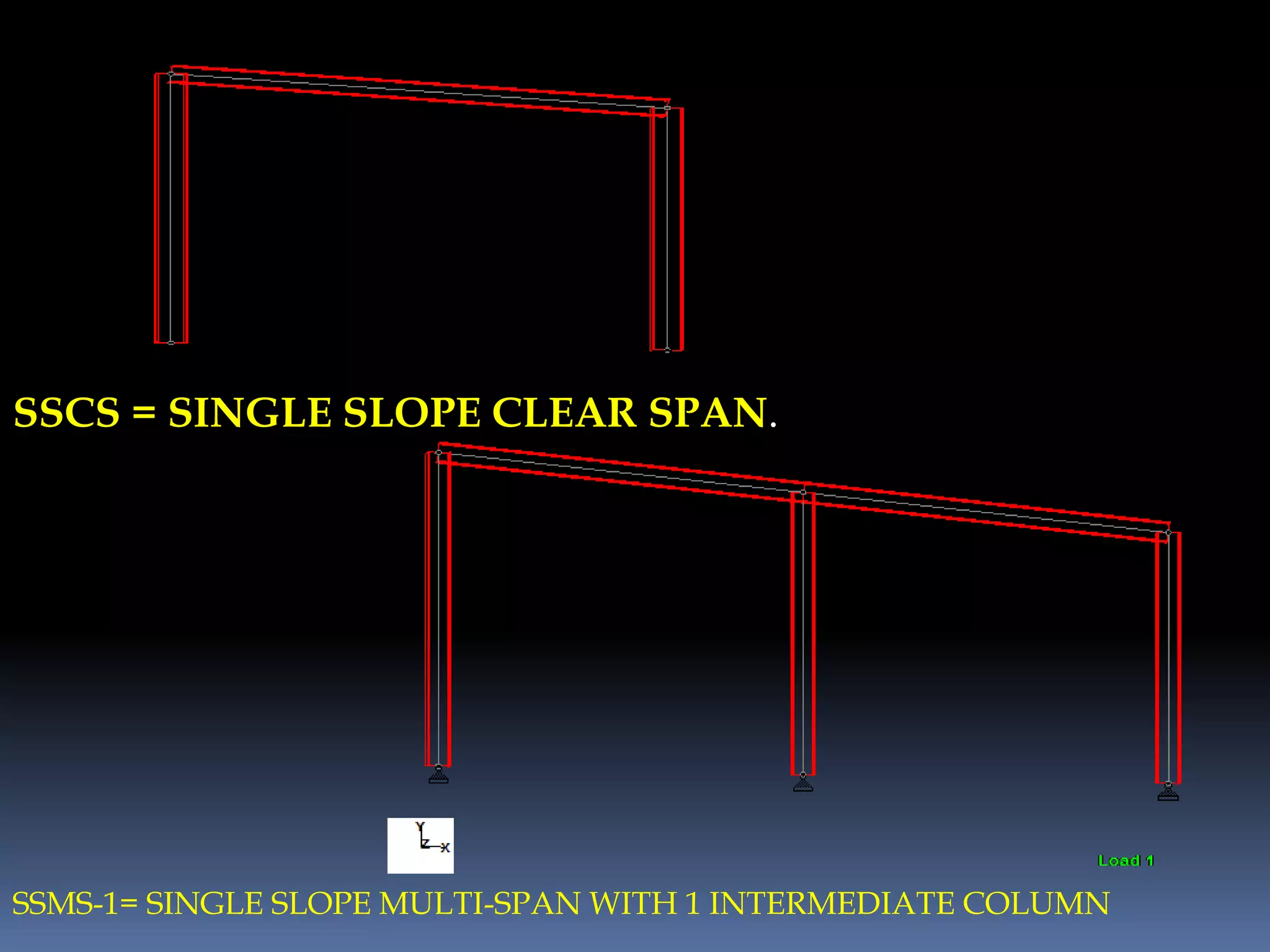

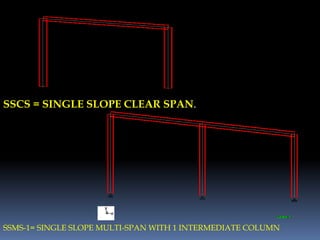

16. SSCS = SINGLE SLOPE CLEAR SPAN.
SSMS-1= SINGLE SLOPE MULTI-SPAN WITH 1 INTERMEDIATE COLUMN

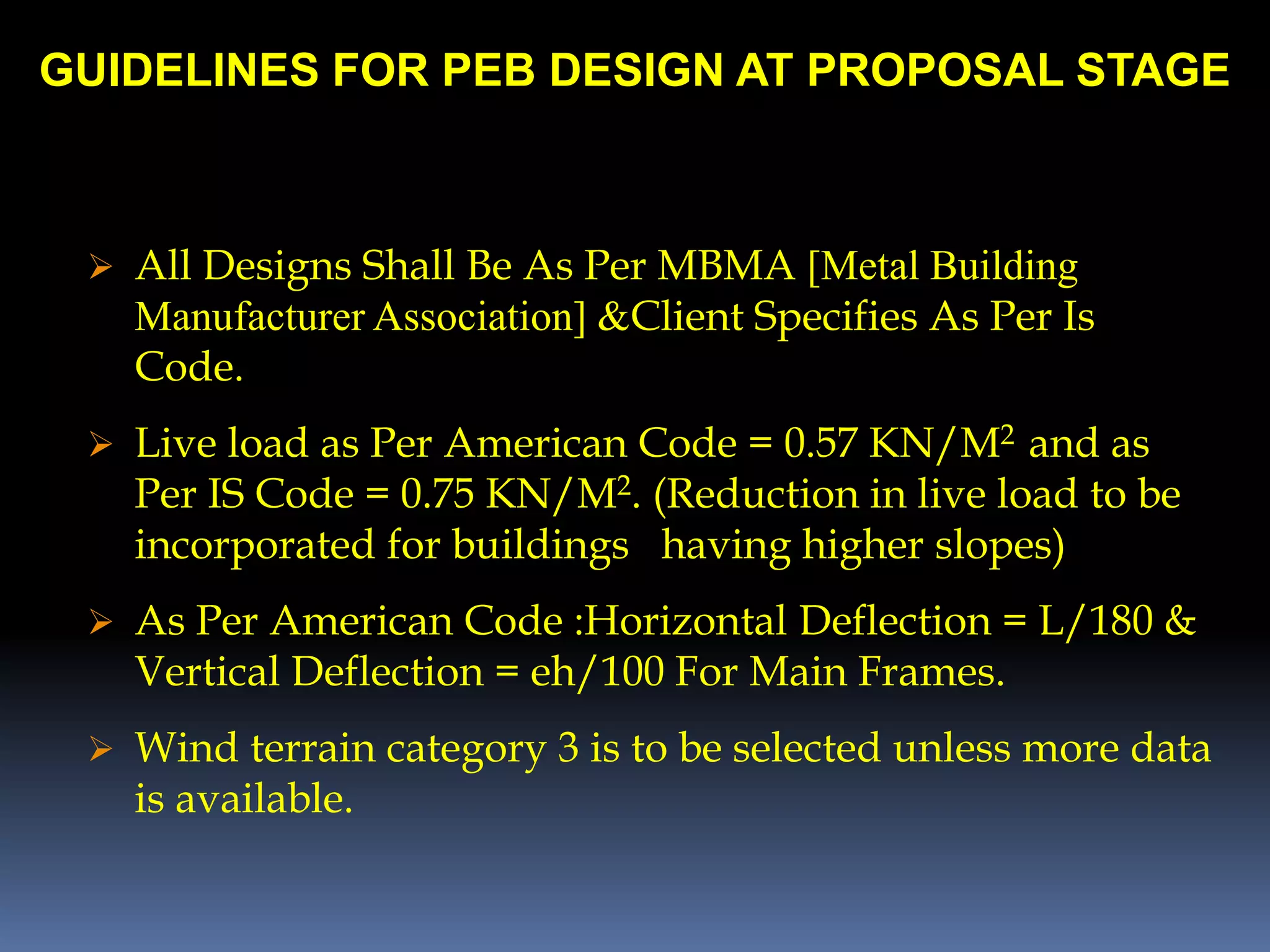

17. GUIDELINES FOR PEB DESIGN AT PROPOSAL STAGE
 All Designs Shall Be As Per MBMA [Metal Building
Manufacturer Association] &Client Specifies As Per Is
Code.
 Live load as Per American Code = 0.57 KN/M2 and as
Per IS Code = 0.75 KN/M2. (Reduction in live load to be
incorporated for buildings having higher slopes)
 As Per American Code :Horizontal Deflection = L/180 &
Vertical Deflection = eh/100 For Main Frames.
 Wind terrain category 3 is to be selected unless more data
is available.

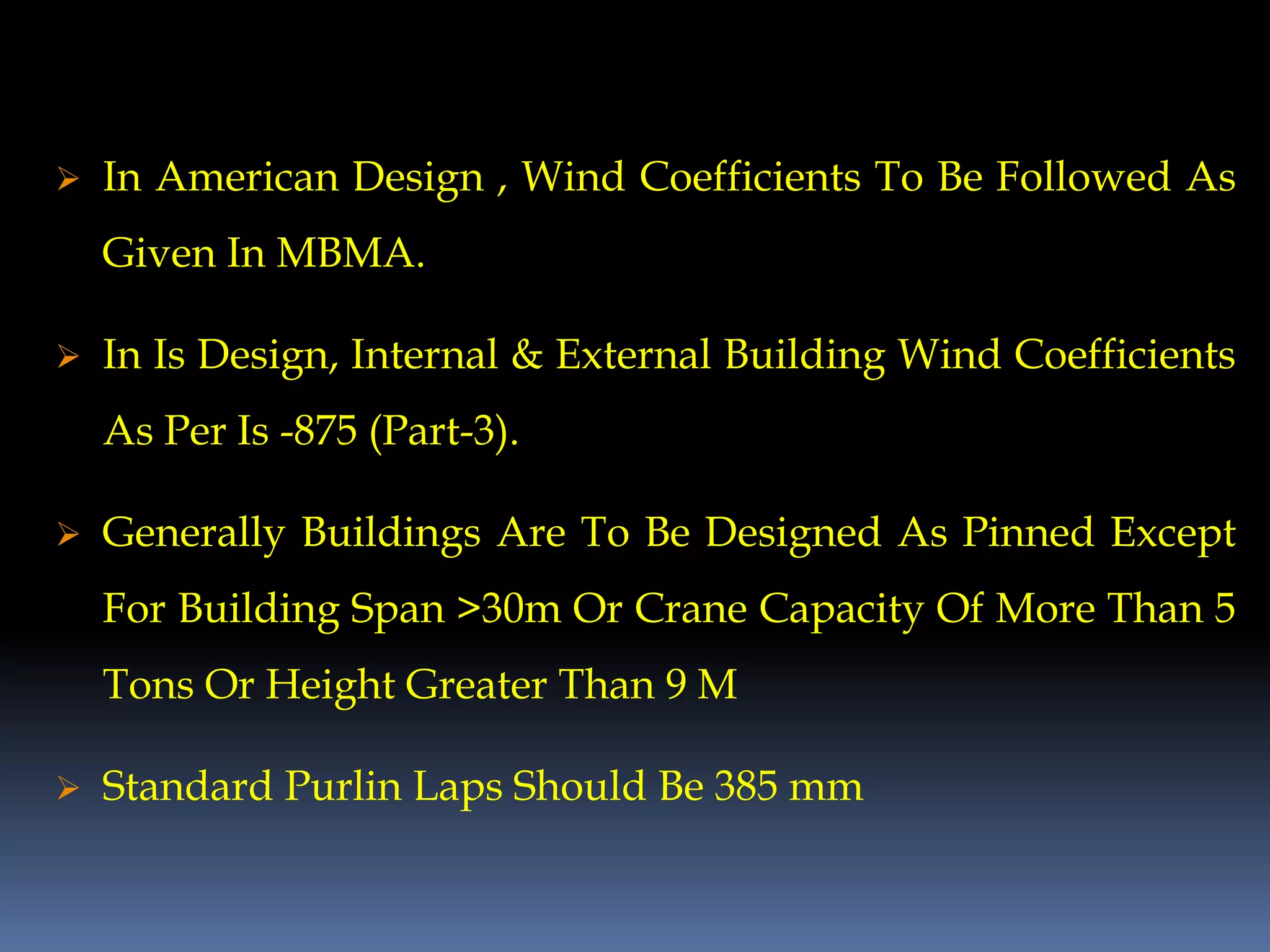

18.  In American Design , Wind Coefficients To Be Followed As
Given In MBMA.
 In Is Design, Internal & External Building Wind Coefficients
As Per Is -875 (Part-3).
 Generally Buildings Are To Be Designed As Pinned Except
For Building Span >30m Or Crane Capacity Of More Than 5
Tons Or Height Greater Than 9 M
 Standard Purlin Laps Should Be 385 mm

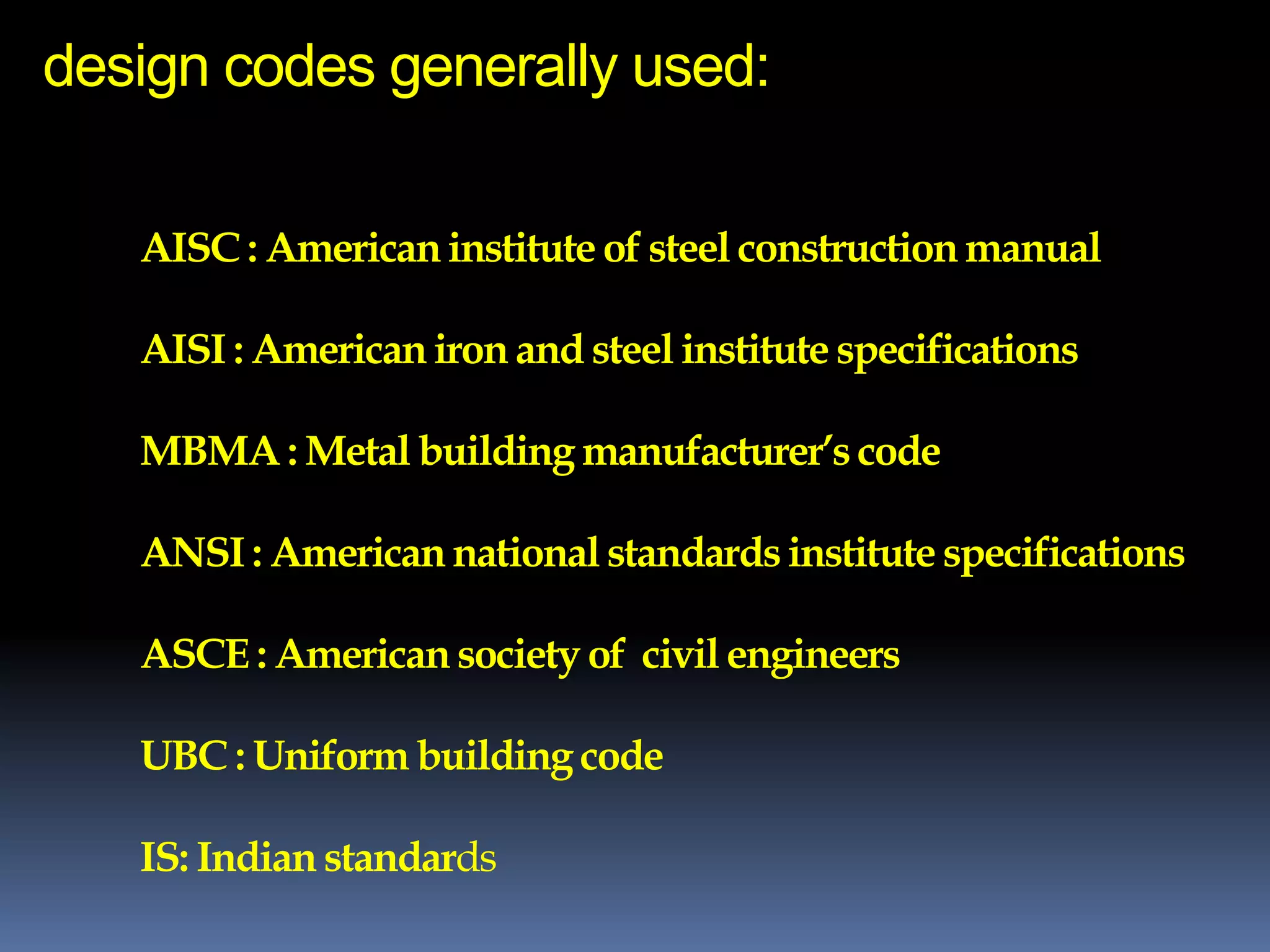

19. design codes generally used:
AISC : Americaninstitute of steel constructionmanual
AISI : American iron and steel institute specifications
MBMA : Metal building manufacturer’s code
ANSI : Americannational standardsinstitute specifications
ASCE : Americansociety of civil engineers
UBC : Uniform building code
IS: Indian standards

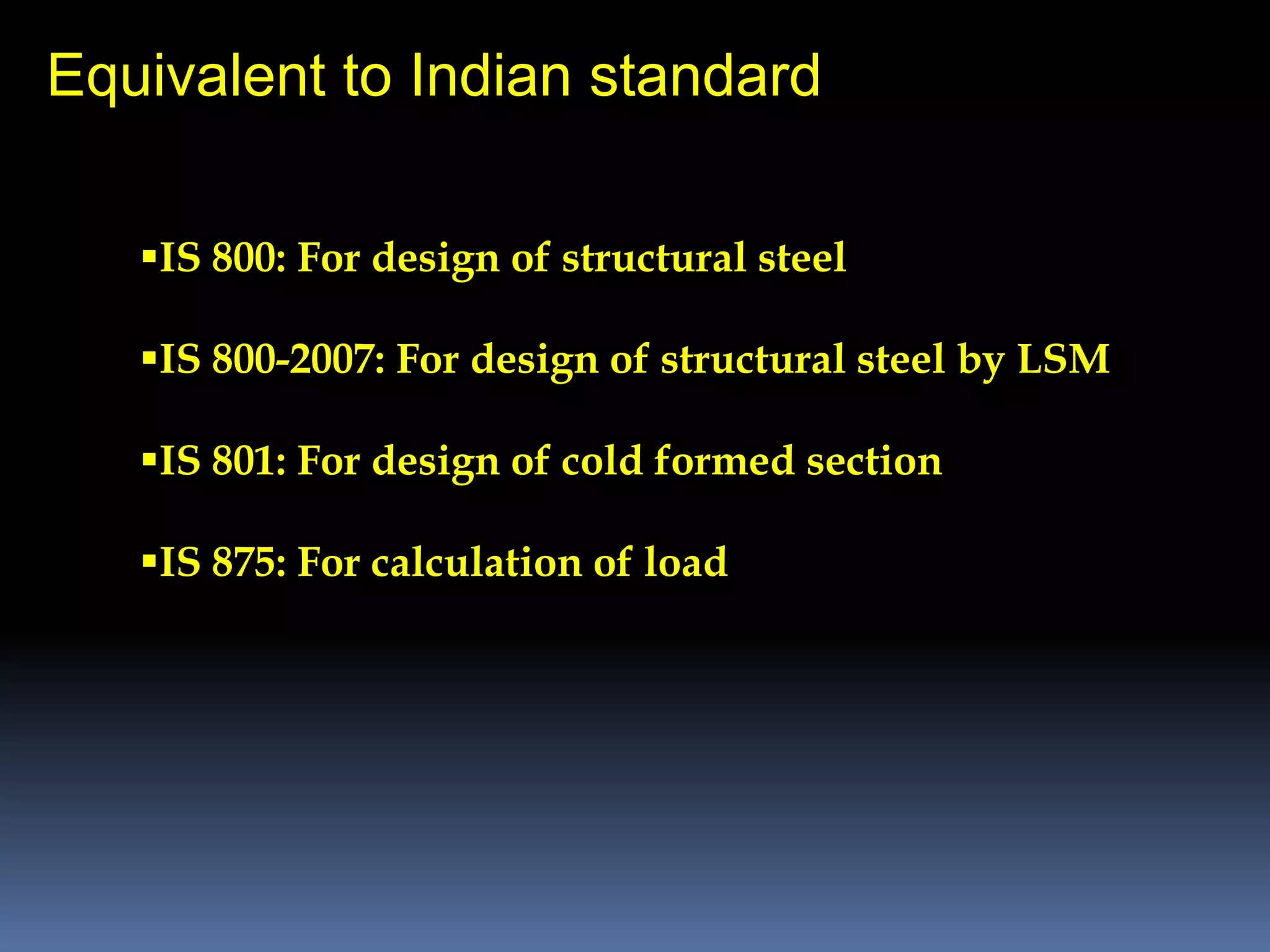

20. Equivalent to Indian standard
IS 800: For design of structural steel
IS 800-2007: For design of structural steel by LSM
IS 801: For design of cold formed section
IS 875: For calculation of load

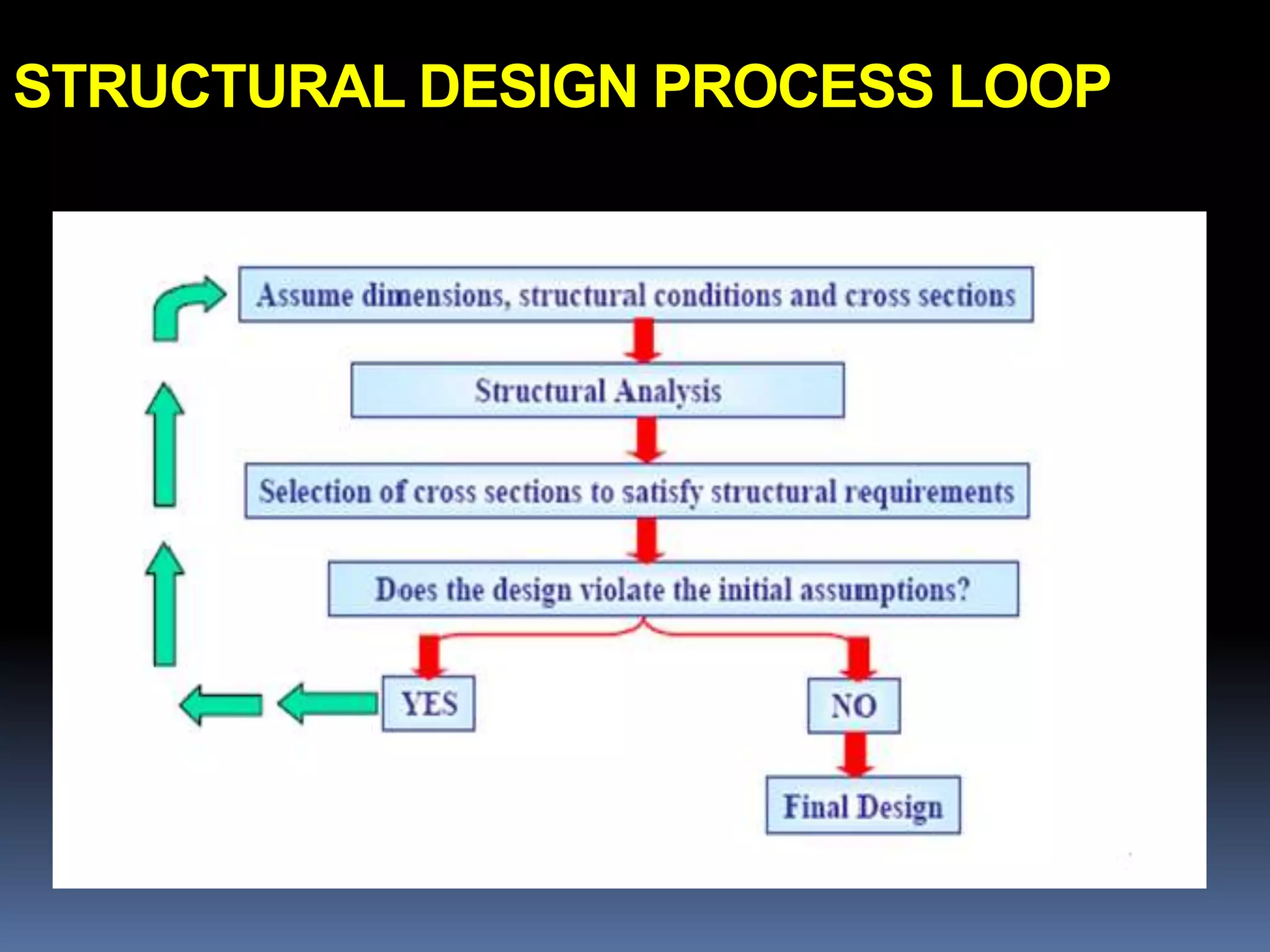

21. STRUCTURAL DESIGN PROCESS LOOP

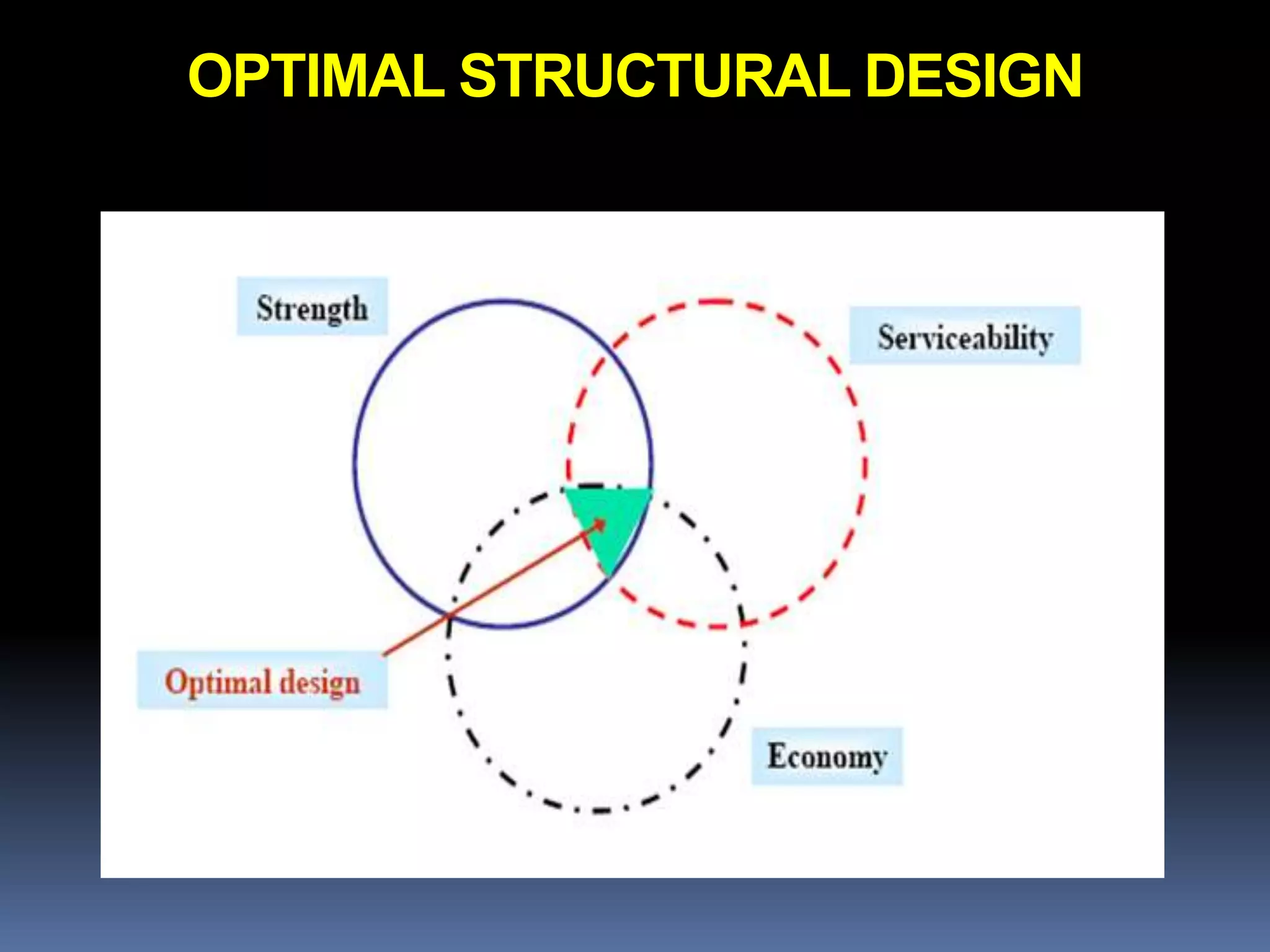

22. OPTIMAL STRUCTURAL DESIGN

23. ANALYSIS :-
1.Dead load calculations
2.Live load calculations
3.Wind load calculations
LOAD COMBINATIONS :-
A. 1.5(DL + LL)
B. 1.5(DL + WL)
PLOT THE MAXIMUM SFD AND BMD OF THE MEMBERS :-
DESIGNING :-
1.Design of the primary members
2.Design of connection plate
3.Purline Design
4.Girt Design
5.Base Plate
6.Anchor Bolt design for Moment Condition
7.Anchor Bolt design for Shear Condition
8.Cranes Design

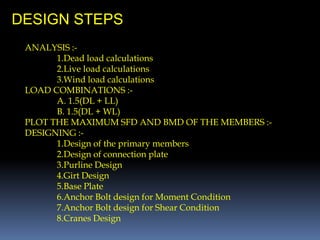

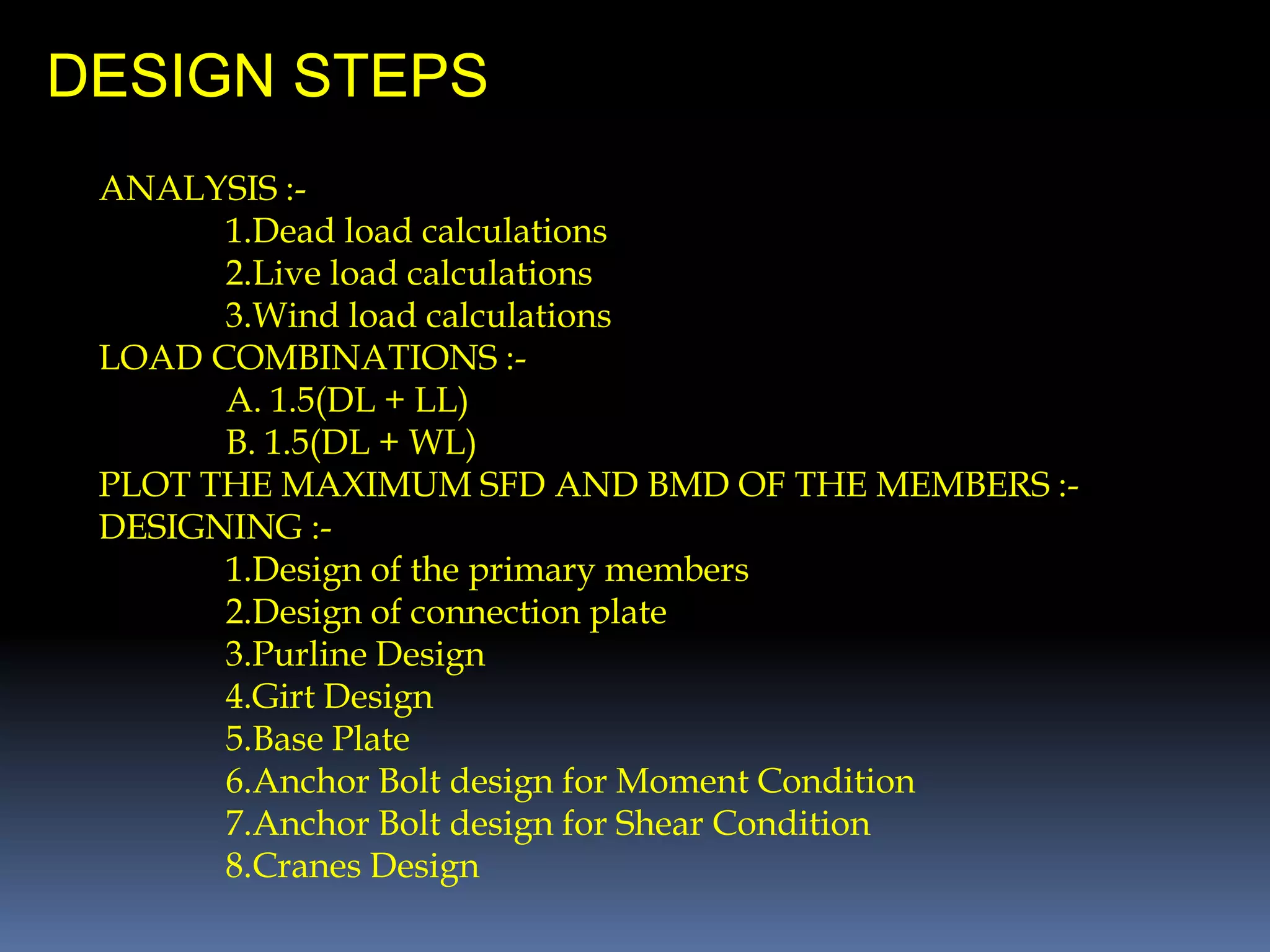

DESIGN STEPS

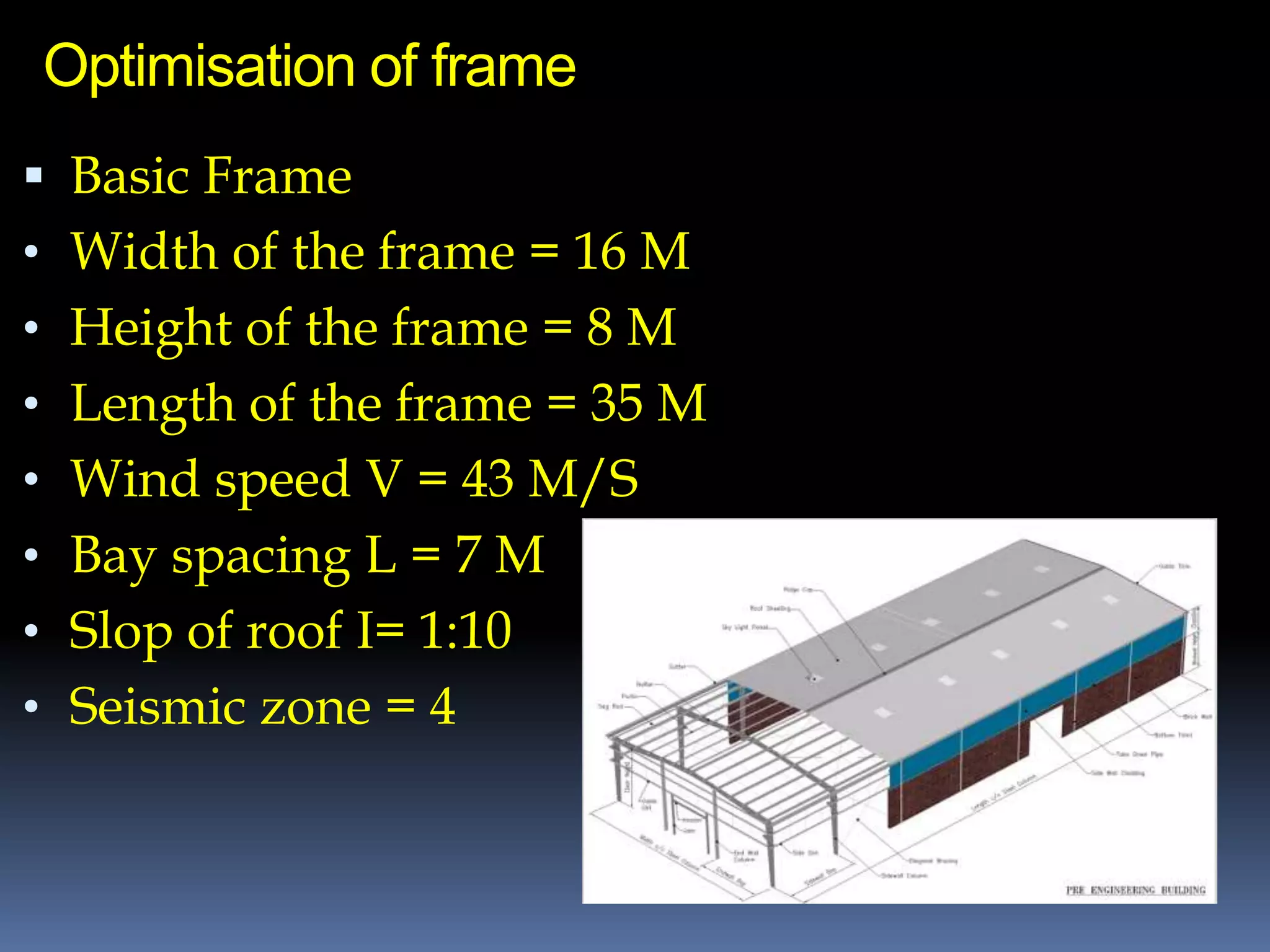

24. Optimisation of frame
 Basic Frame
• Width of the frame = 16 M
• Height of the frame = 8 M
• Length of the frame = 35 M
• Wind speed V = 43 M/S
• Bay spacing L = 7 M
• Slop of roof I= 1:10
• Seismic zone = 4

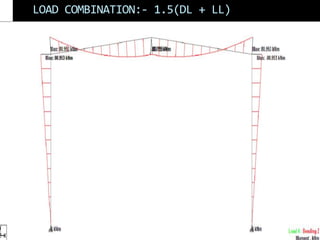

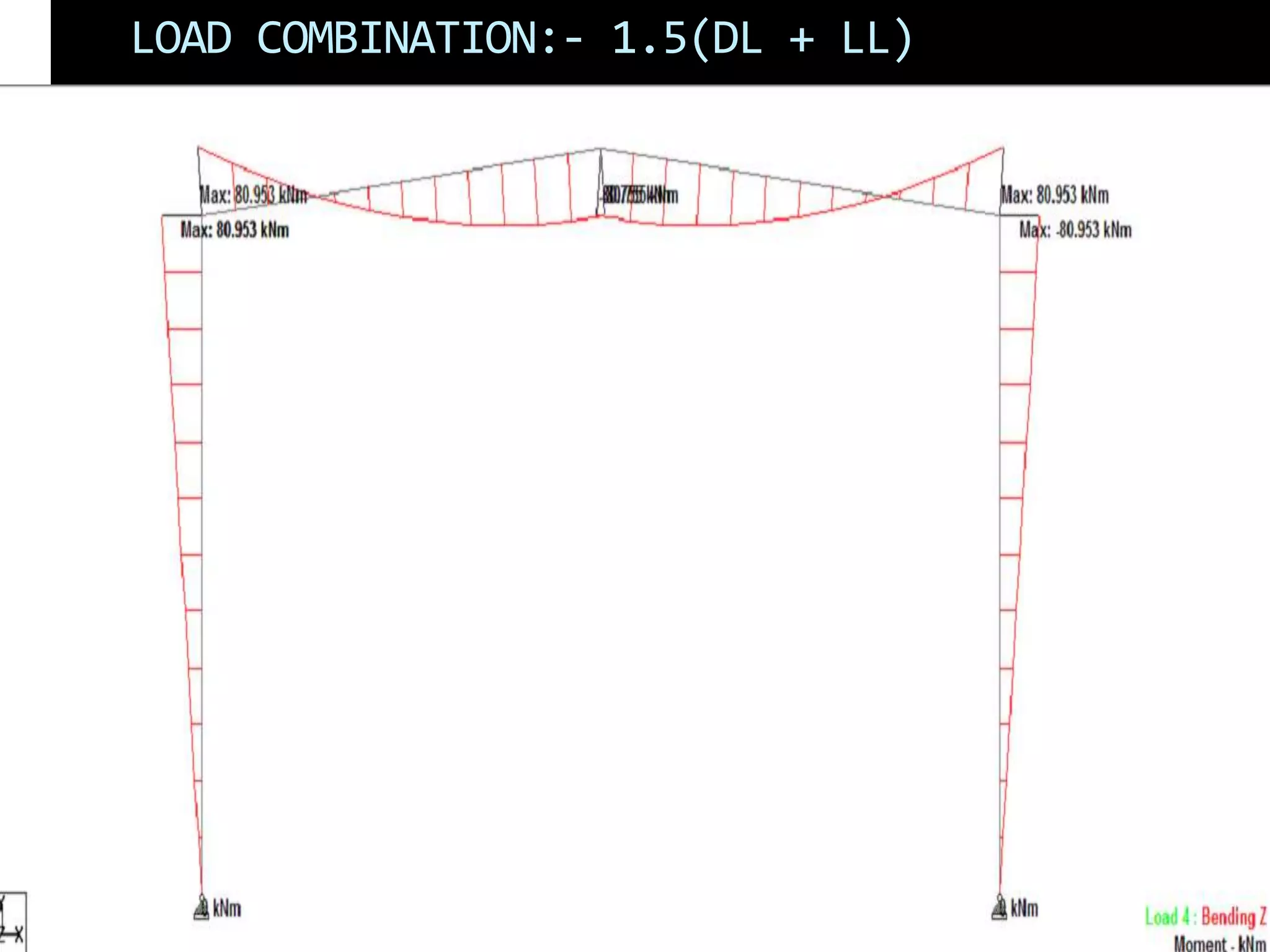

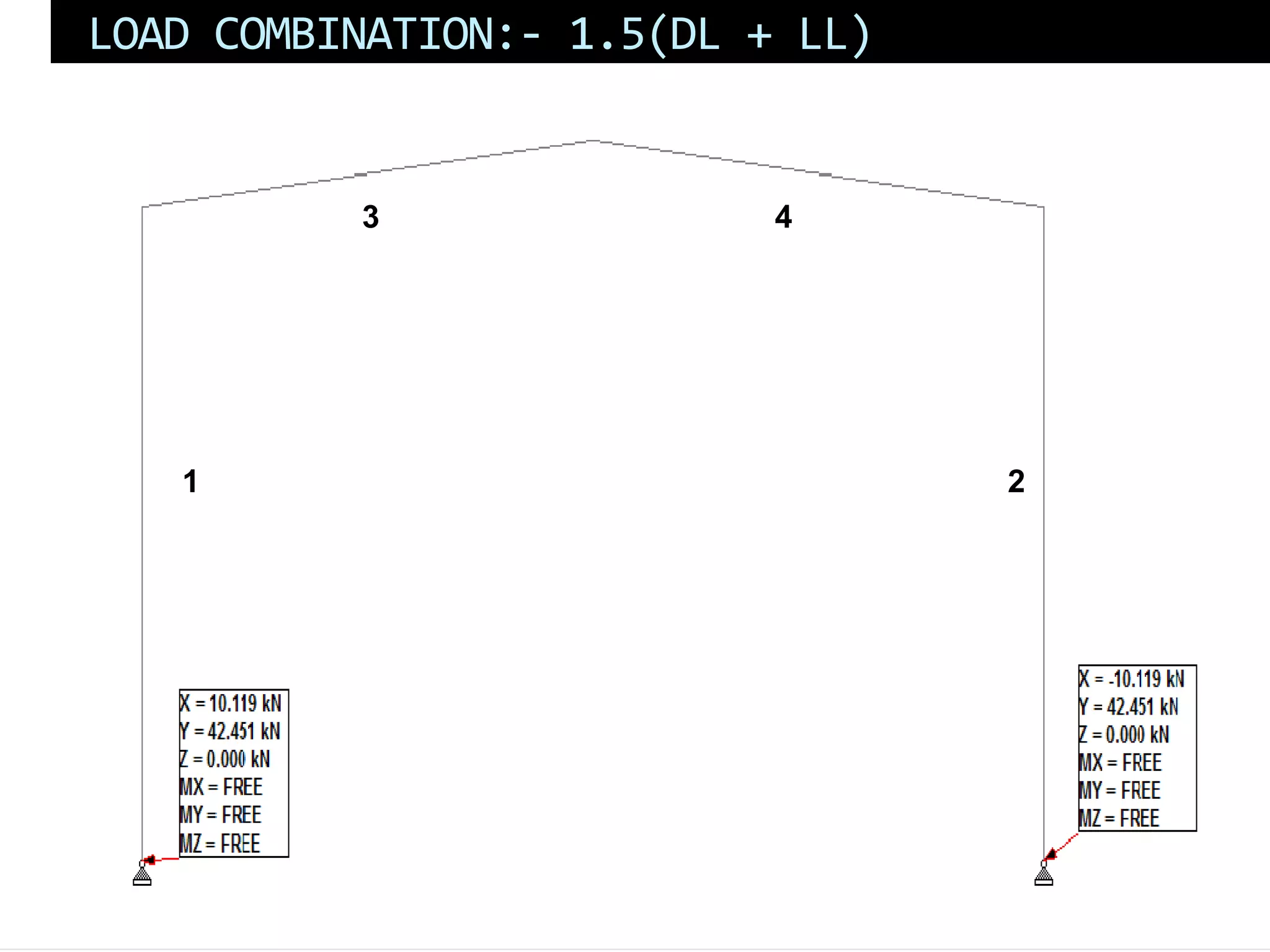

25. LOAD COMBINATION:- 1.5(DL + LL)

26. LOAD COMBINATION:- 1.5(DL + LL)
1 2
3 4

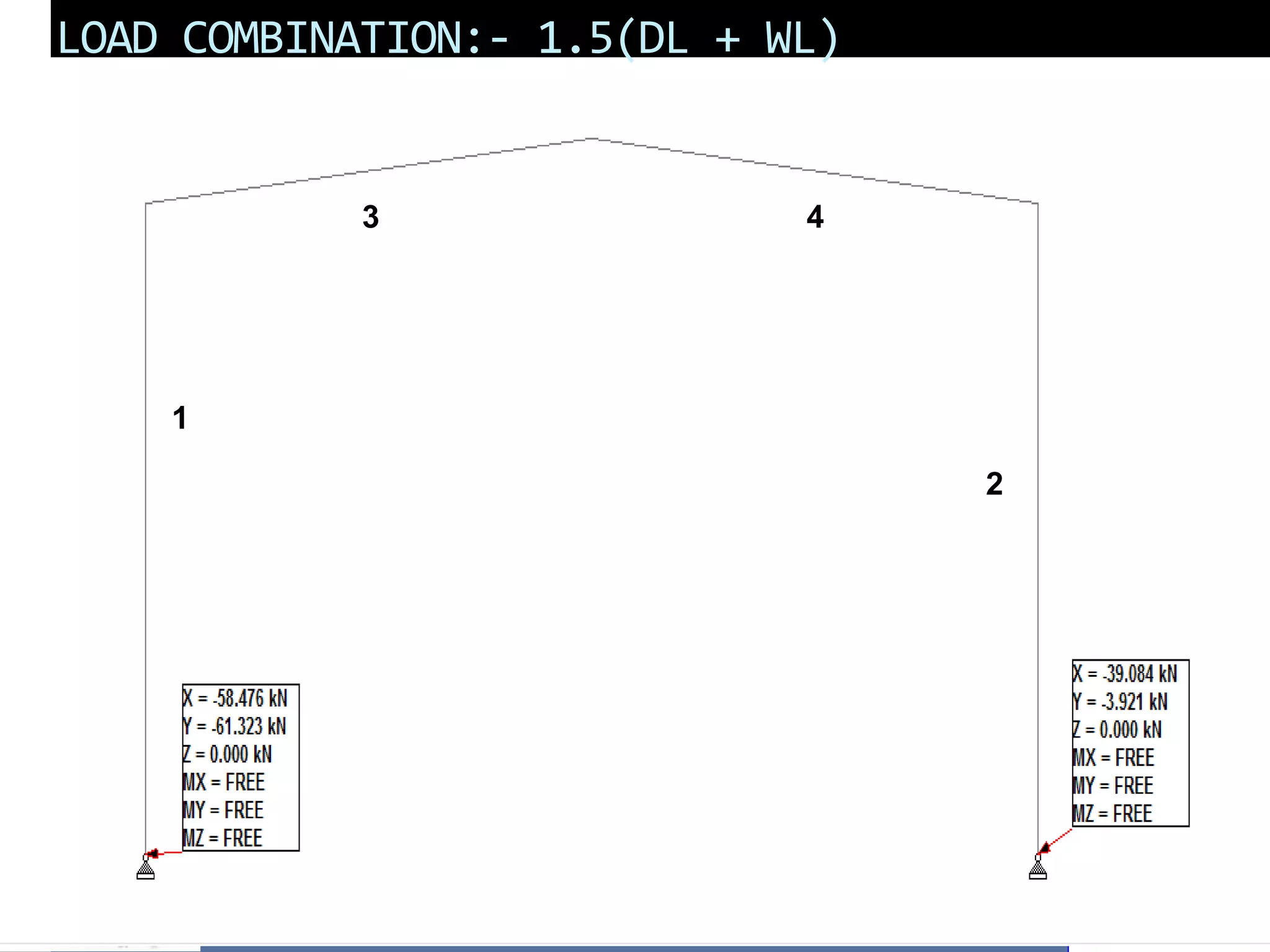

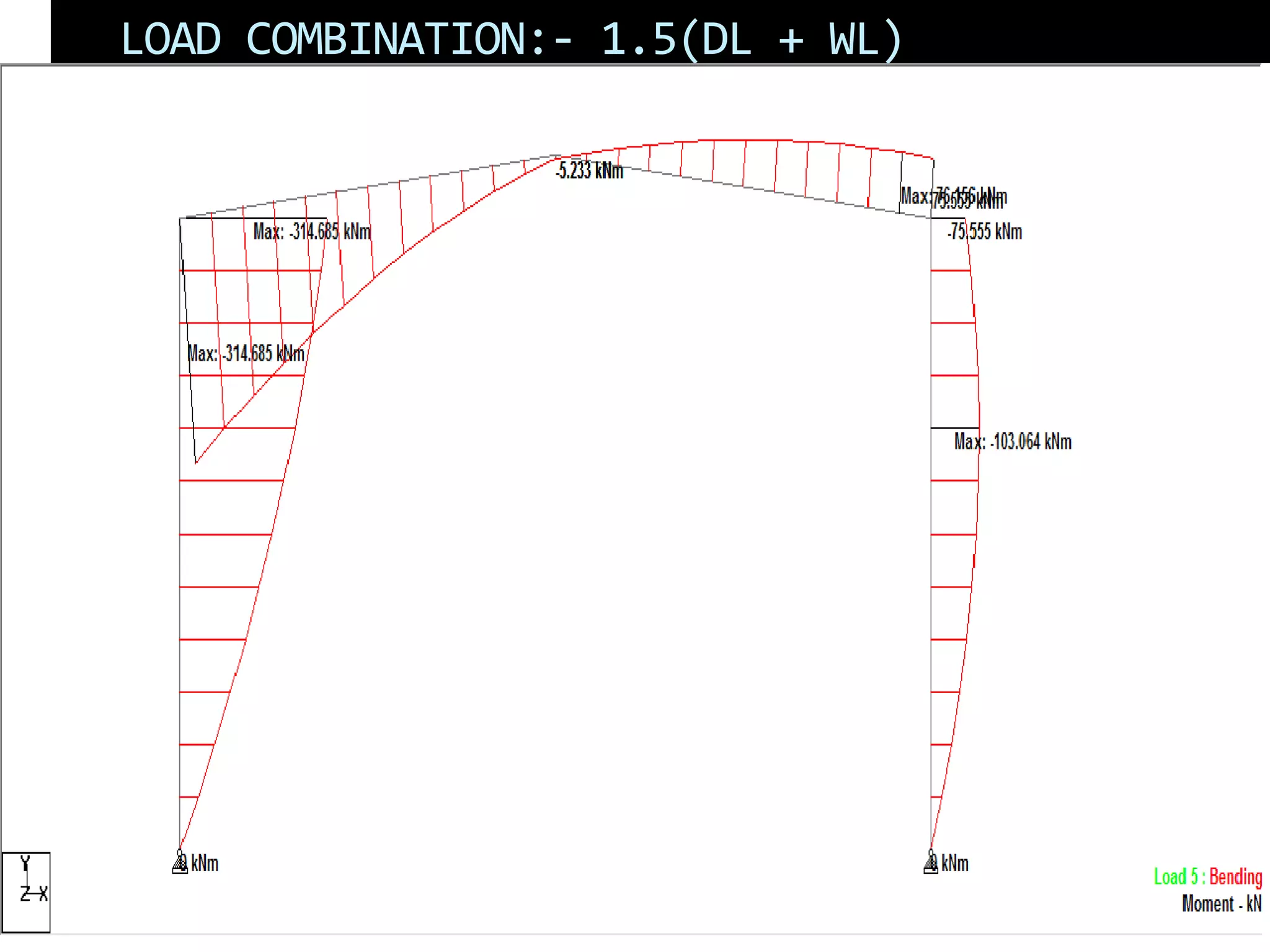

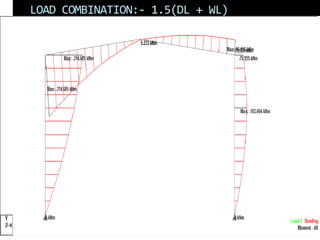

27. LOAD COMBINATION:- 1.5(DL + WL)

28. LOAD COMBINATION:- 1.5(DL + WL)
1
2
2
2
4
3

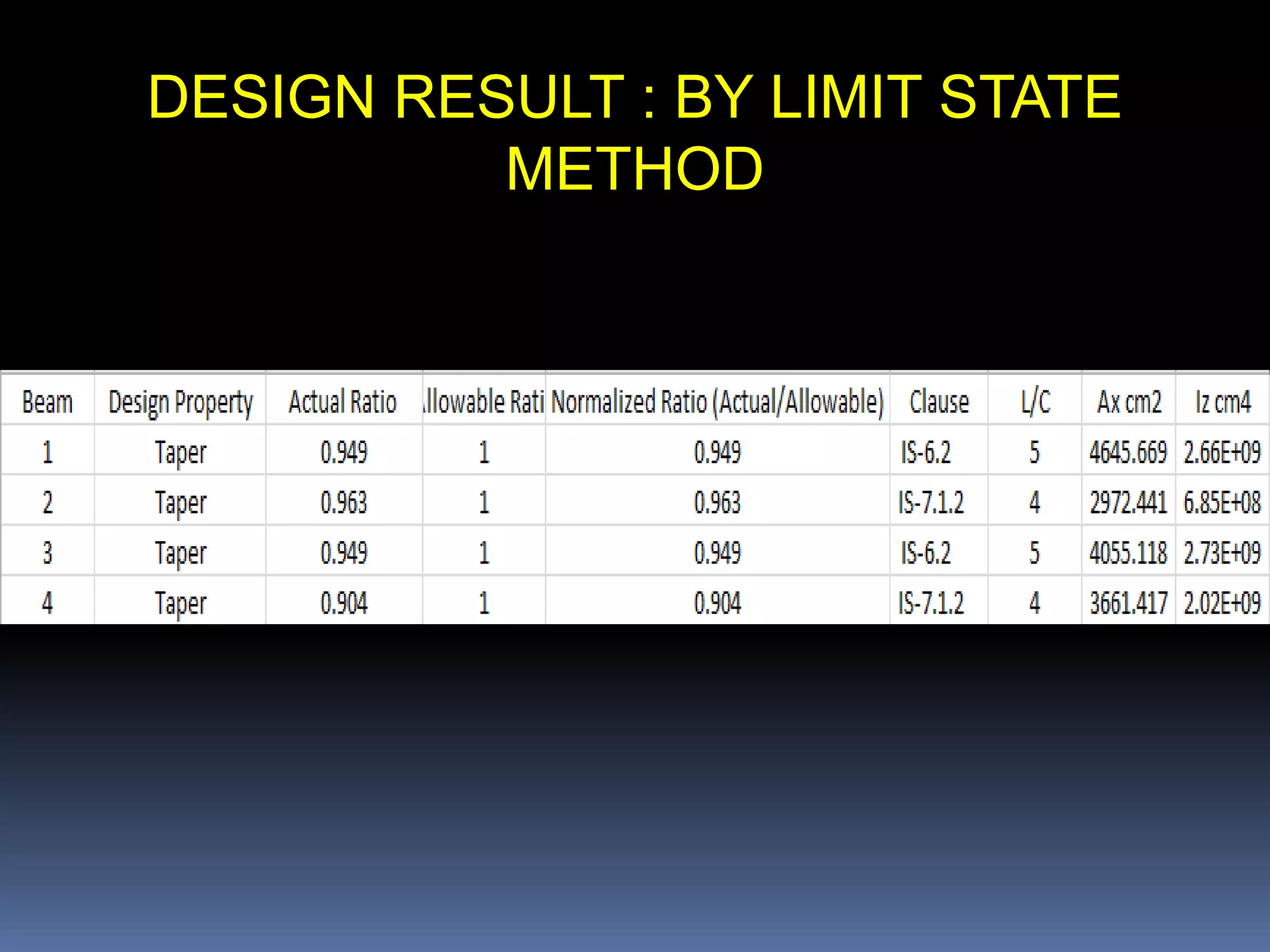

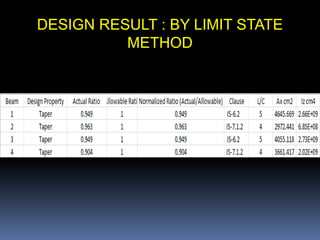

29. DESIGN RESULT : BY LIMIT STATE
METHOD

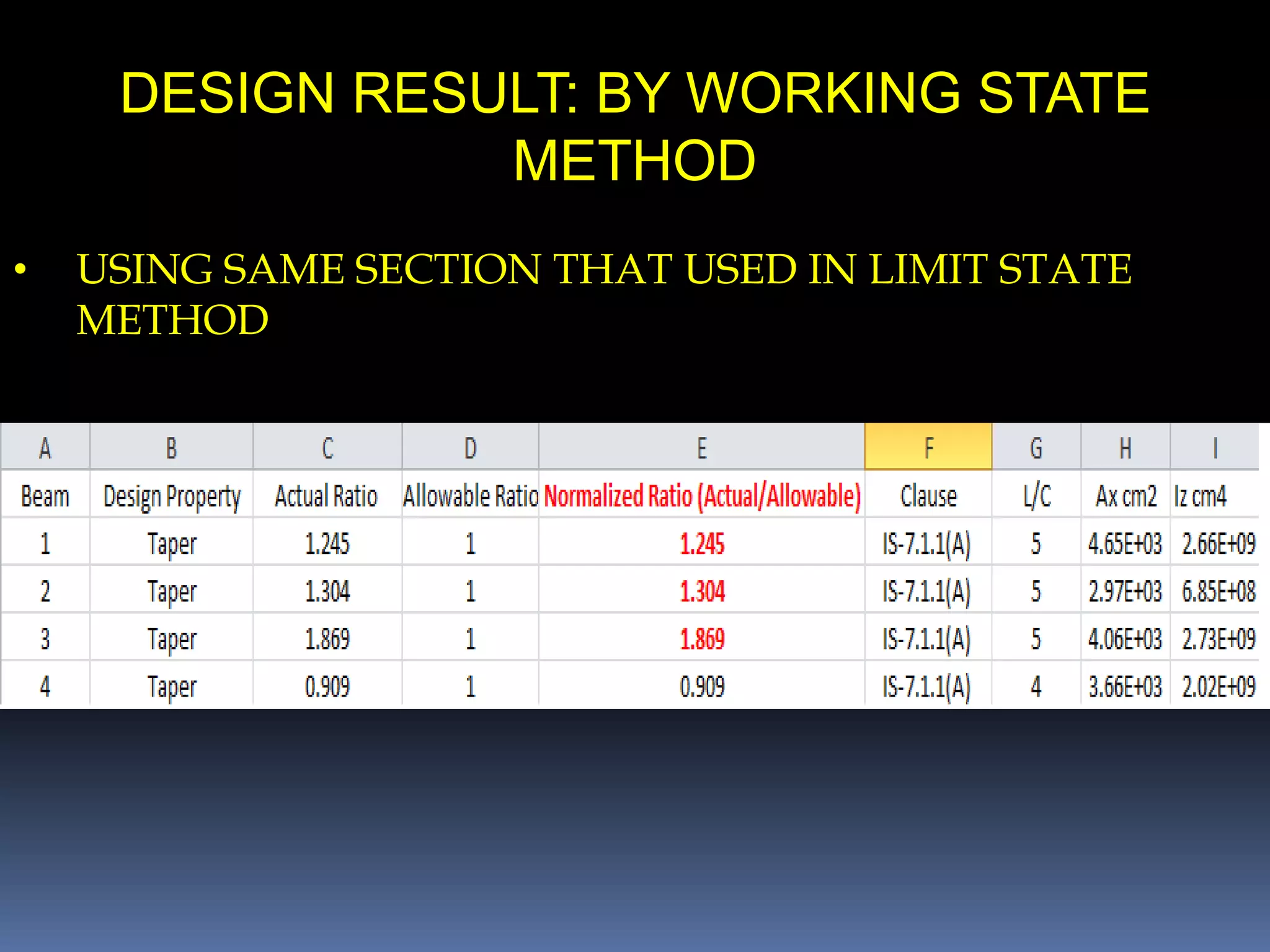

30. DESIGN RESULT: BY WORKING STATE
METHOD
• USING SAME SECTION THAT USED IN LIMIT STATE
METHOD

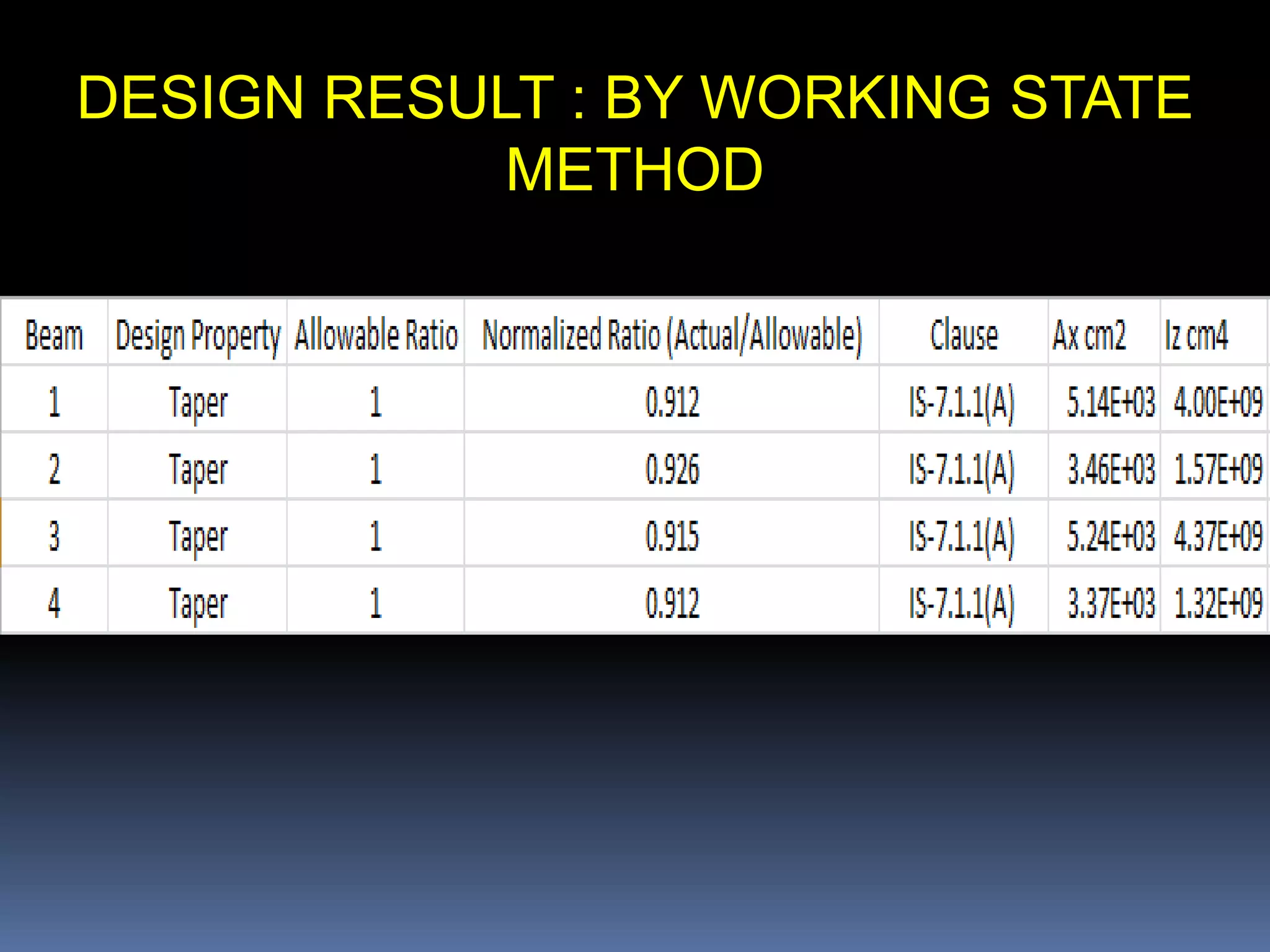

31. DESIGN RESULT : BY WORKING STATE
METHOD

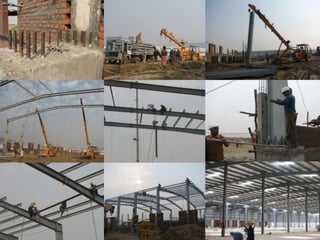

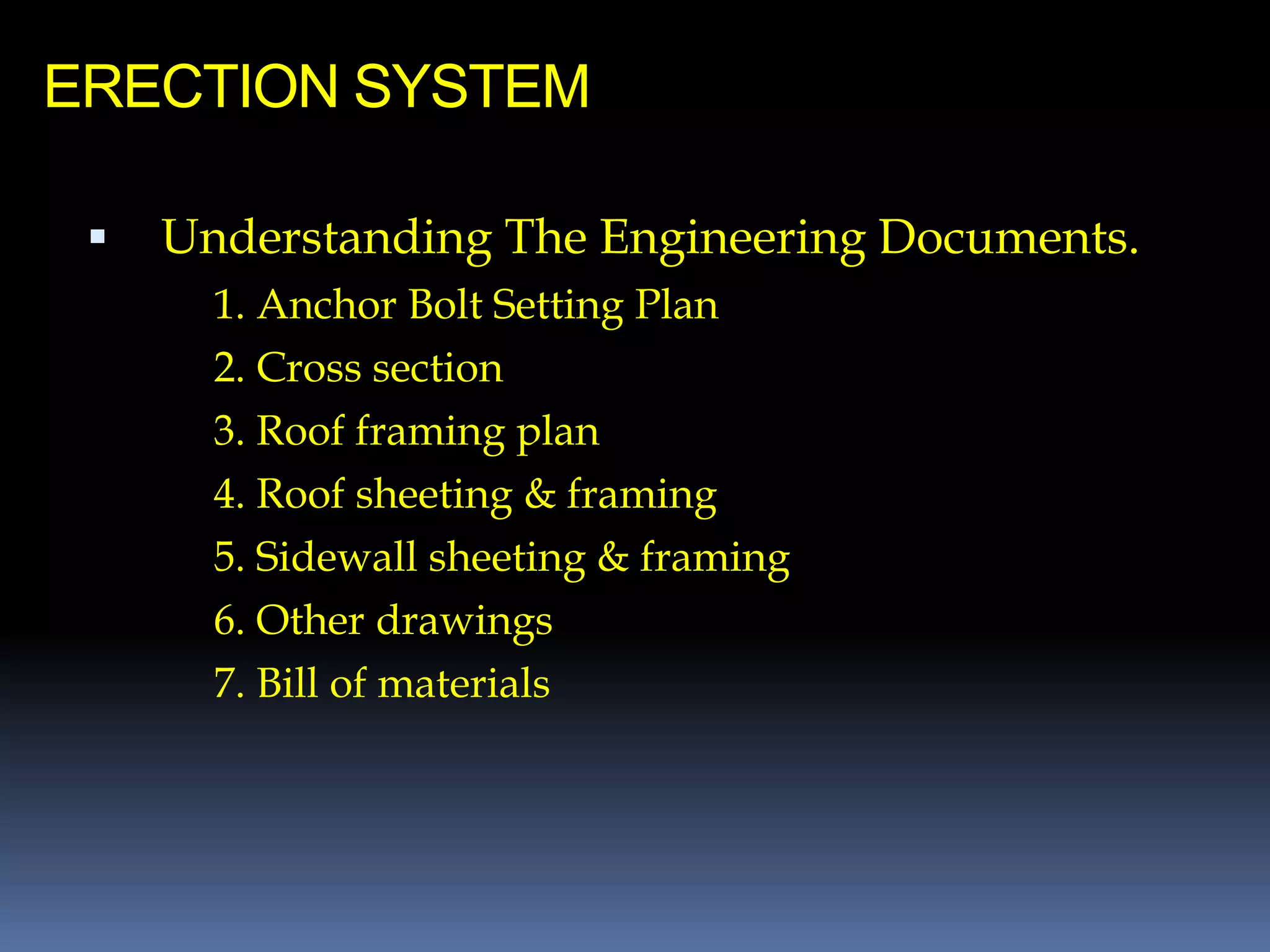

32. ERECTION SYSTEM
 Understanding The Engineering Documents.
1. Anchor Bolt Setting Plan
2. Cross section
3. Roof framing plan
4. Roof sheeting & framing
5. Sidewall sheeting & framing
6. Other drawings
7. Bill of materials

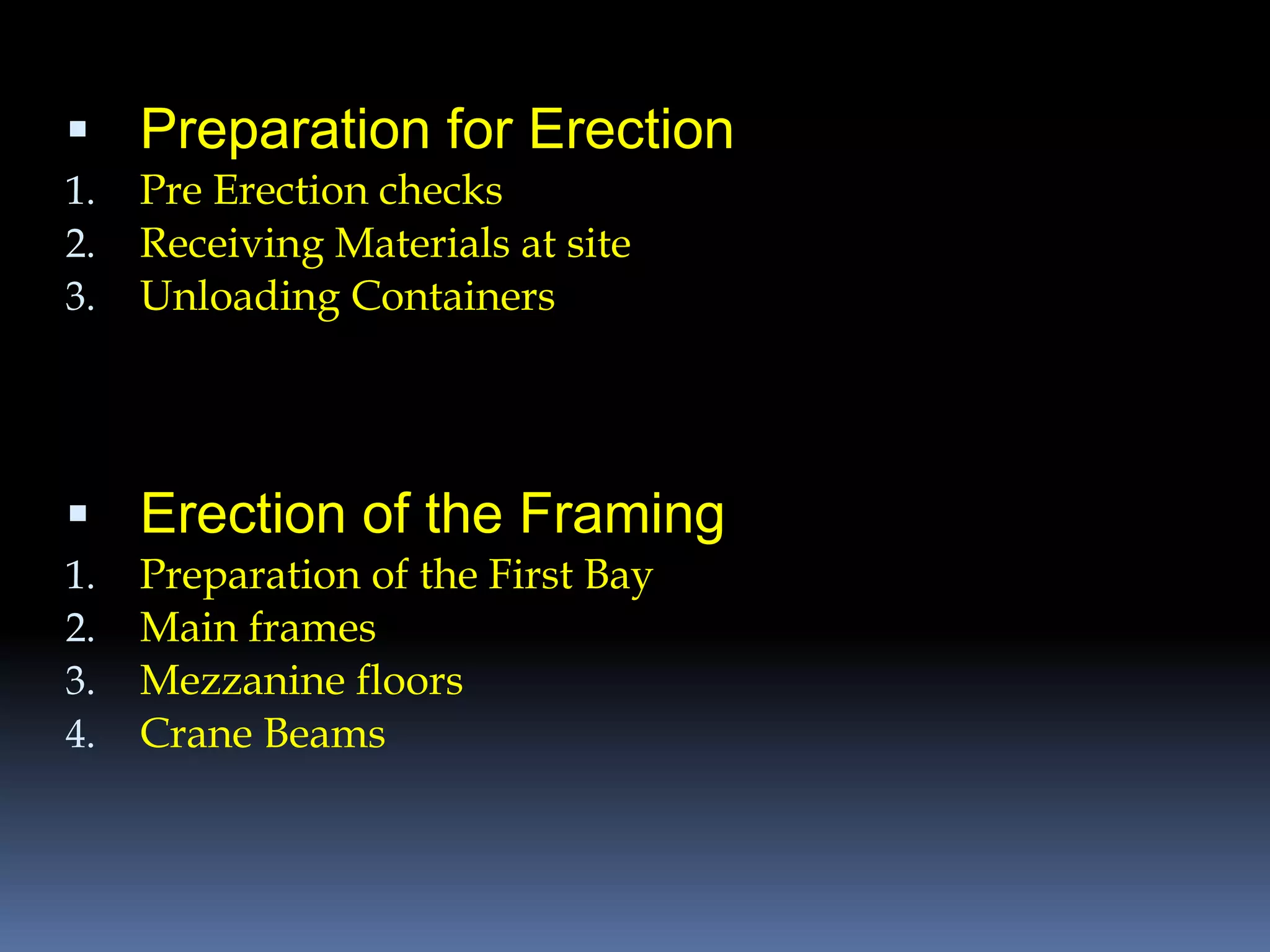

33.  Preparation for Erection
1. Pre Erection checks
2. Receiving Materials at site
3. Unloading Containers
 Erection of the Framing
1. Preparation of the First Bay
2. Main frames
3. Mezzanine floors
4. Crane Beams

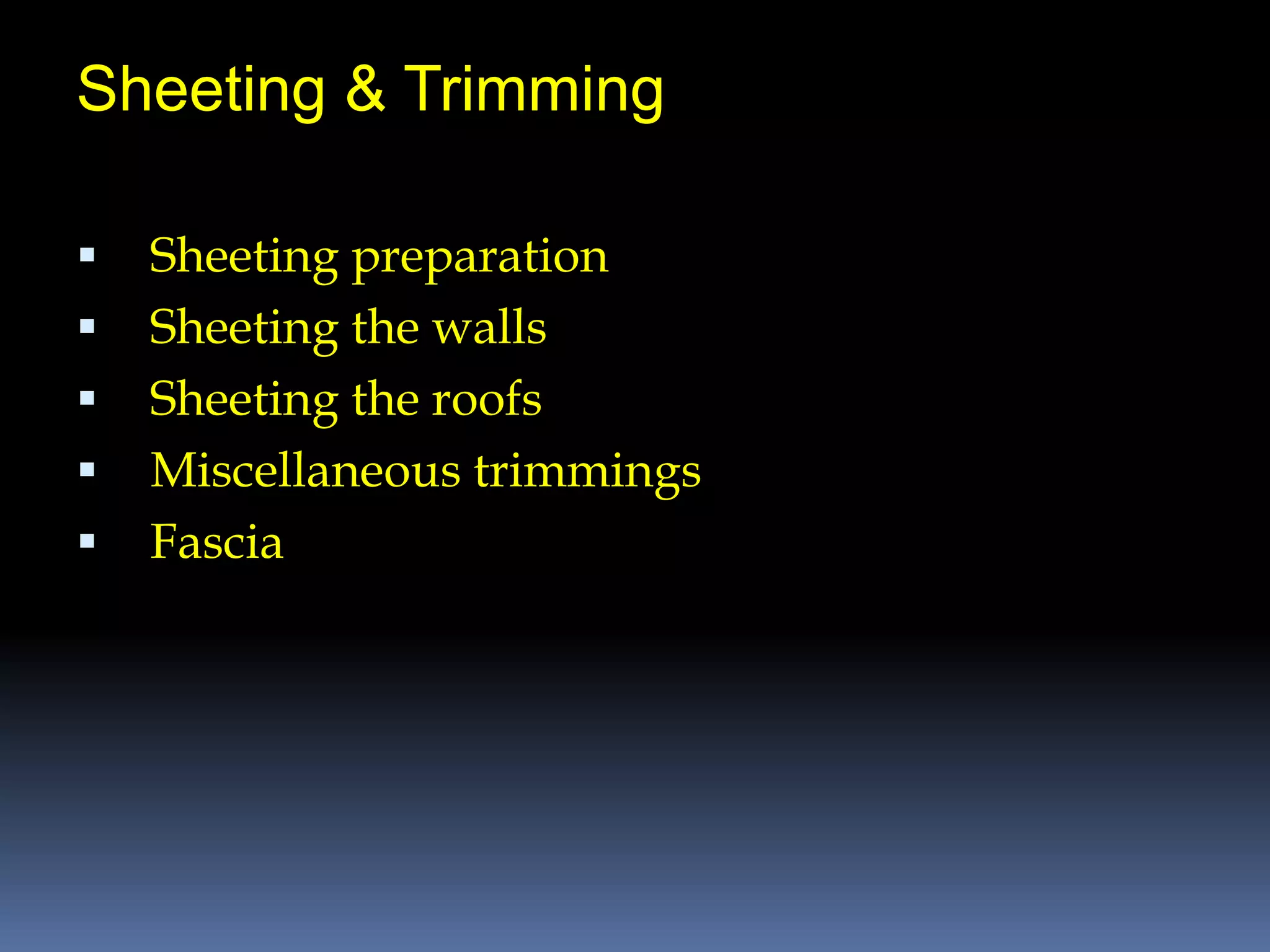

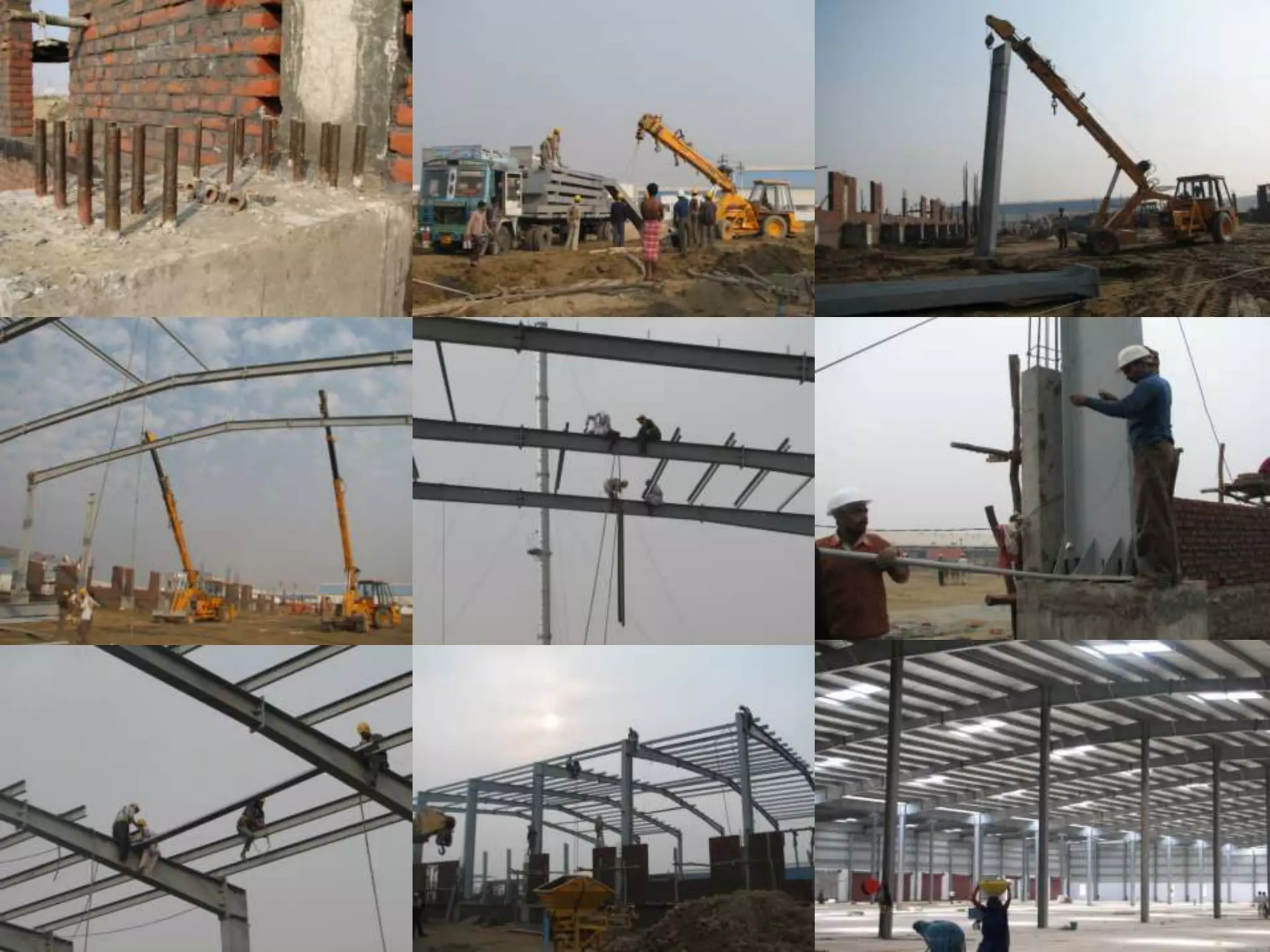

34. Sheeting & Trimming
 Sheeting preparation
 Sheeting the walls
 Sheeting the roofs
 Miscellaneous trimmings
 Fascia
