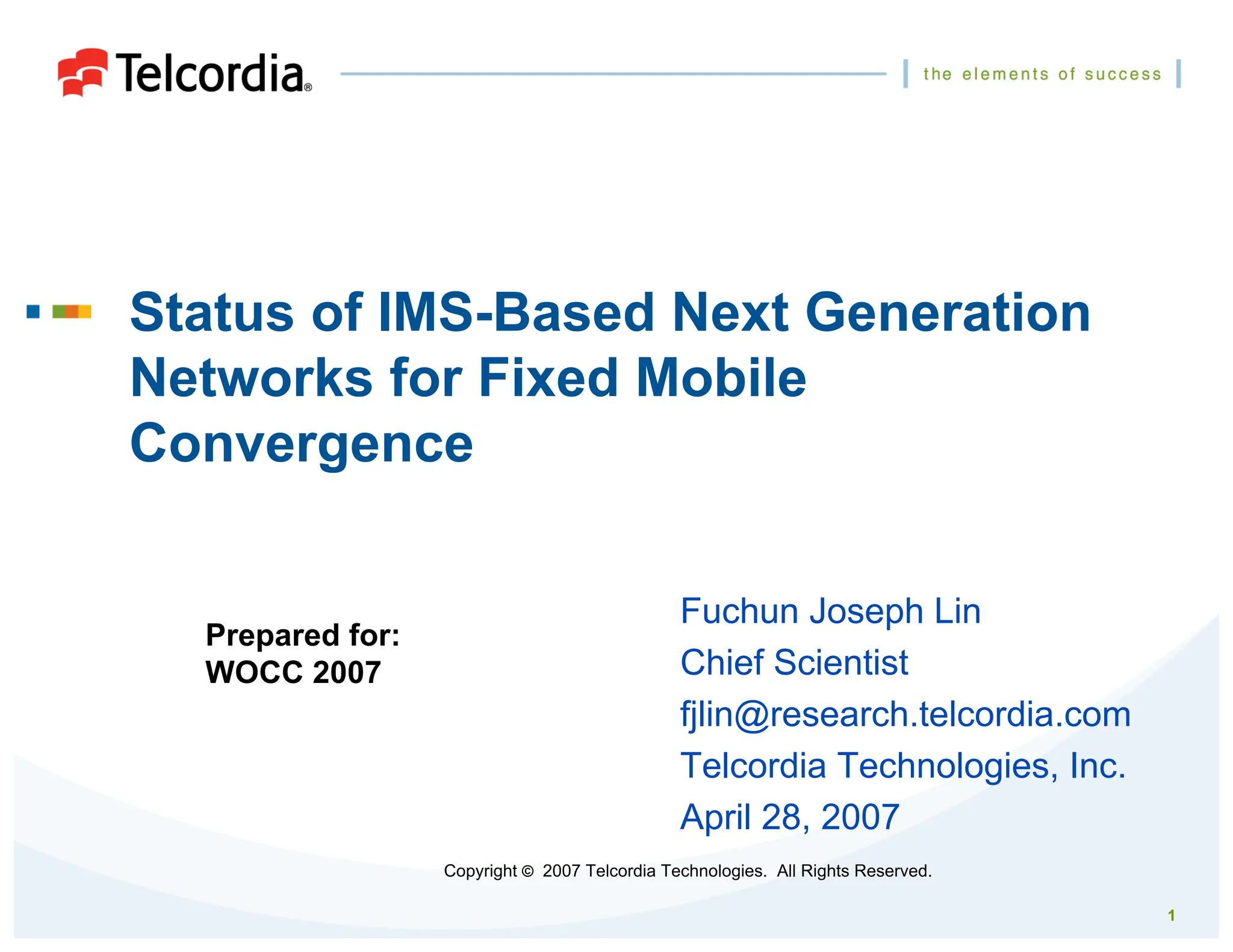

Status of IMS-Based Next Generation
Networks for Fixed Mobile
Convergence
Copyright © 2007 Telcordia Technologies. All Rights Reserved.
Prepared for:
WOCC 2007
Fuchun Joseph Lin
Chief Scientist
fjlin@research.telcordia.com
Telcordia Technologies, Inc.
April 28, 2007
- 2. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
2

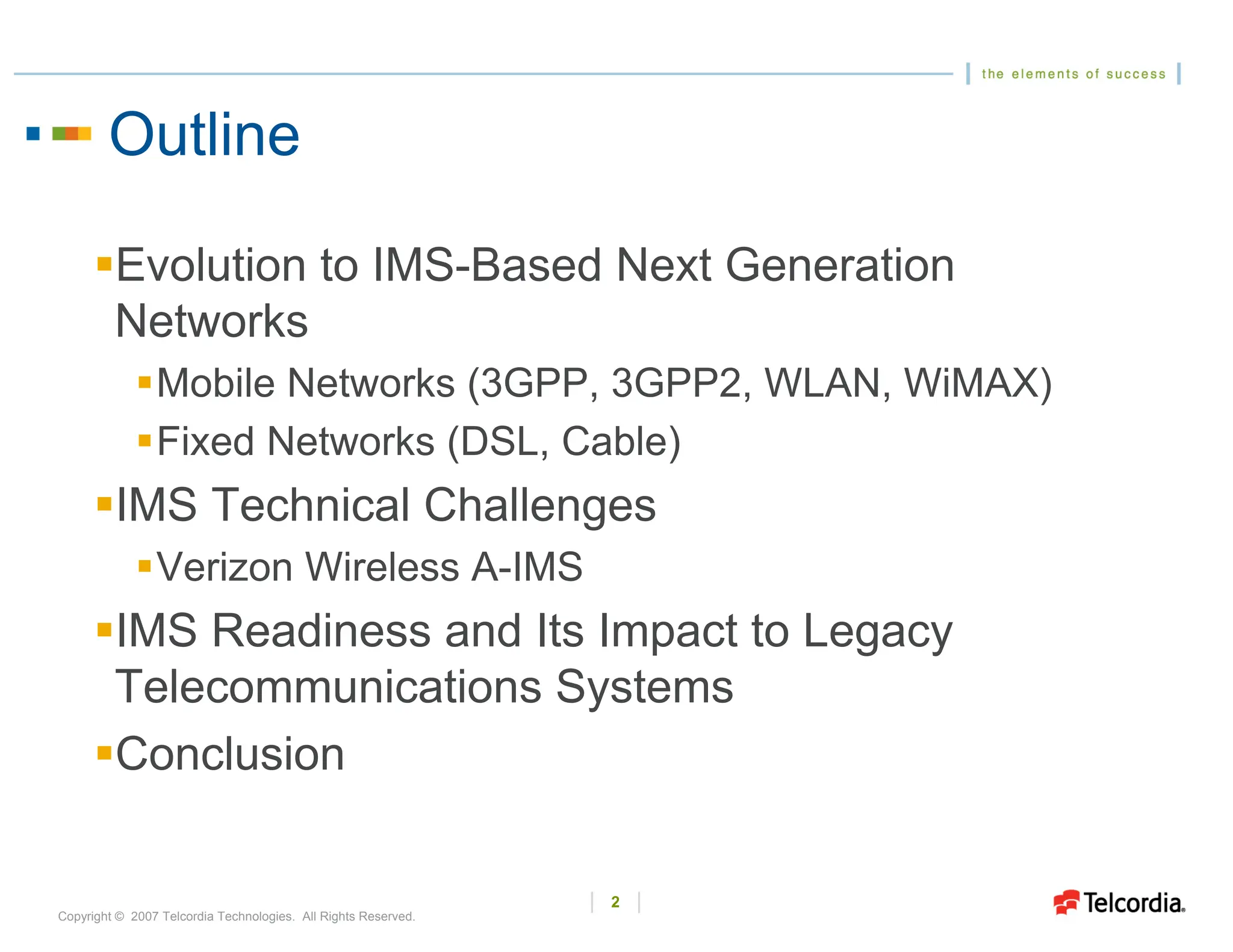

Outline
ƒEvolution to IMS-Based Next Generation
Networks
ƒMobile Networks (3GPP, 3GPP2, WLAN, WiMAX)
ƒFixed Networks (DSL, Cable)
ƒIMS Technical Challenges
ƒVerizon Wireless A-IMS
ƒIMS Readiness and Its Impact to Legacy
Telecommunications Systems
ƒConclusion
- 3. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
3
IMS-Based Next Generation Networks
CSCF MGCF
HSS
Applications
and
Services
OSA-SCS
IM CN
Subsystem
Legacy mobile signaling
networks
SGW
MRFP MGW
SGW
PSTN
MRFC
BGCF
IP/Multimedia
Networks
AS
SGSN
GGSN
PS-Domain
UTRAN
Mobile RANs CS-Domain
MSC
BGCF
SLF
IMS-SSF
PDF
IPCAN
Packet-Cable 2.0
3G Cellular
DSL
- 4. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
4
Evolution to IMS-Based Next
Generation Networks (1)
3GPP IMS 3GPP Release 5
IMS Phase 1
March
2003
3GPP Release 6
IMS Phase 2
December
2003
December
2005
June
2004
March
2005
3GPP Release 7
IMS Phase 3
3GPP Release 8
December
2006
PacketCable 2.0 Adopts IMS
ETSI
TISPAN_NGN
TISPAN NGN R1 NGN R2
ITU-T FG NGN and IPTV
ATIS NGN FG and IIF
ITU-T NGN R1
NGN Gap Analysis
NGN-GSI
IPTV
IPTV
WiMAX CSN 1.5 Adopts IMS
3GPP2 MMD
- 5. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
5
Evolution to IMS-Based Next
Generation Networks (2)
OMA
Has adopted IMS
Starting with Extended
IMS from TISPAN
ATIS
NGN-FG
ITU-T
NGN GSI
FMC
NGN
Based on IMS with
Broadband support
(e.g. xDSL)
NGN
Extended IMS
For Fixed Networks
Fixed
ETSI
TISPAN
ATIS (NA)
ETSI (Europe)
CCSA (China)
TTA (Korea)
ARIB (Japan)
TTC (Japan)
3GPP
Cellular
IETF
IMS
Specification
Reqts
CableLabs
PacketCable 2.0
Has adopted IMS
WiMAX Forum
NWG 1.5
Has adopted IMS
Mobile
- 6. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
6
IMS in Mobile Networks (3GPP,
3GPP2, WLAN, WiMAX)
ƒ 3GPP has IMS ownership and will continue evolve
IMS to meet the needs of various access networks.
ƒ 3GPP2 adopts IMS as the core of its Multi-Media
Domain (MMD) architecture but adds CDMA2000
access specific changes.
ƒ WLAN have been integrated with IMS in 3GPP
Release 6 using a loosely coupled architecture.
ƒ WiMAX follows the WLAN approach but adds
WiMAX access specific changes to its IMS
architecture.
- 7. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
7
IMS in 3GPP
ƒ IMS Phase 1 (3GPP Release 5)
ƒ Provisioning of IP-based multimedia services
ƒ Call control and roaming to support IMS in UMTS
ƒ Access Security for IMS
ƒ Lawful interception
ƒ Charging and OAM&P for IMS
ƒ IMS Phase 2 (3GPP Release 6)
ƒ IMS Conferencing
ƒ IMS Messaging
ƒ IMS Group Management
ƒ Interworking with WLAN
ƒ Additional SIP capabilities (e.g. forking)
ƒ Interworking with non IMS SIP networks (IETF SIP, IPV4)
ƒ Interworking between IMS and CS networks
ƒ Interworking and migration scenario for IPv4 based IMS
ƒ QoS improvements (Gq)
ƒ Flow-Based Charging
ƒ Presence
ƒ IMS Phase 3 (3GPP Release 7)
ƒ Fixed Broadband Access to IMS
ƒ Emergency calls in PS and IMS
ƒ End-to-end QoS
ƒ Combining CS with IMS
ƒ Policy Control Evolution and Charging
Accommodation of
requirements from
DSL and Cable
Accommodation of
requirements from
WLAN
- 8. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
8
IMS in 3GPP2 MMD
ƒ MMD consists of the following:
ƒ IMS (IP Multimedia Subsystem)
ƒ Packet Data Subsystem (vs. GPRS in 3GPP)
ƒ 3GPP2 IMS
ƒ Added flexibility (e.g. placement of P-CSCF)
ƒ Access network specific changes (e.g. QoS, Mobility)
ƒ Supports alternate authentication schemes etc.
ƒ 3GPP2 PDS
ƒ AAA, Policy, and Security Functions
ƒ Home Agent (HA)
ƒ Foreign Agent (FA)
ƒ PDSN (Packet Data Service Node)
ƒ PCF (Packet Control Function)
ƒ MMD Rev 0 in December 2003
ƒ MMD Rev A in November 2005
ƒ Now wrapping up MMD Rev B, starting Rev C.
- 9. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
9
IMS in WLAN and WiMAX
WAG PDG
CSN
IWU
WLAN
Access Network
WiMAX
Access Network
3GPP
AAA
Server
IMS
Home
IMS Core Network
Loosely Coupled Approach
PDG – Packet Data Gateway
•Service authentication and
authorization
•IP address allocation
•Policy enforcement and charging
WAG – WLAN Access Gateway
•Provide access to IMS services
•Route packets via PLMN to PDG
•Perform accounting and policy
enforcement
CSN IWU – CSN IWK Unit
•Provide local IP address
management (DHCP,
DNS)
•Provide NAT function
CSN – WiMAX Connectivity Service Network
- 10. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
10
IMS in Fixed Networks (DSL, Cable)
ƒ DSL
ƒ Under NGN (Next Generation Network) Initiative ITU-T and
ETSI TISPAN develop IMS suited for DSL networks.
ƒ Both TISPAN and ITU-T NGN Release 1 (supported by
IMS Phase 3 in 3GPP Release 7) was finished at the end
of 2005. Release 2 has been ongoing since 2006.
ƒ Cable
ƒ Under PacketCable 2.0 Initiative, Cable Labs is defining an
end-to-end architecture for providing real-time IP
communication services based on IMS
ƒ The goal is to extend cable’s existing Internet Protocol
service environment to accelerate the convergence of
voice, video, data, and mobility technologies
- 11. Copyright © 2007 Telcordia Technologies. All Rights Reserved.
